A 4D Virtual/Augmented Reality Viewer Exploiting Unstructured

Web-based Image Data

Anastasios Doulamis

, Nikolaos Doulamis

, Konstantinos Makantasis

and Michael Klein

Computer Vision Photogrammetry Lab.., Technical University of Athens, 9th Heroon Polytechniou str., Athens, Greece

Department of Production and Survey Engineering, Technical University of Crete, Polytechnioupolis, Crete, Greece

7 Reasons Company, ltd, 4-6th Bäuerlegasse, Vienna, Austria

Keywords: 4D Modelling, 3D Reconstruction, Content-based Filtering, Web-based Images, Virtual/Augmented Reality.

Abstract: Outdoor large-scale cultural sites are mostly sensitive to environmental, natural and human made factors,

implying an imminent need for a spatio-temporal assessment to identify regions of potential cultural interest

(material degradation, structuring, conservation). Thus, 4D modelling (3D plus the time) is ideally required

for preservation and assessment of outdoor large scale cultural sites, which is currently implemented as a

simple aggregation of 3D digital models at different time. However, it is difficult to implement temporal 3D

modelling for many time instances using conventional capturing tools since we need high financial effort

and computational complexity in acquiring a set of the most suitable image data. One way to address this, is

to exploit the huge amount of images distributing over visual hosting repositories, such as flickr and picasa.

These visual data, nevertheless, are loosely structured and thus no appropriate for 3D modelling. For this

reason, a new content-based filtering mechanism should be implemented so as to rank (filter) images

according to their contribution to the 3D reconstruction process and discards image outliers that can either

confuse or delay the 3D reconstruction process. Then, we proceed to the implementation of a

virtual/augmented reality which allows the cultural heritage actors to temporally assess cultural objects of

interest and assists conservators to check how restoration methods affect an object or how materials decay

through time. The proposed system has been developed and evaluated using real-life data and outdoor sites.

1 INTRODUCTION

Digitalizing cultural sites and objects and creating

3D digital models is an important task to preserve

Cultural Heritage (CH). Among all CH resources,

the outdoor large-scale cultural sites are mostly

sensitive to weather conditions, natural phenomena

(earthquakes, flooding, etc), excavation procedures,

and restoration protocols. This implies an imminent

need for a spatio-temporal monitoring of those sites

to identify regions of potential material degradation,

and unstable structuring conditions. Thus, a time

varying 3D model (i.e., 4D modelling-3D geometric

dimensions plus the time) should be developed to

assess spatial and temporal diversity of CH objects

but again under a cost-effective framework able to

be applied to large-scale sites.

One main difficulty of implementing temporal

3D modelling is the complexity, and the respective

financial effort, in acquiring a set of images required

for the 3D reconstruction. One way to address this,

is to exploit the huge amount of images distributing

over visual hosting repositories, such as flickr and

picasa (Doulamis et al, 2013). However, the main

functionality of the existing web-based visual

repositories is to socially share multimedia content,

instead of archiving the images in a way that allows

efficient and precise 3D modelling of objects of

interest. This unstructured organization of images,

with respect to 3D reconstruction, imposes new tools

and methods in the area of content based filtering;

ranking (filtering) images according to their

contribution to the 3D reconstruction process while

at the same time discarding image outliers that can

either confuse or delay the 3D reconstruction

process

Content Based Image Retrieval (CBIR) methods

can be considered as the first approaches for

organizing multimedia content (Murthy et. al.,

2010). The main goal of a CBIR method is to find a

set of images whose contents are similar to, or even

match with, a given query from within a large image

631

Doulamis A., Doulamis N., Makantasis K. and Klein M..

A 4D Virtual/Augmented Reality Viewer Exploiting Unstructured Web-based Image Data.

DOI: 10.5220/0005456806310639

In Proceedings of the 10th International Conference on Computer Vision Theory and Applications (MMS-ER3D-2015), pages 631-639

ISBN: 978-989-758-090-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

database. According to (Daras et. al., 2012) the

combination of multiple 3-D object descriptors can

achieve better retrieval accuracy than a single

descriptor vector alone. Thus, research should focus

not only on the investigation of the optimal

descriptor but also on the appropriate combination of

low-level descriptors as well as on the selection of

the best features and matching metrics. In particular,

in the SHREC'11 search and retrieval competition,

the best performance is achieved by combining a)

the Spectral Decomposition of the Geodesic

Distance Matrix and b) the Scale Invariant Feature

Transform for meshes (meshSIFT) (Smeets et. al.,

2009).

Towards this direction, (Murthy et. al., 2010)

introduces a two layer image retrieval algorithm that

exploits hierarchical clustering based on colour

features. In the same context, the retrieval system of

(Chum et. al., 2007) returns all different views of an

object upon a user's query. However, the main

limitation of these works is that they require a query

image to carry out the retrieval process which is not

suitable in our case; better organization of images

with respect to 3D reconstruction.

Unsupervised content based organization has

been introduced in (Kekre et al., 2010) to create

codebooks based on colour descriptors. Another

approach exploits fuzzy Support Vectors Machines

(fSVMs) to cluster visual information while visual

encoding is carried out on the use of dominant

colour descriptor (Min and Cheng, 2009). The main

limitations of these approaches rely on the usage of

global image features to encode visual content.

Therefore, they are not suitable for an efficient

content-based organization towards 3D

reconstruction due to the fact that global descriptors

fail to represent the different view instances of an

object since they are not able to capture geometric

characteristics.

Some other techniques filter out the retrievals

using textual and/or geo-location information. The

tools combine geo-information along with a

hierarchical clustering method that exploits visual

features to obtain dense groups (Arampatzis et. al,

2013) and (Papadopoulos et. al., 2010). Again, these

methods are based on global descriptors, failing to

represent image geometry.

A content-based filtering method suitable for

organizing visual content located over distributed

web-based image repositories for the purposes of 3D

reconstruction have been proposed in (Makantasis

et. al., 2014). The algorithm exploits local geometric

properties and density based clustering methods to

organize unstructured multimedia content in a way

to accelerate 3D reconstruction, while keeping its

performance as precise as possible. A semi-

supervised approach is presented in (Protopapadakis

et al, 2014)

While the work of (Makantasis et. al., 2014)

introduces a method for efficiently ranking images

according to their contribution to the 3D

reconstruction process, it fails to incorporate the

results into a virtual and augmented reality interface.

The latter not only exploits the organization of the

images in order to achieve 3D modelling but also

permits the users to spatio-temporally assess the

derived 3D models (Hadjiprocopis et. al, 2014).

Only under such a framework, the content based

organization methods of (Makantasis et. al., 2014)

can be exploited in real-life conditions. The

developed scheme assists conservators to check how

restoration methods affect an object or how

materials decay through time, archaeologists to

better document an item, curators to properly display

them, and the creative industries to disseminate

cultural knowledge in a digestive way worldwide.

Today, the construction of high fidelity 3D models is

a time consuming task, with limited functionalities

since it cannot capture time evolutions properties of

an item (how it behaves in time) and scalable

functionalities needed for different types of CH

actors. In addition, the time required to get a precise

model is often too high due to the manual effort

needed to be interwoven in the reconstruction

process. For this reason, 3D digitalization is mainly

applied to individualized items of museums'

collections, to indoor cultural assets where temporal

variations is minimal and to famous sites/museums

where adequate financial resources can be given to

perform such a digitalization.

This paper is organized as follows. In Section 2,

we discuss the algorithms used for modelling the

retrieved images under a geometrically invariant

framework. In this section, we also discuss the

methods for transforming the image data into

multidimensional key-points onto a manifold in a

way that the distance between two points coincide

with the visual similarity distance between the two

images. Then, Section 3 presents the content based

filtering algorithms used for structuring the retrieved

data from distributed Web repositories for 3D

reconstruction purposes. This section includes the

algorithm used for removing the image outliers as

well as the methods used for extracting the most

appropriate images for 3D reconstruction. Section 4

discuss the 4D CH viewer as well the respective

augmented reality functionalities that allow for the

end-users to overlay, track and manipulate 3D

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

632

reconstructed objects over 2D interfaces. Finally,

Section 5 presents the experimental results along

with 4D cultural heritage viewer representation,

while Section 6 concludes the paper.

2 CONTENT MODELLING

2.1 Geometrically Invariant Modelling

Initially, the ORB (Oriented FAST and Rotated

BRIEF) is used for locally representing the visual

properties of an image (Rublee et. al., 2011). ORB

extracts a set of image keypoints which are then

used to describe geometric characteristics of an

image under an invariant affine transformation way.

Selection of ORB compare to other local descriptors,

like SURF, SIFT, is that it gives the same

performance as SIFT while being two orders of

magnitude faster.

Then, the visual similarity between two images is

computed. Visual similarity is measured over the

correspondence points of the two images. The

correspondence points are estimated by applying a

nearest neighbour matching algorithm on the

extracted key-points. In this paper, the local

sensitive hashing approach and the hamming

distance are adopted (Lv et. al., 2007) as far as the

matching algorithm is concerned since the extracted

key-points of ORB are described as a binary pattern.

Let us denote as

)( A

and

)(B

two correspondent

key points between two images A and B. Then, we

form a set

)( BA



that contains the correspondent

key-points from the image A to B and a set

)( AB



that contains the respective points from B. The

intersection between those two sets defines the 2-

way matching. Then Then, that the similarity

between images A and B can be defined as

KMs

BjAi

),(





(1)

where

),( BA

refers to the cardinality of

),( BA

set and K the number of extracted key-points.

Using the aforementioned process for all N

retrieved images, we conclude to an NxN symmetric

matrix S whose elements

s ]10[



. Values close

to zero indicate no relation between the two images,

while values near one a high relationship degree.

The visual dissimilarity matrix D is defined as the

logarithm of S,

)log(][

SD 

2.2 Multi-dimensional Manifolds

By exploiting the similarity matrix D, we can

represent the N retrieved images as single points

onto a multidimensional manifold. In particular, let

us define as





)(

the coordinates of the i-th

image onto the μ-dimensional space. Then, using the

multi-dimensional scaling method (cMDS) [see

(Cox and Cox, 2000)], we relate the coordinates of

the μ-dimensional image points with the similarity

distance matrix D.

In particular, images that are visually similar

would be mapped onto points of the

multidimensional manifold, which are located

"closely enough" in the subspace. On the contrary,

image outliers will be spread far away. The multi-

dimensional manifold is constructed in a way so that

the distance between two image points of the μ-

dimensional space coincides with the respective

similarity distance

)log(

,, jiji

sd 

jid

)()(

 xx

In the sequel, we exploit the concepts of cMDS

(Cox and Cox, 2000) to establish a connection

between the space of the distances and the space of

Gram matrix

XXB





(Cayton, 2006). X is the

matrix that contains all N image coordinates

)(i

x .

More specifically, matrix D is an Euclidean

distance matrix if and only if

HDHB



 *2/1

where

N 11IH */1

a positive semi-definite

matrix with I the unity one and 1 a vector of all

ones elements. Furthermore, this B will be the Gram

matrix for a mean centred configuration with

interpoint distances given by D. Assuming non

Euclidean spaces, matrix B as described above will

not be positive semi-definite, and thus it will not be

a Gram matrix. To handle such cases, cMDS

projects the Gram matrix B onto the cone of positive

semi-definite matrices by setting its negative

eigenvalues to zero.

Having estimated the Gram matrix B, we are

able to get matrix X by spectrally decomposing B

into

UVU 

and then

2/1

VUX 

. Let us now

denote as

q i=1,2,…Ν the eigenvectors of B and as



the respective eigenvalues. Then matrix U is the

square NxN matrix whose i-th column is the

eigenvector q

of B and V is the diagonal matrix

whose diagonal elements are the corresponding

eigenvalues. Finally the dimension μ of the

multidimensional space is equal to the multiplicity

of non-zero eigenvalues of matrix B.

A4DVirtual/AugmentedRealityViewerExploitingUnstructuredWeb-basedImageData

633

3 SELECTION OF THE MOST

REPRESENTATIVE IMAGES

FOR 3D RECONSTRUCTION

In this section, we describe the tools applied to (i)

remove image outliers and (ii) select a set of

representative images enabling an as much as

possible precise 3D reconstruction.

3.1 Outliers Removal

Since in our system 3D reconstruction takes place

from a set of loosely structured imagery data located

over distributed web-based repositories, we expect

that several images that fit a specific category will

be in fact outliers. A density-based visual clustering

algorithm is adopted in this paper to remove the

outliers. As we have no prior knowledge regarding

outliers density parameters (e.g., the area of the

outliers' region and how dense it is), we apply a

procedure to automatically estimate them as in

(Makantasis et. al, 2014).

Then, a modified version of the DBSCAN,

density based clustering algorithm, named Core

Sample Partitioning (CSP), is selected to remove the

outliers. The conventional version of DBSCAN

creates a compact subset by including all points of

the multi-dimensional manifold that are either

density reachable or density connected to a core

sample. Two points are density reachable if they are

either direct reachable, that is, they belong to the

same density area with respect to a similarity

distance, or there exists a chain of points that some

of them are directly reachable.

The main drawback of the conventional

DBSCAN algorithm in the context of our paper is

that, although it minimizes the probability of

excluding relevant images, it also includes some of

the outliers in the target subspace. On the contrary,

CSP exploits the notion of directly density-

reachability, creating a set that minimizes the

probability of an image outlier to belong to the

partitioned subset of relevant images. If we suppose

that a large enough set of images for an object is

available, the proposed modified DBSCAN

approach selects images for the 3D reconstruction

process that yield low computational complexity,

while its precision performance remains almost the

same.

3.2 Representative Images for 3D

Reconstruction

The modified CSP algorithm discards image outliers

since it detects sparse image samples spreading far

away from the dense subspace of the “relevant

images” onto the multi-dimensional manifold. This

way, we exclude the visual space into two areas; the

one of the outliers and the one of the relevant

images. Having detected the relevant set, we need

then to proceed to the extraction of a small set of

representative images of the object of interest that

can maximize geometric depiction. This is achieved

in this paper using a spectral clustering method. The

advantages of the spectral clustering algorithm is

that it treats clustering as a graph partitioning

problem without making specific assumptions on the

form of the created clusters (Bach and Jordan,

2003).

Spectral clustering optimally solves a graph

partitioning problem so that (i) elements within a

cluster present the maximum coherence, while (ii)

elements across data presents the minimum

coherence. This is achieved by estimating the

similarity degree among the partition vertices. That

is, this similarity across vertices belonging to the

same cluster is expected to increase while, on the

contrary, the similarity among the vertices of

different partitions is expected to decrease. To avoid

convergence of the algorithm to trivial solutions in

which a cluster consists only of one element,

normalization factors are imposed in the

minimization process.

Since a graph can be straightforward represented

in a matrix representation, we can formulate the

aforementioned twofold minimization process in a

matrix form as









)(

min:

aLa

(2)

where

a ][ a

is an index vector, whose the

u-th entry equals to unity whether the respective u-th

image is assigned to the r-th partition

C , and zero

otherwise.

We also denote as E the adjacent matrix of the

graph G. Therefore, we have that matrix E is

expressed as

][



where the elements of

are

modelled as

)log(

ijijij

sdw





. We recall that

,ij

is the similarity matching between the images i

and j respectively.

Let us also denote as Z the degree matrix of the

graph G as a diagonal matrix )( 

zdiagZ with

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

634





Cj

iji

. Then, we can define the Laplacian

matrix of the graph G as L=Z-E.

In order to solve the aforementioned

optimization problem, we need to relax the index

vector of

a ][ a

to take continuous values

instead of binary ones. This means that we assume

that each image is possible to be assigned to all

potential clusters but of different degree of

membership. The relaxed continuous solution of

a ][ a

is obtained by exploiting the Ky-Fan

theorem (Fan, 1951). Then, a rounding process is

adopted to discretize the continuous solution into a

binary one.

The approach adopted in this paper treats the

rows of the continuous matrix as M-dimensional

feature vectors. Each row indicates the degree of

“fitness” (the association degree) of the

corresponding image to each of the M available

clusters. It has been shown in (Bach and Jordan,

2003) that the aforementioned approximation

provides the minimum Frobenius distance between

the continuous and the discrete solution. Thus, this is

the closest approximate solution to the continuous

optimum provided by the Ky-Fan theorem. The

well-known k-means algorithm is applied to

optimally estimate the most suitable clusters. The

number of clusters is set equal to the parameter M.

We recall that M is the number of estimated

partitions of graph G. When we increase the value of

variable M, we lead to the selection of a greater

number of images used for 3D reconstruction and

thus for a more precise performance. This increment,

however, also yields to an increase of the

computational complexity as well. The estimation of

an appropriate value for parameter M takes place in

regard to application scenarios. Different scenarios

suggest different constraints in regard to devices’

computational power and available memory as well

as the desired re-construction time.

Then, we extract per each cluster the image point

located closer to the its centre as the most

representative one.

4 VIRTUAL AND AUGMENTED

REALITY INTERFACE

Virtual Reality (VR) is a computer simulation of a

real or imaginary system that enables a user to

perform operations on the simulated module and

shows the effects in real time. Real-time interactive

applications, which respond immediately to user

input, allow the user to fly and walk through various

scenes and inspect different objects of interest in the

reconstructed scene. Augmented Reality (AR) is

understood as an implementation of the virtual

reality into the real world. Therefore it is also known

as “mixed reality”. This method is enhanced with

additional 3D graphics superimposed on user's field

of view usually through the use of a portable media

device. Furthermore AR also brings about an

interactive experience, but aims to supplement the

real world, rather than creating an entirely artificial

environment.

The implementation of the proposed content-

based filtering method into a virtual reality

framework would be very useful for cultural heritage

actors. It allows for easy distribution and publishing

of the content from everywhere and for everybody.

Virtual and augmented reality tools enrich the

current digital counterparts to be straightforward

applicable for using under different circumstances

such as remotely and virtually navigating an

archaeological site (déjà-vu), retrieve similar CH

objects in terms of conservation methods used, style,

operational used, evaluate the effect of different

capturing technologies, promote mixing of tangible

with the intangible content (humans’ behaviours on

items functional use), etc.

The visualization of the 3D objects plus the time

is an essential part, as it is what the user perceives.

In order to appreciate the richness of these 4D

objects, we need a performant multipurpose VR

viewer. The VR viewer is an integration of two

levels of sub-viewers corresponding to the

dimensions: the 3D sub-viewer and the 4D sub-

viewer. The 3D VR sub-viewer ensures a true 3D

visualization of the static objects. For the 4D viewer,

the 4th dimension is the time and its visualization is

typically based on animation. The problem is how to

balance the time used to render the scene and how

much is stored in memory in form of pre-computed

animations.

The implementation into the real world is based

on various initiation processes. The first one is

image recognition which allows the user to project

virtual objects into the real environment based on

the position of the image target. As the name

implies, image targets are images that can be

detected and tracked. Unlike traditional markers,

data matrix codes and QR codes, image targets do

not need special black and white regions or codes to

be recognized. There are sophisticated algorithms to

detect and track the features that are naturally found

in the image itself. The system recognizes the image

target by comparing these natural features against a

A4DVirtual/AugmentedRealityViewerExploitingUnstructuredWeb-basedImageData

635

known target resource database. Once the image

target is detected, it tracks the image as long as it is

at least partially in the camera’s field of view.

Feasible targets can be photos, game boards,

magazine pages, book covers, product packaging,

posters, greeting cards as well as architectural

environments. In our case, photos were used for

image tracking.

Once an image is tracked, there is also a

possibility of extended tracking, where the target

remains visible, even if the tracker is out of sight.

This provides more stability for the augmented

object, keeping it in sight even if only partial tracker

recognition is given.

The second tracking method is the positioning of

the objects based on GPS information which

currently has an accuracy of 10 meters. This is a

more inaccurate solution and limits the viewing of

the object to a predefined site.

For a more sophisticated handling of the objects

augmented reality can be combined with 3D real

time game engines, resulting in an interactive

augmented reality system. This way, human senses

are more involved and the immersion into the

presented virtual content is consequently much

greater.

We have implemented all the techniques under

the framework of a European Union project and is

served as an interface to the public, and includes

some of the above mentioned features. Virtual

content can be presented in above described

approaches in different ways. One is referencing the

objects on geographical position presented on

referenced maps of different types (historical,

hydrological, geological, etc.). The other is

enhancement of the already existing media.

The objects can be viewed, interacted or further

information about them can be accessed. The

information can consist of related multi-medial

content like objects, images, texts, links, videos and

audio. A live demonstration is available on the

youtube and on the authors' web site.

5 EXPERIMENTAL RESULTS

The research aims to analyse, design, develop and

validate an innovative system for the rapid and cost-

effective 4D (time varying 3 dimensional space

modelling) model reconstruction from images

selected from the wild (being captured and stored in

image repositories for non-professional 3D

reconstruction use) and support the aim of digital

libraries Europeana and UNESCO Memory of the

World to build a sense of a shard European cultural

history and identity. A 4D dimensional research is

also presented in (Kyriakaki, 2014).

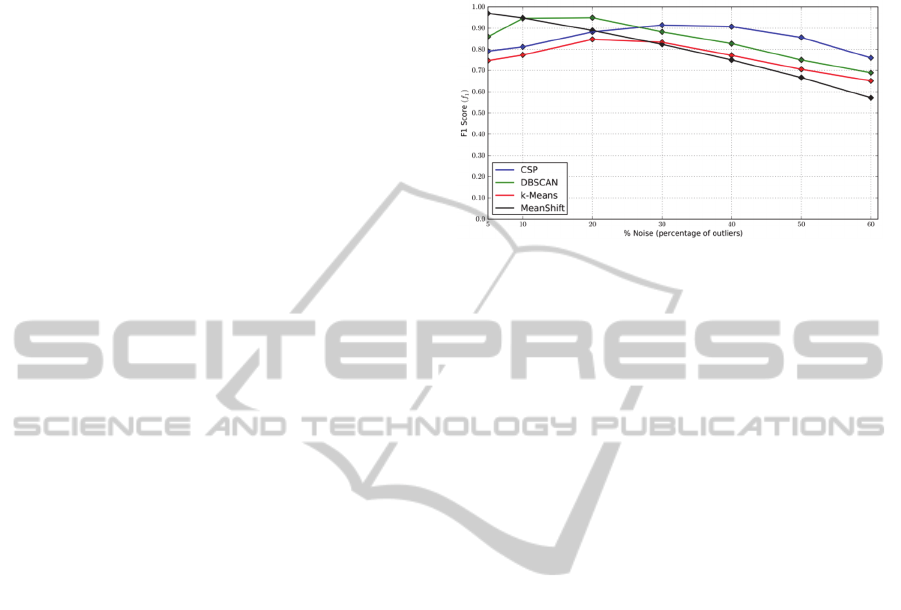

Figure 1: F1 Score versus noise outliers using different

density-based clustering methods.

5.1 Evaluation in Detecting Image

Outliers

Using expert’s assessment, we have initially

annotated a large collection of 31,000 images into

two categories; (i) the one of “relevant image set”

and (ii) the one of image outliers. Fig 1 presents the

F1 Score for two density-based image partitioning

approaches, the conventional DBSCAN and the CSP

method, regarding outliers' removal. For the

evaluation, we range the noise, the percentage of

image outliers, in the created datasets from 5% to

60%. We observe that for a small number of image

outliers (less than 30%) the conventional DBSCAN

algorithm yields better performance. As the noise

increases, however, a common case for our web-

based loosely structured visual content, the

performance of the new CSP density-based

algorithm outperforms the conventional DBSCAN

approach. This is due to the fact that the CSP

partitioning approach is more prone to false

negatives, while DBSCAN is more prone to false

positives.

In the same figure, we have also compared the

results with two other methods, the K-Means and

MeanShift approach. For both cases and for high

values of noise, the adopted CSP method yields

better performance.

5.2 Evaluation in Image Ranking with

Respect to 3D Reconstruction

Initially, an annotation set is created using experts’

assessment. Let us denote as C

a set that contains

the n most appropriate images for 3D reconstruction,

i.e., images that correspond to different geometric

views of the object. In the sequel, the spectral based

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

636

ranked images are extracted by setting graph

partitions to be equal to n/5, 2n/5, 3n/5, 4n/5 and n,

resulting in a maximum reconstruction accuracy of

20%, 40%, 60%, 80% and 100% respectively. Fig. 2

represents the results regarding reconstruction

accuracy with respect to the number of selected

representatives. In the same figure, we have

compared the results two other approaches; the k-

means and the min cut graph partitioning method.

As is observed, our method outperforms both the

two compared ones, in the sense that it extracts

images contributing more to the 3D reconstruction

process.

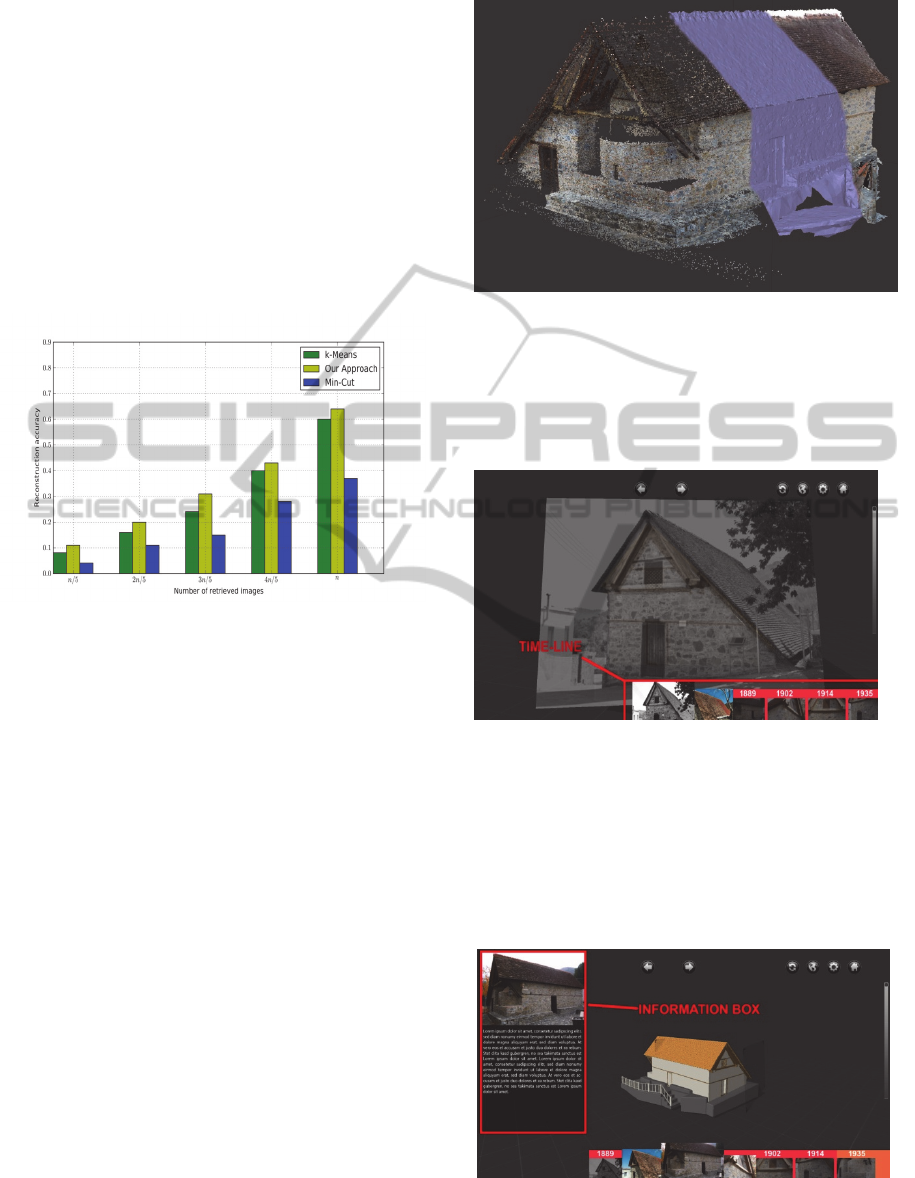

Figure 2: Reconstruction accuracy in regard to the number

of selected representatives and comparisons with other

methods.

Fig. 3 depicts an example of a 3D reconstruction

from the Archangelos Michael Church. The

reconstruction has been obtained using images. In

this figure, we illustrate from left to right the point

clouds, 3D meshes and the textured 3D mesh.

5.3 Virtual Reality Interface

The Virtual Reality (VR) viewer is an attempt to

create an end-user software which manages the

presentation of the various data-sets (imagery, 3D

scans, 3D models, etc.). In the case study the 3D

model of Archangelos Michael church with different

information levels is presented.

The viewer allows the user to access different

information through various functions. It is designed

with a user friendly interface for an intuitive

working experience. They can be viewed from all

sides, as well as from out- and inside. With the slice-

tool the model can be cut and inspected deeper.

On the bottom of the screen a slider is provided

which allows the user to move through different

time periods accompanied with the images of the

monument in the current period. Sliding over the

Figure 3: 3D reconstruction using the images obtained

from ranking algorithm. The object of interest is the

Archangelos Michael church; left to right: point cloud, 3D

mesh, textured 3D mesh.

images the user can navigate in time and across

different parts of the model (Fig. 4).

Figure 4: The Time-line feature in the VR Viewer.

The system also includes an information box in

which meta-data and in case of additional

reconstructions also para-data of the site together

with its context (period, special morphology,

references, additional images) are presented as well

as links to architectural, historical, artistic, social,

religious or political interest information (Fig. 5).

Figure 5: The Information Box feature in the VR viewer.

The slice tool enables the user to view

A4DVirtual/AugmentedRealityViewerExploitingUnstructuredWeb-basedImageData

637

intersection of the reconstructed model with the help

of a slicing plane (Fig. 6). This provides an insight

to the interior construction of the model. With this

tool also the inner image overlays are accessed.

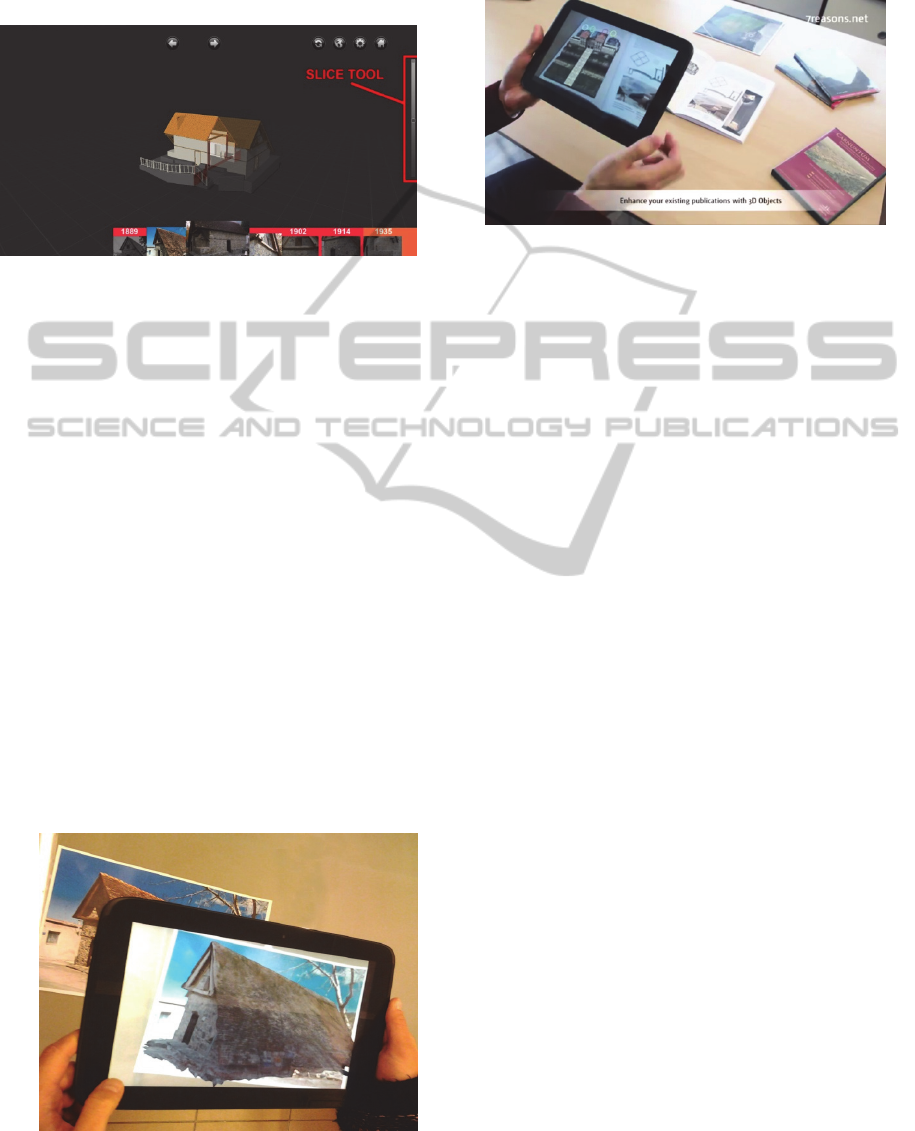

Figure 6: The Slice Tool in the VR Viewer.

In terms of augmented reality models can be for

example placed on a picture. In our test we made a

perspective related integration of the model so the

user can view the 3D model and therefore also the

non-visible parts from the 2D picture (Fig. 15).

The augmented content can be shown on the

original site or on recognized images in various

medias to enrich existing print- (books, articles,

maps, posters) and online-media.

5.4 Augmented Reality Interface

In terms of augmented reality models can be for

example placed on a picture. In our test we made a

perspective related integration of the model so the

user can view the 3D model and therefore also the

non-visible parts from the 2D picture (Figure 7).

The augmented content can be shown on the

original site or on recognized images in various

medias to enrich existing print- (books, articles,

maps, posters) and online-media. Another example

of augmented reality system is shown in Fig. 8. A

Figure 7: Augmented Reality – alignment of the model

over a physical image.

live demonstration of the AR viewer and its

functionalities is available on the youtube and on the

authors' web site.

Figure 8: Another example of Augmented Reality.

6 CONCLUSIONS

In this paper, a new timely evolved 3D

reconstruction process is proposed using as inputs

photos derived from web-based loosely structured

visual repositories, like flickr and picasa. The

method allows a 4D representation of outdoor

cultural sites (3D geometry plus the time). To fulfil

our objectives, initially we apply a content-based

filtering algorithm able to remove outliers that may

confuse the reconstruction process on the use of

density-based clustering. Then, we proceed with the

extraction of a set of representative images that can

described as much as possible the different

geometric views of an object. This is accomplished

using spectral graph partitioning. Finally, a

virtual/augmented reality interface is proposed to

assist cultural heritage actors to evaluate defects,

restoration processes and other phenomena on

cultural objects of interest.

Experimental results on real-life web-based

visual data indicate the outperformance of the

proposed content-based filtering method than other

conventional schemes. The evaluation has been

carried out using objective criteria as of F1 score

and reconstruction accuracy. In addition, the

virtual/augmented reality viewer is demonstrated

against actual cultural sites while its features are also

available on youtube network.

ACKNOWLEDGEMENT

The research leading to these results has been

supported by European Union funds and National

funds (GSRT) from Greece and EU under the

project JASON: Joint synergistic and integrated use

VISAPP2015-InternationalConferenceonComputerVisionTheoryandApplications

638

of "eArth obServation, navigatiOn and

commuNication technologies for enhanced border

security funded under the cooperation framework.

REFERENCES

Arampatzis, A., Zagoris, K., and Chatzichristofis, S. A.,

2013. Dynamic two-stage image retrieval from large

multimedia databases. In. Process. Manag., vol. 49,

no. 1, pp. 274–285.

Bach, F. R., and Jordan, M. I., 2003. Learning Spectral

Clustering. Computer Science Division, University of

California at Berkeley, Berkeley, California.

Cayton, L, 2006. Algorithms for manifold learning.

University of California, San Diego, Tech. Rep.

CS2008-0923.

Chum, O., Philbin, J., Sivic, J., Isard, M., and Zisserman,

A., 2007. Total Recall: Automatic Query Expansion

with a Generative Feature Model for Object Retrieval.

In IEEE 11th International Conference on Computer

Vision, 2007. ICCV 2007, pp. 1–8.

Cox, T., Cox, M., 2000. Multidimensional Scaling.

Chapman & Hall/CRC, Second Edition.

Daras, P., Axenopoulos, A., Litos, G., 2012. Investigating

the Effects of Multiple Factors towards more Accurate

3D Object Retrieval. IEEE Transactions on

Multimedia, Vol. 14, No. 2, Page(s): 374 – 388.

Doulamis, A., Ioannides, M., Doulamis, N.,

Hadjiprocopis, A., Fritsch, D., Balet, O., Julien, M.,

Protopapadakis, E., Makantasis, K., Weinlinger, G.,

S.Johnsons, P., Klein, M., Fellner, D., Stork, A.,

Santos, P. 2013. 4D reconstruction of the past.

Proceedings of SPIE - The International Society for

Optical Engineering, 8795, art. no. 87950.

Fan, K., 1951. Maximum Properties and Inequalities for

the Eigenvalues of Completely Continuous Operators.

Proc. Natl. Acad. Sci. U. S. A., vol. 37, no. 11, pp.

760–766.

Hadjiprocopis, A., Ioannides, M., Wenzel, K., Rothermel,

M., Johnsons, P.S., Fritsch, D., Doulamis, A.,

Protopapadakis, E., Kyriakaki, G., Makantasis, K.,

Weinlinger, G., Klein, M., Fellner, D., Stork, A.,

Santos, P. 4D reconstruction of the past: The image

retrieval and 3D model construction pipeline. 2014

(2014) Proceedings of SPIE - The International

Society for Optical Engineering, 9229, art. no.

922916, .

Kekre, D. H. B., Sarode, T. K., Thepade S. D., and

Vaishali V., 2010. Improved texture feature based

image retrieval using Kekre’s fast codebook

generation algorithm. In Int. Conference on Contours

of Computing Technology, Thinkquest~2010, S. J.

Pise, Ed. pp. 143–149.

Kyriakaki, G., Doulamis, A., Doulamis, N., Ioannides, M.,

Makantasis, K., Protopapadakis, E., Hadjiprocopis, A.,

Wenzel, K., Fritsch, D., Klein, M., Weinlinger, G.,

2014. 4D Reconstruction of Tangible Cultural

Heritage Objects from Web-Retrieved Images.

International Journal of Cultural Heritage in Digital

Era.

Lv, Q., Josephson, W., Wang, Z., Charikar, M., and Li.,

K., 2007. Multi-probe LSH: Efficient Indexing for

High-dimensional Similarity Search. In Proceedings

of the 33rd International Confe-rence on Very Large

Data Bases, Vienna, Austria, pp. 950–961.

Makantasis, K., Doulamis, A., Doulamis, N., Ioannides,

M., 2014. In the wild image retrieval and clustering for

3D cultural heritage landmarks reconstruction.

Multimedia tools and Applications, Springer Press.

Min, R, and Cheng, H. D., 2009. Effective image retrieval

using dominant color descriptor and fuzzy support

vector machine. Pattern Recognit., vol. 42, no. 1, pp.

147–157.

Murthy, V. S., Kumar, S., and Rao P. S., 2010. Content

Based Image Retrieval using Hierarchical and K-

Means Clustering Techniques. Int. J. Eng. Sci.

Technol., vol. 2.

Papadopoulos, S. Zigkolis, K., Kompatsiaris Y.,, and

Vakali, A., 2010. Cluster-based Landmark and Event

Detection on Tagged Photo Collections. IEEE

Multimedia.

Protopapadakis, E., Doulamis, A., Matsatsinis, N. Semi-

supervised image meta-filtering in cultural heritage

applications. 2014. Lecture Notes in Computer Science

(including subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

8740, pp. 102-110.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.,

2011. ORB: An efficient alternative to SIFT or SURF.

In IEEE International Conference on Computer Vision

(ICCV), pp. 2564–2571.

Smeets, D., Fabry, T., Hermans, J., Vandermeulen, D., and

Suetens, P., 2009. Isometric deformation modelling

for object recognition. In Proc.CAIP’09, 2009, pp.

757–765.

A4DVirtual/AugmentedRealityViewerExploitingUnstructuredWeb-basedImageData

639
