M2K

An Approach for an Object-oriented Model of C Applications

Ignacio Cassol

and Gabriela Ar

evalo

Facultad de Ingenier

ıa, Universidad Austral, Buenos Aires, Argentina

DCyT (UNQ), CAETI (UAI), CONICET, Buenos Aires, Argentina

Keywords:

Reverse Engineering, Legacy Software, Procedural Language, Object-oriented Paradigm, Reengineering,

Refactoring, Design Recovery.

Abstract:

When analyzing legacy code, generating a high-level model of an application helps the developers understand

how the application was structured and how the dependencies relate the different software entities. Based on

useful properties that the object-oriented paradigm (and their supporting analysis tools) provide, such as UML

models, we propose M2K as a methodology (supported by our own tool) that generates a high-level model

from legacy C code and proposes differents refactorings. To understand how procedural-based applications

were implemented is not a new problem in software reengineering, however our contribution is based on

building automatically an object-oriented model and help the experts to deﬁne manually different refactorings

that let the developer to improve the application. Besides a methodology and the supporting tool, we provide

a summary of thirteen case studies based on small-scaled real projects implemented in C and we showed how

the results validate our proposal.

1 INTRODUCTION

In the 70’s and 80’s, most systems were written spe-

cially in procedural-based languages, such as Cobol,

C, Fortran, Pascal, and Clipper. Many of these appli-

cations are still working, but they are already legacy

code. Their main problems are that mostly they

were implemented in an ad-hoc way or, even with-

out following an analysis- or design-based methodol-

ogy. Usually, provided documentation is not enough,

and stakeholders and original developers have left

the software development group taking away implicit

design knowledge that is not coded in the applica-

tion itself. Due to all these problems, their struc-

ture and functionality are difﬁcult to deal with during

any maintenance task (van Gurp and Bosch, 2002).

Though the solution for all these problems could be

the replacement or the migration of the complete sys-

tems, this action is difﬁcult because they are working

currently in the companies and they represent their ac-

tual economic capital.

During last decades, object-oriented paradigm has

been useful not only in implementing business appli-

cations, but also to implement analysis and refactor-

ing tools. In this paper we propose a methodology to

map procedural code into a high-level model, specif-

ically a class model. By analyzing the source code,

we identify a list of potential class deﬁnitions inferred

from the code. Then, we let an expert to analyze

them in order to identify class candidates and propose

refactorings to improve the ﬁnal model. The mapping

from source code to class deﬁnitions is a automatic

process, however, the further analysis to apply refac-

torings is done by experts manually.

The main reason to use an object-oriented design

model is that by using mainly encapsulation, we limit

the complexity of maintenance, and any proposed

change can be applied in the model and in the code

without affecting other entities.

We validate our methodology on thirteen case

studies, but due to space limitations we present only

one in detail and general information about the other

case studies. The main goal of the proposal is to get

a high-level model of C applications and offer im-

provements (through refactorings) at the design level.

Then, the expert can use this improved model to im-

plement a refactored application or modify the origi-

nal one. Our work does not include this last step.

This article is structured as follows: Section 1 pre-

sented the context and the problem that our approach

solves, Section 2 summarizes brieﬂy the related work

to our approach, Section 3 details the M2K methodol-

250

Cassol I. and Arévalo G..

M2K - An Approach for an Object-oriented Model of C Applications.

DOI: 10.5220/0005457302500256

In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 250-256

ISBN: 978-989-758-100-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

ogy to be applied in C applications, Section 4 shows

in detail the application of M2K to one speciﬁc case

study, Section 5 analyzes the applications of refactor-

ings in the thirteen case studies, and ﬁnally Section 6

concludes our paper.

2 RELATED WORK

The related work will be summarized brieﬂy in two

subjects: source code analysis of C code to obtain a

high-level model and model refactorings. From the

source code analysis viewpoint, works related to iden-

tifying objects starting from C code are (G. Canfora

and M.Munro, 1996), (Yeh et al., 1995) and (Siff and

Reps, 1999) that propose different approaches to ﬁnd

classes in legacy code by identifying functions, vari-

ables and modules in the code, and to cluster these to-

gether based on different classiﬁcation criteria. Fanta

et. al. (Fanta and Rajlich, 1999) describe an ap-

proach that allows to restructure C code into a new

C++ classes. Although the migration of the paradigm

is relevant, compared to our approach the proposal

does not count with a model. The closest one to our

proposal is the work of concept formation (Sahraoui

et al., 1997). This method relies on the automatic for-

mation of concepts based on the obtained information

directly from the source code to identify objects. Zou

and Kontogiannis framework (Zou and Kontogiannis,

2001) proposes an iterative and incremental migration

process. Our proposal differs from this one because

M2K is not intended to migrate the code. Garrido

et. al. (Garrido and Johnson, 2003) refactor C pro-

grams with the presence of condicional compilation

directives. The approach is automatic and the refac-

torings offered are focused on the code. Compared

to our approach, this approach does not offer a high-

level model and is not dealing with changing from

a paradigm to another one in a pure way. Another

closest proposal is the use of language-indepent plat-

form Moose (Nierstrasz et al., 2005) to analyze source

code. In this latter approach, using different plug-

ins, they are able to generate a model of the source

code. This model is a representation of the C code in

the FAMIX model, but they do not offer a migration

to another paradigm. Recent works summarized by

Yada et. al. (Yadav et al., 2014) are focused on gen-

erating visualizations of C applications, that could be

considered as high-level models.

From model refactorings viewpoint, mainly UML

models are considered as suitable candidates for

model refactoring (Astels, 2002)(Boger et al., 2003)

(G. Suny

e et al., 2001). Many of the refactorings

know from object-oriented programming (Fowler

et al., 1999) can be ported to UML class diagram as

well.

From our knowledge, and based on the state of the

art, there is no methodology that combines to generate

a high-level model starting from C applications and

propose improvements of the model using refactor-

ings a la Fowler. We consider that the methodology

we design to identify class candidates and the pro-

posed refactorings are the main contributions of this

paper.

3 OUR APPROACH: M2K

METHODOLOGY

The M2K (the acronym of Mapping to Know or

Methodology to Know) methodology analyzes C code

that should fullﬁl the following preconditions: (1) The

source code should not have syntactical errors, thus it

can be compiled correctly without breaking down the

system from the syntactical viewpoint; (2) the code

should be written in Ansi C. We chose this target lan-

guage because it is the most used programming lan-

guage in industry

; (3) The system should use Ab-

stract Data Types (ADT) to deﬁne the data structures.

3.1 Phases of M2K

M2K has two phases: Source code Analysis (sup-

ported by our tool ModelMapper) and Expert map-

ping. Just to clarify in the rest of the paper, we deﬁne

the model entities as the meta-entities that are used to

build a model, such as classes and methods, and do-

main concepts as the concepts that are implemented

in a speciﬁc domain, such a customer in a business

application.

The Source Code Analysis is automatic and is

composed of two steps performing a static analysis.

1. Extracting. The tool extracts C model entities (

variables, modules, ADTs and functions) from the

source code by using a customized parser, and

2. Mapping. Using some heuristics, the tool maps

the extracted entities to infer possible classes can-

didates (CCD). Speciﬁcally, ADTs are used to

build potential classes, the functions are mapped

as methods, variables as attributes and modules as

classes.

The Expert Mapping phase is non-automatic and

requires an expert that analyzes the group of CCDs

in order to decide the ﬁnal set of classes represented

http://www.tiobe.com/index.php/content/paperinfo/

tpci/index.html

M2K-AnApproachforanObject-orientedModelofCApplications

251

in the legacy code. The choice of ﬁnal classes is

based on the user knowledge, the functionalities of

the legacy program and the refactorings proposed to

improve the original model. In this step, concepts re-

lated to object-oriented paradigm appear in the model,

such as associations or inheritance.

3.1.1 Source Code Analysis: Extracting Step

To understand how we analyze the source code, we il-

lustrate the process using a simple C program, that has

three modules that implement three data structures: a

stack, a queue and a list of integers. Following we

show the example code:

#include " li st . h"

#include " qu eu e .h"

#define TAM 6

#define MAX TA M - 1

typedef struct {

int top ;

int i tem [ TA M ];

} st ac k ;

stack functions

int f ull ( st ac k * ) ;/

int e mp ty ( s ta ck *) ;

void p ush ( st ac k * , int) ;

void pop ( st ac k * ,int *) ;

void s or tQu eu es ( qu eu e []) ;

void m ain () {. . .}

The header of the list.h module is:

#define T AM3 6

#define M AX3 T AM3 - 1

int i te ml ist [ T AM3 ];

int a ct ua l ;

void i ni tl ist ( );

void i nse rt af te r ( );

void i nse rt be for e () ;

void l en gt h () ;

void d es tr oy () ;

int g et it em () ;

int l is tf ull ( );

int l is tem pt y () ;

void m ov eac tu al (int) ;

The header of the queue.h module is:

#define T AM2 6

#define M AX2 T AM2 - 1

typedef struct {

int f ro nt ;

int r ear ;

int l en gt h ;

int i te m2 [ T AM2 ];

int c ant ;

} qu eu e ;

queue functions

void e nq ue ue ( qu eu e * , int) ;

void d eq ue ue ( qu eu e * ,int *) ;

int i sF ul l ( qu eu e * );

int i sE mp ty ( qu eu e * );

In the Extracting step, we parse and analyze the

code in order to generate separate lists containing en-

tities that represent global variables, functions, ADTs

and modules identiﬁed in the legacy code. Thus, in

our example the ﬁnal result will be:

• ADT s = {stack, queue}

• Functions = {main, f ull, empty, push, pop,

enqueue, dequeue, isFull, isEmpty,

initlist, inserta f ter, insertbe f ore, length,

destroy, getitem, list f ull, listempty,

moveactual, sortQueues}

• Variables = {TAM, MAX, TAM2, MAX2,

TAM3, MAX 3}

• Modules = {list, queue}

The ADTs are extracted based on the struct

statement, the functions are extracted based on the

function deﬁnitions and modules are extracted based

on the #include sentence in the header of each ﬁle

in the application. In the speciﬁc case of global vari-

ables, we extracted them from #define in the header,

and variables deﬁned in the header of the ﬁle that con-

tains the main() function.

3.1.2 Source Code Analysis: Mapping Step

In the Mapping step, we look for relationships and

dependencies between the lists generated in the Ex-

tracting step and create the CCDs. To perform this

phase, we have deﬁned a set of heuristics. Each one

is deﬁned with a set of conditions to be fullﬁlled by

model entities, and the steps to create a new CCD, or

modify an existing one based on those entities. We

deﬁne heuristics because they serve as checks or in-

dicators by which a structure may be examined for

potential improvements (Yourdon and Constantine,

1979). The heuristics rules may result in non-unique

assignment, e.g., a function with two ADT parame-

ters may be assigned to both resulting CCD. These

conﬂicts are recognized and resolved manually in the

Expert mapping phase.

ADT-based Heuristic. Based on the fact that each

ADT in C code is deﬁned using struct and that

groups a set of typed variables {a

, . . . , a

}, with this

heuristic we look for cohesive entities by creating a

CCD with the same name as the ADT and the fol-

lowing pair of elements ({a

, . . . , a

}, { f

, . . . , f

}),

where each f

is a function that takes an entity

of the type ADT as arguments or return it. In

our example, the CCD stack is created as stack =

({top, item[TAM]}, { f ull, empty, push, pop}),

and the CCD queue is created as queue =

({ f ront, rear, length, item2[TAM2], cant}, {enqueue,

dequeue, isFull, isEmpty})

In the case that the argument is a set of elements

typed with the ADT, we do not keep these functions in

the deﬁned CCD, because those arguments can build

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

252

a new one that deals with it. In our example, the func-

tion sortQueues is not included in the previously

deﬁned CCDs, because the parameter is an array of

queues.

Module-based Heuristic. From design viewpoint,

the modules deﬁne (and implement) functions that

share a common goal or are related by a common

functionality, in our example the module List deﬁnes

several functions to deal with list operations. How-

ever, this design principle is not always fulﬁlled in all

C applications. To our analysis, we consider that the

modules are implemented in a .c and/or .h ﬁles. In

this heuristic, depending on the structure of the mod-

ule, there are three possibilities of encoding it in our

model.

1. If the module contains only a set of functions that

are not related to a CCD previously deﬁned, we

will generate a CCD with those functions mapped

as methods and with attributes, if there are de-

clared variables. If not, the deﬁned CCD will have

only methods.

In our example, this heuristic will

create the CCD list as list =

({itemlist[], actual}, {initlist, inserta fter,

insertbe f ore, length, destroy, getitem, list f ull,

listempty, moveactual})

2. If there are only ADTs, and all the functions are

related to those ADTs, we will get one CCD per

each ADT according to the ADT-based heuristics.

In this case, no new CCD will be created.

In our example, the module queue.h is not build-

ing a new CCD because it was already mapped as

the CCDs queue in the ADT-based heuristic.

3. If there is a mixture of declaration of variables

and ADTs, and/or functions related or not to those

ADTs, we will generate CDDs for each ADT with

their corresponding methods - according to the

ADT-based heuristics -, and another CCD with

the same name as the corresponding module with

the declaration of variables and the corresponding

methods not related to a CCD.

In our example, a new CCD named main is cre-

ated containing the method sortQueues that was

not related to any ADT because its argument is

an array, and is not considered in the ADT-based

heuristic. The rest of the functions are related to

the ADT stack and are deﬁned in the correspond-

ing CCD.

Global Variables-based Heuristic. In this heuris-

tic, we analyze each global variable y and a function

f (x

, . . . , x

) that reads or writes y in its deﬁnition,

and then the CCD that contains f adds y as a new

attribute in its deﬁnition. Thus, this heuristic does

not create CCDs. With this heuristic, we identify a

cohesion-based situation that helps us to complement

an existing CCD. In our example, this heuristic

ﬁnds three global variables referenced in different

functions: MAX is read in full(stack *p), TAM2

is read in dequeue(queue *c, int x) and MAX2

is read in isFull(queue *c). Then, the CCD

stack adds MAX, and the CCD queue adds TAM2

and MAX2 in their respective list of attributes.

Thus, the result of the modiﬁed CCDs are: stack =

({top, item[TAM], MAX}, { f ull, empty, push, pop}),

and queue = ({ f ront, rear, length, item2[TAM2], cant,

TAM2, MAX 2}, {enqueue, dequeue, isFull, isEmpty})

In the case of module list.h, this heuristic ﬁnds

that MAX3 is read in listfull(), and TAM3 is read in

insertafter() and insertbefore(). Then, these

attributes are added to the CCD list. The result of this

CCD is: list = ({itemlist[], actual, TAM3, MAX3},

{initlist, inserta f ter, insertbe f ore, length, destroy,

getitem, list f ull, listempty, moveactual})

3.2 Expert Mapping: Refactoring

As we stated previously, the mapping from source

code to class deﬁnitions is an automatic process, but

the further analysis to decide the ﬁnal set of classes is

based on expert knowledge and a set of refactorings

done by experts manually.

As we are obtaining an object-oriented model

with associations built only between variables and the

CCD that type them, and we want to take advantages

of good design principles, we could propose improve-

ments in the obtained design. Thus, we describe dif-

ferent possible refactorings that can be applied. Some

of them are based on the Fowler refactorings (Fowler

et al., 1999) and other ones are built based on speciﬁc

problems when analyzing the resulting model. Due to

space limitations, we will just mention some of them,

and the reader can see their application in the case

study explained furtherly in this paper: (1) Extract-

ing common arguments from methods, (2) Extracting

algorithms, (3) Abstracting an algorithm: a variant

of Extracting Algorithms, (4) Relocating attributes or

methods, (5) Renaming CCDs, (6) Removing CCDs.

This list is not exhaustive, and just mention the main

ones applied in the case study furtherly.

M2K-AnApproachforanObject-orientedModelofCApplications

253

4 VALIDATION

The source code of the thirteen case studies that we

use to validate comes from two different sources:

• Ten case studies (University, AssemblyLine, Bal-

lotBoxes, AirportABC, LightBulbs, Elevators,

MixAdt1, MixAdt2, MovieClub, Library) were

designed with UML class diagrams and imple-

mented in C by a group of advanced computer sci-

ence students.

• Three case studies (Calculator, Bank, Airport)

were downloaded from different Internet web-

sites. As we did not have UML class diagram (as

previous cases), they were also built by the same

group of advanced university students that worked

in the ﬁrst set of case studies.

The classes of the UML diagram are used to perform

the comparison of the original design model with the

one we obtain with our approach. We have chosen

the case studies from different sources, because in the

case of applications implemented by university stu-

dents we consider them as the experts that know the

complete model and can validate our results. Then in

the case of applications downloaded from Internet, we

use them to show the applicability in any case study

(without needing the experts to validate our results).

We have applied the M2K approach on each case

study, without considering the basic modules, such as

stdio.h or conio.h in our analysis. Table 1 shows

an overview of the size of the case studies and the size

of the class-based models before and after applying

the M2K approach. We can observe the numbers of

classes in the original model are less or equal than in

the refactored model. Based on our detailed analysis,

we observe that the original classes are kept in the

refactored model.

Table 1: Number of classes in different analysis phases of

each case study.

Case Study LOC UML Initial Refactored

classes CCDs CCDs

University 162 1 3 7

AssemblyLine 168 3 4 3

Calculator 200 1 1 10

Bank 216 2 2 2

BallotBoxes 228 7 6 9

AirportABC 282 5 7 9

LightBulbs 285 6 4 8

Elevators 295 8 6 10

Airport 341 3 4 4

MovieClub 116 4 4 3

Library 341 6 6 6

MixAdt1 281 2 2 2

MixAdt2 273 2 1 1

Case Study: University. Due to space limitations,

we show only a case study in detail. University is

an application that takes information fron two arrays

in order to obtain a summary of the information of

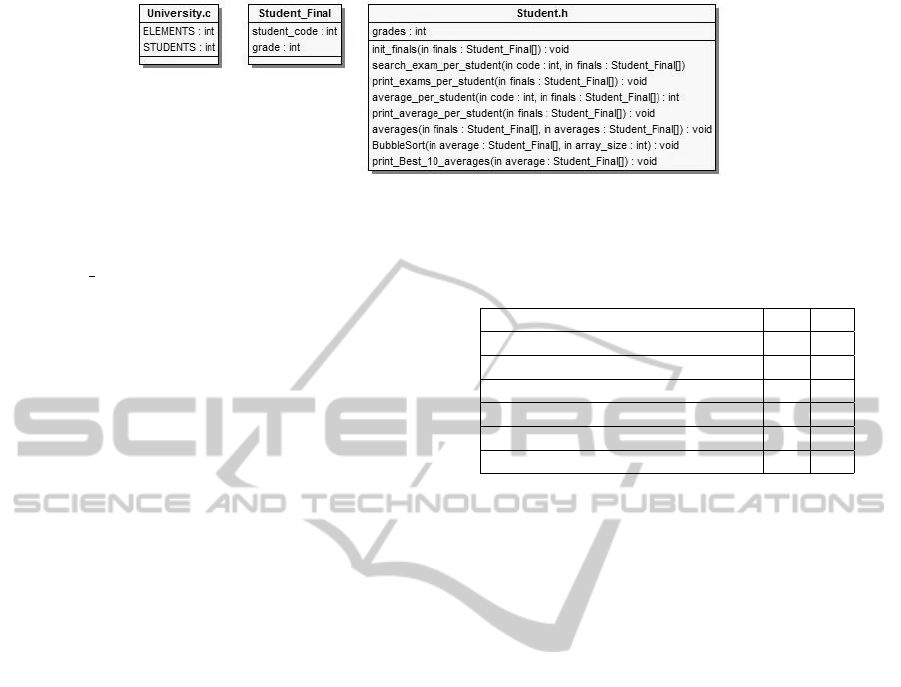

the students. Figure 1 shows the resulting CCD-based

model in this case. Now, when we analyzed this gen-

erated model, we discovered seven possible refactor-

ings based on the obtained design:

1. Abstracting an Algorithm. The method

BubbleSort(STUDENT FINAL average[],

int array size) (mapped from Bubblesort

function) is implementing the bubblesort algo-

rithm to sort the students using their grades.

The refactoring is to implement a more abstract

sorting algorithm that could be used by any data,

and then use that implementation with the student

data that is used in this application.

2. Extracting Algorithms. There are three

methods mapped from three functions

that are performing different printing ac-

tions print best 10 averages(..),

print average per student(..),

print exams per student(..). We could

extract the common behavior and refactor the

different ones in several new CCDs, as in Strategy

Design Pattern.

3. Extracting Common Arguments from Meth-

ods. According to ModelMapper, we have

built a CCD Student Final with the structure

described previously, and that CCD allows us

to know that the arguments of the methods of

the CCD Student.h have that type. However,

when we have a look at the methods in this

last CCD, we discovered that those arguments

are arrays (STUDENT FINAL finals[] and

STUDENT FINAL averages[]). One example

method is search exams per student(int

code, STUDENT FINAL finals []). This

means that in fact these arguments are common to

most functions, and they could be refactored and

transformed into attributes finals and averages

in the CDD abstracting the set of students ﬁnal

exams and averages.

4. Relocating Attributes. In the CCD

University.c (mapped from the module that

contains the function main()), we have two con-

stants ELEMENTS and STUDENTS. As they are used

in the CCD Student.h, we relocate them in this

last one, and we map them as class variables.

5. Renaming CCDs. Once we have applied all

previous refactorings, we can rename the CCDs

according to the concept domain they represent.

Thus, the CCD Student Final is named as

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

254

Figure 1: Case Study University. Resulting CCD-based model.

Student and the CCD Student.h is named as

Student Set

6. Removing a CCD. Given that when we have re-

located the attributes of the CCD University.c,

now this CCD is empty and can be removed from

the refactored model.

With these refactorings, we obtain an improved CCD-

based model (shown in Figure 2) of our application.

5 ANALYSIS: APPLYING

REFACTORINGS

Once we have built the CCD-based model in the Map-

ping phase, we refactored it to improve its object-

oriented design. In Table 2, the columns Refactorings

shows the number of case studies in which the refac-

toring was applied, and Percentage shows the same

information but in terms of the thirteen case stud-

ies, for example the refactoring named as Extracting

algorithms is applied in 6 case studies, representing

the 46% of them. When analyzing the frequency of

each refactoring, the most applied one is Relocating

attributes or methods. This happens because when

building applications with structured paradigm, the

variables are not associated necessarily to the func-

tions use them. When M2K approach maps this struc-

ture in a object-oriented model, as a consequence the

attributes and the behavior of the built CCDs are not

associated correctly, and then the expert needs to re-

locate the model entities to the right CCD. Another

most used refactoring is Renaming CCDs, and this

happens because the names close to the domain con-

cept can not be inferred from the code, because they

are related to the domain they are representing in both

the legacy code and the high-level model. Both refac-

torings (Relocating attributes or methods and Renam-

ing CCDs) highlight an important goal of the ap-

proach: the experts do not add classes that were not

mapped previously because they are identiﬁed in the

automatic process of the approach. The added classes

made in the refactorings Extracting algorithms and

Table 2: Applied Refactoring applied to case studies. #R is

the number of refactorings and % is the percentage in terms

of all case studies.

#R %

Relocating attributes or methods 8 61

Renaming CCDs 7 54

Extracting algorithms 6 46

Extracting common arguments 5 38

Removing CCDs 5 38

Abstracting an algorithm 1 8

Abstracting an algorithm focus on design classes and

are not related to domain concepts of the applications.

The refactoring Extracting algorithms, as the pre-

vious refactoring, depends on the implementation of

the C application. We applied the Strategy pattern to

extract the common behavior in the CDD delegating

behaviour to new classes.

The refactoring Removing CCDs is used to re-

move unneeded classes. After the automatic part of

the approach, the expert receives a set of candidate

classes where some correspond to the real Classes of

the UML and some are discarded. The ones that are

removed either correspond to empty classes or do not

represent domain concepts.

Finally, the refactoring Extracting common argu-

ments is a consecuence of migrating from procedural

to object-oriented paradigm. In this last one, it is not

needed that a method makes an explicit reference to

the attributes that use in its parameters, but in C Code

does it.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we propose the M2K methodology that

generates class deﬁnitions from source code in C. The

mapping of the legacy code is an automatic process

and the further analysis to apply refactorings is done

manually by experts. It differs from other existing

works that it uses heuristics to look for cohesive en-

tities and generate a set of class candidates. By us-

M2K-AnApproachforanObject-orientedModelofCApplications

255

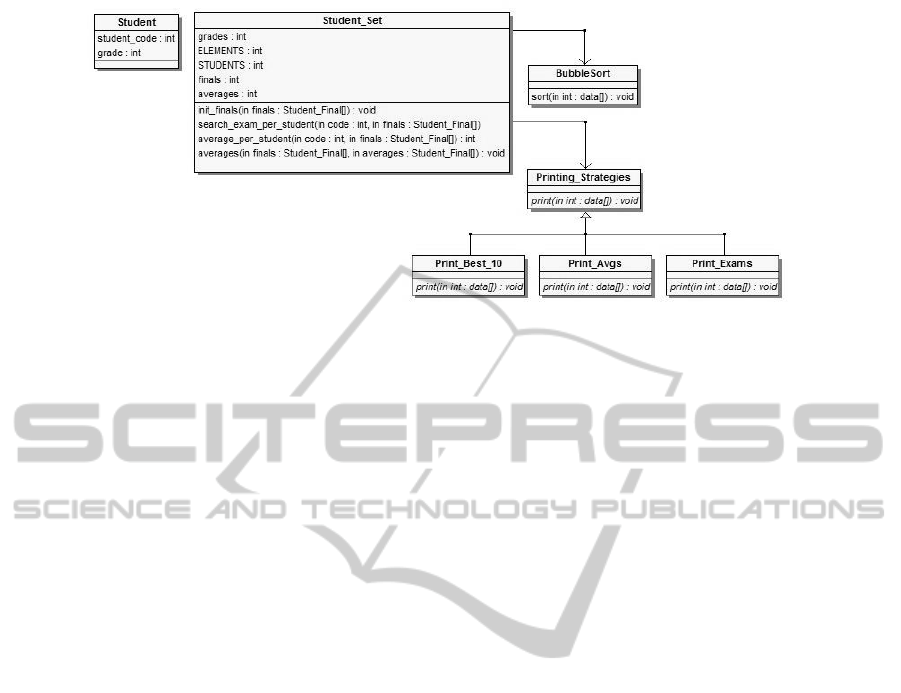

Figure 2: Case Study 2: University. Modiﬁed CCD-based model.

ing this methodology we can improve the understand-

ing of a legacy code, propose some refactorings and

generate a design document. Our future work in-

cludes to automate some refactoring activities, and to

apply a ranking to improve the ﬁltering of the gen-

erated CCDs. We will work on a new heuristic to

ﬁnd associations between CCD. In the case of iden-

tifying inheritance, we consider that it would be pos-

sible to propose a improvement in the Expert map-

ping phase. C language does not have statements that

could be mapped as this design principle. A more

complete validation with a legacy code with 20KLOC

will measure the complexity and effort of refactoring

the reconstructed model, and the scalability of the ap-

proach.

REFERENCES

Astels, D. (2002). Refactoring with UML. In Proc. Int’l

Conf. XP and Flexible Processes in Software Engi-

neering, pages 67–70. Alghero, Sardinia, Italy.

Boger, M., Sturm, T., and Fragemann, P. (2003). Refactor-

ing browser for uml. pages 366–377.

Fanta, R. and Rajlich, V. (1999). Restructuring legacy C

code into C++. In Proc. Int’l Conf. Software Mainte-

nance (ICSM), pages 77–85. IEEE Computer Society

Press.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: Improving the Design of Ex-

isting Code. Addison Wesley.

G. Canfora, A. and M.Munro (1996). An improved algo-

rithm for identifying objects in code. Software Prac-

tice and Experience, 26(1):25-48.

G. Suny

e, Pollet, D., LeTraon, Y., and J.-M. J

equel

(2001). Refactoring UML models. In Proc. UML, vol-

ume 2185 of LNCS, pages 134–138. Springer-Verlag.

Garrido, A. and Johnson, R. E. (2003). Refactoring c

with conditional compilation. In ASE, pages 323–326.

IEEE Computer Society.

Nierstrasz, O., Ducasse, S., and G

ırba, T. (2005). The story

of moose: An agile reengineering environment. SIG-

SOFT Softw. Eng. Notes, 30(5):1–10.

Sahraoui, H. A., Melo, W. L., Lounis, H., and Dumont, F.

(1997). Applying concept formation methods to ob-

ject identiﬁcation in procedural code. In ASE, pages

210–218.

Siff, M. and Reps, T. (1999). Identifying modules via con-

cept analysis. IEEE TSE, 25(6):749–768.

van Gurp, J. and Bosch, J. (2002). Design erosion: Prob-

lems and causes. J. Syst. Softw., 61(2):105–119.

Yadav, R., Patel, R. P., and Kothari, A. (2014). Reverse en-

gineering tool based on uniﬁed mapping method (re-

tum): Class diagram visualizations. Journal of Com-

puter and Communications, (12):39–49.

Yeh, A. S., Harris, D. R., and Reubenstein, H. B. (1995).

Recovering abstract data types and object instances

from a conventional procedural language. In Proc. of

WCRE), page 227. IEEE Computer Society.

Yourdon, E. and Constantine, L. L. (1979). Structured De-

sign: Fundamentals of a Discipline of Computer Pro-

gram and Systems Design. Prentice-Hall, Inc.

Zou, Y. and Kontogiannis, K. (2001). A framework for mi-

grating procedural code to object-oriented platforms.

In Proc. of IEEE APSEC, pages 408–418, Los Alami-

tos, CA, USA. IEEE Press.

ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

256
