Dynamic and Scalable Real-time Analytics in Logistics
Combining Apache Storm with Complex Event Processing for Enabling New
Business Models in Logistics
Benjamin Gaunitz, Martin Roth and Bogdan Franczyk
Information Systems Institute, Leipzig University, Grimmaische Straße 12, Leipzig, Germany
Keywords: Real-time Analytics, Logistics, Complex Event Processing.
Abstract: In this paper we present an approach for an information system which is capable of processing and analys-
ing vast amounts of data. In addition to Big Data solutions we do not focus on ex post batch processing but
on online stream processing. We use Apache Storm in combination with Complex Event Processing to pro-
vide a scalable and dynamic event-driven information system, providing logistics businesses with relevant
information in real-time to increase their data and process transparency.
1 INTRODUCTION
For logistics companies, especially for providers of
courier, express and parcel services, it is essential to
deliver goods and services in a highly time critical
environment to satisfy customer needs. Those com-
panies that are able to react as fast as possible to
changing conditions will have benefits in the market
competition by reducing costs and increasing effi-
ciency. Modern logistics companies produce an
enormous amount of data every day by tracking
millions of shipments around the world as well as
the fleet delivering these shipments. For example in
2013 2.66 billion shipments were handled by Couri-
er, Express and Parcel services in Germany (BIEK,
2014). With the rise of the Internet of Things and the
enhancement of sensor technology it is not only
possible to track shipments location-wise but also
monitoring sensor data such as temperature, orienta-
tion and acceleration resulting in an exponential
growth of the amount of data which is produced by
each tracked object. In addition to that, external
sources such as traffic or weather services also gen-
erate business-relevant data which has to be pro-
cessed.
The field of Big Data is well-known and has
been widely covered in the recent years. However in
the context of Big Data, data is analysed after a
business process is finished. The results and insights
are available ex post and in terms of logistics cannot
be used to affect currently running transports.
(Hackathorn, 2003) introduces the term ‘action
distance’ which describes the distance between the
occurrence of a business relevant event and the mo-
ment when any action is taken. The reasons for this
distance are diverse and range from a spatial to a
social gap. As time passes, the value of the business
event decreases, hence the smaller the action dis-
tance, the higher is the value of the business event
and therefore the benefit for the company.
This results in the urge of minimising the latency
between the information and the action and is sum-
marised under the term Fast Data (Mishne et al.,
2013). This advancement from Big Data to Fast Data
creates a need for real-time analytics systems.
With real-time analytics logistics companies are
able to react proactive to problems occurring during
the transport. Therefore, logistics providers are not
only able to answer question like “Where is my
shipment?” but also “Where will my shipment be on
a certain point of time?”.
The following are upcoming trends in logistics
which require a broad usage of real-time analytics
approaches in the future.
Real-time routing: Logistic chains consist of dif-
ferent steps. Usually the last step, the delivery to the
recipient, is the most expensive for logistics provid-
er. Increasing the efficiency on this last leg can re-
duce costs significantly. (Jeske et al., 2013) defines
one scenario where delivery trucks are rerouted in
real-time. The route of each truck is calculated con-
stantly according to the delivery sequence and the
289
Gaunitz B., Roth M. and Franczyk B..
Dynamic and Scalable Real-time Analytics in Logistics - Combining Apache Storm with Complex Event Processing for Enabling New Business Models
in Logistics.
DOI: 10.5220/0005467602890294
In Proceedings of the 10th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2015), pages 289-294
ISBN: 978-989-758-100-7
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
current traffic situation. The goal of this approach is
to decrease idle time and therefore increase the utili-
zation of the fleet and the delivery quality. Also
customer satisfaction can be improved by providing
arrival times and increasing on-time delivery. In
order to enable real-time rerouting an appropriate IT
system has to be implemented which is capable of
handling data from multiple input sources such as
traffic services, ERP systems (delivery sequence)
and fleet management systems and execute complex
calculations (e.g. Travelling Salesman Problem) on
this data with extremely low latency.
Synchromodality: Synchromodality is an ad-
vancement of multi-, inter- and co-modality with the
objective to use any available form of transportation
at any time and point in the logistics chain and also
switch freely between them (van Stijn et al., 2013).
The ideal transport mode can be selected based on a
set of defined criteria. These could be for example
transport cost, transport speed, load factor or, with
the rising importance of green logistics, carbon diox-
ide emissions. To enable synchromodality seamless-
ly and successfully within the logistics chain it is
necessary to improve data transparency between all
participants. This includes detailed information
about the transported freight as well as about the
load factor on any transport vehicle which is and can
be used potentially.
Fourth-party Logistics Provider: In fourth-
party logistics (4PL) the logistics provider (4PLP)
does not have any assets and does not fulfil any
transport at all. The 4PLP acts as a coordinator for
several logistics provider (Nissen and Bothe, 2002).
As many partners are used during the transport pro-
cess it is essential that in a case of delivery quality
failure the relevant transport partner is identified and
conceivably the transport process is reorganised to
ensure a reliable delivery, regarding time and quali-
ty. In this scenario each shipment is tracked concern-
ing their geo location and certain sensor values, such
as ambient temperature, acceleration and orientation.
Before the transport is started, a service level agree-
ment is created which defines the quality of the
transport and timeslots for each leg. The continuous
real-time tracking of shipments creates the possibil-
ity for logistics companies to react to nonconformi-
ties instantaneously.
(Ellis, 2014) defines five components of real-
time architectures: Collection, Data Flow, Pro-
cessing, Storage and Delivery. As all of those are
essential, we will focus on the processing of data.
This paper presents an approach for a distributed
information system which will be capable to analyse
and process these vast amounts of data in real-time,
combining Apache Storm and Complex Event Pro-
cessing.
The paper is structured as follows: Section 2 de-
scribes the requirements of a real-time system archi-
tecture regarding the above mentioned trends. Relat-
ed research which has been conducted in the area of
real-time analytics and logistics is presented in Sec-
tion 3. In Section 4 we present and explain the tech-
nical foundation which we used for our idea. The
real-time analytics system we designed is described
in Section 5.
2 REQUIREMENTS ANALYSIS
After the emergence of Big Data in recent years the
next-level approach is summarised under the term
Fast Data. It is an evolution from batch to stream
processing. While for batch processing the analysed
data is definite, for stream processing the analysed
data is infinite. This creates the need for new tech-
nologies and techniques to analyse this stream of
data.
The upcoming trends in the last section show the
importance of a small action distance otherwise
these trends will not be realisable. Real-time routing
for example where the dispatcher receives the in-
formation after the transport has finished is not valu-
able. This results in a need for low latency to process
the information quickly to retain its value.
As logistics business operates 24/7 all around the
world and low latency is essential for high infor-
mation value a highly stable information system is
needed, otherwise the latency will increase and the
information value decrease.
Additionally in all three future trends a large
amount of data is produced. In real-time routing it is
the data of the delivery fleet, for synchromodality it
is the data about the utilisation of each usable means
of transport and in 4PLP it is even each shipment
which creates data. As the amounts of generated data
can vary heavily it is necessary that the information
system is scalable. But vertical scalability is limited
by the resources that can be added to a machine, thus
horizontal scalability – adding machines to a cluster
is essential.
According to (Ellis, 2014) real-time analytics
systems have exactly these three features:
Low Latency
Horizontal Scalability
High Availability
Another requirement is data transparency to cre-
ate process transparency. Especially in 4PL and
ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
290
synchromodal logistics each business partner needs
to introduce information systems to increase the data
transparency of its operations, e.g. utilisation data
being available system wide. The barrier for integra-
tion has to be low as small and medium enterprises
are essential for successful 4PL and synchromodal
logistics.
3 RELATED WORK
The combination of real-time analytics and logistics
and the benefits and opportunities resulting of this
combination have not been researched widely yet.
(Jeske et al., 2013) presents DHL’s view on Big
Data. Current and future scenarios in logistics are
presented partly relying on real-time analytics such
as real-time routing (as described in Section 1) and
crowd-based pick-up and delivery, where any person
can deliver shipments on the go. Many other use
cases for logistics are presented as well which can
create value-added services for logistics businesses.
The publication offers a business view; technical
implementations or considerations are not presented.
In (Toshniwal et al., 2014), published by Twitter
employees, the usage of Apache Storm by Twitter is
outlined. Twitter runs “several hundreds of topolo-
gies” on “hundreds of servers (spread across multi-
ple data centres)” producing “several” billions
events and terabytes of data per day. Apache Storm
is used for processing the content in various streams
and also for machine learning algorithms. They
especially highlight the stable behaviour of Storm
during runtime, the low latency (~1ms) and the high
availability (99.9%). On the other hand it is stated
that a dynamic re-optimisation of the topologies is
one of the issues considered for future research
which we also identified as a disadvantage (see
Section 5). Our approach includes a proposal for
bypassing this disadvantage by using Complex
Event Processing in addition to Apache Storm (see
Section 5). Despite the paper is not about the domain
of logistics it is a good overview of the capabilities
of real-time analytics and the technical foundations
of Apache Storm.
(Isoyama et al., 2012) has examined technical is-
sues that emerge from Distributed Complex Event
Processing in clusters which we describe in Section
5.2. They also propose a possible implementation to
solve these issues, though a complete solution is not
presented. The result still lacks the possibility of full
scalability of Complex Event Processing.
(Schwegmann et al., 2013) use real-time analyt-
ics in combination with event-driven Business Ac-
tivity Monitoring. The paper is about the usage of
Complex Event Processing with a Business Process
Management System to calculate KPIs in real-time
which are used to make predictions about future
process behaviour by applying statistical evaluations
to these KPIs. While the same assumption of mini-
mising the action distance to increase the business
value is taken as basis, the main focus is on creating
future predictions which we do not regard in this
paper
4 TECHNICAL FOUNDATIONS
Businesses are event-driven. They have to react to
unpredictable external and internal events (Bruns
and Dunkel, 2010). Our approach is embedded in an
Event-Driven Architecture (EDA) to process these
business relevant events. In an EDA the components
themselves are event-driven. This means that com-
munication between them is done with the usage of
events, small data objects containing information.
The business data is transmitted continuously to the
system in form of an infinite event stream. The event
stream is the foundation of an EDA.
The two major components that we use in our
system are Apache Storm and Complex Event Pro-
cessing which we will explain in the following sec-
tion.
4.1 Apache Storm
Apache Storm was developed by BackType, which
was later acquired by Twitter, to analyse the users’
click behaviour in real-time and soon became an
Apache Top-Level project (Ellis, 2014). Apache
Storm is scalable out of the box and can easily be set
up on clusters or cloud services like Amazon's EC2.
Basically Apache Storm works like Hadoop.
With Hadoop it is possible to analyse large amounts
of data within a distributed cluster. Each node within
the cluster analyses a small set of the data, the re-
sults of all nodes are being merged after the analysis
process (Map-Reduce algorithm) (Dean and
Ghemawat, 2008). Just as Hadoop, Apache Storm is
horizontally scalable and able to process large
amounts of data in a distributed cluster. But unlike
Hadoop, which is designed for analysing data ex
post in fixed sized batches, Apache Storm is event-
driven and analyses and processes data in form of an
(infinite) event stream in real-time thus making
results available immediately.
The basic components of Apache Storm are
spouts and bolts. Spouts are the sources of data
DynamicandScalableReal-timeAnalyticsinLogistics-CombiningApacheStormwithComplexEventProcessingfor
EnablingNewBusinessModelsinLogistics
291
which is emitted in form of tuples. Tuples and
events can be used interchangeably in this context.
For example these tuples can be data from traffic,
weather, location or sensor tracking services. Bolts
are the components which process and evaluate the
tuples. If needed, bolts can emit their calculated
results for further evaluation to other bolts.
These two components are combined in so called
topologies. Topologies are directed-acyclic graphs
which define the flow of events from the sources
(spouts) to the sink passing one or multiple nodes
(bolts). The foundation of each topology is a cluster
of physical or virtual machines. Depending on the
configuration and the work load Storm will create
multiple instances of each bolt and distribute them
across the cluster to ensure a fast event processing.
It is possible to add and remove machines to the
Apache Storm cluster to easily adapt to changing
event flow rates. Also crashed machines will not be
a problem as bolts are replicated throughout the
cluster and the event flow is rerouted to the existing
machines. For further technical details see (Ellis,
2014; Toshniwal et al., 2014; Apache Storm, 2014)
There are also two major disadvantages of Apache
Storm regarding the above defined requirements.
The first one is that topologies cannot be changed
once set up and running. The current workaround is
to shutdown a topology and restart an updated ver-
sion. As this workaround can last up to a few
minutes, it will result in losing events and / or in-
creasing latency significantly.
The other disadvantage is the programmatical evalu-
ation of events within the bolts i.e. using conditional
expressions. This can result in code that is hard to
read, understand and manage and since it is hard-
coded it is conceivably one of the reasons a dynamic
update of the evaluation is not possible within the
bolts.
4.2 Complex Event Processing
CEP is the main component for event processing in
an Event Driven Architecture (Bruns and Dunkel,
2010). According to (Luckham, 2002) it is a soft-
ware technology which is used to analyse causal,
temporal and spatial relationships between events in
real-time. So in CEP events are not evaluated sepa-
rately but rather in their context. (Bruns and Dunkel,
2010) defines three essential elements of CEP com-
ponents: event model, event rules and the event
engine, respectively in the terms of (Luckham et al.,
2011): event schema, rules and event processing
agent.
The event model defines the events which
contain information that is business relevant e.g. a
sensor event containing the current ambient tem-
perature. The event model is not further regarded in
this paper.CEP components use rules to evaluate the
events and their relations to each other. In most CEP
components the event rules are defined declarative
with the usage of a Domain Specific Language, the
Event Processing Language (EPL). This EPL is used
to create SQL-like statements containing the events
defined in the event model and the conditions they
should apply to. The third element is the CEP en-
gine. In combination with the event rules the CEP
engine analyses the event stream in real-time for
patterns defined in the EPL. CEP engines are able to
analyse event streams from multiple sources and can
handle millions of events per second depending on
their hardware and configuration. Examples for CEP
components are Esper, Drools, Microsoft StreamIn-
sight and TIBCO BusinessEvents & Streambase.
Current CEP solutions are not scalable in a full
extent. While vertical scaling – adding resources to a
machine – is easily possible, limitations exist for
horizontal scaling – adding machines to a cluster
(see Section 5.2). As vertical scaling is limited by
the resources (CPU, memory, HDD) that can be
managed by one machine, the maximum amount of
ICA8Rm9udFN0eWxlPg0KICAgICAgICA8TmV1d
as well, so support for horizontal scaling is required.
4.3 Benefits of Integrating Complex
Event Processing in Apache Storm
The combination of Apache Storm and CEP results
in the following benefits. Apache Storm is a good
basis for distributed computing as it is horizontally
scalable by default and fault-tolerable. With the
usage of a CEP engine we are able to bypass the
disadvantages and additionally use the horizontal
scaling feature provided by Storm which is currently
not possible with CEP engines (see Section 5.2).
As stated above CEP engines include the ability
to register rules which are used to evaluate incoming
events. In contrary to Apache Storm these rules,
which are comparable to the processing algorithm
within the bolts, are expressed using EPL state-
ments. The rules within the CEP engine can be
changed dynamically and are immediately applied to
all events which are received after the update. There-
fore giving us the ability of reacting to changing
circumstances or focuses of interest in terms of the
business relevant data while being flexible by adding
and removing resources depending on the workload.
ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
292
5 APPROACH
This section presents and evaluates our approach for
an information system being able to process and
analyse vast amounts of data in real-time with being
extendable and changeable at any time during opera-
tions.
5.1 Scenario
The foundation of our system is an Apache Storm
topology with multiple internal and external data
sources, which could be shipments, means of
transport or traffic services (see Figure 1). The
amount of data emitted by these sources is the event
stream thus containing the business relevant data.
The spouts (Spout 1 to Spout i) are the connectors to
the event stream and emit the data in form of tuples
to the topology. The spouts are the starting point of
the event flow within our Apache Storm topology.
The events in form of tuples are then passed to the
bolt in tier 1. The events are evaluated according to
the EPL statements. Either the results are directly
forwarded to the connected systems or are being
passed to next tier for further evaluation. It is rec-
ommended to use general rules in the lower tiers and
get more specific the higher the bolt is inside the
topology. This will ensure that uninteresting events
are already filtered in the beginning and reduce the
load on the more complex statements. The architec-
ture is comparable to an array of sieves for filtering
sand where the holes in the sieve become smaller the
further the sand flows through the array. However
we are not interested what is left in the sieves but
rather what flows through.
As already stated, in Apache Storm a bolt is a
template for handling events. Storm will create sev-
eral instances of one bolt according to the load and
configuration parameters. In our model each in-
stance of a bolt creates and starts a CEP engine.
Events will only flow to one instance of a bolt so we
need to assure that each CEP instance in one tier has
exact the same statements implemented the holes in
our sieve. To do so, we need another component, the
statement repository. The statement repository con-
tains all the rules for one tier / bolt which will be
used to evaluate the incoming events. Whenever a
new instance of a bolt is created the CEP engine,
which is created with this bolt, will pull all the cur-
rent statements from the repository and vice versa
subscribe itself for updates to the repository. This
subscription enables us to pass new or changed
statements to all CEP engines immediately and in
order with that realising the requirement of fast
adaption to changing environments as mentioned in
the beginning of this paper. This feature giving ex-
ecutives, users and analysts to change rules on the
fly and let them, the domain experts, decide what is
interesting.

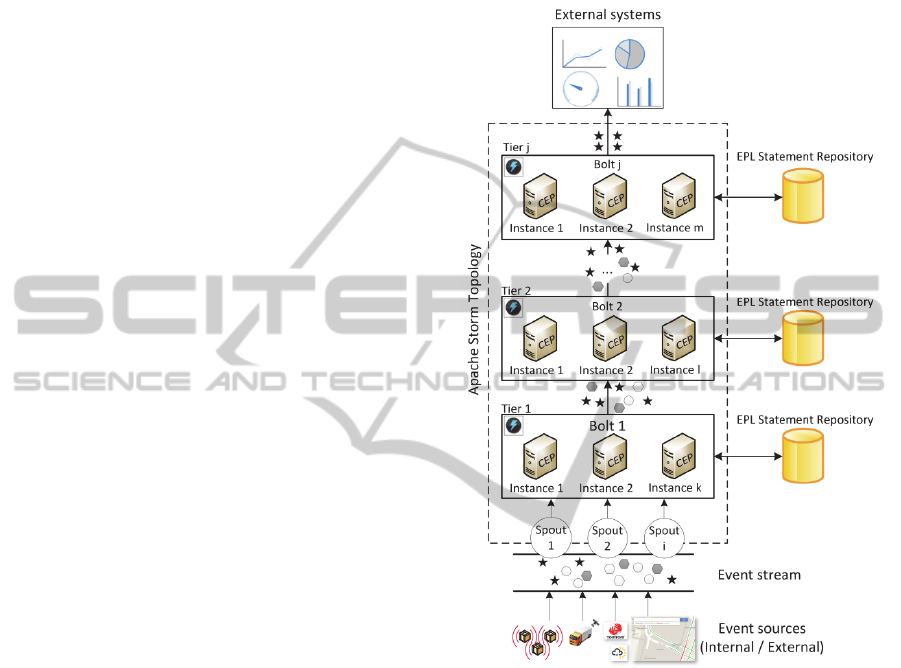

Figure 1: Apache Storm in Combination with Complex
Event Processing.
5.2 Evaluation and Further Research
Currently the analysis of Complex Event Processing
in a distributed environment has a major drawback.
We have to distinguish between two different EPL
rule categories: stateless and stateful. Stateless rules
need information only from the current event which
is evaluated. No information about preceding events
is necessary to process the rule. E.g. "every Even-
tA(temperature > 30)". Contrarily stateful rules need
information about other events. E.g. "Event A fol-
lowed by Event B". This category includes sliding
windows, patterns and abundance detection of
events. While it is not a problem to process stateless
rules in a distributed system, the processing of state-
ful rules is complicated. Each event is evaluated by
DynamicandScalableReal-timeAnalyticsinLogistics-CombiningApacheStormwithComplexEventProcessingfor
EnablingNewBusinessModelsinLogistics
293
exactly one of multiple CEP engines within each
tier. Each CEP engine has its own context which is
not visible to the other instances. Stateful rules need
in contrary to stateless rules, additional context in-
formation. To successfully evaluate events, the con-
text has to be shared between all event processors.
(Isoyama et al., 2012) proposes a solution to adjust
the distribution of events throughout the cluster.
This is not a full scale solution of the problem of
context sharing within distributed CEP engine. The
most useful approach for our scenario would be the
implementation of an external shared context state
which according to (Isoyama et al., 2012) will result
in high overloads and performance issues when the
separate CEP engine instances will access the shared
context state. Further research in this area has still to
be conducted.
6 CONCLUSIONS
In this paper we presented an approach for an infor-
mation system being capable of analysing vast
amounts of data in real-time and thus enabling busi-
nesses to react immediately by reducing the action
distance. The system we presented is completely
based on open source software. Because of missing
licence fees it is possible for small and medium
logistics enterprises to implement and use real-time
analytics for their operational work to offer value-
added services such as real-time tracking or SLA
monitoring and therefore increasing the business
profit and improve customer satisfaction.
ACKNOWLEDGEMENTS
The work presented in this paper was funded by the
German Federal Ministry of Education and Research
under the project LogiLeit (BMBF 03IPT504A).
REFERENCES
Apache Storm (2014), “storm”, available at:
https://storm.apache.org/ (accessed 16 January 2015).
BIEK (2014), Anzahl der Sendungen von Kurier-,
Express- und Paketdiensten (KEP) in Deutschland in
den Jahren 2000 bis 2013 (in Millionen), Statista -
Das Statistik-Portal.
Bruns, R. and Dunkel, J. (2010), Event-Driven
Architecture, Springer, Berlin, Heidelberg.
Dean, J. and Ghemawat, S. (2008), “MapReduce. Simpli-
fied Data Processing on Large Clusters”,
Communications of the ACM, Vol. 51 No. 1, pp. 107–
113.
Ellis, B. (2014), Real-Time Analytics, 1st ed., Wiley,
Indianapolis.
Hackathorn, R. (2003), “Minimizing Action Distance”,
available at: http://www.tdan.com/view-articles/5132/
(accessed 19 January 2015).
Isoyama, K., Kobayashi, Y., Sato, T., Kida, K., Yoshida,
M. and Tagato, H. (2012), “A scalable complex event
processing system and evaluations of its perfor-
mance”, in Proceedings of the 6th ACM International
Conference on Distributed Event-Based Systems,
ACM, New York, NY, pp. 123–126.
Jeske, M., Grüner, M. and Weiß, F. (2013), Big Data in
Logistics, Troisdorf, Germany.
Luckham, D., Schulte, R., Adkins, J., Bizarro, P., Jacob-
sen, H.-A., Mavashev, A., Michelson, B.M. and Nib-
lett, P. (2011), Event Processing Glossary: Version
2.0.
Luckham, D.C. (2002), The Power of Events, Addison-
Wesley, Boston.
Mishne, G., Dalton, J., Li, Z., Sharma, A. and Lin, J.
(2013), “Fast data in the era of big data”, in Ross, K.
and Data, ACM Special Interest Group on Manage-
ment of (Eds.), Proceedings of the 2013 ACM SIG-
MOD International Conference on Management of
Data, ACM, New York, NY, USA, pp. 1147–1158.
Nissen, V. and Bothe, M. (2002), “Fourth Party Logistics
– ein Überblick”, Logistik Management, Vol. 4 No. 1,
pp. 16–26.
Schwegmann, B., Matzner, M. and Janiesch, C. (2013), “A
Method and Tool for Predictive Event-Driven Process
Analytics”, in Alt, R. and Franczyk, B. (Eds.), Pro-
ceedings of the 11th International Conference on
Wirtschaftsinformatik, Leipzig, Univ., Leipzig.
Toshniwal, A., Donham, J., Bhagat, N., Mittal, S., Rya-
boy, D., Taneja, S., Shukla, A., Ramasamy, K., Patel,
J.M., Kulkarni, S., Jackson, J., Gade, K. and Fu, M.
(2014), “Storm@twitter”, in SIGMOD '14: Proceed-
ings of the 2014 ACM SIGMOD International Confer-
ence on Management of Data, ACM, New York, NY,
USA, pp. 147–156.
van Stijn, E., Hesketh, D., Tan, Y.-H., Klievink, B., Over-
beek, S., Heijmann, F., Pikart, M. and Buterly, T.
(2013), “The Data Pipeline”, in United Nations Eco-
nomic Commission for Europe (Ed.), Connecting In-
ternational Trade: Single Windows and Supply Chains
in the Next Decade, United Nations, New York and
Geneva, pp. 158–183.
ENASE2015-10thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
294
