Using the Dependence Level Among Requirements to Priorize the

Regression Testing Set and Characterize the Complexity of

Requirements Change

André Di Thommazo

1,2

, Kamilla Camargo

, Elis Hernandes

1,2

, Gislaine Gonçalves

, Jefferson Pedro

Anderson Belgamo

2,4

and Sandra Fabbri

IFSP - São Paulo Federal Institute of Education, Science and Technology, São Carlos, SP, Brazil

LaPES - Software Engineering Research Lab, Federal University of São Carlos, UFSCar, São Carlos, SP, Brazil

Experteasy, Ribeirão Preto, SP, Brazil

IFSP - São Paulo Federal Institute of Education, Science and Technology, Piracicaba, SP, Brazil

Keywords: Requirements Traceability, Regression Test Prioritization, Requirements Traceability Matrix.

Abstract: Background: When there are changes in software requirements, other phases of software development are

impacted and frequently, extra effort is needed to adjust the previous developed artifacts to new features or

changes. However, if the development team has the traceability of requirements, the extra effort could be not

an issue. An example is the software quality team, which needs to define effective tests cycles in each software

release. Goal: This papers aims to present an approach based on requirements dependence level to support

the regression test prioritization and identify the real impact of requirement changes. Method: The designed

approach is based on automatic definition of Requirements Traceability Matrix with three different

dependence levels. Moreover, dependence between requirement and test case is also defined. A case study in

a real software development industry environment was performed to assess the approach. Results: Identifying

the dependence level among requirements have allowed the quality assurance team priorize regression tests

and, by means of these tests, defects are early identified if compared with tests execution without priorization.

Moreover, the requirements changes complexity is also identified with the approach support. Conclusion:

Results shows that definition of dependence levels among requirements gives two contributions: (i) allowing

test prioritization definition, which become regression test cycle more effective, (ii) allowing characterize

impacts of requirements changes, which is commonly requested by stakeholders.

1 INTRODUCTION

The requirements management is an important

activity for the software development process

(Cleland-Huang et al., 2012); (Sommerville, 2010);

(Zisman and Spanoudakis, 2004). The requirements

traceability is the ability to follow the requirement life

cycle in both directions: past, related to the features

before the inclusion of the requirement, future, related

to features after the requirements inclusion (Götel and

Finkelstein, 1997).

Requirements management is important because

since a requirement is modified or added in a

requirements document, all stages of the software

development are affected requirements engineering,

software modelling, code development and software

testing, regardless of the software development

process to be followed. To map and manage the

requirements linking and other artefacts should be

established the requirements traceability. Several

authors emphasize the importance of traceability in

the software development process as part of

requirements management activities (Salem, 2006);

(Oliveto et al., 2007).

The requirements traceability is defined as the

ability to describe and follow the life of a requirement

throughout its life cycle (Guo et al., 2009). This

control should cover the whole requirement

existence, from its origin - when the requirement is

elicited, specified and validated - to the other stages

of the software development, including code

development and testing phases. Thus, the

requirements traceability is a technique that allows

the identification and visualization of the dependence

between a requirement with other requirements

231

Di Thommazo A., Camargo K., Hernandes E., Gonçalves G., Pedro J., Belgamo A. and Fabbri S..

Using the Dependence Level Among Requirements to Priorize the Regression Testing Set and Characterize the Complexity of Requirements Change.

DOI: 10.5220/0005468902310241

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 231-241

ISBN: 978-989-758-097-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

and/or other artefacts produced during a software

development process.

Cleland-Huang et al., (2012) define two types of

traceability:

• Horizontal: occurs when there is relationship

between requirements and different artefacts such

as models, source code and testing artefacts; and

• Vertical: when the relationship occurs in the same

artefact, for example the relationship between

requirements. The dependence between the

requirements, in general, is recorded in the

Requirements Traceability Matrix (RTM).

In this paper, the vertical traceability is handled by

exploiting the level of dependence between the

functional requirements (FRs) and the horizontal

traceability is handled by using the relationship

between each FR and its test cases (TC).

In the context of horizontal traceability, an

example is the possibility of identification and

prioritization of regression testing from the level of

dependence between FRs and between FRs and TCs.

According to Rothermel et al., (2001), regression

tests are important, but they can also be expensive. In

addition, the high cost has motivated several studies

to find a better cost effective, especially with the

prioritization of TCs (Salem, 2010). As the time

devoted to testing activity is limited, prioritization

allows to increase the number of serious defects

found (Malz et al., 2012).

In the context of vertical traceability, establish the

dependence between the Functional Requirements

(FRs) can support to predict the impact of changes in

software. The analysis of the impact changes allows

the project manager to take decisions more effective

during the change management of the software

development (Kama and Azli, 2012). If a change

occurs in a FR with a strong dependence with other

requirements, it makes sense to imagine that the

maintenance complexity is greater than a FR with no

dependence. In this case, the project manager should

make some decisions in order to satisfying the

stakeholder´s needs. For example, the decision may

be related to identifying the level of expertise

required to implement the changes.

Despite of the benefits of the requirements

traceability, a major challenge for the software

development process is to achieve and maintain

traceability in a manual way (Sommerville, 2010).

Thus, this research group has conducted several

studies to propose approaches to automatically

generate the RTM. In this sense, the RTM-E and

RTM-NLP have been proposed (Di Thommazo et al.,

2012). A combination between RTM-E and RTM-

NLP approaches enabled the development two new

approaches: RTM-N (Di Thommazo et al., 2013a)

using neural networks and RTM-Fuzzy (Di

Thommazo et al., 2013b) using fuzzy logic. A brief

summary of these approaches is presented in Section

II. In general, the combination of these approaches

allowed the decrease of the number of false positives

generated. The problem of false positive is identified

in the literature as a typical problem when NLP is

used for determining traceability (Sundaram et al.,

2010). In addition to reducing the number of false

positives, the combination of these approaches

indicates the level of dependence between FRs: weak

or strong dependence. This feature is a novelty in

relation to studies found in the literature. From the

dependence level it is possible to generate the TCs

prioritization and to identify the change complexity in

FRs, as described in Section 5.

Based on the scenario previously presented, this

research group developed an approach to define a set

of regression tests with prioritized TCs according to

the level of dependence between the FRs.

Furthermore, we sought to characterize the impact of

a change in FRs. This proposal was evaluated by a

case study in a real system aiming to show the

traceability advantages in order to characterize the

impact of changes in the FRs as well as to determine

a prioritized set of regression tests with priority.

Thus, the objectives of this paper are:

 To present an approach for selecting a set of

regression TCs;

 To show how the level of dependence between

FRs in a RTM can be useful in the process of

prioritizing a set of regression TCs;

 To show how this novel approach can characterize

the impact of changes in FRs, identifying changes

with a greater complexity;

 To show the approach application in a real case

study.

Note that this paper is not intended to detail the

approaches to automatically determine the RTM,

since these have been previously published by Di

Thommazo et al., (2012), Di Thommazo et al.,

(2013a), Di Thommazo et al., (2013b) and Di

Thommazo et al., (2013c). It also highlights that,

despite having several experimental studies to show

the effectiveness of these four approaches, for the

novel approach, presented in this paper, has not been

possible to find a large population such as that

undertaken in previous experimental studies. This is

because the case study involves monitoring all the

software development process, from its requirements

specification to software testing, in more than one

development cycle, as shown in Section 5.

We also emphasize that there are two systematic

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

232

reviews (Singh et al., 2012); (Engström et al., 2010)

about the selection of test cases (CTs) for regression

testing. It is important to note that in the systematic

reviews there were not initiatives that select the

Regression Testing Cases with prioritization from the

traceability matrix of functional requirements and

levels of dependence, as proposed in this paper. In

these two studies in the literature are listed techniques

to generate Regression Testing with prioritization.

One of the techniques cited traceability (Filho et al.,

2010) however, this is traceability between models,

source code and CTs. Another cited technique

(Srikanth et al., 2005) focuses on the requirements,

but the definition and prioritization of test cases are

not based on traceability. The other techniques

mentioned in the work do not have focused on

requirements.

This paper is organized as follows: Section 2

presents the definitions of requirements traceability;

Session 3 details the regression test concepts and

prioritization of TCs; Section 4 shows the proposed

approach; Section 5 presents the case study

performed; Section 6 presents the findings and future

works.

2 REQUIREMENTS

TRACEABILITY

The main purpose of requirements management is the

requirements organization and storage as well as the

management of the changes that occur throughout the

development process (Sommerville, 2010); (Zisman

and Spanoudakis, 2004). One way to manage the

requirements is the establishment of traceability

requirements, defined as the ability to describe and

monitor the requirements throughout its life cycle

(Guo et al., 2009). Generate the link between FRs and

the connection between FRs and other artefacts

produced is a laborious task of requirements

management (Sundaram et al., 2010). The

requirements traceability can provide the basis for

evolution on requirements changes, in addition to

acting directly on the software process quality

assurance (Guo et al., 2009). A representation to

mapping the dependence between FRs is the creation

of RTM, where each FR is represented in one row and

one column of the matrix. The dependence between

two requirements is recorded in the corresponding

cell (line/column intersection). Several authors show

the importance of the RTM for the software process

development, since the matrix can help predict the

impact of a change or of a new FR in the system

(Cleland-Huang et al., 2012); (Sommerville, 2010)

(Guo et al., 2009); (Goknil et al., 2011.

This research group has proposed four approaches

for the automatic generation of RTM. These

approaches take into account the FRs of the software,

establishing the level of dependence between each

pair of FR.

The approaches were developed in COCAR tool

(Di Thommazo et al., 2012); (Di Thommazo et al.,

2013a); (Di Thommazo, 2013b); (Di Thomazzo et al.,

2014), aiming to provide computational support for

requirements management process IBM (2012). The

COCAR tool uses a template (Kawai, 2005) to store

all the requirements. The main purpose of this

template is to standardize the data of FRs, avoiding

inconsistencies, omissions and ambiguities.

Thus, the four approaches are available in the

COCAR tool, aiming to generating the RTM:

• RTM-E: based on input data from FRs and

explained in Di Thommazo et al., (2012);

• RTM-NLP: based on natural language processing

(NLP) and explained in Di Thommazo et al.

(2012);

• RTM-Fuzzy: combines the RTM-E and RTM-

NLP approaches using fuzzy logic (Di Thommazo

et al., 2013b). The pertinence functions of the

fuzzy system were defined by genetic algorithms,

as described in Di Thommazo et al., (2014);

• RTM-N: combines the RTM-E and RTM-NLP

approaches using neural networks (Di Thommazo

et al., 2013a).

In COCAR tool is also possible to register TCs and

associated them to FRs previously recorded. This

feature supports the vertical traceability.

3 REGRESSION TEST AND TEST

CASE PRIORITIZATION

The process of verifying the modified software in

maintenance phase is called Regression Test

(Maheswari and JeyaMala, 2013). The regression test

should be performed after the software suffer any

change, either by a new requirement or changes in an

existing requirement, in order to validate if those

modifications do not have inserted new faults. The

number of test cases for regression test have a

continuously grow whilst software is developed, and

re-execute all of them is not always feasible due to

schedule constraints (Kukreja et al., 2013).

The regression test is an expensive phase of

software testing process, a modification in the

software can require re-execute all set of test cases for

a module, for example. If the regression test suite is

UsingtheDependenceLevelAmongRequirementstoPriorizetheRegressionTestingSetandCharacterizetheComplexity

ofRequirementsChange

233

too large more effort will be required. The execution

of a regression test requires a plan, which includes

planning how, who and when will be executed (Myers

et al., 2004). The planning allows a better efficiency

in this activity.

Researchers have considered various techniques

to reduce costs of regression tests between them: test

case selection and test suite minimization (Rothermel

et al., 2001). The test case prioritization is a technique

that helps the identification of a subset of test cases

that will require less effort and time to be executed

during regression test phase. This subset, which

comprises test cases prioritized, helps the team in

early achievement of goals of the tests (Maheswari

and JeyaMala, 2013). In this technique the team will

sort the test cases according with his priority,

following a selection criterion. Test cases with lower

priority will be executed after the test cases with

higher priority (Rothermel et al., 2001). This can

increase the probability of finding faults early during

test process. As soon the faults are revealed faster the

software can be fixed, which means less time to

product delivery. The test case prioritization should

follow a clear criteria that allows identify why a test

case has higher priority than other. This criteria need

to be aligned with the expected goal to be achieved

by decreasing the set of regression tests: costs

reduction, increase fault detection rate, reduces

product delivery time, between others.

The next section presents the proposed approach,

which use the dependence level between functional

requirements as criteria for the test case prioritization.

4 PROPOSAL APPROACH

In this section we present the proposed approach to

address the changes in FRs during the software

development process. It is noteworthy that when we

mention changes in requirements, we are referring to

the modification of some existing functionality

already implemented or the inclusion of a new FR.

The objective of this proposal is to select a set of

regression TCs, by means of prioritization, from any

modifications in a FR or in a set of FRs. The approach

was based on the level of dependence between FRs

during the RTM generation.

Thus, once the system FRs are specified and

associated with their respective TCs, the regression

tests executed after any FR modification/inclusion are

prioritized in order to show different alternatives of

testing execution. As previously mentioned, the

COCAR tool was used to support the proposed

approach by means of FRs registration, RTM

generation (Di Thommazo et al., 2012); (Di

Thommazo et al., 2013a); (Di Thommazo et al.,

2013b); (Di Thommazo et al., 2014) and the

registration of TCs for each FR.

To illustrate the approach, consider a software that

was developed and its FRs and TCs have already

registered in COCAR tool. Any software

modification should be realized by means of FR

modification, codification and testing. Figure 1 shows

the flowchart of the proposed approach. Note that the

result of the approach is that the set of regression tests

have priorities according to the level of dependence

between the FRs. The higher the priority of the TC,

more chances it will have to find a defect and,

therefore, must be run first (Rothermel et al., 2001).

In addition to setting the TCs priority, this

approach allows to characterize the impact of changes

in the software. Therefore, the development team

should know and convey the complexity related to

each of the changes before the implementation. Based

on this information can be taken actions for risk

management, aiming to create contingency plans for

great complexity changes, or even to decide the best

time to implement complex changes. It may also be

possible to allocate more experienced staff members

to deal with more complex problems. It is noteworthy

that this approach does not define a metric to measure

the impact of changes related to effort in person-hour

or function points. The idea is to present a comparison

among the changes, so you can characterize among

all of them, which one presents the highest risk due to

the highest dependence among the FRs. As

previously mentioned, the definition of regression

tests is based on the dependence among the FRs and

between the FRs and the TCs. Therefore, we used the

same dependencies to characterize the complexity of

the changes, assuming that the greater the dependence

among the FRs, the harder it is to be maintained.

If a FR has dependence with several others, any

change in this FR implies to adjust models with strong

dependence with another models and source-code

snippets with strong dependence with other features.

Thus, the understanding of other code snippets are

necessary to make the change in the FR. In general,

the effort to understand third-party source code

involves a considerable time and attention from

developers. Since this is a possible source of defects,

the testing and correction effort may be longer.

Moreover, to modify or insert a FR, that has a weak

dependence (or no dependence) with others FRs

implemented, does not present difficulty of adjusting

to implement other functions already created. To

characterize the impact of change, we used the

amount of TCs that must be performed for each

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

234

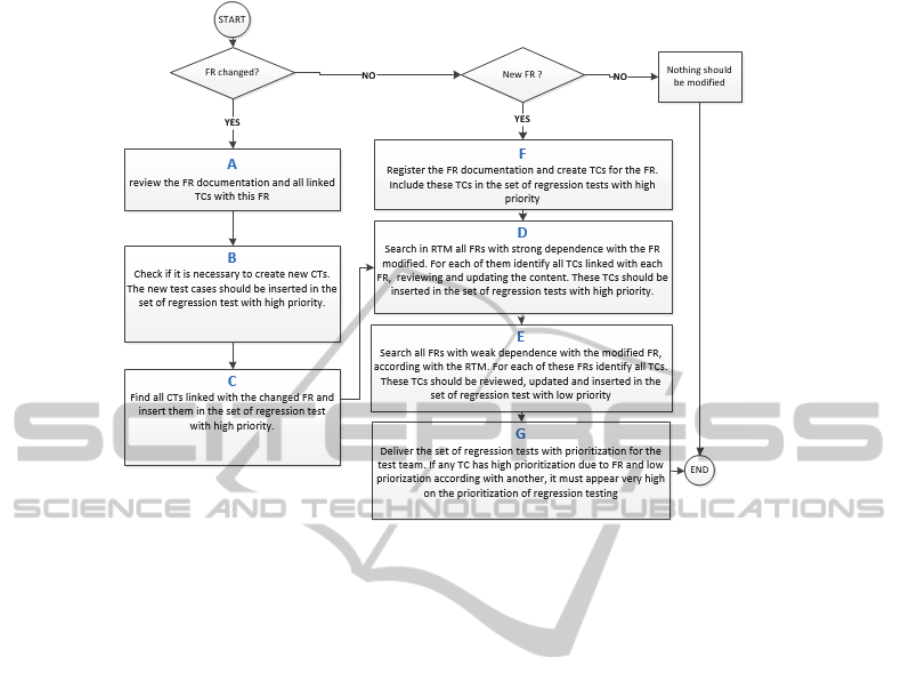

Figure 1: Steps to select prioritized TCs based on the dependence of FRs.

change, considering their respective priorities. A

simple counting of FRs with dependencies should not

be realized because if a FR has many TCs, it may

indicate that one FR has a complex business rule. On

the other hand, if a FR has only one associated TC, it

may indicate that your business rule is simple.

Thus, to characterize the impact of changes we

took into account the priority of the TCs, setting

weight 3 for high priority and weight 1 for low

priority. Consider the priority of TC is the same the

dependence level of the FRs. Equation 1 shows how

it is done the calculation of this complexity. The

weight values were defined considering that a

complex change can be 3 times harder than a simple

change. It is understood that this value can be

adjusted based on other data being collected by the

project manager. It is noteworthy that, in this study,

these values were consensus on the development

team.







qtdPrHigh ∗ 3



qtdPrLow

(1)

In Equation 1, qtdPrHigh is the amount of TCs with

high priority identified by the approach to change the

FRx and qtdPrLow is the amount of TCs with slow

priority identified by the approach to chnge the FRx.

Figure 2 summarizes the approach for the complexity

characterization.

In the next section we present the case study of a

professional system, whose evolution and changes in

the FRs followed this approach.

5 CASE STUDY

This case study was conducted to evaluate the set of

regression testing with test cases prioritized based on

the level of dependence between FRs and traceability

between FR and TC. The case study also

characterizes complexity for the modification of a

FR, also using the level of dependence between FRs

(as defined in the RTM) and regression tests that were

determined to test the requested change.

The software that was developed during the case

study has the target of evaluating physical activity of

patients undergoing step test efforts. The software

was part of a project of the Department of

Physiotherapy at UFSCar and is linked with a patent

for a new product. During the evolution of this

product several changes had been necessary in the

software. In this iterative and interactive scenario

changes, the ability to deal with changes in

requirements assists the product development

process. When we talk about selection of CTs with

prioritization, we are referring to the ability to set the

priority of each CT that will identify more defects and

faster, in addition to covering the changes that

occurred in the software. The steps performed in the

case study were:

UsingtheDependenceLevelAmongRequirementstoPriorizetheRegressionTestingSetandCharacterizetheComplexity

ofRequirementsChange

235

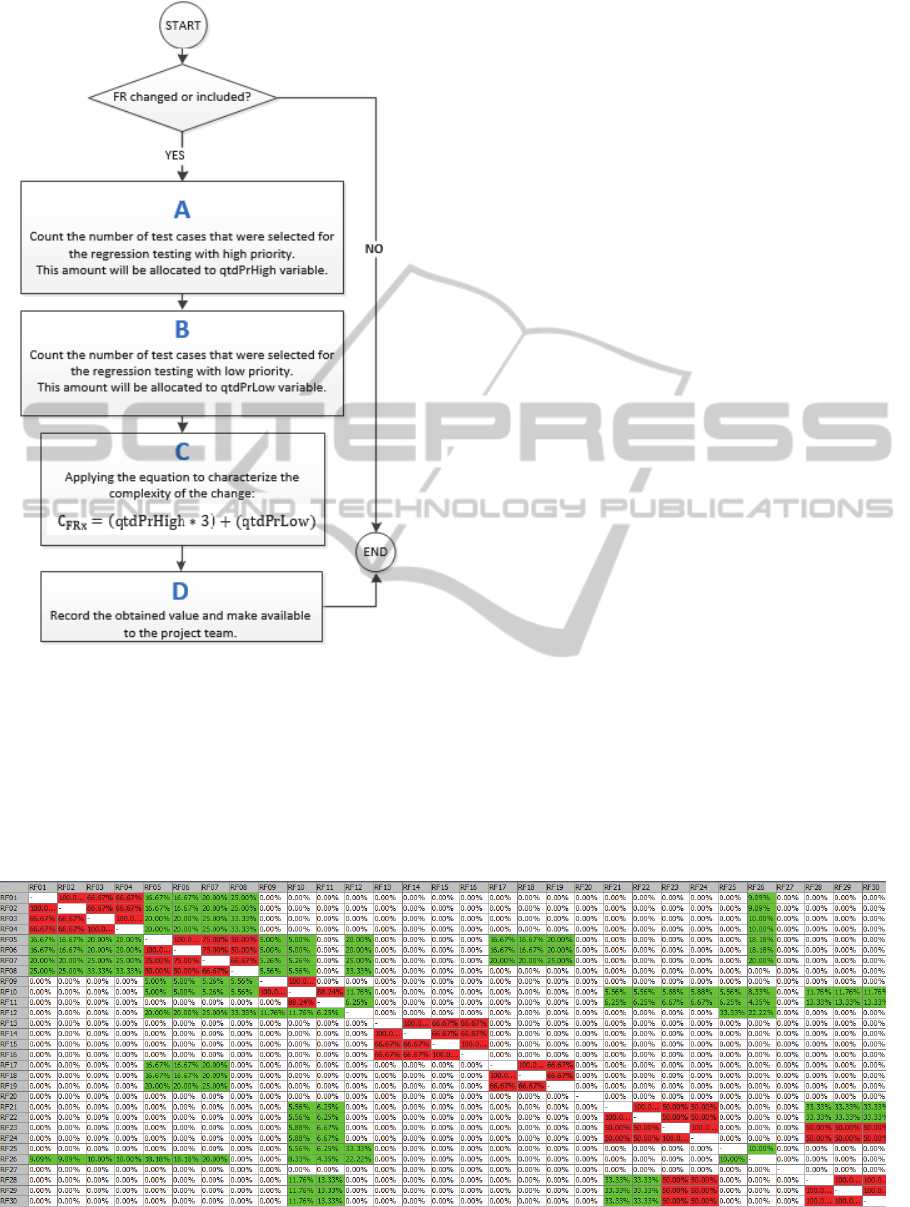

Figure 2: Proposed approach to characterize the complexity

of changes in functional requirements.

Step 1) Record of Functional Requirements in

COCAR Tool: requirements were elicited with people

who would be users of the system. All requirements

were registered in COCAR tool, by adding the

description, processing, data entry, constraints,

outputs and stakeholders involved;

Step 2) Generation RTM According to the RTM-

Fuzzy Approach: Figure 3 illustrates the RTM

generated. Green color cells indicate a weak

dependence between FRs. Red color cells indicate a

strong dependence between FRs. The RTM-Fuzzy

approach was detailed in Di Thommazo et al.

(2013b);

Step 3) Insertion of TCs in COCAR Tool: from the

analysis of each FR were created functional test cases

related with each requirement. As the TCs were

created from the FRs, traceability between FR and

TCs was established automatically in the tool. This

traceability is required for identifying the priority of

test cases. If a FR is changed then it is necessary

execute first all TCs linked to this FR in regression

test phase, as detailed in the sequence;

Step 4) Software Development: the development

process involved two developers and was developed

with C # language to desktop environment.

Step 5) Test Case Execution of to find Bugs in the

Software Developed: the test cases produced on step

3 were executed after completion of software

development phase. The errors found were fixed and

the TCs that raised defects were executed again. The

execution of 106 test cases spent about 160 minutes.

After these steps the software was delivered to the

Department of Physiotherapy for the acceptance test

phase. The software was used in day to day evaluation

of patients undergoing physical stress tests. It was

expected that after the first execution of the

acceptance test, improvements were requested in the

proposed software: both as regards the change in the

existing FRs and the insertion of new FRs. In

addition, it was expected that defects could be found

which were not detected in the first test phase.

Step 6) Changes Treatment: after two weeks of use,

Figure 3: RTM obtained from the system of case study, before the proposed changes.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

236

the development team met with users to evaluate the

software. The following requests for modification

were made:

• Change in FR9 related to the patient record,

inserting a new field;

• New FR related to the inclusion of the

completion of a questionnaire by patients (will

be called FR31);

• New FR related to the system backups (will be

called FR32).

The steps used to determine the implementation of

these modifications are described in Figure 1. A

detailed description of each step performed in this

case study is presented following.

To deal with the change in FR9 it was necessary

to review the documentation relating to all TCs that

are related with this FR (Figure 1 step A). When an

FR is modified, the CTs related to it should be

reviewed and updated to continue according to the

FR. After an analysis was made to check if you need

to create some new TC, which did not occur for the

requirement in question, the FR9 (Figure 1 step B).

Following it was identified all TCs related FR9.

The selected TCs were TC34, TC35, TC36 and TC37

(Figure 4 step A). These four TCs were inserted in the

regression test set with high priority, according with

the step C of Figure 1.

The next step was to identify all FRs that had

strong dependence with FR9 (according to the RTM-

Fuzzy approach (Di Thommazo et al., 2013b). The

only FR that had a strong dependence was the FR10.

This requirement is related to the update of a patient

in the system. This relationship is shown by the red

arrow in Figure 4. All the FR10 TCs were entered into

the regression test universe with high priority (TC38,

TC39 and TC40). It was necessary to create a new

TC, called TC107, so that the new inserted field could

be validated. This TC was also inserted into the

regression test universe with high priority, according

the Figure 1 step 4 and represented by Figure 4-B.

Finally, were recovered the FRs which had low

dependence with the FR9 (FR5, FR6, FR7 and Fr8)

labelled with green arrow in Figure 4 and their

respective TCs (TC19 to TC33) as described in

Figure 1 step E. These TCs were added to regression

test suite with low priority, as shown in Figure 4-C.

The last step of the proposed tests would be

provide for the test team the TCs from TC34 to TC40

with high priority and the TC23 to TC33 with low

priority (Figure 1 step F).

Another change in the set of requirements was the

insertion of the FR31, related to the completion of a

survey by patients. After the inclusion of this

requirement more TCs were created for this

functionality (TC108, TC109 and TC110). They were

added to the regression test suite with high priority

(related to results of Figure 1 step F and shown in

Figure 5-A).

Following the proposed approach, we find out in

the RTM generated by the RTM-Fuzzy approach all

FRs with strong dependence with the FR31. In this

case, there was no FR in this situation (Figure 1 step

D).

The next step (Figure 1 step E) was identified

which FRs have weak dependence with the FR that

was inserted (FR31). In this case were recovered FR9,

FR10, FR11, FR12, FR25 and FR26. These weak

dependencies are marked in Figure 5 by the green

arrows. The TCs related to these six FRs were

recovered and inserted into the set of regression TCs

with low priority. These TCs recovered from the

insertion of the FR31 were made available to the test

team (Figure 1 step G).

Finally, we detail the insertion of the FR32,

related with the creation of import system backups.

As this is a new FR, the first action was to create the

TCs for this FR (Figure 1 step F shown in Figure 6).

The next step was to search the FRs with strong

dependence and then select the TCs connected to

them (Figure 1 step D). There were no FRs with

strong or weak dependence (Figure 1 step E). Thus,

only the TCs created specifically to address this

requirement (FR32) were inserted into the set of

regression TCs.

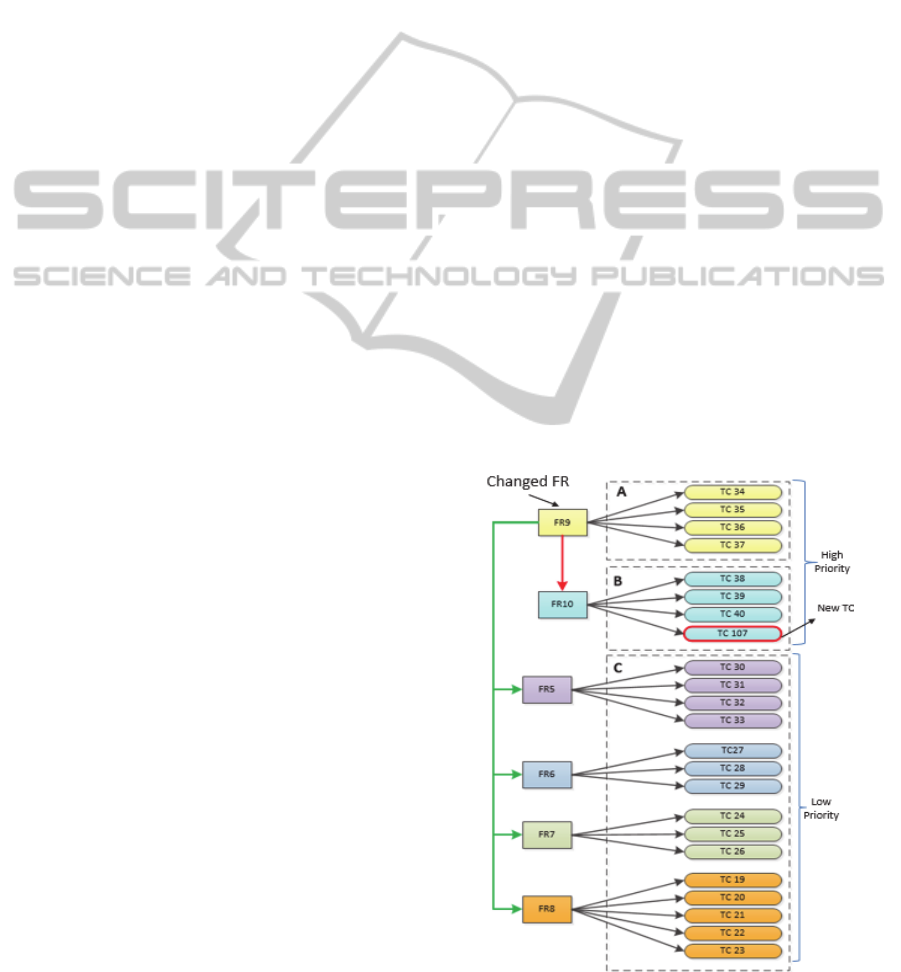

Figure 4: Changes in FR9.

UsingtheDependenceLevelAmongRequirementstoPriorizetheRegressionTestingSetandCharacterizetheComplexity

ofRequirementsChange

237

Figure 5: Insertion of the FR31.

Figure 6: Insertion of the FR32.

The result of the execution of the steps described

in Figure 1 was a set of regression tests. Note that the

TCs TC34, TC35, TC36 and TC37 were given high

priority when the FR9 was modified and low priority

when the FR31 was inserted. In these situations

should always be considered the highest priority, as

detailed in Figure 1 step G.

Step 7) Characterization of the Impact of Changes:

to illustrate the characterization of complexity from

the approach, Table 1 was built with case study data.

Equation 1 was used to characterize the complexity

of each change in the FRs. In the following (Equation

2) is an example of the calculation was made for the

change in FR9:





8∗31539

(2)

The same procedure was used to describe the

complexity of FR31 and FR32 requirements. It is

possible to realize that the change in FR9 and FR31

requirements has a greater impact than the FR32. This

information can help the project manager to allocate

more experienced people for more complex tasks.

Despite, when there are several changes with great

complexity, this information can helps the project

manager estimate what will be the time for a new

software release. With time and knowledge of the

company under its own process is possible to trace the

relationship of the absolute value of the complex with

man-hour efforts or function points that was made to

calculate the change in FR9.

Step 8) Implementation of the Changes in the

Software: the change in FR9 and insertion of FR31

and FR32 were implemented by the development

team;

Step 9) Application of Regression Testing for

Defects Detection: in this step, the set of regression

tests with priority was performed in software built in

the previous step (step 7). This set of TCs had two

categories:

Table 1: Complexity of the FRs modifications.

TCs from

TCs that must

be performed

with high

priority

TCs that must be performed with

low priority

TCs quantity

with high

priority

(qtdPrHigh)

TCs quantity

with low priority

(qtdPrLow)

Characterization

of the complexity

to modify the FR

FR9

TCTC34,

TC35,

TC36,

TC37

TC34, TC35,

TC36, TC37,

TC38, TC39,

TC40, TC107

TC19, TC20, TC21, TC22, TC23,

TC24, TC25, TC26,TC27, TC28,

TC29, TC30

8 15 39

FR31

TC108,

TC109,

TC110

TC108, TC109,

TC110

TC34, TC35, TC36, TC37, TC38,

TC39, TC40, TC107, TC41, TC42,

TC43, TC44, TC45, TC46, TC79,

TC80, TC81, TC82, TC83, TC84,

TC85, TC86, TC87, TC88

3 25 34

FR32

TC111,

TC112,

TC113

TC111, TC112,

TC113, TC114

- 4 0 12

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

238

 15 TCs with high priority: TC34, TC35, TC36,

TC37, TC38, TC39, TC40, TC107, TC108,

TC109, TC110, TC111, TC112, TC113 and

TC114;

 28 TCs with low priority: TC19, TC20, TC21,

TC22, TC23, TC24, TC25, TC26, TC27, TC28,

TC29, TC30, TC41, TC42, TC43, TC44, TC45,

TC46, TC79, TC80, TC81, TC82, TC83, TC84,

TC85, TC86, TC87 and TC88.

The execution of High Priority tests had the following

results: 6 cases failed and 9 passed. The TCs that

failed were: TC37, TC40, TC107, TC112, TC113 and

TC114. Approximately 20 minutes was spent to

perform these 15 tests. After running the Low Priority

tests following TCs failed: TC42, TC44, TC84.

Approximately 35 minutes was spent to perform these

28 tests.

In order to measure the difference between the

performances of all 114 TCs without the prioritization

the tests were executed again, with the same version

of software built in step 8. The TCs were performed

in ascending order (the TC01 to the TC114). It was

spent about 160 minutes and the same 9 tests that

failed in the previous step failed. Table 2 summarizes

the data of this step.

Step 10) Evaluate the Effectiveness of Regression

Testing: based on the data of Table 2 it can be seen

that:

 The time to perform regression testing was

approximately three times shorter than the time

used to perform all the tests (50 minutes versus

160 minutes);

 All defects found during the execution of the

entire test suite were also found in the set of

priority regression tests;

 The high priority TCs detected more defects

compared to low priority TCs (6 versus 3).

The most critical defects were found first, which

shows that the test case prioritization can increases

the defect detection rate. This allows that the most

serious defects that are early identified can be fixed

first. In a test design, with enough time constraints for

regression test or limited budget, prioritization helps

ensure the quality of the product even after such a

modification there is not enough time to perform the

entire set of tests during test regression.

As threats to validity of the case study can be

highlighted the fact that the test team did not have

great practical experience in software testing. The test

team received a brief conceptual training before the

start of activities. It also highlights the fact that

although generate a product to market, there were few

involved people in software development: two

analysts, two software developers and a tester.

Table 2: Case study data summarization.

# of TCs

Time spent

(min)

Raised

defects

Regression

Tests

High

priority

Low

priority

25 30 3

TCs of all tests cycles 114 160 9

6 CONCLUSIONS AND

FURTHER ACTIONS

This paper presented an approach to select TCs

regression with prioritization and characterize the

complexity of changes in FRs. This approach was

based on the dependence levels between FRs defined

in RTM. The evaluation approach was taken in a real

case study.

The identification of dependence levels between

FRs allowed the identification of the priority of each

TC and characterization of the complexity of the

changes in requirements. The results of the case study

shows that the approach reduced the set of tests with

the same efficacy as if performed the entire test suite

in the software maintenance phase (regression tests).

The reduced set to 9 TC found the same defects, but

approximately three times faster. This indicates that

the prioritization of TCs become more efficient then

execution of all TCs. The identification of the TCs

that should be part of Regression Test with the

priorization are defined automatically by COCAR

tool after a FR to be inserted or modified.

Regarding the characterization of the complexity

of the changes the approach estimated the changes

that would be more complex to be performed in

software. We cannot ensure a direct relation between

the complexity and the effort to implement them.

Further studies are planned to assess the results of this

approach. Despite the characterization of complexity

make sense for the team (analysts, developers and

testers) it needs to be investigated and measured by

other studies that will be conducted by the group.

As future work for the selection of regression tests

with prioritization, we intend to use in addition of the

relation between each other FRs in the RTM and the

relationship between FRs and the TCS, the

relationship between the TCs. Therefore, we can

improve the selection of regression and prioritizing

UsingtheDependenceLevelAmongRequirementstoPriorizetheRegressionTestingSetandCharacterizetheComplexity

ofRequirementsChange

239

tests. Currently is being implemented in the COCAR

tool a module that deals with the definition of that

traceability between TCs for the refinement of the

approach and conducting new case studies. The

private aviation company that work as a partner of the

research group in the work reported in Di Thommazo

et al., (2012) and Di Thommazo et al., (2013a) has

prepared the environment and engaged to conduct the

new case study.

During the execution of this work was also

realized that it is possible to map the relationship

between the complexity of the stress changes to

metrics such as man/hour, and metrics related to the

software size, for example, function points. The same

company previously mentioned has a good historical

basis, whose data can confirm this characterization.

REFERENCES

Cleland-Huang, J., Gotel, O., Zisman, A. (2012) Software

and Systems Traceability, Springer, Berlin.

Di Thommazo, A., Malimpensa, G., Olivatto, G. , Ribeiro,

T., Fabbri, S. (2012). Requirements Traceability

Matrix: Automatic Generation and Visualization. In:

Brazilian Symposium on Software Engineering, SBES,

Natal, Brazil, Sep. 2012. Los Alamitos: IEEE Press.

Di Thommazo, A., Ribeiro, T., Olivatto, G., Rovina, R.,

Werneck, V., Fabbri, S. (2013a) Detecting traceability

links through neural networks. In: International

Conference on Software Engineering and Knowledge

Engineering, SEKE, Boston, USA. July 2013. Illinois:

Knowledge Systems Institute.

Di Thommazo, A., Ribeiro, T., Olivatto, G., Werneck, V.,

Fabbri, S. (2013b) An automatic approach to detect

traceability links using fuzzy logic. In: Brazilian

Symposium on Software Engineering, SBES, Brasília,

Brazil, Sep. 2013. Los Alamitos: IEEE Press.

Di Thommazo, A., Rovina, R., Ribeiro, T., Olivatto, G.,

Hernandes, E., Werneck, V., Fabbri, S. (2014) Using

artificial intelligence techniques to enhance traceability

links. In: International Conference on Enterprise

Information Systems, ICEIS, Lisboa, Portugal. April

2013. Lisboa: INSTIC Press.

Engström et al. A Systematic Review on Regression Test

Selection Techniques (2010) Information and Software

Technology, 52, 1, 2010, p. 14–30

Filho et al. Supporting concern based regression testing and

prioritization in a model driven environment (2010). In:

Annual Computer Software and Applications

Conference Workshop, COMPSAC, Seul, July 2010.

New York: ACM Press.

Goknil, A., Kurtev, I., Van den Berg, K., Veldhuis, J. W.

(2011) Semantics of Trace Relations in Requirements

Models for Consistency Checking and Inferencing.

Software and Systems Modeling, 10, 1, Feb. 2011.

Götel, O., Finkelstein, A. (1997) Extended requirements

traceability: results of an industrial case study In: Third

IEEE International Symposium on Requirements

Engineering, Annapolis, USA

Guo, Y., Yang, M, Wang, J., Yang, P., Li, F. (2009) An

Ontology based Improved Software Requirement

Traceability Matrix. In: International Symposium on

Knowledge Acquisition and Modeling, KAM , Wuhan,

China, Nov. 2009, Los Alamitos: IEEE Press.

IBM. (2012) Ten Steps to Better Requirements

Management. Available at:

http://public.dhe.ibm.com/common/ssi/

ecm/en/raw14059usen/RAW14059USEN.PDF.

(Accessed: 18 January 2015).

Kawai, K. K. (2005) Guidelines for preparation of

requirements document with emphasis on the

Functional Requirements (in portuguese). Master in

Computer Science, Federal University of São Carlos,

Brasil, 170 f.

Kama, N.; Azli, F. (2012) A Change Impact Analysis

Approach for the Software Development Phase. In:

Asia-Pacific Software Engineering Conference,

APSEC, Hong Kong, Dec. 2012. New York: ACM

Press.

Kukreja, N.; Halfond, W.G.J.; Tambe, M. (2013)

Randomizing regression tests using game theory. In:

IEEE/ACM International Conference on Automated

Software Engineering

, ASE, San Francisco, USA, Nov.

2013, Los Alamitos: IEEE Press.

Maheswari, R. U.; JeyaMala, D., "A novel approach for test

case prioritization. (2013). In: IEEE International

Conference on Computational Intelligence and

Computing Research, ICCIC, Tamilnadu, India, Dec.

2013, Los Alamitos: IEEE Press.

Malz, C.; Jazdi, N.; Gohner, P. (2012) Prioritization of Test

Cases Using Software Agents and Fuzzy Logic. In:

IEEE Software Testing, Verification and Validation,

ICST, Montreal, Canada, Apr. 2012, Los Alamitos:

IEEE Press.

Myers, G. J. et al. (2004) The art of software testing. Nova

Jersey: John Wiley and Sons, 2004.

Oliveto, R.; Antoniol, G.; Marcus, A.; Hayes, J. (2007)

Software Artefact Traceability: the Never-Ending

Challenge. In: IEEE International Conference on

Software Maintenance, ICSM, Paris, Oct. 2007, Los

Alamitos: IEEE Press, pp.485,488.

Rothermel, G.; UnCTh, R.H.; Chengyun Chu; Harrold,

M.J. (2001) Prioritizing test cases for regression testing.

IEEE Transactions on Software Engineering, 27, 10.

October 2001. pp.929,948

Sundaram, S.K.A., Hayes, J.H.B., Dekhtyar, A.C.,

Holbrook, E.A.D. (2010) Assessing Traceability of

Software Engineering Artifacts. In” International IEEE

Requirements Engineering Conference, Sydney,

Australia, Sep. 2010, Los Alamitos: IEEE Press.

Salem, A. M. (2006) Improving Software Quality through

Requirements Traceability Models. In: ACS/IEEE Int.

Conf. Computer Systems and Applications, AICCSA,

Dubai, Sharjah, March 2006. Los Alamitos: IEEE

Press.

Salem, Y. I.; Hassan, R. (2010) Requirement-based test

case generation and prioritization. In: Computer

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

240

Engineering Conference, ICENCO, Giza, Egypt, Dec,

2010, Los Alamitos: IEEE Press.

Singh et al. Systematic Literature Review on Regression

Test Prioritization Techniques (2012). Informatica, 36,

2012, p. 379–408

Sommerville, I. (2010) Software Engineering. Addison

Wesley, New York, 9th edition

Srikanth, H.; Williams, L.; Osborne, J. (2005) System test

case prioritization of new and regression test cases. In:

International Symposium on Empirical Software

Engineering, Noosa Heads, Australia, November 2005.

Los Alamitos, IEEE Press.

Zisman, A., Spanoudakis, G. (2004) Software Traceability:

Past, Present, and Future. The Newsletter of the

Requirements Engineering Specialist Group of the

British Computer Society, September 2004.

UsingtheDependenceLevelAmongRequirementstoPriorizetheRegressionTestingSetandCharacterizetheComplexity

ofRequirementsChange

241
