Entity Identification Problem in Big and Open Data

J. G. Enríquez

, Vivian Lee

, Masatomo Goto

, F. J. Domínguez-Mayo

and M. J. Escalona

Department of Computer and Language Systems, University of Seville, Seville, Spain

Fujitsu Laboratories of Europe, Hayes, Middlesex, U.K.

Keywords: Software Engineering, Big Data, Open Data, Entity Identification, Intelligent Reconciliation, Virtual Graphs.

Abstract: Big and Open Data provide great opportunities to businesses to enhance their competitive advantages if

utilized properly. However, during past few years’ research in Big and Open Data process, we have

encountered big challenge in entity identification reconciliation, when trying to establish accurate

relationships between entities from different data sources. In this paper, we present our innovative Intelligent

Reconciliation Platform and Virtual Graphs solution that addresses this issue. With this solution, we are able

to efficiently extract Big and Open Data from heterogeneous source, and integrate them into a common

analysable format. Further enhanced with the Virtual Graphs technology, entity identification reconciliation

is processed dynamically to produce more accurate result at system runtime. Moreover, we believe that our

technology can be applied to a wide diversity of entity identification problems in several domains, e.g., e-

Health, cultural heritage, and company identities in financial world.

1 INTRODUCTION

In the current Big Data era, quintillions bytes of data

are produced everyday. Better utilization of Big Data

has shown great benefits to organizations for accurate

and faster decision-making, thus enhancing business

performance and competitive advantage. However,

the 3Vs’ nature of the Big Data, e.g. velocity, variety,

and volume, have also presented grand challenges to

most of the traditional information systems, in terms

of data processing, integration, and analysis

(Manyika et al, 2011).

In addition to the Big Data, Open Data has also

emerged as another hot topic recently. The idea is that

certain data should be freely available to everyone,

without any restrictions. Open data has gained more

popularity in the recent years, especially with the new

initiatives of open-data government such as Data.gov

and Data.gov.uk (Official websites of government:

data.gov and data.gov.uk, 2014). The power of Big

and Open Data is enormous, if one can properly

unlock and discover the insight. However, one of the

major hurdles during the chained process - from

receiving the Big and Open Data to applying proper

data analytic tool is that, data are always siloed.

Further more, even data are integrated from different

sources, reconcile the information to refer to the same

entity, proved to be a big challenge, the reasons being

different data sources issue different local identity to

the entity that may already has other identity in other

systems, in the mean time, different business domain

has proprietary way of defining local identity without

a standard mechanism.

In this paper, we present our work to tackles this

issue. We introduce our technical background in

section II, and give out scenarios where entity

identification is the key issues in section III. Section

IV further explains our technology in details, and we

draw conclusions to our work in section V. Finally,

we present our future road maps in section VI.

2 BACKGROUND

2.1 Big Data Platform

Fujitsu Laboratories of Europe Ltd. has been

conducting Big Data and Open Data related research

since the emergence of the phenomena. Over the

years, we have matured our Big Data platform -

BigGraph for data integration, storage, and

processing. Empowered by Linked Data (Berners-

Lee, 2006) technology, the BigGraph platform is able

to efficiently extract, and integrate Big Data from

heterogeneous sources in variety of types, into a

common analysable format. Figure 1 is a simple

illustration of the platform:

404

G. Enríquez J., Lee V., Goto M., J. Domínguez-Mayo F. and J. Escalona M..

Entity Identiﬁcation Problem in Big and Open Data.

DOI: 10.5220/0005470704040408

In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 404-408

ISBN: 978-989-758-096-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

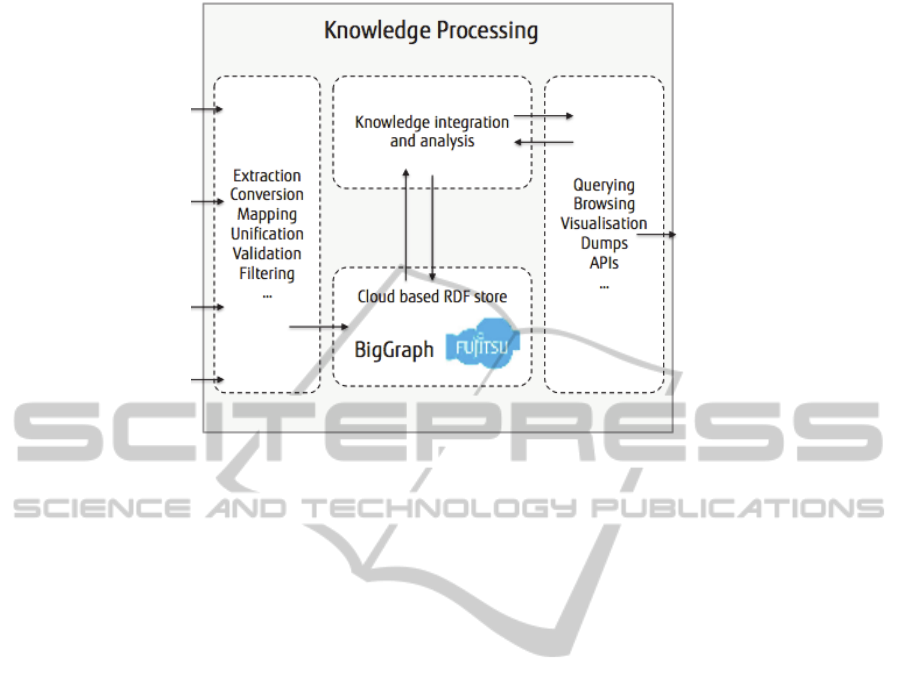

Figure 1: Fujitsu Big Data Platform.

At the time of writing, the platform is able to handle

data sources that contain structured, semi-structured,

and un-structured data types.

It is also worth explaining that Linked Data relies

on two technologies that are fundamental to the Web:

Uniform Resource Identifiers (URIs) (Berners-Lee,

2005) and the HyperText Transfer Protocol (HTTP)

(Fielding, 1999). While Uniform Resource Locators

(URLs) have become familiar as addresses for

documents and other entities that can be located on

the Web, Uniform Resource Identifiers provide a

more generic means to identify any entity that exists

in the world.

2.2 Virtual Graphs

Graph technology is a nature solution to handle Big

Data, especially for modelling relationships between

entities. The variety of graph algorithms, for example,

Dijkstra, A*, and Kruskal offers great flexibility in

different situations. Theoretically, graphs can be

represented in two ways: explicitly and implicitly. An

explicit graph is a collection of elements that can be

completely stored in memory, which means each

vertex and edge of the graph is fixed at the time it is

stored. On the other hand, an implicit graph is a graph

that cannot be stored in memory because of its large

size (Mondal and Deshpande, 2012).

At the University of Seville, we have been

conducting research into implicit graph for many

years; we have formally named our concept Virtual

Graphs. The ability of building the graph at runtime,

allows us to build different solutions to tackle many

business scenarios, where the fixed predefined data

model cannot cope with the extensibility or the

unpredictable availability of the data sources.

3 INSPIRATION

In a recently published white paper, James and Nigel

stated “managing identifiers is easier in a closed

system. The web has many advantages, but it presents

challenges for identifiers because of its vast scale and

their ad hoc usage” (Powell and Shadbolt, 2014). In

real life, we clearly see problems in different domains

that require entity identifications to be reconciled.

Some detailed examples are explained as follows:

Management of cultural heritage information is a

big issue in the Andalusian region (Spain), because

there are lots of monuments that need to be uniquely

identified. In addition, there are different kinds of

relationships between monuments. For instance, a

monument can be associated with another one, or it

can be grouped within a set of monuments.

Furthermore, a monument can contain lots of

artworks, and these artworks can be associated to

other existing monuments. Assigning/reconciling

identifications and build relationships between

monuments requires a very comprehensive system

that current does not exist yet.

In e-Health, to be able to accurately identify

patients is a big challenge, since it requires the

advanced solutions to allow different clinics to

exchange healthcare information in a reliable and

EntityIdentificationProbleminBigandOpenData

405

secure way. Moreover, for those organizations that

exchange healthcare information without using a

common unique identifier or reconciled identity

information, the successfulness of the information

linkage is relying entirely on the accuracy and

completeness of the key demographic data.

Another typical example of the identification

reconciliation issue is the identifiers of the companies

worldwide. In financial world, there are many

different regulators who produce variety of financial

reports for companies all over the world. Each of

these regulators issues unique identifiers within their

own system to the companies. However, currently

there is no any good system that can help users to

integrate all the identifiers issued by different

regulators, and relate them to the same company

entity. Thus making integration of reports from

different regulator almost impossible.

4 OUR IDEA

4.1 EIDER Model

Motivated by the problems and challenges described

in the previous section, we feel the urge to develop a

platform that is able to solve the entity identification

problems, which allows organizations to gain even

more benefits when utilizing Big and Open Data –

hence the birth of EIDER platform.

Based on the mature BigGraph platform

previously mentioned, EIDER platform is further

enhanced to tackle the entity identification problem.

The system architecture of EIDER is illustrated in the

figure 2.

The system consists of three main functionalities:

• Entity Extraction

• Entity Reconciliation

• Data Integration

Each of the functionalities is further explained as

follows.

• Entity Extraction

This function is responsible for extracting entity

identity information from heterogeneous sources. We

assume that each entity, for example, an organization,

or a person, has a name, which the name can be

formally registered name or a known/nick name.

With this information, external data sources are

scanned in order to detect and extract identification

information related to this entity name.

• Entity Reconciliation

This is the key function that forms the heart of the

EIDER platform. It reconciles variety of entity

identities, which are extracted from different sources,

and applies the intelligent algorithms for

reconciliation. The algorithms are comprehensive

methods that consist of string similarity metrics,

string distance function, natural language processing,

text mining, and graph traversal (Maali et Al, 2011).

• Data Integration

After entity identities are reconciled, more

information can be extracted and integrated by using

the reconciled identities. A very important usage of

this function is to build reports, which the user might

want to extract, for example, balance sheet, or

publicly available finance performance data and

integrate them into a single report. This allows users

to gather more comprehensive knowledge from the

Big and Open Data to enhance their decision-making

(Insights on Data Integration Methodologies, 2008),

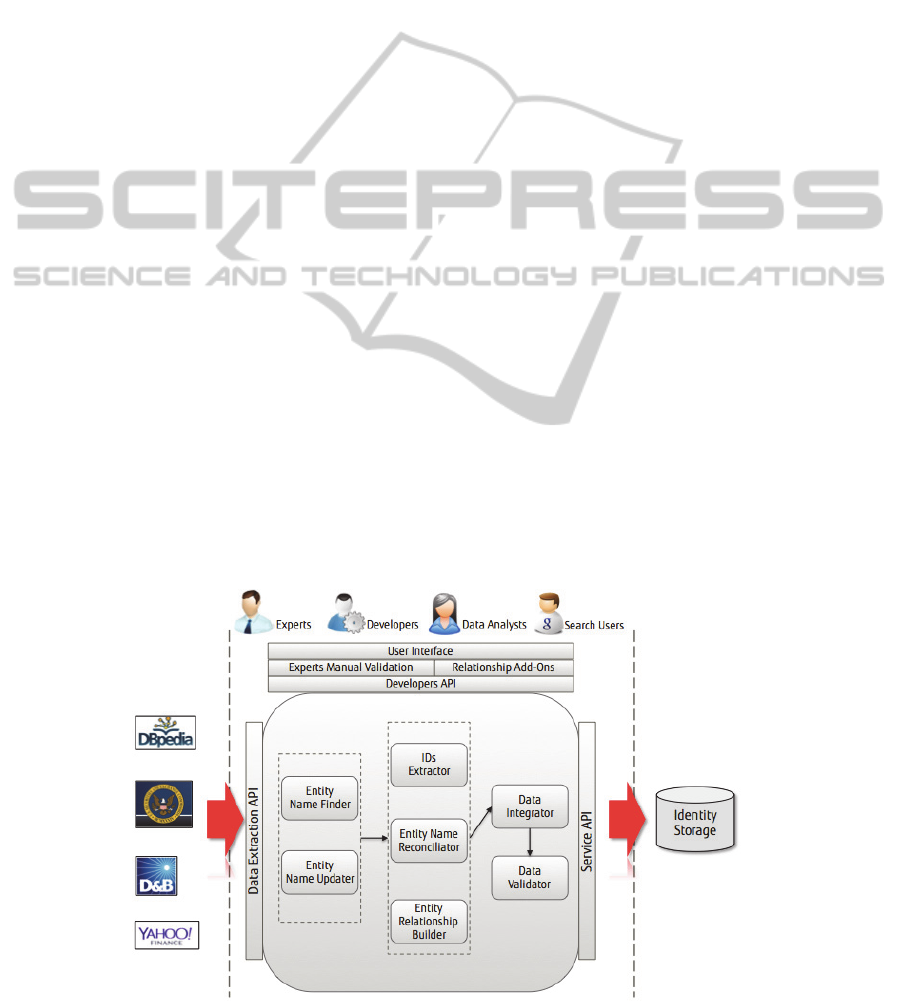

Figure 2: EIDER System Architecture.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

406

although we do not restrict the application on private

data as well.

Apart from the key functionalities that the EIDER

system provides, another important aspect that worth

mentioning here is the data freshness. Since

information extracted by the EIDER system are Open

Data, freshness is crucial in order to maintain the

quality of data. EIDER employs patented method

(EP14176955.4) to retrieve data at system runtime

thus guarantees information in the EIDER system is

as fresh as possible.

4.2 Virtual Graphs and EIDER Model

We see two layers of data reconciliations in the

underlying system:

• EIDER System initial entity reconciliation

• Virtual Graphs enhanced entity reconciliation

The initial entity reconciliation is mainly text

mining technology focused, which the main purpose

is to allow accurate external entity identification

extraction from multiple Open Data sources. It is a

pre-reconciliation that makes the Big and Open Data

ready for integration.

At the end of EIDER system processing chain,

Big and Open Data are transformed into a common

analyzable format that is Linked Data. These data are

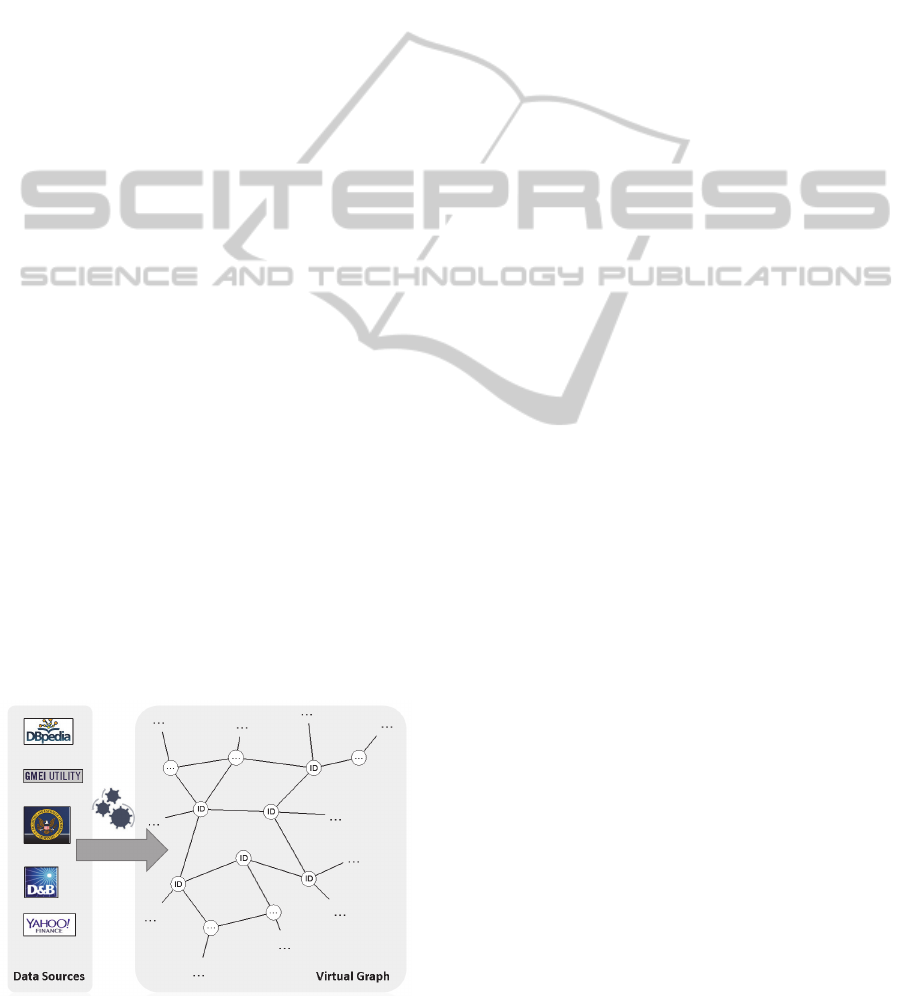

then stored into storage as graphs. To further

strengthen the entity reconciliation function of the

EIDER system, here we employ the Virtual Graphs

technology as post-reconciliation that can apply

graph algorithms to solve problems in the graph

space.

It is worth noting that we have conducted a

systematic literature review, and the results show that

currently, there are no any methodologies, tools, or

proposals that use Virtual Graphs for solving this kind

of problems.

To further explain our solution, we illustrate our

theory in the following figure:

Figure 3: Virtual Graphs and EIDER Model.

In this diagram, Big and Open data from

heterogeneous sources in different data formats are

extracted, (for example, DBpedia (Auer et al, 2007),

Yahoo Finance, GMEI Utility etc.); these data are

then integrated into a graph storage, whose variety of

entity identifications are managed by the Virtual

Graphs. Each node of the graph represents a unique

identifier from external data sources, and the edges

are the relationships between the different nodes.

With the dynamicity nature of the Virtual Graphs, we

are able to maintain an entity reconciliation system,

which is capable of adding/removing any new/old

entity identities at anytime, without breaking the

integrity of the whole data structure in the system.

5 CONCLUSIONS

Entity identification problem is a relatively new topic,

which is emerged with the Big and Open Data

phenomena. The only reference we have found so far

is the white paper presented by James and Nigel

(Powell and Shadbolt, 2014) in 2014. Nevertheless,

the focal point of that paper, is only to present

concerns to organizations and individuals, that they

should be cautious whenever they inventing a new

unique identifier within their system, for the entities

that are already exist.

Our paper addresses the entity identification issue

from a research and engineering perspective. With

our solution - a system that consists of an intelligent

reconciliation platform, the EIDER model, and the

Virtual Graphs technology, we are able to reconcile

multiple entity identification from heterogeneous

Open Data sources. Furthermore, the two layers of

reconciliation make sure the accuracy of the

reconciled entity identifiers. This is not only based on

historical data, but we are also able to incorporate any

new identities at dynamically at system runtime.

From a software engineering’s point of view, our

system is engineered in a generic manner, so that the

solution is applicable to many different domains that

share the same issue, as described in section III.

6 FUTURE WORKS

This paper presents an initial investigation of the

entity identification problem in the Big and Open

Data era. At the time of writing, we have completed

our initial system architecture design; some of the

core components in the EIDER system have also been

implemented, e.g. entity extraction, data integration,

and some basic entity reconciliation. For the forth-

EntityIdentificationProbleminBigandOpenData

407

coming period, we will focus more on enhancing the

intelligent reconciliation algorithms, in particular, the

Virtual Graphs technology for entity identification

and the integration into the EIDER system. A

schedule of tasks for this research work is show in the

figure 4.

The first step is to define a formal mechanism to

for the Virtual Graphs in the context of the Big and

Open Data. The second step is then to define a

methodological environment, which allows us to be

able to customize our approach to more concrete

scenarios, e.g. monument identification, e-Health,

and financial application.

Since the Virtual Graphs design relies completely

on practical experiences for each of the scenarios,

therefore, we need to work along these lines:

• The definition of the methodological process for

the adaptation and application of unique

identification in Big and Open Data.

• The definition of a formal procedure that will be

instanced for each concrete application scenario.

• The definition of the procedure to carry out this

instance in a Virtual Graphs.

• The practical evaluation of the approach in real

contexts.

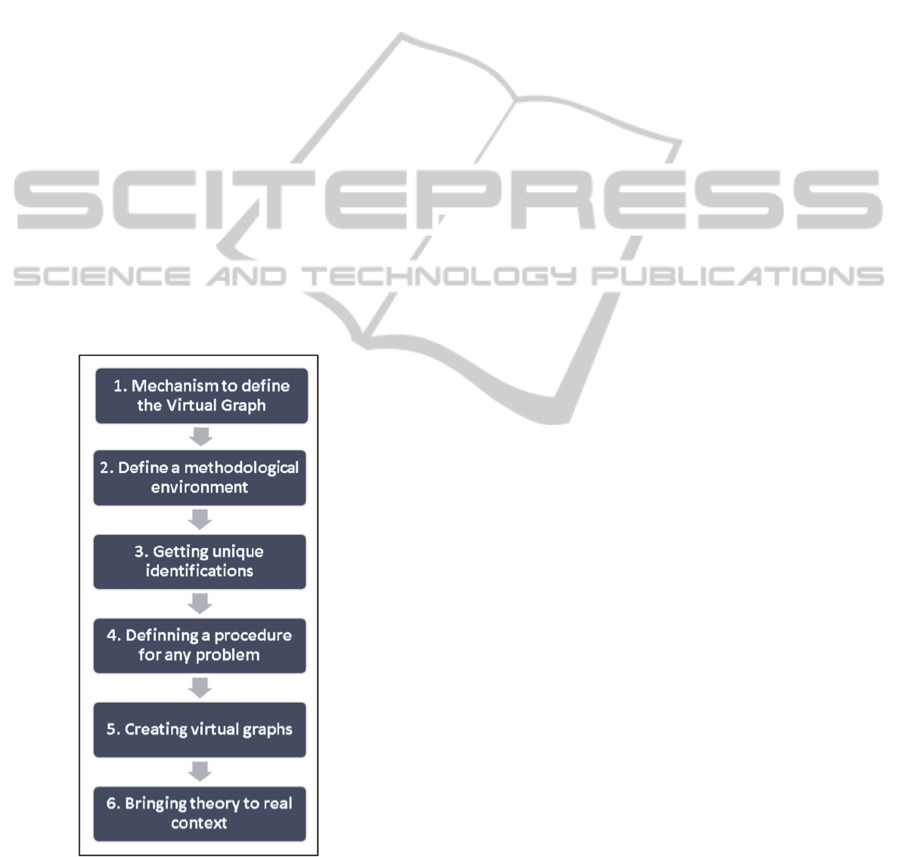

Figure 4: Schedule of tasks.

ACKNOWLEDGEMENTS

This research has been supported by the MeGUS

project (TIN2013-46928-C3-3-R) of the Spanish

Ministry of Science and Innovation.

REFERENCES

Manyika, J., Chui, M., Brown, B. 2011. Big data: The next

frontier for innovation, competition, and productivity.

Official websites of government: data.gov and data.gov.uk.

Last check November 2014.

Berners-Lee. July 2006. Linked Data – Design Issues.

Berners-Lee. 2005. Uniform Resource Identifier (URI):

Generic Syntax.

Fielding, 1999. R. Hypertext Transfer Protocol.

Mondal, J., Deshpande. 2012. Managing large dynamic

graphs efficiently. A. pp. 145–156.

Powell, J., Shadbolt. S.N. March 2014. Creating Value with

Identifiers in an Open Data World. Open Data Institute

and Thomson Reuters.

Maali, F., Cyganiak, R., Peristeras. V. 2011. Entity

Reconciliation Against LOD Hubs.

Insights on Data Integration Methodologies. ESSnet-ISAD

workshop, Vienna, 29-30 May 2008.

Auer, S., Bizer, C., Kobilarov, G., Lehmann, J., Cyganiak,

R., Ives, Z. 2007. DBpedia: A Nucleus for a Web of

Open Data. pp 722-735.

ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems

408
