Container-based Virtualization for HPC

Holger Gantikow

, Sebastian Klingberg

and Christoph Reich

Science & Computing AG, T

ubingen, Germany

Cloud Research Lab, Furtwangen University, Furtwangen, Germany

Keywords:

Container Virtualization, Docker, High Performance Computing, HPC.

Abstract:

Experts argue that the resource demands of High Performance Computing (HPC) clusters request bare-metal

installations. The performance loss of container virtualization is minimal and close to bare-metal, but in

comparison has many advantages, like ease of provisioning.

This paper presents the use of the newly adopted container technology and its multiple conceptional advantages

for HPC, compared to traditional bare-metal installations or the use of VMs. The setup based on Docker

(Docker, 2015) shows a possible use in private HPC sites or public clouds as well. The paper ends with a

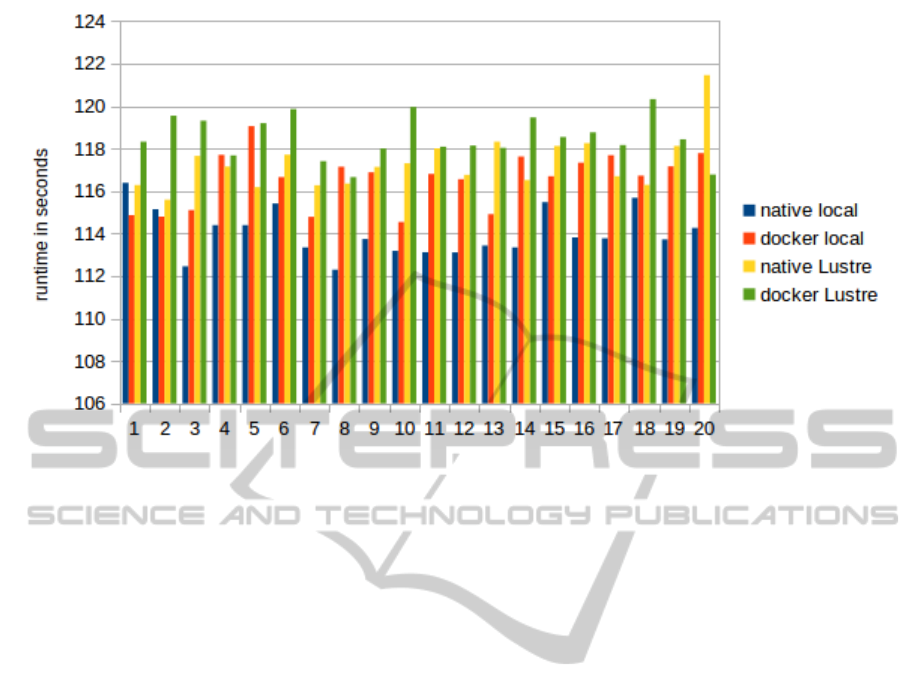

performance comparison of a FEA job run both bare-metal and using Docker and a detailed risk analysis of

Docker installations in a multi-tenant environment, as HPC sites usually are.

1 INTRODUCTION

Applications in the domain of High Performance

Computing (HPC) have massive requirements when it

comes to resources like CPU, memory, I/O through-

put and interconnects. This is the reason why they

are traditionally run in a bare-metal setup, directly

on physical systems, which are interconnected to so-

called clusters.

Such a cluster infrastructure offers the best per-

formance, but of disadvantage is the time for setting

up: a) The operating system, usually some Linux ﬂa-

vor, must be installed using automatic mechanisms

like PXE and Kickstart to install a basic installation

ready to log in and get customized. b) All the ap-

plications required for computation and general HPC

related libraries, like MPI (MPI, 2015), have to be

installed and ﬁne tuned in the customization phase.

This is usually done by conﬁguration management

tools like Chef (Chef, 2015) or Puppet (Puppet, 2015).

c) Before the ﬁrst computational jobs can be started,

the installed systems have to be ﬁnally integrated in

some job scheduler like GridEngine (Oracle, 2015),

LSF (IBM, 2015), or TORQUE (Adaptive Comput-

ing, 2015) which ensures proper resource manage-

ment and avoids over-usage of resources.

Even though these steps can be automated to the

great extent, the whole process until being ﬁnally able

to start a job is quite time consuming and leaves the

system in a rather static setup difﬁcult to adapt to dif-

ferent customer needs. Often different applications,

or even different versions of the same one, have con-

ﬂicting environmental requirements, like a speciﬁc

Linux version or speciﬁc library version (e.g. libc).

This leads to the risk of putting the consistency of

the whole cluster at stake, when adding a new ap-

plication, or a newer version. Libraries might have

to be updated, which might imply an upgrade of the

whole Linux operating system (OS). Which in return

can lead to old versions which are usually required

for the ability to re-analyze previous calculations not

being functional.

Now given a scenario where applications need

computing environment changes frequently, the setup

might take several hours. Even when using disk im-

ages, this approach does not pay off for jobs only run-

ning a rather limited time. One would like to have

high conﬁguration ﬂexibility, with low application in-

terference on the same cluster and optimal resource

utilization. Isolation is the key solution for this. The

use of different virtual machines (VMs), as they of-

fer a feasible solution for tailoring a suitable environ-

ment for each type of workload and even providing

a portable entity for moving HPC jobs to the cloud,

is a trend that is gaining more and more momentum.

With such a setup compute servers are no longer used

for bare-metal computing, but turned into host sys-

tems for virtualization instead, reducing the installa-

tion time and making the systems much more ﬂexible

for different workloads, as they only have to offer the

543

Gantikow H., Klingberg S. and Reich C..

Container-based Virtualization for HPC.

DOI: 10.5220/0005485605430550

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 543-550

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

minimum environment to host a VM, whereas all the

application speciﬁc environment is encapsulated in-

side the VM.

Even though the use of hypervisor-based virtual-

ization using VMs is highly common, it comes with

quite a few trade-offs performance-wise, which make

them less suitable for demanding HPC workloads.

Our work makes the following contributions:

• We present container-based virtualization with

Docker as a superior alternative to VMs in the

ﬁeld of HPC.

• We provide a comparison of the concepts of VMs

and containers and their use for HPC.

• We evaluate its performance using a ﬁnite element

analysis (FEA) job with ABAQUS (Abaqus FEA,

2015), a widely used application in the ﬁeld of

computer aided engineering (CAE).

• We discuss possible risks of container-based vir-

tualization.

The rest of the paper is organized as follows: Sec-

tion 2 explores possible options for container-based

virtualization. Section 3 discusses their advantages

over VMs for HPC and describes the most viable

Linux solution (Docker) for containers. Section 4

evaluates the performance overhead over native ex-

ecution with a real life industrial computational job.

Section 5 takes a look at possible security implica-

tions by using Docker. Section 6 concludes the paper.

2 RELATED WORK

The use of container-based virtualization for all sorts

of workloads is not new, as the underlying concepts

such as namespaces (Biederman, 2006) are mature.

The core concept of isolating applications is seen

in any Unix-like OS, with BSD Jails (Miller et al.,

2010), Solaris Zones (Price and Tucker, 2004) and

AIX Workload Partitions (Quintero et al., 2011) be-

ing available for years. Linux, the operating system

that powers most HPC clusters and clouds, as opposed

to Solaris and AIX, offers a similar solution called

LinuX Containers (LXC), with its initial release back

in 2008. Even though LXC offers good performance

it never really caught on in the HPC community. An-

other option for Linux based containers is systemd-

nspawn, which hasn’t seen any widespread use so far.

The most interesting option we are considering as a

VM alternative for HPC in this paper is Docker, which

recently became the industry standard for Linux con-

tainers, due to its ease of use, its features, like layered

ﬁle system images and the ecosystem supporting it.

There have been several studies comparing VM

to bare-metal performance (Matthews et al., 2007),

(Padala et al., 2007) which have lead to much im-

provements in hardware support for virtualization and

VM technology as such (McDougall and Anderson,

2010). Especially the two open-source Type-1 hyper-

visor solutions Xen (Barham et al., 2003) and the Ker-

nel Virtual Machine (KVM) (Kivity et al., 2007), that

turns the whole Linux kernel into a hypervisor, have

seen lots of performance improvements, for example

by combining hardware acceleration with paravirtual-

ized I/O devices using virtio (Russell, 2008). This

papers discusses the advantages of container-based

virtualization for HPC, the amount of performance-

overhead added by Docker when running a FEA com-

pute job inside a container instead bare-metal and

takes a closer look at the security-related implications

when using Docker in a multi-tenant environment.

3 CONTAINERS FOR HPC

Whereas VMs still offer the most mature and reliable

technology for isolating workloads, both in terms of

security and stability for encapsulating applications

and their dependencies in a portable entity, their per-

formance loss still remains, as overhead is added by a

hypervisor, also known as Virtual Machine Manager

(VMM), running on top of the hardware to control the

VMs.

While hypervisor-based virtualization can still

mean up to 25% reduction in turnaround time in cer-

tain scenarios (Stanﬁeld and Dandapanthula, 2014),

large compute clusters continue to still run bare-metal

setups, even though this means a huge trade-off in

ﬂexibility. The same applies for many of the com-

mercial HPC-on-demand offerings, for example ad-

dressing the CAE sector. Because they’re based on

bare-metal setups they frequently can’t offer the elas-

ticity customers are accustomed to from mainstream

cloud offerings like Amazon EC2, as there are certain

minimum quantities that have to be booked for mak-

ing the re-installation pay off.

By using a container-based virtualization ap-

proach this might change to a certain extend.

3.1 Container Virtualization vs.

Hypervisor

The technical concept of container-based virtualiza-

tion differs quite a bit from hypervisor-based virtual-

ization. The containers run in user space on top of

an operating system’s kernel, while the hypervisor is

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

544

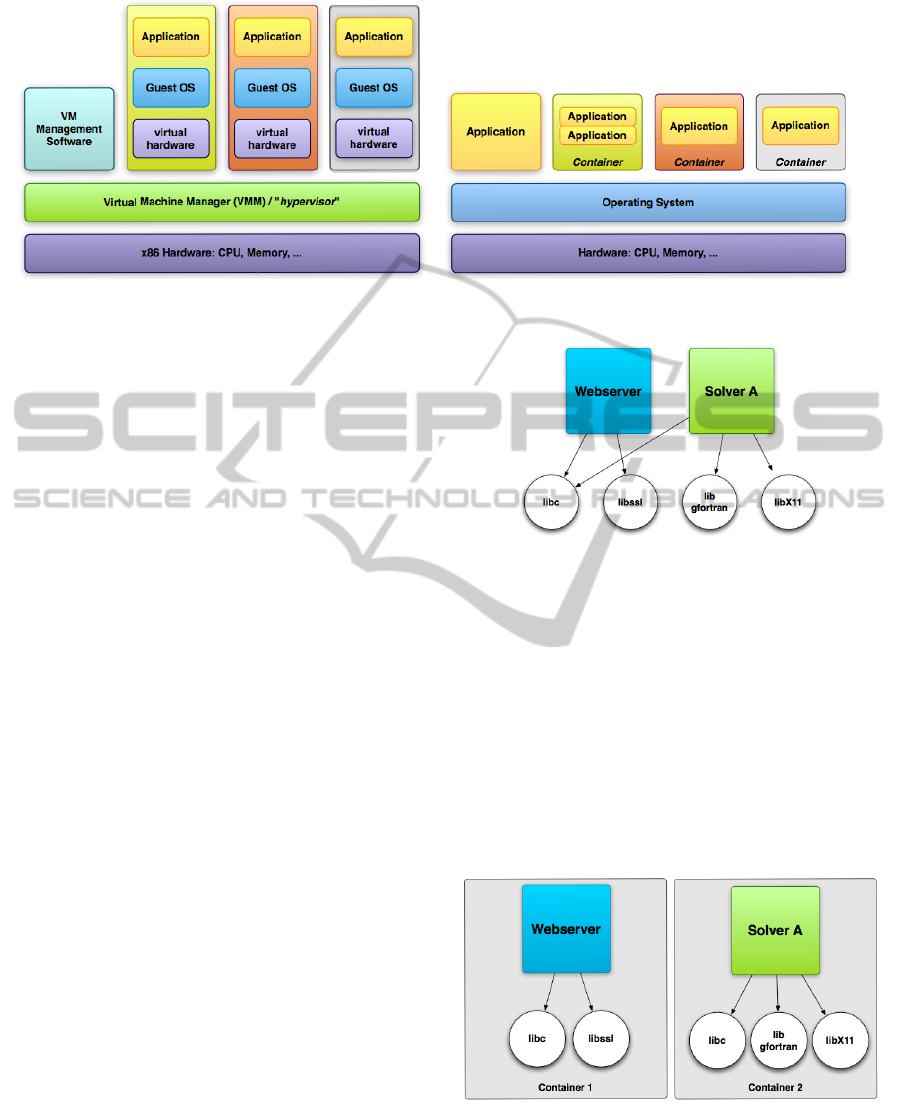

Figure 1: Hypervisor- (left) vs. Container-Based Virtualization (right).

scheduling system calls of the virtualized operating

system as seen in Figure 1.

As the operating system kernel is the exact same

for all containers running on one host and can not

be changed, containers are limited to the same host

operating system. VMs can run other operating sys-

tems e.g. Windows on top of Linux. This is a valid

point for many scenarios, but the majority of HPC

clusters and IaaS clouds tend to homogeneously run

Unix (e.g. Linux). Container virtualization still offers

the required ﬂexibility to run e.g. an Ubuntu Linux

container on top of a Red Hat Enterprise Linux host.

Which also means a containerized process appears to

be running on top of a regular Linux system.

Container-based virtualization relies on two Linux

kernel features of the host system to provide the re-

quired isolation:

• kernel namespaces (Biederman, 2006): enabling

individual views of the system for different pro-

cesses, which includes namespaces for processes,

ﬁle systems, user ids, etc. and enables the creation

of isolated containers and limiting access of con-

tainerized processes to resources inside the con-

tainer.

• kernel control groups (cgroups): this subsystem

puts boundaries on resource consumption of a sin-

gle process or a process group and limits CPU,

memory, disk and network I/O used by a con-

tainer.

As mentioned before there are several options

for using containers with Linux, with Docker having

gained most attention recently due to its features and

ease of use. Docker is released by the team at Docker,

Inc. under the Apache 2.0 license.

3.2 Docker and HPC

Docker offers a good solution containerizing an ap-

plication and its dependencies. As seen in Figure 2

Figure 2: Applications and library dependencies.

applications usually share several libraries.

With container virtualization it is possible to iso-

late libraries as seen in Figure 3 to allow coexistence

of special or incompatible library versions or even an

outdated Linux distribution in a shippable entity eas-

ily. This solves the problem of running legacy code

(might be needed for verifying old results of a compu-

tation) on a modern system, without the risk of break-

ing the system. As long as the code is not dependent

on a special version of the kernel, as the kernel can

not be changed inside a container.

Figure 3: Applications and library dependencies encapsu-

lated in containers.

Containers equipped with all tools and libraries

for a certain tasks can be easily deployed on own clus-

ters, systems of a related party for evaluation without

Container-basedVirtualizationforHPC

545

having to rebuild the whole computational work-ﬂow

or at a complete third party if additional resources are

needed. All that is required is a suitable runtime for

starting the container.

This also cuts down the complete re-purposing

of compute resources to a simple start a new con-

tainer image, as compute nodes only have to offer the

Docker runtime and have access to the container ﬁles.

Compared to virtual machines this signiﬁcantly

reduces the amount of resources required. Both in

memory footprint, as containers share a lot of re-

sources with the host system as opposed to VMs start-

ing a complete OS and in terms of storage required.

Startup time is reduced from the time booting a full

OS to the few seconds it takes till the container is

ready to use.

For reducing storage requirements Docker makes

use of layered ﬁle system images, usually UnionFS

(Unionfs, 2015) as a space conserving mechanism,

which is lacking in several other container solutions.

This allows ﬁle systems stacked as layers on top of

each other (see Figure 4), which enables sharing and

reusing of base layers. For example the base in-

stallation of a certain distribution, with individually

modiﬁed overlays stacked on top, can provide the re-

quired application and conﬁguration for several dif-

ferent tasks.

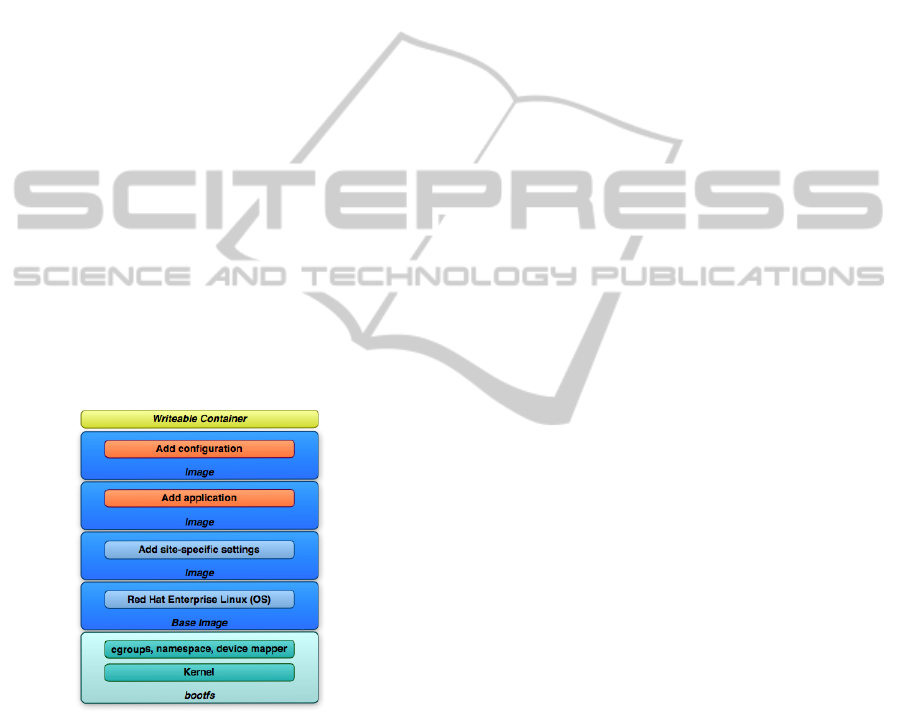

Figure 4: The layers of the Docker ﬁle system.

If a weakening of complete isolation is acceptable,

it is also possible to pass directories, for example con-

taining job input data into a container, so not all the

required ﬁles for a compute job have to be included in

the container image. One has to consider that strong

isolation is desired, if providing a multi-tenant envi-

ronment.

One popular VM feature it currently lacking.

Compared to hypervisor-based setups Docker can not

live-migrate running workloads to another host (Clark

et al., 2005), which might be desirable for planned

system downtime. Even though this might not be

required for most HPC environments, as killing and

recreating a container might be faster, the Check-

point/Restore In Userspace (CRIU) project is cur-

rently working on at least providing checkpoint and

restore functionality (CRIU-Project, 2015). This fea-

ture would be much more required for high availabil-

ity (HA) clusters than for HPC clusters.

4 EXPERIMENTAL EVALUATION

Performance-wise, without all the overhead added by

hypervisor and VMs, containers as a light-weight vir-

tualization mechanism can achieve almost the same

performance as native execution on a bare-metal sys-

tem does, as other benchmarks (Felter et al., 2014),

(Xavier et al., 2013) underline.

As we were interested in the amount of overhead

generated by containerizing a HPC workload, we de-

cided to benchmark a real-world ABAQUS exam-

ple in two different storage scenarios, comparing the

containerized execution time to the native execution.

ABAQUS (Abaqus FEA, 2015) is frequently used for

ﬁnite element analysis (FEA) and computer aided en-

gineering (CAE) for example in the aerospace and

automotive industries, as it provides wide material

modeling capability and multi-physics capabilities.

ABAQUS jobs tend to be CPU and memory intense,

requiring lots of scratch space too.

The application was installed to local disks on a

CentOS 7 SunFire X2200 server with the following

hardware conﬁguration:

• CPU: 4x Dual-Core AMD Opteron (tm) 2220

• RAM: 16GB

• HDD: local conventional disks without RAID

• Inﬁniband: Mellanox MT25204

The job used for evaluation is the freely avail-

able s4b from the samples.zip package included in the

ABAQUS 6.12-3 installation. It was installed onto lo-

cal disks and the software licensing was done using a

local license ﬁle.

As the server provided access to a Lustre parallel

distributed ﬁle system, which is frequently used for

large-scale cluster computing, we decided to execute

the job one time with the folder for temporary data

located on local disks and the other time on the Lus-

tre ﬁle system. Both storage conﬁgurations were used

with bare-metal execution and inside a Docker con-

tainer. Docker was installed using packages shipped

with CentOS 7.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

546

There were no limits imposed on Docker using

cgroups to ensure maximum performance. The re-

sources available to the container were only limited

by the actual resources on the host. When using

one host for multiple containers simultaneously us-

age should be limited as expected. We used only one

container per host for not distorting the outcome.

To rule out side effects, the job was run twenty

times in each conﬁguration and the Total CPU Time

(in seconds), which is the sum across all involved

CPUs of the time spent executing ABAQUS (user

time) and the time spent by the OS doing work on

behalf of ABAQUS (system time), from the job out-

put ﬁle was taken to ascertain the total runtime of the

simulation (see Figure 5).

The results, diagrammed in Figure 5, show the fol-

lowing:

• Docker offers near native execution speed

• there is constant but minimal overhead added

• average runtime (native vs Docker)

local disk 114s vs 116,5s - overhead: 2,21%

Lustre 117,3s vs 118,5s - overhead: 1,04%

To be clear: this means only two up to ﬁve seconds

longer total execution time to complete the s4b exam-

ple job, which is a fraction of the time a VM would

even need to boot.

A point worth commenting on is the reason for

the lesser overhead when accessing Lustre. The lower

difference in overhead when using Lustre can be ex-

plained by the fact, that the container uses the RDMA

stack for IBoIP as directly as the host does, while

accessing a local disk obviously needs to be passed

through a UnionFS technology which affects the I/O

ﬂow here, at a small but mentionable minimum.

5 CONTAINER

VIRTUALIZATION RISKS

As mentioned before the cornerstones of the perfor-

mance and security isolation offered by Docker are

cgroups and namespaces, both very mature technolo-

gies, which do a good job of avoiding Denial of Ser-

vice (DoS) attacks against the host and limiting the

view of what a container can see and has access to.

Recent analysis on Docker (Bui, 2015) shows that the

internal concepts of containers, even when using de-

fault conﬁguration, are reasonable secure.

When deploying Docker in a multi-tenant environ-

ment, certain security aspects have to be considered:

Container vs VM. When it comes to security as-

pects, isolation of ﬁlesystem, devices, IPCs, network

and management as described in Reshetova’s paper

(Reshetova et al., 2014) important. Generally it can

be said, that containers have been seen as less secure

than the full isolation offered by hypervisor virtual-

ization, which is still true.

Vulnerabilities. Recent research by Ian Jackson and

his colleague George Dunlap (Jackson, 2015) com-

pared the number of Common Vulnerabilities and Ex-

posures (CVE) in 2014 for paravirtualized Xen, KVM

+ QEMU, and Linux containers, that could lead to

either privilege escalation (guest to host), denial of

service attacks (by guest of host) or information leak

(from host to guest) and showed that the risk for any

of the three is higher when using containers.

One reason is that every additional interface avail-

able is a possibility for additional vulnerabilities. A

hypervisor provides an interface similar to hardware

and so-called hyper-calls (Xen offering 40). These are

only very few calls a VM can interact with, compared

to the much wider Linux system call interface used

by containers. Making use of hardware virtualization

for hypervisor-based setups may even add additional

risks, as a detailed study (P

ek et al., 2013) shows.

Docker Daemon. Since running Docker containers

requires the Docker Daemon to run as root on the host,

special attention should be given to its control, what

leads to certain good practices for using Docker from

a security point of view.

Misuse. Because it is possible to pass through

ﬁle systems available on the host, only trusted

users should be allowed access to start images or

pass arguments to the Docker commandline-tool

docker. Great harm can be done, if for exam-

ple the hosts’ complete ﬁle system is granted ac-

cess to from inside the container. Membership

of the docker-group is usually enough to invoke

a command like docker run -v /:/tmp myimage

rm -rf /tmp/* which would start a container, pass

the hosts’ ﬁlesystem to /tmp inside the container and

directly delete it.

NFS. This risk intensiﬁes in a NFS-environment,

where someone with unrestricted access to Docker

can bind to an existing share, for example containing

user homes, and circumvent access control based on

numeric user IDs (UID) by creating a container for

spooﬁng his UID. This can be mitigated by offering

only NFSv4 shares to Docker hosts, where Kerberos

as an additional authorization layer is available.

Application Container vs System Container. When

using Docker for HPC applications the best thing to

do is utilizing the container as an application con-

tainer that directly starts the computing job after the

container starts running. This eliminates the possi-

bility for a user to pass parameter to the docker-

Container-basedVirtualizationforHPC

547

Figure 5: Total CPU Time (seconds).

command-line and to utilize the container as a more

VM-style system container. As this disables the pos-

sibility to interactively use and explore the system,

offering only pre-deﬁned, parameter-controlled con-

tainers greatly reduces the risk of wanted or acciden-

tal misuse.

Docker Security. According to (J

ome Petazzoni,

2013) development focusing on security is on the way,

which will limit the Docker daemons’ root privileges

to certain sub-processes like virtual network setup.

Further improvements aim at a possibility to map the

root user of a container to a non-root user on the host

system, reducing the impact of a possible privilege es-

calation. These new user namespaces will also opti-

mize sharing ﬁle systems, as users within a container

can be mapped to users outside the container. LXC

already uses this feature (?), so it should be only a

matter of time until Docker implements user names-

paces.

Image Security. Attention should be paid to the

source the container images are being pulled from.

Docker Inc. offers a convenient way (called Docker

Hub) to access thousands of preconﬁgured images

which are ready to deploy. These images are for users

who quickly want to set up an Apache web server or

development environment for testing and do not offer

any HPC related applications. But these images might

be used as base for creating own HPC images. As se-

curity researchers state (Rudenberg, 2014) Docker in-

cludes a mechanism to verify images, which does im-

ply that the checksum of the downloaded image has

been validate. But this is actually not the case and

offers possibilities for attacks. Docker solely checks

for a signed manifest and never actually veriﬁes the

image checksum from the manifest. Another poten-

tial attack arises from a vulnerability when dealing

with malformed packages (Jay, 2014), as malformed

packages can compromise a system. The advice in

this case is to only download and run images from

trusted sources, at best an internal image registry,

which might be best-practice after all, not just for

HPC clusters behind a corporate ﬁrewall.

6 CONCLUSION

Container-based virtualization using Docker solves

many problems of bare-metal HPC, when ﬂexibility

to rapidly change the installed software, deploy new

versions or use applications with conﬂicting depen-

dencies on the same cluster is key.

Environmental details for a job, like a certain

Linux distribution with a special compiler version

could be included in a ﬁeld in the job description, like

required CPU and memory are nowadays. The work-

load manager then would pick a host fulﬁlling the

hardware requirements, pulls the workload-speciﬁc

image and starts the container that runs the job.

As our evaluation with an ABAQUS test job has

shown, Docker offers near native execution speed,

generating a mean loss in performance of 2,21% in

our scenario with local disk I/O and 1,04% when ac-

cessing a Lustre clustered ﬁle system.

The point that Docker performs almost on the

same level as the bare-metal execution shows that the

Docker engine has almost trivial overhead and thus

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

548

offers performance traditional hypervisor-based VMs

can not offer at the moment.

Since our research only focused on conceptual

advantages and single host performance and many

HPC applications rely on MPI for distributed com-

puting future testing should be done in this area, tak-

ing a look at the performance of the Docker engine in

distributed multi-host, multi-container scenarios and

with other applications from the HPC ﬁeld.

From a security standpoint VMs offer a more se-

cure solution at the moment, but whether containers

offer enough security depends on the overall HPC

work-ﬂow and the security requirements. A cloud

provider offering a multi-tenant self-service solution

with several customers on one cluster or even one host

might want to implement an additional layer of se-

curity. In a regular HPC environment this might not

be needed, as long as the necessary precautions are

taken and users are not allowed to directly interact

with Docker to provision potentially malicious con-

tainers but through a middle-ware like a job scheduler

or parameter-controlled sudo scripts, that do careful

parameter checking.

When it comes to patch management Docker

could even provide an advantage over VMs, as the

kernel is out of the focus of a container and shared

among all hosts, meaning that if a kernel vulnerabil-

ity is found only the Docker host has to be patched,

which might be even done on the ﬂy using tools like

Ksplice.

Security of container-based solutions will further

increase over time, with lot’s of development being

already underway. Linux containers have gotten a lot

of attention over recent time and more people utiliz-

ing it will lead to closer examination and continuous

improvements.

REFERENCES

Abaqus FEA, S. (2015). ABAQUS. http://

www.simulia.com.

Adaptive Computing (2015). TORQUE. http://

www.adaptivecomputing.com/products/open-source/

torque/.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. In Proceed-

ings of the Nineteenth ACM Symposium on Operating

Systems Principles, SOSP ’03, pages 164–177, New

York, NY, USA. ACM.

Biederman, E. W. (2006). Multiple instances of the global

linux namespaces. In Proceedings of the 2006 Ottawa

Linux Symposium, Ottawa Linux Symposium, pages

101–112.

Bui, T. (2015). Analysis of docker security. CoRR,

abs/1501.02967.

Chef (2015). Chef: Automation for Web-Scale IT. https://

www.chef.io/.

Clark, C., Fraser, K., Hand, S., Hansen, J. G., Jul, E.,

Limpach, C., Pratt, I., and Warﬁeld, A. (2005). Live

migration of virtual machines. In Proceedings of the

2Nd Conference on Symposium on Networked Systems

Design & Implementation - Volume 2, NSDI’05, pages

273–286, Berkeley, CA, USA. USENIX Association.

CRIU-Project (2015). Checkpoint/Restore In Userspace

(CRIU). http://www.criu.org/.

Docker (2015). Docker. https://www.docker.com/.

Felter, W., Ferreira, A., Rajamony, R., and Rubio, J. (2014).

An updated performance comparison of virtual ma-

chines and linux containers. technology, page 28:32.

IBM (2015). LSF. http://www-03.ibm.com/systems/

platformcomputing/products/lsf/.

Jackson, I. (2015). Surviving the zombie apocalypse – se-

curity in the cloud containers, kvm and xen. http://

xenbits.xen.org/people/iwj/2015/fosdem-security/.

Jay, T. (2014). Before you initiate a docker pull. https://

securityblog.redhat.com/2014/12/18/before-you-

initiate-a-docker-pull/.

ome Petazzoni (2013). Containers & Docker: How Se-

cure Are They? https://blog.docker.com/2013/08/

containers-docker-how-secure-are-they/.

Kivity, A., Kamay, Y., Laor, D., Lublin, U., and Liguori,

A. (2007). kvm: the linux virtual machine monitor. In

Proceedings of the Linux Symposium, volume 1, pages

225–230, Ottawa, Ontario, Canada.

Matthews, J. N., Hu, W., Hapuarachchi, M., Deshane, T.,

Dimatos, D., Hamilton, G., McCabe, M., and Owens,

J. (2007). Quantifying the performance isolation prop-

erties of virtualization systems. In Proceedings of the

2007 Workshop on Experimental Computer Science,

ExpCS ’07, New York, NY, USA. ACM.

McDougall, R. and Anderson, J. (2010). Virtualiza-

tion performance: Perspectives and challenges ahead.

SIGOPS Oper. Syst. Rev., 44(4):40–56.

Miller, F., Vandome, A., and John, M. (2010). FreeBSD

Jail. VDM Publishing.

MPI (2015). Message Passing Interface (MPI) standard.

http://www.mcs.anl.gov/research/projects/mpi/.

Oracle (2015). Grid Engine. http://www.oracle.com/us/

products/tools/oracle-grid-engine-075549.html.

Padala, P., Zhu, X., Wang, Z., Singhal, S., Shin, K. G.,

Padala, P., Zhu, X., Wang, Z., Singhal, S., and Shin,

K. G. (2007). Performance evaluation of virtualiza-

tion technologies for server consolidation. Technical

report.

ek, G., Butty

an, L., and Bencs

ath, B. (2013). A survey of

security issues in hardware virtualization. ACM Com-

put. Surv., 45(3):40:1–40:34.

Price, D. and Tucker, A. (2004). Solaris zones: Operating

system support for consolidating commercial work-

loads. In Proceedings of the 18th Conference on

Systems Administration (LISA 2004), Atlanta, USA,

November 14-19, 2004, pages 241–254.

Container-basedVirtualizationforHPC

549

Puppet (2015). puppet: Automate IT. http://

puppetlabs.com/.

Quintero, D., Brandon, S., Buehler, B., Fauck, T., Felix,

G., Gibson, C., Maher, B., Mithaiwala, M., Moha, K.,

Mueller, M., et al. (2011). Exploiting IBM AIX Work-

load Partitions. IBM redbooks. IBM Redbooks.

Reshetova, E., Karhunen, J., Nyman, T., and Asokan, N.

(2014). Security of os-level virtualization technolo-

gies: Technical report. CoRR, abs/1407.4245.

Rudenberg, J. (2014). Docker image insecurity. https://

titanous.com/posts/docker-insecurity.

Russell, R. (2008). Virtio: Towards a de-facto standard

for virtual i/o devices. SIGOPS Oper. Syst. Rev.,

42(5):95–103.

Stanﬁeld, J. and Dandapanthula, N. (2014). HPC in an

OpenStack Environment.

Unionfs (2015). Unionfs: A Stackable Uniﬁcation File Sys-

tem. http://unionfs.ﬁlesystems.org.

Xavier, M., Neves, M., Rossi, F., Ferreto, T., Lange, T.,

and De Rose, C. (2013). Performance evaluation of

container-based virtualization for high performance

computing environments. In Parallel, Distributed and

Network-Based Processing (PDP), 2013 21st Euromi-

cro International Conference on, pages 233–240.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

550
