An Application-layer Gateway Architecture for the Internet of Things

Wagner Luís de A. M. Macêdo, Tarcísio da Rocha and Edward David Moreno

Federal University of Sergipe, São Cristóvão, Sergipe, Brazil

Keywords:

Constrained Devices, Internet of Things, Messaging Protocols.

Abstract:

With the Internet of Things (IoT), it is predicted that the number of connected devices will reach 50 billion

by 2020. Many of these devices often adopt, at application layer, mutually incompatible messaging protocols.

A possible solution to this problem is to use a same messaging protocol among all devices. However, a

single protocol is not always suitable for both constrained and unconstrained devices. Several solutions to the

interoperability issue in the IoT have been proposed, but they neither provide transparent interoperation nor

are extensible and conﬁgurable enough. Meanwhile, this paper proposes GoThings, a preliminary gateway

architecture which can enable interconnectivity between different messaging protocols. GoThings is focused

on extensibility, conﬁgurability and generality, in the context of IoT problems.

1 INTRODUCTION

With the Internet of Things (IoT), it is predicted that

the number of connected devices will reach 50 billion

by 2020

. IoT is a vision of a world where all physical

objects (things) have some form of Internet connectiv-

ity. Another explanation is that IoT enables Internet

to be used to connect people to things and things to

things.

Due to this expected number of devices the envi-

sioned environment for the IoT is extremely heteroge-

neous, so that different devices may be unable to com-

municate to each other. Heterogeneity happens in all

network layers, speciﬁcally in the application layer is

emerging a number of mutually incompatible messag-

ing protocols

. However, the interoperability issue is

even higher because messaging protocols may adopt

different message exchange patterns, such as request-

response and publish-subscribe.

A possible solution to this problem is to use

a same messaging protocol among all devices. In

the Web of Things (WoT) approach (Guinard et al.,

2010), for instance, HTTP was chosen to integrate

all devices. However, HTTP is not always suitable

for many participants of IoT, such as sensor devices,

since they are not able to work with any protocol due

https://www.cisco.com/web/about/ac79/docs/innov/

IoT_IBSG_0411FINAL.pdf. Access in November 2, 2014.

http://www.prismtech.com/download-documents/

1561. Access in November 2, 2014.

to strict constraints in terms of memory, processing

and energy (Dargie and Poellabauer, 2010). The re-

verse is also true, i.e. a protocol for constrained de-

vices is usually not adequate to unconstrained ones.

Some constrained devices are battery-limited. In

order to to save power, they are commonly conﬁgured

to frequently sleep and being active when strictly nec-

essary. This put some barriers, since devices are not

always active to answer.

Proposals have already been presented to solve the

interoperability issue in the IoT but we could not ﬁnd

one solution allowing a bidirectional transparent in-

teroperation between constrained devices with differ-

ent messaging protocols that is extensible for any kind

of protocol regardless of message exchange pattern.

When we say transparent, we mean a solution that

provides a communication which is virtually direct,

i.e. sender is not aware of an intermediary.

The main goal of this paper is to propose an archi-

tecture for gateways that are able to interconnect dif-

ferent messaging protocols for the Internet of Things

that meets the following requirements:

• Multi protocol support by an extensible frame-

work via plugins which reduces complexity of

adding new protocols.

• Support to the message exchange patterns

request-response and publish-subscribe.

• Conﬁgurability, through a structure that lets you

easily add or change behaviors of the gateway de-

pending on the context.

135

Luís de A. M. Macêdo W., da Rocha T. and David Moreno E..

GoThings - An Application-layer Gateway Architecture for the Internet of Things.

DOI: 10.5220/0005493701350140

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 135-140

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

• Caching support to avoid unnecessary accesses to

constrained networks and to enable requests to

suspended devices.

The rest of the paper is organized as following.

Section 2 discusses about common approaches to in-

teroperability. Section 3 presents a brief review of

related works. In Section 4 we show our proposed

solution. Section 5 concludes the paper.

2 INTEROPERABILITY

APPROACHES

Interoperability may refer to the ability for one or

more systems or domains to connect, understand and

exchange data with one another for a given purpose

(Blair et al., 2011). The goal in providing interoper-

ability between different protocols is to allow commu-

nication between different domains keeping the trans-

ferred original message unchanged or without losing

original semantics.

To have interoperability, it is required to map the

different behaviors of the domains. This mapping is

usually called a bridge. In the literature, there are two

main approaches to interoperability between different

domains: direct bridges and indirect bridges (Issarny

et al., 2011).

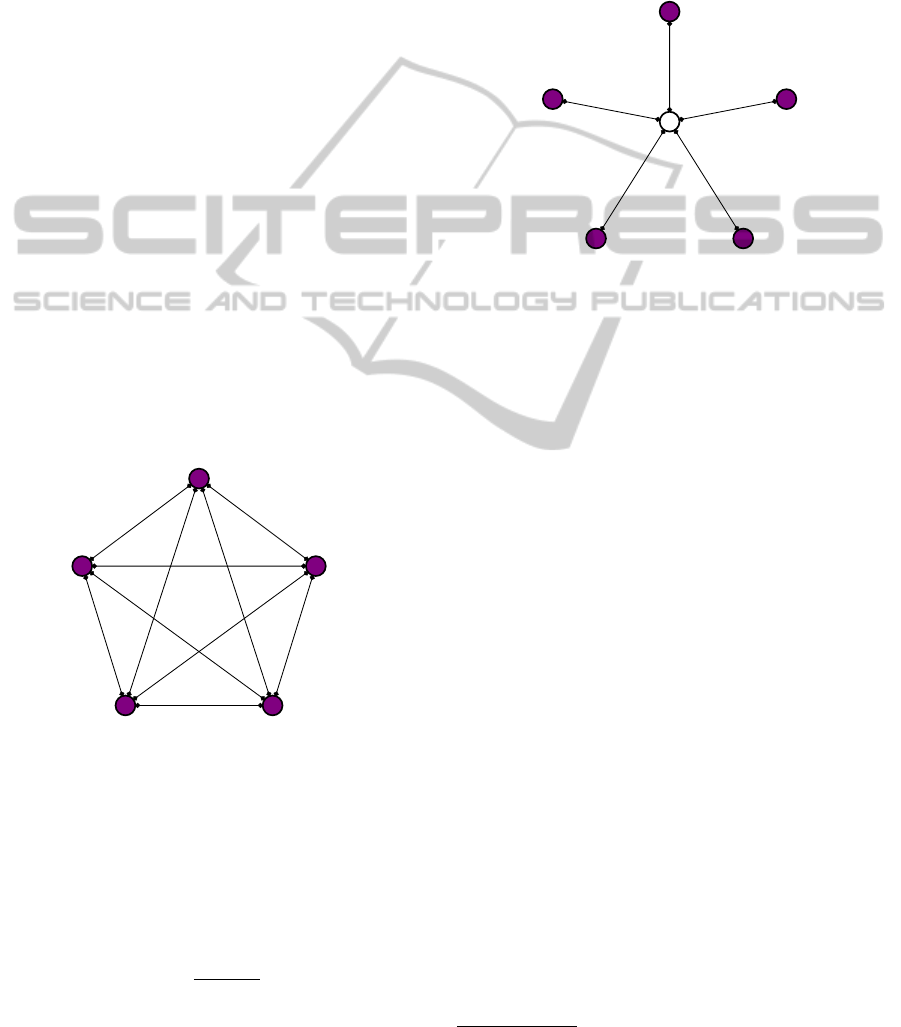

Figure 1: Direct bridges approach.

Direct bridges (see Figure 1) consist of a direct

translation of behaviors between domains, so a trans-

lator is required for each pair of involved domains.

The advantage of a direct bridge is to require only

one translation operation, but the needed number of

translators grows quadratically to the number n of do-

mains, as stated in equation 1.

t(n) =

n(n − 1)

(1)

Contrasting, in indirect bridges an intermediate

format is used, so the behaviors of each domain are

mapped by only one translator to an intermediate do-

main (see Figure 2). Although this approach has the

disadvantage of requiring two translation operations,

since every message is ﬁrst translated into interme-

diate format before being translated to target domain

format, the needed number of translators is linear to

the number of domains, what indeed is a major ad-

vantage of using indirect bridges.

Figure 2: Indirect bridges approach.

We adopt in this paper the indirect bridge ap-

proach. The reasoning related with this decision is

explained in Section 4.

3 RELATED WORK

The great number of different messaging protocols

follows the wide range of heterogeneous devices

ready to the IoT. So, in this section, we will ﬁrst re-

view some of the most relevant protocols and then we

will discuss some related proposals to this paper.

In the context of IoT protocols, some more ro-

bust devices, like IP cameras, are often equipped with

more than one protocol to access the images (HTTP

and RTSP are the most common). However, most

IoT devices are so restricted that cannot operate with

heavyweight protocols such as HTTP.

In order to meet demands for a lightweight pro-

tocol compatible with the popular HTTP, the Internet

Engineering Task Force (IETF) designed the CoAP

protocol (RFC 7252), that keeps the same seman-

tics of HTTP, but, instead of TCP, it is implemented

over UDP. CoAP has some important features to con-

strained devices like multicast communication and the

observe request, a kind of request where the server

responds whenever the resource is changed. Contiki

one of the major operating systems for the IoT, adopts

CoAP as its primary application protocol.

http://contiki-os.org/

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

136

Also important to the IoT is MQTT

, a publish-

subscribe protocol created by IBM and designed to be

simple, lightweight and suitable for constrained envi-

ronments. The MQTT implementation is over TCP,

inhibiting adoption in extremely constrained devices

such as some wireless sensors, which led to the de-

velopment of MQTT for Wireless Sensor Networks

(Hunkeler et al., 2008).

Coming from chats, i.e. human-to-human com-

munication (H2H), it is remarkable the presence of

XMPP (RFC 6120) in the list of protocols for IoT.

But in the interesting work of (Hornsby and Bail,

2009) and (Klauck and Kirsche, 2012), XMPP is pro-

posed for human-to-machine communication (H2M)

in a scheme that allows users to add sensors as friends

for receiving sensor updates via instant messaging. A

negative factor of XMPP is that it relies in XML data

format, considered heavy for constrained devices, so

its use in the IoT is still not wide.

Several approaches have been proposed to solve

the interoperability problem of messaging protocols

in the IoT. The Web of Things (Guinard et al., 2010) is

an implementation of IoT that makes use of web tech-

nologies, such as REST (Fielding and Taylor, 2002),

as a common paradigm among people and devices.

But when devices cannot run a HTTP server, inte-

gration takes place using intermediaries called Smart

Gateways which is a kind of web proxy that abstracts

heterogeneous communication through a RESTful

API. In addition, the WoT approach supports publish-

subscribe interactions via web feeds. Our proposal is

directly related with the WoT Smart Gateway, but it is

not limited to a REST-like interface.

(Castellani et al., 2012) discuss about problems

and solutions in mapping between HTTP and CoAP

protocols regarding the implementation of a cross

proxy between these protocols. This kind of proxy

can transparently interconnect protocols maintaining

most of semantics, but it has the drawbacks of being

locked to only two and limited to very closer proto-

cols.

(Collina et al., 2012) proposed a publish-subscribe

topic-based broker where access to topics is done

via multiple protocols, regardless of the communica-

tion pattern. The authors validated the proposal by

implementing a broker reached via HTTP (request-

response) and MQTT (publish-subscribe). Despite

this proposal provides interoperability, the broker

only allows communication between device and bro-

ker, not a direct communication between devices. In

other words, transparent interoperability is not sup-

ported.

(Bromberg et al., 2009) proposed z2z, a sophisti-

http://mqtt.org/

cated generative approach to build generic gateways.

It is composed by a domain-speciﬁc language (DSL)

also called z2z, a runtime system and a compiler, and

it is focused on easier development and efﬁciency.

The gateways are statically generated to C code from

speciﬁcations written in z2z. Although z2z provides a

very customized approach to gateway development, it

generates gateways for only pairs of protocols (by di-

rect translation) and request-response is the only sup-

ported message exchange pattern.

Facing problems of existing solutions in the con-

text of IoT-driven gateways, next section presents our

proposal which is expected to solve their limitations.

4 GATEWAY ARCHITECTURE

This paper proposes GoThings, an architecture for

building application-layer gateways for the IoT. The

proposal aims at the following:

Interoperability. The architecture should make pos-

sible to develop a gateway which intermediates

devices with different application-layer protocols.

Extensibility. The architecture should allow addition

of new protocols to the gateway without modiﬁca-

tion of its internal structures.

Generality. The architecture should be generic

enough to permit its use in various IoT scenarios.

Conﬁgurability. The architecture should provide

mechanisms to modify the system behavior at a

granular level.

HTTP Client

HTTP CoAP

XMPP

MQTT

MQTT Server

CORE

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

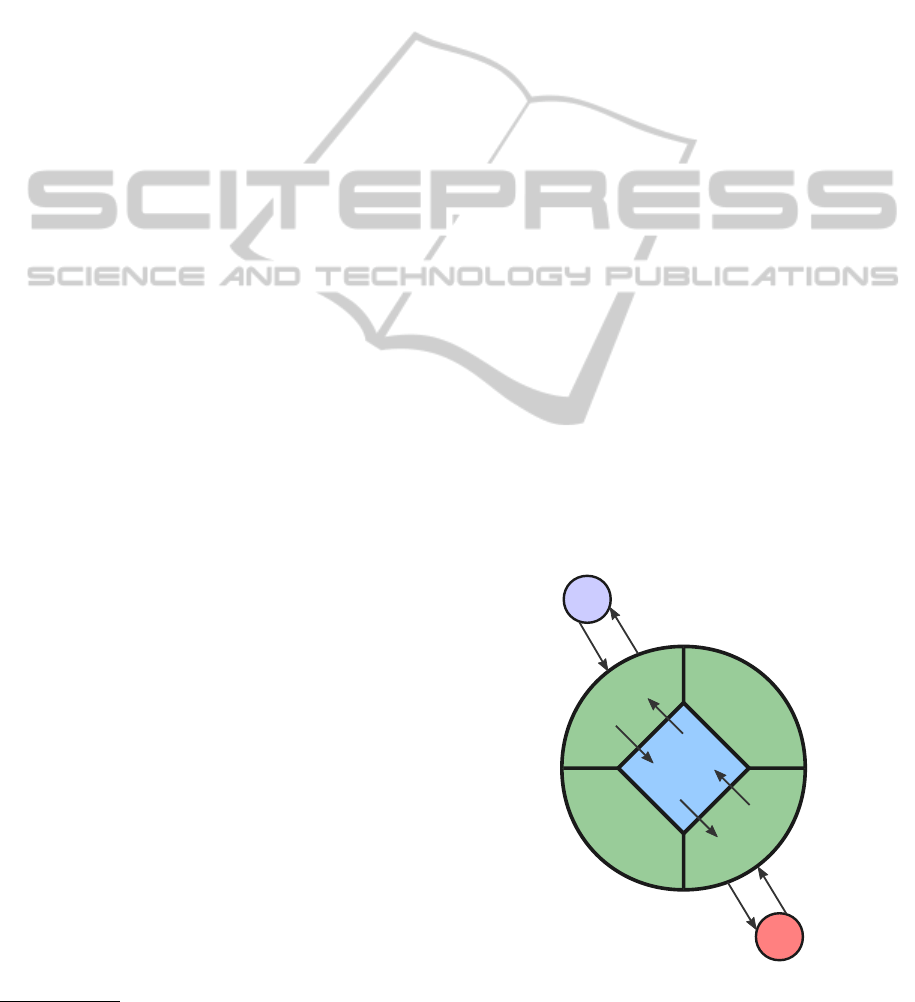

Figure 3: The ﬂow throughout the gateway of a HTTP-

MQTT request.

GoThings-AnApplication-layerGatewayArchitecturefortheInternetofThings

137

Interconnection

Controller

API

Communication Manager

HTTP plugin CoAP plugin MQTT plugin

New Protocol

plugin

Input

Controller

Listeners Cache

Output

Controller

Listeners

…

HTTP Clients and Servers CoAP Clients and Servers MQTT Clients and Servers NP Clients and Servers

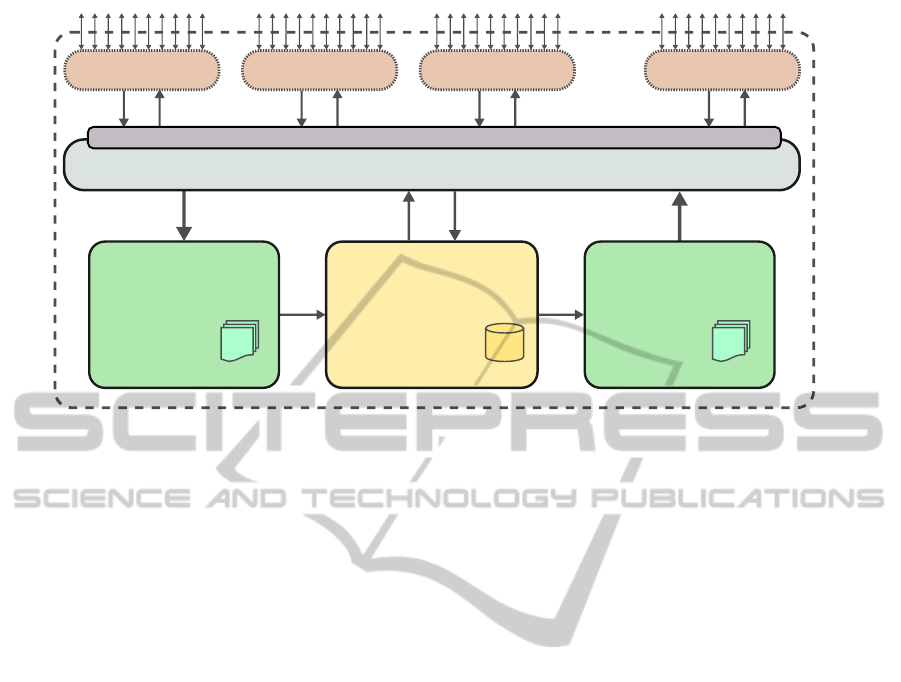

Figure 4: The GoThings architecture overview.

Justiﬁed by the need of a gateway easily extensi-

ble to other protocols we followed in GoThings archi-

tecture the indirect bridge approach. Indirect bridges

make necessary an intermediate format as stated in

Section 2. For that we set as intermediate format a

message model carrying common ﬁelds and options

from an intersection of IoT protocols and message ex-

change patterns.

A known problem in indirect translations is about

missing protocol semantics of one or both sides. We

do not think GoThings architecture will suffer of this

because we focus our attention on IoT interaction pat-

terns that are usually very simple and speciﬁc.

Figure 3 shows at high level the ﬂow passing

through the gateway of a successful request from a

HTTP client to a MQTT server. The ﬂow begins when

a HTTP client requests to gateway through the HTTP

plugin (step 1), which forwards to the core (step 2).

After request is parsed, the gateway knows to what

plugin the message will be forwarded, which in this

case is the MQTT one (step 3). Accordingly, MQTT

plugin makes a request to MQTT server and receives

a response (steps 4 and 5), that is returned to the gate-

way core (step 6), which returns to HTTP client (steps

7 and 8).

It is important to see how a HTTP request is recog-

nized by the gateway as a request to a MQTT server.

For that we used URI as the element that carries rout-

ing information between protocols. Thus, assum-

ing the gateway is at gw.me.com and the server at

bk.you.org, the following URI

http://gw.me.com/mqtt/bk.you.org/moisture

indicates the request must be forwarded to the MQTT

plugin (note mqtt in the address) which is able to re-

quest /moisture from bk.you.org.

The GoThings architecture overview can be seen

in Figure 4. The visible components are brieﬂy ex-

plained below:

• Communication manager intermediates the

communication between plugins and controllers.

It enables the gateway extensibility and abstracts

each protocol ways through the message model.

The plugins talk to communication manager us-

ing an API to facilitate plugin development.

• Interconnection controller is the component that

forwards requests to the target plugin and main-

tains request states until receives an answer. The

cache is an important element of this component.

• Input and output controllers are components

that handle, respectively, requests and responses.

The listeners are actions triggered by events from

both input and output controllers. A listener could

be either a simple logging action or a complex ac-

tion that may change the message.

• Plugin is both a client and a server implementa-

tion of a speciﬁc protocol. The plugins cannot

communicate directly with each other, but only

via communication manager.

4.1 Gateway Operation

When a client makes a request to the gateway, it

makes through a plugin. But until the client receives a

response, some effort is required. An outline of these

effort can be seen in Figure 5 that shows a collab-

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

138

HTTP plugin

1: HTTP client

makes a

request

12: HTTP client

receives the

response

MQTT plugin

Communication

Manager

2: HTTP

request is

accepted

7: MQTT

response

Input

Controller

Interconnection

Controller

4: Request

handling

11: Response

received

6: MQTT

detected as

the target

protocol.

A MQTT

server will

be contacted.

3: Request goes to

input queue

Output

Controller

8: Response

will be

cached

10: Response

handling

5: Cache miss?

It needs

to contact

server.

9: Cache hit or no.

Response goes to

output queue.

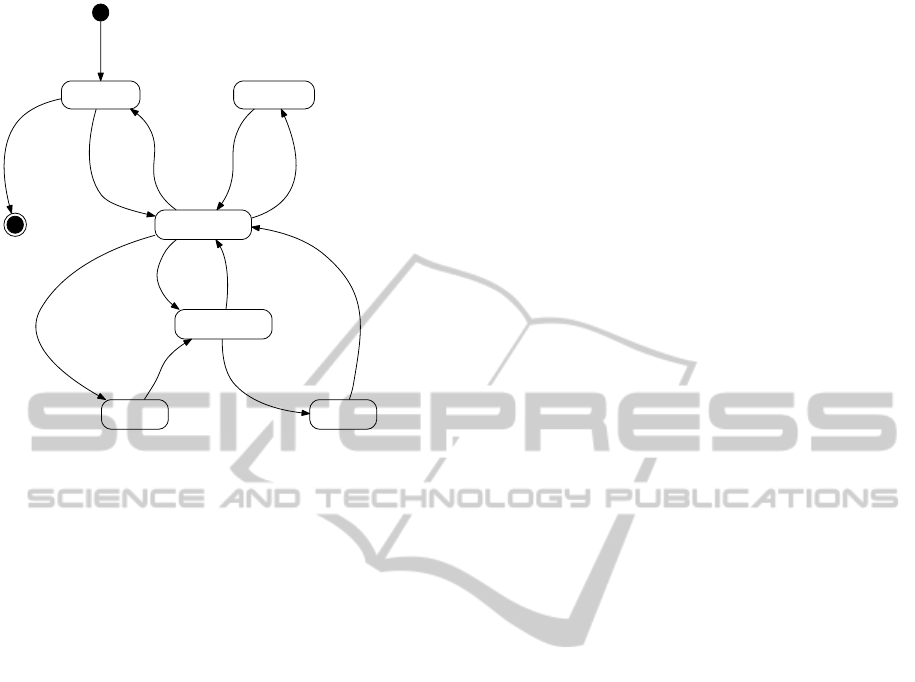

Figure 5: Collaboration diagram for a HTTP-MQTT re-

quest.

oration diagram for the same HTTP-MQTT request

touched upon before. We explain the sequence below:

1: The client makes a HTTP request to the gateway

exactly like he would request to a normal HTTP

server.

2–3: HTTP plugin receives the request and sends it

to Communication Manager (CM), which in turn

forwards to Input Controller (IC).

4: IC sends the request message to every registered

input listeners and then forwards to Interconnec-

tion Controller (ICC).

5–8: This sequence is performed only if ICC ﬁnds

the asked resource in cache (cache hit). On con-

trary, if nothing found (cache miss), an actual in-

teraction with a MQTT server is required. This

is done after ICC passes the request to CM which

forwards it to target plugin (MQTT in this case).

The plugin makes a request to server, and when

response arrives the plugin passes it to CM that

sends it to ICC which, ﬁnally, stores it in cache.

9: Whether the response was retrieved from cache or

not, it is passed to Output Controller (OC).

10: Similar to IC, the OC sends the response mes-

sage to every registered output listeners and then

forwards to CM.

11–12: CM sends the response to the source proto-

col plugin (HTTP in this case) which ﬁnalizes the

request by sending the response to client.

4.2 Interoperability

Each protocol talks a particular language in a partic-

ular way. This makes heterogeneous devices unable

to interoperate unless every protocol needed for the

communication is installed.

Constrained devices, however, are not able to have

many protocols available at the same time due to

memory limitations. Furthermore, the complexity of

maintaining multi protocol applications is higher than

single protocol ones. Our gateway architecture was

designed to be able to deal with these issues.

4.3 Extensibility

As stated before, GoThings makes use of the indi-

rect bridge approach because we focus on easiness of

plugging in any number of previously unknown pro-

tocols. That said, our proposed gateway architecture

was designed to be easy for interconnecting protocols

not thought before, relying on plugin subsystem. In

fact, enabling a new protocol into the gateway is only

a matter of develop and install a new plugin.

A plugin is a software component that has to im-

plement some interfaces to send and receive mes-

sages, and interact with communication manager. The

plugin should have both a client and a server of a

given protocol to a complete functionality, but a par-

tial functionality is possible. One point here is that

many protocols have ready-to-use libraries that can

be used to accelerate development of plugins.

4.4 Conﬁgurability and Generality

The listeners inside input and output controllers are

the key to the conﬁgurability. They allow a more

granular gateway conﬁguration. With them, as an ex-

ample, we could instruct gateway to assure payload of

response is in JSON format if request comes from a

constrained device. Or we could program one or more

listeners to add semantic interoperability features to

the gateway.

By providing such mechanisms that can alter the

gateway behavior, the conﬁgurability supports the

generality. Additionally, the message model is a vital

element to make the architecture be generic enough.

In this sense, it is important to remember that the gen-

erality concept of this paper is in the context of IoT

problems.

4.5 Suitability for Constrained Devices

The cache in the interconnection controller is the key

element that makes GoThings apt to constrained de-

GoThings-AnApplication-layerGatewayArchitecturefortheInternetofThings

139

vices. A cache allows the gateway to reduce forward-

ing of requests and to ensure that a value is always

returned, even when requested devices are sleeping.

In Section 4.1 we could see how cache may reduce

the communication overhead. In general, by avoiding

requests made to constrained devices, the gateway be-

comes suitable for them.

5 CONCLUSIONS

This paper proposed GoThings, a preliminary ar-

chitecture for creating gateways to interconnect

application-layer messaging protocols focused on In-

ternet of Things, and suitable for constrained de-

vices. In regard to message exchange pattern, the ar-

chitecture support both request-response and publish-

subscribe.

The main aspects of the architecture are interop-

erability, extensibility, generality and conﬁgurability.

GoThings allows transparent interoperability in a way

that devices can use its own protocol to have a het-

erogeneous communication. GoThings was designed

to be extensible: enabling a new protocol is only a

matter to install a new plugin. GoThings is generic

enough in the context of IoT problems, and the users

are able to change gateway behaviors through the use

of listeners.

Finally, there are some ongoing work. We are

looking for the best ways to specify the message

model in a manner that existing and possibly future

IoT protocols can be interconnected without losing

their semantics. When the message model is properly

speciﬁed we can work on plugin subsystem which in-

cludes the speciﬁcation of communication manager

API. We plan to deploy our proof-of-concept gateway

implementation in a Raspberry Pi

. We will compare

performance with the achieved of native protocol im-

plementations. We expect to ﬁnish these work until

January 2016.

REFERENCES

Blair, G., Paolucci, M., Grace, P., and Georgantas, N.

(2011). Interoperability in Complex Distributed Sys-

tems. In Formal Methods for Eternal Networked Soft-

ware Systems. Springer Berlin Heidelberg.

Bromberg, Y.-D., Réveillère, L., Lawall, J., and Muller, G.

(2009). Automatic Generation of Network Protocol

Gateways. In ACM/IFIP/USENIX, 10th International

Middleware Conference.

http://www.raspberrypi.org/

Castellani, A., Fossati, T., and Loreto, S. (2012). HTTP-

CoAP cross protocol proxy: an implementation view-

point. In IEEE 9th International Conference on Mo-

bile Ad-Hoc and Sensor Systems.

Collina, M., Corazza, G. E., and Vanelli-Coralli, A. (2012).

Introducing the QEST broker: Scaling the IoT by

bridging MQTT and REST. In IEEE 23rd Interna-

tional Symposium on Personal, Indoor and Mobile

Radio Communications.

Dargie, W. and Poellabauer, C. (2010). Fundamentals of

wireless sensor networks: theory and practice. John

Wiley & Sons Ltd., United Kingdom.

Fielding, R. T. and Taylor, R. N. (2002). Principled design

of the modern Web architecture. ACM Transactions

on Internet Technology, 2:115–150.

Guinard, D., Trifa, V., and Wilde, E. (2010). A resource ori-

ented architecture for the Web of Things. In Internet

of Things (IOT), pages 1–8, Tokyo. IEEE.

Hornsby, A. and Bail, E. (2009). µXMPP: Lightweight im-

plementation for low power operating system Contiki.

In IEEE International Conference on Ultra Modern

Telecommunications & Workshops.

Hunkeler, U., Truong, H. L., and Stanford-Clark, A. (2008).

MQTT-S – A publish/subscribe protocol for Wireless

Sensor Networks. In 3rd IEEE International Confer-

ence on Communication Systems Software and Mid-

dleware and Workshops.

Issarny, V., Bennaceur, A., and Bromberg, Y.-D. (2011).

Middleware-Layer Connector Synthesis: Beyond

State of the Art in Middleware Interoperability. In

Formal Methods for Eternal Networked Software Sys-

tems. Springer Berlin Heidelberg.

Klauck, R. and Kirsche, M. (2012). Chatty things – Making

the Internet of Things readily usable for the masses

with XMPP. In 8th International Conference on Col-

laborative Computing, Pittsburgh, PA.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

140
