Using Anonymous Credentials for eID Authentication in the Public Cloud

Bernd Zwattendorfer

E-Government Innovation Center (EGIZ), Graz University of Technology, Inffeldgasse 16a, 8010 Graz, Austria

Keywords:

eID, Electronic Identity, Citizen Card, Anonymous Credentials, Privacy, Authentication, Public Cloud.

Abstract:

Unique identiﬁcation and secure authentication are important processes in several security-sensitive areas

of applications such as e-Government or e-Health. Within Europe, electronic IDs (eIDs) are the means to

securely support these processes. In Austria, the Austrian citizen card is used by citizens for identiﬁcation and

authentication at online applications. Identiﬁcation in Austria is based on a special data structure including

multiple personal attributes stored on the citizen card. However, in the current situation it is only possible

to disclose the complete identity of a citizen and not only parts of it. To bypass this issue and to increase

privacy, in this paper we propose a security architecture which uses anonymous credentials for Austrian eID

authentication to enable minimum/selective disclosure. Due to the use of anonymous credentials, our proposed

architecture also allows the migration of important components of the Austrian eID system into a public cloud.

A public cloud deployment has several advantages, in particular with respect to scalability and cost savings.

While public cloud deployment brings up new issues relating to privacy, the use of anonymous credentials can

mitigate these issues as they can ensure privacy with respect to the cloud provider.

1 INTRODUCTION

Unique identiﬁcation and secure authentication are

important processes when access to protected data

needs to be regulated. In particular, in security-

sensitive areas of applications such as e-Government

these processes are essential. For protecting citizen

access to public and also private sector applications

Austria relies on the Austrian citizen card, the ofﬁ-

cial eID in Austria (Leitold et al., 2002). The Aus-

trian citizen card is capable of unique identiﬁcation

and qualiﬁed signature creation, which is further used

for authentication at service providers (applications).

Using the Austrian citizen card, identiﬁcation is

based on a special data structure stored on the citizen

card. In the current situation it is only possible to dis-

close the complete identity of a citizen (the complete

special data structure) to a service provider. However,

in some situations it might be favorable to disclose

only some parts or even just derived attributes from

this identity (e.g. age instead of date of birth).

To achieve this, in this paper we propose a se-

curity architecture which uses anonymous credentials

for Austrian eID authentication. Anonymous creden-

tials particularly preserve users’ privacy and ensure

only minimum data disclosure, hence it’s not neces-

sary for citizens to reveal their complete identity any-

more. Moreover, our proposed architecture also al-

lows the migration of important components of the

Austrian eID system into a public cloud. Comparing

all cloud deployment models, the public cloud offers

the highest beneﬁts in terms of scalability and cost

savings with respect to all other cloud models (Alford,

2009). However, the public cloud also has the high-

est privacy concerns (Pearson and Benameur, 2010).

Deploying the Austrian eID system in a cloud-based

setting could take advantage of the public cloud ben-

eﬁts, but requires the need of privacy preservation at

the same time. This can be achieved by adopting our

proposed architecture, which is able to ensure privacy

with respect to the cloud provider under the assump-

tion that the cloud provider is acting honest but curi-

ous (Nu

nez and Agudo, 2014).

The paper is structured as follows. Section 2

brieﬂy describes the Austrian citizen card concept.

Section 3 elaborates on anonymous credentials and

overviews different technologies. In Section 4 we de-

scribe our proposed architecture on using anonymous

credentials for a public cloud deployment of the Aus-

trian eID system, explain an identiﬁcation and authen-

tication process in detail, suggest technologies for im-

plementing the proposed architecture, and discuss it

in Section 5. The paper is round up by a drawing con-

clusions in Section 6.

156

Zwattendorfer B..

Using Anonymous Credentials for eID Authentication in the Public Cloud.

DOI: 10.5220/0005494901560163

In Proceedings of the 11th International Conference on Web Information Systems and Technologies (WEBIST-2015), pages 156-163

ISBN: 978-989-758-106-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

2 THE AUSTRIAN eID SYSTEM

The Austrian eID system, handling in particular

unique identiﬁcation and secure authentication of cit-

izens, constitutes a main pillar within the Austrian e-

Government infrastructure. The core component of

the Austrian eID system is the so-called Austrian cit-

izen card (Leitold et al., 2002). In the following sub-

sections we brieﬂy describe the Austrian citizen card

concept and explain how the Austrian citizen card is

used for identiﬁcation and authentication at online ap-

plications.

2.1 The Austrian Citizen Card Concept

The Austrian citizen card constitutes the core compo-

nent of the Austrian eID system. The Austrian citizen

card is rather a concept than one concrete implemen-

tation, hence different technological approaches for

implementing a citizen card may exist. Currently, two

implementations are rolled-out in the ﬁeld, one rely-

ing on smart cards and the other one using a mobile

phone. In more detail, the citizen card has three main

functions as many other European eIDs according to

(Arora, 2008):

1. Unique identiﬁcation

2. Secure authentication

3. Qualiﬁed signature creation

Unique identiﬁcation of the Austrian citizen card

is based on a special data structure (so-called identity

link), which is directly stored on the card. This special

data structure contains personal data for identifying a

citizen. The personal data consists of a unique iden-

tiﬁer, ﬁrst and last name, and date of birth of the citi-

zen. To ensure integrity and authenticity of the iden-

tity link, it is digitally signed by a trusted authority,

the so-called SourcePin Register Authority.

Unique identiﬁcation at online applications is

mainly based on the unique identiﬁer included in the

identity link, which is called sourcePIN. The sour-

cePIN is solely stored on the citizen card and must not

be stored in any other location according to Austrian

law (Federal Chancellery, 2008). Hence, due to these

legislative restrictions and further privacy reasons, for

identiﬁcation at online applications the sourcePIN is

not used directly but rather a derived identiﬁer by us-

ing a one-way hash function. Derivation of this iden-

tiﬁer, which is called sector-speciﬁc PIN - ssPIN), is

based on the governmental sector (e.g. tax, ﬁnance,

etc.) the online application belongs to.

Secure authentication at online applications is

based on creating a qualiﬁed electronic signature. By

verifying the created signature at the online applica-

tion, the citizen can prove the authenticity of her iden-

tity data. However, qualiﬁed signature creation can

be seen as separate process for the Austrian citizen

card. Hence, the creation of qualiﬁed electronic sig-

natures, which are equivalent to handwritten signa-

tures according to the EU signature directive (Euro-

pean Parliament and Council, 1999), deﬁnes the third

main function of the citizen card.

2.2 Identiﬁcation and Authentication at

Online Services

Identiﬁcation and authentication at Austrian online

applications using the Austrian citizen card is based

on the following architecture illustrated in Figure 1.

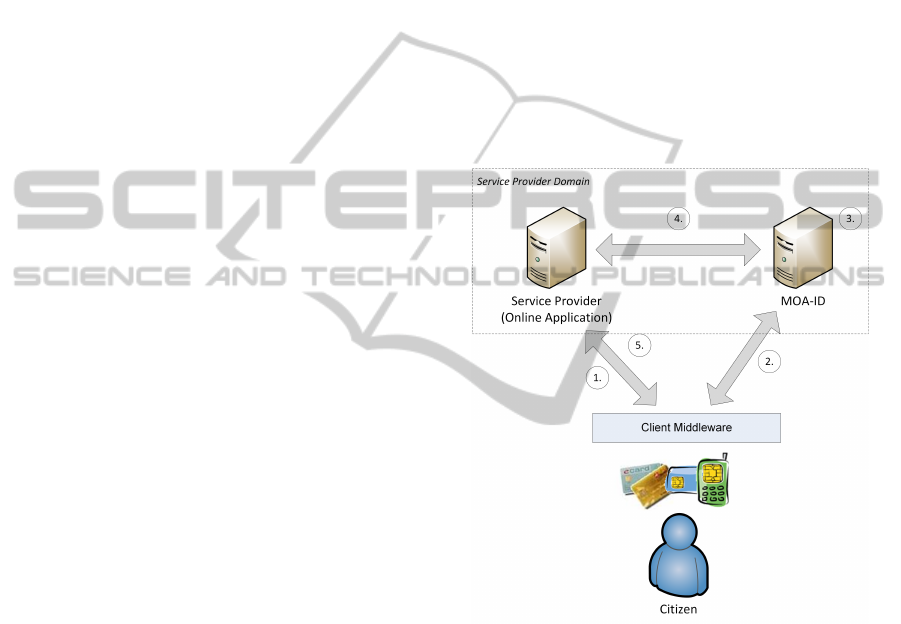

Figure 1: The basic Austrian eID system Architecture.

The following entities are involved in an identiﬁ-

cation and authentication process:

Citizen. A citizen wants to access a protected re-

source at the service provider.

Service Provider. The service provider is operated

by the public or the private sector and offers pro-

tected services to citizens .

MOA-ID. MOA-ID (Lenz et al., 2014) is an open

source software module which enables the usage

of the Austrian citizen card for accessing pro-

tected services at the service provider. In this con-

text, MOA-ID can be seen as identity information

provider according to (ISO/IEC JTC 1, 2011). On

the one hand, MOA-ID communicates with the

UsingAnonymousCredentialsforeIDAuthenticationinthePublicCloud

157

client middleware to access citizen card function-

ality. On the other hand, MOA-ID provides the

service provider identity and authentication infor-

mation of the citizen in a structured way, which is

based on SAML (Cantor et al., 2009). Regarding

the operation of MOA-ID, the current Austrian

eID system foresees a local (de-centralized) de-

ployment of MOA-ID in every service provider’s

domain.

Client Middleware. The client middleware can be a

piece software either installed locally in the citi-

zen’s domain or on a remote server. In fact, the

client middleware is an implementation of an ab-

stract layer (Hollosi et al., 2014). This layer al-

lows accessing citizen card functionality in a stan-

dardized way without the need of knowing any

details on the underlying citizen card implemen-

tation.

According to Figure 1, an identiﬁcation and au-

thentication process using this architecture comprises

the following steps:

1. A citizen wants to access a certain protected ser-

vice at the service provider. Assuming that the cit-

izen is not authenticated yet, the service provider

sends an authentication request to MOA-ID.

2. MOA-ID veriﬁes this authentication request and

initiates the authentication process by invoking

the citizen’s client middleware. In a ﬁrst step,

the citizen’s identity link is read and veriﬁed from

the client middleware and the citizen card respec-

tively. In a second step, the creation of a qualiﬁed

electronic signature from the client middleware is

requested by MOA-ID. The received signature is

then veriﬁed by MOA-ID again.

3. Following the sector-speciﬁc identiﬁcation con-

cept outlined in the previous section, MOA-ID de-

rives the sourcePIN extracted out of the identity

link according to the sector the service provider

belongs to. This results in the generation of the

ssPIN.

4. Finally, MOA-ID puts all identiﬁcation and au-

thentication data into a standardized data structure

(SAML assertion) and transmits it to the service

provider.

5. Based on the received data the service provider

can decide to either grant or deny access.

3 ANONYMOUS CREDENTIALS

Anonymous credential systems allow authentication

of users based on authentic anonymous attributes.

Hence, only a certain attribute or a part of an identity

and not the complete identity must be revealed during

an authentication process. For instance, anonymous

credentials allow authentication based on a certain

age, without revealing the full date of birth of the au-

thenticating user. Anonymous credential systems are

not particularly new (Brands, 2000; Camenisch and

Lysyanskaya, 2001), however, in the past years they

transform from theoretical and scientiﬁc concepts to

practically applicable solutions.

Basically, anonymous credentials can be differen-

tiated into one-show (Brands, 2000) and multi-show

credentials (Camenisch and Lysyanskaya, 2001). Us-

ing one-show anonymous credentials, always the

same mathematically computed attribute value is dis-

closed to a veriﬁcation entity. Due to that, persons

might be somehow linkable, since the re-occurring at-

tribute value allows recognition over several authenti-

cation processes. In contrast to that, when disclosing

a mutli-show credential to a veriﬁer, for every disclo-

sure always a different mathematical attribute value is

calculated, which avoids linkability. In the following,

we brieﬂy introduce the actual most important anony-

mous credential systems.

3.1 U-Prove

U-Prove

constitutes an anonymous credential system

invented by (Brands, 2000), which is further devel-

oped and improved by Microsoft. The central compo-

nent of U-Prove is a so-called U-Prove Token, which

includes authentic and cryptographically protected at-

tributes. This U-Prove token is used during interac-

tions with a service provider for proving certain at-

tributes (Paquin, 2013). The U-Prove Token and its

included attributes are thereby veriﬁed by a service

provider. U-Prove Tokens are usually issued to and

for a user by a trustworthy entity (issuer), which ver-

iﬁes the authenticity of claimed user attributes before

they are stored in the U-Prove Token.

Revocation of issued U-Prove Tokens is done by

using blacklists. Usually, a unique identiﬁer is en-

coded into an issued U-Prove Token, which is put on

the blacklist if the token needs to be revoked. U-Prove

Tokens can be revoked either by the user herself or by

a service provider.

The main features of U-Prove are unlinkability

and selective attribute disclosure. In that case, unlink-

ability means that there exists no relationship between

two U-Prove Tokens, which have been issued to one

and the same user. Nevertheless, users - even anony-

mous – are still linkable when using just one U-Prove

Token at different service providers. The reason is

http://research.microsoft.com/en-us/projects/u-prove/

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

158

that always the same mathematical value is disclosed

to the service provider, which makes U-Prove a one-

show credential system. However, users are still able

to decide themselves which attributes should be dis-

closed to a service provider and which should not.

3.2 Idemix

Identity Mixer

(Idemix) is an anonymous credential

system developed by IBM. Similar to U-Prove, a user

gets issued a credential containing different attributes

from an issuer, which asserts the authenticity of the

attributes. If one of these attributes is needed as proof

for authentication at a service provider, the issued cre-

dential is transformed into a new credential, which

only contains a subset of attributes to be used for

authentication at the service provider. Thereby, the

user can convince the service provider that she pos-

sesses certain attributes or fulﬁlls certain properties

without revealing her complete identity. In contrast to

U-Prove, such a credential transformation can be car-

ried out any number of times and the user still stays

unlikable. Hence, Idemix can be seen as a multi-show

anonymous credential system.

Revocation in Idemix - in contrast to U-Prove -

is mostly based on whitelists. If a user needs to ver-

ify that her credential has not been revoked, she just

needs to prove that a certain identiﬁer of the cre-

dential is listed on the whitelist. However, a cou-

ple of other revocation mechanisms exist in Idemix,

e.g. also blacklists. An overview of different revo-

cation mechanisms for Idemix credentials is given by

(Lapon et al., 2011).

3.3 ABC4Trust

ABC4Trust

(Attribute-based Credentials for Trust)

was an EU co-funded project of the framework pro-

gramme 7, which was lasting for 4 years and ended

in 2014. The aim of ABC4Trust was the development

and piloting of a framework, which is capable of com-

bining different anonymous credential systems. Cur-

rently, ABC4Trust supports in its framework U-Prove

and Idemix as underlying technologies. The follow-

ing Figure 2 illustrates the general architecture of the

ABC4Trust framework and its interactions between

involved entities (Camenisch et al., 2012).

http://idemix.wordpress.com/

https://abc4trust.eu/

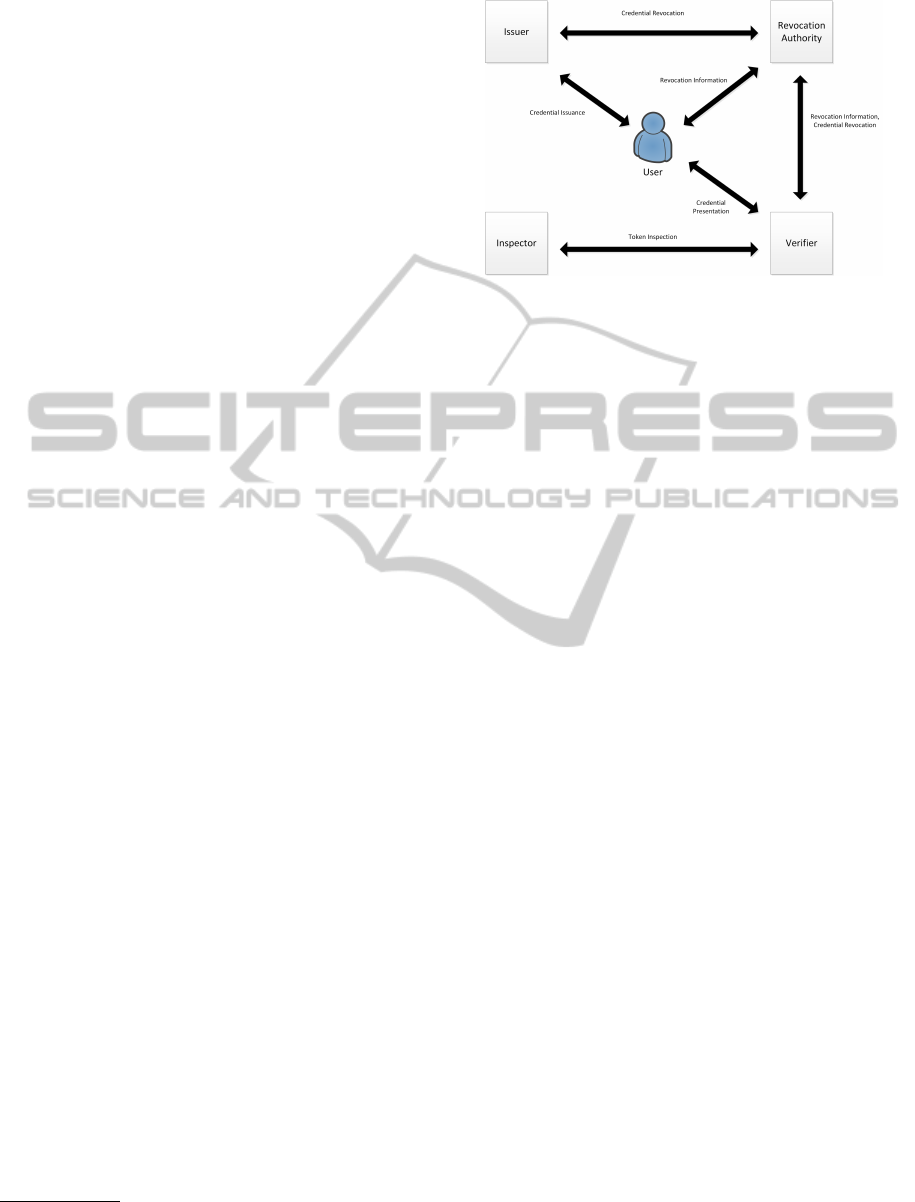

Figure 2: ABC4Trust Framework Architecture. (Ca-

menisch et al., 2012)

4 USING ANONYMOUS

CREDENTIALS FOR PUBLIC

CLOUD DEPLOYMENT

In the following sub-sections we explain how the Aus-

trian eID system can be made more privacy-friendly

by using anonymous credentials and why it is possible

to deploy the eID system in a public cloud.

4.1 Motivation

Currently, the Austrian eID system requires the de-

ployment of MOA-ID in every service provider’s do-

main. While this current deployment approach in fact

ensures high scalability, having a centralized deploy-

ment approach may be advantageous. Having a single

central instance would take away much burdensome

work from service providers (e.g. installation and

deployment of MOA-ID, maintenance efforts, etc.).

In addition, during an authentication process citizens

would always be presented the same user interface of

one central MOA-ID instance instead of always dif-

ferent user interfaces of multiple MOA-ID instances.

A central MOA-ID instance operated under nor-

mal settings would be less scalable than the decen-

tralized approach. Nevertheless, this scalability issue

could be easily mitigated by moving MOA-ID into a

public cloud, which provides the best advantages in

terms of scalability. However, a move of a trusted ser-

vice such as MOA-ID into a public cloud brings up

new obstacles, particularly relating to privacy (Pear-

son and Benameur, 2010). This is now where anony-

mous credentials come into play, which have strong

privacy capabilities.

In the following we present an architecture on how

the Austrian eID system can be securely moved into

UsingAnonymousCredentialsforeIDAuthenticationinthePublicCloud

159

the cloud by still preserving citizen’s privacy with re-

spect to the cloud provider operating MOA-ID.

4.2 Architecture

In this section an architectural design is presented on

how the Austrian eID system can be moved into a

public cloud by using anonymous credentials. Apply-

ing this architecture, the main advantage for citizens

is that it is not necessary to reveal their complete iden-

tity to MOA-ID and subsequently the service provider

as it is done now. To achieve this, the Austrian citi-

zen card and its containing attributes of the identity

link must be modeled as anonymous credentials. This

can be seen as prerequisite when applying the follow-

ing cloud-based architecture. Figure 3 illustrates this

architecture. From the general architectural point of

view, there are no big differences to the existing archi-

tecture in Figure 1. However, one new component is

added (Revocation Authority), which will be queried

during the identiﬁcation and authentication process.

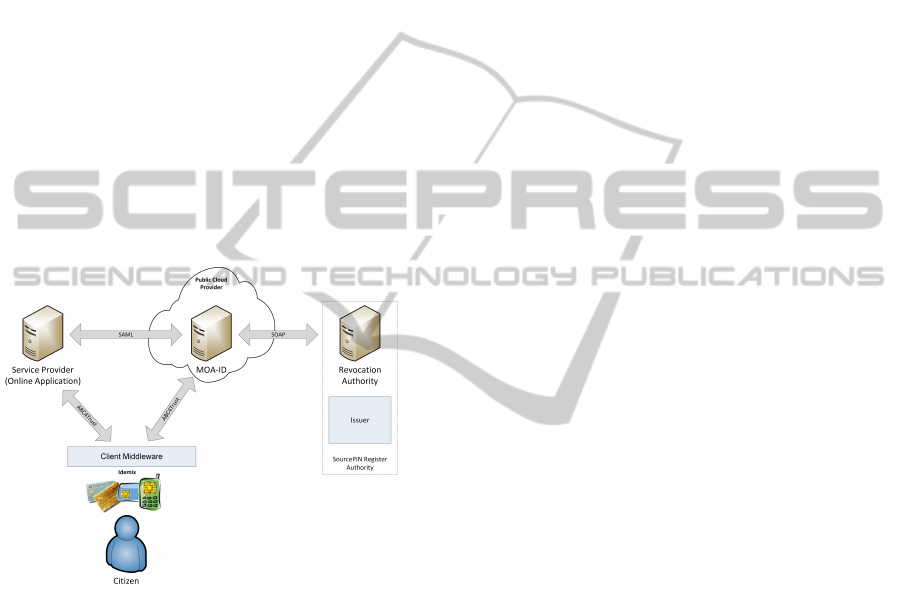

Figure 3: Cloud-based Architecture using Anonymous Cre-

dentials.

Using the proposed architecture, the citizen card

supports the functionality of selective attribute dis-

closure because the citizen card is modeled based on

anonymous credentials now, which are still issued by

the trusted SourcePIN Register Authority. Veriﬁca-

tion of the validity of citizens credentials is done by

MOA-ID. To do that, MOA-ID contacts on-the-ﬂy

the revocation authority (similar to requesting revoca-

tion information for traditional X.509 certiﬁcates us-

ing OCSP (RFC 6960, 2012)). If the credential has

not been revoked, access for citizens to the service

provider can be granted. In more detail, proofs of

credentials are exchanged between the citizen and the

service provider.

The following entities are involved in this archi-

tecture. A Citizen wants to access a protected service

using her citizen card. This time, the attributes of the

citizen card are modeled as anonymous credentials.

The Service Provider requires just a minimum of data

for authentication, e.g. the citizen’s age. MOA-ID

takes over the identiﬁcation and authentication pro-

cess for the service provider. In particular, MOA-ID

does the revocation checking. The Revocation Au-

thority stores a blacklist according to (Lapon et al.,

2011). The blacklist contains a list on all revoked

credentials. The revocation authority is operated by

the SourcePIN Register Authority. In our setting, the

SourcePIN Register Authority is also acting as Issuer

and also takes over the issuance of anonymous cre-

dentials. The Client Middleware regulates access to

credentials on the citizen card. In addition, the client

middleware is responsible for any credential transfor-

mation.

4.3 Used Technologies

In the following we brieﬂy describe the technologies

which are feasible for implementing the architecture.

Idemix. Idemix was selected as a possible anony-

mous credential system because it is a multi-show

credential system, supported by ABC4Trust, and

Java libraries are freely available. When imple-

menting our architecture, Idemix should be used

for modeling the Austrian citizen card and its at-

tributes as anonymous credentials.

Idemix supports different approaches for revoca-

tion checking (Lapon et al., 2011). In this con-

crete architecture we rely on veriﬁable encryption

(Lapon et al., 2011) in combination with black-

lists. Veriﬁable Encryption means that a citizen

can actually proof an attribute although the at-

tribute is encrypted. In our architecture, a unique

identiﬁer of the citizen’s credentials is encrypted.

Thereby, the citizen can proof the correctness of

the unique identiﬁer without disclosing the identi-

ﬁer to a veriﬁer.

ABC4Trust. ABC4Trust will be used as XML-

based communication protocol between service

provider and client middleware, and MOA-ID and

client middleware. Thereby, between both enti-

ties a presentation policy and a presentation token

according to the ABC4Trust speciﬁcation will be

exchanged. The presentation policy deﬁnes which

attributes or credentials, respectively, are required

from the citizen and need to be read out from

the citizen card via client middleware. The client

middleware calculates and creates the requested

credentials and returns them included in a presen-

tation token to the requesting entity.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

160

SAML. The Security Assertion Markup Language

(SAML) (Cantor et al., 2009) is an XML-based

framework for the secure exchange of identiﬁca-

tion and authentication data. The current MOA-

ID implementation already relies on SAML for

the secure data exchange between MOA-ID and

the service provider. Hence, we will also rely on

SAML for this communication ﬂow. However, in

our proposed scenario no real data will be trans-

ferred but rather revocation information.

SOAP. SOAP (W3C, 2007) is an XML-based pro-

tocol for simple data exchange between entities

using web service technology. SOAP messages

can include arbitrary XML documents for mes-

sage transfer. For our approach, a web service

was deﬁned to exchange revocation information

between MOA-ID and the revocation authority.

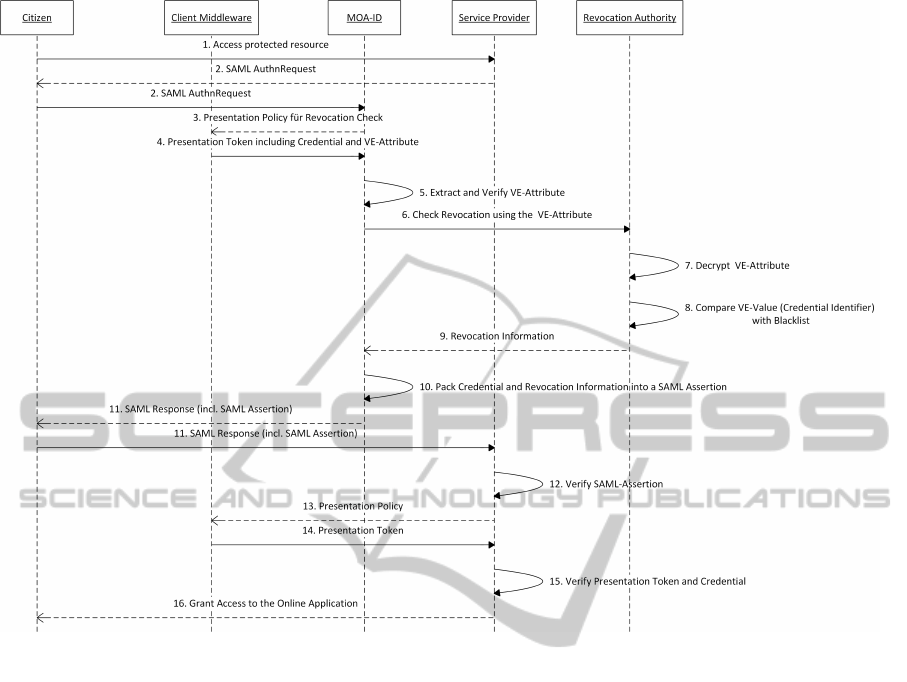

4.4 Process Flow

In this sub-section the detailed identiﬁcation and au-

thentication process using the proposed architecture

and technologies is described. The individual steps

are illustrated in the sequence diagram in Figure 4.

The process steps are as follows:

1. A citizen wants to access a protected resource of

an online application (service provider).

2. Since we assume that the citizen has not success-

fully authenticated yet, the service provider sends

a SAML AuthnRequest to MOA-ID.

3. MOA-ID veriﬁes the SAML AuthnRequest and

creates a presentation policy, which requests from

the user that her credentials are valid and not re-

voked. The presentation policy is transmitted by

MOA-ID to the client middleware.

4. To prove that the citizen’s credential is not re-

voked, veriﬁable encryption (VE) as revocation

mechanism will be used. The unique identiﬁer of

the credential will be encrypted by the user (VE-

Attribute) and together with the actual credential

included into a presentation token. The presenta-

tion token is then returned to MOA-ID.

5. MOA-ID extracts the VE-Attribute out of the pre-

sentation token and veriﬁes it. However, MOA-

ID can only verify the validity, more precisely the

calculated proof, of the VE-Attribute but not its

value, since the value is encrypted.

6. To verify the validity of the citizen’s credential,

the VE-Attribute is transmitted via SOAP web

service to the revocation authority.

7. The revocation authority decrypts the VE-

Attribute

and extracts the containing unique

identiﬁer of the citizen’s credential.

8. The revocation authority checks whether the iden-

tiﬁer is listed on its maintained blacklist. All cre-

dential identiﬁers, which are on the blacklist, are

revoked.

9. The revocation authority returns the revocation in-

formation as a web service response. More pre-

cisely, it is sufﬁcient to just return a boolean value

indicating whether the credential is revoked or

not. In our presented scenario we assume that the

presented credential is still valid.

10. MOA-ID includes the presented citizen’s creden-

tial as well as the corresponding revocation infor-

mation into a SAML assertion. The SAML as-

sertion is wrapped in a SAML response, which is

signed.

11. MOA-ID returns the SAML assertion (SAML re-

sponse) to the service provider, as it is done in the

current Austrian eID system architecture.

12. The service provider veriﬁes the SAML response

and SAML assertion.

13. The service provider assembles a presentation

policy (including the requested attributes (proofs)

required for authentication) and sends it to the

client middleware. For instance, this could be the

age of the citizen.

14. The client middleware calculates the proofs ac-

cording to the presentation policy and transmits

them together with the credential wrapped in a

presentation token to the service provider.

15. The service provider veriﬁes the presented at-

tributes/proofs. Additionally, it is checked

whether the credential presented to the service

provider in this step and the credential included in

the SAML assertion, which has been previously

presented to MOA-ID in step 4, are identical.

16. If both veriﬁcation processes are successful, the

service provider can grant the citizen access to the

protected resource.

5 DISCUSSION

In this section we brieﬂy discuss our architecture ac-

cording to selected criteria.

The revocation authority is able to decrypt the VE-

Attribute since it is part of the SourcePIN Register Author-

ity, which was responsible for credential issuance.

UsingAnonymousCredentialsforeIDAuthenticationinthePublicCloud

161

Figure 4: Identiﬁcation and Authentication Process using Anonymous Credentials for the Austrian eID.

Re-use of Existing Infrastructure. The use of

anonymous credentials requires a complete

exchange of the identity link since a completely

different technology is used. Sector-speciﬁc PINs

(ssPINs) can be either modeled for all sectors as

credential attributes or by using scope-exclusive

pseudonyms (Camenisch et al., 2011), which

are supported by ABC4Trust. Additionally, both

MOA-ID and the service provider need to support

the communication protocol (presentation policy

and token exchange) of ABC4Trust.

Compliance to the Current Process Flow. The

process ﬂow described in Figure 4 using anony-

mous credentials is a bit different to the process

ﬂow of the current situation as illustrated in

Figure 1. In our proposed architecture MOA-ID

just veriﬁes if a presented credential is revoked

or not. The actual veriﬁcation of attributes and

corresponding proofs is done by the service

provider.

Scalability. Revocation checking of anonymous cre-

dentials is very complex and computational inten-

sive, especially for multi-show credentials such as

Idemix. In particular, for a high number of users

– such as the Austrian population – computation

power demand increases. However, a movement

of certain components in the cloud (e.g. MOA-

ID) can lower this burden.

Practicability. Proof computation for certain at-

tributes in multi-show credential systems is also

very computational intensive (Lapon et al., 2011).

According to our architecture, this is done on the

client middleware. Hence, due to that there may

be longer waiting times during the authentication

process.

Extensibility. Extensibility heavily depends on the

option chosen for modeling sector-speciﬁc PINs.

If every ssPIN is modeled as separate attribute

in the credential, then any additional sector or

ssPIN would require a new issuance of the cit-

izen’s credential. In contrast to that, if sector-

speciﬁc PINs are modeled using the scope-

exclusive pseudonym approach as described in

(Camenisch et al., 2011), a similar concept as it

is done is available. Scope-exclusive pseudonyms

can be seen similar to the current approach hav-

ing a sourcePIN and then deriving ssPINs based

on different sectors.

WEBIST2015-11thInternationalConferenceonWebInformationSystemsandTechnologies

162

Changes in the Client Middleware. For using

anonymous credentials the complete functionality

of the client middleware needs to be changed.

On the one hand, the client middleware needs

to deal with anonymous credentials stored on

an underlying token and, on the other hand,

needs to implement the ABC4Trust protocol for

communication.

Trust in MOA-ID. Applying the proposed architec-

ture, MOA-ID requires no full trust. MOA-ID

never sees any personal citizen data in plain. The

only data MOA-ID sees is the citizen’s credential

but not its included attributes. Hence, MOA-ID

can be easily deployed in a public cloud. How-

ever, our assumption is based on the honest but

curious cloud attacker model, which means that

the cloud provider works correctly but may want

to inspect processed data.

6 CONCLUSIONS

Anonymous credentials are a valuable technology to

protect citizen’s privacy. One of the main features is

unlinkability, avoiding user tracking during multiple

different identiﬁcation and authentication processes.

In addition, anonymous credentials allow the disclo-

sure of only a subset of a complete identity still in an

authentic fashion. Moreover, even derived attributes

can be used for authentication (e.g. age instead of

date of birth). This makes anonymous credentials also

interesting in the eID context.

In this paper we proposed an architecture show-

ing how anonymous credentials can be integrated into

the Austrian eID system. Thereby, anonymous cre-

dentials can be used for identiﬁcation and authentica-

tion at service providers, still following the existing

privacy concept based on sector-speciﬁc identiﬁers.

Moreover, the proposed architecture even allows a

deployment of MOA-ID in a public cloud, enabling

higher scalability end elasticity features. In addition,

concrete technologies were identiﬁed for a possible

upcoming implementation. The implementation can

be considered as future work.

An implementation of the proposed architecture

can clearly show its practicability. The main bottle-

neck for that might be the client middleware, which

needs to run complex and power intensive compu-

tations for credential proof generation. A detailed

analysis of an implementation would deliver deeper

insight if citizens loose usability in terms of perfor-

mance when using anonymous credentials. Neverthe-

less, for the near future anonymous credentials are a

valuable and promising means for ensuring data pro-

tection and privacy when applied in an eID context.

REFERENCES

Alford, T. (2009). The Economics of cloud computing.

Booz Allen Hamilton.

Arora, S. (2008). National e-ID card schemes: A Euro-

pean overview. Information Security Technical Re-

port, 13(2):46–53.

Brands, S. A. (2000). Rethinking Public Key Infrastructures

and Digital Certiﬁcates - Building in Privacy. PhD

thesis, MIT.

Camenisch, J., Krontiris, I., Lehmann, A., Neven, G.,

Paquin, C., and Rannenberg, K. (2012). H2.1-

ABC4Trust Architecture for Developers.

Camenisch, J., Krontiris, I., Lehmann, A., Neven, G.,

Paquin, C., Rannenberg, K., and Zwingelberg, H.

(2011). D2.1 Architecture for Attribute-based Creden-

tial Technologies Version 1.

Camenisch, J. and Lysyanskaya, A. (2001). An efﬁcient

system for non-transferable anonymous credentials

with optional anonymity revocation. In Pﬁtzmann, B.,

editor, EUROCRYPT, pages 93–118.

Cantor, S., Kemp, J., Philpott, R., and Maler, E. (2009).

Assertions and Protocols for the OASIS Security As-

sertion Markup Language (SAML) V2 .0.

European Parliament and Council (1999). DIRECTIVE

1999/93/EC on a Community framework for elec-

tronic signatures.

Federal Chancellery (2008). The Austrian E-Government

Act. Austrian Federal Law Gazette I, 7:1–11.

Hollosi, A., Karlinger, G., R

ossler, T., and Centner, M.

(2014). Die

osterreichische B

urgerkarte.

ISO/IEC JTC 1 (2011). ISO/IEC 24760-1:2011 - A frame-

work for identity management - Part 1: Terminology

and concepts.

Lapon, J., Kohlweiss, M., Decker, B. D., and Naessens, V.

(2011). Analysis of Revocation Strategies for Anony-

mous Idemix Credentials. In CMS, pages 3–17.

Leitold, H., Hollosi, A., and Posch, R. (2002). Security

architecture of the Austrian citizen card concept. In

ACSAC, pages 391–400.

Lenz, T., Zwattendorfer, B., Stranacher, K., and Tauber,

A. (2014). Identit

atsmanagement in

Osterreich mit

MOA-ID 2.0. eGovernment Review, 13:20–21.

nez, D. and Agudo, I. (2014). BlindIdM: A privacy-

preserving approach for identity management as a ser-

vice. International Journal of Information Security,

pages 1–17.

Paquin, C. (2013). U-Prove Cryptographic Speciﬁcation

V1.1.

Pearson, S. and Benameur, A. (2010). Privacy, Security and

Trust Issues Arising from Cloud Computing. In IEEE

CloudCom, pages 693–702.

RFC 6960 (2012). X.509 Internet Public Key Infrastructure

Online Certiﬁcate Status Protocol - OCSP.

W3C (2007). SOAP Version 1.2 Part 1: Messaging Frame-

work (Second Edition).

UsingAnonymousCredentialsforeIDAuthenticationinthePublicCloud

163
