Towards Knowledge-intensive Software Engineering

Samuel R. Cauvin, Derek Sleeman and Wamberto W. Vasconcelos

Department of Computing Science, University of Aberdeen, King’s College, Aberdeen, AB24 3UE, U.K.

Keywords:

Knowledge-based Software Engineering.

Abstract:

This research explores relations between software artefacts and explicitly represented (domain) knowledge.

More speciﬁcally, we investigate ways in which domain knowledge (represented as ontologies) can support

software engineering activities and, conversely, how software artefacts (e.g., programs, methods, and UML

diagrams) can support the creation of ontologies. In our approach, class names, and class properties are the

principal entities which are extracted from both sources. We implemented a tool, called Facilitator, to support

programmers and knowledge engineers when they develop ontologies or programs. This tool provides a list

of connections between the ontology and Java project, and provides reasons why these connections have been

identiﬁed. These connections are created by matching names, types, and superclass-subclass relationships.

Facilitator provides a range of semantic web enabled functionalities.

1 INTRODUCTION

This research seeks to provide computational links

between software artefacts and explicitly represented

(domain) knowledge. More speciﬁcally, this project

investigates ways in which domain knowledge (repre-

sented as OWL ontologies) can support software engi-

neering activities and, conversely, how software arte-

facts (programs, methods, and UML diagrams) can

support knowledge engineering activities.

Currently, there is a substantial gap between (do-

main) knowledge and software engineering. This

gap creates extra burdens on programmers who must

re-engineer domain knowledge (introducing possible

misconceptions) when they could exploit existing do-

main knowledge (e.g. ontologies). Consider a situa-

tion where a programmer is developing a program for

calculating council tax; it is likely that the program-

mer would look through a list of source materials to

ﬁnd out how council tax is calculated. The program-

mer would then encode this calculation as a program,

possibly creating inaccuracies due to misunderstand-

ing the domain knowledge. Whereas for many com-

mon domains, an ontology exists which formally rep-

resents this knowledge, from which the programmer

could extract concepts and relations that have already

been represented in a machine-processable format by

an expert. This is the important issue that this re-

search addresses, namely providing methods to relate

knowledge represented in an ontology to software en-

gineering activities. We have also addressed the re-

verse process, i.e. matching the knowledge available

in software artefacts to ontologies.

We implemented various functionalities in a tool

called Facilitator, which takes an ontology and a Java

project and infers links between them. This tool ex-

haustivelyanalyses the knowledgecontained in an on-

tology and in a Java project and infers potential con-

nections among concepts, as well as providing the

reasons why these connections have been formed. Fa-

cilitator can also create a “skeleton” project from a

source project so that a Java program can be created

from an ontology, and vice versa.

Section 2 provides an overview of research in this

ﬁeld. Section 3 describes the goals, requirements and

architecture of Facilitator, and discusses technologies

used and technical details of the system. Section 4

provides a set of illustrative scenarios to demonstrate

matches that Facilitator can detect. Section 5 presents

the performance of Facilitator on a variety of tasks.

Section 6 discusses some of the problems that were

encountered, provides an overall conclusion of this

research, and outlines future work.

2 BACKGROUND & RELATED

WORK

Knowledge-based software engineering (Havlice

et al., 2009; Kravets et al., 2014) aims to support ac-

tivities and stages of the software life-cycle, such as

285

Cauvin S., Sleeman D. and Vasconcelos W..

Towards Knowledge-intensive Software Engineering.

DOI: 10.5220/0005504502850292

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 285-292

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

development, testing, integration, and so on. The re-

search reported here ﬁts within this broad remit, and

we show how explicitly represented domain knowl-

edge can be used to support software development.

There have been many attempts to integrate on-

tologies into the software development process, with

most of them focussing on the design phase. Some

deal with the use of meta-modelling (Pan et al., 2012).

Some deal with translating ontologies into UML mod-

els to be used in the design phase of software develop-

ment (Parreiras et al., 2007). Equally, work has been

done to convert UML models into OWL ontologies

(Gasevic et al., 2004). However, little work has been

done to integrate ontologies into the implementation

phase of Software Development, which is the activity

which Facilitator supports.

Happel and Seedorf (2006) conducted a high level

review of the potential beneﬁts of using domain on-

tologies in different stages of software development.

They suggest that in the implementation phase, on-

tologies could be used in various ways including: as a

domain object model, in coding support, in code doc-

umentation, and to integrate with software modelling

languages. They also note that ontologies could be

used in the analysis and design, deployment and run-

time, and maintenance stages in a variety of ways.

They do not discuss plans to implement these sugges-

tions.

One major example of a large scale project at-

tempting to integrate ontologies and software is

the Marrying Ontologies and Software Technologies

(MOST) project

. The project produced several pa-

pers describing techniques for integrating Ontologies

into the software design process. One paper presents

a detailed method for mapping class relationships to

description logics (Parreiras et al., 2008). Another

discusses the potential for combining UML and On-

tologies using a framework called TwoUse (Parreiras

et al., 2007). A third presents an approach to inte-

grating ontology based meta-modelsin software mod-

elling, again using the TwoUse framework (Staab

et al., 2010).

A tool called RDFReactor

provides methods for

generating Java classes from an RDF ontology, which

is similar to the skeleton creation functionality of Fa-

cilitator (Quasthoff and Meinel, 2008).

An outline for a tool that maps software appli-

cations to domain ontologies is presented in (Hruby,

2005). The mapping is achieved by creating a model

of the software addressing two orthogonal dimen-

sions: Categories from the domain ontology, and

functional concerns from user requirements. Their

http://west.uni-koblenz.de/Projects/MOST

http://semanticweb.org/wiki/RDFReactor

approach begins by determining the domain, specif-

ically the scope of the application within a given do-

main. The tool then locates an ontology to cover this

domain, and also to contain the “minimal set of con-

cepts that completely covers the domain”. The system

then takes into account speciﬁc user requirements,

speciﬁcally those that could not be captured within

the ontology. The last step is to construct the appli-

cation model using the information gathered above.

This ﬁnal step essentially encompasses the matching

task performed by Facilitator.

Aspects of the research presented here have been

addressed previously in (Cauvin, 2014), but have sub-

sequently been substantially expanded and revised.

Speciﬁcally, Facilitator can now display matches not

just as a list, but the information can be overlaid on

the Java source, displayed as a textual critique, or dis-

played as a statistical overview. Facilitator has also

been extended to detect more types of relationships

and properties in the sources.

3 SYSTEM DESCRIPTION

Here we discuss the goals, methodology, require-

ments, and architecture of the system before dis-

cussing the technologies and methods used by Facil-

itator. Source code from this research is available at

https://github.com/Glenugie/Facilitator/.

3.1 Goals

Facilitator’s overallhypothesis is that “It is possible to

connect a software artefact with an ontology”, which

can be decomposed into the following goals:

• To explore ways in which explicitly represented

knowledge (e.g., domain ontologies) can support

software engineering activities.

• To investigate how to computationally relate do-

main knowledge with mainstream software tech-

nology.

• To connect software artefacts with existing do-

main knowledge.

• To provide a means of relating an ontology to ex-

isting software.

3.2 Methodology

The project methodology comprised the following ac-

tivities:

1. Literature review to discover existing work in this

ﬁeld.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

286

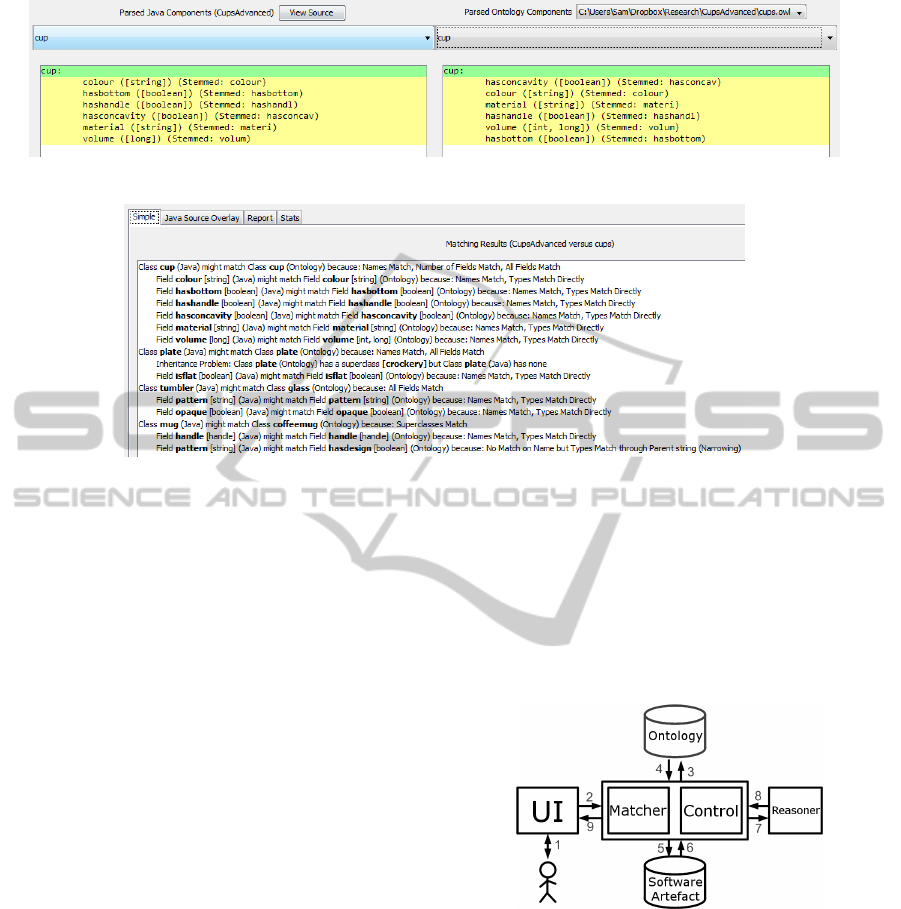

Figure 1: Screenshot of Parsed Components (Showing Java and Ontology Components).

Figure 2: Screenshot of Matching Results.

2. Study of stereotypical activities carried out by de-

velopers to construct a list of functional require-

ments (Section 3.3).

3. Propose a reference architecture to cater for func-

tional requirements (presented in Section 3.4).

4. Incremental development and integration of func-

tionalities.

5. Testing and evaluation of the tool to cater for dif-

ferent scenarios that fulﬁl the deﬁned functional

requirements.

3.3 Functional Requirements

A stereotypical user of the tool would need the follow-

ing functional requirements (ﬁner-grained require-

ments have been omitted from this list due to space

constraints, they can be found in full in (Cauvin,

2014)):

1. To formally connect an ontology with a software

artefact

2. To reason with/about an ontology and the soft-

ware artefact with a view to understand more

about the software and the ontology

Requirement-1 is needed to achieve Requirement-

2. Requirement-2 is important to achieve various

stages of software development – speciﬁcally critique

of current design choices as well as revising explicit

domain knowledge.

3.4 Architecture

The diagram in Figure 3 describes the components of

the system and how they interact. In this diagram,

processes are represented by a square, data structures

by a barrel, and the user by a stickman. Arrows rep-

resent interactions between components, and each in-

teraction is numbered.

Figure 3: System Architecture.

The components are:

• UI (GUI) – The interface through which the user

interacts with the system

• Control – The main logic behind the system. Re-

sponsible for loading ﬁles, storing information

and querying the ontology/software artefact. This

component also utilises the stemmer.

• Matcher – Determines matches between compo-

nents of the ontology and the software artefact

• Reasoner – The ontology reasoner is used to ex-

tract more detailed information from the ontology

TowardsKnowledge-intensiveSoftwareEngineering

287

• Ontology – The ontology which the system is

analysing

• Software Artefact – The Java project which the

system is analysing

Each of the components helps to fulﬁl at least one

of the requirements. Requirement 1 is fulﬁlled by

the Control, Matcher, Ontology, and Software Arte-

fact components. Requirement 2 is fulﬁlled by the

Control, Reasoner, Ontology, and Software Artefact

components.

A typical session is outlined in Table 1 which also

summarises the system interactions.

Table 1: Architecture Interactions.

Interaction Explanation

1 User interaction with UI

2 Commands from the User

3 Querying the Ontology

4 Results of Query

5 Gathering information from the Software Arte-

fact

6 Receiving information from the Software Arte-

fact

7 Querying the Reasoner

8 Results from Reasoner

9 Updating the UI

3.5 Technologies

We now discuss technologies used in this project.

3.5.1 Java Parser

It is important for the system to parse Java ﬁles for

content. When searching for an effective way to do

this, it quickly became apparent that there were a

number of choices in the form of pre-existing APIs.

Habelitz JSourceObjectizer

is the API that was even-

tually chosen, as it works with Java 1.7 and can parse

source ﬁles (without compiling ﬁrst). JSourceObjec-

tizer produces an Abstract Syntax Tree (AST) which

the system can then search for speciﬁc components.

This package parses Java ﬁles accurately and efﬁ-

ciently. The parsing process uses the JSourceObjec-

tizer library to traverse the Java ﬁle. While traversing

a ﬁle the system detects certain Java declarations –

Classes, Types, Variables and Methods.

3.5.2 Ontology Access

We chose to use OWL as the format for our ontolo-

gies, due primarily to its wide spread availability, so

we needed a means to parse OWL ontologies. The

obvious choice for this parser was the OWL API

, as

it fully supports reading and creating OWL ontologies

and has extensive documentation.

http://www.habelitz.com/

http://owlapi.sourceforge.net/

3.5.3 Stemming

The matching process includes the ability to loosely

match names as part of the stemming process. Stem-

ming provides a means to detect names that share sim-

ilar roots, but are not an exact match. As stemming is

a fairly common operation, a stemmer tool was sought

to avoid reimplementation. The Snowball Stemmer

speciﬁcally the Modiﬁed Snowball Stemmer

which

adds compatibly for Java 1.6 and up, was chosen as

it returns a single stem. This allows matching to re-

main a one-click process. The stemming operation

simply takes a word and produces a stemmed version

of that word, in theory. In practice the word produced

is not always real, due to inaccuracies in the algorithm

– however it does provide a stemmed match in many

circumstances.

3.6 Taxonomy of Types

Facilitator, rather than trying to match ﬁeld types di-

rectly, makes use of a taxonomy of types which at-

tempts to ﬁnd the match between two types as low

in a tree-like structure as possible. This type hierar-

chy is shown in Figure 4. The top of the tree has the

type “Generic” such that anything can match it. When

reporting a ﬁeld match based on type, the system dis-

tinguishes between direct matches and matches which

occur further up the taxonomy of types, which are

then reported to the user.

Figure 4: Taxonomy of Types.

This taxonomy of types was created by mapping

basic OWL data types to the equivalent Java classes.

These were then re-ordered slightly to produce the hi-

erarchy shown in Figure 4.

3.7 Matching Process

The matcher compares each Java class/ﬁeld to each

ontology class/ﬁeld, and if it detects a potential match

logs this together with a reason. This reason ensures

http://snowball.tartarus.org/

http://trimc-nlp.blogspot.co.uk/2013/08/

snowball-stemmer-for-java.html

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

288

transparency to the user, allowing them to appreciate

why a match has been reported and thus letting them

decide whether to accept it. If, for example, the user

has written a program with a class Car and it is being

compared to an ontology which describes all sorts of

vehicles, using classes Vehicle and its subclass Car.

In this situation the matcher could potentially match

the two Car classes, but highlight that the superclass

Vehicle is missing in the Java project. Another role

for displaying reasons is to give the user an approxi-

mate idea of the strength of the match (a match with

ﬁve reasons is much stronger than a match with just

one reason).

The algorithm effectively has three stages:

1. Detecting class matches between class and ﬁeld

names

2. Detecting class matches using superclass relation-

ships

3. Detecting ﬁeld

matches

The last stage, detecting ﬁeld matches, can be fur-

ther divided into three sub-stages:

1. Detecting ﬁeld matches by name and type

2. Detecting ﬁeld matches using inferred ﬁelds

3. Detecting ﬁeld matches by type but not name, ex-

clusively using previously unmatched ﬁelds

These sub-stages are repeated for every class

match, as this is effectively looping for each “set” of

ﬁelds which should match. Two key concepts are in-

troduced by these sub-stages: Being able to detect

unmatched ﬁelds, and inferred ﬁelds. The latter is

a ﬁeld which has been “inferred” from a superclass

or subclass, meaning that it is not necessarily accu-

rate. Matches using these ﬁelds are labelled as such

to alert the user to the potential errors that can occur.

Only Java classes have inferred ﬁelds, if the ontology

were also to have inferred ﬁelds the system would be

overwhelmed with (incorrect) matches. The choice

was made to associate the inferred ﬁelds with Java, as

we assumed the ontology is the more accurate source.

While this is not always true, in most cases it would

be reasonable to assume that the ontology has under-

gone more veriﬁcation than the Java project/program.

Detecting unmatched ﬁelds is handled by a dis-

tinct process which simply goes through the list of

all ﬁelds and compares them against the list of ﬁeld

matches. It then returns the list of ﬁelds which have

not appeared in the ﬁeld matches. Using this informa-

tion is important, as some speciﬁc matches are treated

as a ﬁnal attempt at generating matches. An exam-

ple of this is attempting to detect matches by type

Fields have both a name and a type.

when names do not match. Due to the limited num-

ber of types, if this was performed on all ﬁelds there

would be a huge number of incorrect matches gen-

erated. Whereas if this process is only run on un-

matched ﬁelds, there is a lower chance of generating

a large number of incorrect matches.

4 ILLUSTRATIVE SCENARIOS

Illustrative scenarios were explored to enable us

to demonstrate Facilitator’s (reasoning) capabilities.

These provide situations (with worked examples) of

how reasoning can be used to perform more sophis-

ticated matching. These scenarios are based on two

different example domains: Cars and Cups. These

two domains are detailed below, along with associated

scenarios. The Cars example is from (Cauvin, 2014)

and the Cups example is from (Carbonara and Slee-

man, 1999). Toy examples are presented here so as

to enable a detailed discussion, but we explore larger

and more sophisticated examples in Section 5.

4.1 Cars Example

In the Java program we have the following classes:

• Car with ﬁelds: String colour, int wheels, and En-

gine engine

• Engine with ﬁelds: int horsepower, and boolean

turbo

In the corresponding ontology we have the following

classes:

• Car with ﬁelds: String colour, int num-

berOfWheels, int horsepower, boolean turbo, int

doors

4.2 Cups Example

In the Java program we have the following classes:

• Cup with ﬁelds: String colour, boolean hasBot-

tom, boolean hasHandle, boolean hasConcavity,

String material, int volume

• Mug (Subclass of Cup) with ﬁelds: String pattern

• Tumbler (Subclass of Cup) with ﬁelds: String pat-

tern, boolean opaque

• Plate with ﬁelds: String colour, boolean isFlat,

String material

In the corresponding ontology we have the following

classes:

• Crockery with ﬁelds: boolean isCrockery

TowardsKnowledge-intensiveSoftwareEngineering

289

• Cup with ﬁelds: String colour, boolean hasBot-

tom, boolean hasHandle, boolean hasConcavity,

String material, int volume

• CoffeeMug (Subclass of Cup) with ﬁelds:

boolean hasDesign

• Glass (Subclass of Cup) with ﬁelds: String pat-

tern, boolean opaque

• Plate (Subclass of Crockery) with ﬁelds: String

colour, boolean isFlat, String material

4.3 Functionalities

The following is a list of scenarios which relate to the

examples above.

• Loosely match ﬁelds with different names if a)

they have the same type and have not already

been matched, and b) if the Java and ontology

class names match. In the Cars example, the

Java ﬁeld wheels would be loosely matched to

numberOfWheels, horsepower and doors in the

ontology as the latter are unmatched and have the

same type as wheels. This example shows that

Java ﬁelds with no match on name can be matched

by type.

• In a Java class if a ﬁeld is a non-primitive type

(most likely a user-deﬁned class), and the ﬁelds

do not match the ontology completely then the

system could inspect the user deﬁned class and

check its ﬁelds. In the Cars example this would

allow the algorithm to deduce that class Car ef-

fectively has the ﬁelds: String colour, int wheels,

int horsepower, and boolean turbo. This com-

bined list of ﬁelds matches the ontology better as

the process increases the number of ﬁeld matches

by two. This example states that Java ﬁelds with a

non-primitivetype can have their ﬁelds combined

with those of the top-level class.

• If two superclasses match, their subclasses are

likely to match. In the Cups example the classes

(Java) Mug and (ontology) Cof feeMug do not

match on name or type, however they both have

superclasses Cup which do match. The system

would suggest this as a match, and in this situa-

tion it would be correct. This example states that

if two classes share a superclass, then they poten-

tially match.

• Missing inheritance – Super and subclass exist in

Java, only the subclass exists in Ontology. The

system should point out the (potentially) missing

superclass to the user. Conversely, the same is re-

ported when the ontology has a superclass that the

Java does not have. In the Cups example the class

Plate is present in both sources and matches by

name and ﬁelds, however the Java program does

not have the superclass Crockery that exists in the

ontology. This is ﬂagged as a potential Inheri-

tance Problem. This example indicates that if two

classes match but only one of them has a super-

class, then the other is assumed to be missing.

• If a class is “misnamed” in Java, the system could

look for any class in the ontology with similar

ﬁelds and infer a possible match if more than a

predetermined number of the ﬁelds match. In the

Cups example the class Tumbler in Java and the

class Glass in the Ontology have the same ﬁelds,

and would be marked as a possible match. This

example indicates that if two classes have similar

ﬁelds, then they might match.

5 EVALUATION

To determine if Facilitator can process a wide range of

Java projects/ontologies a set of tests were conducted.

There were three Java projects, and three ontologies

involved in the test. For each combination, the time

to parse each component was recorded. The matching

times were not recorded, as they run in less than a

second when there are no matches. A study of the

matcher performance appears in Section 5.1, where

two sets of related Java projects and ontologies are

compared.

The three Java projects were:

• Facilitator – The code for this project (19 classes,

3643 lines – parsed in 0.001 seconds).

• TDWB – Code from the TDWB system (Sleeman

et al., 2014), used for discovering patterns in tem-

poral data (62 classes, 20007 lines – parsed in 2

seconds).

• Xerces – Apache Xerces project

which is an

XML parser written in Java (707 classes, 216744

lines – parsed in 20 seconds).

The three ontologies were:

• Eng UoL quONTOm – quONTOm

project based

in the University of Lodz, Poland containing de-

tails about quantum physics (58 concepts – parsed

in 0.001 seconds).

• Ling GOLD 2010 – GOLD (General Ontology for

Linguistic Description)

is an ontology for de-

scriptive linguistics (last updated in 2010). Source

http://xerces.apache.org/

http://merlin.phys.uni.lodz.pl/quONTOm/

http://datahub.io/dataset/gold

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

290

appears to be the E-MELD project (503 concepts

– parsed in 0.001 seconds).

• Chem RSoC CMO – Chemical Methods Ontol-

ogy from the Royal Society of Chemistry

(2358

concepts – parsed in 0.001 seconds).

5.1 Matcher Performance

To test the performance of the matcher algorithm, it

is important to use two related sources so that at least

some matches exist. To this end, there are two sets of

Java projects and ontologies that are comparable:

• Cups Advanced – This consists of an ontology (6

concepts) which was extended from a cup theory

(Winston et al., 1983). The corresponding Java

source (4 classes, 41 lines) was constructed to

match the ontology, with a few differences intro-

duced. Matching was run in 0.001 seconds, with

1 out of 6 classes being reported as matching ex-

actly.

• Xerces – Discussed above, and based on the

Apache Xerces project which is an XML parser

written in Java (707 classes, 216744 lines). Skele-

ton creation was used to make an ontology (743

concepts) which matched the Java source. Match-

ing was run in 26 seconds, with 515 out of 743

classes matching exactly.

5.2 User Experiments

We are currently carrying out user experiments to

ascertain if/how Facilitator can support the various

stages of software and knowledge engineering. Our

initial studies use as subjects computing science stu-

dents in their ﬁnal years and present them with a frag-

ment of a Java program (printed on paper) and an on-

tology (represented as a UML diagram and printed

on paper) and ask them to perform a series of tasks

with and without the aid of Facilitator. We designed a

questionnaire to get the subject’s opinion on whether

they agree with the suggestions made by Facilitator.

In this initial study, we present participants with the

results from Facilitator and only have them use Fa-

cilitator as an informal task at the end of the study.

In a future study we intend to have participants use

Facilitator directly to help them locate and correct a

complex bug within a piece of software.

The Java/Ontology source used in the ﬁrst exper-

iment is the Cups example from Section 4.2. The

questionnaire that participants were asked to ﬁll out

consisted of a list of all the matches produced by Fa-

cilitator, and it provides space to explain whether they

http://www.rsc.org/ontologies/CMO/

agree or disagree with each match. We have not yet

completed enough of this study to produce meaning-

ful quantitative data, but informal feedback provided

by the participants on the Facilitator software has so

far been positive, and the features they have requested

were already planned to be implemented in the near

future. For example, one of them asked if there was

a way to view the ontology as a graph, which is dis-

cussed in Section 6.

5.3 Comparison with Existing Work

We compare Facilitator with related work surveyed in

Section 2). RDFReactor

performs a subset of Fa-

cilitator’s features – it provides a similar functional-

ity to skeleton creation, but with no matching facility.

TwoUse (Parreiras et al., 2007) discusses combining

UML and Ontologies, which would suggest it applies

to the design phase – whereas Facilitator works with

source code in the implementation phase. The tool

proposed by Hruby (2005) is the most similar to Fa-

cilitator in that it also proposes mapping software to

an ontology. However, rather than mapping two spe-

ciﬁc sources together it deals with situations in which

you have an existing piece of software and then the

tool will determine the appropriate domain and locate

an ontology automatically. Reviewing the paper it is

not clear where they get these ontologies from (e.g.

searching the web or a centralised repository). Ad-

ditionally, the method seems to just consider simple

concept relationships without performing any reason-

ing.

6 DISCUSSION, CONCLUSIONS

& FUTURE WORK

Facilitator encountered a problem (caused by the dif-

ferences between ontology and Java structures) when

dealing with classes with the same name. Within a

Java project, there can be multiple classes with the

same name occurring in different packages. In con-

trast, an ontology can only contain one class with a

given name. This creates an inconsistency when con-

verting between the formats (through the skeleton cre-

ation features) as the multiple Java classes are auto-

matically merged into a single class conglomeration

(union operation) in the ontology. The same problem

occurs with ﬁelds. Facilitator has been designed in

such a way that this problem does not affect the reg-

ular running of the system, it is only when creating

a skeleton (speciﬁcally creating an Ontology skeleton

http://semanticweb.org/wiki/RDFReactor

TowardsKnowledge-intensiveSoftwareEngineering

291

from Java) that the issue arises. After analysing pos-

sible solutions to the problem, it was decided to pre-

process Java classes to add numbers to disambiguate

class names.

This solution allowed the system to retain all

classes, without requiring user intervention. How-

ever, a further problem remains. If one of the “dupli-

cate” classes was a parent of another class, that child

class would now be pointing to an ambiguous class

name. This problem was overcome by using Java im-

port statements of a class to resolve the package of the

parent class. Since a package can only contain one

class of a given name, knowing the package allowed

unambiguous identiﬁcation of the parent class.

We report on work aiming at bridging the gap be-

tween software and knowledge engineers. We devel-

oped a tool, Facilitator, as a proof-of-concept proto-

type to implement various functionalities to support

knowledge-based software engineering. We present

an overview of the techniques used by Facilitator to

make use of ontologies in the implementation phase

of the software development process. This has in-

cluded a review of other tools with a similar purpose,

a detailed overview of how Facilitator performs the

matching process, discussion of some of the impor-

tant functionalities of Facilitator, and a list of planned

features of Facilitator.

Connecting software design and domain knowl-

edge has the potential to increase the productivity of

programmers by automatically spotting misconcep-

tions at an earlier stage. Similarly, a mismatch be-

tween software and domain knowledge could result

in the latter being revised. There are also advantages

of explicitly modelling knowledge in software as well

articulated components.

We have reported some preliminary results from

evaluation studies earlier in Section 5.2; more exten-

sive evaluations are planned.

Two major additional system features are planned:

Harmonisation and Ontology Graphing. Har-

monisation is a proposed feature of Facilitator,

where the system can make speciﬁc, user-speciﬁed

changes/corrections to an existing project based on

another source. Ontology Graphing will use a graph-

ing API to display ontology source as a UML-

like graph, with the further possibility of overlaying

matches onto this graph.

ACKNOWLEDGEMENTS

The ﬁrst author would like to acknowledge the sup-

port of the University of Aberdeen, Development

Trust Intelligent System Fund.

We would also like to thank Dr. Honghan Wu

and Dr. Yuan Ren from the University of Aberdeen

for their insight into the current state of Knowledge-

Based Software Engineering.

REFERENCES

Carbonara, L. and Sleeman, D. (1999). Effective and efﬁ-

cient knowledge base reﬁnement. Machine Learning,

37(2):143–181.

Cauvin, S. R. (2014). Towards knowledge-intensive soft-

ware engineering. Honours B.Sc. Dissertation, Dept.

of Comp Sci, University of Aberdeen.

Gasevic, D., Djuric, D., Devedzic, V., and Damjanovi, V.

(2004). Converting uml to owl ontologies. In Procs of

the 13th International WWW Conference.

Happel, H.-J. and Seedorf, S. (2006). Applications of on-

tologies in software engineering. In Proc. of Work-

shop on Sematic Web Enabled Software Engineering

(SWESE) on the ISWC.

Havlice, Z., Adamuˇsˇc´ınov´a, I., Ploˇcica, O., R´ev´es, M., and

Zelezn´ık, O. (2009). Knowledge based software engi-

neering. Computer Science and Technology Research

Survey, elfa, Kosice, pages 1–10.

Hruby, P. (2005). Ontology-based domain-driven design.

In OOPSLA Workshop on Best Practices for Model-

Driven Software Development, San Diego, CA, USA.

Kravets, A., Shcherbakov, M., Kultsova, M., and Iijima,

T. (2014). Knowledge-Based Software Engineer-

ing: 11th Joint Conference, JCKBSE, volume 466.

Springer.

Pan, J. Z., Staab, S., Aßmann, U., Ebert, J., and Zhao,

Y. (2012). Ontology-Driven Software Development.

Springer.

Parreiras, F. S., Staab, S., and Winter, A. (2007). Twouse:

Integrating uml models and owl ontologies. Techni-

cal Report 16/2007, Institut f¨ur Informatik, Univer-

sit¨at Koblenz-Landau.

Parreiras, F. S., Staab, S., and Winter, A. (2008). Improving

design patterns by description logics: A use case with

abstract factory and strategy. In Modellierung 2008,

12.-14. Mrz 2008, Berlin.

Quasthoff, M. and Meinel, C. (2008). Semantic web admis-

sion free–obtaining rdf and owl data from application

source code. In 4th International Workshop on Se-

mantic Web Enabled Software Engineering.

Sleeman, D., Moss, L., and Kinsella, J. (2014). Temporal

discovery workbench: a case study with icu patient

datasets. In BCS Health Informatics Scotland Confer-

ence, Glasgow.

Staab, S., Walter, T., Grner, G., and Parreiras, F. S. (2010).

Model driven engineering with ontology technologies.

In Reasoning Web. Semantic Technologies for Soft-

ware Engineering, volume 6325.

Winston, P. H., Binford, T. O., Katz, B., and Lowry, M.

(1983). Learning physical descriptions from func-

tional deﬁnitions, examples, and precedents. In Na-

tional Conf on A.I.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

292
