Java--Meets Eclipse

An IDE for Teaching Java Following the Object-later Approach

Lorenzo Bettini

1, ∗

and Pierluigi Crescenzi

2, †

Dipartimento di Informatica, University of Turin, Turin, Italy

Dipartimento di Ingegneria dell’Informazione, University of Florence, Florence, Italy

Keywords:

DSL, Java, IDE, Eclipse, Xtext, EMF.

Abstract:

In this paper, we introduce a new Eclipse-based IDE for teaching Java following the object-later approach. In

particular, this IDE allows the programmer to write code in Java--, a smaller version of the Java language that

does not include object-oriented features. For the implementation of this language we used Xtext, an Eclipse

framework for implementing Domain Speciﬁc Languages; besides the compiler mechanisms, Xtext also allows

to easily implement all the IDE tooling mechanisms in Eclipse. By using Xtext we were able to provide an

implementation of Java-- with all the powerful features available when using an IDE like Eclipse (including

debugging, automatic building, and project wizards). With our implementation, it is also straightforward to

create self-assessment exercises for students, which are integrated in Eclipse and JUnit.

1 INTRODUCTION

Java-- is an application that allows undergraduate stu-

dents to learn programming by using a smaller ver-

sion of Java without object-oriented features. This

way, students can focus on the basic programming

concepts without being distracted by complex con-

structs. The original implementation of Java-- comes

without any IDE; it provides a GUI, but without the

advanced tooling mechanisms that are typical of an

IDE like Eclipse.

In this paper, we introduce a new implementation

of Java-- that includes a full-featured Eclipse-based

IDE. Our IDE provides an Eclipse based editor with

syntax highlighting, navigation, code completion and

error markers, not to mention automatic integrated

building and debugging. This way, the students will

immediately become familiar with Eclipse.

By using our implementation of the IDE for

Java--, it is straightforward for the teachers to cre-

ate exercise projects that students can use for self-

assessment. The teacher can rely on existing frame-

works such as JUnit, which is already integrated in

Eclipse.

∗

Author partially supported by MIUR (proj. CINA), Ate-

neo/CSP (proj. SALT), and ICT COST Action IC1201

BETTY.

†

Author partially supported by MIUR under PRIN

2012C4E3KT national research project “AMANDA Al-

gorithmics for MAssive and Networked DAta”.

The Java-- IDE is available as an open

source project at https://github.com/Lorenzo

Bettini/javamm.

We also provide an Eclipse update site and pre-

conﬁgured Eclipse distributions with Java-- installed,

for several architectures.

In the following we will use the term Java-- for

denoting both the smaller version of the Java language

and the application (with or without IDE) for writing

code in this language.

1.1 Educational Motivation

Every undergraduate program in computer science in-

troduces its ﬁrst-year students to programming. Even

if choosing the most suitable First Programming Lan-

guage (in short, FPL) to be taught is still an active de-

bate topic, there is a general agreement on the fact that

such a choice has a signiﬁcant inﬂuence on students’

learning performances (see, for example, (Koulouri

et al., 2014)) and, clearly, on the development of stu-

dents’ programming abilities, both in terms of the

programming style and in terms of the coding tech-

niques they will adopt during their professional life.

Some common factors that are taken into account

while choosing the FPL might be its simplicity, its in-

dustry relevance, its programming paradigm, and the

available development tools (see, for example, (Pears

et al., 2007; Mason and Cooper, 2014)).

As shown in (Farooq et al., 2014), in 2011 C++,

Bettini L. and Crescenzi P..

Java–Meets Eclipse - An IDE for Teaching Java Following the Object-later Approach.

DOI: 10.5220/0005512600310042

In Proceedings of the 10th International Conference on Software Paradigm Trends (ICSOFT-PT-2015), pages 31-42

ISBN: 978-989-758-115-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Java, and Python were the most frequently used FPLs,

with Python gaining more and more popularity (see,

for example, (Leping et al., 2009)). This latter trend

has been conﬁrmed in the last three years, as wit-

nessed, for example, in (Guo, 2014), where the top

39 computer science departments (as ranked by U.S.

News in 2014) have been considered, and, for each

department, the CS0 and CS1 courses have been ana-

lyzed in order to determine which language was used.

In particular, 8 (respectively, 5) of the top 10 depart-

ments, and 27 (respectively, 22) of the top 39 de-

partments teach Python (respectively, Java) in intro-

ductory computer science courses. Python, Java, and

C++ turn out to be also among the most “lucrative”

programming languages, as stated in (Nisen, 2014),

where the author analyses the data compiled (start-

ing from thousands of American job ads) by Burning

Glass with Brookings Institution economist Jonathan

Rothwell, in order to determine which language might

get the worker the best salary.

A framework to evaluate several existing pro-

gramming languages, for their suitability as an appro-

priate FPL, has been proposed in (Farooq et al., 2014).

By applying this framework to Ada, C, C++, C#, For-

tran, Java, Modula-2, Pascal, and Python, the authors

show that Java obtains the overall highest score and,

thus, conclude that it is the most suitable program-

ming language (followed by Python and Ada). Even

by considering the “demand in industry” and “easy

transition” parameter more important than the other

parameters, Java turns out to be the language with

highest score (followed by Python and C#).

As observed in (Koulouri et al., 2014), even if Java

has been widely used as a FPL, its complexity “may

be overwhelming for learners”. In particular, one of

the main complexity sources of this language is the

fact that it is “heavily coupled with object-oriented

concepts”, thus making more difﬁcult to implement

an object-later strategy. A typical example of such

complexity is the implementation of the well-known

“hello, world” program, which would require, in ad-

dition to the print statement, the deﬁnition of a class,

containing a main method (with its “strange” syntax,

both in terms of modiﬁers and in terms of parame-

ters).

Several tools have been proposed in order to deal

with the complexity of Java for novice programmers

(see Section 4). Some of them were designed in or-

der to teach basic programming concepts (such as

primitive data types, arrays, control structures, meth-

ods and recursion), before exposing the students to

classes and objects. An example of such tools is

JOSH (Diehl, 2003), which is a Java interpreter de-

signed to ease teaching Java to beginners. With JOSH

programmers can interactively evaluate simple ex-

pressions, execute program statements, deﬁne vari-

ables and methods, and invoke methods. Inspired by

JOSH, which was based on a command line interac-

tion, the Java-- application (see Section 2) has been

successively developed and used at the University of

Florence, along with an Italian text book (Crescenzi,

2015). This application allows the user to perform the

same tasks of JOSH through a simple Graphical User

Interface (GUI), which contains three tabbed panels

that allow the user to edit the code, see any mis-

takes that the Java compiler detected, and look at the

standard output (Cecchi et al., 2003). Successively,

Java-- has been extended with a self-assessment mod-

ule, which allows the user to implement one or more

methods solving simple problems, immediately veri-

fying the correctness of the proposed solution (Bettini

et al., 2004; Crescenzi et al., 2006).

As already said, the development of JOSH and of

Java-- referred to the “structured programming before

object oriented programming” teaching paradigm, as

described in (Gibbons, 1998). According to this

paradigm the ﬁrst part of a CS1 course should be

taught in order to develop skills with the usual low-

level procedural mechanism, that will allow students

to gradually build up programs from primitive types

and basic control structures. Only at a later stage stu-

dents should implement object features and test ob-

jects, and, thus, be exposed to the conceptual load re-

lated to the new abstract data type issues. Moreover,

as stated in (Lewis, 2000), it is worth observing that

the object oriented approach does not abandon typi-

cal concepts of a procedural approach: indeed, it aug-

ments and strengthens them, since implementing an

object almost always requires a good knowledge of

structured programming. Finally, not having objects

in a language does not necessarily decrease its edu-

cational power and usability; for example, Process-

ing (Reas and Fry, 2014), a programming language

and a development environment initially created to

teach programming, allows the programmer to eas-

ily do professional computer graphic and animations

without object-oriented constructs.

Even though Java-- allows the programmer to in-

teract with a GUI, that includes some features, such as

syntax coloring, typical of an Integrated Development

Environment (in short, IDE), this application can-

not be considered an IDE, since it lacks many other

features, such as compiler and debugger integration,

build automation, code completion, and easy naviga-

tion to deﬁnitions. On the other hand, all existing Java

IDEs (such as Eclipse and Netbeans) require the pro-

grammer to deal, since the very beginning, with the

object-oriented programming paradigm. That is why,

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

in this paper, we propose a new Eclipse-based IDE

(see Section 3), that has the same features of Java--,

and, thus, allows the programmer to experiment with

the basic programming concepts (without necessarily

knowing any notion of object-oriented programming),

and that, at the same time, has all the advantages of

being an IDE (see Section 3.1). This Java-- IDE may

also ease the transition task which arises when the stu-

dent is asked to switch from the Java-- environment to

a more sophisticated IDE (such as Eclipse), since the

GUI to be used will be exactly the same.

1.2 Technology Used

Developing a compiler and an IDE for a program-

ming language is usually time consuming even when

relying on a framework like Eclipse, which already

provides typical IDE mechanisms. After implement-

ing the compiler components like the parser and the

validation, we then need to connect the compiler to

the IDE components and this requires lot of manual

programming. Xtext (Itemis, 2015; Bettini, 2013) is

a modern language workbench (such as MPS (Voel-

ter, 2011) and Spoofax (Kats and Visser, 2010)) that

solves all the above issues in a uniform way: start-

ing from a grammar deﬁnition Xtext generates not

only a parser and an abstract syntax tree, but also all

the typical Eclipse-based tooling features (e.g., editor

with syntax highlighting, code completion and static

error markers). Xtext comes with good defaults for

all the above language implementation mechanisms

and for the Eclipse integration; however, the language

developer can customize all such mechanisms in a

straightforward way. Thus, Xtext makes language

implementation and its integration into Eclipse really

easy (Eysholdt and Behrens, 2010).

For all the above reasons, we chose Xtext for the

implementation of the Eclipse IDE presented in this

paper. By relying on Xtext, our implementation pro-

vides all the typical Eclipse features: automatic build-

ing, error reporting, outline view, navigation to decla-

rations (e.g., variables, parameters, methods) and de-

bugging, just to mention the main ones, mimicking

the same features of Eclipse JDT (Java Development

Tools). This means that Java-- will make the tran-

sition to the complete Java language and its Eclipse

integration easier for the students who already got fa-

miliar with our Java-- IDE.

Since Xtext uses EMF, the Eclipse Modeling

Framework (Steinberg et al., 2008), for storing

and representing programs, another important conse-

quence of using Xtext is that we will be able to use

all the modeling tools of the EMF ecosystem (Gron-

back, 2009), including graphical modeling frame-

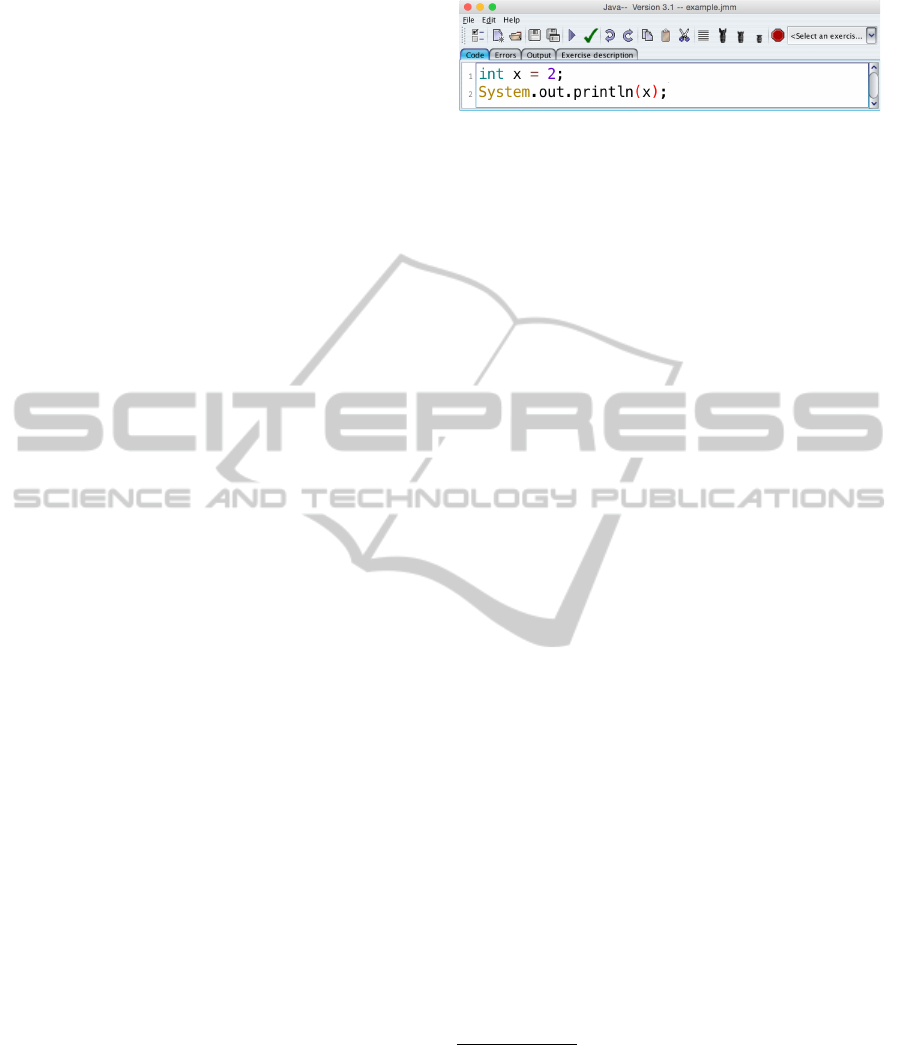

Figure 1: Writing a simple program with the original Java--

application.

works. With that respect, integration of graphical

views and Xtext implementations have already been

proved possible (see, e.g., (Koehnlein, 2014; Brun,

2014)).

2 THE ORIGINAL JAVA--

APPLICATION

In this section, we recall the main features of the orig-

inal implementation of Java--. As stated in the in-

troduction, the goal of this tool is to allow the user

to focus on the basic programming concepts, with-

out encumbering the novice student with unnecessary

complex constructs. Indeed, the user may write Java

code outside of any method body as shown in Fig. 1.

In order to appreciate the advantage of using Java--,

the code shown in the ﬁgure can be compared with

the code that a student should have written if Java--

was not used, that is,

public class Exa mp le {

public static void m ain ( S tring [] a ) {

int x = 2;

Sy st em . out . p ri ntln ( x );

}

Apart from the fact that the student is exposed since

the very beginning with the object-oriented speciﬁc

syntax of Java, as stated in (Westfall, 2001) the above

code can even be “harmful to development of object-

thinking”, since “it communicates virtually nothing

about the concept of user-created objects”. On the

contrary, the code shown in Fig. 1 turns out to be very

similar to the corresponding Python code, that is,

x = 2

print x

As it is shown in the ﬁgure, the student is required

to make a leap of faith concerning the use of the

static methods to print to the standard output (such as

System.out.println()). Although this could have been

avoided by implementing a print() method that invokes

the corresponding Java method, we preferred to ask the

students to use the standard Java methods and to profess

their faith in them, rather than give them a solution that is

not pure Java, and which could have confused them later

on.

Java--MeetsEclipse-AnIDEforTeachingJavaFollowingtheObject-laterApproach

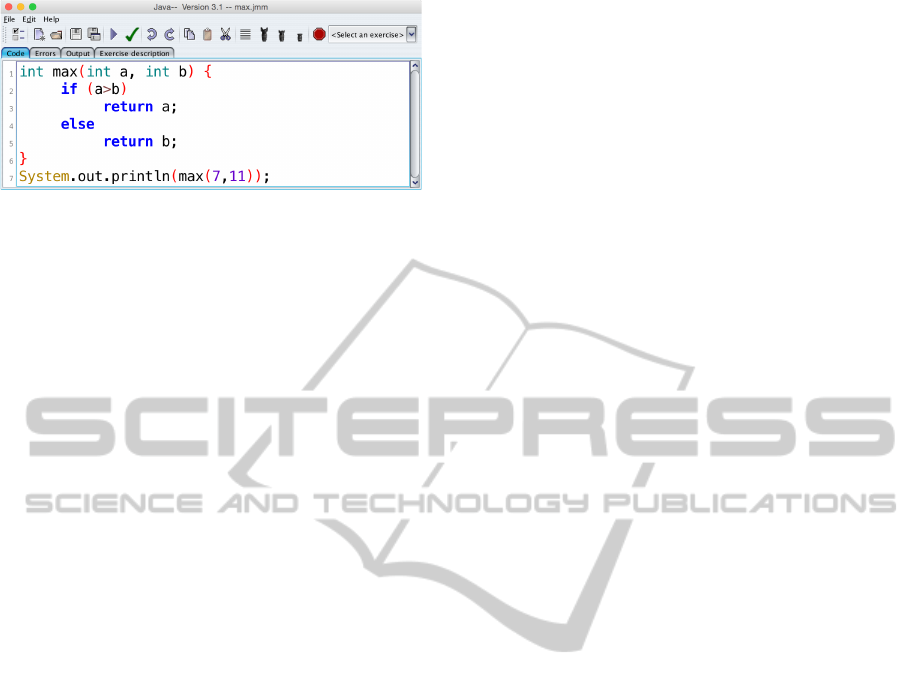

Figure 2: Deﬁning and invoking methods in Java--.

Clearly, Java-- allows the programmer to deﬁne and

invoke methods, as shown in Fig. 2. Once again, it

is interesting to compare the code shown in the ﬁgure

with the corresponding Python code deﬁning the max

method, that is,

def max(a , b ):

if a > b:

return a

else:

return b

When Java-- is asked to execute a code, the tool gen-

erates a temporary class where it deﬁnes the main

method and copies all the methods speciﬁed by the

user. Successively, the temporary class is compiled

and executed: the compilation errors are shown in the

Errors pane, while the output and/or the execution

error are shown in the output pane. The original im-

plementation of Java-- also includes a self-assessment

module, that allows the student to write methods solv-

ing simple programming problems. The behavior of

this module is very similar to other tools available

on the web, such as, for example, the CodingBat

tool (Parlante, 2011). The distribution of Java-- al-

ready includes dozens of pre-deﬁned exercises, but

new exercises can be easily added by teachers.

3 THE JAVA-- IDE

We now brieﬂy describe the new IDE, by ﬁrst empha-

sizing the advantages of using an IDE, by then ex-

plaining the technology which has been used to de-

velop the IDE, and by ﬁnally showing some examples

of the IDE interface.

We would like to stress that the aim of Java--

as a programming language is to target algorithmic

aspects of programming, so that students can con-

centrate on implementing algorithms without being

distracted by OO features. Thus, Java-- does target

other programming contexts such as GUI program-

ming. However, as described in more details in the

conclusions (Section 5), Java-- can access any exist-

ing Java type, such as container classes.

3.1 On the Value of an IDE

Although an IDE is not a strict requirement to de-

velop applications, it surely helps programmers to in-

crease productivity with features like syntax coloring

in the editor, compiler and debugger integration, build

automation, code completion and easy navigation to

deﬁnitions, just to mention a few. In an agile (Mar-

tin, 2003) and test-driven context (Beck, 2003) the

features of an IDE like Eclipse become an essential

requirement. Indeed, languages such as Smalltalk

have been tightly coupled with an IDE from the be-

ginning (Goldberg, 1984).

The ability to see the program colored and for-

matted with different visual styles (e.g., comments,

keywords, strings, etc.) gives an immediate feedback

concerning the syntactic correctness of the program.

Moreover, colors and fonts help the programmer to

see the structure of the program directly, making it

easier to visually separate the parts of the program.

The programming cycle consisting of writing a

program with a text editor, saving it, switching to the

command line, running the compiler, and, in case of

errors, going back to the text editor is surely not pro-

ductive. The programmer should not realize about er-

rors too late: the IDE should continuously check the

program in the background while the programmer is

typing in the editor, even if the current ﬁle has not

been saved yet. The longer it takes to realize that there

is an error, the higher the cost in terms of time and

mental effort to correct it. For example, the Eclipse

Java plugin highlights the parts of the program with

errors directly in the editor: it underlines in red only

the parts that actually contain the errors; it also puts

error markers (with an explicit message) on the left of

the editor in correspondence to the lines with errors,

and ﬁlls the Problem view with all these errors. The

programmer will be able to easily spot the parts of the

program that need to be ﬁxed.

With that respect, in our experience as teachers,

we noted that most of the students that fail program-

ming exams are not able to ﬁx compilation errors

since they do not use an IDE: they tend to write the

whole program and then try to compile it; when they

get lots of compilation errors, they are not able to un-

derstand how to ﬁx them.

3.2 Software Technology: Xtext and

Xbase

As anticipated in Section 1.2, we chose Xtext as

the framework for implementing the Eclipse IDE for

Java--. In this section we will provide some imple-

mentation details, and further motivate our choice.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Xtext allows to start from a library grammar for

the implementation of a language, so that one does not

have to deﬁne the grammar rules for typical language

elements such as strings, integers, comments, etc.

One of such grammars to start from is Xbase (Efftinge

et al., 2012), an extendable and reusable expression

language. Xbase integrates tightly with the Java plat-

form and JDT (Eclipse Java development tools). In

particular, Xbase reuses the Java type system without

modiﬁcations, thus, when a language uses Xbase it

can automatically and transparently access any Java

type. For these reasons, Xbase makes it straightfor-

ward to develop languages with Xtext that need to

interoperate with Java, its type system, all the Java

libraries and Eclipse JDT.

One of the goals of Xbase is to provide an expres-

sion language which is not strictly Java, but a version

with less “syntactic noise”. For instance, types are

not required in Xbase expressions if they can be in-

ferred from the context (e.g., the type of a declared

variable can be inferred from the initialization ex-

pression). Moreover, in Xbase everything is an ex-

pression, even “if”, “while” and “switch” statements.

Thus, Xbase aims at providing a readable Java-like

code which is smaller and more compact like dynam-

ically typed languages, while retaining all the advan-

tages of statically typed language checks.

Indeed, the above advanced and clean features of

the Xbase expression language have been a drawback

for us, since our main goal is to have the Java syntax

for expressions and statements (and Java statements

should not be used as expressions). However, we

leveraged the complete customizability of Xtext and

modiﬁed some of the Xbase grammar rules to comply

with Java syntax

. Moreover, we had to customize

some other parts of the Xbase implementation. This

required some work, but the advantages of reusing the

existing Xbase implementation for the Java type sys-

tem and all the Xbase IDE tooling payed back. In-

deed, implementing Java-- from scratch with Xtext

without Xbase would have surely been much harder,

even without having to deal with Java object-oriented

features. To the best of our knowledge, Java-- is the

ﬁrst project that customizes Xbase (i.e., its grammar,

type system and code generator) in order to be able to

deal with Java expression syntax.

Summarizing, our implementation provides all the

typical Eclipse features: automatic building, error re-

porting, Outline view, navigation to declarations (e.g.,

When an Xtext language reuses an existing grammar, it

does so with a mechanism called grammar inheritance,

which has basically the same semantics of object-oriented

class inheritance: a rule in your grammar can override a

rule in the “parent” grammar.

variables, parameters, methods) and debugging, just

to mention the main ones, mimicking the same fea-

tures of Eclipse JDT. This means that Java-- will make

the transition to the complete Java language and its

Eclipse integration easier for the students that already

got acquainted with our Java-- IDE.

Our compiler will then generate Java code, that

will be compiled by a standard Java compiler. In

Eclipse, this will take place transparently: saving a

Java-- ﬁle in an Eclipse project will generate the cor-

responding Java code, and this will in turn trigger the

compilation of the generated Java code by the Eclipse

Java compiler.

3.3 The IDE Interface

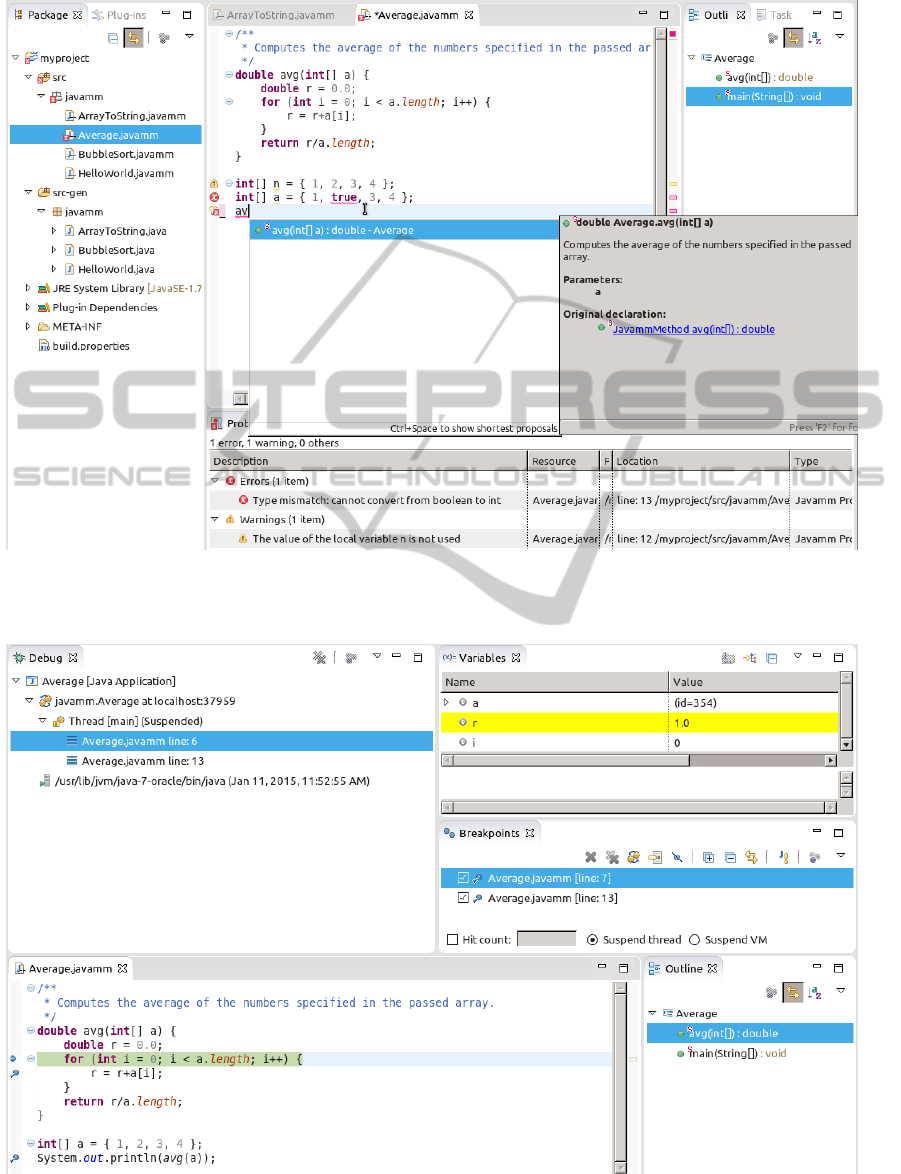

In Figure 3 we show a screenshot of the Java-- Eclipse

IDE (note the complete integration of our tooling with

the Eclipse mechanisms, which are basically the same

as Eclipse JDT). First of all, in the Eclipse project,

the Java-- compiler automatically generates Java code

into the source folder src-gen; such generation is

integrated with the Eclipse building mechanisms: if

a Java-- ﬁle is modiﬁed, re-generation is automati-

cally triggered and if a Java-- ﬁle is removed, the

corresponding generated Java ﬁle is automatically re-

moved. Error markers are placed on the editor’s left

ruler, on the corresponding ﬁle in the “Project Ex-

plorer”, and in the “Problems” view (note that warn-

ings are generated as well, just like in Java, e.g., when

a declared variable is not used). Moreover, the re-

gions in the editor corresponding to the errors are

underlined (e.g., for a type mismatch error like in

the screenshot). The “Outline” view on the right re-

ﬂects the one of Eclipse JDT. Code completion works

as well; with that respect, note that the content as-

sist mimics the one of Java: Javadoc comments, if

present, are displayed as well.

The use of Xbase implies another important fea-

ture: when running the generated Java code in de-

bugging mode in Eclipse, we can choose to debug

directly the original Java-- code (it is always possi-

ble to switch between the generated Java code and the

original code). In Figure 4 we show a debug session

of a Java program generated by our Java-- compiler:

we have set break points on the Java-- ﬁle, and the de-

bugger automatically switches to the original Java--

code (note also the ﬁle names in the thread stack, the

“Breakpoint” view and the “Variables” view). Indeed

a well-known problem with implementations which

generate Java code is that for debugging, the program-

mer has to debug the generated code which is usually

quite different from the original program; our imple-

mentation does not have this drawback.

Java--MeetsEclipse-AnIDEforTeachingJavaFollowingtheObject-laterApproach

Figure 3: Java-- Eclipse IDE.

Figure 4: Debugging a Java-- program.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

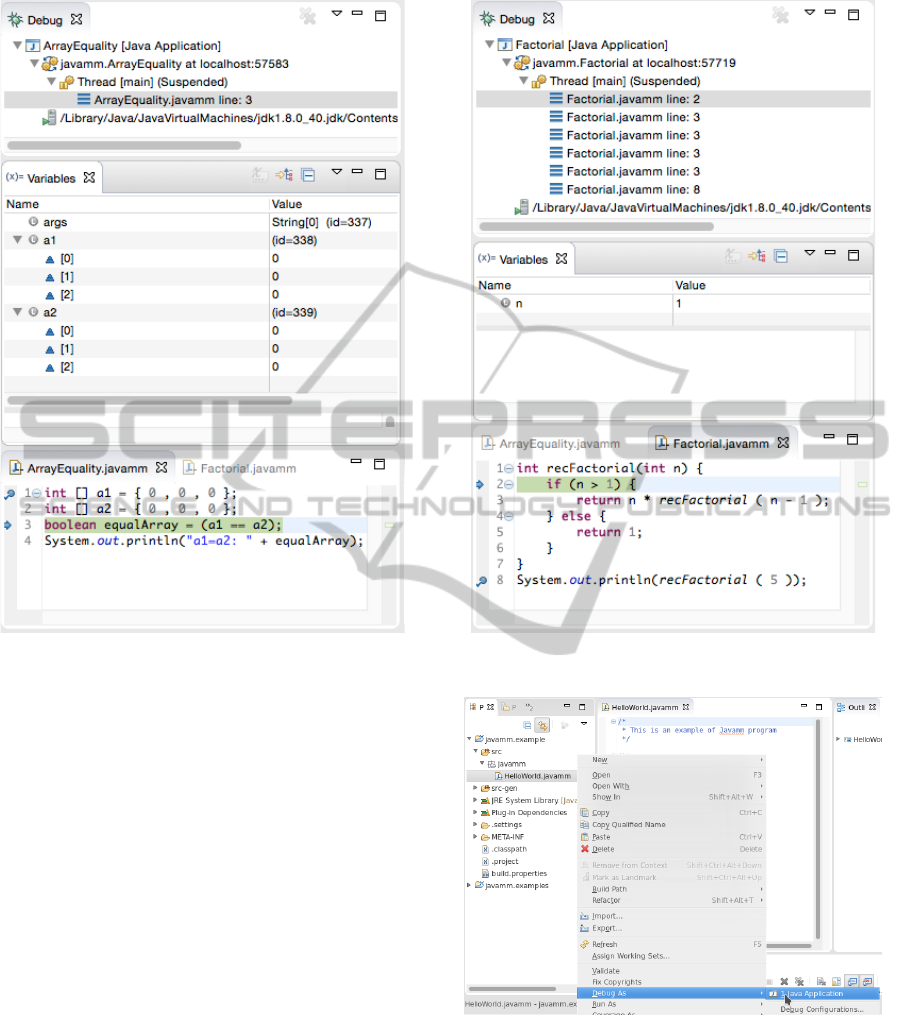

Figure 5: Using the debug for teaching array references.

In our opinion, the debugging feature can also be

useful, during a lecture, in order to support explana-

tions (usually done by using the whiteboard) of a pro-

gram execution. For example, in Figure 5 it is shown

how the debugger can be used in order to explain that

an array variable is a reference variable and, hence,

that the equality between two different array variables

cannot be established by simply using the == opera-

tor. Indeed, in the “Variables” view it is explicitly

shown that the two variables a1 and a2 are distinct,

even though the elements of the two arrays they re-

fer to are all the same. Another example of such a

“pedagogical” utilization of the debugger is given in

Figure 6. In this case, the “Debug” view explicitly

shows the activation records corresponding to the ﬁve

invocations of the recFactorial method, so that it

is easier to explain to the students that recursion (and,

in general. method invocation) has a “small” price to

be paid, that, in certain cases, can be excessively high

(just imagine the invocation of recFactorial with a

large integer number as argument). Indeed, we think

that this usage of the debugging mode of the Java--

Eclipse IDE has another advantage: besides support-

ing the teacher explanation, it may also allow the stu-

Figure 6: Using the debug for teaching the price of recur-

sion.

Figure 7: Context menu on Java-- sources for running and

debugging.

dents to get used to the debugger before using it for

developing their own programs.

Running or debugging the generated Java code

can be done using context menus available directly

on the original Java-- source, as shown in Figure 7.

The Java-- IDE also offers a project wizard to cre-

ate an Eclipse project with the structure and require-

Java--MeetsEclipse-AnIDEforTeachingJavaFollowingtheObject-laterApproach

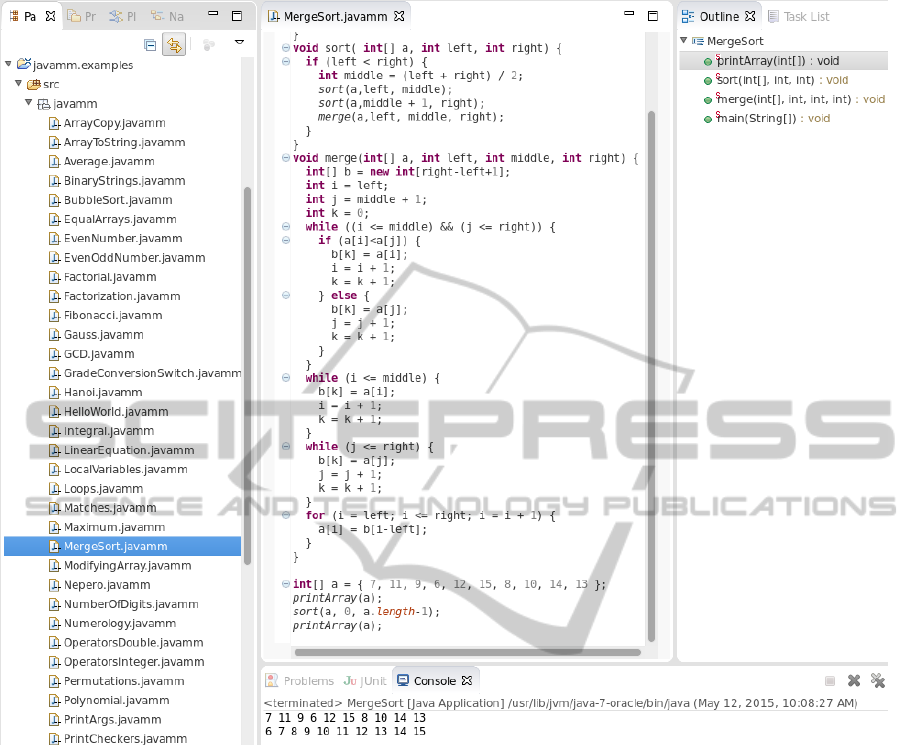

Figure 8: Some examples shipped with Java--.

ments to start editing, compiling and launching Java--

programs. We also provide a wizard to import a Java--

project with about 40 examples (Figure 8).

3.4 Self-assessment Tool

The original Java-- application had some mechanisms

for self-assessment. In our implementation such

mechanisms can be straightforwardly implemented

by relying on JUnit and its integration in Eclipse. The

basic idea is that the teacher provides the students

with Java-- Eclipse projects with:

1. a Java-- ﬁle where the student implements his/her

solution to the requested problem;

2. the solution of the teacher in binary form (so that

the student cannot have a look at it);

3. a JUnit testcase that checks whether the output of

the student’s implementation corresponds to the

teacher’s implementation.

An example is shown in Figure 9. In this example the

student must implement the max function in Java--.

Note that the student has made a mistake in the im-

plementation, since within the boolean expression of

the if statement the code compares the value of the

ﬁrst parameter with the successor of the value of the

second parameter. The JUnit testcase tests the stu-

dent’s implementation with random inputs using the

teacher’s implementation as the expected output. The

student can then see the failed tests (in case of mis-

takes in the implementation). In our example, it is

shown that when the ﬁrst parameter is 3 and the sec-

ond parameter is 2, the answer given by the student’s

code is 2 instead of 3, because of the wrong com-

parison performed in the control expression of the if

statement.

Currently, the setup of such projects has to be done

manually by the teacher; Eclipse makes such setup

easy, but we are working on a more automatic mech-

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

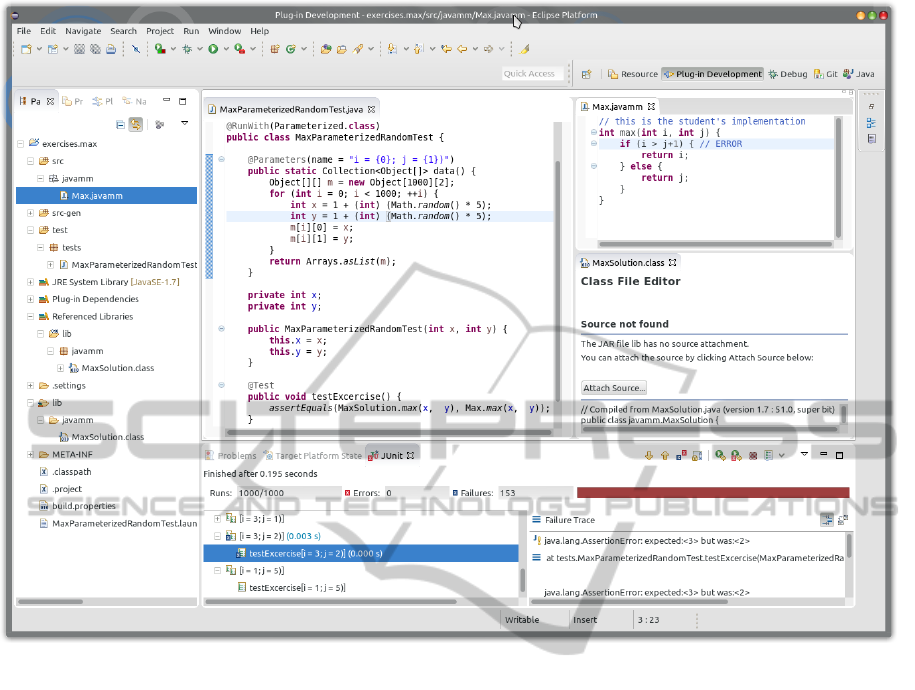

Figure 9: An example of exercise for Self-assessment.

anism for such setup (e.g., with wizards and Eclipse

commands for exporting the teacher’s solution in bi-

nary form into the student’s project).

4 RELATED WORK

Some related work has already been discussed in the

paper. In this section we will discuss some further

related work, both concerning the educational context

and the implementation technology.

4.1 Educational Related Work

An excellent survey of programming languages and

environments for making programming accessible

to beginners is contained in (Kelleher and Pausch,

2005). For what concerns Java, there is now a vast

range of tools, which have been especially designed

for educational purposes, in an attempt to create an

environment that can help in teaching programming;

we mention some of the popular ones. Alice (Dann

et al., 2011) is an interactive programming environ-

ment that establishes an easy, intuitive relationship

between program constructs and 3D graphics anima-

tions. BlueJ (Barnes and K

olling, 2011) is a teach-

ing environment strictly linked to the development of

object-oriented programs by means of a framework

which is focused on objects (hence, applying a teach-

ing paradigm opposite to the one followed by JOSH

and Java--). JEliot 2000 (Levy et al., 2003) is a pro-

gram animation system intended for teaching com-

puter science especially to high school students but

does not hide the object-oriented feature of the Java

language. As far as we know, however, the Java--

IDE is the ﬁrst tool which combines the pure proce-

dural Java syntax learning with the utilization of all

the powerful features of an IDE like Eclipse.

4.2 Implementation Framework

Related Work

There are other tools for implementing DSLs and

IDEs (we refer to (Pfeiffer and Pichler, 2008) for a

Java--MeetsEclipse-AnIDEforTeachingJavaFollowingtheObject-laterApproach

wider comparison). Tools like IMP (The IDE Meta-

Tooling Platform) (Charles et al., 2009) and DLTK

(Dynamic Languages Toolkit) only deal with IDE fea-

tures, thus the compiler of the language has to be

implemented separately, while Xtext uniﬁes all the

implementation phases. TCS (Textual Concrete Syn-

tax) (Jouault et al., 2006) is similar to Xtext, but with

the latter it is easier to describe the abstract and con-

crete syntax at once, and it is completely open to cus-

tomization of every part of the generated IDE (be-

sides, TCS seems to be no longer under active devel-

opment). EMFText (Heidenreich et al., 2009), instead

of deriving a metamodel from the grammar, does the

opposite, i.e., the language to be implemented must be

deﬁned in an abstract way using an EMF metamodel.

In general, we chose Xtext since it is basically the

main standard framework for implementing DSLs in

the Eclipse ecosystem, it is continuously supported,

and it has a wide community. Moreover, Xtext is

continuously evolving, and the main forthcoming fea-

tures will be the integration in other IDEs (mainly, In-

telliJ), and the support for programming on the Web

(i.e., an implementation with Xtext should be easily

portable on the Web, allowing programming directly

in a browser).

5 CONCLUSIONS

We have described a new IDE for teaching Java

following the object-later approach. In particular,

by using Xtext, this IDE combines the “structured

programming before object oriented programming”

teaching paradigm (already implemented in Java--)

with all the powerful features available when using

the Eclipse IDE. Observe that our IDE also allows to

use all Java types, such as, e.g., the String and the

Java collection classes; furthermore, the syntax for

types already supports full Java generics, including

wildcards. Finally, the syntax of Java-- expressions

corresponds to the syntax of Java expressions, except

for this, super, anonymous classes and Java 8 lamb-

das. This means that copying Java expressions into a

Java-- program is allowed (of course, if the original

Java expressions rely on speciﬁc OO features, like,

e.g., a ﬁeld reference on this, Java-- will issue a val-

idation error). An example is shown in Figure 10: we

use Java list classes, with generics (including wild-

cards) and imports; concerning imports, we support

the automatic import statement insertion during con-

tent assist, and the typical “Organize Imports” menu.

All these features turn out to be useful before migrat-

ing to the full Java syntax, in order to allow the stu-

dents to familiarize with method invocation of already

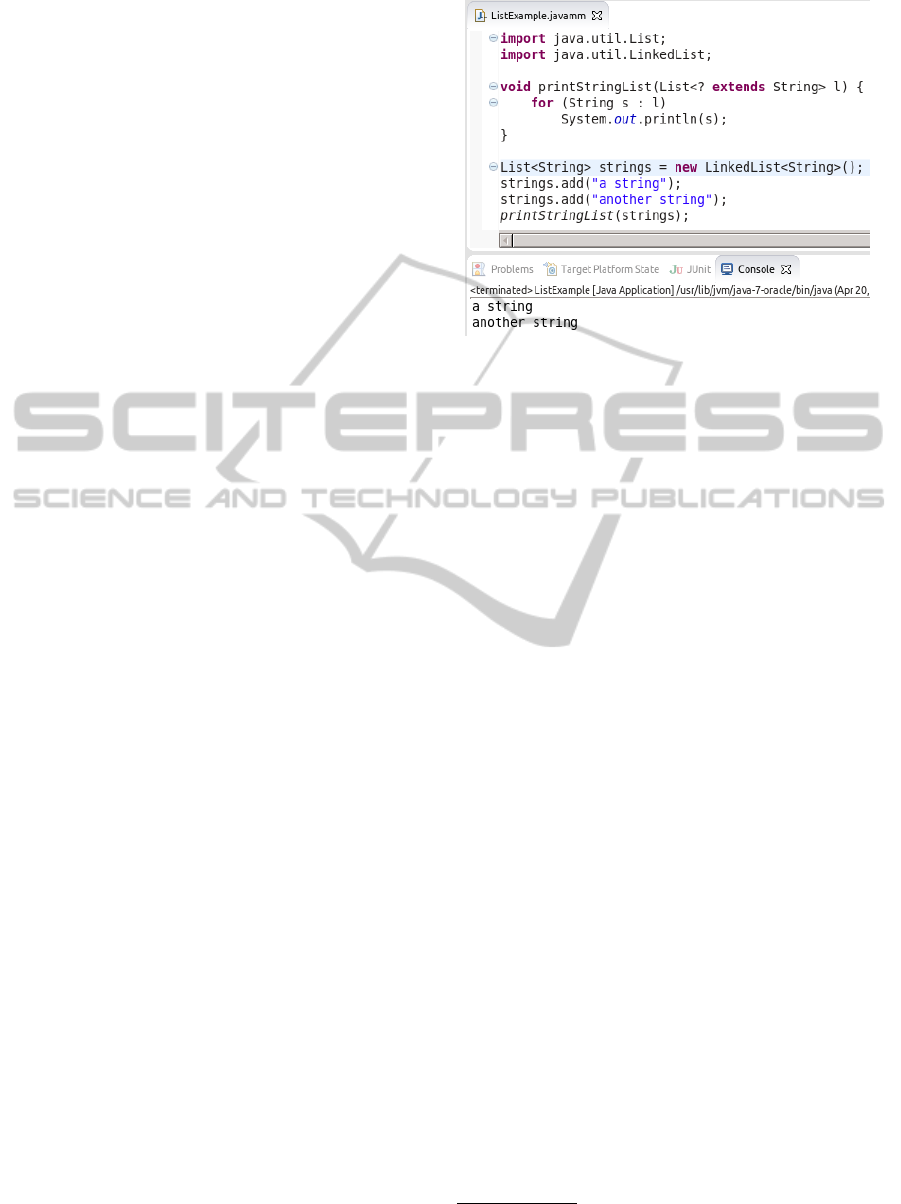

Figure 10: An example showing the use of library classes,

generics and imports.

existing classes and with Java generics.

Adding Java 8 lambda expressions into Java--

should not be a problem: Xbase supports lambda

expressions with its own syntax (which we have re-

moved from the grammar), so we would just need

to introduce in the Java-- Xtext grammar the syntax

for Java 8 lambda expressions and then reuse Xbase’s

type system for lambda expressions. This is the sub-

ject of future work that would allow us to experi-

ment with the functional programming approach as an

intermediate step between object-later approach and

the OO paradigm. The ﬁnal step towards full Java

would consist in adding anonymous classes and OO

Java constructs such as interfaces and classes. This is

feasible in Xtext, as proven by the programming lan-

guage Xtend

, but we think that it would not make

much sense, since at that point we can directly switch

to the full Java programming language and its Eclipse

tooling.

As hinted in Section 3.4 we are working on mak-

ing the creation of self-assessment exercises easier for

the teacher. We are also planning to provide a dedi-

cated DSL for such task, again implementing it with

Xtext and Xbase. We will take inspiration from sim-

ilar testing frameworks implemented in Xtext, such

as, e.g., Xpect (Eysholdt, 2014) and Jnario (Benz and

Engelmann, 2014).

From an experimental point of view, instead,

we observe that, whenever a programmer is asked

whether an IDE should be used, it is very likely that

the answer would be an obvious one, that is, “yes”.

However, as stated in (MacDonald, 2014), it might

be that, for novice programmers, it can be useful “to

Xtend, https://eclipse.org/xtend/, is a Java dialect

implemented with Xtext and Xbase.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

be able to trace through the execution of the code by

hand”, even because, at this stage, the programs to be

written will likely be pretty short. We conjecture that

this is not the case. For this reason, we now plan to

execute a controlled experiment in order to evaluate

the efﬁcacy of starting learning Java, by following the

object-later approach, with and without an IDE (that

is, by using the original Java-- application and by us-

ing the IDE described in this paper).

As hinted in Section 3.2, Java-- is the ﬁrst project

that customizes Xbase grammar, type system and

code generator in order to be able to deal with Java ex-

pression syntax. We believe that such customizations

should be easily factored out in a more general and

reusable framework: this customized Xbase expres-

sion syntax for Java expressions can be reused in other

DSLs that rely on Xbase for achieving the integration

with the Java platform. Indeed, our customized syntax

for expressions does not depend on any speciﬁc fea-

ture of Java--: the syntax for methods is simply built

on top of the syntax for expressions. It will be inter-

esting to perform such refactoring, to extract this part

from Java-- and to experiment its use in other DSLs

(one of such DSLs we plan to experiment with is the

one described in (Bettini and Damiani, 2014)).

ACKNOWLEDGEMENTS

We are grateful to the reviewers for their insightful

comments and suggestions for improving the presen-

tation.

REFERENCES

Barnes, D. and K

olling, M. (2011). Objects First with Java:

A Practical Introduction Using BlueJ, 5/E. Prentice

Hall.

Beck, K. (2003). Test Driven Development: By Example.

Addison-Wesley.

Benz, S. and Engelmann, B. (2014). Jnario, Executable

Speciﬁcations for Java. http://jnario.org.

Bettini, L. (2013). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend. Packt Publishing.

Bettini, L., Crescenzi, P., Innocenti, G., Loreti, M., and Cec-

chi, L. (2004). An Environment for Self-Assessing

Java Programming Skills in Undergraduate First Pro-

gramming Courses. In Proceedings of the IEEE In-

ternational Conference on Advanced Learning Tech-

nologies, pages 161–165.

Bettini, L. and Damiani, F. (2014). Generic Traits for the

Java Platform. In Proceedings of the 2014 Interna-

tional Conference on Principles and Practices of Pro-

gramming on the Java platform: Virtual machines,

Languages, and Tools, pages 5–16. ACM.

Brun, C. (2014). Sirius + Xtext: Love.

https://www.eclipsecon.org/france2014/session/sirius-

xtext.

Cecchi, L., Crescenzi, P., and Innocenti, G. (2003). C :

C++ = JavaMM: Java. In Proceedings of the 2nd In-

ternational Conference on Principles and Practice of

Programming in Java, pages 75–78.

Charles, P., Fuhrer, R., Sutton Jr., S., Duesterwald, E., and

Vinju, J. (2009). Accelerating the creation of cus-

tomized, language-Speciﬁc IDEs in Eclipse. In OOP-

SLA, pages 191–206. ACM.

Crescenzi, P. (2015). Gocce di Java. Un’introduzione alla

programmazione procedurale ed orientata agli oggetti

(nuova edizione). Franco Angeli Edizioni.

Crescenzi, P., Loreti, M., and Pugliese, R. (2006). Assess-

ing CS1 Java skills: A three-year experience. SIGCSE

Bull., 38(3):348.

Dann, W. P., Cooper, S., and Pausch, R. (2011). Learning

to Program with Alice. Prentice Hall.

Diehl, S. (2003). The java old-style shell.

http://www.rw.cdl.uni-saarland.de/ diehl/JOSH/.

Efftinge, S., Eysholdt, M., K

ohnlein, J., Zarnekow, S.,

von Massow, R., Hasselbring, W., and Hanus, M.

(2012). Xbase: Implementing Domain-Speciﬁc Lan-

guages for Java. In GPCE, pages 112–121. ACM.

Eysholdt, M. (2014). Xpect. http://www.xpect-tests.org.

Eysholdt, M. and Behrens, H. (2010). Xtext: implement

your language faster than the quick and dirty way. In

SPLASH/OOPSLA Companion, pages 307–309.

Farooq, M. S., Khan, S. A., Ahmad, F., Islam, S., and Abid,

A. (2014). An evaluation framework and compara-

tive analysis of the widely used ﬁrst programming lan-

guages. PLoS ONE, 9(2):e88941.

Gibbons, J. (1998). Structured programming in Java. ACM

SIGPLAN Notices, 33(4):40–43.

Goldberg, A. (1984). Smalltalk-80: The Interactive Pro-

gramming Environment. Addison-Wesley.

Gronback, R. (2009). Eclipse Modeling Project: A Domain-

Speciﬁc Language (DSL) Toolkit. Addison-Wesley.

Guo, P. (2014). Python is now the most popular intro-

ductory teaching language at top u.s. universities.

http://cacm.acm.org/blogs/blog-cacm/176450-

python-is-now-the-most-popular-introductory-

teaching-language-at-top-us-universities/fulltext.

Heidenreich, F., Johannes, J., Karol, S., Seifert, M., and

Wende, C. (2009). Derivation and Reﬁnement of Tex-

tual Syntax for Models. In ECMDA-FA, volume 5562

of LNCS, pages 114–129. Springer.

Itemis (2015). Xtext. http://www.eclipse.org/Xtext.

Jouault, F., B

ezivin, J., and Kurtev, I. (2006). TCS: a DSL

for the speciﬁcation of textual concrete syntaxes in

model engineering. In GPCE, pages 249–254. ACM.

Kats, L. C. L. and Visser, E. (2010). The Spoofax language

workbench. Rules for declarative speciﬁcation of lan-

guages and IDEs. In OOPSLA, pages 444–463.

Kelleher, C. and Pausch, R. (2005). Lowering the barriers to

programming: A taxonomy of programming environ-

ments and languages for novice programmers. ACM

Comput. Surv., 37(2):83–137.

Java--MeetsEclipse-AnIDEforTeachingJavaFollowingtheObject-laterApproach

Koehnlein, J. (2014). Graphical Views for

Xtext. https://www.eclipse.org/community/-

eclipse newsletter/2014/august/article4.php.

Koulouri, T., Lauria, S., and Macredie, R. D. (2014). Teach-

ing introductory programming: A quantitative eval-

uation of different approaches. ACM Trans. Comp.

Educ., 14(4):Article 26.

Leping, V., Lepp, M., Niitsoo, M., T

onisson, E., Vene, V.,

and Villems, A. (2009). Python prevails. In Pro-

ceedings of the International Conference on Computer

Systems and Technologies and Workshop for PhD Stu-

dents in Computing, pages 87:1–87:5.

Levy, R. B.-B., Ben-Ari, M., and Uronen, P. A. (2003). The

Jeliot 2000 program animation system. Computers &

Education, 40(1):1–15.

Lewis, J. (2000). Myths about object-orientation and its

pedagogy. SIGCSE Bull., 32(1):245–249.

MacDonald, B. (2014). To IDE or not to IDE?

http://radar.oreilly.com/2014/01/to-ide-or-not-to-

ide.html.

Martin, R. C. (2003). Agile Software Development: Princi-

ples, Patterns, and Practices. Prentice Hall.

Mason, R. and Cooper, G. (2014). Introductory Program-

ming Courses in Australia and New Zealand in 2013 -

Trends and Reasons. In Proceedings of the Sixteenth

Australasian Computing Education Conference - Vol-

ume 148, pages 139–147.

Nisen, M. (2014). These programming skills will earn

you the most money. http://qz.com/298635/these-

programming-languages-will-earn-you-the-most-

money/.

Parlante, N. (2011). Codingbat code practice.

http://codingbat.com.

Pears, A., Seidman, S., Malmi, L., Mannila, L., Adams, E.,

Bennedsen, J., Devlin, M., and Paterson, J. (2007).

A survey of literature on the teaching of introductory

programming. In Working Group Reports on ITiCSE

on Innovation and Technology in Computer Science

Education, pages 204–223.

Pfeiffer, M. and Pichler, J. (2008). A comparison of tool

support for textual domain-speciﬁc languages. In

Proc. DSM, pages 1–7.

Reas, C. and Fry, B. (2014). Processing: A Programming

Handbook for Visual Designers. MIT Press, 2nd edi-

tion.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2008). EMF: Eclipse Modeling Framework.

Addison-Wesley, 2nd edition.

Voelter, M. (2011). Language and IDE Modularization and

Composition with MPS. In GTTSE, volume 7680 of

LNCS, pages 383–430. Springer.

Westfall, R. (2001). Technical opinion: Hello, world con-

sidered harmful. Commun. ACM, 44(10):129–130.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends
