Systematic Identiﬁcation of Information Flows from Requirements

to Support Privacy Impact Assessments

Rene Meis and Maritta Heisel

paluno - The Ruhr Institute for Software Technology – University of Duisburg-Essen, Duisburg-Essen, Germany

Keywords:

Privacy Impact Assessment, Privacy Analysis, Problem Frames, Requirements Engineering.

Abstract:

Several countries prescribe or advise government departments and organizations to perform a privacy impact

assessment (PIA) if these prepare new projects or change existing ones that involve personal information. A

PIA shall summarize what personal information is collected, processed, stored, and distributed in the context

of the project. But there is only little support for undertaking a PIA and to create a PIA report, most countries

only provide vague guidelines and simple templates. We present in this paper an extension of the problem-

based privacy analysis (ProPAn) method that derives information needed to conduct a PIA from a requirements

model in problem frame notation. We provide a formally speciﬁed method with well-deﬁned steps and tool

support to reduce the effort to be spent for eliciting the needed information and to ensure that the needed

information is as complete and coherent as possible to form an adequate basis for the creation of a PIA report.

1 INTRODUCTION

To provide privacy-aware software systems, it is cru-

cial to consider privacy from the very beginning of

the development. Ann Cavoukian was one of the ﬁrst

who promoted this idea with her concept of privacy

by design (Cavoukian, 2011). Several countries pre-

scribe or advise government departments and organi-

zations to perform a so called privacy impact assess-

ment (PIA). Wright et al. (Wright et al., 2011) de-

ﬁne a PIA as follows: “A privacy impact assessment

is a methodology for assessing the impacts on pri-

vacy of a project, policy, programme, service, prod-

uct or other initiative which involves the processing of

personal information and, in consultation with stake-

holders, for taking remedial actions as necessary in

order to avoid or minimise negative impacts.” In the

same document the authors review the PIA methods

of seven countries, namely Australia, Canada, Hong

Kong, Ireland, New Zealand, the United Kingdom,

and the United States for the EU project PIAF

. This

project had the goal to provide recommendations on

how a regulation for a PIA in the EU should look like.

In the draft of the EU data protection regulation (Eu-

ropean Commission, 2012) in article 33, the EU de-

scribes a procedure similar to a PIA called data pro-

tection impact assessment.

http://www.piaf.eu

In this paper, we extend the problem-based pri-

vacy analysis (ProPAn) method (Beckers et al., 2014)

and show how this extension helps requirements en-

gineers to elicit the information they have to provide

for the conduction of a PIA. Wright et al. distilled

from their above mentioned analysis of the PIA prac-

tice 36 points that they “recommend for a European

PIA policy and methodology”. These points consist

of 15 recommendations on how a PIA guideline doc-

ument should look like, 9 points address how PIA

should be integrated into policy, for the PIA report

they give 6 recommendations and also 6 for the PIA

process. Requirements engineers can provide valu-

able input for some of those points on the basis of a

requirements model of the software project for which

the PIA shall be conducted. Our proposed method ad-

dresses the following points which are central for the

success of a PIA:

1. “A PIA should be started early, so that it can

evolve with and help shape the project, so that

privacy is built in rather than bolted on.” Our

method starts at the very beginning of the soft-

ware development process, namely in the analysis

phase, and only needs the initial system descrip-

tion consisting of the functional requirements on

the system.

2. “The PIA should identify information ﬂows, i.e.,

who collects information, what information do

Meis R. and Heisel M..

Systematic Identiﬁcation of Information Flows from Requirements to Support Privacy Impact Assessments.

DOI: 10.5220/0005518500430052

In Proceedings of the 10th International Conference on Software Paradigm Trends (ICSOFT-PT-2015), pages 43-52

ISBN: 978-989-758-115-1

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

they collect, why do they collect it, how is the

information processed and by whom and where,

how is the information stored and secured, who

has access to it, with whom is the information

shared, under what conditions and safeguards,

etc.,”

3. “The focus of a PIA report should be on the needs

and rights of individuals whose personal infor-

mation is collected, used or disclosed. The pro-

ponent of the proposal is responsible for privacy

The proponent must “own” problems and devise

appropriate responses in the design and planning

phases.” With the proposed extension of ProPAn,

we provide a systematic approach to identify the

individuals whose personal information is col-

lected, how it is used by the software system, and

to whom it is disclosed on the basis of a given re-

quirements model.

The rest of the paper is structured as follows. Sec-

tion 2 introduces an eHealth scenario that we use to

illustrate our method. The problem frames approach

and ProPAn are presented in Section 3 as background

of this paper. Our method is then described in Sec-

tion 4. Section 5 discusses related work, and Section

6 concludes the paper.

2 RUNNING EXAMPLE

We use a subsystem of an electronic health system

(EHS) scenario provided by the industrial partners of

the EU project Network of Excellence (NoE) on En-

gineering Secure Future Internet Software Services

and Systems (NESSoS)

to illustrate our method. This

scenario is based on the German health care system

which uses health insurance schemes for the account-

ing of treatments.

The EHS is the software to be built. It has to man-

age electronic health records (EHR) which are created

and modiﬁed by doctors (functional requirement R1).

Additionally, the EHS shall support doctors to per-

form the accounting of treatments patients received.

The accounting is based on the treatments stored in

the health records. Using an insurance application it

is possible to perform the accounting with the respec-

tive insurance company of the patient. If the insur-

ance company only partially covers the treatment a

patient received, the EHS shall create an invoice (R2).

The billing is then handled by a ﬁnancial application

(R3). Furthermore, mobile devices shall be supported

by the EHS to send instructions and alarms to patients

(R4) and to record vital signs of patients (R5). Finally,

http://www.nessos-project.eu/

the EHS shall provide anonymized medical data to re-

searchers for clinical research (R6).

3 BACKGROUND

Problem frames are a requirements engineering

approach proposed by Jackson (Jackson, 2001).

The problem of developing the software-to-be-built

(called machine) is decomposed until subproblems

are reached which ﬁt to problem frames. Problem

frames are patterns for frequently occurring problems.

An instantiated problem frame is represented as a

problem diagram. A problem diagram visualizes the

relation of a requirement to the environment of the

machine and how the machine can inﬂuence these do-

mains. The environment of the machine is structured

into domains. Jackson distinguishes the domain types

causal domains that comply with some physical laws,

lexical domains that are data representations, and bid-

dable domains that are usually people. A requirement

can refer to and constrain phenomena of domains.

Phenomena are events, commands, states, informa-

tion, and the like. Both relations are expressed by

dependencies from the requirement to the respective

domain annotated with the referred to or constrained

phenomena. Connections (associations) between do-

mains describe the phenomena they share. Both do-

mains can observe the shared phenomena, but only

one domain has the control over a phenomenon (de-

noted by a “!”).

We use the UML4PF-framework (C

e et al.,

2011) to create problem frame models as UML class

diagrams. All diagrams are stored in one global UML

model. Hence, we can perform analyses and con-

sistency checks over multiple diagrams and artifacts.

The problem diagram (in UML notation) for the func-

tional requirements R5 is shown in Figure 1. The

problem diagram is about the problem to build the

submachine Record that records the vital signs of Pa-

tients sent to it via MobileDevices in the correspond-

ing EHRs. The functional requirement R5 refers to

the patient from whom the vital signs are recorded

and to the mobile device which forwards the vital

signs, and the requirement constrains the EHR to store

the recorded vital signs in the corresponding health

record of the patient.

ProPAn (Beckers et al., 2014) extends the

UML4PF-framework with a UML proﬁle for privacy

requirements and a reasoning technique. A privacy

requirement in ProPAn consists of a stakeholder and

a counterstakeholder, both of which are domains of

the requirements model. It states that the counter-

stakeholder shall not be able to obtain personal in-

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

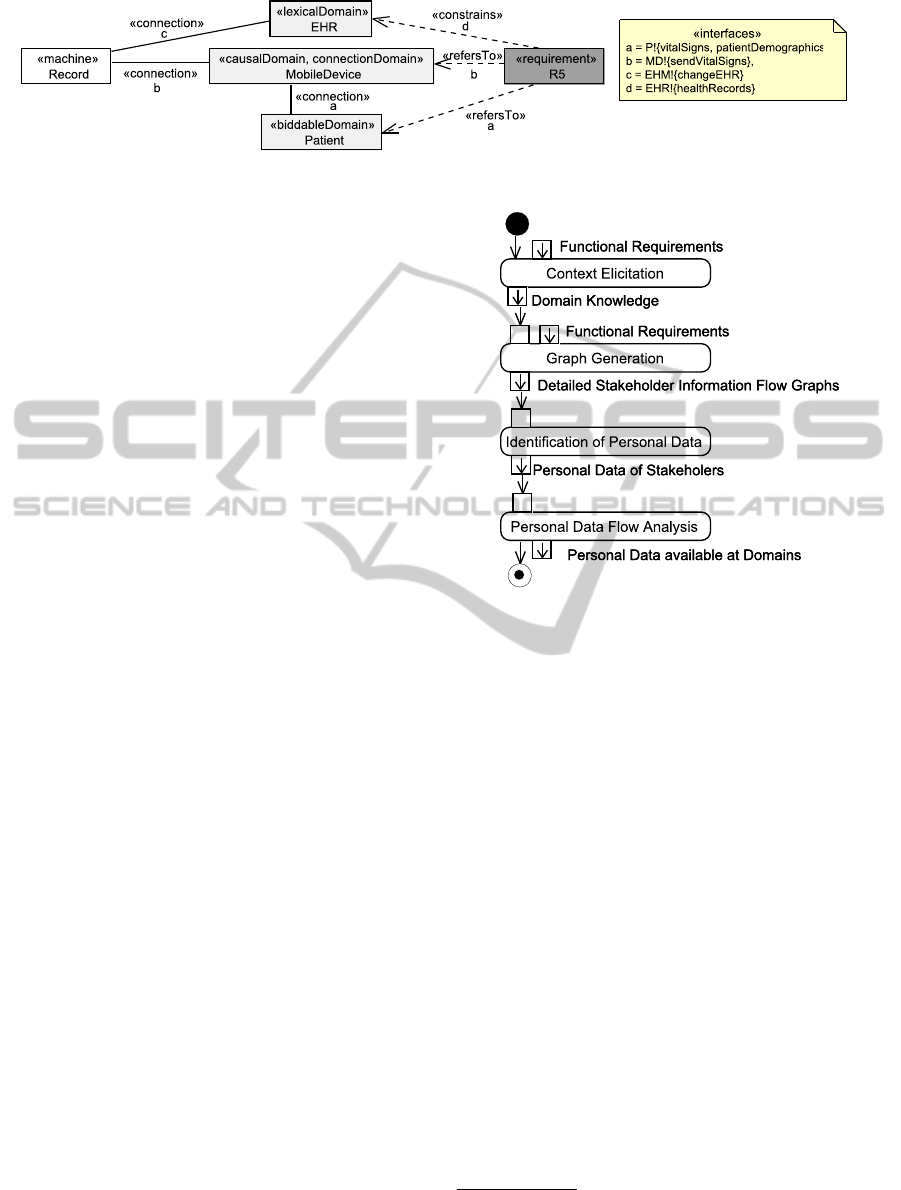

Figure 1: Problem diagram for functional requirement R5.

formation of the stakeholder using the system-to-be.

Note that stakeholder and counterstakeholder can be

the same biddable domain because biddable domains

in the problem frame model do not necessarily repre-

sent individuals, but in most cases user roles. Hence,

the privacy of an individual can be threatened by an-

other individual of the same user role.The reasoning

technique identiﬁes to which domains personal infor-

mation of the stakeholder can potentially ﬂow and to

which domains the counterstakeholder may have ac-

cess. For each privacy requirement, the information

ﬂows starting from the stakeholder and the access ca-

pabilities of the counterstakeholder is visualized in

a privacy threat graph. This directed graph has do-

mains as nodes and contains two kinds of edges an-

notated with statements (requirements, facts and as-

sumptions) describing the origin of the edge. Infor-

mation ﬂow edges indicate a possible ﬂow of informa-

tion between the domains and access edges indicate

that a domain is able to access information of the other

domain. In this paper, we reﬁne these graphs and

investigate which personal information really ﬂows

between the domains due to the given requirements

model.

4 METHOD

Our proposed method is visualized in Figure 2 as

UML2 activity diagram. The starting point of our

method is a set of functional requirements in form of a

UML-based problem frame model. Using this model,

we ﬁrst elicit further context information in the step

Context Elicitation. The result of this step is Domain

Knowledge that is integrated into the UML model.

Then we can automatically generate Detailed Stake-

holder Information Flow Graphs from the model and

use these in the following step to identify the personal

data that is put into the system by stakeholders. The

result of this step is the Personal Data of Stakeholders

and the relations between this data. In the following

step, we iteratively analyze the ﬂow of the previously

identiﬁed personal data through the system using the

graphs. During this step, we obtain information about

the availability and linkability of personal data at the

Figure 2: Problem-Based Method for the Identiﬁcation of

Privacy-Relevant Information Flows.

domains of the system. Our method shall be carried

out by requirements engineers in collaboration with

experts in the application domain of the system to be

built. We will refer to them using term user. The ﬁnal

output of our method summarizes due to which re-

quirements, facts, or assumptions personal data ﬂows

through the system and can be used as input to create

a PIA report. Our method is formally speciﬁed and

tool supported

. The formal speciﬁcation is not part

of this paper due to space limitations, but available as

technical report

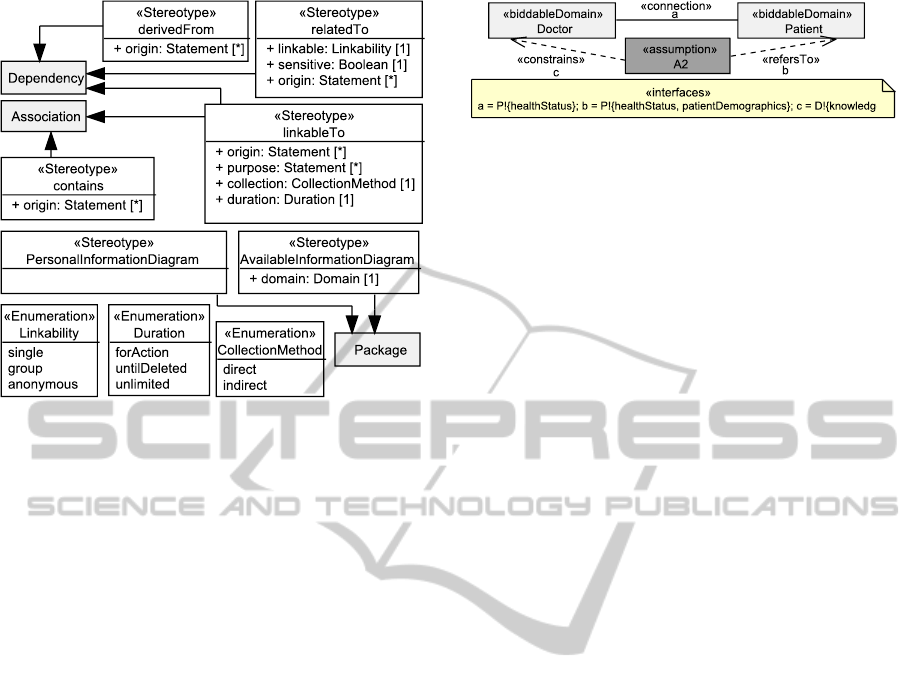

. We extended the UML4PF proﬁle

to provide the basis for our tool support as shown in

Figure 3. The stereotypes introduced by the proﬁle

are discussed in the description of the method steps

where they are ﬁrstly used.

4.1 Context Elicitation

Information systems often store and process data of

persons who not directly interact with systems and

that hence may not be represented in the require-

ments model. Furthermore, there are often informa-

https://www.uni-due.de/swe/propan.shtml

https://www.uni-due.de/imperia/md/content/swe/pia-

formal.pdf

SystematicIdentificationofInformationFlowsfromRequirementstoSupportPrivacyImpactAssessments

+ stakeholder: BiddableDomain [1]

+ linkable: Linkability [1]

Figure 3: UML proﬁle extension of UML4PF.

tion ﬂows between domains in a system that are out of

the scope of the functional requirements of the system

to be built. E.g., doctors and patients may exchange

information without using the system to be built. To

elicit these indirect stakeholders and implicit informa-

tion ﬂows between domains and stakeholders that are

not covered by the requirements, we developed elic-

itation questionnaires (Meis, 2014). The implicit in-

formation ﬂows are captured as domain knowledge

diagrams that are generated by the ProPAn-tool based

on the user’s answers. A domain knowledge diagram

is similar to a problem diagram, but it does not contain

a machine and instead of a requirement it contains a

fact (an indicative statement that is always true) or an

assumption (an indicative statement that is may not

true under some circumstances). For our proposed

method, it is especially important that during the con-

text elicitation the user elicits the domain knowledge

from which domains biddable domains probably gain

information. Domains that are part of the same prob-

lem diagram as a biddable domain are candidates for

domains from which that biddable domain may gain

information.

Application to EHS scenario For the sake of sim-

plicity, we only introduce three examples for implicit

information ﬂows that we identiﬁed for the EHS sce-

nario in (Meis, 2014). First, doctors often act on be-

half of patients and enter information into the EHS

that they previously got from patients during the treat-

ment (A2). Second, it is possible that the EHS is

launched with already existing EHRs (F1). Third, em-

ployees using the ﬁnancial application are able to ac-

cess the available data necessary for the billing pro-

cess (A6). The domain knowledge diagram for A2 is

Figure 4: Doctors act on behalf of patients.

shown in Figure 4.

4.2 Graph Generation

A large set of requirements often implies complex

ﬂows of information through the system that are only

visible if all requirements are considered simultane-

ously. Hence, it is a difﬁcult task to analyze these in-

formation ﬂows. To assist users to analyze the infor-

mation ﬂows implied by the given set of requirements,

we generate graphs from the problem frame model.

In this paper, we introduce so-called detailed stake-

holder information ﬂow graphs (DSIFGs) to identify

the personal data of the stakeholder and at which do-

mains that information is available due to the func-

tional requirements and the elicited domain knowl-

edge. In a problem frame model, statements (require-

ments, assumptions, and facts) refer to and constrain

domains of the machine’s environment. If a domain

is referred to by a statement, then this implies that it

is potentially an information source, and if a domain

is constrained, then this implies that based on the in-

formation from the referred domains there is a change

at the domain. Hence, there is a potential information

ﬂow from the referred to domains to the constrained

once. Our tool uses this information available in the

problem frame model to automatically generate the

DSIFG for each biddable domain without user inter-

action. In contrast to the previously deﬁned graphs

(cf. Section 3), a DSIFG has a petri-net like struc-

ture with domains as places and statements as tran-

sitions. The DSIFG starts with the stakeholder un-

der consideration. Iteratively, all statements that refer

to a domain in the DSIFG are added to the DSIFG

with input edges annotated with the referred-to phe-

nomena starting from the domain. And for each state-

ment in the graph, the constrained domains are added

to the DSIFG with corresponding output edges anno-

tated with the constrained phenomena.

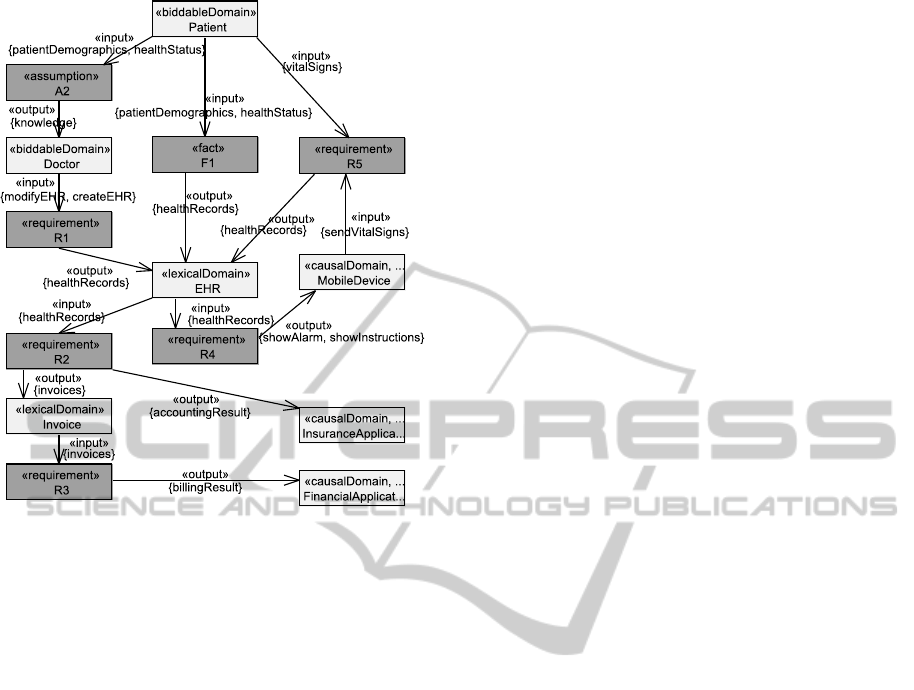

Application to EHS scenario An excerpt of the pa-

tient’s DSIFG is shown in Figure 5. The patient’s

DSIFG shows e.g., that assumption A2 (cf. Fig-

ure 4) implies an information ﬂow from the patient

(referred-to domain) to the doctor (constrained do-

main) and that requirement R5 (cf. Figure 1) implies

information ﬂows from the patient and the mobile de-

vice (referred-to domains) to the health records (con-

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Figure 5: Excerpt of the detailed stakeholder information

ﬂow graph for the stakeholder patient.

strained domain).

4.3 Identiﬁcation of Personal Data

For the analysis of the information ﬂow graph, the

user has to identify the personal data of the stake-

holder that is processed in the system under consider-

ation. In the literature, often the term personally iden-

tiﬁable information (PII) is used. The International

Organization for Standardization (ISO/IEC, 2011) de-

ﬁnes PII as “any information that (a) can be used to

identify the PII principal to whom such information

relates, or (b) is or might be directly or indirectly

linked to a PII principal”. The European Commis-

sion (European Commission, 2012) uses the term per-

sonal data in the draft of the EU data protection regu-

lation and deﬁnes “’personal data’ means any infor-

mation relating to a data subject. In this paper, we

use the terms personal data and personal information

synonymously as more general terms than PII. Per-

sonal data is not only data that can be used to iden-

tify an individual or that is linkable to an individual,

but also data related to an individual without provid-

ing any link to the related individual. E.g., knowing

that there is a user with a speciﬁc sexual orientation

will in most cases not allow one to identify or nar-

row down the set of users with that speciﬁc sexual

orientation. But nevertheless, the sexual orientation

of a user represents a sensitive personal information

that needs special protection if it is processed by the

system under consideration. Note that the user of the

method can decide to use a more speciﬁc deﬁnition of

personal data, but we decided to use the general term

to capture all possibly critical processing of personal

data in the system under consideration.

As starting point for the identiﬁcation of personal

data from the requirements model, the user has to

look at the data that the stakeholder directly or indi-

rectly provides to the system. This personal data is

contained in the phenomena of the stakeholder that

are referred to by some statement. Hence, the user

has to consider the phenomena annotated at the edges

starting from the stakeholder in his/her DSIFG. We

distinguish two cases for the identiﬁcation of per-

sonal data in our requirements model. A phenomenon

can either be a causal or a symbolic phenomenon.

Causal phenomena represent events or commands a

domain issues and symbolic phenomenon represent

a state, value, or information. If the phenomenon

is symbolic, then the user has to check whether this

phenomenon represents personal data. If the phe-

nomenon is causal, then the user has to check whether

it contains/transmits personal data.

To document the contains/transmits relationship

between phenomena, we use aggregations with

stereotype



contains



connecting the phenomena in

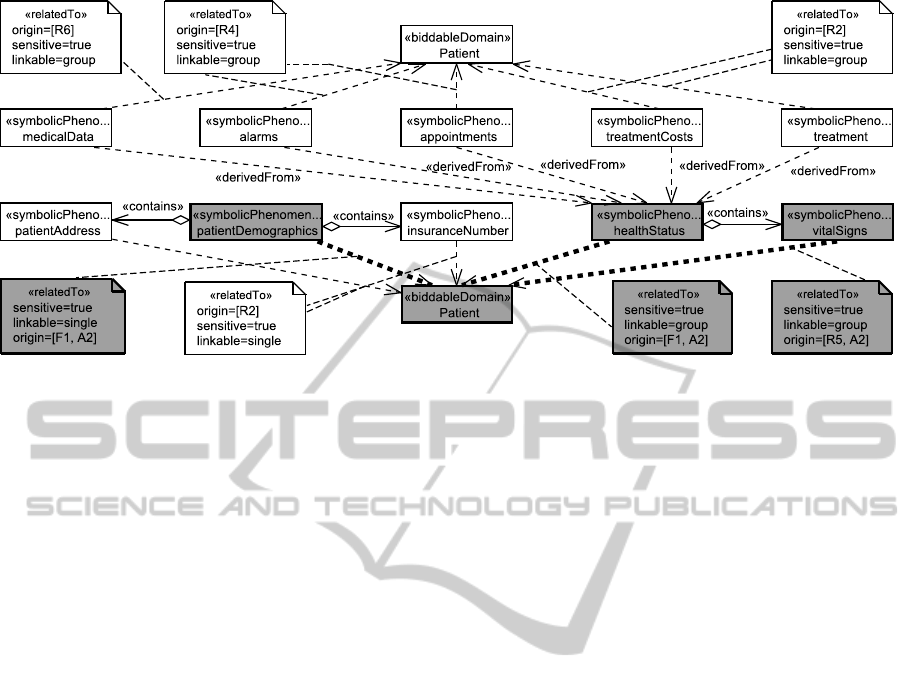

the UML model (cf. Figures 3 and 6). Besides

the property that information is contained in other

information, it is often the case that information is

not directly contained but derived from other infor-

mation. This relation is documented as dependency

with stereotype



derivedFrom



(cf. Figure 3) start-

ing from the derived phenomenon and pointing to the

phenomena which are necessary to derive it. It is pos-

sible that a personal information can be derived from

different sources, e.g., the actual position of a per-

son can be derived from the GPS coordinates of the

person’s smart phone or using the currently available

wireless networks also provided by the person’s smart

phone. In such cases, we add multiple dependencies

to the model.

Note that a contains relationship is naturally tran-

sitive and that if a phenomenon is derived from a set

of phenomena, then each phenomenon of the set can

be replaced by a phenomenon that contains it and

the phenomenon can also be derived by each super-

set of the documented set. At the points where we

need these properties, our tool computes the transi-

tive closure of these properties. Furthermore, our tool

automatically documents for traceability of decisions

made, the origin of our decision for introducing a

contains or derivedFrom relationship. The tool sets

the property origin of contains and derivedFrom re-

SystematicIdentificationofInformationFlowsfromRequirementstoSupportPrivacyImpactAssessments

lations (cf. Figure 3) automatically to the statements

from which we identiﬁed the relations.

Our tool assists users to identify personal data.

The tool presents for a selected stakeholder the phe-

nomena (derived from the DSIFG) that are candi-

dates for personal data of the stakeholder. For each

symbolic phenomenon that the user identiﬁes to be

personal data, the tool documents the relation to the

stakeholder by creating a dependency with stereo-

type



relatedTo



starting from the phenomenon and

pointing to the stakeholder. To document the rela-

tion’s quality, the user has to answer two questions:

1. Does the phenomenon represent sensitive per-

sonal data for the stakeholder?

2. Does the personal data identify the single indi-

vidual it belongs to, does it narrow down the

set of possible individuals it is related to to a

subgroup, or does the information not provide any

link to the corresponding individual and is hence

anonymous?

The answers to the above questions are stored as prop-

erties of



relatedTo



(cf. Figure 3) and are set man-

ually by the user.

Application to EHS scenario From the DSIFG

shown in Figure 5, we derive that patientDemograph-

ics, healthStatus, and vitalSigns are the phenomena

that have to be considered for patients. All these sym-

bolic phenomena represent sensitive personal infor-

mation related to a patient. The demographics iden-

tify a single individual, whereas the health status and

vital signs a group of possible patients. The initially

identiﬁed relations for the patient are highlighted us-

ing bold connections and gray shapes in Figure 6. The

other relations visible in Figure 6 are identiﬁed during

the later iterative analysis.

4.4 Personal Data Flow Analysis

In this step, we analyze how the identiﬁed personal

data of each stakeholder is propagated through the

system based on the given requirements and domain

knowledge. As a result of this process, we obtain for

each domain and stakeholder of the system a projec-

tion of the identiﬁed personal data of the stakeholder

that is available at the domain.

To document that some personal data about a

stakeholder is available at a domain, our tool cre-

ates for this domain a package with stereotype



availableInformationDiagram



in the UML model

and adds into this package a dependency with stereo-

type



linkableTo



starting from the personal data to

the stakeholder when the user identiﬁes this relation

during the process. We document as quality attributes

of the relation linkableTo to which degree the data

available at the domain is linkable to the stakeholder,

from which statements of the requirements this rela-

tion was derived (origin), for which purpose the infor-

mation is available at the domain, how the collection

of information took place, and how long the informa-

tion will be available at the domain (duration) us-

ing the stereotype properties (cf. Figure 3). Note

that we in the ﬁrst place document for which purpose

some personal information is available at a domain

due to the requirements model. Whether the stake-

holder gave consent to process the data for this pur-

pose and whether the purpose is legitimate as required

by some data protection regulations (European Com-

mission, 2012) has to be analyzed later. We distin-

guish between direct collection from the stakeholder,

e.g., the stakeholder enters the information on its own,

and indirect collection, e.g., the information is col-

lected by observing the stakeholder’s behavior. We

distinguish three kinds of duration. If the duration is

forAction, then the information will only be available

at the domain as long as the information is needed

for the action to be performed. If the duration is

untilDeleted, then the information will be deleted at

some point in time when it is no longer needed, but

not directly after it is no longer needed. The dura-

tion unlimited expresses that once the information is

available at that domain, it will stay available there.

4.4.1 Initialization of Personal Data Flow

Analysis

At each domain, the initially available information is

the information that the user identiﬁed in the previous

step for this domain. I.e., the personal data related

to the domain itself. The initial available information

diagrams are created automatically by our tool. The

tool sets the collection method for the initial available

information to direct and the duration of availability

to unlimited.

During a step of the later iterative personal data

ﬂow analysis, the user selects a statement of the

DSIFG for which he/she wants to investigate which

personal data available at the input domains of the

statement ﬂows to which output domain of the state-

ment and in which quality. The tool guides through

the process and presents the statements that still have

to be considered to the user. Initially, these are the

statements for which the stakeholder under consider-

ation is an input domain.

Application to EHS scenario For the stakeholder

patient, we have initially to consider the statements

A2, F1, and R5 (cf. Figure 5). The information ini-

tially available at the patient is the gray part with bold

connections in Figure 6.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

Figure 6: Identiﬁed personal information for the patient.

4.4.2 Iterative Analysis of the Flow of Personal

Data

Now, the user iteratively chooses a statement to be

considered for the stakeholder under consideration.

Our tool then collects the personal information of the

stakeholder that is available at the input domains and

computes the transitive closure using the contains and

derivedFrom relations.

As mentioned before, the user may identify that

only a part of or information derived from the avail-

able information is transmitted to output domains.

Because of that, the tool asks the user to select avail-

able information from which only parts or derived

information is transmitted. The user has only to se-

lect the available information and to enter the name

of the new information. The tool then creates the

newly identiﬁed phenomenon and the corresponding

contains, derivedFrom, and relatedTo relations with

the current statement as origin.

Then the user has to decide for each output do-

main which of the available information is transmitted

to it. Based on the user’s selection, our tool automat-

ically generates the corresponding model elements.

The stereotype properties of



linkableTo



(besides

origin and purpose) have to be adjusted by the user

manually. For each transmitted phenomenon, the tool

adds the current statement to the property purpose

of the



linkableTo



dependency between the phe-

nomenon and the stakeholder under consideration in

an input domain’s available information diagram if

such a dependency exists. I.e., we document that the

information has to be available at the input domain to

be transferred to an output domain.

Depending on how the information transfer is de-

scribed by the current statement, it is possible that an

output domain is able to link two data sets related to

a stakeholder to each other. I.e., there is information

available at the domain that allows everyone who has

access to this information to know that different per-

sonal data is related to the same individual, but not

necessarily to which individual. E.g., the doctor is

able to link the health status of a patient to his/her

demographics and hence, knows to which patient a

health status is related. To document at which domain

which information about the stakeholder is linkable,

we use an association with stereotype



linkableTo



(cf. Figure 3) that is part of the package of the domain

at which this link is known and connects the phe-

nomena which can be linked. After the user speciﬁed

the information transmitted to the output domains, the

tool asks for each output domain which personal data

available at the output domain is linkable to each other

and creates on the basis of the user’s selection the

linkableTo relations. The stereotype properties have

to be set by the user manually.

After the above steps, the tool removes the current

statement from the set of statements that have to be

considered and adds all statements that have one of

the current output domains for which the user iden-

tiﬁed a new information ﬂow as input domain. In

this way, the user iteratively traverses the DSIFG sup-

ported by the tool until all statements have been con-

sidered.

Application to EHS scenario We consider the ﬁrst

step of the analysis with stakeholder patient and state-

ment A2. As input domain, we have the patient and

the only output domain is the doctor (cf. Figure 5).

The available phenomena are the identiﬁed personal

data of the patient, namely his/her demographics, vi-

tal signs and health status (cf. gray and bold part of

Figure 6). We do not identify further contained or

SystematicIdentificationofInformationFlowsfromRequirementstoSupportPrivacyImpactAssessments

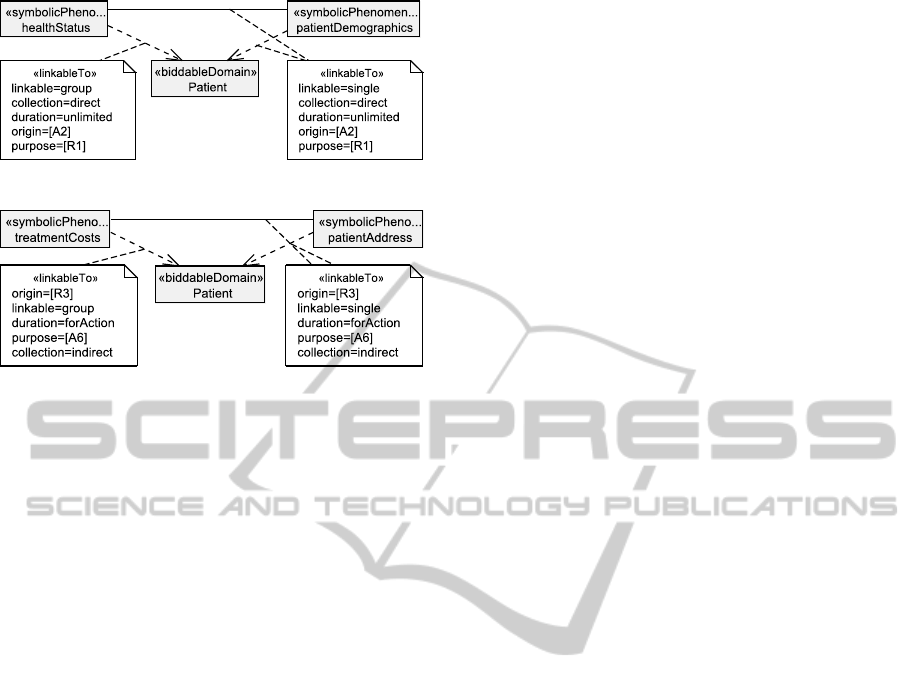

Figure 7: Available information diagram for the doctor.

Figure 8: Available information diagram for the ﬁnancial

application.

derived personal data in the ﬁrst step, but we iden-

tify that a health status also contains vital signs of the

patient. From assumption A2, we see that the doc-

tor gets from his/her patients information about their

health status and their demographics. This informa-

tion is collected directly from the patient. As doctors

do not have to delete their records after some time,

we set the duration of availability to unlimited. The

health status alone is linkable to a group of patients

and the demographics to a single patient. Further-

more, the tool adds A2 to the property purpose of the

stereotype instances



linkableTo



in the available in-

formation diagram of the patient that start from pa-

tientDemographics and healthStatus. As doctors di-

rectly collect the demographics and health status from

patients, they are able (and have to be able) to link a

health status to a patient’s demographics. This infor-

mation is directly collected from the patient and the

duration of availability is unlimited. The linkableTo

relations are generated by the tool based on our se-

lections and we adjust the properties of



linkableTo



manually to the above described values. The resulting

available information diagram for the doctor is shown

in Figure 7.

During the further analysis, we identify that from

the health status of a patient several data is derived (cf.

upper part of Figure 6). Alarms and appointments are

derived from the health status to be displayed on the

mobile devices of patients (R4). We identiﬁed that

for the accounting the treatments done and the corre-

sponding costs are derived from the health status (R2).

For clinical research the health status is anonymized

to medical data (R6). Additionally, we identiﬁed from

R2 that the patient demographics contain the patient’s

address to be used in the invoices and the insurance

number for the accounting (cf. lower left part of Fig-

ure 6). Due to limitations of space, we do not show all

available information diagrams. Figure 8 shows the

personal data of the patient available at the ﬁnancial

application. Only the patient’s address and the treat-

ment costs are available at the ﬁnancial application

for the billing process. These two kinds of informa-

tion are linkable to each other.

4.5 Using the Elicited Knowledge for a

PIA Report

The user can now use the collected data to ﬁll parts of

a PIA report. The UML model contains:

1. The personal data of stakeholders that is used in

the system.

2. The information at which domain of the system

which personal data is available and in which

quality.

3. Traceability links to identify the requirements,

facts, and assumptions that lead to the informa-

tion ﬂows.

4. For each domain, we can derive the set of counter-

stakeholders that possibly have access to personal

data available at the domain that they should not

be able to access (cf. (Beckers et al., 2014)).

Furthermore, the collected data can be used to start

a privacy risk assessment. In the same way, as we

elicited the intended information ﬂow implied by the

requirements model, we could also document the pri-

vacy threats implied by unintended information ﬂows

and their probability of occurrence. On the other

hand, we could also investigate whether the informa-

tion available at domains by intention or information

that can be derived from that data can lead to privacy

threats and how probable these threats are. For each

identiﬁed personal information, we could additionally

elicit the consequences that the disclosure of this in-

formation would imply. Based on the probability of

privacy threats and the consequences of information

disclosure, we could then evaluate the privacy risks

implied by the system to be built.

Application to EHS scenario Possible threats to

the privacy of patients can be located in the ﬁnan-

cial application. Employees who are involved in the

billing process are able to access patient’s addresses

and their treatment costs, which are linkable to each

other (cf. Figure 8). As the treatment costs are derived

from the health status of the patient (cf. Figure 6), em-

ployees may gain knowledge about chronic illnesses

that patients have if regularly similar treatment costs

are recorded.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends

5 RELATED WORK

Privacy-aware Requirements Engineering

The LINDDUN-framework proposed by Deng et

al. (Deng et al., 2011) is an extension of Microsoft’s

security analysis framework STRIDE (Howard and

Lipner, 2006). The basis for the privacy analysis is

a data ﬂow diagram (DFD) which is then analyzed on

the basis of the high-level threats Linkability, Identi-

ﬁabilitiy, Non-repudiation, Detectability, information

Disclosure, content Unawareness, and policy/consent

Noncompliance.

The PriS method introduced by Kalloniatis et

al. (Kalloniatis et al., 2008) considers privacy require-

ments as organizational goals. The impact of the pri-

vacy requirements on the other organizational goals

and their related business processes is analyzed. The

authors use privacy process patterns to suggest a set

of privacy enhancing technologies (PETs) to realize

the privacy requirements.

Liu et al. (Liu et al., 2003) propose a security

and privacy requirements analysis based on the goal

and agent-based requirements engineering approach

∗

(Yu, 1997). The authors integrate the security and

privacy analysis into the elicitation process of i

∗

. Al-

ready elicited actors from i

∗

are considered as attack-

ers. Additional skills and malicious intent of the at-

tackers are combined with the capabilities and inter-

ests of the actors. Then the vulnerabilities implied by

the identiﬁed attackers and their malicious intentions

are investigated in the i

∗

model.

The above mentioned methods all support the

identiﬁcation of high-level privacy threats or vulner-

abilities and the selection of privacy enhancing tech-

nologies (PETs) to address the privacy threats or vul-

nerabilities. These steps are not yet supported by the

ProPAn-method. But in contrast to a problem frame

model, DFDs, goal models, and business processes,

as they are used by the above methods, are too high-

level and lack of detailed information that is neces-

sary to identify personal data that is processed by the

system and how the personal data ﬂows through the

system. Hence, the methods proposed by Deng et al.,

Kalloniatis et al., and Liu et al. lack of support for

the elicitation of the information that is essential for

a valuable privacy analysis. Additionally, we provide

a tool-supported method to systematically identify the

personal data and collect the information at which do-

mains of the system this personal data is available in

a way that allows us to use the data to assist PIAs.

Omoronyia et al. (Omoronyia et al., 2013) present

an adaptive privacy framework. Formal models are

used to describe the behavioral and context mod-

els, and user’s privacy requirements of the system.

The behavioral and context model are then checked

against the privacy requirements using model check-

ing techniques. This approach is complementary to

ours, because the knowledge collected by our method

can be used to set up adequate models, which is cru-

cial to obtain valuable results.

Methodologies supporting PIA

Oetzel and Spiekermann (Oetzel and Spiekermann,

2014) describe a methodology to support the com-

plete PIA process. Their methodology describes

which steps have to be performed in which order to

perform a PIA. Hence, their methodology covers all

necessary steps that have to be performed for a PIA.

In contrast to our method, Oetzel and Spiekermann’s

methodology does not give concrete guidance on how

to elicit the relevant information needed for a PIA

which is the focus of this work.

Tancock et al. (Tancock et al., 2010) propose a

PIA tool for cloud computing that provides guidance

for carrying out a PIA for this domain. The infor-

mation about the system has to be entered manually

into the tool. The PIA tool by Tancock et al. covers

more parts of a PIA then our method,. In contrast,

our method can use the information provided by an

existing requirements model and provides in this way

more guidance for the elicitation of the information

essential for a PIA.

6 CONCLUSIONS

To assist the creation of a PIA report for software

projects, we developed a tool-supported method that

derives necessary inputs for a PIA from a require-

ments model in a systematic manner. This method

is based on a requirements model in problem frame

notation and hence, can be started at the very be-

ginning of the software development process, when

it is still possible to inﬂuence the software project.

Our method assists requirements engineers and do-

main experts to systematically identify the personal

data processed by the system to be built and how and

in which quality this personal data ﬂows through the

system. This information can then be used to create

a PIA report and can also serve as starting point for a

privacy risk assessment. Our proposed UML proﬁle

can easily be extended with further stereotype proper-

ties and values to capture additional information that

has to be documented for a speciﬁc PIA report.

Our method has some limitations. As starting

point of the analysis, we rely on a complete model

SystematicIdentificationofInformationFlowsfromRequirementstoSupportPrivacyImpactAssessments

of functional requirements. Hence, changes in the

functional requirements generally imply a re-run of

our method and all collected information has to be

elicited again. To overcome this limitation, we could

enhance our method as follows. If a requirement is

removed from the mode, then all information ﬂows

that originate from this requirement could be auto-

matically removed from the model by the tool. This

is possible due to the attribute origin (cf. Figure 3).

And if a requirement is added then we would have to

check whether this requirement introduces new rele-

vant domain knowledge, and whether the requirement

together with the new domain knowledge introduce

new information ﬂows to the already elicited infor-

mation ﬂows. In this way, the already collected in-

formation from the unchanged requirements could be

kept. Another limitation is that our proposed tool is

only a prototype implementation that needs to be fur-

ther analyzed for usability and user acceptance.

As future work, we want to support the generation

of PIA reports based on the elicited information. For

this, we will extend our tool support with the possibil-

ity to deﬁne templates that can be ﬁlled with the infor-

mation contained in the UML model and then be used

as part of a PIA report. We also want to extend our

proposed method with a privacy risk assessment and

to integrate a privacy threshold assessment that indi-

cates which level of detail the PIA shall have. Further-

more, we plan to empirically validate our method, the

tool support, and the outputs produced by our method.

REFERENCES

Beckers, K., Faßbender, S., Heisel, M., and Meis, R. (2014).

A problem-based approach for computer aided pri-

vacy threat identiﬁcation. In Privacy Technologies

and Policy, LNCS 8319, pages 1–16. Springer.

Cavoukian, A. (2011). Privacy by de-

sign – the 7 foundational principles.

https://www.ipc.on.ca/images/resources/

7foundationalprinciples.pdf.

e, I., Hatebur, D., Heisel, M., and Schmidt, H. (2011).

UML4PF – a tool for problem-oriented requirements

analysis. In Proc. of RE, pages 349–350. IEEE Com-

puter Society.

Deng, M., Wuyts, K., Scandariato, R., Preneel, B., and

Joosen, W. (2011). A privacy threat analysis frame-

work: supporting the elicitation and fulﬁllment of pri-

vacy requirements. RE.

European Commission (2012). Proposal for a regula-

tion of the european parliament and of the coun-

cil on the protection of individuals with regard

to the processing of personal data and on the

free movement of such data (general data pro-

tection regulation). http://eur-lex.europa.eu/legal-

content/EN/TXT/?uri=CELEX: 52012PC0011.

Howard, M. and Lipner, S. (2006). The Security Devel-

opment Lifecycle. Microsoft Press, Redmond, WA,

USA.

ISO/IEC (2011). ISO 29100 Information technology – Se-

curity techniques – Privacy Framework.

Jackson, M. (2001). Problem Frames. Analyzing and

structuring software development problems. Addison-

Wesley.

Kalloniatis, C., Kavakli, E., and Gritzalis, S. (2008). Ad-

dressing privacy requirements in system design: the

PriS method. RE, 13:241–255.

Liu, L., Yu, E., and Mylopoulos, J. (2003). Security and

privacy requirements analysis within a social setting.

In Requirements Engineering Conf., 2003. Proc.. 11th

IEEE Int., pages 151–161.

Meis, R. (2014). Problem-based consideration of privacy-

relevant domain knowledge. In Privacy and Identity

Management for Emerging Services and Technologies

8th IFIP Int. Summer School Revised Selected Papers,

IFIP AICT 421. Springer.

Oetzel, M. and Spiekermann, S. (2014). A systematic

methodology for privacy impact assessments: A de-

sign science approach. European Journal of Informa-

tion Systems, 23(2):126–150.

Omoronyia, I., Cavallaro, L., Salehie, M., Pasquale, L., and

Nuseibeh, B. (2013). Engineering adaptive privacy:

On the role of privacy awareness requirements. In

Proc. of the 2013 Int. Conf. on SE, ICSE ’13, pages

632–641, Piscataway, NJ, USA. IEEE Press.

Tancock, D., Pearson, S., and Charlesworth, A. (2010). A

privacy impact assessment tool for cloud computing.

In IEEE 2nd Int. Conf. on Cloud Computing Technol-

ogy and Science (CloudCom), pages 667–676.

Wright, D., Wadhwa, K., Hert, P. D., and Kloza, D. (2011).

A privacy impact assessment framework for data pro-

tection and privacy rights – Deliverable D1. Technical

report, PIAF consortium.

Yu, E. (1997). Towards modeling and reasoning support

for early-phase requirements engineering. In Proc. of

the 3rd IEEE Int. Symposium on RE, pages 226–235,

Washington, DC, USA. IEEE Computer Society.

ICSOFT-PT2015-10thInternationalConferenceonSoftwareParadigmTrends
