MEDA: A Machine Emulation Detection Algorithm

Valerio Selis and Alan Marshall

Department of Electrical Engineering and Electronics, University of Liverpool, Brownlow Hill, L69 3GJ, Liverpool, U.K.

Keywords:

IoT, M2M, Trust, Embedded Systems, Virtual Machines.

Abstract:

Security in the Internet of Things (IoT) is now considered a priority, and trust in machine-to-machine (M2M)

communications is expected to play a key role. This paper presents a mechanism to detect an emerging

threat in M2M systems whereby an attacker may create multiple fake embedded machines using virtualized

or emulated systems, in order to compromise either a targeted IoT device, or the M2M network. A new trust

method is presented that is based on a characterisation of the behaviours of real embedded machines, and

operates independently of their architectures and operating systems, in order to detect virtual and emulated

systems. A range of tests designed to characterise embedded and virtual devices are presented, and the results

underline the efﬁciency of the proposed solution for detecting these systems easily and quickly.

1 INTRODUCTION

The Internet of Things is a concept in which very

large numbers of physical objects can be connected

to the Internet. The IoT infrastructure requires an

integration of several technologies and the objects

(things) will be mostly connected wirelessly to the

main infrastructure. In particular, the objects will be

mostly based on embedded devices, such as sensors,

smart-phones, etc. (Atzori et al., 2010). An essential

role will be givento Machine-to-Machine(M2M) net-

works, this refers to communications among objects.

In the future, M2M communications will mostly op-

erate without human intervention.

When available, the main characteristics of these

objects may be subdivided as follows:

• MCU/CPU: from embedded to high performance

processor, such as ARM, MIPS, PowerPC, AVR,

x86, x86-64, etc.: from few MHz to GHz, single

core to multi core;

• OS: open source and proprietary, such as Linux

based, Windows based, iOS based, Symbian, etc.;

• Memory - data storage: from few KB to TB;

• Memory - RAM: from few KB to GB;

• Network interfaces: from one to multiple inter-

faces at the same time, such as Wired, RFID, Zig-

Bee, Bluetooth, Wi-Fi, Cellular, GPS, etc.;

• Power: from very low or zero power to high

power consumption; battery and/or wired;

• Type: mobile or static.

It is possible to envision that in the future, net-

works of smart objects or “things” will manage and

control parts of our lives in an autonomous way.

They will operate in various application areas, such

as healthcare, smart robots, cyber-transportation sys-

tems, manufacturing systems, smart home technolo-

gies, smart grids and building security (Chen et al.,

2012; Lee et al., 2013). For this reason, securing the

IoT must be a priority, before continuing to deploy it

in the real world and on a larger scale.

An important factor in securing the IoT and M2M

communications is trust. Nowadays there are vari-

ous papers in the literature addressing how to man-

age trust among objects in IoT (Bao and Chen, 2012;

Saied et al., 2013; Nitti et al., 2014). However, these

do not consider how to trust the systems inside the

objects. As shown in Figure 1, an attacker may create

multiple fake embeddedmachines using virtualized or

emulated systems in order to compromise the network

or part of it. In this case, a real embedded device (A)

will assume that it is communicating with other real

embedded devices (B, C, D and E) and will trust them

accordingly. This will lead to a security issue in the

network and in particular for the data transmitted by

“A” throughout the attacker(s).

The aim of this paper is to show the ﬁrst stage of

a possible detection mechanism to help trust agents in

embedded devices to trust other systems and recog-

nize a virtualized or emulated environment. The rest

of this paper is organised as follows: In section 2 the

228

Selis V. and Marshall A..

MEDA: A Machine Emulation Detection Algorithm.

DOI: 10.5220/0005535202280235

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 228-235

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

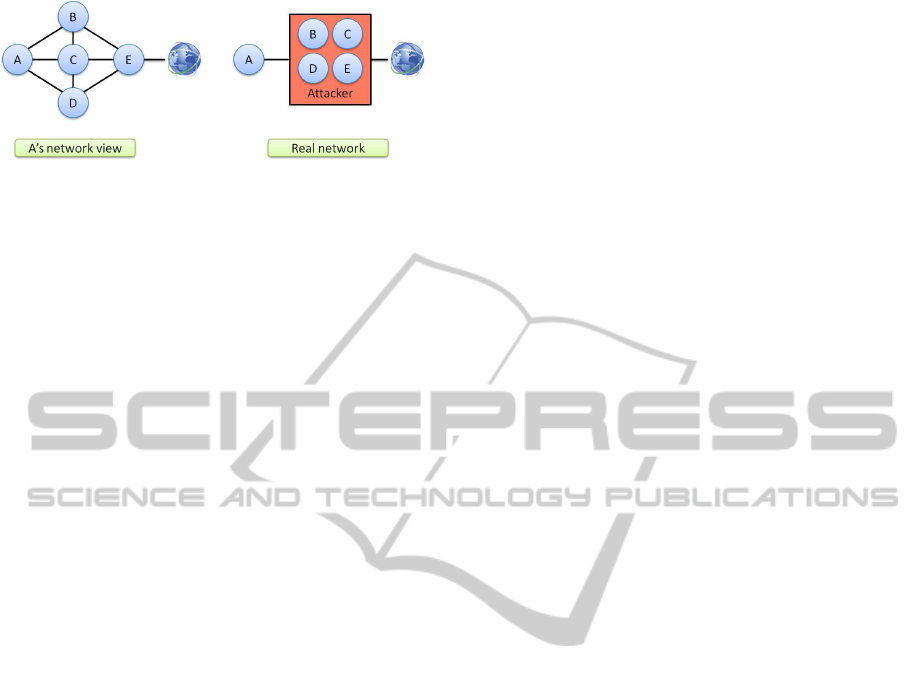

Figure 1: Representation of multiple fake embedded ma-

chines attack.

related work on detection of virtual and emulated sys-

tems is presented. In section 3 we describe the algo-

rithm used to collect the behaviour information from

real machines. The detection methods adopted and

the results obtained from the characterisation tests are

discussed in section 4. Finally in section 5, we present

our conclusions and directions for future research on

detecting virtual and emulated systems.

2 VIRTUALIZATION AND

EMULATION DETECTION

Virtualized and emulated detection mechanisms have

been mostly studied for x86/x64 architectures. The

few works done so far are focused on the detection

of Android-based emulated environments (Vidas and

Christin, 2014; Jing et al., 2014). These detection

mechanisms can be categorized as follows:

• CPU and memory tests: memory states and CPU

registers and instructions are used to detect if a

virtual machine (VM) is running

• Remote tests: a remote machine is used to collect

information from network packets in order to un-

derstand the capabilities of another machine

• Timing tests: consist of using particular CPU in-

structions to perform a time analysis detection

• Fingerprinting tests: informationabout the system

is collected, such as driver names, CPU ID, sys-

tem registers, etc.

Rutkowska (Rutkowska, 2004) introduced a sim-

ple mechanism, called “The Red Pill”, to detect if a

system was running on a virtual machine, simply by

using the SIDT (Store Interrupt Descriptor Table) in-

struction to access to the IDT register. The author

noted that the value of this register was different in

real machine and virtual machine, because in an x86

CPU there is only one IDT register for every OS run-

ning in the system. However, this approach does not

work in newer machines as they use multi-core pro-

cessors and there is one IDT register for each of them.

In (Martignoni et al., 2009), the authors created an au-

tomated method to generate random red-pills. They

used a CPU guided system to detect emulators such

as QEMU and BOCHS for x86 architectures. This

method consists of checking that the same instruc-

tion (red-pill) with the same CPU state will return the

same state in the memory. If the result of the exe-

cution of a red-pill in the emulated CPU is different

from the result in the real CPU, it will lead in a detec-

tion status. In (Shi et al., 2014) an enhanced red-pill

method called cardinal pill is proposed. It consists

of using all deﬁnitions present in the IA-32 manual

to create pills and then check discrepancies between

real CPU and emulated CPU. However, these mech-

anisms can fail to detect hypervisors that use the real

CPU to execute the instructions, as, in these cases,

the results would be the same. The authors in (Chen

et al., 2008) stated that it is possible to use the method

created by (Kohno et al., 2005) to detect virtualized

hosts. The method proposed was able to detect the

clock rate of a remote machine using the TCP times-

tamp option deﬁned in RFC 1323 (Jacobson et al.,

1992). However, this method cannot be used nowa-

days, as (Polc´ak et al., 2014) demonstrated, in Linux-

like OS the timestamp present in the TCP packets is

inﬂuenced by the application NTP, which provides

an up to date timestamp to the system using time

servers. Moreover, the method proposed in (Kohno

et al., 2005) is not valid for remote machines that

use a Windows based OS, because it does not use the

TCP timestamp option by default, and the clock skew

can be faked by the remote host observed (Polc´ak and

Frankov´a, 2014).

Another method used to detect a virtualized or

emulated environment is time analysis. (Raffetseder

et al., 2007) and (Jia-Bin et al., 2012) showed that by

timing the access to control registers, such as CR0,

CR2 and CR3, and the execution of a NOP instruc-

tion, it is possible to detect if the machine is real or

not.

A ﬁngerprinting mechanism uses speciﬁc hard-

ware and software values to understand if there is a

virtualized or emulated environment. (Chen et al.,

2008; Raffetseder et al., 2007) suggested using the

MAC address of a machine to obtain the vendor name.

However, this can be faked very easily, for exam-

ple by using an application like MAC-Changer (Or-

tega, 2013). More information can be obtained from

drivers used for speciﬁc hardware devices, such as

video card, network card, etc. Furthermore, registry

keys or running applications give the opportunity to

ﬁnd a virtualized or emulated environment as under-

lined by (Chen et al., 2008) and (Jia-Bin et al., 2012).

In some cases it is possible to check if the application

MEDA:AMachineEmulationDetectionAlgorithm

229

is running in a virtual environment by accessing the

virtual machine API as shown by (Quist and Smith,

2006).

There have only been a few studies related to the

detection of embedded emulated environments, and

these are focused at Android based devices. (Jing

et al., 2014) proposed a heuristic detection mecha-

nism by combining the Android API, Android system

properties and the system hardware information with

a detection time of 20 minutes. Moreover, (Vidas and

Christin, 2014) used the same information collected

in (Jing et al., 2014) with new information about the

CPU and graphical performances to detect the An-

droid’s Dalvik VM.

As far as we are aware, there have been no gen-

eral studies on the detection of virtual or emulated

environments for embedded systems. In this work

we propose a novel detection method that consists of

checking the behaviours of embedded devices, vir-

tual and emulated embedded systems. In this work

we consider embedded CPU and MCU such as x86,

MIPS and ARM, without considering speciﬁc infor-

mation from the OS. CPU/MCU and memory tests,

and timing tests are not used in this work because dif-

ferent embedded architectures use different registers

and instruction sets. Moreover, remote tests, as previ-

ously described, are not applicable, considering that

embedded systems based on Linux can use NTP to

update their date and time. Additionally, we postulate

that the ﬁngerprinting detection method can be easily

faked, in particular in fully emulated environments;

nevertheless, as we describe, during some tests this

may be a valid detection method. Finally, we believe

that adopting our method it will be difﬁcult for a vir-

tual or emulated system to fake the behaviour results,

because this uses the network stack in order to per-

form the characterization. In this case, the virtual or

emulated system needs to check when a socket is cre-

ated and handle it every time, because it can’t know

a priori that it was called by our method. This would

lead to an increasing in the overall delay time and de-

crease in system performance. Additionally, there is

a necessity to modify part of the kernel, which is not

always possible.

3 CHARACTERISATION

ALGORITHM

In order to perform the characterisation an algorithm

was developed to collect information from real, vir-

tualised and emulated environments. This consists

pinging the localhost (127.0.0.1) in the system under

consideration 1000 times, and for every ping collect-

ing the ping response time (ms), the system timestamp

(s) and the CPU/MCU usage (%), as shown in Figure

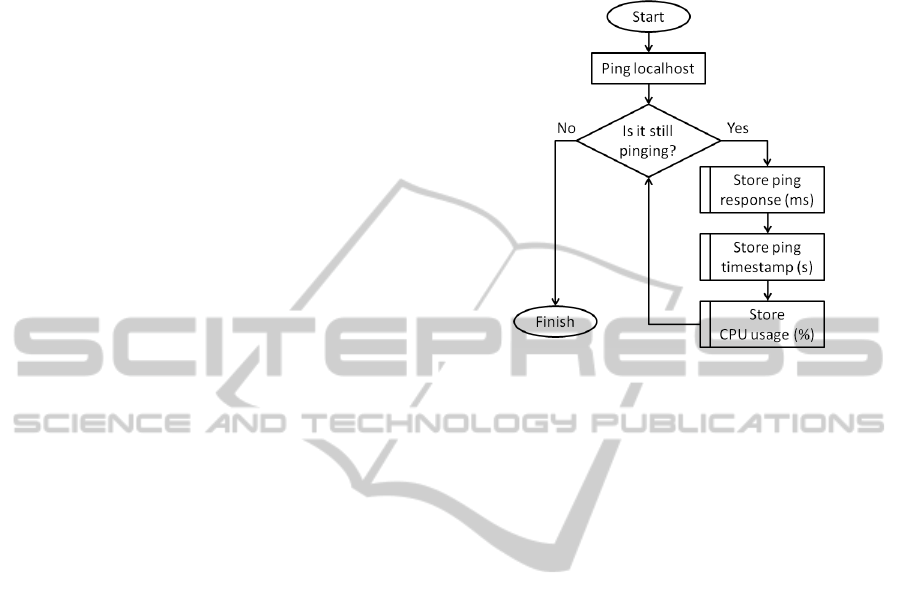

Figure 2: Characterisation algorithm ﬂowchart.

The timestamp information was collected using

the “date”. The CPU/MCU usage was collected

from “/proc/stat” or “iostat”, depending on the OS

used. We tested virtualized and emulated systems

including: Android Emulator (Android Developers,

2014), Genymotion (Genymobile, 2014), GXemul

(Gavare, 2014), OVPsim (Open Virtual Platform,

2014), QEMU (Bellard, 2005), VirtualBox (Oracle

Corporation, 2014) and VMware Player (VMware

Inc, 2015). All these were used with default conﬁgu-

rations, along with a real machine used as reference

(termed RM), which had the following characteris-

tics:

• OS: Linux Mint 17 (qiana) with kernel 3.13.0-24-

generic

• CPU: Intel(R) Core(TM) i3-4130 CPU @

3.40GHz (4 cores)

• RAM: 7897 MiB

Next, we used as comparison, real embedded de-

vices including: ALIX 6F2 (PC Engines GmbH,

2007), Google Nexus 5 and 7 (Google and LG Elec-

tronics, 2013; Google and Asus, 2012), Carambola

(8devices, 2012), Arduino Y´un (Arduino, 2013) and

Raspberry Pi (Raspberry Pi Foundation, 2012). For

each device, eight tests comprising the characterisa-

tion algorithm were performed by tuning the ping

command with different options and stressing the

CPU/MCU (whereby the CPU usage levels is main-

tained at 100%) as shown in Table 1.

In order to stress the CPU/MCU the “dd” com-

mand was used, with input data from urandom,

if=/dev/urandom, and writing this data to the null de-

SECRYPT2015-InternationalConferenceonSecurityandCryptography

230

Table 1: List of characterisation tests performed.

Test# Ping option (ping) CPU/MCU

stress

1 -c 1000 No

2 -c 1000 Yes

3 -c 1000 -i 0.2 No

4 -c 1000 -i 0.2 Yes

5 -c 1000 -s 20000 No

6 -c 1000 -s 20000 Yes

7 -c 1000 -s 20000 -i 0.2 No

8 -c 1000 -s 20000 -i 0.2 Yes

-c: stop after sending n ping packets

-i: wait n seconds between sending each packet

-s: speciﬁes the number of data bytes to be sent

vice, of=/dev/null. In some characterisations, multi-

ple instances of this program were executed to over-

load the CPU/MCU in multi-core devices. In these

cases the information collected was analysed using

different characterisation metrics for ping response

times, timestamps and CPU/MCU usage levels as

shown in Tables 2 and 3.

4 RESULTS OF

CHARACTERISATION TESTS

The results obtained show the same behaviours for the

real embedded devices in tests 1 to 4, however it was

decided to exclude tests 5 to 8 as they do not give

reliable results to identify virtual or embedded sys-

tems. The issues in identifying virtual or embedded

systems in tests 5 to 8 were related to the ping packet

size, whereby large-sized ping packets consume high

computational resources which can cause problems in

embedded devices with low processing power. Table

2 shows the range of behaviours concerning ping re-

sponse times and timestamps for RM used during the

tests. Information about the CPU/MCU levels are not

shown for tests 2 and 4, because the CPU/MCU was

under stress and its usage levelswere always at 100%.

Table 3 shows characterisation results for all real em-

bedded devices (termed EM). In the rest of this paper

we use the notations listed in Table 4 for the tests as

well as the following notations: ping response time

“P.”; timestamp “T.”; CPU/MCU level “C.”; standard

deviation “SD”; simulation “Sim.”.

The detection method is based on the behaviours

of RM and embedded machines as characterised in

Tables 2 and 3. These ranges were used as thresh-

old values to detect virtual or emulated systems. Let

TMin

(CM

) and TMax

(CM

) be the minimum and

maximum value in the range for the characterisation

metric CM

of X (RM or EM). Let T(CM

) be the

value obtained from the target system. By con-

sidering RM, the virtual or embedded system is con-

sidered detected if T(CM

) < TMin

(CM

). More-

over, it is considered better than RM if T(CM

) ≪

TMin

(CM

), this means that in some cases it is

faster than the RM and/or the measurements obtained

have a low error, i.e. P.SD close to 0, P.Total re-

duced by half or C.Mean less than 1% during tests

1 and 3. The machine emulation detection algorithm

is based on the detection of illegitimate embedded

devices. It uses the characterisation metrics based

on EM and it is described in Figure 3. Considering

EM, an illegitimate embedded device is considered

detected if T(CM

) < TMin

(CM

) or T(CM

) >

TMax

(CM

Figure 3: Machine emulation detection algorithm.

Figures 4 and 5 show the results of the behaviour

characterisations. These were obtained by combining

the information gathered from the tests of the virtual

and emulated systems using the RM as reference.

Figures 6 and 7 show the same results as Figures

4 and 5, but using the behaviours of embedded ma-

chines as reference. It can clearly be seen that when

adopting the EM behaviours, the detection of virtual

or emulated systems is signiﬁcantly higher than when

adopting the RM behaviours. It may also be observed

that by considering all tests for the EM, the AE is

more detectable than the GX2. From these results it

is possible to observe that our solution detects every

virtual and emulated system. Furthermore, it is possi-

ble to detect them by using only behaviours obtained

from P.Total, P.Mean±SD and T.Total.

These results show that at least six virtual and em-

ulated systems can be detected only considering RM

behaviours and in particular by using P.Mean±SD.

We observed that the Genymotion, OVPsim, Virtual-

Box and VMware behave close to, and in some cases

better than RM. Moreover, Genymotion, VirtualBox

and VMware are detectable using the ﬁngerprinting

test as shown in Table 5. This test was applied us-

ing detection values such as vbox, virtualbox, virtual-

ized, oracle, innotek, intel, genuineintel, genymotion,

vmware and their variants.

The ﬁnal machine emulation detection algorithm

is focused only on the detection of illegitimate em-

MEDA:AMachineEmulationDetectionAlgorithm

231

Table 2: Range of behaviours of the RM obtained from the characterisation tests.

Characterisation Ping (ms) Timestamp (s) Timestamp (s) CPU/MCU usage (%)

Metrics Tests 1 to 4 Tests 1 and 2 Tests 3 and 4 Tests 1 and 3

Min 0.011-0.021 0 0 1-6

Max 0.049-0.231 1 1 46-84

Max-Min 0.034-0.211 - - -

Total 34.347-64.067 199 999 -

Mean 0.034-0.064 0.199 0.999 13.627-14.306

Variance 0-0.001 0.159 0.001 40.070-64.292

Standard Deviation 0.004-0.033 0.399 0.032 6.330-8.018

Mean-Standard Deviation 0.026-0.033 - - -

Mean+Standard Deviation 0.038-0.097 - - -

Table 3: Range of behaviours of real embedded devices obtained from the characterisation tests.

Characterisation Ping (ms) Timestamp (s) Timestamp (s) CPU/MCU usage (%)

Metrics Tests 1 to 4 Tests 1 and 2 Tests 3 and 4 Tests 1 and 3

Min 0.067-0.193 0 0 0-75

Max 0.140-2.060 1-2 1-3 19-100

Max-Min 0.061-1.993 - - -

Total 99.064-288.117 199-201 999-1001 -

Mean 0.099-0.288 0.199-0.201 0.999-1.001 5.223-79.042

Variance 0-0.034 0.159-0.162 0.001-0.059 4.928-459.201

Standard Deviation 0.002-0.183 0.399-0.402 0.032-0.243 2.220-21.429

Mean-Standard Deviation 0.060-0.215 - - -

Mean+Standard Deviation 0.110-0.452 - - -

Table 4: List of notations of virtual and embedded systems for the tests.

System Notation Architecture OS System Notation Architecture OS

Android AE ARMv7 Android QEMU Q1 MIPS OpenWrt

Emulator 4.4.2 12.09

Genymotion GN x86 Android QEMU Q2 MIPSel OpenWrt

4.4.4 12.09

GXemul GX1 MIPS NetBSD QEMU Q3 ARMv6l Raspberry

5.0.2 Pi Debian

GXemul GX2 MIPS NetBSD VirtualBox VB x86 OpenWrt

6.1.5 10.03

OVPsim OVP MIPS Debian VMware VM x86 OpenWrt

14.07

bedded devices as this is the aim of this work.

Comparing the information obtained from all the

tests it is possible to observe that the results from tests

1 and 2 give a better detection than tests 3 and 4. In

fact, by using the detection method developedfor tests

1 and 2 it is possible to detect virtual and emulated

systems in around 3 minutes. This is very importantto

minimise the power consumption in battery powered

embedded devices and also be able to trust a system

easily and quickly.

5 CONCLUSION

IoT is rapidly growing and M2M communications,

provided by embedded devices, will have an impor-

tant role in it. The primary goal must be to secure this

communication by giving the ability to machines to

trust each other. However, in order to trust each other

these need also to communicate with trust agents with

the capability to detect illegitimate embedded devices

in the network. For this reason, we believe that the

proposed algorithm is the ﬁrst step to identify fake

SECRYPT2015-InternationalConferenceonSecurityandCryptography

232

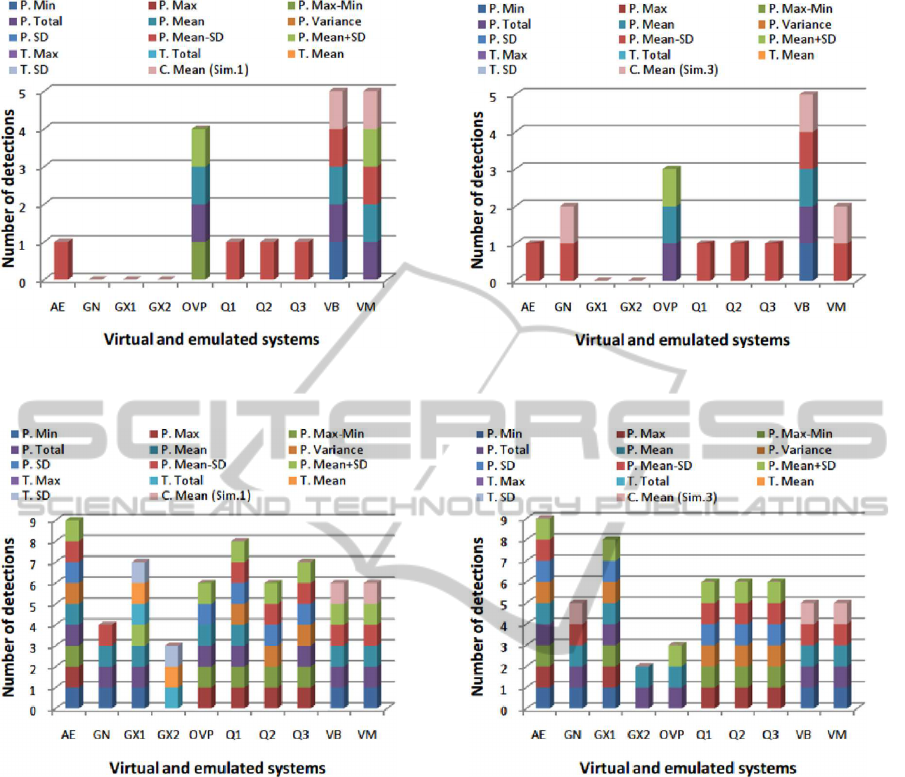

Figure 4: Behaviours detection using the reference ma-

chine for tests 1 and 2.

Figure 5: Behaviours detection using the reference ma-

chine for tests 3 and 4.

Figure 6: Behaviours detection using the real embedded

machines for tests 1 and 2.

Figure 7: Behaviours detection using the real embedded

machines for tests 3 and 4.

systems in order to create an effective trust among

machines in IoT. A possible attacker would have to

modify the TCP stack in the kernel in order to al-

ways return ping values in a speciﬁc range and with

speciﬁc behaviours. Moreover, the attacker needs to

know these values a priori, and a modiﬁcation of the

TCP stack may lead to other system issues. Also, any

change in the kernel may lead to different timestamp

values and this will be detected by the algorithm.

This work has demonstrated that the application

of this method allows reliable detection of fake em-

bedded machines that can compromise the network.

This was done without using mechanisms applied to

detect virtual and emulated systems in x86/x64 archi-

tectures, but by using a novel behaviour characterisa-

tion, which is independent of the architecture and the

OS. In fact, other detection methods rely on the type

of CPU architectures and/or the OS, thereby reducing

their applicability in the IoT. The proposed method is

not only effective, but it is also efﬁcient and easily ap-

plicable to future IoT embedded devices.

Virtualized or emulated environments are nor-

mally used by anti-virus companies or researchers to

study the behaviours or activity of malware in a sys-

tem. The proposed method can be used by embedded

malware, such as Chuck Norris botnet (Celeda et al.,

2010) and Chameleon Wi-Fi virus (Milliken et al.,

2013), in order to detect fake environments and in this

case decide to change their behaviour. However, we

think that detecting these fake systems will give great

advantages for protecting the network.

Future research will involve improvements of this

method and tests of a larger range of real embedded

devices that are going to be part of IoT. Moreover, we

MEDA:AMachineEmulationDetectionAlgorithm

233

Table 5: Fingerprinting information about Genymotion, VirtualBox and VMware.

Artefacts from ﬁles or applications

Type of

information

Genymotion VirtualBox VMware

/proc/cpuinfo RM CPU

characteristics

Yes Yes Yes

/proc/version Linux version Yes No No

/proc/misc Virtual users Yes No No

/proc/ioports Virtual devices Yes No No

/proc/kcore Physical

memory and

system message

Yes Yes Yesdmesg

/sys/devices/pciXXXX:XX/XXXX:XX:XX.X/

Hard disk, USB

and CD-ROM

devices

Yes Yes Yes

XXXX:XX:XX.X/usb1/1-2/product

/sys/devices/pciXXXX:XX/XXXX:XX:XX.X/

XXXX:XX:XX.X/usb1/1-2/conﬁguration

/sys/devices/pciXXXX:XX/XXXX:XX:XX.X/

XXXX:XX:XX.X/usb1/1-2/1-2:1.0/interface

/proc/scsi/scsi

/sys/sys/devices/virtual/dmi/id/sys vendor System vendor Yes No No

/sys/sys/devices/virtual/dmi/id/board name Board version Yes No No

/sys/sys/devices/virtual/dmi/id/board vendor Board vendor Yes No No

/sys/sys/devices/virtual/dmi/id/bios vendor BIOS vendor Yes No No

/sys/ﬁrmware/acpi/tables/DSDT

ACPI table

information

Yes Yes Yes/sys/ﬁrmware/acpi/tables/FACP

/sys/ﬁrmware/acpi/tables/SSDT

/fstab.vbox86 Virtual machine

boot ﬁles

Yes No No

/init.vbox86.rc

lsmod

Virtual modules Yes No No

/system/lib/vboxsf.ko

/system/lib/vboxguest.ko

/system/lib/vboxvideo.ko

/system/bin/androVM-prop

Virtual machine

software

Yes No No/system/bin/androVM-vbox-sf

/system/bin/androVM setprop

ps Virtual machine

running

applications

Yes No No/proc/XXX/mem

/system/build.prop Android

information

Yes No No

/system/etc/init.androVM.sh Boot scripts Yes No No

also plan to enhance the algorithms in order to more

efﬁciently recognize virtual and emulated systems.

REFERENCES

8devices (2012). Carambola. [Online] Available from:

http://www.8devices.com/carambola. [Accessed: 24

February 2015].

Android Developers (2014). SDK Tools - Android Em-

ulator. [Online] Available from: http://developer.

android.com/tools/help/emulator.html. [Accessed: 24

February 2015].

Arduino (2013). Arduino Board Y´un. [Online] Available

from: http://arduino.cc/en/Main/ArduinoBoardYun.

[Accessed: 24 February 2015].

Atzori, L., Iera, A., and Morabito, G. (2010). The internet

of things: A survey. Computer Networks, 54(15):2787

– 2805.

Bao, F. and Chen, I.-R. (2012). Dynamic trust management

for Internet of Things applications. In Proceedings of

the 2012 international workshop on Self-aware inter-

net of things, pages 1–6. ACM.

Bellard, F. (2005). Qemu, a fast and portable dynamic

translator. In USENIX Annual Technical Conference,

FREENIX Track, pages 41–46.

SECRYPT2015-InternationalConferenceonSecurityandCryptography

234

Celeda, P., Krejci, R., Vykopal, J., and Drasar, M. (2010).

Embedded malware-an analysis of the Chuck Norris

botnet. In Computer Network Defense (EC2ND), 2010

European Conference on, pages 3–10. IEEE.

Chen, M., Wan, J., and Li, F. (2012). Machine-to-machine

communications. KSII Transactions on Internet and

Information Systems (TIIS), 6(2):480–497.

Chen, X., Andersen, J., Mao, Z. M., Bailey, M., and

Nazario, J. (2008). Towards an understanding of anti-

virtualization and anti-debugging behavior in modern

malware. In Dependable Systems and Networks With

FTCS and DCC, 2008. DSN 2008. IEEE International

Conference on, pages 177–186. IEEE.

Gavare, A. (2014). GXemul. [Online] Avail-

able from: http://gxemul.sourceforge.net/gxemul-

stable/doc/index.html. [Accessed: 24 February 2015].

Genymobile (2014). Genymotion. [Online] Available from:

http://www.genymotion.com/. [Accessed: 24 Febru-

ary 2015].

Google and Asus (2012). Nexus 7 (2012) Tech

Specs (32GB + Mobile Data). [Online] Avail-

able from: https://support.google.com/nexus/answer/

2841846?hl=en. [Accessed: 24 February 2015].

Google and LG Electronics (2013). Nexus 5 Tech

Specs. [Online] Available from: https://support.

google.com/nexus/answer/3467463?hl=en. [Ac-

cessed: 24 February 2015].

Jacobson, V., Braden, R., and Borman, D. (1992). TCP

extensions for high performance. RFC 1323.

Jia-Bin, W., Yi-Feng, L., and Kai, C. (2012). Virtualiza-

tion detection based on data fusion. In Computer Sci-

ence and Information Processing (CSIP), 2012 Inter-

national Conference on, pages 393–396. IEEE.

Jing, Y., Zhao, Z., Ahn, G.-J., and Hu, H. (2014). Mor-

pheus: automatically generating heuristics to detect

android emulators. In Proceedings of the 30th Annual

Computer Security Applications Conference, pages

216–225. ACM.

Kohno, T., Broido, A., and Claffy, K. C. (2005). Remote

physical device ﬁngerprinting. Dependable and Se-

cure Computing, IEEE Transactions on, 2(2):93–108.

Lee, G. M., Crespi, N., Choi, J. K., and Boussard, M.

(2013). Internet of Things. In Evolution of Telecom-

munication Services, pages 257–282. Springer.

Martignoni, L., Paleari, R., Roglia, G. F., and Bruschi, D.

(2009). Testing CPU emulators. In Proceedings of

the eighteenth international symposium on Software

testing and analysis, pages 261–272. ACM.

Milliken, J., Selis, V., and Marshall, A. (2013). Detec-

tion and analysis of the Chameleon WiFi access point

virus. EURASIP Journal on Information Security,

2013(1):1–14.

Nitti, M., Girau, R., and Atzori, L. (2014). Trustworthiness

management in the social Internet of Things. Knowl-

edge and Data Engineering, IEEE Transactions on,

26(5):1253–1266.

Open Virtual Platform (2014). OVPsim. [On-

line] Available from: http://www.ovpworld.org/

technology

ovpsim.php. [Accessed: 24 February

2015].

Oracle Corporation (2014). VirtualBox. [Online] Avail-

able from: https://www.virtualbox.org/. [Accessed:

24 February 2015].

Ortega, A. L. (2013). MAC Changer. [Online] Available

from: http://www.gnu.org/software/macchanger. [Ac-

cessed: 24 February 2015].

PC Engines GmbH (2007). ALIX 6F2 System Board.

[Online] Available from: http://www.pcengines.ch/

alix6f2.htm. [Accessed: 24 February 2015].

Polc´ak, L. and Frankov´a, B. (2014). On reliability of

clockskew-based remote computer identiﬁcation. In

International Conference on Security and Cryptogra-

phy. SciTePress-Science and Technology Publications.

Polc´ak, L., Jir´asek, J., and Matousek, P. (2014). Com-

ment on remote physical device ﬁngerprinting. IEEE

Transactions on Dependable and Secure Computing,

(5):494–496.

Quist, D. and Smith, V. (2006). Further down the VM

spiral-detection of full and partial emulation for IA-

32 virtual machines. Proceedings of the Defcon, 14.

Raffetseder, T., Kruegel, C., and Kirda, E.(2007). Detecting

system emulators. In Information Security, pages 1–

18. Springer.

Raspberry Pi Foundation (2012). Early versions of the

Raspberry Pi Model B. [Online] Available from:

http://www.raspberrypi.org/documentation/hardware/

raspberrypi/models/README.md#modelb. [Ac-

cessed: 24 February 2015].

Rutkowska, J. (2004). Red pill: Detect VMM using

(almost) one CPU instruction. [Online] Available

from: http://web.archive.org/web/20041130172213/

http://invisiblethings.org/papers/redpill.html. [Ac-

cessed: 24 February 2015].

Saied, Y. B., Olivereau, A., Zeghlache, D., and Laurent, M.

(2013). Trust management system design for the In-

ternet of Things: A context-aware and multi-service

approach. Computers & Security, 39:351–365.

Shi, H., Alwabel, A., and Mirkovic, J. (2014). Cardinal pill

testing of system virtual machines. In Proceedings of

the 23rd USENIX conference on Security Symposium

(SEC’14). USENIX Association, Berkeley, CA, USA,

pages 271–285.

Vidas, T. and Christin, N. (2014). Evading android runtime

analysis via sandbox detection. In Proceedings of the

9th ACM symposium on Information, computer and

communications security, pages 447–458. ACM.

VMware Inc (2015). VMware Player. [Online] Avail-

able from: https://www.vmware.com/. [Accessed: 24

February 2015].

MEDA:AMachineEmulationDetectionAlgorithm

235
