Modelling Flexible Collaborative Process:

The VCP2M Approach

Fatma Ellouze

, Mohamed Amine Chaabane

, Eric Andonoff

and Rafik Bouaziz

MIRACL, University of Sfax, Route de l’aéroport, BP 1088, 3018 Sfax, Tunisia

IRIT, University of Toulouse 1, 2 rue du Doyen Gabriel Marty, 31042 Toulouse Cedex, France

Keywords: Collaborative Process, Flexibility, Version, VCP2M.

Abstract: This paper addresses the collaborative processes flexibility issue, which is an important issue in Business

Process (BP) Management. Indeed, the strong competition in which organizations are involved lead them to

frequently change and adapt their collaborative processes to face new client requirements or to benefit from

new collaboration opportunities. More precisely, this paper proposes to adopt a version-based approach to

support the modelling of flexible collaborative processes. First it introduces the VBP2M meta-model

(Version of BP meta-model) supporting the modelling of flexible internal (i.e., intra-organizational)

processes, and then explains how to extend it to define the VCP2M meta-model (Version of Collaborative

Processes meta-model) to design flexible collaborative processes, which correspond to processes crossing

the boundaries of companies. A specific case study illustrates the modelling of collaborative process

versions as instances of VCP2M.

1 INTRODUCTION

Process flexibility is a major challenge that process-

aware information systems have to address before

their definitive acceptance and use in companies

(Reichert and Weber, 2012). This is mainly due to

the more and more dynamic, open and competitive

context in which companies operate, which lead

them to frequently change both their centralized and

collaborative processes. Indeed change support is

important for processes running within a single

company, but also for Collaborative Processes (CPs)

crossing the boundaries of companies. More

precisely, a CP is a set of independent processes,

where several partners are involved in one global

process and each partner has its own process (Aalst,

2000).

(Reichert and Weber, 2012) have proposed a

taxonomy for process flexibility. This taxonomy

serves as a basis for evaluating the ability of systems

and models to support both centralized and

collaborative process flexibility. More particularly,

this taxonomy identifies four types of flexibility: (i)

flexibility by variability, for representing a process

differently, depending on the context of its

execution, (ii) flexibility by adaptation, for handling

occasional situations or exceptions which have not

been necessarily foreseen in process schemas, (iii)

flexibility by evolution, for handling changes in

processes, which require occasional or permanent

modifications in their schemas, and finally (iv)

flexibility by looseness, for handling knowledge

intensive processes whose schemas are not known a

priori and which correspond to non-repeatable,

unpredictable, and emergent processes. Such

processes require loose specifications.

Flexibility of processes has been investigated in

the context of centralized processes. We distinguish

between two different approaches: the variant-based

approach and the version-based approach. In the

variant-based approach, the main notion is the

notion of variant, which is an adjustment at run-time

of a process schema (Rosemann and Aalst, 2007),

(Hallerbach et al., 2010). This approach mainly

deals with flexibility by variability, which is one of

the four types of flexibility introduced in (Reichert

and Weber, 2012). In the version-based approach,

the notion of version has been introduced for

capturing process changes over time (Zhao and Liu,

2007), (Dadam and Reichert, 2009), (Chaâbane,

2012). This approach is interesting since it addresses

flexibility by evolution as the different significant

changes on processes are modelled within process

versions, flexibility by variability since it is possible

Ellouze F., Amine Chaabane M., Andonoff E. and Bouaziz R..

Modelling Flexible Collaborative Process: The VCP2M Approach.

DOI: 10.5220/0005544000560063

In Proceedings of the 12th International Conference on e-Business (ICE-B-2015), pages 56-63

ISBN: 978-989-758-113-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

to model alternative versions, depending on the

context, and flexibility by adaptation if adaptation

can be defined at design-time.

Process flexibility has been less investigated in

the context of CPs. In such a context, flexibility may

be related to the availability of involved processes or

to the update of schema collaboration. Research

efforts about CP flexibility mainly address process

availability in the context of dynamic inter-

organizational processes. Dynamic inter-

organizational processes refer to processes where the

different partners involved are not necessarily

known at design-time, or can evolve at run-time

(Chebbi et al., 2006), (Andonoff et al., 2005). The

provided solutions support finding new partners

offering requested services, along with negotiation,

contracting and service execution in separate or

comprehensive frameworks.

The main contributions addressing the update of

CP schemas have been done in the SOA context

(Boukhedouma et al., 2012a), (Boukhedouma et al.,

2012b). These contributions mainly consider

chained execution and subcontracting CPs, and they

provide some patterns for service adaptation. They

deal with CPs flexibility by evolution only keeping

the last CP schema, but they do not address

flexibility by variability and flexibility by

adaptation.

Therefore, this paper addresses CP flexibility

issue focusing on the update of CP schemas, taking

into account not only chained execution and

subcontracting CPs but also loosely coupled CPs

(Aalst, 2000). It advocates a version-based approach

as versions are known to be a powerful technique to

address process flexibility and more precisely

flexibility by evolution, flexibility by variability and

flexibility by adaptation. In this paper we extend the

VBP2M meta-model (Versioned of Business Process

Meta-Model) (Chaâbane, 2012), which is a previous

contribution for modelling centralized process

flexibility using the versioning technique and

considering the main perspectives of processes.

Moreover, flexible centralized processes modelled

as instances of VBP2M can be graphically

visualized, simulated and validated (Ben Said et al.,

2010) (Ellouze et al., 2013). Unfortunately VBP2M

does not address the flexibility of CPs. Thus we

propose VCP2M (Version of Collaborative Process

Meta Model), an extension of VBP2M supporting

the modelling of versions of CPs.

This paper is organized as follows. Section 2

introduces the background of the paper, i.e., the

version concept and the VBP2M meta-model for

modelling flexible centralized processes. Section 3

presents the necessary concepts for CPs and

illustrates these concepts within the Subsea Pipeline

CP example that will be used throughout the

remainder of the paper. Section 4 is dedicated to the

presentation of VCP2M, an extension of VBP2M for

flexible CPs modelling using versions. More

precisely, this section introduces the VCP2M meta-

model and illustrates how to model two versions of

the Subsea Pipeline example by instantiation of this

meta-model. Finally, section 5 recaps our

contribution and gives some perspectives for future

works.

2 BACKGROUND: MODELLING

FLEXIBLE PROCESSES

This section presents VBP2M (Version of Business

Process Meta-Model), our previous contribution

supporting flexible centralized process modelling

(Chaâbane, 2012). However, this section foremost

introduces the notion of version as it is defined in

database and software engineering fields, before

presenting VBP2M.

2.1 The Version Concept

A version corresponds to one of the significant states

an entity (in the context of the paper, a process, an

activity…) may have during its life cycle.

When created, an entity is described by only one

version. The definition of every new entity version is

done by derivation from a previous one. Such

versions are called derived versions. Derived entity

versions are linked by a derivation link: they form a

derivation hierarchy. Moreover, several versions

may be derived from the same previous one. They

are called alternative versions (or variants).

We defend that the notion of version subsumes

the notion of variant, which rather corresponds to the

different ‘alternative’ states (i.e., states representing

choices) an entity may have during its life cycle.

When considering versions, we also model

‘evolutionary’ states (i.e., states representing the

evolution of an entity, independently from any

choice) in addition to the ‘alternative’ ones. Thus,

with using versions, it is possible to address

flexibility by evolution as the different significant

changes on processes are modelled within process

versions, flexibility by variability since it is possible

to model alternative versions, depending on the

context, and even flexibility by adaptation if

adaptation can be defined at design-time.

ModellingFlexibleCollaborativeProcess:TheVCP2MApproach

2.2 VBP2M

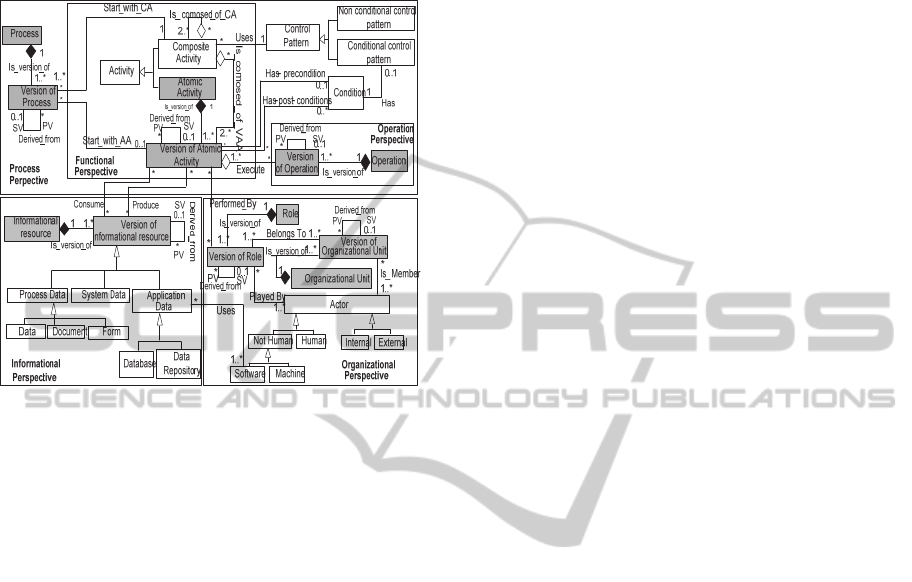

Figure 1 below gives an UML class diagram of

VBP2M.

Figure 1: VBP2M for Modelling Flexible Processes using

Versions.

This meta-model has the following features: it

supports the modelling of the five main perspectives

of processes, and, as defended in (Chaâbane et al.,

2009), it is simple as it only defines the core (basic)

concepts of each of these perspectives. Moreover, it

distinguished between versionable classes (i.e.,

classes for which we handle versions) which are

visualized in grey, from normal classes (i.e., classes

for which we do not handle versions), which are

visualized in white.

The main concepts of VBP2M are Process,

Activity, Control Pattern, Operation, Informational

Resource and Role. A process performs activities

which can be atomic or composite. The first activity

of a process is explicitly linked to it via the

start_with_CA or start_with_AA relationships, and

the next activities are found via the

is_composed_of_CA or is_composed_of_VAA

relationships. A composite activity is composed by

other activities, which may be in turn composite or

atomic, and which are coordinated by control

patterns. Control pattern may be conditional (e.g., if,

while, etc.), or not (e.g., sequence, fork, etc.). An

atomic activity executes one or several operations

(from the operation perspective). It has a start

condition (precondition), final conditions (post-

conditions) and manipulates (i.e., consumes and/or

produces) informational resources (form the

informational perspective). An atomic activity is

performed by role, which can be played by actors

belonging to organizational unit (from the

organizational perspective).

Moreover, a versioning pattern is introduced to

make some classes of VBP2M versionable, i.e., able

to handle versions. For each of these classes, the

versioning pattern permits to model both entity of

the versionable concept (e.g., Process) and

corresponding versions (e.g., Version of Process). In

addition, two relationships are introduced: (i) the

is_version_of relationship links a versionable

concept with its corresponding versions and, (ii) the

derived_from relationship describes version

derivation hierarchy between versions of a same

versionable concept. This later relationship is

reflexive and the semantic of the both sides of the

relationship are: a version (SV) succeeds another

one in the derivation hierarchy and, a version (PV)

precedes another one in the derivation hierarchy.

Regarding versionable concepts, VBP2M

proposes to model versions for concepts belonging

to the five perspectives of processes. The idea is to

keep change history for each concept involved in the

description of the way business is carried out.

Therefore, the versioning pattern is used to model

versions of the following concepts: Process,

Activity, Operation, Informational resource, Role

and Organizational Unit, respectively belonging to

the process, functional, operation, informational and

organizational perspectives of processes. (Chaâbane,

2012) defends the idea that versioning these

concepts is enough to guide companies facing the

fast changing environment in which they are

involved nowadays.

3 COLLABORATIVE

PROCESSES: CONCEPTS AND

RUNNING EXAMPLE

First, this section introduces the main concepts of

CPs and then illustrates these concepts within the

Subsea Pipeline CP, from the TPS Tunisian

petroleum company.

3.1 Concepts for CPs

As indicated in the introduction, a CP is a set of

independent partner processes interacting together to

reach a common goal corresponding to a value-

added service. Such a process is not in control of a

single partner process, it is enacted by the different

partner processes involved in the collaboration.

ICE-B2015-InternationalConferenceone-Business

These partner processes may belong to one or

several companies. If they belong to a single

company, we are in an intra-organizational context

(centralized context), while if they belong to

different companies we are in an inter-organizational

process context (collaborative process context),

crossing the boundaries of each company.

In a CP, the different partner processes playing

different roles in the collaboration exchange

messages which correspond to synchronisation

activities between them (Aalst, 2000). Thus we

distinguish the activities supporting message

exchange, called public activities, from the ones

which do not support message exchange. Public

activities define how the different partner processes

interact together: some of them correspond to the

sending of messages while others correspond to the

receiving of messages. Other activities correspond to

private activities; they are performed to achieve a

specific goal within a partner process (they

correspond to pieces of work of the partner process).

Consequently, for each partner process, we

distinguish between public and private processes

(Chebbi et al., 2006): a public process gathers the

public activities, i.e. the send and receive activities

of the considered partner process, while a private

process gathers the private activities of the

considered partner process, which are local to the

partner.

In addition, we define, for each partner process, a

local view of the CP. This local view is composed of

the (public and private) processes of the considered

partner, and of the public processes of the other

partners to which the considered partner directly

interacts. Finally, we define the global view of the

whole CP as the merge of all the public processes of

the involved partner processes. The section below

will illustrate these notions within the Subsea

Pipeline example.

3.2 Subsea Pipeline CP Example

The Subsea Pipeline CP from the TPS Tunisian

petroleum company involves two partner processes:

TPS, which needs to replace any one of its old

damaged subsea pipeline, and SAROST, which will

be solicited for this replacement. The CP is the

following.

The petroleum company TPS initiates the

process and prepares a Tender Specifications (TS)

describing the requested pipeline replacement, and

submits it to SAROST, a company specialized in

subsea pipeline installing and maintenance. Then,

SAROST carries out a feasibility study and answers

either in a positive way sending back to TPS a quote

for the pipeline replacement, or in a negative way

explaining why it refuses to do the requested job.

When the quote is received and accepted by TPS,

then it prepares an order for replacement and sends it

back to SAROST which proceeds to the subsea

pipeline replacement. To do so, SAROST first

specifies the necessary team and equipment and then

proceeds to the assembling and the welding of pipes

on shore by welders and controller’s inspectors. The

next activity is the laying of pipes offshore by the

divers. Finally, when the installation is over, tests

have to be performed and then an acceptance

certificate is prepared and sent to TPS which signs it

in turn. Note that the assembling and welding, laying

and subsea control have to be repeated until reaching

the pipeline length. Figures 2 and 3 below illustrate

the different private views of partner processes.

To illustrate the concepts introduced in section

3.1 within the Subsea Pipeline example, we give

below the process of TPS in Figure 2, the local view

of the collaboration for TPS in Figure 3 and the

global view of the collaboration for both TPS and

SAROST in Figure 4. The BPMN notation (OMG,

2011) is used to illustrate these concepts.

Section 4 below deals with modelling of versions

of collaborative processes using VCP2M, an

extension of VBP2M taking into account CP

concepts. To illustrate CP version modelling, we

extend the previous example considering a second

version of this CP.

In this new version, TPS subcontracts the activity

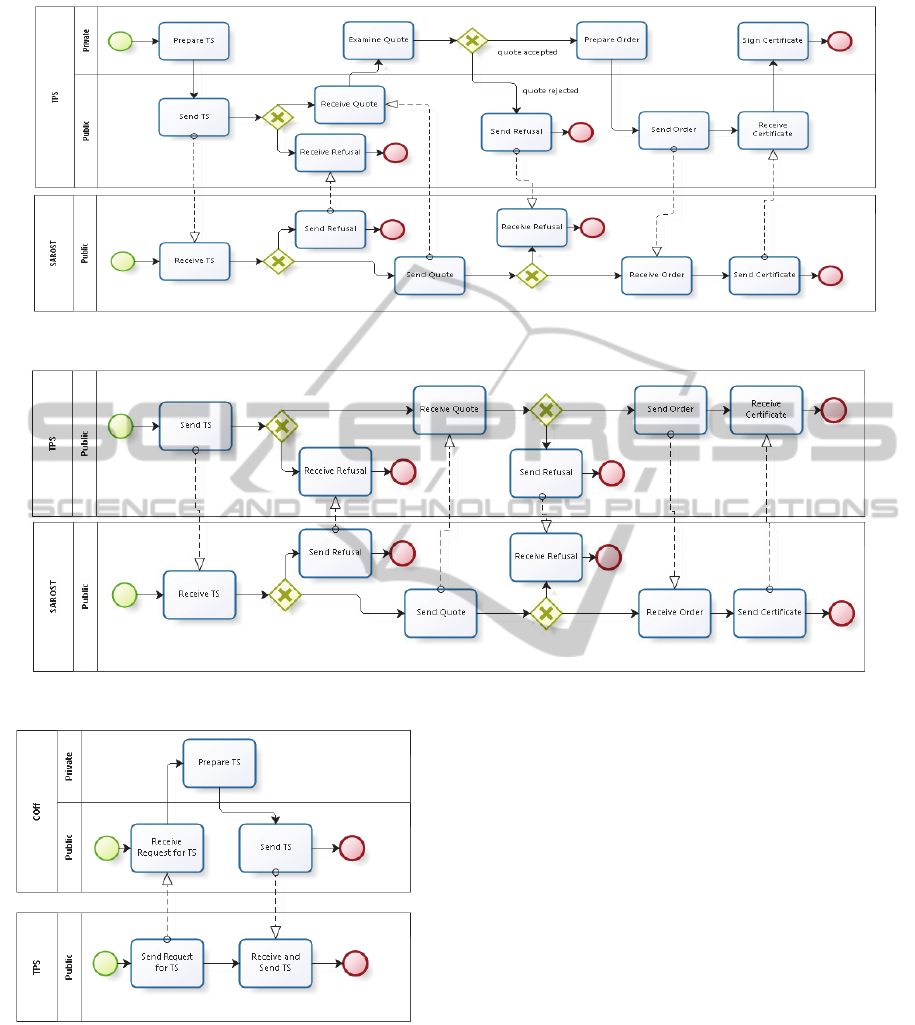

Figure 2: TPS’s Process.

ModellingFlexibleCollaborativeProcess:TheVCP2MApproach

Figure 3: TPS’s Local View.

Figure 4: Global View of the Collaboration for both TPS and SAROST.

Figure 5: COff’s Local View.

of tender specifications preparation to a consulting

office. Thus the new COff (Consulting Office)

partner is added and the TPS’s private activity

Prepare TS is replaced with public activities asking

COff to prepare the tender specification and

receiving the result of this preparation. From the

COff point of view, we have two public activities:

receiving a tender specification request and sending

the prepared tender specification. Note that the

public activity Receive and Send TS is a second

version of the activity Send TS from the first version

of the collaboration. In order to illustrate the notion

of local view in a comprehensive way, we provide in

Figure 5 COff’s local view of the collaboration.

The global view of this second collaborative

process version consists of the public process of

TPS, the public process of SAROST and the public

process of COff.

4 MODELLING VERSIONS OF

COLLABORATION USING

VCP2M

This section presents the VCP2M meta-model for

modelling flexible CPs. It also illustrates how to use

the meta-model to define the two versions of the

Subsea Pipeline CP.

ICE-B2015-InternationalConferenceone-Business

4.1 The VCP2M Meta-model

Figure 6 below presents the new obtained meta-

model in terms of UML classes and relationships.

Added classes to VBP2M are in grey while added

relationships are in blue.

The added concepts in VCP2M are

Collaboration, Message, Partner Role, Public

Atomic Activity, Private Atomic Activity,

Component and Event. Note that the notion of view

is not explicitly represented as it is deduced from the

public and private processes of partners involved in

the collaboration. In the same vein, public and

private processes are not represented within a

specific concept as they can be deduced from the

public and private activities of the corresponding

process.

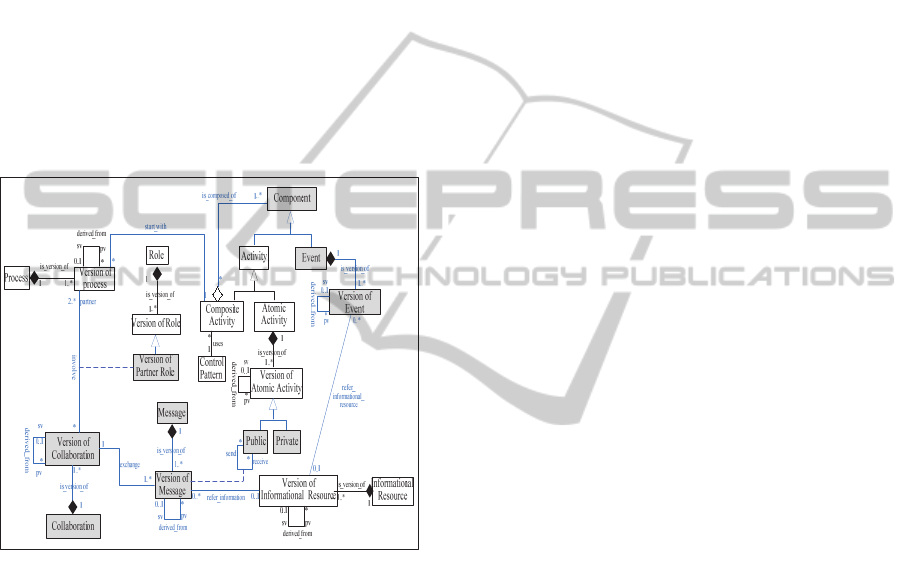

Figure 6: VCP2M for Modelling Flexible CPs using

Versions.

First, we have extended VBP2M with the concept of

event, which is essential for modelling both intra-

organizational and collaborative processes. Indeed,

events define when processes or activities have to be

executed: VBP2M models this dimension only

considering availability of informational resources

(Chaâbane, 2012), but it is undeniable that the event

notion is broader and has to be introduced in the

meta-model as a first class citizen concept. Thus we

introduced the notions of event and of version of

event, this latter being introduced to model the

different ways an event can be concretized in a

process. We consider two specific properties for

versions of events: its semantics and when it occurs.

More precisely, an event may be a temporal event, a

message event, an exception event, a cancelation

event, a none event (without any specific semantics).

On the other side, an event may occur at the

beginning of process execution (it is a start event),

at the end of process execution (it is an end event),

or it may occur in the course of process execution (it

is an intermediate event). In addition, a message

event can also refer to an information resource,

attached to the message. As a consequence of event

and version of event notions, we introduced the class

Component as a super class of the classes Activity

and Event, along with the relationship

is_composed_of to model the process and functional

perspectives of process versions.

Then we have added new concepts to model

versions of CPs. We have defined the classes Private

Atomic Activity and Public Atomic Activity as

subclasses of Version of Atomic Activity to model

versions of public and private activities for

processes. Regarding collaborations, we have

introduced the classes Collaboration and Version of

Collaboration. In addition, collaborations involve

two or more partner processes, each playing a role in

the collaboration. This is described within the

relationship involve and the associative class Version

of Partner Role, defined as a subclass of the class

Version of Role. Finally, collaborations are achieved

by exchange of messages, i.e., by sending and

receiving messages. Thus we introduced the classes

Message and Version of Message. More precisely,

public atomic activities are source or target of

messages (represented using the receive and the send

relationships). Each message may refer to one or

more informational resources.

To sum up, we manage versions for only

collaborations, messages, and roles that partner

processes play in collaborations. Indeed, we have to

keep changes history representing both evolution

and variability, to define the way collaborations are

modified according to the moving economic context

in which participating partners are involved. In the

same vein, we have to keep the way messages

change (mainly when the referred informational

resources change) along with the changing roles that

partners can play in collaborations.

4.2 Subsea Pipeline Collaborative

Process Modelling using VCP2M

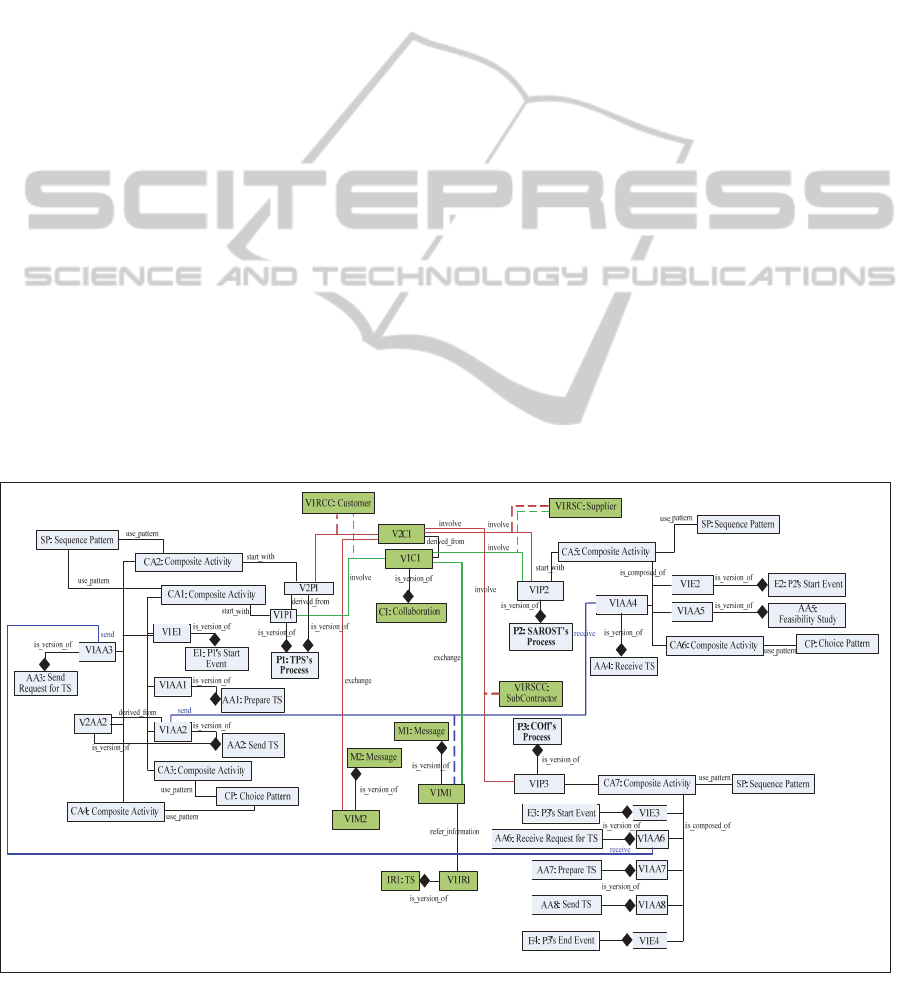

This sub-section gives in Figure 7 a partial

instantiation of VCP2M to model the two versions

of the Subsea Pipeline CP presented in section 3.2.

The first version of the CP (identified by V1C1 in

Figure 7), involves two partners (versions of

processes), respectively V1P1 (which refers to the

first version of the TPS process) and V1P2 (which

ModellingFlexibleCollaborativeProcess:TheVCP2MApproach

refers to the first version of the SAROST process).

V1P1 starts with a composite activity, CA1, which is

a sequence involving the first version of TPS’ start

event, the activities to be performed, and the first

version of TPS’ end event. Due to lack of space and

for clarity reasons, we only show the start event of

TPS, V1E1, along with the two first activities of

TPS: Prepare TS represented as the version V1AA1,

and Send TS, represented as the version V1AA2. We

do not detail the others activities but just indicate

that another composite activity is used to indicate

that, after Send TS, there is a choice to perform.

Regarding V1P2, its starts with a composite activity,

CA5, which is a sequence involving the first version

of SAROST’ start event, the activities to be

performed, and the first version of SAROST’ end

event. For the same reasons, we only focus on

SAROST’ start event and the Receive TS and

Feasibility Study activities, represented as versions

respectively denoted as V1AA4 and V1AA5.The

first version of the collaboration, V1C1, involves the

two versions of TPS’s and SAROST’s processes,

V1P1 and V1P2 (green relationship), and each of the

process plays a specific role in the collaboration

(respectively customer and supplier). In addition, the

message M1 is exchanged in this collaboration

(green relationship); it refers to the V1IR1

informational resource and it is involved in the

receive/send relationship (between V1AA2 and

V1AA4), represented in blue.

The second version of the collaboration involves

(red relationship) a second version of TPS’s process

(V2P1), the first version of the SAROST’s process

(V1P2, it means it is the same version of this process

involved in the two versions of the collaboration),

and the first version of the COff’s process (V1P3).

This version is a sequence of P3’ start event, three

versions of the Receive Request for TS, Prepare TS,

and Send TS activities, and P3’ end event. Regarding

V1P2, it is a sequence of P1’ start event, V1AA3

(first version of Send Request for TS activity), and

V2AA2 (second version of Send TS activity, derived

from V1AA2). Because of space limitation, we do

not detail anymore this process version. In this

collaboration, two messages are exchanged (red

relationship): V1M1 exchanged between TPS and

SAROST as in the first collaboration version, and

V1M2, correspond to a message exchanged between

the two public activities Send Request for TS

(V1AA3) from TPS and Receive Request for TS

(V1AA6) from COff (represented in blue).

5 CONCLUSIONS

This paper has presented VCP2M, a meta-model

addressing CP flexibility issue. VCP2M extends

VBP2M, a previous contribution for modelling

flexible business processes using versions. More

precisely, VCP2M extends VBP2M introducing

Figure 7: Partial Instantiation of VCP2M.

ICE-B2015-InternationalConferenceone-Business

necessary concepts for modelling versions of

collaborations such as participant, message, private

and public processes for collaborations. The paper

also highlights how VCP2M can be instantiated to

model versions of collaboration for the Subsea

Pipeline example.

The advantages of VCP2M are the following.

First, the notion of version is well-suited to address

process flexibility in a collaborative context since it

supports the modelling of process evolution,

variability and adaptation. Second, VCP2M

considers chained, subcontracting and loosely

coupled CPs whose control may be centralised or

distributed (Breu et al., 2013). Third, VCP2M

defines the core concepts of collaborative process

modelling (Malekan and Afsarmanesh, 2013).

As future works, we have planned to address

dynamic aspects of VCP2M defining operations for

both managing collaboration versions, and

automatically deducing from public and private

activities of processes, the corresponding private and

public processes along with their local and global

views. In addition we will also introduce the notion

of context for collaborations in order to feature them

and ease their reuse.

REFERENCES

Aalst, W. M., 2000. Loosely coupled inter-organizational

workflows: modeling and analyzing workflows

crossing organizational boundaries, Information &

Management, vol. 37, n°2, pp. 67–75.

Aalst, W. M., 2004. Business Process Management

Demystified: a tutorial on Models, Systems and

standard for workflow Management, Lectures on

concurrency and Petri Nets, Advances in Petri-Nets,

LNCS 3098, 2004. pp 1-65.

Hallerbach, A., Bauer, T., Reichert, M., 2010. Capturing

Variability in Business Process Models: the Provop

Approach. Software Maintenance, vol. 22, n°6-7, pp.

519–546.

Andonoff, E., Bouzguenda, L., Hanachi, C., 2005.

Specifying Web Workflow Services for Finding

Partners in the Context of Loose Inter-organizational

Workflow, Int. Conference on Business Process

Management, Nancy, France, pp. 120–136.

Ben Said, I., Chaabane, MA., Andonoff, E., 2010. A

Model Driven Engineering Approach for Modelling

Versions of Business Processes using BPMN. Int.

Conference on Business Information Systems, Berlin,

Germany, pp. 254–267.

Boukhedouma, S., Oussalah, M., Alimazighi, Z., Tamzalit,

D., 2012. Service based Approach for Adaptability of

Workflow Models - the Subcontracting Architecture.

Int. Conference on Enterprise Information Systems,

Wroclaw, Poland, pp. 224–231.

Boukhedouma, S., Oussalah, M., Alimazighi, Z., Tamzalit,

D., 2012. Adaptability of Service Based Workflow

Models – the Chained Execution Architecture. Int.

Conference on Business Information Systems, Vilnius,

Lithuania, pp. 96–107.

Breu, R., Dustdar, S., Eder, J., Huemer, C., Kappel, G.,

Kopke, J., Weber, B., 2013. Towards Living Inter-

Organizational Processes. Int. Conference on Business

Informatics, Vienna, Austria, pp. 363–366.

Chebbi, I., Dustdar, S., Tata, S., 2006. The view-based

approach to dynamic inter-organizational workflow

cooperation, Data & Knowledge Engineering, vol. 56,

n°2, pp. 139–173.

Chaâbane, MA., Andonoff, E., Bouzguenda, L., Bouaziz,

R., 2009. Versions to Address Business Process

Flexibility Issue, Int. Conf. on Advances in Databases

and Information Systems, Riga, Latvia, pp. 2–14.

Chaâbane, MA., 2012. De la modélisation à la

spécification des processus flexibles: une approche

basée sur les versions. PhD thesis dissertation.

University of Toulouse, September 2012.

Dadam, P., Reichert, M., 2009. The ADEPT Project: a

decade of research and development for Robust and

Flexible Process Support. Computer Science – R&D,

vol. 23, pp. 81–97.

Fdhila, W., Rinderle-Ma, S., Reichert, M., 2012. Change

propagation in collaborative processes scenarios. Int.

Conference on Collaborative Computing, Pittsburgh,

Pennsylvania, USA, pp. 452–461.

Ellouze, F., Chaâbane, M.A., Bouaziz, R., Andonoff, E.,

2013. Modelling and Simulation Versions of Business

Process using Petri Nets. Int. Conference on Advances

in Databases, Knowledge, and Data Applications,

Sevilla, Spain, pp. 150-158.

OMG 2011. Business Process Model and Notation

(BPMN), Version 2.0. Available at: http://www.omg.

org/spec/BPMN/2.0/.

Reichert, M., Weber, B., 2012. Enabling Flexibility in

Process-Aware Information Systems: Challenges,

Methods, and Technologies. Springer (eds).

Rosemann, M., van der Aalst, W., 2007. A Configurable

Reference Modeling Language. Information Systems,

vol. 32, n°1, pp. 1–23.

Malekan, S., Afsarmanesh, H., 2013. Overview of

Business Process Modeling Languages Supporting

Enterprise Collaboration. Int. Conference on Business

Modeling and Software Design, Noordwijkerhout, The

Netherlands, pp. 24-45.

Zhao X., Liu, C., 2007. Version Management in the

Business Change Context, Int. Conference Business

Process Management, Brisbane, Australia, pp 198–

213.

ModellingFlexibleCollaborativeProcess:TheVCP2MApproach
