Modeling Authorization Policies for Web Services in Presence of

Transitive Dependencies

Worachet Uttha

, Clara Bertolissi

1,2

and Silvio Ranise

LIF, CNRS UMR 7279 & AMU, Marseille, France

Fondazione Bruno Kessler, Trento, Italy

Keywords:

Access Control, Transitive Access, Security Policy, OrBAC, Web Services, XACML.

Abstract:

Access control is a crucial issue for the security of Web Services. Since these are independently designed,

implemented, and managed, each with its own access control policy, it is challenging to mediate the access

to the information they share. In this context, a particularly difﬁcult case occurs when a service invokes

another service to satisfy an initial request, leading to indirect authorization errors. To overcome this problem,

we propose a new approach based on a version of ORganization Based Access Control (OrBAC) extended

by a delegation graph to keep track of transitive authorization dependencies. We show that Datalog can be

used as the speciﬁcation language of our model. As a byproduct of this, an automated analysis technique

for simulating execution scenarios before deployment is proposed. Finally, we show how to implement an

enforcement mechanism for our model on top of the XACML architecture. To validate our approach, we

present a case study adapted from the literature.

1 INTRODUCTION

In the Service Oriented Architecture (SOA)

paradigm, applications can be given a standard

interface and stored as reusable units for compo-

sition. This loosely-coupled architecture makes

platform-independent computing possible but sub-

sumes all the problems and issues of distributed

computing (such as non-determinism and synchro-

nization) while adding, among others, a number of

additional problems related to the dependability of

the services. Dependability refers to the property

of a system by which some trust can be placed

on the delivered service. Since SOA systems are

usually obtained by composition of simpler services,

dependability is the result of the capability of the

component services to deliver certain results and the

way these results are exchanged among the services.

This aspect is particularly important when security

properties come into the picture and authentication or

authorization of users with respect to the integrated

services must be enforced. While for authentication,

there exist standardized and thoroughly analyzed

solutions—such as the Single-Sign On (Armando

et al., 2012) —for authorization, the situation is much

less satisfactory. One of the main problems is due to

the presence of transitive dependencies, which can be

explained as follows. In the processing of a request,

a service may call other services to complete its

computations. Even though the user had the rights to

access the original service, he/she might not have the

permissions to access the invoked services, leading

to indirect authorization errors. In general, these

errors are difﬁcult to prevent through testing once the

integrated services have been deployed, because of

the large number of possible execution scenarios.

The ﬁrst contribution of this paper is a frame-

work for the modeling of access control policies—at

design time—of Web Services, an important class of

SOA applications. For concreteness, we develop our

ideas in the context of designing and implementing

portals, i.e. specially designed services bringing in-

formation together from a set of heterogeneous ser-

vices in a uniform way. The portal plays the role of

a mediation service, encharged to integrate and medi-

ate the exchange of information among the various

services. Following (Brown, 2008), a portal is the

ideal place where to locate the policy enforcement

point which, together with a module for messaging,

provides the interface to both users and the different

services protected by their own authorization policy

(see, Figure 1). Since the messaging module inter-

cepts all messages ﬂowing among the integrated ser-

vices, the policy enforcement point can be invoked

293

Uttha W., Bertolissi C. and Ranise S..

Modeling Authorization Policies for Web Services in Presence of Transitive Dependencies.

DOI: 10.5220/0005548502930300

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 293-300

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

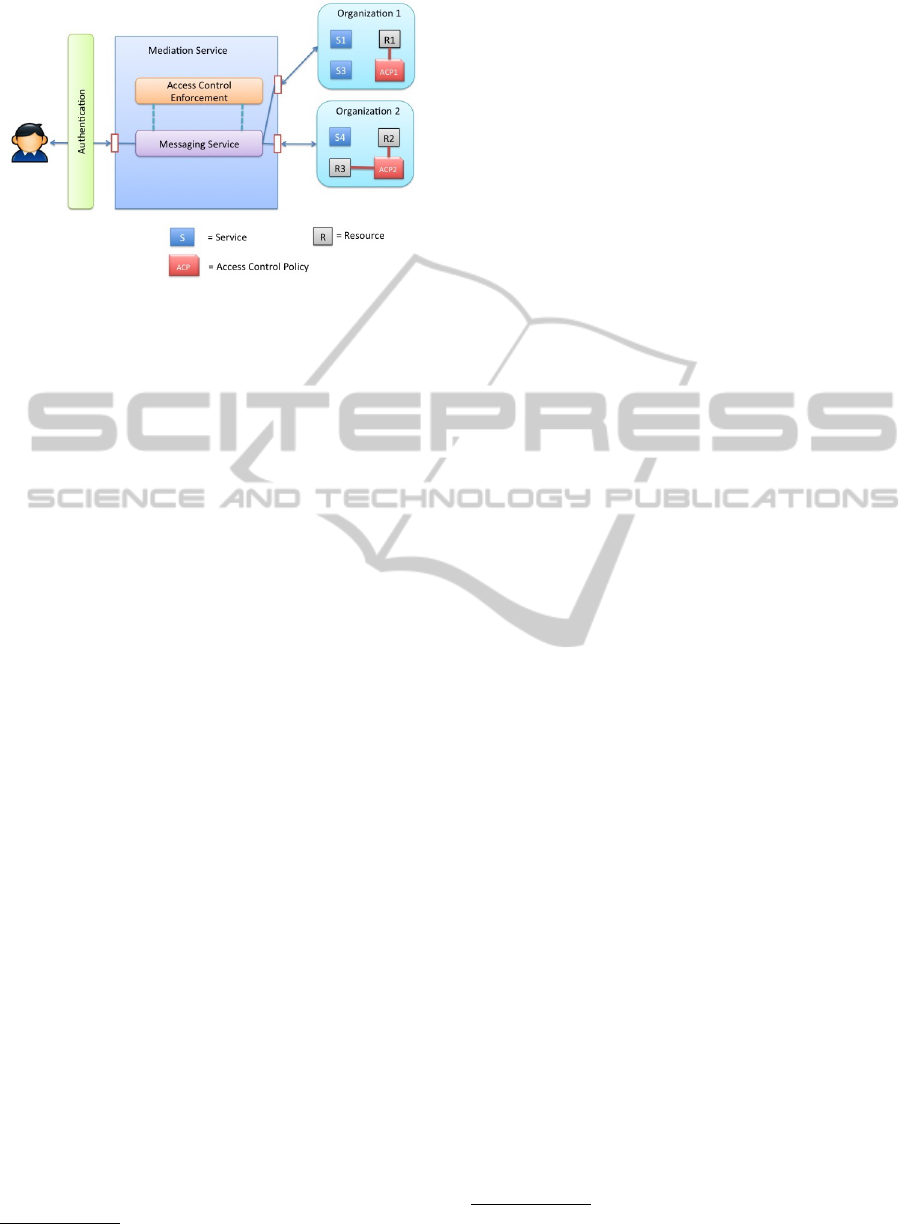

Figure 1: Access control with a mediation service.

whenever needed so as to enforce the appropriate ac-

cess control policy and to record the transitive calls.

For simplicity, we assume that the topology of the sys-

tem (i.e. how the integrated services may invoke each

other) is known and ﬁxed.

Technically, we develop our approach by extend-

ing the ORganization Based Access Control (OrBAC)

model (Y. Deswarte, 2009) with a delegation graph

for transitive dependencies. Following a long tradi-

tion (see, e.g., (Li and Mitchell, 2003)), we use Data-

log (Ceri et al., 1989) as the speciﬁcation language in

which to express our model. As a byproduct of choos-

ing Datalog, our framework supports the automated

analysis of execution scenarios through the invoca-

tion, off-the-shelf, of available Datalog engines (in

our experiments, we use (Carbonnelle, 2014)). The

main advantage of our analysis technique is twofold.

First, there is no need to implement a prototype to

experiment with the system behavior since it is pos-

sible to perform the simulation of the system from an

abstract design before its deployment. Second, some-

times the code of some of the integrated services may

not be easily accessible or may cost money to be in-

voked; it is indeed desirable to be able to build an ab-

stract speciﬁcation that can be used to predict (some

of) the outcomes of the system without incurring in

extra costs for testing. Additionally, the environment

in which the various services will be run may not be

easily accessible; thereby making the testing of the

composed system very difﬁcult, if possible at all.

The framework for modeling access control poli-

cies and the related automated analysis technique al-

though a necessary ﬁrst step in producing high qual-

ity SOA applications, are insufﬁcient if not supported

by adequate run-time support for the enforcement of

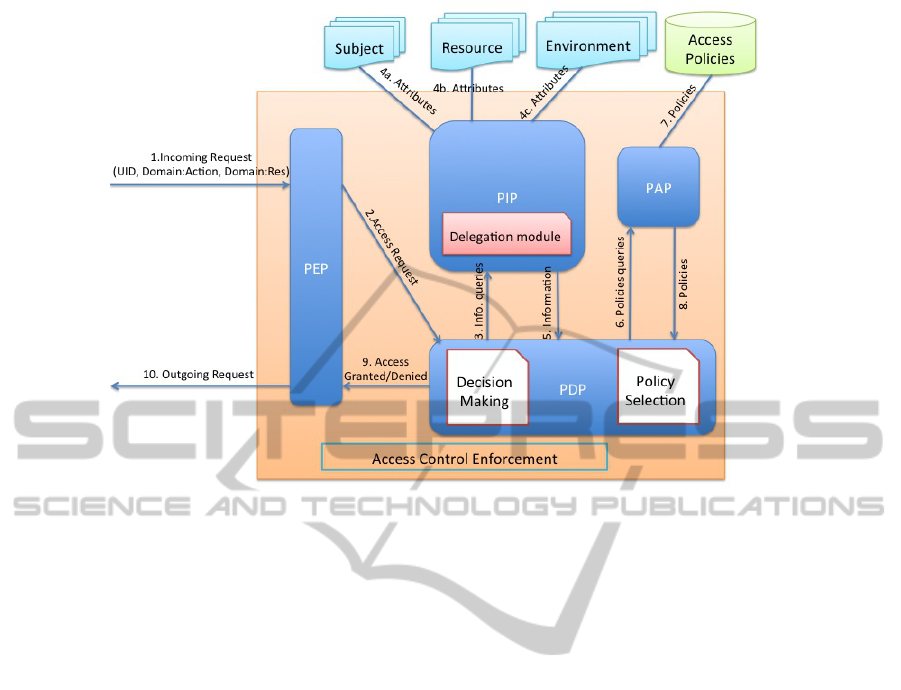

policies in deployed systems. The second contribu-

tion of this paper is the description of an extension

of the XACML architecture

to support the enforce-

http://docs.oasis-open.org/xacml/3.0/xacml-3.0-core-

ment of access control policies in presence of transi-

tive dependencies. The extension consists of incorpo-

rating the construction of the delegation graph in the

policy information point of the XACML architecture

for keeping track of delegated authorization rights in

transitive chains of service invocations. We have im-

plemented the architecture on top of the WSO2 plat-

form,

an open source middle-ware platform for de-

veloping web service solutions, and we brieﬂy report

on our experience in using it with a case study.

Plan of the paper. Section 2 describes the access con-

trol problem with transitive dependencies and illus-

trates it on a case study adapted from (Fischer and

Majumdar, 2008). Section 3 describes our formal

modeling technique to solve the access control prob-

lem in presence of transitive dependencies. Section 4

shows how to use Datalog as a speciﬁcation language

for the model previously developed and explains how

to invoke a Datalog engine to perform the (symbolic)

simulation of scenarios. Section 5 describes the im-

plementation of our solution and brieﬂy discusses our

experience with the case study introduced in Sec-

tion 2. Section 6 discusses the related work and

Section 7 concludes the paper. An extended version

of this paper containing the complete Datalog model

of the case study is available at http://pageperso.lif.

univ-mrs.fr/∼worachet.uttha/dl/secrypt2015-full.pdf.

2 CASE STUDY

To illustrate the transitive dependency problem, we

have developed a case study inspired from (Fischer

and Majumdar, 2008). We consider 4 collaborating

yet independent medical services: the clinical man-

agement service managing the scheduling of patients,

the laboratory information system tracking laboratory

tests and their results, and the patient records service

maintaining historical data about patients health. In

addition, the web portal provides convenient web ac-

cess to the previous three services. It does not store

any conﬁdential data locally. Instead, when the user

requests a page, the portal makes service calls to the

other services using the requesting user’s attributes.

Each service has its own access control policy

that is managed independently. Therefore, several

different models of access control may have to co-

habit and interact in the case of transitive calls (as de-

tailed in Section 3). For such a kind of distributed,

dynamic environments, the classical Role Based Ac-

cess Control (RBAC) model shows its limitations. We

spec-os-en.html

http://wso2.com

SECRYPT2015-InternationalConferenceonSecurityandCryptography

294

Figure 2: Topology of the case study in Section 2 with an

example of transitive dependency (red path).

consider here a more general model called Category-

Based Access Control (CBAC) model (Bertolissi and

Fern

andez, 2014), where a category is any of sev-

eral distinct classes or groups to which subjects may

be assigned. CBAC is deﬁned as a meta-model of

access control that can be instantiated with several

known models, e.g. with RBAC if the indirection be-

tween subjects and permissions is a set of roles, or

Attributes Based Access Control (ABAC) if autho-

rization privileges are based on user’s credentials. In

our case study, each service has a set of registered

users to which categories are assigned according to

e.g. their age, diploma, qualiﬁcations, etc. Permis-

sions are then associated to each category. For in-

stance, for Clinical Management we have the cate-

gory CM Doctor to which a user is assigned if she/he

has a diploma in Medicine or his/her speciality is

physician. The privileges associated to this category

are consulting a ﬁle in vitals and care orders services.

The transitive dependencies problem in the medi-

cal scenario may occur e.g. when a user requests from

the Web portal the access to some of his medical data

such as the care orders prescribed by its physician.

In this case, for answering the initial request, the ser-

vice Care Orders may need to invoke the service Test

Orders located in Laboratory to retrieve some details

about a test ordered by the doctor. As each organi-

zation is protected by its own access control policy,

the requester may have the right to make a call to the

Clinical Management but this does not mean that he

has the right to invoke the Laboratory to retrieve the

test’s results. We show this example of transitive call

in red in Figure 2.

3 OUR FORMAL MODEL

In order to solve the problem mentioned in section 2,

we will develop a formal model based on the Organi-

zation Based Access Control (OrBAC) model (Kalam

et al., 2003).

In OrBAC it is possible to handle simultaneously

several security policies associated with different or-

ganizations that can be seen as organized groups of

activities or groups of services. Each security policy

is deﬁned for and by an organization and it is possi-

ble to handle simultaneously several security policies,

since their speciﬁcation is parametrized by the orga-

nization.

Although the OrBAC model can deal with the

speciﬁcation of policies for organizations or sub-

organizations, the transitive access request is still not

solved. In distributed environments, a subject may

be recognized in an organization but it may not be

known outside it. We will introduce the delegation of

authority in order to overcome this issue. Moreover,

in order to increase ﬂexibility w.r.t standard OrBAC

which structures subjects into roles as in RBAC, in

our approach we structure the subjects in a general en-

tity called category (as in (Bertolissi and Fern

andez,

2014)). Categories are associated to users on the base

of the credentials they own, and permissions are as-

signed to each category.

Therefore, in our extended OrBAC model we have

the following main entities:

• Organization (denoted org

, org

, . . . ). can be

seen as an organized group of activities (such

as Clinical management, Laboratory and Patient

Records in our case study) or it can be seen as an

organized group of services (such as the Web por-

tal in the case study).

• Subjects and Categories. The entity Subject (de-

noted s

, s

, . . . ) is an active entity, (i.e. a user

or an organization). Subjects that have the same

attributes’ value or satisfy same conditions belong

to the same group, called Category (denoted cat

cat

, . . . ) and have the same permissions.

• Objects and Actions

. Objects (denoted o

. . . ) are passive entities such as data ﬁles, pa-

tient’s records, etc. Action entities (denoted act

act

, . . . ) contain computer actions such as ”read”,

”write”, ”send” or ”print”.

The access control policy is modeled using the

predicate Permission(org, cat, act, o) that speciﬁes

For easing the notation, we do not consider the abstrac-

tion of objects and actions as in the original OrBAC model,

but this can be easily accommodated by adding 2 extra en-

tities and the corresponding relations.

ModelingAuthorizationPoliciesforWebServicesinPresenceofTransitiveDependencies

295

the permissions between categories, actions and ob-

jects, while the evaluation of requests is modeled us-

ing the predicate Is permitted(s, act, o) that allows to

derive permissions between subjects, actions and ob-

jects. The Subject-Category assignment is modeled

using the predicate Empower(org, s, cat).

In organization org, a subject s has a permission to

perform an action act on an object o if (i) s is associ-

ated to a category cat in the organization org and (ii)

the organization org grants the category cat the per-

mission to perform the action act on the object o. The

derivation of permissions is modeled by the following

rule:

∀org, ∀cat, ∀s, ∀o, ∀act,

Permission(org, cat, act, o) ∧ Empower(org, s, cat)

→ Is permitted(s, act, o) (1)

Subject, action and object attributes are mod-

eled by a set of binary predicates having the

form org attribute(entity, value). For instance

CM experience(David, 5) means that David’s work

experience in Clinical Management is of 5 years. We

can model the Subject-Category assignment accord-

ing to the attributes of the subject as follows:

∀org, ∀cat, ∀s,

Empower(org, s, cat) ← org attr

(s, val

)∗

org attr

(s, val

) ∗ ··· ∗ org attr

(s, val

) (2)

Where * can be disjunction(∨), conjunction (∧) or a

mixture of both.

As our system is distributed across several organi-

zations, each having a different authorization domain,

we have deﬁned a delegation policy specifying the

mapping of categories belonging to different autho-

rization domains. This is formalized by a delegation

graph in the form of Directed Acyclic Graph (DAG)

that describes the way a category may be delegated

(see Fig. 3). Each node represents a service autho-

rization domain that can delegate categories (and thus

Figure 3: Delegation graph for the case study in Section 2.

permissions) to another. This supposes that an agree-

ment on a set of categories that are allowed to be del-

egated has been previously reached between the dif-

ferent participants.

The formal representation of the delegation graph

is a logical predicate that takes four parameters Del-

egate(org1, cat1, org2, cat2) that means the category

cat1 from organization org1 is mapped to the cate-

gory cat2 from the organization org2. The delegation

graph is of crucial importance to determinate access

request decisions in the case of transitive service in-

vocation. The derivation of permissions in the case of

a service invoking another service outside of its orga-

nization is modeled by the following rule:

∀org1, ∀org2, ∀cat1, ∀cat2, ∀s, ∀o, ∀act,

Empower(org2, s, cat2)∧

Permission(org1, cat1, act, o)∧

Delegate(org1, cat1, org2, cat2)

→ Is permitted(s, act, o) (3)

The rule above means that a subject s has a permis-

sion to perform an action act on an object o if (i) s

is associated to a category cat2 in the organization

org2, (ii) a category cat2 from the organization org2

is mapped to the category cat1 in the organization

org1 and (iii) the organization org1 grants the cate-

gory cat1 the permission to perform the action act on

the object o.

4 AUTOMATED ANALYSIS OF

EXECUTION SCENARIOS

Our approach can be validated through declarative

programming, e.g., using a language such as Datalog

based on facts, rules and queries with built-in support

for backtracking.

Datalog. Facts are represented as n-ary relations of

the form f act(t

, t

, ..., t

) where each t

is either a

constant or variable. Rules take the form Head :

−Body, where the head is a fact and the body is a

conjunction of facts, all of which need to be satisﬁed

so that the head of the rule can succeed. A clause is

either a fact or a rule. A Datalog program is a ﬁnite set

of clauses. Datalog also allows one to ask questions,

for instance ? − f act(t

, t

, ..., t

) models a query for

verifying that the considered fact holds. When im-

plementing in Datalog, instead of specifying how to

achieve a certain goal in a certain situation, we spec-

ify what the situation (rules and facts) and the goal

(query) are and let the Prolog interpreter derive the

answer true/false for us. For a thorough review on

Datalog, we refer the reader to (Ceri et al., 1989).

SECRYPT2015-InternationalConferenceonSecurityandCryptography

296

Several techniques have been proposed for the efﬁ-

cient evaluation of Datalog programs; see (Abiteboul

et al., 1995) for an introduction.

Example of Queries on the Case Study. We

show now how the medical center case study can be

speciﬁed and validated through Datalog. We con-

sider the four organizations Web portal(wp), Clin-

ical Management(cm), Laboratory(la) and Patient

History(ph). User’s attributes are represented by

facts, such as org(Bob, cm), role(Bob, cm doctor),

speciality(Bob, dentist), specifying Bob’s organiza-

tion, role and speciality, respectively.

Each organization policy assigns subjects to cate-

gories (according to the subject’s attributes). The Dat-

alog rules allowing to deﬁne such assignments may be

as following:

cat(wp,U,wp_nurse) :- role(U, nurse).

cat(cm,U,cm_senior_doctor) :-

cat(cm,U,cm_doctor),

experience(U,Exp), Exp >= 5.

The ﬁrst rule means that a subject U is assigned

to category wp

nurse in Web Portal if his/her role

is nurse. The second rule means that for being as-

signed to the category cm senior doctor in Clinical

Management, the subject must belong to the cate-

gory cm doctor and have a work experience greater

or equal to 5 years.

In case of a transitive call, we need to deter-

mine if a service is required to invoke another ser-

vice to satisfy a request or not. For that, we have de-

ﬁned the fact depends on(service1, service2). When

service1 6= service2, this means that service1 uses

service2 to answer to the initial request, otherwise

service1 is independent. Moreover, we use the

fact belong to(service, organization) to determine to

which organization a service belongs to. To answer

the transitive request that we consider in Figure 2,

the careOrders service located in Clinical Manage-

ment needs to invoke testOrders service that belongs

to Laboratory. This corresponds to the Datalog code

below:

depends_on(careOrders_service,

testOrders_service).

belong(careOrders_service, cm).

belong(testOrders_service, la).

We may have invocations that need only local

evaluation and invocations that are global (inter-

domain). In the last case we have to take into account

transitive dependencies. This is done using recursion

to compute the delegation chain. We have two main

cases:

1. Service 1 invokes service 2 from another organi-

zation and service 2 is independent. Here, one

step of delegation is required.

2. The transitive invocation chain is longer than 2 in-

vocations, that is at least 2 steps of delegation are

required. As an example, consider a service 1 that

invokes a service 2 which in turn invokes an inde-

pendent service 3, the three services being from

different organizations. We need to consider this

case because service 2 invokes service 3 on behalf

of service 1 and not on behalf of itself, which is

different from the ﬁrst case.

We show below an example of access request eval-

uation where Bob from Web Portal tries to access a

Care Orders Service ﬁle located in Clinical Manage-

ment. Firstly the system determines Bob’s organiza-

tion and evaluates his attributes in order to resolve

a category for Bob. Then, it checks the organiza-

tion that owns the requested resource. If the subject’s

organization is different from the resource organiza-

tion, a delegation step is needed in order to deter-

mine her/his permissions. If transitive dependencies

are present, as it is the case in this example with Care

Orders Service depending from Test Orders Service,

the delegation chain is computed (see point 2. above).

The query returns True if access rights are correctly

propagated through the chain. It returns False if a

denial of access is found somewhere in the path of

involved services.

>>> request = is_permitted(’bob’,’read’,

’careOrders_service’)

>>> print(len(request) > 0)

New fact : org(’bob’,’wp’)

New fact : role(’bob’,’doctor’)

New fact : cat(’wp’,’bob’,’wp_doctor’)

New fact : empower(’wp’,’bob’,’wp_doctor’)

New fact : depends_on(’careOrders_service’,

’testOrders_service’)

New fact : belong(’careOrders_service’,’cm’)

New fact : !=(’wp’,’cm’) is True

New fact : delegate(’cm’,’cm_doctor’,’wp’,

’wp_doctor’)

New fact : permission(’cm’,’cm_doctor’,’read’,

’careOrders_service’)

...

New fact : is_permitted(’bob’,’read’,

’careOrders_service’)

New fact : _pyD_query1()

True

Termination and Complexity. Since in our model,

authorization queries are mapped to Datalog queries,

we can study the problem of answering authoriza-

tion queries by reusing well-known results (Ceri et al.,

1989) about Datalog.

A ﬁrst simple albeit desirable property of au-

thorization queries is their ﬁniteness, i.e. any au-

thorization query admits ﬁnitely many answers. A

well-known result in (Ceri et al., 1989) says that all

the relations deﬁned in a Datalog program are ﬁ-

ModelingAuthorizationPoliciesforWebServicesinPresenceofTransitiveDependencies

297

nite if the following conditions hold: (i) unit clauses

(i.e. clauses composed of a single literal) are always

ground; (ii) every variable that appears in the head

of a rule also appears in a positive literal in the body

of the rule, and (iii) no negative literal appears in the

body of a rule. By construction, the Datalog programs

specifying our models satisfy all these conditions.

Proposition 1. In our model, authorization queries

admit only ﬁnitely many answers.

Termination of the process of answering queries is

guaranteed by using a tabled logic programming algo-

rithm (Chen and Warren, 1996), used by the pyData-

log (Carbonnelle, 2014) engine that we have used in

our experiments.

Proposition 2. In our model, answering authoriza-

tion queries always terminates.

Concerning complexity, recall that there are three

types of complexity characterizations of answering

Datalog queries (Ceri et al., 1989): data complexity

(when rules are ﬁxed, whereas facts and goal are an

input); expression complexity (facts are ﬁxed, rules

and goal are an input); and combined complexity

(rules, facts, and goal are an input). The rules in our

Datalog program are all ﬁxed since the topology of

the system (together with the delegations) is ﬁxed, the

authorization policies are also given as they are not al-

lowed to change during the operation of the system.

What may change are the assignment of subjects-

category and the assignment of subject-attributes that

depend on the user’s proﬁle. This means that, in our

context, the right complexity characterization to con-

sider is data complexity. As a consequence, we can

state the following result as a corollary of the polyno-

mial time data complexity in (Dantsin et al., 2001).

Theorem 1. In our model, answering authorization

queries takes polynomial time.

5 ARCHITECTURE AND

IMPLEMENTATION OF THE

ENFORCEMENT MECHANISM

So far, we have considered the modeling and analysis

of authorization requests in web service applications

at design time. In this section, we discuss the run-time

enforcement of our access control model by extending

the standard XACML architecture. We also discuss an

implementation of the proposed enforcement mecha-

nism on top of the WSO2 Identity Server,

which is

part of an open source middleware platform support-

ing the development of SOA applications. The WSO2

http://wso2.com/products/identity-server

Identity Server features, among many other things, at-

tribute based access control via XACML. The devel-

opment has been guided by the Datalog model pre-

sented above.

Architecture. Figure 4 shows the modules of the ar-

chitecture interacting as follows. (1) The user’s ac-

cess request is intercepted by the Policy Enforcement

Point (PEP); (2) the request and user’s attributes are

forwarded to the Policy Decision Point (PDP) which

asks the Policy Information Point (PIP) for additional

information about the subject. If the PDP determines

from the policy and request that the user’s organiza-

tion is different from the resource organization, a del-

egation step is needed. In this case, (3) the PIP asks

the delegation module, which contains the delegation

graph and the history of previous delegations, to com-

pute a category for the user in the new organization.

The delegation module ﬁrst checks the history of dele-

gations of the user u making the request. If a category

has been previously delegated to u in this organiza-

tion, the module returns it to the PDP. Otherwise, it

checks the delegation graph for the mapping of the

user’s category in the resource organization and re-

turns it to PDP (4-5). The PDP loads the XACML pol-

icy of the organization owning the resource from the

Policy Administration Point (PAP) (6-8). The PDP

makes a decision and returns it to the PEP (9). If the

answer is positive, the PEP forwards the request to the

invoked service, otherwise the PEP throws an access

denied exception (10).

Implementation. To implement the architecture in

Figure 4, we have used the WSO2 Identity Server

since it offers support for administering and enforc-

ing XACML policies. In particular, it permits the cus-

tomization of PAPs, PEPs, and PDPs. Policy admin-

istrators can specify access control policies by using

an XML ﬁle or a graphic UI. All the modules and the

interactions depicted in Figure 4 were already sup-

ported by the WSO2 Identity Server except for the ad-

ditional module in the PIP for handling the delegation

graph. We have implemented it in Java exploiting the

JDBC API to maintain subjects and their attributes.

This new module consists of 2 Java classes for a total

of 350 lines of code.

Experience with the Case Study. The implementa-

tion described above have been used to animate the

medical clinic portal described in Section 2. For this,

we have implemented all services following the web

service standard, i.e. UDDI for services discovery,

WSDL for interface deﬁnitions and SOAP for invoca-

tions, XML as the format for exchanging messages.

We have also implemented the PEP using the Java

Servlet Filter for intercepting authorization requests,

forward them to the PDP, wait for its decisions, and ﬁ-

SECRYPT2015-InternationalConferenceonSecurityandCryptography

298

Figure 4: XACML Architecture with Delegation Graph Handling.

nally enforce them. We have then conﬁgured the PAP

by specifying access control policies for all services

via the WSO2 Identity Server interface.

We now describe how our implementation com-

pute an answer to the (transitive) authorization request

depicted in red in Figure 2. A user connects to Web

portal and requests an access to Care order service.

The Clinical Management’s PEP intercepts the mes-

sage and forwards it to the PDP on WSO2 Identity

Server. The PDP computes an access decision and

returns it to the PEP of the Clinical Management ser-

vice. It may call the delegation module to obtain the

delegation mapping from the Web portal to the Clin-

ical Management service. If the request is accepted,

the user can access to the Care order service hosted

in Clinical Management. In the considered request,

the Care Order service needs to invoke the Test order

service in Laboratory to ﬁnish its task. Therefore, the

Care Order service sends a request on behalf of the

initial user to Laboratory and the Laboratory’s PEP

intercepts the request and sends it to the PDP. The

PDP computes a decision as in point 3 and returns

an answer to the Laboratory’s PEP. If the access re-

quest is accepted, the user can access the Test order

service and the invocation chain is ﬁnished. Other-

wise, a security message is displayed to the user and

the invocation chain is aborted.

All the process above, on a standard laptop, takes

much less than a second to terminate. Indeed, the time

for answering authorization requests increase with the

length of the chain of service invocations. The WSO2

Identity Server features a caching mechanism for both

attribute values and authorization decisions that per-

mits to avoid repeating the same operation several

times, thereby helping to improve the performances

with long chains of service invocations.

6 RELATED WORK

The transitive access problem occurs frequently in

Web Service based collaborative systems since each

organization provides various services that are pro-

tected by its own security policy. As pointed out

in (Li and Karp, 2007), the use of Federated Iden-

tity Management systems to solve transitive depen-

dency is problematic. A solution to overcome this

has been proposed in (Karp and Li, 2010) where the

client needs to dialog directly with the policy engine.

We choose instead to adopt the standard architecture

where the user communicates directly with the ser-

vice. This model is well suited to be implemented

by using the available Identity Management Systems,

such as WSO2. In (Chadwick et al., 2006) multiple

policy domains and dynamic delegation of authority

are considered. However, the authors do not speciﬁ-

cally consider the problem of access request evalua-

tion and access decision making in the case of tran-

sitive calls. The work in (Srivatsa et al., 2007) ad-

dresses the problem of access control for web ser-

vice composition. The access policies are speciﬁed

in Pure-Past Linear Temporal Logic (PPLTL) that al-

ModelingAuthorizationPoliciesforWebServicesinPresenceofTransitiveDependencies

299

lows to exploit the history of service invocations to

make access control decisions. Unfortunately in prac-

tice the speciﬁcation of policies in PPLTL is not very

friendly for security designers. (She et al., 2013)

and (Mecella et al., 2006) also discuss access control

in web service composition. Nevertheless, their ap-

proach is different from ours. They consider the issue

of service unavailability along a pathway to a target

service, and they solve it by invoking dynamically al-

ternative services belonging to different domains.

Several extensions of the OrBAC model have been

proposed recently in order to specify security rules

for intra- as well as inter-organizations. For instance

(Y. Deswarte, 2009) have proposed a new access con-

trol framework for inter-Organizational Web services

(PolyOrBAC). The authors model permissions, pro-

hibitions and obligations in timed automata to verify

properties such as reachability and correctness. They

consider the case of a service requested remotely from

a different organization. In this case, in order to au-

thorize a user from a different domain to access a ser-

vice, a particular role is associated to a virtual user,

then a speciﬁc rule deﬁned as a circumstance (context

relation in OrBAC) is applied. However, they do not

address the transitive access problem for dependent

services, nor use requesters’ credentials for comput-

ing the rights of access.

7 CONCLUSION

We have proposed a solution to the challenging prob-

lem of transitive dependencies in web service invoca-

tions by extending the OrBAC model with a cross-

domain delegation graph (relation). Our model is

ﬂexible and dynamic since permissions are computed

according to the value of users’ credentials at the mo-

ment of the request, while in standard OrBAC, per-

missions are pre-assigned to users when the security

policy is deﬁned. By using Datalog as the speciﬁca-

tion language, the extended OrBAC model supports

an automated analysis technique for executing scenar-

ios before applications are deployed. We have also

shown how access control policies can be enforced

by extending the standard XACML architecture with

a module handling the delegation graph.

REFERENCES

Abiteboul, S., Hull, R., and Vianu, V. (1995). Foundations

of Databases. Addison-Wesley.

Armando, A., Carbone, R., Compagna, L., and Pellegrino,

G. (2012). Automatic Security Analysis of SAML-

Based Single Sign-On Protocols.

Bertolissi, C. and Fern

andez, M. (2014). A metamodel of

access control for distributed environments: Applica-

tions and properties. Inf. Comput., 238:187–207.

Brown, P. (2008). Implementing SOA: Total Architecture in

Practice. TIBCO Press Series. Addison-Wesley.

Carbonnelle, P. (2014). pyDatalog. https://sites.

google.com/site/pydatalog/.

Ceri, S., Gottlob, G., and Tanca, L. (1989). What you al-

ways wanted to know about datalog (and never dared

to ask). Knowledge and Data Engineering, IEEE

Transactions on, 1(1):146–166.

Chadwick, D., Otenko, S., and Nguyen, T. A. (2006).

Adding support to xacml for dynamic delegation of

authority in multiple domains. In Communications

and Multimedia Security.

Chen, W. and Warren, D. S. (1996). Tabled evaluation with

delaying for general logic programs. Journal of the

ACM, 43:43–1.

Dantsin, E., Eiter, T., Gottlob, G., and Voronkov, A. (2001).

Complexity and expressive power of logic program-

ming. ACM Comput. Surv., 33(3):374–425.

Fischer, J. and Majumdar, R. (2008). A theory of role com-

position. In IEEE Int. Conf. on Web Services, pages

320–328.

Kalam, A., Baida, R., Balbiani, P., Benferhat, S., Cuppens,

F., Deswarte, Y., Miege, A., Saurel, C., and Trouessin,

G. (2003). Organization based access control. In 4th

Int. Ws. POLICY, pages 120–131.

Karp, A. and Li, J. (2010). Solving the transitive access

problem for the services oriented architecture. In In-

ternational Conference ARES, pages 46–53.

Li, J. and Karp, A. H. (2007). Access control for the ser-

vices oriented architecture. In Proceedings of the 2007

ACM Workshop on Secure Web Services, SWS ’07,

pages 9–17. ACM.

Li, N. and Mitchell, J. C. (2003). Datalog with constraints:

a foundation for trust management languages. In

PADL’03, pages 58–73.

Mecella, M., Ouzzani, M., Paci, F., and Bertino, E. (2006).

Access control enforcement for conversation-based

web services. In 15th Int. Conf. on WWW, pages 257–

266, USA. ACM.

She, W., Yen, I.-L., Thuraisingham, B., and Bertino, E.

(2013). Security-aware service composition with ﬁne-

grained information ﬂow control. Services Comput-

ing, IEEE Transactions on, 6(3):330–343.

Srivatsa, M., Iyengar, A., Mikalsen, T., Rouvellou, I., and

Yin, J. (2007). An access control system for web ser-

vice compositions. In IEEE Int. Conf. on Web Ser-

vices, pages 1–8.

Y. Deswarte, A. A. E. K. (2009). Poly-OrBAC: An access

control model ﬁor inter-organizational web services.

IGI-Global.

SECRYPT2015-InternationalConferenceonSecurityandCryptography

300
