SaaS Cloud Provider Management Framework

Rima Grati

, Khouloud Boukadi

and Hanêne Ben-Abdallah

The Faculty of Economics and Management of Sfax, Route de l’Aéroport Km 4 Sfax 3018, Sfax, Tunisia

Faculty of Computing and Information Technology King Abdulaziz University, Jeddah, K.S.A.

Keywords: Cloud Computing, Service, SaaS Cloud Provider.

Abstract: The new mode of inter-enterprise cooperation based on the paradigm of composite SaaS keeps promising an

ease and a fast implementation of an on demand cooperation. These collaborations called often, on demand

cooperation, arising to meet a business opportunity over the Internet. However, this new paradigm poses a

certain number of challenges for us. The main one is the lack of a management framework for the cloud

provider while covering the different layers IaaS-PaaS-SaaS. To tackle this challenge, we propose a

management framework for a cloud provider to define the typical concepts related to the intern management

of a composite SaaS provider. The proposed concepts are related to the stakeholders’ definition and the

presentation of the different management features to consider while specifying the dependence between the

cloud layers.

1 INTRODUCTION

The concept of composite SaaS has been recently

introduced by Yusho et al. (Yusoh and Maolin 2012)

combining both the cloud paradigm and technology

of the web service. Since it was introduced, the hype

surrounding has followed by promising to

revolutionize the way we undertake cooperation

over the Internet. The new concept is in its infancy,

it is essential to correctly identify the stakeholders

(MangementEntities) and management features

expected by a SaaS provider. However, up to now

no standard definition of management entities or

management features provided by a provider has

been proposed in the literature. In addition, few

industrial initiatives offering composite SaaS have

emerged (such as Google Gmail and Facebook).

Besides, these initiatives are related to mailing

features, video sharing and streaming video and they

do not propose any business service with added

value for enterprise.

These considerations complicate the provider’

task for offering a composite SaaS to customers

willing to establish an on demand cooperation based

on service composition. The need is so strong for a

management framework for a composite SaaS

provider covering both entities and management

features within the composite SaaS. To meet such a

need, it is important to note that SaaS composite

born from a combination of cloud and web service

inherits the concepts proposed by these technologies

and adds its own specificities. Composite SaaS

stems from web service technology the concepts

related to customer-provider relationships,

abstract/concrete services, service composition, etc.

From cloud paradigm, it results from the concept of

layer, elasticity of resources, payment for use, etc.

Thus, any framework must take into account these

different concepts. In addition, it should include

some specificities introduced by the composite SaaS

concept. These specificities are mainly related to the

relevant management functionalities that the SaaS

provider is supposed to offer. The examples of the

most relevant management features are the

configuration required to provide composite SaaS

based on web services, establishment of SLA

contract and the monitoring of the performance of

services according to the established contract. The

management features must take into account the

layers on which a composite SaaS is based, usually

named as XaaS (everything as a Service).

In addition, XaaS layers are connected according

to the customer-provider relationship where a layer

benefits of services/resources from a lower layer and

provides service/resource to a higher layer. This is a

vertical dependence between the different XaaS

layers. We mean by dependence, as defined by

Oxford dictionary “The state of being determined,

influenced, or controlled by something else.”

Dependence covers two aspects namely: the vertical

221

Grati R., Boukadi K. and Ben-Abdallah H..

SaaS Cloud Provider Management Framework.

DOI: 10.5220/0005550402210228

In Proceedings of the 12th International Conference on e-Business (ICE-B-2015), pages 221-228

ISBN: 978-989-758-113-7

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

dependence (also called interdependence) and the

horizontal dependence (also called intra-

dependence). The latter denotes the link between

something belonging to the same level n. while the

vertical dependence indicates a connection between

something belonging to different levels (the notion

of hierarchical levels).

Thus, this paper aims to define a management

framework based on the concept of vertical

dependencies between the different features

considered by the cloud provider.

The remaining of this paper is organized as

follows. Section 2 discusses the related work.

Section 3 presents an overview of the proposed

management framework. The concluding remarks

are presented in Section 4.

2 RELATED WORK

(Zhao, 2012) presents a holistic security

management framework, a model, processes, and

controls based on appropriate standards to enable

cloud service providers and consumers to be security

certified. This framework helps evaluate initial cloud

computing security risks and inform security

decisions. The author assumes that the security

responsibilities of both the provider and the

consumer greatly differ between cloud service

models. On an IaaS level, the responsibility for

securing the underlying infrastructure and

abstraction layers belongs to the provider and the

PaaS and SaaS level fit to the consumer’s

responsibility. PaaS offers a balance somewhere in

between, where securing the platform itself falls

onto the provider, but securing the applications

developed against the platform and developing them

securely, both belong to the consumer. In his work,

Zhao

does not address a holistic management

framework including all the features considered by

the SaaS provider. He focuses only on the security

level.

(Winkler and Schill, 2009) present the problem

of dependencies between the composite service.

They illustrate these dependencies through two

examples from the logistics domain. The authors

argue that dependencies between services lead to

situations where the SLA violation of one service

affects the provisioning of other services. Similarly,

the renegotiation of the SLA of one service has

effects on the SLAs of other services. To solve this

problem, the authors present a conceptual

architecture to manage the dependencies. The

management dependencies is composed of two main

steps: the first step is a design time step, it consists

on the analysis of dependencies and the creation of a

dependency model. The second step is a run time

step composed of the dependency effects evaluation

based on the dependency model. The proposed

architecture is not yet implemented. The authors

present a framework management for only the inter

dependencies of the service composition. Unlike our

approach, the services are not deployed in cloud

environment so the authors do not consider the

dependencies of the layers of cloud computing

paradigm.

(Alcaraz Calero and Gutierrez Aguado, 2014)

present a monitoring architecture addressed to the

cloud provider and the cloud consumers. They

provide a monitoring architecture namely MonPaaS

(Monitoring Platform as a Service). It offers to the

customers of cloud infrastructures the possibility to

see automatically its cloud resources, define

manually other resources to be monitored, configure,

and customize what information is gathered over its

resources. MonPaaS is addressed also to the cloud

provider, it offers the ability to see a complete

overview of the infrastructure by means of

distributed architecture automatically deployed in

the cloud infrastructure. MonPaaS in an open source

monitoring solution combining Nagios and

Openstack. In this work, the authors focus only on

the monitoring functionality and specially on the

IaaS level and neglect the other cloud stack and the

dependency between them.

Table 1: Comparative table of related work.

Features

Works

Monitoring PaaSConfiguration Billing Security Dependencies

(Zhao, 2012) No No No Yes No

(Winkler and Schill, 2009) No No No No

Yes, especially dependence

between the composite service

(Alcaraz Calero and Gutierrez

Aguado, 2014)

Yes No No No No

(Kouki, Jr et al., 2014) and

(Kotsokalis, Rueda et al., 2011)

No No Yes No No

(Sharma, Sengupta et al., 2013) No Yes No No No

Our approach Yes Yes Yes Yes Yes

ICE-B2015-InternationalConferenceone-Business

222

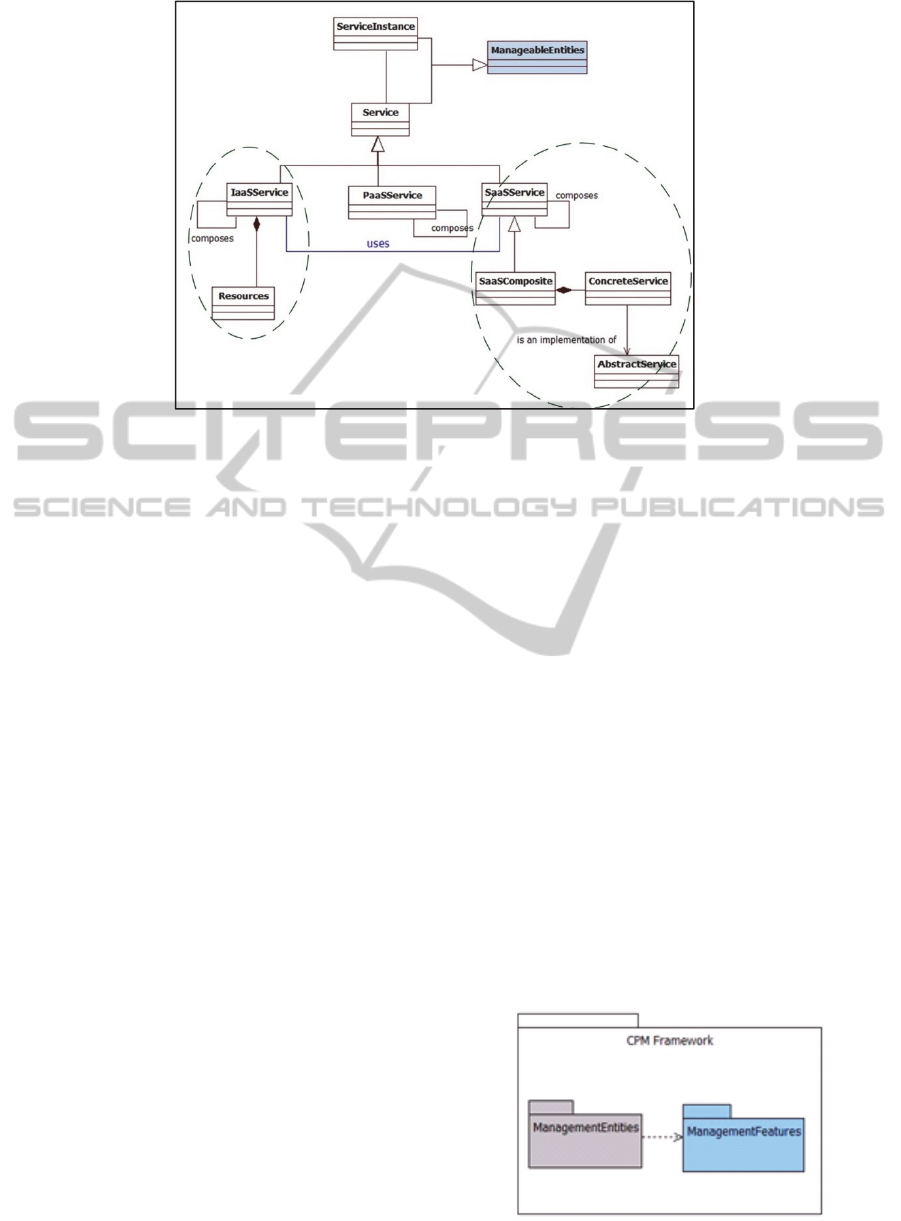

Figure 2: ManagementEntities Meta-model.

Besides, most of the works in litterature propose

a price policy related to one layer: SaaS, PaaS or

IaaS does not specify the strong dependence that

connects these levels of billing (Naik, Beaty et al.,

2014) and (Jain and Asadullah, 2012). In addition,

these works do not present the detailed formulas for

price policy calculation. They only mention the price

per request, the price per resource, etc. Moreover

few works (Kouki, Jr et al., 2014) and (Kotsokalis,

Rueda et al., 2011) focus on the penalty in case of

SLA violation in the cloud.

(Sharma, Sengupta et al., 2013) present an

approach for assessing a SaaS application for

migration to different PaaS cloud platforms. The

migration assessment approach can be seen as a 5-

stage process. The stages 1 through 3 are manual. In

stage 1, the authors create a taxonomy and

hierarchical categorization of different external

technical utility services. Stage 2 consists in creating

a corresponding hierarchical category of the

technical utility services for a target PaaS platform,

such as Heroku or CloudFoundry,in Stage 3 a set of

advisories and recommendations are written to

capture the changes required in the code. Stages 4

and 5 are automated, where the actual code analysis

and migration assessment is performed in the MAT

engine The proposed approach has been

implemented in a prototype tool called Migration

Assessment Tool or MAT using Java language and

PaaS platforms like Heroku and CloudFoundry.

To the best of our knowledge, none of the

discussed approaches deals with a holistic

management framework that covers almost all of the

relevant features for SaaS provider while

emphasizing the strong dependence between these

different features. Table 1 positions our approach

with respect to the related work.

3 OVERVIEW OF THE

FRAMEWORK MANAGEMENT

The framework management for a composite SaaS

provider that we propose is based on the definitions

of the concepts and the features related to the

management dependencies across the various layers

of cloud computing. This definition is achieved

through CPM Framework meta-model shown in

Figure 1.

 The ManagementEntities package covers the

concepts of services and different mechanisms of

service composition that are available to the

software, platform and infrastructure layer.

In other words, the ManagementEntities represent

the entities to manage in the framework management

of the composite SaaS provider.

Figure 1: CPM Framework Meta-model.

SaaSCloudProviderManagementFramework

223

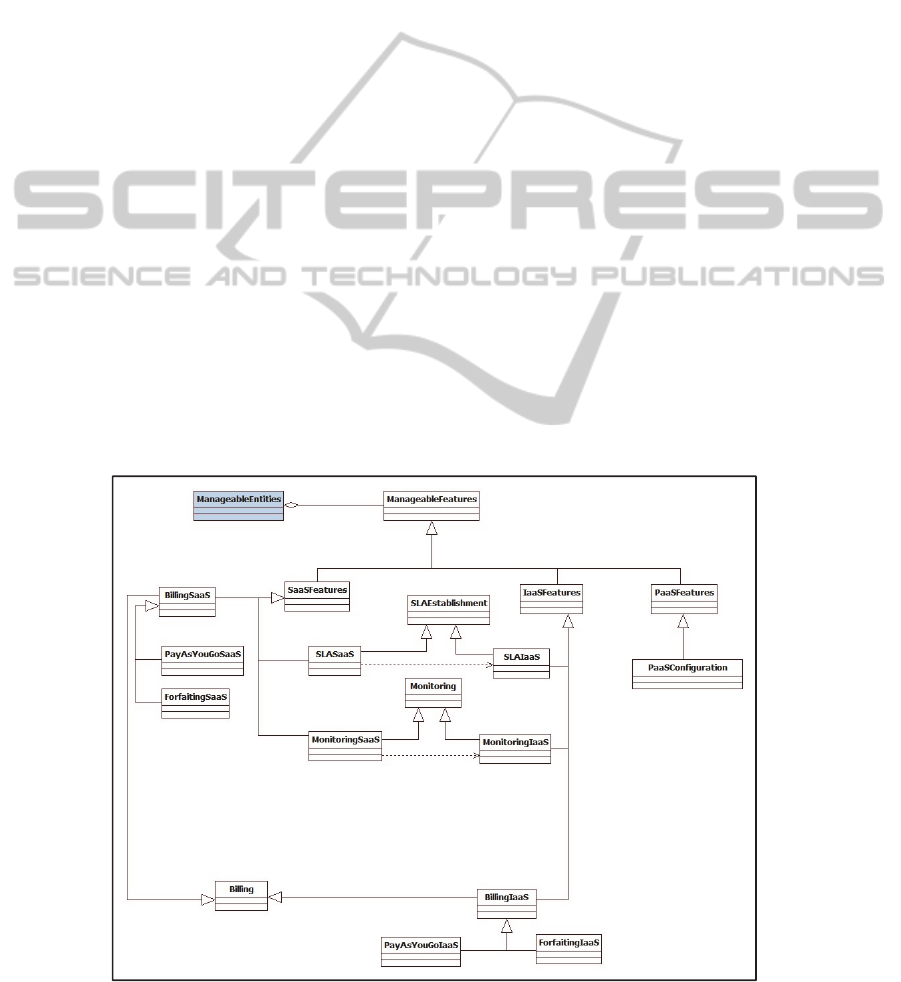

 The ManagementFeatures package covers the

concepts related to different features concerning

different levels, namely SaaS, PaaS and IaaS that

are considered by the cloud provider. All the

composite SaaS is executed and delivered using

the different elements of ManagementEntities.

In the following, we discuss the two core packages

highlighting the existing dependencies.

3.1 Management Entities

As shown in Figure 2, the basic building block of

CPM Framework is the concept of service. This

concept encompasses different levels (SaaS, PaaS

and IaaS). Although it is possible to consider other

levels below IaaS (example Hardware as a Service),

within the CPM framework, we consider that the

IaaS level is the last visible and manageable level.

For each service (Service), it may be different

service instances (ServiceInstance), each instance

delivers functionalities to one or more customers.

Each service instance (ServiceInstance) is an

independent entity with respect to other instances;

hence it can be managed independently. Some

management features can be made to service and

then applied to all instances of service. To enable the

management at all levels, service and

serviceInstance are two subclasses of

MangementEntities. Management features

(ManagementFeatures) will be described in Section

3.2.

Note that the ManagementEntities package

defines two possible kinds of association between

services, called «uses» and «composes». The

association «uses» identifies a service given by a

level uses and depends on another service offered by

a lower level of the cloud layer, so it is a vertical

dependence.

The association «composes» means that a value

added services can be built by composing other

services that exist in the same layer, therefore it

represents horizontal dependence—it connects

concepts belonging to the same layer. More

precisely, the association «composes» indicates that

the IaaS, PaaS our SaaS (IaaSService, PaaSService

or SaaSService) service can be composed

respectively by other services IaaS, PaaS or SaaS.

A SaaS composite is a specification of a

SaaSService, which represents a composition of the

concrete service (ConcreteService). The meta-model

in Figure 2 illustrates the possibility of several

concrete services belonging to different provider

implementing the same abstract service with

different QoS parameters. For instance, “Tunisair”

and “AirFrance” are concrete services of the abstract

service “flight reservation”.

In addition, IaaSService is a composition of

various resources (Resources) belonging to the data

centre of a cloud provider. Resources can be a

Figure 3: ManagementFeatures Meta-model.

ICE-B2015-InternationalConferenceone-Business

224

physical machine, virtual machine, network device,

etc.

In our work, we omit the dependence PaaS-IaaS,

therefore, the vertical dependence related to the

«uses» association can lead to only one possible

case: a SaaS service uses an IaaS service (the case of

a composite SaaS is deployed on a virtual machine

configured correctly and belonging to the data centre

of the cloud provider). In Figure 2, this dependence

is represented by the association « uses » between

different classes encapsulated in two dotted circles.

This vertical dependence ensures the selection of a

composite SaaS that meets the client’s request with

an optimal resource allocation (the adequate

IaaSService).

3.2 Management Features

In addition to the relevant concepts of composite

SaaS service, the management framework for the

Cloud provider must offer a holistic management of

cloud and covers all the layer SaaS, PaaS and IaaS.

Indeed, the separate cloud levels are strongly linked

and their definitions and their good operation can be

valorized only by reference to all the layers. For

example, a desfunctioning of a composite service

(execution of the service with a too long response

time) can be caused by a malfunction in one of the

lower levels of the cloud (PaaS or IaaS).

For each problem the cloud provider must find

the most effective solution by coordinating the

different layers.

In the literature, several management works

related to a single level of cloud and dealing with

management in isolation of the other level have

emerged (Spanoudakis and Mahbub, 2004),

(Barbon, Traverso et al., 2006) and (Baresi and

Guinea, 2011). Most of these approaches generally

cover features on the IaaS layer and neglect the other

levels as well as the vertical dependence between

them. As illustrated in Figure 3, in our work, the

management features considered by the provider

(ManagementFeatures) encompasses the three levels

of the cloud stack –

SaaSFeatures, PaaSFeatures and IaaSFeatures.

More specially, our framework includes the

following management features (see Figure 3): SLA

establishment, Computing cost of service usage,

Monitoring of execution service and Configuration

PaaS. The CPM framework is extensible, other

management features can be added to cover

additional cloud requirements.

In the following, we first detail each of these

management capabilities. Next, we present the

vertical dependence for each functionality across

different levels of Cloud. Finally, we focus on the

dependence SaaS-IaaS discussed at the

ManagementEntities package in order to propose in

section 4 a management method for vertical

dependence between SaaS and IaaS services (Recall

that our framework management assumes that the

dependence SaaS-PaaS is provided by a

configuration PaaS appropriate to web service

deployment and execution).

3.2.1 SLA Establishment

On the client side, a request for a composite service

is sent to the provider with QoS constraints such as

cost, response time, availability, etc.

Once negotiated, the qualities of service form a

clause in the SLA contract (Service Level

Agreement) established between the provider and

the customer. As part of our work, we are not

interested in the negotiation phase, we refer the

reader to the most relevant work in the theme (Li,

2011), (Linlin, Garg et al., 2013) and (Stantchev and

Schrpfer, 2009). We believe that once the SLA is

established, it will be agreed between the two parties

(provider and customer).

An SLA can be expressed between different

layers in the cloud stack, contractualising the

vertical dependencies between layers. We are

expected to focus on the vertical dependence

between SaaS and IaaS. Solving the problem of

vertical dependence means to express an SLA

between a SaaS client and a provider offering SaaS

service under an IaaS infrastructure. The solution is

represented by the class SLAEstablishment in Figure

The provider offers a SaaS service that runs on

IaaS selected resources to meet the user’s

constraints. Thus, from the provider point of view,

there are two levels of SLA: SLA for the SaaS level

and SLA for the IaaS level (respectively SLASaaS

and SLAIaaS in Figure 3). SLA for the SaaS level

(SLASaaS) is the contract between the end user and

the cloud provider. It specifies a set of objectives in

SaaS level in terms of performance and availability.

Regarding the IaaS level, it dictates to the cloud

provider the adequate resources for the proper

execution of services while respecting the SLASaaS.

In our case, SLAIaaS represents an internal contract

to the provider since it has its own resource

infrastructure (IaaS). This type of contract indicates

the level of IaaS service in terms of the resource

infrastructures under which the composite service

should be executed (virtual machine, memory, CPU,

utilization rate, etc). The cloud provider can save the

SaaSCloudProviderManagementFramework

225

SLAIaaS in a repository to be used later in the future

when he is confronted to other service requests with

similar QoS.

Otherwise, note that a violation of SLAIaaS

consistently produces a violation of SLASaaS. In

other words, the SLAs expressed in the SaaS and

IaaS level represent a vertical dependence model.

An example of vertical dependence of SLA is

represented by how to express the availability of

SaaS service depending on the resources (IaaS)

availability.

3.2.2 Computing Cost of Service Usage

In addition to SLA establishment, our framework

takes into account the management function related

to the computing cost of service usage (Billing in

Figure 3). This management function is related to

the policy adopted by the cloud provider to bill the

use of the requested service by the customer.

Defining a strong vertical dependence between the

cloud layers, the invoiced price of SaaS service

includes the price of IaaS resources under which the

service runs. In our work, we assume that the

computing cost of service usage includes indirectly

the price of PaaS since we consider that the cloud

provider hold the adequate platform for the

execution of composite SaaS.

To calculate cost, we propose a formula that

aligns the specificities of composite SaaS. We

include the price for the SaaS level and the IaaS

level to cover the vertical dependence of the billing

at both levels. Thus, we define Cost (n,t) the

execution price of a composite service requested by

the customer from n virtual machines and t types as

follows:

Cost

,



PC

,



DTC



PDC



(1)

n,t

represents the cost for serving the request,

it depends on the request’s processing time

(procT

n,t

), the price of the virtual machine of type t

per hour (P

) and the price of the service (PS) per

unit of time.





  procT

,

P



PS ∀n ∈ N, t ∈ T

(2)

 DTC

is the transfer cost which includes the cost

of data in (inDS) and data out (outDS).

DTC



inDSinPri



 outDS  outPri



(3)

where inPri



is the price of data transfer in and

outPri



is the price of data transfer out.

 PDCn is the delay cost. It represents how much

the service provider has to give discount to users

in case of SLA violation. It depends on the

penalty rate β (fixed in the SLA contract signed

by the cloud provider and the customer) and the

penalty delay time (PDT) period.

PDC



βPDT

(4)

3.2.3 Monitoring Services Execution

The cloud provider must be able to monitor the

parameters of its resources (IaaS Monitoring) to

meet the objectives agreed in the SLA. In turn, the

monitoring must meet the dependence of monitoring

the low level metric (resource IaaS) and the

monitoring of SLA parameters (MonitoringSaaS).

This dependence is modeled in Figure 3 by a dotted

association between MonitoringSaaS and

MonitoringIaaS. In Cloud environment, the

requested composite runs on physical and virtual

resources. These services are characterized by their

performance and their availability, which are

described as high level SLA parameters such as

response time, price and availability, etc. However,

the physical or virtual resources, under which

services run, are characterized by low level metrics

such as packetsize, bandwidth, CPU, memory, etc.

Thus, there is a discrepancy between low level

metrics and SLA parameters. To bridge the gap

between low level metrics and SLA parameters and

to solve the problem of vertical dependence between

monitoring SaaS and monitoring IaaS, we proposed

in (Grati. R., Boukadi. K. et al., 2014c) a framework

for monitoring the QoS of composite SaaS.

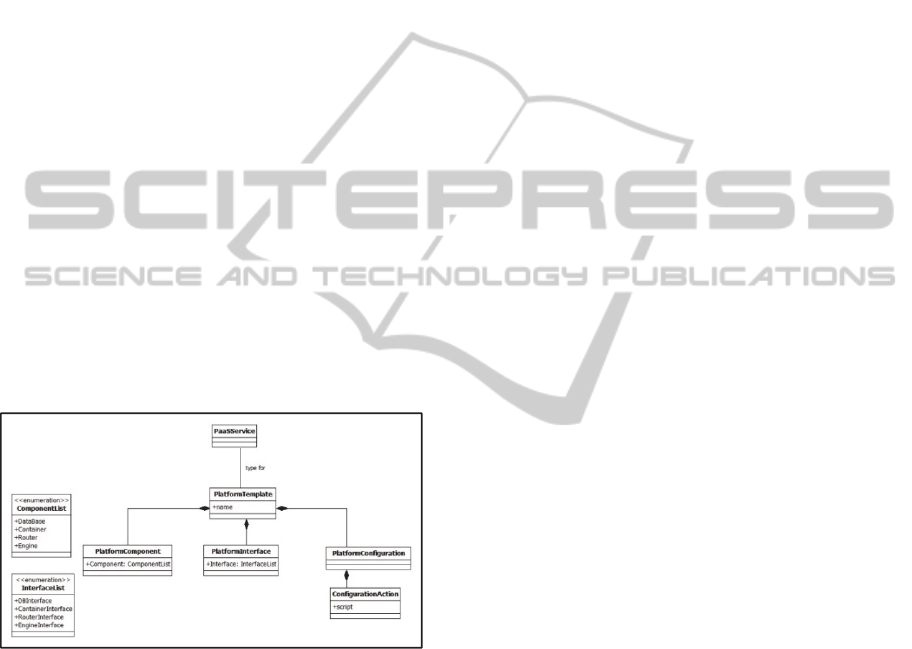

3.2.4 Configuration PaaS

Configuration in the PaaS level (PaaSConfiguration

in Figure 3) is necessary for the execution of

composite SaaS. It ensures the request of

deployment elementary web service belonging to

different service providers.

These features deal with the PaaS level and more

particularly the management and the provisioning of

software. When a SaaS provider wants to generate a

PaaS from heterogeneous PaaS, he meets several

management difficulties such as the lack of

compatibility of APIs and the lack of PaaS devoted

to the provider of composite service, etc. Indeed,

each available PaaS requires the use of specific

APIs. For example, to interact with the PaaS

Force.com, Apex API is provided; Cloud Foundry

also provides its own API, etc. Each PaaS exposes a

different interface and no standard or generic API is

available. So a provider of composite SaaS can not

achieve an easy interaction with heterogeneous

PaaS.

ICE-B2015-InternationalConferenceone-Business

226

To overcome the difficulty of managing

heterogeneous PaaS, we assume that the provider

has an independent PaaS for provisioning and

managing software assigned for running composite

SaaS. Figure 4 represents the various entities that

compose the platform. By platform, we mean all the

software needed for the execution of web service

deployed on an IaaS layer.

As modeled in Figure 4, each platform is

characterized by its unique name and it is

instantiated from PlatformTemplate which is, in

turn, characterized by a name. PlatformTemplate is

constructed from a set of entities:

PlatformComponent is the list of software

associated with PlatformTemplate. The possible

values of this list are: a database, a container, a

router and an engine.

PlatformInterface defines the interfaces between

the components of the PlatformComponent

PlatformConfiguration consists of several

configuration actions (ConfigurationAction).

Certainly, there are functions associated with the

configuration in the IaaS level. However we do not

deal with this configuration on this level since there

are several mature tools to perform IaaS

configurations tasks (Georgiou, Tsakalozos et al.,

2013) and (Papagianni, Leivadeas et al., 2013).

Figure 4: PaaS configuration meta-model.

So far, we have presented the building blocks of

a framework management of the cloud provider that

means the different stakeholders and different

features to manage the cloud provider while

emphasizing vertical dependence between the cloud

layers. In the following, we present a method to

manage the vertical dependence between SaaS and

IaaS services.

4 CONCLUSIONS

Our proposed approach addresses the lack of

management framework for the SaaS cloud provider.

This framework is described through a set of key

concepts. In addition, it includes some specificities

introduced by the composite SaaS concept which is

born from a combination of cloud and web service.

These specificities are mainly related to the relevant

management functionalities that the SaaS provider is

supposed to offer. The examples of the most relevant

management features are the configuration required

to provide composite SaaS based on web services,

establishment of SLA contract and the monitoring of

the performance of services according to the

established contract. The management features takes

into account the layers on which a composite SaaS is

based, usually named as XaaS (everything as a

Service).

REFERENCES

Alcaraz Calero, J. and J. Gutierrez Aguado (2014).

"MonPaaS: An Adaptive Monitoring Platform as a

Service for Cloud Computing Infrastructures and

Services." Services Computing, IEEE Transactions on

PP(99): 1-1.

Barbon, F., et al. (2006). Run-Time Monitoring of

Instances and Classes of Web Service Compositions.

International Conference on Web Services ICWS '06,

pp. 63-71.

Baresi, L. and S. Guinea (2011). "Self-Supervising BPEL

Processes." Software Engineering, IEEE Transactions

on 37(2): 247-263.

Georgiou, S., et al. (2013). Exploiting Network-Topology

Awareness for VM Placement in IaaS Clouds. Third

International Conference on Cloud and Green

Computing (CGC).

Grati. R., et al. (2014c). A framework for IaaStoSaaS

monitoring of BPEL processes in the Cloud: design

and evaluation. 11th ACS/IEEE International

Conference on Computer Systems and Applications

(AICCSA' 2014), IEEE Computer Societ, Doha,

Qatar.

Jain, S. and A. M. Asadullah (2012). Aggregating Bills

and Invoices on Cloud for Anytime Anywhere Access:

A Sustainable System. Third International Conference

on Services in Emerging Markets (ICSEM), 2012.

Kotsokalis, C., et al. (2011). Penalty Management in the

SLA@SOI Project. Book: Service Level Agreements

for Cloud Computing, Springer New York: 105-121.

Kouki, Y., et al. (2014). A Language Support for Cloud

Elasticity Management. IEEE/ACM International

Symposium on Cluster, Cloud and Grid Computing,

CCGrid, Chicago, United States.

Li, P. (2011). Towards a framework for automated service

negotiation in cloud computing. IEEE International

Conference on Cloud Computing and Intelligence

Systems (CCIS).

SaaSCloudProviderManagementFramework

227

Linlin, W., et al. (2013). Automated SLA Negotiation

Framework for Cloud Computing. 13th IEEE/ACM

International Symposium on Cluster, Cloud and Grid

Computing (CCGrid).

Naik, V. K., et al. (2014). Service Usage Metering in

Hybrid Cloud Environments. IEEE International

Conference on Cloud Engineering (IC2E), 2014.

Papagianni, C., et al. (2013). "On the optimal allocation of

virtual resources in cloud computing networks."

Computers, IEEE Transactions on 62(6): 1060-1071.

Sharma, V. S., et al. (2013). MAT: A Migration

Assessment Toolkit for PaaS Clouds. IEEE Sixth

International Conference on Cloud Computing

(CLOUD), 2013.

Spanoudakis, G. and K. Mahbub (2004). Requirements

monitoring for service-based systems: towards a

framework based on event calculus. 19th International

Conference on Automated Software Engineering,

2004. Proceedings.

Stantchev, V. and C. Schrpfer (2009). Negotiating and

Enforcing QoS and SLAs in Grid and Cloud

Computing. Proceedings of the 4th International

Conference on Advances in Grid and Pervasive

Computing. Geneva, Switzerland, Springer-Verlag:

25-35.

Winkler, M. and A. Schill (2009). Towards Dependency

Management in Service Compositions. Int. Conf. on

E-Business and Telecommunication Networks: 79-84.

Yusoh, Z. I. M. and T. Maolin (2012). Clustering

composite SaaS components in Cloud computing

using a Grouping Genetic Algorithm. IEEE Congress

on Evolutionary Computation (CEC).

Zhao, G. (2012). Holistic framework of security

management for cloud service providers. 10th IEEE

International Conference on Industrial Informatics

(INDIN), 2012.

ICE-B2015-InternationalConferenceone-Business

228
