An Efﬁcient Agent Lookup Approach in Middlewares for Mobile Agents

Hiroaki Fukuda

Shibaura Institute of Technology, 3-7-5 Koto, Toyosu, Tokyo, 135-8548, Japan

Keywords:

Wireless Sensor Network, Mobile Agent, Distributed Hash Table, Location Management.

Abstract:

A Wireless Sensor Network (WSN) is typically deployed on the place in which no electric source is provided,

meaning that the battery consumption concern is crucial. Due to their deeply-embedded pervasive nature,

applications running on WSNs need to adapt to the changes in physical environment or user preferences. In

addition, developers of these applications must pay attention to a set of additional concerns such as limited

hardware resources and the management of a set sensor nodes. To appropriately address these concerns,

middlewares based on mobile agent based like Agilla have been proposed. Applications for these middlewares

are executed by the communications among agents, thereby a common task is to look up the agents. In this

paper, we propose an efﬁcient lookup approach for mobile agent based middlewares in WSNs. We evaluate

the advantages of our proposal through the comparison with traditional lookup approaches.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) (Yick et al., 2008)

consist in a number of sensor nodes and have been

used to detect events and/or collect data in various

domains such as environment observation and inven-

tory tracking. Due to their embedded pervasive na-

ture, each node is usually deployed on the place in

which no electric source is provided and/or picking

them up is not an easy task (e.g. inside of a forest).

Therefore, each node is usually working by dry cell

batteries yet these nodes require to keep working for

a long time (e.g. a few years (Madden et al., 2005)).

Developing an application for WSNs is difﬁcult

because developers need to pay attention to a network

environment dynamically changing, the management

of a set of sensor nodes, low-level instructions re-

lated to physical hardwares. Several middlewares for

WSNs have been proposed to make a development

easier (Chien-Liang et al., 2009; Madden et al., 2005;

Blum et al., 2004). It is possible to classify these

middlewares into three types: (1) data oriented ap-

proaches that abstract a number of sensor nodes as

one abstraction: WSN, (2) event-based approaches

that provide callback methods, that are invoked when

certain events are dispatched, and (3) mobile agent

approaches, where their applications are based on the

collaboration of mobile agents. In this paper, we fo-

cus on the mobile agent based approach because this

approach is adequate when multiple applications are

running on a WSN (Chien-Liang et al., 2009). Ag-

illa (Chien-Liang et al., 2009), a middleware for mo-

bile agents for WSNs, allows an application to restrict

itself to only reside on relevant nodes. As WSN envi-

ronments change, this application can be self-adapted

through the migration of its agents to the required

locations. Moreover, an application in Agilla is ex-

ecuted by interactions among agents, meaning that

an agent needs to know the exact location of other

agents. Although Agilla allows agents to interact with

other agents, this middleware (like similar proposals)

does not provide much technical support to efﬁciently

lookup the agent locations. As a result, an agent has to

look up the location of its target agent by ad-hoc man-

ner, resulting in the consumption of a signiﬁcant and

unnecessary amount of the battery of sensor nodes.

In this paper, we propose an efﬁcient lookup ap-

proach for mobile agent based middlewares in WSNs.

Our proposal borrows ideas from CSN (Chord for

WSNs) (Ali and Uzmi, 2004). As a consequence of

our proposal, it is possible to save battery consump-

tion of every node in a WSN. We implement our pro-

posal on TinyOS, which is one of the platform for

WSNs. Finally, we show the advantages of our ap-

proach via a simulations that compare battery con-

sumption to traditional lookup approaches.

Paper Roadmap. Section 2 brieﬂy introduces Agilla

and points out the battery consumption problem. Sec-

tion 3 presents key concepts on which our proposal is

based, and Section 4 describes our proposal. Section

Fukuda H..

An Efﬁcient Agent Lookup Approach in Middlewares for Mobile Agents.

DOI: 10.5220/0005554100810087

In Proceedings of the 12th International Conference on Wireless Information Networks and Systems (WINSYS-2015), pages 81-87

ISBN: 978-989-758-119-9

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

5 shows that our proposal addresses the problems and

Section 6 concludes.

2 AGILLA: A MIDDLEWARE FOR

WSNS

This section brieﬂy describes Agilla and identiﬁes the

battery consumption problem.

2.1 Overview of Agilla

Agilla (Chien-Liang et al., 2009) is a well-known

middleware for mobile agents on Wireless Sensors

Networks (WSNs) (Yick et al., 2008). Each node of

Agilla has an interpreter to execute mobile agent pro-

grams. Developers can write a program using ISA

(Instruction Set Architecture) prepared by Agilla. In

addition, this middleware can also execute a number

of agent programs on a node. By using these features,

a program can restrict to reside only on relevant nodes

and reactions to changes of the environment.

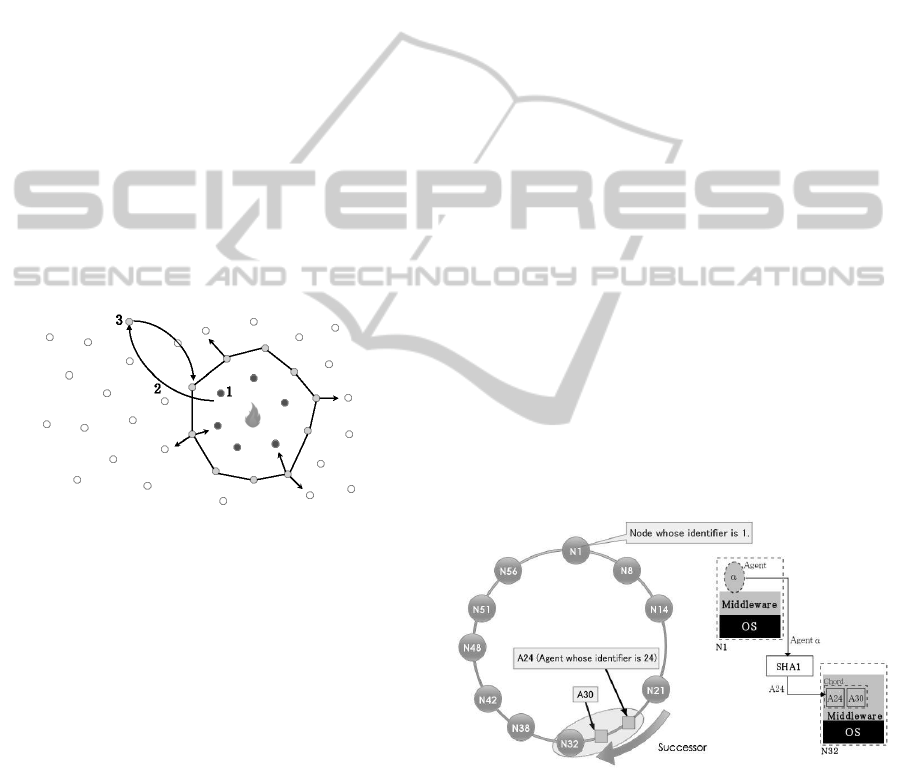

Figure 1: An overview of the ﬁre detection and tracking

application.

2.2 Battery Consumption Problem

Using an example about the ﬁre control, we introduce

the battery consumption problem. Figure 1 shows an

overview of the ﬁre detection and tracking applica-

tion in Agilla. When a ﬁre breaks out, agents detect

this ﬁre (1) and send a message to a tracker agent (2).

The tracker agent migrates to the ﬁre and clone it-

self to form a perimeter. The perimeter is continu-

ously adjusted based on the evolution of the ﬁre. To

send a message to a tracker agent, an agent must know

the exact location of this agent tracker. Since Agilla

(like similar proposals) does not provide methods to

lookup the location of a agent on the ﬂy, the location

of a tracker agent is directly written in agents, mean-

ing that a tracker agent should keep staying on a de-

termined node. Otherwise, an agent needs to lookup

the location of a tracker agent every time, resulting in

consuming the battery of nodes very soon.

3 DHT TO LOOK UP AGENTS

Our proposal uses Distributed Hash Table (DHT) al-

gorithms (Stoica et al., 2001). This section ﬁrst dis-

cusses the need for these algorithms in our proposal

The section then explains DHT algorithms and their

use in looking up agents.

3.1 Why a Distributed Hash Table

Algorithm to Look Up Agents?

Centralized or distributed algorithms can be used to

look up agents. A centralized approach uses a base

station to keep and look up agent locations. In Fire

tracker in Agilla, Fire Detector agent, which detects the

ﬁre, notify it to the base station. Fire Tracker agents

are then injected to WSN by base station. With this

scenario, trafﬁc gets focused on the nodes around the

base station, resulting in a signiﬁcant increase of bat-

tery consumption of these nodes until their totally en-

ergy is spent. As a consequence, these nodes can no

longer work and the base station cannot receive more

requests. Therefore, no more lookup operations can

be executed, requiring a distributed algorithm.

3.2 Distributed Hash Table Algorithms

Because DHT algorithms are used to ﬁnd objects in

a distributed manner, it is possible to use these algo-

rithms to ﬁnd agents in WSNs. We next explain two

DHT algorithms.

Figure 2: A Chord ring with 10 nodes and 2 agents.

Chord. In Chord (Stoica et al., 2001), when a node

receives an agent lookup request, this node ﬁrst looks

up on its local hash table and the request is forwarded

to another node while the lookup operation is not re-

solved. To perform this operation, Chord uses a ring

formation of nodes, enabling a node to forward its

lookup request. Figure 2 shows a Chord ring exam-

ple, which uses SHA1, to assign identiﬁers to agents

and their locations (i.e., nodes). In Figure 2, an agent

WINSYS2015-InternationalConferenceonWirelessInformationNetworksandSystems

that is working on node N1 is assigned its identiﬁer as

24 by using SHA1 hash function. A node points to its

successor, whose identiﬁer is greater. For example,

N21 points to successor N32. Using these identiﬁers,

a distance between a node and an agent can be deﬁned

by clockwise subtractions of their identiﬁers. For ex-

ample, the distance between A24 and N21 is farther

than the distance between A24 and N32. In Chord,

the location of an agent is managed by the node whose

distance between them is the shortest. For example,

Figure 2 shows that A24 is working on N1, but its

location is managed by N32, meaning that the local

hash table of N32 has an entry “A32 → N1”.

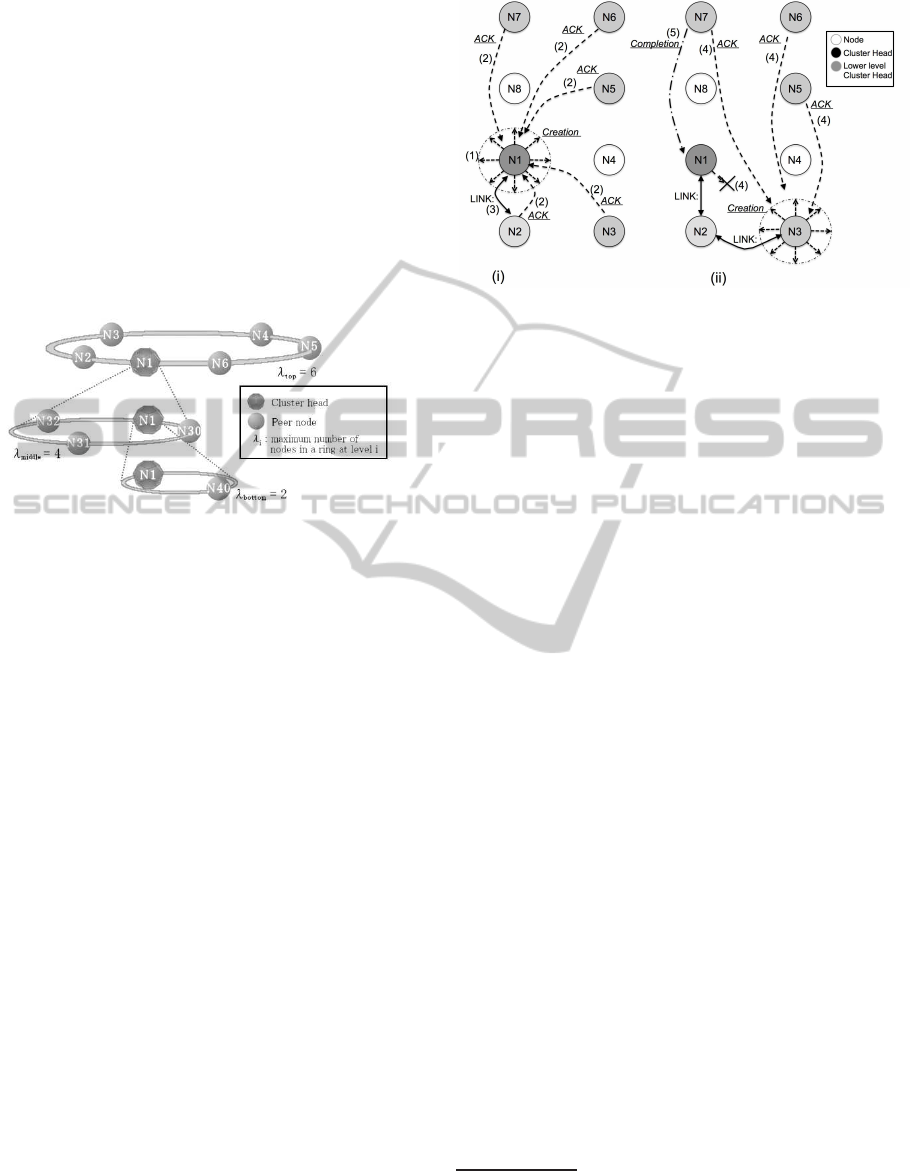

Figure 3: Example of CSN’s rings (a hierarchy of rings of

Chord).

CSN. In WSNs, a packet loss usually happens when

the physical distance between two nodes is getting

longer. As the Chord algorithm does not consider

this kind of distance when a ring is created, CSN, a

variant of Chord (Chord for Sensor Nodes), addresses

the physical distance issue because CSN considers the

distance to select a successor. The algorithm intro-

duces a hierarchical clustering approach, where each

cluster of nodes follows the ring formation of Chord.

Using the hierarchical structure shown in Figure 3,

CSN guarantees its efﬁciency (see (Ali and Uzmi,

2004) more details). However, CSN cannot be applied

to lookups of mobile agents in WSNs because of sev-

eral reasons. CSN assumes that a base station starts

ring creations and lookups. This assumption is not

adequate for mobile agent middlewares because an

agent requires starting a lookup at an arbitrary node.

4 AN EFFICIENT LOOKUP OF

AGENTS

The core of our proposal consists of two stages: Cre-

ation of Rings and Lookup Behavior. This section ex-

plain them in detail.

N2! N3!

N1!

N6!

N5!

N4!

N7!

N8!

(1)!

(2)!

(3)!

(2)!

N2! N3!

N1!

N6!

N5!

N4!

N7!

N8!

(4)!

(i)!

(ii)!

(5)!

Creation

ACK

Completion

Creation

LINK:!

ACK

Node!

Cluster Head!

Lower level

Cluster Head!

Create a link between two nodes !

Ignore Creation message!

Figure 4: Illustration of steps for a ring creation based on

the physical distance among nodes.

4.1 Creation of Rings by an Example

Our proposal uses hierarchical cluster structures of

CSN’s rings. As shown in Figure 3, each clus-

ter contains a cluster head which joins at least two

rings (e.g., top and middle level). In addition, a node

has to communicate with another node which is next

to it by single hop manner to save its battery consump-

tion. Therefore, the selection of the cluster head in

each ring based on the physical distance is crucial.

Because of this restriction, we manually choose clus-

ter heads at each level. This approach implicitly as-

sume that any nodes are added and removed at run-

time. Different from the Internet based P2P network,

this assumption is now feasible because the number of

nodes is ﬁxed and each node is not commonly added

or removed in WSNs

used in Agilla.

Next, by using Figure 4, we explain how to create

a ring, which corresponds to the top level ring and

the numbers in Figure 4 correspond to the following

numbered items:

1. Broadcast a Creation Message. Node N1, which

is a cluster head, begins sending a message to cre-

ate a ring, named Creation message. Note that, in

WSNs, every message is sent as a broadcast man-

ner. When a node receives this kind of message,

it has to choose whether the message will be ac-

cepted or not.

2. Reply ACKs against the Creation Message. Every

node that receives and accepts the Creation mes-

sage becomes a cluster head at the middle level.

In this example, nodes N2, N3, N5, N6, and N7

will send an ACK to N1.

If the battery of a node is totally consumed, the topology

changes. Although this change is now ignored, it is possi-

ble to apply other approaches like a leader election algo-

rithm to address this issue.

AnEfficientAgentLookupApproachinMiddlewaresforMobileAgents

3. Create Neighbor Relations. After node N1 re-

ceives ACKs from other nodes, this chooses a

successor out of nodes that reply ACKs. In cur-

rent implementation, we use RSSI that means the

strength of the radio wave for this choice. As a

consequence, node N2, which is the closest node

from N1, is chosen. Then, N1 sends a message

to N2 to inform this choice. After receiving this

message, node N2 registers node N1 as its prede-

cessor; creating a link between N1 and N2.

4. Repeat and Ignore Creation Message. A node that

is chosen as a successor starts sending the Creation

message. Therefore, the link between node N2

and N3 is created following the steps 1 to 3.

Note that, in Figure 4-(ii), when node N3 sends a

Creation message, node N1 is chosen based on its

RSSI but it is undesirable because a ring among

node N1, N2, and N3 will be created, meaning

that the ring creation at the top level ﬁnishes. To

prevent this scenario, a node which starts creating

a ring (e.g., node N1) ignores any Creation mes-

sages. At the same time, a node which has a pre-

decessor and a successor (e.g., node N2) does not

reply either. As a consequence, all links between

two nodes except the ﬁnal link (between N7 and

N1) are created.

5. Send a Complete Message. The link between

node N6 and N7 are created by step 4. In Fig-

ure 4-(ii), when node N7 sends a Creation mes-

sage, no node replies. If node N7 cannot receive

any ACK from others under a predeﬁned period

of time, node N7 will send a message to complete

the creation of a ring, named Complete message.

A node that starts creating a ring (e.g., node N1)

replies against this Complete message. As a conse-

quence, the ﬁnal link between node N1 and N7 is

created

After creating the ring of the upper level, our pro-

posal repeats the previous process to create rings of

lower levels, then ends up creating all rings at every

level.

4.2 Assigning Identiﬁers

DHT algorithms must effectively manage a hash table

in a distributed manner. Thereby, assigning an iden-

tiﬁer to each node and agent is crucial. In Chord, it

is not necessary how many nodes in a ring before-

hand because Chord uses only one ring, so all nodes

belong to this ring. Instead, similar to CSN, our pro-

posal needs to deﬁne the maximum number of nodes

Similar to CSN, the number of nodes that compose each

level ring is predeﬁned.

per ring beforehand. We make use of this information

to assign well organized identiﬁers. We ﬁrst explain

an algorithm for assigning identiﬁers, which is illus-

trated with a concrete example later.

Deﬁning node identiﬁers. Although Chord and CSN

use the same hash function (e.g., SHA1) to assign an

identiﬁer to each node and agent, our proposal uses a

hash function only for agent identiﬁers. Node identi-

ﬁers are assigned by the following three equations:

scope(l) =







Max(hash)

N(l)

(l = 0)

scope(l−1)

N(l)

(otherwise)

(1)

node

(i) = node id

(i− 1) +scope(l) (2)

node

(0) =



0 (l = 0)

scope(l) + OF

l−1

(otherwise)

(3)

In these equations, l is the ring level (e.g., top level).

We assume that l = 0 corresponds to the top level

where the identiﬁer assignment begins. Max(hash)

is the maximum number of the hash function that is

used for agent identiﬁers. For example, if we use

the SHA1 hash function, Max(hash) must be 2

160

− 1.

N(l) is the number of nodes per ring that is manu-

ally deﬁned as explained above. By using these vari-

ables, scope(l) is calculated as equation (1). scope(l)

represents a unit of boundary that each node needs to

manage in a ring. Because the node assignment pro-

cess starts from a cluster head per ring where a node

identiﬁer is deﬁned by inductive manner as shown in

equation (2), and node id

(0) in equation (3) always

refers to a cluster head at each level. In equation (3),

l−1

represents the identiﬁer of a node that is a pre-

decessor of the node in the upper level.

Figure 5 illustrates an assigning identiﬁer exam-

ple with a hash function of 8 bits. The ﬁgure shows

three levels of rings: top, middle and bottom. Each

level has a cluster head: node N1 for the top level,

and node N2 for the middle and bottom level. Ac-

cording to the equation (1), N(0) is 6 and Max(0) is

− 1, scope(0) is 42. From equations (2) and (3), the

identiﬁer of N1 and its successor (i.e., N2) at the top

level are 0 and 42 respectively. At the middle level,

N(1) is 3 manually assigned, and scope(1) is calcu-

lated to 14 (42/3). Note that although the identiﬁer of

N2 at the top level is 42, its identiﬁer at the middle

level is calculated again by equation (3). From oth-

erwise case in the equation (3), OF is 0 because the

predecessor of N2 at the top level is N1, the identiﬁer

of which is 0. As a result, the identiﬁer of N2 at the

middle level is calculated to 14 (14 + 0) Finally, the

identiﬁers of N7 and N8 at the middle level are cal-

culated 28 and 42 by equation (2). By repeating this

WINSYS2015-InternationalConferenceonWirelessInformationNetworksandSystems

N2!

N3!

N1!

N6!

N4!

N5!

42!

84!

126!

168!

210!

N2!

N7!N8!

14!

28!

42!

N8!

35!

N9!

42!

Top Level!

Middle Level!

Bottom Level!

Where is A32?!

(1)!

(2)!

(3)!

(4)!

Cluster Head

at each Level!

Other node!

Lookup Request!

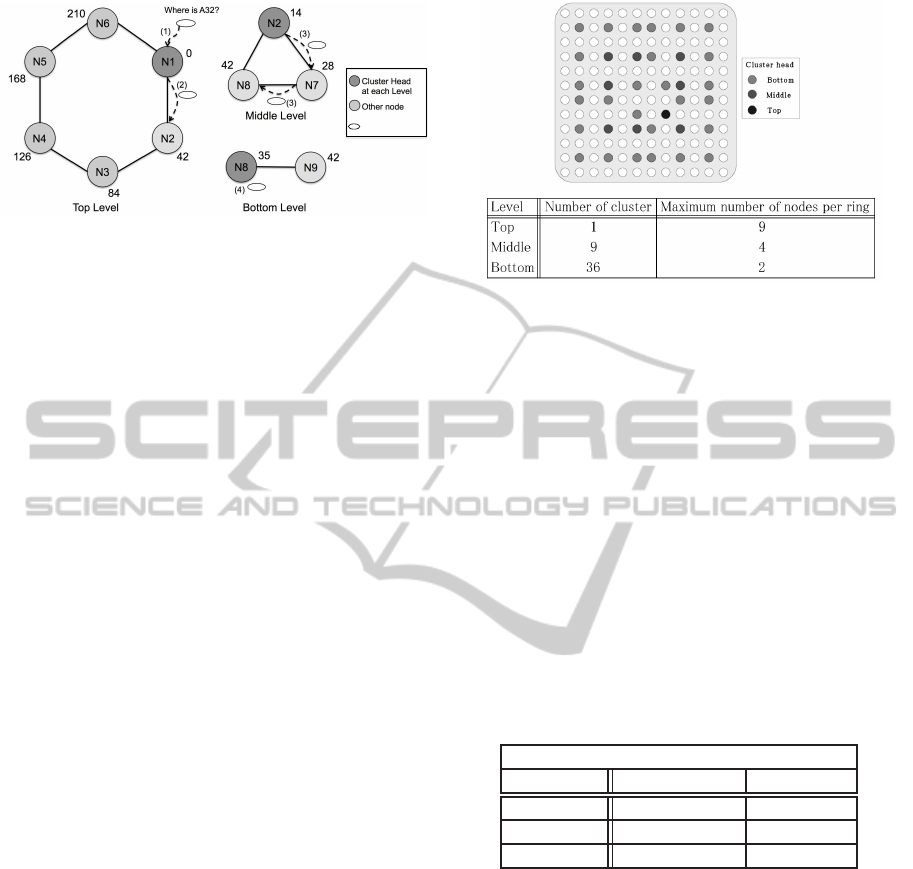

Figure 5: Illustration of assignment identiﬁers and lookup

behavior steps in our proposal.

algorithm, unique and well organized identiﬁers are

assigned to every node on WSNs.

4.3 Lookup Behavior

The lookup behavior in our proposal is based on

Chord. Similarly to CSN, a cluster head has at

least two successors; thereby, a cluster head needs

to choose to which successor it must forward the re-

ceived request when forwarding. The concrete sit-

uation of this decision is described at step 3 in the

following example. The lookup example shown in

Figure 5 starts when a node N1 receives a lookup re-

quest for an agent whose identiﬁer is 32. The numbers

in this ﬁgure correspond to the following numbered

items:

1. Receive a lookup request from an agent. In this

example, node N1 receives a lookup request for

an agent whose identiﬁer is 32 (A32).

2. Forward the request to the same level ring. As

described in the assigning identiﬁer process (Sec-

tion 4.2), N1 knows that its rings of the middle

and bottom level manage identiﬁers from 211 to

255, meaning that A32 is not managed by N1 and

its lower rings. Thereby, N1 forwards the request

to its successor (i.e., N2) at the top level.

3. Forward the request to the lower level ring. N2

compares its identiﬁer at the top level (i.e., 42)

with 32, meaning that the location of the agent

must be managed by N2 or its bottom rings. Be-

cause the identiﬁer of N2 at the middle level is 14,

which is less than 32, N2 forwards the request to

the successor at the middle level (i.e., N7). For the

same reason, N7 forwards the request to N8.

4. Answer the location of an agent or

NotFound. The identiﬁer of N8 at the middle

level is 42, therefore N8 and its bottom ring must

manage the location of A32. The identiﬁer of

N8 at the bottom level is 35, therefore N8 is

the candidate that must manage the identiﬁer

of the request. Finally, N7 replies the location

Figure 6: Conﬁguration of rings used for the experiment.

of A32 (i.e., node identiﬁer) if the local hash

table contains the location, otherwise N8 returns

NotFound message.

5 EVALUATION

This section shows that our proposal addresses the

battery consumption problem. To show to what extent

our proposal addresses the problem, we compare our

proposal to two algorithms: Random Walk (Gkant-

sidis et al., 2004), a search algorithm for P2P network,

and Flooding (Heinzelman et al., 1999), a routing al-

gorithm used to send requests between nodes.

Table 1: Comparison of the battery consumption between

our proposal, Random Walk, and Flooding.

Battery capacity: 21,600 Joules.

Approach DHT creation Per lookup

CMSN 1.556 0.0049

RW 0 0.1170

Flooding 0 0.0432

Experiment Setup. For these approaches, we use

PowerTOSSIMZ (Perla et al., 2008) for TinyOS. This

emulator works for TinyOS 2.1.1 and is deployed on

Intel Core i5 (2.4 GHz) with 8GB of RAM running

Ubuntu 12.04 (x32). Figure 6 shows the simulation

conﬁguration. The grid is composed of a 12 × 12

nodes. In this experiment, rings are split into three

levels. The top level contains 1 cluster and 9 nodes,

the middle level contains 9 clusters and 4 nodes, and

ﬁnally the bottom level contains 36 clusters and 2

nodes. Using this conﬁguration, a set of agents are

deployed and these agents randomly migrate between

nodes. Then, a lookup operation starts when a node

receives an agent lookup request. Using Random

Walk, Flooding, and our proposal, we carried out 500

lookup operations to get an average result of these ap-

AnEfficientAgentLookupApproachinMiddlewaresforMobileAgents

proaches. For only our proposal, we evaluated in two

stages: a) creation of rings (i.e., DHT structures) and

b) per lookup operation. To prevent inﬁnite lookup

operations in Random Walk and Flooding, we intro-

duced time to live (TTL) as IP does in order to repre-

sent a failed lookup: a lookup operation that takes a

greater period of time than a threshold.

#!!"

$!!"

%!!"

&!!"

'!!"

(!!"

)!!"

*!!"

+!!"

!" '" #!" #'" $!" $'" %!" %'" &!" &'" '!"

,-./"

012345"6178"

97443:2;"

Number of lookups!

Node Battery [J]!

Our proposal!

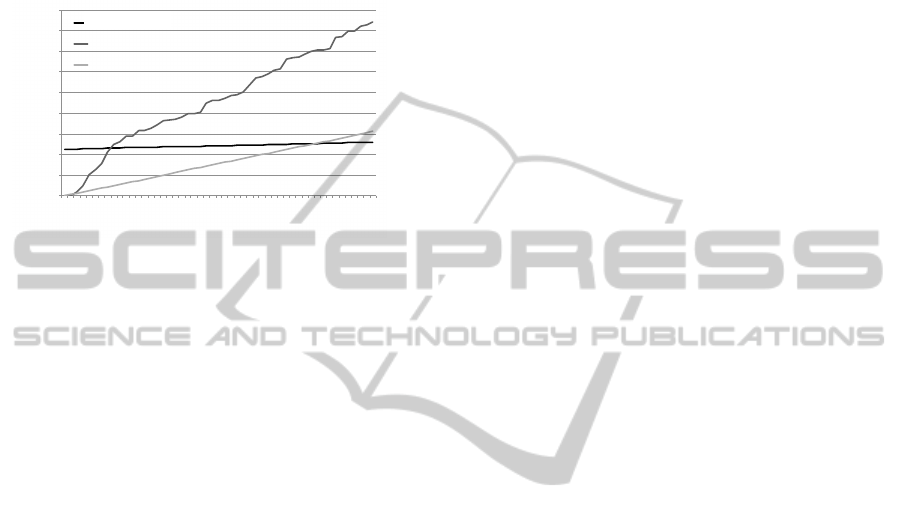

Figure 7: Comparison of our proposal to Random Walk and

Flooding.

5.1 Result and Discussion

Table 1 shows the comparison of battery con-

sumption between Random Walk, Flooding and

our proposal. Although our proposal consumes

to create DHT structures, this only consumes

1.556J (0.0072%) of the battery of each node

to create them. In addition, our proposal con-

sumes 0.0049J (0.226× 10

−4

%) of the battery per

lookup operation. In contrast, Random Walk and

Flooding consume 0.1170J (5.5415×10

−4

%) and

0.0432J (1.998×10

−4

%) of each node respectively.

Figure 7 also shows the relationship between battery

consumption and the number of lookup operations in

Random Walk, Flooding and our proposal. As our

proposal requires additional battery to create struc-

tures, Random Walk and Flooding consume less bat-

tery when the number of lookup operation is less than

7 times and 41 times respectively. However, when the

number of lookup operation increases to 7 or 41, our

proposal consumes less battery.

Based on previous results, our proposal consumes

a signiﬁcant amount of battery at the beginning,

but this consumption decreases when the number of

lookup requests increases more than 41. In mobile

agent frameworks of WSNs, less than 41 lookup op-

erations is unusual because they are designed to work

from one to a couple of years (Madden et al., 2005).

6 CONCLUSIONS

As WSNs are exposed to a real world, many of their

applications are required to adapt to the environment

changes. To address these problems, differentmiddle-

wares for mobile agents have been proposed, where

an application is composed of a set of agents and is

executed by the interactions of these agents. For this

approach, an agent needs to know the exact location

of its target agent beforehand. However, existing pro-

posals, including Agilla, do not support an efﬁcient

lookup mechanism to lookup agents. In this paper,

we propose an approach that borrows ideas from the

CSN algorithm to efﬁciently lookup agents in WSNs

within a speciﬁc period time. This efﬁcient lookup

allows WSN nodes to save battery consumption. We

implement our proposal on the TinyOS environment

and veriﬁed its advantages via a comparison with tra-

ditional lookup methods.

REFERENCES

Ali, M. and Uzmi, Z. A. (2004). CSN: A network proto-

col for serving dynamic queries in large-scale wire-

less sensor networks. In Proceeding of the Second

Annual Conference on Communication Networks and

Services Research, pages 165–174.

Blum, T. A. B., Cao, Q., Chen, Y., Evans, D., George, J.,

George, S., Gu, L., He, T., Krishnamurthy, S., Luo,

L., Son, H., Stankovic, J., Stoleru, R., and Wood, A.

(2004). EnviroTrack: Towards an environmental com-

puting paradigm for distributed sensor networks. In

Proceedings of the 24th International Conference on

Distributed Computing System, pages 582–589.

Chien-Liang, F., Roman, G.-C., and Lu, C. (2009). Agilla:

A mobile agent midleware for self-adaptive wireless

sensor networks. ACM Transactions on Autonomous

and Adaptive System, 4(3):1–26.

Gkantsidis, C., Mihail, M., and Saberi, A. (2004). Ran-

dom walks in peer-to-peer networks. In INFOCOM

2004. Twenty-third Annual Joint Conference of the

IEEE Computer and Communications Societies, vol-

ume 1, Hong Kong, China.

Heinzelman, W. R., Kulik, J., and Balakrishnan, H. (1999).

Adaptive protocols for information dissemination in

wireless sensor networks. In Proceedings of the

5th Annual ACM/IEEE International Conference on

Mobile Computing and Networking, MobiCom ’99,

pages 174–185, Seattle, Washington, USA. ACM.

Madden, S. R., Franklin, M. J., Hellerstein, J. M., and

Hong, W. (2005). TinyDB: An acquisitional query

processing system for sensor networks. ACM Trans-

actions on Database Systems, 30(1):122–173.

Perla, E., Cath´ain, A., Carbajo, R. S., Huggard, M., and

Goldrick, C. M. (2008). PowerTOSSIM z: realistic

energy modelling for wireless sensor network envi-

ronments. In Proceedings of the 3nd ACM workshop

on Performance monitoring and measurement of het-

erogeneous wireless and networks, pages 35–42.

Stoica, I., Morris, R., Karger, D., Kaashoek, M. F.,

and Balakrishnan, H. (2001). Chord: A scalable

WINSYS2015-InternationalConferenceonWirelessInformationNetworksandSystems

peer-to-peer lookup service for internet applications.

ACM SIGCOMM Computer Communication Review,

31(4):149–160.

Yick, J., Mukherjee, B., and Ghosal, D. (2008). Wire-

less sensor network survey. Computer Networks,

52(12):2292–2330.

AnEfficientAgentLookupApproachinMiddlewaresforMobileAgents
