A Proposal of Web Data Mining Application for Mapping Crime

Areas in the Czech Republic

Martin Lnenicka, Jan Hovad, Jitka Komarkova and Miroslav Pasler

Faculty of Economics and Administration, University of Pardubice, Studentska 84, 532 10, Pardubice, Czech Republic

Keywords: Web Data Mining, Geography of Crime, Decision Support, GIS, Python.

Abstract: In this paper, authors offer a new view on the issue of the geography of crime areas. The paper proposes an

interface to support the decision-making process in the reasonable time. The proposed application is used to

extract crime related information, find crime hotspots and present crime trends using web data mining

techniques. The target area is the sum of all administrative districts of municipalities with extended powers

in the Czech Republic. Every crime problem is related to some location, whether it is an address, street or

district. The proposed application scans the selected mass media servers for the words connected with the

crime type and the concrete municipality. This paper shows the detailed overview about the proposed and

used architecture, methods and data structures.

1 INTRODUCTION

In recent times, while there was quick growth of

urbanization and exponential increase in crimes,

most authors focused on the geography of crime

areas. But prevention and planning is important too.

Related policies and planning concentrate on crime

prevention and emphasize the backgrounds and

contexts leading to crimes. A quick analysis of crime

data can provide key information both to police

organizations to improve safety at the operational

level and to policies makers at strategic and tactical

levels. Citizens also desire crime information to

make informed decisions about where to live and

work. However, to the authors’ best knowledge,

very few publications can be found, that discuss the

issue of delivering the crime related results in

minimum possible time.

Geographic Information Systems (GIS) are used

in many different ways in the crime analysis. They

bring geographical dimension into these analyses.

Geographic profiling methodology, which is focused

on geographical patterns of criminals, can be given

as an example. Also variety of socioeconomic and

crime opportunity factors such as the population

density, economic investment and land use are likely

to influence criminal behavior and it is necessary to

take them into account when analyzing these data.

The main principle of the proposed application is

to find a required crime type and the neighbor word,

which occurs in the list of target cities. If there is

any match, then get the location, compare it with

JavaScript Object Notation (JSON) alternatives and

draw into the map. The target level is represented by

the 206 municipalities with extended powers in the

Czech Republic (CR) and the four crime types based

on the crime classification and definition in the CR:

krádež (theft), loupež (robbery), vražda (murder),

znásilnění (rape) and their different shapes in the

Czech language. Authors are focused to design and

code a web data mining application, which provides

the basic layer to analyze web content for the crime

references, locate them on the map and calculate the

weights for target cities through the time.

The proposed application runs automatically in

the specified time intervals on the server. The main

used language is Python, which is presented e.g. in

(Oliphant, 2007). This programming language is

suitable for scientific purposes because it simplifies

many complicated programming approaches into the

unified and understandable form. An Application

Programming Interface (API) is used to limit

programming only to the computational tasks and

use the suitable existing services to do the rest, for

example the visualization of results. An API is an

interface of a service, that is usually reachable by

outsource a specific activity. An API creation is

covered in the work of Henning (2007). This job can

be done using e.g. the PHP, which was widely used

450

eni

cka M., Hovad J., Komárková J. and Pásler M..

A Proposal of Web Data Mining Application for Mapping Crime Areas in the Czech Republic.

DOI: 10.5220/0005558104500455

In Proceedings of the 10th International Conference on Software Engineering and Applications (ICSOFT-EA-2015), pages 450-455

ISBN: 978-989-758-114-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

in this paper for the database tasks. Processing the

HTML data (website raw string) response to the sent

request was done by parsing the output tree, which is

described by Jackson (2003). Accessing information

like getting the specified container content usually

results in the necessity to filter the text string can be

done by using the regular expressions and special

libraries that can perform operations like removing

the unwanted JavaScript or comments in the source

code (Baeza-Yates and Gonnet, 1996). Uniform data

structure as a XML was replaced by a JSON, which

is more suitable for Python and it is also used by

many APIs as a data structure to transfer the optional

adjustment arguments (Peng et al., 2011). JSON city

dictionary was created by the help of Esri ArcGIS.

2 RELATED WORK

The geography of crimes has been deeply studied to

understand distribution and patterns of the crimes

and to identify the factors which influence them.

Spatial image of crime distribution and comparing

its data with characteristics of the place of crime and

socioeconomic status can give the opportunity to

identify the crime hotspots and predict the possible

crime places in urban areas (Ardian et al., 2014).

Crime can be analyzed at many different levels

of aggregation in time and space. Criminal activities

tend to concentrate in certain places for reasons that

have to be explained. Areas of concentrated crime

are often referred to as hotspots (Wang et al., 2013).

Web mining lies in between data mining and text

mining, and copes mostly with semi-structured data

and/or unstructured data. Web content mining is

performed by extracting useful information from the

content of a web page (Zhang and Segall, 2008). The

one aspect of web mining is the data collection. Web

mining provides automated mechanism to collect the

relevant data for predefined objectives from the

enormous web data (Hussain and Asghar, 2013).

Shelley (1980) for example identified that the

influence of the deep inhabitants control including

inner passport system in the Soviet Union resulted

into the different crime distribution in comparison to

other industrialized countries. Wang et al. (2013)

combine the ideas from spatial data mining and

introduce a new hotspot mapping tool to improve the

identification of crime hotspots through the mining

of spatial patterns composed of crime related factors.

Along similar lines Nath (2006) developed the claim

that a data mining approach can help detect the

crimes patterns and speed up the process of solving

crime. For the support of this claim, the author used

k-means clustering technique and developed the

scheme for weighting the significant attributes.

Similarly, systems dynamics in connection with

GIS technologies was used to simulate impacts of

various social policies (education, environment and

unemployment policy) on crime rates (Quijada et al.,

2005). Erdogan et al. (2013) used exploratory spatial

analysis to demonstrate the utility of spatial analysis

and geographically weighted regression to detect

important geographical dimensions and crucial

geographical aspects of property crimes.

Friebel and Friebelova (2012) have evaluated the

life quality in the Czech districts using the method of

Data Envelopment Analysis (DEA). Criminality

belonged to one of the four basic inputs of the DEA

model. However, several practical questions arise

when dealing with the identification of the crime in

the real time or at least in the reasonable time.

All above described approaches are focused on

web content mining methods. The spatial factor and

speed of queries processing are not understood as so

significant factors. Authors focus on these aspects.

3 PROBLEM STATEMENT AND

USED METHODS

The paper is written with the primary aim of creating

the object oriented Python application for the

identification of the crime areas in the CR in the

reasonable time. For the purpose of this goal, the

proposed application is directed into the mass media

servers, press and a newspaper area. The sources

(articles) in the selected media servers are analyzed

with the effort to find the references to the target

crime type with the connection to the concrete city.

The main tool used is Python in the version 2.7.

Version 3.3 is not used because of the limited

compatibility with some web services for example

Google. IDE was set to PyScripter, which provides

the basic debugging options and it keeps the work

environment simple. Python is used along with basic

built-in libraries like time / datetime, JSON (data

structure handling), urllib2 (processing the HTML

requests), re (matching or replacing text by regular

expressions), HTML-Parser (basic tag filtering) or

collections (counting the results, statistics). The

other libraries are installed additionally. Then the

MySQLdb connector is used to save the history data

during the script runs. The beautiful soup (BS)

library is used for accessing the data. Google

Geohart API and Maps API with basic functions are

used to utilize the graphing API.

AProposalofWebDataMiningApplicationforMappingCrimeAreasintheCzechRepublic

451

The code is written in objective way and it can

be extended to cover new location-based situations

and handle number of different tasks, such a social

media monitoring, crisis management, customer

segmentation, etc. The raw class structure of the pro-

posed web data mining application can be seen from

the Figure 1.

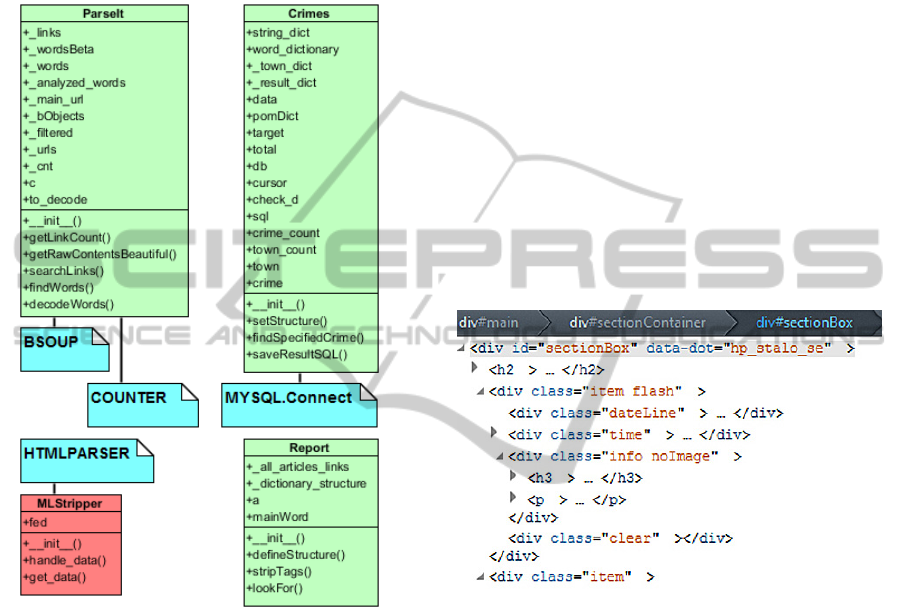

Figure 1: Class diagram of the proposed application.

4 DESCRIPTION OF THE WEB

DATA MINING APPLICATION

4.1 Targets and HTML Structure

Authors use the three biggest media servers in the

CR. Sources are: www.novinky.cz, www.ct24.cz,

www.m.idnes.cz. This fact is crucial, because the

Czech language is characterized by hard inflection

of individual words and their meanings. Desktop

versions usually need more focus in the case of

clearing the content, mobile versions are clearer.

The HTML request is made for each of these

sources and the result is then saved in the string

variable. This variable then contains everything:

comments, JavaScript, tags and also a plain text of

the articles. This text string is then transformed by

the BS library into the BS object (BO). After that,

each source is loaded by an object constructor and

the title page is scanned for the relevant links that

lead to the individual articles. Every tag in the

document could be easily accessible, e.g.:

<title>

Media server webpage

</title>

BO.title.string

“Media server webpage”

The only manual step before running the script is

to explore the HTML structure of the source for the

identification of the target content. This analysis is

shown in the Figure 2. If the web structure of the

target media server is changed, the code of the

proposed application has to be also modified.

However, it is a simple task, only the function,

which deals with the HTML containers (mostly with

their names), has to be changed.

Figure 2: The analysis of the basic HTML structure.

4.2 Filtering Content and Data

Structure

Initially, the title page of the first mass media server

is scanned for the all <h3> occurrences, because the

new articles are characterized by this tag. All the

content inside is scanned again for the <a> tag that

contains links to the full texts. Then the content of

this tag is returned and the string of the attribute was

saved into the associative array (dictionary). Every

article then also gets an ID to ensure that it is

scanned only once. The shortened version of this

step for a selected source is shown in the Figure 3.

The complete code is 350 lines long.

Another iteration of this operation processes the

founded links once again. They are converted into

the BO one by one while the pure text of the article

was extracted. Pure text is placed in the <div

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

452

Figure 3: The function to search through the HTML

structure for links.

id=”articleBody”> and this structure is global for

the whole website. The content is returned and saved

as a string. MLStripper class inherits from the

HTMLParser and instantiates an object that clears a

string from the HTML tags and Javascript. Data

structure is characterized as a key-value pair, where

the value can be another associative array. Words

are stored in the JSON structure.

4.3 Dictionaries and Debugging

Czech language has many possible shapes / options

for a single word. Therefore, two dictionaries had to

be created to cover more than one inflection of the

concrete word: the list of cities and the list of crimes.

The structure is word(key):[shapes(args)]. This had

to be done for all the 206 municipalities (cities) with

extended powers and 4 crime types. The focus of the

dictionaries can be easily changed or extended.

4.4 Results of Searching and Their

Storage

This function takes an input word (e.g. murder) and

set of *args (murdered, murdering, murders, etc.)

and compares all these words with the words in the

target source (string of a pure text). If any of input

word or *args occurred, the key, which was

represented by the input word, is returned. After

that, the article is scanned for the location (the city

and its *args) from the list of cities. If the city is

found, the presence is saved along with weights /

counts. Google Geochart API and Maps API are

used to present the results of the selected crime and

its appropriate city and also a weighted count in the

specified interval, which leads the circle size. The

time attribute represents the borders for the article

on the title page in the selected source. The function

that found the reference to the concrete crime and

the city is shown in the Figure 4.

Figure 4: The function for the finding of the crime.

Finally, the results are saved into the database

table. The much shortened version of this function is

shown in the Figure 5.

Figure 5: The function to save the crime into the table.

5 RESULTS AND DISCUSSION

In this paper, authors describe an effective approach

AProposalofWebDataMiningApplicationforMappingCrimeAreasintheCzechRepublic

453

to analyze publicly available content on the Web to

locate crime areas and support the decision-making

process in the reasonable time. The proposed web

data mining application utilizes Python and Google

API, which significantly simplifies the front-end

visualizations. All the background work is done by

PHP (database listing, control elements), HTML and

CSS (basic web layout), JavaScript (Google API

communication) and MySQL (basic selects and

operations over the data table). The target mass

media servers in the CR are scanned every hour and

the obtained data are saved into the database table

since the deployment of the application. The output

of the proposed application can be seen from the

Figure 6.

The user can choose the crime type from the list

box. Only one crime type can be selected and shown

in the map. The results of query consist of crime

name, coupled city (crime hotspot), crime count,

town weight, article link and how long was the link

active on the title page of the selected mass media

server (after that, the article was moved in the

archive). The algorithm for the calculation of the

weight is the sum of the target word in the selected

article (CRIME NAME in the Figure 6) for the

monitored city (COUPLED CITY). If the article

contains only the one city and only the one target

word, then the weight is 1 (TOWN WEIGHT), for

the two cities it is 0.5, etc. The final weight for the

selected city is the sum of the previous weights

Figure 6: The output of the proposed web data mining application.

ICSOFT-EA2015-10thInternationalConferenceonSoftwareEngineeringandApplications

454

calculated. Under the map, there is also a list of the

actual crime related news (hourly updated), which is

the most important part in the support of the

decision-making process and delivering the crime

related results in the minimum possible time.

The highest crime weight in the Figure 6 has the

capital city of the CR. The other crime hotspots are

situated in the North Bohemia region (Most and

Teplice) and in the North Moravia region (Ostrava).

These results were validated by comparison with the

Police of the CR official database and they showed

no significant difference between the compared data.

Although the geographical area for the proposed

application is the CR, this research can be of general

interest to practitioners in criminology, data mining

and geographical mapping in other parts of the

world as well, because the demonstration of how an

application can be used to map crime can be adapted

to other environments and scenarios.

6 CONCLUSIONS

The main objective and partial goals are completed

successfully. The attention of authors is in this case

concentrated only on the mass media servers.

Nevertheless, the approach outlined by this paper

can be integrated to provide much broader analyses.

Organizations using this application can improve

decision-making capabilities in a rapidly changing

environment and have a direct impact on the safety

of the selected cities. In addition, it can help the

police and other public sector institutions view and

understand underlying crime hotspots, movements

and patterns. It can also help to increase cooperation

between them and the citizens they serve.

On the basis of the promising findings presented

in this paper, work on the remaining issues is

continuing and will be presented in the future

papers. As a future extension of this paper, authors

will focus on the improvement of the proposed web

data mining application. Users will have an option to

select the month (date) or the concrete mass media

server together with the selected crime type as a list

box and the choice to filter the results. Nonetheless,

the first step in this process should be the definition

of the framework and identification of patterns.

ACKNOWLEDGEMENTS

This paper was supported by the SGSFES_2015001

fund.

REFERENCES

Ardian, N. et al., 2014. The Spatial Analysis of Hot Spots

in Urban Areas of Iran. The Case Study: Yazd, Revista

de Cercetare şi Intervenţie Socială, 44, 103–115.

Baeza-Yates, R. A., Gonnet, G. H., 1996. Fast text

searching for regular expressions or automaton

searching on tries, Journal of the ACM, 43(6), 915–

936.

Erdogan, S., Yalcin, M., Dereli, M.A., 2013. Exploratory

spatial analysis of crimes against property in Turkey,

Crime Law And Social Change, 59(1), 63–78.

Friebel, L., Friebelova, J., 2012. Quantitative evaluation of

life quality of Czech districts, In Proceedings of 30th

International Conference Mathematical Methods in

Economics, 190–195, Silesian University in Opava.

Henning, M., 2007. API design matters, Queue, 5(4), 24–

36.

Hussain, T., Asghar, S., 2013. Web mining: Approaches,

applications and business intelligence, International

Journal of Academic Research, 5(2), 211–217.

Jackson, Q. T., 2003. Efficient formalism-only parsing of

XML/HTML using the §-calculus, ACM SIGPLAN

Notices, 38(2), 29–35.

Nath, S. V., 2006. Crime pattern detection using data

mining, In 2006 IEEE/WIC/ACM International

Conference on Web Intelligence and Intelligent Agent

Technology Workshops, 41–44, ACM.

Oliphant, T. E., 2007. Python for scientific computing,

Computing in Science and Engineering, 9(3), 10–20.

Peng, D., Cao, L., Xu, W., 2011. Using JSON for data

exchanging in web service applications, Journal of

Computational Information Systems, 7(16), 5883–

5890.

Quijada, S. E., Arcas, J. F., Renner, C., Rabelo, L., 2005.

A spatio temporal simulation model for evaluating

delinquency and crime policies, In Proceedings of the

2005 Winter Simulation Conference, 1328–1334,

IEEE.

Shelley, L., 1980. The Geography of Soviet Criminality,

American Sociological Review, 45(1), 111–122.

Wang, D. et al., 2013. Crime hotspot mapping using the

crime related factors – a spatial data mining approach,

Applied Intelligence, 39(4), 772–781.

Zhang, Q., Segall, R. S., 2008. Web mining: a survey of

current research, techniques, and software,

International Journal of Information Technology and

Decision Making, 7(4), 683–720.

AProposalofWebDataMiningApplicationforMappingCrimeAreasintheCzechRepublic

455
