Light Blind: Why Encrypt If You Can Share?

Pierpaolo Cincilla, Aymen Boudguiga, Makhlouf Hadji and Arnaud Kaiser

IRT SystemX, 8 avenue de la Vauve, 91120, Palaiseau, France

Keywords:

Cloud Computing, Data Conﬁdentiality, Encryption.

Abstract:

The emergence of cloud computing makes the use of remote storage more and more common. Clouds provide

cheap and virtually unlimited storage capacity. Moreover, thanks to replication, clouds offer high availability

of stored data. The use of public clouds storage make data conﬁdentiality more critical as the user has no

control on the physical storage device nor on the communication channel. The common solution is to ensure

data conﬁdentiality by encryption. Encryption gives strong conﬁdentiality guarantees but comes with a price.

The time needed to encrypt and decrypt data increases with respect to the size of input data, making encryption

expensive. Due to its overhead, encryption is not universally used and a non–negligible amount of data is

insecurely stored in the cloud. In this paper, we propose a new mechanism, called Light Blind, that allows

conﬁdentiality of data stored in the cloud at a lower time overhead than classical cryptographic techniques.

The key idea of our work is to partition unencrypted data across multiple clouds in such a way that none of

them can reconstruct the original information. In this paper we describe this new approach and we propose a

partition algorithm with constant time complexity tailored for modern multi/many-core architectures.

1 INTRODUCTION

Nowadays, it becomes more and more common for

people and companies to store data outside their

premises. The successful pay as you go economic

model offered by public cloud providers is attracting

more and more customers thanks to its elasticity in

resource provision and to its availability guarantees.

However, storing data in a public cloud rises serious

security concerns. The loss of control of the physical

storage and computational devices, and the connected

nature of third-party hardware imply an expansion of

the attack surface.

Mechanisms to protect data conﬁdentiality and in-

tegrity exist (Kamara and Lauter, 2010; Wang et al.,

2011) but nevertheless, the amount of plaintext data

stored in public clouds is non-negligible. Currently,

encryption is the main mechanism used to protect

data conﬁdentiality. It offers strong guarantees but

its computational complexity prevents it from being

systematically used by cloud storage consumers. It

is time to provide to cloud consumers an alternative

system able to guarantee an acceptable level of con-

ﬁdentiality at a much lower computational expense.

Such a technique beneﬁts to users and companies that

actually do not secure their outsourced data.

In this paper, we propose an alternative to en-

cryption called Light Blind. Our idea is based on

the observation that splitting a ﬁle in chunks of non-

contiguous bits is faster than encrypting. The emer-

gence of multi-cloud systems (Bohli et al., 2013; Ste-

fanov and Shi, 2013) makes it possible to achieve con-

ﬁdentiality by partitioning data chunks over multiple

providers. As such, each cloud provider can not ac-

cess the original data without colluding with all other

providers.

The remainder of this paper is organized as fol-

lows. Related work on multi–cloud storage and data

encryption is reported in Section 2. Section 3 de-

scribes the architecture, the partition algorithm and

the pattern hiding system. We discuss Light Blind

properties in Section 4. Conclusion and future work

are depicted in Section 5.

2 RELATED WORK

Srivastava et al. (Srivastava et al., 2012) proposed a

simple algorithm to better protect data by splitting

it into subﬁles which are hosted in different virtual

machines within different cloud providers. The pa-

per dealt with operations to distribute and retrieve the

required subﬁles (data) without encrypting them. The

proposed heuristic in (Srivastava et al., 2012) can host

361

Cincilla P., Boudguiga A., Hadji M. and Kaiser A..

Light Blind: Why Encrypt If You Can Share?.

DOI: 10.5220/0005562203610368

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 361-368

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

all of the data chunks within the same provider lead-

ing him to retrieve end-user’s data.

In (di Vimercati et al., 2014b), the authors propose

a combination of data distribution and swapping tech-

niques that protect both data and access conﬁdential-

ity. In their solution data conﬁdentiality is obtained

by ciphering the data, while access conﬁdentiality is

obtained by changing the physical location of data at

every access. They make use of three independent

servers to further increase data access protection. In

our work we focus on providing data conﬁdentiality

at a constant time complexity rather than providing

access conﬁdentiality.

In (di Vimercati et al., 2014a), authors consider

the problem of protecting data conﬁdentiality in the

cloud and point out two main techniques: encryp-

tion and fragmentation. An example of fragmenta-

tion technique is given in (Aggarwal et al., 2005).

They show how to provide conﬁdentiality by parti-

tioning a database over two servers. As in fragmen-

tation techniques, we propose to partition data into

chunks which are stored in separate servers. Contrar-

ily to classical fragmentation, we make use of multi-

ple servers to achieve conﬁdentiality at constant time

complexity without obfuscating data relations. We fo-

cus in an encryption-like mechanism at a lower com-

putational cost than classic cryptography.

For high availability and failure concerns when

storing data in the cloud, Qu and Xiong (Qu and

Xiong, 2012) proposed a distributed algorithm to

replicate data objects in different virtual nodes. Ac-

cording to the trafﬁc load of all considered nodes, the

authors deﬁned different actions: replicate, migrate,

or suicide to meet end-user requirements. The pro-

posed approach consists in checking the feasibility of

migrating a virtual node, performing suicide actions

or replicating a copy of a virtual node. However, the

stored data suffers from vendor lock-in as the totality

of data is stored within one provider.

In (Mansouri et al., 2013), authors dealt with the

problem of multi-cloud storage with a focus on avail-

ability and cost. The authors proposed a ﬁrst algo-

rithm to minimize replication cost and maximize ex-

pected availability of objects. The second algorithm

has the same objective but is driven by budget con-

straints. However, the paper does not embed secu-

rity aspects apart from dividing the data into chunks

or objects. In (Sachdev and Bhansali, 2013), authors

proposed encrypting data locally using the Advanced

Encryption Standard (AES) algorithm before sending

the data for storage in the cloud.

In (Hadji, 2015), Hadji addresses encrypted data

storage in multi-cloud environments and proposes

mathematical models and algorithms to place and

replicate encrypted data chunks while ensuring high

availability of the data. To enhance data availabil-

ity, the author presents two cost-efﬁcient algorithms

based on a complete description of a linear program-

ming approach of the multi-cloud storage problem

and then shows the scalability and cost-efﬁciency

of the proposed multi-cloud distributed storage solu-

tions. To guarantee data conﬁdentiality, the author

uses data chunks encryption with AES, which im-

poses a potentially high overhead when uploading and

downloading the data.

We notice that most of the aforementioned works

refer to the use of symmetric cryptography and AES

particularly when providing data conﬁdentiality. AES

is a special case of Rijndael algorithm (Daemen and

Rijmen, 1998) when considering 128 bits long in-

put blocks. AES supports the following key lengths

128, 192 and 256 bits, and consists of 10, 12 and 14

rounds, respectively. AES can be used in different

block cipher modes. The most known modes are the

following (Ferguson et al., 2011):

• Electronic Code Book mode (ECB): in ECB mode,

we encrypt each plaintext input block P

sepa-

rately such as: C

= AES

Encrypt(K,P

) where K

is the encryption key and C

is the corresponding

ciphertext. Note that ECB suffers from a pattern

recognition problem and its use in practice is dep-

recated.

• Cipher Block Chaining mode (CBC): in CBC

mode, we apply an exclusive OR (XOR) to ev-

ery plaintext input block with the previous cipher-

text block as following C

= AES Encrypt(K,P

⊕

i−1

). Note that the ﬁrst ciphertext block C

is computed from the encryption of the ﬁrst

plaintext block P

with the key K as C

AES Encrypt(K,P

⊕ IV) where IV is a random

initialization vector.

• Output Feedback mode (OFB): in OFB mode,

= K

⊕ P

where K

= AES Encrypt(K,K

i−1

)

and K

= IV . OFB and CBC modes are sequential

in that each block can not be treated until getting

some information from the previous block.

• Counter mode (CTR): in CTR mode, K

AES Encrypt(K,Nonce k i) and C

= K

⊕ P

In our work, we propose a new efﬁcient and scal-

able solution capable of handling large data thanks to

its constant time complexity. We ﬁrst split the data

into small chunks and then apply a new approach to

better dispatch them across available data centers and

providers. We propose a smart mechanism providing

each cloud host with only a random subset of data

chunks. Our algorithm provides patterns distribution,

without data encryption. It has constant time exe-

SECRYPT2015-InternationalConferenceonSecurityandCryptography

362

cution and guarantees data conﬁdentiality. It can be

easily implemented over multi-cores architecture and

proﬁts from multi-threading. In the following sec-

tion, we discuss in details our proposed solution and

how it can tackle secure data storage between differ-

ent multi-cloud providers.

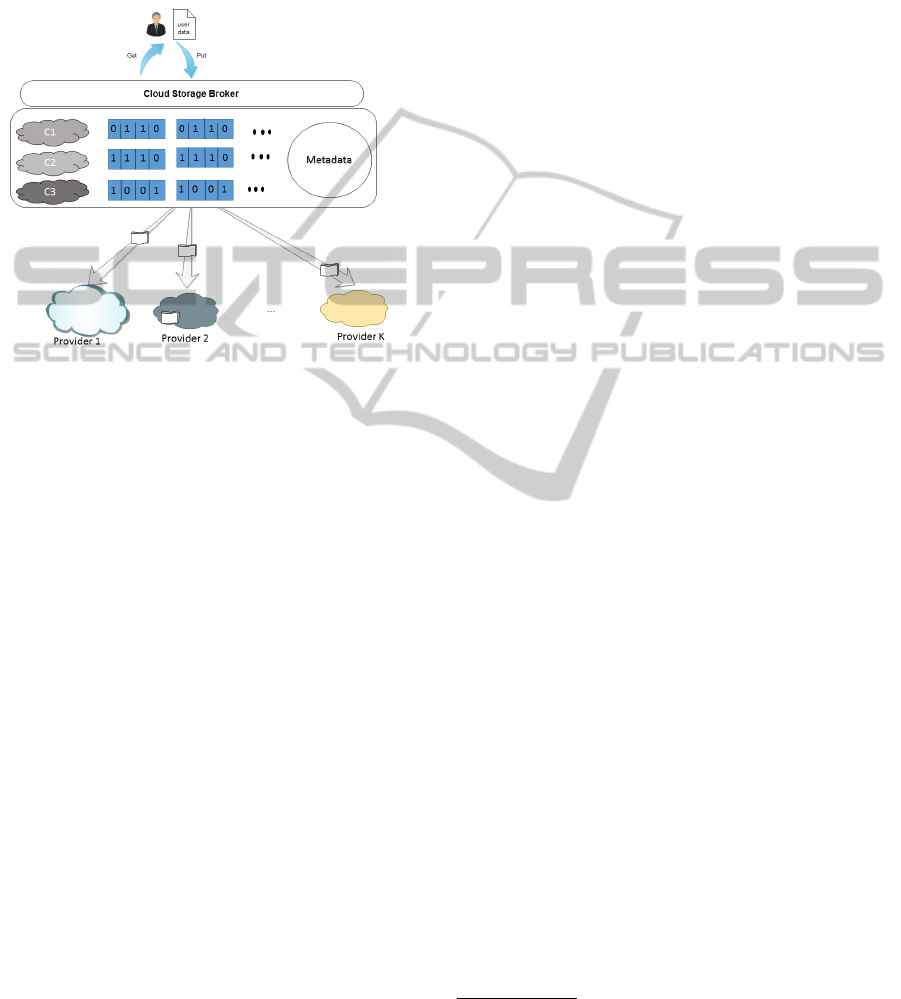

Figure 1: System overview.

3 Light Blind ARCHITECTURE

We consider a system composed of a set of clients,

a broker, and a set of cloud storage providers (C =

,. ..c

}). The client uses the broker services to

securely store its data in the set of clouds storage. The

broker is in the client machine or in a cloud trusted by

the client (see Figure 1).

3.1 Protocol Overview

The clients send to the broker requests to

store/retrieve ﬁles in/from the cloud.

A store request contains a ﬁle and a set of con-

straints (e.g., the minimum/maximum number of

providers, the number of replicas or their geograph-

ical location, etc.). The broker call a Policy Service

that returns a set of destination clouds that respect,

if possible, all the constraints. Then the broker calls

a partition algorithm that splits the ﬁle into shares,

one for each cloud identiﬁed by the Policy Service.

We assume that the Policy Service returns at least two

clouds. Finally, it sends each share to the appropri-

ate cloud. The broker store locally all the information

needed to retrieve and reconstruct the original ﬁle.

A retrieve request contains the ﬁle identiﬁer. The

broker fetch all the shares corresponding to that ﬁle

and reconstruct the original ﬁle that is returned to the

client.

The Policy Service mechanism is orthogonal to

the obfuscation system described in this paper and

well known in the literature (Mansouri et al., 2013;

Papaioannou et al., 2012). The details of such a mech-

anism are out of the scope of this work and not de-

scribed here.

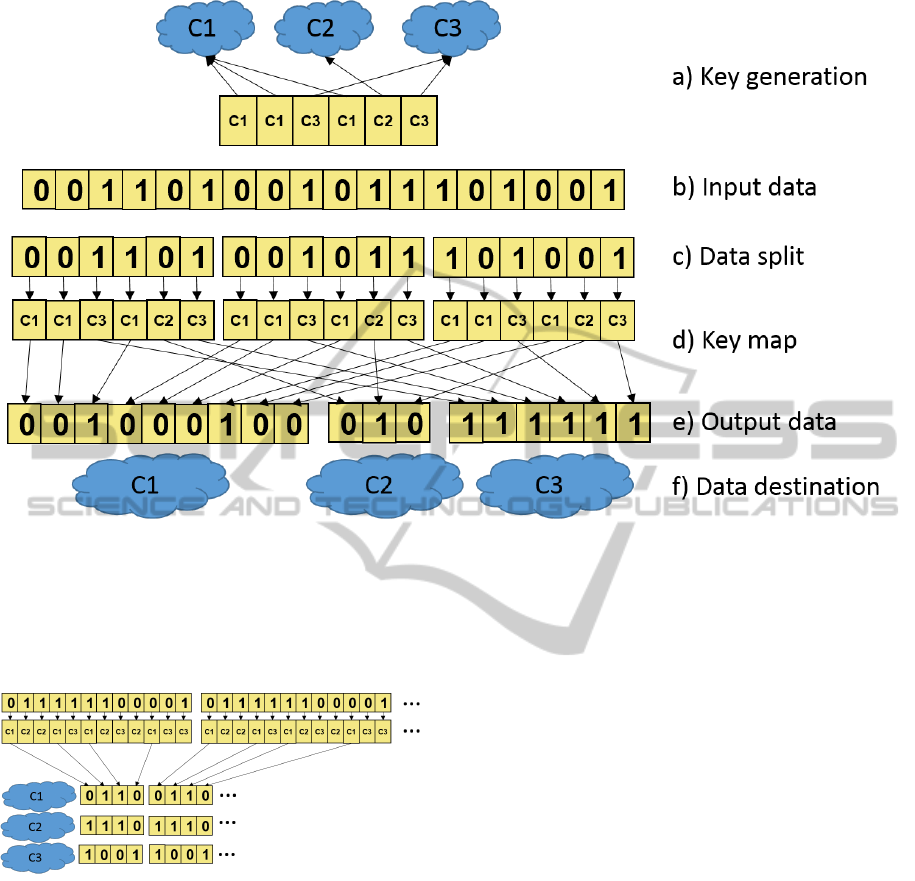

3.2 Light Blind Partition Algorithm

To partition the input plaintext over a set of cloud

providers C = {c

,. ..c

} we proceed as follows:

i) we divide the input in blocks of k bits each (except

the last block that can be smaller), ii) we generate a

key that map each bit of the block to a cloud provider

∈ C, iii) we generate for each cloud a share contain-

ing the bits that belong to it according to the key, and

iv) we assign each share to its cloud.

The key is generated by randomly taking for each

bit of the block a cloud provider c

∈ C. The dimen-

sion of the key is proportional to the dimension of the

block

. Figure 2 shows an example of Light Blind

partition algorithm.

The key property of this algorithm is that each step

is fully parallelizable and its execution time is con-

stant: does not depend on the plaintext size. That is,

each block can be treated in parallel by a different

thread with no need of synchronization.

3.3 The Patterns Problem

The partition algorithm does not hide well patterns of

the plaintext. Similarly to AES Electronic Code Book

(ECB) encryption mode, if the plaintext has a pattern,

the pattern will be reﬂected in the ciphertext. Each

block is encrypted using the same key, so for the same

blocks corresponds the same ciphertext. In order to

solve this problem, other block cipher modes (Sec-

tion 2) use a different encryption key for each block.

As such, patterns of the plaintext are not reﬂected in

the ciphertext .

Light Blind faces the patterns problem in an inno-

vative way by hiding patterns without trade on scal-

ability. We modify the algorithm described in Sec-

tion 3.2 as follow: after having generated the shares

(step iii) and before sending them to the clouds (step

iv), we perform a series of data transformations that

shufﬂe the block content and that cannot be undone

unless all the shares are available. That is, clouds col-

laborate between them to retrieve all the shares or the

There is a trade off to consider: in one hand to optimize

the amount of data stored in the broker we want to minimize

the size of the key (i.e., the smaller, the better), in the other

hand for the robustness of the encryption hold the rule “the

bigger the better” (see Section 3.7).

LightBlind:WhyEncryptIfYouCanShare?

363

An input data of 18 bits is partitioned in three clouds C1,C2 and C3 using blocks of 6 bits. (a) An array of the size of a block (6 in this

example) is generated. The array contains in each cell the identiﬁer of one of the target clouds (C1,C2,C3) selected randomly. (b) - (c) The

input data is split in blocks of size 6. (d) Each block is paired with the key generated in step a. Each bit is moved in a share corresponding to

the cloud indicated by its pair in the key. (e) - (f) Each share generated in step d is moved to its associated cloud.

Figure 2: Light Blind Partition Algorithm Example.

Figure 3: Pattern Example.

attacker eavesdrop on the network. This extra step is

still fully parallelizable and its execution time is con-

stant.

3.4 The Cut-and-Shufﬂe Algorithm

Overview

As introduced in Section 3.4 the Light Blind partition

algorithm does not hide patterns. Figure 3 shows an

example of pattern in the input blocks which is re-

ﬂected in the produced shares for a given key. In the

example the three shares show a different pattern that

repeats each 4 bits. To solve this problem we do not

send shares to clouds right after their generation (step

iii in Section 3.2) but we add an extra step that cut

data contained in the shares and then shufﬂe it. We

ﬁrst cut rows of shares to form pattern-free columns,

then we shufﬂe those columns to form new shares.

If a share contains a pattern of n bits and we cut the

share in blocks of k bits with k < n and k prime with

n, the ﬁrst n blocks of k bits each will not contain any

pattern present in the share (see Figure 4).

Cut Phase

In the cut phase we align shares in rows and then

we cut each row in blocks of k bits. The ﬁrst block

of each row (i.e., share) forms the ﬁrst column,

the second block of each row forms the second

column and so on (vertical red lines in Figure 4).

Notice that the ﬁrst n columns produced in the cut

phase do not contain any pattern of the plaintext

thanks to the assumption that the cut length k is

prime with the plaintext pattern length n.

Shufﬂe Phase

In the shufﬂe phase we associate the ﬁrst column

to the ﬁrst cloud, the second column to the second

cloud, and so on. When there are no more clouds

we restart the association from the ﬁrst cloud in

SECRYPT2015-InternationalConferenceonSecurityandCryptography

364

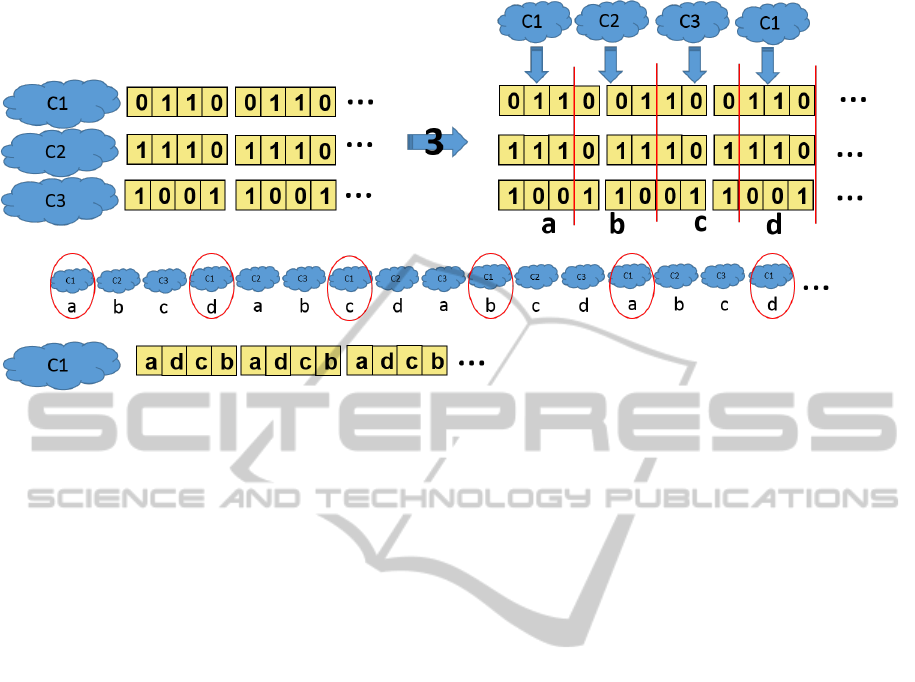

Figure 4: Cut-and-Shufﬂe Step Example.

a circular manner. This new association between

columns and clouds generate a new set of shares

that do not contain the pattern of the plaintext.

The problem of the Cut-and-Shufﬂe algorithm is

that new patterns appear: in the cut phase for a pattern

of length n, the ﬁrst n columns are unique. After the

columns they repeat: the column n + 1 is equal to

the column 1, the column n + 2 is equal to the column

2, etc.

Consider the example in Figure 4. There are three

shares each one containing a pattern of length 4 (0110

for the cloud c

, 1110 for the cloud c

and 1001 for

the cloud c

). In the cut phase (vertical red lines in the

Figure 4) we cut the pattern of length n = 4 in blocks

of length k = 3 (notice that 3 is minor than 4 and prime

with it), the initial patterns (0110, 1110 and 1001) are

broken and none of the generated blocks of three bits

contains any pattern. We associate each column to a

new share in a circular manner. The ﬁgure shows the

ﬁrst four columns, named “a”, “b”, “c” and “d”. Each

column contains 9 bits and is unique. The problem

comes after the fourth column: cutting a pattern of

length 4 in columns of length 3, imply that each four

columns the cut repeat, i.e., the column 5 will be equal

to the column 1, the column 6 equal to the column 2,

and so on. More in general what happen is that cut-

ting a pattern of length n in blocks of length k, the cut

will repeat each n ∗ k bits, that is each n blocks. This

implies that the column i will be the same as the col-

umn i mod n. In the bottom part of Figure 4 we have

named the four columns a, b, c and d and we show,

for the cloud c

, the new pattern that arises: a-d-c-b.

Since clouds are associated to columns in a circular

manner the cloud c

will receive the same columns a,

d, c and b in this order, repeatedly. This means that

cloud c

will observe a new pattern composed by the

concatenation of columns a-d-c-b. In the example of

Figure 4 the new pattern has a length of four columns

of 9 bits each. More in general using this technique

the new share will contain a pattern that repeats ev-

ery k∗ #of rows (clouds) ∗n. This is a key property of

the Cut-and-Shufﬂe algorithm: after a cut-and-shufﬂe

operation the algorithm mix together a number of bits,

breaking every pattern they can contain.

3.5 The Cut-and-Shufﬂe Algorithm

Iteration

The pattern problem can be mitigated by cutting rows

of shares in columns and assigning columns to a new

set of shares. The problems of this technique is that i)

it does not completely hide patterns but it only makes

them somehow bigger and ii) needs to know the pat-

tern length to ﬁnd a number smaller than the pattern

length and prime with it. In practice, we solve those

problems by iterating our algorithm multiple times

using each time a different prime number. Figure 4

shows how patterns of 4 bits are mixed to form pat-

terns of 36 bits cutting the initial share in columns

of 3 bits. The idea is to iterate the same procedure

of Cut-and-Shufﬂe multiple times in order to increase

the size of bits mixed to a dimension that will hide all

possible patterns.

In our algorithm we repeat the cut and shufﬂe step

ten times. We use the sequence of the ﬁrst 10 odd

prime numbers (3, 5, 7, 11, 13, 17, 19, 23, 29 and 31)

to choose the size of the block at each step. For seek

of simplicity, we ﬁrst assume that the input does not

LightBlind:WhyEncryptIfYouCanShare?

365

contain patterns that are multiple of any of the prime

numbers used in the cut step to avoid breaking the as-

sumption that the length of the cut is prime with the

length of the pattern. Then we generalize our descrip-

tion considering those cases.

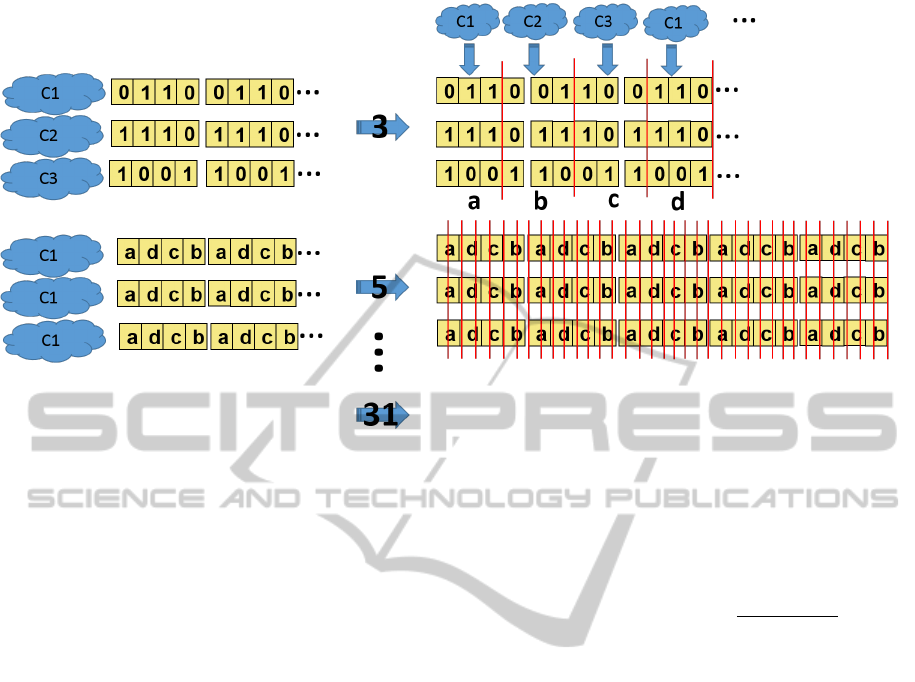

Figure 5 shows the Cut-and-Shufﬂe’s iterations.

We call size of a pattern or a column the number of

its bits. The ﬁrst iteration makes a column each 3

bits, the second each 5 bits, then 7 bits, etc., until

the last iteration that cuts a column each 31 bits. The

Cut-and-Shufﬂe algorithm breaks patterns regardless

their size: the ﬁrst iteration hides all possible patterns

with size not multiple of 3 in bigger patterns of size

(3 * #of rows * n) bits where n is the size of the pat-

tern. In the example of Figure 5 after the ﬁrst itera-

tion the new shares have patterns of size 36. In the

second iteration all patterns (we assume they are not

multiple of 5) are hidden in bigger patterns of size

5 * #of rows (clouds) * n where n is the size of the

pattern generated in the previous iteration (36 in the

example). In the instance of Figure 5 after the sec-

ond iterations the new pattern size is 180 (= 36 ∗ 5)

bits. After each step of the Cut-and-Shufﬂe algorithm

the size of a potential pattern in the output share is

increased by a factor equals to the number used in

the cut phase. At the end of the 10

transformation

any pattern in the output share cannot be smaller than

the initial pattern multiplied by 1.0028 × 10

(that is

3∗ 5∗ 7∗ 11∗ 13∗17∗19∗23∗29∗31). This is equiv-

alent to mixing together blocks of 1.0028 × 10

bits,

making the algorithm hiding every pattern smaller

than this size. It can be seen as a classic ECB

with a block size (and consequently a key size) of

1.0028 × 10

bits.

As discussed in Section 3.4, if we cut a share con-

taining a pattern of size n in blocks of k bits, and

k is prime with n, the ﬁrst n blocks of k bits are

unique (i.e., do not contain the pattern). More gen-

erally, by cutting a pattern of size n in blocks of size

k, the generated blocks repeat each n/k blocks if n

is divisible by k, or each n blocks otherwise. The

amount of unique blocks generated by the cuts is im-

portant because the more they are, the better patterns

are hided. Intuitively, a sequence of unique blocks of

size s mixes all potential patterns in the correspond-

ing s bits in the input. Since we do not know in ad-

vance the size of patterns that can be contained in the

plaintext, in Cut-and-Shufﬂe algorithm we have used

a sequence of prime numbers for the block size to

minimise the probability that the pattern size is di-

visible by the block size. Moreover, prime numbers

do not share any divisor, so a pattern can be divisi-

ble by (or multiple of) only one prime number. This

implies that in the worst case at most one of the ten

iterations of the Cut-and-Shufﬂe algorithm is not in-

cisive. The impact of having a pattern multiple of one

of the ten prime numbers is negligible because in the

worst case the algorithm mix together 3.2348 × 10

(3 ∗ 5 ∗ 7 ∗ 11 ∗ 13 ∗ 17 ∗ 19 ∗ 23 ∗ 29) bits instead of

1.0028×10

(3∗5∗7 ∗11∗13∗17 ∗19∗23 ∗29∗ 31)

bits. Mixing 3.2348×10

bits is far more than enough

to hide all possible patterns in the real (an may be also

in the imaginary) world.

For sake of simplicity, in the previous discussion

we have considered that patterns reﬂected from the

plaintext to the shares have the same size. This is not

necessarily the case. It is possible that a pattern in the

plaintext give different patterns of different length in

the shares. In this case the Cut-and-Shufﬂe is even

more efﬁcient in hiding patterns because columns re-

peat with a lower frequency. Intuitively, in the cut

step of the Cut-and-Shufﬂe algorithm, if all rows (i.e.,

shares) have a pattern of the same size n, the pattern

repeats each n columns, while if a row has a pattern of

size n and another has a pattern of size n

, then the pat-

tern repeats each k columns, k being the least common

multiple of n and n

. We recall that the less columns

repeat the best Cut-and-Shufﬂe algorithm works.

3.6 Light Blind Decryption Mechanism

In order to retrieve ﬁles, the broker should ﬁrst fetch

all the shares from the clouds. Then, it applies the in-

verse operation of the Cut-and-Shufﬂe and ﬁnally ap-

plies the encryption key to reconstitute the plaintext.

Notice that all these operations, same as for encryp-

tion, have a constant time complexity (i.e., the time

needed to reconstruct the input does not depend on

the input size).

To reverse the Cut-and-Shufﬂe algorithm, it is suf-

ﬁcient to repeat all the cut and shufﬂe phases using

the prime numbers in the inverse order: from 31 to

3. The broker retrieves all the shares, puts them in

rows, and starts to cut columns of size 31. Then, it

shufﬂes the columns to form new shares (same as in

the encryption phase). Next, it repeats the cut phase

with columns of size 29. Once it has iterated all the

prime odd numbers, it has the original shares calcu-

lated at the ﬁrst step of the Light Blind Partition Al-

gorithm. In order to reconstruct the original ﬁle, the

broker uses the encryption key to build the original

sequence of bits from the shares.

3.7 Security Analysis

Our system provides data conﬁdentiality by spreading

the original input in several clouds.

An adversary needs to access all the shares of the

SECRYPT2015-InternationalConferenceonSecurityandCryptography

366

Figure 5: Cut-and-Shufﬂe Iterations.

original data to be able to undo the Cut-and-Shufﬂe

transformations. If she misses one of the shares there

is no way to undo Cut-and-Shufﬂe transformations

and the data is completely opaque: the adversary does

not know the original position of the bits it has nor the

position of the missing bits in the input. This gives to

the user the assurance that, unless the adversary can

access all the shares, data conﬁdentiality is kept.

If an adversary can collect all the shares, for ex-

ample thanks to a collaboration between clouds or

eavesdropping in the network during the transmis-

sion, the Cut-and-Shufﬂe step can be easily undone

by the adversary and our system rollback to a classic

ECB scheme. The problem of ECB is that it does not

hide well patterns.

An interesting property of Light Blind is that the

use of a secret key to spread data in the clouds is only

needed to offer a minimal (ECB-like) protection if an

adversary collects all the shares. If we assume that

clouds do not collaborate, and that the communication

channel is somehow secure, then Light Blind does not

need to use any secret because an adversary cannot

undo the Cut-and-Shufﬂe phase. If we assume a pub-

lic channel then the user may be interested in ensur-

ing the conﬁdentiality of the communications chan-

nel, for example by using HTTPS. The discussion of

the communication overhead is out of the scope of

this paper.

As discussed previously, if all shares are known

by an adversary, Light Blind rollbacks to ECB. The

difference between a classical ECB and Light Blind

is that in our system, the produced output (the shares)

is a partial order of the initial input: if a bit b is before

a bit b

in a share, then b is before b

also in the plain-

text. This translates by a decrease of the possible bits

permutations of the ciphertext to produce the plain-

text. If a block B of size B

is divided into n shares

S = (s

,. ..,s

) then the possible permutations of

shares in the original block are

+...+s

!...s

where

,. ..,s

) represents the size (i.e., the number of

bits) of a block in each share. This is weaker than a

random key because in the case of a random key the

possible permutations are (s

+ s

+ .. . + s

)!.

4 DISCUSSION

The motivation of our work is to provide users with a

simple and efﬁcient way to obtain data conﬁdentiality

in the cloud at a constant computational time. Con-

stant computational time means that the time needed

to transform data to make it unintelligible does not

depend on the size of data.

This goal is achieved thanks to the fact that all

steps of our algorithm are parallelizable: we process

blocks of data and each block has i) the same dimen-

sion and ii) applies the same operations.

In the ﬁrst phase, we encode each block with an

encryption key, similarly than in classical ECB in or-

der to obtain shares of the original data. This phase

can be executed in parallel in all the blocks, so its

time complexity is constant. In the second phase we

iteratively cut and shufﬂe shares in order to mix them.

Each iteration of the Cut-and-Shufﬂe algorithm can

be executed in parallel in all the columns without syn-

LightBlind:WhyEncryptIfYouCanShare?

367

chronization, so its time complexity is constant. Since

the number of iterations of the second phase is con-

stant as well (10), the time complexity of the second

phase is constant.

Of course the bigger is the input, the more are the

resources needed to parallelize Light Blind. Never-

theless, modern devices have more and more CPU,

and consequently they are able to execute more and

more work in parallel, so our algorithm makes a good

use of current architectures.

5 CONCLUSION

In this paper we show an innovative way to make

use of multi-cloud systems and block ciphering to ob-

tain data conﬁdentiality at a constant time complexity.

Our system provides simultaneously ECB paralleliz-

ability and the ability to hide patterns. This is possible

thanks to the key idea of splitting data into multiple

shares that are stored in different clouds.

Light Blind positions between classic encryption

with ECB mode providing conﬁdentiality at a con-

stant time complexity and the ability of hiding pat-

terns provided by other encryption modes such as

CBC and OFB.

Our system beneﬁts to users who do not encrypt

their data stored in the cloud. The constant time com-

plexity of Light Blind makes suitable data to be pro-

tected in a more systematic way. No matter the size

of your data or how often you need it, the overhead

you have to pay to gain conﬁdentiality is small and

predictable.

ACKNOWLEDGEMENTS

This research work has been carried out in the frame-

work of the Technological Research Institute Sys-

temX, and therefore granted with public funds within

the scope of the French Program Investissements

d’avenir.

REFERENCES

Aggarwal, G., Bawa, M., Ganesan, P., Garcia-Molina, H.,

Kenthapadi, K., Motwani, R., Srivastava, U., Thomas,

D., and Xu, Y. (2005). Two can keep a secret: A

distributed architecture for secure database services.

CIDR 2005.

Bohli, J.-M., Gruschka, N., Jensen, M., Iacono, L., and

Marnau, N. (2013). Security and privacy-enhancing

multicloud architectures. Dependable and Secure

Computing, IEEE Transactions on, 10(4):212–224.

Daemen, J. and Rijmen, V. (1998). Aes proposal: Rijndael.

di Vimercati, S. D. C., Erbacher, R. F., Foresti, S., Jajodia,

S., Livraga, G., and Samarati, P. (2014a). Encryption

and fragmentation for data conﬁdentiality in the cloud.

In Foundations of Security Analysis and Design VII,

pages 212–243. Springer.

di Vimercati, S. D. C., Foresti, S., Paraboschi, S., Pelosi,

G., and Samarati, P. (2014b). Protecting access conﬁ-

dentiality with data distribution and swapping.

Ferguson, N., Schneier, B., and Kohno, T. (2011). Cryptog-

raphy Engineering: Design Principles and Practical

Applications. Wiley.

Hadji, M. (2015). A mathematical programming approach

to multi-cloud storage. In Proceedings of the 5th In-

ternational Conference on Cloud Computing and Ser-

vices Science, CLOSER ’15.

Kamara, S. and Lauter, K. (2010). Cryptographic cloud

storage. In Sion, R., Curtmola, R., Dietrich, S., Ki-

ayias, A., Miret, J., Sako, K., and Seb, F., editors,

Financial Cryptography and Data Security, volume

6054 of Lecture Notes in Computer Science, pages

136–149. Springer Berlin Heidelberg.

Mansouri, Y., Toosi, A. N., and Buyya, R. (2013). Broker-

ing algorithms for optimizing the availability and cost

of cloud storage services. In Proceedings of the 2013

IEEE International Conference on Cloud Computing

Technology and Science - Volume 01, CLOUDCOM

’13, Washington, DC, USA. IEEE Computer Society.

Papaioannou, T. G., Bonvin, N., and Aberer, K. (2012).

Scalia: An adaptive scheme for efﬁcient multi-cloud

storage. In Proceedings of the International Confer-

ence on High Performance Computing, Networking,

Storage and Analysis, SC ’12, pages 20:1–20:10, Los

Alamitos, CA, USA. IEEE Computer Society Press.

Qu, Y. and Xiong, N. (2012). Rfh: A resilient, fault-tolerant

and high-efﬁcient replication algorithm for distributed

cloud storage. In Parallel Processing (ICPP), 2012

41st International Conference on, pages 520–529.

Sachdev, A. and Bhansali, M. (2013). Enhancing cloud

computing security using aes algorithm. International

Journal of Computer Applications, 67(9):19–23. Full

text available.

Srivastava, S., Gupta, V., Yadav, R., and Kant, K. (2012).

Enhanced distributed storage on the cloud. In Com-

puter and Communication Technology (ICCCT), 2012

Third International Conference on, pages 321–325.

Stefanov, E. and Shi, E. (2013). Multi-cloud oblivious stor-

age. In Proceedings of the 2013 ACM SIGSAC Confer-

ence on Computer & Communications Security,

CCS ’13, New York, NY, USA. ACM.

Wang, Q., Wang, C., Ren, K., Lou, W., and Li, J. (2011).

Enabling public auditability and data dynamics for

storage security in cloud computing. Parallel and Dis-

tributed Systems, IEEE Transactions on, 22(5).

SECRYPT2015-InternationalConferenceonSecurityandCryptography

368
