Preserving Privacy in Collaborative Business Process Composition

Hassaan Irshad

, Basit Shaﬁq

, Jaideep Vaidya

, Muhammad Ahmed Bashir

, Shafay Shamail

and

Nabil Adam

Department of Computer Science, Lahore University of Management Sciences, Lahore, Pakistan

Management Science and Information Systems Department, Rutgers University, Newark, New Jersey, U.S.A.

Rutgers Institute for Data Science, Learning, and Applications, Rutgers University, Newark, New Jersey, U.S.A.

Keywords:

Business Process Composition, Privacy.

Abstract:

Collaborative business process composition exploits the knowledge of existing business processes of related

organizations to compose an executable business process for a given organization based on its requirements and

design speciﬁcations. Typically, this requires organizations to share and upload their existing business process

execution sequences to a central repository. However, even after masking of conﬁdential data, the execution

sequences may still include sensitive business information which organizations may not want to share with

their competitors. To address this issue, we develop a privacy-preserving Business Process Recommendation

and Composition System (BPRCS), that generates a differentially private dataset of execution sequences which

can be published and shared with other organizations for composition and implementation of their business

processes. We also employ process mining and classiﬁcation techniques on this differentially private dataset

to regenerate the executable business process workﬂow. We experimentally validate the effectiveness of our

approach.

1 INTRODUCTION

Service oriented approach has enabled development

of new business processes as well as expansion of ex-

isting processes with value added services. For com-

position of such processes an organization does not

need to rely on its own resources for software cod-

ing and computing infrastructure for realization and

execution of the underlying business process tasks

(Moser et al., 2008; Baresi and Guinea, 2011; Pali-

wal et al., 2012; Chun et al., 2005). Rather, the indi-

vidual tasks of the business process are performed by

invoking Web services offered by third parties. Es-

pecially in the e-commerce and ﬁnancial domains,

there are numerous third party Web services cover-

ing every major functional aspect such as invoicing

and billing, taxation and costing, accounting, pay-

ment processing, shipment, and so on (Turban et al.,

2009). The increased availability of such Web ser-

vices has opened new opportunities for organizations

for rapid and cost-effective development of their busi-

ness processes even if they lack the capability to per-

form all of the tasks required for the business pro-

cesses.

As an example, consider a business process for In-

ternet orders processing by an online store. This is

a complex process involving several tasks and each

task itself can be a multi-step workﬂow as shown in

Figure 1. However, all these tasks can be executed

by utilizing existing third party Web services. As-

suming that the business process workﬂow is known

and all the relevant Web services have been selected

a priori then the process can be invoked and executed

anytime. However, coming up with the implementa-

tion level business process workﬂow design so that

each task can be mapped to an individual Web ser-

vice as well as selection of third party web services

for such tasks, poses signiﬁcant challenges (Paliwal

et al., 2012). Typically, business process development

involves working with a high-level process speciﬁ-

cation and manually elaborating the high-level spec-

iﬁcations into implementation level design (Dengler

et al., 2011; Chun et al., 2002b). After this, partner

Web services are selected and a binding is established

between the workﬂow tasks and the selected partner

Web services to generate the executable business pro-

cess (e.g., BPEL process (Evdemon et al., 2007)).

Such business process development can be done

collaborativelyby exploiting the knowledge of the ex-

isting business processes of related organizations to

112

Irshad H., Shaﬁq B., Vaidya J., Ahmed Bashir M., Shamail S. and Adam N..

Preserving Privacy in Collaborative Business Process Composition.

DOI: 10.5220/0005567801120123

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 112-123

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

Receive

Order

SalesTax

Computation

Service

Excise&Custom

DutyComputation

Service

Shipment

Computation

Service

Computeitempriceincludingtaxes

SendInvoice&

ReceivePayment

CreditCard

Processing

Service

InternetCheck

Processing

Service

Paypal

Processing

Service

Invoice

Creation

Service

Custom/excise

DutyPayment

Service

AccountingService

fortaxFiling

Shipment

Service

Billing

Service

Paymentprocessing

Local

customer

International

customer

International

customer

Local

customer

SendFinalbill

andshipping

informationto

customer

Figure 1: Example of a business process for handling Internet purchase orders.

compose an executable business process of a givenor-

ganization based on its requirements and design spec-

iﬁcations. However, this requires a repository of ex-

isting business processes that includes different types

of business processes such as supply chain manage-

ment, Internet purchase orders, accounting and tax-

ation. For each type, the repository has to include

the history of the business process invocations by dif-

ferent organizations in form of execution sequences

(e.g., order in which the activities were performed

and the corresponding Web services invoked). Given

such a repository, we can learn the common execu-

tion patterns for different types of processes and use

the learned patterns for composing a given type of

business process for an organization (Bentounsi et al.,

2012a; Bentounsi et al., 2012b).

For illustration, suppose that a garment store

wants to develop a business process for handling In-

ternet purchase orders. The store owner speciﬁes the

following requirements in the process design speciﬁ-

cation:

1) Orders need to be handled for both local and

international customers.

2) For international orders the excise and custom

duty must be charged from the customer in the pay-

ment amount and paid to the appropriate authority.

3) Each transaction needs to be recorded in the

accounting system for ﬁling of the sales and income

tax returns.

Based on the given requirements, the process

repository is searched to retrieve the set of execution

sequences that process either local orders or Interna-

tional orders with customs and excise duty payment.

This set of execution sequences can be used to de-

termine: i) relevant activities in the Internet purchase

order business process; ii) controlﬂow and dataﬂow

between the activities; iii) third party web services

that can perform the different activities in the business

process; and iv) trustworthiness of such third party

Web services based on their invocation frequency.

Given this information, an executable business pro-

cess can be composed and deployed. For example, we

can employ process mining on the sequence dataset

to regenerate the BP workﬂow (van der Aalst et al.,

2010).

However, creating such a repository typically re-

quires sharing sensitive information. Essentially, or-

ganizations with existing business processes, have to

share and upload their process execution sequences to

the central repository. The execution sequences (even

after masking of the data values such as credit card in-

formation, social security number, etc.) include sen-

sitive business information which organizations may

not want to share (Kerschbaum and Deitos, 2008;

Bentounsi et al., 2012a; Bentounsi et al., 2012b). For

instance an organization may not want its competi-

tors to learn: how many times the organization selects

a given third party Web service as opposed to another

service with the same functionality? How many times

a business process failed for the organization because

the requested item was not in the inventory? What is

the turn-around time from order receipt to shipment?

To address this problem, we develop a privacy-

preserving Business Process Recommendation and

Composition System (BPRCS), that generates a dif-

ferentially private dataset of execution sequences

which can be published and shared with other organi-

zations for composition and implementation of their

PreservingPrivacyinCollaborativeBusinessProcessComposition

113

business processes. We employ process mining and

classiﬁcation on the differentially private sequence

dataset to regenerate the BP workﬂow. From this BP

workﬂow, we can generate the executable BP code in

BPEL.

As such, this paper examines the problem of how

privacy can be preserved if an executable business

process has to be composed based on the knowledge

of existing business processes. This is an important

problem since there is a lot of beneﬁt in creating busi-

ness processes that utilize the available web services.

We do this by employing the notion of differential pri-

vacy to protect the conﬁdentiality of information con-

tributed by each organization. Our key contribution

is to exploit the sequential composition property of

differential private computations by modeling the ex-

ecution sequences as a graph and performing random

walk on this graph to regenerate comparable execu-

tion sequences that cannot be linked to a contributing

organization.

The rest of the paper is structured as follows.

The collaborative environment for business processes

composition is discussed in Section 2. We present the

privacy model in Section 3 and describe the proposed

approach in Section 4. In Section 5, we analyze the

privacy and computation complexity of the proposed

approach. We present the results of the experimen-

tal evaluation in Section 6. In Section 7, we discuss

related work and conclude the paper in Section 8.

2 ENVIRONMENT

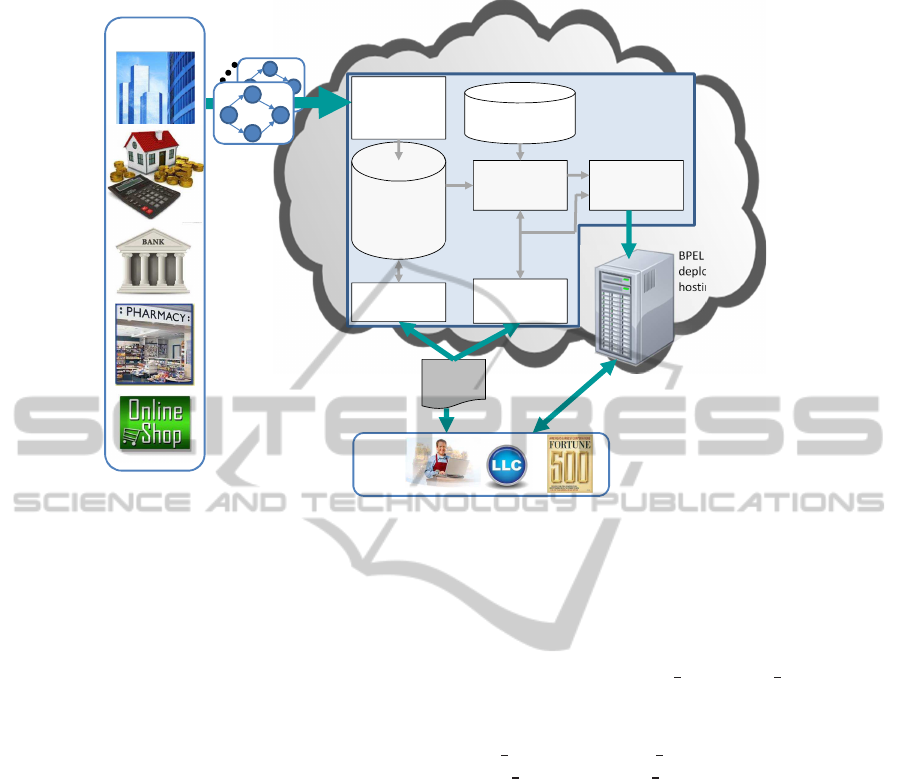

Figure 2 shows the environment for business pro-

cess recommendation and composition. BPRCS is

a trusted party in the cloud that provides support

for collaborative composition of executable business

processes in a privacy-preserving manner. Organi-

zations from different domains register with BPRCS

and publish their business process details (BP exe-

cution sequences) which are stored in a repository

after anonymization using the proposed differential

privacy-basedapproach. The dataset in this repository

can be made publicly available as the anonymization

ensures that no business secret and private informa-

tion can be learned from the anonymized BP execu-

tion sequences. BPRCS also maintains a registry of

third party Web services and based on the informa-

tion derived from the BP execution sequences in the

repository it computes trustworthiness and other qual-

ity of service values for each Web service.

The users subscribe to BPRCS for using its ser-

vices to query the repository for retrieving relevant

business process sequences. The user may perform

process mining on the retrieved sequences to learn

the relevant activity patterns and compose the activ-

ity patterns into a business process based on the given

requirements. Alternatively, the user may provide

his/her requirements and high level process design to

BPRCS which also includes a business process min-

ing component for composition of a business process

in an interactive manner. Inputs to the business pro-

cessing mining component include the BP execution

sequences from the repository as well as the avail-

able web services as shown in Figure 2. Using these

inputs, the business process mining component gen-

erates the business process workﬂow with mapping

of the activities to the available Web services. The

user can modify the generated business process work-

ﬂow using the process reﬁnement interface. The pro-

cess reﬁnements may include changing the activity to

Web service mapping or modifying the structure of

the generated BP workﬂow. Given the business pro-

cess workﬂow design and the activity to Web service

mapping, an executable BPEL process can be easily

generated and deployed on the server either at the user

site or on the cloud.

One question that might occur is why would orga-

nizations participate in the BPRCS system. Basically,

given an assurance of privacy, there are several incen-

tives for these organizations to share their data in this

collaborative environment, as discussed below:

1. Organizations can use the BPRCS for composing

new business processes.

2. Reﬁnement/extension of existing processes – An

organization can compare its business process

with comparable processes from other organiza-

tions to check for inconsistency/redundancy or

identify any extension that may add more value

to the process.

3. The proposed BPRCS system is also suitable for

less open collaborative environments (e.g., digi-

tal government, single large organization) that re-

quire a pre-established level of trust before using

third party Web services or ownership of such ser-

vices (Chun et al., 2002a). In such environments,

the organizations may be trustworthy; however,

they may have similar privacy concerns for shar-

ing their sensitive business process data. Also

in such environments (e.g., digital government),

there is typically a large number of trusted or co-

owned Web services that could be used in com-

position of new business processes by other or-

ganizations. For example a property tax assess-

ment Web service provided by County treasurer

department can be used by the business registra-

tion department of the city. In this case, both the

subscriber and user organizations are trustworthy

SECRYPT2015-InternationalConferenceonSecurityandCryptography

114

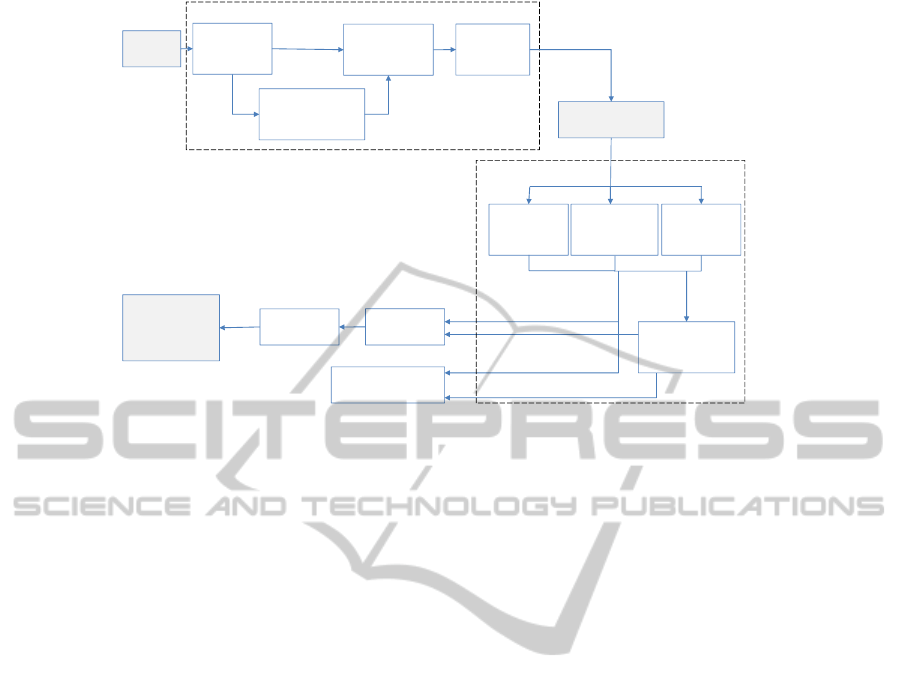

Organizations

BusinessProcess

Recommendation

andComposition

System

PrivacyͲaware

processdata

sanitization

DifferentiallyͲ

privateBP

execution

sequence

dataset

Query

Interface

Business

processmining

Userinterface

forprocess

refinement

Executable

process(BPEL)

generation

partyWEb

serviceRegistry

BPEL

deployment&

hosting

Users

RequireͲ

ments

Figure 2: Collaborative environment for business process composition.

and use BPRCS for composition of new business

processes.

3 PRIVACY MODEL

We ﬁrst formally deﬁne business process execution

sequences and then present the privacy model.

3.1 BP Execution Sequence

Generally, a business process is not designed for one

time use only. Users execute their business processes

repeatedly and each execution of the business process

may be different from a prior execution of the same

process. We deﬁne an execution sequence of a busi-

ness process as the ordered list of activities (along

with their input/output parameters) that are executed

in any given execution of the business process. The

activities in an execution sequence are ordered based

on their invocation time. Based on BPEL formal-

ism(Evdemon et al., 2007), an activity can be an in-

voke activity (invoking a Web service), receive activ-

ity (receiving input from a user), reply activity (send-

ing a reply to the user), and assignment activity (for

variable/value assignment). Since receive, reply, and

assignment activities are primarily used to capture the

data ﬂow between Web services (invoke activities),

we do not consider these activities in an execution se-

quence and deﬁne an execution sequence with respect

to the Web services invoked. The data ﬂow is captured

by annotating each Web service with its input and out-

put parameters in the given execution sequence. We

represent the Web service invocation by the tuple

WS = (WS

,input

List,output List)

where WS

corresponds to the unique iden-

tiﬁer of the Web service being invoked.

input list = {(input parameter, value)} and

output List = {(output parameter, value)}. Note

that a given web service may provide multiple

operations and in the BP execution sequence we

need to capture which speciﬁc operation of the web

service was invoked. However, for simplicity of

discussion we assume that each Web service provides

only one operation. In case a Web service provides

multiple operations, we assign a unique WS

to each

combination of the Web service and its operation.

Deﬁnition 1 (BP Execution Sequence (ES)). A BP

execution sequence is a list of WS tuples ordered by

their invocation time in the given business process ex-

ecution.

Table 1 shows a sample of BP execution se-

quences database including four sequences related to

the Internet purchase order of Figure 1. The Web ser-

vice invocation tuples in the sequence are separated

by →. The sensitive information in the input list and

output list is masked by the organization sharing its

sequence data. Only those input and output parame-

ter values are disclosed which are not considered sen-

PreservingPrivacyinCollaborativeBusinessProcessComposition

115

sitive. For example, in the GetOrderFromAmazon

Web service in sequence 1 (Table 1), all the input pa-

rameter values including customer name and address

are masked. Similarly, all the input and output pa-

rameter values in the Web service tuple EasyBill are

masked to protect leakage of sensitive information.

3.2 Differential Privacy

Differential Privacy (Dwork, 2006; Dwork et al.,

2006) is a well accepted privacy model that provides a

formal and quantiﬁable privacy guarantee irrespective

of an adversary’s background knowledge and avail-

able computational power. A randomizedalgorithm is

considered to be differentiallyprivateif for any pair of

neighboring inputs, the probability of generating the

same output, is within a small multiple of each other,

for the entire output space (Dwork, 2006). Thus, for

any two datasets which are close to one another, a

differentially private algorithm will behave approxi-

mately the same on both data sets.

Deﬁnition 2 (ε-Differential Privacy). A randomiza-

tion algorithm A satisﬁes ε-differential privacy if for

any two neighboring datasets D

and D

(differing

in one element), and all R ⊆ Range(A), we have

−ε

≤

Pr[A (D

)∈R]

Pr[A (D

)∈R]

≤ e

A standard mechanism to achieve differential pri-

vacy is based on the addition of appropriately param-

eterized Laplacian noise. For this, we need to deﬁne

the sensitivity of the function to be computed.

Deﬁnition 3 (Sensitivity). For any query function q

over the input datasets, the sensitivity of q is ∆q =

max||q(D

) − q(D

)|| for any neighboring datasets

and D

Queries with lower sensitivity can better tolerate

the data modiﬁcations from added noise. The work

in (Dwork et al., 2006) shows that to release a (per-

turbed) value q(x) while satisfying privacy, it sufﬁces

to add Laplace noise with standard deviation ∆q/ε.

More speciﬁcally, for any given query function q, the

mechanism A :

A (D) = q(D) + Laplace(∆q/ε)

gives ε-differential privacy. Note that the above pri-

vacy guarantee requires that all the tuples in the

dataset are independent (Kifer and Machanavajjhala,

2011), and may not hold if this is not true.

3.3 Privacy Requirement

Given a BP execution sequence database D and any

BP execution sequence ES ∈ D, we do not want an

adversary to learn if ES is the execution sequence

of an organization Org

. Thus, in terms of differ-

ential privacy, any two execution sequence databases

and D

differing only on the inclusion of ES (i.e.,

includes ES and D

does not include ES), an ε-

differentially private algorithm A satisﬁes:

Pr[A (D

) ∈ R] = e

Pr[A (D

) ∈ R]

Where R ⊆ Range(A). As stated in Section 3.2,

this privacy guarantee is based on the assumption that

all the execution sequences in the datasets D

and D

are independent. This assumption would deﬁnitely

be valid if each organization contributes at most one

execution sequence to the database. In case an or-

ganization (Org

) contribute m sequences to the exe-

cution sequence database, then the adversary’s prob-

ability estimate that a given execution sequence be-

longs to Org

can change by at most e

mε

(Kifer and

Machanavajjhala, 2011). Note that this will only be

true if the execution sequences are all based on the

same underlying business process. In any case, to

avoid even the potential of such disclosure, we re-

strict the number of execution sequences contributed

by each organization to 3.

4 PROPOSED APPROACH

We ﬁrst discuss how the differentially privacy reposi-

tory of BP execution sequences is generated and then

describe process mining for BP workﬂow creation.

4.1 Differentially Private BP Execution

Sequences

We model the BP execution sequence database as a

graph G = (V,E). A node in the graph represents a

Web service and an edge represents ordering relation-

ship between invocation of two web services in some

execution sequence. We formally deﬁne the execution

sequence graph below:

Deﬁnition 4 (BP Execution Sequence Graph). A

BP execution sequence graph G = (V,E) is a com-

pact representation of the BP execution sequence

database.

• Each node in V corresponds to a Web service.

• An edge (WS

,WS

) ∈ E denotes that in some

business process execution, the Web service WS

was invoked ﬁrst followed by the Web service

• c : E → Z

is a count function. c(WS

,WS

) de-

notes how many times WS

was invoked after in-

vocation of WS

• dist

: E → X. For an edge e : (WS

,WS

), X is a

vector of distributions of all the input parameter

SECRYPT2015-InternationalConferenceonSecurityandCryptography

116

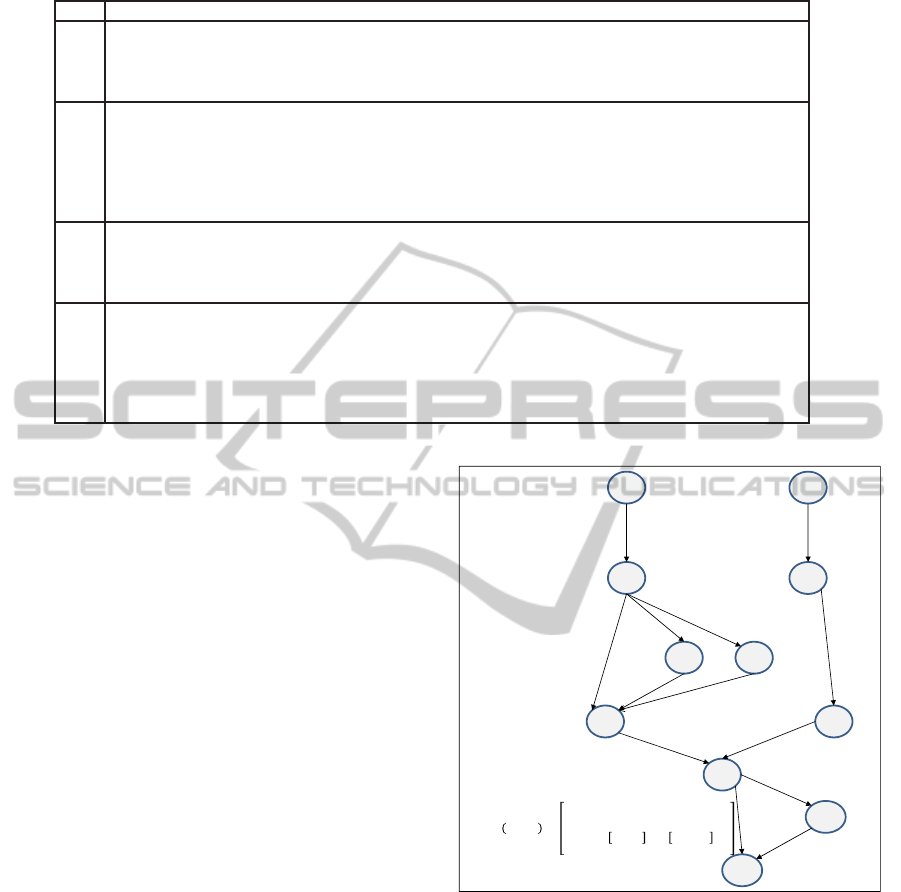

Table 1: Sample BP execution sequence database.

No. BP Execution Sequence

1 (GetOrderFromAmazon,{ }, {(Item,LevisJeans), (Qty,1) (BuyerLoc,LA)}) →

(SalesTaxSVC

,{(Item,LevisJeans), (Qty,1), (Price,50) (BuyerLoc,LA)},{(Tax,4)}) →

(TransShip,{(wt,0.5), (Origin,NYC), (Dest,LA) (Type,Std)},{(Charge,5)}) → (PayPal,

{(Amount,59)},{(Result,OK) }) → (EasyBill, { },{ })

2 (GetOrderFromAmazon,{ }, {(Item,LevisJeans), (Qty,1) (BuyerLoc,London)}) →

(SalesTaxSVC

,{(Item,LevisJeans), (Qty,1), (Price,50) (BuyerLoc,London)},{(Tax,4)})

→ (UKCustoms,{(ItemType,Clothes), (Qty,1), (Price,54),(BuyerLoc,London},{(Duty,2)}))

→ (TransShip,{(wt,0.5), (Origin,NYC), (Dest,LA) (Type,Std)},{(Charge,5)}) → (PayPal,

{(Amount,61)},{(Result,OK) }) → (UKDutyPymt, {(Amount,2)},{(Result,OK) }) (EasyBill,

{ },{ })

3 (GetOrderFromEbay,{ }, {(Item,PoloShirt), (Qty,1) (BuyerLoc,Chicago)})

(EasySalesTax,{(Item,PoloShirt), (Qty,1), (Price,60) (BuyerLoc,Chicago)},{(Tax,5)}) →

(USPS,{(wt,0.5), (Origin,NYC), (Dest,Chicago) (Type,Urgent)},{(Charge,10)}) → (PayPal,

{(Amount,75)},{(Result,OK) }) → (EasyBill, { },{ })

4 (GetOrderFromAmazon,{ }, {(Item,LevisJeans), (Qty,2) (BuyerLoc,Paris)}) →

(SalesTaxSVC

,{(Item,LevisJeans), (Qty,2), (Price,100) (BuyerLoc,Paris)},{(Tax,8)})

→ (EuroCustoms,{(ItemType,Clothes), (Qty,1), (Price,54),(BuyerLoc,Paris)},{(Duty,2)})

→ (TransShip,{(wt,1), (Origin,NYC), (Dest,LA) (Type,Std)},{(Charge,10)}) → (PayPal,

{(Amount,120)},{(Result,OK) }) → (EuroDutyPymt, {(Amount,2)},{(Result,OK) })

(EasyBill, { },{ })

values of WS

given that WS

is invoked immedi-

ately after WS

. If WS

has n input parameters

then X includes n distributions.

• dist

: E → Y. For an edge e : (WS

,WS

), Y is a

vector of distributions of all the output parameter

values of WS

given that WS

is invoked immedi-

ately after WS

. If WS

has n output parameters

then Y includes n distributions.

• slen : V → 2

×Z

. For a node v, slen(v) =

{(length,count)}. slen(v) returns the length of

all execution sequences that originate from v.

count denotes the number of occurrences of the

sequence.

In the execution sequence graph, the functions

dist

and dist

keep track of the distribution of the

input and output parameter values of the Web services

against each edge. This distribution of parameter val-

ues would be needed in the process mining phase to

identify any conditional branches when composing

the business process.

Figure 3 shows the graph of based representation

of the sample BP execution sequence database of Ta-

ble 1. This graph has 11 nodes corresponding to each

Web service in the sample database. The edges in the

graph are labeled with the count value given by the

function c(). For example, c(v

) = 3 indicating

that there are three sequences in which the Web ser-

vice SalesTaxSVC

was invoked after the GetOrder-

FromAmazon Web service. The input parameters

value distributionfor the edge (v

) is also shown in

Figure 3. The distribution indicates that amongst the

corresponding sequences, the service SalesTaxSVC

was invoked 3 times when the item was LevisJeans







































!

 

































 





  

  

 ! 

"#$#   $###  

Figure 3: Graph based representation of the sample BP ex-

ecution sequence database of Table 1.

and quantity was in the range [1-2]. Also, in these

three invocations the price was in the range [50-80]

twice and in the range [80-100] once. As discussed in

Section 3.2, the values of sensitive parameters in the

execution sequences would be masked by the orga-

nizations for privacy concerns. Therefore, the value

distributions of those parameters are not included in

dist

and dist

. The starting nodes in the sample

database are v

corresponding to GetOrderFromA-

mazon and v

corresponding to GetOrderFromE-

bay. slen(v

) = (5, 1),(7,2) indicating that there is

one sequence of length 5 and two sequences of length

PreservingPrivacyinCollaborativeBusinessProcessComposition

117

Algorithm 1: Generate Differentially Private BP Ex-

ecution Sequences.

Require: BP execution sequence database D =

{ES

,ES

,... , ES

}

Require: Privacy measure ε

Ensure: ε-Differentially private BP execution se-

quence database

D ← φ

2: From the given database D, generate the execu-

tion sequence graph G = (V,E)

3: For each edge e ∈ E, label e with c(e), dist

(e),

and dist

(e).

4: For each node v ∈ V, label v with slen(v)

5: k ← max({length(ES

),... length(ES

)})

6: for each e ∈ E do

7: c(e) ← c(e) + Laplace(ε/k) {Add Laplacian

noise to the edge count}

8: end for

9: Based on the modiﬁed count value for an edge

e = (WS

,WS

), compute the probability of tak-

ing that edge, i.e., the probability of invoking ser-

vice WS

immediately after invocation of WS

10: for each v ∈ V do

11: for each t ∈ slen(v) do

12: for i = 1 to t.count do

13: Generate

ES by doing a random walk of

t.length steps starting from node v us-

ing the probability values of correspond-

ing edges computed in line 9

14:

D ←

D∪

ES (this is a multiset union)

15: end for

16: end for

17: end for

18: return

7 that originate from v

. For all nodes other than v

and v

slen() is an empty set.

We use the BP execution sequence graph to gen-

erate the differentially private database of execution

sequences. The basic idea is to add Laplacian noise

with appropriate ε value to the count value of each

edge. Based on the edge count values, we compute

the probability of taking an edge from a given node.

For example in Figure 3 there are three edges originat-

ing from node v

: (v

), (v

), and (v

). Each

has a count value of 1, so the probability of each edge

is 1/3. Given the edge traversal probabilities, we can

do a random walk from the starting nodes to regener-

ate the BP execution sequences. The length and the

number of such execution sequences from any given

starting node v is given by the slen(v)

Algorithm 1 shows the pseudo code for genera-

tion of differentially private BP execution sequence

database. The input to this algorithm is the origi-

nal sequence database and the privacy budget ε. The

output database generated by the algorithm ensures

ε-differential privacy. Algorithm 1 ﬁrst generates the

BP execution sequence graph from the given database

(lines 1-4). Then noise derived from Laplace distri-

bution with 0-mean and λ = ε/k is added to the count

value for each edge (lines 6-8). k is the length of the

longest sequence in the database D. The steps for re-

generation of BP execution sequences by doing ran-

dom walk from the start nodes are shown in lines 10-

17.

4.2 Process Mining and BP Workﬂow

Generation

Once the differentially private BP sequence database

is generated, it can be queried to retrieve relevant se-

quences based on user requirements as depicted in

Figure 2. From the retrieved BP sequences, we need

to generate the BP workﬂow structure including the

control ﬂow and data ﬂow. In addition the activities

in the BP workﬂow need to be mapped to appropriate

Web services.

There are several process mining tools available

for discovering workﬂow models from event logs

(van der Aalst et al., 2010; Van der Aalst et al., Sept;

Silva et al., 2005; Wen et al., 2009). We use the pro-

cess mining tool ProM (van der Aalst et al., 2010) to

create this basic workﬂowstructure from the given BP

execution sequences. From this basic workﬂow struc-

ture, we identify all the branching points. There may

exist a strong correlation between the values of some

of the input/output parameters and the branch taken

during business process execution. For example, with

reference to the Internet purchase order example de-

picted in Figure 1, if the order is made by an interna-

tional customer, the business process branches to the

excise and custom duty computation service. On the

other hand, if the order is made by a local customer

the business process execution takes the ﬁrst branch.

For each branching point, we build a decision tree-

based classiﬁcation model to discover the branch-

ing conditions. The differentially private execution

dataset (used for generation of the basic workﬂow)

serves as a training dataset for classiﬁcation models

generation. Essentially, each BP execution sequence

in this dataset correspondsto an instance with relevant

data and parameter values for building the classiﬁca-

tion model. The rules generated by the classiﬁcation

model corresponds to the branching conditions and

are annotated on the corresponding branching path.

Note that given the workﬂow structure including

the controlﬂow, dataﬂow, activities to Web services

SECRYPT2015-InternationalConferenceonSecurityandCryptography

118

mapping and branching condition, we can create the

executable BPEL process that can then be deployed.

5 ANALYSIS

Privacy Analysis. As discussed in Section 3.3, the

differential privacy guarantee requires that there must

not be any correlation between multiple sequences

submitted by the same organization that enables one

to link such sequences to that organization. In case an

organization (Org

) contribute m sequences to the ex-

ecution sequence database, then the adversary’s prob-

ability estimate that a given execution sequence be-

longs to Org

can change by a factor of e

mε

(Kifer

and Machanavajjhala, 2011).

In our experiments, we limit the maximum num-

ber of execution sequences contributed by any organi-

zation to 3 (i.e., m ≤ 3). Also, when considering mul-

tiple BP execution sequences from a single organiza-

tion, we ensure that such sequences do not overlap

or the overlap is frequent across multiple organiza-

tions such that the information about the overlapping

sequences does not signiﬁcantly increases the proba-

bility of linking the overlapping sequences to speciﬁc

organizations.

Below, we discuss the privacy analysis with re-

spect to generation of differentially private BP exe-

cution sequence database (Algorithm 1). The pro-

cess mining step operates on this differentially-private

database and therefore does not affect privacy.

To satisfy the differential privacy requirement, we

add Laplace noise to the edge count values in Algo-

rithm 1. The standard deviation λ of Laplace noise

depends on two parameters sensitivity and the privacy

budget ε.

Sensitivity ∆q. The count value for an edge (v

)

basically gives the number of BP execution sequences

in which Web service v

was invoked immediately af-

ter v

. Given that the neighboring database for dif-

ferential privacy differ in one record, the sensitivity

value for count queries is 1 (McSherry, 2009).

Privacy budget. Algorithm 1 regenerates the BP

execution sequences by doing random walk up to

some given length. In the random walk, basically

we are composing the sequence of computations that

each provide differential privacy in isolation. Here,

the computations are the count queries on the edges.

Assuming that a computation C

provides ε

differ-

ential privacy, then by the sequential composition

theorem in (McSherry, 2009), the sequence of com-

putations C

(D) provides (Σ

)-differential privacy.

To ensure mε differential privacy for the released

database

D, we consider a privacy budget of mε/k

when adding noise to count value to edges, where k

is the maximum length of any execution sequence in

the original database D and m is the maximum num-

ber of execution sequences contributed by any orga-

nization. Since, we can have at most k steps in the

random walk for creating any execution sequence and

i=1

(mε/k) = mε, therefore our algorithm provides at

least mε-differential privacy.

Computation Complexity. We ﬁrst discuss the com-

plexity of Algorithm 1. Lines (1-4) of Algorithm 1

generate the execution sequence graph G = (V,E).

The total number of nodes (|V|) in G is equal to

the total number of web services in the BP sequence

Database D and the number of edges can be at most

|V|

. Therefore, the size of G is O(|D|). In lines (6-

8) Laplace noise is added to each edge, therefore, the

complexity of this step is O(|E|). In the BP execution

sequence regeneration step, we do a random walk as

many times as the number of sequences in D. In each

random walk, at most k nodes are visited, where k is

the length of the longest sequence in D. Therefore,

the runtime complexity of the sequence regeneration

step is O(k|D|). Hence, the overall complexity of Al-

gorithm 1 is O(k|D| + |E|) = O(k|D|).

The computation complexity for workﬂow gener-

ation from the BP execution sequences depends on the

complexity of the process mining and classiﬁcation

model generation. We use ProM tool that incorpo-

rates α-algorithm for process mining (Van der Aalst

et al., Sept). The complexity of α-algorithm is lin-

ear in the number of sequences and exponential in the

number of tasks/activities in the workﬂow (Van der

Aalst et al., Sept). The number of tasks/activities in

a workﬂow does not depend on the size of the BP se-

quence dataset and is typically less than 100. There-

fore, complexity is not a major issue for process min-

ing. The classiﬁcation model is built at each branch-

ing point to identify the branching conditions. The

computation complexity of building the classiﬁer de-

pends on the particular classiﬁcation model used. For

example the cost of building an ID3 decision tree clas-

siﬁer is O(|D||A||N|), where, |D| is the number of se-

quences, |A| is the number of attributes, and |N| is the

number of non-leaf nodes in the decision tree built

(Quinlan, 1986).

6 EXPERIMENTAL EVALUATION

In this section, we evaluate the utility of the proposed

approach in terms of the semantic correctness of the

BP workﬂow generated from the differentially-private

dataset. We refer to the BP workﬂow generated from

the differentially-private dataset as output BP work-

PreservingPrivacyinCollaborativeBusinessProcessComposition

119

ﬂow. We measure the semantic correctness of the

output BP workﬂow with respect to the following re-

quirements:

1. Completion of the Output BP Workﬂow. This

requirement entails that the output BP workﬂow

terminates in the correct state. We measure the

utility with respect to this requirement by com-

puting the degree of overlap between the set of

terminating states of the output BP workﬂow and

original BPs (from which the BP sequence dataset

is generated).

2. Dependency Preservation in the Output BP

Workﬂow. Ensuring that the output BP work-

ﬂow terminates in the correct state is not suf-

ﬁcient to verify its correctness. We also need

to make sure that in any possible execution of

the output BP workﬂow, the ordering and depen-

dence relationship between the different activities

are maintained with respect to the original BPs.

Since there is a large number of original BPs (over

1000), we cannot perform structural comparison

between the set of original BPs and the output

BP workﬂow. Rather, we compare the overlap be-

tween the frequent sequential patterns of originals

BPs and the frequent sequential patterns in the

sanitized (differentially private) sequence dataset.

6.1 Dataset Description

For experimental evaluation, the dataset includes ex-

ecution sequences selected from BPs related to In-

ternet purchase orders. Since our experiments in-

volved over a thousand BPs, we could not get these

many real-world BPs. To address this issue, we ﬁrst

identiﬁed a large set of Web services and their cate-

gories related to Internet purchase orders in different

businesses (e.g., garments/apparel, electronics). Then

we identiﬁed the ordering and dependence relation-

ships (e.g., shipment Web service is called after pay-

ment processing web service) and mutual exclusion

constraints (e.g., Payment can be made using either

Paypal or credit card Web service but not both) be-

tween the different Web service categories. These

relationships and constraints were modeled in a de-

pendency graph in which the nodes represent Web

service categories. We consider two types of edges:

i) dependence edge deﬁning the dependence relation-

ship between the Web service categories; and ii) con-

straint edges deﬁning the mutual exclusion constraint

between the Web service categories. From this de-

pendency graph, we generated the required number

of BPs by considering different combinations of al-

ternate paths to terminal nodes as well as consider-

ing different parallel structures for independent nodes

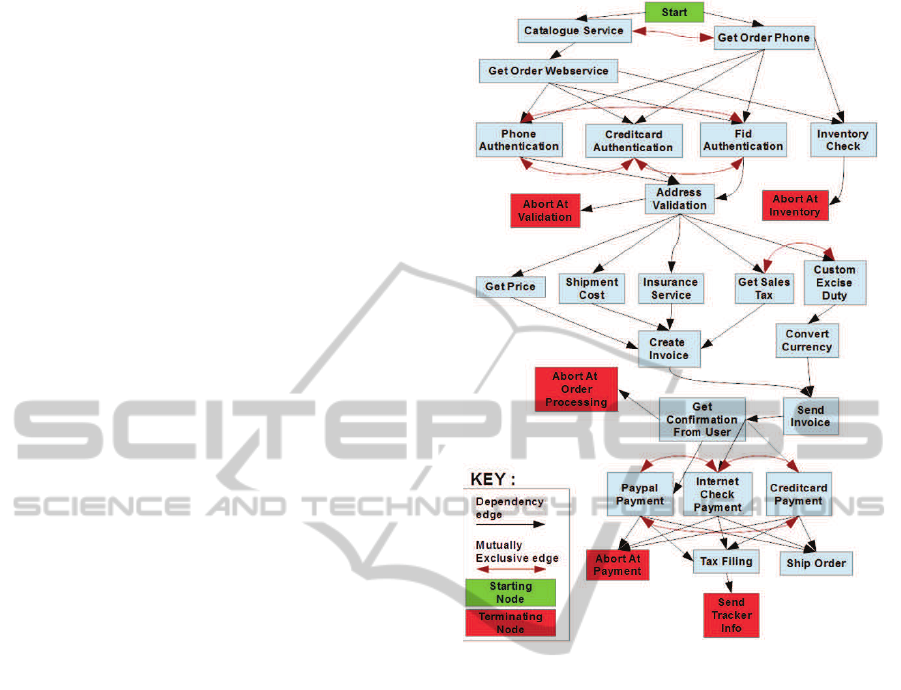

Figure 4: Dependency graph of Internet Purchase Order

process.

(i.e., Web services that do not have any dependence

relationship). Figure 4 depicts the dependency graph

of the Internet purchase order.

6.2 Results

In the following discussion, D denotes the database

of the original execution sequences generated from

all the BPs of a dependency graph. D

denotes the

database of the BP sequences used for sanitization

⊆ D. Each BP contributes a small number (1 –

3) of execution sequences in D

for privacy reasons

discussed above.

D denotes the sanitized database af-

ter applying Algorithm 1 on D

6.2.1 Completion of the Output BP Workﬂow

For this requirement, we measure the degree of over-

lap between the set of terminating states of the out-

put BP workﬂow and original BPs (from which the

BP sequence dataset is generated). Speciﬁcally, we

measure the accuracy of the set of terminating states

in the original BP workﬂow (denoted by T) and the

set of terminating states (denoted by

T) in the output

SECRYPT2015-InternationalConferenceonSecurityandCryptography

120

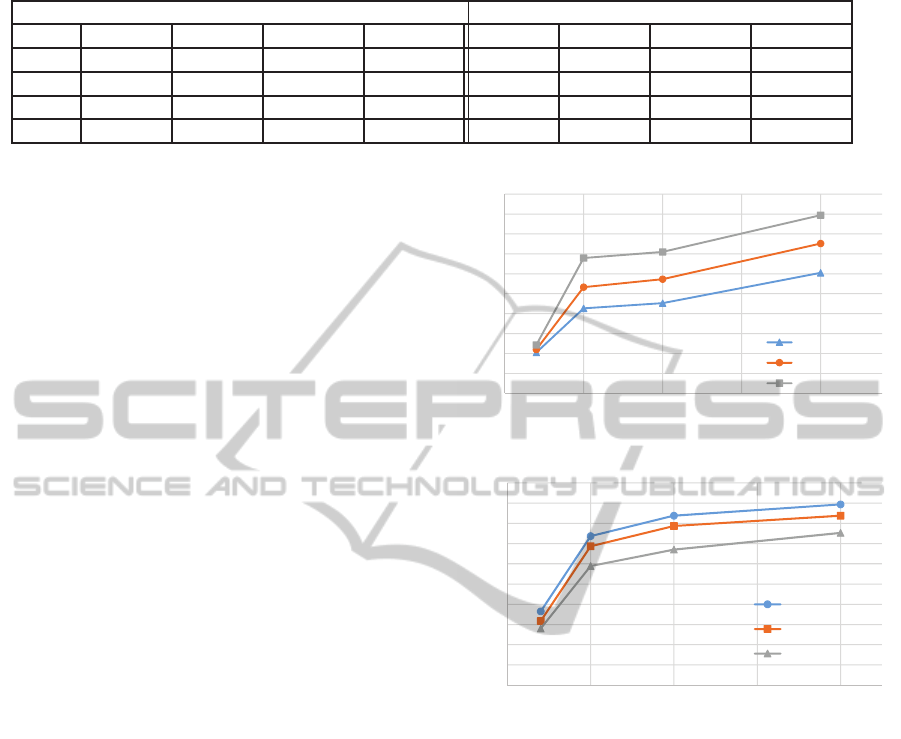

Table 2: Precision and recall of terminating states with varying

ε and number of BPs related to Internet purchase order dataset.

Precision (Percent) Recall (Percent)

ε 200 BPs 500 BPs 1000 BPs 2000 BPs 200 BPs 500 BPs 1000 BPs 2000 BPs

0.02 100 100 100 100 60 60 60 60

0.01 100 100 100 100 40 60 60 60

0.005 100 100 100 100 40 40 60 60

0.002 100 100 100 100 40 60 60 60

BP workﬂow in terms of precision and recall. These

values were averaged over four runs.

T is obtained

from the output BP workﬂow structure returned after

performing process mining on the sanitized execution

sequence dataset.

Table 2 shows precision and recall values of ter-

minating states with varying

ε (Note that

ε = ε/k and

for the Internet Purchase Order BPs k ≤ 16. Thus

represents the privacy budget for reconstructing each

step of the business process execution sequence.) For

this experiment, we considered different numbers of

BPs (200, 500, 1000, and 2000). These BPs were

generated from the Internet Purchase Order depen-

dency graph. From each BP, we selected 3 execution

sequences and sanitized the resulting database of se-

lected execution sequences.

As shown in Table 2, Precision is 100% for the

Internet purchase order dataset. Recall improves as

number of BPs are increased for generation of the

output BP workﬂow. Also, recall improves as we de-

crease the noise (i.e., increase

ε)

6.2.2 Dependency Preservation in the Output

BP Workﬂow

We compute the overlap between the frequentsequen-

tial patterns in D and

D in terms of precision and

recall. For measuring recall, we considered exact

matching of patterns between D and

D. For measur-

ing precision, we consider two patterns p

and p

be matching if they differ by at most one element and

the order of elements is preserved. This approximate

matching (for precision) makes sense since business

process composition is an interactive process. The

user will take the output of the system and reﬁne it

based on his/her requirements.

Precision and Recall of Frequent Sequential Pat-

terns w.r.t. ε. Figure 5 (a) and (b) shows the graph of

precision and recall values measured against different

ε for the Internet Purchase Order BPs. The precision

and recall values in Figure 5 are computed by taking

the average of precision and recall values of the fre-

quent patterns with length between 5 and 10 in Figure

5, the number of input BPs is 1000. From each of

the input BP, we randomly selected 1 execution se-

quence for generation of the output BP workﬂow. We























     







 

 

 

(a)

ε vs. precision























     







 

 

 

(b)

ε vs. recall

Figure 5: No. of BPs = 1000 and 1 sequence per BP for

Internet Purchase Order dataset.

ﬁrst ran the frequent sequential pattern analysis on the

original database D with a minimum support thresh-

old of 10% for all patterns of length between 5 and 10.

For the sanitized database

D, we considered 3 mini-

mum support thresholds: 5%, 7%, and 10% in Figure

5. The reason for choosing smaller support thresh-

old (5% and 7%) for differentially private dataset is

that addition of noise typically decreases the support

value for frequent patterns. However at 5% minimum

support and

ε ≥ 0.005 more than 75% of all the fre-

quent patterns of the original dataset are retrieved as

depicted in Figure 5(b). As depicted in Figure 5, both

precision and recall increases as the value of

ε in-

creases (i.e., lesser the noise, better the results.)

Precision and Recall of Frequent Sequential Pat-

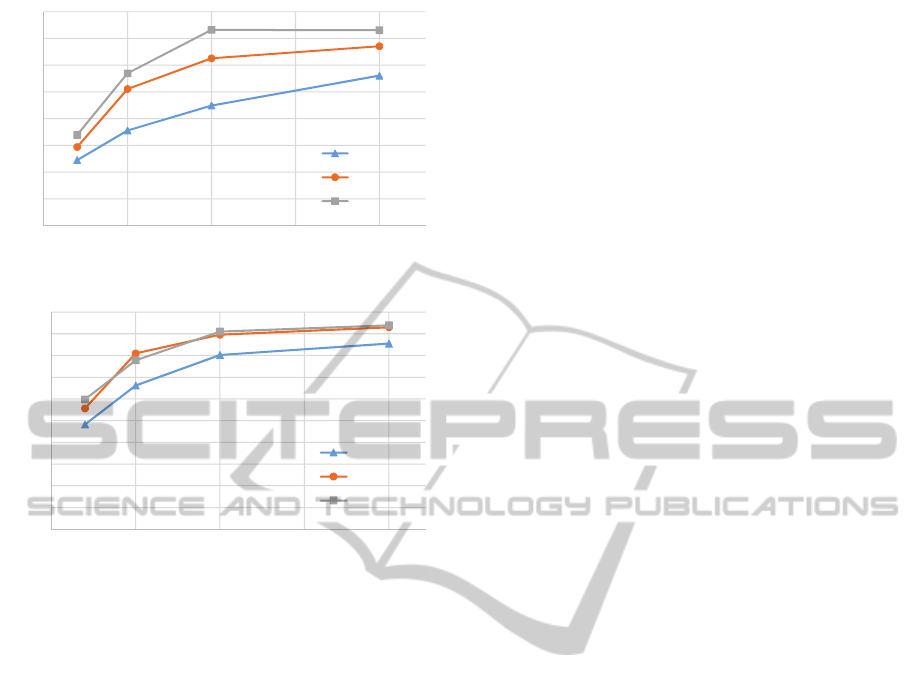

terns w.r.t. Number of BPs. Figure 6 (a) and (b)

shows the graph of average precision and recall values

measured against different number of input BPs for

PreservingPrivacyinCollaborativeBusinessProcessComposition

121



















     











(a) No. of BPs vs. precision























     





 

 

 

(b) No. of BPs vs. recall

Figure 6:

ε = 0.01 and minimum support threshold for fre-

quent patterns in D = 10% and for

D = 5% – Internet Pur-

chase Order dataset.

the Internet Purchase Order. In this graph,

ε = 0.01,

minimum support threshold for frequent patterns in

D is set to 10% and for

D is set to 5%. From each

of the input BP, we randomly selected 1, 2, and 3

execution sequence for generation of the output BP

workﬂow. As depicted in Figure 6, the precision and

recall improves as the number of input BPs increases.

Moreover, the results improve with the increase in the

number of execution sequences from each BP for gen-

eration of the output BP workﬂow.

7 RELATED WORK

Differential Privacy for Sequence Dataset. (Chen

et al., 2012) have proposed a differential privacy

based approach for sanitization of trajectory data. In

this approach they ﬁrst build a preﬁx tree from the

given trajectory dataset and then add Laplacian noise

at each level of the preﬁx tree to satisfy differential

privacy. From the noisy preﬁx tree, they regenerate

trajectories for the sanitized dataset. Their approach

can be an alternate approach for generation of the san-

itized BP Execution sequence database as trajectories

are essentially sequence of locations. However, in

their preﬁx-tree based approach, there can be multiple

branches in the preﬁx tree for sequences that overlap

considerably but differ only in the beginning part of

the sequences. Due to this, the memory requirement

for generation of the preﬁx tree for BP execution se-

quence dataset will be high.

Collaborative Business Process Composition.

There is some work on collaborative design and

composition of business processes by utilizing social

network platforms (Koschmider et al., 2010; Dengler

et al., 2011; Bruno et al., 2011; Brambilla et al.,

2012). These social network platforms serve as a

recommendation system that facilitates a process

designer to complete or update a formal BP model on

the basis of the prior usage of the process fragments

by other peers. However, the privacy issues related to

sharing of the usage patterns and process fragments

are not considered.

(Bentounsi et al., 2012b; Bentounsi et al., 2012a)

have proposed an anonymization-based approach for

privacy preserving outsourcing of business processes

in a multi-tenant cloud environment. In their ap-

proach a business process is broken down into smaller

fragments for re-use in future process modeling. A

fragment is disclosed for process composition only

if it satisﬁes the K

anonyfrag requirement. This re-

quirement enatils that the disclosed fragment must

have at least K clones distributed among l tenants.

This anonyfrag approach indeed satsiﬁes the privacy

requirement. However, it requires the process de-

signer to manually compose the business process

from the available fragments. In contrast, our pro-

posed approach generates the initial BP workﬂow

(based on the given requirements) that can be reﬁned

by the process designer.

8 CONCLUSION

In this paper, we have described a privacy preserving

approach to enable collaborative composition of exe-

cutable business processes. Organizational business

process details in form of BP execution sequences

are collated together in a differentially private central

repository that supports process mining for generating

business processes based on users requirements and

high level design speciﬁcations. The results from the

experimental evaluation show that the proposed ap-

proach is effective in terms of preserving utility of the

original BP execution sequence database while guar-

anteeing privacy. This utility is measured with respect

to preservation of process workﬂow structure and se-

mantics as well as preservation of Web service rank-

SECRYPT2015-InternationalConferenceonSecurityandCryptography

122

ing.

One limitation of the proposed approach is that

the central repository is trusted to sanitize the data

before making it public. We can employ encryp-

tion based techniques to address this limitation which

would add signiﬁcant computation and communica-

tion overhead. In the future, we plan to develop efﬁ-

cient techniques to deal with cases in which the cen-

tral repository cannot be fully trusted.

ACKNOWLEDGEMENTS

The work of Irshad and Shaﬁq is supported by the

LUMS Faculty Initiative Fund Grant. The work of

Vaidya is supported by the National Science Founda-

tion under Grant No. CNS-1422501.

REFERENCES

Baresi, L. and Guinea, S. (2011). Self-supervising bpel pro-

cesses. IEEE Trans. Softw. Eng., 37(2):247–263.

Bentounsi, M., Benbernou, S., and Atallah, M. J. (2012a).

Privacy-preserving business process outsourcing. In

Web Services (ICWS), 2012 IEEE 19th International

Conference on, pages 662–663.

Bentounsi, M., Benbernou, S., Deme, C. S., and Atallah,

M. J. (2012b). Anonyfrag: An anonymization-based

approach for privacy-preserving bpaas. In Proceed-

ings of the 1st International Workshop on Cloud Intel-

ligence, Cloud-I ’12, pages 9:1–9:8.

Brambilla, M., Fraternali, P., and Vaca, C. (2012). Bpmn

and design patterns for engineering social bpm solu-

tions. In Business Process Management Workshops,

pages 219–230.

Bruno, G., Dengler, F., Jennings, B., Khalaf, R., Nurcan,

S., Prilla, M., Sarini, M., Schmidt, R., and Silva, R.

(2011). Key challenges for enabling agile bpm with

social software. Journal of Software Maintenance and

Evolution: Research and Practice, 23(4):297–326.

Chen, R., Fung, B. C., Desai, B. C., and Sossou, N. M.

(2012). Differentially private transit data publication:

a case study on the montreal transportation system. In

Proceedings of the 18th ACM SIGKDD international

conference on Knowledge discovery and data mining,

KDD ’12, pages 213–221.

Chun, S., Atluri, V., and Adam, N. R. (2002a). Dynamic

composition of workﬂows for customized egovern-

ment service delivery. In Proceedings of the 2002

annual national conference on Digital government re-

search, pages 1–7.

Chun, S. A., Atluri, V., and Adam, N. R. (2002b). Domain

knowledge-based automatic workﬂow generation. In

Database and Expert Systems Applications, pages 81–

93.

Chun, S. A., Atluri, V., and Adam, N. R. (2005). Using

semantics for policy-based web service composition.

Distributed and Parallel Databases, 18(1):37–64.

Dengler, F., Koschmider, A., Oberweis, A., and Zhang, H.

(2011). Social software for coordination of collab-

orative process activities. In Muehlen, M. and Su,

J., editors, Business Process Management Workshops,

volume 66 of Lecture Notes in Business Information

Processing, pages 396–407.

Dwork, C. (2006). Differential privacy. In Bugliesi, M.,

Preneel, B., Sassone, V., and Wegener, I., editors, Au-

tomata, Languages and Programming, volume 4052

of Lecture Notes in Computer Science, pages 1–12.

Dwork, C., McSherry, F., Nissim, K., and Smith, A. (2006).

Calibrating noise to sensitivity in private data analysis.

In Proceedings of the Third conference on Theory of

Cryptography, TCC’06, pages 265–284.

Evdemon, J., Arkin, A., Barreto, A., Curbera, B., Goland,

F., G.Kartha, Khalaf, L., Marin, K., van der Rijn, M.,

and Yiu, Y. (2007). Services business process execu-

tion language version 2.0. OASIS Standard.

Kerschbaum, F. and Deitos, R. J. (2008). Security against

the business partner. In Proceedings of the 2008 ACM

workshop on Secure web services, SWS ’08, pages 1–

10.

Kifer, D. and Machanavajjhala, A. (2011). No free lunch

in data privacy. In Proceedings of the 2011 ACM

SIGMOD International Conference on Management

of Data, SIGMOD ’11, pages 193–204.

Koschmider, A., Song, M., and Reijers, H. A. (2010). Social

software for business process modeling. Journal of

Information Technology, 25(3):308–322.

McSherry, F. D. (2009). Privacy integrated queries: an ex-

tensible platform for privacy-preserving data analysis.

In Proceedings of the 2009 ACM SIGMOD Interna-

tional Conference on Management of data, SIGMOD

’09, pages 19–30.

Moser, O., Rosenberg, F., and Dustdar, S. (2008). Non-

intrusive monitoring and service adaptation for ws-

bpel. In Proceedings of the 17th international confer-

ence on World Wide Web, WWW ’08, pages 815–824.

Paliwal, A. V., Shaﬁq, B., Vaidya, J., Xiong, H., and Adam,

N. (2012). Semantics-based automated service dis-

covery. Services Computing, IEEE Transactions on,

5(2):260–275.

Quinlan, J. R. (1986). Induction of decision trees. Machine

learning, 1(1):81–106.

Silva, R., Zhang, J., and Shanahan, J. G. (2005). Probabilis-

tic workﬂow mining. In Proceedings of the eleventh

ACM SIGKDD international conference on Knowl-

edge discovery in data mining, KDD ’05, pages 275–

284.

Turban, E., Lee, J. K., King, D., Liang, T. P., and Turban,

D. (2009). Electronic commerce 2010.

Van der Aalst, W., Weijters, T., and Maruster, L. (Sept.).

Workﬂow mining: discovering process models from

event logs. Knowledge and Data Engineering, IEEE

Transactions on, 16(9):1128–1142.

van der Aalst, W. M., Pesic, M., and Song, M. (2010). Be-

yond process mining: from the past to present and fu-

ture. In Advanced Information Systems Engineering,

pages 38–52.

Wen, L., Wang, J., Aalst, W., Huang, B., and Sun, J. (2009).

A novel approach for process mining based on event

types. Journal of Intelligent Information Systems,

32:163–190.

PreservingPrivacyinCollaborativeBusinessProcessComposition

123
