Exploiting Visual Similarities for Ontology Alignment

Charalampos Doulaverakis, Stefanos Vrochidis and Ioannis Kompatsiaris

Information Technologies Institute, Centre for Research and Technology Hellas, Thessaloniki, Greece

Keywords:

Ontology Alignment, Visual Similarity, ImageNet, Wordnet.

Abstract:

Ontology alignment is the process where two different ontologies that usually describe similar domains are

’aligned’, i.e. a set of correspondences between their entities, regarding semantic equivalence, is determined.

In order to identify these correspondences several methods and metrics that measure semantic equivalence

have been proposed in literature. The most common features that these metrics employ are string-, lexical-

, structure- and semantic-based similarities for which several approaches have been developed. However,

what hasn’t been investigated is the usage of visual-based features for determining entity similarity in cases

where images are associated with concepts. Nowadays the existence of several resources (e.g. ImageNet)

that map lexical concepts onto images allows for exploiting visual similarities for this purpose. In this paper,

a novel approach for ontology matching based on visual similarity is presented. Each ontological entity is

associated with sets of images, retrieved through ImageNet or web-based search, and state of the art visual

feature extraction, clustering and indexing for computing the similarity between entities is employed. An

adaptation of a popular Wordnet-based matching algorithm to exploit the visual similarity is also proposed.

Our method is compared with traditional metrics against a standard ontology alignment benchmark dataset

and demonstrates promising results.

1 INTRODUCTION

Semantic Web is providing shared ontologies and vo-

cabularies in different domains that can be openly ac-

cessed and used for tasks such as semantic annotation

of information, reasoning, querying, etc. The Linked

Open Data (LOD) paradigm shows how the different

exposed datasets can be linked in order to provide a

deeper understanding of information. As each ontol-

ogy is being engineered to describe a particular do-

main for usage in speciﬁc tasks, it is common for on-

tologies to express equivalent domains using different

terms or structures. These equivalences have to be

identiﬁed and taken into account in order to enable

seamless knowledge integration. Moreover, as an on-

tology can contain hundreds or thousands of entities,

there is a need to automate this process. An example

of the above comes from the cultural heritage domain

where two ontologies are being used as standards, one

is the CIDOC-CRM

, used for semantically annotat-

ing museum content, and the other is the Europeana

Data Model

, which is used to semantically index and

interconnect cultural heritage objects. While these

CIDOC-CRM, http://www.cidoc-crm.org

Europeana Data Model, http://labs.europeana.eu

two ontologies have been developed for different pur-

poses, they are used in the cultural heritage domain

and correspondences between their entities should ex-

ist and be identiﬁed.

In ontology alignment the goal is to automatically

or semi-automatically discover correspondences be-

tween the ontological entities, i.e. their classes, prop-

erties or instances. An ’alignment’ is a set of map-

pings that deﬁne the similar entities between two on-

tologies. These mappings can be expressed e.g. using

the owl:equivalentClass or owl:equivalentProperty

properties so that a reasoner can automatically access

both ontologies during a query.

While the proposed methodologies in literature

have proven quite effective, either alone or combined,

in dealing with the alignment of ontologies, there has

been little progress in deﬁning new similarity metrics

that take advantage of features that haven’t been con-

sidered so far. In addition existing benchmarks for

evaluating the performance of ontology alignments

systems, such as the Ontology Alignment Evaluation

Initiative

(OAEI) have shown that there is still room

for improvement in ontology alignment.

In the last 5 years the proliferation of multime-

OAEI, http://oaei.ontologymatching.org

Doulaverakis, C., Vrochidis, S. and Kompatsiaris, I..

Exploiting Visual Similarities for Ontology Alignment.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 29-37

ISBN: 978-989-758-158-8

dia has generated several annotated resources and

datasets that are associated with concepts, such as Im-

ageNet

or Flickr

thus making their visual represen-

tations easily available and retrievable so that they can

be further exploited, e.g. for image recognition.

In this paper we propose a novel ontology match-

ing metric that is based on visual similarities between

ontological entities. The visual representations of the

entities are crafted by different multimedia sources,

namely ImageNet and web-based image search, thus

assigning each entity to descriptive sets of images.

State of the art visual features are extracted from these

images and vector representations are generated. The

entities are compared in terms of these representations

and a similarity value is extracted for each pair of en-

tities, thus the pair with the highest similarity value

is considered as valid. The approach is validated in

experimental results where it is shown that when it’s

combined with other known ontology alignment met-

rics it increases precision and recall of the discovered

mappings.

The main contributionof the paper is the introduc-

tion of a novel similarity metric for ontology align-

ment based on visual features. To the best of the au-

thors knowledge this is the ﬁrst attempt to exploit vi-

sual features for ontology alignment purposes. We

also propose an adaptation of a popular lexical-based

matching algorithm where lexical similarity is re-

placed with visual similarity.

The paper is organized as follows: Section 3 de-

scribes the methodology in detail, while Section 5

presents the experimental results on the popular OAEI

conference track dataset. In Section 4 an metric that

exploits the proposed visual similarity and lexical fea-

tures is proposed and described. Related work in on-

tology alignment is documented in Section 2. Finally,

Section 6 concludes the paper and a future work plan

is outlined.

2 RELATED WORK

In order to accomplish the automatic discovery of

mappings, numerous approaches have been proposed

in literature that rely on various features. Of the

most common are methods that compare the similar-

ity of two strings, e.g. comparing hasAuthor with

isAuthoredBy, are the most used and fastest to com-

pute as they operate on raw strings. Existing string

similarity metrics are being used, such as Levenshtein

distance, Edit distance, Jaro-Winkler similarity, etc,

ImageNet, http://www.image-net.org/

Flickr, https://www.ﬂickr.com/

while string similarity algorithms such as (Stoilos

et al., 2005) have been developed especially for ontol-

ogy matching. Other mapping discoverymethods rely

on lexical processing in order to ﬁnd synonyms, hy-

pernyms or hyponyms between concepts, e.g. Author

and Writer, where Wordnet is most commonly used.

In (Lin and Sandkuhl, 2008) a survey on methods that

use Wordnet (Miller, 1995) for ontology alignment,

is carried out. Approaches for exploiting other exter-

nal knowledge sources have been presented (Sabou

et al., 2006; Pesquita et al., 2014; Chen et al., 2014;

Faria et al., 2014). Other similarity measures rely on

the structure of the ontologies, such as the Similarity

Flooding (Melnik et al., 2002) algorithm that stems

from the relational databases world but has been suc-

cessfully used for ontology alignment, while others

exploit both schema and ontology semantics for map-

ping discovery. A comprehensivestudy of such meth-

ods can be found at (Shvaiko and Euzenat, 2005). In

terms of matching systems, there have been proposed

numerous approaches that combine matchers or in-

clude external resources of the generation of a valid

mapping between ontologies. Most available systems

have been evaluated in the OAEI benchmarks that are

held annually. In (Jean-Mary et al., 2009) the authors

use a weighted approach to combine several match-

ers in order to produce a ﬁnal matching score be-

tween the ontological entities. In (Ngo and Bellah-

sene, 2012) the authors go a step further and propose

a novel approach to combine elementary matching al-

gorithms using a machine learning approach with de-

cision trees. The system is trained from prior ground

truth alignments in order to ﬁnd the best combina-

tion of matchers for each pair of entities. Other sys-

tems, such as AML (Faria et al., 2013) and (Kirsten

et al., 2011), make use of external knowledge re-

sources or lexicons to obtain ground truth structure

and entity relations. This is especially used when

matching ontologies in specialized domains such as

in biomedicine.

In contrast to the above we propose a novel on-

tology matching algorithm that corresponds entities

with images and makes use of visual features in or-

der to compute similarity between entities. To the au-

thors knowledge, this is the ﬁrst approach in literature

where a visual-based ontology matching algorithm is

proposed. Throughout the paper, the term “entity” is

used to refer to ontology entities, i.e. classes, object

properties, datatype properties, etc.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

(a) Images for “boat” (b) Images for “ship” (c) Images for “motorbike”

Figure 1: Images for different synsets. (a) and (b) are semantically more similar than with (c). The visual similarity between

(a) and (b) and their difference with (c) is apparent.

3 VISUAL SIMILARITY FOR

ONTOLOGY ALIGNMENT

The idea for the development of a visual similarity al-

gorithm for ontology alignment originated from the

structure of ImageNet where images are assigned to

concepts. For example, Figure 1 shows a subset of

images that is found in ImageNet for the words boat,

ship and motorbike. Obviously, boat and ship are

more semantically related than boat and motorcycle.

It is also clear from Figure 1 that the images that cor-

respond to boat and ship are much more similar in

terms of visual appearance than the images of mo-

torbike. One can then assume that it is possible to

estimate the semantic relatedness of two concepts by

comparing their visual representations.

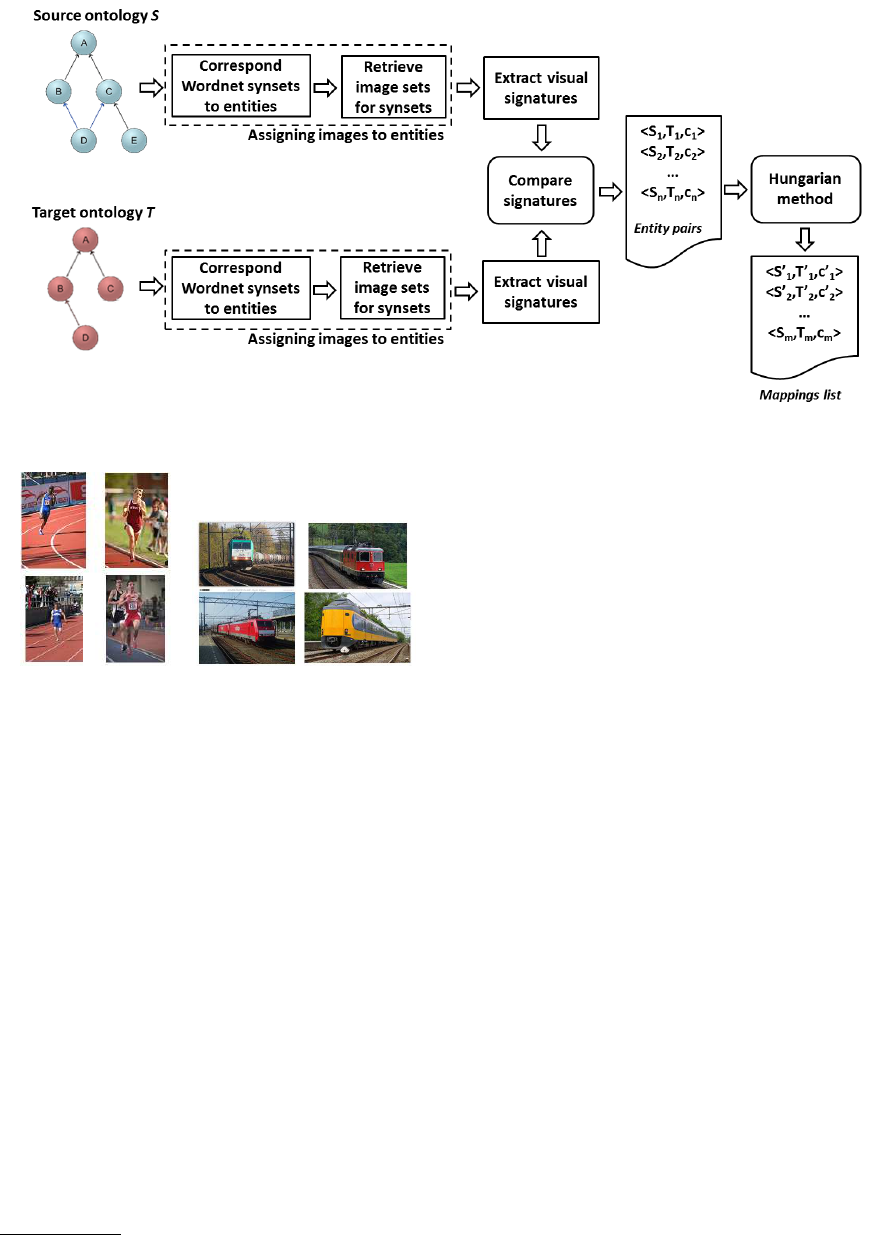

In Figure 2 the proposed architecture for visual-

based ontology alignment is presented. The source

and target ontologies are the ontologies to be

matched. For every entity in the ontologies, sets of

images are assigned through ImageNet by identify-

ing the relevant Wordnet synsets. A synset is a set

of words that have the same meaning and these are

used to query ImageNet. A single entity might corre-

spond to a number of synsets, e.g. “track” has differ-

ent meaning in transport and in sports as can be seen

in Figure 3. Thus for each entity a number of image

sets are retrieved. For each image in a set, low level

visual features are extracted and a numerical vector

representation is formed. Therefore for each concept

different sets of vectors are generated. Each set of

vectors is called a “visual signature”. All visual signa-

tures between the source and target ontology are com-

pared in pairs using a modiﬁed Jaccard set similarity

in order to come up with a list of similarity values as-

signed to each entity pair. The ﬁnal list of mappings

is generated by employing an assignment optimiza-

tion algorithm such as the Hungarian method (Kuhn,

1955).

3.1 Assigning Images to Entities

The main source of images in the proposed work is

ImageNet, an image database organized according to

the WordNet noun hierarchy in which each node of

the hierarchy is associated with a number of images.

Users can search the database through a text-search

web interface where the user inputs the query words,

which are then mapped to Wordnet indexedwords and

a list of relevant synsets (synonym sets, see (Miller,

1995)) are presented. The user selects the desired

synset and the corresponding images are displayed.

In addition, ImageNet provides a REST API for re-

trieving the image list that corresponds to a synset by

entering the Wordnet synset id as input and this is the

access method we used.

For every entity of the two ontologies to be

matched, the following process was followed: A pre-

processing procedure is executed where each entity

name is ﬁrst tokenized in order to split it to meaning-

ful words as it is common for names to be in the form

of isAuthorOf or is

author of thus after tokenization,

isAuthorOf will be split to the words is, Author and

of. The next step is to ﬁlter out stop words, words that

do not contain important signiﬁcance or are very com-

mon. In the previous example, the words is and of are

removed, thus after this preprocessing the name that

is produced is Author.

After the preprocessing step, the next procedure

is about identifying the relevant Worndet synset(s) of

the entity name and get their ids, which is a rather

straightforwardprocedure. Using these ids, ImageNet

is queried in order to retrieve a ﬁxed number of rele-

vant images. However trying to retrieve these images

Exploiting Visual Similarities for Ontology Alignment

Figure 2: Architecture of the proposed ontology alignment algorithm.

(a) Images for “track

(running)”

(b) Images for “track (train)”

Figure 3: Images that correspond to different meanings of

concept “track”. Since we can’t be certain of a word mean-

ing (word sense), each concept is associated with all rele-

vant synsets and corresponding image sets from ImageNet.

might fail, mainly due to two reasons: either the name

does not correspond to a Wordnet synset, e.g. due

to misspellings, or the relevant ImageNet synset isn’t

assigned any images, something which is not uncom-

mon since ImageNet is still under development and is

not complete. So, in order not to end up with empty

image collections, in the above cases the entity name

is used to query Yahoo

image search

in order to

ﬁnd relevant images. The idea of using web-based

search results has been employed in computer vision

as in (Chatﬁeld and Zisserman, 2013) where web im-

age search is used to train an image classiﬁer.

The result of the above-described process is to

have each ontological entity C associated with n sets

of images I

, with i = 1, . . . , n, where n is the number

of synsets that correspond to entity C.

Yahoo search, https://images.search.yahoo.com

3.2 Extracting the Visual Signatures of

Entities

For allowing a visual-based comparison of the onto-

logical entities, each image set I

has to be repre-

sented using appropriate visual descriptors. For this

purpose, a state of the art approach is followed where

images are represented as compact numerical vec-

tors. For extracting these vectors the approach which

is described in (Spyromitros-Xiouﬁs et al., 2014) is

used as it has been shown to outperform other ap-

proaches on standard benchmarks of image retrieval

and is quite efﬁcient. In short, SURF (Speeded Up

Robust Features) descriptors (Bay et al., 2008) are

extracted for each image in a set. SURF descriptors

are numerical representations of important image fea-

tures and are used to compactly describe image con-

tent. These are then represented using the VLAD

(Vector of Locally Aggregated Descriptors) represen-

tation (J´egou et al., 2010) where four codebooks of

size 128 each, were used. The resulting VLAD vec-

tors are PCA-projected to reduce their dimensionality

to 100 coefﬁcients, thus ending up with a standard nu-

merical vector representation v

for each image j in a

set. At the end of this process, each image set I

will

be numerically represented by a corresponding vector

set. This vector set is termed “visual signature” V

it conveniently and descriptively represents the visual

content of I

, thus V

= {v

}, with j = 1, . . . , k and k

being the total number of images in I

The whole processing workﬂow is depicted in Fig-

ure 4.

Algorithm 1 outlines the steps to create visual sig-

natures V

of entities in an ontology.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

Figure 4: Block diagram of the process for extracting the

visual signatures of an entity.

Algorithm 1: Pseudocode for extracting visual signature V

of an entity C in ontology O.

Ensure: V

0, C is an entity of ontology O

← removeStopWords(tokenize(C))

W ← ﬁnd Wordnet synsets of C

for all synsets W

in W do

← download k images from ImageNet

if I

0 then

download k images from web

end if

←

for all images j in I

← extractVisualDescriptors( j)

← add v

end for

← add V

end for

return V

3.3 Comparing Visual Signatures for

Computing Entity Similarity

Having the visual signatures for each entity, the next

step is to use an appropriate metric in order to com-

pare these signatures and estimate the similarity be-

tween image sets. Several vector similarity and dis-

tance metrics exist, such as cosine similarity or eu-

clidean distance, however these are mostly suitable

when comparing individual vectors. In the current

work, we are interested in establishing the similarity

value between vector sets so the Jaccard set similarity

measure is more appropriate as it is has been deﬁned

exactly for this purpose. It’s deﬁnition is

iCs

jCt

iCs

∩V

jCt

iCs

∪V

jCt

(1)

where V

iCs

and V

jCt

are the i and j different visual

signatures of entities C

and C

, |V

iCs

∩ V

jCt

| is the

intersection size of the two sets, i.e. the number of

identical images between the sets, and |V

iCs

∩V

jCt

| is

the total number of images in both sets. It holds that

0 ≤ J

iCs

jCs

≤ 1. For deﬁning if two images A and

B are identical, we compute the angular similarity of

their vector representations.

AngSim

A,B

= 1−

arccos(cosineSim(A, B))

(2)

with cosineSim(A, B) equal to

cosineSim(A, B) =

n=100

∑

k=1

· B

n=100

∑

k=1

n=100

∑

k=1

(3)

For AngSim, a value of 0 means that the two im-

ages are completely irrelevant and 1 means that they

are identical. However, two images might not have

AngSim

A,B

= 1 even if they are visually the same but

they are acquired from different sources due to e.g.

differences in resolution, compression or stored for-

mat, thus we risk of having |V

iCs

∩V

jCt

| =

0. For this

reason instead of aiming to ﬁnd truly identical images

we introduce the concept of “near-identical images”

where two images are considered identical if the have

a similarity value above a threshold T, thus

Identical

A,B

(

0 if AngSim

A,B

< T

1 if AngSim

A,B

≥ T

(4)

T is experimentally deﬁned. Using the above we

are able to establish the Jaccard set similarity value of

two ontological entities by corresponding each entity

to an image set, extracting the visual signature of each

set and comparing these signatures. The Jaccard set

similarity value J

is computed for every pair i, j of

synsets that correspond to the examined entities, V,U.

Visual Similarity is deﬁned as

VisualSim(C

) = max

i, j

iCs

jCt

) (5)

4 COMBINING VISUAL AND

LEXICAL FEATURES

The Visual Similarity algorithm can either be ex-

ploited as a standalone measure or it can be used

as complementary to other ontology matching mea-

sures as well. Since in order to construct the visual

representation of entities Wordnet is used, one ap-

proach is to combine visual with lexical-based fea-

tures. Lexical-based measures have been used in

ontology matching systems in recent OAEI bench-

marks, such as in (Ngo and Bellahsene, 2012)where,

among others, the Wu-Palmer (Wu and Palmer, 1994)

Wordnet-basedmeasure has been integrated. The Wu-

Palmer similarity value between concepts C

and C

is deﬁned as

Exploiting Visual Similarities for Ontology Alignment

WuPalmer

2· N

+ N

+ 2· N

(6)

whereC

is deﬁned as the least common superconcept

(or hypernym) of both C

and C

, N

and N

are the

number of nodes from C

and C

to C

, respectively,

and N

is the number of nodes on the path from C

root. The intuition behind this metric is that since con-

cepts closer to the root have a broader meaning which

is made more speciﬁc as one moves to the leaves of

the hierarchy, if two concepts have a common hyper-

nym closer to them and further from the root, then it’s

likely that they have a closer semantic relation.

Based on this intuition we have deﬁned a new sim-

ilarity metric that takes into account the visual fea-

tures of both concepts and of their least common su-

perconcept. Using the same notation and meaning for

, C

, the measure we have deﬁned is expressed

LexiVis

3− (V

)

(7)

where V

is the visual similarity value between

and C

and V

are the visual similarity val-

ues between C

and C

respectively. V

and

are calculated according to Eq. 5. In all cases,

0 ≤ LexiVis

≤ 1. The intuition behind this mea-

sure is that semantically related concepts will be each

other highly visually similar to each other and also

highly similar visually with their closest hypernym.

The incorporationof the closest hypernym in the over-

all similarity estimation of two concepts will allow for

corrections in cases where concepts might be visually

similar but semantically irrelevant, e.g. “boat” and

“hydroplane” pictures depict an object surrounded by

a body of water, however when they are visually com-

pared against their common superconcept, in the pre-

vious example it is the concept “craft”, their pair-wise

visual similarity value will be low thus lowering the

concepts’ similarity. This example is depicted in Fig-

ure 5.

Boat Hydroplane Craft

Boat-Hydroplane=0.49, Boat-Craft=0.24,

Hydroplane-Craft=0.35

LexiVis (Boat-Hydroplane) = 0.20

Figure 5: Visual similarity values between the concepts

“Boat” and “Hydroplane” which are semantically irrelevant

but visually similar. Their common hypernym is “Craft”.

The LexiVis measure, by taking advantage of lexical fea-

tures, lowers their similarity value.

5 EXPERIMENTAL RESULTS

For analyzing the performance of the Visual Simi-

larity ontology matching algorithm we ran it against

the Ontology Alignment Evaluation Initiative (OAEI)

Conference track of 2014 (Dragisic et al., 2014)

The OAEI benchmarks are organized annually and

have become a standard in ontology alignment tools

evaluation. In the conference track, a number of on-

tologies that are used for the organization of confer-

ences have to be aligned in pairs. The conference

track was chosen as, by design, the proposed algo-

rithm requires meaningful entity names that can be vi-

sually represented. Other tracks, such as benchmark

and anatomy, weren’t considered due to this limita-

tion which is further discussed in Section 6. Refer-

ence alignments are available and these are used for

the actual evaluation in an automated manner. The

reference alignment that was used is “ra1” since this

was readily available for the OAEI 2014 website.

The VisualSim and LexiVis ontology matching al-

gorithms were integrated in the Alignment API (Eu-

zenat, 2004) which offers interfaces and sample im-

plementations in order to integrate matching algo-

rithms. The API is recommended from OAEI for par-

ticipating in the benchmarks. In addition, algorithms

to compute standard information retrieval measures,

i.e. precision, recall and F-measure, against reference

alignments can be found in the API, so these were

used for the evaluation of the tests results. In these

tests we changed the threshold, i.e. the value under

which an entity matching is discarded, and registered

the precision, recall and F1 measure values.

In order to have a better understanding of the pro-

posed algorithms we compared it against other popu-

lar matching algorithms. Ideally the performance of

these would be evaluated against other matching algo-

rithms that make use of similar modalities, i.e. visual

or other. This wasn’t feasible as the proposed algo-

rithms are the ﬁrst that makes use of visual features,

so we compare it with standard algorithmsthat exploit

traditional features such as string-based and Wordnet-

based similarity. Forthis purpose we implemented the

ISub string similarity matcher (Stoilos et al., 2005)

and the Wu-Palmer Wordnet-based matcher which is

described in Section 4. These matchers have been

used in the YAM++ ontology matching system (Ngo

and Bellahsene, 2012) which was one of the top

ranked systems in OAEI 2012.

All aforementioned algorithms, ISub, Wu-Palmer,

VisualSim and LexiVis, are evaluated using Precision,

Recall and F1 measure, with

OAEI 2014,http://oaei.ontologymatching.org/2014/

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

Table 1: Performance of the LexiVis matching algorithm in combination with other matching algorithms (ISub, Name Equal-

ity, Similarity Flooding (Melnik et al., 2002)), and how the performance is compared to matching systems that participated in

OAEI 2014 conference track.

System Precision Recall F1-measure

AML 0.85 0.64 0.73

LogMap 0.80 0.59 0.68

LogMap-C 0.82 0.57 0.67

XMap 0.87 0.49 0.63

NameEq + ISub + SimFlood + LexiVis 0.71 0.53 0.60

NameEq + ISub + SimFlood 0.81 0.47 0.59

OMReasoner 0.82 0.46 0.59

Baseline (NameEq) 0.80 0.43 0.56

AOTL 0.77 0.43 0.55

MaasMtch 0.64 0.48 0.55

(a) Precision

(b) Recall

Figure 6: Precision, Recall and F1 diagrams for different

threshold values using the conference track ontologies of

OAEI 2014.

F1 =

2· Precision· Recall

Precision+ Recall

(8)

The results of this evaluation are displayed in Fig-

ure 6.

It can be seen from Figure 6 that VisualSim and

the LexiVis algorithms performs better in all mea-

sures than the Wu-Palmer alignment algorithm which

conﬁrms with our initial assumption that the seman-

tic similarity between entities can be reﬂected in their

visual representation using imaging modalities. This

allows a new range of matching techniques based on

modalities that haven’t been considered so far to be

investigated. However, the string-based ISub matcher

displays superior performance, which was expected

as string-based matchers are very effective in ontol-

ogy alignment and matching problems, which points

out that the aforementioned new range of matchers

should work complementaryto the existing and estab-

lished matchers as these have proven their reliability

though time.

An additional performance factor that should be

mentioned is the computational complexity and over-

all execution time for the Visual based algorithm

which is much greater than the simpler string-based

algorithms. Analyzing Figure 4, of all the docu-

mented steps by far the most time consuming are

the image download and visual descriptor extraction.

However,ImageNet is already offering visual descrip-

tors which are extracted from the synset images and

are freely available to download

. The range of im-

ages that have been processed is not yet complete but

as ImageNet is still in development,the plan is to have

the whole image database processed and have the vi-

sual descriptors extracted. This availability will make

the calculation of the proposed visual-based ontology

alignment algorithms faster.

5.1 In Combination with other

Ontology Alignment Algorithms

As a further test, using the Alignment API we in-

tegrated the LexiVis matching algorithm and aggre-

ImageNet visual features download,

http://image-net.org/download-features

Exploiting Visual Similarities for Ontology Alignment

gated the matching results with other available match-

ing algorithms in order to have an understanding on

how it would perform in a real ontology matching sys-

tem. We used the LexiVis algorithm as it was shown

to perform better than the original Visual Similarity

algorithm (Figure 6). The other algorithms that were

used are the ISub and Similarity Flooding matchers in

addition to the baseline NameEq matcher. These were

used in order to have a combination of matchers that

exploit different features, i.e. string, structural and vi-

sual. The matchers were combined using an adaptive

weighting approach similar to (Cruz et al., 2009). For

this test we again used the conference track bench-

mark dataset of OAEI 2014. For this dataset, results

regarding the performance of the participating match-

ing systems are published in OAEI’s website and in

(Dragisic et al., 2014). It can be seen from Table

1, in the line denoted with italic font, that the inclu-

sion of the LexiVis ontology matching algorithm in

the matching system results in better overall perfor-

mance than running the system without it. The added

value of 0.01 in F1 results in an overall F1 value of

0.60 which brings our matching system in the top 5

performances. The rather small added value of 0.01

is mainly due to the fact that the benchmark is quite

challenging as can be seen from the results of Table 1.

For example the XMap system, which is ranked 4

managed to score 0.07 more in F1 than the baseline

NameEq matcher which simply compares strings and

produces a valid pair if the names are equal. Even this

small increase of F1 just by including the LexiVis al-

gorithm proves that it can improve results in such a

challenging benchmark thus showing its beneﬁt.

6 CONCLUSIONS

In this paper a novel ontology matching algorithm

which is based on visual features is presented. The al-

gorithm exploits ImageNet’s structure which is based

on Wordnet in order to correspond image sets to the

ontological entities and state of the art visual pro-

cessing is employed which involves visual feature

descriptors extraction, codebook-based feature rep-

resentation, dimensionality reduction and indexing.

The visual-based similarity value is taken by calcu-

lating a modiﬁed version of the Jaccard set similarity

value. A new matcher is also proposed which com-

bines visual and lexical features in order to determine

entity similarity. The proposed algorithms have been

evaluated using the established OAEI benchmark and

has shown to outperform Wordnet-based approaches.

A limitation of the proposed visual-based matching

algorithm is that since it relies of visual depictions of

entities, in cases where entity names are not words,

e.g. alphanumeric codes, then its performance will be

poor as images will be able to be associated with it. A

way to tackle this is to extend the approach to include

other data, such as rdfs:label, which are more de-

scriptive. Another limitations of this approach would

be the mapping of concepts that are visually hard

to express, e.g. “Idea” or “Freedom”, however this

is partly leveraged by employing web-based search

which likely retrieves relevant images for almost any

concept.

The current version of the algorithm only uses en-

tity names Future work will focus in optimizing the

processing pipeline in order to have visual similarity

results in a more timely manner using processing op-

timizations and other approaches such as word sense

disambiguation in order to reduce the image sets that

correspond to each entity.

ACKNOWLEDGEMENTS

This work was supported by MULTISENSOR (con-

tract no. FP7-610411) and KRISTINA (contract no.

H2020-645012) projects, partially funded by the Eu-

ropean Commission.

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).

Speeded-up robust features (SURF). Computer vision

and image understanding, 110(3):346–359.

Chatﬁeld, K. and Zisserman, A. (2013). VISOR: Towards

on-the-ﬂy large-scale object category retrieval. In

Asian Conference of Computer Vision – ACCV 2012,

pages 432–446. Springer Berlin Heidelberg.

Chen, X., Xia, W., Jim´enez-Ruiz, E., and Cross, V. (2014).

Extending an ontology alignment system with biopor-

tal: a preliminary analysis. In Poster at Intl Sem. Web

Conf.(ISWC).

Cruz, I. F., Palandri Antonelli, F., and Stroe, C. (2009). Ef-

ﬁcient selection of mappings and automatic quality-

driven combination of matching methods. In ISWC

International Workshop on Ontology Matching (OM)

CEUR Workshop Proceedings, volume 551, pages 49–

60. Citeseer.

Dragisic, Z., Eckert, K., Euzenat, J., Faria, D., Ferrara, A.,

Granada, R., Ivanova, V., Jimenez-Ruiz, E., Kempf,

A., Lambrix, P., et al. (2014). Results of the ontology

alignment evaluation initiative 2014. In International

Workshop on Ontology Matching, pages 61–104.

Euzenat, J. (2004). An API for ontology alignment. In The

Semantic Web–ISWC 2004, pages 698–712. Springer.

Faria, D., Pesquita, C., Santos, E., Cruz, I. F., and Couto,

F. M. (2014). Automatic background knowledge se-

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

lection for matching biomedical ontologies. PLoS

ONE, 9(11):e111226.

Faria, D., Pesquita, C., Santos, E., Palmonari, M., Cruz,

I. F., and Couto, F. M. (2013). The agreementmak-

erlight ontology matching system. In On the Move

to Meaningful Internet Systems: OTM 2013 Confer-

ences, pages 527–541. Springer.

Jean-Mary, Y. R., Shironoshita, E. P., and Kabuka, M. R.

(2009). Ontology matching with semantic veriﬁca-

tion. Web Semantics: Science, Services and Agents on

the World Wide Web, 7(3):235–251.

J´egou, H., Douze, M., Schmid, C., and P´erez, P. (2010). Ag-

gregating local descriptors into a compact image rep-

resentation. In Computer Vision and Pattern Recogni-

tion (CVPR), 2010 IEEE Conference on, pages 3304–

3311. IEEE.

Kirsten, T., Gross, A., Hartung, M., and Rahm, E. (2011).

Gomma: a component-based infrastructure for man-

aging and analyzing life science ontologies and their

evolution. J. Biomedical Semantics, 2(6).

Kuhn, H. W. (1955). The hungarian method for the as-

signment problem. Naval research logistics quarterly,

2(1-2):83–97.

Lin, F. and Sandkuhl, K. (2008). A survey of exploit-

ing wordnet in ontology matching. In Artiﬁcial In-

telligence in Theory and Practice II, pages 341–350.

Springer.

Melnik, S., Garcia-Molina, H., and Rahm, E. (2002). Sim-

ilarity ﬂooding: A versatile graph matching algorithm

and its application to schema matching. In Data Engi-

neering, 2002. Proceedings. 18th International Con-

ference on, pages 117–128. IEEE.

Miller, G. A. (1995). Wordnet: a lexical database for en-

glish. Communications of the ACM, 38(11):39–41.

Ngo, D. and Bellahsene, Z. (2012). YAM++: A multi-

strategy based approach for ontology matching task.

In Knowledge Engineering and Knowledge Manage-

ment, pages 421–425. Springer.

Pesquita, C., Faria, D., Santos, E., Neefs, J.-M., and Couto,

F. M. (2014). Towards visualizing the alignment of

large biomedical ontologies. In Data Integration in

the Life Sciences, pages 104–111. Springer.

Sabou, M., d’Aquin, M., and Motta, E. (2006). Using the

semantic web as background knowledge for ontology

mapping. In In Proc. of the Int. Workshop on Ontology

Matching (OM-2006.

Shvaiko, P. and Euzenat, J. (2005). A survey of schema-

based matching approaches. In Journal on Data Se-

mantics IV, pages 146–171. Springer.

Spyromitros-Xiouﬁs, E., Papadopoulos, S., Kompatsiaris,

I., Tsoumakas, G., and Vlahavas, I. (2014). A com-

prehensive study over VLAD and product quantiza-

tion in large-scale image retrieval. IEEE Transactions

on Multimedia, 16(6):1713–1728.

Stoilos, G., Stamou, G., and Kollias, S. (2005). A string

metric for ontology alignment. In Gil, Y., editor, Pro-

ceedings of the International Semantic Web Confer-

ence (ISWC 05), volume 3729 of LNCS, pages 624–

637. Springer-Verlag.

Wu, Z. and Palmer, M. (1994). Verbs semantics and lexical

selection. In Proceedings of the 32nd annual meeting

on Association for Computational Linguistics, pages

133–138. Association for Computational Linguistics.

Exploiting Visual Similarities for Ontology Alignment
