Exploiting Users’ Feedbacks

Towards a Task-based Evaluation of Application Ontologies Throughout

Their Lifecycle

Perrine Pittet and Jérôme Barthélémy

Articque Software, 149 avenue Général de Gaulle, 37230 Fondettes, France

Keywords: Application Ontology, Task-based Ontology Evaluation, Ontology Revision, Semantic Annotation,

Ontology Lifecycle, Crowdsourcing.

Abstract: This paper presents the basis of our approach for evaluation of application ontologies. Adapting an existing

task-based evaluation, this approach explains how crowdsourcing, involving application users, can

efficiently help in the improvement of an application ontology all along the ontology lifecycle. A real case

experiment on an application ontology designed for the semantic annotation of geobusiness user data

illustrates the proposal.

1 INTRODUCTION

Ontology development is becoming a common task,

which is nowadays not just a matter for ontologists.

In the literature many ontology development

methodologies have been proposed to help non-

experts build their own ontologies such as (Noy and

McGuinness, 2001), (Sure et al., 2002), (Sure et al.,

2009) and (Suarez-Figueroa et al., 2012). However,

according to (Neuhaus et al., 2013), currently, there

is no agreement on a methodology for development

of ontologies, and there is no consensus on how

ontologies should be evaluated.

As said by (Brank et al., 2005), ontology

evaluation is the problem of assessing a given

ontology from the point of view of a particular

criterion of application. It could help ontology

developers evaluating their results and possibly

guiding the construction process and any refinement

steps. According to (Vrandečić, 2009) this would

make them feel more confident about their results,

and thus encourage them to share their results with

the community and reuse the work of others for their

own purposes. Though, because of the lack of a

consensus, evaluation techniques and tools are not

widely utilized in the development of ontologies

(Neuhaus, et al., 2013). This can lead to ontologies

of poor quality and is an obstacle to the successful

deployment of ontologies as a technology.

In this paper we focus on the evaluation of

application ontologies. Application ontologies

describe the domain of specific applications (Malone

and Parkinson, 2010). They are built from scratch to

make it stick to applications specific requirements.

Consequently a pertinent evaluation consists in

assessing their effectiveness against the different

tasks they have to solve within the application for

which they have been built (Porzel and Malaka,

2004). This evaluation step is crucial to guide their

refinement. But in practice it is often skipped. It may

be due to the difficulty of distinguishing which part

of the application outputs really depends on the

ontology itself and not on the application. Also few

studies have addressed the evaluation of application

ontologies through their specific uses within the

application (Brewster et. al., 2004). Therefore we

attempt to promote the systematic effectiveness

evaluation of application ontologies by proposing a

simple adaptation of the task-based approach of

(Porzel and Malaka, 2004) using crowdsourcing all

along their lifecycle.

The rest of the paper is articulated in 4 sections.

The second section presents a state of the art on

application ontologies and ontology evaluation and

the related works. The third section presents our

proposal and an application experience. The fourth

section presents our conclusions.

Pittet, P. and Barthélémy, J..

Exploiting Users’ Feedbacks - Towards a Task-based Evaluation of Application Ontologies Throughout Their Lifecycle.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 263-268

ISBN: 978-989-758-158-8

263

2 BACKGROUND

This section introduces the related works about

application ontologies, ontology evaluation and the

deadlocks identified for the evaluation of application

ontologies.

2.1 Application Ontologies

According to (Malone and Parkinson, 2010), an

application ontology is an ontology engineered for a

specific use or application focus and whose scope is

specified through testable use cases. Application

ontologies usually reuse, derive or reference

recognized ontologies to construct ontological

classes and relationships between classes (Shaw et

al., 2008). According to (Guarino, 1998), this top-

down approach promotes the reuse of ontologies.

However, in practice, building reusable ontologies is

a costly process. Consequently a frequent alternative

consists in building application ontologies from

scratch and then generalizing them to domain and

task ontologies (bottom-up approach). For instance a

bottom-up approach called Goal-Oriented

Application Ontology Development Technique,

presented in (Santos et al., 2013), has been designed

to guide the development of application ontologies

from the explicit specification of their application

goals translated into rules and facts. Generally, both

top-down and bottom-up approaches require well

defining the tasks the application ontology has to

solve through the application. These tasks can be

multiple (conceptual similarity calculation,

disambiguation, knowledge extraction, semantic

annotation, etc.) but are generally closely related to

the application processes.

2.2 Ontology Evaluation

According to (Gómez-Pérez, 2001), ontologies, such

as any other resources used in software applications,

should be evaluated before (re)using it in other

ontologies or applications. Evaluation of the

ontology content, i.e. its concepts definitions, its

taxonomy and its axioms, as well as evaluation of

the software environment are therefore critical

before integrating them in final applications. Many

ontology evaluation methodologies have been

proposed since 1995, among those, the well-known

works of (Gómez-Pérez, 1995) and (Guarino and

Welty, 2002). In 2005, (Brank et al., 2005)’s survey

identified the main ontology evaluation approaches

types: those based on comparing the ontology to a

gold standard (Maedche and Staab, 2002), those

based on using the ontology in an application and

evaluating the results (Porzel and Malaka, 2004),

those involving comparisons with a source of data

about the domain to be covered by the ontology

(Brewster et al., 2004), and those where evaluation

is done by humans (Lozano-Tello and Gómez-Pérez,

2004). In addition, authors grouped these approaches

based on the level of evaluation: vocabulary level,

taxonomy level, semantic relations level, context or

application level, syntactic level, and structure,

architecture and design level evaluation. They are all

suited for the three first levels but only human-based

evaluation can cover the three other levels. Several

issues are still addressed today, such as the need to

have a detailed methodology to allow performing

evaluation throughout the entire ontology lifecycle

(Staab and Studer, 2013). Also evaluation of

application ontologies has been little addressed

(Malone and Parkinson, 2010).

2.3 Application Ontology Evaluation

Authors of (Malone and Parkinson, 2010) state that

application ontologies should be evaluated against a

set of use cases and competency questions, which

represent the scope and requirements of the

particular application. This approach, called

application-based evaluation, is founded on the fact

that the outputs of the application or its performance

on a given task might be better or worse depending

partly on the ontology used in it. According to

(Brank et al., 2005), one might argue that a good

ontology is one, which helps the application in

question produce good results on the given task.

However authors identify some drawbacks

concerning application-based evaluation approaches:

(1) as an ontology is good or bad considering a

particular task, it is difficult to generalize the

approach, (2) if the ontology is only a small

component of the application, its effect on the output

may be relatively small and indirect, (3) comparison

of different ontologies cannot be handled if they

cannot all be plugged in the same application. In

(Vrandečić, 2009) the author minimizes these

drawbacks by stating that ontologies are often tightly

interwoven with an application, and, that the user

never accesses an ontology directly but always

through this application. Therefore the application

often needs to be evaluated with the ontology,

regarding the ontology as merely another component

of the used tool. He adds that such a situation has the

advantage that well-known software evaluation

methods can be applied.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

264

2.4 The Task-based Approach

One of the major works addressing application-

based ontology evaluation is the task-based

approach of (Porzel and Malaka, 2004). This

approach provides an evaluation scheme on three

basic ontological levels: vocabulary (concepts),

taxonomy and semantic relations. For these three

levels, the authors define three shortcomings the

evaluation results have to show: insertion, deletion

and substitution errors. Insertion errors indicate

superfluous concepts, isa- and semantic relations,

deletion errors indicate missing ones and

substitution errors indicate off-target ones. Then

given appropriate tasks and maximally independent

algorithms operating on the ontology in solving

these tasks, and, given a gold standard, this

approach allows calculating the error rates

corresponding to specific ontological shortcomings

at each ontology level. A gold standard is the set of

“perfect” outputs the task is expected to provide on

the corpus on which it is run. Therefore a gold

standard must be defined for each task as such as

the explicit definition of the tasks, the ontology, and

the application. A task is required to be sufficiently

complex to constitute a suitable benchmark for

examining a given ontology. The performance

results must substantially depend on the way

relations are modelled within the ontology. One

ontology is sufficient as it is evaluated in terms of its

performance on a given task within the application.

The application is defined as a specific algorithm

that uses the ontology to perform the task. However

the algorithm can have more or less influence in the

application output and it is sometimes difficult to

distinguish which of the algorithm or the ontology is

in cause. Therefore to obtain meaningful

performances results, the algorithm must be kept

constant within the ontology evaluation/revision

cycle. Once all these components are defined, the

evaluation can be launched. Then the revision phase

of the ontology simply consists in undertaking the

changes corresponding to the to the identified errors

before running another evaluation round.

In the next section, we propose an adaptation of

this approach taking into account user contributions

to improve the evaluation accuracy all along the

ontology use.

3 PROPOSAL

This section presents the basis of our proposal and

illustrates it through a real case experiment.

3.1 A Task-based Evaluation through

Ontology Lifecycle

Our approach consists in adapting the task-based

approach of (Porzel and Malaka, 2004) by

delegating the evaluation job to the users, using the

application as a crowdsourcing platform, instead of

using a gold standard. In (Porzel and Malaka, 2004),

the gold standard is actually produced by means of

annotators (trained by humans) agreeing on mutually

satisfactory solutions for the cases of disagreement.

Therefore its accuracy clearly depends on the

performance of these annotators. Besides, if the

application domain changes and the ontology needs

to evolve, a new gold standard has to be produced,

which is not convenient to evaluate an ontology

during its entire lifecycle. Instead, a crowdsourced

evaluation, in which users participate, can be

realized all along the application lifecycle.

Crowdsourcing is defined in (Hosseini et al., 2014)

as a business model, where tasks are accomplished

by a general public, called the crowd. This model

has

recently been promoted for the domain of

information systems analysis and design namely

through the involvement of users in evaluating the

software (Ali et al., 2012) (Pagano and Brügge,

2013). In our approach, we consider the application

users as the crowd, the evaluation procedures as the

crowdsourcing tasks and the application as the

crowdsourcing platform.

Our task-based evaluation methodology

comprises the 6 following steps:

1. Definition of the application used as a

crowdsourcing platform: distinction between

tasks driven by the ontology and other tasks,

2. Definition of the (consistent) ontology: domain

and scope, role within the application, the level

of contribution regarding each task it drives,

3. Definition of the tasks driven by the ontology.

4. For each task, choice of the ontology levels to

evaluate: vocabulary, taxonomy, semantic

relations.

5. For each ontological level, definition of the

corresponding error types: deletion, addition, and

substitution errors.

6. For each task to evaluate, definition of the

crowdsourcing task: explicit process each user

participating in the evaluation has to follow,

guidelines for the qualification of the tasks

outputs and their evaluation w.r.t. error types,

indications for potential revision. Within this

step users can contribute to the ontology revision

by proposing a change (ex: addition of a missing

Exploiting Users’ Feedbacks - Towards a Task-based Evaluation of Application Ontologies Throughout Their Lifecycle

265

concept, etc.). Therefore if a majority of users

agrees on a proposed revision, it can be

translated into ontological change and applied on

the ontology. Then a reasoner can assess the

ontology consistency after the application of the

change in order to decide to commit or rollback

it. Inversely if a consensus cannot be reached, the

different points of view can be taken into account

by applying each suggestion of change one by

one until the ontology is no more consistent.

We believe this approach has several advantages.

First, the ontology effectiveness is tested in the real

production environment by real users on real data.

Second, evaluation can be done during the

application use if the users are given the ability of

revising the tasks outputs; then a decision algorithm

can be implemented to assess the user suggestions

and translate them into ontological changes (Klein,

2004). Third as users point of view on the

application domain can change over time, they may

revise application outputs they used to consider

correct. In this case the ontology is able to evolve

and stay up-to-date with the application community

of users all along its lifecycle.

3.2 Experience of Semantic Annotation

Task Evaluation

Here we describe the application of this

methodology on a real case experiment.

1. The application considered is the SaaS geo-

business decision software, CD7Online, within

which users build maps by processing and

representing statistical data on geographical

basemaps stored in their workspaces.

2. The ontology considered describes the

CD7Online application domain including

descriptive statistics data files (tables of data),

geographical data files (base maps) and maps

projects (organization charts), but also the

platform related business processes and uses. It is

specified with the OWL DL language and

contains about 10000 axioms.

3. The ontology has been developed to drive a task

of semantic annotation, supporting a

recommender system suggesting users relevant

data and processes. This task allows extracting

metadata such as geographical level, year, theme,

statistical indicator, etc., from the user data

workspaces and to represent their relations with

user data within RDF annotations. Built on the

top of a triplestore containing these annotations a

visualization tool, available in the form of a

graphical 2D interactive graph (cf. Fig. 1) allows

users intuitively browsing their own workspaces,

navigating through the annotations, starting from

their "Home" (cf. “Mes cartes et mes données”

on Fig.1 step 1). We chose to use this existing

tool to establish and perform the evaluation

procedure.

4. The evaluation Level: Like in (Porzel and

Malaka, 2004) performance of the ontology can

be evaluated at the semantic relation level as

annotations are semantic relations between data

and metadata instantiated from the ontology

model.

5. Three semantic relation error types are defined.

A correct annotation corresponds to a correct

non-taxonomic relation between a data and a

metadata. An annotation with one of the

following errors is assessed incorrect: missing

annotation (deletion), superfluous annotation

(insertion), and wrong annotation (substitution).

6. The evaluation procedure given to the users is

articulated in 5 steps: (1) choosing a data to

search, (2) navigating in the graph according to

the metadata they consider the most related to

this data, (3) assessing the accuracy, (4) if not

accurate, identifying the error type and

eventually (5) proposing a revision. During the

process, if the users manage to find it within the

first direct path they take within the graph, the

corresponding annotation of this data is

considered accurate. If they need to use at least

another path to find it, it means the annotation

corresponding to the expected data is missing,

this is a deletion error. If they find the data but if

this data is only related to a wrong metadata, this

is a substitution error. And if they find an

unexpected metadata linked to the data in

addition to accurate ones, it is an insertion error.

Fig.1 describes an application example of the

process. The first step shows the default graph on

which the user can see the metadata extracted from

his workspace (cf. Fig.1 step 1). If the user considers

his data is related to population, he selects the

“th_population” category. Second, the graph morphs

to show the statistical indicators related to this

category (cf. Fig.1 step 2). Among these, the user

chooses the “Femme” indicator (i.e. “Woman”),

because the data he is looking for is related to a

population of women. Third, the graph morphs to

show the statistical data corresponding to this

indicator (cf. Fig.1 step 3). The user finds the data

“Femmes chômage” (i.e. “Unemployed women”),

and validates the annotation.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

266

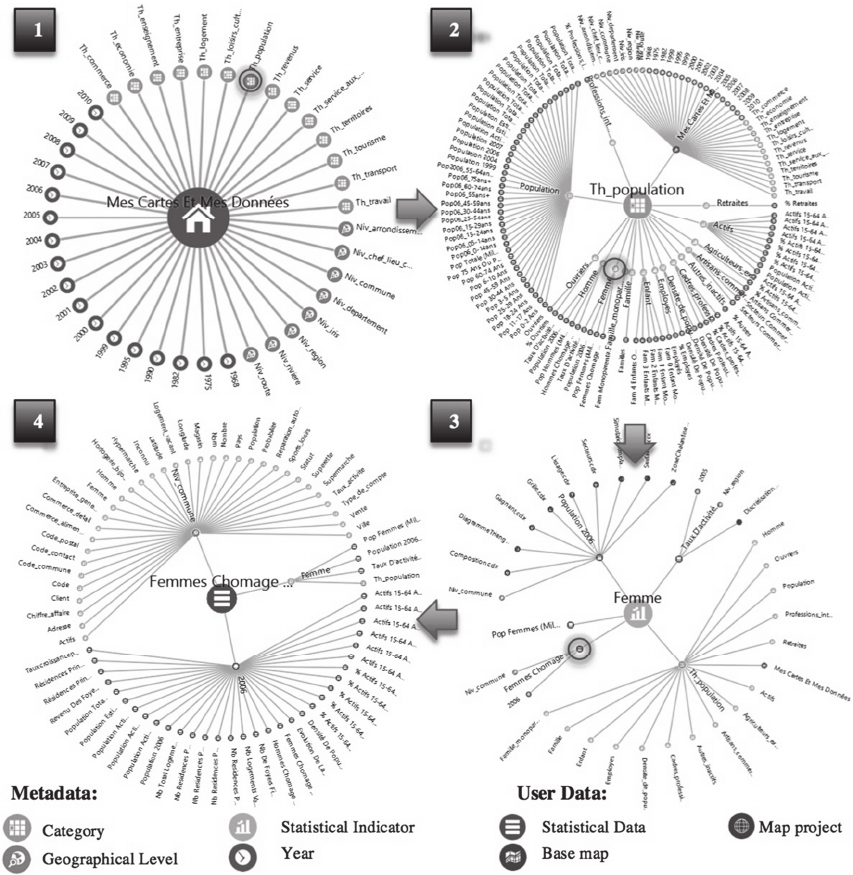

Figure 1: Data search test within the interactive semantic visualization of a working group.

3.3 Results

A first evaluation round, conducted on a sample of

ten voluntary users, showed a percentage of 35,2%

accurate annotations with statistical indicators

obtained on a set of 571 real data series (against

38,4% deletions, 26,5% substitutions, 0%

insertions). These results showed the ontology

needed to be enriched and refined to obtain better

outcomes. After the revision guided by these results,

the percentage of accurate annotations resulted from

a second evaluation conducted on a sample of ten

other users, reached 82,8% of good annotations.

4 CONCLUSIONS

This paper presented a simple task-based ontology

evaluation approach adapted from (Porzel and

Malaka, 2004)’s methodology. Dedicated to

application ontologies, it aims at facilitating

evaluation and revision of application ontologies

during their entire lifecycle, by delegating these

tasks to voluntary users given an explicit procedure.

Following (Staab and Studer, 2013)’s

recommendation, evaluation can be done all along

the ontology lifecycle and fit to the users’ evolving

Exploiting Users’ Feedbacks - Towards a Task-based Evaluation of Application Ontologies Throughout Their Lifecycle

267

points of view. Also first results of the experiment

on a semantic annotation task, conducted on small

samples of voluntary users, are promising. Today we

are working on extending this evaluation experience

to a true crowdsourcing one, by opening it to all

users of CD7 in order to assess the relevance of the

approach across the application lifecycle. The next

step will consist in automating the inclusion of users

revision suggestions by implementing a decision

algorithm and translating the results to ontological

changes. A future step would be to generalize this

approach on different types of tasks in order to

establish template procedures.

REFERENCES

Ali, R., Solis, C., Omoronyia, I., Salehie, M., & Nuseibeh,

B. (2012). Social adaptation: when software gives

users a voice.

Brank, J., Grobelnik, M., & Mladenic, D. (2005, October).

A survey of ontology evaluation techniques. In

Proceedings of the conference on data mining and

data warehouses (SiKDD 2005) (pp. 166-170).

Brewster, C., Alani, H., Dasmahapatra, S., & Wilks, Y.

(2004). Data driven ontology evaluation.

Gómez-Pérez, A. (1995, February). Some ideas and

examples to evaluate ontologies. In Artificial

Intelligence for Applications, 1995. Proceedings, 11th

Conference on (pp. 299-305). IEEE.

GómezPérez, A. (2001). Evaluation of ontologies.

International Journal of intelligent systems, 16(3),

391-409.

Guarino, N. (1998). Formal ontology in information

systems: Proceedings of the first international

conference (FOIS'98), June 6-8, Trento, Italy (Vol.

46). IOS press.

Guarino, N., & Welty, C. (2002). Evaluating ontological

decisions with OntoClean. Communications of the

ACM, 45(2), 61-65.

Hosseini, M., Phalp, K., Taylor, J., & Ali, R. (2014, May).

The four pillars of crowdsourcing: A reference model.

In Research Challenges in Information Science

(RCIS), 2014 IEEE Eighth International Conference

on (pp. 1-12). IEEE.

Klein, M. C. A. (2004). Change management for

distributed ontologies.

Lozano-Tello, A., & Gómez-Pérez, A. (2004). Ontometric:

A method to choose the appropriate ontology. Journal

of Database Management, 2(15), 1-18.

Maedche, A., & Staab, S. (2002). Measuring similarity

between ontologies. In Knowledge engineering and

knowledge management: Ontologies and the semantic

web (pp. 251-263). Springer Berlin Heidelberg.

Malone, J., & Parkinson, H. (2010) Reference and

Application Ontologies. Ontogenesis. http://

ontogenesis.knowledgeblog.org/295.

Neuhaus, F., Vizedom, A., Baclawski, K., Bennett, M.,

Dean, M., Denny, M., & Yim, P. (2013). Towards

ontology evaluation across the life cycle. Applied

Ontology, 8(3), 179-194.

Noy, N. F., & McGuinness, D. L. (2001). Ontology

development 101: A guide to creating your first

ontology.

Pagano, D., & Brügge, B. (2013, May). User involvement

in software evolution practice: a case study. In

Proceedings of the 2013 international conference on

Software engineering (pp. 953-962). IEEE Press.

Porzel, R., & Malaka, R. (2004, August). A task-based

approach for ontology evaluation. In ECAI Workshop

on Ontology Learning and Population, Valencia,

Spain.

Santos, L. E., Girardi, R., & Novais, P. (2013, April). A

Case Study on the Construction of Application

Ontologies. In Information Technology: New

Generations (ITNG), 2013 Tenth International

Conference on (pp. 619-624). IEEE.

Shaw, M., Detwiler, L. T., Brinkley, J. F., & Suciu, D.

(2008). Generating application ontologies from

reference ontologies. In AMIA Annual Symposium

Proceedings (Vol. 2008, p. 672). American Medical

Informatics Association.

Staab, S., & Studer, R. (Eds.). (2013). Handbook on

ontologies. Springer Science & Business Media.

Suarez-Figueroa, M. C., Gomez-Perez, A., & Fernandez-

Lopez, M. (2012). The NeOn methodology for

ontology engineering. In Ontology engineering in a

networked world (pp. 9-34). Springer Berlin

Heidelberg.

Sure, Y., Erdmann, M., Angele, J., Staab, S., Studer, R., &

Wenke, D. (2002). OntoEdit: Collaborative ontology

development for the semantic web (pp. 221-235).

Springer Berlin Heidelberg.

Sure, Y., Staab, S., & Studer, R. (2009). Ontology

engineering methodology. In Handbook on ontologies

(pp. 135-152). Springer Berlin Heidelberg.

Vrandečić, D. (2009). Ontology evaluation (pp. 293-313).

Springer Berlin Heidelberg.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

268
