The NOESIS Open Source Framework for Network Data Mining

ıctor Mart

ınez, Fernando Berzal and Juan-Carlos Cubero

Department of Computer Science and Artiﬁcial Intelligence, University of Granada, Granada, Spain

Keywords:

Network Analysis, Network Visualization, Community Detection, Structural Properties.

Abstract:

NOESIS is a software framework for the development of data mining techniques for networked data. As an

open source project, released under a BSD license, NOESIS intends to provide the necessary infrastructure for

solving complex network data mining problems. Currently, it includes a large collection of popular network-

related data mining techniques, including the analysis of network structural properties, community detection

algorithms, link scoring and prediction methods, and network visualization techniques. The design of NOESIS

tries to facilitate the development of parallel algorithms using solid object-oriented design principles and

structured parallel programming. NOESIS can be used as a stand-alone application, as many other network

analysis packages, and can be included, as a lightweight library, in domain-speciﬁc data mining applications

and systems.

1 INTRODUCTION

In some application domains, classical data mining

is giving way to relational data mining, where data

sets contain interacting or connected elements. Re-

lational data brings new research and development

opportunities. In this context, network data mining

techniques are being developed to analyze relational

data. Network-based techniques include a large num-

ber of theoretical models, algorithmic methods, and

pragmatic techniques that exploit the topology of net-

works, as well as node and link attributes. The anal-

ysis of networks has a large number of applications

in a wide range of ﬁelds. For instance, social net-

work analysis is used to discover the structure of so-

cial networks, where users can interact in many dif-

ferent ways. In biology, network analysis techniques

have been applied to protein-protein interaction net-

works and metabolic networks to achieve a better un-

derstanding of their underlying entities and perform

predictions about their behavior. Network analysis

techniques also have applications in logistic, commu-

nication, and transportation networks, among others.

Many tools have been developed to perform net-

work analysis. These tools typically allow the visu-

alization of network data in a convenient way, facili-

tating the visual exploration of relational data. Tools

and frameworks that have attained some popularity

include Pajek (Batagelj and Mrvar, 1998), NodeXL

(Smith et al., 2009), Cytoscape (Shannon et al., 2003),

and Gephi (Bastian et al., 2009). Each of these tools

has its own strengths and weaknesses. The main

weaknesses of some of these tools include hard-to-use

user interfaces, limited sets of analysis techniques,

limited execution platforms, or a design that makes

it difﬁcult their incorporation in larger data mining

projects (when they are not completely closed for ex-

tension). Quite often, networks analysts rely on mul-

tiple of these tools to perform tasks that could be car-

ried more easily in a single integrated platform.

In order to improve this situation, we have started

the development of NOESIS, a lightweight, yet pow-

erful, network analysis software framework. NOE-

SIS, which stands for Network-Oriented Exploration,

Simulation, and Induction System, is 100% Java and

has been released under a BSD open source license.

NOESIS includes the implementation of a large num-

ber of algorithmic techniques that address different

aspects of networks analysis, including network vi-

sualization (Herman et al., 2000) (Tamassia, 2013),

the analysis of network structural properties (Wasser-

man and Faust, 1994) (Newman, 2010), community

detection (Fortunato, 2010), and link scoring and pre-

diction (Liben-Nowell and Kleinberg, 2007). NOE-

SIS also provides a minimalistic clean graphical user

interface that allows the drag & drop manipulation

of networks, the execution of network analysis tech-

niques and the visualization of results. In addition,

NOESIS can be used as a third-party software library

in larger projects.

This paper introduces NOESIS and is structured

as follows. First, we will describe the software de-

316

Martínez, V., Berzal, F. and Cubero, J..

The NOESIS Open Source Framework for Network Data Mining.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 316-321

ISBN: 978-989-758-158-8

sign decisions that have shaped the architectural de-

sign of NOESIS. In the following section, we will

mention some of the network data mining techniques

that NOESIS currently implements. Finally, we will

conclude our paper with some pointers to the future

of the NOESIS open source software project.

2 SOFTWARE ARCHITECTURE

NOESIS is being developed following some clear de-

sign guidelines. It has been designed to be maintain-

able, reusable, and extensible. NOESIS strongly re-

lies on abstract interfaces and independent modules

to achieve strong cohesion and loose coupling. The

use of the SOLID object-oriented design principles

(Martin, 2003) facilitates the implementation of new

features as independent modules with a minimal set

of dependencies.

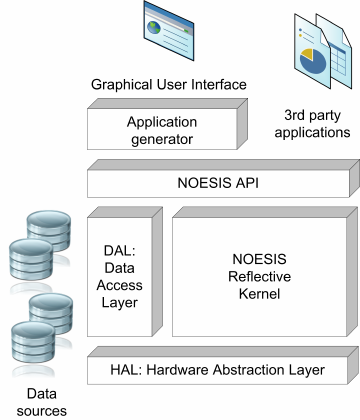

Figure 1: The NOESIS system architecture.

The overall architecture of the NOESIS frame-

work is shown in Figure 1. Different NOESIS sub-

systems address speciﬁc aspects that must be taken

into account in the development of component-based

data mining frameworks (Berzal et al., 2002).

The core of the NOESIS system is a reﬂective

kernel. Within the kernel, programmers can pro-

vide the implementation of models and tasks that ex-

ecute data mining algorithms on models. Models re-

fer to the data structures needed to represent differ-

ent kinds of networks as well as the representation of

data mining results themselves. A large collection of

network-related data mining techniques, which will

be described later, has already been implemented as

NOESIS tasks. The extensive use of abstract inter-

faces allows switching from one implementation to

another with a minimal cost, therefore facilitating ex-

perimentation. Object-oriented design patterns facili-

tate the development of new techniques and custom-

tailored solutions to speciﬁc data mining problems.

For example, the visitor design pattern enables the

efﬁcient and widespread reuse of network traversal

techniques, such as breadth-ﬁrst search (BFS) and

depth-ﬁrst search (DFS). This basic graph algorithms

can be reused, for instance, to easily compute the be-

tweenness of nodes and links, a centrality measure

employed by some community detection algorithms.

The execution of tasks in the NOESIS kernel re-

lies on the hardware abstraction layer (HAL). One

of the main features that makes NOESIS stand apart

from other network analysis packages is that it en-

courages the use of structured parallel programming

through an easy-to-use library. Our library enables the

implementation of parallel algorithms that can exploit

the multiple cores of current microprocessors and it

does so without imposing an unnecessary burden on

the shoulders of algorithm designers and developers,

who can focus on their algorithm details without be-

ing overwhelmed by the underlying execution frame-

work. Eventually, this hardware abstraction layer will

also provide a transparent mechanism for the execu-

tion of data mining tasks in completely distributed

systems, not just multiprocessors.

The data access layer is the NOESIS subsystem

that is responsible for providing access to data from

different data sources. Different standard network ﬁle

formats are supported, including GML, GraphML,

and GDF.

• GML (Graph Modeling Language) is a portable,

simple, and ﬂexible text-based ﬁle format used

by Graphlet, Pajek, yEd, LEDA, and NetworkX.

GML ﬁles contain hierarchical key-value lists that

allow the deﬁnition of arbitrary properties for

nodes and links.

• GraphML is an XML-based ﬁle format sup-

ported by NodeXL, Sonivis, GUESS and Net-

workX. This format supports different kinds of

networks, including directed, undirected, mixed,

hypergraphs, and hierarchical networks.

• GDF is also a text-based ﬁle format, initially

used by the GUESS tool, whose structure is very

similar to the comma separated value ﬁle format

(CSV) and where each network element is repre-

sented by a text line and its properties are sepa-

rated by commas.

For experimentation during the development of

network data mining techniques, synthetic data sets

The NOESIS Open Source Framework for Network Data Mining

317

are also useful. NOESIS also implements some net-

work models, from regular networks to different kinds

of random networks. Researchers have devised the-

oretical network models to provide insight on how

real networks are formed and behave. Network for-

mation models are theoretical models that allow us

to generate networks with some speciﬁc properties

by following well-deﬁned mechanisms (Albert and

Barab

asi, 2002). These models are used to gen-

erate networks with similar properties to real net-

works (and artiﬁcial networks with the desired prop-

erties). NOESIS includes network generators for

Erd

os-R

enyi and Gilbert random networks, Watts–

Strogatz small world networks, Barab

asi–Albert pref-

erential attachment networks, and Price’s citation net-

works, among other variations of random networks

that might be of interest for those studying the be-

havior of network analysis techniques. Regular net-

works, such as complete networks, star networks, ring

networks, tandem networks, mesh networks, toroidal

networks, hypercube networks, and tree networks, are

also included, since they are often useful during the

development of new algorithms. For instance, they

can be used in unit tests when following a test-driven

development approach.

The current version of NOESIS is provided as a

lightweight JAR package (around 1 MB) and has no

external software dependencies, so it can be easily

incorporated in other software development projects.

It can be downloaded from the NOESIS project web

page at http://noesis.ikor.org/.

For less-advanced users, NOESIS also provides

a graphical user interface, similar to the interface

provided by other network analysis packages such

as Gephi, Pajek, or NodeXL. The NOESIS network

analyzer user interface is built using model-driven

software development techniques and is based on an

application generator that hides much of the detail

needed by the implementation of modern GUIs, thus

making it easy to modify and extend the tool to meet

the requirements of different data mining projects.

3 DATA MINING TECHNIQUES

NOESIS includes a wide range of network analysis

methods and techniques, including the computation

of network structural properties, the detection of com-

munities, and link scoring and prediction, as well as

different graph drawing techniques that help users vi-

sualize network data.

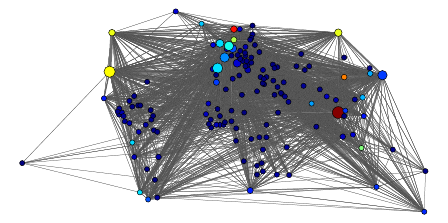

Figure 2: An international trade network. Color indi-

cates ﬁsh exports in 1998 (top countries: Thailand, Nor-

way, China, USA, Canada, Russia, Denmark, Indonesia,

Netherlands, Chile, Spain, UK). Size indicates betweenness

(top countries: Thailand, USA, Spain, Japan, Netherlands,

France, Italy, Germany, UK, Russia, Canada, Norway).

3.1 Network Structural Properties

Networks can be characterized by their structural or

topological properties. Network structural properties

allow us to measure speciﬁc aspects of the networks

and their elements, both nodes and links. A large

number of topological properties have been proposed

in the literature to measure different aspects of interest

(Jackson et al., 2008). The analysis of network struc-

tural properties allows us to understand the role each

node plays within a speciﬁc network and the struc-

tures that are present in the network.

NOESIS can be used to score network nodes ac-

cording to different criteria:

• Node degrees correspond to the number of con-

nections each node has within the network. In-

degrees, out-degrees, and total degrees are often

normalized according to network size. Biased and

unbiased degree assortativities measure the ten-

dency of nodes to be connected to other nodes

with similar degrees.

• Reachability scores measure how easily a node

can be reached from other nodes in the net-

work. Node eccentricity corresponds to the great-

est geodesic distance between a node and any

other node in the network. The maximum node

eccentricity is the network diameter, whereas the

minimum node eccentricity is its radius. The aver-

age path length is the average length of all shortest

paths starting from a given node. The closeness of

a node is the reciprocal of the sum of its distances

from all other nodes. Finally, decay is another

related measure that weights distances exponen-

tially and can be adjusted to approach degree or

component size, depending on our interests.

• Clustering coefﬁcients evaluate the tendency of a

node neighbors to be connected between them, i.e.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

318

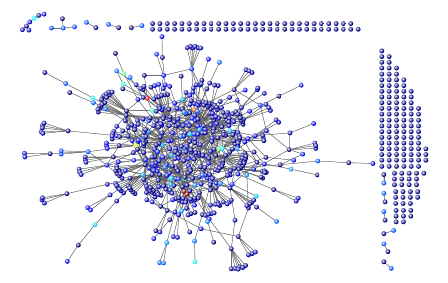

Figure 3: A Gnutella P2P ﬁle sharing network: Color indi-

cates PageRank.

how close its neighbors are to being a clique (a

complete graph).

• Betweenness-related properties quantify the num-

ber of times a node acts as a bridge along the

shortest path between two other nodes.

• The inﬂuence of each node within a network can

also be measured using other techniques that com-

pute the centrality of each node based on the

centrality of its neighbors. Google’s PageRank,

HITS, eigenvector centrality, Katz centrality, and

diffusion centrality belong to this group of mea-

sures.

Some of the aforementioned measures can also

be deﬁned for network links rather than nodes. For

example, link betweenness computes the number of

shortest paths that pass through a speciﬁc link, link

embeddedness counts the number shared neighbors

between the nodes connected by a given link, and link

neighborhood overlap is a normalized version of link

embeddedness.

3.2 Community Detection Methods

The nodes of most real networks exhibit some kind of

community structure (Palla et al., 2005). Communi-

ties are densely-connected sets of nodes. Their iden-

tiﬁcation is of great interest for understanding com-

plex networks and has many applications in different

ﬁelds such as biology or sociology. Given its impor-

tance, a large number of community detection algo-

rithms have been proposed (Lancichinetti and Fortu-

nato, 2009) (Fortunato, 2010), which differ in com-

putational and spatial complexity, as well as in their

ability to detect overlapping communities.

NOESIS implements a score of the most popu-

lar community detection methods. These methods

range from the mere detection of connected compo-

nents, which can be done in linear time, and heuris-

tic graph partitioning algorithms, to modularity-based

and spectral clustering techniques.

• Among graph partitioning techniques, the

Kernighan-Lin algorithm, with important ap-

plications in the layout of digital circuits and

components in VLSI, tries to minimize the

number of links crossing between communities.

• The Girvan-Newman is a hierarchical clustering

method that iteratively removes the links with the

highest betweenness. Radicchi’s algorithm is a

more efﬁcient divisive hierarchical method that

resorts to link clustering coefﬁcients based on the

idea that communities include a large number of

cycles but links between different communities

participate in less cycles. Agglomerative hierar-

chical techniques can also be used in networks

using different measures of distance and the typ-

ical variations of inter-cluster distance (namely,

single–linkage, average–linkage, and complete–

linkage).

• Modularity-based community detection methods

interpret community detection as an optimization

problem and several greedy heuristics have been

proposed.

• Spectral clustering techniques make use of the

spectrum (i.e. eigenvalues) of a similarity ma-

trix (e.g. the graph Laplacian) to perform dimen-

sionality reduction before clustering in fewer di-

mensions. For instance, spectral bisection (a.k.a.

EIG1) employs a single dimension, the one given

by the Fiedler vector, whereas the KNSC1 and

UKMEANS algorithms resort to the well-known

k-means clustering algorithm to cluster eigenvec-

tors.

• Some recent algorithms also support the detection

of overlapping communities. For instance, Big-

Clam (Yang and Leskovec, 2013) is an efﬁcient

non-negative matrix factorization technique that

maximizes the log-likelihood of the detected com-

munities according to an afﬁliation graph model.

3.3 Link Scoring and Prediction

Link scoring and link prediction are two closely-

related tasks. Both tasks compute scores for pairs of

nodes, typically deﬁned according to their similarity.

While link scoring computes the similarity for con-

nected pairs of nodes and can be used to rank existing

links, link prediction computes the similarity for un-

connected pairs of nodes and is mainly used to predict

new links, either links that will be created in the fu-

ture or existing links that are not currently observed

u and Zhou, 2011).

The NOESIS Open Source Framework for Network Data Mining

319

Link scoring and link prediction techniques can be

classiﬁed as local or global, depending on the amount

of information they consider for computing similari-

ties:

• Local techniques use only neighborhood infor-

mation to compute the similarity between a pair

of nodes, which makes them very efﬁcient and

scalable, but are therefore limited to comput-

ing the similarities between nodes at distance

two. Many local link prediction techniques

are based on counting the number of shared

neighbors, such as the Adamic–Adar score and

the resource–allocation index, which penalize

each shared neighbor by its degree. Jaccard,

Salton, and S

orensen scores use different normal-

ization strategies. The preferential–attachment

score is proportional to the product of the de-

gree of both nodes, which makes it suitable for

scale-free networks, whereas other local tech-

niques resort to different criteria (e.g. the lo-

cal Leicht–Holme–Newman, hub–promoted, and

hub–depressed scores).

• Global techniques consider the full topology of

the network, at a higher computational cost. The

Katz score is based on the number of exist-

ing paths between each pair of nodes, penalized

by their length, and the global Leicht–Holme–

Newman score is a similar method. Other global

methods are based on random walks (i.e. random

walk, random walk with restart, and ﬂow propa-

gation) or the network Laplacian (e.g. pseudoin-

verse Laplacian score, average commute time, and

random forest kernel).

3.4 Network Visualization Techniques

Humans are currently better than machines at ﬁnding

and identifying visual patterns. Graph visualization

techniques place nodes following aesthetic guidelines

like spacing nodes according to their network dis-

tance, minimizing link crossings, or exposing prop-

erties like hierarchies or symmetry (Tamassia, 2013).

NOESIS includes different automatic graph lay-

out techniques, from a family of regular layout meth-

ods (for speciﬁc kinds of regular networks) to radial

and hierarchical layouts. It also includes the well-

known Fruchterman-Reingold and Kamada-Kawai

force-based layout algorithms, which simulate a phys-

ical system by setting attractive forces between pairs

of connected nodes (spring-like, based on Hooke’s

law) and repulsive forces between all pairs of nodes

(as electrically-charged particles, using Coulomb’s

law).

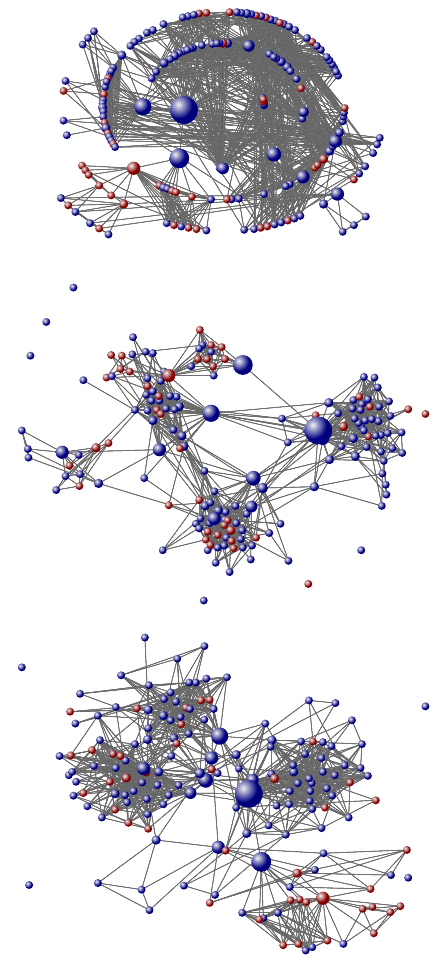

Figure 4: Different views of one of the authors’ Facebook

friendship network (from top to bottom): radial layout,

Fruchterman-Reingold layout, and Kamada-Kaway layout.

Node size indicates betweenness.

Beyond network layout, changing the visual style

and attributes of the network visualization is another

powerful tool for facilitating the interpretation of net-

work data, just by adjusting visual properties such as

node and link size, width, or color.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

320

4 CONCLUSIONS

In this paper, we have presented the NOESIS network

data mining framework. NOESIS is open source and

lightweight. It can be used as an stand-alone network

analysis tool, using the provided graphical user inter-

face, or as a reusable library in other software devel-

opment projects, since it is distributed under a permis-

sive BSD free software license. It is available at the

NOESIS project web page: http://noesis.ikor.org.

NOESIS algorithms are implemented using struc-

tured parallel programming patterns, which enable an

effective use of the available computing resources.

The framework is built on top of a hardware abstrac-

tion layer that provides parallelization mechanisms

and hides their underlying complexity. In the future,

it will let programmers execute their algorithms in a

fully distributed computing system, such as a server

farm or the cloud, in a fully-transparent way.

The NOESIS framework is evolving and new data

mining techniques are scheduled to be developed in

the future, from overlapping community detection

methods to quasi-local link scoring and prediction

techniques, as well as additional graph layout tech-

niques. Since the NOESIS graphical user interface is

based on a model-driven application generator, cre-

ating ports of the application generator to other plat-

forms, such as Android or the Web, will automatically

enable the use of the NOESIS GUI in those platforms.

NOESIS is in constant development and improve-

ment. Our goal is to provide the most complete open

source network data mining framework, while main-

taining its ease of use and hiding the complexity of the

underlying execution environment so that even non-

expert programmers can develop their own modules

and network analysis techniques.

ACKNOWLEDGEMENTS

This work is partially supported by the Spanish Min-

istry of Economy and the European Regional Devel-

opment Fund (FEDER), under grant TIN2012-36951,

and the Ministry of Education of Spain under the

program “Ayudas para contratos predoctorales para

la formaci

on de doctores 2013” (grant BES-2013-

064699). We are grateful to Aar

on Rosas, Francisco-

Javier Gij

on, and Julio-Omar Palacio for their contri-

butions to the implementation of community detec-

tion methods.

REFERENCES

Albert, R. and Barab

asi, A.-L. (2002). Statistical mechanics

of complex networks. Reviews of Modern Physics,

74(1):47.

Bastian, M., Heymann, S., Jacomy, M., et al. (2009). Gephi:

an open source software for exploring and manipulat-

ing networks. ICWSM, 8:361–362.

Batagelj, V. and Mrvar, A. (1998). Pajek-program for large

network analysis. Connections, 21(2):47–57.

Berzal, F., Blanco, I., Cubero, J.-C., and Marin, N. (2002).

Component-based data mining frameworks. Commu-

nications of the ACM, 45(12):97–100.

Fortunato, S. (2010). Community detection in graphs.

Physics Reports, 486(3):75–174.

Herman, I., Melanc¸on, G., and Marshall, M. S. (2000).

Graph visualization and navigation in information vi-

sualization: A survey. Visualization and Computer

Graphics, IEEE Transactions on, 6(1):24–43.

Jackson, M. O. et al. (2008). Social and economic networks.

Princeton University Press Princeton.

Lancichinetti, A. and Fortunato, S. (2009). Community de-

tection algorithms: a comparative analysis. Physical

Review E, 80(5):056117.

Liben-Nowell, D. and Kleinberg, J. (2007). The link-

prediction problem for social networks. Journal of the

American society for information science and technol-

ogy, 58(7):1019–1031.

u, L. and Zhou, T. (2011). Link prediction in complex

networks: A survey. Physica A: Statistical Mechanics

and its Applications, 390(6):1150–1170.

Martin, R. C. (2003). Agile Software Development: Princi-

ples, Patterns, and Practices. Prentice Hall PTR.

Newman, M. (2010). Networks: An Introduction. Oxford

University Press.

Palla, G., Der

enyi, I., Farkas, I., and Vicsek, T. (2005).

Uncovering the overlapping community structure of

complex networks in nature and society. Nature,

435(7043):814–818.

Shannon, P., Markiel, A., Ozier, O., Baliga, N. S., Wang,

J. T., Ramage, D., Amin, N., Schwikowski, B., and

Ideker, T. (2003). Cytoscape: a software environment

for integrated models of biomolecular interaction net-

works. Genome research, 13(11):2498–2504.

Smith, M. A., Shneiderman, B., Milic-Frayling, N.,

Mendes Rodrigues, E., Barash, V., Dunne, C.,

Capone, T., Perer, A., and Gleave, E. (2009). Analyz-

ing (social media) networks with nodexl. In Proceed-

ings of the fourth international conference on Com-

munities and technologies, pages 255–264. ACM.

Tamassia, R. (2013). Handbook of graph drawing and vi-

sualization. CRC press.

Wasserman, S. and Faust, K. (1994). Social network analy-

sis: Methods and applications. Cambridge University

Press.

Yang, J. and Leskovec, J. (2013). Overlapping community

detection at scale: A nonnegative matrix factorization

approach. In Proceedings of the Sixth ACM Interna-

tional Conference on Web Search and Data Mining,

WSDM ’13, pages 587–596. ACM.

The NOESIS Open Source Framework for Network Data Mining

321
