Concept Proﬁles for Filtering Parliamentary Documents

Francisco J. Ribadas

, Luis M. de Campos

, Juan M. Fern

andez-Luna

and Juan F. Huete

Departamento de Inform

atica, E.S. Enxe

ner

ıa Inform

atica, Ediﬁcio Polit

ecnico,

Universidade de Vigo, 32004 Ourense, Spain

Departamento de Ciencias de la Computaci

on e Inteligencia Artiﬁcial,

ETSI Inform

atica y de Telecomunicaci

on, CITIC-UGR,

Universidad de Granada, 18071 Granada, Spain

Keywords:

Information Filtering, Parliamentary Documents, Text Classiﬁcation, User Proﬁles.

Abstract:

Content-based recommender/ﬁltering systems help to appropriately distribute information among the individ-

uals or organizations that could consider it of interest. In this paper we describe a ﬁltering system to deal with

the problem of assigning documents to members of the parliament potentially interested on them. The pro-

posed approach exploits subjects taken from a conceptual thesaurus to create the user proﬁles and to describe

the documents to be ﬁltered. The assignment of subjects to documents is modeled as a multilabel classiﬁca-

tion problem. Experiments with a real parliamentary corpus are reported, evaluating several methods to assign

conceptual subjects to documents and to match those sets of subjects with user proﬁles.

1 INTRODUCTION

The application of Information and Communications

Technologies (ICT) has dramatically increased the ca-

pabilities of individuals, organizations and compa-

nies for appropriately storing, managing and retriev-

ing their information. Centering on the so-called e-

government (application of ICT in public administra-

tion), we are going to further focus in a parliamentary

context. Parliaments, like other organizations, gener-

ate and also receive lots of information, which must

be appropriately distributed among the people or in-

stitutions that could consider it of interest.

Particularly, let us consider a new document (ei-

ther external or internal to the parliament) that must

be distributed among the Members of the Parliament

(MP). We would like to build a system that could help

to determine which MPs are going to receive it. This

decision should be based both on the content itself of

the document and the speciﬁc interests of the MPs.

Therefore, this research falls within the ﬁeld of

content-based recommender/ﬁltering systems (Belkin

and Croft, 1992; Hanani et al., 2001; Lops et al.,

2011; Pazzani and Billsus, 2007), which are systems

that recommend an item (a document in our case) to

a user based on a description of the item and a proﬁle

(Gauch et al., 2007) of the user’s interests.

In order to build the MP proﬁles, we must learn

in some way about the interests of each MP. We are

going to automatically extract this information from

the activities carried out by each MP within the par-

liament. Later, we must build some kind of model

able to match the content of the document to be ﬁl-

tered against the MP proﬁles, in order to recommend

the document to the top ranked MPs.

The activity in any parliament revolves around the

concept of parliamentary initiative, whereby an action

taken by an MP or political party is discussed in a

plenary or speciﬁc area committee session. The tran-

scriptions of all the MP speeches within these debates

are collected in the form of records of proceedings.

In our case study

, which is the Parliament of An-

dalusia (a region at Spain), parliamentary initiatives

are tagged with one or more subjects or descriptors

extracted from the EUROVOC thesaurus

, which are

manually assigned by parliamentary documentalists

as being the best representation of its content. The

main usefulness of these subjects is to allow faceted

retrieval, in such a way that any user can easily re-

trieve the initiatives dealing with a given set of sub-

jects. Our proposal is to use these subjects in another

way: the subjects associated to the initiatives where a

given MP takes part will be used to build his/her cor-

responding proﬁle. Thus, our proﬁles will consist of

lists of weighted subjects.

And also in other cases, as the European Parliament.

http://eurovoc.europa.eu/

Ribadas, F., Campos, L., Fernández-Luna, J. and Huete, J..

Concept Proﬁles for Filtering Parliamentary Documents.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 409-416

ISBN: 978-989-758-158-8

409

But, if the MP proﬁles are composed of subjects,

in order to match the document to be ﬁltered with

these proﬁles, it must also be represented by a list

of weighted subjects. Our proposal is to train a clas-

siﬁer, using the content (the textual transcriptions of

the speeches of the MPs) of the initiatives as attributes

and the subjects as the categories or labels. As an ini-

tiative can be labeled with more than one subject, this

is a multilabel classiﬁcation problem. Given a new

document to be ﬁltered, we shall use the classiﬁer to

obtain a list of the more appropriate subjects for la-

beling it. Next, this (weighted) list of subjects will be

matched against the MP proﬁles, in order to decide

which are the MPs that could be more interested in

the document.

The remaining of this paper is organized as fol-

lows: in Section 2 we describe the methods for user

proﬁle construction. Section 3 explains how to trans-

form the document to be ﬁltered into a set of subjects

that will be matched against the user proﬁles. Section

4 describes the matching functions and the procedure

employed to assign documents to their corresponding

MPs. Finally in Section 5 we report the results of our

experiments and in Section 6 we review the main con-

tributions of this work.

2 USER PROFILE

CONSTRUCTION

As we have already mentioned, we want to represent

the interests and preferences of the MPs by means of

user proﬁles. The two most important steps in the user

proﬁle building process are the acquisition of user in-

formation and the user proﬁle representation (Gauch

et al., 2007).

Regarding the acquisition of user information, it

may be performed explicit or implicitly. In our case

(and also in the general case), users are reluctant to

provide their personal information and to ﬁll ques-

tionnaires, so that an explicit approach is not feasible.

Fortunately we have a source of public information

about the MPs, in order to apply an implicit approach:

the transcriptions of their speeches when discussing

each initiative, within the parliamentary debates, and

the subjects of the EUROVOC thesaurus associated to

each initiative by the parliament documentalists.

Regarding user proﬁle representation, the three

main approaches are a set of weighted keywords,

semantic networks, and a set of weighted concepts

(Gauch et al., 2007). Weighted keywords is the most

common user proﬁle representation and the easiest to

build: they may be automatically learned from doc-

uments relevant to the user (or directly given by the

user). Semantic networks, where each node repre-

sents a concept, are more difﬁcult to build and man-

age. They also must learn the terms associated with

each network node, sometimes derived from ontolo-

gies or external knowledge resources such as ODP

or WordNet. Weighted concepts are similar to the

semantic networks, since they also have conceptual

nodes (and sometimes relations between them), but in

this case the nodes represent abstract topics of inter-

est for the user instead of terms. They are also similar

to the weighted keywords proﬁles, since they are usu-

ally represented as vectors of weighted concepts. In

contrast to semantic networks, weighted concept pro-

ﬁles are trained on example texts for each concept a

priori, and thus there exist relationships between vo-

cabulary and concepts from the beginning. Thereby,

the built user proﬁles can be more robust to variations

in terminology.

In our case, as each initiative is already (reliabily)

tagged with EUROVOC subjects, it is very easy to

build a weighted concept proﬁle based on these sub-

jects. Therefore, this is the approach we shall follow

to represent MP proﬁles. Nevertheless, we do not dis-

card for future work to experiment with weighted key-

words proﬁles (extracting the terms directly from the

transcriptions of the speeches of each MP).

We are going to use two simple methods to build

the MP weighted subjects proﬁles. In both cases, for

each MP, we collect all the initiatives where he/she

participates and extract the list of subjects assigned to

these initiatives. In the ﬁrst method, called SF (from

subject frequency), the weight of each subject s is

simply the number of initiatives where the MP par-

ticipated which are labeled with this subject, tf

(MP).

In the second method we compute a kind of inverse

document frequency of each subject s, idf

, measured

as log(

). N is the number of MPs and n

is the num-

ber of MPs who participated in at least one initiative

labeled with s. The weight of each subject s for an MP

is then tf

(MP)×idf

. We call this method SFIDF.

3 ASSIGNING SUBJECTS TO

DOCUMENTS

Given a document that must be distributed among

the MPs, we must transform this input into a set of

weighted subjects, in order to match this list against

the user proﬁles. Our proposal is to use a multil-

abel text classiﬁer to assign to this document a set

of the most appropriated subjects (together with their

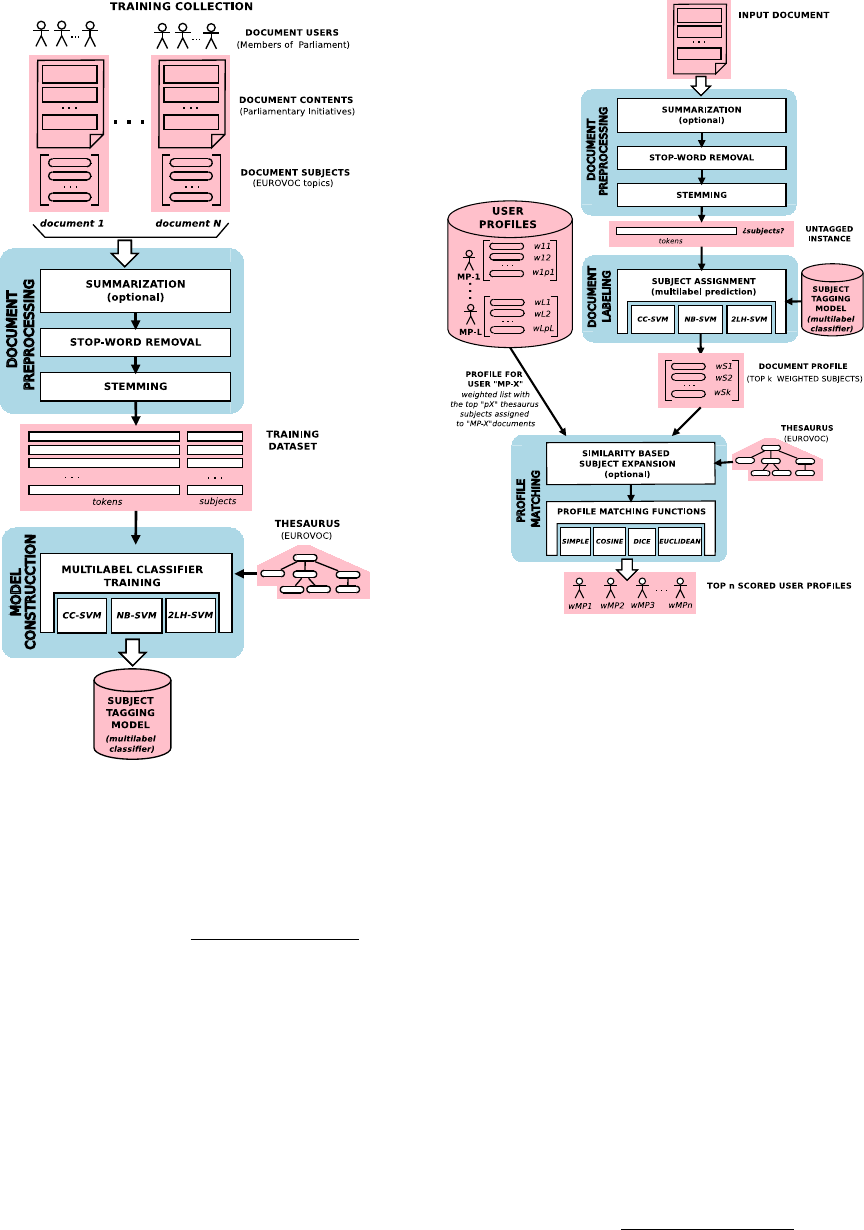

weights). As depicted in Figure 1, the training data

for building this classiﬁer will be the content of the

initiatives (the textual transcriptions of the speeches

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

410

of the MPs), as well as the associated subjects.

In the literature there are different approaches

to deal with multilabel classiﬁcation prob-

lems (Tsoumakas et al., 2010). There are simple

approaches like Binary Relevance (BR) which

does not consider dependencies between labels,

or approaches like Label Powerset (LP) where

every possible combination of labels is treated as a

metalabel in order to train the classiﬁer.

In our case, the large number of subjects in the

EUROVOC thesaurus makes a LP approach unfeasi-

ble, so we have implemented a multilabel categoriza-

tion scheme based on Classiﬁer Chains (CC) (Read

et al., 2011). This method offers a compromise be-

tween the simplicity of BR and the computational cost

of LP, still being able to exploit label dependencies.

CC is an ensemble based approach that iteratively

builds a set of binary classiﬁers (one for each label),

adding at each step a new feature that encodes the

class predicted by the immediately previous classiﬁer.

Any binary classiﬁcation algorithm can be employed

to build those elementary classiﬁers. In our experi-

ments we have evaluated the use of Support Vector

Machines (SVM) as elementary classiﬁers, using the

LibSVM (Chang and Lin, 2011) implementation, and

also the use of Naive Bayes classiﬁers, using the im-

plementation from the Weka machine learning envi-

ronment (Hall et al., 2009). Additionally, unlike in the

original deﬁnition of CC, the sequence of elementary

classiﬁers follows the usage frequency of EUROVOC

subjects in our dataset, starting with the most frequent

ones instead of using a random ordering.

Since there are hierarchical relationships between

EUROVOC thesaurus subjects, an alternative ap-

proach could have been modeling the subject as-

signment task as a hierarchical classiﬁcation prob-

lem. Some improvements in categorization per-

formance have been reported for several small and

medium scale problems using the hierarchical top-

down method named Local Classiﬁer Per Node Ap-

proach in the taxonomy of hierarchical classiﬁcation

approaches presented in (Silla Jr. et al., 2011). How-

ever, the relatively small size of our initiatives collec-

tion with respect to the number of labels in the EU-

ROVOC thesaurus does not advise applying this kind

of approaches in our case. This is a consequence of

a well known weakness of this kind of methods re-

lated with the poor performance of the local classi-

ﬁers associated with infrequent or never used labels.

In our corpus, classiﬁers created for the infrequent

EUROVOC labels would have been trained with no

enough positive examples and it is expected that they

will provide us with inconsistent results.

We do have evaluated a similar but much sim-

pler alternative taking advantage of the concept of

microthesaurus used in EUROVOC. The ﬁrst level of

the label hierarchy arranged by EUROVOC thesaurus

conforms a set of 96 microthesauri, which, with few

exceptions, can be considered relatively independent.

Thus, we have transformed the EUROVOC subject

assignment task in a two phases multilabel classiﬁ-

cation problem: the ﬁrst phase will attempt to pre-

dict the set of relevant microthesauri for a given doc-

ument, and in the second phase the ﬁnal set of subjects

from each selected microthesaurus will be created us-

ing its corresponding local multilabel classiﬁer.

4 PROFILE MATCHING

Once the document to be ﬁltered has been classiﬁed

to obtain its associated subjects, we have as the output

a weighted list of subjects that try to describe its con-

tent. We call this list the document proﬁle, as shown

in Figure 2. The remaining step is to match this doc-

ument proﬁle against the MP proﬁles. To do that we

have to deﬁne a matching function.

Several alternatives when addressing the problem

of matching weighted concepts vectors have been pro-

posed. In our experiments we have evaluated the

suitability of the following set of matching functions,

where P1 and P2 are two weighted vector proﬁles be-

ing matched and P

is the weight of the k-th subject in

the weighted vector depicting proﬁle P.

Simple Matching. This measure simply computes

de inner product between the two vectors repre-

senting the proﬁles being matched.

sim

SIMPLE

(P1, P2) =

∑

k=1

(P1

× P2

)

Only subjects with non-zero weights in both pro-

ﬁles will contribute to the ﬁnal score.

Cosine Similarity. This measure computes the co-

sine between the two weighted vectors represent-

ing the proﬁles being matched.

sim

COSINE

(P1, P2) =

∑

k=1

(P1

× P2

)

∑

k=1

∑

k=1

Inverse Euclidean Distance. This measure com-

putes the euclidean distance between the two

weighted vectors representing the proﬁles being

matched. In order to interpret this distance as a

similarity measure, it is inverted.

sim

EUCLIDEAN

(P1, P2) = −

∑

k=1

− P

)

where P

represents the normalized version of

the weighted vector P (dividing by the maximum

weight).

Concept Proﬁles for Filtering Parliamentary Documents

411

Figure 1: Training multilabel classifer.

Weighted Dice Coefﬁcient. This measure computes

a generalized version of the Dice coefﬁcient over

sets, where each element in the compared sets

could have a non-zero weight.

sim

DICE

(P1, P2) =

2 ×

∑

k=1

(P1

× P2

)

∑

k=1

∑

k=1

Document proﬁles are matched against all the

available MP proﬁles using one of the previous func-

tions to score that correspondence. As a result we

obtain for each document an ordered list of candidate

MPs according to the value of the matching function.

The top n MPs with the highest scores will be as-

signed as relevant for the given document.

As is the case of multilabel classiﬁcation, the fact

that EUROVOC subjects are arranged in a tree leads

us to try to take advantage of this additional hierar-

chical information. In our experiments we have as-

sessed the usefulness of expanding the lists of subjects

Figure 2: Proﬁle assignment to input documents.

that describe both document and MPs proﬁles, adding

similar subjects from the EUROVOC taxonomy. The

intuition behind this scheme is that expanded proﬁles

could provide a more generic and ﬂexible description

both for document and MP proﬁles.

Our proposal makes use of the semantic similar-

ity measure on taxonomies deﬁned in (Lin, 1998).

This measure computes the information content for

the involved concepts and for their lowest common

ancestor. Those values are combined according to

formula (1) to deﬁne a metric that quantiﬁes the sim-

ilarity between two concepts in the range [0,1]. In

(1) s

and s

are concepts in a taxonomy, LCA(s

, s

)

represents their lowest common ancestor and P(s

) is

an estimation of the probability assigned to concept

. In our case this probability is computed as the

ratio between the number of EUROVOC subjects be-

longing to the subtree rooted at label s

and the total

number of subjects in EUROVOC thesaurus. Similar-

tity values close to one correspond with similar con-

cepts closely located in the taxonomy which are also

expected to be semantically close, whereas 0 means

total dissimilarity between two unrelated concepts.

sim(s

, s

) =

2 × logP(LCA(s

, s

))

logP(s

) + logP(s

)

(1)

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

412

Table 1: Multilabel categorization and text preprocessing performance.

CC-SVM CC-NB 2LH-SVM

MiP MiR MiF MiP MiR MiF MiP MiR MiF

full text 0.3701 0.4712 0.4145 0.3462 0.4193 0.3792 0.3587 0.4686 0.4063

summary 75% 0.3612 0.4521 0.4015 0.3367 0.4067 0.3684 0.3502 0.4539 0.3953

summary 50% 0.3321 0.4297 0.3746 0.3202 0.3876 0.3506 0.3261 0.4313 0.3713

summary 25% 0.3121 0.3988 0.3501 0.2931 0.3657 0.3253 0.3079 0.4023 0.3488

manual summary 0.2081 0.3241 0.2534 0.1753 0.2701 0.2126 0.1923 0.3302 0.2430

For our subject expansion scheme we have fol-

lowed the following strategy. For each subject be-

longing to a proﬁle (both document proﬁles and MP

proﬁles) a list of similar subjects within a neighbor-

hood of 3 hops on the EUROVOC hierarchy is added

to create the expanded proﬁle. The weights of these

neighbor subjects are calculated by multiplying the

weight of each original subject by the Lin’s similarity

score between the original and each one of the neigh-

bor subjects (and adding these weights if an added

subject is neighbor of more than one original subject).

5 EXPERIMENTS

In order to validate our proposals, we have carried

out an experimental study with a set of parliamen-

tary documents. The document collection we use is

the set of initiatives (5258) from the 8

term of of-

ﬁce of the Parliament of Andalusia at Spain

, marked

up in XML (de Campos et al., 2009). These initia-

tives contain a set of 12633 different interventions of

the MPs (on the average there are 2.4 interventions

per initiative). The initiatives have been tagged by

parliamentary documentalists using subjects from the

EUROVOC thesaurus. From this set we shall build

the proﬁles only for those MPs who participate in

more than 10 different initiatives, giving a total of 132

MP proﬁles. The average number of interventions per

MP is 92.5 (with a standard deviation equals to 71.3).

From this initial corpus we removed those initiatives

that are labeled with no subject. The result is a ﬁnal

set of 4523 initiatives, with an average of 3.89 sub-

jects per initiative.

We have used the repeated holdout method (Lantz,

2013) to evaluate the behavior of our system: the set

of initiatives is randomly partitioned into a training

set (80%) and a test set (20%), and we repeat this pro-

cess ﬁve times. The reported results are the averages

over the ﬁve different rounds. The training set is used

to learn the MP proﬁles (using the subjects associated

to the initiatives) and also to train the classiﬁer (us-

ing the textual content of the initiatives, see Figure 1).

The initiatives in the test set are used to classify them

http://www.parlamentodeandalucia.es

(using their textual content) and to obtain (through the

matching of the proposed subjects with the proﬁles)

the ranked list of MPs that are probably interested in

them, as shown in Figure 2.

Obviously we use in this process neither the infor-

mation related to the MPs who participate in each test

initiative, nor its associated subjects. As the ground

truth, we have considered that a test initiative is only

relevant to those MPs who participate in it

Our experiments have been structured in two

phases. First, we have evaluated the performance

of the various multilabel classiﬁcation schemes de-

scribed in Section 3 to deal with the characterization

of initiative contents using EUROVOC subjects. In

this ﬁrst set of experiments we have also evaluated

the effect of using different textual representations

of initiative contents, like manually created extracts

provided by parliament documentalists, the full text

of the initiative transcripts or automatically generated

summaries of these transcripts. The second phase of

our experiments deals with the suitability of the pro-

ﬁle matching procedure proposed in Section 4.

5.1 Text Processing and Categorization

Given the diversity in contents and structure shown

by the initiatives included in our corpus, we have em-

ployed a very simple automatic summarization pro-

cedure in order to identify the most informative para-

graphs able to characterize each initiative contents.

We have followed a sentence extraction approach re-

lying on conventional information retrieval tools. To

do this every initiative in our test collection is split

into their constitutive paragraphs. The textual content

for each one of these paragraphs is stemmed using a

Spanish stemmer from the Snowball project. A stan-

dard list of Spanish stop-words is employed to select

the actual content holder terms. The surviving terms

and overlapping bigrams of those selected index terms

are indexed using the Apache Lucene indexing en-

gine. This way, every document included in that index

corresponds to one of the paragraphs included in the

This is a rather conservative assumption, because it is

quite reasonable to think that an initiative can also be rele-

vant to other MPs.

Concept Proﬁles for Filtering Parliamentary Documents

413

Table 2: Proﬁle matching performance using SF proﬁles.

ideal ideal with expansion CC-SVM CC-SVM with expansion

MAP RPrec R@10 MAP RPrec R@10 MAP RPrec R@10 MAP RPrec R@10

simple 0.5173

†

0.3419

†

0.6876

†

0.4955

†

0.3193

†

0.6483 0.4753 0.3130 0.6522

†

0.4761 0.3062 0.6170

†

cosine 0.4369 0.2740 0.5996 0.4369 0.2712 0.5630 0.4447 0.2877 0.5835 0.4496 0.2822 0.5363

dice 0.2965 0.1628 0.4668 0.3271 0.2002 0.4257 0.1956 0.0976 0.3469 0.2281 0.1350 0.3414

euclidean 0.2856 0.1680 0.3349 0.2626 0.1583 0.2946 0.3622 0.2147 0.4068 0.3325 0.1936 0.3620

baseline 0.4751 0.3018 0.6682 0.4691 0.2939 0.6593 0.4511 0.2893 0.5892 0.4551 0.2911 0.5691

test collection of initiatives, being stored as a bag of

the described index terms.

To summarize an initiative, simple and bigrams

terms are extracted from the initiative full text and

are employed to query the Lucene index. The textual

contents from the top scoring retrieved paragraphs are

concatenated to build the initiative summary. The in-

tuition behind this summarization method is that para-

graphs most similar to the full text of an initiative are a

good representation of the original text. In our exper-

iments we have created automatic summaries draw-

ing the 25%, 50% and 75% of the most representative

paragraphs for each initiative.

With regard to subject assignment using our mul-

tilabel classiﬁcation approach, in our experiments we

have evaluated the use of Classiﬁer Chains (CC) using

two types of base classiﬁers. Runs labeled as CC-SVM

employed SVM classiﬁers, using the Java version of

LibSVM code with the default settings. The other set

of CC runs, labeled as CC-NB, employed as base clas-

siﬁers the Naive Bayes implementation provided by

the Weka engine. In both cases we have exploited

the facilities provided by the respective libraries to

retrieve different kinds of scores which were used to

measure the conﬁdence of the predicted outputs.

The implementation of the two level hierarchi-

cal classiﬁcation scheme described at the end of Sec-

tion 3, which is labeled as 2LH-SVM in our runs, em-

ploys at each level a CC multilabel strategy using,

again, SVM classiﬁers provided by LibSVM as ele-

mentary categorization models.

To assess the quality of the subject assignment

provided by these classiﬁcation schemes, we have

employed the following label based performance

measures (Tsoumakas et al., 2010): micro-averaged

precision (MiP), micro-averaged recall (MiR) and

micro-averaged F-value (MiF). In Table 1 we show

the performance results obtained by the three multi-

label categorization methods being employed in our

experiment (CC-SVM, CC-NB and 2LH-SVM) using

ﬁve alternatives to initiative text representation (full

text, manually created summaries, automatic sum-

maries using the 75%, 50% and 25% more relevant

portions of text). In the reported results the number

of predicted subjects retrieved from multilabel clas-

siﬁers output was ﬁxed to 10 after a preliminary test

study, which showed that using this quite large value

helps to capture the diversity of initiative contents.

The reported experimental results are apparently

quite low, although we must consider that this is a rel-

atively large multilabel classiﬁcation problem, with

1405 labels actually occurring in our corpus (out of

5176 subjects in the EUROVOC thesaurus) and only

3607 training documents at each fold. The best re-

sults were obtained when full text initiatives were

employed, making evident that our simple automatic

summary scheme is not actually suitable to extract the

most relevant passages, since the performance values

decrease with the size of the summaries being used.

The performance values for the proposed multil-

abel categorization methods are fairly close, with CC-

SVM being the best performing approach followed

by 2LH-SVM and CC-NB. The lower performance

shown by CC-NB may be due to the higher capabil-

ities of SVM based classiﬁers, traditionally consid-

ered among the most competitive algorithms in text

classiﬁcation tasks. The difference between CC-SVM

and 2LH-SVM is small, since in both cases the op-

eration ultimately ends up being quite similar. We

conjecture that lower performance is due to a typi-

cal issue with hierarchical classiﬁers using top-down

strategies. These approaches are very sensitive to er-

ror propagation between local classiﬁers at different

levels. False positives at ﬁrst level tend to induce in-

correct routes that worsen overall precision and false

negatives block promising paths, affecting both recall

and precision measures.

5.2 Proﬁle Matching Evaluation

In the experiments assessing proﬁle matching we have

employed the CC-SVM multilabel scheme to create

the proﬁle of weighted subjects that will be matched

against the MPs proﬁles. Initiative contents represen-

tation is accomplished using full text since this ap-

proach offered best results in the preliminary phase

of experiments. The proﬁle of each initiative is con-

structed by selecting the 10 subjects with better conﬁ-

dence scores predicted by the trained CC-SVM classi-

ﬁer. Each predicted subject in those constructed pro-

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

414

Table 3: Proﬁle matching performance using SFIDF proﬁles.

ideal ideal with expansion CC-SVM CC-SVM with expansion

MAP RPrec R@10 MAP RPrec R@10 MAP RPrec R@10 MAP RPrec R@10

simple 0.5282

†

0.3467

†

0.7036

†

0.5029

†

0.3231

†

0.6547 0.4907

†

0.3271

†

0.6772 0.4777 0.3085

†

0.6283

†

cosine 0.4391 0.2808 0.6057 0.4155 0.2662 0.5399 0.4434 0.2806 0.5909

†

0.4120 0.2628 0.5189

dice 0.2809 0.1556 0.4588 0.2897 0.1766 0.4000 0.2033 0.0994 0.3517 0.2254 0.1313 0.3342

euclidean 0.2185 0.1303 0.2152 0.2281 0.1356 0.2361 0.2563 0.1499 0.2570 0.2620 0.1605 0.2674

baseline 0.4751 0.3018 0.6682 0.4691 0.2939 0.6593 0.4511 0.2893 0.5892 0.4551 0.2911 0.5691

ﬁles was weighted by this conﬁdence score.

We have used the following performance mea-

sures over the ordered list of candidate MPs created

according to the scores provided by the matching

functions described in Section 4.

MAP. Mean Average Precision is the mean average

precision over the predicted MP assignments for

the test set initiatives at each fold.

Average precision aggregates precision values at

different points of the ranked list of predicted MPs

where a relevant MP was predicted.

RPrec. R-Precision is the precision value computed

at position R in the ranked list of candidates, being

R the number of relevant MPs actually associated

with the current initiative.

R@10. Recall value computed for the top 10 pre-

dicted candidates.

In order to have an estimate of the expected max-

imum performance of the proposed MP assignment

scheme, we have evaluated the matching functions us-

ing a sort of ”ideal initiative proﬁle” built using the set

of real EUROVOC subjects manually assigned by the

parliament documentalists to the test initiatives. The

performance values obtained by those ”ideal initiative

proﬁles” are labeled as ideal in Table 2 and Table 3.

Finally, as baseline we have employed a direct

MPs assignment scheme using a multilabel classiﬁer

based on CC using SVMs as elementary classiﬁers

(thus avoiding the use of MP proﬁles). The classiﬁer

that implements this direct assignment scheme uses as

features the EUROVOC subjects associated to each

test initiative, either the real (ideal) subjects coming

from parliament documentalists or subjects predicted

by the CC-SVM method. This direct classiﬁer was

trained to predict the set of relevant MPs using the

real subjects of the initiatives in the training set.

Table 2 shows the results obtained using the SF

proﬁle generation method and Table 3 the results us-

ing SFIDF proﬁles, both methods were described in

Section 2. With each MP proﬁle generation strat-

egy, the quality of the proﬁle matching functions

simple, cosine, dice and euclidean is assessed us-

ing manually assigned EUROVOC subjects to cre-

ate the ”ideal initiative proﬁles” and CC-SVM pre-

dicted subjects as initiative weighted proﬁles. In both

cases, the contribution of similar subject expansion

using Lin’s taxonomy similarity is also checked. For

each document proﬁle generation strategy best results

across the evaluated proﬁle matching functions are

shown in boldface. Statistically signiﬁcant improve-

ments (Teh, 2000) with respect to the employed base-

line are marked with † in both tables, using Student’s

paired t-test with a signiﬁcance level α = 0.05.

The ﬁrst direct conclusion drawn from those re-

sults is that the best matching function is clearly the

simple measure (which simply adds the products of

the weights of subjects shared by document and MP

proﬁles). The second best matching function is the

cosine similarity, whereas the euclidean distance and

the weighted Dice coefﬁcient get rather bad results.

The fact that the other matching functions were un-

able to offer competitive results in comparison with

the simple matching function leads us to the conclu-

sion that normalization of proﬁle weights or normal-

ization of matching function values attenuate the ac-

tual discriminative power of the subjects that domi-

nate the proﬁles being matched.

Regarding the proﬁle construction methods, the

best results depend on the matching function being

considered: SFIDF is always better than SF when us-

ing the simple matching. However, SF tends to be

better than SFIDF for both cosine and Dice, and it is

always better in the case of the euclidean distance.

With respect to the use or not of the expansion

with similar subjects, the differences are rather small,

and the behavior is somewhat different depending on

the performance measure: it is clearly preferable not

to use the expansion from the point of view of the

recall measure. For R-precision, it is also better not to

use expansion if we consider the simple or the cosine

matching functions, and the opposite is true for Dice

and euclidean distance. This is also the tendency for

the other performance measure, MAP.

The results of the baseline method are quite good,

they are only surpassed by those of the simple match-

ing function. Therefore, the conﬁguration of our

method that obtains the best results is to use the sim-

ple matching function together with the SFIDF proﬁle

construction method, and without using the expansion

Concept Proﬁles for Filtering Parliamentary Documents

415

with similar subjects.

If we compare the results obtained by the (normal)

proﬁles with those of the ”ideal proﬁles”, we can ob-

serve that ideal proﬁles are better, as might have been

expected. However, the differences are small. For

example, for the best conﬁguration, the differences

between ideal and normal proﬁles are in percentage

7.1%, 5.6% and 3.7% for MAP, RPrec and R@10, re-

spectively. Therefore, normal proﬁles perform close

to the expected maximum performance offered by the

ideal proﬁles. Thus, although the categorization per-

formance of multilabel classiﬁers shown in Table 1

was not very high, using the subjects predicted by

these classiﬁers during the MP proﬁle matching have

had an acceptable performance and it was consistent

with the behavior of the ideal proﬁles based on ac-

tual thesaurus subjects assigned manually. This be-

havior along with the former effect of using the sim-

ple matching leads us to believe that the assignment

of MP based on subjects proﬁles could be heavily

dominated by the most frequent subjects, which are

those which usually have higher weights in the SF

and SFIDF schemes and get higher rates of success

in the predictions made by our multilabel classiﬁers,

because of the support of a greater range of positive

examples characterizing them.

6 CONCLUSIONS

A content based ﬁltering method to deal with the

problem of assigning parliamentary documents to

members of the parliament potentially interested on

them has been described and evaluated. User and doc-

ument proﬁles are deﬁned using subjects taken from

a conceptual thesaurus, and document proﬁle genera-

tion is modeled as a multilabel categorization prob-

lem. The proposed method has been validated us-

ing real world data from a collection of parliamentary

documents, manually annotated by human experts.

Several matching approaches were evaluated and we

were able to get an approximate document concep-

tual representation and a proﬁle matching method

achieving performance measures not very far from

the ”ideal” case. More work needs to be done in im-

proving the applied multilabel categorization methods

and also to evaluate alternative matching functions.

Although a priory the similarity-based expansion of

subject proﬁles seemed to be a promising alternative

to get more ﬂexible matching, the simple strategy we

have proposed was unable to improve proﬁle match-

ing quality.

ACKNOWLEDGEMENTS

Paper supported by the Spanish “Ministerio de

Econom

ıa y Competitividad” under projects

TIN2013-42741-P and FFI2014-51978-C2-1.

REFERENCES

Belkin, N.J., and Croft, W.B. (1992). Information Filter-

ing and Information Retrieval: Two Sides of the Same

Coin? Communications of the ACM, 35:29–38.

de Campos, L.M., Fern

andez-Luna, J.M., Huete, J.F.,

Martin-Dancausa, C.J., Tur-Vigil, C., Tagua, A.

(2009). An Integrated System for Managing the An-

dalusian Parliament’s Digital Library. Program: Elec-

tronic Library and Information Systems, 43:121–139.

Chang, C.-C and Lin, C.-J (2011). LIBSVM: A Library

for Support Vector Machines. ACM Transactions on

Intelligent Systems and Technology, 2:27:1–27:27.

Gauch, S., Speretta, M., Chandramouli, A., and Micarelli,

A. (2007). User Proﬁles for Personalized Information

Access. In: The Adaptative Web. LCNS, vol. 4321,

pages 54–89.

Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reutemann,

P., and Witten, I.H. (2009). The WEKA Data Min-

ing Software: An Update. SIGKDD Explorations,

11(1):10–18.

Hanani, U., Shapira, B., and Shoval, P. (2001). Informa-

tion Filtering: Overview of Issues, Research and Sys-

tems. User Modeling and User-Adapted Interaction,

11:203–259.

Lantz, B. (2013). Machine Learning with R. Packt Publish-

ing Ltd.

Lin., D. (1998). An Information-Theoretic Deﬁnition

of Similarity. Proceedings of the Fifteenth Inter-

national Conference on Machine Learning (ICML

1998), pages 296–304.

Lops, P., de Gemmis, M., and Semerano, G. (2011).

Content-based Recommender Systems: State of the

Art and Trends. In: Recommender Systems Hand-

book, pages 73–105, Springer.

Pazzani, M., and Billsus, D. (2007). Content-based Recom-

mendation Systems. In: The Adaptive Web. LCNS,

vol. 4321, pages 325–341.

Read, J., Pfahringer, B., Holmes, G., and Frank, E. (2011).

Classiﬁer Chains for Multi-label Classiﬁcation. Ma-

chine Learning, 85(3):333–359.

Silla Jr., C.N., and Freitas, A.A. (2011) A Survey of Hierar-

chical Classiﬁcation across different Application Do-

mains. Data Mining and Knowledge Discovery, 22(1-

2):31–72.

Tsoumakas, G., Katakis, I., Vlahavas, I. (2010). Mining

Multi-label Data. In Data Mining and Knowledge

Discovery Handbook, pages 667–685, O. Maimon, L.

Rokach (Eds.), Springer.

Yeh, A. (2000). More accurate tests for the statistical sig-

niﬁcance of result differences. In Proceedings of the

18th International Conference on Computational Lin-

guistics (COLING), pages 947–953.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

416
