Cybersecurity and Honeypots: Experience in a Scientiﬁc Network

Infrastructure

Juan Luis Martin Acal, Gustavo Romero L

opez, Pablo Palac

ın G

omez, Pablo Garc

ıa S

anchez,

Juan Juli

an Merelo Guerv

os and Pedro A. Castillo Valdivieso

Departamento de Arquitectura y Tecnolog

ıa de Computadores, ETSIIT - CITIC, University of Granada, Granada, Spain

Keywords:

Security Systems, Honeypots, Cybersecurity, Network Infrastructure.

Abstract:

When dealing with security concerns in the use of network infrastructures a good balance between security

concerns and the right to privacy should be maintained. This is very important in scientiﬁc networks, because

they were created with an open and decentralized philosophy, in favor of the transmission of knowledge, when

security was not a essential topic. Although private and scientiﬁc information have an enormous value for an

attacker, the user privacy for legal and ethical reasons must be respected. Thus, passive detection methods in

cybersecurity such as honeypots are a good strategy to achieve this balance between security and privacy in the

defense plan of a scientiﬁc network. In this paper we present the practical case of the University of Granada in

the application of honeypots for the detection and study of intrusions, which avoid intrusive techniques such

as the direct analysis of the trafﬁc through networking devices.

1 INTRODUCTION

From the earliest days of computer networks, these

have been experiencing continued growth in num-

ber of attacks (ESSET Latino Am

erica, 2015; CNI-

Centro Critogr

aﬁco Nacional, 2014; CNI-Centro

Critogr

aﬁco Nacional, 2015). The complexity of

these attacks against the information and resources in

the networks has also increased. This escalation is

motivated by economic, politic or military interests

or by the same entities interested in exercise a big-

ger control over communication freedom in the Inter-

net (CNI-Centro Critogr

aﬁco Nacional, 2015; Cisco

Technology Inc, 2014).

Although private and scientiﬁc information have

an enormous value for an attacker, the user privacy

for legal and ethical reasons must be respected by the

Chief Security Ofﬁcer (CSO). Scientiﬁc networks are

a special and interesting case; in one hand there is

a strong demand of security in the network and the

resources and services which are listening. On the

other hand, the end users demand privacy in his net-

work trafﬁc covered by the law. But classic Scientiﬁc

networks were not designed thinking in security con-

cerns (Subdirecci

on General de Organizaci

on y Au-

tomaci

on, Secreta

ıa General T

ecnica, Ministerio de

Educaci

on y Ciencia, 1985). In contrast to the cor-

porate networks, which usually have grown from the

intranet to the Internet, and which have the most of

hosts behind the demilitarized zone (DMZ), the sci-

entist networks were born with an open philosophy

without focusing on security (Subdirecci

on General

de Organizaci

on y Automaci

on, Secreta

ıa General

ecnica, Ministerio de Educaci

on y Ciencia, 1985).

Only technical requirements such as the limited num-

ber of public IP address forced it to expand private

services to the intranet. The information related to re-

search, patents, computer and human resources is a

juicy target for hostile agents. Also, the big size of

the DMZ makes it prone to a massive attack and in-

creases the possibility of ﬁnding a security breach or

hide advanced vectors of attack. In this scenario the

passive sensors have an important role in the detection

and protection against cyber-attacks.

In this paper is presented the deployed of a se-

curity system in the University of Granada based in

passive sensors in order to avoid intrusive techniques

such as the direct analysis of the trafﬁc through net-

working devices, and also it is exposed some test with

the ﬁnality of complementing the manual tracking of

incidents.

The rest of the paper is organized as follows: Sec-

tion 2 the characteristic of the passive sensor and the

infrastructure used are expected. In the section 3, the

Acal, J., López, G., Gómez, P., Sánchez, P., Guervós, J. and Valdivieso, P..

Cybersecurity and Honeypots: Experience in a Scientiﬁc Network Infrastructure.

In Proceedings of the 7th International Joint Conference on Computational Intelligence (IJCCI 2015) - Volume 1: ECTA, pages 313-318

ISBN: 978-989-758-157-1

313

analysis of the registered data is presented. A critical

analysis of the strong and weak points for the infras-

tructure exposed is made. Section 4 explains some ex-

periments with machine learning based in Kohonen’s

self-organizing maps (SOM) (Kohonen, 1990) in or-

der to improve the data analysis. Finally, we present

concluding remarks and suggestions for future study.

2 DEPLOYMENT OF A

SECURITY SYSTEM BASED IN

HONEYPOTS

This section describes the deploy of the system re-

sponsible for detecting the malicious activity in the

network infrastructure and its components. Also, the

elements and methods to use will be described.

2.1 Honeypots

A honeypot is a computer trap that exposes itself as

bait. While the honeypot is scanned, probed or com-

promised by a cyber attack, it is collecting informa-

tion about the malicious activity. The deception tech-

niques have been present in tracking of security in-

cidents (Cheswick, 1992; Fred Cohen, 1998), even

before its use in security software such as DTK

Honeypots were introduced in the cyber security in-

vestigation world by “The Honeynet Project” a non-

proﬁt research group in 1999, in their series of pa-

pers “Know Your Enemies” (Project, 2000). There

are different classiﬁcation characteristics such as in-

teraction, distribution appearance or role in multi-tier

architecture (Seifert et al., 2006). The interaction is

the degree of ﬁdelity in the response of the trap. The

distribution appearance describes whether the honey-

pot system appears to be conﬁned to one system or

multiple systems. Role, describes in what role acts

within a multi-level architecture and can be server or

client.

There is not an ideal conﬁguration of features, or

distribution of them inside de network, as there ex-

ist a huge effect on the nature of the threats and in

the infrastructure to protect. For example in software

development environments, high interaction are used

for testing new products with fuzzers or another type

of Penetration Testing (informally called pentesting)

tool (Ari Takanen, 2008) in order to discover poten-

tial vulnerabilities. On the other hand, low interaction

honeypots are used like intrusion detection systems,

warning about activity of scans or jumping attempts

from compromised internal hosts within production

http://www.all.net/dtk/

environments. Both share a common point: they are

not intrusive with the network trafﬁc.The architecture

in our system is divided in two fronts:

• The management front has the task to help the op-

erator to manage all the information related to se-

curity incidents.

• The detection front is based on honeypots of

medium and low interaction with stand-alone dis-

tribution appearance and server role.

2.2 Deployment

The sensors were deployed in different production

subnets and each one included honeypot software.

Speciﬁcally Dionaea

and Kippo

, which are low and

medium interaction honeypot respectively. Each sen-

sor has local databases with the purpose of saving

efﬁciently the information about attacks, while it is

waiting to dump the data in the collector. This is

done in order to keep the information duplicated and

prevents an abusive use of communication between

sensors and collector, in case of massive scans or at-

tacks. Between two consecutives data dumps to the

centralized data collector, the sensors send incidents

by mean of the Linux client of the messaging software

“Telegram”

to the operator, in time-lapses lower

than 5 minutes. The collector is a corporate database

that feeds the incidents management system, and it is

the source of the analyzed data.

3 DATA ANALYSIS

This section is details the analysis of the information

gathered and the behavior of detected cyber threats.

We explain how this information shows the stages of

the complex threats involved in multivector attacks,

and the ﬁnality behind of advanced threats is discov-

ered.

For three years each sensor collected information

of about half a million of connections. The analysis

of this high amount of information has provided the

next facts:

• External attacks are more frequent than internal

attacks.

• In one hand the most frequent type of external

attacks was weak credentials disclosure. On the

other hand, the most frequent type of internal at-

tack is the attempt of malicious software (mal-

ware) propagation.

http://dionaea.carnivore.it

https://github.com/desaster/kippo

https://telegram.org/

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

314

• The incident tracking shows how countries out-

side NATO are the most active in the process of

scanning and searching for vulnerabilities; but cu-

riously most of the intrusions come from NATO

member or member candidate countries. It is im-

portant to note that this data depends on the ge-

olocation where was taken and the relationship

with other countries (Wikipedia-Community, a;

Wikipedia-Community, b).

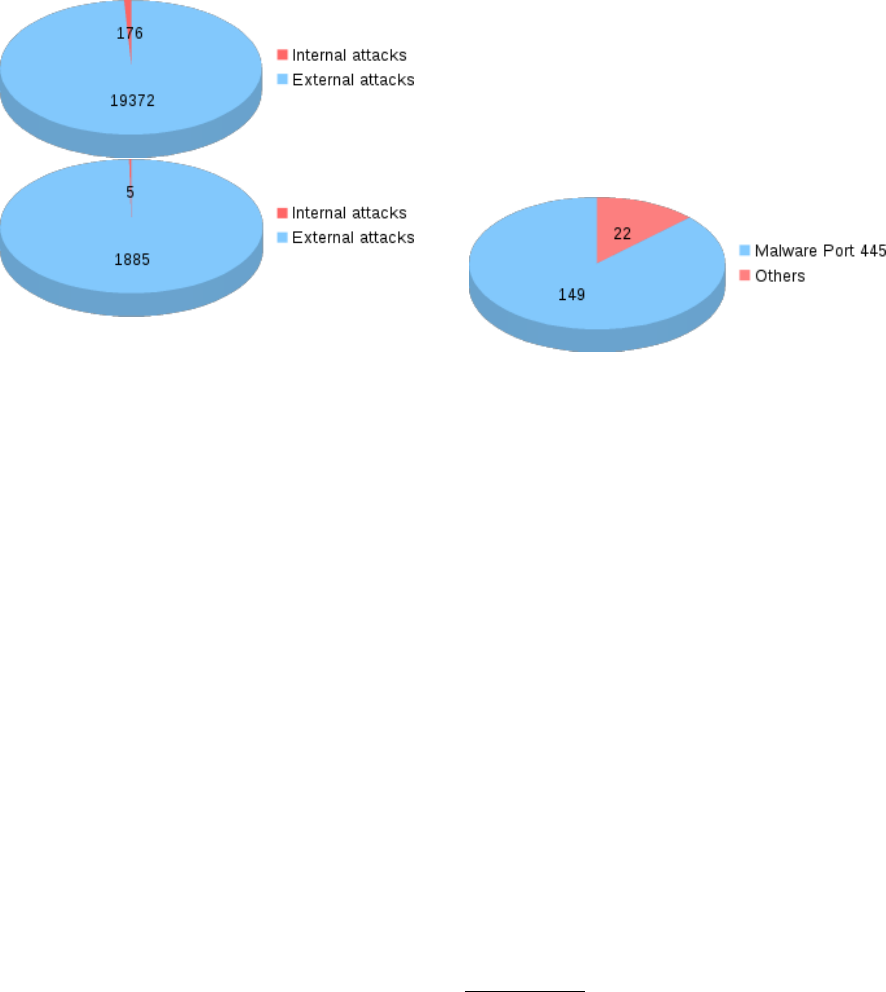

Figure 1: On the left, the number of IP involved in exter-

nal attacks versus internal attacks detected by Dionaea from

17-11-2010 to 02-04-2014. On the right, the number of IP

involved in external attacks versus internal attacks detected

by Kippo between 09-05-2011 and 05-03-2014.

Collected data shows how external attacks are the

most frequent source of attacks as it is shown in Fig-

ure 1. This matches with studies of big security IT

enterprises (Verizon Enterprise, 2015). Several con-

nections were obtained, some of them from scans to

the network infrastructure and others looking for ex-

ploiting vulnerabilities or services without strong cre-

dentials. With respect the latter, it is necessary to em-

phasize those that shown a more advanced level in the

process of intrusion because were linked to Advance

Persistent Threats (APT) (Sood and Enbody, 2013).

One of the greatest dangers for IT infrastructures of

governments, public administrations and companies

are APT. A cyber threat is persistent if it is contin-

uous in time and establishes monitoring and control

mechanisms with a hostile agent. It is deﬁned as ad-

vanced if it uses mechanisms in order to hide its ac-

tivity in the system. Usually, APT are related with cy-

berspying and elite groups of cybercrime and they are

attacks directed against a speciﬁc infrastructure. For

this reason, it is a priority to detect and study them.

The most frequent type of attack from inside the

network, it was malware propagation as it is shown

in Figure 2. Usually, it belongs to advanced and per-

sistent threats included in multivector attacks. A at-

tack is multivector whether it exploits multiple vul-

nerabilities in order to reach the intrusion and com-

promised goals. When a Windows host belonging to

the infrastructure was compromised by a USB drive,

after had communicated its incorporation to the ded

and control server of the netbot, it started to scan its

neighbors within the subnet. Then, it established con-

nections with the sensors that emulated the ms08-067

(Microsoft, 2008) vulnerability. After this, it com-

manded to the honeypot software to download the bi-

nary of trojan from a external web servers. This strat-

egy avoided that ﬁrewalls blocked external infections

to internal hosts through Server Message Block proto-

col (SMB) services. Finally, the infected host, would

tried to spread the infection, scanning and attacking

others subnets. This process is named jumping. In

our system, this last stage was prevented by the low

interaction characteristic.

Figure 2: The malware was main source of internal attacks,

and shows a advanced behavior involved in multivector at-

tacks.

It is quite difﬁcult to follow the clue for rebuilding

a multivector attack. Usually the exploitation of SSH

or MySQL weak credentials is the ﬁrst step to gain

the control, or access to data, in the emulated server.

But only a very reduced part shows a clever behavior

behind the attack. Between hundred of thousand of

connections only a few ones shows access to the fake

information such as fake passwords. Then, intelligent

attacker tried to use this information against other ser-

vices with the purpose of “jumping” inside them. A

bit more frequent is the attempt to privilege elevation.

But the common behavior is to use the basic vulner-

ability in order to use his network and computational

resources as soon as possible. This resources were

collected to be used in tasks like miner Litecoin

, in-

crease the number of nodes for other network scans,

for a future deny of service (DoS) attack or to use the

compromised host like a anonymous proxy.

When we rebuild the trace of the attack, the ﬁrst

advanced behavior that we ﬁnd is the use of differ-

ent hosts for scanning the infrastructure and change

to others hosts for the exploitation. The attack starts

to scan subnets usually from countries without col-

https://litecoin.org/

Cybersecurity and Honeypots: Experience in a Scientiﬁc Network Infrastructure

315

laborations accord, in our case China but ﬁnally the

exploitation is from Europe or United States.

4 STRENGTHS AND

WEAKNESSES OF

HONEYPOTS

The strengths of honeypots and the deployed system

are:

• It was not intrusive with network trafﬁc, respect-

ing the privacy of infrastructure users. This is an

important point because any try to catch indirect

trafﬁc network could be seen as a threat by other

users as an infringement of the using conditions

of the network and the legality.

• The computational and economic resources

needed for passive detection are lower because

only the trafﬁc belonging to a potential cyber

threat are available. This an alternative approach

to other solutions, more expensive, like intrusion

detection systems based in hardware.

• Cyber threats, such as advanced malware, use ci-

phered communications in order to dodge detec-

tion systems in the network layer. The only way

to catch information is from inside of the compro-

mised node. This is essential to analyze how per-

sistence cyber threats monitor the compromised

host and what information is sent outside, to the

command and control network.

The weakness of honeypots and the deployed system

are:

• There are many cyber threats focused in the net-

work layer, usually related with deny of services

and spooﬁng. This information is very valuable

because this kind of attacks are a very important

element, not only in simple vector attacks, in mul-

tivector advanced and persistent attacks too. Hon-

eypots only fetch information from the applica-

tion layer so they lose essential information for

reconstruction of complex attacks.

• The use of passive sensors in a security system

must be planned with some extra considerations

respect to the use of active methods of detection.

Those considerations cover strategies of decep-

tion and hiding of the sensors and politics of mi-

grations in the infrastructure for avoiding it’s lo-

cation.

– Like others deception tools, honeypots must

show as interesting targets for an attacker and

avoid to be easily recognizable by ﬁngerprint

techniques. Default installations and conﬁgu-

rations in low an medium interaction honeypot

are easily detected by a human attacker or an

intelligent threat like advanced malware.

– When the attacker has knowledge of the infras-

tructure, honeypots are easily dodged so they

must be deployed together with policies of use,

like change its subnets or IP every so often.

– High interaction honeypots are dangerous in

production environments because the moni-

tored sensor is completely real and it has po-

tential to attack periphery. Usually they are de-

ployed in isolated subnets with outgoing trafﬁc

strongly restricted in company of others honey-

pots. That conﬁguration is called honeynet.

5 EXPERIMENTS WITH S.O.M

In this section, we expose an experiment with Self-

Organizing Maps so as to classify information and we

comment some interesting results.

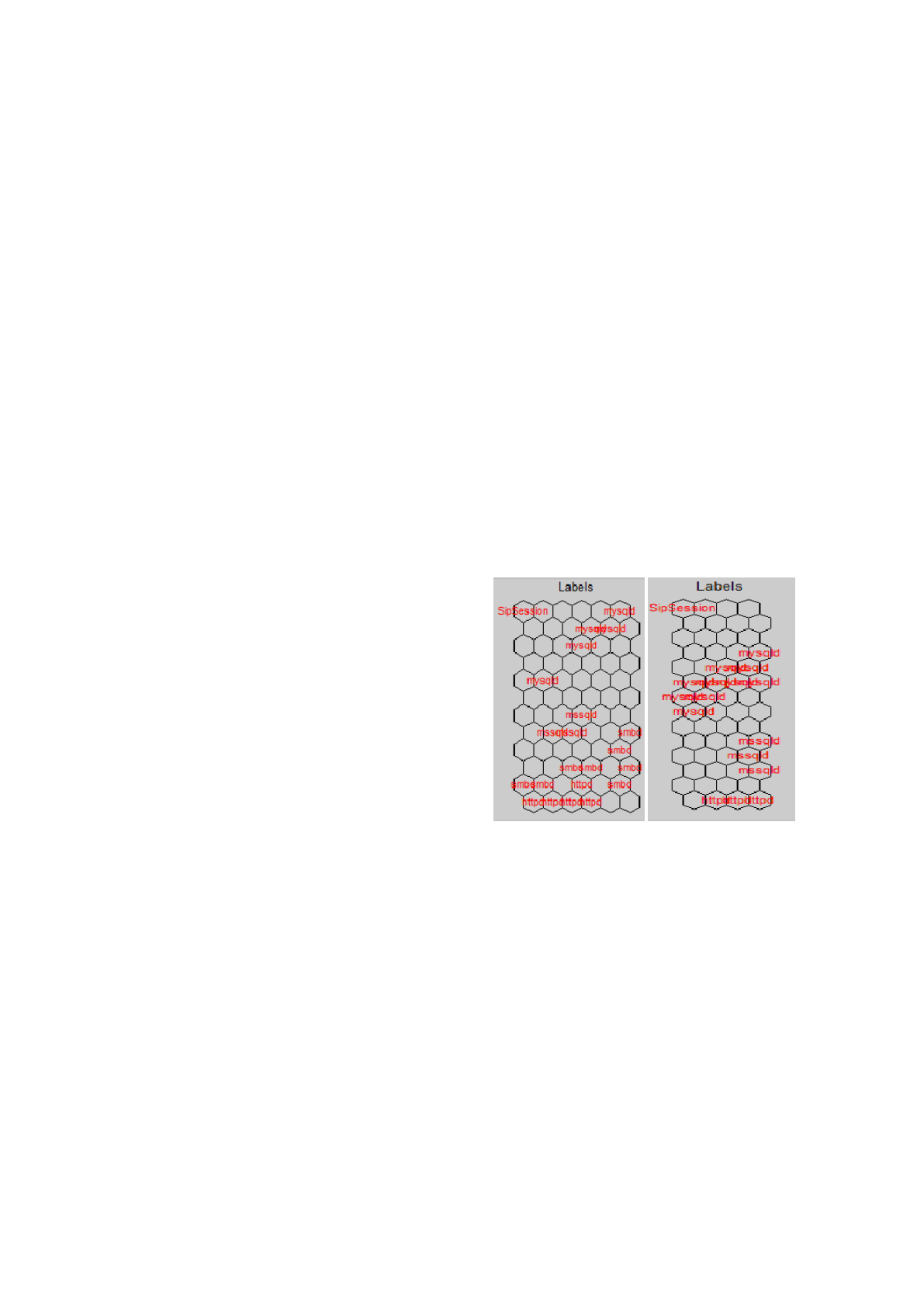

Figure 3: On the left, the ﬁrst subset of gathered attacks. On

the right, the second subset of gathered attacks. Some ser-

vices shows clusters more dispersed than other. Both were

taken on different dates and have some different types of

attacks.

In order to classify the information of detected at-

tacks, we apply the classiﬁcation method described

in (Panda and Patra., 2009), in two subsets of data.

The ﬁrst advantage is the simpliﬁcation of the col-

lected information derived from the dimensional re-

duction intrinsic to the method. The attacks are or-

ganized in 2D clusters. This allows identify some

interesting characteristics. The ﬁrst thing that draws

our attention in Figure 3 is how the attacks to HTTP,

Microsoft SQL Server (MSSQL) and Session Initia-

tion Protocol (SIP) are concentrated in areas better

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

316

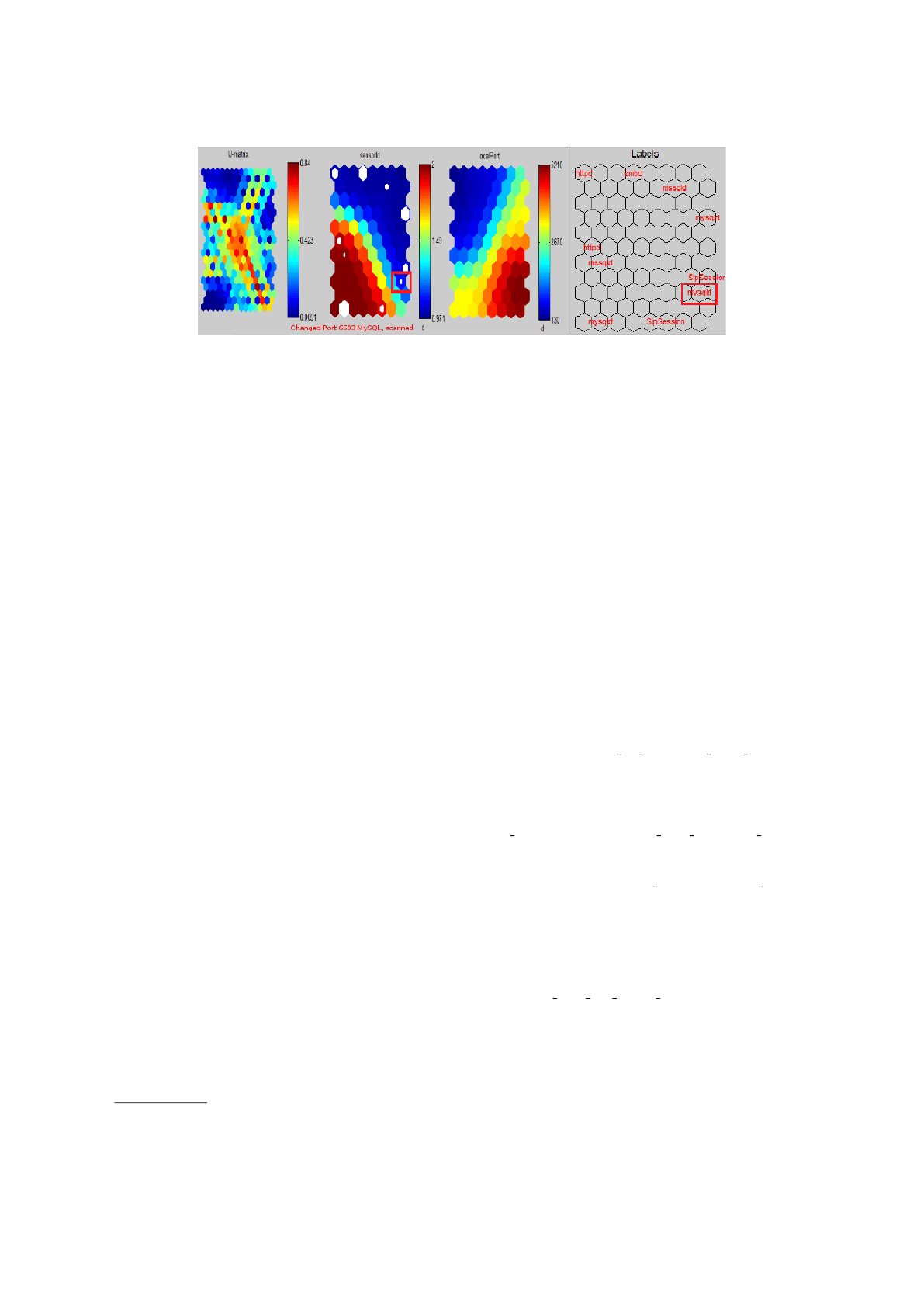

Figure 4: Union between ﬁrs and second subset. The information is self-organized around the second diagonal and it was

detected a fake attack to a hidden MySQL port such as a individual cluster.

deﬁned. It is because the cyberthreats showed less

variability in their dimensional components. This can

be explained by the nature of the connections of the

attacks and the characteristics of the software used.

A sweep scan to search for services in parallel with

tools such as Nmap

or malware with a very aggres-

sive behavior, have a great variability in the compo-

nent ”source port”. On the other hand, when the con-

nection comes from targeted attacks or advanced mal-

ware, the behavior observed is discrete so as to avoid

intrusion detection systems, variability is lower.

Finally, information about fake advanced attack

was injected in the ﬁrst subset and the union of the

previous subsets in a third subset was built. The in-

formation from both honeypots is arranged around the

second diagonal. In the lower right area a cluster with

connection attempts to MySQL service number dis-

played readily inverted port. Changing the default

port number is a common practice to hide services.

Port scannings with reverse numbering or multiple of

the original denotes an intelligent behavior Figure 4.

SOM allow to obtain visual information to study it

easily looking for anomalies, candidates to attacks,

with a intelligent behavior.

6 CONCLUSION AND FUTURE

WORKS

We have exposed how it is possible to develop a secu-

rity system based in passive sensors. The range of de-

tected attacks goes from elementary scans, to attempts

of intrusions and malware injections. Although it is

possible to identify and track manually APT, this is

not efﬁcient, and easily APT can pass unnoticed. An-

other problem is that the caught information with low

interaction honeypots, it is restricted to the applica-

tion layer. Classiﬁcation methods initially discover

https://nmap.org/

information hidden by the large volume of data. For

this reason, it is proposed for future works the anal-

ysis of data from different sources in hybrid archi-

tectures, with different levels of interactions and the

comparison. The use of different machine learning

methods, supervised or unsupervised, in order to im-

prove the detection of cyber threats will be studied.

REFERENCES

Ari Takanen, Jared D. DeMott, C. M. (2008). Fuzzing

for Software Security Testing and Quality Assurance.

Artech-House, 685 Canton Street,Norwood.

Cheswick, B. (1992). An evening with berferd in which

a cracker is lured, endured, and studied. In In Proc.

Winter USENIX Conference, pages 163–174.

Cisco Technology Inc (2014). Cisco 2014 an-

nual security report. http://www.cisco.

com/web/offer/gist ty2 asset/Cisco 2014 ASR.pdf.

CNI-Centro Critogr

aﬁco Nacional (2014). Informe

de amenazas ccn-cer tia-03/14: Ciberamenazas

2013 y tendencias 2014. https://www.ccn-

cert.cni.es/publico/dmpublidocuments/CCN-CERT

IA-03-14-Ciberamenazas 2013 Tendencias 2014-

publico.pdf.

CNI-Centro Critogr

aﬁco Nacional (2015). Ccn-cert

ia-09/15 ciberamenazas 2014 tendencias 2015 -

resumen ejecutivo april 2015. https://www.ccn-

cert.cni.es/publico/dmpublidocuments/IE-Ciberame

nazas2014-Tendencias-2015.pdf.

ESSET Latino Am

erica (2015). Tendencias 2015:

El mundo corporativo en la mira. http://www.

welivesecurity.com/wp-content/uploads/ 2015/01/ten-

dencias 2015 eset mundo corporativo.pdf.

Fred Cohen (1998). A note on the role of deception in in-

formation protection. 17(6):483–506.

Kohonen, T. (1990). The self-organizing map. Proceedings

of the IEEE, 78(9):1464–1480.

Microsoft (2008). Microsoft Security bulletin

ms08-067 - critical. http://www.microsoft.

com/technet/security/Bulletin/MS08-067.mspx.

Cybersecurity and Honeypots: Experience in a Scientiﬁc Network Infrastructure

317

Panda, M. and Patra., M. R. (2009). Building an efﬁcient

network intrusion detection model using self organis-

ing maps. Proceeding of world academy of science,

engineering and technology, 38.

Project, H. (2000). ”know your enemy. the tools and

methodologies of the script kiddie”. ”Know Your En-

emies”: series.

Seifert, C., Welch, I., and Komisarczuk, P. (2006). Taxon-

omy of honeypots.

Sood, A. and Enbody, R. (2013). Targeted cyberattacks:

A superset of advanced persistent threats. Security &

Privacy, IEEE, 11(1):54–61.

Subdirecci

on General de Organizaci

on y Automaci

on,

Secreta

ıa General T

ecnica, Ministerio de Edu-

caci

on y Ciencia (1985). Proyecto iris. https://

www.rediris.es/rediris/historia/programa-iris.pdf.

Verizon Enterprise (2015). 2015 data breach inves-

tigations report. http://www.verizonenterprise.

com/resources/reports/rp data-breach-investigation-

report-2015

en xg.pdf.

Wikipedia-Community. Cyberwarfare in china.

https://en.wikipedia.org/wiki/Cyberwarfare in China.

Wikipedia-Community. Cyberwarfare in

the united states. https://en.wikipedia

.org/wiki/Cyberwarfare in the United States.

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

318
