SERP-level Disambiguation from Search Results

Mostafa Alli

Dept. of Computer Science and Technology, Tsinghua University, Beijing 100084, China

Keywords:

Search Engine Result Page Generation, Search Snippet Generation, Visual Search Snippet, Ambiguous

Search Query, Visuality, Thumbnails, Disambiguation.

Abstract:

Fast growth of search engines’ popularity shows the users attraction to the Web engines. However there is a

chance of misinterpretation for ambiguous queries. At this point, we propose a more adherence user interface

which consist of a relevant visual content as well as generating new search snippet and title. Recent researches

for meeting this aim are focused on a whole page thumbnail for assisting users to remember a recently visited

Web page. Withal, this is not discussed yet that how a speciﬁc visual content of a page can allow users to

distinguish between a useful and worthless page in the result page especially in an ambiguous search task. Our

study

shows that the improvement in both textual search snippet and title as well as the additional thumbnail

were helpful for users to clarify the Search Engine Result Page (SERP) in an ambiguous search task.

which consists of two parts

1 INTRODUCTION

Dramatic changes in search engines’ usage (Battelle,

2005; 2012, ) show the need of improvement for

users’ experience during a search session especially

for an ambiguous query. Ambiguity in a search

query is the case that search keyword has more than

one underlying meaning. This is known (Song

et al., 2007) that around 16% or (Mihalkova and

Mooney, 2008) 7% to 23% of all search queries

have ambiguity. That means 1 out of every 5 to 6

search tasks are ambiguous. Also studies (Sanderson,

2008; Beitzel et al., 2004; Jansen et al., 2005; Fang

et al., 2011) show that the most ambiguous queries

have the length of one, yet there is a huge quantity

of ambiguity for multiple keywords as well as the

average length for queries is less than 2.3. These

results show that ﬁrst of all, users commonly perform

search with short keywords. This is proven by

(Agrawal et al., 2009a) that users mostly underspecify

their search intensions, i.e, they usually do not search

queries with all needed information to clarify its

actual intent. While it is expected that adding more

keywords to the search query would make it more

clear, there is a considerable number of multiple-word

ambiguous queries (Sanderson, 2008).

These actual facts encouraged us to propose a

better representation for the Search Engine Result

Page(SERP) in order to lower the effort of users for

reﬁning the intended ambiguous search query, e.g,

for the keyword China Times. The search results

are including the Web site of English newspaper, The

China Times, the Web site of newspaper, China Times,

current time of China, The Web site of English news-

paper, China Post, Web site of newspaper, Chinese

Times and the Taiwanese news agency, Want China

Times. By adding the word Magazine or Newspaper

to the search query, the results are still quite varied

and even more ambiguous and hence, difﬁcult to

make a right decision.

To tackle this, there are different approaches.

For instance, Incremental Keyword Extension is a

way to increase users’ satisfaction. Regardless of

effectiveness of such techniques, this can be argued

that it still needs users’ data engagement which brings

privacy issues and as we described previously, users’

query length is short and there are multiple-word

ambiguous queries. At this point, we introduce a

novel presentation for SERP to help to clarify the

result page, which gives users more insight of each

result’s page content by extracting the most relevant

visual content of the page as well as improving the

textual part of the search snippet and improving its

title. The remaining of this paper is as followed, in

section 2, we demonstrate three motivating examples,

in section 3, we describe the related work in this area,

followed by our method expansion in section 4. In

Alli, M..

SERP-level Disambiguation from Search Results.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 627-636

ISBN: 978-989-758-158-8

627

section 5, we present our experiment and ﬁnally in

section 6, we give a brief conclusion to the current

work and discuss possible future work.

2 MOTIVATING EXAMPLES

Example 1. Google and Bing are using a Knowl-

edge graph and a Knowledge base called Satori

respectively for entity-based queries as an interface

in SERP. A disambiguation box is a part of these

graph and base which tries to distinguish between

different possible taxonomies that a query may carry.

Surprisingly, these boxes are insufﬁcient and will not

present even all the different topics that the search

engine already returned in the ﬁrst page. To illustrate

this, by requesting the ambiguous query, Kingﬁsher

in both Google and Bing, we will notice that the

disambiguation boxes, which are illustrated in Figure

1 are not comprehensive at all. Disambiguation boxes

of Bing and Google suggested 3 taxonomies to the

users for disambiguation while there are more topics

returned in the ﬁrst page. In case of Google, the

concealed topics are 1) a restaurant 2) a beverage

company 3) an IT-specialized company 4) a seafood

restaurant and 5) a theme park while in case of Bing,

concealed topics are: 1) a ﬂy shop 2) a restaurant and

3) a boat seller.

Example 2. To enrich the search snippet, the

SearchMonkey was launched by Yahoo! by May

2008 (Haas et al., 2011). The aim of this service

was to assist the site owners and developers to make

Yahoo! Search results look more visually appealing

and useful, by sharing structured data with Yahoo!.

The main pitiful for this service is that this is a

site-speciﬁc way for enriching the SERP and requires

the page designers/owners to get involved to the

process of the enriching the textual search snippet

and- unlike our method- is only helping Yahoo! users

to beneﬁt from it, if there is any. However, the service

was shut down by October 2010.

Example 3. Search engines usually suggest a

set of Synsets for disambiguation. Nonetheless, this

can be argued that this method will not be helpful

all the time. This is mentioned previously that

study (Sanderson, 2008) shows the most ambiguous

queries have the length of one, yet there is a huge

quantity of ambiguity for multiple-word queries as

well. Furthermore, a search log analysis (Jansen et al.,

2005) indicated that around 50% of query’s length

is either 1 or 2 . Yi Feng et al (Fang et al., 2011)

measured that the query length for Web search is

https://blogs.bing.com/search/2013/03/21/understand-

your-world-with-bing/

2.35. A large-scaled search log analysis (Beitzel et al.,

2004) showed that the average length for popular

queries is 1.7 and for all queries is 2.2. These

results show that the offered synset of search engines

were not completely successful. It shows also that

expecting users to add more words to the query for

narrowing the scope of a search query is not very

optimistic. Besides, even multiple-word queries have

ambiguity. This hypothesis is supported by (Agrawal

et al., 2009a) that most users do not narrow down they

search intention.

3 RELATED WORK

Attempts for clarifying a search result page in an

ambiguous search task falls into 3 main categories:

3.1 Diversifying Search Results

One way to tackle the ambiguity in a Web search is to

diversify the results. Consequently it can show more

possible pages from different taxonomies to the user.

As a result, the user have a higher chance to ﬁnd the

intended information.

D.Yin et.al (Yin et al., 2009) examined a new

diversify method for ﬁnding out the subtopics of

each ambiguous query to re-rank the result page by

predicting the user intention. To do this, they discover

the subtopics from other similar issued queries and

then estimating users’ intent based on a probabilistic

ranking algorithm. R.Agrawal et al (Agrawal et al.,

2009b) introduced a greedy algorithm to diversify the

search result in order to overcome the underspeciﬁed

search query problem. Their objective is to maximize

the chance for users to at least ﬁnd one result, related

to their query within the ﬁrst k results that a search

engine returns. A ranking method (Zhang et al.,

2005) is proposed for enhancing diversity and infor-

mation richness, called, Afﬁnity Ranking(AR). This

algorithm’s job is to create an Afﬁnity graph which

is made from the link structure of each document,

measuring each document diversity and information

richness and then combining both together to get a

diversity penalty score. Afterward, based on this

score, they re-rank the whole documents to meet a

richer and more diversiﬁed top search result.

Although diversifying the results will make the

result page more probable to contain users’ true

intention, yet, lack of visuality for each results itself,

makes it hard to ﬁgure out right one(s) from faulty

one(s).

DART 2015 - Special Session on Information Filtering and Retrieval

628

Figure 1: Disambiguation boxes of Bing (on the left) and Google (on the right) for the ambiguous query Kingﬁsher.

3.2 Web Search Personalizing

Personalizing web search tasks, reacquires to log

users’ web activity to predict one’s intention when

an ambiguous search query happens. This method

usually require a long log of users’ search history.

L.Mihalkova et al (Mihalkova and Mooney, 2008)

proposed a short session logging for personalizing the

search task. J.T Sun et al (Sun et al., 2005) proposed

a Clickthrough system called CubeSVD which tries

to use the data collected from a real-world data set

from MSN search engine. The system is proposed

to use a Higher-Order Singular Value Decomposition

(HOSVD) which its input is the clickthrough data and

output is the value that shows the association between

users, queries and Web pages.

Besides the throughput of personalization of Web

searches, even if a user requesting an ambiguous

keyword, e.g, Jaguar, multiple of times, this does

not necessarily mean that his/her ”intension” was the

same all the time. In addition, it brings the privacy

issues for logging users’ search activity.

3.3 Word Sense Disambiguation (WSD)

Word Sense Disambiguation (WSD) is the ability to

distinguish between different meaning of a word in

a document when it has different concepts, based

on its context. This is knows that WSD is a Natu-

ral Language Processing(NLP)problem together with

Artiﬁcial Intelligence(AI) and Ontology (Mallery,

1988)(Mallery, 1994).

C.Stokoe et al (Stokoe et al., 2003) introduced

a sense based disambiguation system for information

retrieval to compete with the term based system over

ambiguous search query tasks. Their technique is tak-

ing advantage of combining high precision technique

and sense frequency statics to build a more accurate

retrieval system. Hence, they used the co-occurrence

and collocation principles to implement an algorithm

which produces 3 different implementation of their

(WSD) system, namely, Sense Based(T)-Sense Query

, Sense Based(S)-Sense Query and Stem Based which

is the Traditional TF*IDF technique using stem

words.

There are various difﬁculties with a WSD system

, e.g, Deciding what senses are belonging to a word is

usually a difﬁcult task. In addition, the word sensing

will be so dependent to the word directory that a

system may use.

4 SEARCH ENGINE RESULT

PAGE GENERATION

In This section, we look at our proposal for SERP

generation based on a more coherence and richer

textual search snippet and page title, as well as a

visual feature. Hence, we ﬁrst explain how we do

the search snippet generation and then we discuss the

process of relevant visual detection.

4.1 An Improvement to the Textual

Property of Returned Listing

Background. A current study (Marcos and

erez-Montoro, 2009) indicates that the textual search

snippet has a higher weight compare to the title or

the page URL to the users for deciding wether or

not to click on a link. We used this ﬁnding as a

motivation to generate new search snippet for a higher

chance of correct page selection in an ambiguous

search session. However we believe that the current

search snippet and page title that search engines are

providing, is not comprehensive enough. Presently,

search engines create the search snippet and page

title using meta data provided by page authors or the

DMOZ directories. This makes the snippet usually

discrete and vague for the fact that author of web

pages usually try to attract the search engines, using

Keyword stufﬁng (Chandra et al., 2014), which is done

by repeating some common keywords in the HTML

meta tags and by providing a long title for the page.

SERP-level Disambiguation from Search Results

629

4.2 Search Snippet Generation

For improvement of the textual property of each

search results, we think that the snippet should

always comes from the content of the page and

hence, it will be consistent. Our idea is to use a

segmentation method to divide page into logically

different paragraphs

. To make segmentation, we

take advantage of building a DOM tree over the

HTML tags of the page and then using a Postorder

traversing method to go through the DOM nodes.

By considering each group of leaf sibling node as a

segment, we measure its relevancy degree with the

query.

To do so, we practice the Naive Baye’s classiﬁer.

The classiﬁer is based on the Bayesian Theorem

which is a probabilistic theory and hence, the clas-

siﬁer becomes a probabilistic classiﬁer. We can

demonstrate the simple statement of the Bayesian

theorem in Equation 1:

P(A|B) =

P(B|A)P(A)

P(B)

(1)

By re-writing the Equation 1, we can then obtain

equation 2:

P(Seg

|Keyword) =

P(Keyword|Seg

)P(Seg

)

P(Keyword)

(2)

where Seg

(1 ≤ i ≤ n) has a prior probability P(Seg

)

, P(Seg

|Keyword) is Seg

’s posterior probability

given Keyword Keyword, and P(Keyword|Seg

) is

the conditional probability of Keyword being seen in

Seg

. This can be said that the Posterior for Keyword

is equal to a fraction of likelihood multiplied by prior

divided byevidence. Since in practice the evidence is

a constant. This is same as if we say in Equation 2,

as the denominator P(Keyword) is independent of

Seg

, and P(Seg

) remains the same for all keywords,

the likelihood that a search Keyword appears in Seg

P(Keyword|Seg

), dominates the posterior probability

P(Seg

|Keyword). so we just need to calculate the

prior and likelihood to ﬁnd the probability of Seg

being chosen regarded to the Keyword. This can be

done by using the Naive Bayesian Classiﬁer. With

mean

= µ

and variant

= σ

of all the words’ tf*idf

values in Seg

, P(Keyword|Seg

) in Equation 2 can

thus be approximately measured through a Normal

Distribution N (µ

,σ

P(Keyword|Seg

) =

2πσ

× e

−(tf(Seg

,Keyword)∗idf(Seg

,Keyword)−µ

)

2σ

(3)

A paragraph here is refereing to a group of sibling leaf

nodes of Data Object Model(DOM) tree of the correspond-

ing page

Here, we apply the stemmed tf*idf princi-

ple. One way to calculate tf(Seg

,Keyword) ∗

idf(Seg

,Keyword), is illustrated in the Equation 4:

log(1 +

Keyword

total

) ∗ log

(4)

Where N

Keyword

is equal to the frequency of the

keyword and N

total

is equal to the total frequency

of all words, including the corresponding keyword,

is equal to the total number of page segments

and N

is equal to the number of segments that

the keyword occurrence happens there. On the other

hand, id f (Seg

,Keyword) is computed as the inverse

of the total number of Keyword appearing in all parts.

In this way, we can obtain the mean

and variance

of keywords’ tf*idf values in Seg

by averaging all

the tf*idf values of Keywords in part

and their

deviation from the mean value. In Equation 2, as

the denominator P(Keyword) is independent of Seg

and P(Seg

) remains the same for all keywords, the

likelihood that a search Keyword appears in Seg

P(Keyword|Seg

), dominates the posterior probability

P(Seg

|Keyword).

Given a user’s search request containing

m keywords {s

,··· , s

}, for each part

the page, we calculate the average likelihood

∑

i=0

L(part

,··· , s

) =

∑

i=0

P(part

,··· , s

)/m,

and pick up part

with the highest likelihood value

(arg max

L(part

,··· , s

)).

4.2.1 Discussion

Question: Why does the keyword conditional prob-

ability follows a Normal (Gaussian) distribution?

Answer: For the weighting factor for reﬂecting

the importance of words in a page, we used the

TFIDF principle which is fundamentally equal to

t f ∗ id f . To calculate tf, we can use the Equation

4. On the other hand, this is shown (Bruls et al.,

1999; Baayen, 1991) that the word frequency follows

the Log-normal distribution. By considering the

Equation 4, we can see that for calculating the value

of t f (Seg

,Keyword), we apply the logarithm of the

term frequency and hence, the conditional probability,

P(Keyword|Seg

), follows a normal distribution.

4.3 Title Generation

Based on the users feedback in the ﬁrst part of our

user study, we decided to make the textual search

snippet more coherence with its title, by generating a

new title. To do so, when we extract the text as we de-

scribed in previous section, we get the parent HTML

tag of the extracted text fragment. Accordingly, we

DART 2015 - Special Session on Information Filtering and Retrieval

630

look into its siblings’

textual content, one by one.

By applying FIFO principle, the ﬁrst sibling that has a

textual content will be regarded as the new title for the

improved textual search snippet. In case of no textual

content in the tags, we will select the parent’s parent’s

tag and then, we check its sibling in same manner

until we get a result. In other words, we generate the

title of the result by using subsection headers near the

occurrence of newly generated search snippet

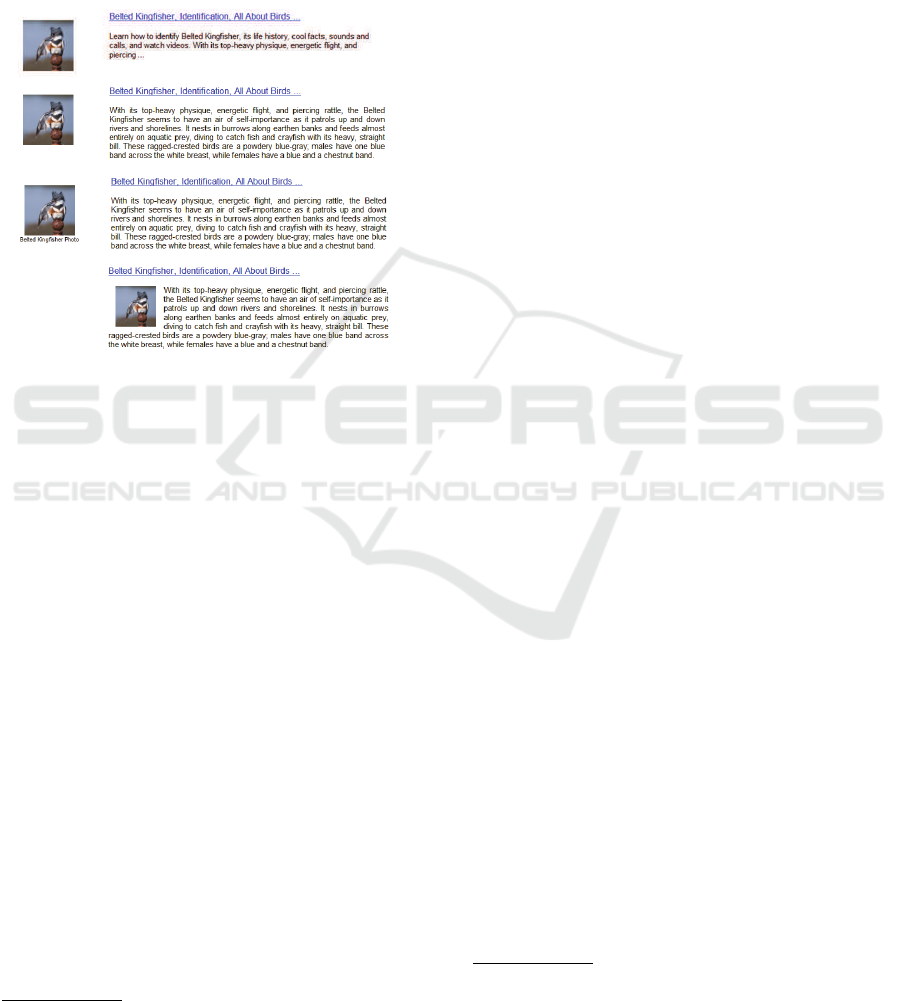

Figure 2: The four different variations of our proposed

method for the SERP generation for an ambiguous search

query, used in ﬁrst part of the user study. from top

to bottom: ”Thumbnail with default snippet”,”Thumbnail

with improved snippet”,”Thumbnail with caption” and

”Embedded thumbnail”

4.4 Visual Relevance Detection

In addition to the previous discussion on importance

of search snippet generation, here we show that how

a visual factor can play a vital role for relevant page

detection and then, we explain our methodology for

relevant visual extraction for assisting disambiguation

task.

4.4.1 Importance of Visual Features for

Relevant Page Detection

Recent researches, are focused on reﬁning previously

visited pages based on a combination of textual and

visual factors, or a visual factor alone. The visual

factor is usually a thumbnail which is based on a

snapshot of overall page lay out and the text is

mostly the current default snippets provided by search

engines. Withal, this is not discussed that how a

speciﬁc visual content of a page can allow users to

Siblings are adjacent tags in HTML.

in the DOM tree

differentiate between a relevant and irrelevant page in

the result page, especially for a searched ambiguous

keyword. We believe that we are ﬁrst to suggest using

a visual factor for clariﬁcation from ambiguity of a

query.Previous studies (Czerwinski et al., 1999; Dzi-

adosz and Chandrasekar, 2002; Kaasten et al., 2002;

Robertson et al., 1998; Teevan et al., 2009) show

the importance of visual contents to help users for

distinguishing between different Web pages. These

results encouraged us to use an appropriate visual

content to assist users to distinguish between relevant

and irrelevant pages of their ambiguous query.

M.P Czerwinski et al (Czerwinski et al., 1999) ran

a study to measure the effect of a thumbnail

preview

of a page with and without textual information for

users to spot the previously visited Web sites. They

concluded that a visual representation can improve

the ability of remembering and distinguishing one

item from another. Similarly, S.Susan Dziadosz

et al (Dziadosz and Chandrasekar, 2002) compared

three different versions for a SERP interface namely,

text only, thumbnail only and a combination of

text and thumbnail. Results of their work shows

that the combination of both thumbnail and textual

representation of a page can boost the accuracy of

relevance decision-making for users compare to the

other two.

A Session Highlight web workspace (Jhaveri and

Raiha, 2005) was introduced to assist users during

a web session. This is done by providing a drag

and drop tool for any desired pages that a user

may decide to bookmark and upon this action , a

thumbnail of the same page would be added to the

Workstation. They claimed that this tool was being

used effectively by participant of their user study.

S.Kaasten et al (Kaasten et al., 2002) has investigated

the usefulness of page representation for users to spot

the previously visited sites by comparing different

size of a thumbnail together with a various size of

titles and URLs. Accordingly, they suggested how

to design a bookmark or history list for best ﬁtting

the users’ chance of revisiting previously visited web

sites. Besides the importance of the size of the URL

and title for their recognition, they also concluded that

a thumbnail will help users to accurately recognize

the previously visited pages.

Data Mountain (Robertson et al., 1998) was sug-

gested as a 3D alternative representation to enhance

the user chance for retrieving Web pages. This Data

mountain were meant to show a thumbnail of any

In related work, a thumbnail is referring to a ”Whole

page thumbnail” while in our method, a thumbnail is an

”extracted photo” from the content of the page regarded to

the search query.

SERP-level Disambiguation from Search Results

631

documents that user desires to place in an arbitrary

position of a virtual 3D desktop. They mentioned

that this data mountain rapidly fasciated the need of

extracting pages. J.Teevan et al (Teevan et al., 2009)

introduced a new way of page representation which is

based on both textual and visual aspect of a page and

together they made a new visual snippet that gives an

overall preview of a page content. Their aim was to

both improving the user ability to ﬁnd a new relevant

web page and re-ﬁnding of a previously seen page.

They claimed that their ﬁnding shows that this method

is better than textual snippet since it can ﬁt more

results at once and will be more suitable for users

specially for mobile devices.

4.4.2 Extraction of Picture and Its Caption

Preface. From the discussion in last section, we

can see that visual factor plays crucial role for

relevancy detection. Recent researches, however, are

focused on reﬁning previously visited pages based

on a combination of textual and visual factors, or a

visual factor alone, the thumbnail is usually based

on a snapshot of overall page lay out and the text is

mostly the current default snippets provided by search

engines. Withal, this is not discussed yet that how a

speciﬁc visual content of a page can allow users to

differentiate between a relevant and irrelevant page in

the result page, specially for a prompted ambiguous

keyword. We believe that we are ﬁrst to suggest using

a visual factor for clariﬁcation.Our idea is that if we

put a relevant photo from content of each returned

page, it will help users to determine between the

content of different results in SERP.

Extraction Phase. A picture in a Web page

is usually discriminated by <img> tag from other

elements inside the page. The main idea of how to

extract the photo is the distance of the <img> tag

from the occurrence of the stemmed search query.

The <img> tag is empty, it contains attributes only,

and does not have a closing tag. This tag has various

attributes. One of the interesting attributes is ”alt

”.

This ”alt” attribute is used by Screen Readers

get the content of a page that is displayed on the

screen. We took advantage of the content of ”alt” for

our picture extraction method. Unfortunately, not all

<img> are with a useful ”alt”. As a consequence, we

made a priority list for the attributes of a <img>, as

exhibited in Table 1, in terms of their importance for

the derivation of the visual content of a page.

Stands for Alternative and is used as an alternative text

for an image

Screen readers are usually used by blind people to

identify the content of whatever is displayed on the screen

We use the textual content of these attributes,

based on their priority, and compare it with the

search keywords. If a highest priority attribute has

at least one occurrence of the stemmed keywords,

we will regard the corresponding photo as a relevant

visual cue for the page. The zero distance is when

the keyword is within the <img> tag’s properties,

”alt”, ”title” and ”src” in order of importance. If

there was no <img> with zero distance from the

occurred keyword, we go one node further, both

the parents and children of the current node that

contains the <img> to inspect the availability of

stemmed keywords occurrence until we reach one

occurrence. If there was more than one <img> with

same distance from the occurred keyword, we choose

FIFO

policy and appoint the ﬁrst one that is been

traversed. Moreover, the detected textual content

would be regarded as the picture caption and will be

placed on the bottom of it.

Picture Resolution. In consideration of the

original size of a extracted photo from page and the

fact that it is way too big for our purpose, we decided

to resize and cropp it. We decided to put a photo of

2.1*2.1cm as the thumbnail if in marginal area and

for the embedded case, we reduce the size into half.

To do this, we ﬁrst crop the photo by 1:1 ratio and

then resize it into a 2.1*2.1cm photo. If the photo

has a relatively longer width or height that makes

it look like a horizonal or vertical rectangle, then

we resize the photo to 1.3*2.1cm size or 2.1*1.3cm

respectively.

4.4.3 Comparison

In most of the previous efforts (Czerwinski et al.,

1999; Dziadosz and Chandrasekar, 2002; Jhaveri

and Raiha, 2005; Kaasten et al., 2002; Robertson

et al., 1998) to involve visuality in SERP, the visual

factor was a whole page snapshot, without any

particular attempt on enhancing the page title and/or

its description known as search snippet. In (Teevan

et al., 2009), although the authors tried to compute

a visual search snippet to ”be useful for search and

re-visitation”, however their aim was to replace each

component of a search result, i.e, title, URL and

search snippet with one of the page content, i.e, ﬁrst

19 characters of the page, the logo of the page and a

salient image to reduce its space in order to ﬁt better

in handled devices.

A recent study (Aula et al., 2010), aiming to make

a comparison of effectiveness of different combina-

tion of thumbnail/URL/title to remember previously

visited Web pages, has been conducted to illustrate

First In,First Out

DART 2015 - Special Session on Information Filtering and Retrieval

632

Table 1: Priority list for useful attributes of <img> for photo extraction.

Priority

Attribute’s Content

Remarks

name value type

1 ”alt” Text

It is an alternate text for the image.

Used by screen readers for vocalization.

2 ”title” Text

It usually shows a ”tool tip” when hover the mouse cursor over an image.

Shows an advisory information about an image.

3 ”src” URL address

Stands for ”Source” and speciﬁes the URL address of an image.

that which variation by which size of thumbnail

can be the best choice for this aim. However, the

study considered only a whole page snapshot as a

thumbnail, without any improvement in page title and

its search snippet. Although they considered various

types of different pages in their user studies, however

this is not yet clear that, even with their little effort

for involving visual factors in the SERP, how this will

help users in special condition such as an ambiguous

query. Moreover, instead of validating the value of

each part itself, they examined the representation style

of thumbnail rather the actual value of them.

On the contrast, our algorithm will extract a

speciﬁc picture from the Web page based on the

technique which we discussed in previously. In

addition, we generated new search snippet and title

for each result in the SERP. In our user study

will make a content-determined comparison of each

part rather rely solely on the value of each part’s way

representation.

5 EVALUATION

5.1 Participants, Settings and Baseline

Our evaluation includes total number of 43 partic-

ipants, including 13 Females and 30 Males with

age varied from 18 to 50. Most of participants

had no educational background related to computer

major. Hence the results of this experiment reveals

the point of view of common users. The study itself

consists of two parts. In ﬁrst part, We pre-selected

2 ambiguous queries, one for Bing and the other for

Yahoo!. Based on a current study (Agrawal et al.,

2015), there is a signiﬁcant equality between the

results of two common search engines, Google and

Bing. Consequently, by applying this user study on

either, the result can be applicable on the other. In

this case, we choose the baseline interface as Yahoo!

and Bing. We presented 5 different interfaces based

on each query, the baseline interfaces together with

Which consists of two parts

4 variations of our proposed methods. The four

variations are illustrated in Figure 2.

In second part, we used a within-subject design.

One drawback for this case is the concept of learning

which is also called Carryover effect. This is caused

for the sake of treatments’ order. At this point, the

experiment design for a within-subject design should

be Counterbalanced. This will make the experiment

sure to give all the participant different order of

representation and hence, the effect of learning will

be avoided. A Balanced Latin Square is one mean to

do such. If the number of conditions are even, the ﬁrst

raw of a Latin square will follow 1,2,n,3,n −1,4,n−

2... where n indicates the number of conditions and

for the rest of rows, the number would be add up by

one and it will return to 1 for the n. More details of

both parts is provided in corresponding sections.

Figure 3: The three different variations of our proposed

method for the SERP generation for an ambiguous search

query, used in second part of the user study. We combined

the ﬁrst two interface from previous part to form ”Improved

default” interface as well as enlarged the thumbnails with

3:2 ratio. From top to bottom are : ”Improved default

interface”,”Thumbnail with caption and improved title” and

”Embedded thumbnail.”

5.2 Procedure and Results

First Part. In ﬁrst part of our experiment, we

asked users to review the baseline interfaces as well

as 4 variations of our method, which is illustrated

SERP-level Disambiguation from Search Results

633

in Figure 2, and then, voting for each interface.

Accordingly, we asked each participant to express

reason(s) for such selection. In addition, we gave

participants the opportunity to give any suggestions,

if necessary. 53.8% of all participants selected the

marginal thumbnail with caption as their favorable

choice. On the other side, 33.3% privileged the

embedded method and ﬁnally, 92.3% of all parties

found the generated search snippet to be useful,

while only 7.7% preferred to be with classical page

description. From the user study results we can

make this closure that both visual and textual aspects

are vital to the users for disambiguation the search

result page if the visual feature of the page content

surrounds with pertinent textual description. From

some of the participants feedback, we realized that

the current title that search engines are providing

are not always helpful and meaningful, regarding to

the users intention and not cohesive with the textual

search snippet. Consequently, for second part of our

study, we decided to generate a new title. Moreover,

according to some of the participants’ comments,

pointing out that a slightly bigger thumbnail would

make it more helpful, we made search results’

thumbnails larger with 3:2 ratio. Moreover, according

to the results which indicates that 87.1% of all votes

are for two interfaces, we combined the other less

desired interface into one and make a new experiment

together with previous stated changes.

Second Part. For second part of evaluation,

participants were asked

to initiate an ambiguous

query, then, by using the presented techniques, we

provided each ambiguous keyword with 3 variations

of our method and together with the default interface,

we ordered these interfaces as explained in previous

section in a balanced Latin square. Consequently,

we asked users to review these different interfaces

as are illustrated in Figure 3 based on the presented

order and rating each interface according to following

criteria from 1(as the lowest) to 5(as the highest) for

their effectiveness:

• Helpfulness: Upon each model, we asked users

to score each part of each interface based on its

helpfulness for disambiguation. By helpfulness,

we mean the necessity of a part that its absence

cause some critical information loss. Helpfulness

itself is divided into smaller sections, regarding

to different part of each interface, i.e, Title,

Search snippet and Knowledge base for Default

interface, Title, Improved search snippet and

Marginal thumbnail for Improved default inter-

face, Improved title, Improved search snippet,

Caption and Marginal thumbnail for Marginal

Unlike ﬁrst part

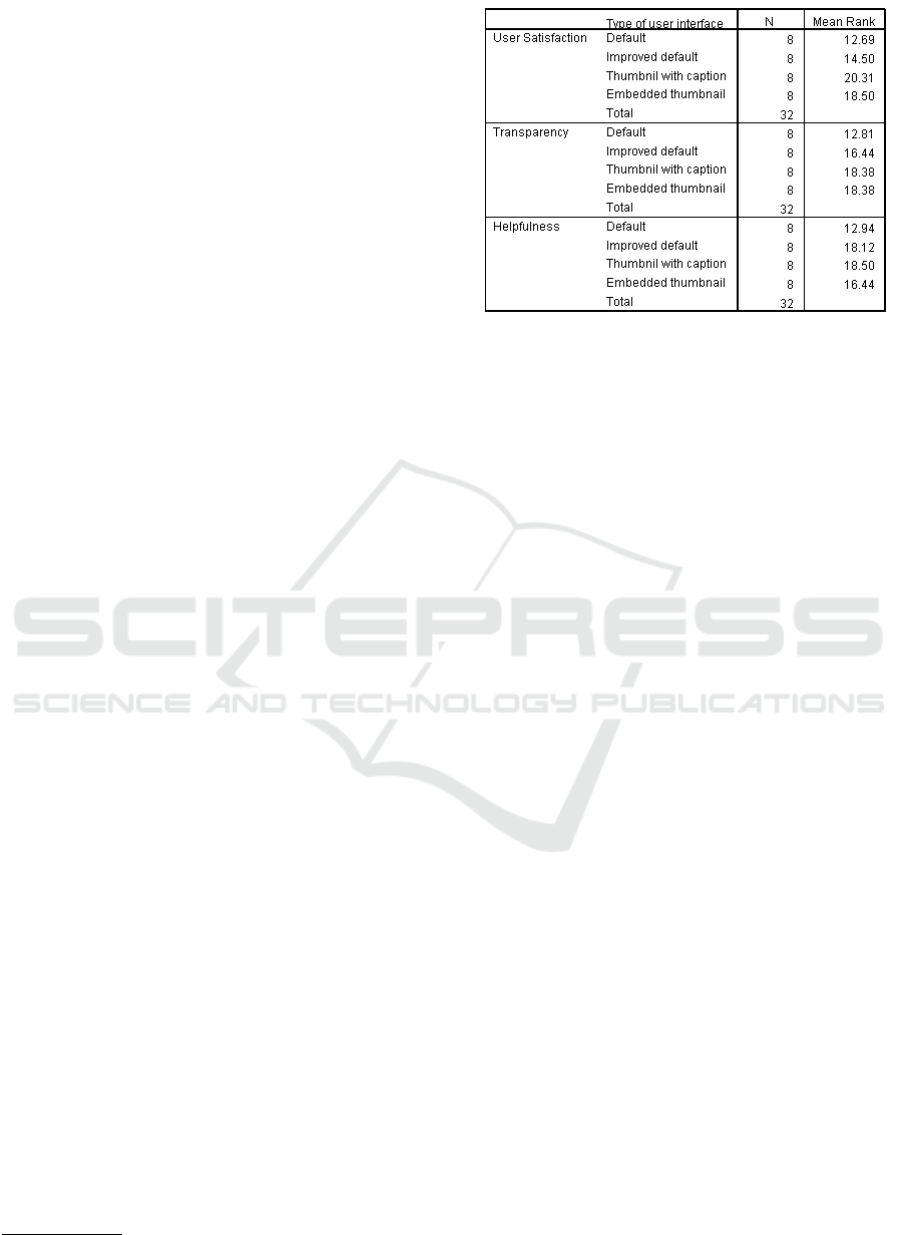

Figure 4: Mean rank results.

thumbnail with caption interface and ﬁnally, Im-

proved title, Improved search snippet and Em-

bedded thumbnail for the Embedded thumbnail

interface. The total score for Helpfulness is

computed accordingly based on the mean of these

subelement scores.

• Transparency: by transparency we mean the

level of information that each method reveals

from content of the page and makes it easier for

users to understand the topic of each result page

based on the page description/snippet and other

elements.

• User Satisfaction: the score for a method based

on the experience that each user had within the

model during a search session

To see any signiﬁcant impact on any of the 3 major

factors that we explained in the last section, we ran

a Kruskal-Wallis test against the helpfulness, trans-

parency and user satisfaction scores. By considering

the P

value

for user satisfaction, transparency and help-

fulness 0.282, 0.557 and 0.613 respectively, we can

conclude that there is no signiﬁcant change in using

any of 4 different user interfaces. However, from

the listed Mean rank for each examined category,

there is a notable improvement made by our suggested

interface. The value of page rank for Thumbnail with

caption is the highest in all the 3 different categories

by the mean rank value of 20.31 , 18.38 and 18.50

for user satisfaction, transparency and helpfulness,

respectively. The result for mean rank is illustrated

in Figure 4:

These results can be shown visually in Figure 5.

The multiple line chart on the left and clustered bar

on the right are visually demonstrating the positive

effect of our method against current user interface

of Bing for disambiguation. Please note that for

thumbnail with caption interface, the highest user

satisfaction is achieved by the highest transparency

DART 2015 - Special Session on Information Filtering and Retrieval

634

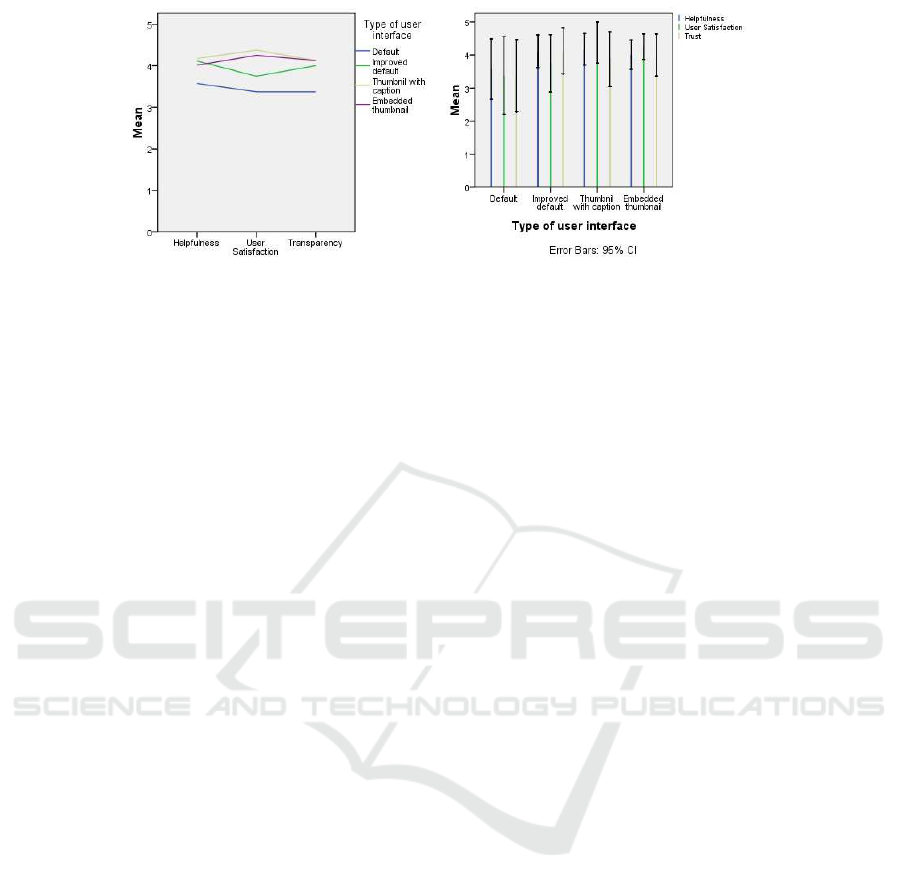

Figure 5: The comparison of the four different interfaces’ mean for helpfulness, user satisfaction and transparency. The

multiple line chart at left side and the clustered bar at right side show that higher user satisfaction is earned by both higher

helpfulness and transparency.

and helpfulness. On the contrary, the lowest user

satisfaction is earned by default user interface when

it has the lowest transparency and helpfulness. This

may be concluded that for achieving the higher user

satisfaction, all the factors should work well together

to enhance the user experience.

6 CONCLUSION AND FUTURE

WORK

Conclusion. Web searching has been grown through

years. Nonetheless, the ambiguity of queries makes

it necessary to apply appropriate techniques to help

users to ﬁnd the appropriate Web page regarding to

their intended ambiguous query. Despite different ex-

isting approaches that are available to deal with such

cases, we believe that we are the ﬁrst one to notice

that visuality as well as a more appropriate textual

snippet and title will help users for disambiguation

process. As a result, we decided to generate new

search snippet and titles as well as add an appropriate

visual feature and introducing different variations of

our technique which were evaluated them in our study

against state-of-the-art. The results show that the

visuality together with a better relevant textual snippet

and page title, will boost the users’ satisfaction with

an interface during an ambiguous search session.

Future Work. To extend this current work, we

would like to embed similar results of an ambiguous

queries, forming them under one same title and

search snippet and common thumbnail and caption.

Since both parts of our experiments show that the

interface with thumbnail and caption is the most

useful interface, we will continue this work based on

the interface with caption. The title and search snippet

would be generated according to a summarization

to produce a comprehensive snippet that carries as

most as possible of all the similar results snippets.

In addition, the thumbnail will be computed, using

a visualization technique. We will use a Tree map

(Shneiderman, 1992; Bruls et al., 1999) to give space

to each thumbnail according to their rank in the result

page. The space for each thumbnail in a tree map

will be computed according to the recent eye track

study (Cutrell and Guan, 2007) which indicates how

much of users look at each links according to their

rank. In case of caption, we will only select the largest

thumbnail’s caption and place it under the tree map.

REFERENCES

2012, G. Z. Google zeitgest 2012.

Agrawal, R., Gollapudi, S., Halverson, A., and Ieong, S.

(2009a). Diversifying search results. In Proceedings

of the Second ACM International Conference on Web

Search and Data Mining, WSDM ’09, pages 5–14.

Agrawal, R., Gollapudi, S., Halverson, A., and Ieong, S.

(2009b). Diversifying search results. In Proceedings

of the Second ACM International Conference on Web

Search and Data Mining, WSDM ’09, pages 5–14,

New York, NY, USA. ACM.

Agrawal, R., Golshan, B., and Papalexakis, E. E. (2015). A

study of distinctiveness in web results of two search

engines. In Proceedings of the 24th International

Conference on World Wide Web Companion, WWW

2015, Florence, Italy, May 18-22, 2015 - Companion

Volume, pages 267–273.

Aula, A., Khan, R. M., Guan, Z., Fontes, P., and Hong,

P. (2010). A comparison of visual and textual page

previews in judging the helpfulness of web pages. In

Proceedings of the 19th International Conference on

World Wide Web, WWW ’10, pages 51–60, New York,

NY, USA. ACM.

Baayen, H. (1991). A stochastic process for word frequency

distributions.

Battelle, J. (2005). The Search: How Google and Its Rivals

Rewrote the Rules of Business and Transformed Our

Culture. New York: Portfolio.

SERP-level Disambiguation from Search Results

635

Beitzel, S. M., Jensen, E. C., Chowdhury, A., Grossman,

D., and Frieder, O. (2004). Hourly analysis of a

very large topically categorized web query log. In

Proceedings of the 27th Annual International ACM

SIGIR Conference on Research and Development in

Information Retrieval, SIGIR ’04, pages 321–328,

New York, NY, USA. ACM.

Bruls, M., Huizing, K., and van Wijk, J. (1999). Squariﬁed

treemaps. In In Proceedings of the Joint Eurographics

and IEEE TCVG Symposium on Visualization, pages

33–42. Press.

Chandra, A., Suaib, M., and Beg, R. (2014). Low cost

page quality factors to detect web spam. CoRR,

abs/1410.2085.

Cutrell, E. and Guan, Z. (2007). What are you looking for?:

An eye-tracking study of information usage in web

search. In Proceedings of the SIGCHI Conference

on Human Factors in Computing Systems, CHI ’07,

pages 407–416, New York, NY, USA. ACM.

Czerwinski, M. P., van Dantzich, M., Robertson, G.,

and Hoffman, H. (1999). The contribution of

thumbnail image, mouse-over text and spatial location

memory to web page retrieval in 3d. In In Proc.

Human-Computer Interaction INTERACT ’99, pages

163–170.

Dziadosz, S. and Chandrasekar, R. (2002). Do thumbnail

previews help users make better relevance decisions

about web search results? In Proceedings of the

25th Annual International ACM SIGIR Conference on

Research and Development in Information Retrieval,

SIGIR ’02, pages 365–366, New York, NY, USA.

ACM.

Fang, Y., Somasundaram, N., Si, L., Ko, J., and Mathur,

A. P. (2011). Analysis of an expert search query

log. In Proceedings of the 34th International ACM

SIGIR Conference on Research and Development in

Information Retrieval, SIGIR ’11, pages 1189–1190,

New York, NY, USA. ACM.

Haas, K., Mika, P., Tarjan, P., and Blanco, R. (2011).

Enhanced results for web search. In Proceedings

of the 34th International ACM SIGIR Conference on

Research and Development in Information Retrieval,

SIGIR ’11, pages 725–734, New York, NY, USA.

ACM.

Jansen, B. J., Spink, A., and Pedersen, J. (2005). A temporal

comparison of altavista web searching: Research

articles. J. Am. Soc. Inf. Sci. Technol., 56(6):559–570.

Jhaveri, N. and Raiha, K.-J. (2005). The advantages of

crosssession web workspace. In In Proc. CHI 2005,

pages 1949–1952.

Kaasten, S., Greenberg, S., and Edwards, C. (2002). How

people recognize previously seen web pages from

titles,urls and thumbnails. In In X. Faulkner, J. Finlay,

F. Detienne (Eds.) People and computers XVI (Proc.

Human Computer Interaction), pages 247–265.

Mallery, J. C. (1988). Thinking about foreign policy:

Finding an appropriate role for artiﬁcial intelligence

computers. Master’s thesis, MIT Political Science

Department,.

Mallery, J. C. (1994). Thinking about foreign policy:

Finding an appropriate role for artiﬁcial intelligence

computers. Technical report.

Marcos, M.-C. and P

erez-Montoro, M. M. (2009). Compor-

tamiento de los usuarios en la elecci

on de resultados

en los buscadores: un estudio con tecnolog

ıa eye

tracking. In X Congreso Internacional de Interacci

Persona-Ordenador.

Mihalkova, L. and Mooney, R. (2008). Search query dis-

ambiguation from short sessions. In Beyond Search:

Computational Intelligence for the Web Workshop at

NIPS.

Robertson, G., Czerwinski, M., Larson, K., Robbins,

D. C., Thiel, D., and van Dantzich, M. (1998).

Data mountain: Using spatial memory for document

management. In Proceedings of the 11th Annual

ACM Symposium on User Interface Software and

Technology, UIST ’98, pages 153–162, New York,

NY, USA. ACM.

Sanderson, M. (2008). Ambiguous queries: Test collections

need more sense. In Proceedings of the 31st Annual

International ACM SIGIR Conference on Research

and Development in Information Retrieval, SIGIR

’08, pages 499–506, New York, NY, USA. ACM.

Shneiderman, B. (1992). Tree visualization with tree-maps:

2-d space-ﬁlling approach. ACM Trans. Graph.,

11(1):92–99.

Song, R., Luo, Z., Wen, J.-R., Yu, Y., and Hon, H.-W.

(2007). Identifying ambiguous queries in web search.

In Proceedings of the 16th International Conference

on World Wide Web, WWW ’07, pages 1169–1170,

New York, NY, USA. ACM.

Stokoe, C., Oakes, M. P., and Tait, J. (2003). Word sense

disambiguation in information retrieval revisited. In

Proceedings of the 26th Annual International ACM

SIGIR Conference on Research and Development in

Informaion Retrieval, SIGIR ’03, pages 159–166,

New York, NY, USA. ACM.

Sun, J.-T., Zeng, H.-J., Liu, H., Lu, Y., and Chen, Z.

(2005). Cubesvd: A novel approach to personalized

web search. In Proceedings of the 14th International

Conference on World Wide Web, WWW ’05, pages

382–390, New York, NY, USA. ACM.

Teevan, J., Cutrell, E., Fisher, D., Drucker, S. M., Ramos,

G., Andr

e, P., and Hu, C. (2009). Visual snippets:

Summarizing web pages for search and revisitation.

In Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, CHI ’09, pages 2023–

2032, New York, NY, USA. ACM.

Yin, D., Xue, Z., Qi, X., and Davison, B. D. (2009).

Diversifying search results with popular subtopics. In

Proceedings of the Eighteenth Text REtrieval Confer-

ence(TREC 2009)).

Zhang, B., Li, H., Liu, Y., Ji, L., Xi, W., Fan, W., Chen,

Z., and Ma, W.-Y. (2005). Improving web search

results using afﬁnity graph. In Proceedings of the

28th Annual International ACM SIGIR Conference on

Research and Development in Information Retrieval,

SIGIR ’05, pages 504–511, New York, NY, USA.

ACM.

DART 2015 - Special Session on Information Filtering and Retrieval

636
