Automatic Tag Extraction from Social Media for Visual Labeling

Shuhua Liu and Thomas Forss

Arcada University of Applied Sciences, Jan-Magnus Janssonin aukio 1, 00560 Helsinki, Finland

Keywords: Visual Labeling, Image Annotation, Social Media Analysis, Twitter.

Abstract: Visual labeling or automated visual annotation is of great importance to the efficient access and

management of multimedia content. Many methods and techniques have been proposed for image

annotation in the last decade and they have shown reasonable performance on standard datasets. Great

progress has been made especially in recent couple of years with the development of deep learning models

for image content analysis and extraction of content-based concept labels. However, concept objects labels

are much more friendly to machine than to users. We consider that more relevant and user-friendly visual

labels need to include “context” descriptors. In this study we explore the possibilities to leverage social

media content as a resource for visual labeling. We developed a tag extraction system that applies heuristic

rules and term weighting method to extract image tags from associated Tweet. The system retrieves tweet-

image pairs from public Twitter accounts, analyzes the Tweet, and generates labels for the images. We

elaborate on different visual labeling methods, tag analysis and tag refinement methods.

1 INTRODUCTION

Visual labels are the primary component of large

searchable multimedia collections. With the fast

spread of user-generated content in social media and

on the cloud, we have seen explosive growth of

image and video data - a huge part of which have no

labels at all and thus hard to be accessed with user-

friendly text queries. Automatic visual labeling is

thus an essential tool for getting access to a great

amount of multimedia content.

Automatic visual labeling is a very challenging

task that has attracted great attention and immense

interest of machine learning researchers in the field

of computer vision (Makadia et al, 2008). Image and

video annotation has been a topic of on-going

research for very long time and many techniques

have been developed, which can be classified into

three general approaches: (1) to generate candidate

labels through image content analysis and visual

object recognition; (2) to formulate candidate

descriptors through analysis of textual context

information of visual content; and (3) to explore the

relationships between user queries and images as

well as similarities between images, to treat image

annotation as a retrieval problem (Makadia et al,

2008; Sun et al, 2011).

Image annotation research has demonstrated

success on test data for focused domains.

Unfortunately, extending these techniques to the

broader topics found in real world data often results

in poor performance (Liu et al, 2009). In recent few

years, great progress has been made fast and very

impressive results achieved in “content-based

labeling”, where candidate-labels are generated

through image content analysis using deep learning

methods (Chen et al, 2013; Sjöberg et al, 2013a,

2013b). However, formal concept and object labels

from visual content analysis are much more

machine-friendly than user-friendly. There is the

need to explore more relevant and user-friendly

visual labels that include “context” descriptors.

Context-based labels can be personal or social or

domain and topic dependent. Our research aims to

leverage the potential of social media resources for

the benefit of visual annotation, to make use of

social context information in facilitating image

organization, access and utilization. Given an input

image, our goal of automatic image annotation is to

assign a few relevant text keywords to the image that

reflect not only its visual content but also its social

context.

In such a setting, we have developed a tag

extraction system that applies heuristic rules and

term weighting method to extract image tags from

504

Liu, S. and Forss, T..

Automatic Tag Extraction from Social Media for Visual Labeling.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 504-510

ISBN: 978-989-758-158-8

associated Tweet. The system retrieves tweet-image

pairs from public Twitter accounts, analyze the

Tweet, and generate labels for the images. The

baseline system was then extended to include new

functionality of extracting Named Entities, and use

of machine translation to handle content in multiple

languages.

Our research idea coincides with a number of

earlier studies on social content and community

tagging, with belief that tags associated with social

images the potential of being a valuable information

source for superior image search and retrieval

experiences (Sun et al, 2011; Sawant et al, 2011).

Our study shares partly similar goal as the T3 project

(http://t3.umiacs.umd.edu) aiming at enhancing the

usability of social tags, and recognizing that social

inputs from social media such as Twitter with their

added context represent a strong substitute for expert

annotations or content based automatic annotations

in helping the semantic interpretation of images

(Sawant et al, 2011).

In the following we first introduce the image-

tagging problem in section 2. We then present our

system, report our initial experiments with the

system in section 3. We also discuss visual labels

methods making use of textual information in image

annotation. In section 4 and 5 we elaborate on tag

refinement issues and summarize the paper.

2 VISUAL LABELS: CONTENT

BASED VS CONTEXT BASED

Visual labels can be broadly viewed as three types:

(1) Content Labels - labels generated from directly

analysis of visual content from computer vision and

machine learning studies. The most recent

developments in the field try to identify types of

physical objects or activity/actions in images or

videos through learning from datasets labeled with

object concept terms, much promoted by ImageNet

and TRECVID evaluations. (2) Context Labels:

Location/space, Time, Social/Cultural/Personal Life

events (Social media, FB), Domain/Topics. (3)

Subjective Quality Labels: opinions, sentiments.

Using data from Delicious, Golder and

Huberman (2006) identified seven functions that

tags perform, including identifying what or who it is

about, what it is, who owns it, refine categories, and

self-reference. Primary motivations for social

tagging can be sociality (whether the tag’s intended

usage is for self or others) or function (whether the

tag’s intended use is for organization or

communication). For example, tagging for

organizing purpose (search and browse), for

attracting attention, for making contribution and

sharing, for express opinion or self-presentation, and

for social communication (adding context for

friends, family, and the public) (Stvilia and

Jorgensen, 2010).

Content-based visual labels are mostly

“functional”, as they indicate what it is and what it is

about, using terms from general or domain specific

formal concept taxonomy, following standard

schemes for classification/tagging. They are

professionally defined, accurate, consistent,

controlled vocabulary, restrictive and static in

nature, so easily run into coverage and scaling

issues.

For images with little textual information around,

annotation using visual content is a natural solution.

Therefore, many content-based annotation

algorithms have been proposed since 1999.

Social tags and text associated with images and

videos on popular social media sites Flickr,

Instagram, Facebook, Twitter, Youtube, are sources

of rich semantic clues and context clues for broader

indexing. They are author-given, can be general or

personal, subjective or objective. They are user

generated metadata with user choice of terminology,

flexible, unstructured, and no vocabulary control,

informal with non-hierarchical flat organization,

thus there can be lots of noise, errors, irrelevance,

redundancy and ambiguity, with varying level of

granularity. They are emergent in nature and

constantly evolving. The consolidation of social tags

leads to a collective vocabulary that forms

folksonomy - an informal, organic assemblage of

related terminology (Vander Wal, 2005).

What are good labels and what type of tags is

needed depends on the purpose of labeling, their

intended usage or user preference: user oriented vs

resource oriented, better representation of the visual

resource for search and retrieval (labeling the visual

resource), or better representation of user (labeling

people’s interest and hobby activities). Tag quality

can be measured by tag relevance, accuracy and

specificity, tag discrimination power, tag

relatedness, tag representativeness and tag

completeness. Level of granularity is important – a

right mix of high-level (abstract) concepts or mid-

level concepts and low-level concept instances

would be able to meet the needs of labels for

different purpose and different usage. Contextual

clues may well offer a middle ground between

generalized and specialized annotators.

Automatic Tag Extraction from Social Media for Visual Labeling

505

3 EXTRACTING VISUAL

LABELS FROM TWITTER

In this section we describe the TwitterAnalyzer/Tag

Engine developed during our project on visual

labeling. Our idea is to extract image tags from the

associated Tweets of images. The social tags will

then be merged with formal tags from content-based

analysis at a later stage.

3.1 Core of the Tag-engine

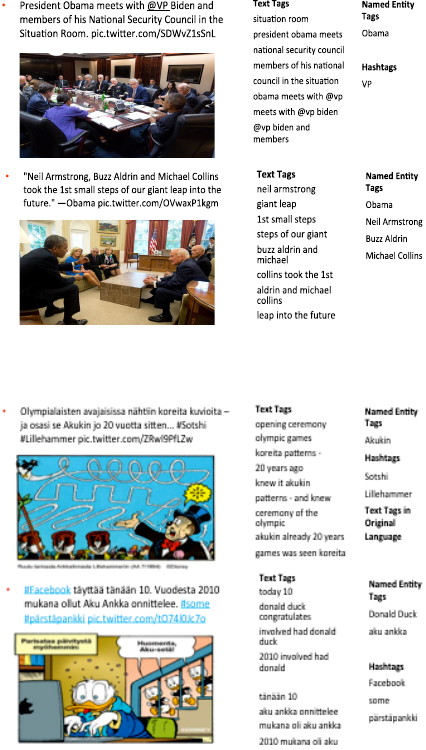

The system retrieves tweet-image pairs from public

Twitter accounts, analyze the Tweet to extract a

number of items as candidate tags: Named Entities

(location, people, organization), Hashtags, key

words and phrases (tf-idf weighted words, frequency

weighted bigram and trigrams). The ranking

algorithm examines the extracted items and removes

any redundancy between named entities, hashtags

and ngrams (represent topics). Then post-processing

is done to remove noisy tags, currently based on

heuristic rules, which will later on be extended with

more advanced methods. The system output would

be a balance of different types of tags, depending on

the targeted usage. The system also contains

components to detect the language of the Tweet and

automatically translate a non-English Tweet into

English to be analyzed. The extracted tags are then

translated back into original language.

Pre-Processing of Twitter text is very

straightforward, only needs to pay attention to some

special characters and adds to stop word lists.

Emoticons are removed for the time being, as we

only target content and context labels, not sentiment

labels.

For named entity recognition we applied

Stanford Named Entity Recognizer, which identifies

names of people, places, organizations quite

satisfactorily. Other types of proper nouns, e.g.

names of products, books, magazines, movies,

sports, other events and activities can often be

identified in the hashtags or key phrase list.

N-gram extraction allows us to extract tags with

size up to the specified amount N. This means that it

is possible to extract multi-word or phrase labels to

better describe any entities, topics and activities.

When we set n-grams as 4, the system will extract

unigrams, 2-grams, 3-grams, and 4-grams. Each of

the ngrams are then weighted by adding together the

unigram weights for each word the ngram contains.

N-grams that start with or end with stop-words and

punctuations are omitted.

Keyword and key phrase extraction help select a

small set of words or phrases that are content

bearing. As Tweets have very short text body, we

take the simplest method for word weighting: TF-

IDF for individual word weighting.

To be able to order the Named Entities according

to relevance we can then increase the significance of

the Named Entities so that they appear higher in the

TF-IDF weighting. Another approach to sorting

Named Entities by relevance is to find the highest

weighted TF-IDF word that is linked to each Named

Entity and sort them according to these TF-IDF

values.

Removing noisy tags is very important and takes

the most of our efforts. As expected, the extracted

tags are of varying level of granularity in users’

flexible terminology. There is a lack of consistency

and lack of relationships between the tags when

comparing with content-based labels. Through many

debugging and testing we tried to add automatic

filters to remove noisy tags by refining post-

processing component.

3.2 Machine Translation and

Dictionaries

The system translates non-English text into English

for processing and analysis. The extracted tags are

then translated back to the original language.

Here we used an approach that combines

dictionaries for slang, abbreviations, and

intentionally misspelled words and interests with

machine translation. We use the freely available

Yandex translation resource to translate content of

any language into English. A separate stop word list

is not needed for the extra languages since stop

words will be translated to English and then

removed by the English stop word list.

We create dictionaries for abbreviations, slang

and intentionally misspelled words to supplement

the system. When extracting information we first

remove the abbreviation, slang and misspelled words

by going through the dictionaries and match them to

the profile that is being parsed. After that we

translate the text into English. When we have the

profile text in English we can use our interest and

hobby dictionaries to supplement the TFIDF

extraction. For IDF database we found the one

provided in MEAD very effective.

3.3 Examples and Debugging

Two examples of the tags extracted by our system

are shown in the following figures. Fig. 1 shows two

original tweet-image pairs retrieved from the public

Twitter account The White House (@WhiteHouse),

with the tweets in English. Fig. 2 shows two original

tweet-image pairs from Aku Ankaa

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

506

(https://twitter.com/akuankka_313), with its original

tweets in Finnish language.

Figure 1: Tag extraction example: English tweet, political

domain.

Figure 2: Tag extraction example: Finnish tweet, comics.

As we can see, the labels are a mixture of concepts

at different levels, sometimes can be overlapping

with high level concept and formal tags, but not in

most cases. Hashtags can have much overlapping

with Named Entities and text tags (key words and

ngrams). We use heuristic rules for first layer post-

analysis and processing of the tags: (1) keep all

Hashtags; (2) Named entities in hashtags considered

more relevant, so they get higher priority; (3) Ngram

weighting adjusted by individual word tf-idf

weighting; (4) we consider variety a necessity and

priority of a good tag set, to include location, time,

organization, people and topics.

A debugging site was set up to enable us test and

manually assess the extracted tags, to find ways fine-

tuning our ranking method and algorithm (at a later

stage, we will add the feedback mechanism to

incorporate user feedback into the system directly).

Debugging hopefully helps us to exploit the

potential of heuristic rules to a great extent. Still we

found problems with the Topic tags that – most

favorable tags are not being top weighted.

4 TAG ANALYSIS AND

REFINEMENT

Social tags are assigned by different users with

different motivations for tagging, different

understandings of relatedness between tags and

images, or even different interpretations of the

meaning of tags arising from knowledge or cultural

diversity (Sun et al, 2011). In the nus-wide dataset

(Flickr photos), more than 420K distinct tags have

been used to annotate 269K images, many of which

do not describe the visual content of these images.

Klavans et al (2011) reported a linguistic

analysis of a tag set containing nearly 50,000 tags

collected as part of the steve.museum project

(http://www.umiacs.umd.edu/research/t3/link.shtml).

The tags to 1,785 works describe images of objects

in museum collections. They stressed the importance

of leveraging the tags and relationships between

them, utilized NLP tools and formal resources such

as WordNet and domain ontology to help normalize

the tags (Klavans et al, 2011).

In our context, we consider such tag refinement

is important smoothing only when we already

collected good candidate tags and removed common

noises – the second level refinement. The immediate

challenge for us is to attain a good balance between

rich tags and relevant tags. So our current focus is to

re-rank the tags of a tagged image such that the most

relevant tags appear in top positions, while to make

sure important tags are covered – the first level

refinement.

4.1 First Level Refinement

Wang et al (2006) proposed a tag re-ranking method

using Random Walk with Restarts (RWR) for image

annotation refinement. Measuring tag relatedness

would be another approach, which helps to remove

e.g. tags of self-reference and provide suggestions

for tags that describe image content.

Tag relatedness can be based on tag associations

as well (Tag-by-association). Associations between

tags can be computed based on tag co-occurrence,

Google distance, Jaccard coefficient etc. (Liu et al,

2009, 2010).

Automatic Tag Extraction from Social Media for Visual Labeling

507

Tag relatedness and refinement can also be based

on visual similarity or visual-representativeness,

which indicates the effectiveness of a tag in

describing the common visual content of its

annotated images, and is mainly applicable to

“content related” tags. A tag is visually

representative if its annotated images are visually

similar to each other, containing a common visual

concept such as an object or a scene (Wang et al,

2006). If multiple people use same tags to label

visually similar images, then these tags are likely to

reflect the visual contents of the annotated images

(Liu et al, 2009, 2010).

With our tag extraction system, we will be able

to gather large amount of images with shared tags

and visual similarities, to find the common visual

theme from the shared tags, and assess their visual

representativeness.

Finally, tag relevance can eventually be

evaluated by matching images to a given tag query

or user query.

4.2 Second Level Refinement

Liu et al (2009) noticed that topic/subject tags

account for more than half of the searches in tag-

based image searching and browsing, while photos

of specific named entities (scientist, politician,

building and scenery) relate to a very small portion

of topic/subject tags. Our second level refinement

will mostly concentrate on topic/subject tags.

Here the major issue is to map social tags to or

associate social tags with formal concepts, i.e., to

relate social tags to its related upper level concepts.

This would be the foundation for connecting and

integrating context social tags and content-based

concept labels.

Different methods have been proposed to fuse

content-based visual features with noisy social

labels. Jin et al (2005) approached image annotation

refinement with using WordNet to prune the

irrelevant annotations. However, their experimental

results show that although the method can remove

some noisy words, many relevant words are also

removed, and many tag words simply do not exist in

the lexicon of WordNet. Noel and Peterson (2013)

also proposed to leverage WordNet synsets for

selection of appropriate annotations. It converts

words surrounding an image into WordNet synsets

related with ImageNet concept labels.

In addition to the above methods, with more

extensive social ontology resources become

available, for example Freebase, DBPedia,

BabelNet, which are all databases about millions of

things from various domains, they could form

potential new bridges between taxonomy and

folksonomy, and could be useful for us to integrate

the social tags with formal visual content tags.

For our system, it will be possible to test,

compare and integrate two approaches: one trying to

make use of existing lexical and ontology resources,

the other being based on statistical methods for

similarity and clustering analysis to find closely

related concepts.

5 SUMMARY

In this study we explore the possibilities to leverage

social media content as a resource for visual

labeling. We developed a tag extraction system that

applies heuristic rules and term weighting method to

extract image tags from associated Tweet. The

system retrieves tweet-image pairs from public

Twitter accounts, analyzes the Tweet, and generates

labels for the images. To put our work in context and

preparing for future work, we discuss different types

of visual labels methods that make use of textual

information in image annotation. We also elaborate

on tag analysis and refinement methods and

techniques, and the integration of context-based

labels with content concept labels.

Overall, the system is simple, generic, handling

multiple languages. Feedback mechanism can be

incorporated at a later stage to help refine and

control the quality of the tags, and collect user

approved tag sets. user feedback mechanism to help

improve the tags sets by taking into consideration of

user feedback in testing process.

From information retrieval point of view,

Folksonomy is often criticized because tags are not

drawn from a controlled vocabulary. The aggregated

terminology drawn from tagging is expected to be

inherently inconsistent, and therefore flawed,

according to theories of indexing (Trant, 2009).

On the other hand, solely content-based concept

labels are not enough to meet needs of users in

image search and organization. Social tag based

search is an important way of searching or browsing

images. Complete image tag sets should contain tags

that offer visual clues, semantic clues and context

clues (Ref). Context information is becoming more

and more important for enhancing retrieval

performance and recommendations. Social media

offers tremendously rich content for the extraction of

contextual visual labels.

Comparing with content-based labels, social tags

assigned to an image may not necessarily describe

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

508

its visual content, but instead describe time, location,

people or social event, and a mixture of concepts at

different levels. They are able to offer the advantage

of both generalized and specialized annotators, and

can be expected to have more semantic correlation

to user queries and be more user friendly.

Our study is only at the beginning. Our

immediate next step is deeper tag analysis and

implementing tag re-ranking and refinement

techniques. The extracted social tags will be studied

in the context of formal labels and user queries. By

integrating results from our tag extraction system

with content-based methods, we will be able to study

many things and move towards the construction of a

social image database with rich set of tags covering

both formal concept tags and social context tags.

ACKNOWLEDGEMENTS

This research is supported by the Tekes funded

DIGILE D2I research program, Arcada Research

Foundation, and our industry partners.

REFERENCES

Liu, X., Zhang, S., Wei, F., & Zhou, M, June. Recognizing

Named Entities in Tweets. 2011. ACL (pp. 359-367).

Chen M., A. Zheng, K. Weinberger, Fast Image Tagging,

30th International Conference on Machine Learning

(ICML), 2013

Sjöberg M., M. Koskela, S. Ishikawa and J. Laaksonen.

Large-Scale Visual Concept Detection with Explicit

Kernel Maps and Power Mean SVM. In Proceesdings

of ACM ICMR 2013, Dallas, Texas, USA

Sjöberg Mats., J. Schlüter, B. Ionescu and M. Schedl. FAR

at MediaEval 2013 Violent Scenes Detection:

Concept-based Violent Scenes Detection in Movies. In

Proceedings of MediaEval 2013 Multi-media Bench-

mark Workshop, Barcelona, Spain, October 18-19, 2013.

Jin, Y., Khan, L., Wang, L., and Awad, M. Image

Annotations By Combining Multiple Evidence &

Wordnet. Proc. of ACM Multimedia, Singapore, 2005

Jain R. and P. Sinha. Content without context is

meaningless. In Proceedings of the international

conference on Multimedia (MM’10), pages 1259–

1268, Firenze, Italy, 2010. ACM.

Sun A. and S. S. Bhowmick. Image tag clarity: in search

of visual-representative tags for social images. In Pro-

ceedings of the first SIGMM workshop on Social

media (WSM’09), pages 19–26, Beijing, China, 2009.

ACM.

Sun A. and S. S. Bhowmick. Quantifying tag

representativeness of visual content of social images.

In Proceedings of the international conference on

Multimedia (MM’10), pages 471–480, Firenze, Italy,

2010. ACM.

Sun Aixin, Sourav S. Bhowmick, Khanh Tran Nam

Nguyen, Ge Bai, Image-Based Social Image Retrieval:

An Empirical Evaluation, American Society for

Information Science and Technology, 2011.

Tang J., S. Yan, R. Hong, G.-J. Qi, and T.-S. Chua.

Inferring semantic concepts from community-

contributed images and noisy tags. In Proceedings of

the 17th ACM international conference on Multimedia

(MM’09), pages 223–232, Beijing, China, 2009. ACM.

Rorissa A., A comparative study of flickr tags and index

terms in a general image collection. Journal of the

American Society for Information Science and

Technology (JASIST), 61(11):2230–2242, 2010.

Ding, E. K. Jacob, M. Fried, I. Toma, E. Yan, S. Foo, and

S. Milojevic. Upper tag ontology for integrating social

tagging data. Journal of the American Society for In-

formation Science and Technology (JASIST),

61(3):505– 521, 2010.

Liu D., X.-S. Hua, L. Yang, M. Wang, and H.-J. Zhang.

Tag ranking. In Proceedings of the 18th international

conference on World wide web (WWW’09), pages

351–360, Madrid, Spain, 2009. ACM.

Liu D., X.-S. Hua, M. Wang, and H.-J. Zhang. Image

retagging. In Proceedings of the international

conference on Multimedia (MM’10), pages 491–500,

Firenze, Italy, 2010. ACM.

Chua T.-S., J.Tang, R.Hong, H.Li, Z.Luo,and Y.Zheng.

Nus-wide: a real-world web image database from

national university of Singapore. In Proceeding of the

ACM International Conference on Image and Video

Retrieval (CIVR’09), pp 48:1–48:9, Santorini, Fira,

Greece, 2009.

Sawant Neela, Jia Li and James Z. Wang, `` Automatic

Image Semantic Interpretation using Social Action and

Tagging Data,'' Multimedia Tools and Applications,

Special Issue on Survey Papers in Multimedia by

World Experts, vol. 51, no. 1, pp. 213-246, 2011.

Wang Changhu, Feng Jing, Lei Zhang, Hong-Jiang Zhang,

“Image Annotation Refinement using Random Walk

with Restarts”, MM'06, October 23–27, 2006, Santa

Barbara, California, USA

Liu Dong, Xian-Sheng Hua, Meng Wang, HongJiang

Zhang, Microsoft Advanced Technology Center,

ICME 2009

Makadia Ameesh, Vladimir Pavlovic and Sanjiv Kumar,

A New Baseline for Image Annotation, Google

Research, New York, NY, & Rutgers University,

Piscataway, NJ, 2008

Noel George E. and Gilbert L. Peterson, Context-Driven

Image Annotation Using ImageNet, Proceedings of the

Twenty-Sixth International Florida Artificial

Intelligence Research Society Conference, IEEE 2013

Wang, Feng Jing, Lei Zhang, Hong-Jiang Zhang, Image

Annotation Refinement using Random Walk with

Restarts, MM'06, Oct 23–27, 2006, Santa Barbara,

California, USA

Klavans Judith L., Raul Guerra, Rebecca LaPlante, Robert

Stein, and Edward Bachta, Beyond Flickr: Not All

Image Tagging Is Created Equal, Language-Action

Automatic Tag Extraction from Social Media for Visual Labeling

509

Tools for Cognitive Artificial Agents, the 2011 AAAI

Workshop (WS-11-14)

Stvilia, B. and Jörgensen, C., Member activities and

quality of tags in a collection of historical photographs

in Flickr. Journal of the American Society for

Information Science and Technology, 61:2477–2489,

2010

Vander Wal, Folksonomy Definition and Wikipedia, Nov.

2005, http://www.vanderwal.net/random/entrysel.php?

blog=1750

Trant, J. Tagging, Folksonomy and Art Museums: Early

Experiments and Ongoing Research, Journal of Digital

Information, Vol 10, No 1, 2009

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

510
