Overlapping Kernel-based Community Detection with Node Attributes

Daniele Maccagnola, Elisabetta Fersini, Rabah Djennadi and Enza Messina

DISCo, University of Milano-Bicocca, Viale Sarca 336, 20126, Milan, Italy

Keywords:

Community Detection, Social Network Analysis, Kernel Communities.

Abstract:

Community Detection is a fundamental task in the ﬁeld of Social Network Analysis, extensively studied in

literature. Recently, some approaches have been proposed to detect communities distinguishing their mem-

bers between kernel that represents opinion leaders, and auxiliary who are not leaders but are linked to them.

However, these approaches suffer from two important limitations: ﬁrst, they cannot identify overlapping com-

munities, which are often found in social networks (users are likely to belong to multiple groups simulta-

neously); second, they cannot deal with node attributes, which can provide important information related to

community afﬁliation. In this paper we propose a method to improve a well-known kernel-based approach

named Greedy-WeBA (Wang et al., 2011) and overcome these limitations. We perform a comparative anal-

ysis on three social network datasets, Wikipedia, Twitter and Facebook, showing that modeling overlapping

communities and considering node attributes strongly improves the ability of detecting real social network

communities.

1 INTRODUCTION

Community detection is an important task that al-

lows to discover the structure and organization of

online social networks. The problem of commu-

nity detection (also called community discovery) has

been largely investigated. Several algorithms have

been proposed, ranging from cut- and conductance-

based methods (Rosvall and Bergstrom, 2007),

agglomerative-based (Newman, 2006b), model-based

(Chang and Blei, 2009) and spectral clustering

(Donetti and Munoz, 2004).

However, most of these methodologies do not

consider that community structures of inﬂuential

users (opinion leaders) are different from that of oth-

ers. It has been shown in the literature that in many

social network, especially online social networks such

as Twitter, Facebook and Google Plus, the average de-

gree of connections of opinion leaders is almost ten

times more than other users (Wang et al., 2011).

Most of the approaches for community and opin-

ion leader detection available in literature are based

on the assumption that each inﬂuential user should

be placed in a different community with its relative

followers/friends. However, this assumption does not

reﬂect the real world, where a community is likely to

be composed of several kernels of users (as opinion

leaders) and auxiliary members.

In order to deﬁne a community and detect its opin-

ion leaders, the community kernel detection problem

has been introduced in (Wang et al., 2011), com-

posed of two subtasks: (1) the identiﬁcation of kernel

nodes, i.e. inﬂuential members of the network and (2)

the identiﬁcation of auxiliary nodes (non-inﬂuential

members) and their association to a kernel to form a

community.

In literature, very few approaches have been pro-

posed to address this problem (Wang et al., 2011; Du

et al., 2007). Among these, one of the most promis-

ing is the Greedy - Weight-balanced Community de-

tection algorithm (Greedy-WeBA), which combines

multiple steps to ﬁrst identify the kernels, and subse-

quently the auxiliary nodes to form the communities.

However, this approach suffers from two impor-

tant limitations:

• Overlapping Communities. Most actual social

networks are made of highly overlapping cohesive

subgroups of nodes, simply because individuals

often belong to numerous different kinds of com-

munities simultaneously (Leskovec and Mcauley,

2012). Members of a network may participate in

many social circles according to their interests,

hobbies, and relationships connected to their ed-

ucational background, working environment and

family.

Greedy-WeBA does not take into account the pos-

sibility of overlapping communities when detect-

Maccagnola, D., Fersini, E., Djennadi, R. and Messina, E..

Overlapping Kernel-based Community Detection with Node Attr ibutes.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 517-524

ISBN: 978-989-758-158-8

517

ing the auxiliary nodes, that can be associated

only to one kernel (each of them is assigned only

to the most similar kernel).

For this reason, we introduce a Overlapping Aux-

iliary Community Detection approach that can

overcome the limits of the existing method.

• Node Attributes Existing approaches for com-

munity detection usually take into account only

one source of information: the relationships

among the network members, e.g. friendship or

following/followee relationships.

Social networks, however, often provide a large

amount of information that is not directly in-

cluded in the relationships. For example, online

social networks like Twitter and Facebook allow

their members to write and share textual messages

(posts), which can be very informative attributes

of the user representing interests and ideas.

Still, most community detection algorithms do not

exploit this information to improve their perfor-

mance. The Greedy-WeBA algorithm is based on

the assumption that each member of a kernel has

more connections to/from the kernel than a vertex

outside the kernel does. However, this assumption

does not consider that two users may share simi-

lar interests even when not directly connected by

a relationship.

Therefore, we introduce an improved version of

the Greedy-WeBA algorithm that includes both

network structure and information from node at-

tributes.

The paper is structured as follows: ﬁrst, in Sec. 2

we summarize the existing related work, and in Sec. 3

we introduce some preliminary notation to better de-

ﬁne the problem of kernel and community detec-

tion. Then, in Sec. 4 we present the proposed ker-

nel community detection algorithm, highlighting the

novel approaches we adopt to overcome the existing

method’s limitations. In Sec. 5 we outline the experi-

mental investigation, detailing the datasets that will be

used in this work, and in Sec. 6 we show the compar-

ative results of the proposed approach with the base-

line. Finally, in Sec. 7 conclusions are derived.

2 RELATED WORK

The problem of identifying and evaluating commu-

nity has been addressed extensively by many papers

(Papadopoulos et al., 2012). Most existing works are

based on the hypothesis that communities are subsets

of vertices which are densely connected internally, but

sparsely connected to the rest of the network (New-

man, 2004b; Newman, 2006a; Leskovec et al., 2008).

One of the most popular approaches is the al-

gorithm developed by Girvan and Newman, which

looks for disjoint communities in the social network

based on a measure of betweenness and modularity

(Newman, 2004a). Other works have also introduced

information-theoretic frameworks for obtaining hier-

archical communities in the networks (Rosvall and

Bergstrom, 2007; Papadimitriou et al., 2008).

More recently, new methods have been proposed

to detect communities that can overlap, and thus bet-

ter represent the actual behavior in social networks.

Mishra et al. (Mishra et al., 2008) proposed an al-

gorithm based on the concept of (α,β) communities

to allow close communities to overlap. Other meth-

ods allow users to belong to multiple communities,

using either probabilistic generative processes (Yang

and Leskovec, 2013) or using graph transformation

approaches (Xie and Szymanski, 2012).

Considering that the above mentioned investiga-

tions do not consider node attributes when communi-

ties are created, some alternative methods have been

proposed(G

unnemann et al., 2013; Gunnemann et al.,

2010; Chang and Blei, 2009; Liu et al., 2009; Yang

et al., 2013). However, none of these approaches con-

sider communities as composed of kernel members

and auxiliary nodes, disregarding the real social net-

work aggregation. In order to overcome this limita-

tion, we extended one of the most recent and promis-

ing kernel-based approaches (Wang et al., 2011) to

detect overlapping communities, also exploiting the

information provided by node attributes as well as the

network structure. To the best of our knowledge, no

community detection algorithm with these character-

istics has been proposed in literature.

3 PRELIMINARIES

Before discussing the details of the proposed method,

we introduce some important notations. A social net-

work is represented as a graph G = (V,E), where the

set of nodes V represents members of the network

(users) and the set of edges E denotes connections

among them.

Community detection in networks aims at ﬁnd-

ing a set of communities C = {c

,...,c

}, where

communities c

are formed by groups of vertices with

dense intra-community connections, but sparse inter-

community links. Here we consider simple graphs

only, i.e. graphs without self-loops or multi-edges.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

518

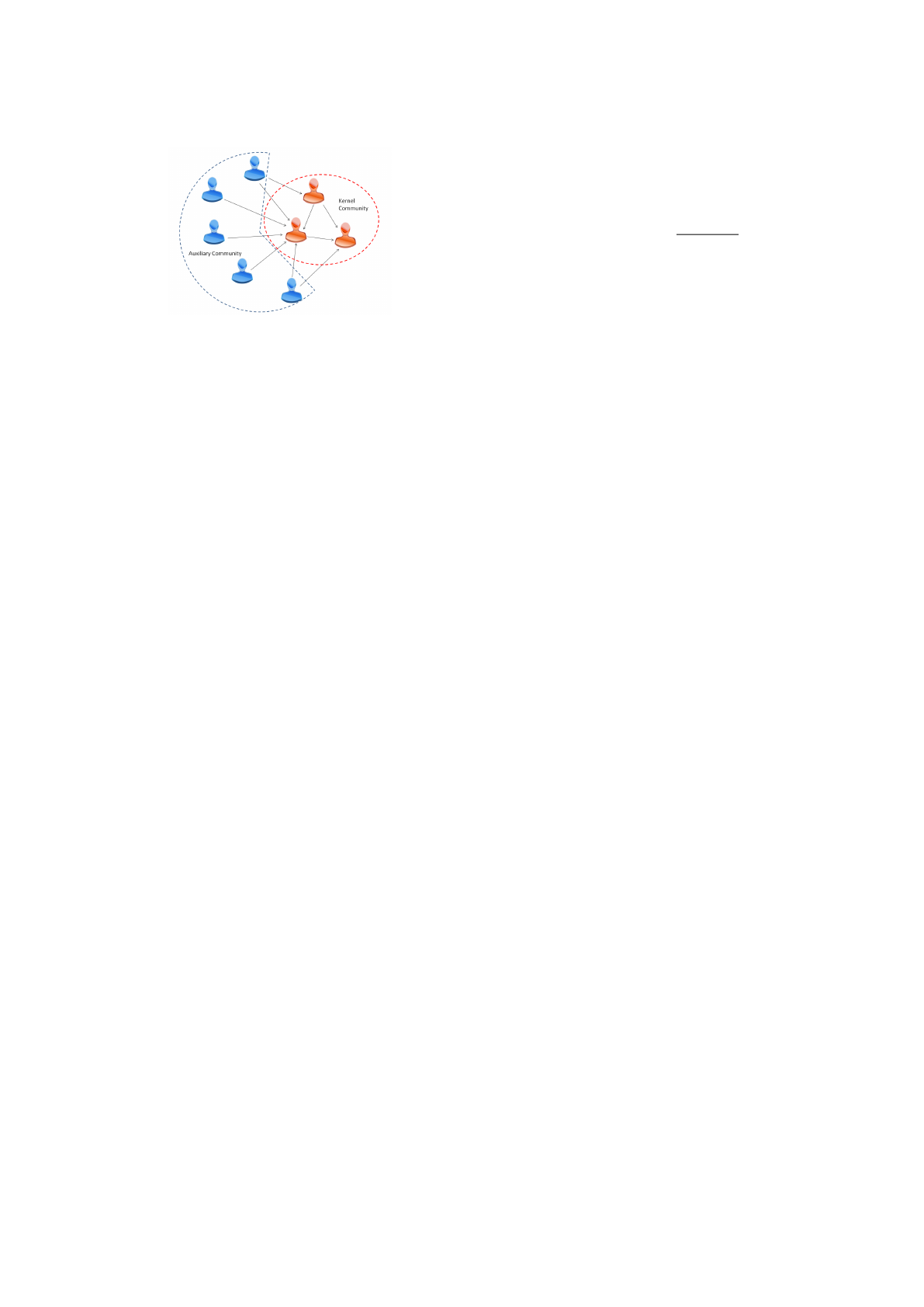

Figure 1: Example of kernel community (red members) and

auxiliary community (blue members).

3.1 Kernel Communities

In this paper, communities are assumed to be com-

posed by a kernel and an auxiliary community (see

Fig.1 for example). They are deﬁned as follows:

Def: Kernel Community. Given an oriented

graph G = (V,E), l disjoint subsets {K

,...,K

} of

vertices are called kernel communities if:

E(u,K

)

≥

E(v,K

)

∧

E(K

,u)

≥

E(K

,v)

∀i ∈ {1,...,l}, ∀u ∈ K

,∀v /∈ K

(1)

where E(A, B) = {(u,v) ∈ E|u ∈ A,v ∈ B} for A, B ⊆

V .

Def: Auxiliary Community. Given a set

of kernel communities K, l associated subsets

,...,A

} of vertices are called auxiliary commu-

nities if:

• A

∩ K

= ∅,∀i ∈ {1,...,l};

•

E(v,K

)

≥



E(v,K

)



∀i ∈ {1,...,l}, ∀ j 6= i, ∀v ∈ A

;

•

E(A

)

≥

E(K

)

,∀i ∈ {1,...,l}.

For any i ∈ {i,...,l}, each vertex in K

is a kernel

member and each vertex in A

is an auxiliary mem-

ber.

3.2 Node Attributes

In this paper we consider node attributes as additional

information for detecting communities in networks.

In order to model this information, we introduce a

function τ(u) : u → t

which maps a network user

u ∈ V to its feature vector representation t

as:



,...,t

|F|



(2)

where |F| is the number of attributes shared by

all the users. In our case, attributes can represent any

kind of information related to the user (gender, age,

job titles, etc.), denoted by binary values.

For any u, v ∈ V represented as in Eq. 2, we derive

a similarity matrix M, with |M| = |V | × |V |, deﬁned

as follows:

u,v

= cos(t

) =

< t

·t

k · kt

(3)

4 ALGORITHM

In order to overcome the limitations of the approaches

reported in Sec. 2, we propose an extended and re-

vised version of the kernel-based community detec-

tion algorithm WEBA, presented in (Wang et al.,

2011).

This baseline algorithm consists of three main

steps:

• A Greedy approach based on maximum cardinal-

ity search, aimed at ﬁnding l kernels nodes for

each community with dense internal connections

allowing also dense external relations;

• A Weight-balanced heuristic (WeBA) to tune the

solution ﬁnd by Greedy in order to revise the

initial community of kernels taking into account

information provided by the connection of non-

kernel members;

• An Auxiliary Community Detection approach to

ﬁnd the auxiliary communities: it associates at

each node a ranked list of kernels (kernel-based

association).

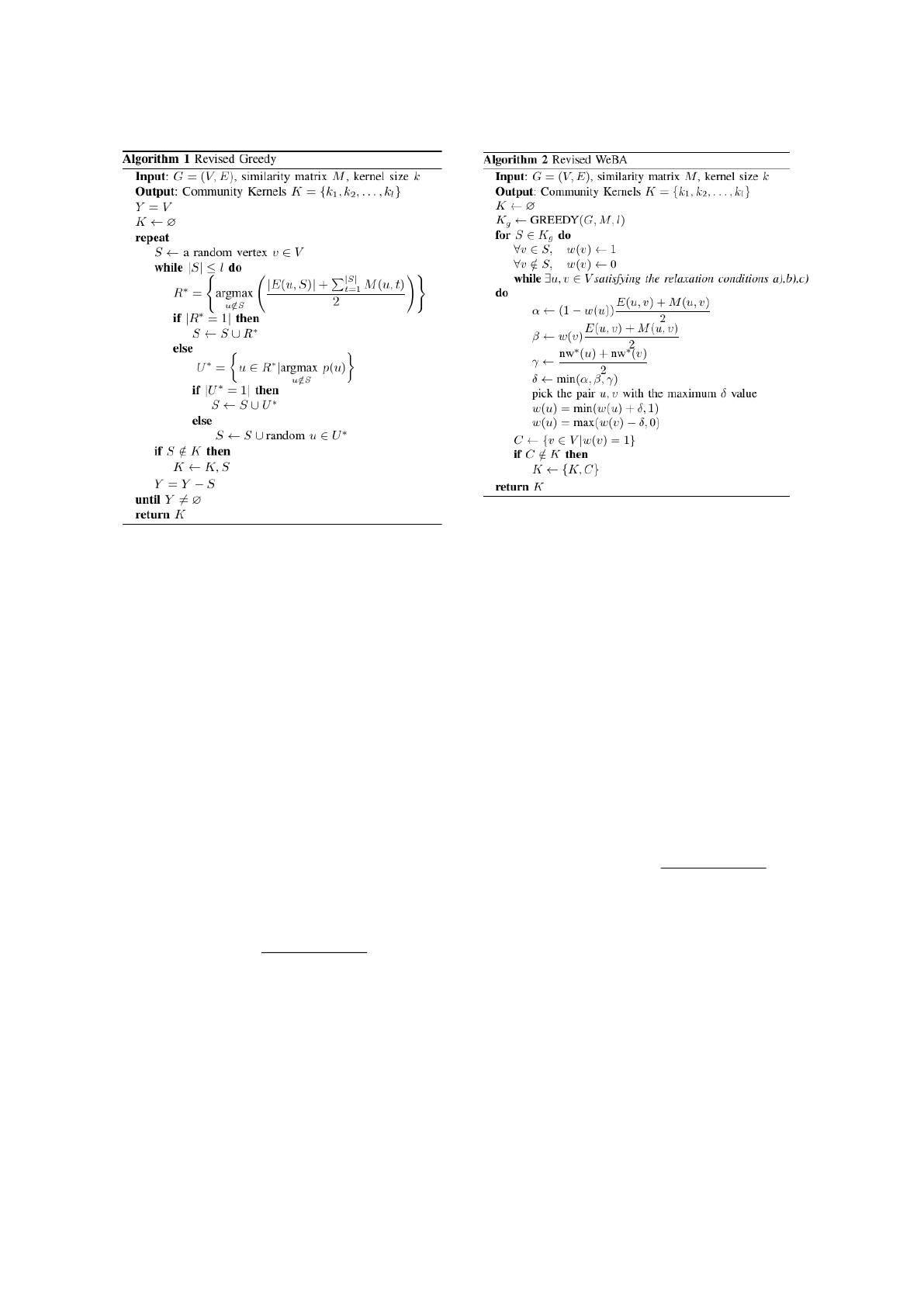

In the following we detail the novel methods pro-

posed in this paper: ﬁrst, we describe the new Greedy

and WeBA algorithm for exploiting node attributes in

the detection of kernel communities; then, we intro-

duce a variant of the Auxiliary Community Detection

method that can detect overlapping communities.

4.1 Community Detection with Node

Attributes

A major limit of the existing algorithm is its inabil-

ity to take into account all the sources of information

available in the networks. Speciﬁcally, node attributes

can be considered to improve the performance of the

community detection task.

In order to improve the original algorithm shown

in (Wang et al., 2011), we separately modify the pro-

cedures for Greedy and WeBA as following:

Greedy. Given an undirected graph G = (V,E)

and kernel size k, initialize a subset S ⊆ V to be a

random vertex v ∈ V . Then, iteratively enlarge S by

adding the vertex with the maximum number of con-

nections to S. If there are multiple vertices with the

Overlapping Kernel-based Community Detection with Node Attributes

519

Figure 2: Pseudocode for the revised Greedy algorithm.

maximum number of connections to S, pick the one

with the highest degree d(u) =

∑

v∈V

E(u,v) (if there

are several nodes with the same highest degree, ran-

domly pick one of them). This subroutine is repeat-

edly executed O(|V |/k) times to obtain steady-state

results and reduce the effect of the random selection

of the initial point.

This original Greedy algorithm has been extended

in order to take into account content similarity of

nodes. The proposed algorithm takes as additional

input the similarity matrix M (deﬁned in Eq. 3), to

evaluate how close are the attributes of each couple

of nodes. When the algorithm selects a vertex u as

kernel node, it will evaluate not only the number of

edges d(u), but also the similarity of contents among

u and all the other kernel members already assigned to

the same kernel community. In particular, instead of

evaluating only the degree d(u) as indication of node

importance, we deﬁne p(u) as:

p(u) =

∑

v∈V

E(u,v) + M(u, v)

(4)

The pseudo-code is reported in Fig.2.

WeBA. Starting from the initial result generated

by the Greedy algorithm, the kernels are reﬁned

and optimized by the Weighted-Balanced Algorithm

(WEBA). Given a kernel size l and an initial subset

S to reﬁne, the original WeBA algorithms assigns a

weight w(v) = 1 to each vertex v ∈ S, and a weight

w(v) = 0 to each vertex v /∈ S. Let N(v) be the set of

Figure 3: Pseudocode for the revised WeBA algorithm.

neighboring vertices of v, i.e. N(v) = {u ∈ V |(u,v) ∈

E}. Then, at each iteration, the algorithm searches

for a pair of vertices u,v ∈ V satisfying both of the

following relaxation conditions:

a) w(u) < 1

b) w(v) > 0

c) nw(u) > nw(v)

where nw(u) is the neighboring weight of u, i.e.

nw(u) =

∑

v∈N(u)

w(v) · E(u, v).

Similarly to Greedy, also WeBA has been ex-

tended in order to deal with the content similarity.

In order to include it, we consider the neighboring

weight according to both links and content similarity:

∗

(u) =

∑

v∈N(u)

w(v) ·

E(u,v) + M(u, v)

(5)

The pseudocode for the revised WeBA is reported

in Fig. 3.

4.2 Overlapping Auxiliary

Communities

The detection of auxiliary communities has been re-

vised and improved to allow auxiliary communities to

overlap. Given a node v, the proposed approach takes

into account a popularity measure relative to v when

choosing the auxiliary community A

. In particular,

v is associated to A

if two conditions are satisﬁed:

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

520

Figure 4: Pseudocode for the revised Auxiliary Community

detection algorithm.

• v is the node with the highest number of edges

pointing to the community C

}, i.e.

|E(v,C

)| ≥ |E(v,C

)| for j 6= i (6)

• There is no other node u /∈ C

such that u has more

edges pointing to all the communities C

than v,

i.e.

∑

n=1

|E(v,C

)| ≥

∑

n=1

|E(u,C

)| (7)

While the ﬁrst condition was included in the orig-

inal version of the algorithm, the second one ensures

that we consider ﬁrst the nodes having a higher num-

ber of connections (as indication of popularity) to all

the communities.

If both conditions are satisﬁed for more than one

community C

, the node is associated to all of the cor-

responding A

In Fig. 4 we report the pseudocode for the algo-

rithm.

The ﬁnal communities C

will be formed by the

association of the kernel community K

with the cor-

responding auxiliary community A

5 EXPERIMENTAL SETTINGS

Datasets Description. In order to evaluate the perfor-

mance of the proposed kernel-based community de-

tection method, we considered three benchmarks used

in the state of the art:

• Philosophers. The philosophers network (Ahn

et al., 2010) consists of Wikipedia articles about

famous philosophers. Nodes represent Wikipedia

articles about philosophers, and directed edges in-

dicate whether one article links to another. The

Table 1: Datasets statistics. N: number of nodes, E: number

of edges, C: number of communities, K: number of node

attributes, S: average community size, A: community mem-

bership per node.

Dataset N E C K S A

Philosophers 1546 7971 907 5770 6,86 6,87

Twitter 125120 2248406 3140 33569 15,54 0,39

Facebook 4089 170174 193 175 28,76 1,36

attributes of a given node u are represented by a

binary indicator vector of out-links from node u

to other non-philosopher Wikipedia articles (e.g.

if a philosopher page links to a Wikipedia article

”Mathematician”, the binary value of the attribute

”Mathematician” for the corresponding philoso-

pher will be equal to one). The Wikipedia network

is formed by 1546 nodes and 7971 edges.

Moreover, Wikipedia provides categories (e.g.

”Hindu philosophers”, or ”Austrian psycholo-

gists”) for each article. We consider each category

with more than ﬁve philosophers as a ground-truth

community, obtaining a total of 907 overlapping

communities.

• Twitter. The Twitter network is a ego-network

available from the Stanford Large Network

Dataset Collection (http://snap.stanford.edu/data)

(Leskovec and Mcauley, 2012). The ground truth

communities are obtained from Twitter ”lists”

manually labeled by the owner of the ego-network

(only a subset of the nodes will belong to a com-

munity). Node attributes are deﬁned by process-

ing the tweets (posts) generated by each user of

the network. We use a ”bag of words” represen-

tation, where each binary attribute indicates that

a speciﬁc word appeared in the user’s tweets. In

particular, we consider only speciﬁc words called

”hashtags”, i.e. words appearing in the tweets pre-

ceded by the character ”#”. The network contains

a total of 125120 nodes and 2,248,406 edges, and

a total of 3,140 communities.

• Facebook. Like the Twitter network, the Face-

book network is composed of ego-networks from

the Stanford Large Network Dataset Collection

(Leskovec and Mcauley, 2012). Node attributes

are extracted from user proﬁles, such as gender,

job titles, institutions, etc. Ground truth commu-

nities have been manually labeled by the owner

of the ego-network, and represent his ”social cir-

cles”. The size of the full network is 4089 nodes

and 170174 edges, with 193 communities.

The statistics related to the benchmarks are re-

ported in Table 1.

Baseline for Comparison. In order to investigate

whether overlapping communities and node attributes

Overlapping Kernel-based Community Detection with Node Attributes

521

can aid the community detection task, we perform a

comparative analysis with the following algorithms:

• Standard Greedy-WeBA Algorithm. We ﬁrst

test the performance of the original algorithm,

without node attributes and with non-overlapping

auxiliary community detection.

• Overlapping Greedy-WeBA. The second algo-

rithm is the original version of Greedy-WeBA, but

with the addition of our algorithm for detecting

overlapping auxiliary communities.

• Overlapping Greedy-WeBA with Node At-

tributes. Finally, we test the complete version of

our method, considering both overlapping com-

munities and the availability of node attributes.

Evaluation Metrics We quantify the performance

in terms of the agreement between the ground-truth

communities and the communities detected by the al-

gorithms. As some datasets contain nodes not be-

longing to any community, we do not include them

when computing the performance. To compare a set

of ground truth communities C

∗

to a set of detected

communities C, we use the following measures: Pre-

cision (P), Recall (R) and F-Measure (F) (Eq. 8-10),

which evaluate the number of correct pairs of vertices

clustered into the same community kernel.

P(C

∗

) =



∗

∩C



(8)

R(C

∗

) =



∗

∩C



∗



(9)

F(C

∗

) =

2 × P(C

∗

) × R(C

∗

)

P(C

∗

) + R(C

∗

)

(10)

Moreover, we consider Jaccard Index (J) to mea-

sure the pairwise resemblance of C with C

∗

(Eq. 11).

J(C

∗

) =



∗

∩C



∗

∪C



(11)

Finally, we introduce an index, based on the Jac-

card measure, that evaluates the percentage of ground

truth communities that have been successfully asso-

ciated to the generated communities. This measure,

called Equivalence (Q), takes value in the range [0, 1]

and is deﬁned as follows:

Q(C,C

∗

) =

∗



(

argmax

∗

∈C

∗



∗



,∀C

∈ C

)



(12)

6 RESULTS

In this section we report the detailed results of our ex-

perimental investigation. In the ﬁrst part of the section

we describe a sensitivity analysis of the considered al-

gorithms. In the second part, we report the best results

obtained by each algorithm for the datasets shown in

Sec. 5.

6.1 Sensitivity Analysis

The number of communities to be detected in the net-

work depends on the parameter k, that regulates the

number of kernel members of each community. In

order to evaluate the performance of the algorithms

varying the parameter k, a sensitivity analysis has

been performed. In Fig. 5 we report the results of our

analysis, performed on the Philosophers dataset, com-

puted in terms of Equivalence (as detailed in Eq. 12).

We can see that, in general, all three algorithms show

their best performance when the kernel size k is small.

In particular, for Standard and Overlapping the

performance decreases sharply for k ≥ 7, indicating

that the nodes forming a kernel are usually very few.

When we consider node attributes, however, the per-

formance remains high for a larger value of k. This

behavior is mainly due to the attribute similarities

considered as ”textual relationships” between nodes.

These ”relationships” derived by the textual similarity

usually outnumber structural relationships, therefore

leading to larger kernels. However, the performance

starts dropping since k = 6, a value consistent with the

result obtained by the other two algorithms.

An analogous sensitivity analysis has been per-

formed on the other two benchmarks. It emerges

that, also for bigger datasets, the number of kernel

members are quite low. The results of this sensitiv-

ity analysis suggests that the experiments should be

performed considering a small kernel size, within the

range of 3-6 nodes.

6.2 Comparative Results

We perform experiments on the three benchmarks

starting from the conclusions drawn from the sensi-

tivity analysis step.

In Table 2 we report the results relative to the ﬁrst

dataset. In order to make the results comparable, we

run the three algorithms with a kernel size k = 3,

which has been previously proven as a good value

for all three algorithms. In this case, the equivalence

measure highlights a performance of 7, 12 ± 1, 97 for

the Standard algorithm, 87,21 ± 2,71 for Overlap-

ping Greedy-WeBA, and 90,91 ± 3,95 for Overlap-

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

522

Table 2: Performance results on the Philosophers dataset. Best results for each row are marked in bold.

Measures Standard Greedy-WeBA Overlapping Greedy-WeBA Overlapping Greedy-WeBA with Node-Attributes

Recall (average) 39,05 ± 3,41 30,95 ± 0,77 44,30 ± 1,39

Precision (average) 16,25 ± 2,27 48,35 ± 1,44 35,77 ± 0,99

F1 Score (average) 21,66 ± 2,31 32,41 ± 0,47 36,44 ± 1,77

Jaccard Index (average) 12,20 ± 1,47 20 ± 0,42 23,08 ± 0,81

Table 3: Performance results on the Twitter dataset. Best results for each row are marked in bold.

Measures Standard Greedy-WeBA Overlapping Greedy-WeBA Overlapping Greedy-WeBA with Node-Attributes

Recall (average) 31,61 ± 1,36 58,22 ± 2,75 47,51 ± 2,93

Precision (average) 19,96 ± 0,98 31,73 ± 1,14 40,10 ± 1,12

F1 Score (average) 24,43 ± 3,01 32,47 ± 2,53 36,04 ± 2,37

Jaccard Index (average) 10,98 ± 0,89 19,74 ± 0,77 22,53 ± 1,01

Figure 5: Sensitivity analysis for the three algorithms on

Philosophers dataset.

ping Greedy-WeBA with Node Attributes. The ﬁrst

thing we can observe is a large increment in the equiv-

alence measure when adding overlapping communi-

ties. This effect can be explained by the number of

communities detected by the original Greedy-WeBA

algorithm, which is very low compared to the number

of ground truth communities. A similar behaviour can

be observed for all the other measures: the introduc-

tion of overlapping communities in the algorithm lead

to a better performance in terms of F-Measure (from

22% to 32%) and Jaccard index (from 12% to 20%).

When considering node attributes, we can observe

that the equivalence value is relatively unchanged (the

value increase from 87% to 90%). This means that the

addition of overlapping communities is generally suf-

ﬁcient for detecting the majority of the ground truth

communities. However, we can see that the values

of F-Measure and Jaccard score increase signiﬁcantly

(from 32% to 36%, and from 20% to 23% respec-

tively). Thus, the communities obtained by the al-

gorithm that exploits node attributes are closer to the

ground truth communities than overlapping commu-

nities only. In Table 3 and Table 4 we report the re-

sults obtained on the Twitter and Facebook datasets.

Although Overlapping Greedy-WeBA with Node At-

tributes always outperforms the other two approaches

for all the considered performance measures and for

any value of the kernel size k, we only report the re-

sults obtained for k = 3. This kernel size has been

selected because it provides a good tradeoff between

performance and computational cost for the three al-

gorithms.

We can observe that the results for Twitter and

Facebook are consistent with those obtained on the

Philosophers dataset. Allowing overlapping commu-

nities strongly improves the performance of the algo-

rithm for both datasets (+8% and +7% for F-Measure,

and +9% and +%7 for Jaccard index). This con-

ﬁrms that this improvement is essential when deal-

ing with online social networks, whose users usually

belong to multiple communities. The performance

improvement obtained by considering node attributes

together with overlapping communities is higher on

the Facebook dataset than the Twitter one. This be-

havior is mainly related to the nature of the node at-

tributes that have been considered. While Twitter at-

tributes are related to words used by the social net-

work users in their posts, Facebook attributes are re-

lated to their personal information (school institution,

name of the company where they work, etc.) which

may be more informative when determining the com-

munity to which they belong. The increment in the

Twitter dataset, however, suggests that node attributes

play a fundamental role even when they are obtained

from a noisy source of information like user generated

posts.

7 CONCLUSION

In this paper we introduced a kernel-based commu-

nity detection algorithm that can discover overlap-

ping communities using both the network structure

and node attributes. The comparison with the base-

line algorithm shows that the ability to ﬁnd overlap-

Overlapping Kernel-based Community Detection with Node Attributes

523

Table 4: Performance results on the Facebook dataset. Best results for each row are marked in bold.

Measures Standard Greedy-WeBA Overlapping Greedy-WeBA Overlapping Greedy-WeBA with Node-Attributes

Recall (average) 27,85 ± 2,01 40,02 ± 1,92 55,60 ± 2,47

Precision (average) 32,10 ± 3,30 37,16 ± 3,05 48,75 ± 2,99

F1 Score (average) 29,80 ± 1,40 36,45 ± 1,73 51,99 ± 1,54

Jaccard Index (average) 17,48 ± 0,78 22,64 ± 1,66 35,19 ± 1,44

ping communities is fundamental for detecting the

correct groups of users in social networks, where of-

ten users can belong to several social circles (due to

various interests, hobbies or relationships). Moreover,

we showed that the inclusion of node attributes can

provide important additional information, leading to

results which better ﬁt the real communities.

There are several possible directions for future

work. For instance, we would like to improve the cur-

rent algorithm by including a method for automatic

inferring the best kernel-size. Moreover, we would

like to study how the community kernels change di-

namically over time, and how this affects auxiliary

communities.

REFERENCES

Ahn, Y.-Y., Bagrow, J. P., and Lehmann, S. (2010). Link

communities reveal multiscale complexity in net-

works. Nature, 466(7307):761–764.

Chang, J. and Blei, D. M. (2009). Relational topic models

for document networks. In International Conference

on Artiﬁcial Intelligence and Statistics, pages 81–88.

Donetti, L. and Munoz, M. A. (2004). Detecting network

communities: a new systematic and efﬁcient algo-

rithm. Journal of Statistical Mechanics: Theory and

Experiment, 2004(10):P10012.

Du, N., Wu, B., Pei, X., Wang, B., and Xu, L. (2007). Com-

munity detection in large-scale social networks. In

Proceedings of the 9th WebKDD and 1st SNA-KDD

2007 workshop on Web mining and social network

analysis, pages 16–25. ACM.

unnemann, S., Boden, B., F

arber, I., and Seidl, T. (2013).

Efﬁcient mining of combined subspace and subgraph

clusters in graphs with feature vectors. In Advances in

Knowledge Discovery and Data Mining, pages 261–

275. Springer.

Gunnemann, S., Farber, I., Boden, B., and Seidl, T. (2010).

Subspace clustering meets dense subgraph mining: A

synthesis of two paradigms. In Data Mining (ICDM),

2010 IEEE 10th International Conference on, pages

845–850. IEEE.

Leskovec, J., Lang, K. J., Dasgupta, A., and Mahoney,

M. W. (2008). Statistical properties of community

structure in large social and information networks. In

Proceedings of the 17th international conference on

World Wide Web, pages 695–704. ACM.

Leskovec, J. and Mcauley, J. J. (2012). Learning to discover

social circles in ego networks. In Advances in neural

information processing systems, pages 539–547.

Liu, Y., Niculescu-Mizil, A., and Gryc, W. (2009). Topic-

link lda: joint models of topic and author community.

In proceedings of the 26th annual international con-

ference on machine learning, pages 665–672. ACM.

Mishra, N., Schreiber, R., Stanton, I., and Tarjan, R. E.

(2008). Finding strongly knit clusters in social net-

works. Internet Mathematics, 5(1-2):155–174.

Newman, M. E. (2004a). Detecting community struc-

ture in networks. The European Physical Journal B-

Condensed Matter and Complex Systems, 38(2):321–

330.

Newman, M. E. (2004b). Fast algorithm for detecting

community structure in networks. Physical review E,

69(6):066133.

Newman, M. E. (2006a). Finding community structure in

networks using the eigenvectors of matrices. Physical

review E, 74(3):036104.

Newman, M. E. (2006b). Modularity and community

structure in networks. Proceedings of the National

Academy of Sciences, 103(23):8577–8582.

Papadimitriou, S., Sun, J., Faloutsos, C., and Philip, S. Y.

(2008). Hierarchical, parameter-free community dis-

covery. In Machine Learning and Knowledge Discov-

ery in Databases, pages 170–187. Springer.

Papadopoulos, S., Kompatsiaris, Y., Vakali, A., and Spyri-

donos, P. (2012). Community detection in social

media. Data Mining and Knowledge Discovery,

24(3):515–554.

Rosvall, M. and Bergstrom, C. T. (2007). An information-

theoretic framework for resolving community struc-

ture in complex networks. Proceedings of the Na-

tional Academy of Sciences, 104(18):7327–7331.

Wang, L., Lou, T., Tang, J., and Hopcroft, J. E. (2011). De-

tecting community kernels in large social networks. In

Data Mining (ICDM), 2011 IEEE 11th International

Conference on, pages 784–793. IEEE.

Xie, J. and Szymanski, B. (2012). Towards linear time over-

lapping community detection in social networks. In

Tan, P.-N., Chawla, S., Ho, C., and Bailey, J., editors,

Advances in Knowledge Discovery and Data Mining,

volume 7302 of Lecture Notes in Computer Science,

pages 25–36. Springer Berlin Heidelberg.

Yang, J. and Leskovec, J. (2013). Overlapping community

detection at scale: A nonnegative matrix factorization

approach. In Proceedings of the Sixth ACM Interna-

tional Conference on Web Search and Data Mining,

WSDM ’13, pages 587–596. ACM.

Yang, J., McAuley, J., and Leskovec, J. (2013). Community

detection in networks with node attributes. In Data

Mining (ICDM), 2013 IEEE 13th International Con-

ference on, pages 1151–1156. IEEE.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

524
