Facilitating Ontology Co-evolution with Ontology Instance Migration

Mark Fischer and Juergen Dingle

Queen’s University, Kingston, Ontario, Canada

Keywords:

Ontology, Knowledge Base, Migration, Instance, Co-evolution, Alignment.

Abstract:

An ontology is typically deﬁned in terms of some vocabulary that is deﬁned using other ontologies. When the

vocabulary changes, it is important for a dependent ontology to evolve in a consistent manner. Automating

the migration of ontologies based on changes to their vocabulary is requisite to proper adoption of ontologies

for varying ﬁelds of use. Oital is a transformation language capable of automatically migrating dependent

ontologies. It helps make ontologies easier to maintain as they evolve.

1 INTRODUCTION

As the information gathered and stored by comput-

ers grows, so too do the beneﬁts of being able to for-

mally represent that data. Ontologies are the forerun-

ner technology being used to give information extra

semantic meaning. Ontologies help limit complexity

and organize information so that it can then be applied

to problem solving.

Predicting how an ontology may evolve or change

in the future is a non-trivial problem that may be in-

feasible to solve. Each alteration in an ontology may

result in inconsistencies for any ontologies which im-

port the changed ontology’s vocabulary (Stojanovic

et al., 2002). As ontologies become more ubiquitous,

the beneﬁts from being able to effectively and consis-

tently keep dependant ontologies up to date increase

as well.

Figure 1 demonstrates the problem and a possible

solution. The original ontology evolves to become

the updated ontology. Any ontologies (I

, I

, ..., I

)

which depend on the original ontology might require

a migration. The solution being suggested here is to

create a transformation language which will perform

the migration automatically.

Currently, this problem is often solved by hand-

crafting SPARQL-Update statements designed to

make the necessary alterations to the dependant on-

tologies. Working at a different level of abstraction

while creating these transformations increases difﬁ-

culty as the user must be aware of how ontologies are

This work was partially funded by NSERC (Canada),

as part of the NECSIS Automotive Partnership with General

Motors, IBM Canada and Malina Software Corp.

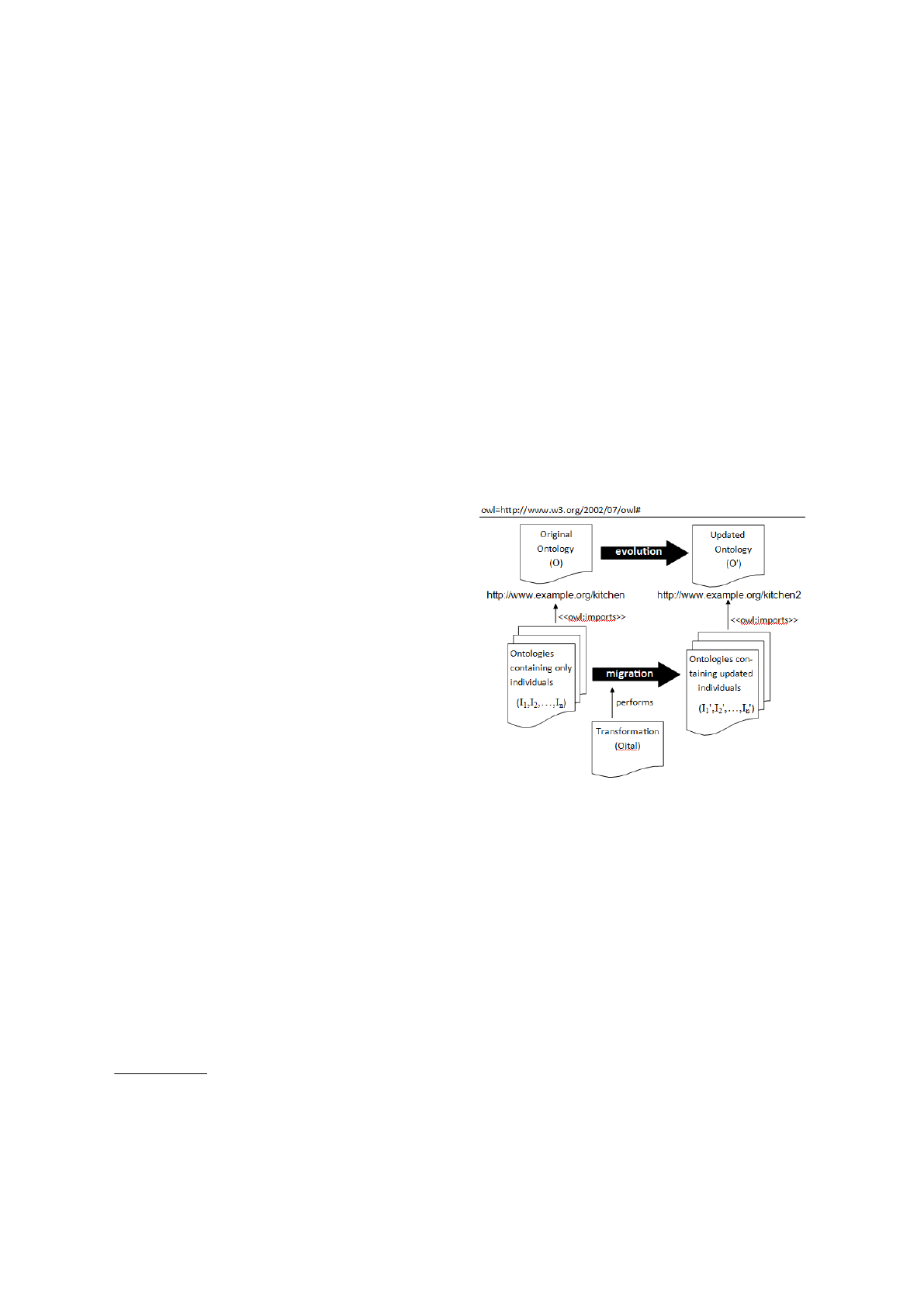

Figure 1: An overview of the problem setup.

serialized as RDF. Direct changes to the underlying

RDF may result in extra and unwanted artifacts being

left behind in the RDF graph.

The main contribution of this approach is twofold.

First is the way in which it helps to automate the

migration process. This is done by aiding the user

in the creation of a transformation which unambigu-

ously deﬁnes how to perform a migration for any pos-

sible dependent ontology. Second, it distinguishes it-

self from similar approaches through the creation of a

domain speciﬁc language at the same level of abstrac-

tion as the ontology being modiﬁed.

1.1 Terminology

In OWL, the separation of class and properties (termi-

nology) from individuals and relations (assertions) is

Fischer, M. and Dingle, J..

Facilitating Ontology Co-evolution with Ontology Instance Migration.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 2: KEOD, pages 441-446

ISBN: 978-989-758-158-8

441

expressed using axioms and facts. In relation to ﬁgure

1, I

through I

are all a series of facts with an inclu-

sion reference to O while O and O

both consist of a

series of axioms (possibly with inclusion references

to other ontologies).

Any given terminology or axiom within an ontol-

ogy may either restrict to or add to the ontology. Re-

strictive axioms add further clariﬁcation to the infor-

mation encoded in an ontology (such as holdsVolume

exactly 1 in ﬁgure 2) while additive axioms broaden

the scope of the information (such as the creation of a

new class).

An axiom is deﬁned either in terms of fundamen-

tal parts of an ontology (any axiom predeﬁned within

OWL, for example) or in terms of already deﬁned ax-

ioms within the ontology.

An axiom’s context is a set of axioms that is re-

cursively deﬁned. Let U ses(a) be the set of all ax-

ioms that a refers to (uses) and let Pre be the set of

all predeﬁned axioms in OWL. The context a

∗

of a is

deﬁned to be the smallest set of axioms satisfying:

• a ∈ a

∗

, and

• c ∈ a

∗

, if ∃b | (b ∈ a

∗

∧ c ∈ U ses(b) ∧ c 6∈ Pre)

In other words, the context relation is the reﬂex-

ive, transitive closure of the Uses relation over non-

predeﬁned axioms. For the sake of analysis, all pre-

deﬁned axioms are assumed not to change and are

therefore not helpful when contrasting evolving on-

tologies.

What is important about an axiom’s context is that

it represents the smallest set of auxiliary axioms re-

quired in an ontology before the axiom can be con-

sidered semantically equivalent with another axiom

regardless of the rest of the ontology. If both O and

contain a

∗

then we know that the axiom a in O is

not only syntactically the same, but also semantically

the same as the axiom c in O

An inconsistent ontology is one which contains

two statements that contradict one another. This pa-

per introduces the concept of an incongruent ontol-

ogy. An ontology is incongruent if it is inconsis-

tent or if it contains facts which can be used to in-

fer axioms within the ontology that are not already

present. Since separating axioms from facts is com-

mon practice when designing and building ontologies

(Gangemi and Presutti, 2009), an incongruent ontol-

ogy is a sign that this separation of concerns has been

breached.

2 METHODOLOGY

Creating the transformation that performs the instance

migration can be broken down into three distinct

phases which can be reused throughout the develop-

ment process.

When creating a transformation, it is important

to understand how the ontology in question has been

changed. This can be done through a change-log cre-

ated by the individuals updating the ontology, but it

is still generally a good idea to have a way in which

to compare the original and updated ontology. There-

fore the ﬁrst phase deals with comparing ontologies

(e.g., O and O

). There are tools designed to display

the differences between ontologies, but since the ex-

pected use case is well deﬁned, there is a less general

way of comparing which gives results tailored toward

the speciﬁc problem being addressed.

The second phase is the creation of the transfor-

mation itself. It should be as simple as possible both

to increase usability and to boost adoption. The lan-

guage being suggested as a solution here is called

Oital. The completion of this phase results in a ﬁn-

ished and working transformation. Therefore, phase

2 relies on results from phase 1 and phrase 3. The

completed Oital script should be able to be run any

number of times to migrate any number of instances

from O to O

In order to determine if part or all of the transfor-

mation that has been created is working as expected,

it is important to be able to analyse the transforma-

tion. Discovering which parts of the transformation

may require more work is key to quickly creating a

trustworthy script.

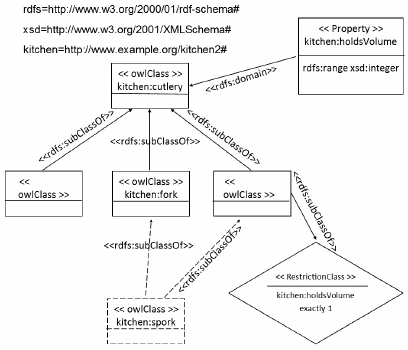

Figure 2: Kitchen example ontology and a possible evolu-

tion ontology. Solid components and their labels are from

the original ontology while both solid and dashed compo-

nents are from the evolved ontology.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

442

Table 1: Overview of which axioms require further investi-

gation with respect to speciﬁc regions as outlined in Figure

3. Incongruent and semantically ambiguous axioms must

be investigated by the user.

Restrictive

Axiom (and

its context)

Additive

Axiom (and

its context)

Region 1 OK Incongruent

Region 2 OK OK

Region 3 OK OK

Region 1 & 2 Ambiguous Incongruent

Region 2 & 3 Incongruent Ambiguous

2.1 Phase 1: Comparing the Original

and Updated Ontologies

Since the logical formalism used by the Web Ontol-

ogy Language (OWL) is a description logic, we use

the structure of OWL’s underlying description logic

as a basis for our comparison.

This comparison focuses only on axioms within

the ontologies. The goal is to extract only those ax-

ioms which may be important for the migration of in-

dividuals. Changes which do not affect possible in-

dividuals within dependant ontologies can be safely

ignored.

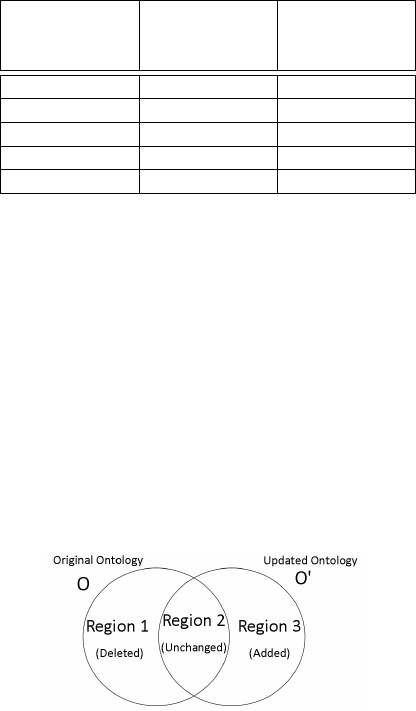

Figure 3: Venn Diagram of two ontologies. Diagram labels

the three regions where an axiom may be found.

Figure 3 depicts three regions in which an axiom

may exist. Region 1 describes axioms which can be

found in O and not in O

(deleted axioms), region 2

describes those axioms which can be found in both O

and O

(unchanged axioms), and region 3 describes

axioms which cannot be found in O but can be found

in O

(new or added axioms).

As shown in table 1, axioms being analysed can

be labelled depending on whether they are restrictive

or additive as well as which region of ﬁgure 3 they

belong to. The way in which these labels are applied

can be explained using a few categorisations:

1. Any axiom a whose context is entirely in region

3 cannot be the cause of any incongruencies. Re-

gion 3 represents those axioms which are entirely

unique to the updated ontology. If the axiom (and

its context) are new, they will not be related to

any individuals within the original ontology. The

same rule applies to region 2. For any a such that

∗

is entirely in Region 2, a cannot cause incon-

gruencies. Region 2 means the axiom exists in

both the updated and original ontology. Those

parts of the original ontologies which remain un-

changed will continue to describe individuals in

dependant ontologies the same way they always

have.

2. Axioms in region 1 are labelled depending on

whether they are additive or restrictive axioms. If

the axiom is restrictive, removing the restriction

will not cause any incongruencies. If the axiom is

additive, then its removal may be problematic.

For example, removing the fork is a subclass of

cutlery axiom from the kitchen ontology in ﬁgure

2 results in any facts which state that an individual

fork holds a speciﬁc volume causing the ontology

to become incongruent. cutlery.

3. If an axiom and its context a

∗

exist within more

than one region, that axiom is likely signiﬁcant.

If a

∗

straddles region 1 and region 2, this gener-

ally means that the part of the ontology that was

removed requires the remaining parts of the ontol-

ogy to be restructured a bit. If a

∗

straddles region

2 and region 3, this generally means that part of

the new ontology that was newly created affects

parts of the ontology that already existed. The ad-

dition of a restriction class is one such example.

In either case, the axiom may create incongruen-

cies or may be semantically ambiguous in terms

of how affected individuals are meant to be mi-

grated.

2.2 Phase 2: Developing Parts of the

Transformation

Analysis of the original and updated ontologies does

not yield enough information to be able to fully au-

tomate the co-evolution process. As will be shown,

there are possible evolution paths for an ontology

which require human input before a migration can be

completed. A transformation is used so that all the

necessary extra input can be gathered before the mi-

gration process begins.

Comparing the original and updated ontology will

only reveal the differences and cannot, inherently, de-

termine the reasoning behind the changes that were

made. This meta-data is important for the creation

of the transformation and the execution of the migra-

tion. It is important to understand the purpose of each

change as well as how those changes are meant to af-

Facilitating Ontology Co-evolution with Ontology Instance Migration

443

fect the individuals within dependant ontologies.

When a new class or property is introduced, how

this is dealt with during migration depends on the

reasoning behind the introduction to the evolved on-

tology. If, for example, the new class or property

is created from the merger of two deleted classes or

properties, then individuals from the deleted elements

should be migrated to the new class or given the new

property.

Comparing O and O

depicted in ﬁgure 2 uncovers

a difference for which there is more than one possible

desired migration. The evolution in ﬁgure 2 shows

the creation of a new class called a spork. There is

more than one possible reason for why this class was

created. Each reason requires a different action during

migration.

1. The spork class’ creation was preceded by the

creation of a new utensil called a spork. Since

the spork is new, none of the cutlery in the origi-

nal ontology is affected and no change is required

during migration.

2. The spork class was created because an analysis

of the utensil’s revealed that many of the forks

were holding a volume. Since forks which hold a

volume are undesirable, a new class is created for

them and volume-holding forks can be migrated

to this new class.

Because changes can have multiple migration

paths depending on intent, user interaction will be re-

quired during the creation of the transformation. To

express which sort of migration is desired, a trans-

formation language is used. We developed a domain

speciﬁc transformation language called Oital.

2.3 Phase 3: Analyzing the

Transformation

Once part of the transformation has been created,

analysing the transformation can help insure it is cor-

rect. Currently, the best way to test an Oital trans-

formation is to use traditional testing methods. Mi-

grating ontologies which are small enough that they

can be checked by hand (or veriﬁed using some other

method) can give the user a good sense of how well

the transformation will perform.

It should be possible to run the transformation

through a form of abstract interpretation which exe-

cutes the transformation in an abstract fashion in or-

der to collect speciﬁc information (Jones and Niel-

son, 2001). Such an analysis could, for example, an-

swer questions about how the transformation will af-

fect class membership.

2.4 About Oital

Oital is a transformation language designed speciﬁ-

cally for specifying the migration of individuals who

are conformant to O such that they become confor-

mant to O

Currently, SPARQL-Update (Prud’hommeaux,

2013) is most commonly used to perform tasks which

alter an ontology. SPARQL-Update, however, is a

query-update language for RDF. Since RDF is used

as serialization of the various ontology constructs, it

does not inherently have knowledge of what those se-

rializations represent. To use SPARQL-Update to ef-

fect change on an ontology requires an understanding

of how ontologies are serialized as RDF. Ideally a user

should be able to interact with an ontology using the

same level of design abstraction as the ontology itself.

Oital works directly with classes and properties

in the ontology instead of querying triples in a triple

store. This abstracts away from how the ontology is

serialized, or stored.

The Manchester OWL syntax was used as an in-

spiration for Oital’s syntax. The hope is that, by using

a language similar to one that has been adopted by the

World Wide Web Consortium, users will have an eas-

ier time learning the new language.

2.5 Incorporating Ontology Alignment

Tools

The 2014 Ontology Alignment Evaluation Initiative

(OAEI) had 14 participants who competed in vari-

ous ontology alignment activities(Zlatan, 2014). The

work done by some of these tools to create alignment

information between ontologies can be leveraged to

automatically generate parts of an Oital transforma-

tion.

As illustrated in Figure 4, the process of generat-

ing Oital code from alignment information discovered

by third-party tools can be integrated smoothly into

the Oital development process.

An alignment is a set of correspondences which,

in turn, can be represented as a 4-Tuple. A correspon-

dence between and entity e

(deﬁned in ontology O

)

and an entity e

(deﬁned in ontology O

) can be ex-

pressed as a 4-tuple (e

, e

, r, n) where r is a semantic

relation and n is a real-valued conﬁdence value.

Once alignment information has been extracted

from a third-party tool, it can be used to gener-

ate some basic Oital code. Consider the following

example correspondence which says that the class

HomoSapien from the anik ontology is equivalent to

the class Human from the mamk ontology:

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

444

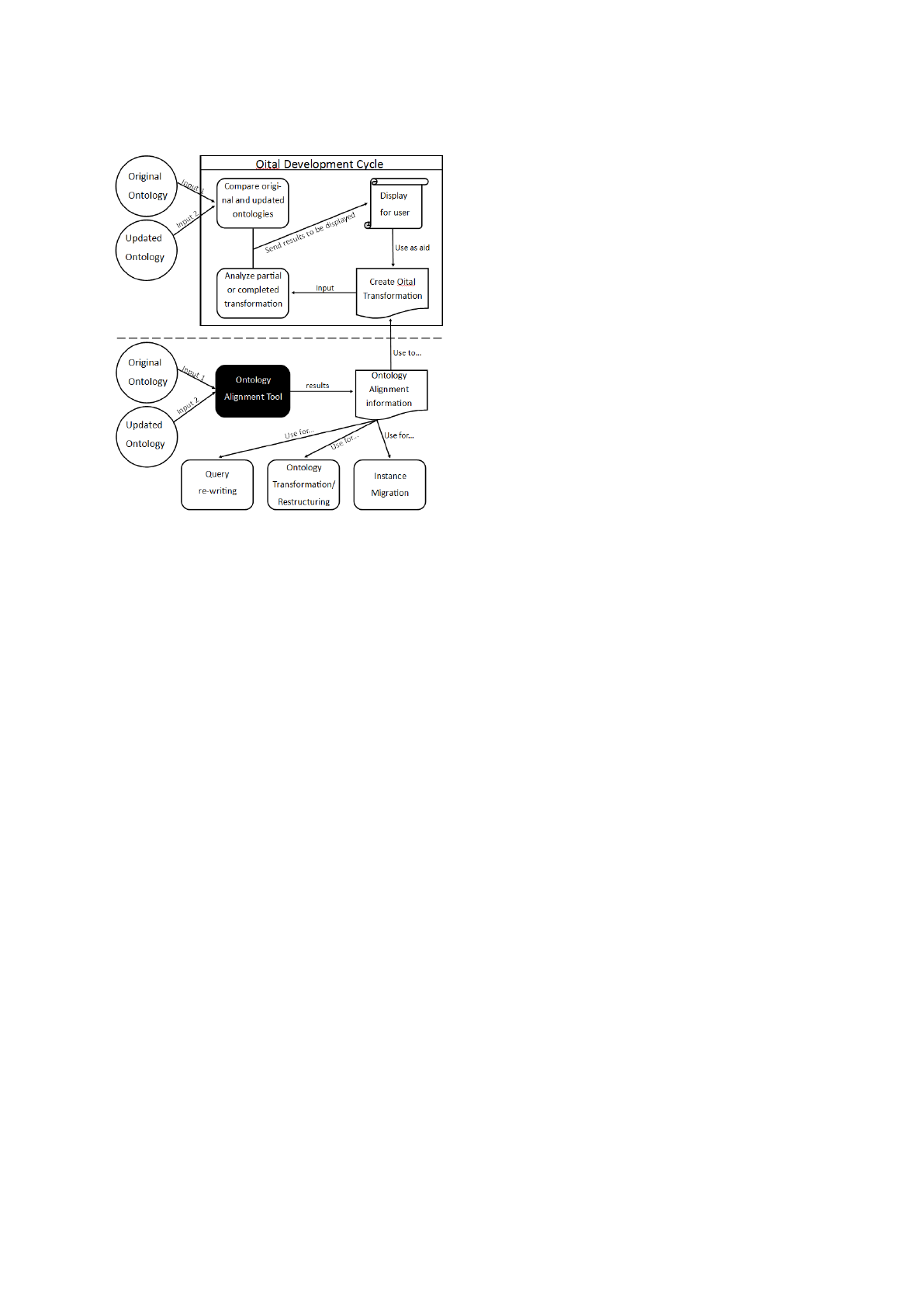

Figure 4: Visual representation of the three phases for creat-

ing an Oital transformation. Illustrates how existing ontol-

ogy alignment tools may be used to generate partial Oital

transformations without hindering the usual development

cycle of a transformation.

(anik : HomoSapien, mamk : Human, ≡, 1)

This correspondence can be used to generate an

Oital action taking all instances which are mem-

bers of anik:HomoSapien and migrating them to

mamk:Human. Similar conversions can be done with

any other relevant alignment information discovered

this way.

While a bit trickier, in theory, multiple third party

tools can be used in parallel to increase the likelihood

of discovering extra correspondences this way.

3 RELATED WORK

While little work has been done focusing on instance

migration in this way speciﬁcally, there are technolo-

gies already in use which can be used in a similar ca-

pacity.

As discussed in section 2.5, ontology alignment

tools do some of the work required for instance migra-

tion. Furthermore, RDF querying technologies such

as SPAQRL and ontology querying technologies such

as SeRQL can be re-purposed as well. Since this task

is so fundamental to the evolution and development of

ontologies, it is important to be able to simplify and

streamline instance migration as much as possible.

Ruiz et. al. (Ruiz et al., 2011) researched the im-

portance logic-based semantics of ontologies. Three

principles are discussed which should be adhered to

when trying to align.

1. Consistency principle: the alignment should not

lead to unsatisﬁable classes in the integrated on-

tology

2. Locality principle: correspondences should link

entities that have similar neighborhoods

3. Conservativity principle: the alignments should

not introduce alterations in the classiﬁcation of the

input ontologies

The notion of an incongruent ontology during mi-

gration is an altered approach to ensuring these prin-

ciples are adhered to.

Fahad et al. (Fahad et al., 2011) propose a way

of improving upon state-of-the-art ontology mapping

and merging systems by lessening the amount of re-

quired human intervention. Merging creates a map-

ping so that queries used on the updated ontology can

return results from the original ontology.

Kondylakis and Plexousakis (Kondylakis and

Plexousakis, 2013) have work which tries to sidestep

the work of developing correspondences between

merging ontologies by altering the queries given to

series of evolving ontologies. A mapping is used to

extend queries against the ontologies so that the on-

tologies are considered aligned.

Stojanovic (Stojanovic et al., 2002) proposed a

way of facilitating evolution (as well as migration)

in a semi-automated manner. Stojanovic (Stojanovic

et al., 2002) partially automates the migration pro-

cess by monitoring an ontology for changes and then

taking a user through a series of resolution points for

which an evolution strategy can be chosen. The dele-

tion of a class C, for example, may prompt the user

to deal with a series of repercussions such as what to

do with orphaned sub-concepts of C, what to do with

properties of C, what to do with inherited properties

of C, what to do with the properties whose range is C,

and so on. Instead of dealing with batch analysis of

changed ontologies as the approach described in this

paper does, Stojanovic (Stojanovic et al., 2002) fol-

lows the changes as they happen and provides more

context and intent to the changes being performed.

Much of the work done in this ﬁeld, such as (Sto-

janovic et al., 2002) relies on being able to access de-

pendent ontologies (I

, I

, ..., I

in Figure 1). Some

also depend on user involvement at the time of evo-

lution or migration which our approach does not re-

quire.

Facilitating Ontology Co-evolution with Ontology Instance Migration

445

3.1 Software Model Co-evolution and

Database Migration

The migration problem, as presented in this paper,

closely resembles the co-evolution problem found in

model driven development (MDD) work (Cicchetti

et al., 2008). Instead of dependent ontologies, MDD

seeks to co-evolve models and meta-models. When a

meta-model evolves, it becomes helpful to have tools

which help facilitate the migration of the underlying

models to the newly evolved meta-model.

The correspondence between data migration due

to database-schema evolution and instance migration

due to ontology evolution is strong. The many sim-

ilarities between the two make much of the exten-

sive research done on schema evolution relevant to the

work proposed here.

Curino et al. (Curino et al., 2013), Kondylakis and

Plexousakis (Kondylakis and Plexousakis, 2013), Fa-

had et al. (Fahad et al., 2011), and Stojanovic (Sto-

janovic et al., 2002) all discuss creating mappings

between schema, using query rewriting, and keeping

track of atomic schema changes. Each aims to make

use of these activities to achieve the task of data mi-

gration while still allowing legacy queries and without

shutting down the affected database where possible.

4 CONCLUSIONS

In this paper, we have described an approach, lan-

guage, and tool to facilitate the development of trans-

formations that migrate individuals from an original

ontology to an updated one.

The approach is based on 1) differencing the

ontologies, 2) transformation development using a

novel, domain-speciﬁc language, and 3) analysis. Fi-

nally, ontology alignment tools can be leveraged to

aid some of the development of an Oital transforma-

tion.

Vital to the efﬁcient use of an ontology is the abil-

ity to easily effect change. Ontologies evolve and

change as they mature. Tooling designed to facili-

tate such change is a major step toward increasing the

adoption of ontologies.

Current approaches to solving this problem are of-

ten laborious, require detailed knowledge about how

ontologies are serialized and stored, or are prone to

error. Encouraging the users of a vocabulary to mi-

grate their ontologies to an updated version is made

signiﬁcantly easier if that migration is given to them

is an easy to use fashion. Oital seeks to provide the

facilities to make this task manageable.

This approach has been used to facilitate instance

migration for two different case studies. The ﬁrst took

an ontology encoding of the UML 2.1.1 and UML

2.4.1 speciﬁcations and migrated some example mod-

els. The second was to perform instance migration for

different versions of the DBpedia ontologies. DBpe-

dia is an effort to extract structured information from

Wikipedia and make it accessible (DBpedia, 2015).

Future work includes improving tooling and ap-

proaches for testing and verifying Oital transforma-

tions. Integrating ontology alignment tools with the

Oital development process to automatically generate

parts of the transformation is under development as

well.

REFERENCES

Cicchetti, A., Di Ruscio, D., Eramo, R., and Pierantonio,

A. (2008). Automating Co-evolution in Model-Driven

Engineering. In EDOC ’08,, pages 222–231.

Curino, C., Hyun, J. M., Deutsch, A., and Zaniolo, C.

(2013). Automating the database schema evolution

process. VLDB, 22(1):73–98.

DBpedia (2015). DBpedia. http://wiki.dbpedia.org/. [On-

line; accessed 4-May-2015].

Fahad, M., Moalla, N., and Bouras, A. (2011). Towards

Ensuring Satisﬁability of Merged Ontology. Procedia

Computer Science, 4:2216–2225.

Gangemi, A. and Presutti, V. (2009). Ontology Design Pat-

terns. Handbook on Ontologies, pages 221–243.

Jones, N. and Nielson, F. (2001). Abstract interpretation: A

Semantics-based Tool for Program Analysis. Seman-

tic Modeling, Handbook of Logic in Computer Sci-

ence, 4:527–635.

Kondylakis, H. and Plexousakis, D. (2013). Ontology Evo-

lution without Tears. Web Semantics: Science, Ser-

vices and Agents on the World Wide Web, 19:42–58.

Prud’hommeaux, E. (2013). SPARQL Query Language for

RDF. http://www.w3.org/TR/rdf-sparql-query/. [On-

line; accessed 20-Feb-2014].

Ruiz, J. E., Grau, B., Horrocks, I., and Berlana, R.

(2011). Logic-based assessment of the compatibility

of UMLS ontology sources. Biomedical Semantics 2.

Stojanovic, L., Maedche, A., Motik, B., and Stojanovic,

N. (2002). User-driven Ontology Evolution Manage-

ment. Knowledge Engineering and Knowledge Man-

agement: Ontologies and the Semantic Web, pages

285–300.

Zlatan, D. e. a. (2014). Results of the ontology alignment

evaluation initiative 2014. Proceedings of the 9th In-

ternational Workshop on Ontology Matching Collo-

cated with the 13th International Semantic Web Con-

ference.

KEOD 2015 - 7th International Conference on Knowledge Engineering and Ontology Development

446
