Lido – Wiki based Living Documentation with Domain Knowledge
Reuven Yagel
Software Engineering Department, Azrieli - The Jerusalem College of Engineering, POB 3566, 9103501 Jerusalem, Israel
Keywords: Living Documentation, Domain Knowledge, Wiki, Software Processes.
Abstract: There is a gap between code and documentation in many software development projects. This gap usually
grows as time goes by, decreasing developers ability to keep product quality high. We describe how
documentation based on a common wiki can be enhanced with domain knowledge in ways that ensure better
live documentation. This way updated and relevant documentation, i.e., specifications, manuals, models,
test scripts, etc. lead ultimately to higher quality software.
1 INTRODUCTION
A software product is composed of source code and
compiled executables but also of data and
documentation in various forms and formats. Today,
wiki (Wikipedia) applications have become a
popular means for documenting software and many
other areas. Wikipedia.com is a notable popular
example.
In software development it is even more
common, especially in open source projects, to use
wiki for documentation. Actually, the first wiki site,
WikiWikiWeb was used for documenting a software
project (http://c2.com/cgi/wiki?WikiHistory).
Using wiki for documentation is in itself a big
step towards a documentation that has more chances
to be updated and relevant throughout a software
project lifecycle, due to its accessibility. But, can we
do better?
In previous works (Exman et al., 2014; Yagel,
2011) it was shown how executable specifications
(Adzic, 2009) can be augmented with domain
concept modifiers in order to (semi-) automatically
create parts of the code. Here we lay a plan to
broaden the scope to documentation as a whole. By
software documentation we mean here all forms of
written text and other documents that accompany the
software code itself. Documents can range from
requirement and design/architecture specifications,
modeling diagrams, test scripts, glossaries, technical
and user manuals, various logs of formal and
informal communication between various project
members and stakeholders (even e.g. marketing),
down to source code comments.
1.1 The Problem – The Gap between
Documentation and Code
The problem is the gaps that often exist between
various documentation artifacts and the code. This
gap usually grows as software is being development
due to lack of continuous updates and changes
which are often not reflected back to the
documentation – thus making it obsolete.
For example, it is common to draw design
diagrams, e.g. in UML (Fowler, 2003), in earlier
phases of a project. Let's say this is a class diagram
with some domain concepts. Later on when these
classes are implemented (sometimes partially
generated by a tool), reality comes in and the design
changes due to, e.g., new insights gained while
developing the system or requirement changes. What
happens then to the original diagram? In case we
still need it for documenting the design – how do we
keep it updated in a maintainable and economic
way? Can we provide methods and tools for creating
documentation in which developers will be more
productive, in contrast to today's general negative
attitude to documentation?
1.2 Live Documentation
We roughly define live documentation as a set of
documents which are actively synced with changes
in software code. The term living documentation is
widely discussed in an upcoming book in
preliminary edition with this title (Martraire, 2016).
Previously, executable specifications were
26
Yagel, R..
Lido Wiki based Living Documentation with Domain Knowledge.
In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 26-30
ISBN: 978-989-758-162-5
Copyright
c
2015 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
mentioned as a form of living documentation, e.g. in
(Adzic, 2011; Smart, 2014).
The main idea is that the documentation is
coupled to the source code by connecting it to the
toolchain used to develop the code itself and that it
is as accessible as the code.
Going back to the UML class diagram example,
it will be considered a living diagram if it can be
automatically updated following a corresponding
change in code and vice versa.
1.3 Why Wiki?
Using wiki for documentation has several
advantages. First it is a proven and acceptable tool
for collaboration. Its simplicity and high
accessibility, usually through common browsers,
makes it an attractive target. It is also based on plain
text which makes it also easy to manipulate by
programs. It's free from helps and directs the
developers/engineers to work in higher level of
abstraction, away from the formality and constraints
of today's programming languages. Above all,
markdown is a simple way to mark and link
concepts, models and other various levels of
software artifacts. In this work we emphasize wiki as
a common base for most of the practices or methods
of software documentation.
1.4 Related Work
FitNesse (Adzic, 2008) is a wiki-based web tool for
non-developers to write formatted acceptance tests
through tabular example/test data.
BDD (Behavior Driven Development) (North,
2006), is an extension of TDD (Test Driven
Development/Design) aiming at writing
requirements by non-technical stakeholders.
Cucumber (Wynne and Hellesoy, 2012) and
SpecFlow (SpecFlow) are tools which accept stories
written in a somewhat constrained natural language,
directly supporting BDD. They are easily integrated
with unit testing and user/web automation tools.
Here (Yagel, 2011) we reviewed these practices and
tools.
DaSpec (DaSpec) is a new tool that uses wiki for
writing executable specifications in free form and
exercises the system under test for
approval/acceptance. BDDfy (BDDfy) is a tool that
creates documentation from unit tests written in
some disciplined manner, thus reserving the usual
order and generating documentation from lower
levels.
In the diagramming area, many tools are
generating source code from, e.g., UML diagrams.
Some of them use standard formats, e.g. XMI files
used by ArgoUML (ArgoUML). Some of the tools
also support reverse engineering for creating or
updating those diagrams, following changes in the
code – thus helping keep the documentation
updated.
Mapador (Mapador) is a service for
automatically extracting documentation from code,
which targets writing documentation as part of the
development process and not a posteriori.
ATDD (Acceptance Test Driven Development)
is an extension of TDD, also known as Agile
Acceptance Testing (Adzic, 2008). Further
extensions are Story Testing, Specification with
examples (Adzic, 2011) or Living/Executable
Documentation (Brown, 2011; Smart, 2014).
The mentioned coming book (Martraire, 2016)
emphasizes these relevant practices: Living
Diagram, Living Glossary, Declarative Automation,
Enforced Guidelines, Small-Scale Model and others.
For example, the book discusses how using
Javadoc's DocLet (documentation generator), one
can parse source files for annotations marking main
domain concept and then generating a glossary
document.
Concerning diagrams, there are libraries and
services which accept as input simple text format
and can then generate diagram documentation. See
for example: yuml.me, diagrammr.com, and
structurizr.com. More general legacy tools can be
used too, e.g. Graphviz (Graphviz) that uses .dot file
format for generating graphs.
Enterprise/ALM tools like IBM's Rational Team
Concert (IBM) put emphasis on traceability which is
important to link the various documentation and
software levels.
More generally, the emphasis on domain analysis
follows the Domain Driven Design (DDD) work
(Evans, 2003). Even at higher level of abstraction
we can make use of ontologies to guide the
documentation and development process, as
discussed at (Feathers, 2004; Osetinsky and Yagel,
2014).
Wiki Software. It is now common that project
management tools, version control systems and
services offer built-in wiki support. Github (Github)
(a well-known version control cloud service) for
example is adding a wiki by default to every new
code repository (see: https://help.github.com/
articles/about-github-wikis/). However, in contrast
to our proposal in this paper, this wiki is managed
separately from the code (e.g. in terms of security
policies and git versioning). It is also a common
Lido Wiki based Living Documentation with Domain Knowledge
27
practice for a github project (and other similar ones)
to have a README file at the source root, which
often serves as the main page for all other
documentation. There are many (mostly open
source) wiki engines, e.g. MediaWiki (MediaWiki)
that powers Wikipedia and other wikis.
Semantically Enhanced Wikis are a major step
towards better integration of wiki content. A notable
example is Semantic MediaWiki (MediaWiki) which
is an extension to MediaWiki which allows
semantically annotating wiki pages, using structural
information, ontology languages, semantic web and
alike. In this work we focus more on the usability
side of integrating various tools under a wiki, and
indeed such semantic tools naturally fit in.
The remaining of this paper is organized as follows:
In Section 2 we discuss the general approach, in
section 3 we give a preliminary example and then in
section 4 we conclude with some remarks and future
work.
2 THE SOLUTION – ENHANCED
WIKI
2.1 Enhanced Wiki
The main idea is to use wiki as the "center of mass"
for software documentation. We want to build on the
existing wide wiki engines and tools, especially
dedicated parsers and generators (as mentioned
above in section 1.4) to keep the documentation and
the code in sync. Various documentation tools will
be plugged into the wiki ecosystem.
The case study in the next section will use, as a
starting point, a new tool that uses a wiki for
working with executable specifications. We intend
to extend the approach of such a tool into using a
non-fixed set of tools and methods (abbreviated Lido
for Living Documentation) for producing various
kinds of documentation.
In particular, we suggest marking domain
concepts in the wiki in such a way the various
documentation tools will detect those concepts and
help generate more meaningful documentation.
A suggested workflow for working in this way,
is as follows:
a. Executable Specification – one writes an
executable specification in a wiki (using standard
Markup),
b. Domain Annotation – using markup special
syntax to mark domain and software related
entities (e.g. using DDD vocabulary),
c. Diagram Generation – using the entities above,
possibly with other added information, e.g.
connection between entities, generating diagrams
(e.g. in UML),
d. Connection of Specifications to Tests
underneath, step definitions are generated which
connect sentences from the specification to tests
which exercise the system under test,
e. Run Results – finally the result of this run appear
in a web page
f. Coding – implementing in a programming
language the missing parts,
g. Updating and Iterating – continuously evolving
the code and the documentation up to the point
of a successful release.
Other steps are possible too, as will be demonstrated
in the next section. Also, the order is not necessary
and should be adapted and customized to the
development methodology in use.
The main contribution of this paper is gathering
various tools under the umbrella of wiki to achieve
really live documentation.
3 A CASE STUDY:
BLACK-LISTING
APPLICATION
We demonstrate here our method by combining the
basic techniques of our previous approach to
executable specifications (Exman et al., 2014;
Yagel, 2011; Yagel et al., 2013) with the approach
of the above referred tool DaSpec (DaSpec).

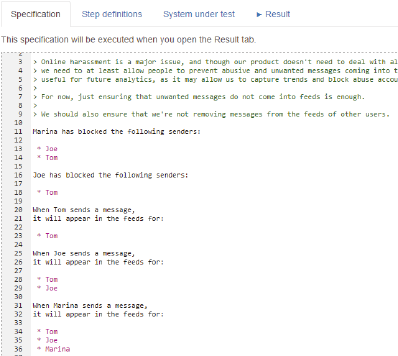

Figure 1: Executable Specification.
SKY 2015 - 6th International Workshop on Software Knowledge
28
We suggest expanding the idea of using wiki for
writing executable specifications into a suite of
living documentation techniques.
We extend here an example of a black listing
application. Here we demonstrate some of the steps
described above. In Figure 1 we see an executable
specification – taken from DaSpecs' documentation
site (http://daspec.com/examples/basic/checking_
for_missing_and_additional_list_items/, the actual
purpose is to demonstrate working with list of
items).

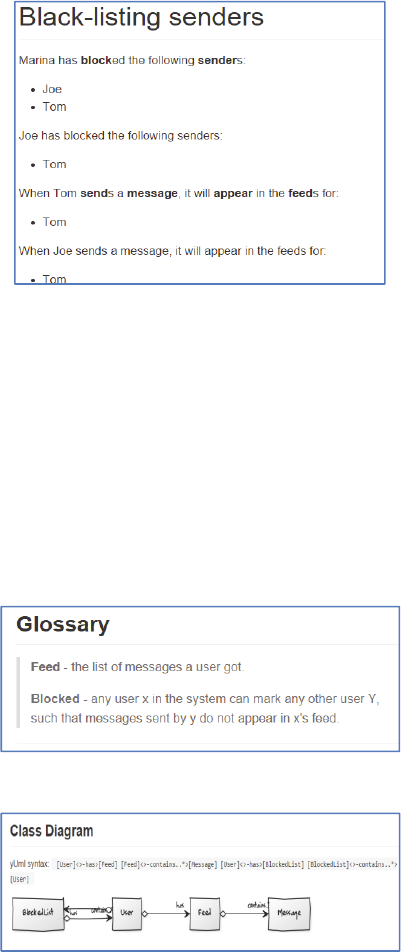

Figure 2: Annotating Domain Concepts.
We can enrich this specification in several ways.
We shall give the following methods:
a. Mark Domain Concepts – here we use bold
Markdown syntax (**) to mark concepts of the
target domain – Figure 2.
b. Glossary – add a glossary part to the wiki which
can then be output in different formats – Figure
3.
c. Class Diagram – use text syntax to generate a
class diagram – Figure 4.
Figure 3: Glossary.
Figure 4: Class Diagram.
See also our previous work (Exman et al., 2014)
for a thorough discussion about finding entities in
executable specifications.
4 DISCUSSION
We have given preliminary ideas how wiki can serve
as a basis for more meaningful documentation.
Some documentation types need extra syntax not
covered by common Markup, the UML class
diagram is an example for that.
Wiki software saves also the history of edits, in
order to take advantage of it, custom diffs, e.g.
graphic diff, might be needed as well.
We need to be careful not to constrain ourselves
to the wiki medium in a way that will harm other
useful kinds of documentation. For legacy systems it
might be too extensive to convert existing
documentation, for example a specification is given
in a Doc file format.
Traceability between documents themselves and
between the source code is still an open issue that
can be further investigated.
In the spirit of this work we believe that
documentation wiki should be an integral part of the
configuration management of a project, in order to
be better integrated and influencing.
4.1 Future Work
We plan to further extend previous work (Exman et
al., 2014) and also use mark-up based executable
specification augmented by domain annotations, as
well as integrating ontology repositories. Then,
combining various tools in coherent ways, as much
as possible.
We aim for building a framework for better
integration of the discussed wiki tools. This will also
allow to measure and compare the success and
impact of various tools and the whole process.
4.2 Main Contribution
By having better tools we can expect from software
developers to create better documentation and work
in higher levels of abstraction. Ultimately, this can
lead to working only in those higher and more
human oriented levels, automating the rest of the
work.
Lido Wiki based Living Documentation with Domain Knowledge
29
ACKNOWLEDGEMENTS
I would like to thank Iaakov Exman for the fruitful
discussion and collaboration. And also the
anonymous reviewer who pointed out semantic wiki
and other useful comments.
REFERENCES
Adzic, G., 2008. Test Driven .NET Development with
FitNesse, Neuri, London, UK.
Adzic, G., 2009. Bridging the Communication Gap:
Specification by Example and Agile Acceptance
Testing, Neuri, London, UK.
Adzic, G., 2011. Specification by Example – How
Successful Teams Deliver the Right Software,
Manning, New York, USA.
ArgoUML. Available from: http://argouml.tigris.org/. [29
September 2015].
BDDfy. Available from: https://github.com/
TestStack/TestStack.BDDfy. [29 September 2015].
Brown, K., 2011. Taking executable specs to the next
level: Executable Documentation, Available from:
http://keithps.wordpress.com/2011/06/26/taking-
executable-specs-to-the-next-level-executable-
documentation/. [1 September 2011].
DaSpec. Available from: http://daspec.com/. [29
September 2015].
Evans E., 2003. Domain-Driven Design: Tackling
Complexity in the Heart of Software. Prentice Hall.
Exman I., Litovka, A. and Yagel, R., 2014. Ontologies +
Mock Objects = Runnable Knowledge, the 5th
International Conference on Knowledge Discovery,
Knowledge Engineering and Knowledge Management
(IC3K) - SKY Workshop, Rome, Italy.
Feathers M., 2004. Working Effectively with Legacy Code.
Prentice Hall, 2004.
Fowler M., 2003. UML distilled, 3rd ed., Addison Wesley.
Github. Available from: https://github.com/. [29
September 2015].
Graphviz. Available from: http://www.graphviz.org/. [29
September 2015].
Krötzsch M., Vrandecic D., Völkel M., Haller H., Studer
R., 2007. Semantic Wikipedia. In Journal of Web
Semantics 5/2007, pp. 251–261. Elsevier.
IBM. Rational Team Concert. Available from:
http://www-03.ibm.com/software/products/en/rtc. [29
September 2015].
Mapador. Available from: http://www.mapador.com/
documentation/. [29 September 2015].
Martraire C., 2016. Living Documentation - A low-effort
approach of Documentation that is always up-to-date,
inspired by Domain-Driven Design. Leanpub
(expected). http://leanpub.com/livingdocumentation.
MediaWiki. Available from: https://www.mediawiki.org/.
[29 September 2015].
North, D., 2006. Introducing Behaviour Driven
Development, Better Software Magazine. Available
from: http://dannorth.net/introducing-bdd/. [29
September 2015].
Osetinsky I, and Yagel, R., 2014. Working More
Effectively with Legacy Code Using Domain
Knowledge and Abstractions – A Case Study, the 5th
International Conference on Knowledge Discovery,
Knowledge Engineering and Knowledge Management
(IC3K) - SKY Workshop, Rome, Italy.
Smart J. F., 2014. BDD in Action Behavior-Driven
Development for the whole software lifecycle,
Manning.
SpecFlow. Pragmatic BDD for .NET. Available from:
http://specflow.org. [29 September 2015].
Wynne, M. and Hellesoy, A., 2012. The Cucumber Book:
Behaviour Driven Development for Testers and
Developers, Pragmatic Programmer, New York.
Wikipedia. Available from:
https://en.wikipedia.org/wiki/Wiki. [29 September
2015].
Yagel, R., 2011. Can Executable Specifications Close the
Gap between Software Requirements and
Implementation?, pp. 87-91, in Exman, I., Llorens, J.
and Fraga, A. (eds.), Proc. SKY'2011 Int. Workshop on
Software Engineering, SciTePress, Portugal.
Yagel, R., Litovka, A. and Exman I., 2013: KoDEgen: A
Knowledge Driven Engineering Code Generating
Tool, The 4th International Conference on Knowledge
Discovery, Knowledge Engineering and Knowledge
Management (IC3K) - SKY Workshop, Vilamoura,
Portugal.
SKY 2015 - 6th International Workshop on Software Knowledge
30
