Distributed Data Replication and Access Optimization for

LHCb Storage System

A Position Paper

Mikhail Hushchyn

1,2,3

, Philippe Charpentier

and Andrey Ustyuzhanin

1,2,3,5,6

Yandex School of Data Analysis, Moscow, Russian Federation

Yandex Data Factory, Moscow, Russian Federation

Moscow Institute of Physics and Technology, Moscow, Russian Federation

CERN, Geneva, Switzerland

National Research University Higher School of Economics (HSE), Moscow, Russian Federation

NRC Kurchatov Institute, Moscow, Russian Federation

Keywords:

Structured Data Analysis and Statistical Methods, Machine Learning, Information Extraction, Hybrid Data

Storage Systems, Data Management, LHCb.

Abstract:

This paper presents how machine learning algorithms and methods of statistics can be implemented to data

management in hybrid data storage systems. Basicly, two different storage types are used to store data in the

hybrid data storage systems. Keeping rarely used data on cheap and slow storages of type one and often used

data on fast and expensive storages of type two helps to achieve optimal performance/cost ratio for the system.

We use classiﬁcation algorithms to estimate probability that the data will often used in future. Then, using the

risks analysis we deﬁne where the data should be stored. We show how to estimate optimal number of replicas

of the data using regression algorithms and Hidden Markov Model. Based on the probability, risks and the

optimal nuber of data replicas our system ﬁnds optimal data distribution in the hybrid data storage system. We

present the results of simulation of our method for LHCb hybrid data storage.

1 INTRODUCTION

The hybrid data storage system uses the two data stor-

age types to store the data. The ﬁrst type is relatively

cheap kinds of the data storages such as magnetic

tapes or HDD. Usually, the most of the data is kept

on the ﬁrst type of the storages. The second type is

more expensive one which have high speed of data

input/output in comparison with the ﬁrst type. SSD is

an example of the storage of the second kind. Using

the second type storages helps to increase the speed of

data access. However, the space of the storages of the

second type is very limited, so it is highly important

to estimate the data should be kept on the second type

storages.

This study is useful not only for the LHCb, but for

cloud providers too.

The LHCb collaboration is one of the four major

experiments at the Large Hadron Collider at CERN.

The detector, as well as the Monte Carlo simulations

of physics events, create 15 000 PB of data every year.

The LHCb data storage system is a hybrid one.

The data is kept on disk and tape storage systems.

Disks are used for storing data used by physicists

for analysis. They are much faster than tapes, but

are way more expensive and hence disk space is lim-

ited. Therefore it is highly important to identify which

datasets should be kept on disk and which ones should

only be kept as archives on tape.

We use dataset access history of the LHCb data

storage system for the last two years. Each time series

of the access history consist of 104 points. Value of

the each point is a number of accesses to a dataset for

one week.

Based on the machine learning algorithms and

methods of statistics we develop system for data

storage management for hybrid storage systems and

demonstrate the system work on the LHCb data.

Hushchyn, M., Charpentier, P. and Ustyuzhanin, A..

Distributed Data Replication and Access Optimization for LHCb Storage System - A Position Paper.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 537-540

ISBN: 978-989-758-158-8

537

2 RELATED WORKS

Implementation of the machine learning algorithms

for data management was described in other papers.

The Markov chains were used to predict the datasets

popularities in a Data Management System for hy-

brid HDD + SSD data storage system (Lipeng, 2014).

Then, the authors used the popularities and param-

eters of the storage system to solve data placement

optimization problem.

Artiﬁcial neural networks were used to predict

possible dataset accesses in near-term future in A

Popularity-Based Prediction and Data Redistribution

Tool for the ATLAS Distributed Data Managemen pa-

per (Beermann, 2014).

The methods and the system presented in this pa-

per is evolution of the Disk storage management for

LHCb based on Data Popularity estimator which de-

scribed in (Hushchyn, 2015). A feature of the current

work is that the method and the system is suitable for

any hybrid system, not only for LHCb one.

3 METHOD

The system has three separate modules. The ﬁrst

module predict probabilities that the datasets will be

often used or to be popular in future.

The second module is used to predict number of

accesses to the datasets. The datasets access history,

regression algorithms and Hidden Markov Model are

used for the prediction.

Based on the predicted probabilities and number

of accesses the third module estimate the optimal data

distribution over hybrid data storage system. The

module uses the risks analysis and loss function op-

timization to ﬁnd the optimal data distributions. The

risks matrices and the loss functions represent the re-

quirements to the data distribution.

3.1 Inputs

In this study we use only the dataset access history

without any additional information about datasets.

This approach allows to use our methods and system

in any hybrid data storage system.

3.2 The Probabilities Prediction

Classiﬁcation algorithm is used to predict dataset

probabilities to be often used on a forecast horizont

of N time periods (hours, weeks, months). A data

manager deﬁnes datasets which are often used. For

example, datasets which have more than zero number

of accesses during N periods are often used for LHCb.

Then, suppose that the dataset access history’s time

series have M time periods. Last N time periods are

used to label the time series. The time series which

are rarely used during the last N time periods are la-

beled as 0. The most popular datasets are labeled as

1. Then, [0, M −N] time periods are used to train the

classiﬁer. On this study we use Gradient Tree Boost-

ing Classiﬁer.

The trained classiﬁer are used to predict the proba-

bilities to be often used or to be popular for the future

N time periods. For the prediction the [N, M] weeks

are used. We use the area under the ROC curve and

the cross-validation to measure the classiﬁcation qual-

ity.

This approach demonstrate better results than re-

gression algorithms and algorithms of time series

analysis. Also, this method shows good results for

time series with lack of statistics. For example, for

LHCb data storage system the classiﬁcation roc auc

is 0.89 on train data. The ﬁgure 1 shows the classiﬁ-

cation ROC curve for LHCb data.

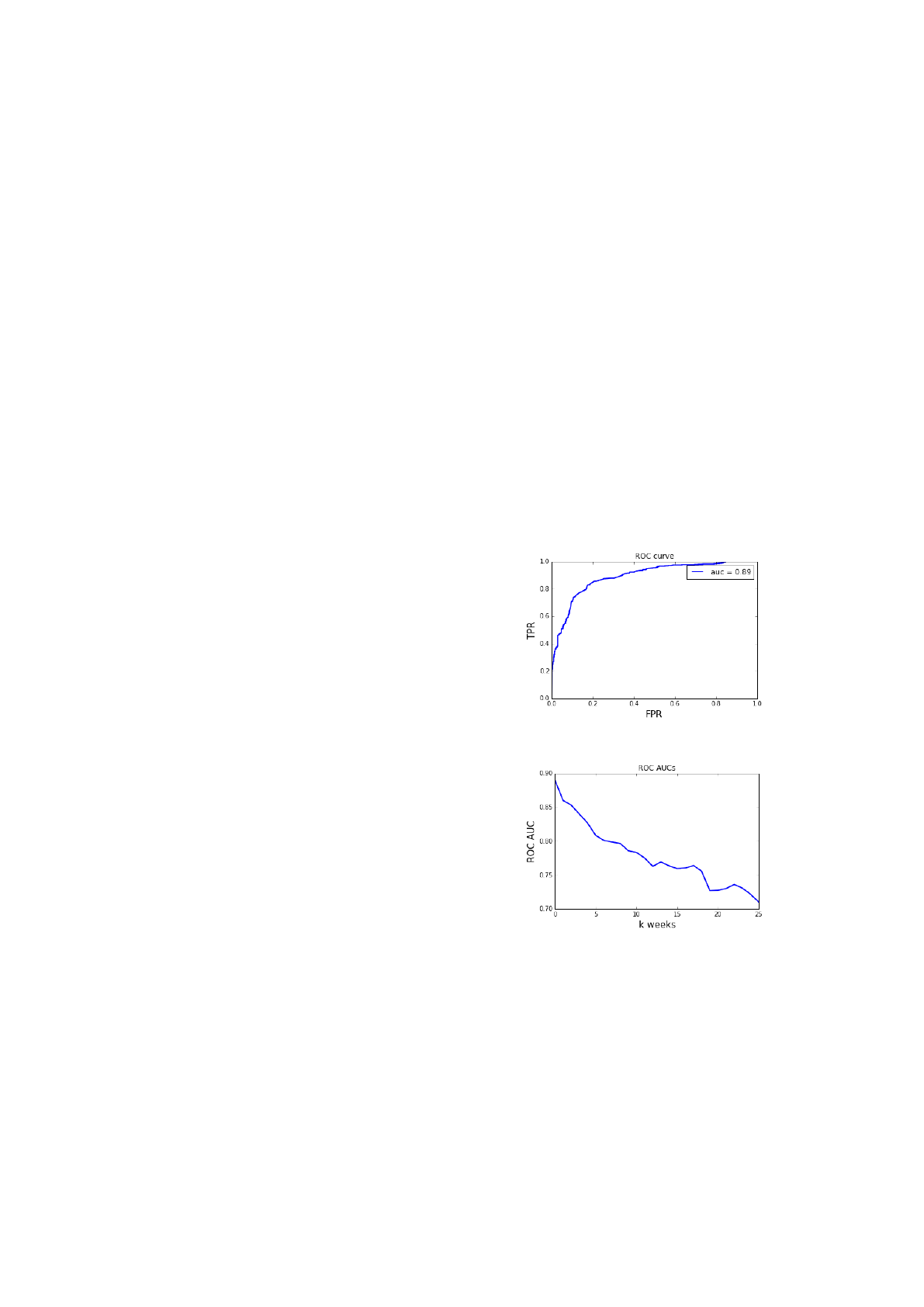

Figure 1: The classiﬁcation ROC curve for LHCb data.

Figure 2: The classiﬁcation quality for different future

weeks for LHCb data.

Moreover, the classiﬁer demonstrates that earlier

time periods have smaller impact to the prediction.

On example, which is shown on ﬁgure 2, [0, 52] weeks

were used to train the classiﬁer. Then, the classiﬁer

was used to predict the probabilities for [53, 78], ...,

[53 + k, 78 + k], ..., [79, 104] weeks.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

538

3.3 Data Distribution

The predicted popularities are used to estimate where

the datasets should be kept: on type one storages or

on type two. For this purpose we use the risks anal-

ysis. We use a risk matrix to calculate the total risks

of the decision where to store the data. For example,

the following matrix is used for two-types hybrid data

storage systems:

M =





(1)

- ﬁne for the decision to keep a dataset on type

1 storage, when it should kept on the type 1 storage,

- ﬁne for the decision to keep a dataset on type

1 storage, when it should kept on the type 2 storage,

- ﬁne for the decision to keep a dataset on type

2 storage, when it should kept on the type 1 storage,

- ﬁne for the decision to keep a dataset on type

2 storage, when it should kept on the type 2 storage.

The predicted probabilities are probabilities that

the datasets should be stored on type 1 storages (rarely

used data) or on type 2 storages (often used data).

Therefore, multiplying the risks matrix and the pre-

dicted probabilities for the each decision we estimate

the total risks for the decisions:

R =













(2)

- the predicted probability that a dataset will be

rarely used,

- the predicted probability that the dataset will

be often used,

- the total risk for the decision to keep the

dataset on type 1 storage,

- the total risk for the decision to keep the

dataset on type 2 storage.

3.4 Optimal Number of Replicas

As described in paper (Hushchyn, 2015) we use

Nadaraya-Watson kernel smoothing algorithm and

Leave-One-Out method for smoothing window width

optimization to predict dataset future number of ac-

cesses. In some time series the Hidden Markov Model

(HMM) demonstrates the better prediction results.

Therefore, our system provides the HMM algorithm

for the prediction of the number of accesses. Cur-

rently, we are developing the implementation of the

HMM for the prediction.

Then, the predicted number of accesses are used

to estimate the optimal number of replicas for the

datasets:

opti

= F(I) (3)

opti

- the optimal number of replicas for a

dataset,

I - the predicted number of accesses for the

dataset,

F() - function for the optimal number of replicas.

Linear, quadratic or exponential functions are ex-

amples of the function F().

The predicted number of access and the optimal

number of replicas are helpful for optimal usage of the

storage system. Moreover, the predicted number of

accesses can be used to detect the datasets for which

the number of replicas should be reduces to free addi-

tional space on the storage.

For LHCb the following function is used to esti-

mate the optimal number of replicas:

opti

√

αI (4)

α - the free parameter.

The ﬁgure 3 shows how the optimal number of

replicas for a dataset depends on its predicted number

of accesses and alpha value. For example, suppose

the predicted number of accesses for a dataset is I =

10 accesses per week and α = 0.5. Then Rp

optimal

√

αI =

√

0.5 ∗10 = 2.24 ≈ 2 replicas.

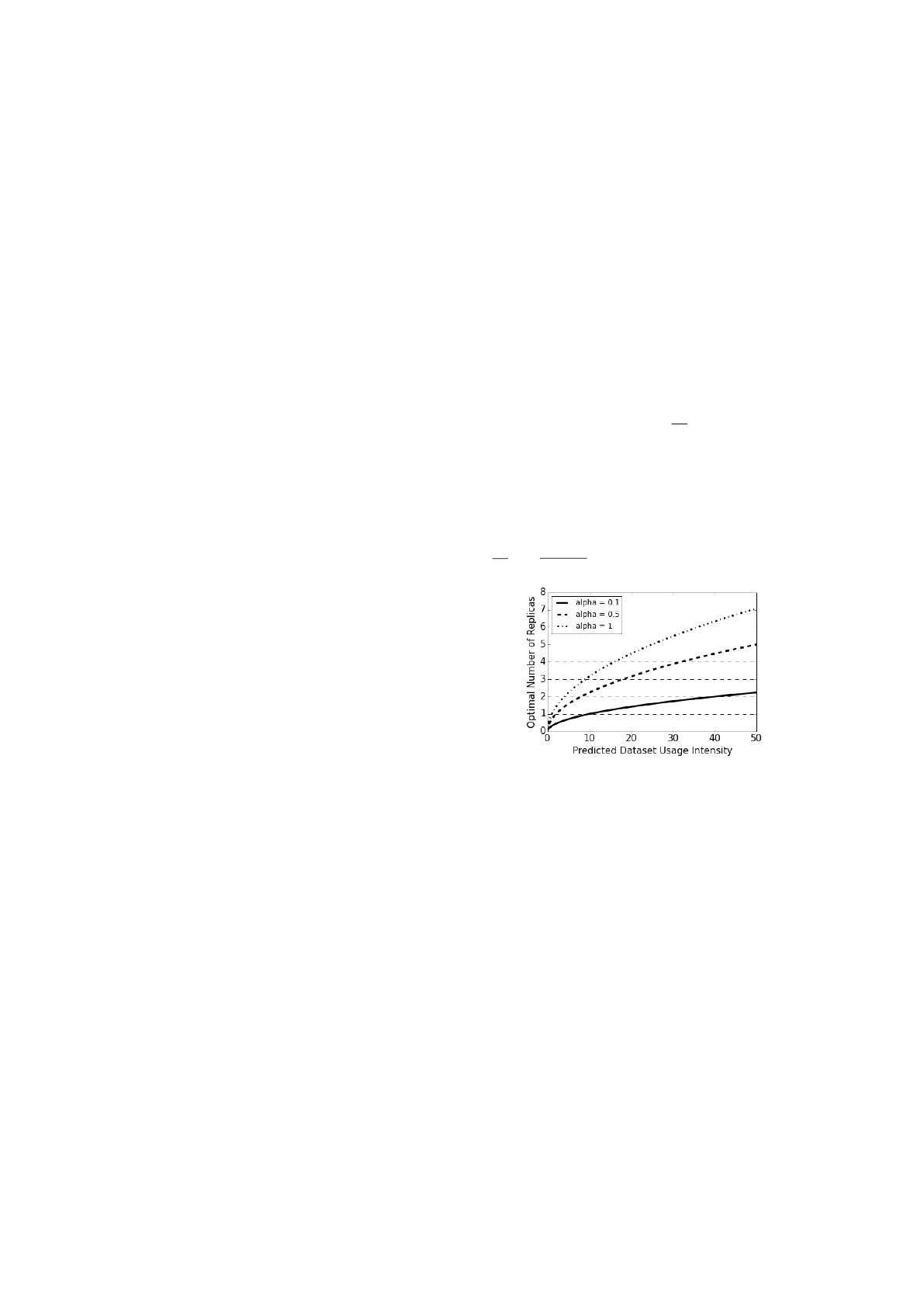

Figure 3: Dependence of optimal number of dataset replicas

(Rp) from its predicted number of accesses (I) and α.

4 RESULTS

Based on the method which is described above we

create the python library. This library contains tools

for the probability prediction, the optimal data dis-

tribution and optimal number of replicas estimation.

Moreover, the library allows to do simulation of work

of our method based on the data usage history.

Also, it will be possible to use our method as web-

service with docker (Docker).

Now we are developing the probability prediction

method decribed above to get higher quality of the

classiﬁcation.

Special datasets metadata, dataset access history

several features that were calculated using the ac-

cess history were used as inputs in (Hushchyn, 2015).

Distributed Data Replication and Access Optimization for LHCb Storage System - A Position Paper

539

In this study we use just accesses history. It makes

possible to use the method presented here not only

for LHCb but for other hybrid data storage systems.

Moreover, we use risks analysis instead of the loss

function optimization in (Hushchyn, 2015). This adds

ﬂexibility to data distribution requirements and allows

to use our methods for hybrid data storage systems

with more than two kinds of storages.

The LHCb data which was used in (Hushchyn,

2015) contains information of 7375 datasets. The

method described in (Hushchyn, 2015) allows to save

about 40% of disk space and makes just 8 mistakes

(wrong removings of the datasets from disk). At the

conference we demonstrate how much disk space can

be saved using the method presented here and how

much mistakes this method makes.

The method presented in (Hushchyn, 2015) and

development of the study described in this paper can

be viewed on (Datapop). Our study is performed by

means of a Reproducible Experiment Platform (Rep)

- environment for conducting data-driven research in

a consistent and reproducible way.

5 CONCLUSION

In this paper we describe the key points of our method

for data management in hybrid storage systems. At

the conference we demonstrate how much disk space

can be saved using the method presented here and

how much mistakes this method makes in compari-

son with the method from (Hushchyn, 2015).

REFERENCES

Lipeng W, Zheng L, Qing C, Feiyi W, Sarp O, Bradley

S. (2014) 30th Symposium on Mass Storage Systems

and Technologies (MSST): SSD-optimized workload

placement with adaptive learning and classiﬁcation in

HPC environments. California. IEEE.

Beermann T., Stewart A., Maettig P. (2014) The Interna-

tional Symposium on Grids and Clouds (ISGC) 2014:

A Popularity-Based Prediction and Data Redistribu-

tion Tool for ATLAS Distributed Data Management.

PoS. p 4.

Hushchyn M., Charpentier P., Ustyuzhanin A. (2015) The

21st International Conference on Computing in High

Energy and Nuclear Physics: Disk storage man-

agement for LHCb based on Data Popularity esti-

mator. http://cds.cern.ch/record/2022203/ﬁles/LHCb-

PROC-2015-019.pdf

https://www.docker.com

https://github.com/yandexdataschool/DataPopularity

https://github.com/yandex/rep

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

540
