Tracing of Informal and Formal Requirements through Model Variables

SKY 2015 Challenge

Martin B

oschen and Christian Rudat

OFFIS - Institute for Information Technology, Escherweg 2, 26121 Oldenburg, Germany

Keywords:

Requirements Engineering, Traceability, Requirement Formalization.

Abstract:

We describe a particular notion of traceability, namely the traceability between model variables and text pas-

sages in an informal requirement and discuss the usefulness of this concept, as it establishes a natural connec-

tion between formal and informal requirements. The traceability can be established in an semi-automated way

by using the algorithm presented in this paper, which combines two metrics to match parts of the informal

requirements to model variables. The ﬁrst metric is purely text based and uses the Levenshtein distance, the

second metric measures the semantical distance of concepts by using the Wu and Palmer measure and the

WordNet ontology. The algorithm makes suggestions to the requirements engineer based on a combined score

of these two measures. The suggested approach has been implemented in a tool and is studied in a small

example.

1 INTRODUCTION

Traceability is a well-known concept in system engi-

neering. It helps to manage the creation and changes

of different assets within the development process.

Safety critical requirements are often subject to a for-

mal analysis and therefore need to be reﬁned to a de-

gree in which the formal semantic of a requirement

is stated precisely. The ability to efﬁciently trace

between the different levels of abstractions becomes

even more important as standards like the ISO 26262

(International Standard Organization, 2011) require

the industry to have a fully traceable development

process. Requirement management tools like IBM

DOORS (IBM, 2015) support these kinds of trace

links between requirements. The CESAR project (Ra-

jan and Wahl, 2013) described several requirement

languages (varying in their level of formality) and the

corresponding analysis techniques.

In this article, we focus on a speciﬁc notion of

traceability, namely the traceability between text pas-

sages of natural language requirements to either vari-

ables of formalized versions of the requirement or

variables of a model which shall implement the re-

quirement. Technically, we assume requirements to

be deﬁned by a single or by multiple sentences writ-

ten in natural language. Model variables are a list of

variable names, deﬁned in a system model. They can

originate from a Matlab Simulink (Mathworks, 2015)

model or from more abstract model, like an automa-

ton. It is also possible that these variables are only

deﬁned within some ontological knowledge database.

In any of these cases a clearly deﬁned traceability is

of importance. Figure 1 shows an example of a linked

text passages to model variables. Below the natural

language description of the requirement is the cor-

responding formal requirement, which describes the

temporal-logic relationships between the model vari-

ables and can be processed by programs for testing or

veriﬁcation.

cyclic P implies ﬁnally Q B immediate

P: $WindowMovesUp ∧ $ObstacleDetected

Q: $WindowMovesDown

B: 10ms

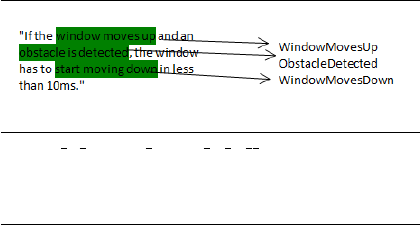

Figure 1: Example requirement (top) with traces to model

variables. Formalization of the requirement (bottom) using

a BTC ES pattern.

The requirement is taken of the motor driven

power window system in one of the Matlab Simulink

tutorials (Prabhu and Mosterman, 2004). The concept

of traceability to variables has been implemented in

Böschen, M. and Rudat, C..

Tracing of Informal and Formal Requirements through Model Variables - SKY 2015 Challenge.

In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 58-63

ISBN: 978-989-758-162-5

industrial tools, such as the Embedded Speciﬁer (BTC

Embedded Systems, 2015), where the manual iden-

tiﬁcation and linking of variables to requirements is

used as a ﬁrst step to formalize a requirement. Sev-

eral discussions (Sexton, 2013; Sebastian Siegl, 2014)

emphasize the value of this step to structure the pro-

cess of deriving formal requirements from informal

ones.

A disadvantage of manually establishing trace-

ability is that the process becomes increasingly error-

prone with larger projects. The requirements engi-

neer often has to process long lists of similar sound-

ing words and has to be very carefully not to make

mistakes, such as to link the wrong variables or create

duplicates of variables.

Our approach support such a identiﬁcation process

by using a combination of different similarity mea-

sures between the model variables and the text pas-

sages, and to suggest the most similar terms to be

linked with a trace. In this article, we measure the

similarity by a textual difference (Levenshtein, 1966)

as well as by a semantic similarity (Wu and Palmer,

1994), derived from the WordNet ontology (Miller,

1995). Knowledge stored in other kinds of ontolo-

gies could also be used to improve the results. Our

goal is to support a requirements engineer by provid-

ing suggestions, since a fully automatic approach is

unreasonable in most cases due to subtle differences

in the meaning of natural language texts.

The theoretical background of our approach is

elaborated in Section 2 and its implementation in Sec-

tion 3. In Section 4 metrics to evaluate the provided

suggestions are discussed.

2 ALGORITHM

This section describes our algorithm for generating

suggestions for links to model variables. As a run-

ning example we use the following natural language

requirement which was the basis for the formal re-

quirement depicted in Figure 1:

Requirement: “If the window moves up and an ob-

stacle is detected, the window has to start moving

down in less than 10ms.”

Model variables: ObstacleObserved,

PassengerDownSwitchIsPressed,

WindowMovesDown,WinMovUp

In this simple case, we would like to estab-

lish a trace between the text passage “window

moves up” and the variable WinMovUp, a trace be-

tween the text passage “obstacle is detected” and

the variable ObstacleObserved, as well as be-

tween the text passage “window has to start mov-

ing down” and WindowMovesDown. The variable

PassengerDownSwitchIsPressed is not textually

mentioned in this requirement and therefore shall not

get a link. Instead of deﬁning these traces manu-

ally, our algorithm generates suggestions, which can

be accepted to establish the trace. Suggestions are

proposed if a text passage within the requirement

is similar to any of the variables. In this example,

we illustrated several case which should be handled

by the algorithm. The text passage “obstacle is de-

tected” and the variable ObstacleObserved have the

same meaning, but use a different verb. This se-

mantic similarity should be perceived. The variable

WinMovUp should be referenced to the text passage

“window moves up”, although it is in an abbreviated

variable style. The text passage “window has to start

moving down” contains other information (“has to

start”, but should be referenced to the model variable

WindowMovesDown.

To measure the similarity illustrated in the exam-

ples above, our algorithm uses a textual similarity

measure as well as a semantical similarity by using

knowledge stored in an ontology. The top suggestions

with their respective scores are ﬁnally presented to the

engineer.

A suggestion is a pair of a text passage and a

model variable, accompanied by a score. The algo-

rithm for generating suggestions for a given require-

ment is outlined in Algorithm 1.

Algorithm 1: Generate Suggestion List for Requirement.

1: function GETSUGGESTIONS(text)

2: for each passage ∈ text do

3: for each var ∈ model do

4: score ← SIMILARITY(passage, var)

5: list.append((score,passage,var))

6: end for

7: end for

8: SORT(list)

9: for each suggestion ∈ list do

10: if NOOVERLAP(suggestion, sugList) then

11: sugList ← suggestion

12: end if

13: end for

14: sugList ← sugList[0..maxSuggestions]

15: return sugList

16: end function

Every possible combination of text passages and

variables is checked and rated with a score (line 4).

We don’t suggest overlapping text passages to avoid

cluttering the suggestion list with slight modiﬁcations

of the same text passage. Therefore, after identiﬁca-

tion of the individual scores, the list is sorted by de-

Tracing of Informal and Formal Requirements through Model Variables - SKY 2015 Challenge

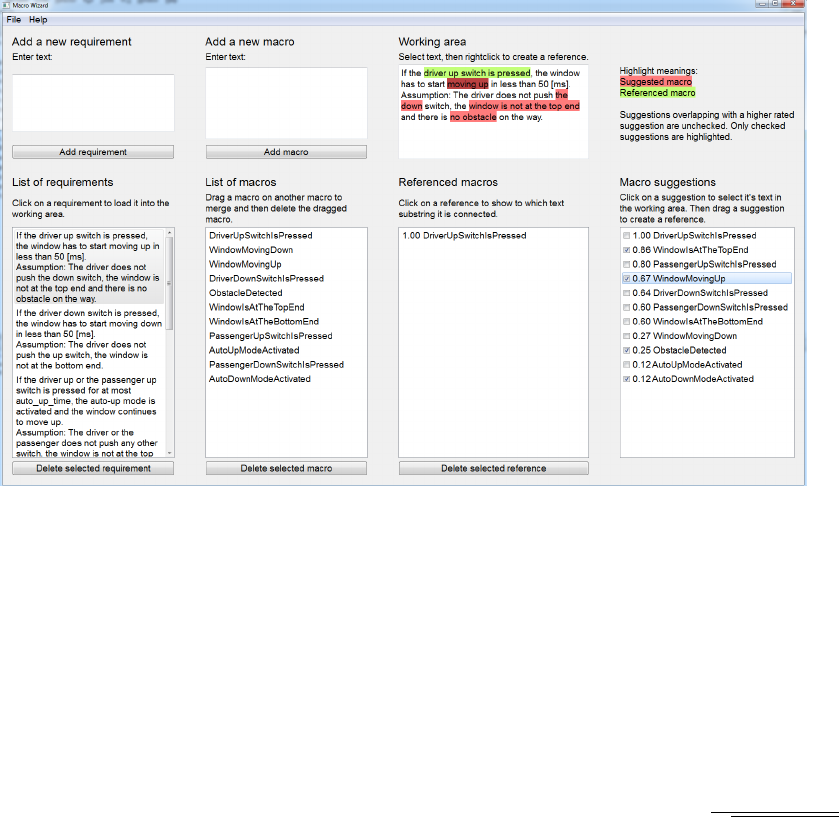

Figure 2: Screen shot of the prototype implementation.

scending score (line 8) and only the text passage with

the best score will be used as a suggestion (line 11).

We further limit the number of suggestions to a max-

imal value (line 14).

The similarity score is calculated based on a com-

bination of two different similarity measures: The

ﬁrst score score

lvs

is a textual similarity measure

called the Levenshtein (Levenshtein, 1966) distance.

It is a very common score to measure how similar two

strings are and is available in many programming li-

braries. The idea is to measure the number of charac-

ter edits needed to transform one string into the other.

We use the Levenshtein distance of the whole text

passage and the model variable as our ﬁrst score.

Our second score score

wpd

is a semantic similar-

ity measure, called the Wu-Palmer (Wu and Palmer,

1994) similarity measure. It measures the distance in

terms of the number of semantic links necessary to

reach the closest common ancestor of two concepts

in an ontology. In this scenario, we used the seman-

tic deﬁnition and relationship of concepts within the

WordNet Ontology (Miller, 1995), which is a gen-

eral purpose ontology of the English language. This

measure does not work on arbitrary strings but on on-

tological concepts. Therefore it can not be directly

applied to the text passage and the variable names.

They need to be split into identiﬁed WordNet con-

cepts, before the Wu-Palmer similarity measure can

be applied. Therefore, the algorithm splits the text

passages and the variable names into tokens and tries

to match them to concepts deﬁned in WordNet. The

function hit for a text passage token is deﬁned as:

hit(token, variable) =











1 if ∃t ∈ T

variable

wpd(token,t) < treshold

0 otherwise

(1)

,where T

variable

is the set of the tokens extracted from

the variable name, wpd(·) is the Wu-Palmer distance,

and treshold is a constant. The score of this measure

is then deﬁned as:

score

wpd

(textpassage, variable) =

∑

hit(token)

text passage

(2)

,where the sum in the numerator is computed over all

tokens extracted from the text passage. In this paper,

we assume that the names of the model variables are

written using a CamelCase convention, so that they

can be split into individual tokens. The square root in

the denominator has the effect, that the score prefers

further token hits than a shorter text passage.

The combined suggestion score is a logistic re-

gression classiﬁer. The two values score

lvs

and

score

pwd

are used as features of the classiﬁer. The

model is learned on a set of training requirements,

where the traces have been drawn manually. The

learning is done ofﬂine and the identiﬁed model is

used as combined score of the algorithm. The ﬁnal

score estimate is normalized to be within the interval

[0, 1], such that they can be easily compared by the

requirements engineer.

SKY 2015 - 6th International Workshop on Software Knowledge

3 IMPLEMENTATION

We implemented the methodology and the algorithm

described above within a prototypical tool. Currently,

it is a stand-alone tool independent of commercial so-

lutions, but we also cover integration scenarios into

commercials solutions within this section. Figure 2

depicts a screen shot of the user interface.

The ﬁgure shows the natural language require-

ments on the far left and the model variables right

next to it. The established traces are shown on the

right side, together with the generated suggestions for

traces. The currently selected requirement is shown

within the text ﬁeld working area. Already estab-

lished traces and suggestion for traces are marked by

a background color and suggestions can be accepted

by drag-and-drop into the traces section. This orga-

nization of the GUI was chosen to give the engineer

an overview over the current state of the data and sug-

gestions, and facilitate the interaction.

The tool was implemented in Python using the

NLTK

library for natural language processing. For

the machine learing step the scikit-learn

library was

used. The graphical user interface was implemented

using the Qt framework

For the methodology to be applicable in an indus-

try process, it has to be integrated into their tool land-

scape. In the following, we sketch a possible scenario.

We start by identifying which data has to be stored

and which functionality must be provided. There are

three different data artifacts, which must be stored:

• Natural Language Requirements

• Model Variables

• Traces

Furthermore, the following functionality must be

provided:

• Calculation of suggestions

• Presentation of suggestion

• Establishing traces

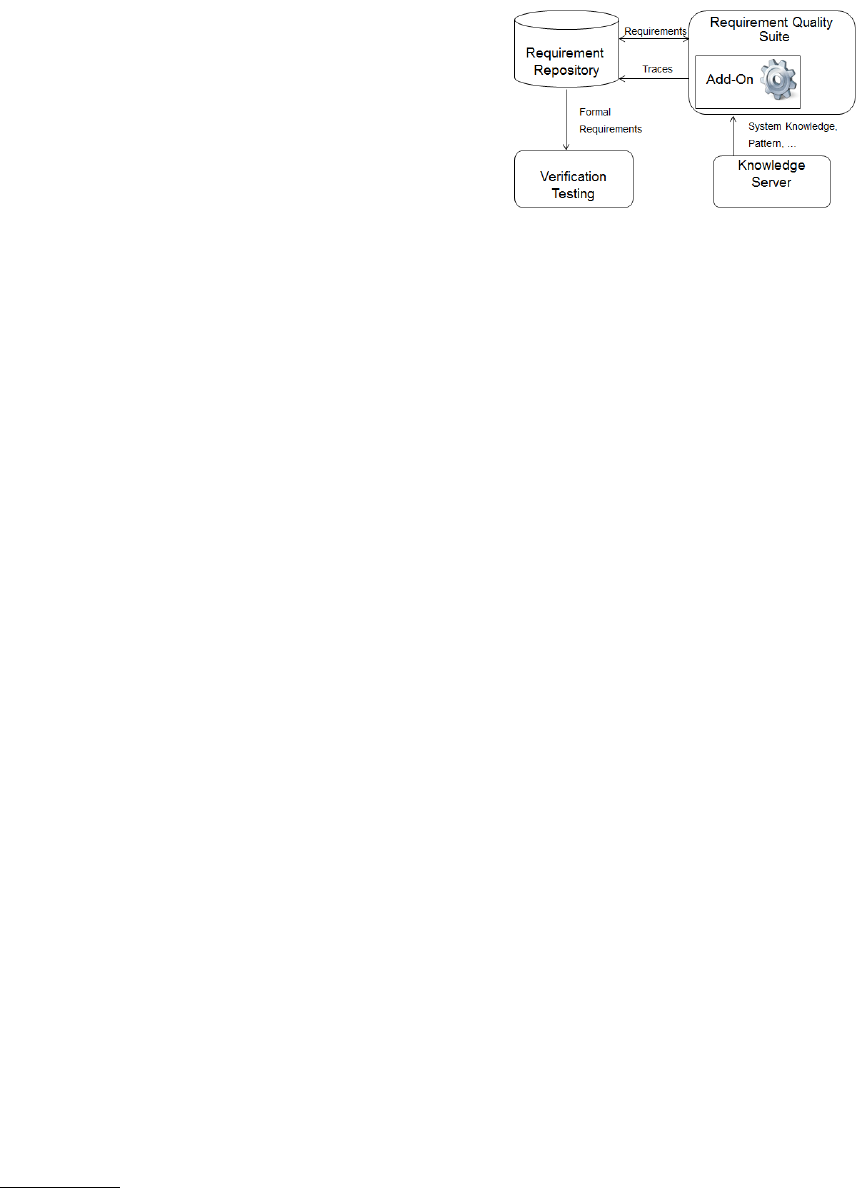

Figure 3 sketches an overview of a possible tool

landscape which realizes these requirements. In this

scenario, the Requirements are stored in a require-

ment Repository, for example in DOORS. To edit

and analyze the requirements, one could use the Re-

quirement Quality Suite from the ReUse Company

(The Reuse Company, 2015). It is integrated with a

http://www.nltk.org

http://scikit-learn.org

http://www.qt.io

Figure 3: Possible Tool Landscape.

Knowledge Server, where one could deﬁne the struc-

ture of the formal requirements and the model vari-

ables. With its support, the requirements can be inter-

preted as patterns, and its formal structure can be ac-

cessed. The Requirement Quality Suite also allows to

deﬁne add-ons with custom code, which can be used

to implement our suggested algorithm. The results

of this calculation can be shown using a web inter-

face, which in turn could be used to create traces in

the requirement repository by using an OSLC(OSLC

Community, 2013) connection. Finally, the formal re-

quirements can be subject for further analysis, such

as veriﬁcation and testing procedures. The full trace-

ability to the natural language requirements to their

reﬁned formal requirements and even to the individ-

ual model variables can still be maintained.

4 EVALUATION METRIC

We propose an evaluation metric for our method.

First, we need to make sure that the algorithm pro-

duces suggestions that have the same quality as traces

drawn manually by an expert. This can be done

quantitatively by deﬁning an appropriate measure and

compare traces established by an expert with sugges-

tion made by the algorithm.

Before this metric is described, we show the

data we used during development and testing. We

made extensive use of a case study developed by

MathWorks, where it is used as a tutorial for Mat-

lab/Simulink. A variant of their requirements is also

been used as a tutorial example for the Embedded

Speciﬁer, to show how requirements are formalized.

The following list shows an excerpt of the require-

ments:

• If the driver up switch is pressed, the window has

to start moving up in less than 50 [ms]. Assump-

tion: The driver does not push the down switch,

the window is not at the top end and there is no

obstacle in the way.

Tracing of Informal and Formal Requirements through Model Variables - SKY 2015 Challenge

• If the driver down switch is pressed, the window

has to start moving down in less than 50 [ms]. As-

sumption: The driver does not push the up switch,

the window is not at the bottom end.

• If the passenger up switch is pressed while the

window is at the top end, the passenger up request

shall have no effect. Assumption: N/A

• .... and six more requirements.

The following model variables have been identi-

ﬁed within theses requirements:

• DriverUpSwitchedIsPressed

• WindowMovingDown

• DriverDownSwitchIsPressed

• ObstacleDetected

• WindowIsAtTheTopEnd

• WindowIsAtTheBottomEnd

• PassengerUpSwitchIsPressed

• AutoUpModeActivated

• PassengerDownSwitchIsPressed

• AutoDownModeActivated

We produced several examples of sets of requirements

(5 to 10 requirements and model variables) of similar

complexity for our testing and evaluation purpose, for

example a beverage vending machine, a trafﬁc light

or a home alarm system.

We suggest the following metric for measuring the

quality of the suggestion. For a single requirement,

let R be the set of references (which have been estab-

lished manually by an expert) and let S be the ordered

list of suggestions. Let S

be the set of the best n sug-

gestion. If | R |= n, then we calculate the quality score

q of a requirements as followed:

q =

| R ∩ S

(3)

The quality score is hence a number between 0 and 1.

Note that we don’t reduce the quality score if a sug-

gestion is made for a different text passage, our evalu-

ation shows that such an issue can be easily corrected

by the user. We also don’t consider the quality beyond

the top suggestions. The formula expresses our expe-

rience, that the top suggestion must be useful for the

user and small adjustments are acceptable. For our

simple example we achieved very often a score above

50% and up to 100 %, but we deliberately don’t pub-

lish any numbers here, as our example lacks the noise

and the size of real-world examples. We plan to fur-

ther evaluate our method with more realistic data sets

in the near future.

As our method proposes a semi automatic ap-

proach, we also need to evaluate the user accep-

tance. This suggests a classical user experience re-

search study. Within an experiment, different persons

should establish the traceability on different set of re-

quirements manually and with the help of our sugges-

tion based method. The following measures should

be used:

• Time to complete the task

• Perceived complexity of the task

• Accuracy achieved

5 CONCLUSION

We presented our algorithm and a prototypical imple-

mentation to establish traceability between require-

ments and model variables in a semi-automatic way.

Our algorithm makes suggestions based on a simi-

larity measure between development artifacts. For

our approach, we got positive feedback from our col-

leagues and industrial partners, which encourages us

to head further into the described direction. We would

like to emphasize two main ideas, which are underly-

ing our work:

• Model variables, which are explicitly stated in for-

mal requirement and at least implicitly mentioned

in informal requirements can be use to “glue” the

requirement on different levels of abstraction.

• Traceability can be established in a semi-

automatic, suggestion based process. An auto-

matic process seems unfeasible due to the subtle-

ness natural language can have, but a computer

can support the engineer by pointing into the right

direction.

In our future research, we plan to perform a more

rigorous evaluation on real-world examples from in-

dustry and use more domain knowledge to improve

the suggestion algorithm. For example, instead of

only using the general purpose WordNet ontology, we

could use domain speciﬁc ontologies which may lead

to better results.

Instead of pure natural language requirement, one

could start with requirement templates or patterns. In

the CRYSTAL project we developed examples using

requirements patterns (G

enova et al., 2013). These re-

quirements are more structured than natural language

requirements, and their structure can be directly ac-

cessed by a computer. This closes the gap between

the high-level requirements and the formulas used for

veriﬁcation and testing and could make it easier to

draw the connection.

SKY 2015 - 6th International Workshop on Software Knowledge

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the ARTEMIS Joint Undertaking under

Grant Agreement N

◦

332830 (CRYSTAL) and Ger-

man national funding from BMBF N

◦

01IS13001A.

REFERENCES

BTC Embedded Systems (2015). BTC Embedded Spec-

iﬁer. http://www.btc-es.de/index.php?idcatside=52

(last visited 09/09/2015).

enova, G., Fuentes, J. M., Llorens, J., Hurtado, O., and

Moreno, V. (2013). A framework to measure and im-

prove the quality of textual requirements. Require-

ments Engineering, 18(1):25–41.

IBM (2015). IBM Rational DOORS. http://www-

03.ibm.com/software/products/en/ratidoor (last vis-

ited 09/09/2015).

International Standard Organization (2011). Road Vehicles

- Functional Safety.

Levenshtein, V. I. (1966). Binary codes capable of cor-

recting deletions, insertions, and reversals. In Soviet

physics doklady, volume 10, pages 707–710.

Mathworks (2015). Simulink.

http://de.mathworks.com/products/simulink (last

visited 09/09/2015).

Miller, G. A. (1995). Wordnet: a lexical database for en-

glish. Communications of the ACM, 38(11):39–41.

OSLC Community (2013). Open Services for Lifecycle

Collaboration. http://open-services.net/.

Prabhu, S. M. and Mosterman, P. J. (2004). Model-based

design of a power window system: Modeling, simu-

lation and validation. In Proceedings of IMAC-XXII:

A Conference on Structural Dynamics, Society for Ex-

perimental Mechanics, Inc., Dearborn, MI.

Rajan, A. and Wahl, T., editors (2013). CESAR - Cost-

efﬁcient Methods and Processes for Safety-relevant

Embedded Systems. Number 978-3709113868.

Springer.

Sebastian Siegl, T. W. (2014). Von natrlichsprachlichen zu

formalen anforderungen zwei werkzeuge im praxis-

test. OBJEKTspektrum.

Sexton, D. (2013). An outline workﬂow for practical for-

mal veriﬁcation from software requirements to object

code. In Formal Methods for Industrial Critical Sys-

tems, pages 32–47. Springer.

The Reuse Company (2015). Requirements Quality

Suite. http://www.reusecompany.com/requirements-

quality-suite (last visited 05/27/2014).

Wu, Z. and Palmer, M. (1994). Verbs semantics and lexical

selection. In Proceedings of the 32nd annual meeting

on Association for Computational Linguistics, pages

133–138. Association for Computational Linguistics.

Tracing of Informal and Formal Requirements through Model Variables - SKY 2015 Challenge
