Adapting Processes via Adaptation Processes:

A Flexible and Cloud-Capable Adaptation Approach

for Dynamic Business Process Management

Roy Oberhauser

Computer Science Department, Aalen University, Aalen, Germany

roy.oberhauser@htw-aalen.de

Keywords: Dynamic Business Process Management, Dynamic BPM, Adaptive Process-Aware Information Systems,

PAIS, Adaptive Workflow Management Systems, Process Change Patterns, Aspect-Oriented Processes,

Cloud-based BPM, Adaptation-as-a-Service, Web Services.

Abstract: Dynamic business process management (dBPM) is dependent on automated adaptation techniques. While

various approaches to support process adaptation have been explored, they typically involve another or

some combination of modeling paradigms or language extensions. Moreover, cross-cutting concerns and a

distributed and cloud-based process adaptation capability have not been adequately addressed. This paper

introduces AProPro (Adapting Processes via Processes), a flexible and cloud-capable approach towards

dBPM that supports adapting target processes using adaptation processes while retaining an intuitive and

consistent imperative process paradigm. Based on a case study using a REST-based Web Service prototype

realization invoking process adaptation patterns in a distributed of Adaptation-as-a-Service cloud setting,

the initial evaluation results show the feasibility of the approach and gauge its performance in the cloud.

1 INTRODUCTION

Dynamic business process management (dBPM)

seeks to support the reactive or evolutionary

modification or transformation of business processes

based on environmental conditions or changes. The

technical realization of business processes, known as

executable processes or workflows, are implemented

in what is known as either a business process

management system (BPMS), workflow

management system (WfMS), or process-aware

information system (PAIS).

However, many PAISs today lack dynamic

runtime adaptation with correctness and soundness

guarantees (Reichert et al., 2009). And when such

adaptation is supported, it is typically limited to

support for manual change interaction by a process

actor (Reichert & Weber, 2012). Typical types of

recurring modifications to workflows are known as

workflow control-flow patterns (Russell, van der

Aalst & ter Hofstede, 2006), change patterns

(Weber, Reichert & Rinderle-Ma, 2008) or

adaptation patterns (Reichert & Weber, 2012).

In light of the dBPM vision, as the degree of

automation and workflow usage increases, there is a

corresponding need to support adaptation by agents,

be they human or software. Our previous work on an

adaptable context-aware and semantically-enhanced

PAIS in the software engineering domain

(Grambow, Oberhauser & Reichert, 2010, 2011a,

2011b) included automated adaptation work and

work on supporting the user-centric intentional

adaptation of workflows (Grambow et al., 2012).

However, an open challenge remains towards

practically expressing and maintaining adaptations

in an intuitive manner for process modelers and

process actors for a sustainable dBPM lifecycle.

This paper introduces and contributes a practical

and flexible cloud-capable approach called Adapting

Processes via adaptation Processes (AProPro) for

supporting dBPM in a generalized way that can be

readily implemented and integrated with current

adaptive PAIS technology. It supports the ease and

accessibility of process adaptations in an intuitive

imperative PAIS paradigm for process modelers and

process actors or users. It can further the

maintenance, reuse, portability, and sharing of

adaptations, including cloud-based provisioning of

adaptation processes within the community, thus

supporting sustainable adaptability by extending an

Oberhauser R.

Adapting Processes via Adaptation Processes - A Flexible and Cloud-Capable Adaptation Approach for Dynamic Business Process Management.

DOI: 10.5220/0005885000090018

In Proceedings of the Fifth International Symposium on Business Modeling and Software Design (BMSD 2015), pages 9-18

ISBN: 978-989-758-111-3

adaptation process's lifecycle. A case-study

demonstrates its feasibility and its cloud-based

performance.

The paper is organized as follows: section 2

describes related work, followed by a description of

the solution approach. A technical realization is

described in section 4, followed by an evaluation.

Section 6 concludes the paper. Larger figures are

placed in the appendix. Since this paper focuses on

the technical implementation of a process, the terms

workflow and process are used interchangeably.

2 RELATED WORK

Various approaches exist that can support the

manual or automated adaption of workflows. The

survey by (Rinderle, Reichert & Dadam, 2004)

provides an overview from the perspective of

support for correctness criteria. (Weber, Reichert &

Rinderle-Ma, 2008) provide an overview based on

the perspective of change patterns and support

features.

Declarative approaches, such as DECLARE

(Pesic, Schonenberg & van der Aalst, 2007) support

the constraint-based composition, execution, and

adaptation of workflows. Case handling approaches,

such as FLOWer (Van der Aalst, Weske &

Grünbauer, 2005), typically attempt to anticipate

change. They utilize a case metaphor rather than

require process changes, deemphasize activities, and

are data-driven (Reichert & Weber, 2012) (Weske,

2012). (de Man, 2009) provides a review of case

modeling approaches. Case-based approaches

towards adapting workflows include (Minor,

Bergmann, Görg & Walter, 2010). Agent-based

approaches support automated process adaptations

applied by autonomous software agents. Agentwork

(Müller, Greiner & Rahm, 2004) applies predefined

change operations to process instances using rules.

(Burmeister, Arnold, Copaciu & Rimassa, 2008)

applies a belief-desire-intention (BDI) agent using a

goal-oriented BPMN modeling language extension.

Aspect-oriented approaches include AO4BPEL

(Charfi & Mezini, 2007) and AO4BPMN (Charfi,

Müller & Mezini, 2010), both of which require

language extensions. Variant approaches include:

Provop (Hallerbach, Bauer & Reichert, 2010), which

supports schema variants with pre-configured

adaptations to a base process schema; and vBPMN

(Döhring & Zimmermann, 2011) that extends

BPMN with fragment-based adaptations via the

R2ML rule language. rBPMN (Milanovic, Gasevic

& Rocha, 2011) also interweaves BPMN and R2ML.

Automated planning and exception-driven

adaptation approaches include SmartPM (Marrella,

Mecella & Sardina, 2014), which utilizes artificial

intelligence, procedural, and declarative elements.

AProPro differs in that it is an imperative

workflow-based adaptation approach that does not

require a case metaphor and is activity-, service-,

and process-centric with regard to runtime

adaptation. Additionally, no language extensions or

other paradigms such as rules, declarative elements,

or intelligent agents are required. Further, distributed

and cloud-based adaptations to either instances or

schemas are supported.

3 SOLUTION APPROACH

The AProPro approach follows an imperative style,

and process models are kept as simple and modular

as reasonable for typical usage scenarios. This is in

alignment with the orthogonal modularity pattern

(La Rosa, Wohed, et al., 2011). Special cases can

either be separated out or handled as adaptations via

adaptation processes. A guiding principle of the

AProPro approach is that adaptations to processes

should themselves be modeled as processes,

remaining consistent with the process paradigm and

mindset. The solution scope focuses primarily on

adapting process control structures, and not

necessarily all adaptations to processes can be

accomplished with this approach. In particular,

internal activity changes, non-control and (internal)

data structure changes, and implicit dependencies

are beyond the scope of this paper.

The following description of the solution

approach will highlight certain perspectives. As

shown in Figure 1, Process Instances (PI1..n) are

typically instantiated (1) based on some Process

Schema (S) within a given PAIS (filled with

diagonal hatching). In adaptive PAISs, Adaptation

Agents (AA) (shown on the left with a solid fill), be

they human or software agents, utilizing or reacting

to Information (I) (e.g., external information such as

context or other internal system information such as

planning heuristics) or Monitoring Information (MI),

trigger modifications to various process structures. A

Schema Adaptation Agent (SAA), such as a process

designer or modeler, makes Schema Adaptions (SA)

to one or more Process Schema (PS). An Instance

Adaptation Agent (IAA), such as a process actor or

user, may perform Adaptations (A) on some Process

Instance (PI). Support for such adaptation has been

available in adaptive PAISs, e.g., the ADEPT2-

based AristaFlow (Reichert & Weber, 2012, Ch. 15).

Fifth International Symposium on Business Modeling and Software Design

Adaptation

Process

Schema (APS)

Process

Instance

(PI1..n)

Adaptation Process

Instance (API1..m)

Process

Schema

(PS)

Schema

Adaptations (SA)

Adaptation

Information (AI)

Inf ormation

(

)

Monitoring Info

(MI)

gen

(

)

(

)

Adaptation

Events (AE)

Adaptations (A)

Adaptation Schema

Adaptations (ASA)

Adaptation Instance

Adaptations (AIA)

Ins tance

Adaptation

Agent

(IAA)

Schema Adaptation

Agent (SAA)

Adaptation Process

Schema Adaptation

Agent (APSAA)

Adaptation Process

Instance Adaptation

Agent (APIAA)

Adaptation

Commands (AC)

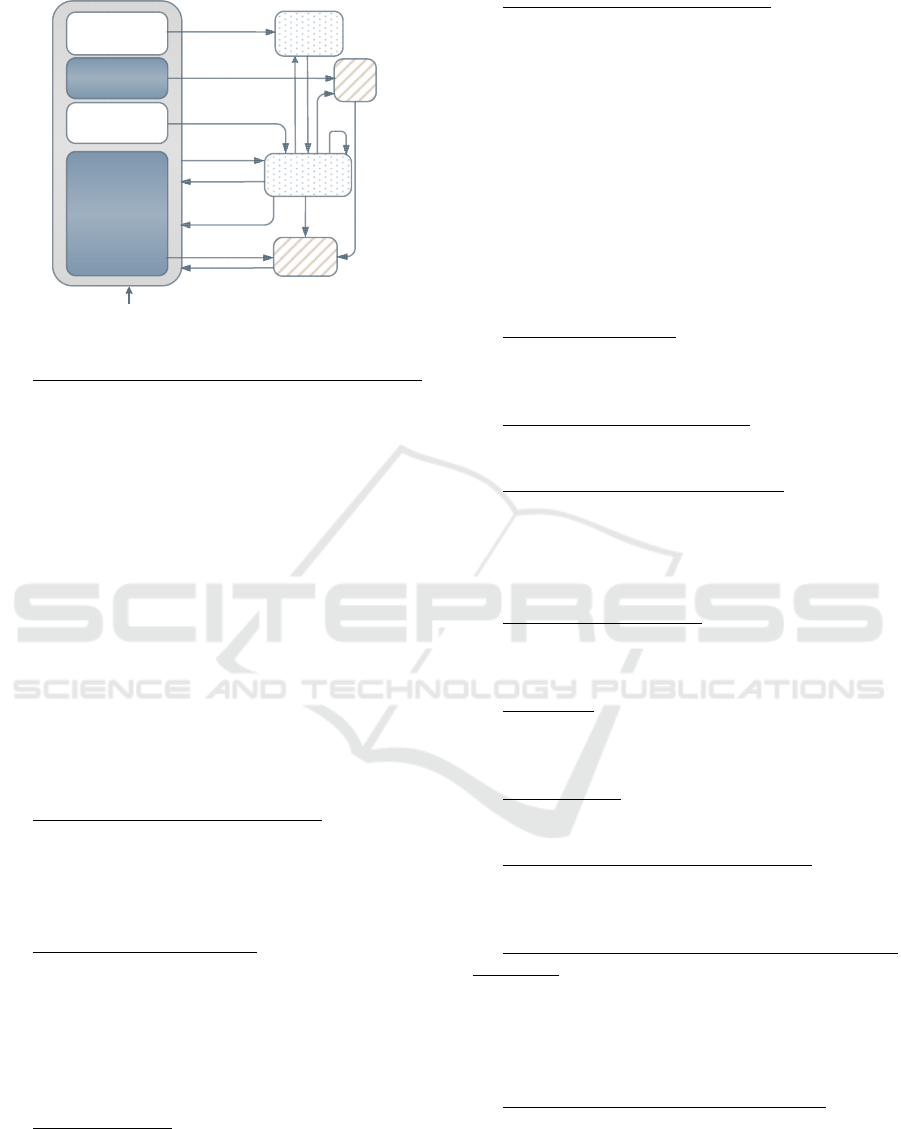

Figure 1: Conceptual solution architecture.

Workflow-driven adaptations of workflows:

adaptations, such as adaptation patterns, are

specified in the form of workflows that will operate

on another workflow. For this (see Figure 1 dotted

fill), an Adaptation Process Schema (AS) is created

or modified from which one or more Adaptation

Process Instances (API1..m) are instantiated (2) in

the same or a different PAIS. The (API) to target

(PI) relation may be one-to-one, one-to-many,

many-to-one, or many-to-many. Utilizing

Adaptation Information (AI) such as events, triggers,

or state, automated instructions denoted as

Adaptation Commands (AC) can be sent to an

Instance Adaptation Agent (IAA) that executes

Adaptations (A) on one or more (PI). Note that in

certain PAIS architectures, a direct adaptation

mechanism (3) that avoids the (IAA) intermediary

may exist, with (API) acting as an (IAA). (API) may

provide Adaptation Events (AE), e.g., so that an (AA)

can be aware of the current state of an (API).

Adaptation patterns as workflows: Adaptation

patterns (insert, delete, move, replace, swap, inline,

extract, parallelize, etc.) can be integrated in

workflows and applied conditionally based on

Adaptation Information (AI), e.g., in the form of

process variables or events.

Aspect-oriented adaptations: this is supported by

modularizing and constraining an adaptive workflow

to operate on one aspect (such as authorization),

while having other adaptation workflows address

others. The many-to-many relations between (API)

and (PI) or Schemas (PS) was previously mentioned.

Congruent with the chain-of-responsibility design

pattern, adaptations can be modularized and chained.

Variation points: these can be intentionally

incorporated via markers for explicit adaptation

support during process modeling, e.g., given

insufficient modeling information. Adaptation

workflows can then dynamically "fill in" these areas

during process configuration or enactment.

Adapting adaptation workflows: This concept

supports a further degree of flexibility by supporting

adaptation workflows operating on (other)

adaptation workflows. Adaptation Process Instances

(API) send Adaptation Commands (AC) resulting in

Schema Adaptations (SA) to a Process Schema (PS),

either via a Schema Adaptation Agent (SAA) or

directly via (4). In a similar fashion, Adaptation

Schema Adaptations (ASA) can be applied to an

Adaptation Process Schema (APS) via an Adaptation

Process Schema Adaptation Agent (APSAA) or

directly via (5). Note that in this case, an (API) can

change its own schema (APS) or those of others, and

potentially change itself (API) or other instances

(API), possibly even directly via (6).

Recursive adaptation: instead of separating the

(API) from its target (PI), if preferable (for instance,

to access contextual data), a (PI) can include its own

(APS) fragments and thus become self-modifying.

Exception-based adaptations: (un)anticipated

exceptions can be used to trigger the enactment of

adaptation workflows within exception handlers.

Reactive and proactive adaptations: in support of

dBPM, event- and context-driven changes can

automatically trigger and cause automated predictive

or reactive runtime adaptations to be incorporated on

an as-needed basis, rather than taking all

possibilities into process models a priori.

Push-or-pull adaptations: for push, the adaptive

workflow is triggered first and applies its changes to

the target; for pull, the target workflow triggers the

adaptive workflow to initiate its adaptations.

Reusability: shared modeled/tested adaptation

workflows support the wider reuse of adaptation

patterns in the community, e.g., via repositories like

APROMORE (La Rosa, Reijers, et al., 2011).

Composability: more complex adaptations can

be addressed by composing multiple adaptation

workflows, e.g., via sub-processes into larger ones.

Process Compliance and Governance: the (AP)

can be used to verify expected structural and state

conditions (no changes applied), or to additionally

apply adaptations when these are not in compliance.

Cloud-based provisioning of adaptation

workflows: the concept supports operating in a

distributed and PAIS-independent (heterogeneous)

manner on other workflows in other clouds, making

these adaptation workflows readily available to

operate on others as needed. Shared tenancy and pay

for use could reduce infrastructural costs.

Service-oriented adaptation services: the

approach supports the ability to provision and

support adaptations-as-a-service (AaaS) in the cloud.

Thus, AProPro supports the goals of dBPM by

enabling desired automated or semi-automated

adaptations, while allowing process modelers and

users to remain in their current process paradigm

Adapting Processes via Adaptation Processes: A Flexible and Cloud-Capable Adaptation Approach for Dynamic Business

Process Management

and modeling language without requiring language

extensions. Empirical findings that support such an

approach includes: (Haisjackl et al., 2014) who

empirically investigated understandability issues

with declarative modeling, and found that subjects

tended to model sequentially and had difficulty with

combinations of constraints; (Pichler et al., 2012)

determined that imperative models have better

understandability and comprehensibility than

declarative ones; (Reijers, Mendling, & Dijkman,

2011) suggests that process modularity via

information hiding enhances understandability; and

(Döhring, Reijers & Smirnov, 2014), which showed

that process complexity affected maintenance task

efficiency for process variant construction - here

subjects preferred high-level change patterns to

process configuration.

4 REALIZATION

To verify the feasibility of the AProPro approach,

key aspects of the solution concept were

implemented utilizing the adaptive PAIS

AristaFlow. The solution approach required no

internal changes to this PAIS, relying exclusively on

its available extension mechanisms via its generic

Java method execution environment. RESTful web

services were used for cloud interaction. Adaptation

workflow activity nodes utilize a

StaticJavaCall

to invoke the extension code contained in a Java

ARchive (JAR) file, which sends change requests to

a REST server in the same or another PAIS.

To support heterogeneity, both the

communication and the change requests are PAIS

agnostic. They could thus be invoked and sent by

any PAIS activity in any adaptation workflow

located anywhere. Only the actual workflow change

operations require a PAIS-specific API. Other PAIS

implementations can be relatively easily integrated

via plug-in adapters.

4.1 Adaptation Patterns and AaaS

The initial realization focused on demonstrating key

AProPro and AaaS capabilities basic to typical

adaptations: inserting, deleting, and moving process

fragments. On this basis, more complex adaptation

workflows can be readily built. For instance, the

replace change pattern was realized as a subprocess

consisting of an insert and a delete operation.

The AristaFlow application programming

interface (API) expects various method input

parameters in order to modify a workflow. Thus,

pattern implementations were designed to include

these expected values even if some are optional.

The insert process fragment pattern, shown in

Figure 2(a), takes the following input parameters:

 procID: ID of the target process instance;

 pre: ID of the predecessor node;

 suc: ID of the successor node;

 activityID: ID of activity assigned to node;

 newNodeName: name of the new node;

 staffAssignmentRule: of this node;

 description: of this node;

 readParameter: input parameters for the new

node;

 writeParameter: output parameters of the new

node.

A B

A BX

A B

A BC

(a) (b) (c)

A CB

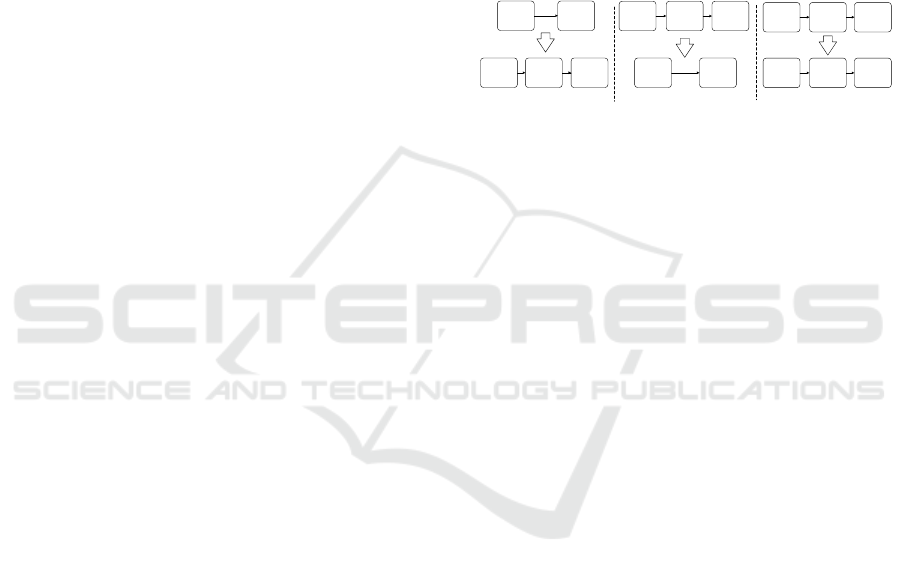

Figure 2: (a) insert, (b) delete, and (c) move process

fragment patterns.

The delete process fragment pattern, shown in

Figure 2(b), takes the following input parameters:

 procID: ID of the target process instance;

 nodeID: ID of the node to be deleted.

The move process fragment pattern, shown in

Figure 2(c), takes the following input parameters:

 procID: ID of the target process instance;

 pre: ID of the new predecessor node;

 suc: ID of the new successor node;

 nodeID: ID of the node to be moved.

The replace pattern was realized as a subprocess

that uses the insert and delete patterns (see Figure 6).

RESTful web services were created in Java

according to JAX-RS using Apache CXF 2.7.7, with

Java clients using Unirest 1.4.5. For basic pattern

AaaS services, the following corresponding REST

operations were provided at the target PAIS

containing the target workflows to be modified, with

procID passed in the URI and the rest of the inputs

described above passed as parameters:

 PUT /procID/{procID}/insert

 PUT /procID/{procID}/delete

 PUT /procID/{procID}/move

The following REST operations provide the

interface for more advanced AaaS services that

invoke adaptation workflows which modify a

separate target workflow instance. These processes

are explained later in the evaluation section, the

technical interface parameters of the adaptation

service implementations are given here:

Fifth International Symposium on Business Modeling and Software Design

 For quality assurance:

PUT /procID/{procID}/adapt/qa

with the string parameters urgent, high risk,

junior engineer, and targetIP;

 For test-driven development:

PUT /procID/{procID}/adapt/tdd

with the string parameters testDriven and

targetIP.

4.2 Implementation Details

The AaaS client-side adaptation process nodes

internally invoke static methods in the

ChangeOperations

class for that change pattern

(

doInsertProcessFragment

or equivalent). This

method invokes a REST client that sends the

corresponding request to a REST server. The service

determines the type of Request, on which basis a

corresponding (e.g., InsertProcessFragment-)

Command object is instantiated and passed to a

Controller, which determines when and in what

sequence to execute a given command. Refer to

Figure 3. To support heterogeneity, the commands

utilize the corresponding Supplier classes which

utilize PAIS-specific APIs for the operations.

A lock is acquired for the AristaFlow target

process instance and a ChangeableInstance object is

generated. All changes are first applied to this

ChangeableInstance object. When the changes are

committed, the entire instance is checked by

AristaFlow for correctness. If the changes are

correct, the actual process instance is modified

accordingly. If errors were found, the changes are

rejected and the actual process instance remains

unchanged.

5 EVALUATION

To evaluate the solution concept and one realization

thereof, this initial case study focused on

demonstrating key process adaptation capabilities of

the concept and assessing its viability with respect to

performance, especially for a distributed cloud

scenario. The solution concept envisions provisioned

adaptation workflows in the cloud that are available

to operate on other workflows. Since certain reactive

dBPM scenarios may be sensitive to delays, the

technical evaluation encompassed cloud

performance measurements. Workflows operating

across geographically separate PAISs utilizing a

basic cloud configuration would represent a worst

case area of the performance spectrum.

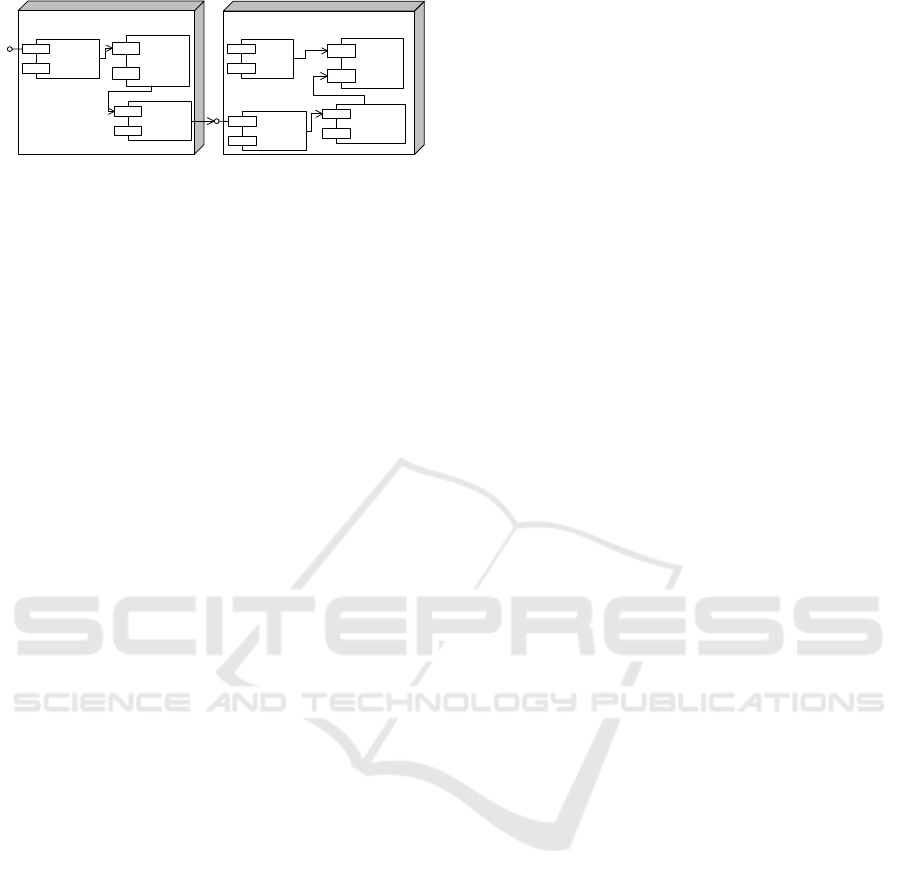

Figure 4 shows the evaluation setup. System A,

which ran the adaptation workflows, was an

Amazon AWS EC2 t2.micro instance eu-central-1b

in Frankfurt, Germany consisting of an Intel Xeon

E5-2670 v2@2.50GHz, 1 GB RAM, 1 Gbps

network, AristaFlow PAIS 1.0.92 - r19, Windows

2012 R2 Standard x64, and Java 1.8.0_45-b15.

System B was an equivalent Amazon AWS EC2

t2.micro instance on the US West Coast (Northern

California) us-west-1b containing the target

workflows. A remote configuration means A is

active and communicates with its target on B. A

local configuration implies that the Adaptation

Process is collocated with the Target Process within

the same PAIS, but commands are still sent via

REST.

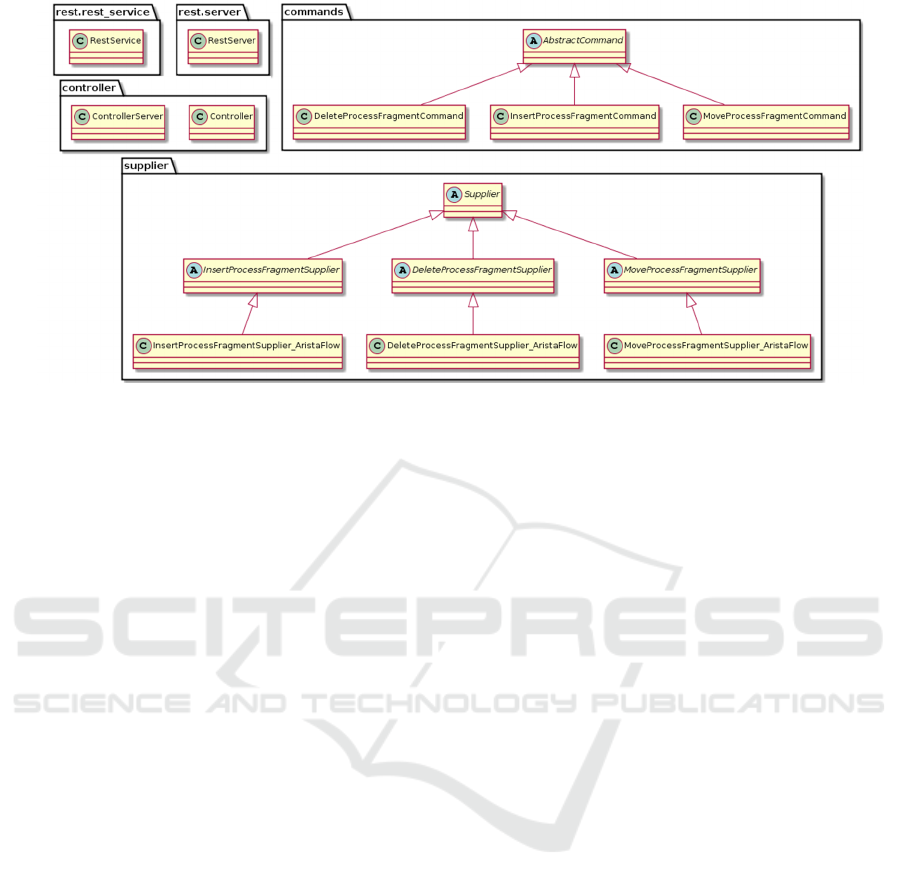

Figure 3: UML2 class diagram showing key implementation packages and classes.

Adapting Processes via Adaptation Processes: A Flexible and Cloud-Capable Adaptation Approach for Dynamic Business

Process Management

Adaptation

Service

PAIS

containing

Adaptation

Work flow s

PAIS

containing

Target

Work flow s

Adaptation

Service

Adaptation

Requestor

PAIS-specific

Adapter

PAIS

Client

Figure 4: AWS cloud evaluation setup.

The test procedure was as follows: On system B

the Apache CXF REST server was started, and then

the target workflow was manually started via the

AristaFlow client to bring it into a started initialized

state. On system A an adaptation workflow was

triggered by a REST client using Postman 2.0 in a

Chrome web browser with which the necessary

adaptation parameters were entered (e.g., procID,

target workflow IP address, etc.). Activities in the

adaptation workflow send adaptation requests via

REST to system B. All latency and processing times

were measured within systems A and B.

5.1 Case Study

While the solution concept is domain independent,

this case study uses software engineering (SE)

processes to illustrate the capabilities and adaptation

effects. The branches and loops involved in realistic

models are omitted for simplification and space.

5.1.1 Sequential Waterfall Process

For a representative target for the application of

adaptation processes, a sequential workflow was

chosen, loosely following a waterfall process (WP)

consisting of common SE activities for an approved

software change request. It represents any standard

process in a fictitious organization. The activity

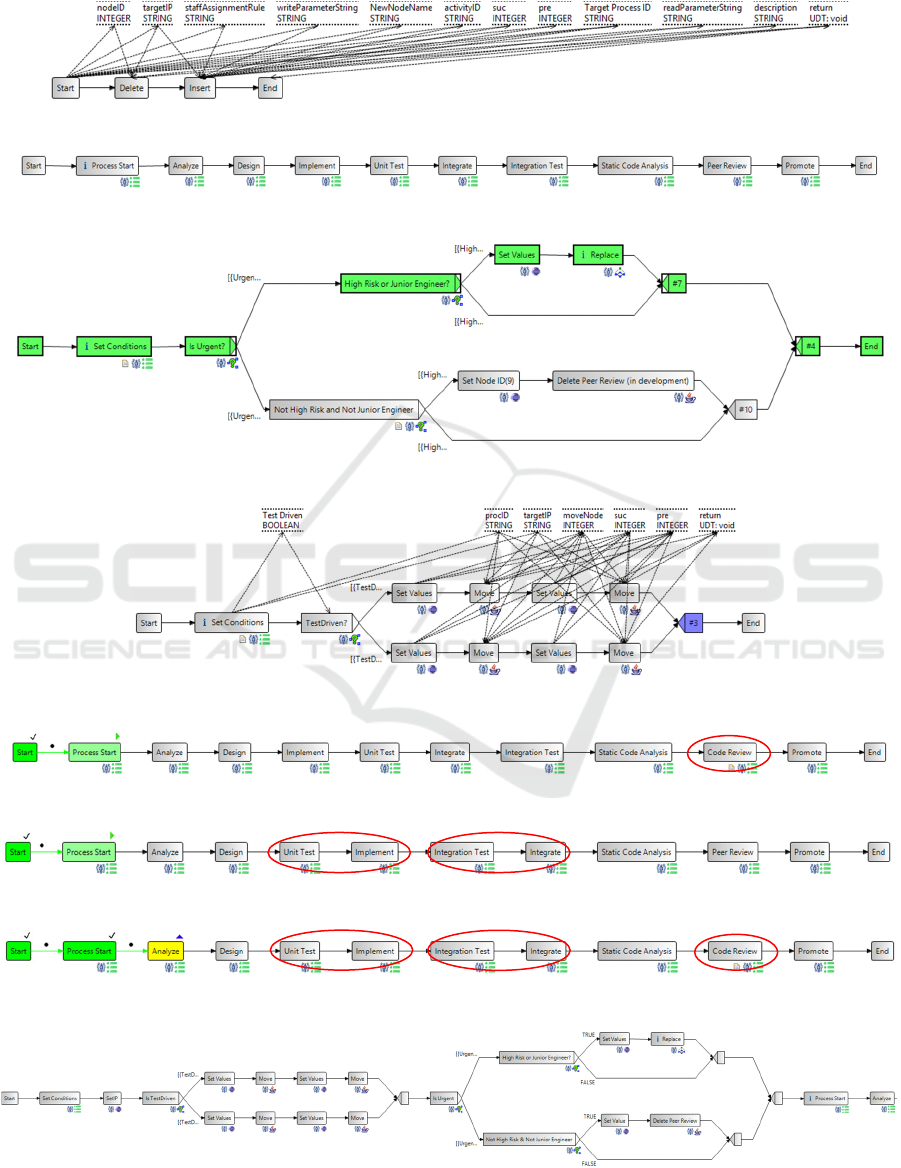

sequence is shown in Figure 7.

5.1.2 Quality Assurance Adaptation Process

To demonstrate process governance and an

Adaptation Process producing process variants, the

Quality Assurance Adaptation Process (QAAP)

variously adapts a target process based on situational

factors.

Assume the SE process for a software change

varies depending on its urgency, risk, and the

worker's experience. The SE organization's policy

normally expects at least a peer review before code

is committed. The WP already includes this activity,

although the adaptation workflow could also check

policy compliance and insert such a missing activity.

Three configurable boolean parameters were

utilized for this process in Figure 8: Urgent, High

Risk, and Junior Engineer (denoting the worker

experience level, with false implying a more senior

worker). The 'SetConditions' task allows a user to set

workflow values, which is skipped when invoked as

a service. The following cases besides the default

Peer Review (no change) were supported:

Code Review Case: A Code Review is required

if the circumstances are 'NOT urgent AND (high

risk OR junior engineer).' In this case:

 The node Peer Review is deleted via the

Delete Process Fragment

 A node Code Review is inserted via the

Insert Process Fragment Pattern

No Review Case: Foregoing a review is only

tolerated when the situation is 'urgent AND NOT

high risk AND NOT junior engineer.' In this case:

 The Peer Review node is removed via the

Delete Process Fragment Pattern.

Figure 10 shows the result of the application of

QAAP to WP for 'not urgent and high risk', resulting

in activity Code Review replacing Peer Review. In a

context-aware dBPM environment, such input

values could also be automatically determined.

5.1.3 TDD Adaptation Process

In software test-driven development (TDD), test

preparation activities precede corresponding

development activities. To support the TDD aspect

in the WP, Unit Test is placed before Implement and

Integration Test before Integrate. Thus, the TDD

Adaptation Process (TDDAP) shown in Figure 9

utilizes the Move Process Fragment Pattern twice.

The resulting adaptations are shown in Figure 11.

5.1.4 Aspect-oriented Adaptations

Multiple separate Adaptation Processes can be

advantageous for modularity and maintainability.

Analogous to aspect-orientation, each aspect and its

associated adaptations can be modeled in separate

conditionally dependent Adaptation Processes. In

Figure 12 both QAAP and TDDAP were applied to

the target WP, with each Adaptation Process

representing a different aspect (reviews or testing).

5.1.5 Self-adaptive Processes

Self-adaptive processes support the integrative

modeling of possible adaptations into the target

processes themselves. As shown in Figure 13, both

the QAAP and TDDAP adaptations were modeled

before the WP, with the target process for the

adaptations being the enacting process instance

Fifth International Symposium on Business Modeling and Software Design

itself. This demonstrates the feasibility of adapting

adaptation workflows and of recursive adaptations,

and in a similar way adaptations could be integrated

into process exception handlers.

5.2 Measurements

To determine the performance of dBPM adaptation

operations by an adaptation process in a

geographically distributed cloud scenario, the

durations for various basic operations (insert, delete,

move) and adaptation processes (QAAP and

TDDAP) were measured. In the case that an initial

measurement was significantly longer than the ones

following (e.g., due to initialization and caching

effects), this value was noted separately and not

included in the average, since a dormant adaptation

process might exhibit such an effect, whereas an

active adaptation process would not. Each

measurement was repeated in accordance with setup

and test procedure described previously. To gather

upper bounds, no optimizations or performance

tuning were attempted.

Table 1 through Table 3 show the results for the

execution of the basic adaptation operations insert,

delete, and move respectively in a local and a remote

configuration. The average was calculated from the

4 repeated measurements that followed the initial

measurement. To see if cloud network delays play a

significant role, the network latencies and the

adaptation times are differentiated, which is also

depicted in Figure 5.

Table 1: Insert operation duration (in seconds).

Local (B to B) Remote (A to B)

Initial Average Initial Average

Adaptation 4.033 3.468 3.588 3.203

Latency 0.418 0.373 0.686 0.675

Total 4.451 3.842 4.275 3.878

Table 2: Delete operation duration (in seconds).

Local (B to B) Remote (A to B)

Initial Average Initial Average

Adaptation 3.251 3.295 2.880 3.749

Latency 0.444 0.448 1.013 0.674

Total 3.695 3.743 3.893 4.423

Table 3: Move operation duration (in seconds).

Local (B to B) Remote (A to B)

Initial Average Initial Average

Adaptation 6.796 3.311 6.105 4.005

Latency 0.577 0.347 0.772 0.692

Total 7.374 3.658 6.877 4.697

Table 4: Average Adaptation Process duration (seconds).

Local (B to B) Remote (A to B)

QAAP (1 replace) 15.748 16.285

TDDAP (2 swaps) 14.971 14.226

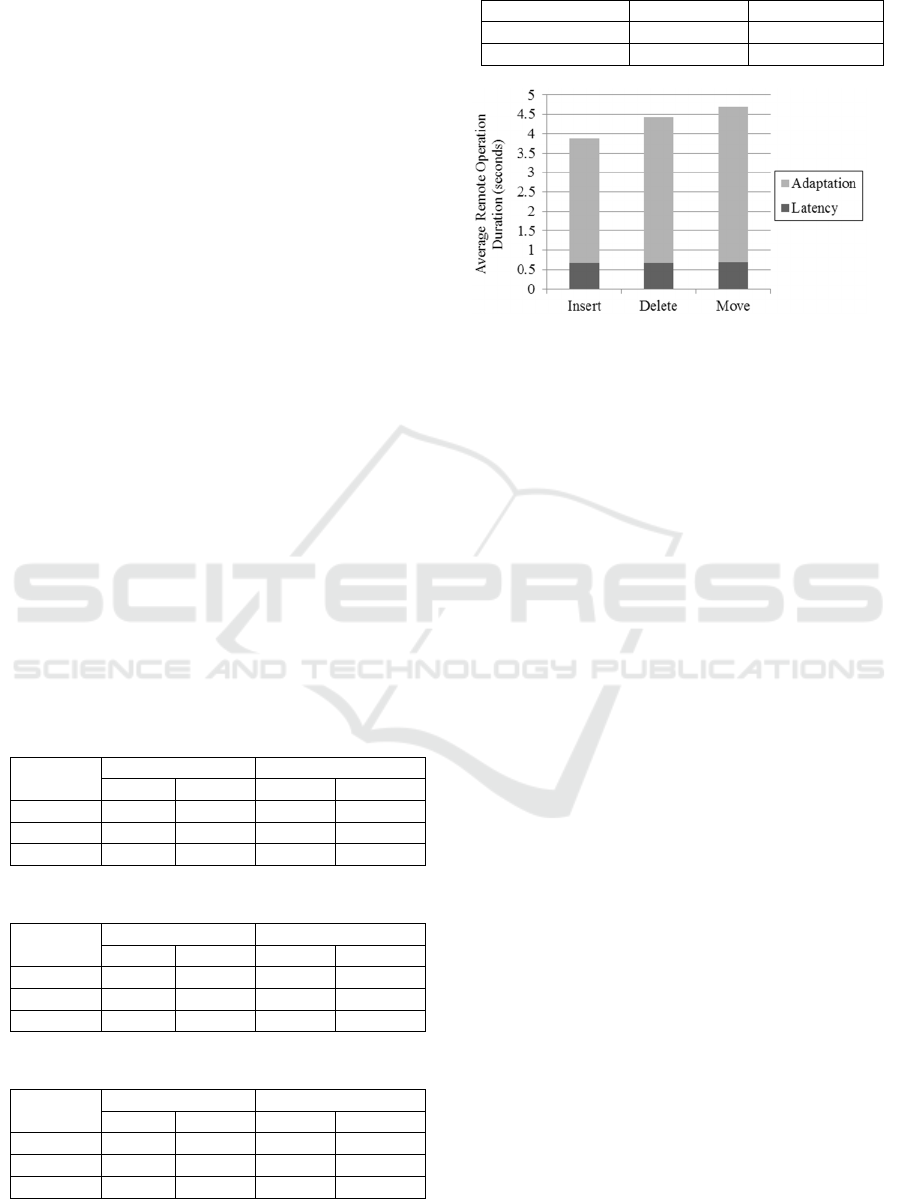

Figure 5: Average duration (in seconds) for various remote

basic adaptation operations.

Table 4 shows average of 5 repeated execution

durations for the

QAAP and separately for the TDDAP

For a self-adaptive process, Figure 13 combines

the QAAP and TDDAP workflow fragments before

the WP fragment. When executed 3 times in a local

configuration, the average duration was 34.321

seconds. This corresponds closely with the sum of

the separate QAAP and TDDAP measured times.

Thus, there appears to be no significant performance

benefit to integrating adaptation logic in the target

process when using a communication interface.

Thus, for the aforementioned benefits of process

modularization, separating the adaptation logic from

target processes and supporting aspect-oriented

processes appears practical.

Performance results show that the adaptation

delays are potentially tolerable for non time-critical

situations in dBPM, such as predictive adaptations.

When reactive adaptations to executing processes in

the cloud are involved, or when human actors cause

adaptations and await responses, the delays may be

unsatisfactory. Networking had a relatively minor

effect on the overall operation duration. Available

RAM may have limited PAIS performance, and

different configurations and profiling could provide

further insights.

In summary, the evaluation demonstrated that the

solution concept is technically viable for non time-

critical cloud scenarios and can be practically

realized by extending a currently available adaptive

PAIS. Further, adaptive process modularization and

cloud distribution appears to currently have

relatively little performance impact versus the cost

of adaptive workflow operations. This could

however change if optimization and performance

issues are addressed.

Adapting Processes via Adaptation Processes: A Flexible and Cloud-Capable Adaptation Approach for Dynamic Business

Process Management

6 CONCLUSIONS

A flexible cloud-capable approach for process

adaptation called AProPro was introduced. Its

feasibility was shown with a realization and a case

study involving cloud-based adaptation workflows

and measurements. Key adaptation capabilities

towards dBPM were shown, including workflow-

driven adaptations of workflows, aspect-oriented

adaptations, self-adapting workflows, composability,

process governance, and the cloud-based

provisioning of adaptation processes with an

Adaptations-as-a-Service (AaaS) paradigm.

Proactive adaptations were applied in push fashion

and pulled via self-adaptation. Measurements show

that pursuing cloud-based distribution and

adaptation modularization is likely not detrimental

to performance, since adaptations had more impact.

The advantages of the AProPro adaptations for

dBPM could be readily realized and benefit various

domains such as healthcare, automotive, etc. For

instance, a healthcare process could view allergies as

an aspect and utilize an allergy adaptation workflow.

The solution faces issues analogous to those of

aspect-oriented approaches, in that it may not be

readily clear to process modelers which adaptations

or effects may be applied in what order at any given

workflow point. Thus, additional PAIS tooling and

process simulation should support adaptation

management, version and variant management,

compatibility checking, and make adaptation effects

or conflicts visible to process modelers.

Future work will investigate these issues, and

involves comprehensive adaptation pattern coverage,

empirical studies, optimizations, and heterogeneous

PAIS testing. To achieve the dBPM vision, further

work in the process community includes

standardization work on interchangeable concrete

process templates, repositories, and AaaS cloud

APIs, which could further the provisioning,

exchange, and reuse of workflows, especially

adaptive workflows such as those of the AProPro

approach, thus mitigating hindrances for widely

modeling and supporting dBPM adaptation.

ACKNOWLEDGEMENTS

The author thanks Florian Sorg for his assistance

with the implementation and evaluation and Gregor

Grambow for his assistance with the concept. This

work was supported by AristaFlow and an AWS in

Education Grant award.

REFERENCES

Burmeister, B., Arnold, M., Copaciu, F. & Rimassa, G.

(2008). BDI-agents for agile goal-oriented business

processes. In Proceedings of the 7th international joint

conference on Autonomous agents and multiagent

systems: industrial track . International Foundation for

Autonomous Agents and Multiagent Systems, 37-44.

Charfi, A. & Mezini, M. (2007). Ao4bpel: An aspect-

oriented extension to bpel. World Wide Web, 10(3),

309-344.

Charfi, A., Müller, H. & Mezini, M. (2010). Aspect-

oriented business process modeling with AO4BPMN.

In Modelling Foundations and Applications (pp. 48-

61). Springer Berlin Heidelberg.

de Man, H. (2009, January). Case management: A review

of modeling approaches. BPTrends.

Döhring, M., Reijers, H. A. & Smirnov, S. (2014).

Configuration vs. adaptation for business process

variant maintenance: an empirical study. Information

Systems, 39, 108-133.

Döhring, M. & Zimmermann, B. (2011). vBPMN: event-

aware workflow variants by weaving BPMN2 and

business rules. In Enterprise, Business-Process and

Information Systems Modeling (pp. 332-341). Springer

Berlin Heidelberg.

Grambow, G., Oberhauser, R. & Reichert, M. (2010).

Employing Semantically Driven Adaptation for

Amalgamating Software Quality Assurance with

Process Management. In Proceedings of the 2nd

International Conference on Adaptive and Self-

adaptive Systems and Applications, pp. 58-67.

Grambow, G., Oberhauser, R. & Reichert, M. (2011a).

Contextual Injection of Quality Measures into

Software Engineering Processes. International Journal

on Advances in Software, 4(1 & 2), 76-99.

Grambow, G., Oberhauser, R. & Reichert, M. (2011b).

Event-driven Exception Handling for Software

Engineering Processes. Proc. 5th International

Workshop on event-driven Business Process

Management, LNBIP 99, 414-426.

Grambow, G., Oberhauser, R. & Reichert, M. (2012).

User-centric Abstraction of Workflow Logic Applied

to Software Engineering Processes. Proceedings of the

1st Workshop on Human-Centric Process-Aware

Information Systems, LNBIP112, 307-321.

Haisjackl, C., Barba, I., Zugal, S., Soffer, P., Hadar, I.,

Reichert, M., Pinggera, J. & Weber, B. (2014).

Understanding Declare models: strategies, pitfalls,

empirical results. Software & Systems Modeling, 1-28.

Hallerbach, A., Bauer, T. & Reichert, M. (2010).

Capturing variability in business process models: the

Provop approach. Journal of Software Maintenance

and Evolution: Research and Practice, 22(6‐7), 519-

546.

La Rosa, M., Reijers, H. A., Van Der Aalst, W. M.,

Dijkman, R. M., Mendling, J., Dumas, M. & Garcia-

Banuelos, L. (2011). APROMORE: An advanced

process model repository. Expert Systems with

Applications, 38(6), 7029-7040.

Fifth International Symposium on Business Modeling and Software Design

La Rosa, M., Wohed, P., Mendling, J., Ter Hofstede, A.

H., Reijers, H. A. & van der Aalst, W. M. (2011).

Managing process model complexity via abstract

syntax modifications. IEEE Transactions on Industrial

Informatics, 7(4), 614-629.

Marrella, A., Mecella, M. & Sardina, S. (2014). SmartPM:

An Adaptive Process Management System through

Situation Calculus, IndiGolog, and Classical Planning.

Proceedings of the Fourteenth International

Conference on Principles of Knowledge

Representation and Reasoning (KR 2014). AAAI

Press.

Milanovic, M., Gasevic, D. & Rocha, L. (2011). Modeling

flexible business processes with business rule

patterns. In: Proceedings of the 15th Enterprise

Distributed Object Computing Conference (EDOC’11)

(pp. 65–74). IEEE.

Minor, M., Bergmann, R., Görg, S. & Walter, K. (2010).

Towards case-based adaptation of workflows. In Case-

based reasoning. Research and development (pp. 421-

435). Springer Berlin Heidelberg.

Müller, R., Greiner, U. & Rahm, E. (2004). Agentwork: a

workflow system supporting rule-based workflow

adaptation. Data & Knowledge Engineering, 51(2),

223-256.

Pesic, M., Schonenberg, H. & van der Aalst, W.M.P.

(2007). Declare: Full support for loosely-structured

processes. Proceedings of the 11th IEEE International

Enterprise Distributed Object Computing Conference

(EDOC'07) (pp. 287-298). IEEE.

Pichler, P., Weber, B., Zugal, S., Pinggera, J., Mendling, J.

& Reijers, H. A. (2012). Imperative versus declarative

process modeling languages: An empirical

investigation. In Business Process Management

Workshops. Springer Berlin Heidelberg., 383-394.

Reichert, M., Dadam, P., Rinderle-Ma, S., Jurisch, M.,

Kreher, U. & Göser, K. (2009). Architecural principles

and components of adaptive process management

technology. In: PRIMIUM - Process Innovation for

Enterprise Software. Lecture Notes in Informatics

(LNI) (P-151). Koellen-Verlag, 81-97.

Reichert, M. & Weber, B. (2012). Enabling flexibility in

process-aware information systems: challenges,

methods, technologies. Springer Science & Business

Media.

Reijers, H. A., Mendling, J. & Dijkman, R. M. (2011).

Human and automatic modularizations of process

models to enhance their comprehension. Information

Systems, 36(5), 881-897.

Rinderle, S., Reichert, M. & Dadam, P. (2004).

Correctness criteria for dynamic changes in workflow

systems--a survey. Data & Knowledge Engineering.

50(1). pp. 9-34.

Russell, N., ter Hofstede, A.H.M., van der Aalst,W.M.P.

& Mulyar, N. (2006). Workflow Control-Flow

Patterns: A Revised View. BPM Center Report BPM-

06-22.

Van der Aalst, W. M., Weske, M. & Grünbauer, D.

(2005). Case handling: a new paradigm for business

process support. Data & Knowledge Engineering

53(2), 129-162.

Weber, B., Reichert, M., and Rinderle-Ma, S. (2008).

Change patterns and change support features –

Enhancing flexibility in process-aware information

systems. In: Data and Knowledge Engineering, 66,

438–466.

Weske, M. (2012). Business process management:

concepts, languages, architectures. Springer Science &

Business Media.

Adapting Processes via Adaptation Processes: A Flexible and Cloud-Capable Adaptation Approach for Dynamic Business

Process Management

APPENDIX

Figure 6: The Replace process fragment sub-process.

Figure 7: The unchanged Waterfall Process (WP).

Figure 8: Quality Assurance Adaptation Process (QAAP).

Figure 9: Test-Driven Development Adaptation Process (TDDAP).

Figure 10: Waterfall Process after application of the Quality Assurance Adaptation Process.

Figure 11: Waterfall Process after application of the Test-Driven Development Adaptation Process.

Figure 12: Waterfall Process after application of both Adaptation Processes.

Figure 13: Self-adaptive Waterfall Process screenshot (continues to right as in Figure 7).

Fifth International Symposium on Business Modeling and Software Design
