Enterprise Methods Management

Using Semantic Web Technologies

Peter Rosina and Bernhard Bauer

Software Methodologies for Distributed Systems, Institute of Computer Science

University of Augsburg, Universit

atsstr. 6a, 86135 Augsburg, Germany

ﬁrstname.lastname@ds-lab.org

Keywords:

Methods, modeling, ontologies, semantic web, enterprise architecture.

Abstract:

Due to today’s product complexity and variety and a shortening of development cycles, for instance, in the

automotive domain, a conventional knowledge representation and management of the various design methods

is not reasonable anymore. By acquiring the relevant domain and business knowledge from IT applications,

documents and experts and creating ontologies, business rules and queries thereof, domain experts can manage

this knowledge independently and thus react faster to the ever-changing development process.

Using Semantic Web technologies, we created a methods ontology that enables domain experts to analyze and

compare method meta knowledge, e.g., about physical and virtual CAx methods. Furthermore, this particular

domain and business knowledge features interdependencies with the remaining enterprise knowledge, includ-

ing business processes, organizational aspects and the IT architecture. Therefore, we show concepts for the

integration of this method meta knowledge into an enterprise architecture.

1 INTRODUCTION

The task of R&D divisions in the automotive domain

comprises forming ideas for new products, i.e., the

product planning, and the design in different stages

until it is ready for the start of production in the pro-

duction division. Naturally, a multitude of differ-

ent disciplines and departments, for instance, phys-

ical crash tests and virtual simulations, have to col-

laborate, cooperate and interact during this process

which entails the application of a large number of var-

ious technologies and working methods (cf. section

3), for instance, Computer Aided x (CAx) methods.

CAx comprises the Computer Aided Design (CAD)

that provides approaches for the virtual design and

veriﬁcation of products and their geometry. Further

involved disciplines are the Computer Aided Engi-

neering (CAE) and Testing (CAT); the former pro-

vides methodologies for simulating the behavior of

a car and its functions, e.g., Finite Element Analy-

sis (FEA) for crash simulation; the latter for perform-

ing physical tests, e.g., vehicle management, job, and

testing control, and test result analysis. The involved

tools and methods range from mechanical test beds,

through Hardware in the Loop (HiL) to Digital Mock-

Ups and other pure software applications.

Our goal is to create an integrated model that de-

picts this domain of methods, technologies and tools

in order to support stakeholders in their daily work.

Nowadays, a method selection for a deﬁned purpose,

an analysis of the entirety of methods in a company

and the method monitoring are mainly manual tasks,

ever and anon assisted by basic IT documents, like

spreadsheets. Formalizing this knowledge allow the

involved roles to analyze methods along the product

development process, for instance, for ﬁnding virtual

replacements for physical tests. This meta model and

the resulting ontology are introduced and explained in

section 4.

We realized our meta model, resulting ontology

and a prototypical application, following the ON-

TORULE approach (de Sainte Marie et al., 2011). Us-

ing Semantic Web technologies (cf. section 2.1) bears

many advantages: on the one hand, it enables a clear

separation of domain and business knowledge, that

can be extended and modiﬁed by domain and busi-

ness experts. On the other hand, this knowledge can

be implemented and managed independently from the

Rosina P. and Bauer B.

Enterprise Methods Management Using Semantic Web Technologies.

DOI: 10.5220/0005885400460055

In Proceedings of the Fifth International Symposium on Business Modeling and Software Design (BMSD 2015), pages 46-55

ISBN: 978-989-758-111-3

applications that process it.

Finally, in order to beneﬁt mutually from the addi-

tional knowledge available in an enterprise, we illus-

trate how to combine our method meta model with an

enterprise architecture (EA) meta model in section 5.

The basics about EA are introduced earlier in section

2.2. In section 6, we shortly present a prototypical

demonstrator showcasing the method meta ontology

and its application. Furthermore, we discuss the op-

portunities that emerge by combining method and EA

meta models. The paper is then summarized in the

ﬁnal section 7.

2 BASICS

2.1 Semantic Web Technologies

Bringing the Semantic Web to fruition is an collabo-

rative endeavor of various research groups, industrial

partners and organizations pursuing the common goal

to enrich the WWW with semantic data, thus trans-

forming the web from an un- or semi-structured docu-

ment based technology to a knowledge-centered one.

(Berners-Lee et al., 2001) developed the vision of the

Semantic Web in order to make the web’s meaning

machine-readable and -interpretable and hence inte-

grate heterogeneous data and infer new information

from existing knowledge bases (KBs) automatically.

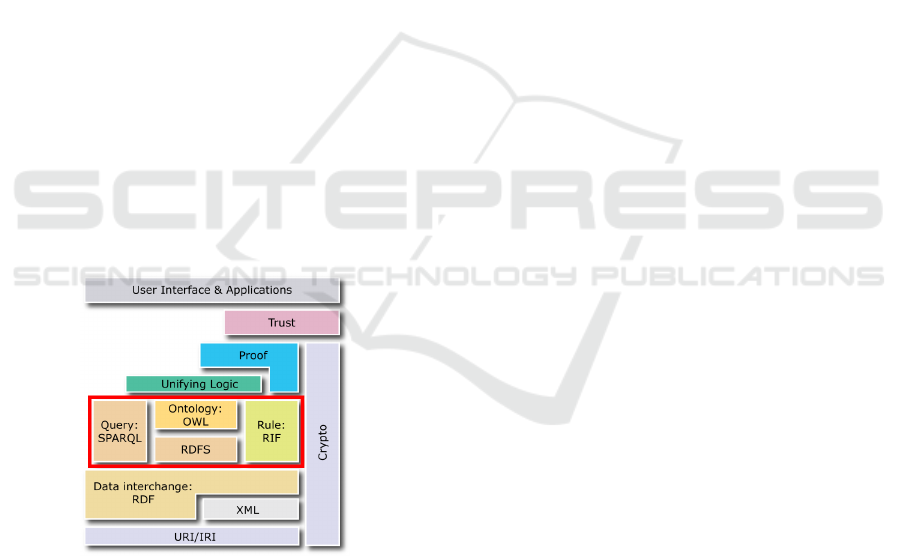

Figure 1: Semantic Web layercake (after (W3C, 2007)).

The prominent Semantic Web Stack in Figure 1

depicts the architecture of the Semantic Web, which is

still in development and continuously improved. The

lower layers provide the technological basement for

the subsequent upper layers. The highlighted layers’

containing formats, i.e., RDFS, OWL (W3C OWL

Working Group, 2012), RIF (Kifer and Boley, 2013)

and SPARQL (Harris and Seaborne, 2013), serve as

our technological foundation. This paper represents

an excerpt of our ongoing work, though. Therefore,

we focus on modeling ontologies with the knowledge

representation language OWL. OWL ontologies sepa-

rate a terminological box (TBox), representing the on-

tological concepts, and the modeled individuals in the

assertional box (ABox). Moreover, we do not neces-

sarily apply these technologies for the WWW, but for

the enhancement and realization of enterprise domain

models and their applications.

2.2 Enterprise Architecture

Management

Many enterprises’ IT landscapes have reached a de-

gree of complexity that is only hard to understand and

manage (Hanschke, 2013). Additionally, the IT needs

to be aligned to business services and processes for an

optimal and efﬁcient support. For this purpose, many

organizations have established an EA Management

(EAM), motivated by the circumstance, that business

is changing faster and faster due to shorter develop-

ment cycles, adaptation and reorientation of business

models and an overall need for improving the busi-

ness and IT alignment.

EAM helps companies to reduce costs for main-

tenance and developments when confronted with an

increasing number of systems by analyzing “areas

of common activity within or between organizations,

where information and other resources are exchanged

to guide future states from an integrated viewpoint of

strategy, business and technology” (EABOK Consor-

tium, 2015).

Success factors are a goal-oriented adaption to-

wards changing market and boundary conditions, the

detection of redundancies and the deﬁnition, deter-

mination and an ongoing assessment of the various

EAM Key Performance Indicators (KPIs) (Auer et al.,

2011). “Above all, [EA] recognizes that the informa-

tion assets of an enterprise are always in ﬂux, and that

this ﬂux is the steady state” (Wood, 2010).

An EA’s centerpiece is its meta model. It rep-

resents the diverse required aspects of a company’s

IT and business structures. These are, for instance,

elements such as processes, services, organizational

structures, data, applications and technologies. They

are connected and organized via various relations and

clusters which form the EA. The IT architecture can

be further subdivided into architectures covering soft-

ware and technology.

Every company is unique, with diverging require-

ments, goals and focus areas. For this reason, a suit-

able, customized meta model is more important when

introducing an EAM in a company than a tool which

comes along with an inﬂexible standard meta model.

An EA Framework (EAF) describes a methodol-

Enterprise Methods Management Using Semantic Web Technologies

ogy for developing an EA and its use during opera-

tion. It points out the relevant aspects and focuses

that an enterprise should consider when creating in-

formation systems. Some examples for EAFs are The

Open Group Architecture Framework (TOGAF) (The

Open Group, 2011), ISO 19439:2006 or the US Fed-

eral EAF, to name just a few (Matthes, 2011).

TOGAF, together with ArchiMate (The Open

Group, 2013), serves as the foundation for our EA

meta model. It provides a methodology for the design,

planning, development, implementation and mainte-

nance of an EA (The Open Group, 2011). It does not

feature a speciﬁc model the companies can use, but

offers meta models and guidelines that should be ap-

plied as seen ﬁt and as required.

TOGAF partitions an EA into four main architec-

ture tiers: the Business, Data, Application and Tech-

nology architecture. The Data and Application Archi-

tecture are part of the Information Systems Architec-

ture. In this paper, we mainly focus on the business

level and its relations to the information systems, for

instance by dealing with business strategy, processes,

organizational structure and business capabilities and

the applications relevant for the execution of the busi-

ness processes.

The meta model along with suitable tools and an

EAF allows the enterprise to document and moni-

tor the business and IT architecture in a holistic way

which enables the architects and managers to react

faster to occurring changes in an agile enterprise. Fur-

thermore, modeling the business and IT architecture

leads to an increased transparency which in return

drives the use of a common vocabulary in the com-

pany and hence reduces misunderstandings. Other

beneﬁts are the advancement of standardization, an

improvement and assurance of quality, a reduction of

IT costs and consequently an improved coping with

risks.

Generally speaking, the above listed advantages

should provide a ﬁllip for any organization. How-

ever, introducing an EAM is especially worthwhile

for big enterprises. Such an enterprise can even be

an “extended enterprise”, that “nowadays frequently

includes partners, suppliers and customers”, as well

as internal business units (The Open Group, 2011).

On the one hand, small organizations shun the under-

taking, because it is wedded to a lot of effort – time-

and resource-wise. On the other hand, a big enter-

prise, with an historically evolved IT landscape and

complex business processes, will see the most bene-

ﬁts from such an endeavor.

3 RELATED WORK

Our model has been mostly inﬂuenced by the domain

of CAx methods, in particular, our primary goal was

to model and analyze CAD, CAE and CAT methods.

However, we soon discovered, that a method meta

model covering not only CAx, but a much bigger

selection of working and design methods is of even

greater value.

Depending on the department or company, even

of the same domain, e.g., automotive engineering, a

method can be synonymous to a tool, a process, a

kind of technique for solving or analyzing problems

or a combination thereof. In software engineering,

the term is usually associated with a procedure, i.e., a

segment of a framework, of a software development

methodology, e.g., the waterfall model or an agile de-

velopment framework.

This ambiguity impedes the communication be-

tween people with a different background and leads

to unnecessary misunderstandings and coordination

phases. Thus, a standardization of the semantics

would be worthwhile.

Methods have been used for decades in the do-

main of Design Theory and Methodology – an ap-

proach for the methodical development of products

by using “effective methods to support particular de-

velopment steps and [guide users] to efﬁciently solve

development tasks” (Birkhofer, 2011). However, ac-

cording to (Pahl et al., 2007), the industry only re-

luctantly adapts design methodological models and

methods.

By deﬁnition, a method is a systematic proce-

dure for the attainment of something (Oxford Dictio-

naries, 2015) (Merriam-Webster.com, 2015), for in-

stance, for the attainment of [scientiﬁc] insights or

practical results (Duden, 2015).

Because our running example originates from the

automotive domain, we also incorporate domain spe-

ciﬁc method deﬁnitions and are inspired by existing

method frameworks, e.g., from systems engineering

and method development (cf. (Weigt, 2008)).

A method consists of one or many procedures

that are interconnected by logical rules (alternative,

predecessor, successor, etc.) (Hesse et al., 1992)

(Chroust, 1992). Methods are prescriptive which

means they are perceived as some kind of instruc-

tion or plan (Lindemann, 2009) and they cannot be

applied universally, but every method has a particu-

lar stage in the development process where its execu-

tion offers the best outcome (cf. (Meerkamm, 2011)).

More precise, methods are used in development pro-

cesses for supporting a systematic and aimed execu-

tion of tasks (Lindemann, 2009). Additionally, plans

Fifth International Symposium on Business Modeling and Software Design

and methods must be adapted to the speciﬁc situation

they are used in which means that a method can pro-

duce entirely different results and qualities depending

on its environment. Among others, this includes the

user itself. They have different knowledge, experi-

ences, skills, tendencies and their form on the day is

variable as well. Furthermore, the quality depends on

the tools that are used to execute a method, the type

of business process a method supports and of course

the quality of its input parameters.

According to (M

uller, 1990), methodical support

should be coordinated with its respective boundary

conditions. In particular, it should be differentiated

between the boundary conditions of the organiza-

tional and operational layers (Weigt, 2008). Bound-

ary conditions of the organizational kind include role

descriptions, the mapping to business processes, or-

ganizational structures etc. The operational layer

comprises information about the tools used to con-

duct the method, its qualities, time consumption and

costs.

(Cronholm and

Agerfalk, 1999) deﬁne the re-

lations between the different method concepts in

even more detail by deﬁning the relations between

them: methods can be vertically linked, thus creating

method chains – the outcome of the previous method

is the input for the next method. A method alliance on

the other hand, is a horizontal composition of meth-

ods, i.e., a family of similar, alternative methods. An-

other important concept is the perspective, i.e., how

methods are perceived and what level of detail and

focus is presented to the user.

Another signiﬁcant aspect for the deﬁnition of

methods, more precise for the framework of meth-

ods (Cronholm and

Agerfalk, 1999), is the methods’

structure. According to (Lindemann, 2009), it is not a

simple task to clearly classify methods and put them

in some hierarchical structure. A kind of network or

graph, e.g., an ontology, is best suited for this task, be-

cause single methods and their partial procedures can

be applied in other methods as modules as well which

“supports a ﬂexible selection, adaption and combina-

tion of methods” (Lindemann, 2009).

A method typically consists of the ﬁve bullet

points listed below (Lindemann, 2009):

Purpose / Goal: A task in the development process

which is supported by the method.

Situation: The scope, problem descriptions and

boundary conditions the method is usually appro-

priate for.

Effect: Effects and side effects, that are attained by

executing the method, i.e., the method’s output.

Procedure: The performed steps when executing the

method.

Tools: Form sheets, check lists, software, test beds,

etc.

Braun and Lindemann have analyzed the selec-

tion, adaption and application of product development

methods for the impersonal transfer of method know-

how, which resulted in the Munich Model of Meth-

ods (MMM) (Braun and Lindemann, 2003). It acts as

the foundation for a method model which consists of

method building blocks that are linked by method at-

tributes. Furthermore, the model supports the imple-

mentation of superior tasks and resources and support

(cf. Figure 2) can be related to a procedure.

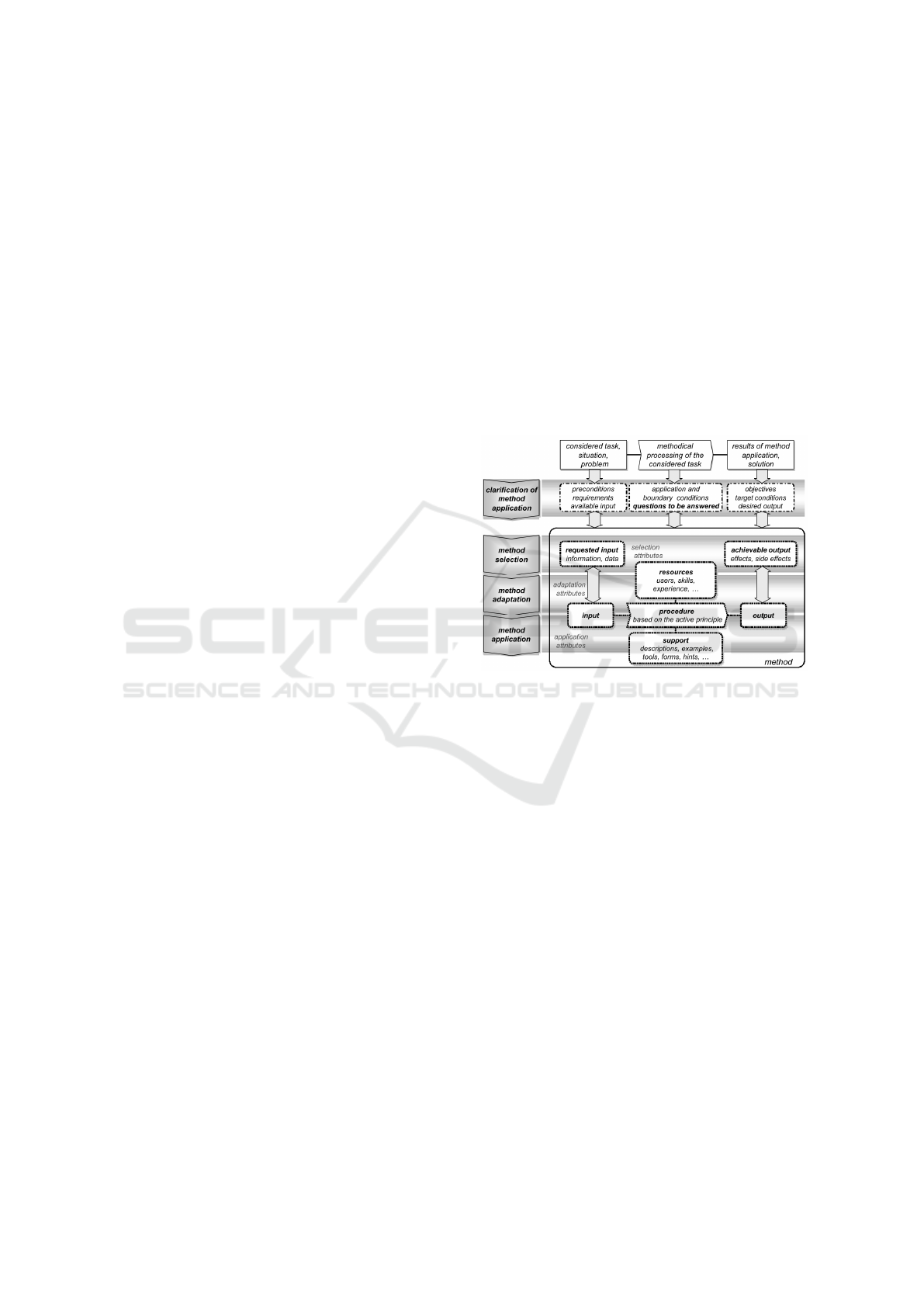

Figure 2: The Munich Model of Methods (Braun and Lin-

demann, 2003; Lindemann, 2009).

The MMM comprises various steps for applying a

method.

The diagram depicted in Figure 2 is horizontally

split into four phases. It juxtapositions method at-

tributes and the method implementation during the

process action. The ﬁrst lane deals with the clariﬁca-

tion of the method’s use case scenario. The following

lanes represent the method selection, its customiza-

tion and its application.

Vertically, the model is divided into different pro-

cess building blocks, i.e., the requirements phase,

boundary conditions and concerns concerning the

method application and of course the method’s goal

and output in the third vertical lane (Braun, 2005).

The single phases are supported by various tools.

The majority of the depicted blocks are also cov-

ered by our method ontology, because the entities

concerning a method deﬁnition, like input, output,

goal, procedure etc., necessarily have to be imple-

mented in a model when dealing with design meth-

ods.

Enterprise Methods Management Using Semantic Web Technologies

4 METHOD META MODEL

Our method meta model allows to semantically ex-

press the relations of tools and methods in combi-

nation with their tasks and processes on an abstract

layer but also offers the possibility to describe con-

crete methods and their boundary conditions, e.g., the

available time or budget.

Furthermore, our model allows to annotate the

quality of their interactions, based on a maturity scale.

To achieve a common understanding, we created a

method meta model that has been implemented with

OWL later on, by working closely together with in-

dustrial partners and regarding state-of-the-art def-

initions and models. Further necessary knowledge

that has been derived from our gathered requirements,

i.e., to answer requested information, has been imple-

mented in the form of queries and rules. These are not

presented in this paper, though.

4.1 Method Ontology

The resulting method ontology’s core structure is de-

picted in Figure 3. We use the attribute “core”, be-

cause this ontology can and should be extended with

further ontologies. The ellipses in the ﬁgure repre-

sent ontology classes and the directed edges stand for

properties, whereas their beginning is the property’s

domain and the arrowhead represents its range. Mul-

tiple properties between the same classes are consol-

idated into a single edge for a better overview; they

are separated by commas between the edges’ labels,

though.

When talking about a method’s maturity, quality

or other concerns, we have to take into account, that

a method can be applied at several points in a com-

pany’s processes. Usually, the quality of data or re-

sources rises over time, when the product itself is be-

coming more and more ready for series production.

Assuming that we have a method A in our method KB

which can be applied at two different points of time

in the product development process, it is conceivable

that this method is conducted using input resources of

a differing quality. Vice versa, the method’s applica-

tion is resulting in similar, but of differing quality, re-

sources which have to be available at a speciﬁc point

of time in the process, e.g., a milestone. Nonethe-

less, it is still the same method, supported by the same

tools and performed by similar procedures. Indepen-

dently, a method can also be applied with the same, or

at least the same quality and kind of, resources multi-

ple times in a process. In order to distinguish between

these (concrete) instances of a method and the gen-

eral (abstract) method they have been derived from,

we have introduced the concepts Concrete Method

and Abstract Method. An abstract method M

a concept that deﬁnes a class of process-independent

methods. A concrete method M

is a concept that de-

ﬁnes a class of methods, linked to a process action and

derived from an abstract method M

Concrete

Method

Process

Action

applied_in

Function

Process

Model

part_of

comprises

Procedure

consists_of

has_successor

has_predecessor,

derived_from,

is_component_of,

is_alternative_to

Method

rdfs:subClassOf

Goal

attains

Process

includes

Resource

Tool

produces,

requires

supports

Organizational Layer

Operational Layer

Abstract

Method

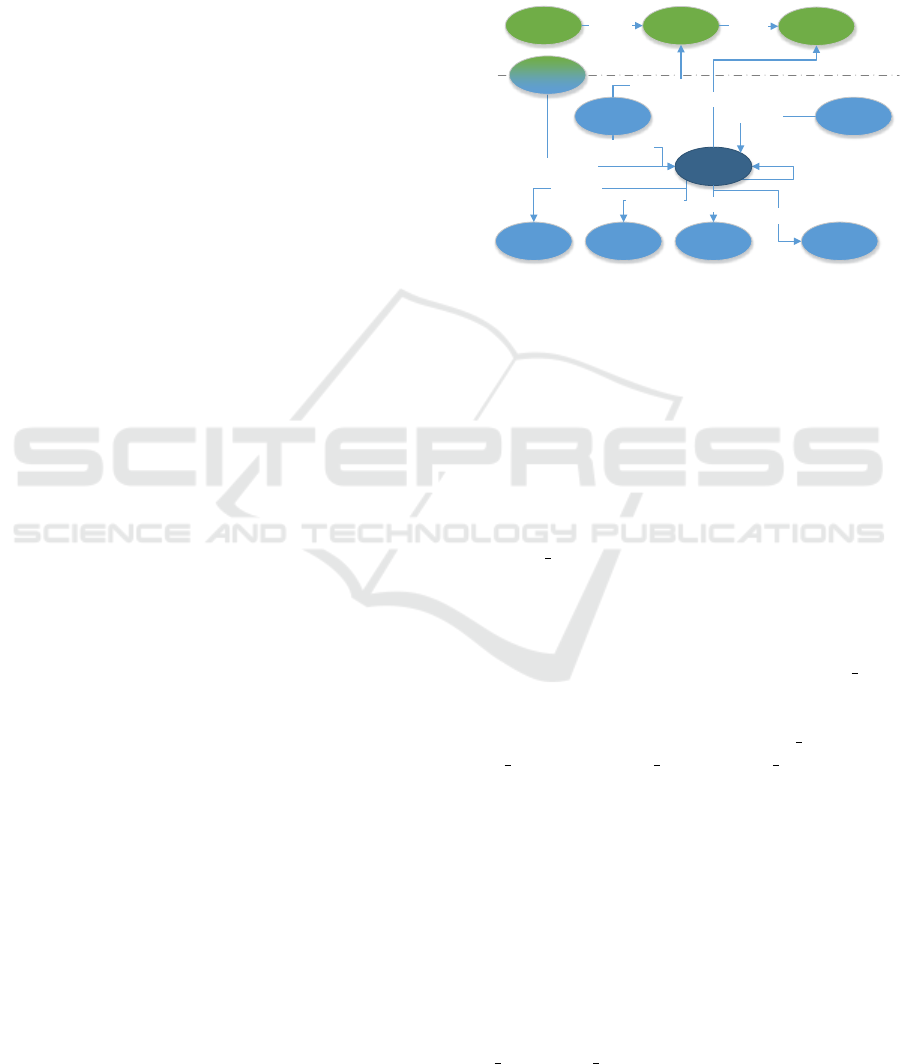

Figure 3: Structure of the core method ontology.

In Figure 3, both, the Abstract Method and

the Concrete Method, are specializations of the

concept Method. The Method is a specialized

type of a Process model. Methods offer sugges-

tions for speciﬁc tasks’ sequences and the fash-

ion on how these tasks are to be conducted

(Lindemann, 2009). Following the example of

(Eisenbarth, 2013), a Process Action is equiva-

lent to a task and hence, a Concrete Method is

applied in a speciﬁc task that is again related to

a Process. Because both method types inherit the

object properties of Method, we can model inter-

relationships between Concrete Methods and re-

spectively Abstract Methods, and can also state that

some arbitrary Concrete Method is derived from

a speciﬁc Abstract Method. The remaining object

properties allow us to model classes of methods such

as method chains and alliances (has successor,

has predecessor, is alternative to).

The three concepts at the bottom right of Figure

3, namely Procedure, Goal and Function, are used

to formally describe the methods’ contexts, resp. its

comprised procedures (cf. section 3).

An instance of the class Procedure can ei-

ther describe this method’s procedure in textual

form with the given RDFS properties (rdfs:comment,

rdfs:seeAlso, rdfs:label, . . . ) or can be linked to

more complex constructs, like a class Document (not

part of the ﬁgure) which again may link to a doc-

ument in the ﬁle system. Otherwise, if a method

makes use of another method, object properties, like

is component of shall be used.

Taking into account, that a method is al-

Fifth International Symposium on Business Modeling and Software Design

ways purposeful and therefore always focused on

a solution of a problem or task (Lindemann,

2009), a Method attains the concept Goal.

The method’s Goal is the class that can de-

scribe the method’s contribution to the enterprise’s

strategy or overall value creation. For exam-

ple, we can create the classes ProductAssurance

or VehiclePropertyAssurance as a Goal’s sub-

classes. When a speciﬁc method assures an arbi-

trary business product, the respective instance can be

linked to the Product of a product ontology.

Usually, a Method is supported by a number of

Tools that are to make its application more effective

and efﬁcient (Lindemann, 2009). The term and there-

fore the respective class Tool covers a wide range of

different auxiliaries or assistive equipment. In the do-

main of CAx, this can be all kind of testing equip-

ment, physical implements, simulation or modeling

software, but also arbitrary business software, statis-

tical analyses or something totally different. Besides,

the term also comprises simple assistive things, like

forms, checklists etc.

4.2 Extending the Method Ontology

Up to now, the introduced method model allows to

observe and compare methods based on their se-

mantic context information, assumed the appropri-

ate SPARQL queries have been implemented, for in-

stance, the application of methods and tools during a

speciﬁc process can be queried. Additionally, we fur-

ther extend the method ontology with other ontolo-

gies, covering metrics, resources, descriptions, enter-

prise vocabulary etc., in order to model and be able to

analyze a company’s method landscape in a holistic

way.

Due to limited space, we can only introduce the

overall architecture and a summarized description of

the created ontologies, though.

One of the big advantages of using Semantic Web

technologies is having this vast amount of publicly

available community ontologies, for instance, FOAF

(Brickley and Miller, 2014) or SKOS (Isaac and Sum-

mers, 2009), that can be used as extensions, geared to

the company’s needs. The architecture presented in

Figure 4 illustrates how our core method ontology is

integrated as an upper ontology.

The remaining ontologies, e.g., a process, re-

source and metrics ontology, are mapped to the core

ontology.

Independent from the chosen mapping paradigm

between the ontologies, a company wants to model

its own KB, covering their use cases. This domain on-

tology is depicted in Figure 4 as Method Ontology X.

...

Process Ontology

Resource Ontology

Upper Method

Ontology

(Core Ontology)

Method Ontology X

(Domain-specific Method

Ontology)

Concrete Method M

c_01

Abstract Method M

a_01

Concrete Method M

c_01

Concrete Method M

c_01

Concrete Method

Instance M

c_01

Abstract Method M

a_01

Abstract Method M

a_01

Abstract Method

Instance M

a_01

classificationclassification

generalization

Metrics Ontology

links

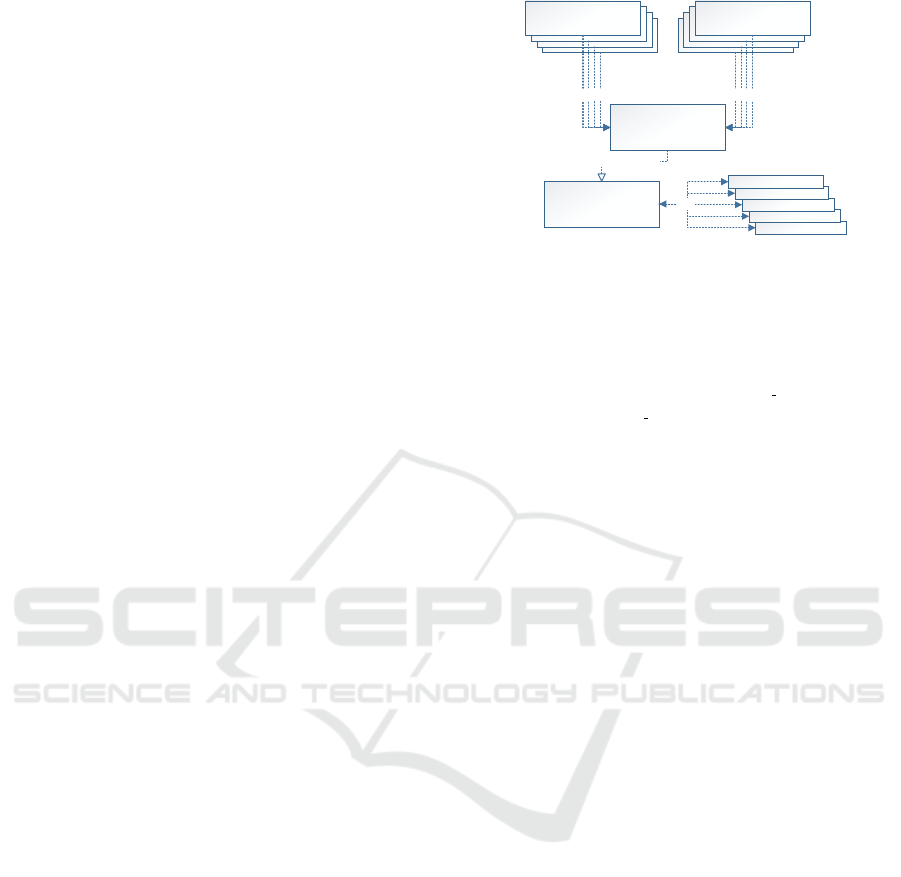

Figure 4: The method ontology’s architecture.

The domain ontology specializes the concepts of the

upper ontologies with domain speciﬁc ones and pro-

vides the TBox for our specialized assertions (ABox),

i.e., Concrete Method Instances M

c u

and Abstract

Method Instances M

a v

For instance, it can be used to provide a necessary

taxonomy for the domain of CAx methods by intro-

ducing new concepts, e.g., CAE Method, CAD Method

and CAT Method or a more general method, like

dc:MethodOfInstruction from Dublin Core. Along

with new kinds of methods, apposite, more special-

ized metrics or other arbitrary parameters can be in-

troduced in the same way.

The knowledge for creating an own domain-

speciﬁc ontology can either be acquired from exist-

ing company sources, like documents, or from experi-

ence, by interviewing experts as described in the ON-

TORULE methodology (de Sainte Marie et al., 2011).

In order to compare methods based on their KPIs,

for instance, the method’s cost, input and output qual-

ity, maturity or duration, we developed a metrics on-

tology, covering the required quality attributes. Next

to selection criteria, the metrics can act as indica-

tor for strengths and weaknesses in the company’s

method framework and allows to detect gaps, e.g.,

processes that are scarcely supported by methods.

This information is valuable for the strategic method

development. The model can also be extended with

arbitrary execution or evolution quality attributes (the

so called “ilities”), like usability, reliability, manage-

ability etc. Which kind of non-functional require-

ments to choose is facultative and up to the company’s

knowledge and methods engineers.

In accordance with the distinction between

concrete and abstract methods (section 4.1), we

also distinguish between Concrete Resources and

Abstract Resources in the developed resource on-

tology. This model covers the required inputs and

produced outputs of our methods. When modeling

an Abstract Method, the knowledge engineer can

deﬁne the type of resources that are required or pro-

Enterprise Methods Management Using Semantic Web Technologies

duced by this method, for instance, a general place-

holder parameter for an abstract CAD model name.

But not until the Concrete Method instance is mod-

eled and assigned to a process action, the Concrete

Resources can be named, for example, a particular

drawing. Following current best practices, like the

example of the W3C Product Modelling Incubator

Group (W3PM, 2009), our resource ontology, is in-

ﬂuenced by a standard product model, namely STEP

(AP 214/242) (ISO, 2014). We decided not to model

a product’s inner structure, like PDM systems do, but

to conﬁne ourselves with more abstract concepts, be-

cause our method ontology’s purpose is still to model

only the meta level of the method landscape, i.e., anal-

ogous to the method concept, we treat the products as

a black box.

Furthermore, we have used SKOS to manage

the heterogeneity of the enterprise’s vocabulary, i.e.,

methods and policies, like regulations (Omrane et al.,

2011). This way, multiple labels can be annotated to

all the ontology’s entities which makes them gener-

ally intelligible, e.g., by enabling a multilingual use or

making the semantics more comprehensible for peo-

ple with differing professional backgrounds.

5 ENTERPRISE INTEGRATION

The main objective of this integration has been a com-

bination of method knowledge with an EAM in a

product development division. This way, the input of

strategic, business and IT decisions on methods and

vice versa can be easily inferred, while the knowledge

can be maintained independently.

Integrating our method meta model into an EAF

bears many advantages. First of all, the combined

meta models allow stakeholders to perform novel

kinds of analyses, like impact analyses or discov-

ering business and IT relations. For example, the

concern “Which system/application supports which

methods?” or the responsibility of the modeled ac-

tors and roles can be identiﬁed. Furthermore, a com-

pany beneﬁts from such a mapping approach through

a concerted and deﬁned meaning of the modeled con-

cepts and vocabulary. OWL, especially the extension

SKOS, supports the use of various labels, hence dif-

ferent vocabularies can be attached to the concepts, if

required.

As a prerequisite for the integration of our method

meta model into an EA meta model, we ﬁrst need to

obtain a formalized model. We have decided to use

TOGAF and ArchiMate as a foundation for our EA

model because of their popularity and maturity. How-

ever, the Open Group does not provide a formalized

model of their framework but considers TOGAF as

an approach that should be further reﬁned and imple-

mented. Nevertheless, using ontologies and other Se-

mantic Web technologies for the realization of EAs

has been done for years now (Ortmann et al., 2014).

As a consequence and inspired by the above men-

tioned EA frameworks and meta models, we also cre-

ated our own EA ontology. Since our method meta

ontology has been realized using OWL, we also ap-

plied this language when designing our EA ontology,

depicted in Figure 5.

Organization

Unit

Business

Function

Role

Business

Process

Actor

Business

Service

Data

Entity

Application

Component

Technology

Component

owns

participates in,

owns

owns,

governs

orchestrates,

decomposes

provides governed

interface to access

participates in

performs task in

accesses

supports,

Is realiz ed by

implements,

uses

provides,

consumes

is processed by

is implemented on

decomposes

accesses,

performs

supplies,

consumes

Business

Object

accesses

is implemented on

contains

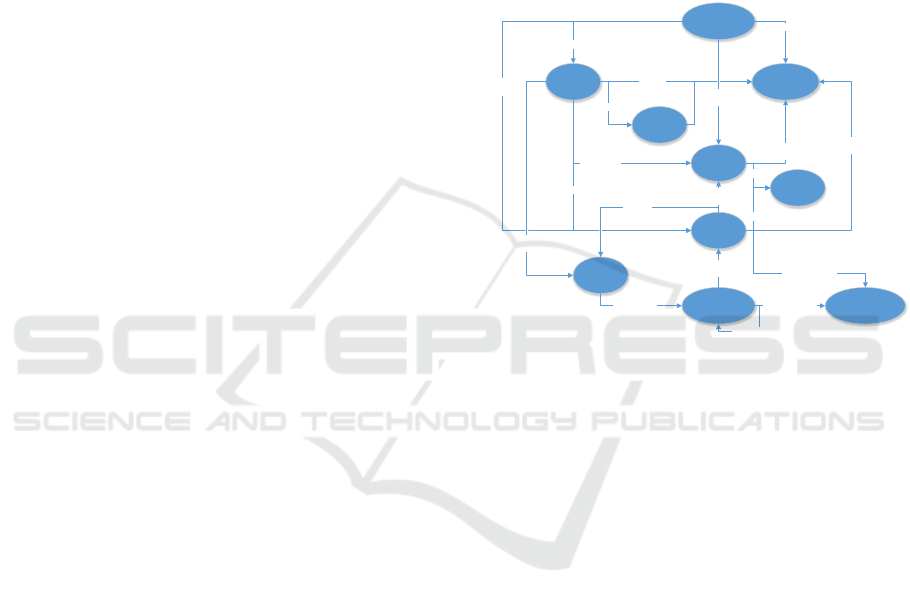

Figure 5: Enterprise Architecture ontology based on TO-

GAF and ArchiMate meta models.

An important requirement for this EA ontology

has been a suitable coverage of the concepts known

from our core method meta ontology, together with

the extended method ontologies. Thereby, we want to

make use of newly generated relations, for instance,

from methods to business objects or capabilities. The

TOGAF Core Content Metamodel, combined with

the Archimate Design approach fulﬁll this require-

ment and can be extended when specialized concepts

are needed as illustrated in Figure 6. We use the

same generic concepts (OWL meta model) and extend

the EA concepts with a more speciﬁc domain meta

model.

After selecting the EA model, we need to establish

mappings from our method ontologies’ concepts and

entities to the already existing elements in the EA.

Technically, we could pursue different mapping

techniques for combining our ontologies: we could

use the other ontology’s concept URIs directly, which

is the standard way in Semantic Web. For exam-

ple, by importing the ontology into ours, we can

use ea:BusinessProcess as a replacement for our

method:Process in the method ontology. However,

a fundamental idea behind our integration is the re-

tained separation of both KBs, because each domain

Fifth International Symposium on Business Modeling and Software Design

Entity

Relation

ProcessApplication

More generic

More specific

Generic concepts

Enterprise Architecture

concepts

Domain- and company-

specific concepts

Figure 6: Meta models at different speciﬁcity levels (after

(The Open Group, 2013)).

– the method knowledge and the EA knowledge –

is the particular responsibility of a dedicated orga-

nizational unit and hence, changes in the other on-

tology can be opaque. An alternative option would

be to use an upper ontology, like UMBEL (Giasson

and Bergman, 2015), which is certainly a reason-

able choice when combining lots of domains. We

do not need such an explosion of our domain for the

scenario at hand, though. The technique we have

chosen to map the TBoxes is the use of an own

mapping ontology for combining the various con-

cepts, for instance, by using owl:equivalentClass or

rdfs:subClassOf. This option can be implemented

very fast, the mappings are traceable in one ontol-

ogy, and it offers a good overview for a manageable

amount of concepts, which is sufﬁcient for the proto-

typical introduction presented in this paper.

Furthermore, next to matching the ontologies’

TBoxes, we make statements about the individu-

als in the ABoxes that represent our model. The

respective individuals, e.g., the modeled processes,

are usually matched using OWL notation, as in

owl:sameIndividual. However, it is often the case,

that two individuals are only nearly exactly the same.

Therefore, the use of a ’Similarity Ontology’, along

with object properties like so:identical, is a good idea.

It allows to express different levels of identity (Halpin

et al., 2010).

EA Ontology

Method Ontology

Process

Business

Process

Business

Resource

Business

Object

Tool

Application

Component

Application

Tool

rdfs:subClassOf

Resource

rdfs:subClassOf

Mapping

Goal

rdfs:subClassOf

owl:equivalentClass

rdfs:subClassOf

Goal

owl:equivalentClass

Business

Service

Method

supports

Figure 7: Mapping of EA and method ontology.

When comparing our core method ontology’s with

our EA ontology’s concept names, we encounter

some obvious similarities. An equal or similar

name, however, does not automatically infer syn-

onymous semantics. The considered key concept

Process from our method ontology and the concept

Business Process from the EA ontology are iden-

tical, though, especially when regarding the TOGAF

“Process Modeling Extension”. The conceptual map-

ping between both ontologies is depicted in Figure 7.

We state that both concepts are equal even though the

different processes can vary in their granularity.

Our intentions for the methods’ input and output

Resources are semantically covered by the concept

Business Object, known from the ArchiMate Busi-

ness Layer Metamodel. This concept “represents a

business entity (e.g. an invoice) that is used during

the execution of a business process” (Buckl et al.,

2008). Processes can perform all kind of create, read,

update and delete (CRUD) operations on a business

object, which either represents a virtual or physical

object (or both) (The Open Group, 2013). This ap-

plies to our methods’ relations and the correspond-

ing resources, as well. However, only a subset of

the modeled EA business objects are pertinent for the

analysis of our meta method ontology and vice versa.

Therefore, both concepts share the common subclass

Business Resource (cf. Figure 7). This subclass is

modeled in a domain ontology, importing the upper

method ontology.

The same reasoning applies to the concepts Tool

and Application Component. A lot of business

software is of no interest for the method domain and

tools of the method domain can also include physical

devices and implements. Consequently, we introduce

the concept Application Tool. The various indi-

viduals in the ontologies’ ABoxes are then mapped

to their counterpart using properties that express the

appropriate similarity.

Additionally, Methods represent a link between

Business Services, process actions and tools.

They express, how and when a business service can

be applied to a speciﬁc process.

The ﬁnal depicted mapping between both ontolo-

gies deals with the motivation extension, since meth-

ods as well as stakeholders in EA intend to achieve a

Goal.

The remaining concepts of the core meta method

model feature no counterpart in the EA ontology,

even though both models feature a concept named

Function. A function in TOGAF “delivers business

capabilities closely aligned to an organization [. . . ].

Also referred to as ’business function”’ (The Open

Group, 2011), whereas a function in our meta method

Enterprise Methods Management Using Semantic Web Technologies

model represents an appropriated behavior of a tech-

nical system (Weigt, 2008).

6 EVALUATION

The combination of an enterprise architecture with

our method ontologies and the respective domain

models enable methods engineers, enterprise archi-

tects, domain experts and other stakeholders to con-

duct novel kind of analyses. For example, we can

compare and hence select the most suitable methods,

based on the modeled KPIs, at speciﬁc process phases

in the product development. Furthermore, a purpose-

ful development and shutdown of methods is made

possible by performing analyses based on the base-

line and target architectures.

The new concepts and contributions, namely the

use of standard Semantic Web languages, the EA

integration, the evolved method meta model, along

with the extending ontologies and the corresponding

queries and rules, have been modeled, formalized and

executed with a chosen set of test scenarios that show-

case the proof of concept.

An earlier, specialized version of the introduced

method meta model, together with a prototypical im-

plementation as seen in Figure 8, has been developed

and published during the FP7 ONTORULE project

(Rosina and Kiss, 2011). This demonstrator proofs

the feasibility and illustrates the beneﬁts of our ap-

proach. However, it has been implemented using

an alternative knowledge representation and rule lan-

guage (ObjectLogic), covering a tailored meta model

that realizes a particular automotive use case.

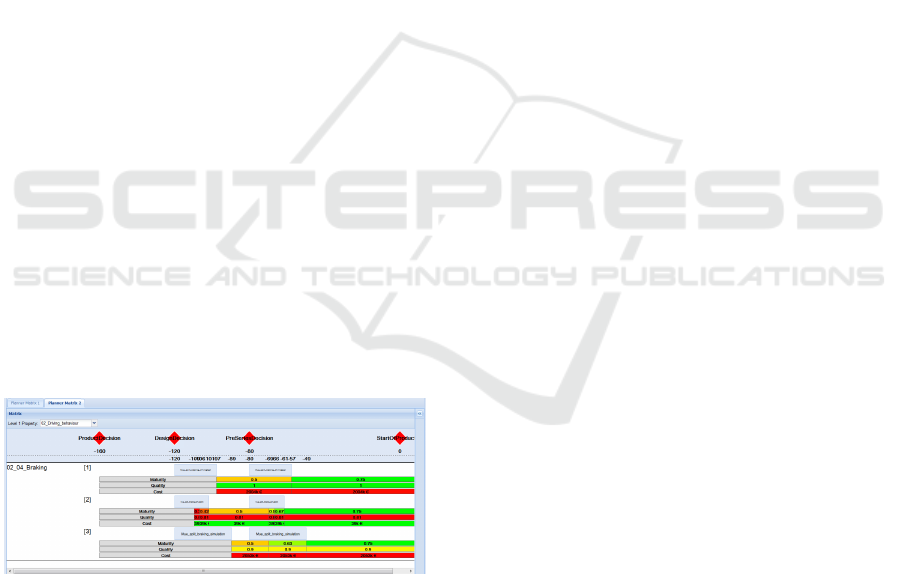

Figure 8: Extract of the demonstrator showing various pos-

sible method applications (Rosina and Kiss, 2011).

7 CONCLUSION

The developed ontologies presented in this paper de-

pict the domain of design methods, including their

context information, for instance, references to the

processes they are used in, quality attributes and the

methods’ in- and outputs. This allows us to predi-

cate statements on expected qualities, costs, time con-

sumption or other KPIs which is a strong motive for

domain experts when selecting an appropriate method

best suited for the task at hand. They have been re-

alized using Semantic Web standards, however, we

omitted almost the entire technical part in this paper,

concentrating on the conceptual models. A former

technical realization is referenced in the evaluation

section, though.

Another novelty is the integration into an EA on-

tology, which bears many mutual beneﬁts. It enables

the analysis of relationships on a strategic level, fos-

tering a targeted method development, on the business

level, e.g., between roles, processes and methods, and

also on a business to IT level, for instance, by provid-

ing an overview of the applied method software tools.

However, the application, documentation, the ex-

ecution and the maintenance of a formalized method

management is expensive, can be complex and is

wedded to effort, because it is mainly a manual pro-

cedure.

REFERENCES

Auer, G., Basten, D., Berneaus, M., D

aberitz, D., Freitag,

A., Haas, H., Kr

ober, G., Schmidtmann, V., Schweik-

ert, R., Stettiner, E., Thielscher, J., Triebel, T., Weber,

M., and Weisbecker, A. (2011). Enterprise Architec-

ture Management neue Disziplin f

ur die ganzheitliche

Unternehmensentwicklung. Bundesverband Informa-

tionswirtschaft, Telekommunikation und neue Medien

e. V., Berlin, Germany.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

Semantic Web. Scientiﬁc American, 284(5):34–43.

Birkhofer, H., editor (2011). The Future of Design Method-

ology. Springer-Verlag London Limited.

Braun, T. (2005). Methodische Unterst

utzung der strate-

gischen Produktplanung in einem mittelst

andisch

gepr

agten Umfeld. PhD thesis, TU Munich, Munich,

Germany.

Braun, T. and Lindemann, U. (2003). Supporting the selec-

tion, adaptation and application of methods in product

development. In International Conference on Engi-

neering Design, ICED’03. Design Society.

Brickley, D. and Miller, L. (2014). FOAF Vocabulary

Speciﬁcation. http://xmlns.com/foaf/spec/. Re-

trieved 2015-04-20.

Buckl, S., Ernst, A., Lankes, J., and Matthes, F. (2008).

Enterprise Architecture Management Pattern Catalog.

Technical report, Software Engineering for Business

Information Systems (sebis), Munich, Germany.

Chroust, G. (1992). Modelle der Software-Entwicklung

- Aufbau und Interpretation von Vorgehensmodellen.

Oldenbourg-Verlag, Munich, Germany.

Fifth International Symposium on Business Modeling and Software Design

Cronholm, S. and

Agerfalk, P. (1999). On the Concept

of Method in Information Systems Development. In

a, T., editor, 22nd Information Systems Re-

search In Scandinavia (IRIS 22), Keuruu, Finland.

de Sainte Marie, C., Escudero, M. I., and Rosina, P. (2011).

The ONTORULE Project : Where Ontology Meets

Business Rules. In Web Reasoning and Rule Systems,

volume 6902, pages 24–29, Galway, Ireland.

Duden (2015). ’methode’. http://www.duden.de/

rechtschreibung/Methode. Retrieved 2015-04-20.

EABOK Consortium (2015). Enterprise Architecture Body

of Knowledge. http://www2.mitre.org/public/

eabok/index.html. Retrieved 2015-04-20.

Eisenbarth, T. (2013). Semantic Process Models - Trans-

formation, Adaption, Resource Consideration. PhD

thesis, University of Augsburg, Augsburg, Germany.

Giasson, F. and Bergman, M. (2015). Upper Mapping

and Binding Exchange Layer (UMBEL) Speciﬁca-

tion. http://techwiki.umbel.org/index.php/

UMBEL_Specification. Retrieved 2015-04-20.

Halpin, H., Hayes, P. J., McCusker, J. P., McGuin-

ness, D. L., and Thompson, H. S. (2010). When

owl:sameAs isn’t the Same: An Analysis of Identity in

Linked Data. In The Semantic WebISWC 2010, pages

305–320.

Hanschke, I. (2013). Strategisches Management der IT-

Landschaft. Carl Hanser Verlag M

unchen, Munich,

Germany.

Harris, S. and Seaborne, A. (2013). SPARQL

1.1 Query Language. http://www.w3.org/TR/

sparql11-query/. Retrieved 2015-04-20.

Hesse, W., Merbeth, G., and Fr

olich, R. (1992). Software-

Entwicklung - Vorgehensmodelle, Projektf

uhrung und

Produktverwaltung. In Handbuch der Informatik, vol-

ume 5.3. Oldenbourg-Verlag, Munich, Germany.

Isaac, A. and Summers, E. (2009). SKOS Simple Knowl-

edge Organization System Primer. http://www.w3.

org/TR/skos-primer/. Retrieved 2015-04-20.

ISO (2014). ISO 10303-242:2014 - Industrial automation

systems and integration – Product data representation

and exchange – Part 242: Application protocol: Man-

aged model-based 3D engineering.

Kifer, M. and Boley, H. (2013). RIF Overview (Second

Edition). http://www.w3.org/TR/rif-overview/.

Retrieved 2015-04-20.

Lindemann, U. (2009). Vorgehensmodelle, Grundprinzip-

ien und Methoden. In Methodische Entwicklung tech-

nischer Produkte, chapter 3. Springer-Verlag Berlin

Heidelberg, Garching, Germany.

Matthes, D. (2011). Enterprise Architecture Frameworks

Kompendium. Springer Berlin Heidelberg.

Meerkamm, H. (2011). Methodology and Computer-Aided

Tools - a Powerful Interaction for Product Develop-

ment. In Birkhofer, H., editor, The Future of De-

sign Methodology, chapter 5, pages 55–65. Springer-

Verlag London Limited.

Merriam-Webster.com (2015). ’method’. http://www.

merriam-webster.com/dictionary/method. Re-

trieved 2015-04-20.

uller, J. (1990). Arbeitsmethoden der Technikwis-

senschaften: Systematik, Heuristik, Kreativit

at.

Springer Verlag.

Omrane, N., Nazarenko, A., Rosina, P., Szulman, S., and

Westphal, C. (2011). Lexicalized Ontology for a Busi-

ness Rules Management Platform: An Automotive

Use Case. In Olken, F., Palmirani, M., and Soltara,

D., editors, Rule - Based Modeling and Computing

on the Semantic Web, volume 7018, pages 179–192.

Springer Berlin Heidelberg.

Ortmann, J., Diefenthaler, P., Lautenbacher, F., Hess, C.,

and Chen, W. (2014). Unternehmensarchitekturen

mit Semantischen Technologien. HMD Praxis der

Wirtschaftsinformatik, 51:616–626.

Oxford Dictionaries (2015). ’method’. http:

//www.oxforddictionaries.com/definition/

english/method. Retrieved 2015-04-20.

Pahl, G., Beitz, W., Feldhusen, J., and Grote, K. H.

(2007). Pahl/Beitz Konstruktionslehre: Grundlagen

erfolgreicher Produktentwicklung. Methoden und An-

wendung. Springer Berlin/Heidelberg, 7th edition.

Rosina, P. and Kiss, E. M. (2011). D4.3 - AUDI R&D Busi-

ness Orchestration System. ONTORULE Project.

The Open Group (2011). TOGAF Version 9.1. Van Haren

Publishing, Zaltbommel, Netherlands.

The Open Group (2013). ArchiMate 2.1 Speciﬁcation. The

Open Group, Berkshire, United Kingdom.

W3C (2007). Semantic Web layercake diagram. http://

www.w3.org/2007/03/layerCake.png. Retrieved

2015-04-20.

W3C OWL Working Group (2012). OWL 2 Web Ontol-

ogy Language Document Overview. http://www.

w3.org/TR/owl2-overview/. Retrieved 2015-04-

20.

W3PM (2009). Product Modelling using Semantic

Web Technologies. http://www.w3.org/2005/

Incubator/w3pm/XGR-w3pm/. Retrieved 2015-04-

20.

Weigt, M. (2008). Systemtechnische Methodenentwicklung.

PhD thesis, Universit

at Karlsruhe (TH).

Wood, D., editor (2010). Linking Enterprise Data.

Springer-Verlag New York, Inc., New York, NY, USA.

Enterprise Methods Management Using Semantic Web Technologies
