Managing Fragmented Personal Data: Going beyond the Limits of

Personal Health Records

Juha Puustjärvi

and Leena Puustjärvi

Department of Computer Science, University of Helsinki, P.O. Box 68, Helsinki, Finland

The Pharmacy of Kaivopuisto, Neitsytpolku 10, Helsinki, Finland

Keywords: Personal Health Record, Personal Data, Data Integration, Smart Home, Semantic Web, RDF, SPARQL.

Abstract: A personal health record (PHR) is a record of a consumer that includes data gathered from different sources

such as from health care providers, pharmacies, insures, the consumer, and third parties. Gathering data is

technically complicated and error-prone due to the heterogeneities of the data sources. Further, due to failed

or missed transmissions patients’ PHRs are often incomplete. However, a consumer should have easy access

to their own health information as well as to any relevant information they need in order to make decisions

about their own heath care. Nevertheless, no holistic approach for managing personal data beyond PHRs has

been developed. Satisfying this challenge requires a means to capture and interconnect information from a

variety of personal data sources and from public data sources. In order to achieve this goal, we have

designed a Personal Record (PR). It is virtually a single record in the sense that it gives an illusion of a

traditional standalone tool, such as a traditional PHR, although its content may locate in a variety of sources,

e.g., in systems storing data of health, gyms, smart homes, or personal notes. By means of PR we can also

achieve synergy, e.g., in using health data together with welfare and smart home data we can produce

outcomes that could not be achieved by functioning independently with single data sources. Moreover,

using personal data together with public data sources we can also achieve more informal outcomes. The

only requirement is that the data sources are in RDF-format, i.e., in the form of subject–predicate–object

expressions. Then the SPARQL processor has the ability to process the data as well as to find the

connections between triples from separate sources.

1 INTRODUCTION

A personal health record (PHR) is a record of a

consumer that includes data gathered from different

sources such as from health care providers,

pharmacies, insures, the consumer, and third parties

(Raisinghani and Young, 2008). It includes

information about medications, allergies,

vaccinations, illnesses, laboratory and other test

results, and surgeries and other procedures. An ideal

PHR would provide a complete and accurate

summary of the health and medical history of a

consumer (Angst et al., 2008).

PHRs have the potential to dramatically change

healthcare in the near future as they enable patients

to become more involved and engaged in their care

and allow other authorized stakeholders to access

information about patients that was previously not

available. The changes effected by PHR systems

could have a significant, positive impact on the

efficiency of healthcare sector and thus resulting

considerable cost savings to the healthcare systems.

In order to avoid the compatibility problems in

importing data to PHRs various standardization

efforts on PHRs have been done. In particular, the

use of the Continuity of Care Record of ASTM

(CCR, 2011) and HL7’s Continuity of Care

Document (CCD, 2009) has been proposed for using

in standardizing the structure PHRs. From

technology’s point of view CCR and CCD-standards

represent two different XML schemas designed to

store patient clinical summaries. However, both

schemas are identical in their scope in the sense that

they contain the same data elements.

A problem of current PHRs is that they assume

all its content to be in one source although patient

may have lived in many places and used various

healthcare specialities. This in turn requires moving

records from a variety of sources into PHR. Such

transmissions are technically complicated and error-

Puustjärvi, J. and Puustjärvi, L.

Managing Fragmented Personal Data: Going beyond the Limits of Personal Health Records.

DOI: 10.5220/0005626101450150

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 145-150

ISBN: 978-989-758-170-0

145

prone. As a result patients’ PHRs are incomplete in

the sense that lot of relevant data is often missing.

Our argument is that by exploiting Semantic web

technologies it is easier to ensure the consistency of

personal data by retrieving it from its original

sources instead of first gathering it into one source,

Another problem of current PHRs is that their

content is restricted on health oriented data.

However, there are a lot of related data that are

stored in other systems, and which use together with

PHR data would produce outcomes that could not be

achieved by functioning independently.

Examples of PHR-related data sources include

gyms, smart homes and personal note books: gyms

store data that is gathered by sensor and training

equipment, smart homes store a lot of data related to

heating, air conditioning as well as with personal

well fare such as weight measurements, and personal

note books may include a variety of useful

information concerning working hours, meals and

location data.

By connecting these data sources we can achieve

new outcomes: For example, a person can query his

or her blood pressures when his or her weigh had

maximal and minimum values. Also a person can

query his or her cholesterol values when his or her

training hours had maximal or minimum values.

There are also a lot of public data sources, which

use together with personal data would produce

outcomes that could not be achieved by using only

personal data. For example, personal data may

indicate the vaccinations of a person while public

data source can augment this information by more

informal descriptions of the vaccinations.

In this paper, we introduce a personal record, or

shortly PR. Although its data may locate in one or

more sources, it is virtually a standalone record in

the sense that it gives an illusion of a standalone

record. The only requirements of a PR are that its

data sources have a Unified Resource Locator

(URL), and the data is in RDF-format, i.e., in the

form of subject–predicate–object expressions (RDF,

2011). Then the SPARQL processor (SPARQL,

2008) has the ability to process the data as wells as

to find connections between triples from different

sources. Hence, the synergy of accessing data from

different sources can be achieved.

The rest of the paper is organized as follows.

First, in Section 2, we consider related work by

focusing on the way patients´ scattered clinical

documents are managed and gathered in the context

of the IXE XDS (IHE, 2005). Then, in Section 3, we

present the architecture of our designed PR-system.

In Section 4, we consider PR-system’s data sets. In

particular, we present our developed Welfare

ontology and illustrate its use in RDF-statements. In

Section 5, we present how traditional XML-based

PHRs, as well as any XML-document, can be

transformed into RDF-format. Finally, Section 6

concludes the paper by discussing the gains and the

challenges of the PR-system.

2 RELATED WORK

The idea of gathering patients’ clinical documents

dynamically from a variety of sources is not new: in

the context of electronic health record (EHR) the

problem of patients’ scattered clinical documents is

studied (Boone, 2011). EHRs differ from PHRs in

that former is a record of healthcare provider while

the latter is a record of consumer (Puustjärvi and

Puustjärvi, 2015). In particular, in IHE XDS

architecture original documents are dynamically

retrieved by exploiting relevant registries. That is,

the idea behind the IHE XDS is to build virtual

patient records on the fly from a variety of clinical

documents created by different healthcare

organizations (Benson, 2010).

In IHE XDS terminology healthcare enterprises

that agree to work together for clinical document

sharing is called clinical affinity domain (IHE,

2015). Its enterprises agree on a common set of

policies such as how the patients are identified, the

access is controlled, and the common set of coding

terms to represent the metadata of the documents.

Further, patients expect their records to follow them

as they move from one clinical affinity domain to

another (Dogac et al., 2002).

Examples of XDS clinical affinity domains

include: nationwide and regional EHRs, federations

of enterprises, regional federations made up of

several local hospitals, healthcare providers, and

insurance provider supported communities

(Puustjärvi and Puustjärvi, 2014).

IHE XDS has proven to be useful and workable

innovation, and hence we could adopt the ideas of

IHE XDS into PHRs. However, we argue that by

exploiting modern information technology we can

avoid many of the drawbacks of the IHE XDS. In

particular, we have addressed the following two

problems of the IHE XDS.

The main problem with its used ebXML

registries is that searches can only be based on the

keywords and folders. Although the keywords are

taken from a taxonomy only a very limited amount

of semantics can be provided (Dogac et al., 2007).

Folders group the related documents together (e.g.,

HEALTHINF 2016 - 9th International Conference on Health Informatics

146

based on a period of time, episode, or

immunizations). However, there are numerous cases

where retrieving predefined folders are not

appropriate but rather dynamic grouping of

documents should be possible.

Another problem with the IHE XDS is that it

expects patients’ records to follow then when they

move from one affinity domain to another. The

problem here are twofold: First, moving records

between affinity domains is technically complicated

and error-prone due to the heterogeneities of affinity

domains. Second, due to the failed or missed

transmissions patients’ EHRs are incomplete.

In the PR-system these kinds of problems can be

avoided by the solutions presented in the next

sections.

3 PR-SYSTEM

3.1 Searching Multiple Datasets by

SPARQL

SPARQL allows users to write queries against data

that follows the RDF specification of the W3C. The

name SPARQL is a recursive acronym for SPARQL

Protocol and RDF Query Language, which is

described by a set of specifications from the W3C

(DuCharme, 2011). SPARQL Protocol refers to the

rules for how a client program and a SPARQL

processing server exchange SPARQL queries and

results.

A typical SPARQL query specifies the pieces of

information that meets the stated conditions. The

conditions are described with triple patterns, which

are similar to RDF triples but may include variables

to add flexibility in how they match against the data.

There is a variety of SPARQL processors (also

called SPARQL engines) available for running

queries against data both locally and remotely.

SPARQL provides two ways for querying remotely:

using FROM keyword or using SERVICE keyword.

In the former way, the FROM keyword names a

dataset to query that may be local or remote file. In

the latter way, instead of pointing at an RDF file

somewhere, a SPARQL endpoint is pointed. A

SPARQL endpoint is a web service that accepts

SPARQL queries, runs the queries, and then returns

the result.

In addition, SPARQL allows searching multiple

datasets with one query. This enables a variety of

useful applications. To illustrate this, assume that

user’s blood pressure values, weight measurements,

and medication information are stored in different

data sources such that each data source has a URL.

Then, by using SPARQL Federated queries and

MAX-function, a user may query for example:

 Give me my ongoing medication when my

weight had a minimum value.

 Give me my training ours of the day when my

blood pressure had maximal value.

We next consider the architecture where this

kind of queries can be processed.

3.2 The Architecture of the

PR - System

In our PR-related terminology organizations that

produce and maintain RDF-formatted personal data

and agree on a common set of policies make up a

collaboration domain. The policies specify how the

personal data sets are identified, the access is

controlled, and the common set of coding terms to

represent the RDF-files or SPARQL endpoints.

The architecture of a collaboration domain is

presented in Figure 1.

Browser

PR-Portal

Application 1

. . .

Community applications

SPARQL Processor

User of a

virtual PHR

Application 2

Application n

A dataset of a

healthcare

organization A

A dataset of

gym A

Browser

User of a

virtual PHR

Browser

User of a

virtual PHR

Browser

User of a

virtual PHR

A dataset of a

smart home

. . .

A dataset of

gym B

A dataset of a

healthcare

organization B

. . .

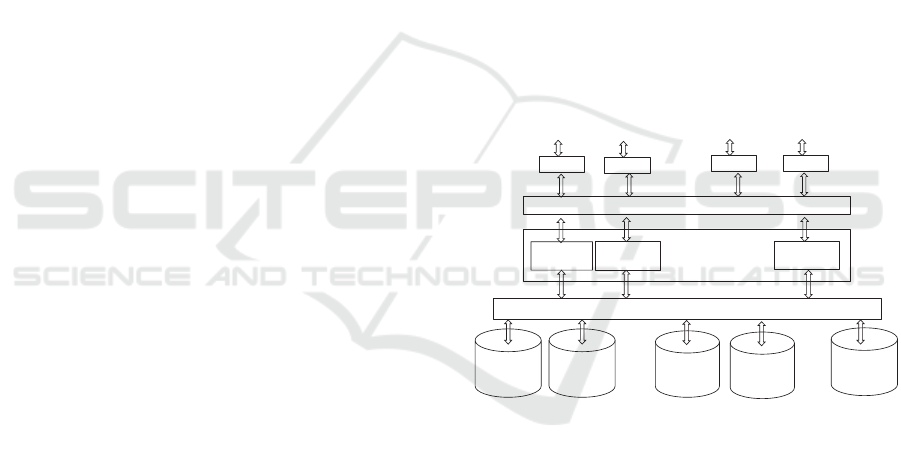

Figure 1: The architecture of the virtual PR-system.

The users of the collaboration domain access (by

their browsers) their personal datasets through the

PR-Portal. The portal provides connections to

relevant applications. For example there may be

separate applications for a traditional PHR, welfare

data, and smart home. However, the key point here

is that the applications use data from a variety of

data sets and thus enables outcomes that could not

be achieved by single systems, e.g., by smart home

system or PHR system.

In addition, a property of the PR-system is that

each user may have one or more predefined profiles.

Each profile specifies a set of user’s data sources,

i.e., URLs. So, the system can provide an illusion of

the traditional tools such as a PHR-system or a note

book.

Managing Fragmented Personal Data: Going beyond the Limits of Personal Health Records

147

The applications are based on the use cases of

various user groups, and they may interoperate

through accessing the same datasets. Also new

applications can be easily inserted when new needs

arise. Even new tools can be easily added, e.g.,

inserting a personal photo album requires adding a

relevant application and a data set for the album.

Note that in this this architecture some of the

users may have all their data in a data source. In

such a case their PR can behave like a traditional

Internet-based PHR. Such a case can also be

considered as the first step towards the use of the

PR-system. If the user already has a traditional

XML-based PHR, it must be transformed into RDF-

format. The way such a transformation can be

automatically done is presented in Section 5. The

transformation exploits the ontology presented in

Section 4.

4 THE ROLE OF OTOLOGIES IN

PR-SYSTEM

4.1 Welfare Ontology and OWL

In the context of computer science, an ontology is a

general vocabulary of a certain domain, and it can be

defined as “an explicit specification of a

conceptualization” (Antoniou and Harmelen, 2004).

It tries to characterize that meaning in terms of

concepts and their relationships (Daconta et al.,

2003). It is typically represented as classes,

properties, attributes and values. As an example,

consider a subset of our designed Welfare Ontology,

which is presented in a graphical way in Figure 2.

MedicalTest

BloodPressureLimits

SystolicLimit

DiastolicLimit

SSN

Measures

SubclassOf

Performed

ExcerciseTest

Stored

SubclassOf

Swimming

Duration Da te

Walk

Length

Date

Mother

Father

Hobby

SubclassOf

Run

Length

Date

TestName

Person

Name

WeightMeasurement

Value Date

Time

BloodPressureTestValue

SystolicValue DiastolicValue

TimeTypeOf Date

Value Date

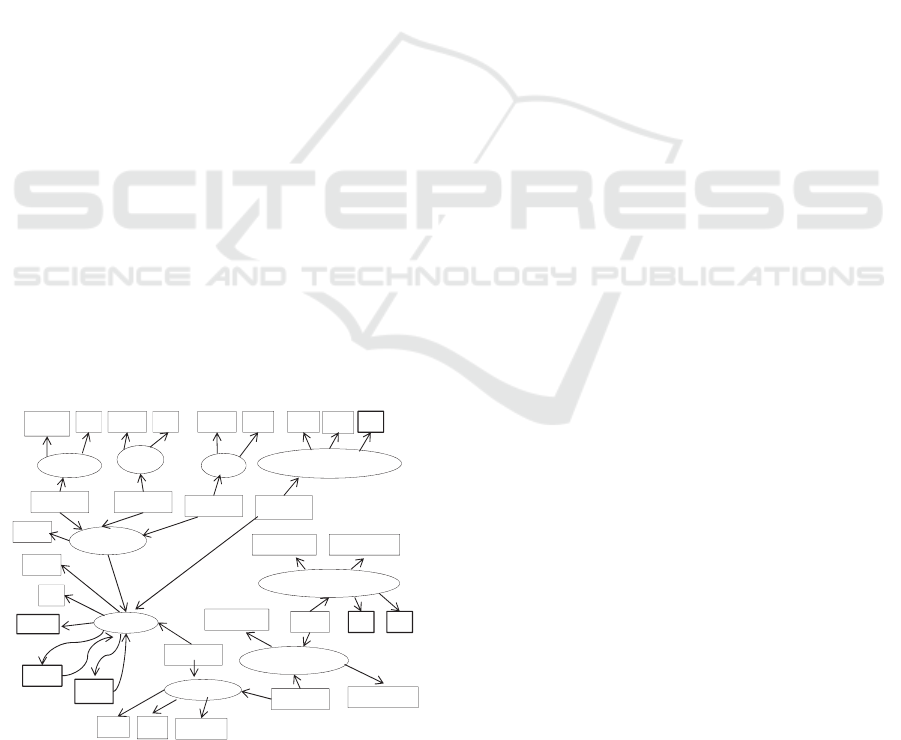

Figure 2: Graphical presentation of a portion of the

Welfare Ontology.

In this graphical representation ellipses represent

classes and subclasses while rectangles represent

data type and object properties. Classes, subclasses,

data properties and object properties are modeling

primitives in OWL (Web Ontology Language)

(OWL, 2011). Object properties (e.g., Measures)

relate objects to other objects while data type

properties (e.g., Name) relate objects to datatype

values. In Figure 2, we have presented only a few of

objects’ datatype properties.

Fundamentally the Welfare Ontology comprises

the vocabulary that a person can use in describing

his or her personal welfare information. Hence we

do not assume that a person uses all the terms of the

vocabulary (ontology). For example, datatype

properties Father and Mother are included in the

vocabulary, but the person does not have to give

values for these properties. Neither the person needs

class Swimming, if swimming is not included in his

or her hobbies.

On the other hand, a person may use whatever

ontology (vocabulary) or ontologies in describing

his or her personal welfare information.

Respectively a person may use a variety of

ontologies in his or her smart home or notebook

data.

We next illustrate the use of ontologies in RDF

descriptions.

4.2 Using Welfare Ontology in

RDF-Formatted Datasets

RDF itself is a data model. Its modeling primitive is

an object-attribute-value triple, which is called a

statement (Antoniou and Harmelen, 2004). In order

that RDF data can be represented and transmitted it

needs a concrete syntax, which is given in XML,

i.e., RDF statements are usually coded in XML.

Hence, RDF inherits the benefits associated with

XML. However, other syntactic representations

(e.g., Turtle) are also possible, meaning that XML-

based syntax is not a necessary component of the

RDF model.

<rdf:RDF

xmlns :rdf=”http://www.w3.org /1999/02/22‐rdf‐syntax‐ns#”

xmlns :po=http://www.helsinki.fi/WelfareOntology#>

<rdf:Description

rdf:about=”weightmeasurement100820151028”>

<rdf:type rdf:resource=“&po;WeightMeasurement”/>

<po :Measures>RitaSmith</po :Measures>

</rdf :Description>

</rdf:RDF>

Figure 3: An instance of the Welfare Ontology in RDF.

HEALTHINF 2016 - 9th International Conference on Health Informatics

148

One RDF description may contain one or more

RDF statements about an object (Daconta et al.,

2003). For example, in Figure 3, the description

concerning Rita Smith’s weight measurement

(identified by “weightmeasurement100820151028”)

contains five RDF statements: the first states that its

type in the Welfare Ontology is Weight-

Measurement, and the second states that it measures

Rita Smith. Subsequent statements specify the date,

the time, and the value of the weight measurement.

5 TRANSFORMING AN

XML-BASED PHR INTO RDF

In our model, the organizations of the collaboration

domain maintain personal datasets, which are in

RDF. The personal data sets that are not initially in

XML (e.g., most PHRs) have to be transformed into

RDF. Such a transformation is illustrated in Figure

XML tree

RDF/XML tree

Stylesheet Engine

Transformation

CCD document

in RDF/XML

Stylesheet

in XSLT

CCD document

in XML

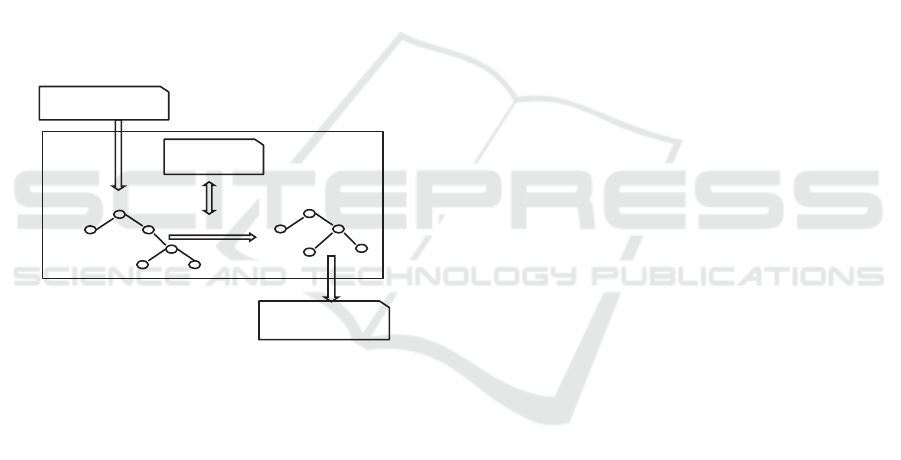

Figure 4: Transforming a CDD document into RDF/XML

format.

The Stylesheet Engine takes an XML document

(e.g., a PHR based on the CDD-standard), loads it

into a DOM (Document Object Model) (Daconta et

al., 2003) source tree, and transforms that document

with the instructions given in the stylesheet into

RDF/XML format. The instructions use XPath

expressions (Daconta et al., 2003) in referencing to

the source tree and in placing it into the result tree.

The result tree is then formatted, and the resulting

element in RDF/XML format is returned.

To illustrate the transformation an input

document (a CDD document) is presented in Figure

5, and its output document is presented in Figure 6.

<PatientName>RitaSmith></PatientName>

</Patient>

<MedicationID>Medication.567</MedicationID>

</DateTime>

<Actor>

<ActorID>Pharmacy ofKaivopuisto</ActorID>

<ActorRole>Pharmacy</ActorRole>

</Actor>

</Source>

<Text>Onetablet three times aday</Text>

</Description>

<ProductName>Voltaren</ProductName>

<BrandName>Diclofenac</BrandName>

</Product>

<Unit>milligram</Unit>

</Strenght>

</Quantity>

</Medication>

</Medications>

</SimplifiedCCDfile>

Figure 5: A simplified example of a CCD document.

<rdf:RDF

xmlns :rdf=”http://www.w3.org/1999/02/22‐rdf‐syntax‐ns#”

xmlns :xsd=”http://www.w3.org/2001/XMLSchema#”

xmlns:po=http://www.lut.fi/ontologies/EHR‐Ontology#>

<rdf:Description rdf:about=”AB‐12345”>

<rdf:type rdf:resource=“&po;Patient”/>

<po :PatientName>RitaSmith</po :PatientName>

</rdf :Description>

<rdf:Description rdf:about=”MO‐5481”>

<rdf:type rdf:resource=“&po;Medication”/>

<po :Contains>Voltaren</po :Contains>

<po:ExactDateTime>2012‐03‐01TO12:00

</po: ExactDateTime>

<po :StrenghtV alue rdf:datatype=

”&xsd;integer”>30</po :StrenghtValue>

</rdf :Description>

<rdf:Description rdf:about=”211708‐8”>

<rdf:type rdf:resource=“&po;Source/>

<po :ActorID>Pharmacy</po :ActorID>

<po :ActorRole>Pharmacy</po :ActorRole>

</rdf :Description>

<rdf:Description rdf:about=”Voltaren”>

<rdf:type rdf:resource=“&po;ProductName”/>

<po :BrandName>Diclofenac</po :Contains>

</rdf :Description>

</rdf:RDF>

Figure 6: A transformed CCD document in RDF/XML-

format.

Managing Fragmented Personal Data: Going beyond the Limits of Personal Health Records

149

6 CONCLUSIONS

RDF-based data formats have not yet achieved the

mainstream status that XML and relational databases

have. However an increasing number of

professionals are discovering that tools using the

RDF data model let them expose diverse sets of data

with a common, standardized interface. The data sets

may be public or private. Private data sets include a

variety of personal data including health data,

welfare data, and smart home data.

By connecting personal data among themselves,

or with public data we can achieve synergy. For

example, connecting person’s vaccinations data with

public informal data dealing with vaccinations gives

outcomes that could not be achieved by functioning

independently with personal or public data.

However, achieved synergy is not the only gain of

our designed PR-system: by integrating a variety of

personal tools we can also significantly improve

their usability.

The SPARQL processor is a corner stone of our

approach. It has the ability to process the data and to

find the connections between RDF-triples from

separate data sources. Especially we have exploited

this feature in developing the PR-system.

We have also presented our developed Welfare

Ontology, which can be used in data sets concerning

individual’s welfare data. However, it is just an

alternative: in RDF-based data sets we can use any

ontology (vocabulary). Even each RDF-statement in

a dataset may be based on different ontology. The

possibility of using existing public ontologies as

well as user specific ontologies makes this approach

very flexible

On the other hand, to succeed PR-system should

not be considered just as a technical infrastructure

but rather as ecosystems having many

interconnected parts. So far we have considered the

technical infrastructure and the services of our

designed PR-system. The other key parts of the e-

health ecosystem are governance regulations,

financing and stakeholders. In our future research

we will focus on these issues.

In addition, there are many other challenges.

The introduction of new technology is also an

investment. Also a consequence of introducing new

healthcare model is that it significantly changes the

daily duties of the employees in the organizations,

which produce personal digital data. Thus the most

challenging aspect will not be the technology but

rather changing the mind-set of the employees of

these organizations.

REFERENCES

Angst, C.M., Agarwal, R, Downing, J., 2008. An

empirical examination of the importance of defining

the PHR for research and for practice, Proceedings of

the 41st Annual Hawaii International Conference on

System Sciences.

Antoniou, G., Harmelen, F., 2004. A Semantic Web

Primer. The Mitt Press.

Benson, T., 2010. Principles of Health Interoperability

HL7 and SNOMED. Springer.

Boone, K., 2011. The CDA Book. Springer.

CCD, 2009. What Is the HL7 Continuity of Care

Document? Available at: http://www.neotool.com/

blog/2007/02/15/ what-is-hl7-continuity-of-care-docu

ment/

CCR, 2011. Continuity of Care Record (CCR) Standard.

Available at: http://www.ccrstandard.com/

Daconta, M., Obrst, L., Smith, K., 2003. The semantic

web: A Guide to the Future of XML, Web Services,

and Knowledge Management, John Wiley & Sons.

Dogac, A., Laleci, G., Kabak, Y., Cingil, I., 2002.

Exploiting web service semantics: Taxonomies vs

ontologies, IEEE Data Eng. Bull, Vol. 25, No. 4,

pp.10-16.

Dogac, A., Gokce, B., Aden, T., Laleci, T., Eichelberg,

M., 2007. Enhancing IHE XDS for Federated Clinical

Affinity Domain Support. IEEE Transactions on

Information Technology in Biomedicine, Vol.11, No.

DuCharme, B., 2011. Learning SPARQL. O’Reilly Media.

IHE, 2005. IT Infrastructure Technical Framework

Volume 1 (ITI TF-1). Available at:

www.ihe.net/Technical_Framework/upload/ihe_iti_tf_2.0

_vol1_FT_2005-08-15.pdf.

OWL, 2011. Web Ontology Language. Available at:

http://www.w3.org/TR/owl-features/

Puustjärvi, J., Puustjärvi.L., 2014. Using Ontology-Based

Registry and SPARQL Engine in Searching Patient’s

Clinical Documents. In the proc. of the International

Conference on Health Informatics. Pages 151-158.

Puustjärvi, J., Puustjärvi. L., 2015. Maintaining the

consistency of Electronic Health Record’s Medication

List. In the proc. of the International Conference on

Health Informatics.

RDF, 2011. Resource Description Language. Available at:

http://www.w3.org/RDF/

Raisinghani M.S., Young, E., 2008. Personal health

records: key adoption issues and implications for

management, International Journal of Electronic

Healthcare. Vol. 4, No.1 pp.67-77.

SPARQL, 2008. SPARQL Query Language for RDF.

Available at: http://www.w3.org/TR/rdf-sparql-query/

HEALTHINF 2016 - 9th International Conference on Health Informatics

150
