From Model to Rig – An Automotive Case Study

Joseﬁne S

odling

, Rikard Ekbom

, Peter Thorngren

and H

akan Burden

Chalmers University of Technology, Gothenburg, Sweden

Volvo Group Trucks Technology, Gothenburg, Sweden

Viktoria Swedish ICT, Gothenburg, Sweden

Keywords:

Model-based Testing, Tool Adaptation, Organisational Change, Test Coverage.

Abstract:

As the size and complexity of the software in a truck grows, new ways of managing the development are

needed. Numerous reports show how MDE can be successfully applied for automotive software development.

We complement previous research by conducting a case study on the impact of model-based testing for ver-

ifying and validating the behaviour of a truck’s headlights. Our results are three-fold. First, we show how a

model can be transferred from a model-in-the-loop setting to a hardware-in-the-loop via system simulation.

Second, we supply an analysis of the shortcomings of the model that were found as the model was tested in

more and more platform-speciﬁc settings. Third, our results show that the introduction of model-based testing

practices will require organisational changes even if the used tools are familiar to the company.

1 INTRODUCTION

The automotive industry is currently in a shift from

being a hardware-centric industry to becoming a

software-intense domain (Bringmann and Kramer,

2008) – soon 90% of automotive functions are de-

veloped as software. Subsequently, the integration,

validation and veriﬁcation of the code becomes more

and more complex. But it also means that the latency

between speciﬁcation and testing of new features can

be drastically shortened when functionality, in terms

of software, is decoupled from the hardware develop-

ment.

Model-based testing, MBT, is one way of au-

tomating and scaling software testing in the automo-

tive industry (Han et al., 2013). MBT starts in the

Model-in-the-Loop stage, MiL, where a model with

the sought behaviour is deﬁned. A beneﬁt of start-

ing the testing at this stage is that defects and in-

consistencies require less time and effort to be anal-

ysed and ﬁxed than in a full-ﬂedged mechatronic sys-

tem (Pretschner et al., 2005). The next stage is re-

ferred to as Software-in-the-Loop, SiL, and here the

surrounding system is simulated to validate that the

model behaves as expected in its context (Schiefer-

decker, 2012). When the tests conﬁrm that the model

behaves as expected the model is transferred into the

Hardware-in-the-Loop stage, HiL. Here the model’s

behaviour is validated in relation to a hardware rig.

Including proper mechatronic systems and hardware

into the test environment means that the cost of test-

ing increases, but so does also the probability that

the model will behave as expected on the designated

platform. The different stages and their relations are

shown in Figure 1.

A recommended way of introducing model-based

practices such as MBT is to start with a small and

well-known subsystem whose behaviour can be fully

monitored through the test stages instead of using a

large and complex model that cannot progress fully

through the test environments (Schieferdecker, 2012).

When the smaller subsystem is veriﬁed and validated,

the model can be complemented with additional fea-

tures and constructions. Introducing MBT can be a

costly affair considering the amount of licenses, hard-

ware parts and new competencies that the company

has to invest in (Whittle et al., 2013). This can be mit-

igated by reusing existing tools and building on estab-

lished skills within the company (Utting and Legeard,

2010).

Through an exploratory case study (Runeson

et al., 2012) we set out to deﬁne a a set of prac-

tices for iteratively reﬁning a model to a more and

more platform-speciﬁc context at Volvo Group Trucks

Technology. In this way a broader set of details

and software concepts can be validated and veriﬁed.

Based on the ﬁndings of our study we set out to an-

swer the following three research questions:

Södling, J., Ekbom, R., Thorngren, P. and Burden, H.

From Model to Rig – An Automotive Case Study.

DOI: 10.5220/0005644506150622

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 615-622

ISBN: 978-989-758-168-7

615

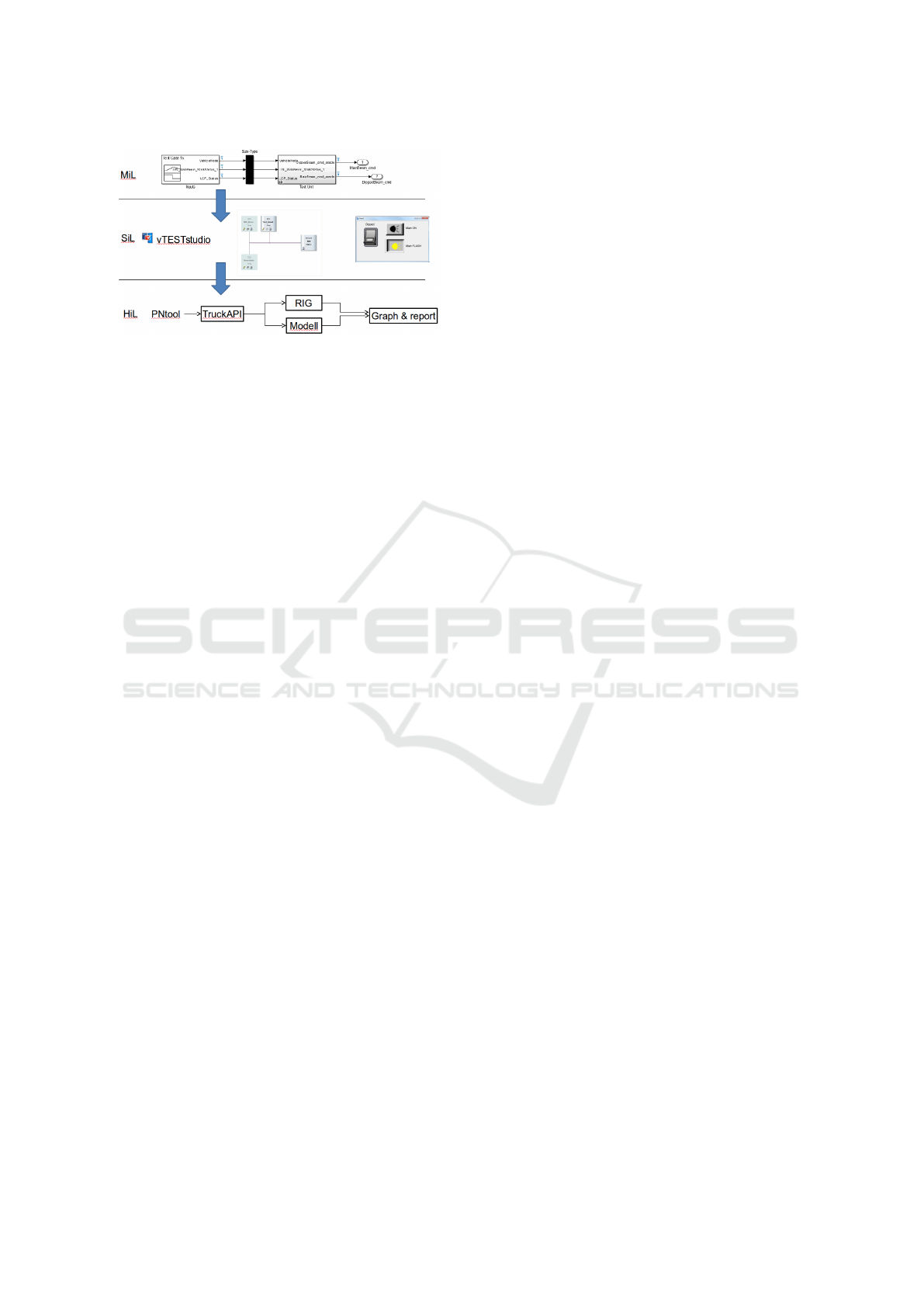

Figure 1: From MiL to HiL.

RQ1: Which shortcomings of the model are exposed

as the testing is conducted in a simulated system

and in a hardware rig and how can these short-

comings be mitigated?

RQ2: How will the changing test environment im-

pact the test coverage?

RQ3: How can the resulting test practices be imple-

mented in the organisation, making sure that test-

ing is both trustworthy and reusable?

Our results are three-fold. First, we show how a

model can be transferred from a Model-in-the-Loop

setting to a Hardware-in-the-Loop context via a sys-

tem simulation. Our ﬁndings include how a model

can be reused as the central test object from the mod-

elling environment to a rig of hardware via system

simulation. Second, we supply an analysis of the test

coverage as the model was tested in more and more

platform-speciﬁc settings. Third, our results imply

that the introduction of model-based testing will re-

quire organisational changes even if the used tools are

familiar to the company.

2 RELATED WORK

Two independent studies (Kuhn et al., 2012; Aranda

et al., 2012) report on applying Model-Driven Engi-

neering, MDE (Kent, 2002), at General Motors. The

former publication focuses on the individual percep-

tions of the adoption of MDE at General Motors; the

latter reports on how MDE induced changes at the or-

ganisational level. At the individual level, engineers

experienced both forces and frictions related to MDE

tools and languages – for example, a lack of support

for developing the MDE infrastructure. At the organi-

zational level, Aranda et al. found, for instance, that

software developers were now asked to focus on MDE

infrastructure whereas the domain experts became the

ones who implemented the new functionality.

In a comparison of MDE at three large companies,

Burden et al. conclude that MDE can empower the

domain experts to be the primary software develop-

ers (Burden et al., 2014). A pre-requisite in the case

of the automotive industry is that the engineers are

trained in using the relevant modelling tools during

their university education and that there are other en-

gineers who can develop and maintain the infrastruc-

ture needed to transform the high-level architecture

into the modelling environment and from there on to

the designated target.

In relation to our own study a similar case has

been investigated at Volvo Cars Cooperation. While

the two companies share the same name they are dis-

tinctively separate companies with their own organi-

sations, products and services. In the Volvo Car case

MBT was seen as an enabler to shorten the devel-

opment cycles in combination with an agile way of

working (Eliasson et al., 2014). Furthermore, they

conclude that by developing new functionality in a

virtual test environment the dependencies on hard-

ware and external suppliers can be postponed until a

later occasion when the external deliveries are more

trustworthy.

3 METHOD

We conducted an exploratory case study (Runeson

et al., 2012) regarding the main beam functionality

to better understand how MBT can be implemented

at Volvo Group Trucks Technology.

3.1 Context

The case study was conducted at Volvo Group Truck

Technology’s facilities in Gothenburg, Sweden. To-

day most of the software development is outsourced

while in-house development is spread around the

world, including India and France. The distributed

development has an impact on the overall integration

carried out in Gothenburg since bugs that are found

late are expensive and time consuming to ﬁx.

The incentive behind our case study is that Volvo

wants to manage the complexity of truck development

by ﬁnding defects and inconsistencies earlier than to-

day. The existing process at Volvo can be described

as a waterfall with a sequential progression through

analysis, design, implementation, test and integration

before delivery. In the current ﬂow, errors are often

not identiﬁed until integration which in turns means

that the corrective actions become expensive and have

a negative impact on the overall progression. In paral-

lel, an average truck consists of 70 or more Electronic

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

616

Control Units, ECU, that are tailored for speciﬁc pur-

poses. One way of handling the growing complexity

of the truck is by using fewer, general-purpose ECUs.

This will in turn demand a new way of developing

the features of the truck where the testing is just as

generalised as the new architecture. Here MDE has

been identiﬁed as the way forward and subsequently

model-based testing needs to be evaluated before it is

launched full-scale within the organisation.

Testing is not just an activity for validating and

verifying new functionality, testing is carried out on

both new and old truck models as features are im-

proved over time. This means that the test method

has to be adapted for both development of new fea-

tures and for maintenance of old models where the

latter often lack some of the software found in mod-

ern trucks.

3.2 Model-in-the-Loop

The model that was used for the case study was de-

veloped using Simulink. Since the Volvo Group also

owns truck brands such as Terex Trucks, Renault,

Dongfeng and Mack, besides Volvo, it was impor-

tant that the model was platform-independent (Mellor

et al., 2004) in order to be reused across the brands

and platforms. The behaviour of the model was de-

ﬁned through a set of requirements already present

at Volvo. The implementation was based on boolean

logic that speciﬁed the possible combinations of the

incoming and outgoing signals. Due to the fact that

the model did not include platform-speciﬁc details

and the signals only had a ﬁxed number of values it

was possible to test all possible combinations of in-

coming and outgoing signal values for the model.

The testing of the model was conducted by ap-

plying an additional package to Simulink, the Design

Veriﬁer tool. Design Veriﬁer helps to ﬁnd anoma-

lies in the model and generates complementary test

cases for the anomalies. Here examples of anoma-

lies would be dead logic or division by zero. We also

used Simulink’s package for code generation to gen-

erate Dynamic-link Library-ﬁles, .dll-ﬁles.

3.3 Software-in-the-Loop

CAN Open Environment, CANoe, is a tool developed

by Vector which is used for development, testing, sim-

ulation and analysis of software for the automotive

industry. The tool can be used to simulate a network

of ECUs connected through a Controller Area Net-

work (CAN (Etschberger, 2001)). When a physical

network is used the tool also allows for sending a

signal across CAN at the same time as monitoring

the network to record and assess the impact of the

communication. In order to integrate CANoe with

Simulink, the tool vendor Vector has developed their

own Simulink blocks that allow the inclusion of CA-

Noe concepts into the Simulink model. We also used

vTESTstudio to generate tests that cover all possible

combinations of the incoming signal values.

By using the designated CAN-blocks in CANoe

we could conﬁgure a virtual CAN for the Simulink

model. The conﬁguration only included the most rel-

evant ECUs for testing the incoming and outgoing

signals of the model. The network was displayed in

a graphical interface in order to monitor the changes

during each test case. To prevent hardcoding the con-

ﬁguration to ﬁt the model we deﬁned our own sys-

tem signals in CANoe that can easily be reused with

a new conﬁguration. The system signals where then

connected to the corresponding incoming and outgo-

ing signals of the model. This enabled us to stimulate

the model with CAN signals, read the results from the

model and validate that the behaviour was consistent

with the requirements. We opted to use vTESTstudio

to deﬁne the test cases, again. After each test case has

been executed the outcome from the simulated envi-

ronment is logged together with the result given by

the model. The two values are then compared and

when all test cases have been run CANoe generates

a report, declaring the success or failure for each test

case.

3.4 Hardware-in-the-Loop

The rig used for the HiL stage consisted of relevant

parts from a Volvo truck (physical controls such as

dials, levers and buttons as well as displays) which in

turn were connected to a rig of ECUs, computers and

real-time simulators which in turn relayed the control

commands to two head lights mounted on a board. In

this way it is possible to visually monitor the outcome

of different test cases. The communication in the rig

is implemented as a physical CAN, just as it would

be in a real truck. The inclusion of the computers en-

able the testing to be monitored and controlled. For

instance, signal values can be set from the computer

or the state of the ECUs can be monitored without dis-

turbing or affecting the communication on the CAN.

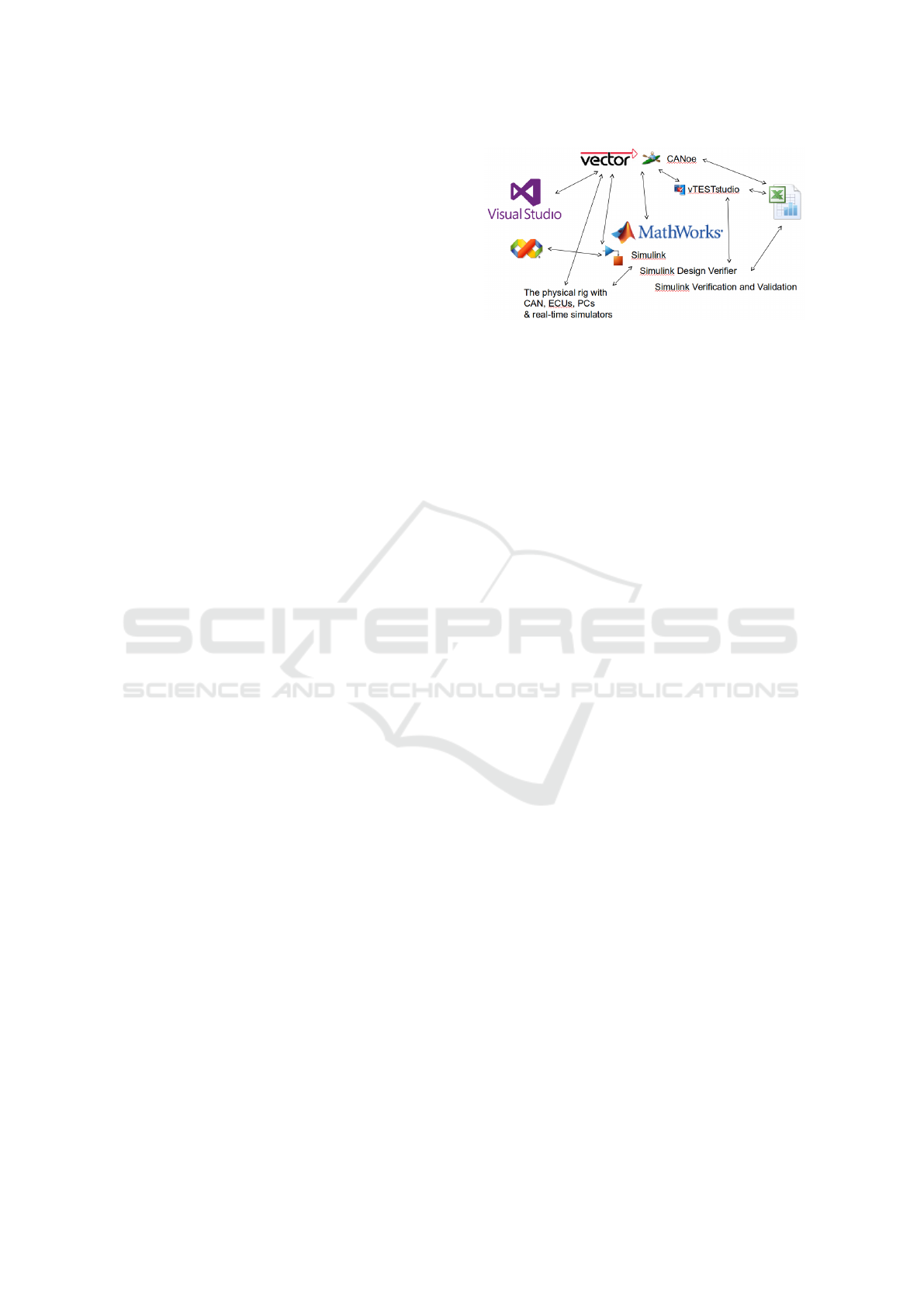

Besides the tools from Vector and Mathworks a

number of tools developed in-house were used. An

example of such a tool is PNTool that together with

the Truck Control API enable interaction with the rig

through the computers instead of using the dials and

buttons. In order to port the model to the rig it is nec-

essary to have a C compiler that is compatible with the

used MatLab version. The model is then synthesised

From Model to Rig – An Automotive Case Study

617

(Mens and Gorp, 2006) into a dll-ﬁle targeted for the

CANoe platform. The generated ﬁle is then incorpo-

rated with a simulated ECU and integrated into the

CANoe-environment. Then the CANoe conﬁguration

is updated to accommodate both the simulated sys-

tem and the system signals of the physical rig. This

time we used PNTool for specifying the test cases. A

drawback with PNTool compared to vTESTstudio is

that the ﬁrst lacks the possibility to compare values

of system signals. It is therefore not possible to auto-

matically compare the values generated by the model

with the values read from the physical rig. Instead a

visual inspection was done for each test case.

3.5 Evaluation

In order to evaluate the implementation of MBT con-

tinuous meetings and discussions were held with a

reference group. The group consisted of one of the

engineers responsible for developing and maintaining

the rig, two engineers responsible for testing and three

employees from the division responsible for integra-

tion. The evaluation covered the current situation at

Volvo in terms of the engineers competence in testing,

the availability of tools and licenses as well as which

components where already in place for the hardware

rig.

4 RESULTS

The results are structured in accordance to our re-

search questions so that the ﬁrst subsection answers

Which shortcomings of the model are exposed as the

testing is conducted in a simulated system and in a

hardware rig and how can these shortcomings be mit-

igated?; the second subsection highlights the contri-

butions in response to How will the changing test en-

vironment impact the test coverage?; while the ques-

tion How can the resulting test practices be imple-

mented in the organisation, making sure that testing

is both trustworthy and reusable? is answered in the

third subsection.

4.1 From MiL to HiL

The results regarding the transition from model to rig

are broken down in terms of model to simulated sys-

tem, and then simulated system to hardware rig.

In order to ﬁt the model into the simulated system

environment we had to replace the existing Simulink

ports with CANoe blocks, otherwise we could not

monitor the communication on the simulated net-

work. When substituting the incoming ports we

found the ﬁrst inconsistency, a mismatch regarding

datatypes. The Simulink model assumed that the

incoming system variables should be of the type

integer while they in fact are of the type double.

This was easy to ﬁx by using the converter block sup-

plied by Simulink.

The test cases deﬁned at the MiL stage could

not be reused and we had to manually redeﬁne all

test cases using vTESTstudio. The reason for re-

implementing the tests was that there was no possi-

bility to map the model elements to CAN representa-

tions using Simulink Design Veriﬁer. After executing

a test case we checked that the model and the simu-

lated system generated the same result. Since all test

cases returned the same output for both model and

simulated system we could continue to the next stage,

Hardware-in-the-Loop.

The ﬁrst thing that happened when transitioning

the model to the hardware rig was a conﬂict regarding

CANoe versions. This meant that we could not reuse

the test cases from the earlier stage and again had to

manually redeﬁne them. This time we used PNTool

together with the Truck Control API for implement-

ing the test cases. In this way we could use the signals

provided by the API to simulate the physical stimula-

tion, such as turning a dial or pressing a button.

The CANoe conﬁguration used for the simulated

system could be adapted to the hardware rig since

it was not hardcoded for a speciﬁc setting. In the

new conﬁguration the model resided on a simulated

ECU. We then ran our test scripts and since PNTool

lacks the ability to compare system variables the re-

sulting graphs were manually compared and analysed.

During the analysis of the graphs it became evident

that the model had some serious shortcomings. In

this case the reason was a combination of human fac-

tors, such as not understanding or taking all require-

ments into consideration during the development of

the model, and lack of information regarding the de-

pendencies in relation to surrounding systems.

One of the most important deviancies originated

from assumptions regarding the logic behind the Ex-

terior Light Control dial, which has an internal vari-

able to keep track of its current state. The model as-

sumed that the dial would submit the current state

when it in fact only signals how many steps it has

moved (anti-)clockwise.

Another ﬁnding was that the Main Beam stalk be-

haved differently than the model assumed. The model

requires a constant feed of signal values in order to

determine what the outgoing values should be. When

the stalk is retracted to its end position it generates a

signal value representing head beams on. When the

stalk is released it goes back to its neutral position but

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

618

the lights should still be on. This was how the lights

in the hardware rig behaved. The outgoing values of

the model on the other hand said that the lights were

off. This was due to the signal values changing when

the stalk went into neutral mode.

In order to mitigate these shortcomings of the

model it had to be complemented by code that kept

track of the ELCP’s current state and translated turn-

ing the dial into a new state. It also meant changing

the model to accommodate the logic of the stalk.

During the evaluation it was recognised that the

logical shortcomings of the model were much easier

to expose while testing on the hardware rig than in the

earlier test stages.

4.2 Test Coverage

For MBT to be proﬁtable the model has to be trust-

worthy beyond a certain degree. One way of achiev-

ing this is to scope the model to a speciﬁc subsys-

tem, such as the main beams. As mentioned in sec-

tion 3.2, the original test cases where developed us-

ing Simulink Design Veriﬁer which delivered full test

coverage for all the possible combinations regarding

the values of the main beams. It also ﬁltered out test

cases which do not add any extra coverage in order

to save time during batch testing. For the model to

be reliable throughout the testing and all conﬁgura-

tions it is important that the right test cases are car-

ried through the transitions as well. The model could

be transferred between stages since the involved tools

provided the necessary transformations for each tar-

get test environment. As we saw in section 4.1 his

was not true for the test cases.

While it was possible to redeﬁne all the test cases

using vTESTstudio for the simulated system at the

SiL stage, it was not possible to automatically ﬁlter

out superﬂuous test cases. In our case this had a lim-

ited impact on the time needed to run the test suite

since the number of combinations to test was limited.

The test coverage was unchanged.

If porting the test cases from MiL to SiL was triv-

ial, transferring the test cases to the hardware rig was

more challenging since neither Simulink nor CANoe

has relevant support. In Simulink the test cases are

deﬁned inside a shared block. After each test case is

executed the internal variables are overwritten with-

out being stored over time. In the end the solution

was to write a script that saved the values in a table us-

ing Microsoft Excel. Just as for the SiL stage, it was

possible to transfer the test cases and achieve full test

coverage. Even if it required more effort than desired

it was therefore possible to retain full test coverage

from the MiL to the HiL stage.

4.3 Organisational Impact

Currently, an engineer needs to know and handle a

number of different tools, know the product and be

a competent tester in order for MBT to be success-

ful. At Volvo the engineer also needs an understand-

ing of how to operate the hardware rig. If MBT is

to be successful at Volvo it is necessary that only a

few engineers who have all the desired skills work

with the development and maintenance of the test en-

vironment since so many unique competencies are re-

quired. Then the designated testers do not need the

full spectra of skills but can instead focus on develop-

ing, executing and analysing the test cases.

For MBT to be successful throughout the organi-

sation, Volvo needs to invest in training the engineers

in the new way of working, acquiring the necessary

tools and licenses that are not present at now but also

a continuous integration of new features into the test

environment as the product to be tested evolves. For

this to happen it is vital to formulate a plan on how

the development is to be managed and and that this

information is successfully spread throughout the or-

ganisation.

Our aim was to automate the testing procedure in

order for it to be reusable. In our case reuse is both

in terms of applying it to the model after it has been

changed as well as for the practices being applicable

to other models. In the case of reusing the method on

a model after it has been changed, it is necessary that

the engineer has knowledge of the modelling and test-

ing tools used at the MiL stage. But the engineer also

needs sufﬁcient knowledge about the requirements re-

garding the new model details. In this setting human

factors is a risk since the models are not automatically

generated from the requirements. And a model in-

cluding many inconsistencies will require more time

and effort to get accepted at the SiL and HiL stages.

In order to reuse the test practices for a new model

it is necessary to create a new conﬁguration to in-

tegrate the model with the system signals. For the

SiL stage this is straightforward while the HiL stage

requires knowledge of how the signals are used in a

physical truck. The conﬁguration gets more complex

as the number of system signals and ECUs grows.

5 DISCUSSION

While the objective of the case study was achieved

the process of getting there could have been more

straight-forward. One area of concern is the poor in-

teroperability of the applied tools. For instance, trans-

ferring the test cases from one test stage to another

From Model to Rig – An Automotive Case Study

619

which had to be done manually. This shows that even

if it requires time and effort, it is possible to create a

Simulink model that is comparable to the test results

of a hardware rig. Thus, the testing at Volvo can be

generalised by model-based testing. Our results also

indicate that the SiL stage had lesser impact on iden-

tifying defects and inconsistencies than testing at the

HiL stage. If the same is true for a more complicated

model is still to be explored. From the point of cost it

would be desirable that the SiL stage became more

inﬂuential since it is less expensive to develop and

maintain and the feedback loop to the MiL stage is

shorter. While it was at the HiL stage the most severe

shortcomings of the model were identiﬁed, it is worth

remembering that each stage contributed to exposing

errors in the model.

After the test results have been evaluated it is pos-

sible to go back to the MiL stage and add new models,

requirements or features to expand the scope of the

test. At each step knowledge of the intended behav-

ior of the head beams feature and the truck domain in

general was needed to assess the test results. If the

model returns a different verdict than that from the

simulated system or the physical rig it is not given

what is right or wrong. This means that in order

to deﬁne relevant corrective actions or to stay with

the model as it stands requires another set of skills

and competencies than those used for developing and

maintaining the test environment.

In our setup the model has been used as a com-

parator for evaluating the test results from the simu-

lated system and the hardware rig with those of the

model itself. Another approach would have been to

use the model as the control logic at each stage, so that

the model would determine the behaviour of the head

beams at each stage. In such a setup the test method

would evaluate to which extent the model represented

the sought behaviour of the truck.

Whittle et al. argue that while there are plenty

of modelling tools around, few of them are mature

enough to be used without costly adaptations (Whittle

et al., 2013). The availability of tools and competen-

cies within the organisation lowers the risk and cost

of introducing a model-based way of working (Bur-

den et al., 2014), but has to be balanced against the

possibility that the tools will not be sufﬁcient for the

new purposes (Whittle et al., 2013). In our case we

found that there was a lack of tools that ﬁtted our pur-

poses which required tools to be developed in-house

or the help of external tool vendors to ﬁt the existing

tools to new practices. A substantial part of the work

has been conducted using CANoe and subsequently

the development of the test cases and test environ-

ment was done in close collaboration with represen-

Figure 2: A subset of the used tools and technologies with

their major dependencies.

tatives from Vector, the tool vendor. On the positive

side of this collaboration is that Vector could develop

new functionality and tailor CANoe to our needs as

new insights were gained regarding the test method.

It also meant that Vector could be close at hand for

additional training in how to best apply their tools

and use their add-ons. On the negative side there is

often a delay when interacting with external develop-

ers. This is due both to the manual handover of the

problems but also to the fact that determining which

tool vendor to address takes time in itself. For in-

stance, if the transformation of test cases from one

tool to the other does not work as wished, should we

ask for the source or target tool to adapt our requests?

Besides, if all the involved tools had been developed

by the same tool vendor they would hopefully allow

for smooth integration of features and automation of

tasks. A subset of the used tools, tool vendors and

their inter-dependencies are shown in Figure 2.

In relation to previous studies we ﬁnd a lot of

commonalities. Just as Aranda et al. found at Gen-

eral Motors (Aranda et al., 2012), there is an organ-

isational impact from introducing model-based tech-

nologies and ways of working. In our case the test en-

vironment will have to be developed and maintained

by different engineers than those that do the actual

testing. The root cause is that there are not many engi-

neers that have the necessary skills and competencies

to both develop a test infrastructure as well as model

the beahiovur of a truck – the skill sets are too orthog-

onal. And as we have seen, the domain knowledge is

instrumental in getting the model right from the be-

ginning, which supports earlier claims by Burden et

al. (Burden et al., 2014) and Utting and Legeard (Ut-

ting and Legeard, 2010).

As previously shown (Burden et al., 2014; Utting

and Legeard, 2010), the development of the support-

ive infrastructure will have to be synchronised with

the needs of the test engineers as new features and

conﬁgurations will place new demands on the test en-

vironments. If this will lead to organisational and so-

cial tensions within the company, as in the case at

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

620

General Motors, is still an open question.

Throughout the process it also became evident that

when the model is done up-front, before a full un-

derstanding of the surrounding system is in place, it

will be based on assumptions on what the context will

look like. This is in line with results from Volvo Cars

(Eliasson et al., 2014). In our case we found inconsis-

tent assumptions regarding the types of signal values

as well as the internal logic of surrounding systems.

Finally, introducing MBT will have a positive ef-

fect on the time it takes to go from concept to pro-

duction since testing can be done much earlier and the

combination of simulations and hardware rigs will ex-

pose defects quicker than the traditional waterfall pro-

cess. In this way model-based ways of working will

promote an agile and iterative development, which in

turn shortens the lead times (Eliasson and Burden,

2013; Burden et al., 2014).

6 CONCLUSIONS

Our study complements and expands previous re-

search by exploring the impact of model-based test-

ing for validating the behaviour of a truck’s head

beams. The study was conducted at Volvo Group

Trucks Technology in Gothenburg, Sweden, and con-

sisted of testing at three different stages. First the

model was tested as is at the Model-in-the-Loop

stage; then it was tested in a simulated system known

as the Software-in-the-Loop stage; before ﬁnally be-

ing tested in a hardware rig – the Hardware-in-the-

Loop stage.

Our results are three-fold. First, we show how a

model can be transferred from a Model-in-the-Loop

setting to a Hardware-in-the-Loop context via a sys-

tem simulation; the overall process is shown in Fig.

1. Second, we supply an analysis of the shortcomings

of the model that were found as the model was tested

in more and more platform-speciﬁc settings. Third,

our results show that the introduction of model-based

testing will require organisational changes even if the

used tools are familiar to the company.

In the near future we will be able to test the model

on a real truck to see if any new defects or faulty as-

sumptions are exposed. Another research direction

for the future is to explore to which extent the test

cases developed for the MiL stage can be automati-

cally reused at the more platform-speciﬁc stages, but

also to determine to which extent the test cases for the

SiL and HiL stages can be reused with other program-

ming tools since it is not yet established which tools

will be used across the organisation.

Speaking of organisation, it is still work in

progress to implement and adapt the developed test

practices in the organisation at large and we aim to

report on the organisational changes and necessary

adaptations of model-based practices. A key aspect

to explore is to which extent MBT can be used for

other features of the truck and in other divisions of the

organisation. In this line of work we will seek strate-

gies to mitigate the tensions reported on by previous

studies, to explore how the test engineers and test en-

vironment developers can work in harmony with each

other.

ACKNOWLEDGEMENTS

The authors would like to thank Mathworks for pro-

viding the necessary licenses for free during the case

study. We would also like to acknowledge the effort

that Vector put into the case study by adapting their

tools for our needs. This work was partially funded

by the Vinnova project Next Generation Electrical Ar-

chitecture.

REFERENCES

Aranda, J., Damian, D., and Borici, A. (2012). Transition to

Model-Driven Engineering - What Is Revolutionary,

What Remains the Same? In MODELS 2012, 15th In-

ternational Conference on Model Driven Engineering

Languages and Systems, pages 692–708. Springer.

Bringmann, E. and Kramer, A. (2008). Model-Based Test-

ing of Automotive Systems. In Software Testing, Ver-

iﬁcation, and Validation, 2008 1st International Con-

ference on, pages 485–493.

Burden, H., Heldal, R., and Whittle, J. (2014). Com-

paring and Contrasting Model-driven Engineering at

Three Large Companies. In Proceedings of the 8th

ACM/IEEE International Symposium on Empirical

Software Engineering and Measurement, ESEM ’14,

pages 14:1–14:10, New York, NY, USA. ACM.

Eliasson, U. and Burden, H. (2013). Extending Agile Prac-

tices in Automotive MDE. In XM Extreme Modeling

Workshop, Miami, Fl, USA.

Eliasson, U., Heldal, R., Lantz, J., and Berger, C. (2014).

Agile Model-Driven Engineering in Mechatronic Sys-

tems - An Industrial Case Study. In Dingel, J.,

Schulte, W., Ramos, I., Abrah

ao, S., and Insfr

an, E.,

editors, Model-Driven Engineering Languages and

Systems - 17th International Conference, MODELS

2014, Valencia, Spain, September 28 - October 3,

2014. Proceedings, volume 8767 of Lecture Notes in

Computer Science, pages 433–449. Springer.

Etschberger, K. (2001). Controller Area Network: Basics,

Protocols, Chips and Applications. IXXAT Automa-

tion GmbH.

From Model to Rig – An Automotive Case Study

621

Han, K., Son, I., and Cho, J. (2013). A study on test automa-

tion of IVN of intelligent vehicle using model-based

testing. In Ubiquitous and Future Networks (ICUFN),

2013 Fifth International Conference on, pages 123–

128.

Kent, S. (2002). Model Driven Engineering. In Proceedings

of the Third International Conference on Integrated

Formal Methods, IFM ’02, pages 286–298, London,

UK. Springer-Verlag.

Kuhn, A., Murphy, G. C., and Thompson, C. A. (2012).

An exploratory study of forces and frictions affect-

ing large-scale model-driven development. In Pro-

ceedings of the 15th international conference on

Model Driven Engineering Languages and Systems,

MODELS’12, pages 352–367, Berlin, Heidelberg.

Springer-Verlag.

Mellor, S. J., Kendall, S., Uhl, A., and Weise, D. (2004).

MDA Distilled. Addison Wesley Longman Publishing

Co., Inc., Redwood City, CA, USA.

Mens, T. and Gorp, P. V. (2006). A Taxonomy of Model

Transformation. Electronic Notes in Theoretical Com-

puter Science, 152:125–142.

Pretschner, A., Prenninger, W., Wagner, S., K

uhnel, C.,

Baumgartner, M., Sostawa, B., Z

olch, R., and Stauner,

T. (2005). One Evaluation of Model-based Testing

and Its Automation. In Proceedings of the 27th Inter-

national Conference on Software Engineering, ICSE

’05, pages 392–401, New York, NY, USA. ACM.

Runeson, P., H

ost, M., Rainer, A., and Regnell, B. (2012).

Case Study Research in Software Engineering: Guide-

lines and Examples. John Wiley & Sons.

Schieferdecker, I. (2012). Model-Based Testing. IEEE Soft-

ware, 29(1):14–18.

Utting, M. and Legeard, B. (2010). Practical Model-Based

Testing: A Tools Approach. Morgan Kaufmann.

Whittle, J., Hutchinson, J., Rounceﬁeld, M., Burden, H.,

and Heldal, R. (2013). Industrial Adoption of Model-

Driven Engineering: Are the Tools Really the Prob-

lem? In MODELS 2013, 16th International Con-

ference on Model Driven Engineering Languages and

Systems, Miami, USA.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

622
