Mitigating Local Attacks Against a City Traffic Controller
Nils Ulltveit-Moe
1
, Steffen Pfrang
2
, L
´
aszl
´
o Erd
¨
odi
1
and H
´
ector Nebot
3
1
Faculty of Engineering and Science, University of Agder, Jon Lilletuns vei 9, 4879 Grimstad, Norway
2
Fraunhofer IOSB, Karlsruhe, Germany
3
ETRA I+D, Tres Forques 147, 46014 Valencia, Spain
Keywords:
Traffic Controller, Traffic Safety, Attack Mitigation, Critical Infrastructure.
Abstract:
This paper demonstrates how a local attack against a city traffic controller located in a public area can be
detected and mitigated in a cost-effective way. This is done by applying a general security methodology, an
architecture and a set of new and existing tools integrated by the PRECYSE EU-project. The traffic controller
does not contain built-in security and is connected to an information panel which is used for displaying traffic
messages. The proposed solution is integrated with the incident management system of the city traffic control
centre. This allows for increasing the situation awareness about attacks, as well as supporting a workflow for
restoring the attacked device to its normal state and ensuring attack investigation.
1 INTRODUCTION
Traffic controllers are used for controlling informa-
tion on road signs, traffic lights and similar, as well
as for reading sensor information about number of
cars, car speed etc. The safety critical nature of these
technologies requires that such systems should be se-
cured against cyber-attacks, however recent research
has shown that this is not always the case (Ghena
et al., 2014).
The technology used to implement these control
systems is in many respects similar to SCADA sys-
tems. It is frequently based on old, expensive and ob-
solete technologies, and may have been implemented
and designed for running in a trusted network with
no extra security functionality installed. The sys-
tems work and are robust enough in normal operation,
but have not been designed to resist or handle cyber-
attacks.
Generalising the problem, this covers an impor-
tant class of attacks on legacy software systems put
outside the physical perimeter of an organisation
which neither supports proper built-in security nor
proper security analysis. These are typically widely
distributed embedded systems that were installed a
long time ago (e.g. traffic controllers, SCADA sys-
tems and similar) where security was not a main con-
sideration during original deployment.
The approach described here is also useful for
low-cost, widely distributed systems such as smart-
grid Demand/Response systems. Adding support for
security analysis to these systems is a good and cost-
effective way of increasing the security awareness in
case of malicious events, especially in less critical
parts of an infrastructure, where some downtime of
the monitored service can be tolerated and also where
the infrastructure owners do not want to prioritise in-
vesting too much in more secure alternatives.
The PRECYSE EU project
1
investigated two use
cases related to this: securing a traffic control net-
work, which is described in this paper, and securing
a Remote Terminal Unit (RTU) in the electricity grid
against malformed IEC 60870-5-104 telecontrol traf-
fic towards the SCADA server (Yang et al., 2013).
Both these use cases utilise the general security ar-
chitecture described in this paper, however the ap-
proach for detecting the attack is different. The traffic
control network in this paper uses the OSSEC host-
based intrusion detection system for detecting attacks,
whereas telecontrol anomalies in the other use case
was detected using a purpose-built Snort intrusion de-
tection system rule set.
The security architecture is also being used for
protecting the home energy management gateway and
virtual power plant in a Smart-grid Demand Response
system (Gjøsæter et al., 2014). This gives security
awareness and some attack protection capabilities to a
1
PRECYSE - Prevention and Reaction to Cyber-attacks to
Critical Infrastructures: http://www.precyse.eu
Ulltveit-Moe, N., Pfrang, S., Erdödi, L. and Nebot, H.
Mitigating Local Attacks Against a City Traffic Controller.
DOI: 10.5220/0005649802090218
In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 209-218
ISBN: 978-989-758-167-0
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
209
low-cost embedded device performing load manage-
ment of heaters and water boilers in a Zigbee based
personal area network (PAN) in the home.
Another area where such technologies may be
useful is for providing security awareness in home-
based e-health systems, which often use a similar
technology based around a gateway and a personal
area network. The security architecture may also be
useful for protecting rural critical infrastructures such
as protecting the sensor network of municipal drink-
ing and waste water processing as well as small power
plants in rural areas in an upcoming project.
This paper aims at securing a traffic controller
based on the venerable MS-DOS operating system,
with a proprietary real-time extension running on top
of it. MS-DOS pre-dated the widespread commer-
cial use of TCP/IP, and does not have TCP/IP built-
in to the operating system. It is still possible to
run TCP/IP clients using MS-DOS, but this requires
packet drivers and application layer protocol stacks
to be added on top of this simple single-tasking op-
erating system (Ozimek, 1996). Proprietary real-time
kernels have however been developed on top of MS-
DOS, using the Terminate and Stay Resident exten-
sion facility for adding simple multitasking. This
allows controlling embedded devices, such as Pro-
grammable Logic Controllers (PLC) (Ramon Barth,
2011). Perhaps surprisingly, this is a technology that
is still alive and is being deployed, maintained and ex-
tended in certain embedded systems, mainly because
it does a simple job well, and there is no or little busi-
ness incentive to port the legacy control software to a
more modern platform.
One interesting finding when attempting to create
an attack against this platform, was that the technol-
ogy was so rare that the vulnerability detection system
OpenVAS
2
did not detect any vulnerabilities against
it. This does of course not mean that the software
does not contain any vulnerabilities, only that poten-
tial vulnerabilities would require a significant amount
of knowledge and effort to be exploited, because the
traffic controller uses a proprietary control protocol
with undisclosed proprietary control software. It may
be possible to launch a man in the middle attack, for
example using ARP spoofing to analyse the proto-
col which went in clear-text, and attack it using a
fuzzer to identify possible vulnerabilities or modify
the transmitted data from both directions. However,
developing such attack scenarios was considered out
of scope for our project, which focused on preven-
tive security measures against local attacks. The main
concern was therefore that attackers would break into
the cabinet of the traffic controller, and connect a PC
2
OpenVAS http://www.openvas.org
to it using a serial connection. Our objective was to
identify this abuse case, and provide situation aware-
ness to the traffic control centre in case an attack was
launched against the controller.
Situation awareness here means notifying the op-
erator in the City Traffic Control Centre via the Inci-
dent Management System (IMS) that the traffic con-
troller had been tampered with, and then deploy coun-
termeasures in order to restore the controller back to
normal operation. The countermeasures were based
on a set of existing and new security tools, which had
been developed and integrated by the PRECYSE EU-
project.
This paper is organised as follows: The next sec-
tion describes the system architecture of the traffic
control centre test-bed with added security domains.
Section 3 describes the data flow for the intrusion de-
tection and alerting system. Section 4 describes the
attack case study, and how the tools could be used to
detect and mitigate the attack. Section 5 does a secu-
rity analysis of the attack scenario and section 6 does
a more general discussion of advantages and limita-
tions with the proposed approach. Section 7 covers
related works, section 8 concludes the paper and sec-
tion 9 outlines future work.
2 THE ARCHITECTURE
The security architecture (see Figure 1) integrates a
set of Open Source tools and standards in order to in-
crease interoperability, ease deployment and reduce
costs (Kippe, 2014). It is based on the following top
level components: An Enclave, which is a part of
the target network, is under the control of a single
authority and security policy. It forms its own se-
curity zone (Rome, 2012), and a set of security do-
mains. Each security domain corresponds to a target
enclave and comprises all enclave specific data acqui-
sition and data processing. The domain consists of a
set of security tools for protecting the enclave: a fire-
wall (Shorewall
3
) for enforcing network segregation
according to the security policy; a network based in-
trusion detection system (Snort NIDS
4
) for detecting
security attacks on the enclave; a host-based intrusion
detection system (OSSEC
5
) which can perform log
analysis on behalf of the tools in the enclave; and a
vulnerability tester (OpenVAS
6
) which is used for se-
curity scanning of the target enclave in order to detect
3
Shoreline firewall (Shorewall): http://shorewall.net
4
Snort: https://www.snort.org
5
OSSEC HIDS: http://ossec.github.io
6
Open vulnerability assessment system (OpenVAS): http://
www.openvas.org
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
210
CTC Enclave
CTC Domain
NIDS Ossec
City Traffic Communication Network (CTC)
Traffic
controller
Information
panel
Fire-
wall
Vuln-
tester
CTCC Enclave
CTCC Domain
NIDS
Ossec
Traffic
control center
manager
Fire-
wall
Vuln-
tester
City Traffic Control Center Network (CTCC)
Production
network
City Traffic Control Centre Management (CTCC-M)
Central Domain
Central Domain Network
IMS
Ontology
reasoner
CM
engine
City Traffic Communication Management (CTC-M)
Enterprise
Service
Bus
Anony-
miser
Figure 1: Simplified Architecture of Traffic Control Centre Testbed.
known vulnerabilities.
There are two enclaves in the test network. The
first enclave represents the City Traffic Control Cen-
tre (CTCC) enclave, which contains the traffic con-
trol centre manager as well as the incident manage-
ment system (IMS). The IMS is used to log traf-
fic incidents on the second enclave: the City Traf-
fic Communication Network (CTC), as well as se-
curity incidents detected by the security domains.
There are furthermore two security domains in the
test setup protecting each enclave: the CTCC Do-
main protects the city traffic control centre; and the
CTC Domain protects the city traffic communication
network, which runs the city traffic controllers that
manage traffic information panels, traffic lights etc.
There is a segregated management network for each
domain, which is used for managing the security con-
figuration using the network configuration protocol
(NETCONF) (Enns et al., 2011), as well as convey-
ing intrusion detection system (IDS) alarms in the In-
trusion Detection Message Exchange (IDMEF) for-
mat (H. Debar, 2007). The city traffic controller
management network (CTCC-M) is the segregated
management network for the CTCC, and the seg-
regated city traffic communication management net-
work (CTC-M) protects the CTC.
The security tools are connected to the Central
Domain, which performs security analysis and alert
correlation using the Ontology reasoner based on
Apache Jena. The ontology consists of four mod-
els: alarm ontology, attack ontology, system ontology
and vulnerability ontology, which are used to perform
event correlation and inference based on incoming
events (Thomalla, 2014). The Ontology reasoner can
forward alerts to the countermeasure (CM) engine,
which can be configured to send requests for manual
countermeasures to the IMS as well as automatic de-
ployment of countermeasures (e.g. firewall updates)
via the Domains based on the Common Remediation
Enumeration (CRE) format (McGuire et al., 2011).
The services provided by the top level compo-
nents are implemented as Web Services using the En-
terprise Service Bus (ESB) Apache Servicemix as
a message-oriented middleware thus providing net-
work segregation and out-of-band management. This
allows for flexibility in routing messages between
different components according to the security poli-
cies of the network, including optionally running
the messages through a reversible anonymiser which
allows for fine-grained access control, anonymi-
sation and deanonymisation of the information in
these messages to different users or roles according
to their security clearance and need (Ulltveit-Moe
and Oleshchuk, 2012; Ulltveit-Moe and Oleshchuk,
2015).
3 DATA FLOW STEPS
The attack team developed a use case scenario for
defining attack, detection and countermeasure steps.
The attack and countermeasure method was being run
in a controlled testbed, to avoid any safety issues that
might occur by testing out these procedures in a live
environment. In order to perform the attack detection,
we integrated the chain of protection tools shown in
Fig. 2.
3.1 Traffic Controller
The Traffic Controller (TC) is able to log events to a
local log file. Among these, there are periodic events
Mitigating Local Attacks Against a City Traffic Controller
211
Information Panel
Trac
Controller
Ossec
Server
Ontology
Server
Incident
Management
System
FTP ESB ESB
<01/02/15 ... X ... Y ...>
** Alert 1234: - syslog, ...
<IDMEF-Message>
...
<Target>10.50.55.2</Target>
<IDMEF-Message>
...
<Target>Panel 101</Target>
Figure 2: The data flow from the Information Panel to the
Incident Management System.
and extraordinary events. Periodic events consist of
values of measurements being performed on a regu-
lar basis, e.g. specific voltages. Extraordinary events
are being logged on single events like “door opened”,
“door closed”, “message changed”. Since the TC runs
on the single task operating system MS DOS and does
not support standards for log forwarding like Syslog,
we had to implement a workaround with a local FTP
server that makes the local log file available for re-
mote access.
3.2 OSSEC Server
By default, the open source host-based intrusion de-
tection system OSSEC supports the analysis of log
files to remote systems by the means of an OSSEC
agent. This agent has to be installed on the target sys-
tem and communicates with the OSSEC server. A
second possibility is the use of log forwarding with
Syslog. Both solutions were not applicable to the sce-
nario of the TC since they are not available for the
legacy operating system. In order to overcome this is-
sue, we made use of a cron job that retrieves the log
file of the TC each minute via the File Transfer Proto-
col (FTP) and stores it locally on the OSSEC server.
Then, we configured the OSSEC server, to treat the
TC’s log like a local log file.
The format of the TC’s log file is proprietary and
consists of plain text with one log item per row. In or-
der to make OSSEC aware of this type of log file, we
had to create a set of decoders (see Figure 3) that ex-
tract time, type of message and message from a given
log item. In a second step, we introduced new rules to
the OSSEC rule set that drop logs for regular actions
and generate alerts if something goes wrong. Figure
4 depicts two rules that are being used to recognize if
a new message has been presented at the Information
panel.
<decoder name="etra-message">
<parent>etra</parent>
<prematch offset="after_parent">
ˆ\sSMV
</prematch>
<regex offset="after_parent">
ˆ\s(SMV)\W PAN(\d+) (\w+) mensaje
</regex>
<order>action,dstip,status</order>
</decoder>
Figure 3: Ossec decoder for log messages from the Traffic
Controller.
<rule id="400012" level="3">
<decoded_as>etra</decoded_as>
<action>SMV</action>
<description>
Unknown message alarm
</description>
</rule>
...
<rule id="900302" level="3">
<if_sid>400012</if_sid>
<status>Presenta</status>
<description>
Local message presented at panel
</description>
<info>
A command to present a message in the
information panel has been sent
</info>
</rule>
Figure 4: Example of OSSEC rules that are being triggered
when a new message is presented at an Information Panel.
3.2.1 IDMEF Creation
The OSSEC server processes log messages and gener-
ates alerts if specific rules are being triggered. These
alerts are being stored in a local file using the native
OSSEC alerts log file format. Internally, the IDMEF
alert format was used for further processing, as shown
in Figure 5 (H. Debar, 2007). The native OSSEC
alerts log file format was converted into the IDMEF
XML format. Additionally, each IDMEF formatted
alert is made available for the central components via
the ESB.
3.3 Ontology Reasoner
The OSSEC reasoner is aware only of IP devices.
Therefore, the IDMEF messages contain information
about involved systems being described by their IP
address (e.g. 10.50.55.2). On the other hand, the In-
cident Mangement System (IMS) of the TC uses its
own identifiers of devices, e.g. Panel1. In order to
integrate the IMS, an enrichment of the IDMEF alert
messages was done within the Ontology server, which
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
212
<IDMEF-Message>
<Alert messageid="1423565102.8135">
<Analyzer name="OSSEC"
analyzerid="Ossec-CTC.vlc"/>
<CreateTime ntpstamp="0xd8845fae.0x0">
2015-02-10T10:45:02Z
</CreateTime>
<Target>
<Node category="unknown">
<Address category="ipv4-addr">
<address>10.50.55.2</address>
</Address>
</Node>
</Target>
<Classification
text="Local message presented at panel">
<Reference origin="vendor-specific">
<name>Rule:900302</name>
<url>http://www.ossec.net/wiki/
Rule:900302</url>
</Reference>
</Classification>
<AdditionalData type="string"
meaning="Source file">
<string>
/home/logfile/traces.txt
</string>
</AdditionalData>
<AdditionalData type="string"
meaning="Full Log">
<string>
&lt;10/02/2015 11:44:07.919 SMV&gt;
PAN1 Presenta mensaje 2
en el modulo 0
</string>
</AdditionalData>
</Alert>
</IDMEF-Message>
Figure 5: Example of an IDMEF message.
is aware of the topology of the network and the map-
ping of a given IP address to the corresponding Panel
id. This is a fairly simple approach that covers the
needs of the local attack scenario under our given as-
sumptions. Making more elaborate inferences based
on correlation of IDS alarms is possible using the On-
tology reasoner, however this is left as future research.
3.4 Incident Management System (IMS)
In order to allow the IMS to receive IDMEF formatted
events from the ESB, a connector that subscribes to a
specified topic in the ESB was implemented which
receives these messages. The next step is parsing the
relevant information inside the IDMEF messages and
storing them in the SQL Server Database in order to
feed the IMS with new incidents.
3.4.1 Enforcing Countermeasures
The IMS follows a predefined work-flow on reception
of the IDMEF event, as illustrated in Figure 8: open

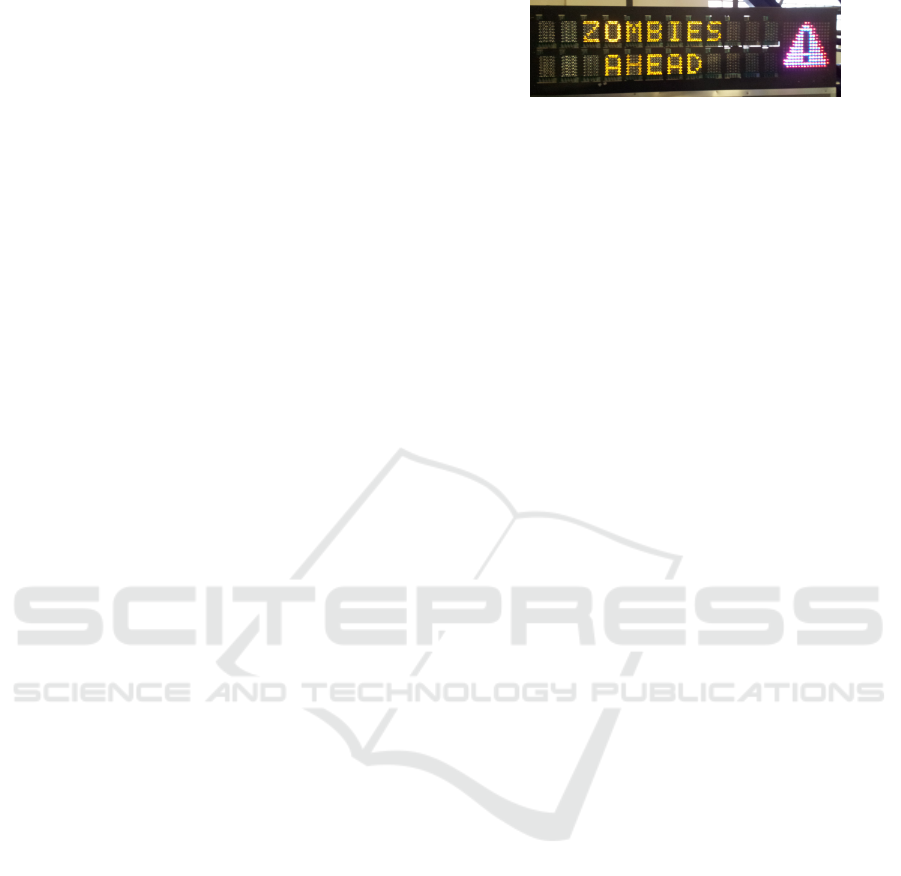

Figure 6: Traffic panel being hacked.
panel application and check current information pre-
sented in the panel; restore preprogrammed message
from panel; call head of maintenance and close in-
cident. This approach allows for defining consistent
responses to different threat types according to need.
This approach works under the assumption that
the traffic control panel is being managed completely
by the traffic control system, so that local changes of
the panel are not allowed.
4 ATTACK CASE STUDY
The attack scenario assumes a local attacker that
breaks into a traffic controller and connects to it us-
ing Telnet, in order to perform commands for altering
the content of the traffic panel. After the attacker has
performed the attack, the panel shows the illegitimate
panel message reproduced in Figure 6. It is here as-
sumed that the attacker knows the Telnet password to
the traffic controller.
All changes to the traffic panel are logged, and
these logs are synchronised at regular intervals from
the traffic controller and to the host-based intrusion
detection system OSSEC in the CTC domain. The
traffic controller will also log other events, such as the
door to the controller being opened. OSSEC is con-
figured to raise an alert if the door has been opened as
well as if the panel message has been altered. It will
forward this information via the central ESB to the
Ontology-based correlation engine in the Central Do-
main. The correlation engine translates the source of
the alert from an IP view to the corresponding nam-
ing scheme of the Traffic Management System and
resends it to the ESB. Since the Incident Management
System has subscribed to the specific alert topics in
the ESB, the alert will appear in the GUI of the local
operator.
The traffic control centre operator can then inves-
tigate the attack using the traffic management sys-
tem, as shown in Figure 8. Since there has been an
unauthorised change of the traffic panel, the operator
can call the police to check out the incident with the
panel and also restore the panel to its original state,
as shown in Figures 7. This works under the assump-
tion that the traffic panel only is being managed by
the traffic control centre. Local modifications should
not occur in production, and the Ontology reasoner
Mitigating Local Attacks Against a City Traffic Controller
213
Figure 7: Traffic panel restored to original state.
Figure 8: Intrusion alert detected.
will be able to infer whether the panel is in produc-
tion or not. Even if the traffic panel in this case used
an obsolete technology (MS-DOS), such a local at-
tack may even be possible if a modern embedded op-
erating system had been used, unless the device had
taken special precautions, such as removing support
for external storage devices, disabling the possibility
to boot other images than the default image etc.
5 EVALUATION OF THE
DEVELOPED SYSTEM FROM
THE ATTACK TYPE POINT OF
VIEW
It is obvious that the main propose of the attacker is to
compromise the system. This can be achieved in four
different levels as follows:
- Level 1: Compromise the traffic controller
quickly without disguising the instant malicious ac-
tivity. In this level the attacker does not care about the
alarm messages that the traffic controller may send.
The attacker takes advantage of the time factor. Even
if the traffic control centre is probably informed about
the attack, it takes time to intervene (police arrival,
restoring to valid state). This type of attack is only
good for causing relatively short chaos by disturbing
messages.
- Level 2: Compromise the traffic controller and
trying to disguise the instant malicious activity from
the traffic control centre as long as it is possible. In
this case the attacker has to stop the alarm messages
from the local traffic controller and provide fake in-
formation to deceive the IDS of the system. This type
of attack causes longer breakdown of the service thus
it has a higher effect.
- Level 3: Compromise the traffic controller not
instantly but with a plan of an attack in the near future.
In this level, to be able to execute the attack, the at-
tacker penetrates into the system without any instantly
detectable signs and gains access to the system. This
type of attack is perfect for an aligned attack in the
near future if more than one traffic controller is under
control by the attacker. Such attacks can have seri-
ous consequences since the number and location of
the attacker-controlled traffic lights can be arbitrary.
- Level 4: Compromise the the traffic control cen-
tre itself using one traffic controller or maybe in an-
other way (e.g. direct access to the traffic controller
centre). In this rather unrealistic level the target of
the attack is the traffic control centre directly. By
breaking into the system of the traffic control centre,
it would be possible for the attacker to send out com-
promised messages to all traffic controllers.
In all four levels the attacker can utilise the follow-
ing approach: exploit unencrypted messages between
the traffic controllers and the traffic control centre on
the unencrypted LAN within the traffic controller.
It is assumed that traffic in and out of the traffic
controller is controlled using a router with support for
encryption, so that a local attack/physical break in to
the traffic controller is necessary to get access to the
more vulnerable internal LAN where the traffic goes
unencrypted. This means that it is assumed necessary
to physically break in to the traffic controller in order
to carry out attacks. If the attacker breaks in to the TC,
then the vulnerable unencrypted internal LAN con-
necting the traffic controller to the VPN router will
be exposed. The attacker can then apply a ”man in
the middle attack” via this LAN and obtain and/or
modify the messages between the controller and the
centre. In this case the attacker intercepts messages
to get the physical address (MAC) of the communi-
cating devices and generates fake messages with the
spoofed MAC. This case can be applicable for attack
levels 1-3. It can be mitigated by encrypting messages
but this is out of the scope of the present paper.
In this case a level 1 attack is possible, since the
attacker does not care about logging and alarm mes-
sages etc. In level 2,3 and 4 attacks the attacker has to
be very quick stopping the sending of the suspicious
logs to the traffic controller. One of the aims of our
solution is to prevent these cases.
Since the developed system has a quick log mes-
sage forwarding (in every minute the logs are for-
warded to the traffic control centre using FTP), ac-
cording to our analysis the attacker will not have
enough time to carry out level 2,3 and 4 attacks just
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
214
Table 1: Security effect of our solution.
without security with proposed security
Attack level 1 possible possible, but logged
Attack level 2 possible protected
Attack level 3 possible protected
Attack level 4 depends on the centre system depends on the center system, but
not through the controller
by breaking physically into the traffic controller, since
the traffic controller already will have sent an alarm
that the door to the TC has been opened. Table 1 sum-
marizes the effect of our solution.
6 DISCUSSION
It must be noted that protecting against advanced per-
sistent attacks on the proprietary TCP/IP based con-
trol protocol for the MS-DOS based traffic controller
would require potentially very large effort, since it
lacks support for cryptographic link protection, such
as TLS or IPsec. This is perhaps one of the main
risks of using an obsolete platform such as MS-DOS.
However local attacks would be difficult to protect
against, even with a more modern operating system,
since such an attack easily can compromise the local
disk to identify or modify user credentials etc. It is
however assumed that this problem can be overcome
for external attackers by building in a router with sup-
port for strong encryption into the traffic controller.
This means that a local attack will be needed to com-
promise the traffic controller. Such a strategy could
make sense from a business perspective, since a router
with support for encryption can be built from common
off-the-shelf components which are relatively cheap,
whereas the traffic controller is a purpose-built system
which typically is expensive to replace.
One could envisage that the protection mechanism
perhaps could be attempted bypassed, for example by
inserting a gateway intercepting the traffic between
the traffic controller and the switch/router to the traffic
control centre. Such an attack would however prob-
ably need the knowledge of an insider to be carried
out successfully, since even a temporary change of
MAC address for the traffic controller would be de-
tected by the network-based intrusion detection sys-
tems (NIDS) in our test scenario, as shown in Fig. 1.
However if an attacker planned the attack well,
then it might be possible for the attacker (for exam-
ple an insider) to have measured the MAC address
of the traffic controller, as well as typical traffic mes-
sages from it. It might then be possible for the at-
tacker to write a traffic controller simulator, which
exchanges a similar set of messages that would be
indistinguishable from the original messages, includ-
ing using the same MAC address. The attacker could
then replace the real traffic controller with the traf-
fic controller simulator, and modify the now offline
traffic controller. This is assuming that the switch
detecting “door open” signal could somehow be by-
passed, for example by jamming the Internet connec-
tion. Our protection mechanism would not be able to
detect such a scenario.
Other protection mechanisms would then be
needed in order to detect the local attack, for exam-
ple for example using a video camera monitoring the
traffic controller. There are already several such cam-
eras in use for monitoring the traffic, so this could
have been an alternative way of detecting the attack,
for example based on advanced video image analy-
sis of the monitored traffic controller. We do how-
ever argue that the proposed approach is simpler and
cheaper, with sufficient reliability in order to at least
detect opportunistic tampering of the traffic controller
as well as unauthorised changing of traffic messages
by external attackers. If the service was considered
critical enough, then additional protection could be
set up, if a risk analysis shows that this would be nec-
essary.
There is after all a limit for how much secu-
rity investments a stakeholder is willing to do. It
has been proposed that it does not make sense for
a risk-neutral actor to invest more than a fraction of
the expected losses (maximum 37%) due to security
breaches (Gordon and Loeb, 2002), which probably is
the reason why the traffic control centre initially con-
siders implementing low-hanging fruits like this from
a security perspective. The security losses due to such
cyber-attacks have so far been low, and the main con-
cern is that they currently are blind if such attacks oc-
cur, at the same time as they know that such attacks
have been demonstrated. Furthermore, such a local
attack on a traffic controller is a type of attack that
does not easily scale, as opposed to a remotely ex-
ploitable attack. Also, the proposed mitigation raises
the cost of attack for the attacker, since there will be a
significant risk of being caught when the traffic con-
troller signals an attack.
There are for example already surveillance cam-
Mitigating Local Attacks Against a City Traffic Controller
215
eras in several crossings of the city which can be cor-
related with information from the traffic controller.
This means that the risk of such attacks probably is
smaller for traffic controllers than attacks on for ex-
ample smart meters, where customers might have an
economic incentive for fraud, as has been demon-
strated in a set of Maltese fraud cases
7
. The cur-
rently known attacks on traffic controllers have been
performed by security experts and “honest but curi-
ous” hackers. It would be unreasonably expensive to
replace all city traffic controllers due to this risk, es-
pecially for public authorities that need money also
for other good causes than traffic control. This means
that increasing security awareness using intrusion de-
tection systems is the most natural thing to start with
from a business perspective, since the existing traffic
controllers still work and do their job perfectly. There
are however plans to upgrade to a newer technology,
something that will be done gradually over time.
The decision to use open source security soft-
ware may also be considered a risk, since this may
introduce some well-known vulnerabilities into the
system. Mitigating existing known vulnerabilities is
handled in the security architecture using up-to-date
security testing tools, such as OpenVAS, which are
connected to the Verinice
8
information security man-
agement system via our own Asset Reporting Format
(ARF) to Verinice .vna import filter arftoverinice.py
9
.
The import filter contains a simplified threat model
based on the CVSS score, which allows for perform-
ing a risk assessment based on identified vulnerabil-
ities, in order to mitigate the vulnerabilities that are
considered too risky.
The most secure method against local attacks, is
probably utilising hardware supported security, for
example by using a Trusted Platform Module, and
using encryption, message authentication codes and
sequence numbers to protect disks and communica-
tion protocols. This would however require replac-
ing the infrastructure, something that should be done
gradually according to need. Some additional security
can be achieved by disabling local ports, however this
might conflict with requirements for maintainability.
The chosen protection strategy increases the situa-
tion awareness of local attacks against the traffic con-
troller, however even this strategy is not completely
secure against attacks, since it could be possible to
7
Malta’s smart meter scandal: http://www.smartgridnews
.com/story/maltas-smart-meter-scandal-41-million-worth-
electricity-stolen/2014-02-18
8
Verinice information security management system: http://
verinice.org
9
ARF to Verinice conversion filter http://sourceforge
.net/projects/arftoverinice/
mount man in the middle attacks, for example using
ARP spoofing on the internal LAN of the traffic con-
troller, which could stop the log messages. However,
such an attack will be detected by the tool chain since
the ARPWATCH
10
tool is in place that alerts on a
change in the assignment of MAC and IP addresses.
Additionally, it has to be noted that the chosen
approach is highly flexible and transferable to other
kinds of critical systems. Even if this traffic con-
troller use case has been tailored to protect a legacy
system, the general system architecture will be the
same when dealing with a modern system (Yang et al.,
2013; Gjøsæter et al., 2014). The only precondition
is that the application can be configured to produce
log messages which can be processed by the OSSEC
Server.
In general, the chosen approach increases the situ-
ation awareness significantly and makes it harder for
an attack to go undetected. However, a limitation is
that the approach is not able to avoid a successful at-
tack, since the attacker is able to change the road sign
for a small period (some minutes) until it has been
successfully restored by the traffic control centre.
The evaluation that has been done of the system,
is a relatively simple case study. It is envisaged that
more comprehensive studies of the security architec-
ture will be needed in the future. However, the pro-
posed solution solves an immediate problem that the
traffic control centre recognises - the reputational risk
in case the traffic controllers are hacked. This is im-
portant, since such events have got quite much press
in the past (Ghena et al., 2014).
7 RELATED WORKS
Our paper describes an approach for increasing the
security awareness of attacks on a city traffic con-
troller. The idea of applying such measures on a traf-
fic controller without built-in security is to the best of
our knowledge not described elsewhere. The general
system architecture used for implementing the pro-
tection measures has also been demonstrated for pro-
tecting SCADA traffic in energy systems (Yang et al.,
2013), as well as proposed for protecting the security
of Smart-grid Demand Response systems (Gjøsæter
et al., 2014). This shows that the system architecture
is relatively general with a broad application area also
beyond protecting traffic control systems.
Other papers that have pointed out the lack of se-
curity in road traffic control systems, is for example
(Ghena et al., 2014). This paper focuses on the wire-
10
ARPWATCH http://linux.die.net/man/8/arpwatch
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
216
less security in road traffic control systems, which of-
ten is poor or non-existing, for example relying on
unencrypted wireless connections, default passwords
that cannot be changed since management tools re-
quire them, no replay protection in the protocols etc.
It demonstrates several working exploits against the
traffic controller. Similar problems have been found
with air traffic control systems, since the protocol is
not being encrypted (Costin and Francillon, 2012).
A general problem pointed out in these papers, is
the lack of security consciousness in this field. At-
tacks on traffic control systems via the wireless inter-
face is also demonstrated in (Cerrudo, 2014). Both of
these papers propose the use of good practices for pro-
tecting traffic controllers, but they do not demonstrate
a practical solution for detecting local attacks on a de-
vice with limited capability for protection. Our paper
focuses on local attacks against the traffic controller,
since this was considered one of the greatest risks for
our use case. It is assumed that network security can
be achieved by applying existing best practices, such
as using using routers supporting IPsec encryption.
A distributed smart signal architecture for traf-
fic signal controls has been proposed in (DeVoe and
Wall, 2008). This architecture suggests using RSA
encryption for security, but does not consider how to
mitigate local attacks.
The paper is also somewhat related to critical in-
frastructure protection and protection of SCADA sys-
tems in general, for example (Cheung et al., 2007; Ig-
ure et al., 2006; Stouffer et al., 2006; Luallen, 2011).
The strength with our solution is demonstrating how a
vulnerable device with no built-in security can be pro-
tected against local attacks using surrounding security
services.
8 CONCLUSION
This paper demonstrates how attacks on a vulnerable
city traffic controller can be detected and mitigated in
a cost-effective way by applying the security method-
ology, architecture and tools developed by the PRE-
CYSE project. The use case demonstrated in this pa-
per shows how the tools are able to detect an on-going
attack on the traffic controller, and automatically alert
the operator in the control centre that is able to restore
the traffic controller to its original state, as well as en-
suring that the incident is being reported, in order to
stop the on-going attack. Previous works have illus-
trated that this general architecture can be applied to
enhance the security of SCADA systems in the energy
sector, as well as protecting Smart-grid Demand Re-
sponse systems. This means that the existing safety
system has been enriched with security information,
which is far better than current practices, where such
attacks may go totally unnoticed. The architecture
and tools are especially useful for protecting against
attacks on legacy software systems put outside the
physical perimeter of an organisation which neither
supports proper built-in security nor proper security
analysis. Adding attack detection and mitigation ca-
pabilities to such systems is very useful, even if the
protection is not perfect, since it raises the perceived
cost of attacks by increasing the risk of being de-
tected.
9 FUTURE WORK
City traffic controllers should in the future embed im-
proved security solutions for avoiding such local at-
tacks. The traffic controllers should also embed more
security in the control protocol, so that displayed mes-
sages at least would need to be authenticated using a
cryptographic message authentication code in order
to be displayed. This would make it far more diffi-
cult for the attacker to create unauthorised messages
on the information panel.
Future work is also considering more advanced at-
tack scenarios of traffic control systems, where the
entire system could be modelled as a cyber-physical
system, and anomalies in behaviour could be flagged
up as alerts. This includes performing comparative
evaluations and more experimental results.
ACKNOWLEDGEMENTS
Thanks to the anonymous reviewers, who gave good
and challenging questions and suggestions for im-
proving the paper. This paper has been developed
as part of the FP7 EU project: PRECYSE - Protec-
tion, prevention and reaction to cyberattacks to crit-
ical infrastructures, contract number FP7-SEC-2012-
1-285181 (http://www.precyse.eu).
REFERENCES
Cerrudo, C. (2014). Hacking US Traffic Control Systems.
https://www.defcon.org/images/defcon-22/dc-22-pres
entations/Cerrudo/DEFCON-22-Cesar-Cerrudo-Hack
ing-Traffic-Control-Systems-UPDATED.pdf.
Cheung, S., Dutertre, B., Fong, M., Lindqvist, U., Skin-
ner, K., and Valdes, A. (2007). Using Model-based
Intrusion Detection for SCADA Networks. In Pro-
ceedings of the SCADA security scientific symposium,
volume 46.
Mitigating Local Attacks Against a City Traffic Controller
217
Costin, A. and Francillon, A. (2012). Ghost in the air (traf-
fic): On insecurity of ads-b protocol and practical at-
tacks on ads-b devices. Black Hat USA.
DeVoe, D. and Wall, R. (2008). A distributed smart signal
architecture for traffic signal controls. In IEEE Inter-
national Symposium on Industrial Electronics, 2008.
ISIE 2008, pages 2060–2065.
Enns, R., Bjorklund, M., Schoenwaelder, J., and Bierman,
A. (2011). RFC 6241 Network Configuration Protocol
(NETCONF).
Ghena, B., Beyer, W., Hillaker, A., Pevarnek, J., and Hal-
derman, J. A. (2014). Green Lights Forever: Ana-
lyzing the Security of Traffic Infrastructure. In Pro-
ceedings of the 8th USENIX Conference on Offensive
Technologies, WOOT’14, pages 7–7, Berkeley, CA,
USA. USENIX Association.
Gjøsæter, T., Ulltveit-Moe, N., Kolhe, M. L., Jacobsen,
R. H., and Ebeid, E. S. M. (2014). Security and Pri-
vacy in the SEMIAH Home Energy Management Sys-
tem.
Gordon, L. A. and Loeb, M. P. (2002). The economics of
information security investment. ACM Trans. Inf. Syst.
Secur., 5(4):438–457.
H. Debar, D. Curry, B. F. (2007). The Intrusion Detection
Message Exchange Format (IDMEF). IETF.
Igure, V. M., Laughter, S. A., and Williams, R. D. (2006).
Security issues in SCADA networks. Computers &
Security, 25(7):498–506.
Kippe, J. (2014). Cyber-security in kritischen infrastruk-
turen. In visIT IT-Sicherheit f
¨
ur die Produktion, num-
ber ISSN 1616-8240 in 15. Fraunhofer IOSB.
Luallen, M. E. (2011). Critical Control System Vul-
nerabilities - And What to Do About Them.
http://www.sans.org/reading-room/whitepapers/ana
lyst/critical-control-system-vulnerabilities-
demonstrated-about-35110.
McGuire, G. T., Waltermire, D., and Baker, J. O. (2011).
Common Remediation Enumeration (CRE) Version
1.0 (Draft).
Ozimek, I. (1996). Accessing MS-DOS applications over a
TCP/IP network. Microprocessors and Microsystems,
20(1):31–38.
Ramon Barth (2011). Real-time processing - the basis for
PC Control.
Rome, J. A. (2012). Enclaves and Collaborative Domains.
BEYOND˜, page 252.
Stouffer, K., Falco, J., and Kent, K. (2006). Guide to Su-
pervisory Control and Data Acquisition (SCADA) and
Industrial Control Systems Security. Technical Report
NIST 800 82, NIST.
Thomalla, C. (2014). Ontologie-basierte erkennung. In
visIT IT-Sicherheit f
¨
ur die Produktion, number ISSN
1616-8240 in 15. Fraunhofer IOSB.
Ulltveit-Moe, N. and Oleshchuk, V. (2012). Decision-
cache based XACML authorisation and anonymisa-
tion for XML documents. Comput. Stand. Interfaces,
34(6):527–534.
Ulltveit-Moe, N. and Oleshchuk, V. (2015). A novel
policy-driven reversible anonymisation scheme for
xml-based services. Information Systems, 48:164
178.
Yang, Y., McLaughlin, K., Littler, T., Sezer, S., Pranggono,
B., and Wang, H. (2013). Intrusion Detection Sys-
tem for IEC 60870-5-104 based SCADA networks. In
2013 IEEE Power and Energy Society General Meet-
ing (PES), pages 1–5.
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
218
