Feature Detection and Description using a Harris-Hessian/FREAK

Combination on an Embedded GPU

Max Danielsson

, Thomas Sievert

, Håkan Grahn

and Jim Rasmusson

Blekinge Institute of Technology, Karlskrona, Sweden

Sony Mobile Communications, Lund, Sweden

Keywords:

GPU, Feature Detection, Feature Description, Mobile Devices.

Abstract:

GPUs in embedded platforms are reaching performance levels comparable to desktop hardware, thus it be-

comes interesting to apply Computer Vision techniques. We propose, implement, and evaluate a novel feature

detector and descriptor combination, i.e., we combine the Harris-Hessian detector with the FREAK binary

descriptor. The implementation is done in OpenCL, and we evaluate the execution time and classiﬁcation

performance. We compare our approach with two other methods, FAST/BRISK and ORB. Performance data

is presented for the mobile device Xperia Z3 and the desktop Nvidia GTX 660. Our results indicate that the

execution times on the Xperia Z3 are insufﬁcient for real-time applications while desktop execution shows

future potential. Classiﬁcation performance of Harris-Hessian/FREAK indicates that the solution is sensitive

to rotation, but superior in scale variant images.

1 INTRODUCTION

Feature detection and description are crucial compo-

nents of Computer Vision (CV) algorithms, applied in

a wide array of different areas. Digital cameras pro-

duce images of increasingly high resolution, which

implies that they store more information, and become

increasingly expensive to evaluate. As such the de-

mand for more efﬁcient algorithms grows ever higher.

Feature detection and feature description are two

separate problems. SIFT (Lowe, 1999) and SURF

(Bay et al., 2006) are two of the most popular ap-

proaches at solving both problems. As the ﬁeld has

grown, researchers often aim to solve one or the other.

As more unrelated detection and description methods

are proposed, naturally the number of unique com-

binations also increases. However, little research is

made on whether different characteristics of detectors

are more or less suitable with certain characteristics

of descriptors.

As technology advances, so does the comput-

ing power of embedded devices. Since cellphones

- which are by default equipped with cameras - to-

day make use of powerful Graphical Processing Units

(GPUs), the potential of feature detection and descrip-

tion applications has increased. Vision algorithms no

longer need to be as computationally cheap, as a GPU

can reduce the amount of energy needed per Floating

Point Operation (FLOP) (Timm et al., 2010).

This paper presents a novel combination of

the Harris-Hessian detector (Xie et al., 2010) and

the FREAK descriptor (Alahi et al., 2012), im-

plemented for a GPU using OpenCL. The Harris-

Hessian/FREAK combination is then evaluated re-

garding the classiﬁcation performance, the execution

performance, as well as the temperature effects on an

embedded device, i.e., a cellphone.

2 BACKGROUND AND RELATED

WORK

The study on how to interpret digital images is com-

monly referred to as Computer Vision. This is a wide

ﬁeld with applications including, e.g., object recog-

nition, image restoration and scene reconstruction.

Within the ﬁeld computer vision, feature detection

refers to methods of trying to locate arbitrary features

that can afterwards be described and compared. These

features then need to be described in such a manner

that the same feature in a different image can be com-

pared and conﬁrmed to be matching. Typically, ar-

eas around the chosen keypoint are sampled and then

compiled into a vector, a so called feature descriptor.

Danielsson, M., Sievert, T., Grahn, H. and Rasmusson, J.

Feature Detection and Description using a Harris-Hessian/FREAK Combination on an Embedded GPU.

DOI: 10.5220/0005662005170525

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 517-525

ISBN: 978-989-758-173-1

517

2.1 Feature Detection

Scale-Invariant Feature Transform (SIFT) (Lowe,

1999) was proposed in 1999, and has become some-

what of an industry standard. It includes both a detec-

tor and a descriptor. The detector is based on calcu-

lating a Difference of Gaussians (DoG) with several

scale spaces.

Partially inspired by SIFT, the Speeded-Up Ro-

bust Features (SURF) (Bay et al., 2006) detector was

proposed, which uses integral images and Hessian de-

terminants. SURF and SIFT are often used as base

lines in evaluations of other detectors.

The detector chosen for our experiments was pro-

posed by (Xie et al., 2010) and is inspired by (Miko-

lajczyk and Schmid, 2004), particularly their use of

a multi-scale Harris operator. However, instead of in-

creasing the scale incrementally, Xie et al. examined a

large set of pictures to determine which scales should

be evaluated so that as many features as possible only

are discovered in one scale each. Then, weak cor-

ners are culled using the Hessian determinant. As the

fundamental operators are the Harris operator and the

Hessian determinant, it is called the "Harris-Hessian

detector".

2.2 Feature Description

SIFT, SURF, and many other descriptors use strate-

gies that are variations of histograms of gradients

(HOG). The area around each keypoint in an image

is divided into a grid with sub-cells. For each sub-

cell, a gradient is computed. Then, a histogram of the

gradients’ rotations and orientations is made for each

cell. These histogram then make up the descriptor.

SURF, while based on the same principle, uses Haar

wavelets instead of gradients. The resulting descrip-

tor vectors of a high dimension (usually >128) which

can be compared using, e.g., Euclidean distance.

Calonder et al. proposed a new type of descriptor

called Binary Robust Independent Elementary Fea-

tures (BRIEF) (Calonder et al., 2010). Instead of us-

ing HOGs, BRIEF samples one pair of points at a time

around the keypoint, then compares their respective

intensities. The result is a number of ones and ze-

ros that are concatenated into a string, i.e., forming

a "binary descriptor". They do not propose a single

sampling pattern, rather they consider ﬁve different

ones. The resulting descriptor is nevertheless a binary

string. The beneﬁt of binary descriptors is mainly that

they are computationally cheap, as well as suitable for

comparison using Hamming distance, which can be

implemented efﬁciently using the XOR operation.

Further work into improving the sampling pattern

of a binary descriptor has been made, most notably

Oriented FAST and Rotated BRIEF (ORB) (Rublee

et al., 2011), Binary Robust Invariant Scalable Key-

points (BRISK) (Leutenegger et al., 2011), and Fast

Retina Keypoint (FREAK) (Alahi et al., 2012).

The descriptor we use in this paper is FREAK

(Alahi et al., 2012), where machine learning is used

to ﬁnd a sampling pattern that aims to minimize the

number of comparisons needed. FREAK generates

a hierarchical descriptor allowing early out compar-

isons. As FREAK signiﬁcantly reduces the number

of necessary compare operations, it is suitable for mo-

bile platforms with low compute power.

2.3 OpenCL

OpenCL

is an open framework for executing pro-

grams on heterogeneous computers, its model is well

suited for execution of programs on GPUs. It is very

similar to the Nvidia speciﬁc CUDA framework. It

was chosen for this project because it is supported

on both desktop and embedded devices such as the

Adreno 330 and Nvidia GTX 660 allowing us to run

the same implementation in multiple environments.

3 OUR APPROACH:

HARRIS-HESSIAN + FREAK

3.1 Harris-Hessian Detector

The detector consists of two steps: Discovering Harris

corners (Harris and Stephens, 1988) using the Harris-

afﬁne-like (Mikolajczyk and Schmid, 2004) detec-

tor on nine pre-selected scales as well as two ad-

ditional scales surrounding the most populated one,

then culling weak points using a measure derived

from the Hessian determinant.

The Harris-Hessian detector was proposed by Xie

et al. (Xie et al., 2010) in 2009 and elaborated by them

in 2010. It is essentially a variation of the Harris-

Afﬁne detector combined with a use of the Hessian

determinant to cull away "bad" keypoints. As the

name suggests, the detector consists of two steps: The

Harris step and the Hessian step.

The Harris step ﬁnds Harris corners (see Figure 1)

at gradually larger scales (denoted σ), then reexam-

ines the scales around the σ where the largest amount

of corners were found. This σ is said to be the charac-

teristic scale of the image. To reduce the likelihood of

discovering the same corners in multiple scales, Xie

Ofﬁcal webpage of the OpenCL standard:

https://www.khronos.org.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

518

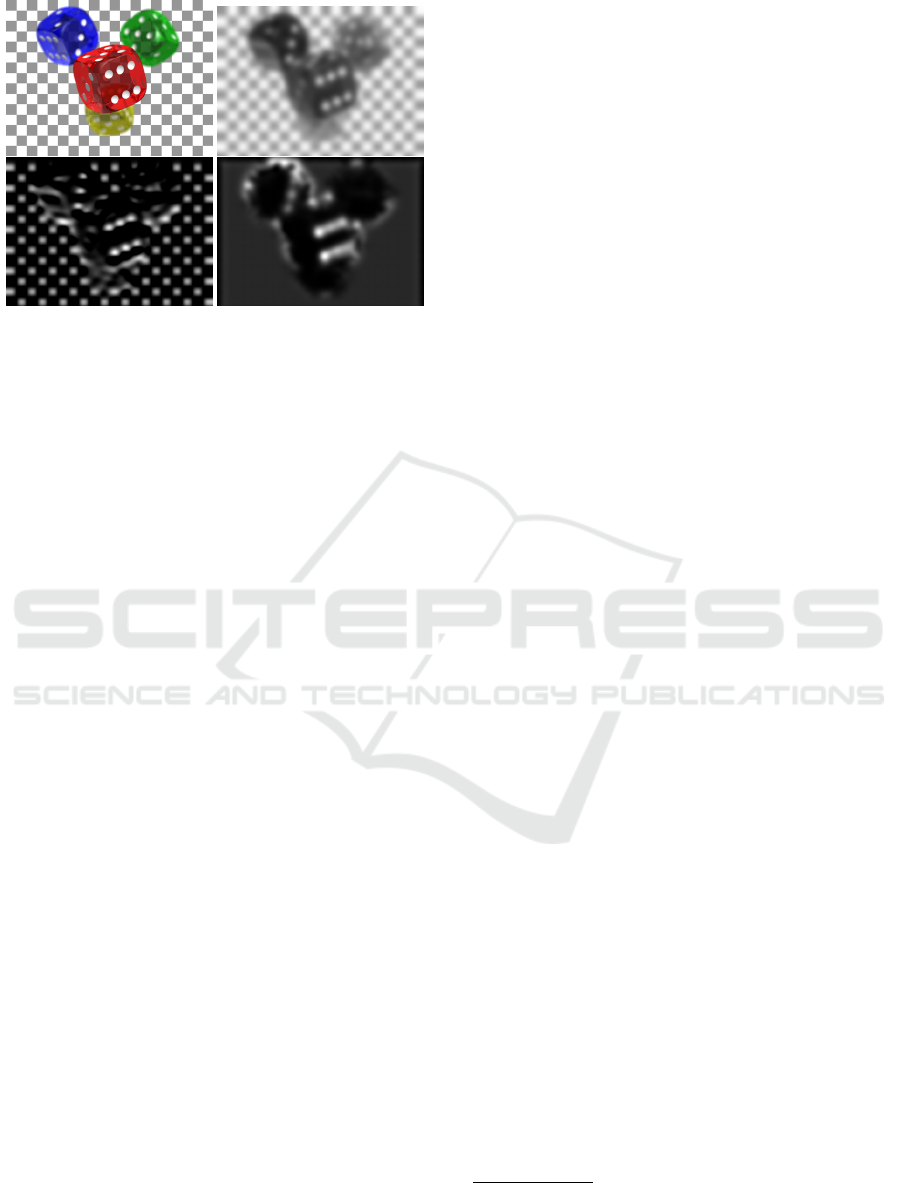

Figure 1: A demonstration of some of the steps in the Har-

ris algorithm. From left to right: Input image, Gaussian

blur, derivative along the y axis, Harris corner response (be-

fore non-max suppression). Original image By POV-Ray

(Rendered in POV-Ray by user:ed_g2s.) [CC BY-SA 3.0

(http://creativecommons.org/licenses/by-sa/3.0)], via Wiki-

media Commons.

et al. empirically evaluate a large set of images to de-

termine the proper scales to examine. This approach

is the main contrast to the work of Mikolajczyk and

Schmid (Mikolajczyk and Schmid, 2004). After all

the scales have been explored, the resulting corners

make up the set S, called scale space.

In the Hessian step, the Hessian determinant value

for each discovered corner in S is evaluated in all

scales. If the determinant reaches a local maximum

at σ

compared to the neighbouring scales σ

i−1

and

i+1

and is larger than a threshold T

, it qualiﬁes as a

keypoint of scale σ

. Otherwise, it is discarded. The

purpose of the Hessian step is to both reduce false de-

tection and conﬁrm the scales of the keypoints.

3.2 FREAK Descriptor

FREAK is a part of a class of descriptors coined "bi-

nary", due to the fact that their information is pre-

sented as bit strings. This property is especially use-

ful to achieve computationally efﬁcient - and simple -

comparisons. Given two binary descriptors produced

by the same algorithm, one can use the Hamming dis-

tance to measure how many of their respective bits

differ. The resulting value is a measurement on how

similar the described points are, a smaller value indi-

cates a greater similarity.

To describe a keypoint, a binary descriptor sam-

ples areas around it, and compares their intensities in

a pairwise manner. Each bit in the descriptor’s bit

string signiﬁes the comparison of one sampling pair.

Each binary descriptor varies in three aspects: which

areas around the keypoint to sample, how to adjust on

the account of rotation, and which areas to use as pairs

in the ﬁnal comparison step. Generally, the further the

sampled area is from the keypoint, the larger it is, to

account for coarseness.

Alahi et al. suggest an intuitive explanation as

to why binary descriptors work by comparing them

to the manner in which the human eye works (Alahi

et al., 2012). Following this line of reasoning, they

propose a circular sampling pattern of overlapping ar-

eas inspired by the human retina. They then - option-

ally - deﬁne 45 pairs using these areas and examines

their gradients, to estimate the orientation of the key-

point. With the new orientation, the pattern is rotated

accordingly and areas are re-sampled.

From this point they use machine learning to es-

tablish which pairs of areas result in the highest per-

formance for the descriptor bit string. Interestingly,

the pairs discovered by this process are a coarse-to-

ﬁne distribution similar to what the eye does when

looking at a scene, called saccadic search. Using this

motivation, the sampling pairs are sorted into four

cascades with 128 pairs each, starting with coarse

(faraway) areas and successively becoming ﬁner and

ﬁner. The number 128 is speciﬁed in order to facilitate

parallel instructions both the intensity comparisons,

and the Hamming distance operation. This ﬁnally re-

sults in a bit-string with 512 elements, which enables

the Hamming distance to be performed in four cas-

cades.

4 IMPLEMENTATION

The implementation is written in standard C99 and

OpenCL 1.1 (Munshi, 2011). stbi_image

and

lodepng

are used for image decoding/encoding,

ieeehalfprecision

for half-ﬂoat encoding, and

Android Java to create an application wrapper on the

Android platform.

The solution was initially built for the x86_64

platform to run on a Intel i7 and Nvidia 660 series

graphics card. When the program was done and work-

ing it was ported to the Xperia Z3. The program was

compiled, built and installed using the CLI tools in

the Android SDK and NDK toolset.

4.1 Data Representation

The program we have written performs calculations

in a raster data format. We choose to represent the

Sean Barret http://nothings.org/

Lode Vandevenne http://lodev.org/lodepng/

Developed by James Tursa.

Feature Detection and Description using a Harris-Hessian/FREAK Combination on an Embedded GPU

519

scalar cell values in the range of 0.0 to 1.0 as ﬂoat-

ing point values, this is a common normalization in

image handling and is suitable for optimal precision

with IEEE 745 ﬂoats. This might not be relevant for a

32-bit value, but can be signiﬁcant when using 16-bit

values.

4.2 Algorithm Overview

The program is built into a number of discrete steps

where each step performs a task on the incoming data

and creates either an output with the same size and

construction as the input or reduced set of data. The

separation of tasks takes form as individual OpenCL

kernels and executions on the GPU. This separation

simpliﬁes debugging but adds a potential overhead.

In many cases there is a potential performance gain in

minimizing the number of calls to the GPU to mini-

mize inter-device communication delays, but for em-

bedded devices this delay is normally low.

The implementation is split into two large parts,

the Harris-Hessian detector and the FREAK descrip-

tor. The implementation of the Harris-Hessian detec-

tor is focused on GPU execution, same as the original

paper (Xie et al., 2011). The FREAK implementation

runs on the host CPU and directly sourced from the

work of Alahi et al. (Alahi et al., 2012), which has

been published under a BSD license

Our implementation of the Harris-Hessian is de-

signed by us primarily based on the paper by Xie et

al. (Xie et al., 2011). Some aspects of the implemen-

tation had to be reinvented when it was built, mean-

ing that while we consider the resulting transforma-

tions equivalent, the way it is performed is unlikely to

match the original work. It is also difﬁcult to estab-

lish how differently the two implementations perform

as the results are not sufﬁciently detailed in (Xie et al.,

2011) for comparison.

4.3 Harris-Hessian

Gaussian blurring is a central part of the Harris-afﬁne

algorithm since it is performed four times, in two

places (see Figure2), for every given sigma. The

Gaussian blur kernel reads from an image buffer as

well as a smaller buffer that contains the Gaussian

ﬁlter. The ﬁlters are pre-calculated on the host and

transferred to the GPU before execution. The Gaus-

sian blur consists of two axis aligned blurs, ﬁrst along

the X axis and then along the Y.

The Hessian kernel takes three input buffers:

ddxx, ddxy and ddyy, and generates a fourth output

Source code https://github.com/kikohs/freak

Gaussian Blur

Derivative

Second Moment

blurreddesaturated

ddx ddy

xx xy yy

Gaussian Blur Gaussian Blur Gaussian Blur

xx xy yy

Harris Corner Response

Harris Corner Suppression

harris response

harris suppression

Harris Corner Count

Derivative

ddxx

ddxy

ddyy

Hessian

hessian det

corner count

strong responses

Generate Keypoints

keypoints

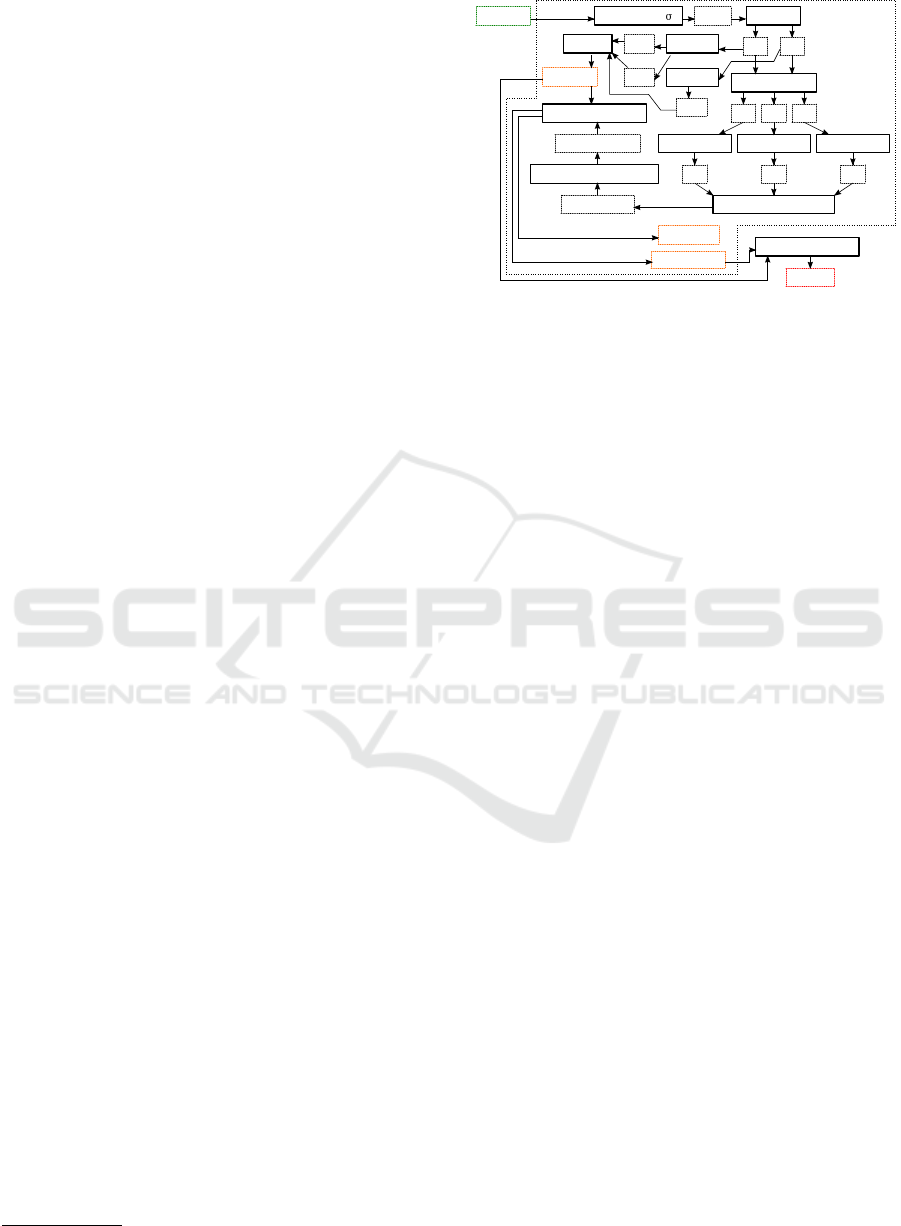

Figure 2: Data ﬂow in Harris-Hessian. Solid boxes indicate

kernel executions and the dotted boxes are buffers or data.

Green boxes are input and orange are the resulting output

for a given sigma. Red boxes are the results sent to the de-

scriptor. The larger dotted border indicates sigma iteration,

anything within this border is re-performed for each sigma.

buffer, hessian det. The algorithm is a direct trans-

lation of the theoretical formula. The Harris corner

response kernel also takes three in buffers: xx, xy,

and yy, and it writes to a fourth, harris response.

Similarly, it is a straight-forward implementation of

the formula.

The corner count step contains a gather aspect for

the total number of found keypoints. This is achieved

through the use of an atomic integer counter. It is

generally more efﬁcient than counting the sum on

the CPU due to a lower amount of data that has to

be transferred from the GPU to the CPU. However,

the data transfer overhead may be low on an embed-

ded device such as the Snapdragon 800 with on-chip

shared memory.

4.4 FREAK

FREAK was only implemented and tested on the

CPU. While a GPU implementation could potentially

prove useful for certain use cases, it is outside the

scope of this study.

Since the algorithm is sequential, the implementa-

tion of FREAK is straight-forward and resembles the

original provided by Alahi et al. (Alahi et al., 2012).

The main difference is that our implementation does

not utilize Single Instruction Multiple Data (SIMD)

instructions, and we do not offer the choice of tak-

ing rotational or scale invariance into account - it is

always done. Further, Alahi et al. provide the algo-

rithm with the sampling pattern that was learned as

an alternative to the one generated and hard-coded by

them. This functionality was deemed unnecessary for

the purpose of the study.

In the FREAK paper (Alahi et al., 2012) the au-

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

520

thors specify that the algorithm requires a Gaussian

ﬁlter. In practice, however, the implementation uti-

lizes a computationally simpler box ﬁlter. This is a

common replacement in the Computer Vision ﬁeld

since the box ﬁlter is considered sufﬁciently similar

for Gaussians of low sigmas, and it can be computed

in constant time.

4.5 Improving Execution Time

Below we outline three possible optimizations that

may improve the execution time of our algorithm.

The ﬁrst thing we suggest is changing all the data

storage to Texture Sampler and texture data formats.

Reading the documentation for the Adreno 330 indi-

cates that such samplers utilize the L1 cache which

normal buffers does not. It is expected that such a

shift might have rather fast returns.

Secondly, the Adreno 330 supports Half-Floats.

Switching all possible data-stores to this smaller data

format will reduce memory use and should improve

performance at the expense of precision.

Finally, the Gaussian blur, which takes up 80% of

the total execution time, could be optimized by per-

forming multiple passes of previously blurred images,

early in the pipeline. The negative impact of the pro-

gram would be an increased memory usage. This op-

timization is only applicable to the early blur, mean-

ing 1/4 of all blurs, as later stages are dependant on

other transformations performed on the image. Op-

tionally, recursive blurring as presented by Deriche

(Deriche, 1993) could potentially be a faster way of

executing Gaussian blur on the GPU.

5 METHODOLOGY

This study concerns implementing and exploring the

properties of a feature detector and descriptor on

Sony’s Xperia Z3. The objective is to evaluate if real-

time feature detection is possible on mobile hardware.

In our evaluation, we address the execution time, the

heat properties of the Xperia Z3, and the classiﬁca-

tion performance. We use two platforms in our evalu-

ation: (i) an Xperia Z3 mobile phone, and (ii) a desk-

top computer with on Intel i5 and a GTX660. We

will also provide an analysis of the implementation,

detailing the strengths, weaknesses, and future work.

5.1 Execution Time and Temperature

All execution time measurements were performed us-

ing the image shown in Figure 3. The image con-

tent does not affect Harris-Hessian algorithms signif-

icantly, but can have a major impact on the FREAK

algorithm. The reason is that different images have a

different number of keypoints, and the FREAK algo-

rithm scales linearly with the number of descriptors.

Figure 3: Our test image (resolution 800x600) featuring a

series of posters.

When running the temperature tests the phone was

placed on a table, standing up with the back leaning

towards a surface touching a small part of the phone.

The intention was to give the back some open space,

simulating the phone being held by two hands when

taking a picture. The room held a normal room tem-

perature of around 20 degrees Celsius. We let the

Xperia Z3 execute the Harris-Hessian/FREAK on an

image indeﬁnitely, while tracking the temperature on

the chip and the clock frequency of the processing

units.

5.2 Detector and Descriptor

Performance

When evaluating the detector and descriptor perfor-

mance, we execute Harris-Hessian/FREAK, ORB,

and FAST/BRISK on a set of images, and then per-

form matching using Hamming distance. Further, we

employ a ratio test which evaluates the ratio between

the two smallest match distances and discards any

match that is greater than a given threshold. This test

concludes that if two matches are too similar, they are

not unique enough to be meaningful and thus removes

false matches. The proper magnitude of this threshold

varies with the use case. In our experiment we choose

a ﬁxed value of 0.7 with the purpose of minimizing

the amount of false matches. The FREAK descriptor

for two images is using the Hamming distance, which

in the case of binary strings can be simpliﬁed into a

bit-wise XOR operation and bit counting.

In the results we present a selection of images that

highlight the different characteristics of the compared

Feature Detection and Description using a Harris-Hessian/FREAK Combination on an Embedded GPU

521

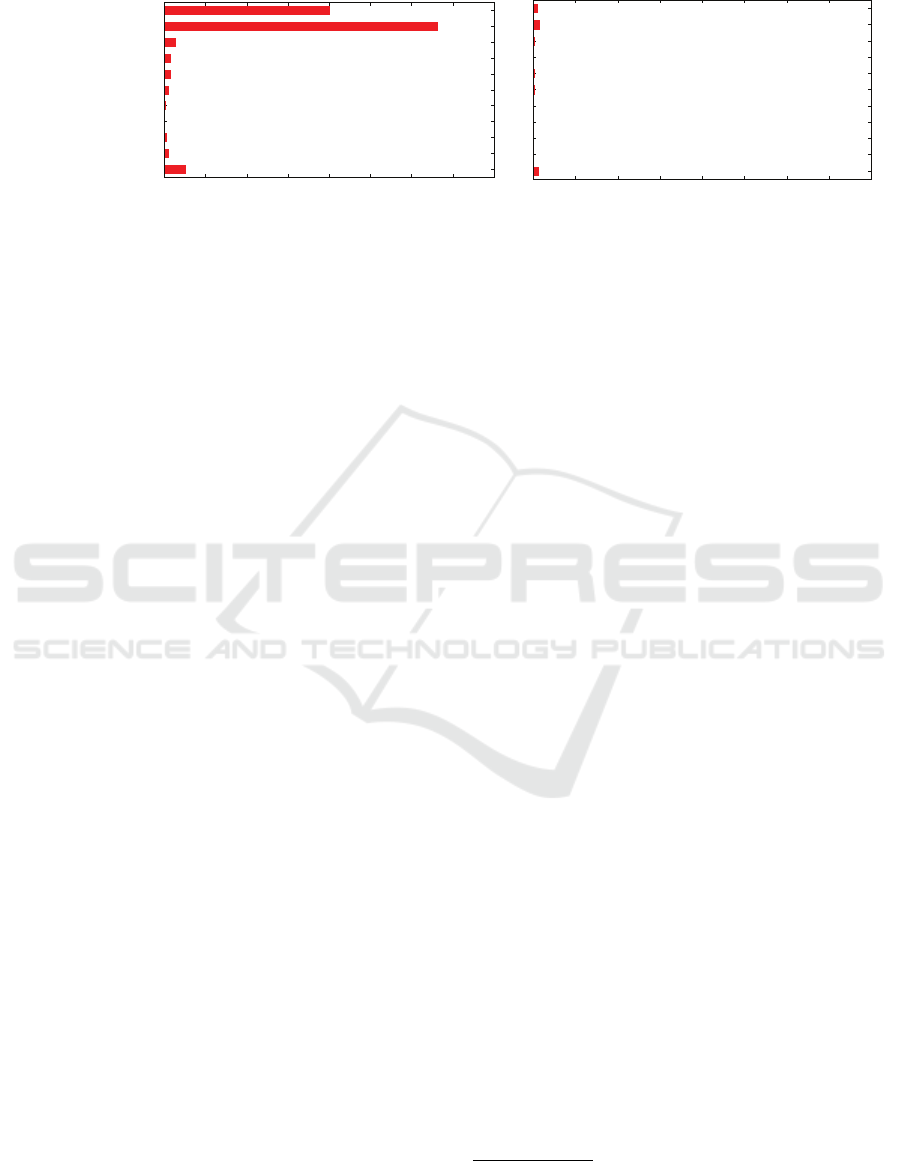

0 500 1000 1500 2000 2500 3000 3500 4000

kernel gaussx

kernel gaussy

kernel derivate

harris corner suppression

hessian

harris corner response

kernel desaturate

find keypoints

harris count

smme kernel

build descriptor

Time (Milliseconds)

1996.60

3305.42

130.68

75.26

70.41

43.56

3.47

0.05

18.99

40.77

248.61

0 500 1000 1500 2000 2500 3000 3500 4000

kernel gaussx

kernel gaussy

kernel derivate

harris corner suppression

hessian

harris corner response

kernel desaturate

find keypoints

harris count

smme kernel

build descriptor

Time (Milliseconds)

51.19

71.07

6.59

3.64

8.35

5.99

0.13

0.22

1.06

1.30

63.65

Figure 4: Execution times on Xperia Z3 (left) and on a PC with an Intel i5 and GTX 660 (right) for individual kernels and for

FREAK, named ”build descriptor”, values are from the median of 10 runs.

algorithms. We show the number of matches made as

a function of the distance between the keypoints, and

highlight up to the three ﬁrst false matches for each

algorithm. Additionally we present the total number

of matches made at a distance threshold where a max-

imum of three false matches has been discovered.

5.3 Test Image

All execution time tests where performed using the

image shown in Figure 3. Image content does not af-

fect Harris-Hessian algorithms signiﬁcantly, but can

have a major impact on the FREAK algorithm. The

reason for this is that different images inherently have

a different number of keypoints and the FREAK im-

plementation scales linearly with the number of de-

scriptors. There are also no limitations implemented

in how many descriptors are encoded, something that

would be very relevant in a ﬁnal implementation as

it does not only effect the execution time, but storage

requirements for the descriptor.

The FREAK data for two images is naively com-

pared one-to-one using the Hamming distance which

in the case of binary strings - the output of FREAK -

can be simpliﬁed into a bit-wise XOR operation and

bit counting.

When comparing descriptors the best match is

evaluated for ﬁnal utility. It common to apply a

threshold value, setting a minimum distance between

keypoints for a valid match. Another common ﬁlter,

used by for example (Alahi et al., 2012), is to calcu-

late the ratio between distance of the best and second

best match, the value indicates how unique a match is,

this ratio is calculated as r = s/b where r is the ratio, s

is the second best match and b is the best. A low ratio

indicates that the keypoints is unique. What threshold

to use is very application speciﬁc and varies between

cases. It is possible to develop heuristics to dynam-

ically calculate suitable values but that is out of the

scope for this paper.

6 EXPERIMENTAL RESULTS

6.1 Execution Times and Temperature

When measuring the execution time, we executed the

application ten times and then selected the median of

those ten runs. Running the ﬁnal program using the

test image in Figure 3 on an Xperia Z3 we have an

execution time of roughly 6 seconds

. Out of these 6

seconds around 5 seconds are spent on the Gaussian

blur passes, see Figure 4.

The time spent inside of kernels for Harris-

Hessian is measured to 5477ms in a given run and

5705ms is reportedly spent from the start of the ﬁrst

kernel to the end of the last. Execution of FREAK

takes roughly 228ms, the reported number of key-

points processed is 24357, same for all tests as it is de-

terministically the same number for the same image.

It is to be noted that the execution time of the pro-

gram did not increase or decrease signiﬁcantly during

the entire span of the experiment.

In contrast, the same application running on a con-

ventional PC with and Intel i5 and GTX660 the aver-

age execution time for the application is 252ms, in-

cluding image decoding from a jpeg, and 161ms for

running Harris-Hessian where 150ms is spent inside

of kernels. For the given image FREAK takes 60ms.

This means that the application is running at roughly

4-5 frames per second depending on use-case making

it near real-time.

Regarding temperature, it appears that the Xperia

Z3 does not have any issues with heat when running

the Harris-Hessian/FREAK application continuously.

When we start the program, the Xperia Z3 that has re-

mained idle for a signiﬁcant amount of time, resting

at around 38 degrees Celsius. We run the application

for 60 minutes, and found that the temperature was

Can be lowered to 5.5s by adjusting work group sizes,

but we set the work group size equal on both platforms.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

522

in working zone around 50 degrees for the GPU sen-

sors. Further, we did not see any tendency to reduce

the clock frequency of the phone due to too high tem-

perature.

6.2 Classiﬁcation Performance

We present our performance data as follows. For each

pair of compared images, the results of the respective

algorithms are displayed. Along with visualizations

of the matches, we present a graph showing the to-

tal number of matches as a function of the permitted

Hamming distance between matching keypoints. Ad-

ditionally, we show the number of matches made by

the algorithms at the distance threshold where they

discover up to three false matches. The images we

present are chosen from a larger set of data because

we ﬁnd they highlight differing characteristics be-

tween the different approaches.

Figure 5 presents an example of near-duplicate

images. Harris-Hessian/FREAK clearly outperforms

both FAST/BRISK and ORB. An interesting attribute

compared speciﬁcally to ORB, apart from a higher

number of matches, is which keypoints are being

matched. ORB mainly matches points that are

far away from the camera - and subsequently at a

low scale - whereas Harris-Hessian/FREAK matches

points more evenly distributed in the images. One ex-

planation for this could be that the Harris-Hessian de-

tector discovers a wider range of keypoints compared

to the FAST-based detectors.

Figure 6 shows a matching with a rotated image.

The rotation invariance of ORB is very good, while

FAST/BRISK and Harris-Hessian/FREAK struggle

to produce any matches at all. FREAK uses a similar

strategy as BRISK for rotation compensation, while

ORB has a fundamentally different approach involv-

ing machine learning. In all our tests ORB has been

signiﬁcantly more robust with regard to rotation.

7 CONCLUSIONS

In this paper, we have presented a novel combination

of a feature detector and a descriptor, i.e., the Harris-

Hessian detector and the FREAK descriptor. The

Harris-Hessian/FREAK combination is implemented

in C and OpenCL, in order to execute performance

critical parts of it on the GPU. The target platform is a

mobile embedded device, i.e., a Sony Xperia Z3 mo-

bile phone. Therefore, we evaluate execution times,

temperature, as well as classiﬁcation performance in

relation to the ORB and BRISK feature detectors/de-

scriptors.

100

150

200

250

300

350

400

0 20 40 60 80 100 120

Total Matches

Threshold

Threshold above match ratio of 0.7

BRISK ORB HH+F

100

150

200

250

300

BRISK ORB HH-F

Nr Matches

<= 3 mismatches and < 0.7 match ratio

112

237

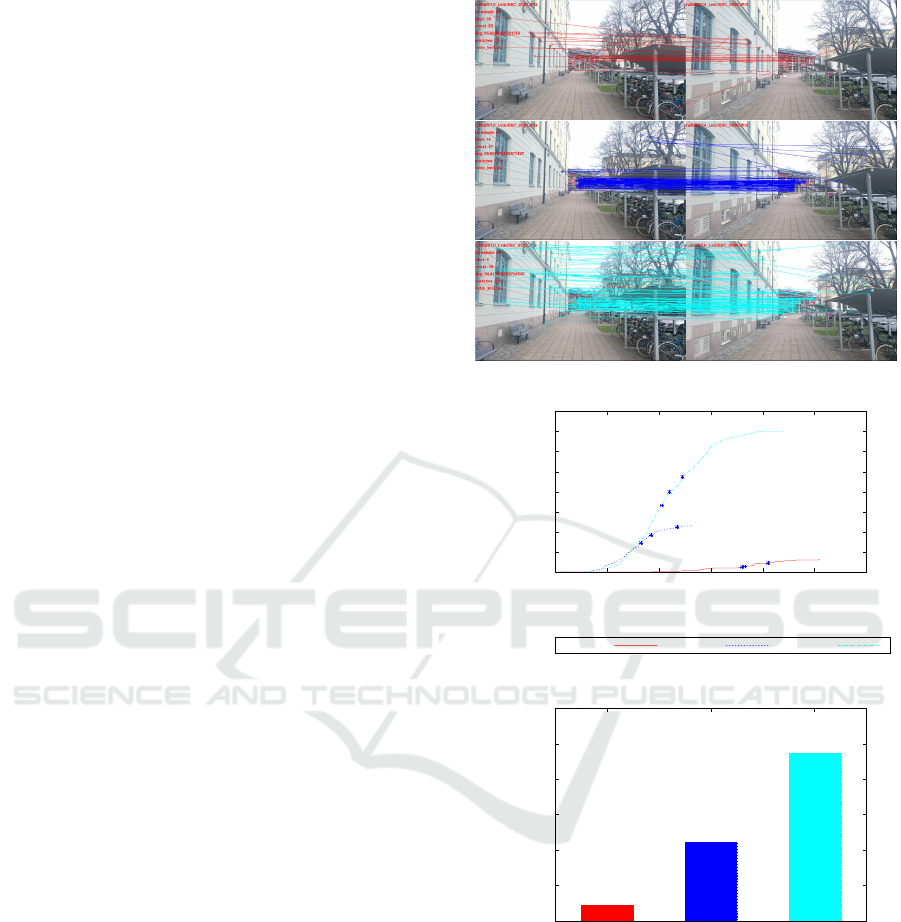

Figure 5: Near-duplicate images of buildings. The distribu-

tion of points indicates that Harris-Hessian/FREAK is more

scale invariant than its competitors.

The results show that Harris-Hessian/FREAK ex-

cels at matching near-duplicate images. This is to be

expected, since Xie et al. had these kinds of cases

in mind when developing their Harris-Hessian detec-

tor (Xie et al., 2010). Furthermore, FREAK seems

more sensitive to rotation than ORB, which is not in

line with ﬁndings in (Alahi et al., 2012) where they

claim that FREAK’s performance is comparable to

ORB’s. While other evaluations of binary descrip-

Feature Detection and Description using a Harris-Hessian/FREAK Combination on an Embedded GPU

523

100

150

200

250

0 10 20 30 40 50 60 70

Total Matches

Threshold

Threshold above match ratio of 0.7

ORB HH+F

100

150

200

250

300

BRISK ORB HH-F

Nr Matches

<= 3 mismatches and < 0.7 match ratio

185

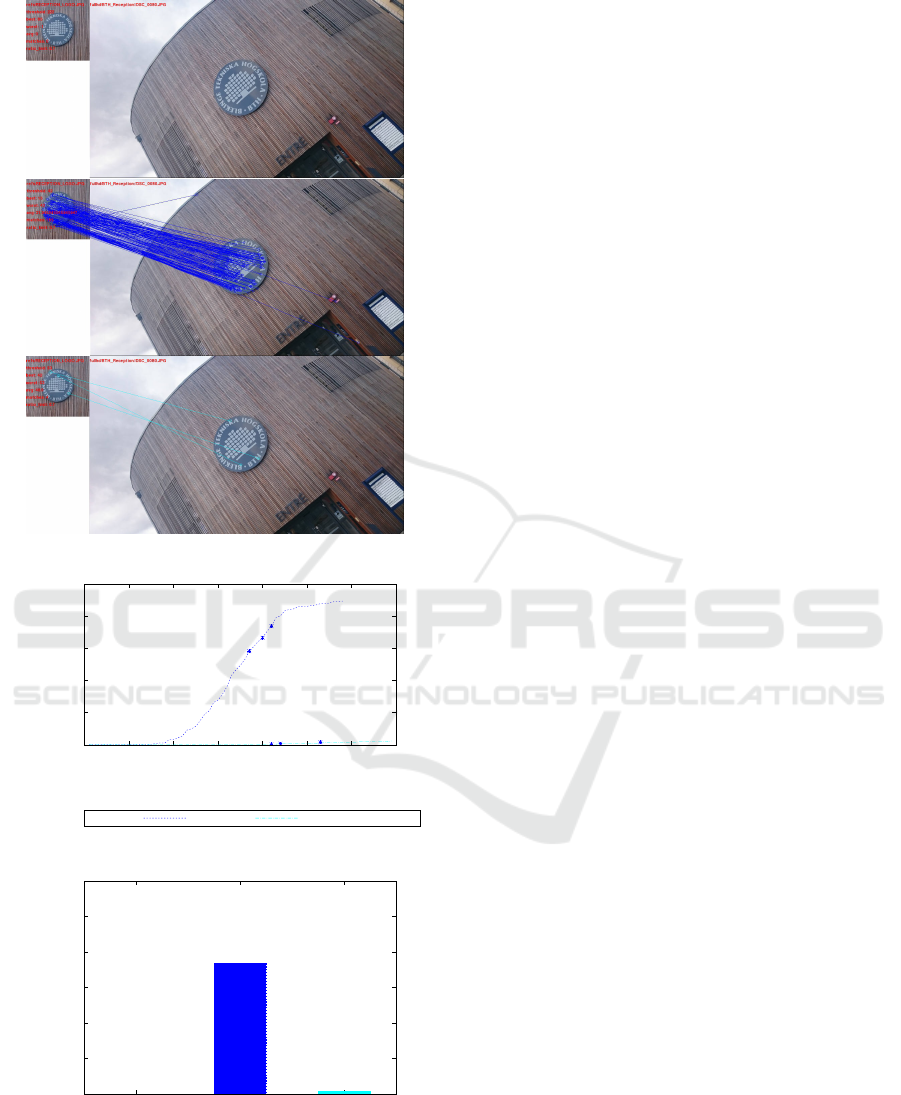

Figure 6: Comparison of a logotype with rotation. ORB’s

rotational invariance performs much better in this case, as

neither of its competitors manage to ﬁnd matches.

tors have been made (Bekele et al., 2013), they do not

directly address the descriptors’ rotational invariance.

The results presented here indicate that further inves-

tigation is necessary. However, our results only give

an indication, since the images with rotation all in-

clude features that are comprised of text. To further

strengthen the validity of such claims, one would need

a more rigorous experiment.

To summarize, our initial observations indicate

that the Harris-Hessian detector combined with the

FREAK descriptor is a promising approach from a

performance point of view. While there are some

types of images that ORB matches signiﬁcantly bet-

ter, the performance seems, in general, to be compara-

ble to contemporary approaches. The source code for

our Harris-Hessian/FREAK implementation is found

at https://github.com/autious/harris_hessian_freak.

ACKNOWLEDGEMENTS

This work was partly funded by the "Industrial Excel-

lence Center EASE - Embedded Applications Soft-

ware Engineering", (http://ease.cs.lth.se), and the re-

search project "Scalable resource-efﬁcient systems

for big data analytics" funded by the Knowledge

Foundation in Sweden (grant: 20140032).

REFERENCES

Alahi, A., Ortiz, R., and Vandergheynst, P. (2012). FREAK:

Fast Retina Keypoint. In 2012 IEEE Conf. on Com-

puter Vision and Pattern Recognition, pages 510–517.

Bay, H., Tuytelaars, T., and Gool, L. V. (2006). SURF:

Speeded Up Robust Features. In Computer Vision –

ECCV 2006, number 3951 in LNCS, pages 404–417.

Bekele, D., Teutsch, M., and Schuchert, T. (2013). Evalua-

tion of binary keypoint descriptors. In 20th IEEE Int’l

Conf. on Image Processing (ICIP), pages 3652–3656.

Calonder, M., Lepetit, V., Strecha, C., and Fua, P. (2010).

BRIEF: Binary Robust Independent Elementary Fea-

tures. In Computer Vision – ECCV 2010, number 6314

in LNCS, pages 778–792.

Deriche, R. (1993). Recursively implementating the Gaus-

sian and its derivatives. report.

Harris, C. and Stephens, M. (1988). A Combined Corner

and Edge Detector. volume 15, page 50, Manchester.

The Plessey Company plc.

Leutenegger, S., Chli, M., and Siegwart, R. (2011). BRISK:

Binary Robust invariant scalable keypoints. In IEEE

Int’l Conf. on Computer Vision, pages 2548–2555.

Lowe, D. (1999). Object recognition from local scale-

invariant features. In Seventh IEEE Int’l Conf. on

Computer Vision, 1999, pages 1150–1157 vol.2.

Mikolajczyk, K. and Schmid, C. (2004). Scale & Afﬁne In-

variant Interest Point Detectors. International Journal

of Computer Vision, 60(1):63–86.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

524

Munshi, A. (2011). The OpenCL Speciﬁcation Version: 1.1

Document Revision: 44.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). ORB: An efﬁcient alternative to SIFT or

SURF. In IEEE Int’l Conf. on Computer Vision, pages

2564–2571.

Timm, C., Gelenberg, A., Weichert, F., and Marwedel, P.

(2010). Reducing the energy consumption of em-

bedded systems by integrating general purpose GPUs.

Technical Report TR829, TU Dortmund, Dept. of

Computer Science.

Xie, H., Gao, K., Zhang, Y., Li, J., and Liu, Y. (2010). GPU-

based fast scale invariant interest point detector. In

2010 IEEE Int’l Conf. on Acoustics Speech and Signal

Processing (ICASSP), pages 2494–2497.

Xie, H., Gao, K., Zhang, Y., Tang, S., Li, J., and Liu,

Y. (2011). Efﬁcient Feature Detection and Effec-

tive Post-Veriﬁcation for Large Scale Near-Duplicate

Image Search. IEEE Transactions on Multimedia,

13(6):1319–1332.

Feature Detection and Description using a Harris-Hessian/FREAK Combination on an Embedded GPU

525
