Combining Contextual and Modal Action Information into a Weighted

Multikernel SVM for Human Action Recognition

Jordi Bautista-Ballester

1,2

, Jaume Verg´es-Llah´ı

and Domenec Puig

ATEKNEA Solutions,V´ıctor Pradera, 45, 08940, Cornell`a de Llobregat, Spain

Department of Computer Engineering and Mathematics, Universitat Rovira i Virgili, 43007, Tarragona, Spain

Keywords:

Multimodal Learning, Action Recognition, Bag of Visual Words, Multikernel Support Vector Machines.

Abstract:

Understanding human activities is one of the most challenging modern topics for robots. Either for imitation

or anticipation, robots must recognize which action is performed by humans when they operate in a human

environment. Action classiﬁcation using a Bag of Words (BoW) representation has shown computational sim-

plicity and good performance, but the increasing number of categories, including actions with high confusion,

and the addition, especially in human robot interactions, of signiﬁcant contextual and multimodal information

has led most authors to focus their efforts on the combination of image descriptors. In this ﬁeld, we propose

the Contextual and Modal MultiKernel Learning Support Vector Machine (CMMKL-SVM). We introduce

contextual information -objects directly related to the performed action by calculating the codebook from a

set of points belonging to objects- and multimodal information -features from depth and 3D images resulting

in a set of two extra modalities of information in addition to RGB images-. We code the action videos using

a BoW representation with both contextual and modal information and introduce them to the optimal SVM

kernel as a linear combination of single kernels weighted by learning. Experiments have been carried out on

two action databases, CAD-120 and HMDB. The upturn achieved with our approach attained the same results

for high constrained databases with respect to other similar approaches of the state of the art and it is much

better as much realistic is the database, reaching a performance improvement of 14.27% for HMDB.

1 INTRODUCTION

Analyzing video content has become critical in hu-

man robot interactions, where a robot must make a

decision considering the information extracted from

sensors such as cameras or lasers. In this context,

our research focuses on the recognition of action in

videos containing multimodal and contextual infor-

mation about the means by which an action is car-

ried out. Some public databases are conformed by a

set of RGB videos where scenes and parameters such

as illumination, focus, distance, and viewpoints are

mostly controlled,and few informationexits about the

tools and objects that were involved in the action. In

robotic contexts, it is usual to have multimodal infor-

mation, provided by distance laser sensors or by 3D

cameras such as Kinect.

CAD120 database (Koppula et al., 2013) is

recorded with a high controlled environment, which

is ideal for human-robot interactions, although it in-

cludes both contextual and multimodal information.

This database contains 10 high level actions per-

formed by 4 different subjects which in total corre-

sponds to 124 manually annotated videos. However,

in order to go beyond the current state of the art in

action recognition topic for real videos, more realistic

databases have been increasingly employed, includ-

ing videos that stage more realistic actions.

HMDB (Kuehne et al., 2011), is one of the largest

action video database to-date with 51 action cate-

gories, which in total contains 6849 manually anno-

tated clips extracted from a variety of sources rang-

ing from digitized movies to YouTube videos. This

database has been created to evaluate the performance

of computer vision systems for action recognition and

explore the robustness of these methods under various

conditions such as cluttered backgrounds, fast irregu-

lar motions, occlusions and camera motion. In this

database, actions with contextually connected objects

can be found, although no multimodal recording is

available.

Speciﬁcally, we select from the HMDB database

a subset of actions that are performed employing a

tool or object. This contextual information allows the

computer to discriminate apparently similar actions

Bautista-Ballester, J., Vergés-Llahí, J. and Puig, D.

Combining Contextual and Modal Action Information into a Weighted Multikernel SVM for Human Action Recognition.

DOI: 10.5220/0005669002990307

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 299-307

ISBN: 978-989-758-175-5

299

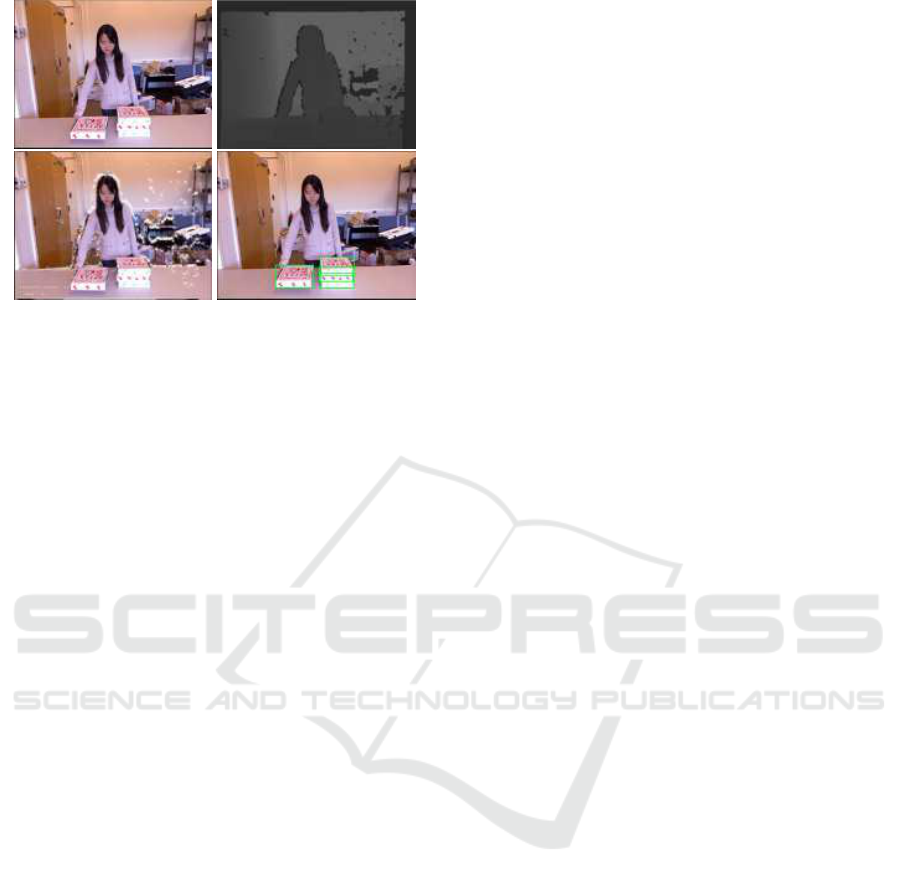

Figure 1: Multimodal database CAD120 with RGB (top

left), Depth map (top right), 3D map (bottom left), object

context (bottom right).

such as the case of shooting a gun or a bow. The

biggest difference among these similar actions lies in

the tool employed to carry out the action.

In this paper, we detail how these different sources

of information -depth, objects- can be combined in

a richer description of human actions that permits

higher recognition rates. In order to increase the ro-

bustness of the recognition of actions in more chal-

lenging situations, we propose to weight different

sources of information relevant to discriminate ac-

tions, namely, the spatio-temporal features that de-

scribe motion by RGB and depth modes, and the con-

textual information that explains how an action is car-

ried out by object features. The Fig.1 shows sample

images from CAD120 databes, representing the same

frame of a video as four different sources of informa-

tion: RGB, depth and precomputed 3D images and

the objects detected in this frame.

The main contribution of this paper is the fusion

and discrimination of new information sources for

performed actions with a recognition structure that

weights the addition of new information using a mul-

tichannel SVM. The use of the multichannel SVM has

previously proven very successful in action recogni-

tion (Wang et al., 2013; Bilinski and Corvee, 2013).

Thus, we take advantage of this structure in two ways:

ﬁrstly, by adding data that is strictly nota descriptorof

motion but modal or contextual information obtained

by segmenting the region where the action takes place

in three space dimensions and describing the tool em-

ployed in the action, which is a new way of using

multichannel SVM. Secondly, by weighting the chan-

nels with a multikernel learning approach, determin-

ing which channel has more non-redundant informa-

tion.

The paper is organized as follows. First, a review

of the previous work is done in Section 2. In Section 3

our proposedapproachCMMKL-SVM forcombining

multimodal and contextual information is detailed.

The experimental setup includingboth databases used

to evaluate our method is explained in Section 4.

In Section 5 our experimental results over the two

databases and comparisons with the state of the art

are presented. Finally, in Section 6 the advantages of

the proposed methodology is discussed and the paper

concludes with future directions of the work.

2 RELATED WORK

Local space-time features (Laptev, 2005) have been

shown to be successful for general action recognition

because they avoid non-trivial pre-processing steps,

such as tracking and segmentation, and provide de-

scriptors invariant to illumination and camera motion.

In particular, HOG3D (Kl¨aser et al., 2008) has proven

to outperform most of the descriptors of the same

kind.

Experimenting in robotic environments, contex-

tual and multimodal information have been consid-

ered in action recognition frameworks. Works in

(Pieropan et al., 2014; Tsai et al., 2013) fuse infor-

mation into two different stages with respect to the

training, that is, before and after it respectively. In

(Snoek et al., 2005) the authors studied the different

methods of descriptor fusion and classiﬁed them into

early fusion and late fusion approaches. The former

consists of a fusion before the training step, while the

latter is a fusion afterwards. In this context, (Ikizler-

Cinbis and Sclaroff, 2010) combines six different vi-

sual descriptors for three different contextual infor-

mation types, namely, people (HOF and HOG3D),

objects (HOF and HOG), and scene (GIST and color

histograms) by using a multiple MIL approach,which

is a concatenation of bag representations and classi-

ﬁed with an L2-Regularized Linear SVM. In (Bilinski

and Corvee, 2013), a multichannel χ

kernel SVM is

used for the combination of a set of descriptors. Sim-

ilarly, the work in (Wang et al., 2013) computes dense

trajectories and their descriptors to ﬁnally combine

them using an averaged multichannel SVM.

Considering multikernel learning (MKL) as an

early fusion approach, it was ﬁrst proposed in (Lanck-

riet et al., 2004). MKL approaches focus their ef-

forts on how to improve the classiﬁcation accuracy

by exploiting different formulations and how to im-

prove learning efﬁciency by exploiting different op-

timization techniques. The authors in (Bucak et al.,

2014) showed that conﬂicting statements exist which

are largely due to the variations in the experimental

conditions. In this work it is also stated that while

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

300

some studies reported that averaging kernels (same

weight for each kernel)is outperformedby MKL (Bu-

cak et al., 2010), others conclude the opposite (Gehler

and Nowozin, 2009). Linear combinations do not

have to deal with non-convex optimization problems

which would lead them to poor computational efﬁ-

ciency and suboptimal performance. That is the rea-

son why most of the authors prefer them instead of

non linear combinations.

Traditional kernel combination learning ap-

proaches based on the MKL wrapper SimpleMKL

(Rakotomamonjy et al., 2008) are mainly focused on

the usage of the same training data, making use of lin-

ear, polynomial or RBF kernels. This fact is in con-

trast to recently published works on the multichannel

approach in (Wang et al., 2011; Wang and Schmid,

2013), which combine different training data by ker-

nel average.

In our work, unlike the aforementioned state-of-

the-art methods, we consider depth, 3D information,

and image descriptors of the objects used in the ac-

tions by means of a BoW-based action recognition

approach. To this end, we ﬁrst detect the set of

points belongingto the objectas in (Bautista-Ballester

et al., 2014). Then, we compute codebooks for each

video mode and context descriptors. Finally, we com-

bine the three sources of information, motion, depth

and objects, by weighting a multikernel SVM using

CMMKL-SVM. Experimental results show that this

procedure improves the recognition rate of actions.

3 METHOD

Our main goal in this work is to autonomously fuse

and select the best information related to the action

performed by means of a BoW-based representation

of the action. In Section 3.1 which multimodal infor-

mation we make use of in order to improve the action

recognition performance is explained. In Section 3.2

how we utilize contextual information, i.e. objects,

is described, ﬁrstly labeling its bounding boxes and,

then, ﬁltering the points used to construct codebooks.

In Section 3.3 how we fuse and discriminate all the

informational channels is explained.

3.1 RGB, Depth and 3D Multimodal

RGB images are usually provided by a single camera

mounted in the body of the robot or in a ﬁxed place in

the space. Thatimposes the limitation of a single view

of the performed action. Databases exist which con-

sider the possibility of a multiple viewpoint, introduc-

ing more variability to the information captured. That

would be the case if different robots were analyzing

the same action simultaneously in different positions,

but we consider human-robot interactions that involve

just one robot. Hence, we test our algorithm over a

database which provides depth maps, i.e. CAD120.

We make use of depth information in two ways:

ﬁrst, extracting descriptors as done with the RGB

video sequences. We have, then, a set of descrip-

tors such as trajectories, HOG, HOF, MBH for RGB

and Depth. Depth sequences allow to differentiate

elements in the scene like background and objects

over planes different from the one in which the action

takes place. Second, generatinga RGB-D sequence in

which we can extract 3D spatial descriptors, such as

FPFH. 3D sequences provide 3D spatial information

combined in one descriptor. In the end, RGB, Depth

and 3D descriptors generate independent codebooks.

3.2 Object Detection and Tracking

In order to detect and track the objects in video se-

quences, we follow the work of (Bautista-Ballester

et al., 2014). This method has been demonstrated to

be successful in the addition of contextual informa-

tion concerning objects related to the action. Consid-

ering that each video contains one action, we detect

the objects that are employed in the performance of

this action. We make use of the matching procedure

based on the epipolar geometry, that computes the

Fundamental Matrix between two consecutive frames

and extracts the bounding boxes for each object in

each frame. The result of this procedure is a set of

bounding boxes that enclose the objects used in each

action for each frame in the video ensuring high accu-

racy around the area that limits the objects. We also

limit the computational burden by keeping a maxi-

mum of 100k points belonging to objects applying

bounding box labels when creating the codebook like

in (Bautista-Ballester et al., 2014).

3.3 CMMKL-SVM

Visual features extracted from a RGB video can rep-

resent a wide variety of information, such as scene

(e.g., GIST), motion (e.g., HOF, MBH) or even just

color (color histograms). In our approach we include

extra features, such as depth and 3D scene informa-

tion (e.g. FPFH (Rusu, 2009)), and object related in-

formation (e.g. (Bautista-Ballester et al., 2014)). To

classify actions using all these features, the informa-

tion must be fused in an appropriate way. Accord-

ing to the moment of the combination, (Snoek et al.,

2005) proposed a classiﬁcation of the fusion schemes

in early or late fusion. Multikernel approaches use

Combining Contextual and Modal Action Information into a Weighted Multikernel SVM for Human Action Recognition

301

early fusion since the combination is done before the

training.

The works of (Wang et al., 2013)(Bautista-

Ballester et al., 2014) use a linear combination of

different kernels, calculated from a set of codebooks

generated with different descriptors. A SVM with a

kernel for classiﬁcation is used,

, h

) =

∑

k=1



(k) − h

(k))

(k) + h

(k)



(1)

ensuring that the kernel matrices are strictly posi-

tive deﬁnite. They fuse different descriptors by sum-

ming up the corresponding kernel matrices, normal-

ized by the average distance A

of χ

distances be-

tween the training samples for the c-th channel. No

kernel weighting is done, so no kernel is more dis-

criminative than the others.

In our approach, given the base kernels

, h

) = exp(−

, h

)) (2)

the optimal kernel of a certain descriptor is ap-

proximated as

opt

∑

(3)

where d

is the kernel weight for c-th channel.

Each K

represents the precoded c-th information re-

ferred to the action.

The optimization is carried out within a SVM

framework that achieves the best classiﬁcation on the

training set subject to a regularization scheme. In this

formulation, the objective function is near identical to

the standard L

C-SVM objective function. The reg-

ularization prevents the weights from becoming too

large, although this could be achieved by requiring

that the weights sum up to the unit but also restricting

the search space.

minimize

w,d,ξ

w+C1

ξ+ σ

subject to y

+ b) ≥ 1− ξ

ξ ≥ 0, d ≥ 0, Ad ≥ p

(4)

The constraints are also similar to the standard

SVM formulation, with the addition of two con-

straints. First, d ≥ 0, which ensures that the weights

can be interpreted and also leads to a much more ef-

ﬁcient optimization problem. Second, Ad ≥ p, with

some restrictions, that allow us to encodeprior knowl-

edge about the problem.

In order to tackle large scale problems involving

hundreds of kernels, we adopt the minimax optimiza-

tion strategy and solve the problem by using projected

gradient descent, taking care to ensure that the con-

straints dn+1≥ 0 and Adn+1≥ p are satisﬁed. This

algorithm proceeds in two stages. In the ﬁrst one,

weights d

are maximized and support vectors (SV)

obtained. In the second stage, objective function is

minimised by projected gradient descent. The two

stages are repeated until convergence or a maximum

of the number of iterations is reached, at which point

the weights d and SV

′

s are obtained.

4 EXPERIMENTAL SETUP

In this section, modal selection and object detection

and tracking are considered in detail. Afterwards, we

introduce the encoding framework based on BoW. Fi-

nally, the databases and their experimental setups are

exposed.

4.1 Extracting Contextual Information:

Objects

The points used to identify and track the objects are

a mixture of RGB points obtained using Harris cor-

ner detector and features computed applying SURF.

We use a threshold between 0,04 and 0,1 for Harris

detector and a maximum number of 1000 points for

SURF. This ensures enough quantity of points with

enough quality belonging to the object, even in the

case that the object appearing in the video sequence

is relatively small, like a ball or a sword. For the

matching, we select the strongest 1% of matches,

which is restrictivebut ensures better point correspon-

dences. These considerations refer mainly to HMDB

database, which is more realistic than CAD120. Ob-

ject detection and tracking for CAD120 are more ac-

curate due to their highly controlled conditions.

4.2 Extracting Multimodal

Information: RGB, Depth and 3D

We select three informational modes taking advan-

tage of the RGB-D videos, forming the set with RGB,

depth and 3D videos.

First, for each point in RGB and Depth videos we

compute different descriptors, HOG3D, trajectories,

HOG, HOF, MBH. In the case of HOG3D descriptors,

we set the parameters optimized for KTH database as

described in (Kl¨aser et al., 2008), which have demon-

strated a good performance not only for the KTH set,

resulting in 1008 dimensions in total. In the case of

trajectories, HOG, HOF, and MBH, we follow the

work of (Wang et al., 2013) and set the parameters

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

302

likewise. The dimensions of these descriptors are,

respectively, 30 (trajectories), 96 (HOG), 108 (HOF)

and 192 (MBH), which are signiﬁcantly smaller than

these of HOG3D. We set same parameter values for

both, RGB and Depth videos.

Second, we consider the FPFH descriptor (Rusu,

2009) of the 3D Point Cloud Library. We conﬁgure

the descriptor length to FPFHSignature33, that cre-

ates a 33 dimension descriptor. We set the FPFH ra-

dius search to 100 in order to ensure enough valid de-

scriptors.

4.3 Encoding using BoW

We use the BoW approach to encode frames. First,

we make use of STIP points following the work in

(Laptev, 2005). We compute different descriptors

for each point in RGB videos, Depth videos and 3D

videos. We train a codebook for each descriptor type

using a maximum of 100k randomly sampled fea-

tures. For the object kernel, we ensure the object point

selection using the method described in (Bautista-

Ballester et al., 2014).

Afterwards, we group the points employing the k-

Means clustering algorithm with a maximum of 5 it-

erations which ensures enough convergence. In or-

der to compare results with (Bautista-Ballester et al.,

2014), the size of the codebook is set to 500 words,

avoiding over-learning, despite the fact that the larger

the number of clusters employed, the better the per-

formance is. Finally, a SVM with an exponential χ

kernel is used for classiﬁcation, using a 10 fold cross-

validation method with the one-against-all approach.

For all the experiments we employ the default param-

eter values in the LibSVM library (Chang and Lin,

2011).

4.4 Multikernel Selection

We perform a CMMKL-SVM for classiﬁcation that

uses the default parameters in (Vedaldi et al., 2009).

We precalculate each kernel based on image coders

(objects, 3D, Depth, RGB descriptors) and perform

a train in order to obtain the best combination of

weights.

In the comparison step, we also perform a uni-

formly weighted combination by summing their ker-

nel matrices and normalizingthe result by the average

distance as in (Bautista-Ballester et al., 2014).

4.5 Databases

We test ourmodelwith two different databases, CAD-

120 (Koppula et al., 2013) and HMDB (Kuehne et al.,

2011). CAD-120 contains objects that involve actions

in a highly controlled environment and multimodal

information such as RGB and depth videos. HMDB

is a more challenging and realistic one, where objects

used in actions are present. Although no 3D infor-

mation exists, we use this dataset to test our approach

and compare the results to the state-of-the-art results.

Sample frames for each database are shown in Fig. 2,

in which three actions from the whole collection are

represented for both databases.

4.5.1 CAD-120 Database (Koppula et al., 2013)

The CAD-120 database contains 124 RGB-D videos

of 4 different subjects performing 10 high-level ac-

tions. Each action is performed three times with dif-

ferent objects. It contains a total of 61585 3D video

frames. The actions have a long sequence of subac-

tivities which might be considered in future work.

The 10 high-level actions performed are arrang-

ing objects, cleaning objects, having meal, making

cereal, microwaving food, picking objects, stacking

objects, taking food, taking medicine and unstaking

objects.

4.5.2 HMDB Database (Kuehne et al., 2011)

The HMDB database consists of 51 actions from a to-

tal of 6,849 videos collected from a variety of sources

ranging from digitized movies to YouTube videos.

The action categories are grouped in ﬁve types: gen-

eral facial actions, facial actions with object manip-

ulation, general body movements, body movements

with object interaction, and body movements for hu-

man interaction.

In order to obtain comparable results and consid-

ering that we need actions where an object is used, we

do not follow the original splits proposed by (Kuehne

(a) Microwave (b) Pick objects (c) Unstak objects

(d) Shoot gun (e) Draw sword (f) Kick ball

Figure 2: Example frames from the CAD120 database

showing three out of ten actions, (a) microwaving food, (b)

picking objects, (c) unstacking objects, and example frames

from three actions from the subset selected of the 51 ac-

tions in HMDB which include objects, (d) shoot gun, (e)

draw sword, (f) kick ball.

Combining Contextual and Modal Action Information into a Weighted Multikernel SVM for Human Action Recognition

303

Table 1: Comparison of different descriptors on the

databases.

Databases CAD120 HMDB

(%) (%)

RGB trajectories 32.30 38.13

RGB HOG 70.17 54.29

RGB HOF 49.02 41.6

RGB MBH 46.97 38.30

RGB HOG3D 83.94 71.98

Depth trajectories 56.34 n/a

Depth HOG 55.99 n/a

Depth HOF 56.47 n/a

Depth MBH 55.18 n/a

FPFH 60.51 n/a

et al., 2011). Instead, we use the split in (Bautista-

Ballester et al., 2014), which ensures the presence of

as many variation as possible by following a propor-

tion of clips similar to that in the complete database.

These variations include what part of the body is

shown, the number of people involved in the action,

the camera motion and viewpoint, and the quality of

the video.

The split consists of 6 different actions with 20

videos per action, resulting in 120 videos in total.

These actions are ride bike, shoot gun, shoot bow,

draw sword, swing baseball and kick ball. The pur-

pose of this selection is dual: ﬁrst, ensuring that an

object always appears in the action, and second, en-

suring the presence of as many variations as possible.

Similar actions like draw sword and swing baseball

are also taken into account, a fact that makes the set

more challenging.

5 EVALUATION

In Section 5.1 we evaluate our CMMKL-SVM ap-

proach on CAD120 and HMDB datasets. We ﬁrst

evaluate single descriptors in order to ﬁnd the most

signiﬁcative ones. Later, we evaluate the combina-

tion of different kernels and obtain the weights that

informs us of the relevance of each kernel. In sec-

tion 5.2we compare our results foreach databasewith

those of the state of the art.

5.1 Evaluating CMMKL-SVM

The use of CMMKL-SVM allows to add different

descriptors into the standard BoW approach for ac-

tion recognition. This approach permits the inclusion

of several image descriptors into this scheme as ex-

plained in (Bautista-Ballester et al., 2014), and re-

Table 2: Context and modal inﬂuence on the databases

using two approaches: ours (CMMKL) and uniformly

weighted (UW) (Bautista-Ballester et al., 2014).

CAD120 Database UW CMMKL Kernel

(%) (%) Weights

Object info. combined with RGB descriptor

obj+RGB traj. 36.34 56.57 0.5/0.7

obj+RGB HOG 75.21 86.32 0.2/0.8

obj+RGB HOF 54.78 74.94 0.4/0.8

obj+RGB MBH 54.50 68.32 0.4/0.6

Depth info. combined with RGB descriptor

Depth+RGB traj. 72.61 83.19 0.7/0.3

Depth+RGB HOG 81.63 89.59 0.9/0.9

Depth+RGB HOF 75.08 86.53 0.4/0.8

Depth+RGB MBH 79.03 87.96 0.1/0.4

3D info. combined with RGB descriptor

FPFH+RGB traj. 62.03 87.98 0.6/0.4

FPFH+RGB HOG 69.98 90.67 0.2/0.5

FPFH+RGB HOF 67.65 89.28 0.7/0.7

FPFH+RGB MBH 69.27 90.18 0.8/0.7

HMDB Databases UW CMMKL Kernel

(%) (%) Weights

Object info. combined with RGB descriptor

obj+RGB traj. 39.81 55.43 0.1/0.2

obj+RGB HOG 64.76 86.72 0.5/0.7

obj+RGB HOF 44.78 65.37 0.3/0.3

obj+RGB MBH 47.10 61.61 0.8/0.5

duces the effect of information redundancy weighting

a multikernel SVM. This approach improves the per-

formance with respect to any singular descriptor or an

averaged combination of them.

In our ﬁrst experiment we calculate the average

accuracy for each of the following descriptors: tra-

jectories, HOG, HOF, MBH, HOG3D, Depth tra-

jectories, Depth HOG, Depth HOF, Depth MBH,

Depth HOG3D and FPFH. As we can see in Table

1, HOG3D descriptor gives the best action recog-

nition performance. HOG3D avoid non-trivial pre-

processing steps, such as tracking and segmentation,

fuses 2D space and time information, and provides

descriptors invariant to illumination and camera mo-

tion. This aspect shows that using a unique optimal

descriptor can be better than a combination of sev-

eral descriptors that perform worse individually. This

is apparent in the fact that HOG3D obtains a 71.98%

for HMDB and 83.94% for CAD120.

An extra objective of our approach is to overpass

this performance by using CMMKL-SVM with the

best weighted combination of descriptors using RGB

videos, Depth videos, 3D points and objects. That

would considerablyreduce the time of the overall pro-

cedure, taking into account that HOG3D is quite com-

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

304

putationally expensive. Additionally, Depth descrip-

tors give similar results, (55%), for each single de-

scriptor -trajectories, HOG, HOF and MBH- mean-

ing that these descriptors lose their singular charac-

teristics when used for depth videos. On the other

hand, HOG and FPFH are the best choices when used

as single descriptors, obtaining a recognition rate of

70.17% and 60.51% respectively in CAD120. This

is due to the fact that they give spatial information of

the action, a fact that has been veriﬁed in works like

(Wang et al., 2013)(Bautista-Ballester et al., 2014).

In the second experiment, our purpose is to ob-

serve the inﬂuence of the context (objects) and mode

(Depth, 3D) when employing single descriptors (tra-

jectories, HOG, HOF, MBH) on RGB videos. The

results are shown in Table 2. We perform the ex-

periments with our approach CMMKL-SVM and the

uniformly weighted approach in (Bautista-Ballester

et al., 2014). We show that the fusion of context and

mode information in a MKL framework is better than

averaging kernels. Having a look at the results in

Table 2 we can observe that the addition of context,

gives an important improvement of 20% on the aver-

age recognition rate for every trial in HMDB when

using our approach. For CAD120, this improvement

is much lower than for HMDB, 10% on average, due

to the quality of the videos and the lack of exten-

sive variability in conditions such as illumination and

viewpoint. In Table 2 we show how context, depth or

3D information always outperforms the recognition

accuracy reached using a single descriptor.

The third experiment wants to ﬁnd the best com-

bination between all of the descriptors. The experi-

ment has been performed choosing a ﬁrst descriptor

and progressively adding new ones in order to see the

effect of the inclusion of this new information into

the CMMKL-SVM. To see the best improvements,we

have chosen the descriptor that contributes the least,

i.e., trajectories. These results can be seen in Table

3. Any addition improve the results, but the question

is which one provides the best results since adding

new channels results in higher computational costs.

Therefore, we want the least number of channels that

provides the best results. We can conclude from these

results that the addition of descriptors which provides

redundant information leads to a lack of improve-

ment. For example, the addition of HOF, object or

FPFH to the combination trajectories + HOG leads

to no signiﬁcant improvement. We must observe that

HOF provides temporalinformation in a similar sense

as trajectories.

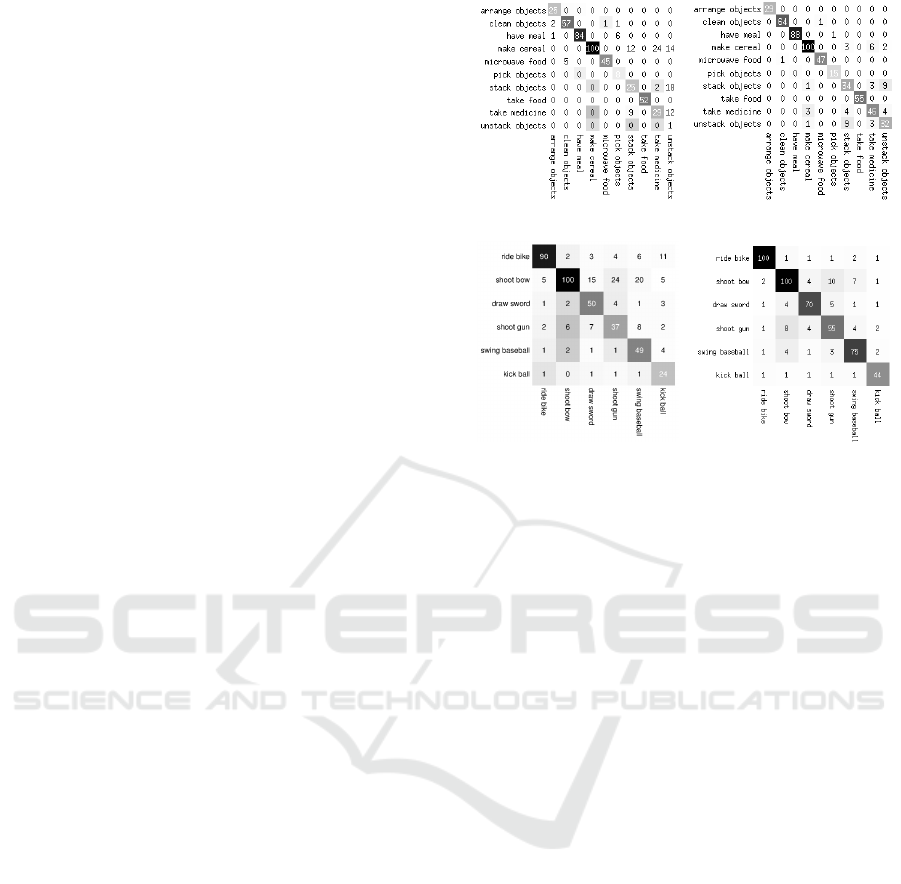

(a) CAL120 UW (b) CAL120 CMMKL

Ballester et al., 2014)

(d) HMDB CMMKL

Figure 3: Confusion matrices for: (a) CAD120 database

using objects, FPFH, Depth HOG, trajectories, HOG using

UW approach (Bautista-Ballester et al., 2014) with average

performance for 500 codewords: 79.73%, (d) CAD120 with

our approach using the same conﬁguration as (a), with av-

erage performance for 500 codewords: 90.83% (c) HMDB

database using objects, trajectories, HOG, HOF, MBH de-

scriptors as it is done in (Bautista-Ballester et al., 2014)

with average performance for 500 codewords: 72.97%, (d)

HMDB with our approach using the same conﬁguration as

(a), with average performance for 500 codewords: 85.41%.

5.2 Discussion

Comparing to the state-of-the-art, on one hand, (Kop-

pula et al., 2013) obtained a 93,5% in CAD120

database using a CRF-based approach. We ob-

tain a similar recognition accuracy of 92.83% us-

ing CMMKL-SVM. On the other hand, we sig-

niﬁcantly improve the results for HMDB, where

(Bautista-Ballester et al., 2014) used a fusion of ob-

jects and RGB descriptors by averaging a multiker-

nel SVM reaching 71,57%, much lower than our re-

sult of 85.41%. Table 4 shows this comparison for

CAD120 and Table 5 for HMDB. The more realis-

tic the database is the more relevant the acquisition

and weights of contextual and multimodal informa-

tion are.

Referring to Table 3, we can see the importance

of weighting channels. Using a kernel averaging

scheme (Bautista-Ballester et al., 2014) always ob-

tained a lower performance than our approach, which

takes into account the redundancy of information in-

troduced by similar descriptors. This can be seen in

Combining Contextual and Modal Action Information into a Weighted Multikernel SVM for Human Action Recognition

305

Table 3: Using different descriptors combinations on the databases with our approach.

Database CAD120

UW(%) CMMKL(%) Kernel Weights

trajectories + HOG 71.04 83.24 0.2/0.6

trajectories + HOF 49.94 71.1 1.0/0.7

trajectories + DepthHOG 73.28 79.15 0.10/0.81

trajectories + HOG + HOF 75.10 85.94 0.5/0.5/0.1

trajectories + HOG + obj 71.40 83.60 0.8/0.9/0.4

trajectories + HOG + FPFH 71.90 90.33 0.8/0.4/0.6

trajectories + HOG + HOF + MBH 77.71 87.60 0.1/0.2/0.3/0.4

trajectories + HOG + HOF + obj 75.30 84.66 0.9/0.5/0.5/0.7

trajectories + HOG + HOF + DepthHOG 84.78 90.70 0.9/0.7/0.4/0.9

trajectories + HOG + HOF + FPFH 76.04 89.75 0.8/0.6/0.4/0.2

trajectories + HOG + HOF + MBH + obj 77.92 85.21 0.3/1.0/0.5/0.8/0.1

trajectories + HOG + obj + FPFH + DepthHOG 79.73 92.83 0.0/0.6/1.0/0.8/0.5

Database HMDB

UW(%) CMMKL(%) Kernel Weights

trajectories + HOG 57.83 82.24 0.3/0.4

trajectories + HOF 48.64 65.28 0.3/0.3

trajectories + HOG + HOF 64.67 85.82 0.1/0.8/0.3

trajectories + HOG + obj 71.57 85.84 0.3/0.7/0.1

trajectories + HOG + HOF + MBH 70.04 80.69 0.7/0.8/0.1/0.5

trajectories + HOG + HOF + obj 69.39 85.36 0.2/0.9/0.7/0.6

trajectories + HOG + HOF + MBH + obj 72.97 85.41 0.6/0.1/0.4/0.0/0.2

the combination trajectories + HOG + HOF, where

trajectories almost loses its importance (0.1) because

of other descriptors such as HOF (0.3), which pro-

vides temporal information like trajectories. How-

ever, HOG still remains the most signiﬁcant descrip-

tor (0.8). This reinforces the hypothesis made in

(Bautista-Ballester et al., 2014) that the strongest de-

scriptors are those that provide spatial information.

Finally, regarding the confusion of the actions,

CMMKL-SVM reduces confusion between actions,

even for similar actions, as can be seen in Fig. 3. For

example, Unstacking objects for CAD120 is easily

confused with Stacking objects, a relation that averag-

ing kernels cannot break (1%) but our approach does

(32%). The same happens when kicking a ball, where

averaging kernels performs a 24% and CMMKL a

44%. In general, all actions in both databases have

their confusion index reduced. Therefore, the over-

all performance of our action recognition approach is

higher than other state-of-the-art approaches.

Table 4: Comparison to the state of the art on CAD120

database.

Work Approach Avg. acc.

(Koppula et al., 2013) CRF-based 93.50%

Ours CMMKL-SVM 92.83%

6 CONCLUSIONS

In this paper we have proposed a methodology to

combine different descriptors within a standard ac-

tion recognitionscheme based on BoW. Our approach

adds information related to the objects, depth maps

and 3D points, and shows an increment of the over-

all action recognition performance. The addition of

the extra image descriptors, either from RGB context

or sensor modality, leads to an increment of the com-

putational cost. As a consequence, it is important to

discriminate, or even discard, the less important de-

scriptors. Our approach complements space and time

informationextracted with video descriptors, andpro-

poses a procedure to incorporate and weight any con-

textual and modal information that can be further gen-

eralized to include other data provided by new con-

text descriptors and/or new devices. Additionally, the

present approach also shows that the best results are

Table 5: Comparison to the state of the art on HMDB

database.

Work Approach Avg. acc.

(Bautista-Ballester

et al., 2014)

Multichannel

71.57 %

Ours CMMKL-SVM 85.84%

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

306

obtained when kernels from spatial, temporal, con-

text, 3D points and depth are combined within the

CMMKL-SVM approach. In this respect, the highest

recognition rates (92.83%) have been obtained when

a combination of trajectories, HOG, FPFH, Depth and

object is used. Due to the relevant importance to in-

telligent robots, our future work will focus on the im-

provement of multimodal fusion and the reduction of

the computationalburden by exploiting differentopti-

mization techniques for MKL, allowing a quicker re-

sponse of the robot to interact with humans by either

imitating or anticipating actions.

ACKNOWLEDGEMENTS

This research has been partially supported by the

Industrial Doctorate program of the Government of

Catalonia, and by the European Community through

the FP7 framework program by funding the Vinbot

project (N 605630) conducted by Ateknea Solutions

Catalonia.

REFERENCES

Bautista-Ballester, J., Verg´es-Llah´ı, J., and Puig, D. (2014).

Using action objects contextual information for a mul-

tichannel svm in an action recognition approach based

on bag of visual words. In International Conference

on Computer Vision Theory and Applications, VIS-

APP.

Bilinski, P. and Corvee, E. (2013). Relative Dense Track-

lets for Human Action Recognition. 10th IEEE Inter-

national Conference on Automatic Face and Gesture

Recognition.

Bucak, S., Jin, R., and Jain, A. (2014). Multiple kernel

learning for visual object recognition: A review. Pat-

tern Analysis and Machine Intelligence, IEEE Trans-

actions on, 36(7):1354–1369.

Bucak, S., Jin, R., and Jain, A. K. (2010). Multi-label mul-

tiple kernel learning by stochastic approximation: Ap-

plication to visual object recognition. In Advances in

Neural Information Processing Systems, pages 325–

333.

Chang, C.-C. and Lin, C.-J. (2011). LIBSVM:

A library for support vector machines. ACM

Transactions on Intelligent Systems and Tech-

nology, 2:27:1–27:27. Software available at

http://www.csie.ntu.edu.tw/ cjlin/libsvm.

Gehler, P. and Nowozin, S. (2009). Let the kernel ﬁgure

it out; principled learning of pre-processing for kernel

classiﬁers. In Computer Vision and Pattern Recogni-

tion (CVPR), 2009 IEEE Conference on, pages 2836–

2843. IEEE.

Ikizler-Cinbis, N. and Sclaroff, S. (2010). Object, scene and

actions: Combining multiple features for human ac-

tion recognition. In Proceedings of the 11th European

Conference on Computer Vision: Part I, ECCV’10,

pages 494–507, Berlin, Heidelberg. Springer-Verlag.

Kl¨aser, A., Marszałek, M., and Schmid, C. (2008). A spatio-

temporal descriptor based on 3d-gradients. In British

Machine Vision Conference, pages 995–1004.

Koppula, H. S., Gupta, R., and Saxena, A. (2013). Learn-

ing human activities and object affordances from rgb-

d videos. The International Journal of Robotics Re-

search, 32(8):951–970.

Kuehne, H., Jhuang, H., Garrote, E., Poggio, T., and Serre,

T. (2011). HMDB: a large video database for human

motion recognition. In Proceedings of the Interna-

tional Conference on Computer Vision (ICCV).

Lanckriet, G. R. G., Cristianini, N., Bartlett, P., El Ghaoui,

L., and Jordan, M. I. (2004). Learning the kernel ma-

trix with semideﬁnite programming. J. Mach. Learn.

Res., 5:27–72.

Laptev, I. (2005). On space-time interest points. Int. J.

Comput. Vision, 64(2-3):107–123.

Pieropan, A., Salvi, G., Pauwels, K., and Kjellstrom, H.

(2014). Audio-visual classiﬁcation and detection of

human manipulation actions. In Intelligent Robots and

Systems (IROS 2014), 2014 IEEE/RSJ International

Conference on, pages 3045–3052.

Rakotomamonjy, A., Bach, F. R., Canu, S., and Grandvalet,

Y. (2008). Simplemkl. Journal of Machine Learning

Research.

Rusu, R. B. (2009). Semantic 3D Object Maps for Ev-

eryday Manipulation in Human Living Environments.

PhD thesis, Computer Science department, Technis-

che Universitaet Muenchen, Germany.

Snoek, C. G. M., Worring, M., and Smeulders, A. W. M.

(2005). Early versus late fusion in semantic video

analysis. In Proceedings of the 13th Annual ACM

International Conference on Multimedia, MULTIME-

DIA ’05, pages 399–402, New York, NY, USA. ACM.

Tsai, J.-S., Hsu, Y.-P., Liu, C., and Fu, L.-C. (2013). An ef-

ﬁcient part-based approach to action recognition from

rgb-d video with bow-pyramid representation. In In-

telligent Robots and Systems (IROS), 2013 IEEE/RSJ

International Conference on, pages 2234–2239.

Vedaldi, A., Gulshan, V., Varma, M., and Zisserman, A.

(2009). Multiple kernels for object detection. In Pro-

ceedings of the International Conference on Computer

Vision, 2009.

Wang, H., Kl¨aser, A., Schmid, C., and Liu, C. (2013).

Dense trajectories and motion boundary descriptors

for action recognition. International Journal of Com-

puter Vision.

Wang, H., Kl¨aser, A., Schmid, C., and Liu, C.-L. (2011).

Action Recognition by Dense Trajectories. In IEEE

Conf. on Computer Vision & Pattern Recognition,

pages 3169–3176, Colorado Springs, United States.

Wang, H. and Schmid, C. (2013). Action Recognition with

Improved Trajectories. In ICCV 2013 - IEEE Interna-

tional Conference on Computer Vision, pages 3551–

3558, Sydney, Australie. IEEE.

Combining Contextual and Modal Action Information into a Weighted Multikernel SVM for Human Action Recognition

307
