Exchanging Solutions for Information Systems Development

using a Model Pattern Perspective

Diagram Templates in the Context of the Mdarte Collaborative Evolution Process

Rodrigo Salvador Monteiro

, Geraldo Zimbrão

and Jano Moreira de Souza

Computer Science Department, Universidade Federal Fluminense, Niterói, Brazil

COPPE, Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil

Keywords: Collaborative Design, Sharing Solutions, Code Generation, Model Driven Architecture, MDA, MDArte,

Model Patterns.

Abstract: Information Systems Development faces many recurrent issues that must be addressed in every project. A

lot of common requirements and features repeatedly appear on different projects challenging the

development team. Exchanging solutions and the expertise gained over the evaluation of such solutions

among projects can prevent the development teams from reinventing the wheel. The MDArte framework

has been used to develop information systems through the Model Driven Architecture approach, automating

the generation from models reaching around 80% of the application code. Most important is that the

MDArte framework turned out to be a common platform between the adherent projects used to share new

solutions and features. This paper focus on recurrent issues present at the modeling phase. We applied the

concept of Model Patterns in order to provide diagram templates. A set of diagram templates were designed,

implemented and evaluated by a volunteer project. The feedback was extremely positive and the proposed

approach proves to be very promising. This level of collaboration between different projects on one hand

accelerates the development and on the other hand prevents from neglecting important issues on information

systems development.

1 INTRODUCTION

When it comes to information systems development,

the development teams are flooded out with business

requirements, recommended practices, technological

requirements, organizational patterns and so forth.

Even worse, the time constraints for delivering full

productive systems are getting tighter in order to

cope with organizational needs. Immersed in all

these worries and hurry it is a natural behavior for

the development team to try to prune the

requirements as much as they can. Keep it simple

and stupid (kiss rule) in order to cope with the

deadlines. Although it is an understandable behavior

given the context, this approach leads to some

problems: (1) some non-functional requirements,

such as security issues, may be neglected; (2) some

desirable business requirements may not be

implemented due to the lack of time for designing a

proper solution; and (3) some mandatory business

requirements may consume too much time for

defining a solution from scratch. Most of the time,

when asking if someone has already been through

the issue you have in hand the answer is yes. This is

especially true if you are talking about how to use

the underlying technology or framework that will

support the development of your specific business

requirement. Furthermore, if you have not defined a

specific technology, library or framework yet, your

research will probably reveal a suitable one. The

main issue here is that, although it is a better

approach than building from scratch, it still does

take a considerable effort. It is not just a matter of

discovering what could help. You also have to check

compatibility with your environment setup, define

which specific version should be used, define how it

will be combined with everything else you are using

and so forth. Now, what if someone has already been

through all these steps in a development

environment similar to yours? If he/she is willing to

share the solution it would be directly applied to

your case. This is exactly what the adherent projects

of the MDArte framework (MDArte, 2015) have

640

Monteiro, R., Zimbrão, G. and Souza, J.

Exchanging Solutions for Information Systems Development using a Model Pattern Perspective - Diagram Templates in the Context of the Mdarte Collaborative Evolution Process.

DOI: 10.5220/0005690306400647

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 640-647

ISBN: 978-989-758-168-7

been doing and benefiting from the exchange of

solutions through what we call the collaborative

evolution process. If no one has been through your

case, you will have to follow the traditional way, but

if someone has gone through all the steps to reach a

solution and have shared it then it will be readily

available for use in your project. In this paper we

applied the concept of Model Patterns in order to

identify similar diagram structures. Diagram

templates can be provided in order to prevent

recurrent modeling tasks. This work also presents a

proof of concept for applying the proposed Model

Pattern approach in a MDA development

environment.

This paper is structured as follows: section 2

introduces the MDArte framework and the

underlying methodology; the collaborative evolution

process is depicted in section 3; the concept of

Model Patterns is described in section 4; section 5

and 6 discuss the use of Model Patterns respectively

in the context of the Collaborative Evolution Process

and in the context of the MDA transformation

procedures; a proof of concept for using Model

Patterns in practice is depicted in section 7; related

works are addressed in section 8 and section 9

concludes the paper along with some future work.

2 MDARTE

Model Driven Architecture (MDA) is a

methodology for information system development

based on values from Model Driven Development

(MDD, 2003). The OMG (OMG, 2015) released it in

2001, and its main goal is to formalize a

methodology on code generation that uses the

Unified Modeling Language (UML, 2005) and some

other industry standards to build abstraction layers

from model to code. These layers represent the main

idea behind the MDA: promoting the separation

between what is considered specific to or

independent of technology. Thus, the same model

could be used to generate the information system for

different platforms without too much additional

work. From the models, more than 80% of

application code can be automatically generated;

leaving around 20% to be written to fit the specific

platform needs (Guttman and Parodi, 2006). Based

on the fact that the generation covers almost all the

code, the development requires less specific

knowledge from developers and reduces both

development time and cost.

After the methodology was released by the

OMG, different organizations started migrating and

building code generation frameworks to work with

its concepts. One of the most widely known and

used MDA frameworks is the AndroMDA

(AndroMDA, 2015), an open source project that

deals with different target technologies. In Brazil,

the project was extended due to the Brazilian

Government’s need to standardize the development

of its information systems, resulting in the creation

of the MDArte framework. Today, it is an open

collaborative community involving public and

private sectors, from industry to academia. Besides

this, although both frameworks have been exploring

the generation of specific information systems, they

are still contributing to each other in order to

streamline code generation.

2.1 Working with the MDArte

Framework

The MDArte consists of a framework with a set of

cartridges that covers different application solutions.

Its cartridges are components responsible for

generating code for specific platforms: EJB,

Hibernate, Java, jBPM, JUnit, and Struts. Because of

its open community nature, the MDArte allows its

users to create their own cartridges or improve

existing ones. Those cartridges can be enabled or

disabled depending on the need of each project to be

generated, at any time. Fig. 1 illustrates how they are

coupled to the framework and the code generated.

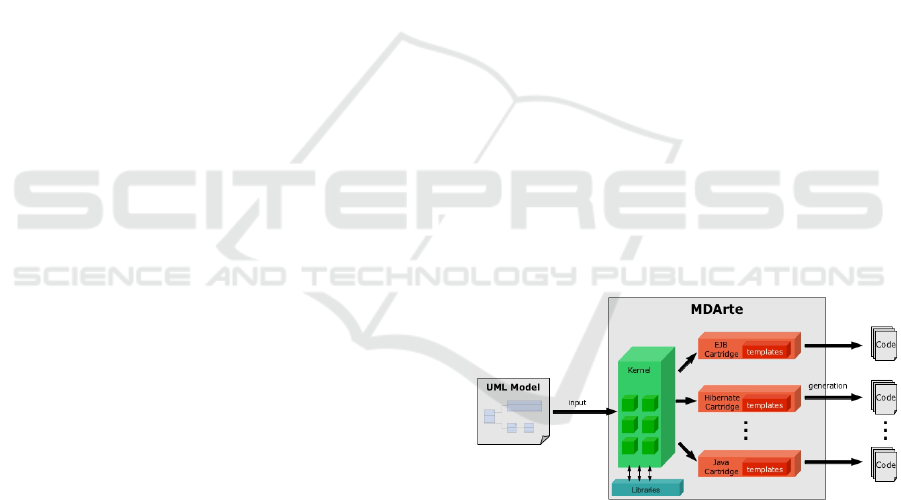

Figure 1: The MDArte structure model.

The process starts by the transformation kernel

reading the UML model representing the

information system specifications. After that, the

kernel starts the activated cartridges triggered to

each UML elements from the model (i.e., elements

such as Class, Use Case, Activity and others). As a

result, each cartridge called by the kernel generates a

set of artifacts that can be split into two major

categories: (1) application’s background

infrastructure and (2) implementation points. These

implementation points represent places where

developers will actually write code in order to cope

Exchanging Solutions for Information Systems Development using a Model Pattern Perspective - Diagram Templates in the Context of the

Mdarte Collaborative Evolution Process

641

with the domain specific business rules or any other

customization needed. The artifacts within this

category are generated only once in order to prevent

the loss of manual changes. The artifacts within the

application’s background infrastructure category are

always rewritten over every model transformation.

This behavior allows the automatically embedding

of new features, by changing the specifications that

guide the model transformation process.

3 COLLABORATIVE

EVOLUTION PROCESS

The MDArte community is hosted on the Portal de

Software Público Brasileiro

(www.softwarepublico.gov.br) and it comprises

forums, wikis, sources, tutorials, releases, etc. It

serves as a central point intended to gather

everybody related somehow to the MDArte. Since

the beginning of its creation a clear motivation was

to go beyond regular or traditional collaboration.

This section presents the process that has been used

in order to evolve the MDArte framework

collaboratively. In a birds eye view, the MDArte

forums and adherents projects are monitored by the

MDArte core team in order to identify solutions

designed in one project that could be of interest for

others. Once a solution is identified, the project that

designed it is asked to share it with the whole

community. The MDArte core team analyses the

designed solution in order to remove specificities

from the application domain and thus generalizes it

in order to improve reusability. The generalized

solution is embedded into the MDArte cartridges

either by changing existing model transformation

procedures or by creating new ones. Finally, a new

MDArte release is published in order to make the

solution available for the whole community. The

collaborative evolution process is depicted in Fig. 2

and explained in the following.

The first step in the process is to identify

requirements or solutions of interest. Any

requirement that has a reasonable chance of

appearing again in other projects or a solution that

could be reused represents a candidate. It is

important to remark that sometimes only the

requirements expressing a need are present without

any solution. As the MDArte community is also

composed by academic institutions, these

requirements may reveal a real-world problem that

deserves a research investigation. This a very

important feature in the MDArte environment as it

serves as a source of real-world problems that can

feed and motivate academic work such as final

projects, thesis and so forth. In such cases, the proof

of concept prototype generated by the academic

work is the input for the next step.

Either if we have in hand a whole solution

provided by a project or a proof of concept prototype

provided by an academic work, the next step is to

generalize the solution in order to improve

reusability. The main concern here is either to turn

the proof of concept prototype into a complete

solution solving and removing some simplifications

typical for such prototypes, or turn the domain

specific solution provided by one project into a

generic solution. In both cases the goal is to come up

with a ready-to-use and reusable solution.

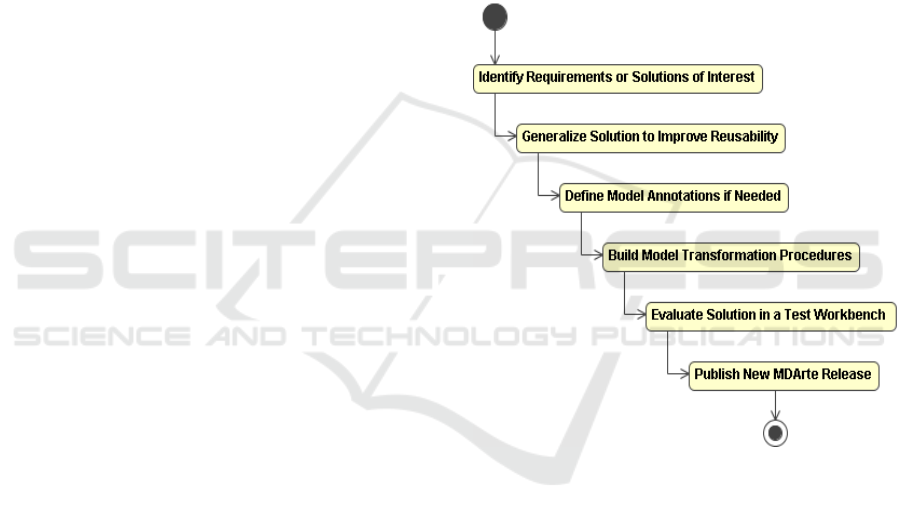

Figure 2: The Collaborative Evolution Process.

Following the process it is required to define if it

will be necessary to annotate the UML model in

order to trigger the generation of the solution. In

many cases, the application models expressed in

UML must indicate where the solution is to be

applied. As an example, when requesting to publish

a service component as a Web Service or to generate

an audit trail for an entity manipulated by the system

it is required to annotate the specific service

components or entities that must present the

expected behavior. However, sometimes no

annotation is required as it is the case when

introducing code to prevent script injection.

Actually, you want to introduce this behavior for the

whole set of components of your system and thus it

is not required to introduce any annotation at all.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

642

Next, the model transformation procedures must

be implemented in order to embed the solution into

the code being generated. If a specific annotation

was defined, the new procedures are linked to them

so that the procedure will be triggered only when the

defined annotation is encountered.

The whole new set of model transformation

procedures are tested with project examples from a

test workbench in order to detect problems or

incompatibility issues.

Finally, a new release of MDArte comprising the

new embedded solution is published and made

available for the whole community.

It is interesting to highlight that the more the

adherent projects benefit from the shared features

the more proactive they turn to be. Indeed

sometimes a project provides not only the solution

but also the model transformation procedures they

have built locally to implement it, which eases the

job for sharing it. Of course there are projects at

complete different levels, but we try to keep a

common motto: share what you have at the level you

feel confident. Just please do not keep it only to

yourself. It does not matter if it is just a requirement,

a full solution or the model transformation

procedures implementation.

4 MODEL PATTERNS

When it comes to information systems development,

recurrent issues can also be identified over the

models that represent the structure and behavior of

the systems. For example, if we look at the UML

diagrams describing a set of use cases for

performing basic maintenance operations over

different domain entities of a system it is expected

that many of such diagrams will look very similar.

Actually this similarity is promoted by some

development guidelines in order to provide a

standardized interface to the end user. Consider an

information system in an academic environment

responsible for managing information on courses,

students, etc. Fig. 3 presents an activity diagram

specifying the flow of a use case for querying

students.

The first activity allows for capturing input filter

parameters from the user. The second activity

performs the filter querying the backend database

and retrieves the students that conform to the filter

conditions. A list of students returned by the system

is presented to the user in the third activity. Finally,

the user can decide among three possible actions:

delete a student returned in the filter list, look into

the details of a specific student or ask to perform a

new filter restarting the use case. Now, if we look at

the use case flow for querying courses we will find a

very similar diagram structure. Beside the specific

filter parameters, which would be naturally different

from students to courses, it is expected that the same

activities, flow and actions would be present.

Indeed, in many development environments it is a

concern to guarantee that such standardization is

obeyed. Identifying recurrent diagram structures

leads to what we call Model Patterns. In other

words, Model Patterns can be defined as a set of

diagrams and their inner elements representing a

standardized behavior associated to higher level

application functionality. Model Patterns can be

viewed as templates, as they define at the same time

the structure and the places where specific

information should be inserted in order to derive

specific instances.

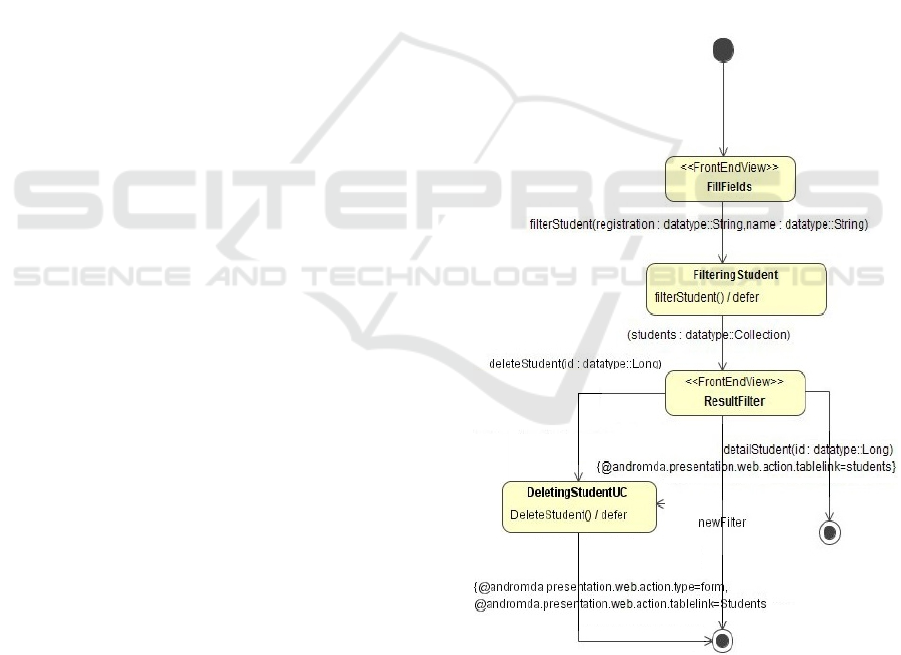

Figure 3: Activity diagram representing the query student

use case flow.

Exchanging Solutions for Information Systems Development using a Model Pattern Perspective - Diagram Templates in the Context of the

Mdarte Collaborative Evolution Process

643

5 MODEL PATTERNS IN THE

COLLABORATIVE

EVOLUTION PROCESS

As stated in the previous section, Model Patterns are

able to capture recurrent behavior representing it

through template diagrams. If we look back to the

Collaborative Evolution Process depicted in Fig. 2

we can consider a Model Pattern to be a Solution of

Interest. Once we agree to do so, we can ask the

adherent projects to identify recurrent diagram

structures over their application domains.

Furthermore, in a broader view it is possible to

identify cross-domain recurrent diagram structures.

In the first case, activity diagrams representing

CRUD (Create, Retrieve, Update and Delete) use

cases are representative examples. Regarding cross-

domain recurrent diagrams, we could identify

diagrams for performing login and administration

tasks, such as an administrator use case for resetting

a user password. If we provide Model Patterns to

address each one of the identified recurrent diagram

structures it will massively reduce the effort of

building diagrams. Furthermore, the automatically

produced diagrams will also be transformed to

platform-specific application code reducing the need

of manual coding.

In the two following sections, we depict the

general approach for embedding Model Patterns into

the MDA transformation procedures and present a

proof of concept implementing a specific Model

Pattern for CRUD activity diagrams.

6 MODEL PATTERNS IN THE

MDA TRANSFORMATION

PROCEDURES

The MDArte cartridges comprise model

transformations receiving models as input and

providing coding artifacts as output. Although,

nothing prevents us from taking models as input and

producing other models as output. Actually, this

conforms to the MDA approach which also

considers model to model transformations. Fig. 4

sketches the regular MDArte transformation which

deals with model to text transformations.

In order to embed Model Patterns into the MDA

transformation procedures we must provide

annotation elements, regarding the third step in the

Collaboration Evolution Process, which will trigger

the diagram templates associated with the desired

Model Pattern. The diagram templates will be able

to read the required information from the input

model for filling the specific information into the

templates in order to produce a specific diagram

instance. The diagrams produced by the template

execution should then be presented as a new input to

the MDA transformation procedures in order to

produce the final coding artifacts. Fig. 5 sketches the

steps described above.

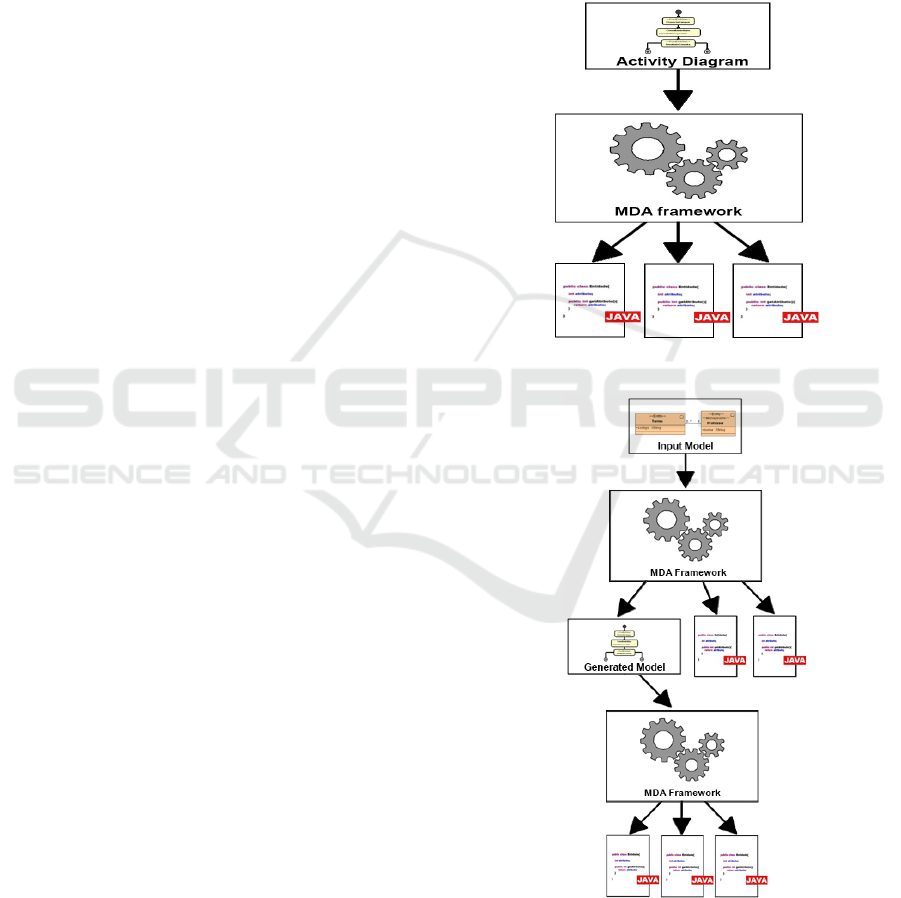

Figure 4: Sketch of Model to Text transformations.

Figure 5: Sketch of Model to Model and Model to Text

transformations.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

644

7 PROOF OF CONCEPT: MODEL

PATTERN FOR CRUD

ACTIVITY DIAGRAMS

Most of the entities handled by an information

system must have use cases for performing basic

data maintenance operations, such as creating,

retrieving, updating and deleting instances. This set

of operations is commonly known by the acronym

CRUD. Consider a project using a Model Driven

approach applying activity diagrams in order to

specify the use case flows. The task of designing

activity diagrams for each set of CRUD use cases for

each entity of the system is tedious and time

consuming. Furthermore, the mechanical nature of

this task invariably leads to copy-and-paste errors

and when performed by different developers

normally compromise the established standards.

CRUD activity diagrams are, therefore, recurrent

diagram structures that could be represented by

Model Patterns templates. Once the solution of

interest has been identified, we must generalize the

solution in order to improve reusability. In this case,

it corresponds to design activity diagram templates

following some desired standard use case flow,

removing all information regarding a specific entity

and replacing it with annotations that will be

replaced latter in the process. This should be done

for all CRUD diagrams. Fig. 6 presents an activity

diagram template for updating instances of an entity.

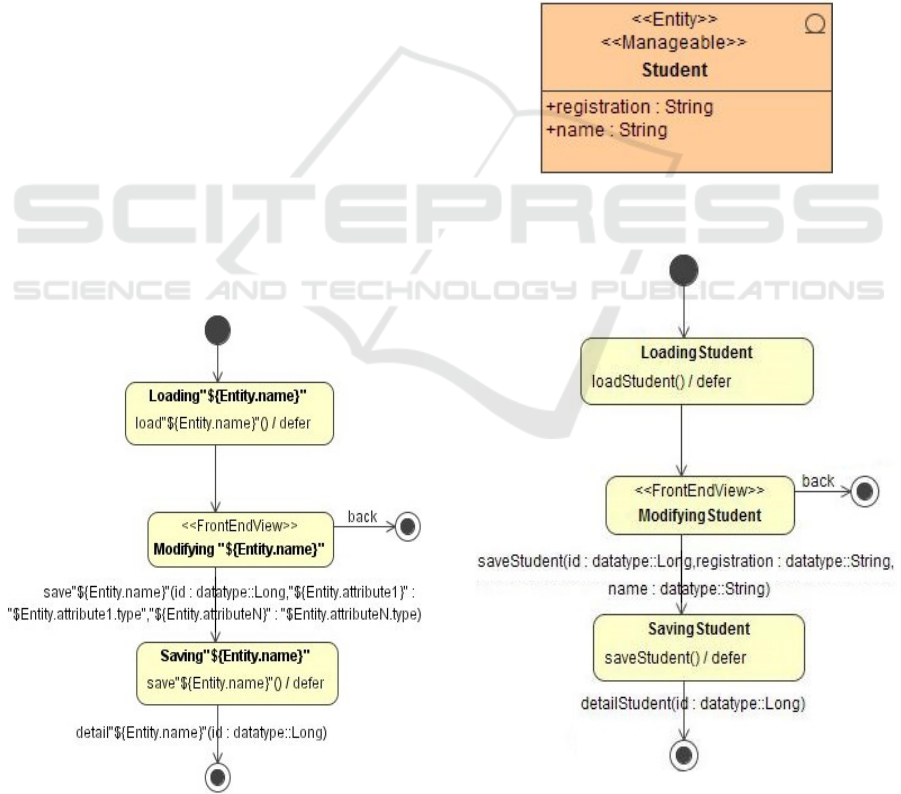

Figure 6: Activity diagram template for the Update use

case flow.

Once the template is designed, we must evaluate

it in order to identify the nature of the missing

information. This information corresponds to the

data that must be provided in order to fill the

template parameters. A closer look at the template at

Fig. 6 reveals that the missing information

corresponds to the details of the domain entity that

will be handled by the CRUD. On the other side, it

should be possible to specify which domain entities

must have CRUD use cases. This leads us to the

need of defining model annotation in order to

specify which domain entities will trigger the

generation of CRUD diagrams. In this particular

case, we created a new stereotype named

<<Manageable>> which must be applied to the

desired domain entities. Fig. 7 shows an example of

a domain entity with the new stereotype applied.

Figure 7: Example of domain entity with the manageable

annotation.

Figure 8: Update diagram instance generated for the

Student class.

Exchanging Solutions for Information Systems Development using a Model Pattern Perspective - Diagram Templates in the Context of the

Mdarte Collaborative Evolution Process

645

The MDArte model transformation specifications

where evolved in order to link UML Classes with

the Manageable stereotype to the new designed

diagram templates. The result of applying the

template in Fig. 6 to the domain entity in Fig. 7 can

be seen in Fig. 8.

The same way, diagram templates for the

remaining CRUD operations were designed and

implemented. A new candidate release of MDArte

was distributed to a volunteer project. On one hand,

the project members’ feedback was extremely

positive, once that they could perceive in practice

gains of productivity. On the other hand, it turned

out to be a very promising approach, once that they

could identify a lot of new candidate features, such

as supporting relationships among entities. The new

features identified are being analyzed and will derive

new diagram templates in future releases.

8 RELATED WORK

Most of the researches regarding collaborative

environments seem to be focused on the

improvement of system development processes. The

work presented on Ochoa et al. (2010) has explored

the use of collaborative applications applied directly

to the Software Engineering environment, aiming to

improve its process. It introduces a collaborative

application that can be used by small teams to share

data related to Software Requirements. Targeting the

same environment, the work on Zanoni et al. (2011)

described a semi-automatic method to speed the

documentation during the development process and

allows the workgroup to have better visibility of the

source code being produced and its documentation.

Moreover, it is also possible to find significant

works in the area that uses Model Driven

Architecture (MDA), as described in Angelaccio and

DAmbrogio (2007), to promote collaborative

support between members of development

environments. Moreover, when taking in

consideration the works that target the final user, we

have Matera et al. (2003) as one of the references

related to model-driven approach for collaborative

web application. Besides, in Pinel et al. (2012) we

describe the use of MDA to embed collaborative

tools into information systems.

Our work differs from others as it explores the

advantages of the Model Driven Architecture to

share solutions among different projects. This way,

every project participating in the community may

benefit from all solutions made available by the

whole community. Moreover, no matter the specific

application domain of each individual projects they

are constantly challenged by recurrent issues that

appear in complete different contexts. This way,

even when the application domains are completely

different, they can still contribute to each other.

9 CONCLUSION

The task of information system’s development teams

are getting more challenging. Tight schedules and

rapidly changing requirements are increasingly

frequent. Providing the right tools for the

development team in order to face such challenges is

a critical issue. The use of new methodologies such

as the Model Driven Architecture approach is

gradually proving its value and helping development

teams to cope with their tasks. This paper presented

how a virtual community built around the MDArte

framework has been using MDA to exchange

solutions for recurrent requirements present on

information systems development. The adherent

projects collaborate with the MDArte framework

evolution providing from requirements to be

addressed to complete model transformation

procedures in order to enrich the capabilities of the

framework. By doing so, the whole community is

benefited. The experience over the last years has

shown that the more the project is benefited by the

framework the more it is willing to contribute with

new solutions. The major contribution of this paper

is to report this successful experience on reuse and

collaboration among projects with completely

different application domains. Such level of

collaboration is achieved by following what we

called collaboration evolution process. Through this

process, the projects can exchange and share

solutions by the evolution of the MDArte

framework. In this paper we focused on the use of

diagram templates aiming at preventing recurrent

modeling tasks. The increasing level of collaboration

serves as an evidence of the usability and usefulness

of the MDArte framework and the presented

approach. As future works we can list: report the

application of the model in real world information

systems developed so far; the need of proposing a

business model to support and sustain the

community in order to make it more independent

from the institutions that conceived it; promote a

tighter interaction between the adherent projects and

the Academia; and aggregate new academic

institutions in the community ecosystem.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

646

ACKNOWLEDGEMENTS

Authors of this paper would like to thank FAPERJ,

CAPES and CNPq for supporting part of this

research.

REFERENCES

MDD, Model-driven development, IEEE Software Special

Issue, S.J. Mellor, A.N. Clark, T. Futagami (eds.), vol

20, n. 5, September 2003.

UML, Object Management Group, Unified Modeling

Language (UML): Superstructure, version 2.0, August

2005.

Ochoa, S. F., Quispe, A, Vergara, A., and Pino, J. A.,

"Improving requirements engineering processes in

very small software enterprises through the use of a

collaborative application", in the 2010 14th

International Conference on Computer Supported

Cooperative Work in Design (CSCWD), 2010, pp.

116-121.

Zanoni, J. C., Ramos, M. P., Tacla, C. A, Sato, G. Y., and

Paraiso, E. C., "A semi-automatic source code

documentation method for small software

development teams," in Proceedings of the 2011 15th

International Conference on Computer Supported

Cooperative Work in Design (CSCWD), 2011, pp.

113-119.

Angelaccio, M., and DAmbrogio, A., "A model

transformation framework to boost productivity and

creativity in collaborative working environments," in

2007 International Conference on Collaborative

Computing: Networking, Applications and

Worksharing (CollaborateCom 2007), 2007, pp. 464-

472.

Matera, M., Maurino, A., Ceri, S., and Fraternali, P.,

"Model-driven design of collaborative Web

applications," Software Practice and Experience, vol.

33, no. 8, pp. 701-732, 2003.

Guttman, M., and Parodi, J., Real-Life MDA: Solving

Business Problems with Model Driven Architecture,

1st ed. Morgan Kaufmann, 2006, p. 224.

AndroMDA. URL: http://www.andromda.org. Last visit:

Nov 2015.

OMG, Object Management Group. URL:

http://www.omg.org. Last visit: Nov 2015.

MDArte. URL:

http://www.softwarepublico.gov.br/dotlmlclubs/mdart

e. Last visit: Nov 2015.

Pinel, R. E. A., Monteiro, R. S., Zimbrao, G., and Souza,

J. M.: “Collaborative support embedded in

information system through automatic code

generation.” In Proceedings of the 2012 IEEE 16th

International Conference on Computer Supported

Cooperative Work in Design (CSCWD), 2012, pp.

328-333.

Exchanging Solutions for Information Systems Development using a Model Pattern Perspective - Diagram Templates in the Context of the

Mdarte Collaborative Evolution Process

647
