VESPa: A Pattern-based Visual Query Language for Event Sequences

Florian Haag, Robert Kr

uger and Thomas Ertl

Institute for Visualization and Interactive Systems, University of Stuttgart, Universit

atsstraße 38, 70569, Stuttgart, Germany

Keywords:

Visual Query Language, Semantic Movement Analysis, Temporal Filtering, Timeline Queries.

Abstract:

Movement data can often be enriched with additional information that enables analysts to ask new questions,

for instance about POIs visited and meetings that imply interactions between persons. Information on spatio-

temporal events such as visits or meetings can be especially valuable for digital forensics, marketing analysis,

and urban planning. Most existing query languages for movement data, however, do not take that additional

information into account. We address this gap by proposing VESPa, a pattern-based graphical query language

to express, check, and reﬁne hypotheses about spatio-temporal event sequences. Using VESPa, the analyst

can sketch abstract assumptions and use the pattern to query the data for matches. The applicability of our

approach is demonstrated in two case studies with different datasets. We also report on a small user study in

which several construction and comprehension tasks were successfully solved in an interactive implementation

of the concept.

1 INTRODUCTION

Increasing amounts of movement data are collected,

and recording precision is constantly rising. Analyses

of that data can reveal important insights, for exam-

ple, to improve urban planning, transport efﬁciency,

and digital forensics. While data exploration is an

important task to reveal the unknown, analysts often

have speciﬁc questions about the data. Regarding ur-

ban planning tasks, an analyst may be interested in

checking whether a certain suburb is well connected

to the inner city area, or more precisely, if there are

any times of the day when roads are congested and

the daily commute takes particularly long. To improve

sales and quality of service, it is of interest to under-

stand indoor behavior patterns such as the ﬂow of cus-

tomers during their stay in a mall, or visitors explor-

ing different exhibits in a museum. Also, concerning

surveillance tasks, spatio-temporal happenings need

to be veriﬁed. Here, especially gatherings are of in-

terest, that is, when several persons meet at a spe-

ciﬁc time at a speciﬁc place. More abstractly, each

of these examples revolves around a sequence of con-

secutive spatio-temporal events that involve a single

or multiple persons. Figure 1 exemplarily illustrates

data of three persons’ movement paths and the event

sequences therein.

Detecting such situations can be complex, as

multiple conditions like varying timespans, different

places, persons, and orderings of events need to be

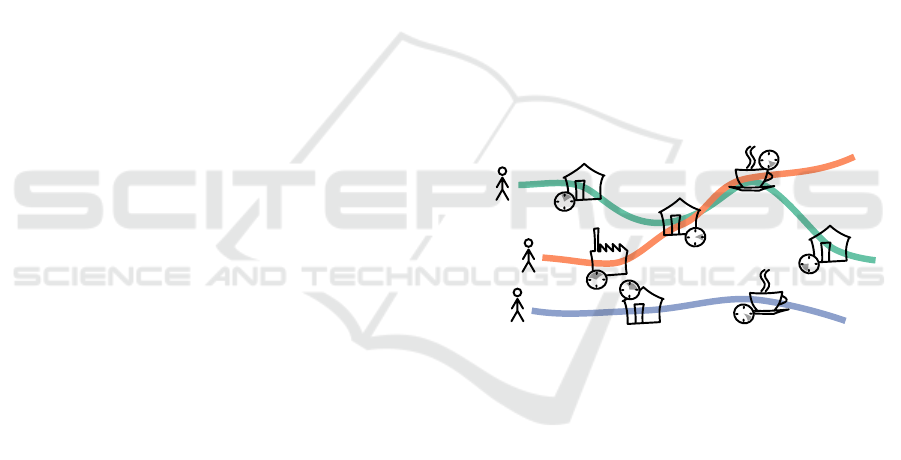

Figure 1: A sketch of a movement dataset that stores the

consecutive stays and meetings of various people at speciﬁc

locations and time as sequences of events. For instance, the

person in the middle has the event sequence e

→ e

and meets the person on top in e

and e

expressed. This is especially true for domain experts

in the aforementioned domains who have no program-

ming or database experience. Visual query notations

can help to hide this complexity under an easier to un-

derstand set of visual items. To the best of our knowl-

edge, none of the existing graphical query notations

for event data (e.g. by Wongsuphasawat et al. (2012)

or Zgraggen et al. (2015)) visualize meetings of mul-

tiple persons at certain points of interest.

To address this gap, we propose a new notation

to visually express such spatio-temporal event se-

quences of one or more persons. Once deﬁned, the

visual event sequence can be used as a graphical

representation of a hypothesized sequence of events.

Likewise, it can be used as a pattern to ﬁlter the

data and ﬁnd any instances of the presumed event

Haag, F., Krüger, R. and Ertl, T.

VESPa: A Pattern-based Visual Query Language for Event Sequences.

DOI: 10.5220/0005716900480059

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 2: IVAPP, pages 50-61

ISBN: 978-989-758-175-5

sequence, thereby conﬁrming the hypothesis. Based

on the results, the event sequence pattern can also

be iteratively reﬁned in a veriﬁcation loop, based on

the sensemaking process by Pirolli and Card (2005).

Our approach is especially helpful for domain ex-

perts of an application ﬁeld (e.g. urban planning, dig-

ital forensics) who are not familiar with formal text-

based query languages such as SQL. Furthermore,

users who could express their queries in SQL might

still beneﬁt from a visual representation to facilitate

error checking and communication.

After discussing related work in the ﬁelds of event

data models, event visualization, and event ﬁltering

in Section 2, we present VESPa, our V

isual Event

Sequence Pattern notation, in Section 3 and justify

our design choices. We demonstrate the usefulness of

VESPA with several pattern examples, two case stud-

ies (Section 5), and a small user study (Section 6),

both using a prototypical implementation (Section 4).

2 RELATED WORK

We have looked at various options to represent con-

crete event sequences and to visualize the events

found therein, as well as related spatio-temporal data.

The ﬁndings from that literature survey provide a ba-

sis to discuss possible query visualizations for such

event sequences.

2.1 Modeling of Event Data

There are several variations of modeling event-based

data. In basic event logs, events are usually associated

with a timestamp and carry some structured informa-

tion on the event (Makanju et al., 2011; Gaaloul et al.,

2004). In the case of multiple logging sources, that in-

formation can also include a hint about the origin of

the event message (Abela et al., 1999).

For the purpose of representing action sequences

described in texts, a timeline of events can be de-

ﬁned as a series of intervals that are deﬁned by

an action and related resources (Do et al., 2012).

Similarly, events are deﬁned with respect to sensor

data (Atrey et al., 2006; Heydekorn et al., 2011; Kim

and Giunchiglia, 2012), where a timespan can be sup-

plied as an additional attribute (Atrey et al., 2005).

Entries in spatio-temporal event logs can be as-

sociated with timespans and locations (Peuquet and

Duan, 1995). Such entries may include data that im-

plicitly or explicitly points out a connection between

related events (Huang et al., 2008; Jiang et al., 2011).

All of these works do not involve any visualiza-

tion or querying of events, and therefore are not com-

parable to our work. However, we will base our own

model of event data on these works.

2.2 Visualization of Event Data

Temporal event data are frequently visualized in a

timeline, such as by lines expressing states (Plaisant

et al., 1996). These data are commonly split up to

distinguish different persons (Kumar et al., 1998) or

event types (Tao et al., 2012; Heydekorn et al., 2011).

Additional information on single events or on sets

of events can be encoded into the timeline (Krstaji

et al., 2011; Fischer et al., 2012). In some cases, the

lines still conform to a time axis, but are reshaped to

express some information themselves (Havre et al.,

2000; Guo et al., 2014).

When looking at the visualization of spatio-

temporal events in particular, it becomes apparent

that the spatial and the temporal dimensions are of-

ten expressed in separate, but linked views (Fischer

et al., 2012; Marcus et al., 2011). Alternative ap-

proaches use a space-time-cube (Kapler and Wright,

2005; Tominski et al., 2012), or they integrate aggre-

gated spatial data into the temporal visualization (Guo

et al., 2011). Moreover, additional visual elements can

indicate the temporal properties of data shown in a

spatial view (Sun et al., 2014).

Rather than the exact geographical reality, a se-

mantic view on locations (e.g. location names or cat-

egories rather than coordinates) can be extracted from

geographic databases or generated from social net-

works (Parent et al., 2013; Kr

uger et al., 2014). The

link between the geographical locations and the logi-

cal locations can be displayed (Zhu et al., 2013), but

in some cases, the primary interest lies in the seman-

tic locations (Nguyen et al., 2007; Westermann and

Jain, 2007), or they are even the only data available or

cleared for use (Andrienko et al., 2013).

While all of the approaches mentioned above

show event sequences, they do not help to express and

visualize queries on them.

2.3 Filtering of Event Data

A variety of approaches for visually expressing

generic ﬁlter queries have been proposed in the

past (Shneiderman, 1994; Seifert, 2011; Soylu et al.,

2013; Russell et al., 2008). There are specialized

query visualizations for spatial data, some using

symbolic representations of geographical relation-

ships (Morris et al., 2004; Wu et al., 2013) and oth-

ers working directly on concrete maps (Kumar et al.,

2013). The symbolic representations lend themselves

to use cases that work with logical locations.

VESPa: A Pattern-based Visual Query Language for Event Sequences

For selectively ﬁnding particular pieces of in-

formation in spatio-temporal data, the spatial and

the temporal dimensions are split up in some con-

cepts (Boyandin et al., 2011; Certo et al., 2013;

uger et al., 2013). Also, a graphical notation that

expresses exact relative relationships between loca-

tions or areas and timespans has been proposed (Bon-

homme et al., 1999). The only other visual approach

that we are aware of displays the query restrictions

in a space-time-cube (D’Ulizia et al., 2012). Some

of these concepts can be further abstracted to replace

the geographical association with restrictions based

on logical locations (Certo et al., 2013), and time-

related works provide some further ideas on how to

visually represent certain features required for tem-

poral queries (Monroe et al., 2013).

So far, only few approaches speciﬁcally deal with

the visual speciﬁcation of queries for event sequences,

which could be used for ﬁnding particular event

patterns and validating hypotheses about event se-

quences. Those that do only visualize the event se-

quence, but they do not emphasize the query structure

and its restrictions in a visual way other than aligning

sequential states horizontally or vertically (Plaisant

et al., 1996; Gotz and Stavropoulos, 2014; Wong-

suphasawat et al., 2012). Only few concepts repre-

sent series of events to ﬁnd on a timeline (Fails et al.,

2006), or as nodes with temporal constraints (Dion-

isio and C

ardenas, 1996), rather than just displaying

results in a visual way (Plaisant et al., 1996). Still,

relations between distinct objects are usually not sup-

ported (Zgraggen et al., 2015). When they are, these

are expressed by matching colors in otherwise visu-

ally disjoint elements (Jin and Szekely, 2009).

As opposed to the aforementioned work, we fo-

cused on the graphical representation of event se-

quence patterns of multiple persons. Rather than just

recognizing similar sequences (Plaisant et al., 1996),

we are looking for actual overlaps that allow for an

interaction of persons. Moreover, we want to visually

express the overlaps of event sequences by actual con-

nections rather than just by matching properties such

as node colors (Jin and Szekely, 2009) to make the

connection explicit.

3 QUERY NOTATION

We contribute a new visual notation to represent pat-

terns of event sequences. The notation can be used to

express hypotheses and it can be executed as a data

query, for example, to answer which kinds of loca-

tions people meet at before going to a restaurant to-

gether when evaluating the layout of a shopping mall.

While this sequence of events can still be described

relatively easily, queries can often become more com-

plex: “Find all pairs of persons who travel together

from one place to another place, where they arrive af-

ter 3 PM, after one of them has ﬁrst visited an arbi-

trary location and then an ice cream parlor, while the

other one has arrived from another location, where he

or she has not met the ﬁrst person.” still describes a

relatively simple sequence of events, yet the text is al-

ready quite long and possibly confusing. Queries of

the same or a higher complexity can also be required,

for instance, in digital forensics, when investigators

try to ﬁnd out whether people meet after having vis-

ited certain locations that are connected to a crime.

In the above example and the aforementioned lit-

erature (Makanju et al., 2011; Gaaloul et al., 2004),

certain basic components of the query become ap-

parent: There are several distinct persons. These per-

sons stay at different locations, and the time at which

they stayed there is relevant to determine whether the

persons might possibly have met. Therefore, such a

stay can be called an event. Furthermore, the move-

ments of each person between the respective locations

are considered, connecting events to event sequences.

Finally, restrictions can be imposed on the elements

mentioned so far, such as the type of a location, or an

arrival time.

Based upon these components, we have deﬁned a

minimal set of visual elements. These elements can

be connected in a node-link diagram, which we call

Visual Event Sequence Pattern (VESPa). This visual-

ization has two purposes:

1. It can be used to express a hypothesis about the

event sequences of one or more known or un-

known persons.

2. It can be executed as a database query, where

each element from the event sequence pattern is

mapped to a database item.

3.1 Query Elements

With the aforementioned goals and requirements,

VESPa consists of the following elements:

Person Node: A person node as depicted in Fig-

ure 2(a) is a placeholder for a movable subject,

such as a person.

Event Node: An event node, shown in Figure 2(b),

is a single node in an event sequence pattern, like

events found in related work (Fails et al., 2006;

Plaisant et al., 1996; Dionisio and C

ardenas,

1996). In spatio-temporal contexts, it denotes a

stay of one or more persons at a particular loca-

tion and timespan.

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

(a) Two persons, one of

them has some restric-

tions.

(b) Two event nodes,

one of them has a re-

striction.

central dot provides ac-

cess to a settings UI.

(d) A comparison edge,

conﬁgured to require

equal names and differ-

ent dates of arrival.

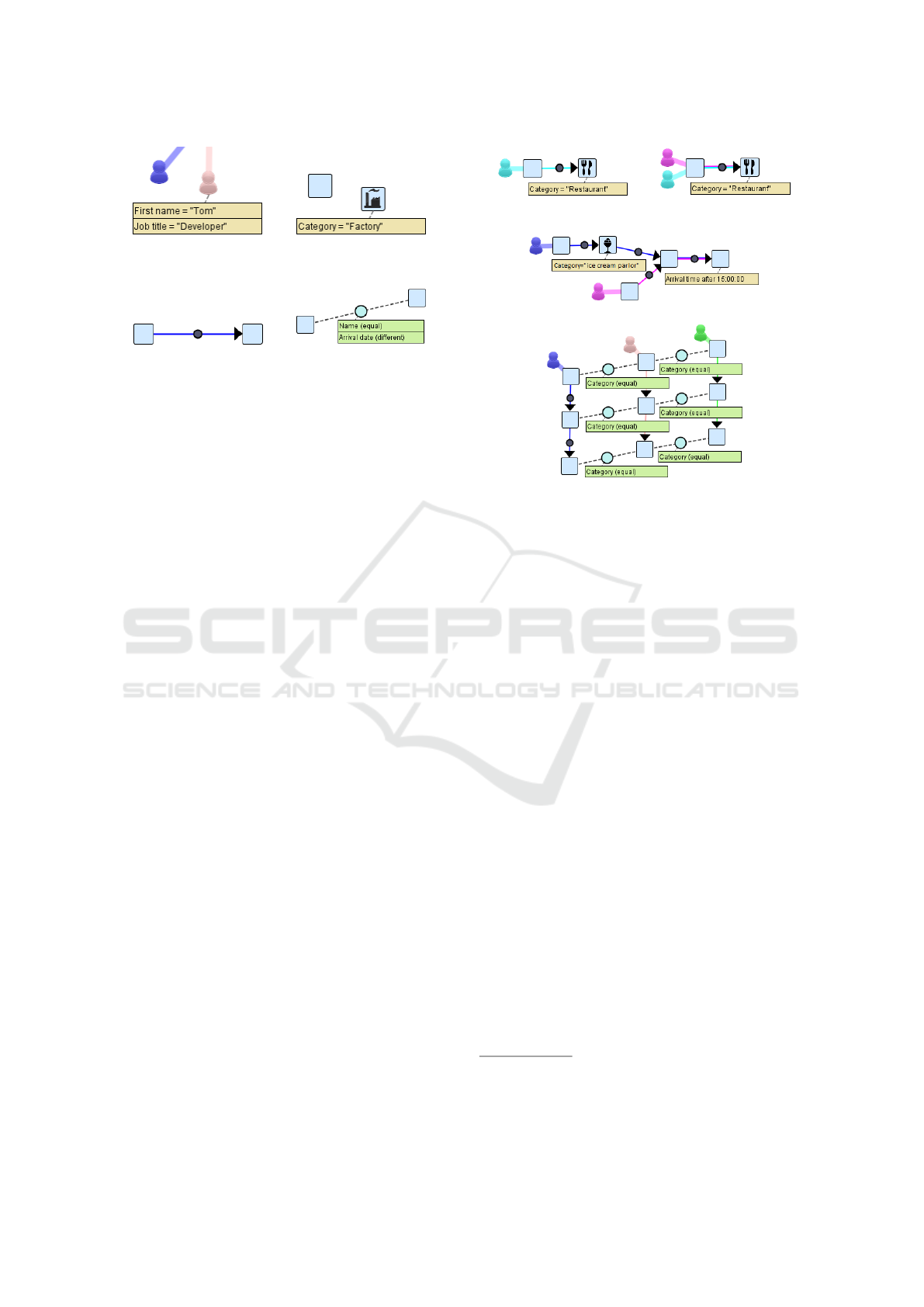

Figure 2: The basic visual elements used in VESPa.

Transition: A transition unidirectionally connects

two event nodes (Figure 2(c)), comparable to the

TimeSpan bars from PatternFinder (Fails et al.,

2006). It represents how persons move on from

one event node to another.

Restriction Tag: A restriction tag expresses an ab-

solute condition that can be imposed on a person

node or on an event node. Examples are depicted

in Figures 2(a) and 2(b).

Comparison Edge: A comparison edge connects

two person nodes, two event nodes (as shown in

Figure 2(d)), or a person node and an event node,

to enforce a relationship between any of their at-

tributes. For instance, attribute values of two such

nodes can be required to be equal or different. We

have chosen to add this additional representation

of restrictions, as conditions fulﬁlled with respect

to another node have been considered in related

concepts (Fegeras, 1999; Russell et al., 2008).

Based upon the aforementioned visual query ele-

ments, various compositions are possible. In the fol-

lowing, we will present some advanced compositions

and restrictions by example.

Person nodes are always indicated next to the ﬁrst

event node in the sequence of the respective person

and connected to it with a thick, semi-transparent line

for clariﬁcation. There is only one person node for

each person in the dataset. We chose this design, as

restrictions on persons are globally valid throughout

the whole event sequence. A simple example of a

VESPa query with one person is shown in Figure 3(a).

It shows a person who moves from an arbitrary place

to a place categorized as a restaurant.

Transitions are shown as colored lines. The

color(s) of each transition match(es) the color(s)

(a) A single person

travels to a restaurant.

(b) Two persons travel

to a restaurant together.

(d) Three persons visit three places of the same category.

Figure 3: Various exemplary event sequence patterns.

of the involved persons

. For instance, Figure 3(b)

shows how two persons meet at an arbitrary place and

move on together to a restaurant from there—the ex-

ample from the very beginning of this section.

The arrowhead indicates the direction of each

transition. As event nodes represent locations at a spe-

ciﬁc time in spatio-temporal contexts, cycles of tran-

sitions and undirected transitions are disallowed. A

transition may include several legs of a journey, as a

speciﬁed number of events to skip can be supplied for

each transition in the pattern.

Based upon these deﬁnitions, we can also repre-

sent the complicated pattern described textually in the

beginning of this section, as shown in Figure 3(c). As

an example of how comparison edges can be used,

Figure 3(d) shows a query that ﬁnds three persons that

subsequently visit three similar (with respect to their

category attribute) places in the same order.

3.2 Interpretation of Event Nodes

As pointed out above, we chose to deﬁne an event

node in a query as a place at a particular time. This

allows us to focus on encounters between several per-

sons, which thus need to coincide both in time and

place. Furthermore, we deﬁne that no two event nodes

can refer to stays of persons at the same place and at

overlapping timespans.

For this paper, colors were chosen so as to be distin-

guishable both on colored and greyscale printouts. Concep-

tually, alternative color schemes can be chosen that are spe-

ciﬁc to user requirements, for instance, color blindness.

VESPa: A Pattern-based Visual Query Language for Event Sequences

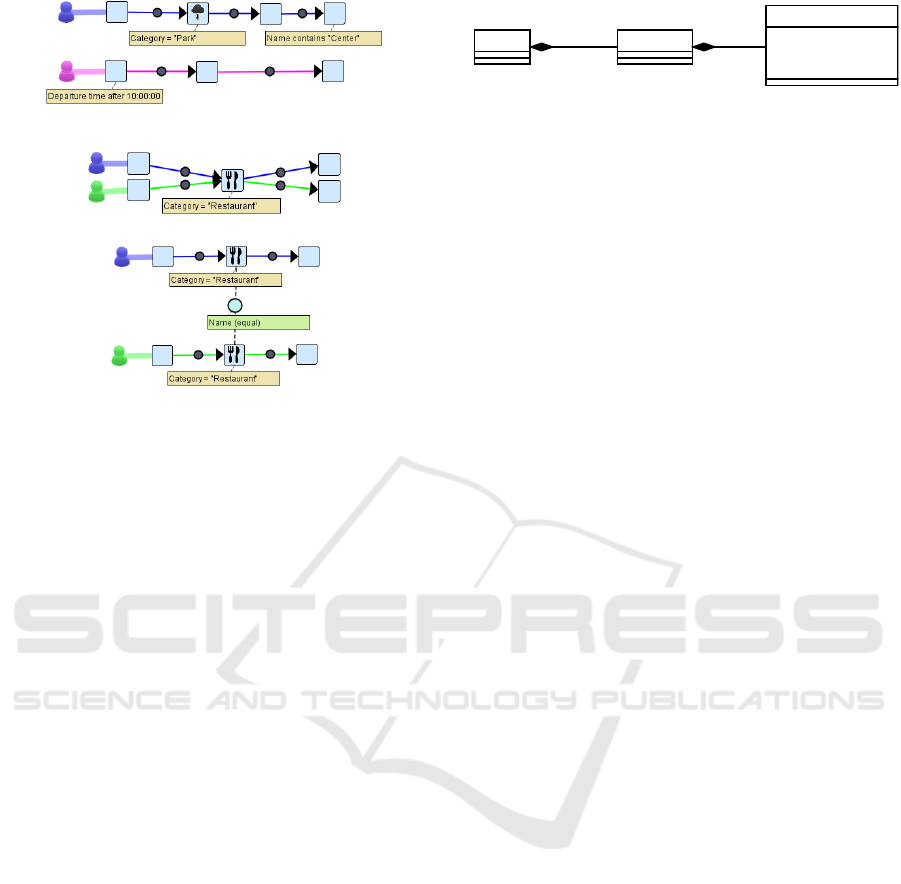

(a) Event sequences of two persons who do not meet each

other.

(b) Two persons meet each other in a restaurant.

times (and hence do not meet).

Figure 4: Contrast between persons who visit the same place

at the same time and persons who visit the same place at

different times.

Accordingly, Figure 4(a) shows an event sequence

pattern that represents independent event sequences

of two persons who do not meet. Expressed as shown

in Figure 4(b), the persons meet at a restaurant (the

central node marked with a fork-and-knife-symbol).

In Figure 4(c), both persons visit a particular restau-

rant (in a dataset where each restaurant has a unique

name), but they do not meet. As both depicted restau-

rant event nodes refer to the same restaurant, and no

two event nodes can be mapped to the same location

at the same time, it is implied that the two persons

stayed there at different times.

3.3 Query Semantics

In the following, we deﬁne the exact semantics of

VESPa queries. First, we describe the structure of the

queried data, followed by a description of how VESPa

query elements are mapped to result elements.

We assume the small database schema depicted

in Figure 5, essentially a set of persons, each of

which can have linear sequences of events. We have

chosen this schema as its simple structure illustrates

that VESPa does not require a speciﬁcally optimized

dataset. Also, we expect the conversion of data from

other schemas to ours to be sufﬁciently easy.

Formally, a dataset matching the schema from

Figure 5 can be seen as a tuple d ⊆ Persons

Sequences

× Events

of three disjoint sets. We are

interested in meetings between persons, but in the

above schema, each event belongs to exactly one per-

Person Sequence

Event

+indexInSequence: int

+start: DateTime

+end: DateTime

+location: String

+sequences

0..*

+events

0..*

Figure 5: UML diagram of the database schema assumed for

the data that can be ﬁltered with VESPa. Persons and events

may have additional columns for domain-speciﬁc attributes

that can be used in restrictions.

son. Therefore, a pre-processing step is necessary to

replace Events

with Events

—a set of events linked

to one or more persons and part of one or more event

sequences. Each element e

∈ Events

contains a set

.persons ⊆ Persons

of participants of the event.

Events

contains copies of all events from

Events

, as well as any events describing possible

meetings. Formally, any element of Events

is based

upon a set

⊆ Events

of events from the original

dataset. Then,

must satisfy the condition

∀ ˜e

d,α

, ˜e

d,β

∈

, ˜e

d,α

6= ˜e

d,β

( ˜e

d,α

.location = ˜e

d,β

.location)

∧ ( ˜e

d,α

.start < ˜e

d,β

.end)

∧ ( ˜e

d,β

.start < ˜e

d,α

.end)

A VESPa query q ⊆ Persons

× Events

can then

be used to ﬁlter the dataset d. For each result of the

query, the function

valueOf : Persons

∪ Events

→ Persons

∪ Events

maps abstract person nodes and event nodes from the

query to concrete persons and events from the dataset,

respectively, and no two nodes from the query can be

mapped to the same person or event from the dataset.

Furthermore, the conditions imposed by restrictions

and comparison edges are adhered to.

The mapping of event nodes from Events

to el-

ements of Events

is then deﬁned as follows: Let

⊆ Persons

be a set of persons from the query that

is bijectively mapped to the elements of a set

⊆

Persons

. Let e

q,1

, e

q,2

∈ Events

be two events from

the query that are connected by a transition t

from

q,1

to e

q,2

, where t

applies to the elements of

. The

mapping can then determine valueOf(e

q,1

) = e

d,α

and

valueOf(e

q,2

) = e

d,β

such that:

• e

d,α

and e

d,β

equal the ﬁrst and last, respectively,

in a sequence of events ˙e

d,1

, . . . , ˙e

d, ˙n

∈ Events

connected by transitions.

•

˙n

i=1

˙e

d,i

.persons ⊇

• ˙n − 2 equals the number of intermediate events

that may be skipped by t

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

4 IMPLEMENTATION

We have implemented VESPa in a system based on

the Java Swing toolkit. It supports all of the features

described in Section 3, except for comparison edges

between a person and an event node. Also, there is a

hard-coded limitation to six persons.

All VESPa queries depicted in this work are based

on screenshots of the prototype. Therefore, circular

user interface elements for accessing conﬁguration

pop-ups are visible in the center of edges.

In the prototype, we use SQLite for executing the

queries, though other SQL databases could also be

used. For that reason, each event sequence pattern

is translated by the prototype to an equivalent SQL

query. We use the aforementioned schema depicted in

Figure 5, with an additional Person column to directly

retrieve an event owner. The extraction of Events

from Events

as described in Section 3.3 happens on

the ﬂy while executing the query, as precomputing all

mutual events would multiply the data volume. As we

rely on the event index in a sequence, our implemen-

tation cannot recognize consecutive meetings of over-

lapping sets of persons at the same location.

Based on the schema, Listing 1 shows SQL code

equivalent to the small event sequence from Fig-

ure 3(b). Even with such a simple schema, the SQL

statement is inconveniently long and not directly com-

prehensible. The SQL statement might be slightly

shortened by avoiding composite keys in the schema,

but the basic complexity of matching events to ﬁnd

possible meetings between persons would remain. We

consider this a sign that our visual event sequence pat-

tern constitutes a simpliﬁcation over the textual spec-

iﬁcation of the same query with a formal language.

5 CASE STUDIES

In the following sections, we describe two scenarios

of application for VESPa using two different datasets.

Based on these, we want to show how the query no-

tation can be applied to actual datasets to ﬁnd par-

ticular event patterns and retrieve speciﬁc informa-

tion. The case studies do not just present hypotheti-

cal possibilities—the described ﬁlter operations have

actually been executed in the prototype described in

Section 4, which then also retrieved and displayed

query results mentioned in the case studies.

5.1 Social Event Detection

The ﬁrst dataset was released as part of the VAST

Challenge 2014 (Visual Analytics Community, 2014).

Listing 1: SQL statement equivalent to the event sequence

pattern from Figure 3(b), based on the schema from Fig-

ure 5: The graphical representation in Figure 3(b) is more

concise.

SELECT P1 . id , Ea 1 . s eq u e n c e AS ” Se q u e nc e1 ” ,

Ea 1 . i n d ex In S e q ue n c e , Eb 1 . i n d e x I nS e q u e n ce ,

P2 . i d , E a 2 . s e q ue nc e AS ” S e q u en ce 2 ” ,

Ea 2 . i n d ex In S e q ue n c e , Eb 2 . i n d e x I nS e q u e n c e

FROM P e r s on P1 , P e r s o n P2 ,

Ev e n t Ea 1 , E ven t Ea 2 , E ven t Eb 1 , E v en t Eb 2

WHERE ( P1 . i d <> P2 . i d )

AND ( Ea 1 . s e q u e n c e = Eb 1 . s e q u e nc e )

AND ( Ea 1 . i n d e x I n S e qu e n c e + 1

= Eb 1 . i n d e x I n S e q u e n c e )

AND ( Ea 2 . s e q u e n c e = Eb 2 . s e q u e nc e )

AND ( Ea 2 . i n d e x I n S e qu e n c e + 1

= Eb 2 . i n d e x I n S e q u e n c e )

AND ( Ea 1 . P e r s o n = P1 . i d )

AND ( Ea 2 . P e r s o n = P2 . i d )

AND ( Ea 1 . l o c a t i o n = Ea 2 . l o c a t i o n )

AND ( Ea 1 . s t a r t < Ea 2 . en d

AND E a 2 . s t a r t < Ea 1 . en d )

AND (NOT ( ( E a 1 . l o c a t i o n = Eb 1 . l o c a t i o n )

AND ( Ea 1 . s t a r t < Eb 1 . end )

AND ( Eb 1 . s t a r t < Ea 1 . e nd ) ) )

AND ( Eb 1 . P er s o n = P1 . i d )

AND ( Eb 2 . P er s o n = P2 . i d )

AND ( Eb 1 . l o c a t i o n = Eb 2 . l o c a t i o n )

AND ( Eb 1 . s t a r t < Eb 2 . end

AND Eb 2 . s t a r t < Eb 1 . e nd )

AND ( Eb 1 . ATTR STATE CATEGORY = ” R e s t a u r a n t ” )

Every year, a synthetic dataset is created that covers

various patterns that have to be found using Visual

Analytics approaches. The 2014 challenge concerns

surveillance tasks. In Mini-Challenge 2, the task was

to detect frequent, but also suspicious behaviors of

people in the two weeks leading up to a kidnapping. In

a ﬁctitious city, people work at the company GAStech

and rent cars that get tracked with GPS devices. With

some additional data provided, such as credit card

transactions and points of interest (POIs), we extract

event sequences from the movement between logical

locations as described in Figure 1.

These sequences serve as input data for VESPa,

which we embedded in an analysis system with mul-

tiple linked views (see Figure 7). By means our ﬁlter

approach, we are able to formulate and prove various

hypotheses, including meetings of suspicious people,

working patterns outside of business hours, or abnor-

mal sequences of movement destinations.

We have adjusted the set of restrictions and at-

tributes supported by the ﬁlter prototype to the data

available in the datasets used. In this case, the avail-

able ﬁlters included name, category, employment title

and type, time and date of arrival and departure at

an event node, and the amount of payments, if any.

By exploring the data, we detect fuzzy repetitive rou-

VESPa: A Pattern-based Visual Query Language for Event Sequences

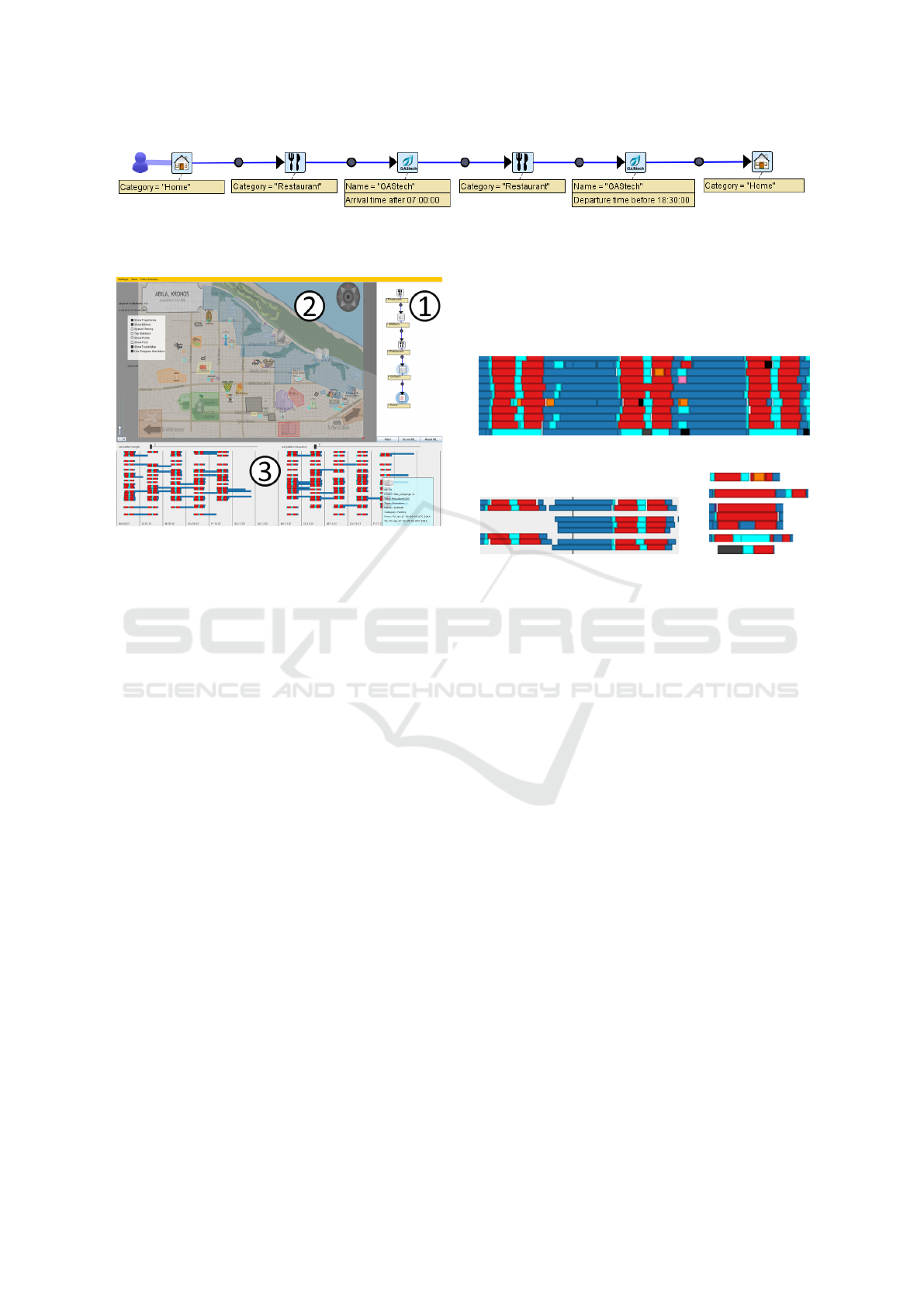

Figure 6: The event sequence pattern ﬁnds behavior sequences that ﬁt the expected daily working routine. Most GAStech

employees start their day with a coffee, work at GAStech, have a normal lunch break before working again, and leave no later

than 6:30 PM to go home.

Figure 7: VESPa À is embedded in an interactive visual

analysis system (Kr

uger et al., 2015) that further consists of

a map Á and a temporal sequence view Â that shows the se-

quences of all persons (rows) along a horizontal time axis.

The coloring of events is based on the annotated map re-

gions. Here, the analyst ﬁltered for a daily working routine

similar to Figure 6. The temporal view shows the result set.

tines using multiple spatial and temporal views. Obvi-

ously, these are daily working patterns that are mostly

similar, except for some minor temporal differences

and some other outliers (see Figure 8(a)). To create a

hypothesis based on our suspicion, we express these

routines with our ﬁlter notation. This visual query is

then executed, which means that SQL query code is

automatically generated from the ﬁlter pattern. It is

sent to the database, whereupon any matching event

sequences are retrieved. Step by step, we can reﬁne

our hypothesis by adding various restrictions. For ex-

ample, we deﬁne the working day to start at 7 AM at

the earliest and to end no later than 6:30 PM with a

lunch break in between, according to the usual busi-

ness habits of GAStech. Lastly, after an iterative re-

ﬁnement, our pattern shows that employees start their

day with a coffee at one out of various restaurants be-

fore they go to work till noon. For lunch, they also

mostly go out, and then work till the early evening.

Then, some of them go home directly, while others

ﬁrst meet at various bars. The ﬁnal pattern is depicted

in Figure 6. From this query, we get all daily routines

that exactly ﬁt this pattern (see Figure 8(b)). Accord-

ingly, when we invert the results, we get all sequences

that do not match the pattern (see Figure 8(c)). These

sequences might be interesting to look into. For ex-

ample, there are some people who work outside the

usual working hours, who do not take a lunch break,

or who do not appear at work, but go shopping.

(a) A snippet of unﬁltered movement behavior sequences

over three days.

(b) A snippet of ﬁltered sequences

over two days. Here, the pattern

shown in Figure 6 is applied.

results reveals

some anomalies.

Figure 8: A sequence view shows event sequences over

time. The events are colored according to their category:

home in blue, restaurant and caf

es in cyan, business places

in red, and other store types in orange and pink.

In our further analysis, we want to investigate the

behavior of one of these persons in depth. He is a

GAStech CEO (chief executive ofﬁcer) who arrives

late during the week. Thus, his behavior signiﬁcantly

differs from that of other employees. After we have

explored the data with various visual tools, we won-

der whether the CEO might be involved in any kinds

of suspicious activities outside of work. We therefore

construct a ﬁlter pattern to verify the hypothesis as

follows: First, we create an event node, that we set not

to match the GAStech company building. We then set

the person for this event to be the CEO. Lastly, we add

another person node that is not restricted any further,

either. By doing so, we formulate a query that ﬁnds

events during which the executive meets any other

person outside of GAStech (see Figure 9).

As a result we get three main events. Besides

ofﬁcial meetings at the company GAstech on Fri-

day, the CEO also meets three other executives at

the golf course. Furthermore, he meets other employ-

ees for lunch on Saturday and for dinner on Sunday.

While this result does not fully conﬁrm our hypoth-

esis, knowledge about the meetings outside of work

proved helpful for a complete overview of the events

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

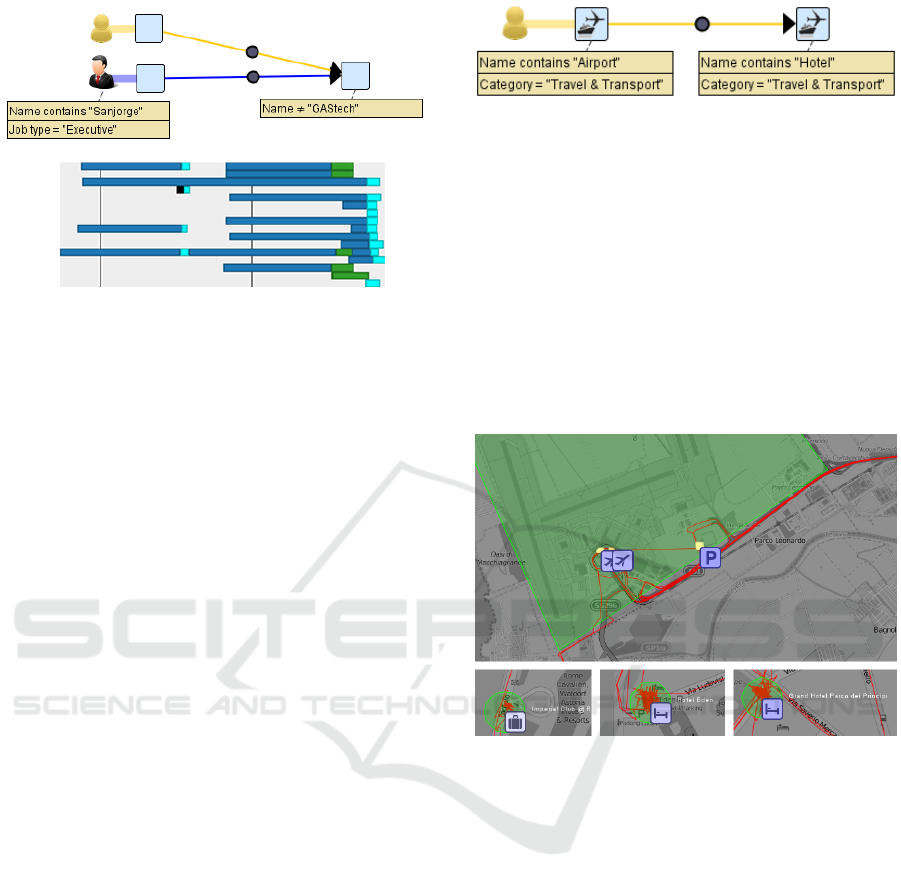

Figure 9: The event sequence pattern (top) ﬁnds events

where the GAStech CEO named Sanjorge meets somebody

else outside the company building of GAStech. The se-

quence view (bottom) visualizes the results, revealing that

the CEO meets people at restaurants (cyan) and at the golf

course (green). The person node representing the CEO has

been conﬁgured to use a custom icon to emphasize the re-

striction to one particular person.

leading up to the kidnapping. Our ﬁndings match the

ofﬁcial solution of the challenge.

5.2 Transportation Analysis

The second use case is based on a large real-world

dataset (Bracciale et al., 2014) that is retrieved from

CRAWDAD, an online platform for open source data.

Movements of 320 taxis in Rome were recorded in

the course of 30 days at a high resolution. Overall,

the data consists of more than 12,000 trips. Again,

we mapped trip origins and destinations to areas of

interest, such as business-related and historic city

districts. As the dataset is very large, we applied a

semi-automated enrichment approach (Kr

uger et al.,

2014) that extracts POIs (points of interest) from

Foursquare, a social media service. We then manually

reviewed and reﬁned the results. Lastly, we enriched

the trips of the taxis with this information, which re-

sulted in a temporal sequence of POI visits for each

taxi (event sequence) as described in Figure 1. This

data serves as input data for our ﬁlter approach.

Exemplarily, we showcase a query to ﬁnd move-

ments starting at the airport, which is far out of town.

We suspect that taxis are often used to get to the re-

quested destination. The result of this query reveals

that taxis frequently travel to several hotels, located

in the city and the upper north of Rome. We then re-

ﬁne our ﬁlter query for sequences from an airport to

hotels only (see Figure 10).

For this scenario, we use an interactive geographic

map that shows the location of the events and the cor-

responding transitions (routes), as can be seen in Fig-

Figure 10: The ﬁlter pattern ﬁnds sequences starting at any

airport and ﬁnishing at any hotel.

ure 11. This reveals that there are various taxi trips to

pick up hotel guests at the International Airport out-

side of the city to drive them to their hotels (see Fig-

ure 11, bottom). Continuing our analysis, we query

the dataset for any tourist activities starting from these

hotels. As suspected, taxis are used to visit common

sights, such as Vatican City and the Colosseum. Fur-

ther queries could investigate taxi usage with respect

to temporal patterns. For example, one might expect

more trips to historic places during weekends.

Figure 11: In an interactive geographic map, the ﬁlter results

can be investigated. Here, icons visualize location types.

Movements between locations are drawn in red. The upper

image shows the departure of taxis at the airport. The im-

ages on the bottom show arrivals of taxis at various hotels.

6 USER EXPERIMENT

To evaluate comprehension and composition under-

standability of VESPa, we have conducted a small

experiment with ﬁve users. Our goal was to ﬁnd

out whether users can, after a short introduction, ex-

press event sequences with our notation, and whether

they are able to recognize what event sequence pat-

terns assembled by someone else mean. Moreover, we

wanted to gain some insight on possible issues and

improvements for our visual notation, based on user

knowledge about visualization and impressions from

reading and creating event sequence patterns based on

our concept. For that purpose, we prepared six com-

prehension tasks and six composition tasks that make

use of all visual elements.

VESPa: A Pattern-based Visual Query Language for Event Sequences

6.1 Comprehension Tasks

In the six comprehension tasks, participants were pro-

vided with completed event sequence patterns. The

task was to describe in detail what event sequence

patterns are depicted, and what restrictions and other

conditions were expressed. Moreover, participants

were asked to brieﬂy speculate on the nature of the

events that might match each of the event sequence

patterns. Task complexity ranged from very simple

graphs (like the one depicted in Figure 3(a)) to more

complex ones, such as the one shown in Figure 12.

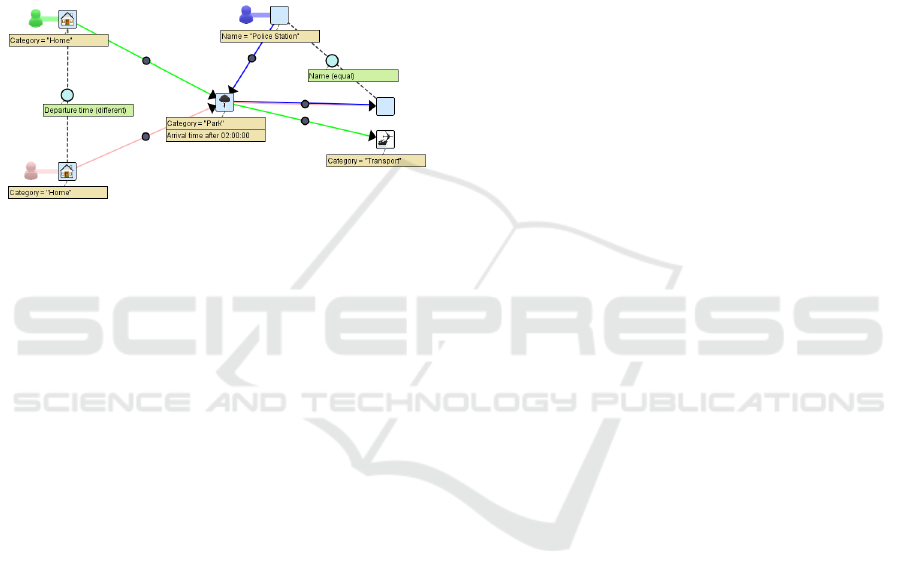

Figure 12: One of the most complex comprehension tasks

from the user study: This event sequence pattern matches

two individuals convening in a park, possibly at night, while

a third person arrives from a police station. One of the two

initial persons joins the third individual to return to the po-

lice station, while the remaining person heads for a trans-

portation place (for instance, a train station or an airport).

6.2 Composition Tasks

For the composition tasks, textual descriptions of six

queries for event sequences were prepared. Partici-

pants were asked to use the interactive prototype to

assemble an appropriate event sequence patterns that

would help to solve each of the textual queries. Again,

the ﬁrst few queries were quite basic (e.g. “Find all

users who started at a restaurant, traveled to a factory,

and traveled to another restaurant from there.”), while

the last ones were more complex (“Are there any users

that, after starting at different locations, meet at one

location, travel to another location together, and move

on to different places?”).

6.3 Materials and Equipment

All materials for the user study were prepared in Ger-

man, the native language of the participants. We pre-

pared a brief printed description of the general idea

and the graphical elements found in the concept, sim-

ilar to Section 3 in this work. The twelve tasks were

printed on paper, as well. As we wanted to emphasize

and evaluate the intuitive mental transition between

the real-world environment and our event sequence

patterns, we used layman’s terms in the descriptions

and tasks rather than the scientiﬁc terminology found

in this paper—for instance, a spatio-temporal event

node became an event at a particular time and place,

and a comparison edge became a comparison line.

The implemented prototype was displayed on a

19” monitor. While there was no written documen-

tation for the user interface, participants had an op-

portunity to get used to the interaction speciﬁcs of the

implementation before starting to work on the tasks.

In addition, they were allowed to ask questions con-

cerning the interaction throughout the user study, as

the evaluation focused on the visual notation, not the

context menus or settings dialog boxes of the editor.

6.4 Participants and Procedure

We recruited ﬁve participants (four males, one fe-

male), all of whom are researchers from the ﬁeld of

visualization. Each participant conducted the study

separately, while two of the authors were present to

give directions and note down any responses.

After reading the description of the concept and

familiarizing themselves with the prototype, partici-

pants were ﬁrst given the sheets with the comprehen-

sion tasks and solved them. Subsequently, the sheet

with the composition tasks was handed out to the par-

ticipants, and they used the implemented prototype to

create solutions. Eventually, participants were asked

for general thoughts and suggestions concerning the

visual concept, as well as for ideas of additional use

cases for VESPa. During this concluding interview,

expected solutions of the completed trials were grad-

ually revealed to the participants, to give them an op-

portunity to reﬂect on the discrepancies.

6.5 Results

Overall, the performance of the study participants was

very promising—each of them could ﬁnd a solution

for each question, and all answers were at least par-

tially correct. Out of the total of 60 trials, 42 were

answered correctly—23 comprehension trials and 19

composition tasks—while answers for the others usu-

ally contained only a single mistake related to the

interpretation or the identity of event nodes. For the

additional question about the possible nature of the

events described by the event sequence patterns, the

participants’ understanding matched the core of our

back-story. They merely interpreted minor parts dif-

ferently, e.g., the movement of the third person to the

police station in Figure 12.

Comments were mostly positive; several of the

participants noted that the notation was entirely clear

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

to them once difﬁculties had been discussed after

completing the trials. Two participants found the visu-

alization “intuitive” and easy to learn. Another partic-

ipant pointed out that achieving an overview with our

event sequence pattern notation was inherently easier

than with any text-based language.

While we had told participants to interpret event

nodes with the same name as referring to the same

location, several of the participants struggled slightly

with this deﬁnition, and one explicitly wished for

an identical place connector between event nodes.

In general, participants were quick to identify each

event node with one location, and thus none of

the participants correctly recognized that in one

of the comprehension tasks, two event nodes actu-

ally represented the same location at different (non-

overlapping) times. One participant pointed out that

the category icons displayed in some event nodes to

express categories such as Home or Factory visually

conveyed to her that each event node was equiva-

lent to a place. In turn, some of the participants ne-

glected the necessity to enforce that two event nodes

be mapped to two different locations, when the loca-

tions were explicitly required to be different.

Minor remarks about the graphical representation,

which were partially related to our particular imple-

mentation rather than the concept in general, asked for

an increased thickness of transitions especially when

several persons were involved and a smart position-

ing of restriction boxes. Moreover, a clearer distinc-

tion between transitions and the (equally colored, but

thicker and partially transparent) connector lines be-

tween person nodes and event nodes (cf. for example

Figure 12) was suggested.

6.6 Discussion of Results

The most frequent issue encountered by participants

was the interpretation of an event node as a place at a

speciﬁc time. None of them had a deﬁnitive idea how

to improve the notation, however, and all agreed that

the deﬁnition was logical, just not intuitive at ﬁrst.

A possible way to mitigate this difﬁculty is a time-

related symbol on an event node, such as a little clock,

as a visual clue that the event node also has a tempo-

ral aspect. That clock symbol might even be modiﬁed

in a domain-speciﬁc way to emphasize temporal re-

strictions, if any, such as an absolute start or end time

or a minimum or maximum duration. Another sug-

gestion was related to placing event nodes on some

kind of a timeline, which may work well when the

temporal relationship between two event nodes (be-

fore, after, same time) is known. On the other hand,

this can create additional problems for event nodes

whose relative temporal relationship is unknown (or

irrelevant), or between event nodes with absolute and

relative temporal restrictions.

Two participants were unsure about the notion of

persons meeting one another at the beginning of an

event sequence. They ended up adding one additional

“entry event node” for each person, rather than start-

ing with a mutual event node (cf. Figure 3(b)) right

away. Based on the discussion with the respective

participants, it seems likely that a stronger connec-

tion of person nodes with the event nodes, rather than

just with connected transitions like in our prototype,

might emphasize the idea that the persons “meet”

when they start out at an initial mutual event node.

The answers of one participant in the user study

also revealed the importance of a careful selection of

category names and icons. That particular user gener-

ally interpreted event nodes restricted to locations of

the category Transport as the process of transporta-

tion itself, rather than a location related to transporta-

tion (a train station, an airport, etc.), as the icon in

question showed the vehicles rather than the building.

7 CONCLUSION AND FUTURE

WORK

We have presented VESPa, a visual notation for spec-

ifying patterns of event sequences. With this notation,

ideas about possible event sequences can be visual-

ized in an abstract and concise way. The visualization

can then be used to ﬁlter databases of actual event

sequences, to check hypotheses about the events in

such a database, and also to express common patterns

found therein. As opposed to existing approaches,

overlapping event sequences of several persons can

be explicitly expressed in VESPa. Rather than keep-

ing space and time separate like related work, VESPa

uses spatio-temporal event nodes that make queries

for meetings of persons very straightforward.

While our event sequence pattern visualization

seems adequate for expressing certain complex pat-

terns, and was accordingly positively commented on

by participants of our qualitative study. The experi-

ment also revealed some issues that need to be ad-

dressed. The temporal aspects of event nodes needs

to be clariﬁed; future research might also lead to

domain-speciﬁc solutions. Possible extensions to the

visual notation include directedness of comparison

edges to support asymmetric relationships between

event nodes or person nodes, and restrictions on tran-

sitions. More importantly, concepts that are currently

not supported, such as repeated or alternative subse-

quences of events, need to be considered.

VESPa: A Pattern-based Visual Query Language for Event Sequences

We have shown the applicability of the concept to

certain spatio-temporal movement information in our

case studies, but we see the potential to use the event

sequence pattern notation in more generic contexts,

some of which were suggested by study participants.

Beside the use case of surveillance and digital foren-

sics, event sequence patterns might also help recog-

nize movement patterns for other purposes such as

marketing analysis, website visitor navigation (where

event nodes could map to single pages), wild ani-

mals in their habitat, or of ﬁctional characters to de-

scribe or ﬁnd speciﬁc scenes in novels or movies. Fur-

thermore, the event sequence patterns might be use-

ful for different kinds of analysis tasks, for instance

gaze patterns found in eye-tracking data, data pack-

ets in network trafﬁc, or cross-thread resource ac-

cess. Lastly, our visual event sequence pattern nota-

tion can be used in a prescriptive way to specify ab-

stract itineraries for time management assistance sys-

tems, which could then be automatically completed

to a concrete itinerary based on transportation sched-

ules, business location information, and calendars of

co-workers or friends.

ACKNOWLEDGEMENTS

This work was supported by the graduate program

Digital Media of the University of Stuttgart and the

Stuttgart Media University (HdM) as well as the Hori-

zon 2020 project CIMPLEX, grant no. 641191.

REFERENCES

Abela, J., Debeaupuis, T., and Herve Schauer Consul-

tants (1999). Universal format for logger messages.

http://tools.ietf.org/html/draft-abela-ulm-05.

Andrienko, N., Andrienko, G., and Fuchs, G. (2013). To-

wards privacy-preserving semantic mobility analysis.

In EuroVis Workshop on Visual Analytics, pages 19–

23. Eurographics Association.

Atrey, P., Maddage, M., and Kankanhalli, M. (2006). Audio

based event detection for multimedia surveillance. In

ICASSP ’06 Proc., volume 5, pages 813–816. IEEE.

Atrey, P. K., Kankanhalli, M. S., and Jain, R. (2005).

Timeline-based information assimilation in multime-

dia surveillance and monitoring systems. In Proc.

VSSN ’05, pages 103–112. ACM.

Bonhomme, C., Tr

epied, C., Aufaure, M.-A., and Laurini,

R. (1999). A visual language for querying spatio-

temporal databases. In Proc. GIS ’99, pages 34–39.

ACM.

Boyandin, I., Bertini, E., Bak, P., and Lalanne, D. (2011).

Flowstrates: An approach for visual exploration of

temporal origin-destination data. Comput. Graphics

Forum, 30(3):971–980.

Bracciale, L., Bonola, M., Loreti, P., Bianchi, G., Amici, R.,

and Rabufﬁ, A. (2014). CRAWDAD data set roma/-

taxi (v. 2014-07-17). http://crawdad.org/roma/taxi/.

Certo, L., Galv

ao, T., and Borges, J. (2013). Time Automa-

ton: A visual mechanism for temporal querying. J.

Visual Lang. Comput., 24(1):24–36.

Dionisio, J. D. and C

ardenas, A. F. (1996). MQuery: A vi-

sual query language for multimedia, timeline and sim-

ulation data. J. Visual Lang. Comput., 7(4):377 – 401.

Do, Q. X., Lu, W., and Roth, D. (2012). Joint inference for

event timeline construction. In Proc. EMNLP-CoNLL

’12, pages 677–687. ACL.

D’Ulizia, A., Ferri, F., and Grifoni, P. (2012). Mov-

ing GeoPQL: A pictorial language towards spatio-

temporal queries. GeoInformatica, 16(2):357–389.

Fails, J., Karlson, A., Shahamat, L., and Shneiderman, B.

(2006). A visual interface for multivariate temporal

data: Finding patterns of events across multiple histo-

ries. In VAST ’06, pages 167–174.

Fegeras, L. (1999). VOODOO: A visual object-oriented

database language for odmg oql. In W13. The First

ECOOP Workshop on Object-Oriented Databases.

Fischer, F., Mansmann, F., and Keim, D. A. (2012). Real-

time visual analytics for event data streams. In Proc.

SAC ’12, pages 801–806. ACM.

Gaaloul, W., Bhiri, S., and Godart, C. (2004). Discover-

ing workﬂow transactional behavior from event-based

log. In On the Move to Meaningful Internet Systems

2004: CoopIS, DOA, and ODBASE, volume 3290 of

LNCS, pages 3–18. Springer.

Gotz, D. and Stavropoulos, H. (2014). DecisionFlow: Vi-

sual analytics for high-dimensional temporal event se-

quence data. IEEE TVCG, 20(12):1783–1792.

Guo, H., Wang, Z., Yu, B., Zhao, H., and Yuan, X. (2011).

TripVista: Triple perspective visual trajectory analyt-

ics and its application on microscopic trafﬁc data at a

road intersection. In Proc. PaciﬁcVis ’11, pages 163–

170. IEEE.

Guo, X., Li, J., Yang, R., and Ma, X. (2014). NEI: A frame-

work for dynamic news event exploration and visual-

ization. In Proc. VINCI ’14, pages 121–128. ACM.

Havre, S., Hetzler, B., and Nowell, L. (2000). ThemeRiver:

Visualizing theme changes over time. In Proc. InfoVis

’00, pages 115–123. IEEE.

Heydekorn, J., Nitsche, M., Dachselt, R., and N

urnberger,

A. (2011). On the interactive visualization of a logis-

tics scenario: Requirements and possible solutions. In

Proc. IWDE ’11, Technical report (Internet): Elektro-

nische Zeitschriftenreihe der Fakult

at f

ur Informatik

der OVGU Magdeburg, pages 1–7.

Huang, Y., Zhang, L., and Zhang, P. (2008). A framework

for mining sequential patterns from spatio-temporal

event data sets. IEEE Trans. Knowl. Data Eng.,

20(4):433–448.

Jiang, F., Yuan, J., Tsaftaris, S. A., and Katsaggelos, A. K.

(2011). Anomalous video event detection using spa-

tiotemporal context. Comput. Vision Image Under-

standing, 115(3):323–333.

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

Jin, J. and Szekely, P. (2009). QueryMarvel: A visual query

language for temporal patterns using comic strips. In

Proc. VL/HCC ’09, pages 207–214.

Kapler, T. and Wright, W. (2005). GeoTime information vi-

sualization. Information Visualization, 4(2):136–146.

Kim, P. H. and Giunchiglia, F. (2012). Life logging prac-

tice for human behavior modeling. In Proc. SMC ’12,

pages 2873–2878.

Krstaji

c, M., Bertini, E., and Keim, D. (2011). CloudLines:

Compact display of event episodes in multiple time-

series. IEEE TVCG, 17(12):2432–2439.

uger, R., Herr, D., Haag, F., and Ertl, T. (2015). Inspector

Gadget: Integrating data preprocessing and orchestra-

tion in the visual analysis loop. In EuroVis Workshop

on Visual Analytics (EuroVA). The Eurographics As-

sociation.

uger, R., Thom, D., and Ertl, T. (2014). Visual analy-

sis of movement behavior using web data for context

enrichment. In Proc. PaciﬁcVis ’14, pages 193–200.

IEEE.

uger, R., Thom, D., W

orner, M., Bosch, H., and Ertl, T.

(2013). TrajectoryLenses – A set-based ﬁltering and

exploration technique for long-term trajectory data.

Comput. Graphics Forum, 2013(3):451–460.

Kumar, C., Heuten, W., and Boll, S. (2013). Geographi-

cal queries beyond conventional boundaries: Regional

search and exploration. In Proc. GIR ’13, pages 84–

85. ACM.

Kumar, V., Furuta, R., and Allen, R. B. (1998). Metadata

visualization for digital libraries: Interactive timeline

editing and review. In Proc. DL ’98, pages 126–133.

ACM.

Makanju, A., Zincir-Heywood, A. N., and Milios, E. E.

(2011). Storage and retrieval of system log events us-

ing a structured schema based on message type trans-

formation. In Proc. SAC ’11, pages 528–533. ACM.

Marcus, A., Bernstein, M. S., Badar, O., Karger, D. R.,

Madden, S., and Miller, R. C. (2011). Twitinfo: Ag-

gregating and visualizing microblogs for event explo-

ration. In Proc. CHI ’11, pages 227–236. ACM.

Monroe, M., Lan, R., Morales del Olmo, J., Shneiderman,

B., Plaisant, C., and Millstein, J. (2013). The chal-

lenges of specifying intervals and absences in tempo-

ral queries: A graphical language approach. In Proc.

CHI ’13, pages 2349–2358. ACM.

Morris, A., Abdelmoty, A., El-Geresy, B., and Jones,

C. (2004). A ﬁlter ﬂow visual querying language

and interface for spatial databases. GeoInformatica,

8(2):107–141.

Nguyen, T., Loke, S., and Torabi, T. (2007). The Commu-

nity Stack: Concept and prototype. In Proc. AINAW

’07, volume 2, pages 52.–58.

Parent, C., Spaccapietra, S., Renso, C., Andrienko, G., An-

drienko, N., Bogorny, V., Damiani, M. L., Gkoulalas-

Divanis, A., Macedo, J., Pelekis, N., Theodoridis, Y.,

and Yan, Z. (2013). Semantic trajectories modeling

and analysis. ACM Comput. Surv., 45(4):42:1–42:32.

Peuquet, D. J. and Duan, N. (1995). An event-based spa-

tiotemporal data model (ESTDM) for temporal anal-

ysis of geographical data. Int. J. Geogr. Inf. Syst.,

9(1):7–24.

Pirolli, P. and Card, S. (2005). The sensemaking process

and leverage points for analyst technology as iden-

tiﬁed through cognitive task analysis. In Proc. Int’l

Conf. on Intelligence Analysis, pages 2–4. MITRE.

Plaisant, C., Milash, B., Rose, A., Widoff, S., and Shnei-

derman, B. (1996). LifeLines: Visualizing personal

histories. In Proc. CHI ’96, pages 221–227. ACM.

Russell, A., Smart, P., Braines, D., and Shadbolt, N. (2008).

NITELIGHT: A graphical tool for semantic query

construction. In Proc. SWUI ’08, volume 543 of

CEUR-WS.

Seifert, I. (2011). A pool of queries: Interactive multidimen-

sional query visualization for information seeking in

digital libraries. Information Visualization, 10(2):97–

106.

Shneiderman, B. (1994). Dynamic queries for visual infor-

mation seeking. IEEE Software, 11(6):70–77.

Soylu, A., Giese, M., Jimenez-Ruiz, E., Kharlamov, E.,

Zheleznyakov, D., and Horrocks, I. (2013). Op-

tiqueVQS: Towards an ontology-based visual query

system for big data. In Proc. MEDES ’13, pages 119–

126. ACM.

Sun, G., Liu, Y., Wu, W., Liang, R., and Qu, H. (2014).

Embedding temporal display into maps for occlusion-

free visualization of spatio-temporal data. In Proc.

PaciﬁcVis ’14, pages 185–192. IEEE.

Tao, C., Wongsuphasawat, K., Clark, K., Plaisant, C.,

Shneiderman, B., and Chute, C. G. (2012). Towards

event sequence representation, reasoning and visual-

ization for EHR data. In Proc. IHI ’12, pages 801–

806. ACM.

Tominski, C., Schumann, H., Andrienko, G., and An-

drienko, N. (2012). Stacking-based visualization of

trajectory attribute data. IEEE TVCG, 18(12):2565–

2574.

Visual Analytics Community (2014). VAST 2014 Chal-

lenge – the Kronos incident. http://va commu-

nity.org/VAST+Challenge+2014.

Westermann, U. and Jain, R. (2007). Toward a common

event model for multimedia applications. IEEE Mul-

tiMedia, 14(1):19–29.

Wongsuphasawat, K., Plaisant, C., Taieb-Maimon, M., and

Shneiderman, B. (2012). Querying event sequences

by exact match or similarity search: Design and em-

pirical evaluation. Interact. Comput., 24(2):55–68.

Wu, S., Otmane, S., Moreau, G., and Servi

eres, M. (2013).

Design of a visual query language for geographic

information system on a touch screen. In Human-

Computer Interaction. Interaction Modalities and

Techniques, volume 8007 of LNCS, pages 530–539.

Springer.

Zgraggen, E., Drucker, S. M., Fisher, D., and DeLine, R.

(2015). (s—qu)eries: Visual regular expressions for

querying and exploring event sequences. In Proc. CHI

’15, pages 2683–2692. ACM.

Zhu, X. Y., Guo, W., Huang, L., Hu, T., and Gao, W. X.

(2013). Pan-information location map. ISPRS

Archives, XL-4(4):57–62.

VESPa: A Pattern-based Visual Query Language for Event Sequences
