A Directed Concept Search Environment to Visually Explore Texts
Related to User-defined Concept Models
Muhammad Faisal Cheema
1
, Stefan J
¨
anicke
1
, Judith Blumenstein
2
and Gerik Scheuermann
1
1
Image and Signal Processing Group, Institute for Computer Science, Leipzig University, Leipzig, Germany
2
Faculty of History, Arts and Oriental Studies, Leipzig University, Leipzig, Germany
Keywords:
Text Visualization, Digital Humanities, Distant Reading, Concept Search, Information Retrieval, Concept
Editor, Concept Modeling.
Abstract:
We introduce a concept search environment that caters for the needs of humanities scholars who want to im-
prove the accuracy of search results when querying historical text corpora. For this purpose, we designed a
so-called Concept Editor that allows to model historical concepts in a diagram style according to the imag-
inations of the humanities scholar. For the inspection of results determined in the proposed concept search,
we provide a Concept Search Results Viewer that uses the existent layout of the underlying concept model
to visualize related texts according to the relevance to the given concept. We further designed the overall
system the way that the humanities scholar can iteratively refine the concept idea, which leads to a gradual
improvement of search results. To illustrate the whole development pipeline, we provide a usage scenario
on modeling the concept epilepsy with the purpose of improving the accuracy of results compared to usual
applied keyword-based search methods.
1 INTRODUCTION
The retrieval of information utilizing search engines
such as Google is a daily activity nowadays. When
applying the usual keyword-based search, the results
are often unsatisfactory as they contain too less pre-
cise hits and numerous irrelevant results. The same
issue occurs for humanities scholars applying key-
word searches on historical text corpora accessible via
platforms like Perseus Digital Library
1
or PHI Latin
Texts
2
to discover texts related to a specific topic.
Then, the scholar needs to reformulate the query hop-
ing to improve the quality and quantity of search re-
sults.
Taking the search for text passages related to the
concept epilepsy as an example, a traditional key-
word search for the corresponding Latin term mor-
bus comitialis (disease of the assembly) yields in-
complete results. In contrast, a truncated search for
morb* comiti* returns more but less accurate results.
Also, false positives in the form of entirely unrelated
text passages occur, e.g., a passage from a politi-
cal text written by the Roman historian Titus Livius
1
http://www.perseus.tufts.edu/
2
http://latin.packhum.org/
(Ab urbe condita libri 41,18,16) containing both the
words morbus and comitia. Also problematic with
basic keyword-based search attempts is the impossi-
bility to receive texts paraphrasing the given concept.
In the epilepsy scenario, related texts exist that do not
use the term morbus comitialis explicitly. An exam-
ple is the didactic poem De rerum natura written by
the Roman poet and philosopher Lucretius, where the
disease is paraphrased with occurring symptoms such
as concidere (collapse) and spuma (foam). As many
other terms were used to describe epilepsy in Latin
texts, e.g., morbus sacer or epilepsia, keyword-based
approaches were inadequate for the humanities schol-
ars to discover unknown but related results.
This paper presents a system designed to im-
prove the search capabilities on historical text cor-
pora. Based upon a semi-automated process, we
aim to extract more accurate results by extending
the traditional keyword search with a so-called con-
cept search. Exemplary, we will present all impor-
tant steps from modeling the concept epilepsy, per-
forming a concept search to discover texts related to
epilepsy, analyzing the search results, and modifying
the concept iteratively. In summary, the contributions
of our work to the visualization and Digital Humani-
ties communities are:
74
Cheema, M., Jänicke, S., Blumenstein, J. and Scheuermann, G.
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models.
DOI: 10.5220/0005727400720083
In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 2: IVAPP, pages 74-85
ISBN: 978-989-758-175-5
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
A Concept Editor that borrows ideas from con-
cept and mind mapping to allow humanities schol-
ars to model concepts according to their imagina-
tions.
A Concept Search algorithm that retrieves all
texts related to the modeled concept and clusters
them in the concept model according to their rel-
evance to the given concept.
A Concept Search Results Viewer that intu-
itively visualizes the results of the concept search
by interactively providing statistics of the occur-
ring terms with the help of TagPies.
A user-driven Concept Search Environment that
gives the humanities scholar full control when
creating concepts, analyzing search results, and
the opportunity to gradually improve search re-
sults by iteratively modifying the underlying con-
cept model.
Additionally, we provide insights about the col-
laborative, iterative development of the concept
search environment, a usage scenario that illustrates
the potential of the presented system, and possible fu-
ture tasks.
2 RELATED WORK
The prior goal of our work is the development of a
Concept Search environment that improves the hu-
manities scholar’s search capabilities on ancient text
corpora while controlling the entire Concept Search
process. To solve this task, we draw upon exist-
ing techniques in the fields of diagramming, natu-
ral language processing and visualization. Many dia-
gramming tools have been developed to cater various
needs, and similarly, there are several ways to find text
passages related to a given topic and to visualize the
search results.
2.1 Existing Concept Search Methods
Besides traditional keyword-based search methods to
collect related text passages in large corpora, other
techniques have evolved in past years that take advan-
tage of the semantic and statistical information inher-
ent in the texts with the goal to improve precision and
recall of the results.
Concept search (Giunchiglia et al., 2009) is such a
method that automatically retrieves data which is con-
ceptually similar to a user-specific search query. By
employing techniques like word sense disambigua-
tion (Navigli, 2009), the result sets compared to a

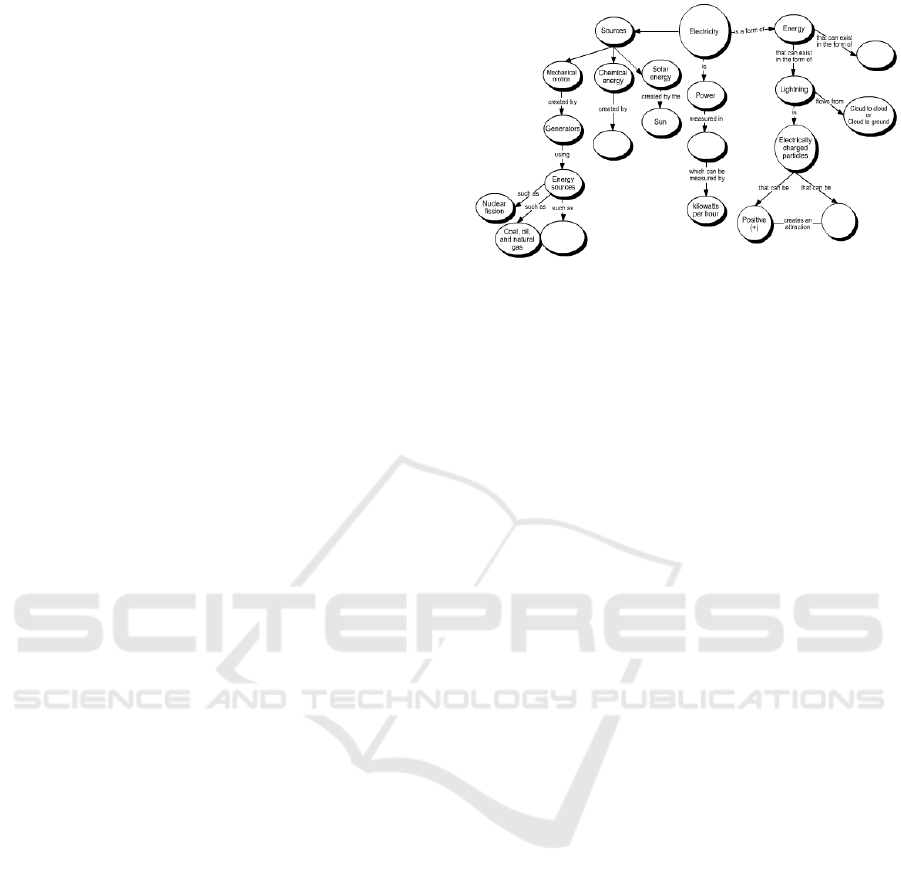

Figure 1: Example concept map.
traditional keyword search can be improved by tak-
ing not only the spelling of a word but also its mean-
ing into account during the search process. Similar
approaches take advantage of different semantic rela-
tions within the text, e.g., synonyms and word varia-
tions (Guha et al., 2003), or search processes can be
based upon an underlying ontology (Fern
´
andez et al.,
2011). In contrast to considering semantic relations,
topic modeling approaches apply statistical models
to measure the conceptual similarity of texts (Wal-
lach, 2006). The Latent Dirichlet allocation (LDA)
is the most often used topic model (Blei et al., 2003).
Within the computation process, each text is seen as a
mixture of latent topics. Based on a predefined num-
ber of final topics, texts cluster iteratively according
to the similarity of contained words.
All the above mentioned techniques suffer from
one major disadvantage: the user has a very lim-
ited control over the detection of conceptual similari-
ties, which are based on a prior semantic or statistical
model. Only scholars having advanced knowledge of
information retrieval can tweak the parameters to ob-
tain better results. In contrast to these automated pro-
cesses that use existing semantic knowledge from the-
sauri, topic maps or semantic networks, our concept
modeling approach allows the humanities scholar to
express her understanding of a concept without the
need of any existing semantic or statistical knowl-
edge. Teevan (Teevan et al., 2004) argues that even
with a perfect search engine, a poorly constructed
search question may not lead to the right answer. So,
the user needs to be provided with a directed search
system. As semantic and statistical models would
take the control away from the humanities scholar, we
designed a directed search environment. This capa-
bility of retaining the control over the modeling and
search process was an important requirement in our
project as it supports the iterative refinement of mod-
els to steadily retrieve better results.
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
75

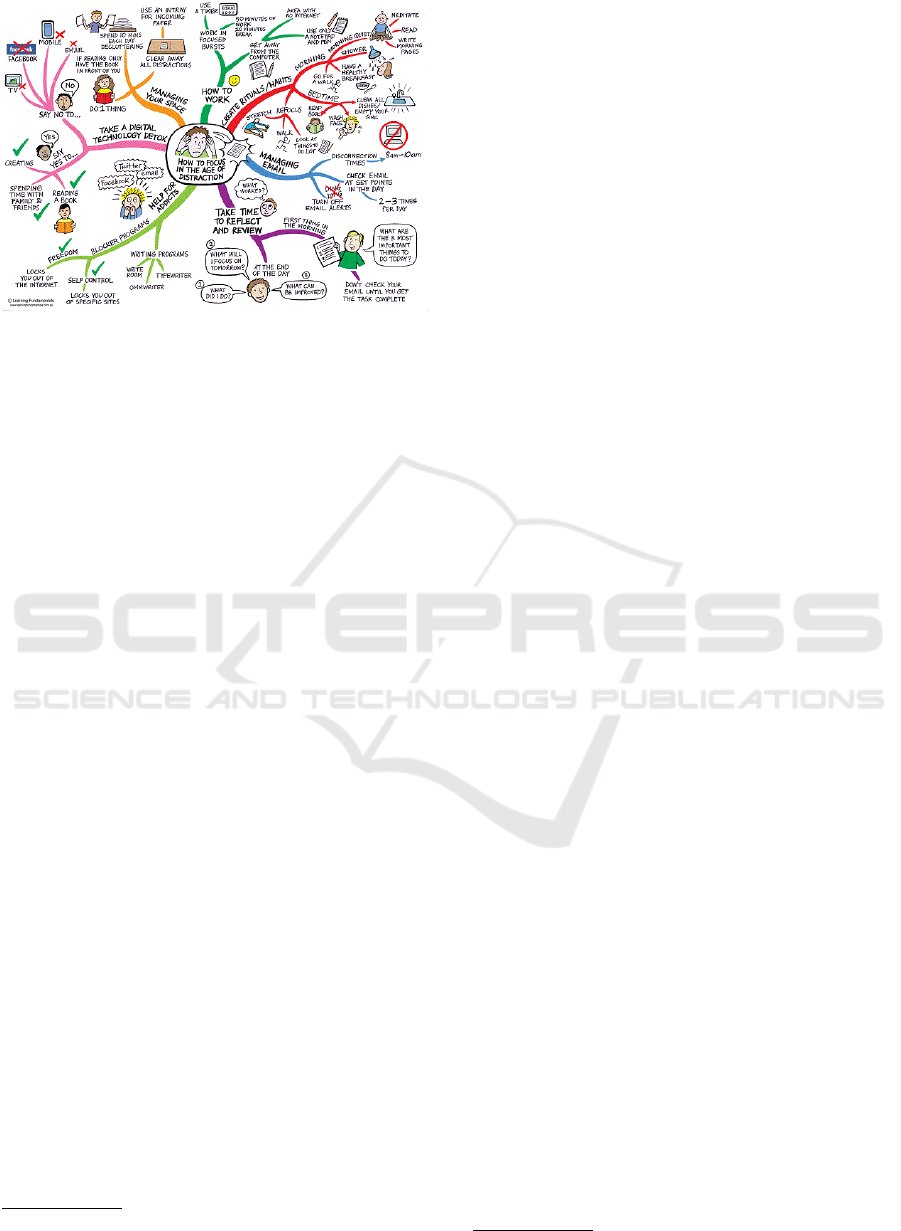

Figure 2: Example mind map (Kanter,
2015) (Figure under CC BY 2.0 license, see
https://creativecommons.org/licenses/by/2.0/ for details).
2.2 Diagram Types and Diagramming
Tools
According to Ware, half of the brain is trained in inter-
preting graphical patterns (Ware, 2010). Thus, visual
thinking tools such as diagrams utilize this capability
in helping humans to comprehend the visualized facts
faster.
There are several ways to transform an idea or a
concept into a diagram style. One such method is
concept maps (Hager et al., 1997) that illustrate the
relationships between multiple concepts. Shapes are
used to model ideas, images, or words as concepts,
and arrows among these shapes communicate rela-
tions; an example is given in Figure 1. In software
engineering, the idea of concept mapping is used to
visualize the design of a system in form of a diagram
with the Unified Modeling Language (UML) (Booch
et al., 2005).
A similar method to visually organize information
are so called mind maps (Budd, 2004). In contrast to
concept maps, a mind map represents thoughts and
ideas about a central concept (see Figure 2). The
concepts generated by the collaborating humanities
scholars of our projects borrow from both diagram
types, as they focus a central concept that is some-
times connected to correlated sub-concepts.
Several freely or proprietary diagramming tools
such as Inkscape (Bah, 2009), MSVisio
3
or yEd
4
en-
able scholars to create diagrams. Most of these tools
are used to only represent and organize information,
which is insufficient for our needs. The Concept Edi-
tor proposed in this paper enables the scholar not only
3
http://www.visiotoolbox.com/
4
http://www.yworks.com/en/products/yfiles/yed/
to model particular concepts, but also to manually at-
tach semantic information for further processing.
2.3 Concept Search Visualizations in
the Digital Humanities
Many works with a Digital Humanities motivation at-
tend to the matter of visualizing the results of Concept
Search processes or comparable methods.
The VarifocalReader, which facilitates the work
with individual, potentially large historical texts, ap-
plies a topic segmentation to cluster text parts accord-
ing to the user’s requirements, e.g., to extract and
highlight sections dealing with certain topics (Koch
et al., 2014).
Topic modeling is an often used basis for the anal-
ysis of topic changes within news corpora (Cui et al.,
2011; Dou et al., 2012). After automatic topic extrac-
tion, the temporal evolution of the found topics can
be observed in stream graphs. To minimize the com-
putational effort, the user can be integrated into this
process by picking topics of interest (Cui et al., 2014).
A rather abstract method to visualize topic changes in
news corpora is the dust-and-magnet visualization (Yi
et al., 2005). Applied by Eisenstein, topics exert mag-
netic forces on various historical newspapers that gen-
erate temporal trajectories in the form of “dust trails”
to illustrate topic change (Eisenstein et al., 2014).
Other approaches apply automated topic model-
ing techniques to cluster texts in large text collections.
The tool Serendip uses probabilistic topic models to
support the semi-automated exploration of such cor-
pora (Alexander et al., 2014). The words belonging to
specific topics can be analyzed both in close and dis-
tant reading views. That juxtaposed tag clouds are
beneficial to explore automatically extracted topics
from various text corpora has been shown at the re-
cent Digital Humanities conference (J
¨
ahnichen et al.,
2015; Montague et al., 2015). Also, the utilization
of graphs to communicate the relationships among
discovered topics has been proven useful (Kaufman,
2015).
3 DIGITAL HUMANITIES
BACKGROUND
As a consequence of many digitization projects, hu-
manities scholars nowadays have access to large
historical text corpora. Within the digital hu-
manities project eXChange
5
computer scientists and
5
http://www.exchange-projekt.de/
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
76
humanities scholars collaboratively develop strate-
gies to query such text corpora. The eXChange
database contains numerous ancient Greek and Latin
texts from various sources (e.g., Perseus Digital
Library (Per, 2015) and Bibliotheca Teubneriana
Latina (Btl, 2015)).
The usual approach of humanities scholars query-
ing a digital corpus is a keyword based search. Quite
often, they get lots of results, which are hard to re-
vise, so that the generation of valuable hypotheses
is nearly impossible. Moreover, a simple keyword
search causes incomplete result sets with partially in-
accurate search results as it does not include word
forms or synonyms. Especially when observing an-
cient terms that were used in different domains – pol-
itics and medicine – the humanities scholars require a
mechanism that filters for results relevant for the re-
search question at hand. Therefore, the prior goal of
the project was to develop a system capable of extract-
ing more accurate results by extending the traditional
keyword search with a so called concept search.
Following the suggestions from other visualiza-
tion researchers who worked together with humani-
ties scholars (J
¨
anicke et al., 2015b), we closely col-
laborated within the eXChange project when design-
ing the concept search system. Initially, we discussed
the needs of humanities scholars of our project, their
workflows, research questions and challenges in sev-
eral meetings. As a concept is a broad term used
with different meanings in a variety of fields (Mar-
golis and Laurence, 2014), one of the first steps was
to define the concept term with respect to our context.
The concepts generated by the humanities scholars in
our project borrow ideas from mind maps as well as
concept maps, as they focus on a central idea that is
sometimes related to other (sub-)concepts. Overall, a
concept is defined through a bunch of terms and their
word forms, which distribute over (sub-)concepts. A
prior concern of the scholars was to have a fully con-
trollable search process. To meet this need, we de-
signed the visualizations in a way that each data trans-
formation step is comprehensible. A Concept Edi-
tor was proposed, where the scholars can model their
ideas of concepts. Based on these user-defined con-
cept models, we developed a concept search and de-
signed a Concept Search Results Viewer. The de-
velopment of the whole concept search system is ex-
plained in the following section.
4 CONCEPT SEARCH PIPELINE
For the sake of simplicity and better understanding,
a concept is modeled in form of a tree. Related sub-

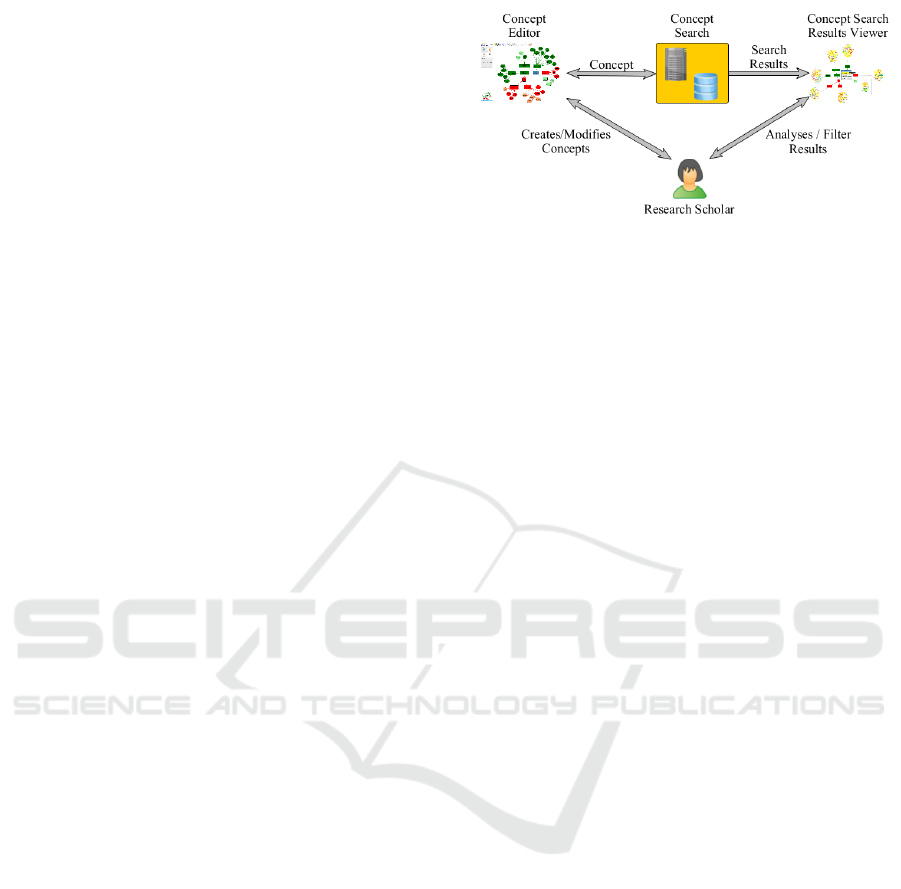

Figure 3: Concept Search Pipeline.
concepts and specific terms and word forms are com-
bined in a hierarchical fashion to the central concept,
which is represented with the root node of the tree.
Internal nodes represent sub-concepts, and leaf nodes
are words defining the associated (sub-)concepts. An
example model for the concept epilepsy is given in
Figure 4.
As illustrated in Figure 3, the approach primarily
consists of three steps. At first, the scholar generates
a concept model using Concept Editor. The resultant
concept model is then passed on to the proposed Con-
cept Search that ranks the search results, which are
retrieved related texts, and places them into the con-
cept model. Finally, the search results are arranged in
the Concept Search Results Viewer, which aggregates
search results and serves details on demand by inter-
actively visualizing statistics about occurring terms
related to the underlying concept model in tag clouds.
4.1 Concept Editor
The Concept Editor is an interface for humanities
scholars to encode their ideas of concepts on the
screen. Figure 4 shows a screenshot of the Concept
Editor containing the concept epilepsy. Rectangular
nodes represent (sub-)concepts while oval nodes de-
note concrete terms. Nodes can be drawn via drag and
drop and the scholar can structure the concept accord-
ing to her imagination by connecting related nodes.
The node colors indicate whether a sub-concept and
its associated terms are supportive (in green) or con-
tradictory (in red) to the central concept.
In the example concept model for epilepsy, the
root node epilepsy is the central concept in blue
color. The green colored shapes indicate support-
ive sub-concepts and terms (e.g., labels for epilepsy),
whereas red shapes indicate contradictions (e.g., po-
litical terms unrelated to epilepsy). Darker shades
(e.g., morbus, febrire etc.) represent definite knowl-
edge of the scholars, whereas light shades (e.g.,
vinium, cotidiana etc.) represent assumptions. Ac-
cording to the model, texts containing the terms
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
77
Figure 4: Concept Editor interface showing the concept epilepsy.
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
78

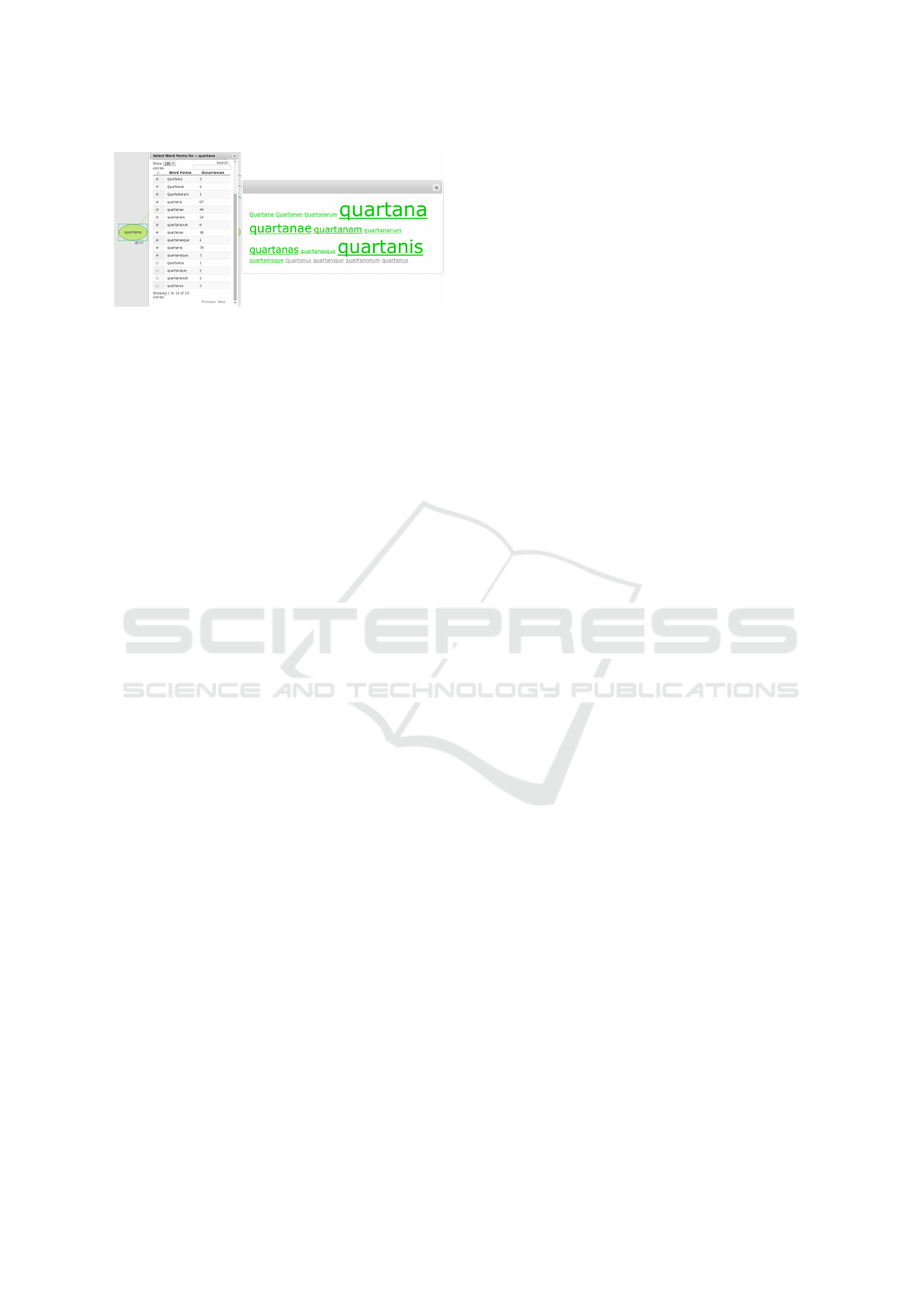

Figure 5: Word form selection interface showing the term
quartana.
morbus or comitialis were most likely used to address
the concept epilepsy. Terms like horror (dread) and
quartana (fever) show contradiction.
Each term is connected to all possible spellings
and word-forms contained in the database. A popup
on demand provides a list and a tag cloud that allow
the scholar to observe and select word forms inher-
ent in the corpus, which are potentially relevant for
the corresponding concept. Figure 5 shows the se-
lected word forms for the term quartana. As fever is
a female term in Latin, the male form of the adjective
quartanus is excluded in that scenario. After the con-
cept is built, it is stored for persistence and forwarded
to a Concept Search module.
4.2 Concept Search
The Concept Search method is a two-stage process.
First, a hierarchical keyword search is performed on
the basis of the observed concept model. Second,
each search result is assigned to the topically best fit-
ting node in the concept tree.
4.2.1 Hierarchical Keyword Search
The selected word-forms of all terms are the basis for
the search. The procedure of the keyword hierarchy
search was intentionally kept as simple as possible to
minimize pre-assumptions on how a fitting concept
search would function.
Beginning with a list of all words that have been
added to the concept, each entry is searched for with a
classical string lookup on a normalized version of the
texts. Per word, all occurrences are located, grouped
with respect to the containing text and then counted
within the groups. Those individually found texts are
collected across all words. This forms a non-negative
(and usually quite sparse) integer matrix where every
row-sum and every column-sum has a value of at least
1. This representation can then be used to rank the re-
sults according to the concept hierarchy. Each occur-
ring “positive term” (green and light green) increases
the rank of a text, whereas each occurring “negative
term” (red and light red) decreases it.
4.2.2 Assigning the Results to Concept-Nodes
According to their relationship to the underlying con-
cept, the results texts within the database are po-
sitioned in the concept hierarchy. Instead of showing
only a list of search results, we put all results in the
concept hierarchy the scholar is familiar with. This
helps to get a notion of a text’s relevance to the con-
cept.
The assignment of a search result to a concept
node is performed as follows. Initially, the search
result is assigned to each positive leaf concept node
(green colored) for which the corresponding text con-
tains one of the concept’s “positive terms. We do not
assign a search result to negative leaf concepts (red
colored) as they are unimportant matches for the con-
cept. Then, the concept tree is traversed bottom-up in
depth first search fashion. A search result is moved
up the tree and placed in the parent concept node if it
meets two criteria: (1) all positive child concept nodes
contain the search result, and (2) the ratio of posi-
tive to negative words is greater than a configurable
threshold. A result fulfilling both criteria in all traver-
sal steps will be moved to the root concept node. If
this is not the case, a search result may be placed in
multiple concept nodes. We remove duplicate entries
and keep the best fitting position for a search result,
which is the concept node with the closest distance to
the root node. If there are multiple candidates with the
same distance, we keep the position where the search
result obtains the highest ratio of positive to negative
terms. So, each search result is assigned to its best fit-
ting concept node. The higher a search result is placed
in the hierarchy, the closer it is considered to the con-
cept.
4.3 Concept Search Results Viewer
The Concept Search Results Viewer supports the
analysis of the concept-related retrieved texts in two
views. The first view shows the aggregated results
in the concept hierarchy. In the second view, the re-
lationships between individual texts and word forms
can be interactively explored. To preserve the men-
tal map, both views are derived from the user-defined
concept layout and need to be recalculated every time
the user changes the underlying concept.
4.3.1 Layout Calculation
After the search results are assigned to the concept
nodes (see Subsection 4.2.2 ), the node sizes increase
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
79

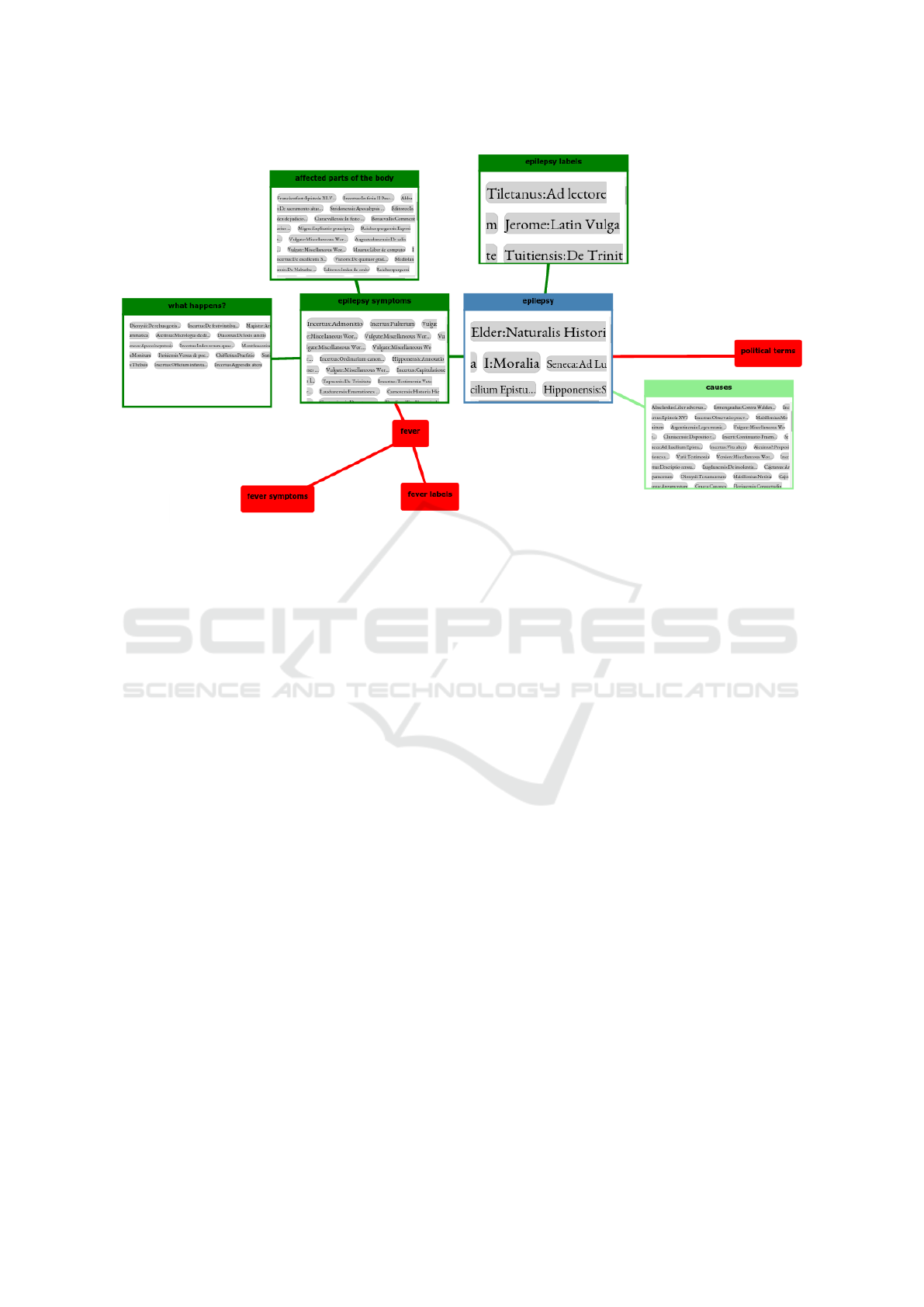

Figure 6: Concept Search Results Viewer showing the aggregate results view of the concept epilepsy.
with respect to the number of labels that need to be
shown. To keep the results layout consistent to the
user-defined concept layout, all node sizes are equal
and remain fixed (large result sets can be inspected via
scrolling). The increase of node sizes creates overlaps
between nodes. To remove these overlaps the lay-
out needs to be refined while preserving the original
topology of the concept tree.
The overlap problem is solved heuristically. Ini-
tially, the original coordinate positions are assigned
according to the concept tree. Then, the concept tree
is traversed bottom up. For each node, we check if
an overlap exists with its parent node. If an over-
lap exists, the length of the edge between parent and
child node is increased by moving the child node till
the overlap resolves. This step is first done for all
leaf concept nodes to remove overlaps with the corre-
sponding parent nodes. When applying this heuris-
tic to internal nodes, we take the bounding box of
the whole sub-tree into account. This ensures that
no overlap exists between a node’s sibling and it’s
children. After all the nodes are traversed, we obtain
a layout that preserves the topology of user-defined
concept tree layout.
4.3.2 Visualizing Aggregate Result Summaries
In this view, all retrieved texts are shown in their cor-
responding node containers with a label – author and
title of the text in a font size reflecting the deter-
mined rank during the concept search. The results
assigned to a node are ordered by decreasing rank, so
that the most relevant text labels are shown at the top
of lists. The aggregate result summaries view for the
epilepsy scenario is shown in Figure 6.
As this is the first view on the results of the con-
cept search, the humanities scholar can get an idea
how the texts are placed in the concept hierarchy and
which texts seem to be most relevant to the concept.
4.3.3 Visualizing Word Summaries of Individual
Texts
To support the exploration process of the concept
search results, we provide a detailed view showing
the relationships between a partial result set (texts of
an individual node) and the occurring word forms in
these texts. To save screen space, we collapse all other
nodes except the selected one. This helps users to
concentrate on the task at hand.
The word forms occurring in the associated texts
are shown as TagPies (J
¨
anicke et al., 2015a), which
provide an intuitive, comparative view of the term dis-
tribution of a concept node. We selected TagPies as
the humanities scholars are used to work with this vi-
sualization within the eXChange project, and it turned
out to be valuable for their workflows (J
¨
anicke et al.,
2015a). Figure 8 shows a TagPie of word forms of
the terms spuma, trepidatio, concidere, vertere and
tremere, which are assigned to the what happens?
sub-concept in epilepsy symptoms.
When the user hovers a text label in the node con-
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
80

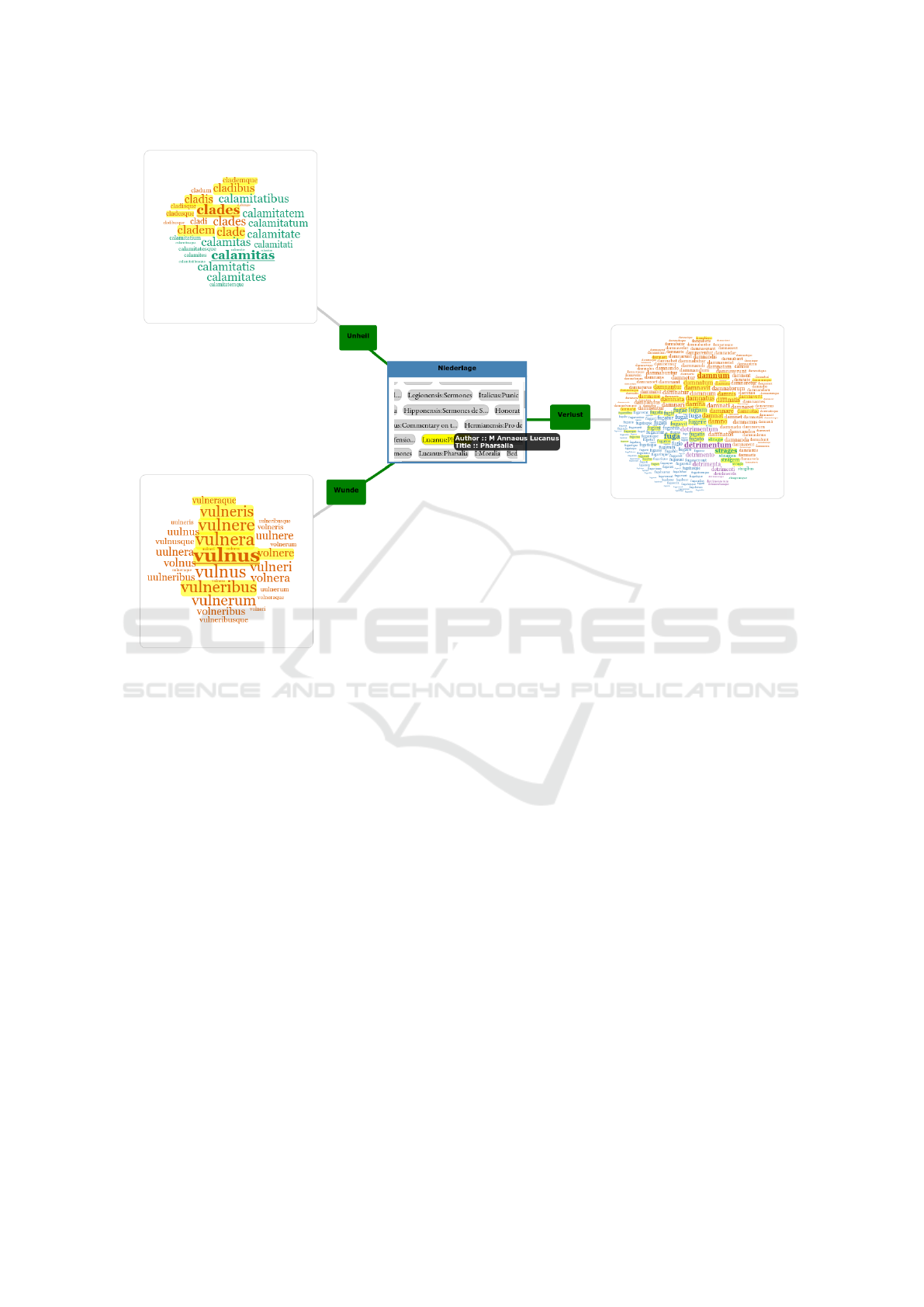

Figure 7: Concept Search Results Viewer showing the word forms occurring in texts belonging to the selected node. The
terms of a selected text are highlighted.
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
81

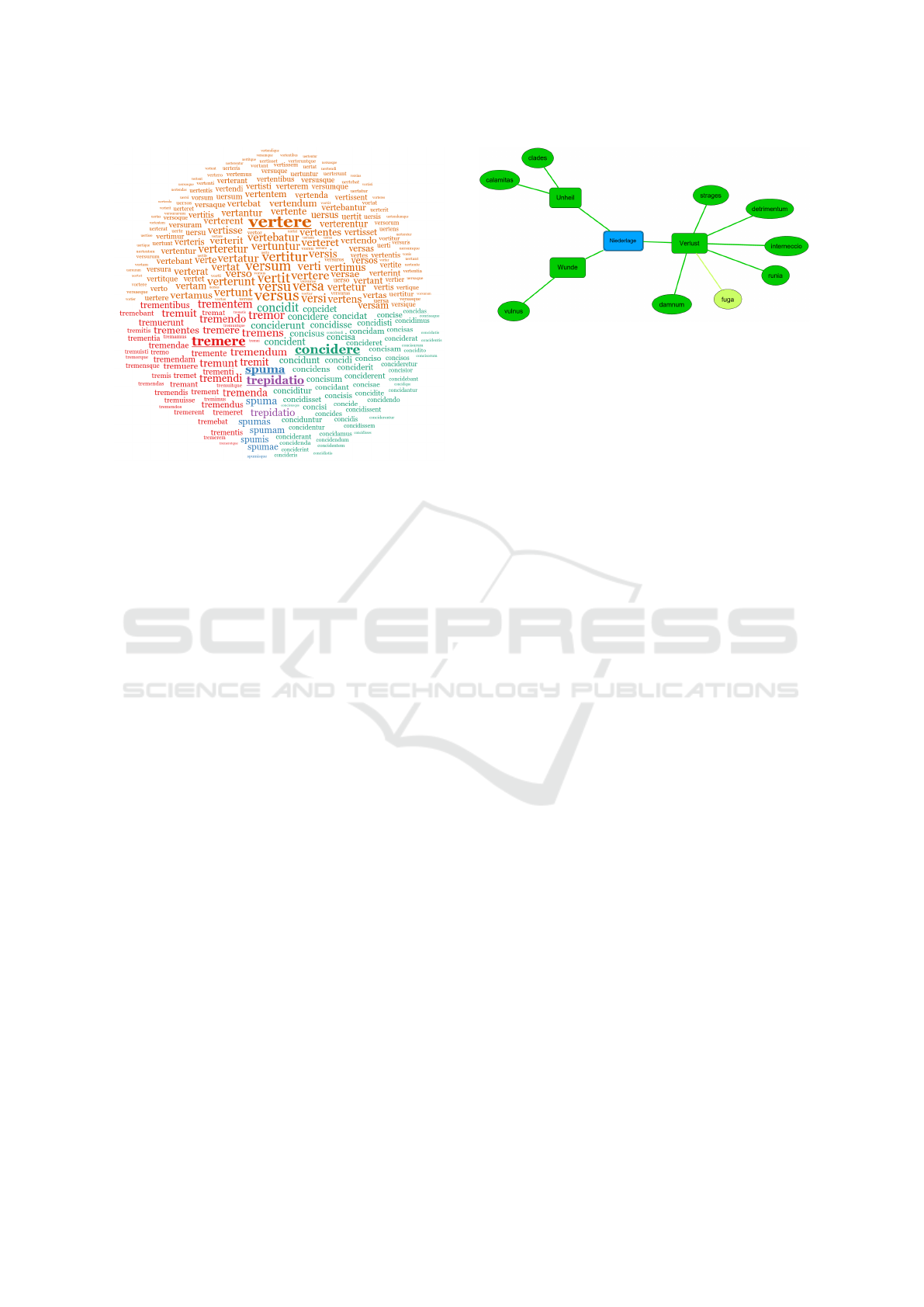

Figure 8: TagPies belonging to the subconcept what hap-
pens? that is related to epilepsy symptoms.
tainer, all associated word forms are highlighted to
give the user an idea of the topical context of the
selected text in accordance to the given concept (as
shown in Figure 7).
5 DISCUSSION
When developing the concept search environment, we
closely collaborated with the humanities scholars
historians and classical philologists involved in the
digital humanities project eXChange. This section
provides a typical usage scenario and takes a look at
the iterative development and evaluation of the sys-
tem.
5.1 Usage Scenario
The leading example of this paper working with
the ancient concept epilepsy was an object of in-
terest for one of the collaborating classical philolo-
gists. She modeled the concept using the provided
editor as shown in Figure 4. Looking at the results
of the concept search (see Figure 6), she observed the
discovered texts assigned to the various nodes. Click-
ing the main concept node for epilepsy reveals the
related terms by displaying the found word forms in
the corresponding TagPies. In that scenario, she was
scrolling through the results and used the highlight-
ing functionality to get a quick overview of the terms
contained in various historical texts (see Figure 7).
Thereby, she discovered that the frequent occurrence
of the term vitium (defect) is related to a large num-
Figure 9: Concept Niederlage (defeat) modeled in the Con-
cept Editor.
ber of texts written by Seneca the Younger (see Fig-
ure 10(a)), a philosopher of the first century AD who
wrote about ethics. Close reading underpins the ex-
pectation that Seneca the Younger used the term vi-
tium in a moral sense. When modeling the concept,
she put the term to the subconcept epilepsy labels
(see Figure 10(b)) as the archaic author Plautus used
it in a physical sense with the intention to discover
similar texts. But the frequent usage in moral con-
texts distorts the intentional meaning of the concept
epilepsy. The iterative design of the concept search
environment allows her to modify the epilepsy con-
cept by removing the term vitium from the positive
subconcept epilepsy labels to a new, negative subcon-
cept moral terms (see Figure 10(c)). After re-running
the concept search based on the improved concept
(see Figure 10(d)), the false positives do not appear
in the main concept node anymore and she can focus
on potentially more related texts.
5.2 Evaluation and Feedback
We integrated the humanities scholars of our project
at each development stage, on the one hand, to com-
municate the functionality of the system, on the other
hand, to ensure designing a usable and comprehen-
sible tool. Seven humanities scholars (6 female, 1
male) working in the project participated in five work-
shops that we organized to iteratively evaluate system
design as well the current prototypes. The first two
workshops were focused on the design of the concept
modeling and concept search. In the later workshops
the scholars were able to play with the prototypes,
pose questions when issues occurred, and suggest us-
ability as well as conceptual improvements of the sys-
tem design. Also, we collected general impressions of
the system in interviews at the end of the workshops.
Besides the workshops, there were several meetings
held to evaluate and discuss the results of the con-
cept search system. Another example thematizing the
ancient concept Niederlage (defeat) modeled during
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
82

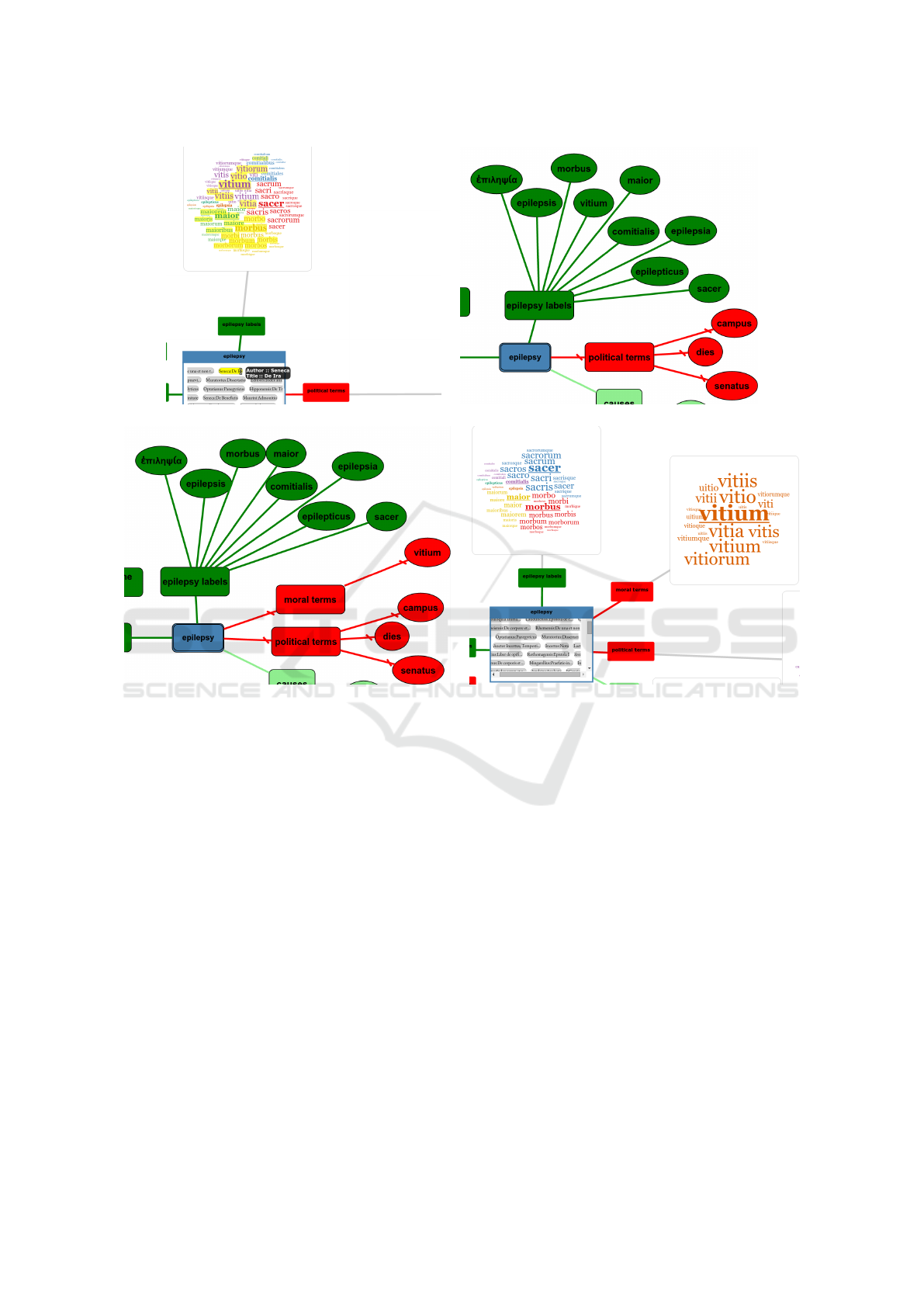

(a) False search results due to positive term vitium. (b) vitium marked as positive in the epilepsy concept.
(c) vitium moved to negative sub-concept moralterms in the
updated epilepsy concept.
(d) Missing false positive search results due to relocation of
vitium.
Figure 10: Use case showing how iterative modeling and searching improve the concept model and search results.
these sessions is shown in Figure 9, and the results
are presented in Figure 11.
Overall, the humanities scholars liked that the vi-
sualization system stepwise turned away from being
“just a working black box. The major reason for
this statement was that the user retains full control of
the concept creation and search process. Especially,
the iterative modification of concepts, which supports
the user to “finally build a good concept, was seen
very powerful. Within the above outlined usage sce-
nario, the humanities scholar stated that the “iterative
process shows, how the imagination of the epilepsy
concept becomes more and more precise to the hu-
manist. Often mentioned was the capability of the
system to support the humanities scholar in detect-
ing conceptual errors when modeling concepts. The
results shown in the Concept Search Results Viewer
lead to “rethinking the concept model and to apply
some changes. The combinatorial display of text ti-
tles, authors and corresponding terms was seen im-
portant when analyzing the results. Especially, the
integration of TagPies helps to receive an immediate
picture of the distribution of the terms and word forms
the underlying concept is built of.
6 CONCLUSION AND FUTURE
WORK
In this paper, we presented a novel concept search en-
vironment to be used by humanities scholars to dis-
cover historical texts containing concepts modeled ac-
cording to their ideas. The system design allows for
an iterative modification of the humanities scholar’s
concept, so that a gradual improvement of results
is possible. Although the system is particularly de-
signed for dealing with ancient texts, we designed it
the way that it is applicable to other domains using
different text genres.
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
83
Figure 11: Search results for concept Niederlage shown in the Concept Search Results Viewer.
For the collaborating humanities scholars, the
concept search system is valuable at current stage, but
several tasks to improve the search capabilities ex-
ist. While quite fit for the visualization purpose, a
simple counting of word occurrences does of course
not yet constitute a reasonable ranking for result
texts in the sense of Information Retrieval. Such a
method should eventually take some form of statis-
tical significance of word occurrences into account
and perhaps use globally-normalized measures like
TF/IDF (Baeza-Yates et al., 1999) or related rank-
ing methods such as Okapi BM25 (Robertson et al.,
1995). Even more important, it should somehow find
a way to regard “negated” sub-concepts (and their -
possibly also negated - (sub-)concepts) as intended
by the Concept Editor. This means that special ad-
ditions have to be made to tailor the ranking functions
to boost the desired combinations of occurrences ac-
cording to the concept – maybe even in an interactive
way with feedback from the visualization.
Interestingly, the usage scenario outlined in Sec-
tion 5.1 triggered a new research question for the
humanities scholar: “Was the term vitium originally
used in a physical or in a moral sense?” Although
the current system helps to generate hypotheses, the
change of concepts and their meanings over time
in dependency of authors using specific terminolo-
gies cannot be tracked, but is very interesting for the
humanities scholars. The planned extension of the
concept search environment with a faceted browsing
mechanism could support answering these types of re-
search questions.
ACKNOWLEDGEMENTS
The authors thank Thomas Efer for maintaining
the project back-end and implementing the concept
search algorithm. This research was funded by the
German Federal Ministry of Education and Research.
REFERENCES
(2015). Bibliotheca Teubneriana Latina. Walter de Gruyter.
http://www.degruyter.com/db/btl (accessed March 19,
2015).
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
84
(2015). Perseus Digital Library. Ed. Gregory R.
Crane. Tufts University. http://www.perseus.tufts.edu
(accessed March 19, 2015).
Alexander, E., Kohlmann, J., Valenza, R., Witmore, M., and
Gleicher, M. (2014). Serendip: Topic Model-Driven
Visual Exploration of Text Corpora. In Visual Analyt-
ics Science and Technology (VAST), 2014 IEEE Con-
ference on, pages 173–182.
Baeza-Yates, R., Ribeiro-Neto, B., et al. (1999). Modern
Information Retrieval, volume 463. ACM press New
York.
Bah, T. (2009). Inkscape: Guide to a Vector Drawing Pro-
gram (Digital Short Cut). Pearson Education.
Blei, D. M., Ng, A. Y., and Jordan, M. I. (2003). Latent
Dirichlet Allocation. the Journal of machine Learning
research, 3:993–1022.
Booch, G., Rumbaugh, J., and Jacobson, I. (2005). Unified
Modeling Language User Guide, The (2Nd Edition)
(Addison-Wesley Object Technology Series). Addison-
Wesley Professional.
Budd, J. W. (2004). Mind Maps as Classroom Exercises.
The Journal of Economic Education, 35(1):35–46.
Cui, W., Liu, S., Tan, L., Shi, C., Song, Y., Gao, Z., Qu,
H., and Tong, X. (2011). TextFlow: Towards Better
Understanding of Evolving Topics in Text. Visualiza-
tion and Computer Graphics, IEEE Transactions on,
17(12):2412–2421.
Cui, W., Liu, S., Wu, Z., and Wei, H. (2014). How Hier-
archical Topics Evolve in Large Text Corpora. Visu-
alization and Computer Graphics, IEEE Transactions
on, 20(12):2281–2290.
Dou, W., Wang, X., Skau, D., Ribarsky, W., and Zhou,
M. (2012). LeadLine: Interactive visual analysis of
text data through event identification and exploration.
In Visual Analytics Science and Technology (VAST),
2012 IEEE Conference on, pages 93–102.
Eisenstein, J., Sun, I., and Klein, L. F. (2014). Ex-
ploratory Thematic Analysis for Historical Newspaper
Archives. In Proceedings of the Digital Humanities
2014.
Fern
´
andez, M., Cantador, I., L
´
opez, V., Vallet, D., Castells,
P., and Motta, E. (2011). Semantically enhanced in-
formation retrieval: an ontology-based approach. Web
Semantics: Science, Services and Agents on the World
Wide Web, 9(4):434–452.
Giunchiglia, F., Kharkevich, U., and Zaihrayeu, I. (2009).
Concept search. In The Semantic Web: Research and
Applications, pages 429–444. Springer.
Guha, R., McCool, R., and Miller, E. (2003). Semantic
search. In Proceedings of the 12th International Con-
ference on World Wide Web, WWW ’03, pages 700–
709, New York, NY, USA. ACM.
Hager, P. J., Scheiber, H. J., and Corbin, N. C. (1997). De-
signing & Delivering: Scientific, Technical, and Man-
agerial Presentations. John Wiley & Sons.
J
¨
ahnichen, P., Oesterling, P., Liebmann, T., Heyer, G.,
Kuras, C., and Scheuermann, G. (2015). Exploratory
Search Through Interactive Visualization of Topic
Models. In Proceedings of the Digital Humanities
2015.
J
¨
anicke, S., Blumenstein, J., R
¨
ucker, M., Zeckzer, D., and
Scheuermann, G. (2015a). Visualizing the Results
of Search Queries on Ancient Text Corpora with Tag
Pies. Digital Humanities Quarterly. To appear.
J
¨
anicke, S., Franzini, G., Cheema, M. F., and Scheuermann,
G. (2015b). On Close and Distant Reading in Digi-
tal Humanities: A Survey and Future Challenges. In
Borgo, R., Ganovelli, F., and Viola, I., editors, Eu-
rographics Conference on Visualization (EuroVis) -
STARs. The Eurographics Association.
Kanter, B. (2015). Cambodia4kids.org.
https://www.flickr.com/photos/cambodia4kidsorg/
6195211411 (Retrieved 2015-11-25).
Kaufman, M. (2015). ’Everything on Paper Will Be Used
Against Me’: Quantifying Kissinger. In Proceedings
of the Digital Humanities 2015.
Koch, S., John, M., Worner, M., Muller, A., and Ertl, T.
(2014). VarifocalReader In-Depth Visual Analysis
of Large Text Documents. Visualization and Com-
puter Graphics, IEEE Transactions on, 20(12):1723–
1732.
Margolis, E. and Laurence, S. (2014). Concepts. In Zalta,
E. N., editor, The Stanford Encyclopedia of Philoso-
phy. Spring 2014 edition.
Montague, J., Simpson, J., Rockwell, G., Ruecker, S., and
Brown, S. (2015). Exploring Large Datasets with
Topic Model Visualizations. In Proceedings of the
Digital Humanities 2015.
Navigli, R. (2009). Word Sense Disambiguation: A Survey.
ACM Computing Surveys (CSUR), 41(2):10.
Robertson, S. E., Walker, S., Jones, S., Hancock-Beaulieu,
M. M., Gatford, M., et al. (1995). Okapi at TREC-3.
NIST SPECIAL PUBLICATION SP, pages 109–109.
Teevan, J., Alvarado, C., Ackerman, M. S., and Karger,
D. R. (2004). The perfect search engine is not enough:
A study of orienteering behavior in directed search.
In Proceedings of the SIGCHI Conference on Human
Factors in Computing Systems, CHI ’04, pages 415–
422, New York, NY, USA. ACM.
Wallach, H. M. (2006). Topic Modeling: Beyond Bag-of-
Words. In Proceedings of the 23rd international con-
ference on Machine learning, pages 977–984. ACM.
Ware, C. (2010). Visual Thinking for Design. Morgan Kauf-
mann.
Yi, J. S., Melton, R., Stasko, J., and Jacko, J. A. (2005).
Dust & Magnet: multivariate information visualiza-
tion using a magnet metaphor. Information Visualiza-
tion, 4(4):239–256.
A Directed Concept Search Environment to Visually Explore Texts Related to User-defined Concept Models
85
