Half-precision Floating-point Ray Traversal

Matias Koskela, Timo Viitanen, Pekka J

askel

ainen and Jarmo Takala

Department of Pervasive Computing, Tampere University of Technology, Korkeakoulunkatu 1, 33720, Tampere, Finland

Keywords:

Ray Tracing, Bounding Volume Hierarchy, Half-precision Floating-point Numbers.

Abstract:

Ray tracing is a memory-intensive application. This paper presents a new ray traversal algorithm for bounding

volume hierarchies. The algorithm reduces the required memory bandwidth and energy usage, but requires

extra computations. This is achieved with a new kind of utilization of half-precision ﬂoating-point numbers,

which are used to store axis aligned bounding boxes in a hierarchical manner. In the traversal the ray origin is

moved to the edges of the intersected nodes. Additionally, in order to retain high accuracy for the intersection

tests the moved ray origin is converted to the child’s hierarchical coordinates, instead of converting the child’s

bound coordinates into world coordinates. This means that both storage and the ray intersection tests with

axis aligned bounding boxes can be done in half-precision. The algorithm has better results with wider vector

instructions. The measurements show that on a Mali-T628 GPU the algorithm increases frame rate by 3% and

decreases power consumption by 9% when wide vector instructions are used.

1 INTRODUCTION

Ray tracing has been a commonly used method to ren-

der off-line images. Due to active research in the ﬁeld,

there are now multiple frameworks which can achieve

real-time frame rates on high-end hardware. How-

ever, signiﬁcant progress must be made in the ﬁeld

before ray tracing is fast enough for consumer appli-

cations on mobile hardware.

The basic operation in ray tracing is ray casting,

which ﬁnds the closest intersection of a ray with the

set of scene primitives. In order to reach high perfor-

mance in large scenes with many primitives, ray trac-

ers organize the scene using special acceleration data

structures. The most popular of these structures is the

Bounding Volume Hierarchy (BVH). In BVH, primi-

tives are stored in the leaves of the tree, and each node

contains the Axis Aligned Bounding Boxes (AABB)

of its children. During ray casting, entire subtrees are

then rapidly eliminated by ﬁnding that the ray does

not intersect a high-level AABB, without making sep-

arate checks against each leaf primitive in the subtree.

Ray tracing is an expensive operation both in

terms of computation and memory trafﬁc. In recent

years, performance has been improved by leaps and

bounds due to the increased parallel resources avail-

able in modern computing systems. Therefore, the

memory system is often a bottleneck since the scene

hierarchy may be more than tens of megabytes in

size and is accessed in an almost unpredictable order.

There is a large body of research on reducing memory

trafﬁc by representing the AABBs in BVHs in a more

compact or approximate manner. For instance, in a

Shared-Plane Bounding Volume Hierarchy (SPBVH)

(Ernst and Woop, 2011), a tree node infers some of the

AABB coordinates from the parent AABB. In prac-

tice this halves the memory footprint of the nodes.

BVH compression techniques are of high inter-

est for mobile systems due to their limited memory

bandwidth and low power requirement. Several CPU

and GPU vendors have introduced architectural sup-

port for a half-precision (16-bit) ﬂoating-point for-

mat (IEEE, 2008), which poses an interesting op-

portunity for the compression. Furthermore, cur-

rent desktop hardware only supports half-ﬂoats as a

storage format, but this is changing in the near fu-

ture, as the next-generation of NVidia’s GPUs is also

scheduled to have half-precision computing support

(Huang, 2015).

In this paper, a novel hierarchical half-precision

BVH traversal scheme which computes AABB inter-

section tests natively in half-precision format is pro-

posed. This removes the format conversion overheads

which slowed down prior work (Koskela et al., 2015),

which exploited half-precision only as a storage for-

mat. In the measurements using wide vector instruc-

tions the proposed method improves frame rate by an

average of 3% and energy efﬁciency by 9%.

Koskela, M., Viitanen, T., Jääskeläinen, P. and Takala, J.

Half-precision Floating-point Ray Traversal.

DOI: 10.5220/0005728001690176

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 1: GRAPP, pages 171-178

ISBN: 978-989-758-175-5

171

2 BACKGROUND

Ray tracing is well suited for many ways of paral-

lel computations. Threads can be used, for exam-

ple, to trace multiple rays in parallel. On the other

hand, there are at least two ways in which ray traver-

sal can use vector instructions. First, multiple rays can

be traced together in parallel, which is called packet

tracing. Second, multiple ray-AABB tests can be cal-

culated in parallel. In order to use wider vectors,

BVHs with a greater branching factor than two can be

used, which is called Multi Bounding Volume Hierar-

chy (MBVH) (Ernst and Greiner, 2008). Usually MB-

VHs are labelled based on their branching factor in a

way that MBVH4 means that the tree has a branch-

ing factor of 4 and MBVH8 means that the tree has a

branching factor of 8, et cetera. The two ways of us-

ing vector instructions can be combined. In that case

multiple rays are traced in parallel and all of them test

intersections with multiple AABBs.

There have been many proposed algorithms and

data structures to reduce the amount of data needed

for the ray tracing traversal step. These algorithms

can be divided into two categories.

First, some of the child AABB bounds can be in-

ferred from the parent AABB. Because in the BVH

the AABBs are tightly bound to their child geome-

try, all of the parent bounds are used by at least one

of the children. Some examples of this are Bounding

Interval Hierarchy (BIH), which stores only two co-

ordinate values and one axis in each node (W

achter

and Keller, 2006) and the SPBVH (Ernst and Woop,

2011). Nevertheless, these ideas are not as good with

MBVHs since there are more children, which means

that fewer values for each child can be inferred.

3 RELATED WORK

Another approach is to compress data to reduced pre-

cision data types, at the cost of decompression during

traversal and reduced data quality. Low quality data

causes extra work at traversal, as the ray-AABB inter-

section tests might give false positive hits. Moreover,

algorithms must be carefully designed to avoid false

negatives in intersection tests, which would cause vis-

ible gaps in the scene geometry.

One way to compress the data is to use reduced

precision integer formats (Mahovsky and Wyvill,

2006). Most of the hardware commonly used today

is capable of doing calculations in different integer

precisions. Using integers, the scene is divided into

equally sized quantization steps. This is beneﬁcial if

the details of the geometry are equally divided around

the whole scene.

To avoid too big quantization steps, the data type

can be used hierarchically. In this representation the

value range of the data type is scaled to the parent

node’s AABB bounds, so that the smallest possible

value of the data type corresponds to the parent’s

lower bound and the greatest possible value to the

upper bound. In a deep tree, even with two integer

bits, this kind of hierarchical encoding can achieve

more accuracy per coordinate than single-precision

ﬂoating-point format. This is possible because on

every lower level of the tree the quantization steps

get smaller in world coordinates. However, this extra

precision is not useful since the triangles are usually

stored in single-precision format.

The previous work on half-precision ﬂoating-

point BVHs (Koskela et al., 2015) only considers the

use of half-precision ﬂoating-point numbers as a stor-

age format. This reduces BVH inner node mem-

ory bandwidth and space usage by half, which cor-

responds to an average of 16% reduction in cache

misses and 7% reduction in memory space usage with

MBVH4. Their work evaluates both the BVH with

world coordinate half-precision ﬂoating-point num-

bers and the hierarchical representation similar to the

work on integers (Mahovsky and Wyvill, 2006). The

world coordinate half-precision traversal performance

is reduced by the extra traversal caused by the false

positives and the overhead of format conversion when

AABBs are loaded from memory. The hierarchical

half-precision BVH avoids most of the false positives,

at the cost of extra computational overhead.

Instead of converting the hierarchical AABB

bound coordinates into world coordinates, the ray

origin can be converted into hierarchical coordinates

(Keely, 2014). This allows intersection tests to be

computed in a low-precision format, which reduces

the required bit counts signiﬁcantly. Moreover, this

is beneﬁcial since fewer coordinates need to be con-

verted to different coordinate base (there are six val-

ues in the AABB bounds and only three values in the

ray origin). To avoid overﬂows in the hierarchical co-

ordinates, the ray origin has to be moved to the edge

of the coordinate range on every traversal step.

4 PROPOSED ALGORITHM

This paper follows the compression category by us-

ing half-precision ﬂoating-point numbers. The traver-

sal algorithm used in this paper is based on a simi-

lar idea as the (Keely, 2014) algorithm. The differ-

ence is that instead of adding custom integer hard-

ware to the GPU, the proposed algorithm uses ex-

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

172

00 int nodeIndex = indexStack.pop();

01 half3 rayOrigin = rayOriginStack.pop();

02 half scaleSofar = scaleStack.pop();

03 half disSoFar = distanceStack.pop();

05 if(nodeIndex is inner node index){

06 // vectorised ray-AABB slab hit tests

07 // for every ray in the packet against

09 // every child node’s AABB in parallel

10 foreach hitNode that is hit by any ray

11 in the packet and is closer than

12 closest found triangle{

14 indexStack.push(hitNode.index);

16 // Move ray origin to edge of hitNode

17 half hitDis = max(hitDistance, 0.0);

18 half3 newRayOrigin = rayOrigin +

19 0.99 * hitDis * rayDirection;

21 // Convert to deeper hierarchical coords

22 half3 axisRanges = hitNode.upperBound

23 - hitNode.lowerBound;

24 half range = max(axisRanges.x,

25 axisRanges.y, axisRanges.z);

26 float3 mover = 0.5 *

27 (float3)(hitNode.lowerBound +

28 hitNode.upperBound - range);

29 newRayOrigin = (half3)(VAL_RANGE *

30 (((float3)newRayOrigin - mover) /

31 (float)range) + VAL_MIN);

32 rayOriginStack.push(newRayOrigin);

34 // Update distance values

35 half newScale = scaleSoFar *

36 (range / VAL_RANGE);

37 distanceStack.push(disSoFar + hitDis *

38 scaleSoFar);

39 scaleStack.push(newScale);

40 }

41 }else{ // Node is leaf node

42 // ray-Triangle tests

43 }

Figure 1: The proposed algorithm in pseudo code. This

consists the inner loop of the BVH traversal.

isting half-precision ﬂoating-point hardware, there-

fore, available power savings are more modest. This

kind of hardware is currently found especially in mo-

bile platforms. In addition, this paper describes how

the hierarchical half-precision format, which was de-

signed so that values are converted to world coordi-

nates prior to intersection testing, is modiﬁed so that

it better ﬁts calculations in hierarchical coordinates.

On high level the proposed traversal has two new

stages. First, the ray origin is moved to the edges

of the intersected nodes. Second, in order to retain

high accuracy for the intersection tests the moved ray

origin is converted to the child’s hierarchical coordi-

nates, instead of converting the child’s bound coor-

O &O

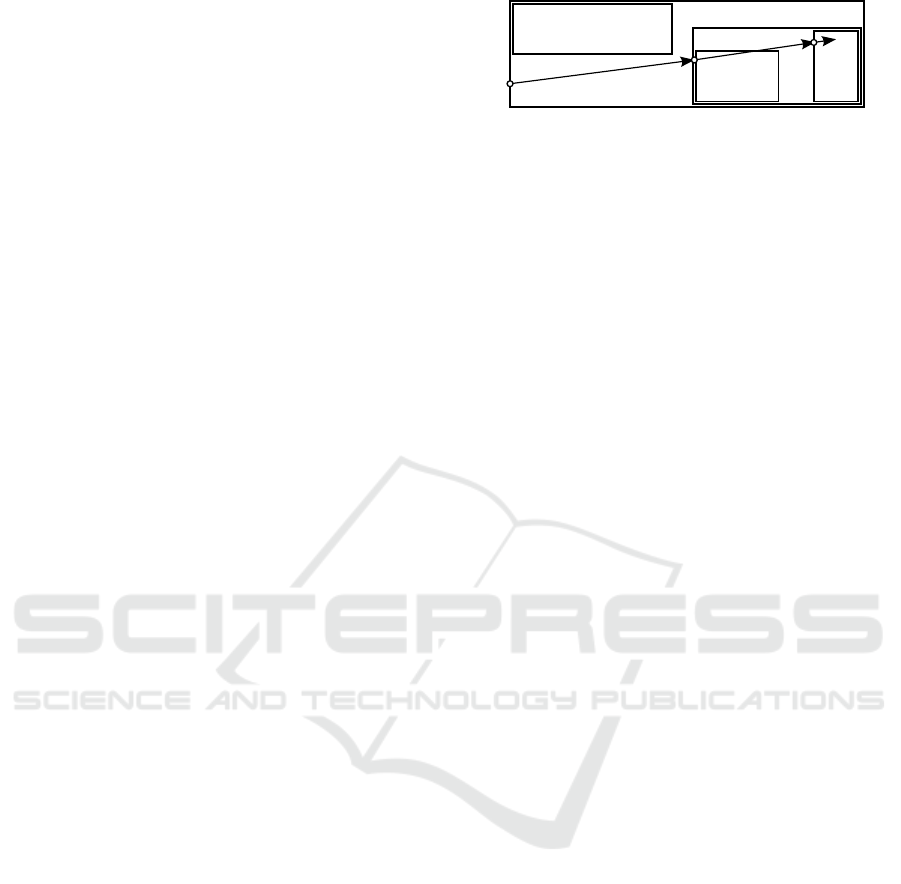

Figure 2: Ray origin movement through the hierarchy. The

initial origin is O

and because the ray intersects the node B

the origin is moved to O

. In the node B, the ray intersects

both nodes Ba and Bb, so the origin is moved to their edges

in corresponding branches of the tree traversal.

dinates into world coordinates. The main point of

these modiﬁcations is to keep the values within the

range of the half-precision format. This way the ray-

AABB tests can be done with native half-precision

calculations and the AABBs can be stored in half-

precision. Some hardware ﬂoating-point units can

compute twice as many half-precision values with

same latency as single-precision values (Hariharakr-

ishnan et al., 2013). The pseudo code of the proposed

algorithm can be found in Figure 1.

On lines 00 – 01 the algorithm loads the index

of the current node and the current ray origin. The

ray origin is already in the same relative coordinate

base as the child nodes’ AABB bounds, which means

that the ray-AABB test can be performed for every

child AABB with vector instructions without any ex-

tra preparations. In the measurements an unmodiﬁed

version of the slab method (Smits, 1998) was used for

ray-AABB hit tests in half-precision.

When using the half-precision ﬂoating-point for-

mat, as small a number as 65520 is rounded up to in-

ﬁnity. In order to prevent values from being rounded

up to inﬁnity, the hierarchical storage format was

modiﬁed to use the interval from VAL_MIN (-16384)

to VAL_MAX (16384), which is one fourth of the maxi-

mum non-inﬁnite half-precision interval.

4.1 Ray Origin Movement

The code after line 10 is executed only for those chil-

dren which are actually intersected. This part could

also be done for all of the children with vector instruc-

tions, but in the authors’ experiments with MBVH4, a

ray hits almost only one AABB in a inner node on av-

erage. In this case vectorizing the lines after 10 to all

of the child AABBs would cause almost three of the

four pieces of data to be trash values. This requires

many registers for the trash values. For these reasons

there was an improvement when the loop was used

to go through the intersected children. Furthermore,

if the hardware supports instruction level parallelism,

i.e., calculating vector and scalar instructions at the

same time, it might be possible to optimize the inner

loop so that in the single ray case at least some parts of

Half-precision Floating-point Ray Traversal

173

(a) Shiny Bunny with one point light (69K trian-

gles).

(b) Normals of Dragon, in other words, just ray

casting (871K triangles).

lights (75K triangles).

(d) Fairy with one point light (174K triangles).

(e) Sponza with reﬂecting stone and metal materi-

als and with two point lights (278K triangles).

(f) Conference with all materials reﬂecting and

with two point lights (331K triangles).

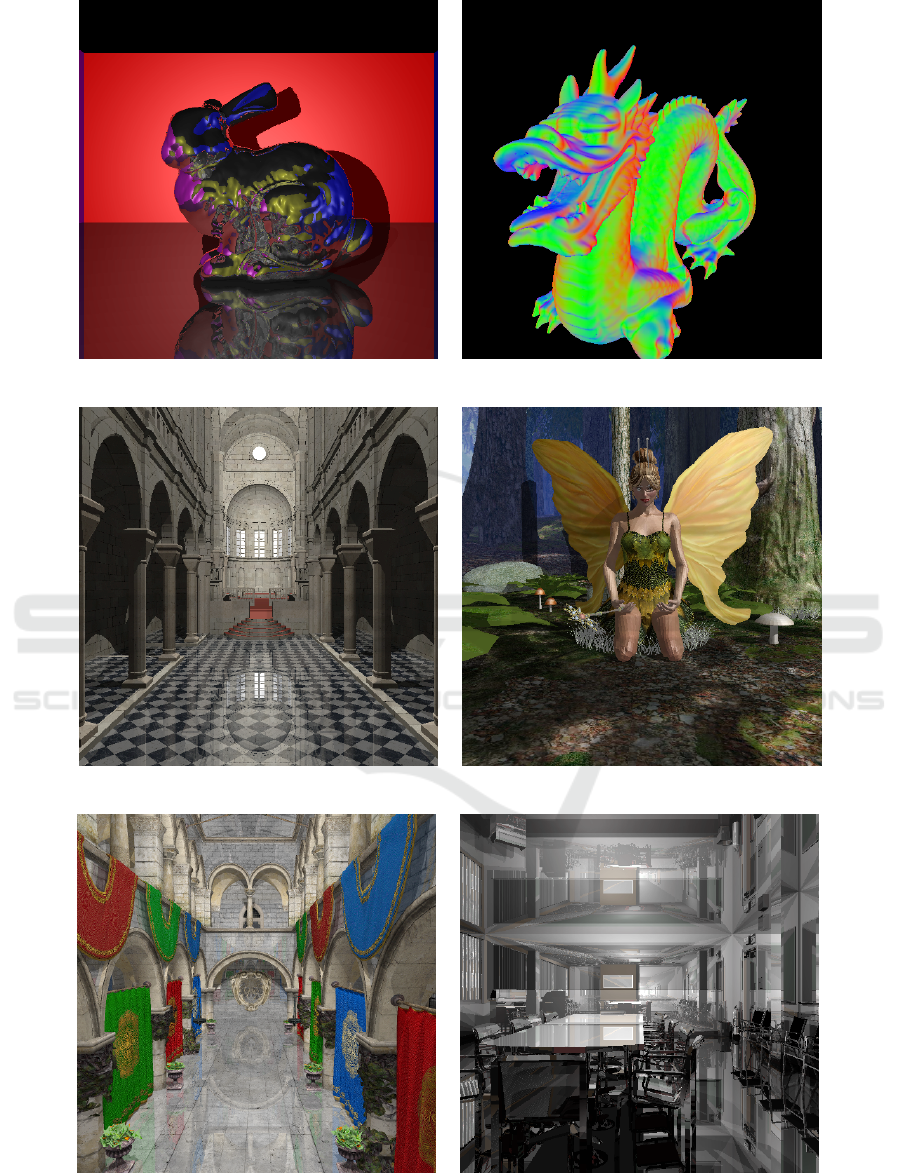

Figure 3: The test scenes used in the measurements.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

174

the ray-AABB tests and coordinate conversions could

be calculated simultaneously.

The index of every intersected child is stored in

the stack on line 14. Next, the ray origin is moved to

the edge of the intersected child AABB on the lines

17 – 19, which can also be seen visualized in Fig-

ure 2. The distance to the child AABBs intersection

is clamped from the lower end to zero, because neg-

ative distances mean that the ray origin is inside the

child AABB. In this case the ray origin is not moved,

but it is still converted to the child’s hierarchical coor-

dinates. The distance is shortened with an epsilon of

0.01, because if the child AABB is planar, i.e., the size

is 0 on some axis, moving the ray origin inside of it

causes false negatives. This was one working epsilon

value found by testing different values. Since the al-

gorithm avoids inﬁnities by using one fourth of the to-

tal half-precision range, the value of the epsilon is not

important. If the BVH tree is unbalanced and contains

child AABBs which are extremely small compared to

their parents, the epsilon value starts to have an effect.

4.2 Coordinate Conversion

The coordinate conversion to the new ray origin is

shown on lines 22 – 32. This conversion changes

the coordinates into a deeper level of hierarchi-

cal coordinates. The idea of the conversion is

ﬁrst to convert the new ray origin values so that

the coordinates of the intersected child nodes lower

bounds are represented by 0.0 and the coordinates

of the upper bounds are represented by 1.0. Then

this value is multiplied with the total used range

VAL_RANGE = VAL_MAX - VAL_MIN, which makes it

a value from 0 to 32768. Then the interval is moved

with VAL_MIN to be from -16384 to 16384, which was

the desired interval.

A slightly different algorithm than in the previous

work was used, because usually the whole range of

the data type is used on every axis. This means that

going deeper into the hierarchy scales different axes

at different rates. Without correction, this would bend

the rays. More importantly, correcting the direction

would require more computations and one more stack

to store the corrected ray directions. The issue was

solved by scaling all of the axes with just one value

range. The largest range of all of the axes was used

for the scaling. An example is provided in Figure 4.

In the previous work the variable mover was just

set to VAL_MIN, but since in this work only one range

was used on all of the axes, a more complicated mover

was needed. The idea is to move the interval of

the child node into the center of the half-precision

total range. If conventional VAL_MIN was used as

VAL_MIN VAL_MAX

VAL_MAX

VAL_MIN

-P P

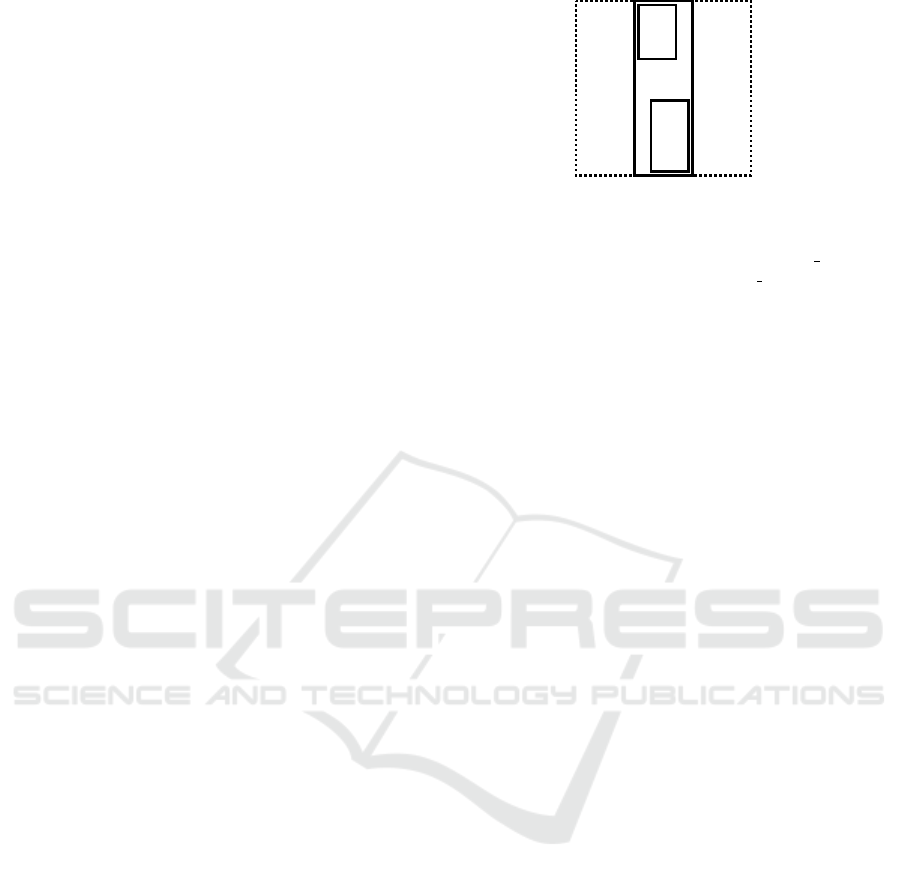

Figure 4: In contrast to conventional hierarchical BVH stor-

age the proposed approach scales every axis on the largest

range. In the previous work x-axis value VAL MAX would

have been in location P and value VAL MIN in -P. This re-

duces the need for ray direction correction but loses preci-

sion.

mover, the value interval would have started from the

VAL_MIN and the algorithm would have suffered from

the poor precision of the ﬂoating-point format with

values far from zero. In Figure 4, this would have

meant that the bounding box had been on the left side

of the dashed square, not in the center.

Single-precision data types were used for the co-

ordinate conversion, since half-precision was causing

errors for small triangles. This part was vectorized

only for the rays in the packet, not for the child nodes.

The child nodes were handled by looping through the

actually intersected ones. This means that even with

the wider data type these lines do not require wider

vector units and the performance impact was only the

type conversions and the extra register space require-

ment. This impact was so small compared to memory

bandwidth savings that it was unmeasurable.

4.3 Maintaining the Traversed Distance

Finally in the lines 35 – 39 the distance that has been

traversed is maintained. This distance in world co-

ordinates is required because the traversal can termi-

nate as soon as it has found a triangle intersection

and all of the AABBs in the stack are further away

than it. In the lines 02 – 03 the distance values are

popped from the stacks. The world coordinate dis-

tance from the current moved ray origin to the found

AABB can be calculated by multiplying the distance

to the AABB, which is in the hierarchical coordinates,

with the value popped from the scale stack. The value

popped from the distance stack is the distance before

intersecting current node. The sum of the distance be-

fore intersecting current node and the scaled distance

to the intersected AABB equals the total world coor-

dinate traversal distance to the AABB. This value is

needed on line 10 to determine if the AABB is further

than closest found triangle.

Half-precision Floating-point Ray Traversal

175

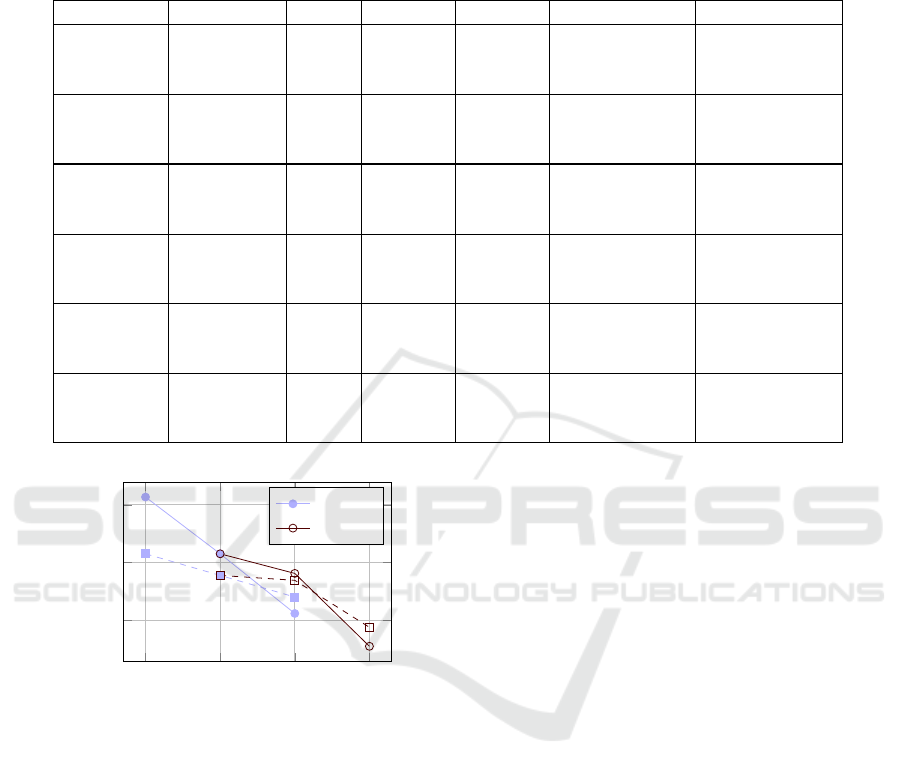

Table 1: Frame rates [frames per second] (more is better). The values are compared to single-precision and all results that

improve on it are bolded. Other measured algorithms were the proposed algorithm and storing the values in half-precision

and converting them to single-precision before computation.

Model Algorithm BVH MBVH4 MBVH8 MBVH4 2 rays MBVH4 4 rays

Bunny

single 2.22 2.13 1.67 1.74 1.38

half storage -5.9% -3.2% 0% -4.0% -2.9%

proposed -30% -23% -11% -19% 0%

Dragon

single 2.80 2.60 1.93 2.17 1.66

half storage -3.6% -3.8% 2.0% 3.7% 0%

proposed -19% -12% -1.0% -8.8% 3.0%

Sibenik

single 0.933 0.934 0.685 0.804 0.716

half storage -4.4% 0.4% 0.3% -4.3% -4.2%

proposed -13% -4.6% -6.9% -5.5% 8.5%

Fairy

single 1.43 1.43 1.04 1.28 1.03

half storage -2.8% -0.7% 2.9% -2.3% -1.9%

proposed -26% -18% -10% -19% 1.0%

Sponza

single 0.445 0.448 0.327 0.372 0.298

half storage -4.0% 0.2% 2.1% -4.6% -3.7%

proposed -23% -15% -5.2% -12% 12%

Conference

single 0.613 0.614 0.500 0.529 0.463

half storage -8.2% -6.2% -3.4% -9.1% -10%

proposed -27% -21% -13% -20% -9.7%

5 TEST SETUP

For the measurements a ray tracer was implemented

using OpenCL. OpenCL was chosen because it has

the cl khr fp16 extension, which provides support for

native half-precision calculations. The tests were run

on the ODROID XU3 board’s Mali-T628 GPU be-

cause it supports most of the features of this exten-

sion. The board also has built-in sensors for power

readings, which were used for the measurements.

During the measurements, the software traced

rays for as long as it took for the variations in the

frame rates to settle. Then, 10 frames of frame rate

and power usage was recorded. The reported num-

bers are averages of these numbers. The frame rate

did not improve after the ﬁrst frames, which indicates

that the scenes were so massive that they overﬁlled

the small caches of the Mali.

The images of different test setups can be seen in

Figure 3. The ray tracer used Whitted style ray tracing

(Whitted, 1979). In the scenes with reﬂections, two

bounces were allowed. In the scenes with lighting, ev-

ery regular ray sent one shadow ray to each point light

if the result was not already known from the normal of

the surface. Explicit vector instructions were used to

test all child nodes simultaneously in BVH, MBVH4

and MBVH8. MBVH16 measurements were not in-

cluded, because it was already hard to ﬁll all branches

of the tree in a MBVH8. Therefore, MBVH16 mea-

surements would not have been representative.

To achieve wider vector instructions packet trac-

ing was also used, yet it is not good for perfor-

mance with incoherent secondary rays (Wald et al.,

2008). Because the packet size is the same with all

of the compared methods, all of them should have

the same performance drawback. With packet trac-

ing MBVH4 was used, since the implemented Surface

Area Heuristic (SAH) (MacDonald and Booth, 1990)

tree builder was best suited for building MBVH4

trees. The rays were assigned to packets based on

their screen space coordinates. With 4 rays testing hits

against 4 AABBs ray-AABB tests were done with 16

elements wide vector instructions, which is the widest

vector width supported by the OpenCL framework.

6 RESULTS

The measured frames per second can be found in Ta-

ble 1 and the measured power usage can be found in

Table 2. Both of the measurements show similar re-

sults. The wider the vector instruction used in the cal-

culations, the better the proposed algorithm is.

With narrow vector instructions such as BVH with

one ray (which stores only two elements in a vector)

the proposed algorithm performs much worse than

regular single-precision traversal. This is because the

little beneﬁt from the smaller AABB memory foot-

print is hidden by the use of extra stacks and the com-

putation overhead from the coordinate conversions.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

176

Table 2: Power readings [W] from GPU and memory, which is shared with the CPU (less is better). The values are compared

to single-precision by dividing the values with the corresponding frame rate. This means that the results are comparable in

terms of actual work performed by the ray tracer. All results that improve on single-precision are bolded. Other measured

algorithms were the proposed algorithm and storing the values in half-precision and converting them to single-precision before

computation.

Model Algorithm BVH MBVH4 MBVH8 MBVH4 2 rays MBVH4 4 rays

Bunny

single 1.22 1.26 1.44 1.46 1.61

half storage 8.9% 4.7% -5.9% 4.8% 10.8%

proposed 46% 27% 4.6% 26% -0.6%

Dragon

single 0.98 1.12 1.41 1.40 1.58

half storage 4.6% -3.3% -10% -6.4% 5.2%

proposed 47% 18% -7.3% 7.1% -8.0%

Sibenik

single 1.32 1.35 1.51 1.62 1.80

half storage 9.0% -0.1% 1.6% 3.5% 10%

proposed 24% 9.5% -0.3% 7.0% -12%

Fairy

single 1.32 1.32 1.53 1.65 1.81

half storage -0.2% -2.1% -4.5% 0.5% 3.7%

proposed 36% 23% 4.0% 20% -11%

Sponza

single 1.32 1.29 1.58 1.72 2.01

half storage 2.8% 3.6% -3.3% 5.3% -0.1%

proposed 44% 29% 5.1% 17% -17%

Conference

single 1.05 1.13 1.35 1.39 1.65

half storage 19% 0.3% -3.8% 5.4% 10%

proposed 58% 30% 8.1% 21% -5.9%

2 4 8 16

Vector width (element count)

Avg. difference (%)

MBV H

packet

Figure 5: The average difference of the proposed algorithm

for regular single-precision traversal (less is better). Cir-

cles and solid lines are power usage. Squares and dashed

lines are computation time. This shows a clear trend that

the wider the vector instructions used the better the perfor-

mance is with the proposed algorithm.

In addition to actual coordinate calculations, the data

for the conversion needs to be parsed from the stored

BVH. Each AABB bound coordinate for every child

node was stored in one vector, which makes the ray-

AABB intersection test faster. However, the proposed

algorithm needs to fetch one value for every inter-

sected child node from all of the six bound vectors.

With 16-element-wide vector instructions, the

proposed algorithm starts to outperform its counter-

part single-precision algorithm. These wide instruc-

tions were only run with the packet tracing, but the

Figure 5 shows a similar trend without packets. This

means that if a ray tracer successfully utilizes wide

vector instructions and the targeted hardware has sup-

port for native half-precision computations the pro-

posed algorithm should be faster. Of course the limit

of 16 elements might be lower or higher on other plat-

forms depending on the vector computation hardware

and the structure of the whole memory hierarchy.

The proposed algorithm’s worse performance in

the Conference scene is likely explained by the poor

precision in the edges of the scene on the ﬁrst lev-

els of the BVH. Poor precision leads to many extra

rays continuing traversal to the branches where the

computationally heavy parts like the curtains and the

chairs are stored. This only adds extra work to BVH

traversal for ﬁnding out that a ray is not actually inter-

secting any primitives in an area of the scene. In the

similar test set-up of the Sponza scene the curtains are

located closer to the origin of the scene where there is

more precision. Furthermore, computationally expen-

sive parts have reﬂections in the Conference scene,

which makes both the incoming rays and the outgo-

ing rays heavier to compute than in single-precision.

Comparing the half-precision storage and single-

precision methods shows they perform at a similar

level. There is no clear pattern visible for which

results half-precision storage outperforms single-

precision. In contrast, the proposed method is bet-

ter when using widest vectors and also has far greater

differences compared to single-precision. This is be-

Half-precision Floating-point Ray Traversal

177

cause the SAH tree construction has to make very

different trees with far fewer quantization points pro-

vided by the non-hierarchical format. On the other

hand, the proposed algorithm has even more precision

in the lower levels of the tree than single-precision so

it builds similar trees.

7 CONCLUSIONS

This paper describes a new kind of ray traversal

for BVHs, which utilizes half-precision ﬂoating-point

computations. The traversal is done by moving the

ray origin to the edge of the intersected child AABB

and then converting the coordinates of the ray origin

into the hierarchical coordinates of the child AABB.

This way the traversal stays in a more suitable range

for the lower precision format. In addition, the hier-

archical half-precision coordinates can provide even

more accuracy than single-precision world coordi-

nates. This is possible since on every lower level the

quantization step in world coordinates gets smaller.

The proposed algorithm works better than single-

precision with wider vector instructions. This means

that if a ray tracing application is fastest with wide

vector instructions then changing to the proposed

traversal should make it even faster. This requires

that the hardware is capable of calculating twice the

amount of half-precision values with same latency as

single-precision calculations, which is quite common

with the hardware that supports native half-precision

calculations.

In the future, the authors are interested in extend-

ing the use of half-precision ﬂoating-point numbers to

the rest of the ray tracing algorithm. Another potential

future work is to optimize the proposed algorithm for

possible desktop GPUs with support for native half-

precision calculations.

ACKNOWLEDGEMENTS

The authors would like to thank their funding sources:

TUT graduate school, Academy of Finland (funding

decision 253087), Finnish Funding Agency for Tech-

nology and Innovation (project ”Parallel Acceleration

2”, funding decision 40081/14) and ARTEMIS JU un-

der grant agreement no 621439 (ALMARVI). In ad-

dition, the authors would like to thank Anat Gryn-

berg and Greg Ward for Conference, Frank Meinl for

Sponza, Utah 3D Animation Repository for Fairy,

Marko Daprovic for Sibenik and Stanford 3D Scan-

ning Repository for Bunny and Dragon models. The

authors are also very grateful for the anonymous re-

viewer comments.

REFERENCES

Ernst, M. and Greiner, G. (2008). Multi bounding volume

hierarchies. In Proceedings of the IEEE Symposium

on Interactive Ray Tracing, pages 35–40.

Ernst, M. and Woop, S. (2011). Ray tracing with shared-

plane bounding volume hierarchies. Journal of

Graphics, GPU, and Game Tools, 15(3):141–151.

Hariharakrishnan, K., Barbier, A., and Hedley, F. (2013).

OpenCL on Mali FAQs. ARM.

Huang, J.-H. (2015). Leaps in visual computing. In

Opening Keynote of GPU Techonology Confer-

ence Available at: http://on-demand.gputechconf.

com/gtc/2015/presentation/S5715-Keynote-Jen-

Hsun-Huang.pdf (Referenced: 9/18/2015).

IEEE (2008). Standard for ﬂoating-point arithmetic. Std

754-2008.

Keely, S. (2014). Reduced precision for hardware ray trac-

ing in GPUs. In Proceedings of the High Performance

Graphics Conference, pages 29–40.

Koskela, M., Viitanen, T., J

askelainen, P., Takala, J., and

Cameron, K. (2015). Using half-precision ﬂoating-

point numbers for storing bounding volume hierar-

chies. In Proceedings of the 32nd Computer Graphics

International Conference.

MacDonald, J. and Booth, K. (1990). Heuristics for ray

tracing using space subdivision. The Visual Computer,

6(3):153–166.

Mahovsky, J. and Wyvill, B. (2006). Memory-conserving

bounding volume hierarchies with coherent raytrac-

ing. Computer Graphics Forum, 25(2):173–182.

Smits, B. (1998). Efﬁciency issues for ray tracing. Journal

of Graphics Tools, 3(2):1–14.

achter, C. and Keller, A. (2006). Instant ray tracing: The

bounding interval hierarchy. In EuroGraphics Sympo-

sium on Rendering Techniques, pages 139–149.

Wald, I., Benthin, C., and Boulos, S. (2008). Getting rid

of packets – efﬁcient SIMD single-ray traversal using

multi-branching BVHs. In Proceedings of the IEEE

Symposium on Interactive Ray Tracing, pages 49–57.

Whitted, T. (1979). An improved illumination model for

shaded display. ACM SIGGRAPH Computer Graph-

ics, 13:343–349.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

178
