Characterization of Encrypted and VPN Traffic using Time-related
Features
Gerard Draper-Gil, Arash Habibi Lashkari, Mohammad Saiful Islam Mamun and Ali A. Ghorbani
University of New Brunswick, Fredericton NB E3B 5A3, New Brunswick, Canada
Keywords:
Traffic Classification, Encrypted Traffic Characterization, Flow Time-based Features, VPN Traffic Character-
ization, Flow Timeout Value.
Abstract:
Traffic characterization is one of the major challenges in today’s security industry. The continuous evolution
and generation of new applications and services, together with the expansion of encrypted communications
makes it a difficult task. Virtual Private Networks (VPNs) are an example of encrypted communication service
that is becoming popular, as method for bypassing censorship as well as accessing services that are geographi-
cally locked. In this paper, we study the effectiveness of flow-based time-related features to detect VPN traffic
and to characterize encrypted traffic into different categories, according to the type of traffic e.g., browsing,
streaming, etc. We use two different well-known machine learning techniques (C4.5 and KNN) to test the ac-
curacy of our features. Our results show high accuracy and performance, confirming that time-related features
are good classifiers for encrypted traffic characterization.
1 INTRODUCTION
Traffic classification technologies have received in-
creased attention over the last decade due to the im-
plementation of mechanisms for network quality of
service (QoS), security, accounting, design and engi-
neering. The networking industry as well as the re-
search community have dedicated many efforts to the
research of these technologies and came up with sev-
eral classification techniques (Callado et al., 2009).
However, the continuous expansion of Internet and
mobile technologies are creating a dynamic environ-
ment where new applications and services emerge ev-
ery day, and the existing ones are constantly evolv-
ing. Moreover, encryption is becoming pervasive in
today’s Internet, serving as a base for secure commu-
nications. This constant creation, evolution, and se-
curization of applications makes traffic classification
a great challenge for the Internet research community.
Traffic classification can be categorized based on
its final purpose: associating traffic with encryp-
tion (e.g., encrypted traffic), protocol encapsulation
(e.g., tunneled through VPN or HTTPS); accord-
ing to specific applications, (e.g., Skype), or accord-
ing to the application type (e.g., Streaming, Chat),
also called traffic characterization. Some applications
(e.g., Skype, Facebook) support multiple services like
chat, voice call, file transfer, etc. These applications
require identifying both the application itself and the
specific task associated with it. Very few traffic classi-
fication techniques in the literature address this chal-
lenging trends (Wang et al., 2014; Rao et al., 2011;
Coull and Dyer, 2014).
In early 90’s, the initial traffic classification tech-
niques associated transport layer ports with specific
applications, a simple and fast technique. But, its low
accuracy and unreliability rendered the development
of Deep Packet Inspection (DPI) approaches. The
DPI approach analyzes packets and classifies them
according to some stored signature or pattern. How-
ever, DPI techniques that require payload examina-
tion are not computationally efficient, specially over
high-bandwidth network. Moreover, they are often
circumvented by encapsulated, encrypted, or obfus-
cated traffic that precludes payload analysis.
Selecting effective and reliable features for traffic
analysis is still a serious challenge. Generally speak-
ing the classification of network traffic falls mainly
into two categories: flow-based classification, using
properties such as flow bytes per second, duration per
flow, etc. and packet-based classification, using prop-
erties such as size, inter-packet duration of the first (or
n) packets, etc.
In this paper, we focus on analyzing regular en-
crypted traffic and encrypted traffic tunneled through
a Virtual Private Network (VPN). The characteriza-
Draper-Gil, G., Lashkari, A., Mamun, M. and Ghorbani, A.
Characterization of Encrypted and VPN Traffic using Time-related Features.
DOI: 10.5220/0005740704070414
In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 407-414
ISBN: 978-989-758-167-0
Copyright
c
 2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
407

tion of VPN traffic is a challenging task that remains
to be solved. VPN tunnels are used to maintain the
privacy of data shared over the physical network
connection holding packet-level encryption, therefore
making very difficult to identify the applications
running through these VPN services.
Our Contribution in this paper is twofold. First,
we propose a flow-based classification method to
characterize encrypted and VPN traffic using only
time-related features. Moreover, we reduce the com-
putational overhead by reducing the set of features
to a set that can be extracted with low computational
complexity (Kim et al., 2008; Li et al., 2009). And
second, we generate and publish an extensive labeled
dataset of encrypted traffic, with 14 different labels
(7 for regular encrypted traffic and 7 for VPN traffic).
We choose only time-related features to expedite the
efficiency and to ensure an encryption independent
traffic classifier.
The remainder of this paper is organized as fol-
lows: Section 2 presents an overview of encrypted
traffic classification. In Section 3 we describe the
dataset. In Section 4 describes the experiments
executed on the captured dataset, while Section 5
presents and discusses the results obtained. Finally,
Section 6 presents the conclusions and future work.
2 RELATED WORK
Studies on packet size and flow based traffic classi-
fication were started in early 90’s by Paxson et al.
in (Paxson, 1994; Paxson and Floyd, 1995), where
some statistical features like packet length, inter-
arrival times and flow duration were supposed to be
suitable to trace protocols. Later Belzarena et al. in
(G
´
omez Sena and Belzarena, 2009) and Li et al. in (Li
et al., 2009) used the statistics from the first few pack-
ets of the flow to gain efficiency. Moreover, in order to
expedite the classification efficiency in a high-scale,
high speed network, Nucci et al. in (Yeganeh et al.,
2012) and Pescap et al. in (Aceto et al., 2010) pro-
posed a signature based traffic identification scheme.
Although they reduced the time to classify the flows,
they failed to detect unknown or manually created sig-
natures.
Traffic characterization techniques are not widely
addressed in the current literature. Moreover, most
of them focus on specific application type or devices.
Wang et al. (Wang et al., 2014) proposed a model to
characterize P2P traffic. They extracted features from
multiple flows and aggregated flows into clusters to
extract P2P application behaviour. Coull et al (Coull
and Dyer, 2014) present a study on the iMessage pro-
tocol to identify the type of device. In (Rao et al.,
2011), Rao et al. propose a network characteristics
model for two of the most most popular video stream-
ing services, Netflix and YouTube. In (Mauro and
Longo, 2015), Mauro and Longo propose a method
to detect encrypted WebRTC traffic. Mamun et al.
(Mohammad S.I. Mamun and Ghorbani, 2015) pro-
posed a method to identify enrypted traffic by mea-
suring the entropy of the packet’s payload. Sherry et
al. (Sherry et al., 2015) propose a DPI system that
can inspect encrypted payload without decrypting it,
therefore maintaining the privacy of the communica-
tions, but it can only process HTTPS traffic.
A number of machine learning classification
methods based on flow (Bernaille and Teixeira, 2007;
Moore and Zuev, 2005) and packet-based (Iliofotou
et al., 2007; Karagiannis et al., 2005) features have
been proposed in the literature to identify traffic ac-
curately. However, traffic classification for the en-
capsulated protocols (e.g., using Proxy server or VPN
tunnels) that are mainly used for hiding the identities
of the users for privacy reasons, are challenging and
hence are not widely explored in the literature. How-
ever, recently, Heywood et al. in (Aghaei-Foroushani
and Zincir-Heywood, 2015) proposed a data driven
classifier to identify traffic coming from clients be-
hind a proxy server using traffic flow information.
To the best of our knowledge, we are the first to
propose a method to characterize VPN traffic in a
broad sense, identifying 7 different traffic categories.
3 DATASET GENERATION
To create a representative dataset we captured real
traffic generated by our lab members. We created ac-
counts for users Alice and Bob in order to use services
like Skype, Facebook, etc. In Table 1 we provide the
complete list of different types of traffic and appli-
cations included in our dataset. For each traffic type
(VoIP, P2P, etc...) we captured a regular session and
a session over VPN, therefore we have a total of 14
traffic categories: VOIP, VPN-VOIP, P2P, VPN-P2P,
etc. Following, we give a detailed description of the
different types of traffic generated:
Browsing: Under this label we have HTTPS traffic
generated by users while browsing or performing
any task that includes the use of a browser. For in-
stance, when we captured voice-calls using hang-
outs, even though browsing is not the main activ-
ity, we captured several browsing flows.
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
408

Table 1: List of Captured protocols and applications.
Traffic Content
Web Browsing Firefox and Chrome
Email SMPTS, POP3S and IMAPS
Chat ICQ, AIM, Skype, Facebook and Hangouts
Streaming Vimeo and Youtube
File Transfer Skype, FTPS and SFTP using Filezilla and an external service
VoIP Facebook, Skype and Hangouts voice calls (1h duration)
P2P uTorrent and Transmission (Bittorrent)
Table 2: List of time based features.
Feature Description
duration The duration of the flow.
fiat Forward Inter Arrival Time, the time between two packets sent forward direction (mean, min, max, std).
biat Backward Inter Arrival Time, the time between two packets sent backwards (mean, min, max, std).
flowiat Flow Inter Arrival Time, the time between two packets sent in either direction (mean, min, max, std).
active The amount of time time a flow was active before going idle (mean, min, max, std).
idle The amount of time time a flow was idle before becoming active (mean, min, max, std).
fb psec Flow Bytes per second.
fp psec Flow packets per second.
Email: The traffic samples generated using a Thun-
derbird client, and Alice and Bob Gmail ac-
counts. The clients were configured to de-
liver mail through SMTP/S, and receive it using
POP3/SSL in one client and IMAP/SSL in the
other.
Chat: The chat label identifies instant-messaging ap-
plications. Under this label we have Facebook and
Hangouts via web browser, Skype, and IAM and
ICQ using an application called pidgin.
Streaming: The streaming label identifies multime-
dia applications that require a continuous and
steady stream of data. We captured traffic from
Youtube (HTML5 and flash versions) and Vimeo
services using Chrome and Firefox.
File Transfer: This label identifies traffic applica-
tions whose main purpose is to send or receive
files and documents. For our dataset we captured
Skype file transfers, FTP over SSH (SFTP) and
FTP over SSL (FTPS) traffic sessions.
VoIP: The Voice over IP label groups all traffic gen-
erated by voice applications. Within this label
we captured voice-calls using Facebook, Hang-
outs and Skype.
P2P: This label is used to identify file-sharing pro-
tocols like Bittorrent. To generate this traffic we
downloaded different .torrent files from a public
a repository (archive.org) and captured traffic ses-
sions using the uTorrent and Transmission appli-
cations.
The traffic was captured using Wireshark and tcp-
dump , generating a total amount of 28GB of data.
For the VPN traffic, we used an external VPN service
provider and connected to it using OpenVPN. To gen-
erate SFTP and FTPS traffic we also used an external
service provider and Filezilla as a client.
Figure 1: Characterization Scenarios.
4 EXPERIMENTS
We have defined two different scenarios A and B,
depicted in Figure 1. As described in Section 3, we
have used 4 different flow timeout values to generate
our datasets, and we have chosen 2 machine learning
algorithms (C4.5 and KNN). Therefore, we will
have to execute each experiment 8 times. We have
Characterization of Encrypted and VPN Traffic using Time-related Features
409

designed a total of 3 experiments, 2 for scenario A
and one for scenario B:
Scenario A: The objective of this scenario is to char-
acterize encrypted traffic with VPN identification,
e.g. we will distinguish between voice-calls (VOIP)
and voice-calls tunneled through VPN (VPN-VOIP).
As a result we will have 14 different types of traffic,
7 regular types of encrypted traffic and 7 VPN types
of traffic. In this Scenario we do the characterization
in two steps. First, we distinguish between VPN and
Non-VPN traffic and then we characterize each type
of traffic separately (VPN and Non-VPN). In order to
do this, we have divided our dataset in two different
datasets: one with regular encrypted traffic flows and
the other one with VPN traffic flows.
Scenario B: In this Scenario, we use a mixed dataset
to do the characterization in one step. The input of
our classifier is regular encrypted traffic and VPN
traffic, and as output we have the same 14 different
categories (Section 3).
4.1 Flow and Features Generation
We use a common definition of flow, where a flow is
defined by a sequence of packets with the same val-
ues for {Source IP, Destination IP, Source Port, Des-
tination Port and Protocol (TCP or UDP)}. Flows
are considered to be bidirectional (forward and re-
verse directions) as in most of the reviewed papers
(e.g.,(McGregor et al., 2004; Zander et al., 2005;
Bernaille et al., 2006; Williams et al., 2006; Palmieri
and Fiore, 2009)). Along with the flow generation
we have to calculate the features associated with each
flow. Many papers in the literature use a tool called
NetMate to generate flows and features, but as part
of our work we have developed our an application,
ISCXFlowMeter. It is written in Java and gives us
more flexibility in terms of choosing the features we
want to calculate, adding new ones, and also hav-
ing a better control of the duration of the flow time-
out. ISCXFlowMeter generates bidirectional flows,
where the first packet determines the forward (source
to destination) and backward (destination to source)
directions, hence the statistical time-related features
are also calculated separately in the forward and re-
verse direction. Note that TCP flows are usually ter-
minated upon connection teardown (by FIN packet)
while UDP flows are terminated by a flow timeout.
The flow timeout value can be assigned arbitrarily
by the individual scheme e.g., 600 seconds for both
TCP and UDP in (Aghaei-Foroushani and Zincir-

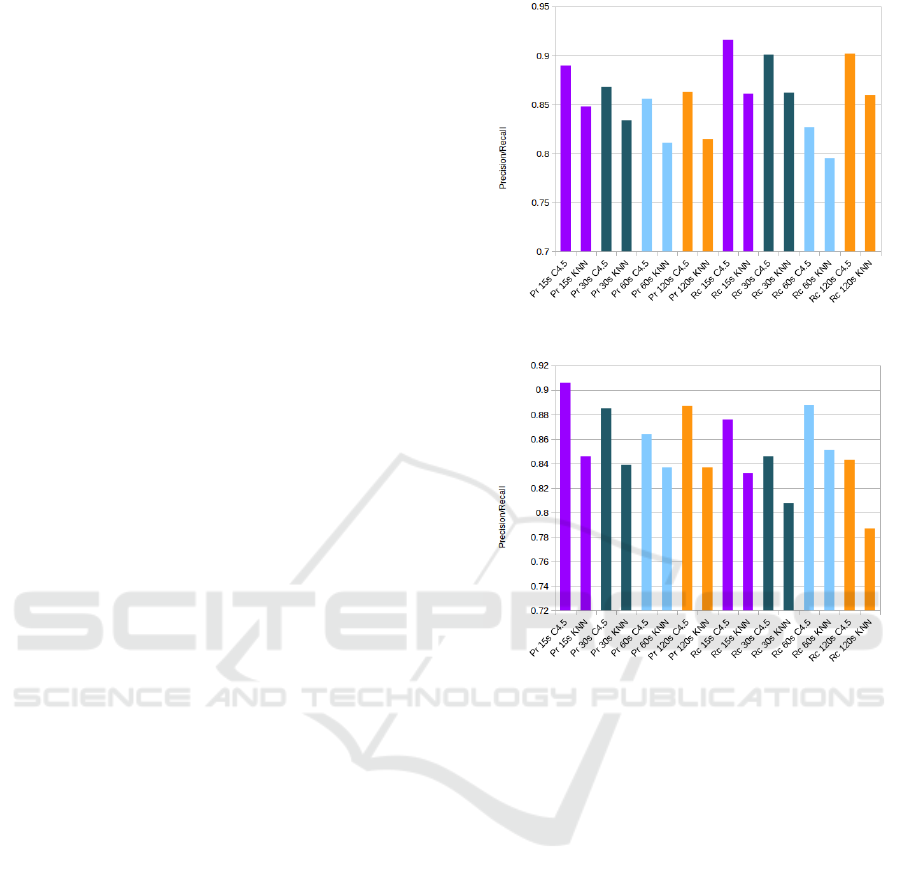

(a) Scenario A VPN Precission and Recall
(b) Scenario A NON-VPN Precission and Recall
Figure 2: Scenario A-1: VPN detection.
Heywood, 2015). In this paper, we study several flow
timeout (ftm) values with their corresponding classi-
fier accuracy on the same dataset. In particular, we set
the duration of flows to 15,30,60 and 120 seconds.
In our experiments, the classifier has a response
time of (FT + FE + ML) seconds, where FT is the
customized flow-time, FE is the feature extraction
time and ML is the machine learning algorithm
time to perform classification. It has been ob-
served that the maximum accuracy is achieved with
(FT = 15s) for all the classifiers. In the current
implementation, we have found that the average
delay attained is approx. (FT + FE + ML =
15 + .001 + .01(kNN) or 1.26(C4.5) =
15.011 sec (kNN) or 16.261 sec (C4.5) ) for
the VPN classifier and (FT + FE + ML =
15 + .001 + .01(kNN) or 1.49(C4.5) =
15.011 sec (kNN) or 16.491 sec (C4.5) ) for
the traffic type classifier.
As previously mentioned, we focus on time-
related features. When choosing time-related fea-
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
410

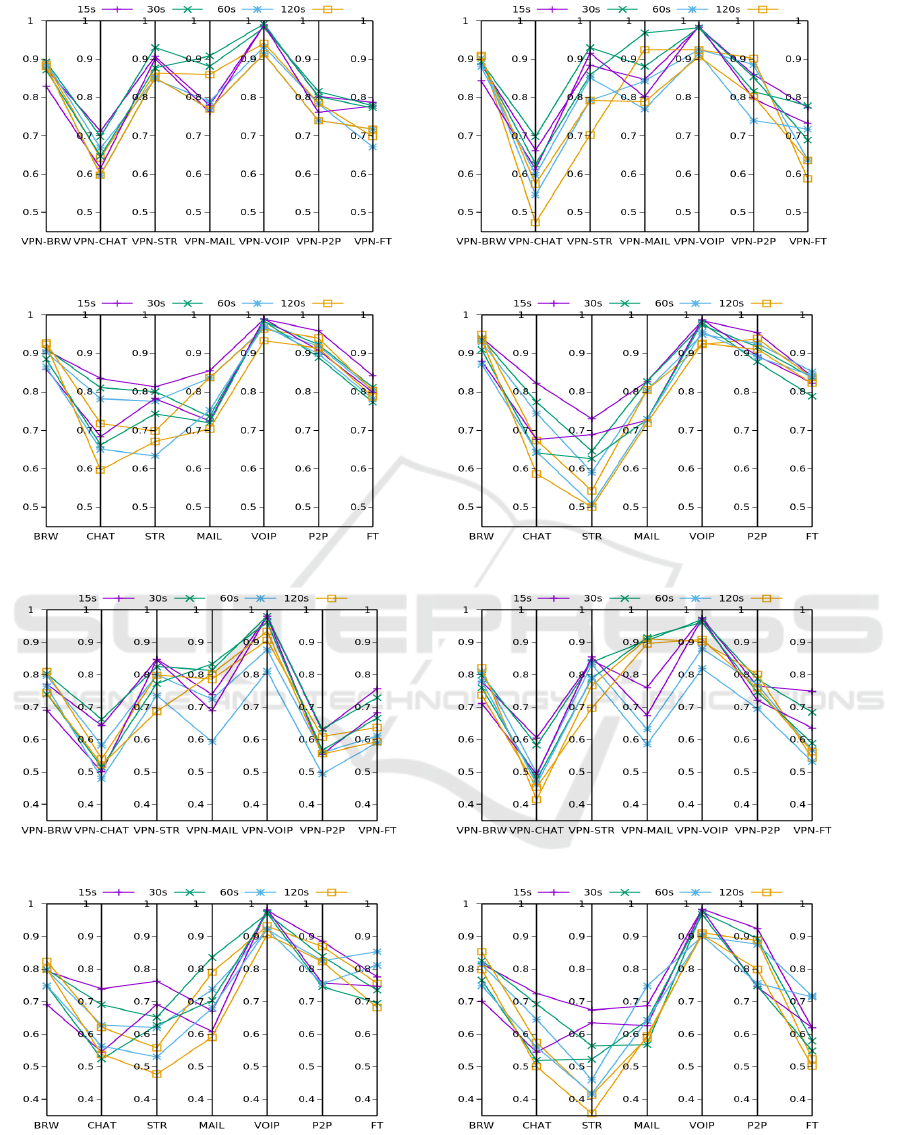

(a) ScenarioA VPN Precision (b) ScenarioA VPN Recall
(c) ScenarioA Non-VPN Precision (d) ScenarioA Non-VPN Recall
(e) ScenarioB VPN Precision (f) ScenarioB VPN Recall
(g) ScenarioB Non-VPN Precision (h) ScenarioB Non-VPN Recall
Figure 3: Precision and Recall of traffic characterization.
Characterization of Encrypted and VPN Traffic using Time-related Features
411

tures, we consider two different approaches. In the
first approach we measure the time, e.g. time be-
tween packets or the time that a flow remains active.
In the second approach, we fix the time and measure
other variables, e.g., bytes per second or packets per
second. In Table 2 we provide the complete list of
features extracted in this work. As one can see form
Table 2, except the duration, which shows the total
time of one flow, there are six groups of features.
The first three groups are namely: -fiat, -biat, and -
flowiat, and are focused respectively on the forward,
backward and bi-directional flows. The fourth and
fifth groups of features, are calculated regarding to the
idle-to-active or active-to-idle states and are named -
idle and -active. Finally, the last group focuses on the
size and number of packets per second and is named
-psec feature.
4.2 Machine Learning Approaches
To execute the experiments we used Weka (Hall et al.,
2009), a well known tool that implements different
machine learning algorithms. We used its default
settings with 10 fold cross validation. Although Weka
includes many different algorithms for clustering
and classifying, regarding to the previous research
work and the human readability, we have selected
two algorithms from the supervised and unsupervised
families: C4.5 decision tree and KNN.
C4.5 Decision Tree: Developed by Ross Quinlan,
this algorithm is one of the most popular classi-
fication techniques in machine learning and data
mining. It is based on the concept of Information
entropy. The algorithm requires a set of training
pairs {inputs-output} where the output is the corre-
sponding class. Both numerical and categorical data
are supported, and the result is presented as a tree,
making it readable for humans.
KNN: The K-Nearest Neighbors algorithm is one of
the most simple algorithms in machine learning. It is
based on similarity measures, thus it depends on the
metric used to calculate the distance between exam-
ples. The output of the classification is a class mem-
bership, which is determined according to the major-
ity vote of its K nearest neighbours.
To evaluate the quality of our classification pro-
cesses, we will use two common metrics: Precision
(Pr) or Positive Predictive value and Recall (Rc) or
Sensitivity.
Pr =
T P
T P+FP
Rc =
T P
T P+FN
Where the TP is the number of instances correctly
classified as A, FP is the number of instances incor-
rectly classified as A, and FN is the number of in-
stances incorrectly classified as Not-A.
5 ANALYSIS OF THE RESULTS
In the Figures 2 and 3 we can see the Precision and
Recall of the different results. Overall C4.5 and KNN
had similar results, although C4.5 performed a little
better. But interestingly the results present a depen-
dance on the flow-timeout value selected. Therefore
we have chosen to focus the attention on these result.
For each flow tiemout value we have two different
representations (two lines) one of them corresponds
to the C4.5 result and the other one to the KNN.
5.1 Analysis of Scenario A
In the Figure 2 we have the Precision (Pr) and Recall
(Rc) results of the first part of the scenario A, where
we classify traffic into VPN and Non-VPN. We can
see that there is a direct relation between flow timeout
(ftm) values and the performance of the classifiers. In
particular, the Precision (Pr) of the C4.5 VPN traffic
classifier decreases from 0.890 using 15 seconds to
0.86 using 120 seconds, and the Pr for Non-VPN traf-
fic decreases from 0.906 to 0.887. We can see a simi-
lar behavior in the case of the KNN algorithm, where
the Pr for VPN traffic decreases from 0.848 to 0.815,
and from 0.846 to 0.837 in the case of Non-VPN traf-
fic. The best results are achieved using the C4.5 algo-
rithm and 15s ftm: 0.89 for VPN and 0.906 for Non-
VPN. This means that, using time-related features we
can distinguish VPN from Non-VPN with a 15s delay
(the time it takes to build a flow). These results show
that when using time-related features for VPN and
Non-VPN traffic classification, using shorter timeout
values improve the accuracy rate.
The second part of scenario A focuses on the char-
acterization of VPN and Non-VPN traffic (see Figure
3 parts a,b,c,d), separately. The input is classified ac-
cording to the traffic categories defined in Section 3.
Again, the results for shorter ftm values are better than
the results for larger values, although with a few ex-
ceptions in the case of the VPN classifier (Figures 3a,
3b), like VPN-MAIL where the best result is obtained
with an ftm of 30s. In the case of the Non-VPN clas-
sifier (Figures 3c, 3d) this trend can be clearly seen.
The best results (average Pr) are obtained with
C4.5 and 15s of ftm: 0.84 and 0.89 for the VPN and
Non-VPN classifiers respectively. Moreover, the av-
erage Pr for all traffic categories is higher than 0.84,
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
412

which means that time-related features are good clas-
sifiers to characterize encrypted and VPN traffic.
5.2 Analysis of Scenario B
In this Scenario all encrypted and VPN traffic are
mixed together in one dataset, and the objective is
to characterize the traffic without previously dividing
VPN from Non-VPN traffic, therefore we will have
14 types of traffic: 7 encrypted and 7 VPN traffic
categories. The results are shown in Figure 3 (parts
e,f,g,h).
In this case, we cannot see the pattern ’shorter
timeout - better accuracy’ as clear as in the previ-
ous scenario (5.1). For example using the C4.5 al-
gorithm the Pr of VPN-Browsing, VPN-Mail, and
Mail with 15 sec is 0.771, 0.739, 0.671 respectively,
values lower than the 0.809, 0.786, 0.79 obtained
with 120 sec. The KNN results are similar, the Pr
of VPN-Browsing, VPN-Chat, and VPN-Mail traf-
fic categories is (0.691, 0.501, 0.688) for 15s. ftm,
smaller than the Pr obtained with 120 sec (0.743,
0.501, 0.688). On the other hand, the highest aver-
age Pr from the different ftm values is around 0.783
for C4.5 and 0.711 for KNN algorithms, around 0.5
points lower that the best values from Scenario A.
6 CONCLUSIONS
In this paper we have studied the efficiency of time-
related features to address the challenging problem of
characterization of encrypted traffic and detection of
VPN traffic. We have proposed a set of time-related
features and two common machine learning algo-
rithms, C4.5 and KNN, as classification techniques.
Our results prove that our proposed set of time-related
features are good classifiers, achieving accuracy lev-
els above 80%. C4.5 and KNN had a similar perfor-
mance in all experiments, although C4.5 has achieved
better results. From the two scenarios proposed, char-
acterization in 2 steps (scenario A) vs. characteri-
zation in one step (scenario B), the first one gener-
ated better results. In addition to our main objective,
we have also found that our classifiers perform better
when the flows are generated using shorter timeout
values, which contradicts the common assumption of
using 600s as timeout duration. As future work we
plan to expand our work to other applications and
types of encrypted traffic, and to further study the
application of time-based features to characterize en-
crypted traffic.
REFERENCES
Aceto, G., Dainotti, A., de Donato, W., and Pescape, A.
(2010). Portload: Taking the best of two worlds in
traffic classification. In IEEE Conference on Com-
puter Communications Workshops, INFOCOM 2010,
pages 1–5. IEEE.
Aghaei-Foroushani, V. and Zincir-Heywood, A. (2015). A
proxy identifier based on patterns in traffic flows. In
IEEE 16th International Symposium on High Assur-
ance Systems Engineering, HASE 2015, pages 118–
125. IEEE.
Bernaille, L. and Teixeira, R. (2007). Early recognition
of encrypted applications. In Proceedings of the 8th
International Conference on Passive and Active Net-
work Measurement, PAM’07, pages 165–175, Berlin,
Heidelberg. Springer-Verlag.
Bernaille, L., Teixeira, R., Akodkenou, I., Soule, A., and
Salamatian, K. (2006). Traffic classification on the fly.
ACM SIGCOMM Computer Communication Review,
36(2):23–26.
Callado, A., Kamienski, C., Szabo, G., Gero, B., Kelner, J.,
Fernandes, S., and Sadok, D. (2009). A survey on in-
ternet traffic identification. Communications Surveys
& Tutorials, IEEE, 11(3):37–52.
Coull, S. E. and Dyer, K. P. (2014). Traffic analysis of
encrypted messaging services: Apple imessage and
beyond. ACM SIGCOMM Computer Communication
Review, 44(5):5–11.
G
´
omez Sena, G. and Belzarena, P. (2009). Early traffic clas-
sification using support vector machines. In Proceed-
ings of the 5th International Latin American Network-
ing Conference, LANC ’09, pages 60–66, New York,
NY, USA. ACM.
Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reutemann,
P., and Witten, I. H. (2009). The weka data mining
software: An update. ACM SIGKDD Explorations
Newsletter, 11(1):10–18.
Iliofotou, M., Pappu, P., Faloutsos, M., Mitzenmacher, M.,
Singh, S., and Varghese, G. (2007). Network moni-
toring using traffic dispersion graphs (tdgs). In Pro-
ceedings of the 7th ACM SIGCOMM Conference on
Internet Measurement, IMC ’07, pages 315–320, New
York, NY, USA. ACM.
Karagiannis, T., Papagiannaki, K., and Faloutsos, M.
(2005). Blinc: Multilevel traffic classification in the
dark. In Proceedings of the 2005 Conference on
Applications, Technologies, Architectures, and Proto-
cols for Computer Communications, SIGCOMM ’05,
pages 229–240, New York, NY, USA. ACM.
Kim, H., Claffy, K., Fomenkov, M., Barman, D., Falout-
sos, M., and Lee, K. (2008). Internet traffic classifi-
cation demystified: Myths, caveats, and the best prac-
tices. In Proceedings of the 2008 ACM CoNEXT Con-
ference, CoNEXT ’08, pages 11:1–11:12, New York,
NY, USA. ACM.
Li, W., Canini, M., Moore, A. W., and Bolla, R. (2009). Ef-
ficient application identification and the temporal and
spatial stability of classification schema. Computer
Networks: The International Journal of Computer and
Telecommunications Networking, 53(6):790–809.
Characterization of Encrypted and VPN Traffic using Time-related Features
413

Mauro, M. D. and Longo, M. (2015). Revealing encrypted
webrtc traffic via machine learning tools. In Proceed-
ings of the 12th International Conference on Security
and Cryptography, SECRYPT ’15, pages 259–266.
SciTePress.
McGregor, A., Hall, M., Lorier, P., and Brunskill, J. (2004).
Flow clustering using machine learning techniques.
In Passive and Active Network Measurement, volume
3015 of Lecture Notes in Computer Science, pages
205–214. Springer Berlin Heidelberg.
Mohammad S.I. Mamun, N. S. and Ghorbani, A. A. (2015).
An entropy-based encrypted traffic classification us-
ing machine learning. In Proceedings of the 17th
International Conference on Information and Com-
munication Security, ICICS 2015, Berlin, Heidelberg.
Springer-Verlag.
Moore, A. W. and Zuev, D. (2005). Internet traffic classi-
fication using bayesian analysis techniques. In Pro-
ceedings of the 2005 ACM SIGMETRICS Interna-
tional Conference on Measurement and Modeling of
Computer Systems, SIGMETRICS ’05, pages 50–60,
New York, NY, USA. ACM.
Palmieri, F. and Fiore, U. (2009). A nonlinear, recurrence-
based approach to traffic classification. Computer Net-
works: The International Journal of Computer and
Telecommunications Networking, 53(6):761–773.
Paxson, V. (1994). Empirically derived analytic models of
wide-area tcp connections. IEEE/ACM Transactions
on Networking, 2(4):316–336.
Paxson, V. and Floyd, S. (1995). Wide area traffic: The
failure of poisson modeling. IEEE/ACM Transactions
on Networking, 3(3):226–244.
Rao, A., Legout, A., Lim, Y.-s., Towsley, D., Barakat, C.,
and Dabbous, W. (2011). Network characteristics of
video streaming traffic. In Proceedings of the Sev-
enth COnference on Emerging Networking EXperi-
ments and Technologies, CoNEXT ’11, pages 25:1–
25:12, New York, NY, USA. ACM.
Sherry, J., Lan, C., Popa, R. A., and Ratnasamy, S. (2015).
Blindbox: Deep packet inspection over encrypted traf-
fic. In Proceedings of the 2015 ACM Conference on
Special Interest Group on Data Communication, SIG-
COMM ’15, pages 213–226, New York, NY, USA.
ACM.
Wang, D., Zhang, L., Yuan, Z., Xue, Y., and Dong,
Y. (2014). Characterizing application behaviors for
classifying p2p traffic. In International Confer-
ence on Computing, Networking and Communica-
tions, ICNC’14, pages 21–25. IEEE.
Williams, N., Zander, S., and Armitage, G. (2006). A
preliminary performance comparison of five machine
learning algorithms for practical ip traffic flow classi-
fication. ACM SIGCOMM Computer Communication
Review, 36(5):5–16.
Yeganeh, S., Eftekhar, M., Ganjali, Y., Keralapura, R., and
Nucci, A. (2012). Cute: Traffic classification using
terms. In 21st International Conference on Computer
Communications and Networks, ICCCN ’12, pages 1–
9. IEEE.
Zander, S., Nguyen, T., and Armitage, G. (2005). Auto-
mated traffic classification and application identifica-
tion using machine learning. In Proceedings of the The
IEEE Conference on Local Computer Networks 30th
Anniversary, LCN ’05, pages 250–257, Washington,
DC, USA. IEEE Computer Society.
ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy
414
