An Extension to Local Network Alignment using

Hidden Markov Models (HMMs)

Hakan G

und

and

Ibrahim S

uzer

Department of Computer Engineering, Istanbul Technical University, Istanbul, Turkey

Department of Computer Engineering, Bo

gazic¸i University, Istanbul, Turkey

Keywords:

Biological Networks, Local Network Alignment, Hidden Markov Models.

Abstract:

Local alignment is done on biological networks to ﬁnd common conserved substructures belonging to different

organisms. Many algorithms such as PathBLAST (Kelley et al., 2003), Network-BLAST (Scott et al., 2006)

are used to align networks locally and they are generally good at ﬁnding small sized common substructures.

However, these algorithms have same failures about ﬁnding larger substructures because of complexity issues.

To overcome these issues, Hidden Markov Models (HMMs) is used. The study done by (Qian and Yoon, 2009),

uses HMMs to ﬁnd optimal conserved paths in two biological networks where aligned paths have constant path

length. In this paper, we aim to make an extension to the local network alignment procedure done in (Qian

and Yoon, 2009) to ﬁnd common substructures in varying length sizes between the biological networks. We

again used same algorithm to ﬁnd k-length exact matches from networks and we used them to ﬁnd common

substructures in two forms as sub-graphs and extended paths. These structures do not need to have the same

number of nodes and should satisfy the predeﬁned similarity threshold (s0). The other parameter is the length

of exact paths (k) formed from biological networks and choosing a lower k value is faster but bigger values

might be needed in order to balance the number of matching paths below s0.

1 INTRODUCTION

With the advances in computer science and bioinfor-

matics, molecular and biological interactions are ex-

amined in a systematic way between different organ-

isms (Von Mering et al., 2002). In order to gain useful

information from organisms, graph structured biolog-

ical networks are used. In these networks, nodes rep-

resent the basic entities like proteins and the edges

between them show the interactions. When we have

biological networks of different organisms, we can

align them to compare and ﬁnd the common substruc-

tures. This process is known as network alignment.

Network alignment also helps us ﬁnd out the con-

served functional modules and their detailed molecu-

lar mechanisms form these functions. Network align-

ment is so important to detect the conserved interac-

tion patterns and many network alignment algorithms

are aimed to do this. The detected patterns in the

networks will be biological pathways that are known

or statistically signiﬁcant pathways that are explored.

Network alignment is separated into two groups as

global alignment and local alignment. In global net-

work alignments, the aim is to ﬁnd and optimize the

best overall match between two biological networks.

For this reason, the global network alignment prob-

lem can be thought as a graph matching problem. Lo-

cal network alignments try to ﬁnd small subsets of

global ones and they basically aim to ﬁnd common

substructures between two biological networks.

In this paper, we design an extension to lo-

cal alignment algorithm used in biological networks

belonging to different organisms based on Hidden

Markov Models (HMMs). We devise an algorithm

that ﬁnds the conserved substructures of varying sizes

instead of ﬁxed lengths done in (Qian and Yoon,

2009). We detect two types of common substructures

from aligned networks with this algorithm.

Also, it is important to mention that our exten-

sion does not ﬁnd optimal substructures but runs as

a heuristic algorithm using ﬁxed length optimal paths

to construct bigger structures. We aim to use the idea

of obtaining smaller exact matches then trying to ex-

tend and combine them to build bigger but relevant

structures. This is similar to how BLAST type algo-

rithms work (Kelley et al., 2003) (Scott et al., 2006).

Our main intention is to overcome complexity issue

that arises when working on big networks while min-

Gündüz, H. and Süzer,

An Extension to Local Network Alignment using Hidden Markov Models (HMMs).

DOI: 10.5220/0005742102530257

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 3: BIOINFORMATICS, pages 253-257

ISBN: 978-989-758-170-0

253

imizing downside of not ﬁnding optimal solutions.

The paper continues as follows: In Section 2, we

summarize related work in the literature about net-

work alignments. In the 3rd section, we deﬁne our

methods and give some visual examples about them.

Section 4 gives information about the evaluations and

the strengths of the algorithm. In ﬁnal section, we

conclude the paper.

2 RELATED WORK

There are many algorithms used on global and local

network alignment problems in the literature. Global

network alignment problems are solved via various

techniques such as integer programming (Li et al.,

2007), spectral clustering (Liao et al., 2009) and mes-

sage passing (Zaslavskiy et al., 2009). While lo-

cal network alignment problem is solved by differ-

ent kinds of algorithms and applications. PathBLAST

(Kelley et al., 2003), Network-BLAST (Scott et al.,

2006), QPath (Shlomi et al., 2006), PathMatch and

GraphMatch (Yang and Sze, 2007) are generally used

in ﬁnding conservative structures in biological net-

works. Most used algorithm in literature is Path-

BLAST which is an efﬁcient algorithm for aligning

two Protein Protein Interaction (PPI) networks. This

algorithm looks for high-scoring pathway alignments

by considering the homology between aligned pro-

teins. When PPI data are noisy, it can allow gaps and

mismatches to handle variations (Kelley et al., 2003).

Local network alignment algorithms are generally

good at ﬁnding small sized common substructures in

given networks but they have same failures about ﬁnd-

ing larger substructures because of complexity issues.

Also, some of these algorithms do not give chance to

node insertions and deletions in the alignment pro-

cess. In order to handle mentioned issues, Hidden

Markov Models (HMMs) based local network align-

ment is introduced in (Qian and Yoon, 2009). HMMs

has ability to combine node similarities and interac-

tion reliabilities (transition probabilities) to compare

aligned paths and they can also overcome the path iso-

morphism. In (Qian and Yoon, 2009), the researchers

adopt the HMMs framework to ﬁnd optimal and bio-

logically signiﬁcant paths in general biological net-

works. Their main goal is to ﬁnd conserved paths

in two or more biological networks which have sim-

ilarities. They used a scoring scheme to ﬁnd align-

ments and they search for top k alignments of homol-

ogous paths with the highest scores. Their extended

algorithms has polynomial complexity and it is de-

pendent on the length of aligned paths and the num-

ber of interactions (edges) between each networks.

Aligned paths may have insertions and/or deletions.

After ﬁnding high scoring paths, we will attempt to

combine overlapped ones to form the conserved sub-

networks in general network structure.

3 METHODS

In this section we will present an extension to the al-

gorithm described in (Qian and Yoon, 2009) for ﬁnd-

ing the conserved substructures of varying sizes. The

algorithm presented in (Qian and Yoon, 2009) uses

HMMs for solving local network alignment problem

to ﬁnd the optimal paths of ﬁxed length.

The details how to do pairwise local alignment in

study (Qian and Yoon, 2009) is stated in 3.1.

3.1 Pairwise Local Alignment

We assume that we have two graphs as G1= (u,d)

and G2=(v,e) representing two biological networks.

The graph G1 has 10 nodes represented as u1, u2

. . . u10 respectively. Also, it has edges between the

nodes which shows the interaction between each en-

tity (node). The graph G2 has 9 nodes named from v1

to v9 and it has again the edges between the nodes

interacted each other. The example of two graphs

shown in Figure 1. These networks are undirected

that means there are same relations between node i to

node j and node j to node i.

For example, when G1 represents a PPI network,

each ui corresponds to a protein, and the edge be-

tween ui and uj shows that these proteins can interact

to each other. When we look at the interacting pair

nodes ie. (ui,uj), the interaction reliability is deﬁned

as w1(ui, uj). It can be accepted as a weight of edge

between node ui and node uj (dij).Similarly, the in-

teraction reliability between two nodes vi and vj in

the graph G2 can be stated as w2(vi,vj).

Finally, the similarity between two nodes ui from

G1 and vj from G2 in the shown networks is deﬁned

as h(ui,vj) and it is found by sequence similarity be-

tween two nodes The aim is to ﬁnd the best matching

pair of paths from two networks maximizing deﬁned

path alignment score that uses w1(ui, uj), w2(vi,vj),

h(ui,vj) and penalty gap scores. The main strength of

the algorithm is to ﬁnd pairs of paths have ﬁxed length

size.

Figure 2 shows an example of an alignment be-

tween two similar paths s and q, where s belongs to

G1 and q belongs to G2. The dashed lines in Figure

1 connect two nodes ui and vj indicate that there exist

signiﬁcant similarities between the connected nodes.

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

254

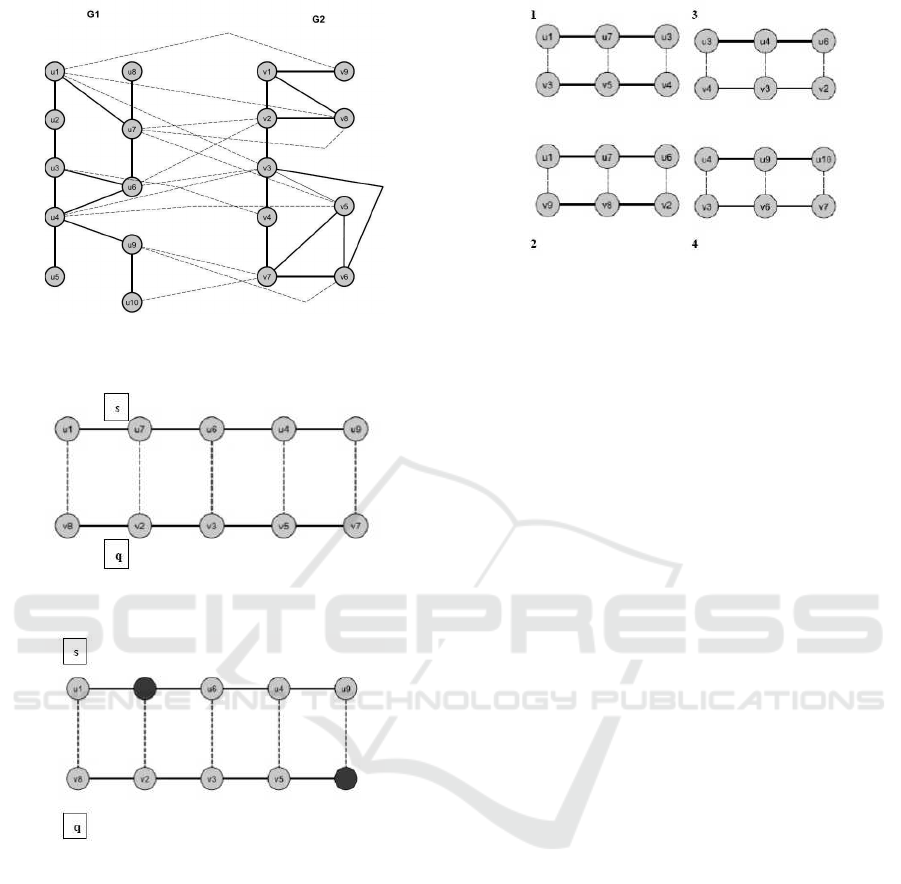

Figure 1: The example of two biological networks (G1 and

G2).

Figure 2: . An example of an ungapped alignment between

two similar paths s and q.

Figure 3: An example of a gapped alignment between two

similar paths s and q.

In the example shown in Figure 3, the optimal

alignment that maximizes the alignment score is taken

with gapped alignment. The aligned pair has two gaps

at v2 and u9. Insertion and deletion operations are

correlated to each other and an insertion in s (e.g. u9)

can be thought as a deletion in the aligned path q. In

the next subsection, we mention how we can extend

the algorithm used in (Qian and Yoon, 2009).

3.2 Extension

The extension we did contains mainly two steps:

Firstly, we will use (Qian and Yoon, 2009) to ﬁnd

the best matching k-length path for pairwise local

alignment. Then, we will store this path and hide

Figure 4: Collection of distinct aligned paths from G1 and

G2 (k=3).

edges used by this path. The reason for hiding is to

not ﬁnd and use same paths later. After this, we will

iteratively run this algorithm (Qian and Yoon, 2009)

to ﬁnd the next matching k-length path that does not

contain any edges with previous best path. We will

continue this until we ﬁnd all paths with intended

similarity threshold or of certain number threshold

(s0=determined threshold similarity). Finally, we will

have a collection of distinct aligned paths. For k=3,

the samples of distinct aligned paths got from G1 and

G2 are illustrated in Figure 4. Our extension will try

to combine these distinct paths into relevant types of

structures as subgraphs and longer paths. The details

of structures are explained in next subsections.

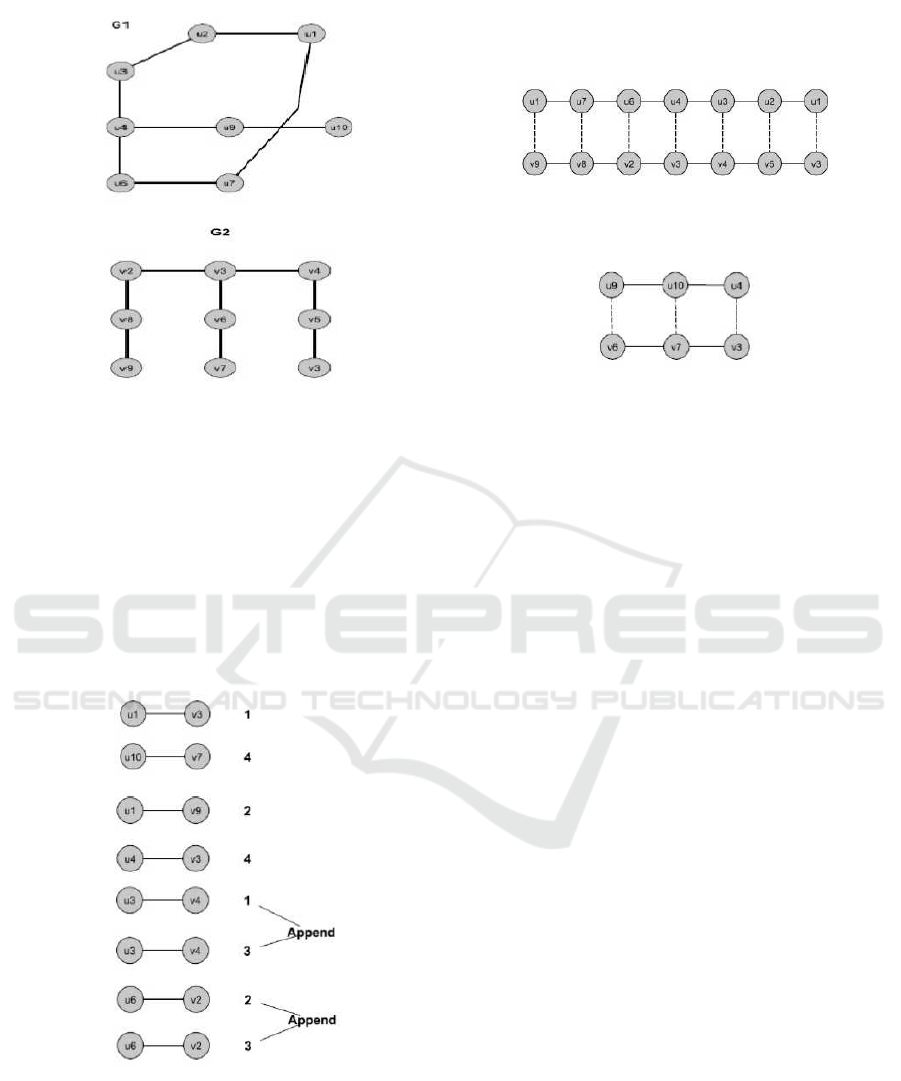

3.3 For Finding Subgraphs

To combine collected paths, we will ﬁnd the paths that

contain same nodes and merge them. Since none of

them have any common edges, there will not be any

overlap. At the end of this procedure we will have the

number of distinct subgraphs of G1 and G2 shown

in Figure 5. This virtual subgraph does not need to

represent the same number of nodes in both graphs.

Because, all paths we are trying to combine are actu-

ally represented by a pair of nodes from G1 and G2

in each of its nodes. This leads to possibility of dif-

ferent nodes in one of the graphs can be mapped to

same node in other. The resulting subgraphs are all

conserved substructures that adhere to the similarity

threshold for their paths.

3.4 For Finding Longer Paths

Different from ﬁnding subgraphs, we will only try to

extend our structure as a path. To this end, we will

only combine our set of collected paths at their end

points. We cant just combine them just by their edges

like for subgraph case because just having distinct

edges do not allow us to combine paths from their

An Extension to Local Network Alignment using Hidden Markov Models (HMMs)

255

Figure 5: Distinct subgraphs of G1 and G2.

endpoints. To overcome this problem, we will con-

sider only endpoints and sort them by the number of

same endpoints. We do not need to consider isolated

end points. And endpoints with number of 2 can only

be appended to each other. So, we combine them and

only consider the choice with endpoints numbering 3

or more. For these, we will look at the length of can-

didate paths. Figure 6 shows the endpoints of distinct

aligned paths. The numbers at right of the each node

explains the corresponding paths (Figure 4).

Figure 6: Candidate paths endpoints.

Since we have already considered the similar-

ity scores for choosing paths with (Qian and Yoon,

2009), we will now try to get longer paths and choose

the longest two paths for appending and continue un-

til only one or no candidate remains. Since we do not

consider isolated endpoints, we can safely ignore this

endpoints. At the end of the procedure, we will have

a collection of paths with differing lengths.

Figure 7: Paths generated from candidate paths.

The distinct paths had the same endpoints are ap-

pended in order to generate longer paths. The exam-

ples of paths are shown in Figure 7.

4 EVALUATION

4.1 Possible Problems

Unlike the algorithm from (Qian and Yoon, 2009),

our solutions are not aimed to be optimal thus we use

heuristics approach. But we intend to reach near op-

timal solutions nevertheless.

• For path selection choosing by length may lead to

losing possible longer path. But considering all

pos-sible pairs for appending least to an exponen-

tial time complexity.

• For more than 2 graphs, our extension may not

work properly.

4.2 Parameters

When choosing parameters that effect the computa-

tion of algorithm and the quality of solutions, there is

a need to test which values are the best.

• k : length of matching pairs from (Qian and Yoon,

2009). Choosing a lower value is faster but big-

ger values might be needed in order to balance the

number of matching paths below s0

• s0 : Similarity score threshold for k-length match-

ing pairs. This effects number of matching pairs

we need to combine and run (Qian and Yoon,

2009). Thus, it directly decides computation time.

And value of k changes the values of scores even

for same network so s0 is also dependent on k.

BIOINFORMATICS 2016 - 7th International Conference on Bioinformatics Models, Methods and Algorithms

256

4.3 Test Cases

In order to check if structures we ﬁnd are biologically

signiﬁcant, we need to compare them with real-world

data. Similar to (Qian and Yoon, 2009), we will plan

to use data from KEGG (Kanehisa and Goto, 2000)

database in order to check if we can ﬁnd the signiﬁ-

cant structures.

In order to check the error rate of our algo-

rithm, we also need to try to compare same graphs.

Since checking isomorphism is an NP-Hard problem

opmann, 2013), we will undoubtedly wont be able

to give the exact graph but by checking how close

the answers are for same graph we can compare its

results with other graphs to understand how similar

structured we can expect.

5 CONCLUSIONS

By using the described technique, we would expect to

get signiﬁcant similar substructures between the pair

of distinct biological networks. Different from the al-

gorithm we extend, we change problem into ﬁnding

big substructures within a similarity constraint. We

also consider two types of substructures and can ex-

tend it for different substructures. Sadly, our exten-

sion is not expected to get good results for multiple

network case. As a possible future work, multiple

alignment case can also be considered. Also as men-

tioned, this is a heuristics approach and there may be

a lot room to gain better results. But these improve-

ments require experimental results ﬁrst.

REFERENCES

opmann, C. (2013). Survey on the graph alignment prob-

lem and a benchmark of suitable algorithms.

Kanehisa, M. and Goto, S. (2000). Kegg: kyoto encyclo-

pedia of genes and genomes. Nucleic acids research,

28(1):27–30.

Kelley, B. P., Sharan, R., Karp, R. M., Sittler, T., Root,

D. E., Stockwell, B. R., and Ideker, T. (2003). Con-

served pathways within bacteria and yeast as revealed

by global protein network alignment. Proceedings of

the National Academy of Sciences, 100(20):11394–

11399.

Li, Z., Zhang, S., Wang, Y., Zhang, X.-S., and Chen,

L. (2007). Alignment of molecular networks by

integer quadratic programming. Bioinformatics,

23(13):1631–1639.

Liao, C.-S., Lu, K., Baym, M., Singh, R., and Berger, B.

(2009). Isorankn: spectral methods for global align-

ment of multiple protein networks. Bioinformatics,

25(12):i253–i258.

Qian, X. and Yoon, B.-J. (2009). Effective identiﬁcation

of conserved pathways in biological networks using

hidden markov models. PLoS One, 4(12):e8070.

Scott, J., Ideker, T., Karp, R. M., and Sharan, R. (2006).

Efﬁcient algorithms for detecting signaling pathways

in protein interaction networks. Journal of Computa-

tional Biology, 13(2):133–144.

Shlomi, T., Segal, D., Ruppin, E., and Sharan, R. (2006).

Qpath: a method for querying pathways in a protein-

protein interaction network. BMC bioinformatics,

7(1):199.

Von Mering, C., Krause, R., Snel, B., Cornell, M., Oliver,

S. G., Fields, S., and Bork, P. (2002). Comparative

assessment of large-scale data sets of protein–protein

interactions. Nature, 417(6887):399–403.

Yang, Q. and Sze, S.-H. (2007). Path matching and graph

matching in biological networks. Journal of Compu-

tational Biology, 14(1):56–67.

Zaslavskiy, M., Bach, F., and Vert, J.-P. (2009). Global

alignment of protein–protein interaction networks

by graph matching methods. Bioinformatics,

25(12):i259–1267.

APPENDIX

Pseudo Code of Algorithm

Set similarity threshold (s0)

Set length of exact matches (k)

Initialize similarity score (s) to s0

While s >= s0

-Find k-length exact match and similarity

score (s) using (Qian and Yoon, 2009)

-Trim edges of paths that emits the optimal

virtual path (hide).

if the desired structure is subgraph

-Iteratively find and merge in all net-

works that share same nodes in correspon-

ding networks

-Visualize subgraphs

else

-Iteratively find and append paths that

share same nodes in corresponding networks

at their endpoints

-Visualize extended paths

An Extension to Local Network Alignment using Hidden Markov Models (HMMs)

257
