UniQue: An Approach for Unified and Efficient Querying of

Heterogeneous Web Data Sources

Markku Laine, Jari Kleimola and Petri Vuorimaa

Department of Computer Science, Aalto University, Espoo, Finland

Keywords: Mashup Applications, Web Querying, Web Standards, XML Technologies.

Abstract: Governments, organizations, and people are publishing open data on the Web more than ever before. To

consume the data, however, requires substantial effort from web mashup developers, as they have to

familiarize themselves with a diversity of data formats and query techniques specific to each data source.

While several solutions have been proposed to improve web querying, none of them covers aforementioned

aspects in a developer friendly and efficient manner. Therefore, we devised a unified querying (UniQue)

approach and a proxy-based implementation that provides a uniform and declarative interface for querying

heterogeneous data sources across the Web. Besides hiding the differences between the underlying data

formats and query techniques, UniQue heavily embraces open W3C standards to minimize the learning

effort required by developers. Pursuing this further, we propose Unified Query Language (UQL) that

combines the expressiveness of CSS Selectors and XPath into a single and flexible selector language. We

show that the adoption of UniQue and UQL can effectively streamline web querying, leverage developers’

existing knowledge, and reduce generated network traffic compared to the current state-of-the-art approach.

1 INTRODUCTION

Traditional database experts rely on well-defined

data formats and query language APIs. The query

API, such as SQL, provides precisely focused access

to the data. Although the persistent data and its

structure vary between development projects, the

data format and the query API remain the same.

Database experts are thus able to leverage their

previous experience, tools, and reusable code

snippets from past development efforts.

Web mashup developers (hereinafter referred to

as “developers”) are less fortunate. First, web data is

served in a variety of data formats, and it is not

uncommon to mix and match XML, JSON, or even

HTML and CSV in a single mashup application.

Second, to access the data, developers need to

conform to several proprietary APIs. This requires

(re-)learning, since even if data providers offer

RESTful APIs, the query string parameters are likely

to differ. The APIs are often also inefficient and

return substantial amount of redundant data, which

needs to be filtered on the client side with yet

another API.

While semantic web technologies (e.g., RDF and

SPARQL) have been proposed (Harth et al., 2011)

as a solution to uniform data access, they are not

broadly adopted due to their inherent complexity and

unfamiliarity among developers. Indeed, the

majority of web data providers are still relying on

more mainstream data formats and developers on

less complex selector languages.

Therefore, we propose a unified web querying

approach that a) builds on these prevailing practices

and b) takes full advantage of developers’ existing

experience with standard web technologies and

associated tools. This approach, which we call

UniQue, provides a uniform and declarative query

interface that allows developers to perform precise

selection queries against heterogeneous data on the

Web. We focus on efficient querying of text-based

data originating from web data sources and services

(e.g., static files and Web APIs, respectively).

Querying of big data sets and databases is beyond

the scope of this work.

The main contributions of this paper are:

 We propose an approach (UniQue) for unified

and efficient querying of heterogeneous web data

sources.

 We propose improvements to the guidelines for

mapping JSON and CSV data into a single form

(XML); a special focus is put on

Laine, M., Kleimola, J. and Vuorimaa, P.

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 84-94

ISBN: 978-989-758-186-1

friendliness and round-trippability.

 We propose a unified query language (UQL),

which extends CSS Selectors with XPath

expressions for improved expressiveness.

 We report on the results of an experimental

study, in which we compared the UniQue

approach with the current state-of-the-art

approach.

The rest of this paper is organized as follows.

Section 2 presents a motivating example of querying

heterogeneous web data sources and the challenges

related to it. Section 3 defines the requirements for a

unified and efficient web querying approach. Section

4 introduces the design of the proposed approach,

while Section 5 describes our proxy-based

implementation. Section 6 evaluates the approach

and presents the results with discussion. Section 7

compares our approach to related work and Section

8 draws conclusions.

2 MOTIVATING EXAMPLE AND

CHALLENGES

As a motivating example, consider Alice, who is a

developer and an avid climber. Alice has decided to

build a web mashup application that provides a

central place for climbers alike to stay updated on all

the latest from elite rock climbers.

Figure 1 shows a basic design for Alice’s

mashup application. According to the design, the

application needs to connect to the total of eight web

data sources in order to retrieve all the required data.

Moreover, the data sources are completely different

from each other, as shown in Table 1. First, Alice

needs to scrape data from hardclimbs.info to

generate a list of world’s top 10 climbers, and later

to retrieve their hardest ascents. She also needs to

read climbers’ social media account IDs and

competition results from static files. This requires

writing custom data wrappers or data

transformations. Finally, to retrieve climbers’ basic

information, tweets, and photos from social media

services, Alice needs get familiar with the

documentation and query parameters of each Web

API endpoint.

2.1 Challenges

We identified three major challenges that developers

(i.e., Alice) face in building web mashup

applications.

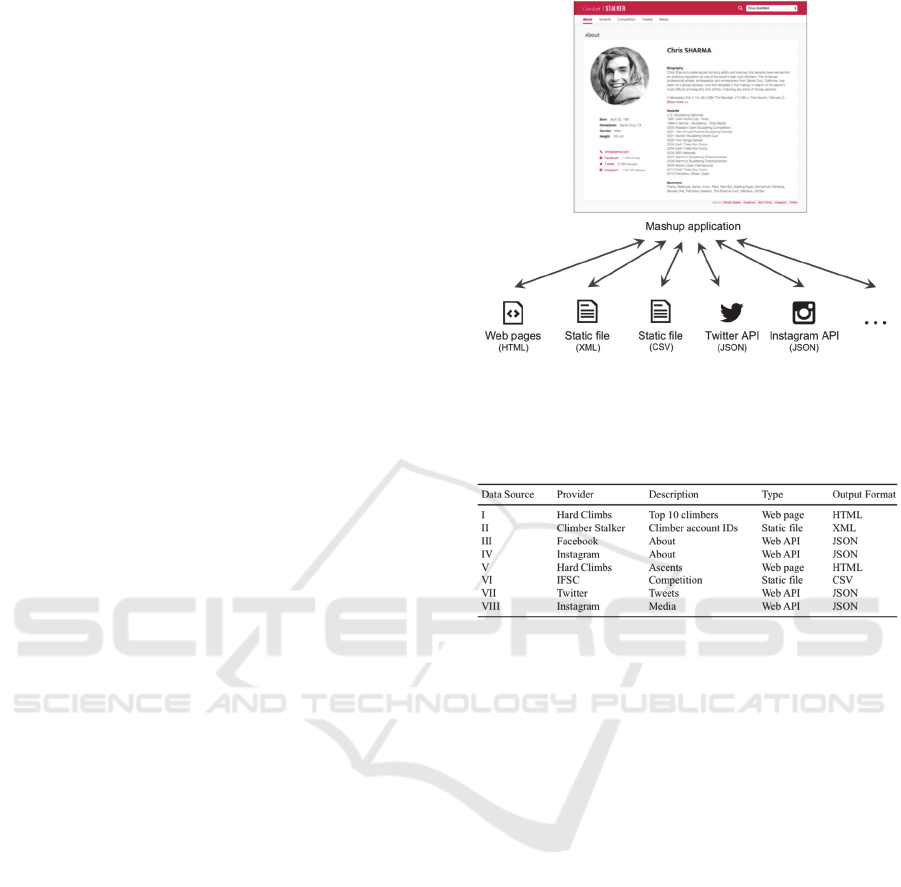

Figure 1: Web mashup application accessing multiple web

data sources and services.

Table 1: Information about the data sources used by the

web mashup application.

2.1.1 Challenge 1: Heterogeneous Data

Formats

Web data exists in many different formats. As a

result, Alice needs to learn and understand the

differences and similarities between multiple data

models, and deal with the impedance mismatch

problem.

2.1.2 Challenge 2: Heterogeneous Query

Techniques

The heterogeneity of web data formats leads to a

situation where Alice needs to master a diverse

range of query techniques, including web scraping,

writing custom data wrappers, and consuming Web

APIs. Each query technique in turn involves specific

technologies and specifications that Alice needs to

get familiar with.

2.1.3 Challenge 3: Inefficient Use of

Network Resources

Many web data sources (e.g., static files, web pages,

and web feeds) lack of an API. Therefore, Alice

needs to pull the full response data to the client, even

if all that she needs is a fraction of that data. Web

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources

APIs partially suffer from the same problem, as their

filtering capabilities are usually rather limited.

In summary, these challenges not only decrease

Alice's productivity as a developer, but also increase

the application complexity for data access and

querying.

3 REQUIREMENTS

Based on our motivating example and the literature

review (cf. Section 7), we derived a list of

requirements that fall within the scope of this paper.

3.1 Technology Requirements

R1: Ease of Authoring. Technologies must be

familiar to a broad range of developers.

Generally, declarative languages are

considered easier to reason about than

imperative ones (Van Roy and Haridi, 2004),

and thus should be preferred.

R2: Web Integration. Technologies must be

open and standardized to enable

interoperability with existing tools, broad

adoption, and future uses on the Web.

3.2 Data Format Requirements

R3: Uniform Data Representation.

Heterogeneous web data must be converted

into a single, human and machine-readable

format in order to minimize the knowledge

required by developers.

R4: Friendly and Round-Trippable Mappings.

Mapping original data to a single format must

produce data that is both easy to consume and

query, i.e., friendly. Additionally, it must be

possible to map the data back to its original

format, i.e., round-trippable, for data updates.

Focus should be put on friendliness, while

preserving round-trippability.

3.3 Data Access and Query

Requirements

R5: Uniform Data Access. Heterogeneous web

data sources must be accessible and

queryable through a single interface (e.g.,

Web API) in order to minimize the learning

effort required by developers. Moreover, the

interface must provide a means of executing

queries also against web data sources without

available APIs.

R6: Flexible Query Language. The query

language must be simple yet expressive

enough for retrieving data of interest (less

data to be transferred). Moreover, it must be

possible to extend its expressiveness while

keeping the learning curve to a minimum

(MacLean et al., 1990).

3.4 System Requirements

R7: Client Independence. The system must

support various clients (e.g., web browsers

and HTTP client software/libraries), without

requiring any additional software installation.

R8: Server-Side Processing. The system must

perform all processing on the server side in

order to elicit reductions in response data.

R9: Data Source Server Independence. The

system must support existing web data source

servers, without requiring any modifications

to them.

4 THE UNIQUE APPROACH

In this section, we present our unified querying

approach to meet the requirements presented in

Section 3. We set out to give an overview of the

proposed approach and continue with a detailed

description of its essential parts.

4.1 The Approach in a Nutshell

We propose the UniQue approach to help developers

in accessing and querying JSON / CSV / HTML /

XML data originating from heterogeneous web data

sources, such as static files and Web APIs. The

design of the proposed approach fulfills the

requirements R1-R6, while the system

implementation focuses on the requirements R7-R9.

The basic idea is to expose a uniform query

interface (cf. R5) through which the developers can

explore target data and perform selection queries

against it. Consequently, only data of interest is

retrieved. The interface is based on markup

languages (XML) and element selection queries

(CSS Selectors); the core concepts and declarative

technologies that web developers learn from day one

(cf. R1). Besides being open W3C standards (cf.

R2), both of the technologies are expressive and

flexible enough to serve as a basis for the rest of the

design requirements of our approach.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

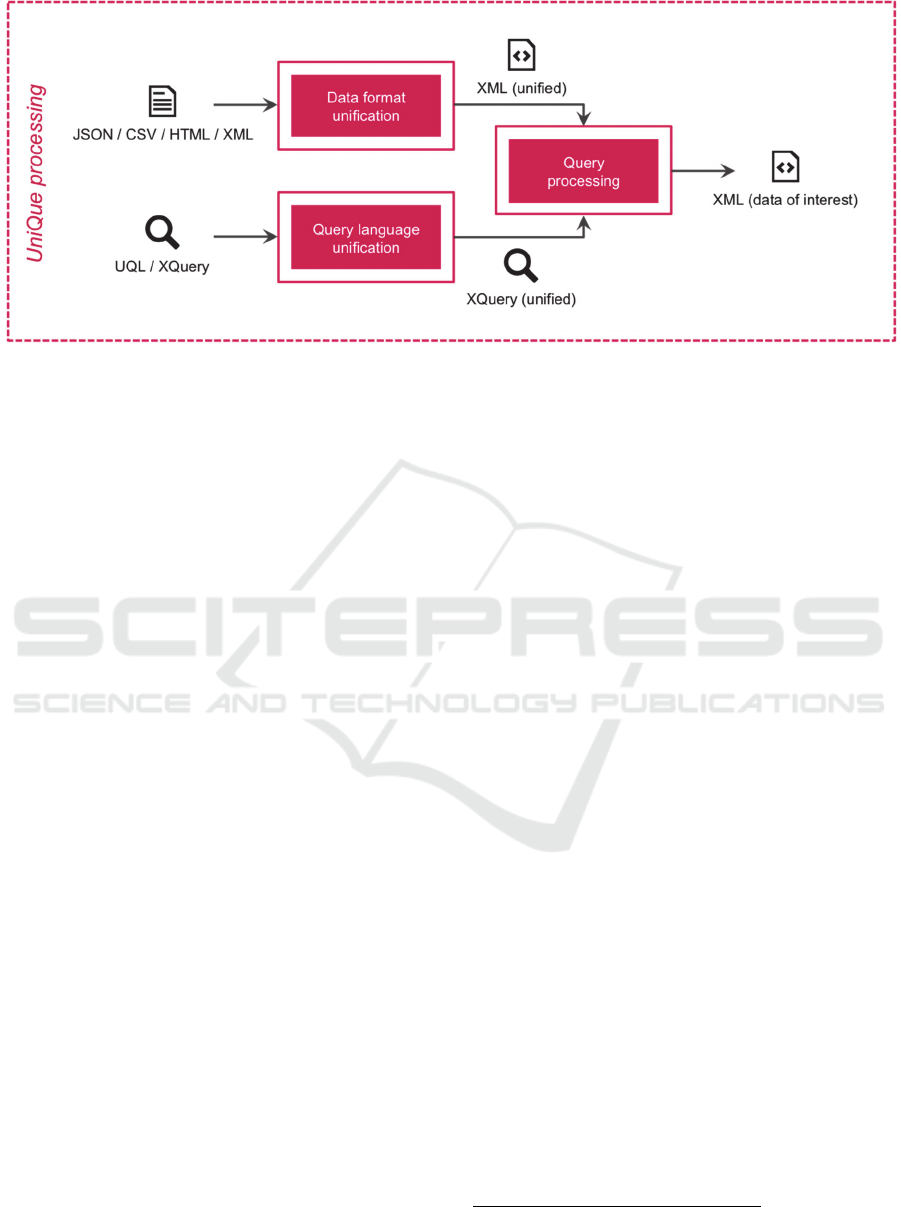

Figure 2: Overview of the UniQue processing.

The overview of the UniQue processing shown

in Figure 2 crystallizes the concepts and

technologies behind the proposed approach. On

receiving the data and the selection query, the data

goes through a unification process. In the Data

format unification process (details in Section 4.2),

JSON / CSV / HTML / XML data is converted into

friendly and round-trippable XML by following a set

of mapping rules. In Query language unification

(details in Section 4.3), a similar conversion process

is applied to a selection query written in UQL /

XQuery to translate it into XQuery. Finally, in the

Query processing phase, the resulting XQuery

(unified) is evaluated and executed against the

resulting XML (unified) to produce output XML,

which includes only data of interest.

4.2 Data Format Unification

In the following subsections, we provide guidelines

for mapping varying data formats into a single form.

We chose XML as the unified data format because it

is more verbose than JSON or CSV. Data mappings

minimize developers’ effort, since they need to

master only a single data format and related

tools/libraries (cf. R3). While studying the

mappings, a special focus was put on two major

aspects, friendliness (primary) and round-

trippability (secondary), identified by (Boyer et al.,

2011) (cf. R4).

4.2.1 JSON to XML

For mapping JavaScript Object Notation (JSON)

(Bray, 2014) to XML, we used the mapping rules

described in the forthcoming W3C XForms 2.0

specification

(Boyer et al., 2016). Briefly, each

JSON name/value pair becomes an XML element,

whose name is the JSON name and whose value is

the JSON value. In the case of a JSON array, a

separate XML element following the afore-

mentioned rules is created for each value of the

array. Additionally, XML attributes are added to the

element to store the type of the JSON value along

with other metadata required for round-trippability.

In case round-trippability is not required, i.e., the

data is meant for consumption only, the attributes

can be omitted.

We contributed to the design of these mapping

rules in earlier revisions. Specifically, we pointed

out deficiencies regarding round-trippability and

suggested improvements.

Figure 3 gives an example of the JSON to XML

mapping rules. In the example, (a) a JSON response

and (b) its XML equivalent are shown when calling

the Instagram API method “

users/{user-id}

” to

get basic information about a user, in this case, a

climber named Chris Sharma. As can be seen, the

resulting XML has meaningful element names,

making the data easy to query (i.e., friendly).

Further, the type and order information of the

original JSON are preserved in attributes for round-

trippability.

Revision as of March 18, 2015

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources

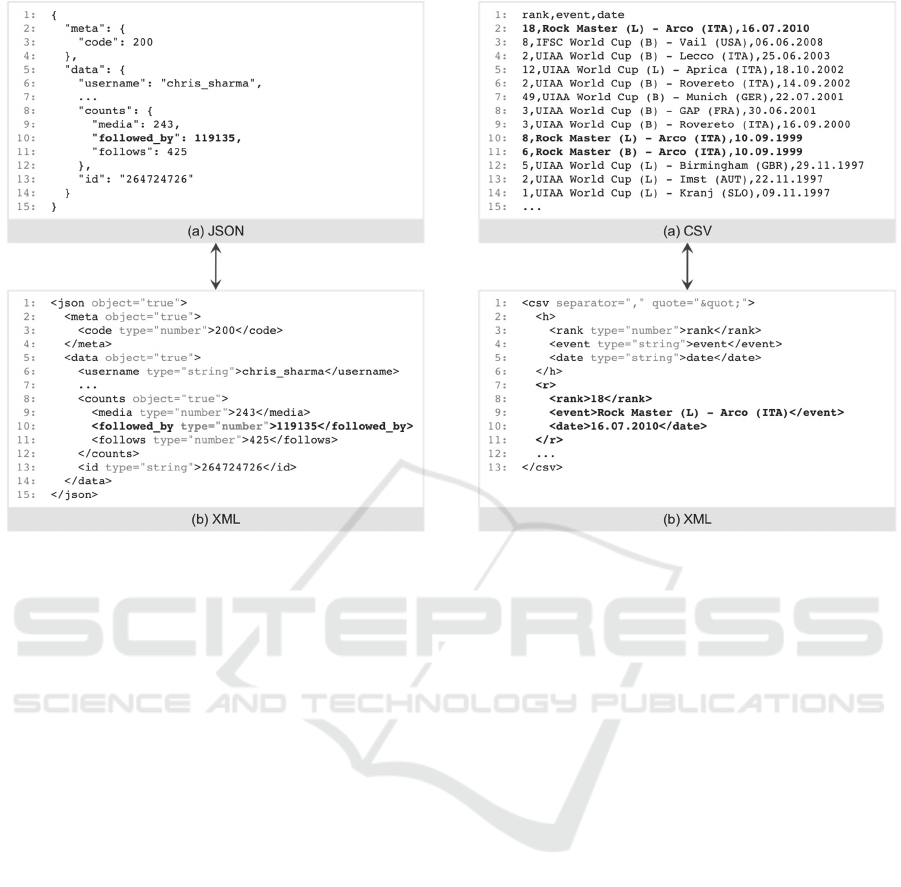

Figure 3: Example of mapping data between (a) JSON and

(b) XML. The data of interest in line 10 is bolded (referred

later in the paper), whereas attributes required for round-

trippability are de-emphasized in gray.

4.2.2 CSV to XML

The forthcoming XForms 2.0 specification (Boyer et

al., 2016) also describes mapping rules for

converting Comma-Separated Values (CSV)

(Shafranovich, 2005) data into friendly and round-

trippable XML. Briefly, each label in the header row

(if present) becomes an XML element whose name

and value are same as the label. Illegal characters in

the XML element name are replaced (or prepended

in case of the first character) with the underscore

character “

”. Additionally, all these XML header

elements are enclosed by an

<h>

element. Then,

each field value in the (subsequent) record rows is

mapped to an XML element whose name is the

corresponding label (or

<v>

, in case headers are

absent) and whose value is the corresponding field

value. The XML record elements of each row are

enclosed by an

<r>

element.

We extended the mapping rules to better support

both round-trippability and differences among

implementations generating CSV data. Specifically,

we added two attributes to the root element of the

resulting XML: separator and quote. Their values

define the character to separate fields and the

character to quote fields on header and record rows,

Figure 4: Example of mapping data between (a) CSV and

(b) XML. The data of interest in lines 7–11 is bolded

(referred later in the paper), whereas attributes required for

round-trippability are de-emphasized in gray.

respectively. In addition, we propose to add the type

attribute to converted XML header elements to store

the type of values in each CSV column. While

adding the type information may not improve round-

trippability (all field values in CSV are treated as

strings), it increases the semantic level of data.

Figure 4 shows an example, in which (a) CSV

data containing information about Chris Sharma’s

competition results is converted into (b) XML by

following the above-described mapping rules.

4.2.3 Other Mappings

The rules for converting a HyperText Markup

Language (HTML) (Hickson et al., 2014) document

into a well-formed XML document (namely,

XHTML) are already well established and follow a

small set of guidelines defined in (Pemberton et al.,

2002). These guidelines require that, for instance, all

elements must have a closing tag and attribute

values must be quoted. The resulting XML cannot

be converted back into its original HTML form.

However, all relevant information is preserved

during the conversion process, as it only involves

tidying up the HTML markup.

Since Extensible Markup Language (XML)

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

(Bray et al., 2008) data is already represented in

well-formed XML, there is no need to apply any

mappings.

4.3 Query Language Unification

The following subsections present UQL and

XQuery. The former is a flexible selector language,

whereas the latter supports more demanding query

scenarios. We describe their commonalities and the

unification process. We also show how developers

can make a smooth transition from one language to

another without introducing major learning barriers

(cf. R6).

4.3.1 Unified Query Language

In this paper, we propose Unified Query Language

(UQL) to efficiently retrieve (and transfer) only data

of interest from target data sources. UQL is based on

widely adopted W3C Selectors (Çelik et al., 2011)

that developers use, for instance, to bind style

properties to elements in CSS and match a set of

elements in a document with W3C Selectors API

(e.g.,

querySelectorAll()

) or jQuery

. To give

an example of Selectors’ functionality, consider a

scenario, in which the number of followers needs to

be shown next to the Instagram icon. With the

selector “

followed_by

”, we can easily pull the

desired data bolded in line 10 of Figure 3b.

Obviously, Selectors allow much more sophisticated

queries, as they can be combined and joined in many

ways to achieve great specificity. However,

Selectors have certain limitations, such as lack of

content matching and cumbersome range selectors.

UQL addresses these limitations and improves

the expressiveness of Selectors by extending it with

a new functional pseudo-class

:xpath()

. With our

extension, developers can make a natural and easy

switch to similar but more expressive XPath (Robie

et al., 2014a)—another widely adopted W3C

selector language—whenever Selectors’

expressiveness is not powerful enough. In other

words, the extension exposes the full potential of

XPath, including its functions, to developers.

Consequently, UQL can cover a wide variety of use

cases and requires only minimal learning effort from

developers already familiar with Selectors.

We demonstrate the usefulness of UQL in a

simple example, in which we want to select only

those Chris Sharma’s competition results from

Figure 4b that took place at “Rock Master”. By

jQuery, http://jquery.com/

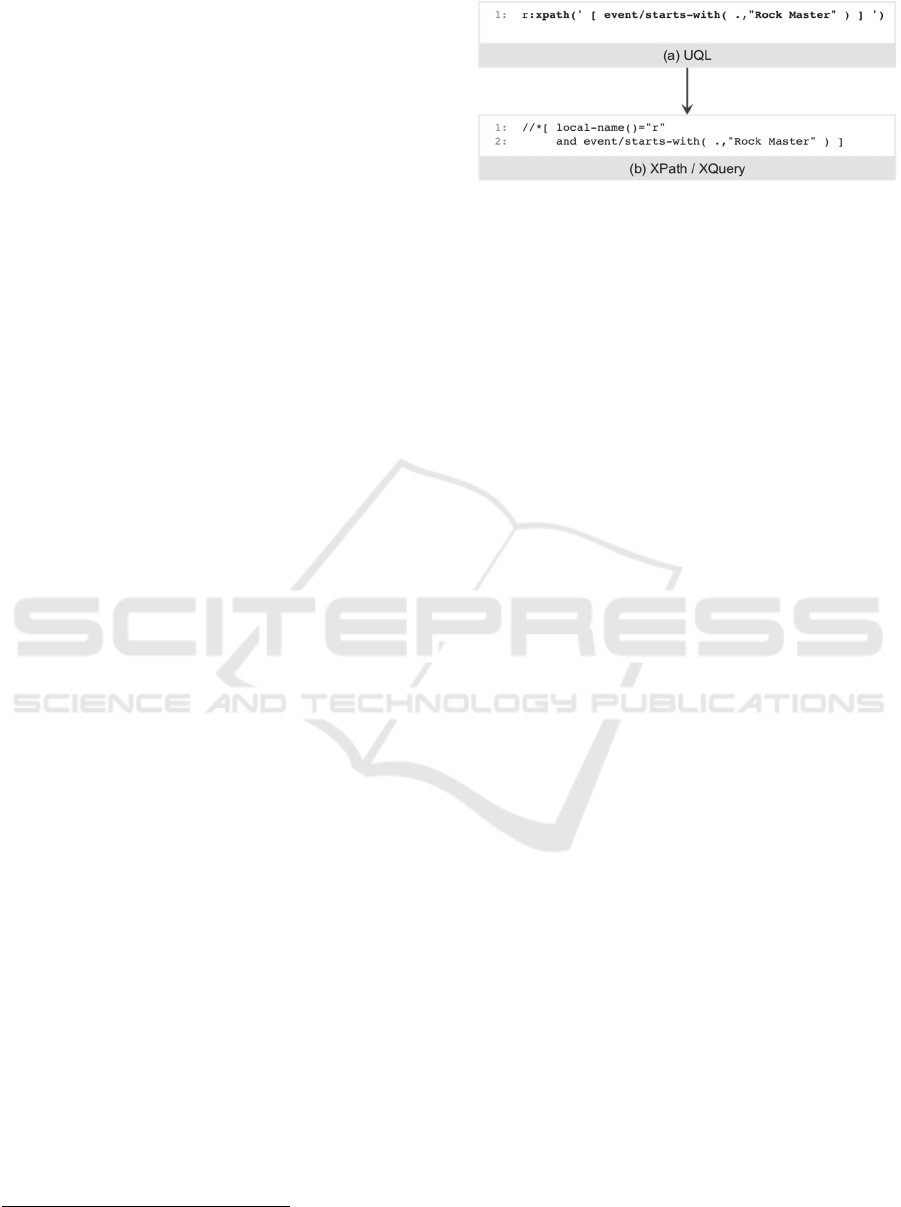

Figure 5: Example of translating a query from (a) UQL to

(b) XPath / XQuery. Our :xpath() extension in UQL is

bolded.

using our extension with the UQL query

“

r:xpath('[ event/starts-with( ., "Rock

Master" ) ]')

” we discover that he has partici-

pated the competition three times (2010, 1999,

1999).

In our approach, UQL queries are translated to

XPath equivalents for query processing. Hence, the

semantics of UQL follow the semantics of XPath.

Mapping Selectors parts to XPath is straightforward

as both languages use path-based expressions and

are syntactically very similar, as shown in Figure 5.

4.3.2 XQuery

For completeness and more demanding scenarios,

we also support XQuery (Robie et al., 2014b).

XQuery is a Turing-complete query language

manipulating data from any data source that can be

viewed as XML. XQuery extends XPath, so

developers can transfer their knowledge gained from

UQL to XQuery when writing queries. XQuery also

supports the missing features of UQL, such as data

grouping and sorting. Its increased expressiveness,

however, comes at the expense of added complexity.

5 UNIQUE SYSTEM

IMPLEMENTATION

In the following, we discuss the concrete

implementation of the UniQue approach.

Specifically, this section details the system

architecture and its operation as well as the

individual components realizing it.

5.1 System Architecture

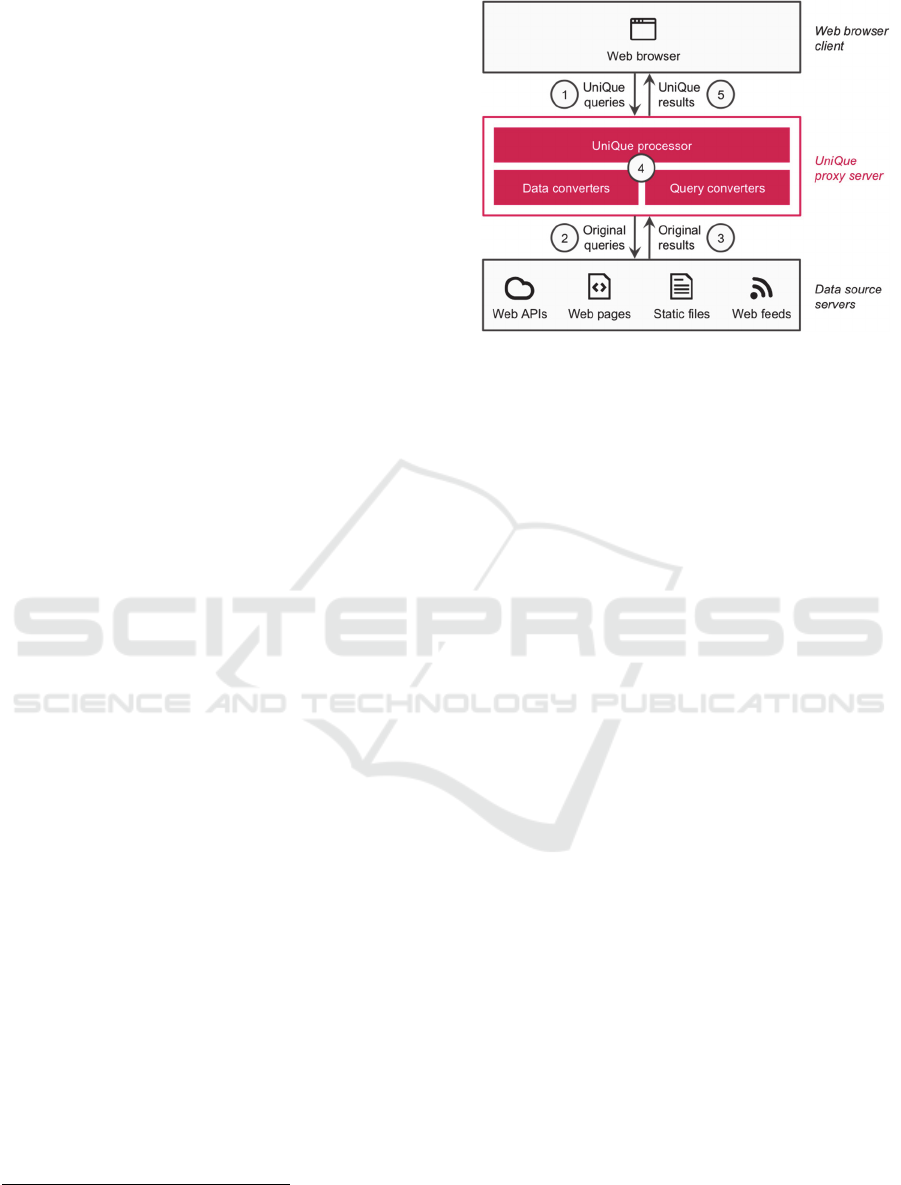

Figure 6 illustrates the architecture of the UniQue

system implementation. In our architecture, the

UniQue system operates as a proxy server between

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources

the client (e.g., a web browser) and the data source

servers (e.g., Web APIs, web pages, JSON / CSV /

XML files, and RSS / Atom feeds). The proxy was

implemented in XQuery 3.0 on top of the 28.io

platform. The platform itself is based on Zorba

which supports XQuery / JSONiq and other XML

technologies relevant to our approach. The

communication with the proxy takes place by

making HTTP calls to its API.

We chose a proxy-based implementation for

three reasons. First, a wide variety of clients can take

advantage from the services it exposes. Second, it

can significantly reduce network traffic between the

client and the proxy. Third, it does not require any

modifications to existing data source servers. Thus,

the system conforms to the requirements R7-R9

outlined in Section 3.4.

5.2 Operation and Components

Figure 6 depicts the components and processing

steps involved when the client invokes the UniQue

Web API. The process starts by forming the URL

for an HTTP GET request, which consists of an

endpoint URL and query string parameters, such as

data, format, and query.

Below is an example URL,

http://unique.28.io/processor.xq?

data={data}&

format={format}&

query={query}

where

data

points to a single target data source

(absolute URL or inline text),

format

indicates its

output format (e.g., json), and

query

holds a query

expression in UQL in order to retrieve data of

interest from the target data source. The HTTP GET

request, i.e., UniQue query, is then sent to the proxy

(1), where the UniQue processor reads the query

string parameters and makes an HTTP GET request

to retrieve the entire original data from the given

URL (2). After receiving the result of the original

response (3), the processor invokes the Data

converters and Query converters modules to

perform data and query unification, respectively.

Next, the unified query is evaluated and executed

against the unified data, yielding result data in XML

(4). In case the client supports data compression, the

proxy compresses the produced data before

returning the result to the client (5). As a result of

28msec, http://www.28.io/

Zorba, http://www.zorba.io/

Figure 6: Architecture of the UniQue system

implementation.

the whole process, the response data now contains

only data of interest in a compressed form, which

may reduce network traffic significantly.

5.2.1 UniQue Processor

The UniQue processor is the main component that is

responsible for reading inputs, processing queries,

and returning results. It invokes the Data converters

and Query converters modules.

5.2.2 Data Converters

The data converters module provides functions

necessary to parse input data (a string) and convert it

into XML. The module contains four public

functions—one for each data format supported, i.e.,

JSON, CSV, HTML, and XML—that implement the

mappings discussed in Section 4.2. All the four

function implementations use a dedicated built-in

Zorba function as a basis for their data conversion.

In the case of JSON to XML and CSV to XML, the

built-in Zorba functions by themselves were

incapable of directly producing the desired XML

structure. Therefore, an additional data processing

phase is applied with those two data conversions to

transform a generic, unfriendly XML result

generated by the Zorba functions into the desired,

friendly XML representation format. To the best of

our knowledge, this module provides the first and

improved implementation of the XForms 2.0

conversion rules for mapping data between JSON

and XML as well as CSV and XML.

5.2.3 Query Converters

The query converters module provides a public

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

function to parse input query (a string) and convert it

into an XQuery expression, as defined in Section

4.3. First, the function parses the input query with an

assumption that the syntax follows a case-sensitive

Extended Backus-Naur Form (EBNF) grammar of

UQL 1.0 / Selectors 3.0 (both have the same

grammar). The parser’s XQuery code was generated

semi-automatically from the EBNF grammar using

the REx

parser generator (version 5.30). After

successfully finishing the parsing process, the parser

returns an XML parse tree. Next, the returned XML

is parsed, and as a result, the input query given in

UQL 1.0 / Selectors 3.0 is translated into an XPath

1.0 expression. Finally, an XQuery 3.0 expression is

constructed by prepending the XPath expression

with version and given namespace declarations. In

case the parser fails to parse the input query, the

function assumes that the syntax is XPath 1.0 /

XQuery 3.0 compliant and prepends namespace

declarations if provided.

5.3 Availability

The UniQue system implementation is made

available to the public under the MIT license. The

latest source code release can be downloaded from

the project website at

https://mediatech.aalto.fi/publications

/webservices/unique/.

6 EXPERIMENTAL

EVALUATION

In this section, we evaluate UniQue with respect to

the challenges identified in Section 2.1. Our

evaluation also includes a comparison against a

similar proxy-based approach called YQL (Yahoo,

2016), which represents the current state-of-the-art.

Next, we describe our experimental design and

results, followed by a brief discussion.

6.1 Experimental Design

We developed two versions of Alice’s web mashup

application depicted in Figure 1; one using UniQue

and one using YQL for accessing the data sources

(eight in total) shown in Table 1. To compare the

approaches in terms of used data formats and query

techniques, and to measure generated network

traffic, we extracted the related data source queries

REx Parser Generator, http://bottlecaps.de/rex/

from both applications. Each data source was then

queried separately by sending an HTTP GET request

from Chrome 45 web browser running on Mac OS X

10.8.5 with 3.06 GHz Intel Core 2 Duo processor

and 4 GB of RAM over a wireless network

connection. The proxies and data sources were

running on third-party servers. To ensure a fair

comparison, we requested both proxies to return

response data in a format as similar as possible, i.e.,

XML and without attributes required for round-

trippability. For capturing the browser's network

traffic with the proxies, we used the HTTP Archive

(HAR)

format.

The data sets, queries, and their associated

evaluation results are all available at the project

website.

6.2 Results

6.2.1 Data Formats

As shown by the last column of Table 1, the original

data sources used varying data formats to return

data. Nevertheless, both proxies succeeded in

converting all the data retrieved from the original

data sources into well-formed XML. There were no

major differences between the conversion results;

the resulting data appeared natural and used

elements only (as opposed to having relevant data

placed within attributes), making it easy to work

with. From the developer’s perspective, we observed

that consuming the data required no or very little

understanding of data formats other than XML.

6.2.2 Query Techniques

In both approaches, the data from the original data

sources was accessed through the proxy’s own Web

API (endpoint URL with appropriate parameters).

To select exactly the data of interest, a query

expression was passed as a query parameter in the

URL. With UniQue, the expressiveness of UQL was

found sufficient in 7 out of 8 queries. Specifically,

the use of pure Selectors was enough in five queries,

while the proposed

:xpath() extension was needed

in two queries to match against element values. The

more expressive XQuery was leveraged with Data

Source I to construct a highly specific XML output

from the original data. YQL in turn used SQL-like

query statements accompanied with dot-style syntax

as a basis for filtering the data. In 5 out of 8 queries,

HTTP Archive 1.2,

http://www.softwareishard.com/blog/har-12-spec/

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources

the syntax was found sufficient. With the three

remaining queries, there was a need for a

supplementary selector language, i.e., Selectors or

XPath, within an SQL statement. Additionally,

XSLT was needed to query Data Source I.

In conclusion, the main difference between the

two approaches was in the selection of query

languages. UniQue leveraged web mashup

developers’ prior knowledge on W3C-standardized

Selectors and provided a gentle slope to extend its

expressiveness. YQL in turn relied on SQL-like

syntax, which is more familiar to database experts,

and other rather different query languages to

increase its expressiveness.

6.2.3 Network Traffic

Figure 7 presents the results of our comparative

performance study regarding generated network

traffic. From the figure we clearly see that the

generated network traffic was significantly smaller

with UniQue; 2 115 bytes on average compared to

4 332 bytes of YQL (about 51% reduction ratio).

The high reduction ratio mainly results from the fact

that our proxy compresses HTTP response body data

whenever the requesting client supports it

, whereas

the YQL proxy never does so. Moreover, even

without the effects of additional gzip compression

on our proxy, the generated network traffic would

still have been about 3% smaller with UniQue

compared to YQL.

6.3 Discussion

The results from our experimental evaluation

suggest that UniQue is a promising approach for

querying heterogeneous web data sources. The

benefits of adopting our approach were particularly

apparent in terms of effective use of developers’

prior knowledge on W3C standards and reduced

network traffic through extendable query capabilities

and data compression. Additionally, the process of

web querying was simplified. We believe that these

results will be of particular interest to the XForms

community.

Our evaluation case study also revealed potential

areas of improvement for the proposed UniQue

approach. For instance, UQL could natively cover

most typical use cases for the

:xpath()

extension

in the future, such as matching against element

values. Many of the current shortcomings of

All modern web browsers support HTTP compression.

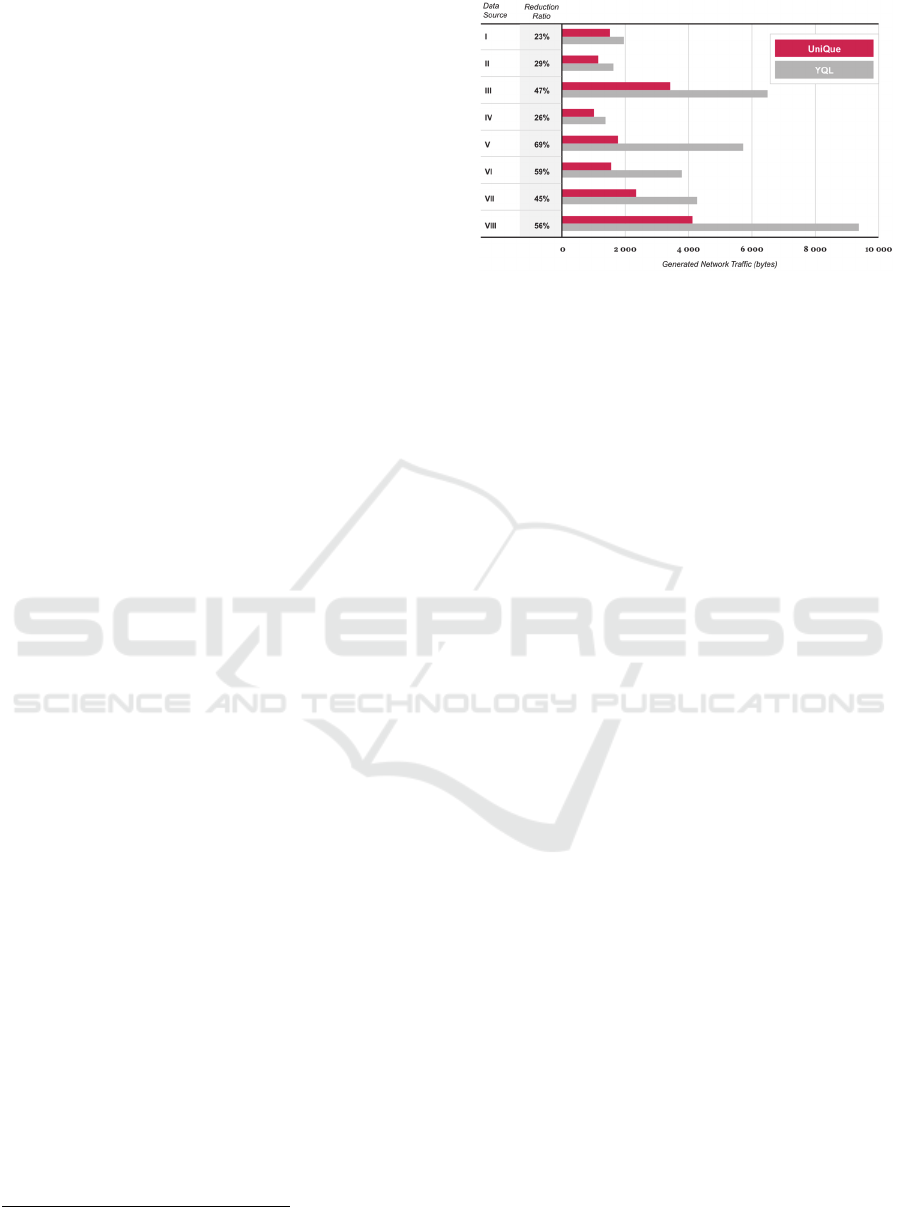

Figure 7: Comparison of generated network traffic per

data source between UniQue and YQL.

Selectors (Level 3)—which UQL uses as a basis—

will also be addressed in its future specifications

(Etemad and Atkins, 2016; Kosek and Atkins,

2016).

We also noted that web mashup applications

using our proposed approach could be

complemented with a web performance solution,

such as (Akamai, 2016; Google, 2016). These

solutions provide automated web content and

connection optimizations, such as image transcoding

and HTTP multiplexing. As a result, the browser’s

overall network traffic can be reduced even further.

Further, we believe that potential savings in data

transfers might be of special interest for end users

behind a slow network connection or on mobile,

especially if they have limited bandwidth and/or a

monthly data quota.

7 RELATED WORK

Over the years, numerous web query languages and

techniques have been proposed in the literature; cf.

Bailey et al. (2005) for a comprehensive survey.

More recently, efforts have also been made to query

newer web data formats, such as JSON. One of the

most prominent query languages for it is JSONiq

(Florescu and Fourny, 2013). JSONiq borrows

several ideas from XQuery, such as a powerful

FLWOR (For, Let, Where, Order by, and Return)

construct as well as a declarative and functional

style of programming. OXPath (Furche et al., 2013)

in turn focuses on effectively scraping data from

complex web applications. As its name suggests, the

technique is based on an extended XPath language

that allows declarative interaction with scripted

HTML documents and the extraction of data from

them. Giribet’s (2005) proposal is another example

of using XPath in querying web content. The

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies

technique combines XPath with URLs. Specifically,

it uses XPath in the fragment identifier of an URL to

explicitly specify the parts of XML data that are of

interest. Similarly, Hausenblas et al., (2014) uses

fragment identifiers with tailor-made methods to

select specific rows, columns, or cells from CSV

data. The main disadvantage of using fragment

identifiers lies, however, in their inefficient data

delivery. Namely, fragment identifiers are only

interpreted by the client upon first receiving full

response data. In contrast, UniQue performs data

filtering on the proxy server and returns only data of

interest to the client, and thus reduces network

traffic. Additionally, it supports querying of all the

above-mentioned data formats through a single,

uniform, and declarative query interface.

According to Bischof et al. (2012), most of the

existing approaches for querying heterogeneous data

formats can be divided into two categories: data

translation and language integration. In data

translation, data is transformed from one

representation format into another using predefined

mapping rules. For example, 28.io (28msec, 2016)

provides proprietary XQuery / JSONiq functions for

converting data between different formats, including

XML, JSON, HTML, and CSV. Boyer et al. (2011)

go beyond straightforward data conversions of this

nature and discuss different mapping approaches

between XML and JSON from the aspects of

friendliness and round-trippability. The same aspects

are also considered important in the design of

XForms 2.0 (Boyer et al., 2016) mappings used in

UniQue. In language integration, approaches (e.g.,

Bischof et al. (2012)) combine and/or extend

existing query languages to enable querying of

different data formats. This category also includes

such approaches, in which queries are translated

from one language into another, as in (Progress

Software Corporation, 2016). The UniQue approach

applies both language integration principles: UQL

extends the expressiveness of Selectors with XPath,

which in turn is translated to an equivalent XPath /

XQuery before executing the query.

To overcome common challenges of querying

heterogeneous web content, Berger et al. (2006)

propose a novel language called Xcerpt. Xcerpt is a

versatile query language (Bry et al., 2005) that is

capable of accessing web data in all formats, such as

XML and RDF. MashQL (Jarrar and Dikaiakos,

2012) is another example of a completely new query

language. Because of the originality of Xcerpt and

MashQL, however, the query languages have not

gained popularity among web mashup developers.

Tsai et al. (2011) and YQL (Yahoo, 2016) present a

proxy-based solution that uses a more mainstream

query language as a basis, namely SQL. In these two

approaches, an SQL-like query language is used to

perform CRUD operations on heterogeneous web

data sources and RESTful APIs, respectively. Our

approach aims to minimize the learning effort and

technologies required by developers, and thus takes

full advantage of developers’ existing knowledge on

open W3C standards.

8 CONCLUSIONS

In this paper, we introduced a unified querying

(UniQue) approach that provides a uniform and

declarative query interface across heterogeneous

web data sources. The proposed approach is based

on the idea of data format and query language

unification. Additionally, our approach leverages

web mashup developers’ prior knowledge on open

W3C standards to enable broad adoption. We

proposed Unified Query Language (UQL) that

seamlessly extends the expressiveness of CSS

Selectors with XPath expressions to query our

unified data model. Both the UniQue approach and

UQL were realized in our proxy-based

implementation, which is made available under the

terms of the MIT license at

https://mediatech.aalto.fi/publications

/webservices/unique/. The evaluation results

from our case study indicate that UniQue can

effectively streamline web querying, and show up to

51% (with compression) and 3% (without

compression) reduction in generated network traffic

compared to the current state-of-the-art approach.

ACKNOWLEDGEMENTS

The authors thank William Candillon and Dr.

Ghislain Fourny at 28.io for their exceptional

support with XQuery.

REFERENCES

28msec, 2016. 28msec. http://www.28.io/.

Akamai, 2016. Ion Web Performance Optimization |

Akamai. https://www.akamai.com/us/en/solutions/pro

ducts/web-performance/web-performance-optimizatio

n.jsp.

Bailey, J., Bry, F., Furche, T., Schaffert, S., 2005. Web

and Semantic Web Query Languages: A Survey. In

UniQue: An Approach for Uniﬁed and Efﬁcient Querying of Heterogeneous Web Data Sources

First International Summer School 2005, LNCS 3564,

pp. 35–133. Springer.

Berger, S., Bry, F., Furche, T., Linse, B., Schroeder, A.,

2006. Beyond XML and RDF: The Versatile Web

Query Language Xcerpt. In Proceedings of the 15th

International Conference on World Wide Web, pp.

1053–1054. ACM.

Bischof, S., Decker, S., Krennwallner, T., Lopes, N.,

Polleres, A., 2012. Mapping between RDF and XML

with XSPARQL. Journal on Data Semantics, vol. 1,

no. 3, pp. 147–185. Springer.

Boyer, J.M., Bruchez, E., Klotz, L.L. Jr., Pemberton, S.,

Van den Bleeken, N., 2016. XForms 2.0 - W3C

XForms Group Wiki (Public). http://www.w3.org/Mar

kUp/Forms/wiki/XForms_2.0.

Boyer, J., Gao, S., Malaika, S., Maximilien, M., Salz, R.,

Simeon, J., 2011. Experiences with JSON and XML

Transformations. In W3C Workshop on Data and

Services Integration.

Bray, T., 2014. The JavaScript Object Notation (JSON)

Data Interchange Format - RFC 7159 (Proposed

Standard). http://tools.ietf.org/html/rfc7159.

Bray, T., Paoli, J., Sperberg-McQueen, C.M., Maler, E.,

Yergeau, F., 2008. Extensible Markup Language

(XML) 1.0 (Fifth Edition) - W3C Recommendation.

http://www.w3.org/TR/xml/.

Bry, F., Koch, C., Furche, T., Schaffert, S., Badea, L.,

Berger, S., 2005. Querying the Web Reconsidered:

Design Principles for Versatile Web Query

Languages. International Journal on Semantic Web

and Information Systems, vol. 1, no. 2, pp. 1–21. IGI

Global.

Çelik, T., Etemad, E.J., Glazman, D., Hickson, I., Linss,

P., Williams, J., 2011. Selectors Level 3 - W3C

Recommendation. http://www.w3.org/TR/selectors/.

Etemad, E.J., Atkins, T. Jr., 2016. Selectors Level 4 -

W3C Editor’s Draft. https://drafts.csswg.org/selec

tors/.

Florescu, D., Fourny, G., 2013. JSONiq: The History of a

Query Language. IEEE Internet Computing, vol. 17,

no. 5, pp. 86–90. IEEE.

Furche, T., Gottlob, G., Grasso, G., Schallhart, C., Sellers,

A., 2013. OXPath: A Language for Scalable Data

Extraction, Automation, and Crawling on the Deep

Web. The VLDB Journal, vol. 22, no. 1, pp. 47–72.

Springer.

Giribet, D., 2005. Merging XPath and URLs for Enhanced

Web and Web Service Data Retrievals. In Proceedings

of the IADIS International Conference on Applied

Computing, pp. 27–33. IADIS.

Google, 2016. Data Saver - Google Chrome.

https://developer.chrome.com/multidevice/data-

compression.

Harth, A., Norton, B., Polleres, A., Sapkota, B., Speiser,

S., Stadtmüller, S., Suominen, O., 2011. Towards

Uniform Access to Web Data and Services. In W3C

Workshop on Data and Services Integration.

Hausenblas, M., Wilde, E., Tennison, J., 2014. URI

Fragment Identifiers for the text/csv Media Type –

RFC 7111 (Informational). http://tools.ietf.org/html/rf

c7111.

Hickson, I., Berjon, R., Faulkner, S., Leithead, T., Doyle

Navara, E., O'Connor, E., Pfeiffer, S., 2014. HTML5:

A Vocabulary and Associated APIs for HTML and

XHTML - W3C Recommendation. http://www.w3.org

/TR/html5/.

Jarrar, M., Dikaiakos, M.D., 2012. A Query Formulation

Language for the Data Web. IEEE Transactions on

Knowledge and Data Engineering, vol. 24, no. 5, pp.

783–798. IEEE.

Kosek, J., Atkins, T. Jr., 2016. Non-Element Selectors

Module Level 1 - W3C Editor’s Draft.

https://drafts.csswg.org/selectors-nonelement/.

MacLean, A., Carter, K., Lövstrand, L., Moran, T., 1990.

User-Tailorable Systems: Pressing the Issues with

Buttons. In Proceedings of the SIGCHI Conference on

Human Factors in Computing Systems, pp. 175–182.

ACM.

Pemberton, S., Austin, D., Axelsson, J., Çelik, T.,

Dominiak, D., Elenbaas H., Epperson, B., Ishikawa,

M., Matsui, S., McCarron, S., Navarro, A.,

Peruvemba, S., Relyea, R., Schnitzenbaumer, S.,

Stark, P., 2002. XHTML

1.0 The Extensible

HyperText Markup Language (Second Edition): A

Reformulation of HTML 4 in XML 1.0 - W3C

Recommendation. http://www.w3.org/TR/xhtml1/.

Progress Software Corporation, 2016. DataDirect XQuery

Product Architecture Overview. http://www.progress.c

om/products/data-integration-suite/xquery/xquery-pro

duct-architecture.

Robie, J., Chamberlin, D., Dyck, M., Snelson, J., 2014.

XML Path Language (XPath) 3.0 - W3C

Recommendation. http://www.w3.org/TR/xpath-30/.

Robie, J., Chamberlin, D., Dyck, M., Snelson, J., 2014.

XQuery 3.0: An XML Query Language - W3C

Recommendation. http://www.w3.org/TR/xquery-30/.

Shafranovich, Y., 2005. Common Format and MIME

Type for Comma-Separated Values (CSV) Files - RFC

4180 (Informational). http://tools.ietf.org/html/rfc

4180.

Tsai, C.-L., Chen, H.-W., Huang, J.-L., Hu, C.-L., 2011.

Transmission Reduction between Mobile Phone

Applications and RESTful APIs. In Proceedings of the

2011 ACM Symposium on Applied Computing, pp.

445–450. ACM.

Van Roy, P., Haridi, S., 2004. Concepts, Techniques, and

Models of Computer Programming, The MIT Press.

Cambridge, Massachusetts, 1

edition.

Yahoo, 2016. Yahoo Query Language (YQL).

http://developer.yahoo.com/yql/.

WEBIST 2016 - 12th International Conference on Web Information Systems and Technologies
