Customized 3D Clothes Modeling for Virtual Try-on System based on

Multiple Kinects

Shiyi Huang and Won-Sook Lee

School of Electrical Engineering and Computer Science, University of Ottawa, Ottawa, Canada

Keywords: 3D Clothes Modeling, Virtual Try-on, Kinect.

Abstract: Most existing 3D virtual try-on systems put clothes designed in one environment on a human captured in

another environment, which cause the mismatching brightness problem. And also typical 3D clothes

modeling starts with manually designed 2D patterns, deforms them to fit on a human, and applies stitching

to sew those patterns together. Such work usually relies on labour work. In this paper, we describe an

approach to reconstruct clothes and human that both are from the same space. With multiple Kinects, it

models the 3D clothes directly out of a dressed human without the need of the predefined 2D clothes

patterns, and fits them to a human user. Our approach has several advantages: (1) a simple hardware setting

consisted of multiple Kinects to capture a human model; (2) 3D clothes modeling directly out of captured

human model. To the best of our knowledge, our work is the first one which separates clothes out of

captured human figures; (3) resizing of clothes adapting to any sized human user; (4) a novel idea of virtual

try-on where clothes and human are captured in the same location.

1 INTRODUCTION

Virtual try-on for clothes is the technique that can

visualize the human dressed in selected clothes

virtually without need to undress and dress

themselves physically. Basically, it consists of two

objects: human and clothes. And the main objective

is to fit the clothes to a human body.

Based on the data type of human and clothes, we

define that virtual try-on systems can be divided into

2D and 3D systems. And we define 2D systems to

be 2D clothes and 2D/3D human while 3D systems

to be 3D clothes and 2D/3D human. Substantial

progress has been achieved in this area during last

decades.

(Hauswiesner et al., 2013) proposed a 2D virtual

try-on system through image-based rendering

approach. The system has one obvious limitation,

which is that a large garment database is required to

solve the mismatching problem. The EON

Interactive Mirror (Giovanni et al., 2012) was

considered as the 3D virtual try-on system consisted

of two stages. In the offline stage, 3D clothes are

modelled based on actual catalogue images. While

online, it used one Kinect to detect the nearest

person in the scenario and track his/her motion to

merge 3D clothes with the user’s HD video frames

from one high-definition camera. One of its

limitations is that 3D clothes are resized uniformly

based on the customer’s shoulder height. (Zhang et

al., 2014) also adopted one Kinect to construct a 3D

virtual try-on system. In their system, one

customized 3D static human model was generated

from a template model based on the anthropometry

method. And animation of the 3D static human

model was performed based on the recorded

customer’s motion data captured by Kinect. While

several predefined 2D garment patterns were

mapped onto the 3D human model to generate the

3D clothes. However, special data format of 2D

clothes patterns was required to avoid manually pre-

positioning them onto the human model for this

system. Other systems such Fitnect, and the demo

video about Kinect for Windows Retail Clothes

described the similar idea as the EON Interactive

Mirror.

In this paper, we introduce a new idea of virtual

try-on system. A mannequin is dressed nicely and a

customer wants to check the clothes on him/her

body but without actually putting on the clothes. We

just capture the customer’s body data using a

scanner (or the customer’s previously stored data

can be used in the shop) and we transfer the

118

Huang, S. and Lee, W-s.

Customized 3D Clothes Modeling for Virtual Try-on System based on Multiple Kinects.

DOI: 10.5220/0005782001160121

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 1: GRAPP, pages 118-123

ISBN: 978-989-758-175-5

mannequin’s clothes to the customer virtually. We

emphasize that the clothes and human are from the

same space to avoid the mismatching brightness

problem: bright/dark human skin color and

dark/bright clothes. We use multiple Kinects to

capture different views of one mannequin dressed in

one shirt and one trouser. Clothes are extracted from

the dressed mannequin and separated into two pieces

of clothes. Multiple point clouds of the clothes with

respect to the different views are aligned. And then

surface reconstruction technique was applied to the

aligned point clouds to generate the clothes mesh.

Next, we applied mesh post-processing and texture

mapping the clothes mesh to obtain the textured

clothes. Besides, we used KinectFusion to scan the

naked mannequin and a user dressed in the tight

clothes to generate two 3D human models. Finally

we resize the clothes to fit to the user based on the

same transformation that deforms the naked

mannequin to have the user’s body size and shape. A

detailed overview of our method is provided in

Section 3.

2 RELATED WORK

This section briefly describes related work about

virtual try-on systems, clothes modeling, clothes

customization, and provides a short overview of data

processing techniques related to our work.

2.1 Virtual Try-on

Over the last several years, various methods for

virtual try-on have been designed. Due to the lack of

the available high-performance and high-accuracy

capturing device, some early work usually generated

relatively poor result. In the following, we mainly

discuss the latest development.

Virtual Try-on in 2D: (Araki and Muraoka, 2008)

designed a 2D system that resized the triangulated

clothes images based on several markers on the

user’s joints to fit his/her motion captured by a web

camera. (Hauswiesner et al., 2013) constructed a

system that transferred the appearance of the

recorded clothes onto the user’s body by matching

his/her pose from the input video frames with that

from the recorded video frames. (Isıkdogan and

Kara, 2013) mapped and resized 2D clothes images

to fit to the user based on the tracked skeleton from

one Kinect.

One obvious disadvantage of the 2D virtual try-

on system is that the original clothes in the user’s

body usually can be seen even after putting on

selected clothes.

Virtual Try-on in 3D: With the advance of several

3D sensing devices, especially Kinect, the

development of the 3D virtual try-on system is

unprecedented. (Giovanni et al., 2012) fitted the

manually modelled 3D clothes to the user’ high-

definition video frames from one HD camera by

using one Kinect to track his/her skeleton and align

clothes with the skeleton. (Yuan et al., 2013) uses

one Kinect to capture user’s data, such as skeleton

data and body skin colour for customizing one

avatar, and then transferred 3D clothes onto the

customized avatar. (Zhang et al., 2014) also utilized

one Kinect to capture user’s data for customizing

and refining one template human model. And

several 2D clothes patterns were fitted to the human

model and then sewed together to achieve the virtual

try-on effect.

Those 3D virtual try-on systems have a common

drawback, which is that clothes and human are from

different space. And those 3D clothes modeling

parts are usually 2D patterns based.

2.2 Clothes Modeling for Virtual

Try-on

3D clothes modeling is one part of the virtual try-on

system, which basically can be divided into three

types: manually modeling, automatically 2D patterns

to 3D clothes modeling, and scanner-based 3D

modeling. Other methods are also proposed for 3D

clothes modeling, for example, (Furukawa et al.,

2000) created 3D clothes based on 2D photo input

where the body was created from three photo views

and then clothes were extracted in 3D by colour

segmentation. As it was based on feature-based

human cloning technique, accuracy was relatively

low.

Manually clothes modeling usually requires the

designer to use some 3D computer graphic software,

such as Blender, 3ds Max or Maya to model 3D

clothes. Several 2D clothes patterns were designed

virtually, and the linkages were specified by

manually selecting corresponding points between

nearby patterns. Then those patterns were deformed

to fit a digital human model and textured to generate

the 3D clothes. This approach usually requires a lot

of manual work in order to generate a high quality

result.

The automatically 2D patterns to 3D clothes

modeling was introduced by (Zhang et al., 2014),

which required special data format of 2D clothes

patterns to prevent manually preposition 2D patterns

Customized 3D Clothes Modeling for Virtual Try-on System based on Multiple Kinects

119

onto customized human model. However, it still

required designers to position those 2D patterns to

the template model manually.

Scanner-based 3D clothes modeling is the idea

that reconstruct 3D clothes based on the 3D scanner

device. The scanner-based method is popular for

human modeling and hair modeling. However, to the

best of our knowledge, we haven’t seen any research

about scanner-based 3D clothes modeling yet, which

can be an area that we can have a contribution to.

2.3 Clothes Customization for Virtual

Try-on

Fitting the 3D clothes to the 3D human is a crucial

part in the 3D virtual try-on system. The fitting step

directly affects the visualization result. Most existed

3D virtual try-on systems achieve the clothes

customization by deforming several 2D patterns to

fit the human body. However, the approach that

directly resizing 3D clothes to fit to the 3D human is

more intuitive. (Li et al., 2010) deformed the clothes

mesh to match the shapes of the human model

through several steps, which made the approach

relatively complicated.

2.4 Related Data Processing

Techniques

For our 3D scanner-based virtual try-on system,

several data processing techniques have been used:

color segmentation, 3D registration, surface

reconstruction, texture mapping, and resizing.

(Zhang, 2000)’s calibration method is widely

used to calibrate camera for 3D reconstruction,

which only requires one simple pattern that has

several feature points to be detected so that the

intrinsic parameters can be calculated. Stereo camera

calibration is used to calculate the extrinsic

parameters between two cameras. In order to extract

concerned objects from the image, the color

segmentation techniques are the ideal choice. JSEG

system developed by (Deng and Manjunath, 2001)

was used in our system for clothes segmentation.

From the captured images and depth data, several

point clouds can be generated. Since each point

clouds is with respect to different coordinate system,

we used ICP algorithm (Besl and Neil, 1992) to

align multiple point clouds. Poisson Surface

Reconstruction method proposed by (Kazhdan et al.,

2006) was used to create mesh. A texture mapping

technique similar to (Zhou et al., 2005) was utilized

to apply texture information to the mesh. And for

resizing the clothes to fit the human body, we

utilized the Radial Basis Function.

3 OVERVIEW

Our method of 3D clothed modeling and

customization based on multiple Kinects consists of

three key components: data acquisition, 3D clothes

modeling and their customization. In Sections 4 to 6

we elaborate on the components of our method. We

then show the results in Section 7, and conclude

with a discussion of the method.

4 DATA ACQUISITION

This section describes our acquisition setup,

including the hardware and calibration.

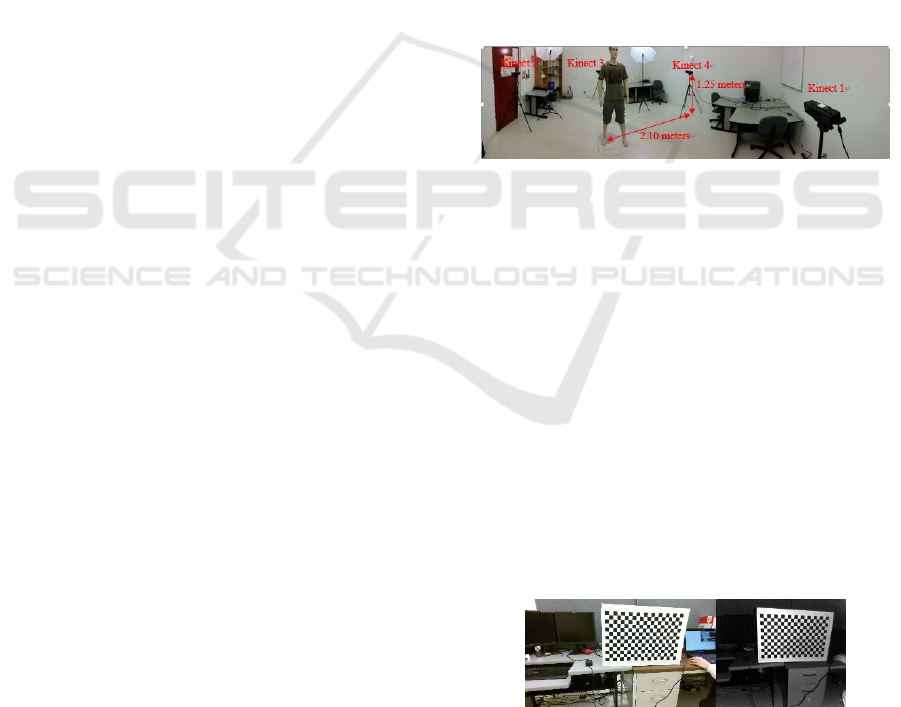

Our capture environment is displayed in Figure 1.

Figure 1: Capture environment setting.

We utilized Kinect V2 as the main capturing

device, which is equipped with one higher resolution

RGB camera and one higher depth fidelity depth

camera compared with the Kinect V1. Three kinds

of images can be generated from the two cameras:

RGB image, depth image and infrared image.

Besides, depth image and infrared image are

generated from the same camera. We utilized

(Zhang, 2000)’s method to do camera calibration for

every Kinect built-in cameras. A checkerboard

consists of 12 x 20 squares was used as the pattern to

implement the calibration. 25 synchronized RGB

images and infrared images for each Kinect built-in

RGB camera and depth camera were captured. The

captured checkerboard images are displayed in

Figure 2.

Figure 2: Captured checkerboard images. Left: RGB

image; Right: Infrared image.

Through stereo camera calibration, the

transformation between RGB camera space and

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

120

depth camera space can be derived. (Macknojia et

al., 2013) introduced the idea of camera calibration

of two built-in cameras and stereo camera

calibration for Kinect V1 in detail. Different from

Kinect V1, there is no offset between depth image

and infrared image for Kinect V2.

In the data acquisition stage, we used

KinectFusion (Newcombe et al., 2011) to scan the

naked mannequin and a user dressed in tight clothes

to obtain their corresponding point clouds, which

would be processed based on surface reconstruction

algorithm to model two 3D mesh out of them. And

then we utilize four Kinects to capture four views of

the naked mannequin so that we can align each view

with the naked mannequin model from KinectFusion

to calculate the transformation between every two

Kinects, which can be used to align multiple views

of the clothes. Next, we captured four views of the

mannequin with one shirt and one trouser.

5 3D CLOTHES MODELING

5.1 Clothes Extraction

Four views’ data of clothes are acquired during the

data acquisition step. Clothes extraction was

implemented through two steps: (1) extracting the

dressed mannequin out of the common background;

(2) extracting clothes out of the dressed mannequin

and separating them into one shirt and one trouser.

We utilized Kinect Body Tracking Function to

extract the dressed mannequin from the common

background in front and back view. While for left

and right view, since the Function usually doesn’t

work, depth thresholding was used to roughly

extract the dressed mannequin.

To extract clothes out of the dressed mannequin,

we used the JSEG algorithm proposed by (Deng and

Manjunath, 2001). And then several manual work

was performed to remove some unconcerned

regions. And due to the block of mannequin’s hands,

data missing area existed in the left and right view,

which require the step of region filling to repair

those areas. The final result is displayed in Figure 3.

5.2 3D Registration of Kinect Data

We have five groups of 3D data, four from four

views of Kinect (four views of clothes data and four

views of the naked mannequin) and one from

KinectFusion (the naked mannequin) and we need to

Figure 3: Four views shirt and trouser images after

performing clothes extraction, manually removing

unconcerned regions and region filling.

We used ICP proposed by (Besl and Neil, 1992)

to align multiple point clouds to create the 360

point clouds. Our proposed approach to do 3D

registration for clothes lied in four steps: (1) using

KinectFusion to scan the naked mannequin to get the

well-aligned point clouds; (2) using four Kinects to

capture four views of the naked mannequin; (3)

aligning each view of the naked mannequin with the

well-aligned point clouds to obtain the relation

between every two Kinects; (4) aligning four views

point clouds of clothes using the same relation

calculated in (3).

The aligned point clouds of clothes usually

contain several noise and outliers, and then we

manually removed many outliers. The result is

displayed in Figure 4.

Figure 4: Left to right: aligned shirt and trouser point

clouds after manually removing several outliers.

5.3 Surface Reconstruction of Clothes

Based on the aligned point clouds of clothes, we

utilized Poisson surface reconstruction algorithm to

create the mesh. The result is displayed in Figure 5.

Figure 5: Left to right: reconstructed shirt and trouser

mesh after using Poisson surface reconstruction.

The model reconstructed using Poisson surface

Customized 3D Clothes Modeling for Virtual Try-on System based on Multiple Kinects

121

reconstruction is watertight, which makes the

reconstructed shirt and trouser quite different from

the real clothes. Several steps are implemented to

process the watertight 3D model of clothes to match

the clothes regions in the image. Our proposed

approach was divided into six steps: (1) using Kd-

Tree to do roughly texture mapping for the clothes;

(2) selecting several points on the mesh manually;

(3) deleting triangular faces along the selected

points; (4) removing other unconcerned components;

(5) finding the boundary edges of the mesh left; (6)

creating several triangular faces to link boundary

edges and the selected points. The result is displayed

in Figure 6.

Figure 6: Left to right: reconstructed shirt and trouser

mesh after mesh post-processing.

5.4 Texture Mapping of Clothes

After the surface reconstruction and mesh post-

processing, we obtained the mesh without texture

information. Then we segmented the mesh into four

parts with respect to each view for texture mapping.

Several points were manually selected on the mesh

to define the intersection between every two views.

Then we applied the algorithm used for deleting

triangular faces along the selected points to the

clothes mesh. The textured shirt and trouser are

displayed in Figure 7.

Figure 7: Top to Down: the well-reconstructed and

textured shirt and trouser mesh after texture mapping.

6 3D CLOTHES

CUSTOMIZATION

We used Radial Basis Function for clothes

customization. The approach to resize the 3D clothes

to fit to the user’s body can be divided into two

steps: (1) deforming the naked mannequin to have

the user’s body size and shape using Radial Basis

Function (2) resizing the 3D clothes to fit to the

user’s body using the same Radial Basis Function.

Using Radial Basis Function for resizing requires

two data groups: control points and target points.

Multiple points were selected on source and target

models manually. The point selections are displayed

in Figure 8.

(a) (b)

Figure 8: (a): control points selection on the naked

mannequin’s body; (b): target points selection on the

user’s body.

The raw naked mannequin model, user’s 3D

model, and the deformed naked mannequin model

are displayed in Figure 9.

3D clothes were resized and fitted to the user.

But the fitting result has the surface penetrating

problems: several faces of the 3D clothes penetrating

into the user’s body. We applied the surface

correction algorithm based on the point-to-plane

project theory to pull those penetrated faces out of

the body. And the result is displayed in Figure 10.

Figure 9: Left to Right: raw naked mannequin model;

user’s 3D model; deformed naked mannequin model.

Figure 10: Left to Right: user with reconstructed clothes

before and after surface correction.

7 RESULT

The evaluation is based on the visualization

comparison between the captured clothes image and

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

122

the reconstructed clothes. As shown in Figure 11,

the clothes shape and texture in the captured images

are passed to the 3D clothes model. The patterns on

shirt are much similar to the raw patterns, and the

virtual mannequin dressing the reconstructed clothes

also shares a variety of similarities with the actual

one. Clothes with different styles (such as pants,

skirt, trouser, and short/long sleeves shirt) and

various colour and texture (such as blue, green, and

black) are all successfully reconstructed using the

proposed approach.

Figure 11: Left to Right: raw images of the mannequin

dressed in selected clothes; reconstructed mannequin with

the reconstructed clothes; user dressed in deformed clothes.

8 CONCLUSIONS

In this paper, a novel approach for 3D clothes

modeling and customization is proposed. Different

from previous systems, we captured clothes and

human data that both are from the same space to

avoid the mismatching brightness problem. Besides,

we modelled 3D clothes directly out of the captured

human figures without need to use the predefined

2D patterns to avoid so much labour work. Those

characteristic makes our system more practical.

ACKNOWLEDGEMENTS

We wish to thank Iman Eshraghi for his help during

data acquisition.

REFERENCES

Araki, N., and Muraoka, Y. 2008. Follow-the-Trial-Fitter

Real-time addressing without undressing. In Third

International Conference on Digital Information

Management, 33-38.

Besl, P. J., and McKay, N. D. 1992. Method for

registration of 3-D shapes. In International Society for

Optics and Photonics, Robotics-DL tentative, 586-606.

Deng, Y. and Manjunath, B. S. 2001. Unsupervised

segmentation of colour-texture regions in images and

video. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 800-810.

Furukawa, T. Gu, J., Lee, W., and Magnenat-Thalmann,

N. 2000. 3D clothes modeling from photo cloned

human body. In Springer Berlin Heidelberg, Virtual

Worlds, 159-170.

Giovanni, s., Choi, Y. C., Huang, J., Khoo, E. T., and Yin,

K. 2012. Virtual try-on using Kinect and HD camera.

In Springer Berlin Heidelberg, Motion in Games, 55-

65.

Hauswiesner, S., Straka, M., and Reitmayr, G. 2013.

Virtual try-on through image-based rendering. IEEE

Transactions on Visualization and Computer

Graphics, 1552-1565.

Isikdogan, F., and Kara, G. 2013. A real time virtual

dressing room using Kinect.

Kazhdan, M., Bolitho, M., and Hoppe, H. 2006. Poisson

surface reconstruction. In Proceedings of the fourth

Eurographics symposium on Geometry processing.

Li, J., Ye, J., Wang, Y., Bai, L., and Lu, G. 2010. Fitting

3D garment models onto individual human models. In

Computers and Graphics, 742-755.

Macknojia, R., Chavez-Aragon, A., Payeur, P., and

Laganiere, R. 2013. Calibration of a network Kinect

sensors for robotic inspection over a large workspace.

In IEEE Workshop on Robot Vision, 184-190.

Newcombe, R. A., Izadi, S., Hilliges, O., Molyneaux, D.,

Kim, D., Davison, A. J., and Fitzgibbon, A. 2011.

KinectFusion: Real-time dense surface mapping and

tracking. In 10th IEEE international symposium on

Mixed and augmented reality, 127-136.

Yuan, M., Khan, I. R., Farbiz, F., Yao, S., Niswar, A., and

Foo, M. H. 2013. A mixed reality virtual clothes try-

on system. IEEE Transactions on Multimedia, 1958-

1968.

Zhang, Z. 2000. A flexible new technique for camera

calibration. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 1330-1334.

Zhou, K., Wang, X., Tong, Y., Desbrun, M., Guo, B., and

Shum, H. Y. 2005. TextureMontage. In ACM

Transactions on Graphics, 1148-1155.

Zhang, Y., Zheng, J., and Magnenat-Thalmann, N. 2014.

Clothes Simulation and Virtual Try-on with Kinect

Based on Human Body Adaptation. In Spring

Singapore Simulation, Serous Games and Their

Applications, 31-50.

Customized 3D Clothes Modeling for Virtual Try-on System based on Multiple Kinects

123
