Becoming Agile in a Non-disruptive Way

Is It Possible?

Ilia Bider and Oscar Söderberg

DSV, Stockholm University, Stockholm, Sweden

Keywords: Agile, Software Development, Software Engineering, Challenges, Tacit Knowledge, Knowledge

Transformation.

Abstract: Due to the increasing popularity of Agile Software Development (ASD), more software development teams

are planning to transit to ASD. As ASD substantially differs from the traditional Software Development

(TSD), there are a number of issues and challenges that needs to be overcome when transiting to ASD. One

of the most difficult challenges here is acquiring an agile “mindset”. The question arises whether it is possible

to acquire this mindset with the minimum disruption of an already established TSD process. The paper tries

to answer this question by developing a non-disruptive method of transition to ASD, while using a knowledge

transformation perspective to identify the main features of ASD mindset and how it differs from the one of

TSD. To map the current mindset and plan the movement to the mindset that is more agile, the paper suggests

using a process modelling technique that considers the development process as a socio-technical system with

components that correspond to the phases of the development process. The method suggested in the paper has

been designed in connection to a business case of a development team interested to transit to agility in a non-

disruptive manner.

1 INTRODUCTION

1.1 Formulating a Problem

Agile Software Development (ASD) has appeared as

a reaction on the increasing rate of changes in system

requirements, e.g. see (Highsmith et al., 2000):

“requirements change at rates that swamp traditional

methods”. Since 15 years from its inception, ASD

from a niched development methodology, mainly

used in the web development, made its way to

becoming one of the mainstream methodologies. This

leads to organizations that use a phase-based

methodology become more willing to move to ASD.

Due to the essential differences between the

Traditional Software Development (TSD) and ASD,

a transition from one to another is quite difficult and

includes a number of challenges and pitfalls that are

reported in research papers (Conboy et al., 2011;

Hajjdiab and Taleb, 2011), books (Smith and Sidky,

2009), and practitioners blogs (Hunt, 2015). The main

difficulty here is that an ASD team requires having a

“mindset” that differs from the one of a TSD team.

There are a number of books, such as, (Hajjdiab

and Taleb, 2011), that suggest methods for transiting

from TSD to ASD. However, following these

methods presumes that the decision to complete such

a transition has been made, and risks attached to the

transition understood. In addition, a decision on

which brand of Agile, e.g. XP, or SCRUM, to try

needs to be taken quite early in the transition process.

Understanding the transition risks and making a

right for the given situation choice of the agile

practice requires experience. Thus, such a transition

has better chances for success if it is led by an

experienced person, e.g. an agile coach. Even in this

case, there is no guarantee of success. What is more,

even if the transition was successful in the end, it

could cause a disruption of the existing development

process for quite long time. If the existing process

does not work, taking the risk and introducing the

disruption are fully justified. However, if the process

works satisfactory, there could be doubts whether it

make sense to jump into the unknown taking the risks

and going through the disturbances without knowing

whether a better development process will emerge

after the transition has been completed.

In connection to the deliberations above, a

question arises whether it is possible to gradually

transit from TSD to ASD with the minimum

294

Bider, I. and Söderberg, O.

Becoming Agile in a Non-disruptive Way - Is It Possible?.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 294-305

ISBN: 978-989-758-187-8

disruption of the existing development process? In

other words, the question is whether there already

exists a method of non-disruptive transition to ASD,

and if not, whether such method can be devised.

Ideally, such a method should improve the existing

development process even before the full transition

cycle has been completed. It should be also possible

to delay taking the decision on which brand of ASD

to use, and even stop the transition at some point

being satisfied with what has been achieved, and not

taking risks of going farther.

1.2 Overview of a Solution

This paper is a report on the research aimed at

answering this question. To the best of our

knowledge, there is no non-disruptive method of

transition to ASD described in the research or

practical literature. Therefore, we use Design Science

(DS) approach (Peffers et al., 2007) to answer the

question posed above, i.e. we aim to answer it by

designing such a method and testing it in practice.

According to the case studies reported in the

literature, e.g. (Hajjdiab and Taleb, 2011; Conboy et

al., 2011), the biggest issue when transiting to ASD is

acquiring the agile mindset by the development team.

The latter requires all team to acquire a number of

skills, which might not be necessary in the existing

TSD. For example, social and communication skills

are mandatory for all members, so that they can meet

and talk to stakeholders. Therefore, the main focus of

our design work is directed to acquiring the agile

mindset and a set of skills that is included in it.

To design a method that leads to changing the

mindset of the team to the agile mindset, we need to:

1. Find a basis on which to identify the main

features of the agile mindset and in what way it

differs from the mindset of a more traditional

team.

2. Find a way of mapping (modelling) the mindset

of the current team so that the difference

between the current mindset and the targeted

one (agile) can be measured and a plan of

action aimed to shorten this distance can be

developed.

As far as the first item on the list is concerned, the

most commonly used framework for this kind of goal

is Agile Manifesto (Agile Alliance, 2001). However,

we consider it too vague and allowing multiple

interpretations, which leads to misunderstandings and

heated arguments in the agile community (Weaver,

2011); see also critique of Agile Manifesto in

(Conboy and Fitzgerald, 2004). We needed a more

“scientific” basis for developing a non-disruptive

method of transition to agile. For this end, we have

chosen an approach suggested in (Bider, 2014) that is

based on considering TSD and ASD projects from the

knowledge transformation perspective. Based on this

consideration, (Bider, 2014) defines the essence of

ASD in difference from TSD and set some

requirements on the structure of the agile project, its

team, relations with the customer and techniques used

in the project. The results from (Bider, 2014) do not

contradict Agile Manifesto, but rather more clearly

underline the main features of ASD and the difference

between ASD and TSD.

As far as the second item on the list above is

concerned, there are a number of methods for

evaluating and measuring the current level of agility,

see for example (Sidky, 2007). However, mostly,

these works rely on Agile Manifesto when

determining what the agile mindset is. Furthermore,

they are based on the decision of transition to agile

being already taken. In addition, these are general

methods not connected to the current structure of the

development process accepted in the given

organization. In other ways, we consider that the

existing methods of evaluation of the level of agility

do not fit the task of creating a method of non-

disruptive transition to agile.

In this work, we have created our own approach

to maping (modelling) the mindset of the

development team that is suitable for planning steps

for advancing the current mindset towards the agile

one. This approach is based on the business process

modelling technics suggested in (Bider and Perjons,

2015; Bider and Otto, 2015) and called step-

relationship modelling in (Bider and Perjons, 2015).

The technique uses a system view on the business

process considering it as a number of components (or

steps) connected with each other via various

relationships. The model built according to this

technique focuses on depicting these relationships

and their properties. When adopting step-relationship

modelling technique for our purpose, we concentrated

on relationships between the teams that man the

components/steps of the given system development

process.

One of the main activities in a Design Science

(DS) research project is testing the new

artefact/solution, which is a method in our case, in at

least one real situation. DS does not set a restriction

on when in the course of the research project such test

needs to be started, e.g. after the design has been

finished or in parallel with the design. In our case, the

research was conducted in parallel with investigating

a business case in the IT department of an insurance

company. This department was interested in adopting

Becoming Agile in a Non-disruptive Way - Is It Possible?

295

a non-disruptive approach of moving towards agility,

and it was also used as a test bed for the method. The

test is far from being completed, but it was run up-to

the department management understood enough of

the suggested method and became prepared for

completing the first step on the way to agility.

The rest of the paper is structured in the following

manner. Section 2 gives a brief overview of the

research methodology and knowledge base used in

this research and the research background. Section 3

describes the proposed method. Section 4 discusses

testing. Finally, in Section 5, we summarize the

results achieved and draw plans for the future.

2 RESEARCH BACKGROUND

2.1 The Project History and

Methodology

This research has been initiated by the management

of an IT department in a large insurance company

expressing their interest in transition to a more agile

development process. The management did not

possess much knowledge on the essence of ASD, or

its various brands. They were interested in an

approach that included minimum risks and gave a

possibility to learn the essence of ASD on the way,

while allowing to delay the decision of which

particular brand/practice of ASD to adopt. The

literary study, part of which is presented in Section 1,

has shown that there are a number of practical

methods of transition to agile. Nevertheless, none of

them was particularly suitable for the requirements

that came from the IT department. These

requirements were reformulated into the question of

“whether it is possible to gradually transit from TSD

to ASD with the minimum disruption of the existing

development process?” posed in Section 1.1 To

answer this question, we decided to develop a “non-

disruptive” method of transition to agile.

The development of our method follows the

pattern of Design Science (DS) research (Peffers et

al., 2007; Baskerville et al., 2009), which is related to

finding new solutions for problems known or

unknown. To count as a design science solution, it

should be of a generic nature, i.e. applicable not only

to one unique situation, but to a class of similar

situations. DS research can be considered as an

activity aimed at generating and testing hypotheses

for future adoption by practice (Bider et al., 2013).

Our method development ran in parallel with the

investigation of the business case of the IT

department in the insurance company. More exactly,

we investigated and modelled the structure of the

development process in the department including the

skill-sets of the process participants and the ways they

communicated with each other. The activities were

carried out through interviews with representatives of

various phases in the process, and studying the

internal documentation.

One of the key activity in a DS project is

implementation and verification of a generic solution,

or artefact in terms of (Peffers et al., 2007), in at least

one situation. This activity is also referred to as

demonstration or proof of concept in the literature

devoted to methodology of DS (Peffers et al., 2007).

The demonstration phase in this research is a

continuation of our case study. More exactly, we

worked out a suggestion on the first steps of the

transition to agility for the IT department; and it was

accepted by the management. More details on this

activity are presented in Section 5.

As already has been mentioned in Section 1, we

used some existing theoretical frameworks as a

knowledge base when developing our method. As we

do not expect that these frameworks are known to the

reader, in the next sub-sections, we give a short

overview of them before presenting our method.

2.2 Agility from the Knowledge

Transformation Perspective

In this section, we give a short summary of TSD and

ASD models built based on the knowledge

transformation perspective presented in (Bider,

2014). These models, in their own turn, are built

based on the SECI model (Nonaka, 1994). SECI stays

for Socialization – Externalization – Combination –

Internalization, and it explains the ways of how

knowledge is created in an organization while being

transformed from the tacit form (in the heads of the

people) to the explicit one (e.g. on the paper) and

back, see Figure 1. The cycle of knowledge creation

consists of the following four steps or phases:

1. The cycle starts with Socialization, where tacit

knowledge is transferred from the heads of one

group of people to others via informal means,

such as conversations during the coffee breaks,

meetings, observations, working together, etc.

2. The next phase is Externalization, which is the

conversion of knowledge from the tacit form

into the explicit one, e.g. a model of situation.

3. The third phase is Combination, which is

transforming the externalized (explicit)

knowledge in a new form using existing

knowledge, e.g. solution design principles.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

296

4. The last phase is Internalization, which is

converting the explicit knowledge, e.g. a

solution, in the tacit knowledge of people who

will apply this knowledge to any situation that

warrants it.

Figure 1: SECI diagram of knowledge creation.

Applying ideas from SECI to software development,

(Bider, 2014) designed two models of knowledge

transformation in software development projects, one

- for Traditional Software Development (TSD), and

another - for Agile Software Development (ASD).

Both are presented in Figure 2. In both cases, the

knowledge transformation cycles starts with tacit

knowledge possessed by stakeholders on

problems/needs to be solved/satisfied by a new

software system. The next step common for both

models is embedment when the knowledge on a

solution becomes embedded in the system that is

considered by its users as a whole possessing its own

behaviour. The last step in the knowledge

transformation in both models is adoption –

transforming the knowledge embedded in the system

into the tacit knowledge of the system’s users on how

to use this system in various working situations.

The models for TSD and ASD in Figure 2

substantially differ in the following aspects:

1. The nature of the first phase in ASD differs

from that of TSD. It consists in transferring

tacit knowledge on the problem and needs from

the stakeholders to the development team. This

phase corresponds to Socialization in Figure 2.

Also, Design and Coding are merged into one

phase Embedment. This can be defined as the

first motto of agility: “Avoid or delay

explication of knowledge as much as possible.

Ideally go from tacit knowledge directly to the

embedded one.”

2. In addition, one big cycle is substituted by

many smaller and shorter ones. The system is

built iteratively starting with the basic

functionality. During the exploitation of the

basic system, better understanding of the needs

is acquired, which is converted in adding

details to the system in the next iterations. In

other words, the second motto of agility can be

defined as: “Develop and introduce in practice

as little as possible as soon as possible, and

build upon it in the following iterations”.

Based on the analysis of the knowledge

transformation models for TSD and ASD, (Bider,

2014) identifies 6 properties of the development

process that differentiate TSD and ASD; these are

presented in Table 1. The first three properties, team,

user involvement and agreement, belong to the social

Figure 2: Left – ECEA model (Externalization-Combination-Embedment-Adoption) for TSD.

Right - SEA model (Socialization-Embedment-Adoption) for ASD. Adapted from (Bider, 2014).

Learning to use

in own practice

Solutions

Tacit knowledge

Software system

Combination

Embedded knowledgeEmbedded knowledge

Adoption

Requirements

discovery

Embedment

Coding

Problems/needs

Embedded knowledge

Learning to use

in own practice

Requirements

engineering

Coding Design

Problems/needs

Embedded knowledge

Solutions

Tacit knowledge

Explicit knowledge

Design Specification

Requirements specifications

Software system

Externalization

Explicit knowledge

CombinationCombination

Embedment

Embedded knowledgeEmbedded knowledge

Adoption

Traditional Agile

Requirements

engineering +

Design + Coding

Becoming Agile in a Non-disruptive Way - Is It Possible?

297

perspective of system development, while the second

three properties, core system, architecture and tools,

belong to the technical perspective of system

development. We will be using these differentiating

properties when developing our non-disruptive

method later in Section 4.

Table 1: Properties that differentiate ASD from TSD.

# ASD TSD

1 One team consisting

of “universal”

members

Several specialized

teams

2 Stakeholders

involvement during

the duration of the

project

Stakeholders

involvement during the

Externalization and

Adoption phases

3 Non-contractual

agreement based on

trust

Contractual agreement is

possible

4 Possibility to identify

and agree on a core

system that can be

expanded in

consequent iterations

Not mandatory, but can

be employed.

5 Architecture aimed at

expansion

Architecture aimed at

fulfilling the identified

requirements

6 Employing high-level

tools, e.g. domain-

specific languages,

development

platforms, libraries

Not mandatory – low

level, and universal tools

can be employed

2.3 Step-relationship Model

A step-relationship model represents a business

process as a (relatively) small number of steps (Bider

and Perjons, 2015), or functional components (Bider

and Otto, 2015), connected with each other through

various types of relationships. Each type of

relationships, i.e. a relation in a mathematical sense,

represents a separate view of the model.

There are two ways of representing a relationships

type, graphical and matrix. In the graphical form, the

steps/components are presented as rectangles (boxes),

while arrows between the rectangles show

relationships between the corresponding

steps/functional components. Labels inside the

rectangles name the steps, while labels on the arrows

give additional characteristics to the relationships. As

an example, Figure 3 represents output-input

relationships in a sample software development

process. Each arrow shows formalized output of one

step/component serving as an input to another

step/component.

Figure 3: Graphical presentation of relationships.

In the matrix form, a relationships type is represented

as a square matrix where both columns and rows

correspond to steps/components of the process. A sell

(a,b) where a is a column and b is a row is reserved

for describing a relationship of the given type

between step a and step b, if any exists. As an

example, Table 2 presents the same output-input

relationships type as Figure 3, but in the matrix form.

More examples of relationships in the graphical and

matrix forms are presented in Section 3.

Table 2: An example of presenting relationships in the

matrix form.

BM RE AD Impl Test

RE Model Bugs

AD Reqs

Impl Design Bugs

Test Software

3 DESIGNING A METHOD

3.1 Creating a Single Team

There are several essential properties of ASD that

need to be achieved in order to successfully transit to

agile. When developing our method, we assume that

at least some of them can be achieved without

essentially changing the current process. We also

Requirements

Engineering (RE)

Analysis & Design

(AD)

Implementation

(Impl)

Test

Business model

Design

Software

Functionality bugs

Technical Bugs

Business Modeling

(BM)

Requirements

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

298

assume that it is possible to somehow measure the

progress achieved on the way.

According to the first row in Table 1, ASD has a

single development team of members that could do

all kind of work in the process, including talking to

the stakeholders and programming. This is not

mandatory for TSD, where separate specialized

nonintersecting teams can complete the job. Also, in

a single ASD team, all members communicate with

each other frequently, which is not required in TSD.

In TSD, informal communication in the frame of the

development process may concentrate inside each

specialized team, while the formal output-input

channels are used for passing over the job between

the teams, as is represented in Figure 3, and Table 2.

The two properties of (a) having specialized teams

and (b) lack of communication between the teams are

related to each other. A narrow specialization may

create a hinder for communication due to differences

in professional jargons and culture.

Based on the deliberation above, we have

identified two properties of the development process

that need to be measured and improved, in the first

hand, when transiting to the agile approach. These

are: (a) intensity of communication between the

teams, and (b) ability of members of one specialized

team to do the job assigned to the other teams. These

two properties can be represented via relationships

between the teams manning the steps. Technically,

these relationships can be represented with the help

of two matrixes: (a) the communication intensity

matrix, and (b) the cross-competency matrix, as is

discussed in the next subsections.

3.1.1 Increasing Communication Intensity

An example of the communication intensity matrix

for the model in Figure 1 is presented in Table 3. A

cell (a,b) in the communication intensity matrix,

where a stays for a column and b for a row, defines

the intensity of communication between teams of

steps a and b initiated by team a. Interpretation of the

values in the cells depends on the level of separation

between the teams, e.g. one site or multiple sites. In

the example presented in Table 3, communication are

supposed to take place in the form of meetings, were

High means daily communications meetings.

Average means 3 times a week, Low means once a

week. Empty cells outside the diagonal mean that no

communication happens between the corresponding

teams.

Note that the communication intensity matrix is

aimed at characterizing the intensity of

communication between the specialized teams,

assumption being that inside the teams their members

communicate/collaborate in a natural way. If this is

not true, the diagonal of the matrix can be used for

representing communication intensity inside the

teams.

Table 3: An example of a communication intensity matrix.

BM RE AD Impl Test

BM High Average Low

RE High Average High Low

AD High High High

Impl Low Average High

Test Low Low Average High

The communication intensity matrix can be used for

both depicting the communication intensity in the

current state and planning for increasing the

communication intensity. The latter can be done by

changing values of some cells in the matrix to reflect

the goal of increasing communication intensity. To

facilitate the planning work, we have transferred

some information from the output-input matrix, see

Table 2, to the communication intensity matrix in

Figure 3. More specifically, we make the borders of

cell (a,b) thick in all cases where cell (a,b) is not

empty in the output-input matrix. The latter means

that the column step a produces a formalized input for

the row step b, e.g. design specification. In addition,

we made the background of cell (a,b) grey in case cell

(b,a) is nonempty in the output-input matrix (Table

2). The later means that the column step b receives

formalized output from the row step b.

Formally, the result of adding thick borders and

grey background means that the matrix presented in

Table 3 is a merger of a “pure” intensity

communication matrix (without thick borders and

grey background) with the simplified output/input

matrix (the content of the cells in the latter is not

represented in the merger) and a transposition of the

latter. The merged communication extensity matrix is

more convenient for planning the next step of

transition to agile as described below.

One can expect that communication should be

more extensive between the steps that are connected

with an output-input relationship. Formalized

outputs, like requirements or a design specification,

in a software development process cannot be made

totally formal, and they need interpretation from the

receiving team. Misinterpretation can lead to a wrong

system being delivered to the customer. The thick

border represents the needs of informal explanation

of the formalized output when it is being transferred

to the receiving team. The grey background

represents the need for communication between the

Becoming Agile in a Non-disruptive Way - Is It Possible?

299

receiving team and the producing team while the

former is doing their part of work. Even when the

receiving team get the informal explanations on their

formalized input, there can be a need to verify their

understanding from the originator of the input. For

example, the designers may need to contact the

requirements engineers later on when they start

converting certain requirements into design. In (Bider

and Perjons, 2015), this type of backward

communication is called week dependencies, while

(Bider and Otto, 2015) refer to them as to feedback

links.

Summarizing the above, when planning the next

goal in intensifying the communication between the

teams, it is worthwhile to start intensification that

corresponds to cells with thick borders or grey

background. For example, the next goal for the

situation presented in Table 3, could be the one

described in Table 4, where the difference is

presented in bold. The difference consists of

intensifying forward communication between

Analysis & Design and Implementation, and

backward communication between Analysis &

Design and Requirements Engineering. Such measure

makes sense even for improving the already existing

process.

Table 4: Next step in communication intensity.

BM RE AD Impl Test

BM High Average Low

RE High

High

High Low

AD High High High

Impl Low

High

Test Low Low Average High

3.1.2 Increasing Cross-Competency

While the communication intensity matrix can be

considered as a tool of intensifying internal

communication in the future single team, the cross-

competency matrix can be considered as a tool for

achieving “universality” of its members (see the first

row in Table 1). An example of such a matrix is

presented in Table 5. In this matrix a cell (a,b), where

a stays for a column and b for a row, defines the

percentage of the team a members that have working

knowledge on the tasks completed in the step b. An

empty non-diagonal cell means 0%. Here, having

working knowledge on a specific task means that a

person in question has some practical experience of

this task.

As with the communication intensity matrix, we

add to this matrix some information from the output-

input matrix in the form of thick borders around cells

and grey background. This information is aimed at

helping to plan the next step of transition to agile.

Marked cells should be targeted for increasing cross-

competence in the first place, as this can decrease the

risks of misinterpretation of the formalized inputs and

misunderstanding in communications. Such measure

might be helpful even for improving the existing

process.

Table 5: An example of cross-competency matrix.

BM RE AD Impl. Test

BM 50% 75%

RE 75% 75% 50%

AD 75%

Impl. 50% 50% 75% 50%

Test 50%

An example of the next planned step for the situation

presented in Table 5 is presented in Table 6, where

the difference is presented in bold. The difference

consists of increasing cross-competency of the

Requirements Engineering and Implementation

Teams.

Table 6: next step in cross-competency.

BM RE AD Impl Test

BM 50% 75%

RE 75% 75% 50%

AD 75%

50%

Impl 50% 50% 75% 50%

Test 50%

50%

As cross-competency requires working knowledge of

the tasks completed by other teams, it is not enough

just to send people to a course. The proper way of

achieving cross-competency in cell (a,b) in the frame

of the existing software development process is to

send some people from team a to work in team b for

some time. This can degrade the overall performance

in the beginning, but this one-time cost is worth

taking, as increase in cross-competency minimizes

the risk of producing the wrong software (see

deliberation above).

When planning increase in cross-competency for

Implementation step with other teams, it is

worthwhile to consider row 6 in Table 1 that refer to

using high-level tools. This property has not been

introduced for the sake of creating a single team of

“universal” members, but for being able to complete

development loops in a speedy manner. However,

having high-level development tools may also help in

acquiring programming skills by people without

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

300

technical education. So, if such tools are not already

employed, it could be advantageous to start transition

from low-level programming to using high-level tools

before increasing competency in programming in

other teams.

3.2 Avoiding Explication of Knowledge

As was discussed in Section 2.2, one of the ASD

principles is to delay or avoid explication of

knowledge, ideally, by going from the tacit

understanding of problems/needs to building

software. This implies skipping creating detailed

requirements and design specifications. More

specifically, requirements are left on the tacit level as

a general understanding/image of the problems and

needs, while design is done via proper structuring of

the code. The latter could be facilitated by using high-

level development tools, like domain specific

languages, component libraries.

Avoiding explicit requirements and design does

not mean that these activities are excluded; they are

done on the tacit level. To reach the level of

proficiency when requirements and design are done

on the tacit level is difficult, if ever possible, without

obtaining skills in both requirements engineering and

design. Obtaining these skills by all team members in

the frame of the existing phase-based process has

already been discussed in Section 3.1.

The next question is how to shorten the time

period from the first contact with the customer to

starting producing executable code while still

remaining in the frame of a traditional software

development project. We believe that this can be

achieved by gradual transition from sequential

execution of the steps of development process to the

semi-parallel execution. The latter means starting the

design before all requirements are discovered, and

starting coding before all design specifications are

created.

The current level of parallelism can be

represented in a graphical form as a timeline intensity

diagram (Bider and Otto, 2015). An example of such

a diagram that corresponds to Figure 3 is presented in

Figure 4. The difference between Figure 3 and 4 is

that in Figure 4, the shapes representing steps do not

have rectangular form. The upper border of the shape

can be of any form representing the increase/decrease

in the amount of work being done at certain moments

of time. The intensity of work can be increasing or

decreasing with time, or can be first increasing and

then decreasing or vice versa (not illustrated in Figure

4). In addition, the step shapes in Figure 4 are placed

in the order they are executed. If some steps run partly

in parallel, the projections of their shapes on the time

axes will intersect. In the example of Figure 4, there

are two occasions of the parallelism, namely (1) step

Analysis & Design runs partly in parallel with

Implementation, and step Implementation runs partly

in parallel with Test.

Timeline intensity diagram can be used for

planning the next goal for transition to agile in the

same way as communication intensity and cross-

competency matrices are used, see Fig. 5.

In the example of Figure 5, all steps run partially

in parallel, which is rather a radical change when

starting from Figure 4. If such a transition is too

difficult to complete in one go, then smaller goals can

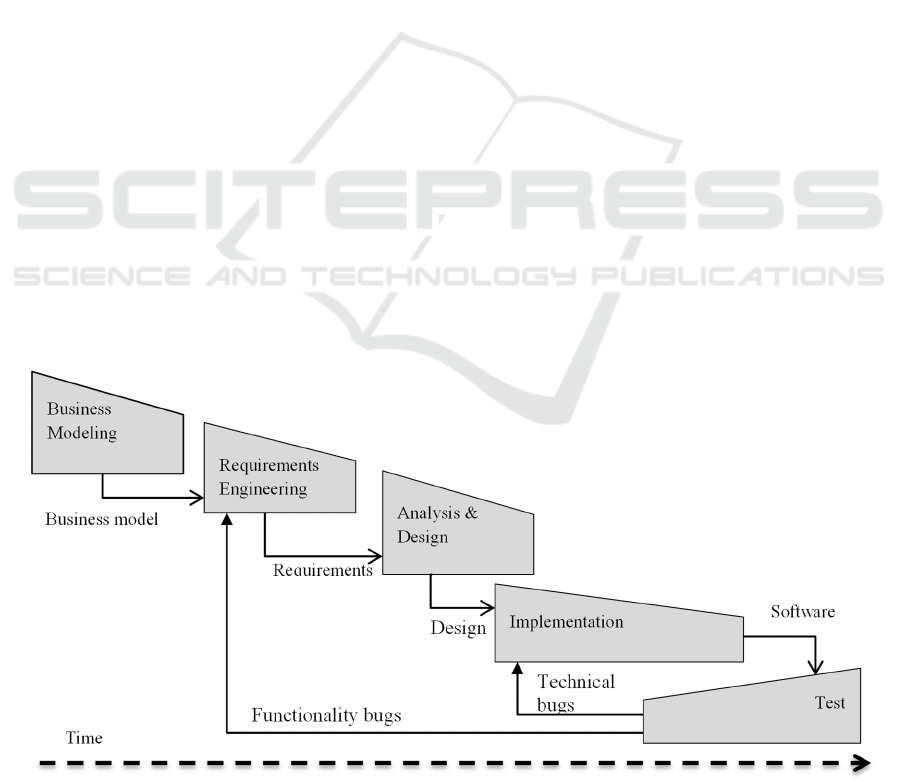

Figure 4: An example of timeline intensity diagram.

Becoming Agile in a Non-disruptive Way - Is It Possible?

301

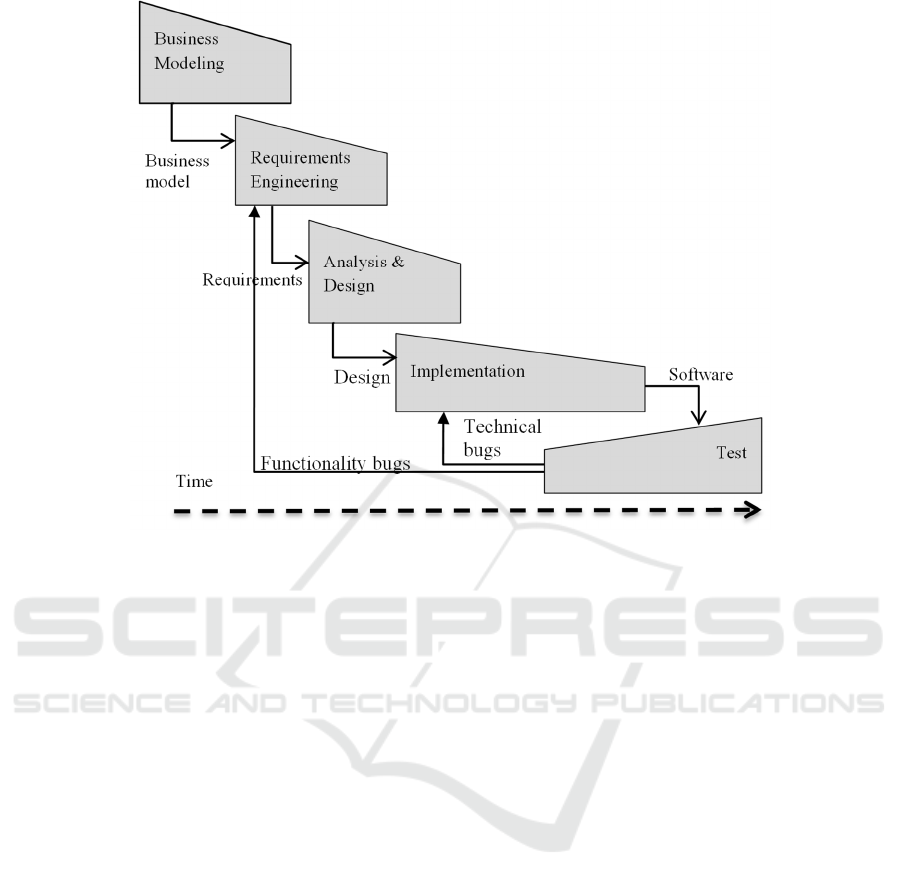

Figure 5: An example of timeline intensity diagram to be achieved.

be set in between, e.g. where only two new steps run

in parallel.

Working in parallel means that the formalized

output is delivered to the next step in portions. This

requires understanding of how the formalized output

is used by the next step so that each portion is

relatively independent and can be successfully used

by the team of the next step for producing its own

formalized output. Thus parallel execution requires

certain degree of cross-competency on behave of the

output producer. In addition, it requires efficient

communication channels between the steps. Parallel

execution of steps in software development bares a

risk that the already produced portion of the given

step output, e.g. requirements, can be negated when

the work progresses. If this “negated” portion has

already been sent to the next step, e.g. design, and is

under processing of this step’s team, then the

information on the negation should be immediately

made available for this team. Getting this information

can stop or postpone their activities related to the

questionable portion of the requirements. Note that

with an experienced team, the advantages of running

in parallel, e.g. shorten time, overweight the risks

described above.

Summarizing the deliberation above, transition to

parallel execution of two steps should be planned

when a certain degree of cross-competency and

communication intensity between these steps has

already been achieved.

It is also worthwhile to mention that portioning of

the output needs to take into account architectural

considerations. Portions that are sent first need to be

significant for building a skeleton of the architecture,

and portions that are sent later should be relatively

independent of each other and should not

considerably affect the architecture.

3.3 Other Considerations

In the previous part of this section we mainly

discussed three issues that can help in transition to

agile: inter- step communication, cross-competency

and parallel execution. Furthermore, we touched the

issue of high-level development tools that facilitates

both achieving cross-competency, and excluding

explicit design. In addition, we also touched the

architectural issues that need to be taken care of when

planning transition to the parallel execution of steps.

We also have shown that all these issues are

interconnected and should be considered together

when planning transition to agile.

We believe that after dealing with the issues

discussed in this section the team will acquire the

agile mindset, and became prepared for sorting out

the remaining issue on the way to agility. Consider,

for example, the issue of stakeholders involvement

during the whole project. Such involvement is

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

302

impossible to arrange in a traditional phase based

development process based on two reasons. Firstly,

people outside business modelling and requirements

engineers might not have competency of talking to

non-technical people. Secondly, non-technical

stakeholders seldom understand technical

documentation, which will prevent their engagement.

The first problem can be solved through cross-

competency, and the second - through parallel

execution that ensures that the new portion of

software will be produced in a speedy fashion, and

could be demonstrated and discussed with the

stakeholders.

4 TESTING THE METHOD

As has already been discussed in Section 2.1,

development of our non-disruptive method of

transition to agile was done in parallel with a case

study in the IT department of a large insurance

company. The first phase of the study was connected

to the development of the method, and the second

phase with testing it.

The first phase was completed based on the

internal process documentation and interviews with

representatives of different teams engaged in the

development process. Based on the information

obtained, it was decided that the three most important

aspects that need to be mapped when describing the

current state of affairs were communication intensity,

cross-competency and timeline intensity. The step

relationship modelling technique (Bider and Perjons,

2015; Bider and Otto, 2015) was chosen for

representing these aspects. The concept of the

timeline diagram was already known from (Bider and

Otto, 2015), while the communication intensity

matrix and cross-competency matrix where designed

during the current project.

Based on the internal documentation and

information from the interviews, a model of the

current development process was produced. This

model is closed to the one presented in Figure 3 and

4, and Tables 2, 3 and 5, except that one step from the

original model is omitted. The structure of the

communication intensity and cross-competency

matrixes in the original model were somewhat

simpler than what was presented in Tables 3 and 5.

More exactly, the details that came from merging

with the output-input matrix were absent; they were

added when we worked on this paper.

The test phase of the case study consisted of: (a)

suggesting the next desired state of the development

project, which roughly corresponds to the one

presented in Tables 4 and 5 and Figure 5, and (b)

presenting the suggestions to the IT department

management. The goal of the test phase was twofold,

namely, to check

1. Whether the method could be understood by

people not very familiar with the agile

practices.

2. Whether they can accept concrete suggestions

based on this method, provided that they are

approved by the higher management. This

check (approximately) corresponds to

“reediness to use” in Technology Acceptance

Model (Davis, 1989).

The check has been completed by presenting the

method and an action plan based on this method to the

management of IT-department that consisted of 4

persons. After the presentation, an interview has been

conducted with each person based on the following 4

questions/topics:

1. Based on the presentation, have you understood

what kind of organizational changes the

transition to agile will require?

2. Based on the presentation, have you understood

the action plan for movement towards a more

agile development process?

3. Based on the presentation, are you prepared to

submit the action plan to the upper/higher

management for approval?

4. Based on the presentation, are you prepared to

set the suggested plan in action if approved by

the higher management?

For the questions 1, 2 and 4 the answers were on

the positive side from all respondents. When

answering question 3, some respondents expressed

doubts whether just presenting the action plan to the

higher management is enough to influence the

approval. However, all of them agreed that such a

presentation makes sense. The doubts on influencing

the decisions were connected to the plan itself not

explaining the benefits to be obtained. However,

another opinion was that presenting the action plan

could initiate discussions that would lead to

understanding the benefits. Anyway, the discussion

around the third topic explicated the needs to explain

the benefits achieved even before the full transition to

agile has been completed. This served us as a

motivation to insert the discussion on such benefits in

various places of this paper.

Summarizing the lessons learned about our non-

disruptive method of transition to agile from the case

study, we can state that:

1. It is possible to model the current state of the

Becoming Agile in a Non-disruptive Way - Is It Possible?

303

development process and suggest a plan of

actions for transition to agile.

2. The method is understandable for the

professionals in software development not

familiar with the details of the agile practices.

What is more, the plan of actions based on the

method is considered to be “doable”, and could

be accepted for implementation, provided the

approval of the higher management is obtained.

Though, there are some doubts that such

approval is easy to obtain, presenting the plan

of action to the higher management could

initiate a discussion that could lead to its

acceptance.

The lessons above were obtained based only on

one case study. However, from our practical

experience, the IT department in the study is just an

ordinary system development organization, and there

is no reason to suggest that the lessons learned will

substantially differ when the method is applied to

another organization of the same kind.

In short, we consider the check for “readiness to

use” as completed with positive results. On its own,

such a check does not guarantee that an organization

can actually execute a plan of action developed based

on the method. However, we consider this check

encouraging enough for continuing the efforts of

further development and testing the method.

5 CONCLUSIONS

There are ample evidence, provided in the literature

referenced to in Section 1, of existence of challenges

and difficulties when completing a transition from

TSD to ASD. These can be attributed to such a

transition being a major organizational change for a

software development organization, and it is well

known that any organizational change is difficult to

complete due to an organization, as a system, always

resists any change.

According to (Regev, 2015), the best prerequisite

for successful organizational change is stability.

Therefore, a system development organization with a

well-functioning TSD process does not need to

“jump” on a radical pass to ASD, but should consider

using the existing process as a tool for successful

transition to ASD. The non-disruptive method of

transition to ASD described in this paper gives an

example, of how an organization can practically

conduct the transition via using the existing process

as a tool.

Summarizing the results achieved so far, we can

identify three major contribution of this work:

1. To the best of our knowledge, the

contemporary literature does not have an

explicit definition of a goal of using the

existing development process as a

platform/tool for transiting to agile. Therefore,

our explicit formulation of this goal constitutes

the first contribution of this paper. This

contribution appears in the title and is discussed

in more details in Section 1.

2. In Section 3, we have introduced three types of

measurements that can be used to determine the

level of agility achieved while the organization

is still following TSD: communication

intensity, cross-competency, and the level of

parallelism. This are easy to understand

measures, and as our test case shows can be

obtain through interviewing people working in

the project. This measures can be used

independently whether the organization wants

to transit to agile in disruptive or non-disruptive

manner.

3. Lastly, this paper also contains a draft of the

non-disruptive method of transition to agile

that has gone through the initial test of

designing a plan of actions and acquiring

“readiness to use” in a typical software

organization. More tests and further

development are required to confirm the

validity of the method. However, the work

done so far (including the initial test) is

sufficient to show that, at least theoretically, a

non-disruptive method for transition to agility

can be built. Publishing this work might inspire

other researchers and practitioners to seek own

ways for a non-disruptive transition.

One difference of our method of transition to agile

with those of other (some of them are referred to in

Section 1) is that we pursue a special goal of using the

current development process as a tool/platform for the

transition. Another difference is the theoretical basis

on which the method has been built. Normally, other

researchers and practitioners use Agile Manifesto

(Agile Alliance, 2001) as a basis for building a

method. Instead, we use the theoretical underpinning

of agility based on the knowledge transformation

perspective from (Bider, 2014). This perspective has

helped us to choose the most important issues on

which to focus when transiting to agile. What is more,

the issues, when resolved, may improve the current

development process even before the full transition

can be completed.

Our plans for the future include further

development and testing of the non-disruptive

method, as well as dissemination of results, especially

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

304

among practitioners. The latter activity is considered

as an important one in the Design Science research

(Peffers et al., 2007). The reason for its importance is

that the researchers themselves have no possibility to

fully test a new design, aside of conducting

demonstration in few cases. The real test can be

completed only when (and if) the industry adopts the

method so that more test cases become available for

study.

ACKNOWLEDGEMENTS

The authors are in debts to the management and

developers of the IT department of the insurance

company who initiated this research and spent their

time answering interview questions, and listening,

discussing and accepting our suggestions.

REFERENCES

Agile Alliance, 2001. Manifesto for Agile Software

Development. (Online) Available at: http://

agilemanifesto.org (Accessed 10 October 2013).

Baskerville, R.L., Pries-Heje, J. & Venable, J., 2009. Soft

Design Science Methodology. In DERIST 2009. ACM,

pp.1-11.

Bider, I., 2014. Analysis of Agile Software Development

from the Knowledge Transformation Perspective. In

Johansson, B., ed. 13th International Conference on

Perspectives in Business Informatics Research (BIR

2014). Lund, Sweden. Springer, LNBIP 194, pp.143-

57.

Bider, I., Johannesson, P. & Perjons, E., 2013. Design

science research as movement between individual and

generic situation-problem-solution spaces. In

Baskerville, R., De Marco, M. & and Spagnoletti, P.

Organizational Systems. An Interdisciplinary

Discourse. Springer. pp.35-61.

Bider, I. & Otto, H., 2015. Modeling a Global Software

Development Project as a Complex Socio-Technical

System to Facilitate Risk Management and Improve the

Project Structure. In Proceedings of the 10th IEEE

International Conference on Global Software

Engineering (ICGSE), forthcoming. Ciudad Real,

Spain. IEEE.

Bider, I. & Perjons, E., 2015. Design science in action:

developing a modeling technique for eliciting

requirements on business process management (BPM)

tools. Software & Systems Modeling, 14(3), pp.1159-

88.

Conboy, K., Coyle, S., Wang, X. & Pikkarainen, M., 2011.

People over Process: Key Challenges in Agile

Development. IEEE Software, 28(4), pp.48-57.

Conboy, K. & Fitzgerald, B., 2004. Toward a conceptual

framework of agile methods: a study of agility in

different disciplines. In Proceedings of the 2004 ACM

workshop on Interdisciplinary software engineering

research. Newport Beach. ACM, pp.37-44.

Davis, F.D., 1989. Perceived usefulness, perceived ease of

use, and user acceptance of information technology.

MIS Quarterly, 13(3), pp.319–40.

Hajjdiab, H. & Taleb, A., 2011. Adopting Agile Software

Development: Issues and Challenges. IJMVSC, 2(3),

pp.1-10.

Highsmith, J., Orr, K. & Cockburn, A., 2000. E-Business

Application Delivery, pp. 4-17. (Online) Available at:

www.cutter.com/freestuff/ead0002.pdf .

Hunt, A., 2015. The Failure of Agile. (Online) Available at:

http://blog.toolshed.com/2015/05/the-failure-of-

agile.html (Accessed October 2015).

Nonaka, I., 1994. A dynamic theory of organizational

knowledge creation. Organ. Sci., 5(1), pp.14–37.

Peffers, K., Tuunanen, T., Rothenberger, M.A. &

Chatterjee, S., 2007. A Design Science Research

Methodology for Information Systems Research.

Journal of Management Information Systems, 24(3),

pp.45-78.

Regev, G., 2015. Fundamental Systems Thinking Concepts

for IS Engineering: Balancing between Change and

Non-change. (Online) Stockholm University Available

at: http://sched.co/2OGV (Accessed October 2015).

Sidky, A., 2007. A structured Approach to Adopting Agile

Practices: The Agile Adoption Framework. PhD

Thesis. (Online) VirginiaTech Available at:

http://scholar.lib.vt.edu/theses/available/etd-

05252007-110748/ (Accessed October 2015).

Smith, G. & Sidky, A., 2009. Becoming Agile. Greenwich,

CT: Manning.

Weaver, M., 2011. Do you agree or disagree that Scrum is

not Agile? (Online) Available at: http://

www.linkedin.com/groups/Do-you-agree-disagree-

that-81780.S.52354777 (Accessed April 2014).

Becoming Agile in a Non-disruptive Way - Is It Possible?

305
