ReIOS: Reﬂective Architecting in the Internet of Objects

Marina Mongiello, Gennaro Boggia and Eugenio Di Sciascio

Dept. of Electrical and Information Engineering, Politecnico di Bari

Via Orabona, 4, 70125, Bari, Italy

Keywords:

Reﬂection, Middleware, IoT, Architectural Modeling.

Abstract:

Self-adaptive systems are modern applications in which the running software system should be able to react on

its own, by dynamically adapting its behavior, for sustaining a required set of qualities of service, and dynamic

changes in the context or in user requirements. They are typically involved in Future Internet development

such as the Internet of Things where interoperability, ﬂexibility, and adaptability are key requirements. Con-

vergence of contents, services, things and networks seems to be the cornerstone to fullﬁl these requirements.

We propose a reﬂective approach to provide a common abstraction for automating the deployment of com-

ponent based applications in the Internet of Things environment. The proposed framework allows the design

of heterogeneous, distributed, and adaptive applications built on the component based software engineering

paradigm. The framework considers a metamodel instantiated in a Rest middleware properly modiﬁed for

allowing different implementations by using reﬂective design patterns. We are currently working to reﬁne the

framework metamodel and to validate it in several implementation domains.

1 INTRODUCTION

Model Driven engineering is a solid approach for

the development of complex systems and applications

since it enables modeling abstraction at different lev-

els. But in modern applications the adaptation to

changes in context and requirements implies an ex-

tension of the modeling use from design time to run

time(Lehmann et al., 2011). In fact, changes in re-

quirements, assumptions about the environment, and

continuous changes in usage proﬁles are difﬁcult to

predict and to anticipate at design time. Thus, the

models@runtime is the emerging paradigm aiming to

manage the transfer of traditional modeling activities

(such as veriﬁcation, design and quality evaluation)

to the running system. Several approaches and pro-

posals in the ﬁeld of self adaptive applications, with

the purpose of modeling the architecture and verify-

ing the system properties, have been proposed in the

recent past (Salehie and Tahvildari, 2009). A com-

mon denominator in many of these works is the ob-

jective to give systems an acceptable level of reliabil-

ity and of ﬂexibility necessary to ensure adaptability,

without compromising dependability.

A winning strategy to fulﬁll the main conﬂicting

quality requirements of self adaptive applications and,

at the same time, to enable the modeling extension to

run time situation is the formalization. The use of a

metamodel is fundamental in run time models to iden-

tify and, thus, separate descriptive features – descrip-

tion of the model – from prescriptive features – the

prescription of how the model and hence the system

should be. In fact, to use a run time model it is nec-

essary to identify elements which are descriptive and

elements that are prescriptive (that can be identiﬁed

through the metamodel).

Among the numerous domains and applications,

herein, we consider, as a signiﬁcant and very attract-

ing example of application, the Internet of Things.

This emerging paradigm refers to a combined part

of Future Internet – communication and network is-

sues – and of physical objects or devices or virtual

objects devices, that is information heterogeneous in

nature and seamless integrated into the communica-

tion network. In this context, considering that there

are no standardized modeling approach, we propose a

new solution, namely, ReIOS: a Reﬂective framework

for Internet of Objects and Sensor network. It should

be useful in designing heterogeneous, distributed, and

adaptive applications built on the component based

software engineering paradigm. The framework is

made up of an abstract level in which we model rel-

evant building blocks of a distributed environment in

which resources, events, applications are managed us-

ing a reﬂective controller, ensuring at the same time

384

Mongiello, M., Boggia, G. and Sciascio, E.

ReIOS: Reﬂective Architecting in the Internet of Objects.

DOI: 10.5220/0005800603840389

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 384-389

ISBN: 978-989-758-168-7

ﬂexibility and adaptability. The abstract level is in-

stantiated in a concrete level where the reﬂective con-

troller enables application execution using reﬂective

design patterns. The remaining of the paper is orga-

nized as it follows. In Section 2 main concepts useful

to deﬁne our domain and the proposed methodology

are drawn. Section 3 deﬁnes the proposal. An in-

stantiation of the proposed metamodel is described in

Section 4. Final discussion and future development of

the proposal are reported in Section 6.

2 SOME BACKGROUND

2.1 Reﬂective Patterns

Reﬂective systems are characterized by a multi-level

architecture separating meta-levels from the base

level. In reﬂective object-oriented systems, certain

aspects of the base level are represented or reiﬁed as

meta-objects to provide a representation of the exe-

cution state as data. The role of meta-objects is to

observe and modify the base objects they represent

(their referents). The code dealing with meta-objects

is called a meta-program and its interfaces are called

meta-object protocols. By combining design patterns

and reﬂective languages it is possible to obtain reﬂec-

tive design patterns, useful in managing ﬂexibility is-

sues in adaptive system implementation and model-

ing. A reﬂective enhancement of design patterns to

improve ﬂexibility is proposed in (Ferreira and Ru-

bira, 1998; Maes, 1987a; Maes, 1987b). Improve-

ment is performed by adapting standard design pat-

tern (Gamma et al., 1994) to a reﬂective implemen-

tation obtaining reﬂective design patterns by extend-

ing the programming language with reﬂective opera-

tors. The approach provides a ﬂexible implementa-

tion toward design patterns-based software evolution

in which loose coupling and high cohesion are guar-

anteed.

2.2 Internet of Things

An increasing number of everyday machines and ob-

jects are now embedded with sensors or actuators

and have the ability to communicate each other over

the Internet. Collectively they make up the new and

emerging Internet of Things (IoT) paradigm. In this

scenario, individual devices are connected through

Machine-to-Machine (M2M) communication inter-

faces. Potential applications and services in the IoT

include: smart devices, smart cities, smart grids, au-

tomotive, eHealth, home automation and energy man-

agement, remote industrial process control (Tan and

Wang, 2010; Guinard et al., 2012). But, smart ob-

jects produce large volumes of data that need to be

managed, processed, transferred, stored securely and,

hence, standardized. The use of standards ensures

interoperable and cost-effective solutions, opens up

opportunities in new areas, and allows the market to

reach its full potential (Guinard et al., 2010; Hamida

et al., 2012).

2.3 REST Middleware

Nowadays, many vertical M2M solutions have been

designed independently for different applications,

making the current M2M market very fragmented,

which inevitably hinders a large-scale M2M deploy-

ment. To decrease the market fragmentation there

have been many efforts from different standardization

bodies to deﬁne horizontal service layers. Among

others, The European Telecommunications Standards

Institute (ETSI) has deﬁned with the SmartM2M stan-

dard a middleware which has a RESTful architecture

(Vogli et al., 2015). On the other side, OneM2M,

where are collaborating more than 200 standard-

ization bodies and companies, is deﬁning a REST-

ful middleware which will have a global validity

(Swetina et al., 2014). Also other solutions based on

the use of CoAP proposes RESTful based approach

(Palattella et al., 2013).

All the proposed solutions have a common de-

nominator: they provide RESTful middlewares sep-

arating the application from the communication do-

main. Middlewares are accessible via open interfaces

and enable the development of services and applica-

tions independently of the underlying network. In

addition, they provide several service capabilities to

enable machine registration, synchronous and asyn-

chronous communication, resource discovery, access

rights management, group broadcast, and so on.

All the resources in the RESTful middlewares are

organized in standardized resource trees and can be

uniquely addressed by a Uniform Resource Identiﬁer

(URI). Their representations can be transferred and

manipulated with verbs (i.e., retrieve, update, delete,

and execute).

3 THE PROPOSED ReIOS

FRAMEWORK

The aim of this paper is the proposal of a new frame-

work, namely ReIOS: a Reﬂective framework for In-

ternet of Objects and Sensor network. Its goal is to

support modeling and design of heterogeneous, dis-

tributed and adaptive applications starting from the

ReIOS: Reﬂective Architecting in the Internet of Objects

385

component based software engineering paradigm and

using a run time modeling approach. For this reason,

we use a reﬂective architecture as metamodel. More

precisely the metamodel comprises the following ab-

stractions:

• modeling the state event properties of the domain;

• modeling the discovery of services or applica-

tions;

• managing a repository of available apps;

• reﬂective management of applications to enforce

the ﬂexibility to ensure adaptability.

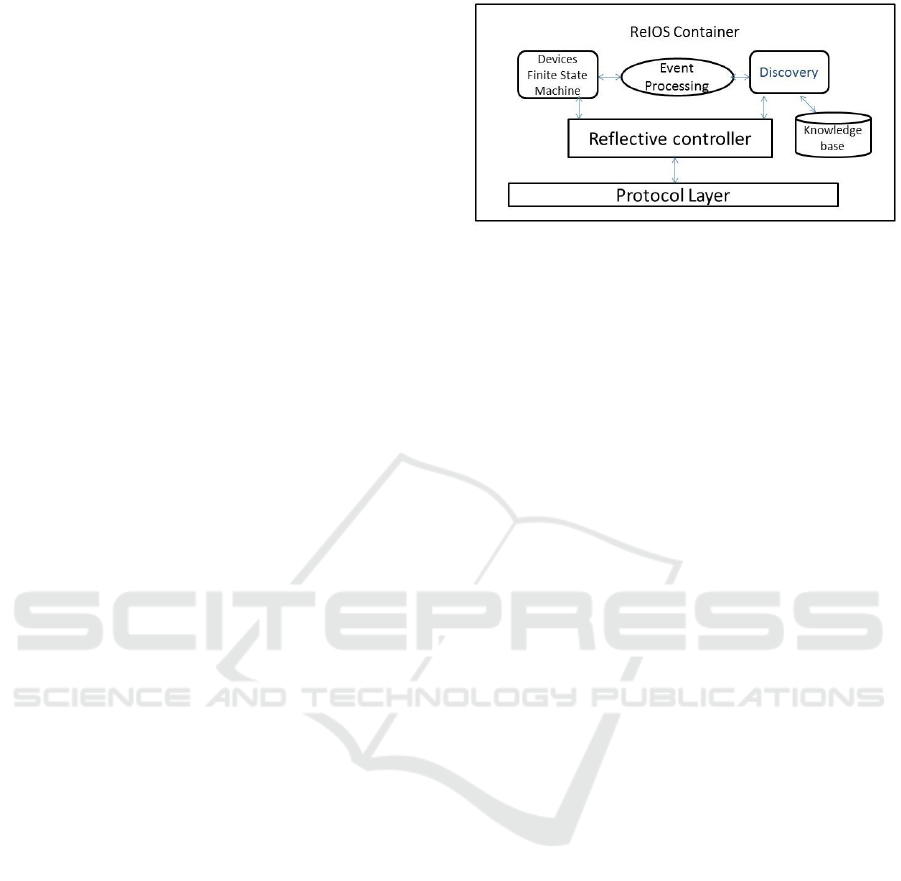

Each abstraction is a conceptual building block

formalizing the framework: an Event Processing

node, a Finite State Machine to model the states and

events, a Discovery node, a Protocol Layer, a Reﬂec-

tive Controller, a Knowledge Base, as shown in Fig-

ure 1. More in details, the Finite State Machine de-

scribes the states and the events of the domain. The

event processing node manages the events without the

need of storing them persistently on the storage de-

vice; it changes the behavior of the devices accord-

ing to the data stream generated by the devices them-

selves, depending on the reﬂective execution of apps

managed in the reﬂective controller. A discovery node

is used to search for given applications and services.

Standardized resources are stored in a Knowledge

base and each resource is uniquely addressable via a

Universal Resource Identiﬁer (URI) and has a rep-

resentation that can be transferred and manipulated

(retrieved, updated, deleted and executed). The use

of a metamodel and its structure facilitates the future

development and extension of the model itself being

compositional and scalable thanks to its abstraction

with more complex and effective reasoning method

for resource discovery.

The protocol manager handles RESTful requests.

It receives information requests, independent on the

protocol, and responds with a conﬁrmation always

independent on the adopted protocol; it allows also

direct access to the underlying protocols so that de-

velopers could abstract from the details without los-

ing track of them. It enable connection among mul-

tiple servers residing in the cloud, on PCs or single-

board computers (Raspberry Pi, BeagleBone, and so

on), by creating networks of distributed IoT devices.

Moreover, it creates a manageable image of all the

connected devices for communicating with microcon-

trollers, such as Arduino and Spark Core giving each

device a REST API, both locally and in the cloud.

The Reﬂective controller is the main feature of the

framework since it exploits the reﬂective approach.

The proposed idea is to design the reﬂective con-

troller using a reﬂective enhancement of design pat-

Figure 1: Graphical schema of the ReIOS framework.

terns in order to prevent modiﬁcation and changes of

middleware codes used in the IoT domain subsequent

to changes in contexts, environment and user pro-

ﬁle. Enhancement of design pattern ﬂexibility is per-

formed by adapting standard design pattern (Gamma

et al., 1994) to a reﬂective implementation: Reﬂec-

tive design patterns are obtained by extending the pro-

gramming language with reﬂective operators accord-

ing to the approach deﬁned in (Ferreira and Rubira,

1998; Maes, 1987a; Maes, 1987b) this provides a

ﬂexible approach toward design patterns-based soft-

ware evolution in which loose coupling and high co-

hesion are guaranteed. The reﬂective controller en-

ables deployment and execution of the apps respond-

ing to detached changes and modiﬁcations.

4 ReIOS INSTANTIATION: A

REFLECTIVE CONTROLLER

IN MIDDLEWARE

IMPLEMENTATION

The proposed reﬂection model, established with the

help of proxies, provides a means of customizing ap-

plication behavior and of adapting to new require-

ments without the need for modiﬁcation. The reﬂec-

tion model supports customization of applications.

A meta-level architecture inherently exhibits a de-

gree of separation of concerns, where the application

core concerns (at the base level) are separated from

the non-functional concerns (at the meta-level) in a

natural way. To instantiate the metamodel, we build

a reﬂective controller implementing the CRUD (Cre-

ate, Retrieve, Update and Delete) methods for each

resource. It carries out the checks required for oper-

ations, such as access permissions and veriﬁcation of

syntax resources. The functional architecture of the

controller also manages the access of a resource from

remote server to make the resource accessible to other

machines.

To validate our proposal, we instantiated the meta-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

386

model in real implementation environment. We

mapped our controller on a state of the art IoT mid-

dleware. We refer to well-known REST Middlewares

(see Sec. II) and modiﬁed the standard class diagram

by using Reﬂective pattern according to the meth-

ods proposed in in (Ferreira and Rubira, 1998; Maes,

1987a; Maes, 1987b). The main changes on the func-

tional architecture and on the class design are per-

formed on the controller of the Rest middleware on

which we map the Resource controller of our frame-

work. Here we brieﬂy summarize these modiﬁca-

tions:

• implementation of the Bridge pattern to decouple

the implementations of classes AnnouncerCon-

troller with the implementation of the Controller.

In this way, the abstract class Announce Con-

troller will inherit methods of the abstract con-

troller class while maintaining a level of abstrac-

tion that allows to decouple implementations for

various resources.

• Elimination of the use of two distinct classes to

perform operations on a single resource or a col-

lection of identical resources. In the code the

two implementations are fundamentally different:

some operations are valid for a single resource,

the other for a collection, performing a prelimi-

nary operation to examine the passed parameter

and decides which method to apply or to under-

stand if it is a single resource or a collection.

• application of a proxy that stores temporarily calls

to instantiate objects and then balance the trade-

off ﬂexibility / performance.

Figures 2 and 3 show the class design before and

after reﬂective adaptation.

5 RELATED WORK

Herein, we brieﬂy recall state of the art in the ﬁeld

of adaptive modeling of software architecture con-

sidering two main categories of investigations: run-

time modeling and/or veriﬁcation for adaptive soft-

ware systems and runtime composition and integra-

tion of applications in future internet and IoT domain.

With respect to existing approach, we propose a for-

mal framework to model adaptive architectures that

can be used to instantiate architectural design of adap-

tive systems in various contexts at runtime.

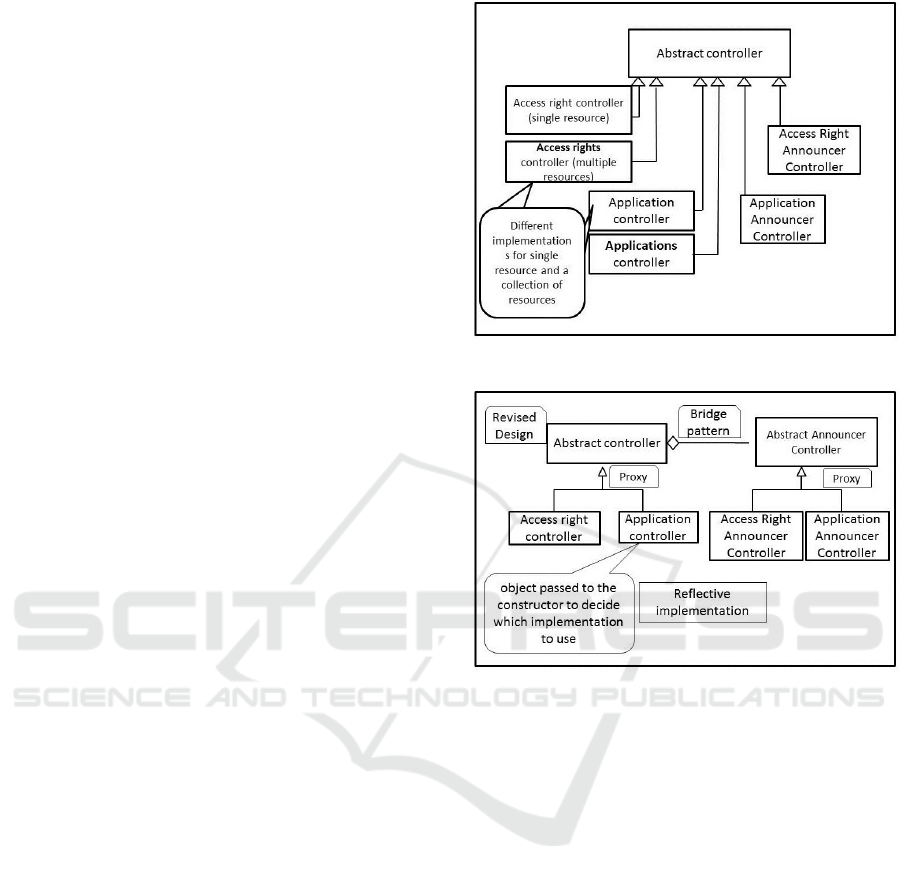

Figure 2: Class diagram of abstract controller.

Figure 3: Revised Class diagram of abstract controller for

reﬂective implementation.

5.1 Runtime Modeling and/or

Veriﬁcation for Adaptive Software

Systems

Models for context-aware and self-adaptive systems

have been widely studied in the last years. The

work in (Baldauf et al., 2007) summarizes the com-

mon principles for the development of context-aware

applications, in terms of architecture, middleware,

and frameworks. Work (Strang and Linnhoff-Popien,

2004) provides a survey on methods for context mod-

eling. Several surveys on self-adaptive systems have

been proposed (see the work in (Cheng, 2009; R.

de Lemos et al., 2013) and in (Weyns et al., 2012),

just to name the most well-known). The work in

(Salvaneschi et al., 2013) provides an exhaustive and

structured state the art and compares three approaches

to support the implementation of adaptive systems. A

survey on architectural modeling in self-management

may be found in (Kramer and Magee, 2007).

According to the cited works, formal approaches

ReIOS: Reﬂective Architecting in the Internet of Objects

387

seem to be the most powerful instrument for model-

ing self-adaptive systems, while still preserving cor-

rectness and quality properties. Formal methods have

been used to model MAPE-K loops in (Arcaini et al.,

2015) and services composition in (Riccobene and

Scandurra, 2015). In (Bucchiarone et al., 2015) graph

transformation is used to model self-adaptation. Mod-

eling of evolving systems based on components is in-

stead adopted in (Pelliccione et al., 2008). Models for

service choreography and composition is employed

in (Autili et al., 2009) and by the same authors in (Au-

tili et al., 2014), with speciﬁc reference to Future In-

ternet applications. Composition of self-adaptive sys-

tems for dependability is proposed in (Cubo et al.,

2014). The work in (Mongiello et al., 2015b) adopts

semantic approach for run-time veriﬁcation.

In (Calinescu, 2013), the authors overview emerg-

ing techniques for the engineering of high-integrity

self-adaptive software; in the same paper, a service-

based architecture aimed at integrating these tech-

niques is introduced.

5.2 Runtime Composition and

Integration of Applications in

Future Internet and IoT Domain

Lightweight applications executable on gateways

connecting heterogeneous devices are studied in

ogler et al., 2015). Services are autonomous tasks

that can be executed in run-time enviroments. A rig-

orous and lightweight theoretical foundation for rep-

resenting the behavior of heterogeneous things is pro-

posed in (Cubo et al., 2012). This work relies on a

service-oriented paradigm. The approach proposed

in (Torjusen et al., 2014) integrates run-time veriﬁ-

cation enablers in the feedback adaptation loop of

the ASSET adaptive security framework. The scope

of this integration is guaranteeing self-adaptive se-

curity and privacy properties in the eHealth settings.

In (Gonz

alez et al., 2013), the authors present an

approach dealing with the run-time veriﬁcation of

behavior-aware composition of things. They propose

to check whether a mashup of things respects the

speciﬁed behavior of the composed things. The ap-

proach is based on mediation techniques and com-

plex event processing and is able to detect and in-

hibit invalid invocations. As a consequence, things

only receive requests compatible with their behavior.

Semantic approaches are in (Mongiello et al., 2015a)

to model self-adaptive architectural model in IoT, the

proposal uses a graph based model for data and pro-

cesses to be exectued in IoT environment.

6 DISCUSSION AND FUTURE

DEVELOPMENT

In this paper, we proposed a reﬂective framework for

adaptive modeling of self-adaptive software in the in-

ternet of things domain. The framework is a meta-

model to manage applications deployment and exe-

cution to enable software system to react on its own,

by dynamically adapting its behavior, in response to

changes in the environment, in the context or in user’s

experience. The proposed solution allows the design

of heterogeneous, distributed and adaptive applica-

tions built on the component based software engineer-

ing paradigm. The metamodel has been instantiated

in a Rest middleware example to modify its imple-

mentation by using reﬂective design patterns. We are

currently working to reﬁne the metamodel deﬁnition

and its implementation in several real domain scenar-

ios.

REFERENCES

Arcaini, P., Riccobene, E., and Scandurra, P. (2015). Mod-

eling and analyzing MAPE-K feedback loops for self-

adaptation. In 10th IEEE/ACM International Sym-

posium on Software Engineering for Adaptive and

Self-Managing Systems, SEAMS 2015, Florence, Italy,

May 18-19, 2015, pages 13–23.

Autili, M., Benedetto, P. D., and Inverardi, P. (2009).

Context-aware adaptive services: The PLASTIC ap-

proach. In Fundamental Approaches to Software En-

gineering, 12th International Conference, FASE 2009,

ETAPS 2009, York, UK, March 22-29, 2009. Proceed-

ings, pages 124–139.

Autili, M., Inverardi, P., and Tivoli, M. (2014). CHOREOS:

large scale choreographies for the future internet. In

2014 Software Evolution Week - IEEE Conference on

Software Maintenance, Reengineering, and Reverse

Engineering, CSMR-WCRE 2014, Antwerp, Belgium,

February 3-6, 2014, pages 391–394.

Baldauf, M., Dustdar, S., and Rosenberg, F. (2007). A sur-

vey on context-aware systems. Int. J. of Ad Hoc and

Ubiquitous Computing, 2(4):263–277.

Bucchiarone, A., Ehrig, H., Ermel, C., Pelliccione, P., and

Runge, O. (2015). Rule-based modeling and static

analysis of self-adaptive systems by graph transforma-

tion. In Software, Services, and Systems, pages 582–

601.

Calinescu, R. (2013). Emerging techniques for the engi-

neering of self-adaptive high-integrity software. In As-

surances for Self-Adaptive Systems, pages 297–310.

Springer.

Cheng, B. H. e. a. (2009). Software engineering for self-

adaptive systems: A research roadmap. In Software

Engineering for Self-Adaptive Systems, pages 1–26.

Springer-Verlag, Berlin, Heidelberg.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

388

Cubo, J., Brogi, A., and Pimentel, E. (2012). Behaviour-

aware compositions of things. In Green Computing

and Communications (GreenCom), 2012 IEEE Inter-

national Conference on, pages 1–8. IEEE.

Cubo, J., Ortiz, G., Boubeta-Puig, J., Foster, H., and

Lamersdorf, W. (2014). Adaptive services for the fu-

ture internet. J. UCS, 20(8):1046–1048.

Ferreira, L. L. and Rubira, C. M. F. (1998). Reﬂective de-

sign patterns to implement fault tolerance. In OOP-

SLA 1998.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Pearson Education.

Gonz

alez, L., Cubo, J., Brogi, A., Pimentel, E., and Ruggia,

R. (2013). Run-time veriﬁcation of behaviour-aware

mashups in the internet of things. In Advances in

Service-Oriented and Cloud Computing, pages 318–

330. Springer.

Guinard, D., Ion, I., and Mayer, S. (2012). In search of

an internet of things service architecture: Rest or ws-

*? a developers perspective. In Mobile and Ubiqui-

tous Systems: Computing, Networking, and Services,

pages 326–337. Springer.

Guinard, D., Trifa, V., and Wilde, E. (2010). A resource

oriented architecture for the web of things. In Internet

of Things (IOT), 2010, pages 1–8. IEEE.

Hamida, A. B., Kon, F., Oliva, G. A., Dos Santos, C. E. M.,

Lorr

e, J.-P., Autili, M., De Angelis, G., Zarras, A.,

Georgantas, N., Issarny, V., et al. (2012). An inte-

grated development and runtime environment for the

future internet. In The Future Internet, pages 81–92.

Springer.

Kramer, J. and Magee, J. (2007). Self-managed systems:

an architectural challenge. In Future of Software En-

gineering, 2007. FOSE’07, pages 259–268. IEEE.

Lehmann, G., Blumendorf, M., Trollmann, F., and Al-

bayrak, S. (2011). Meta-modeling runtime models. In

Proceedings of the 2010 International Conference on

Models in Software Engineering, MODELS’10, pages

209–223, Berlin, Heidelberg. Springer-Verlag.

Maes, P. (1987a). Concepts and experiments in com-

putational reﬂection. In Conference Proceedings

on Object-oriented Programming Systems, Languages

and Applications, OOPSLA ’87, pages 147–155, New

York, NY, USA. ACM.

Maes, P. (1987b). Concepts and experiments in computa-

tional reﬂection. SIGPLAN Not., 22(12):147–155.

Mongiello, M., Grieco, A. L., Sciancalepore, M., and Vogli,

E. (2015a). Adaptive architectural model for future

internet applications. In Proc. of the 5th International

Workshop on Adaptive services for future internet.

Mongiello, M., Pelliccione, P., and Siancalepore, M.

(2015b). Ac-contract: run-time veriﬁcation of

context-aware systems. In Software Engineering for

Adaptive and Self-Managing Systems, 2015. SEAMS

’15. ICSE Workshop on, pages 106–115.

Palattella, M. R., Accettura, N., Vilajosana, X., Wat-

teyne, T., Grieco, L. A., Boggia, G., and

Dohler, M. (2013). Standardized protocol stack

for the internet of (important) things. IEEE

Commun. Surveys & Tutorials, 15(3):1389–1406.

doi:10.1109/SURV.2012.111412.00158.

Pelliccione, P., Tivoli, M., Bucchiarone, A., and Polini,

A. (2008). An architectural approach to the cor-

rect and automatic assembly of evolving component-

based systems. Journal of Systems and Software,

81(12):2237–2251.

R. de Lemos et al. (2013). Software engineering for self-

adaptive systems: A second research roadmap. In

Software Engineering for Self-Adaptive Systems II,

volume 7475 of Lecture Notes in Computer Science,

pages 1–32. Springer Berlin Heidelberg.

Riccobene, E. and Scandurra, P. (2015). Formal mod-

eling self-adaptive service-oriented applications. In

Proceedings of the 30th Annual ACM Symposium on

Applied Computing, Salamanca, Spain, April 13-17,

2015, pages 1704–1710.

Salehie, M. and Tahvildari, L. (2009). Self-adaptive soft-

ware: Landscape and research challenges. ACM

Trans. Auton. Adapt. Syst., 4(2):14:1–14:42.

Salvaneschi, G., Ghezzi, C., and Pradella, M. (2013). An

analysis of language-level support for self-adaptive

software. ACM (TAAS), 8(2):7.

Strang, T. and Linnhoff-Popien, C. (2004). A context mod-

eling survey. In Workshop Proceedings.

Swetina, J., Lu, G., Jacobs, P., Ennesser, F., and Song, J.

(2014). Toward a standardized common m2m service

layer platform: Introduction to onem2m. IEEE Wire-

less Communications, 21(3):20–26.

Tan, L. and Wang, N. (2010). Future internet: The inter-

net of things. In Advanced Computer Theory and En-

gineering (ICACTE), 2010 3rd International Confer-

ence on, volume 5, pages V5–376. IEEE.

Torjusen, A. B., Abie, H., Paintsil, E., Trcek, D., and

Skomedal,

A. (2014). Towards run-time veriﬁcation

of adaptive security for IoT in eHealth. In Proc. of the

2014 European Conf. on Software Architecture Work-

shops, page 4. ACM.

ogler, M., Li, F., Claeßens, M., Schleicher, J. M., Sehic,

S., Nastic, S., and Dustdar, S. (2015). Colt collabo-

rative delivery of lightweight iot applications. In In-

ternet of Things. User-Centric IoT, pages 265–272.

Springer.

Vogli, E., Ben Alaya, M., Monteil, T., Grieco, L. A., and

Drira, K. (2015). An efﬁcient resource naming for en-

abling constrained devices in smartm2m architecture.

In IEEE International Conference on Industrial Tech-

nology (ICIT) 2015, pages 1832–1837.

Weyns, D., Iftikhar, M. U., de la Iglesia, D. G., and Ahmad,

T. (2012). A survey of formal methods in self-adaptive

systems. In Proceedings of the Fifth International C*

Conference on Computer Science and Software Engi-

neering, pages 67–79. ACM.

ReIOS: Reﬂective Architecting in the Internet of Objects

389
