Deployment over Heterogeneous Clouds with TOSCA and CAMP

Jose Carrasco, Javier Cubo, Ernesto Pimentel and Francisco Dur

Dept. Lenguajes y Ciencias de la Computaci

on, Universidad de M

alaga, M

alaga, Spain

Keywords:

Cloud Applications, Cross-cloud, Cross-deployment, Standards, TOSCA, CAMP.

Abstract:

Cloud Computing providers offer diverse services and capabilities, which can be used by end-users to com-

pose heterogeneous contexts of multiple cloud platforms to deploy their applications, in accordance with the

best offered capabilities. However, this is an ideal scenario, since cloud platforms are being conducted in an

isolated way by presenting interoperability and portability restrictions. Each provider deﬁnes its own API,

non-functional requirements, QoS, add-ons, etc., and developers are often locked-in a concrete cloud environ-

ment, hampering the integration of heterogeneous provider services to achieve cross-deployment. This work

presents an approach to deploy cross-cloud applications by using standardisation efforts of design, manage-

ment and deployment of cloud applications. Speciﬁcally, using mechanisms speciﬁed by the TOSCA and

CAMP standards, we propose a methodology to describe the topology and distribution of modules of a cloud

application and to deploy the inter-connected modules over heterogeneous clouds. We present our prototype

TOMAT, which supports the automatic distribution of cloud applications over multiple providers.

1 INTRODUCTION

Cloud Computing (Armbrust et al., 2010) is the re-

sult of the evolution of different paradigms and tech-

nologies, such as Virtualisation, Client-Server Model,

Peer-to-Peer, or Grid-Computing. It has become a

key component in the new Internet, by establishing

a model for business services that allows a suitable

and on-demand network access to a shared pool of

conﬁgurable computing resources that can be rapidly

provisioned (Mell and Grance, 2011). In this model,

providers expose theirs resources as services through

a cloud infrastructure. Hence, many providers are of-

fering cloud-oriented services, from big companies

such as Amazon, Google, or Microsoft, to small play-

ers. Then, developers may use these cloud resources

to host and deploy the infrastructure and application

modules in speciﬁc providers, taking advantage of

the elasticity and scalability of the clouds. In fact,

in an ideal scenario, users could select the services

from several providers whose properties and capabil-

ities best ﬁt the requirements of every module of the

application, by enabling a ﬂexible and multiple de-

ployment, as addressed in, e.g., (Brogi et al., 2014).

Cross-cloud application deployment is a complex

task, since cloud platforms are being conducted in

an isolated way, presenting many interoperability and

portability restrictions, and offering similar resources

differently. Providers deﬁne their own APIs to expose

services, non-functional requirements, QoS, add-ons,

etc. As a result, cloud developers are often locked-in

speciﬁc services from some concrete cloud environ-

ment, complicating the integration of heterogeneous

provider services to achieve a cross-deployment of

cloud applications (Petcu, 2011), and making almost

impossible to consider the possibility of migrating

components between different platforms.

Organizations like IEEE and OASIS have pro-

posed different approaches to mitigate these issues

through the homogenization and normalization of

the description and management of cloud applica-

tions. We ﬁnd of particular interest two OASIS

standards, namely TOSCA (Topology and Orchestra-

tion Speciﬁcation for Cloud Applications) (OASIS,

2012b) and CAMP (Cloud Application Management

for Platforms) (OASIS, 2012a). These standards de-

ﬁne methodologies to describe and wrap the structure

of cloud applications (components and relationships),

and how they must be orchestrated (using plans) in

a portable way to increase a vendor-neutral ecosys-

tem. However, although they describe the mecha-

nisms that must be implemented by the clouds to sup-

port standard-based application deployment and man-

agement, they do not have ofﬁcial implementations.

Partial support for them is available through, e.g.,

OpenTOSCA (Binz et al., 2013) and Alien4Cloud

Alien4Cloud: http://alien4cloud.github.io/.

170

Carrasco, J., Cubo, J., Pimentel, E. and Durán, F.

Deployment over Heterogeneous Clouds with TOSCA and CAMP.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 170-177

ISBN: 978-989-758-182-3

for TOSCA, and Apache Brooklyn

for CAMP.

TOSCA is a good option for representing the

topology and orchestration of applications. However,

the management of a possible TOSCA-compliant de-

ployment could be a complex task. Since TOSCA

does not enforce speciﬁc interfaces for node tem-

plates, which represent the provider’s resources, the

topology and orchestration plan may need to be mod-

iﬁed when some module of the application is decided

to be deployed on a different target provider.

Even if considering what the standard calls declar-

ative plans, as we will see in Section 2.1, the TOSCA

speciﬁcation of the topology requires using node tem-

plates for speciﬁc providers, what prevents the spec-

iﬁcation from being agnostic. Moreover, although

by using appropriate node templates we may specify

and deploy cross-cloud TOSCA conﬁgurations, we

need to take into account how providers services are

managed by TOSCA, and how components are de-

ployed and their interactions handled. OpenTOSCA

requires each operation in the node types modeling

provider resources to include the necessary mecha-

nisms. Alien4Cloud uses Cloudify

as cloud service

orchestrator for the providers interaction, what allows

using a generic node type to model cloud services.

However, the implementation artefacts correspond-

ing to the operations of the node templates must be

adapted to work with such an orchestrator. Although

with Alien4Cloud the deﬁnition of node types is much

simpler, the set of target providers is limited to those

supported by the orchestrator.

We are interested in application models in which

we do not need to lock to a speciﬁc vendor, and

want to be able to postpone our deployment deci-

sion as much as possible, even opening the door to

potential migration of individual components at run-

time. Although cross-deployment was not one of

the goals of the existing CAMP-compliant solutions,

they follow a uniﬁed API which wraps the inter-

face of cloud providers (e.g., Brooklyn uses Apache

jClouds

). Nevertheless, CAMP lacks of a topology

speciﬁcation, which is crucial to maintain the applica-

tion model at run-time, key if monitoring and recon-

ﬁguration actions are to be performed over the appli-

cation distribution.

Although both standards present weaknesses, we

believe they nicely complement each other, and can

be used together in real scenarios. We propose

the combined use of TOSCA and CAMP speciﬁ-

cations and their respective approaches by using a

transformation-based platform-agnostic model. Our

Brooklyn: https://brooklyn.apache.org/.

Cloudify: http://getcloudify.org/.

jClouds: http://jclouds.apache.org/.

solution automatizes the translation between both

standards by using a transformation model, providing

structural and design advantages for the topology de-

scription using (agnostic) TOSCA, and beneﬁts of the

run-time management using CAMP. Speciﬁcally, we

combine the advantages of TOSCA’s powerful mod-

eling language to describe the structure of an appli-

cation as a typed topology graph, in a portable and

vendor-agnostic way, and simplifying the manage-

ment and reusability of services thanks to its topology

templates and node types, with CAMP’s facilities for

managing heterogeneous providers’s features in a ho-

mogeneous way thanks to its approach for the uniﬁca-

tion in the interfaces of cloud platforms. Preliminary

results related to our proposal were presented in (Car-

rasco et al., 2015).

The rest of this paper is structured as follows. Sec-

tion 2 presents a brief introduction to TOSCA and

CAMP. Section 3 presents the proposal, using exam-

ples to illustrate the approach. We wrap up in Sec-

tion 4 by presenting some conclusions and some ideas

for future development.

2 SOME BACKGROUND

In this section, we brieﬂy present the TOSCA and

CAMP standards, mainly focusing on their strengths

and limitations.

2.1 The TOSCA Standard

The TOSCA standard (OASIS, 2012b) provides a

model for the description of cloud applications, the

corresponding services, and their relationships using

a service topology, as well as the description of pro-

cedures to manage services using orchestration pro-

cesses by using plans.

As depicted in Figure 1, in TOSCA, services are

speciﬁed through service templates, by using node

and relationship templates, which are concrete com-

ponents of the application of corresponding node and

relationship types. A Node Type expresses the ca-

pabilities, requirements, properties and interfaces of

the services. Relationship Types are used to specify

relationships between the elements of the system by

means of a set of relations, which allow determin-

ing the connections and dependencies between com-

ponents, taking into account their properties and in-

terfaces. Type deﬁnitions include operations to de-

scribe their behavior, e.g., a server may deﬁne a start

operation to initialize the execution, and another one

to allow the deployment of applications inside itself.

Deployment over Heterogeneous Clouds with TOSCA and CAMP

171

Figure 1: TOSCA Service Template elements.

Figure 2: Chat App TOSCA topology (using Winery).

1 <NodeTemplate id="JBossMainWebServer"

2 name="JBoss Main Web Server"

3 type="JBossWebServer">

4 <Properties>

5 <ns2:JBossWebServerProperties>

6 <httpPort>80</httpPort>

7 </ns2:JBossWebServerProperties>

8 </Properties>

9 <Capabilities>

10 <Capability

11 id="JBossMainWebServer_webapps"

12 name="webapps"

13 type="JBossWebAppContainerCapability"/>

14 </Capabilities>

15 </NodeTemplate>

Listing 1: JBoss node template.

Then, templates specify the concrete features of com-

ponents, e.g., their properties and restrictions.

Figure 2 shows the TOSCA topology, using Win-

ery (Kopp et al., 2013), for a very simple Chat Ap-

plication composed by two modules, namely a web-

page and a database. We use this example through-

out our paper to illustrate the different aspects of our

approach. In the example, we suppose we will de-

ploy the webpage on Amazon AWS and the database

on SoftLayer. The code in Listing 1 shows the XML

TOSCA description of the node template for the web-

page corresponding to a JBoss component.

In TOSCA templates, we can also specify orches-

tration plans. The plan speciﬁes the operation calls of

components to instantiate the structure of the topol-

ogy. In the TOSCA standard, the values for the prop-

erties of node and relationship templates in a topology

template can come from input passed in by users, by

automated operations, or by speciﬁed default values.

A TOSCA-based description is packaged in a con-

tainer ﬁle, called a CSAR (Cloud Service Archive).

CSARs have a ﬁx structure to allow portability be-

tween providers. To establish a homogeneous envi-

ronment of clouds for deployment of CSARs, TOSCA

deﬁnes a set of best practices to adapt the standard to

services offered by cloud providers

2.2 The CAMP Standard

The CAMP standard (OASIS, 2012a) focuses on the

deployment, management and monitoring of cloud

applications, regardless of the used platform. Its main

purpose is to allow the interoperability of interfaces

of cloud platforms deﬁning a uniﬁed API to be im-

plemented by each platform supporting the standard.

In such a way, developers and independent platforms

could create services and mechanisms to interact with

other platforms by adapting the CAMP speciﬁcation

and using their interfaces.

With its API, CAMP describes elements to model

applications and the services and platforms used for

deployment, providing the basis to mitigate the porta-

bility/interoperability problems. CAMP speciﬁes

models for platform, resources, services, sensors and

operations. The platform represents the layer at the

top of the platform under execution, and references

the resources that represent the functionality provided

by the platform, the applications running on this plat-

form, and the metadata that describe the resources

supported by the platform and the extensions by the

provider. Resources can be implemented by means

of the API provided by the cloud platform with dif-

ferent concepts (assemblies or components). Services

are used to interact with the platform, representing the

creation and management of resources (e.g., deploy a

Web application). Following the goal of facilitating

the management and monitoring of deployed systems,

CAMP deﬁnes sensors, which through a RESTful in-

terface give access to different metrics on the status

of the application components. Operations represent

actions that can be taken on resources. By combining

sensors and operations, CAMP proposes the use of

policies for self-management: operations depending

on the information collected by sensors.

As TOSCA, CAMP deﬁnes a packaging artifact

for application models and elements for the deploy-

ment called PDP (Platform Deployment Package).

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

172

1 services:

2 - serviceType: org.apache.brooklyn.entity.webapp.jboss.

JBoss7Server

3 name: JBoss Main Web Server

4 location: aws-ec2:us-west-2

5 id: JBossMainWebServer

6 brooklyn.config:

7 port.http: 80+

8 port.https:3344+

Listing 2: Brooklyn description of a JBoss Server.

An application PDP contains its deployment plan in

a YAML ﬁle, platform elements used during the life-

cycle, and credential ﬁles. This description is done

over CAMP’s API to ensure portability.

Although there is no ofﬁcial CAMP implementa-

tion, Apache Brooklyn

supports almost all features

and concepts in CAMP. Brooklyn is a framework

for modeling, managing and monitoring applications,

which offers a uniﬁed API, and allows the modeling

of application modules and its infrastructure for de-

ployment and monitoring. Brooklyn’s API is built

over jClouds, an open source cross-cloud toolkit to

create platform-independent applications, which en-

sures the interoperability and portability with more

than 30 different providers.

Brooklyn provides support for deploying applica-

tions, once the deployment location of each appli-

cation module has been speciﬁed, providing support

for establishing and maintaining the relationships be-

tween the different modules. This facility may be

used for performing heterogeneous deployment, us-

ing services of multiple providers. We have indeed

used this facility to partially solving the portability

and interoperability problems between services, and

to facilitate the complicated deployment in TOSCA.

Listing 2 shows the Brooklyn YAML excerpt describ-

ing a JBoss server for the webpage (corresponding

to the TOSCA template in Listing 1) using a com-

mon API. As speciﬁed in Line 4, the component is re-

quested to be deployed on aws-ec2:us-west-2, Ama-

zon’s datacenter at Oregon, US.

3 CROSS-DEPLOYMENT OF

CLOUD APPLICATIONS

In this section, we present our proposal for improving

interoperability and reducing portability problems of

heterogeneous clouds.

3.1 Overview of our Approach

The main goals and advantages of our approach are:

Topology Description. We consider applications

composed of several modules or components,

with relationships and dependencies between

them. We propose using TOSCA for the

speciﬁcation of the application’s topology and

its distribution. This allows us maintaining

the application structure independently of the

cloud services used along the life-cycle of the

application.

Portability and Interoperability. Dealing with a

multiple deployment and heterogeneous distribu-

tion, portability and interoperability problems oc-

cur due to restrictions imposed by used services.

Developers may need to adapt their systems (ap-

plications, services, components) to the interfaces

of the speciﬁc cloud providers used for deploy-

ment. By following CAMP’s philosophy, we mit-

igate this dependency through a common API

wrapping and unifying cloud service features and

requirements offered by a large number of diverse

providers. Heterogeneity will be directly dealt

with by managing cloud services in a homoge-

neous way.

Scalability and Elasticity. Our approach considers

the scalability and elasticity beneﬁts of multiple

providers by using the most appropriate cloud to

deploy each application module, and giving ac-

cess to the facilities provided by each of them.

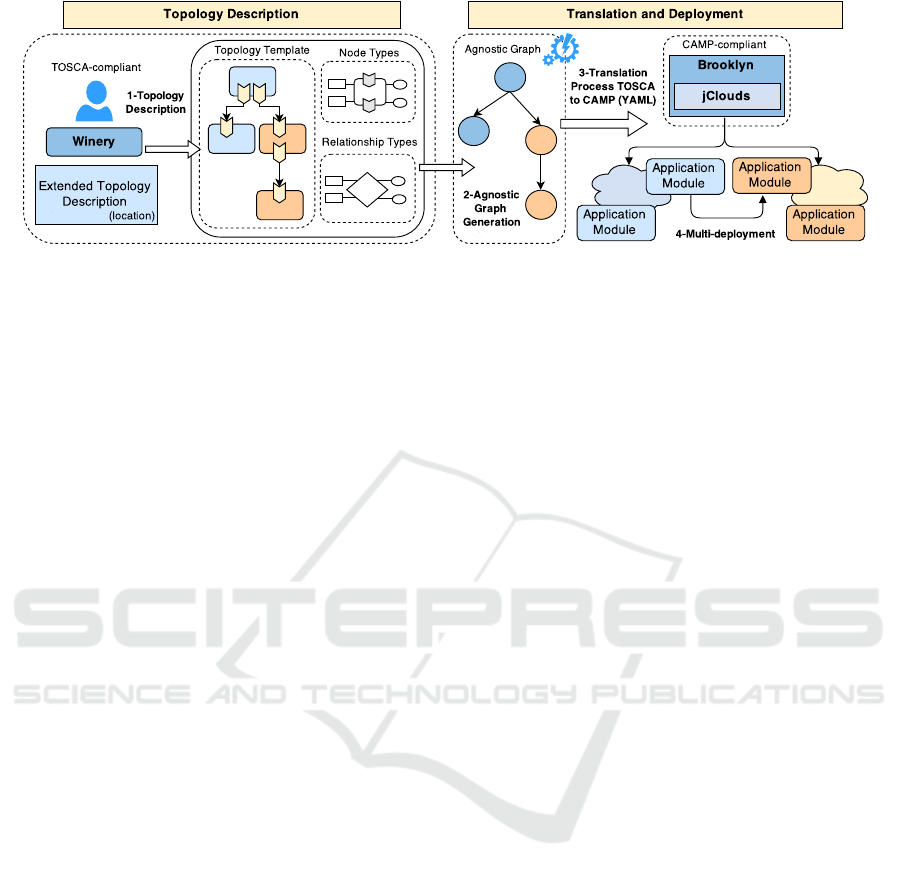

Figure 3 presents the overview of our approach

to cross-deployment through the combined use of

the TOSCA and CAMP standards. The proposed

methodology consists of two main phases. In the ﬁrst

phase, Topology Description, the topology of an ap-

plication is exhaustively deﬁned using TOSCA (1).

In the second phase, Translation and Deployment,

the application modules are distributed over selected

cloud providers using the CAMP-based deployment

strategy implemented in Brooklyn. To solve the in-

compatibility problems between the TOSCA-based

XML topology and the CAMP-based YAML deploy-

ment plan, we have modeled and developed a transla-

tion process based on an agnostic graph (2). As ex-

plained in the coming sections, the graph is built on

an abstraction of the application topology, providing

a representation independent of the speciﬁc used de-

ployer, Brooklyn in this case. The use of these graphs

also simpliﬁes the translation process from TOSCA to

CAMP, which ﬁnally generates the CAMP-compliant

deployment plan expected by Brooklyn (3). Brooklyn

is then in charge of deploying the given application,

using jClouds to enable provider-independent deploy-

ment, and cross-deployment if required.

Deployment over Heterogeneous Clouds with TOSCA and CAMP

173

Figure 3: Overview of the methodology for cross-deployment.

3.2 TOSCA-compliant Topology

We use TOSCA to obtain a full description of the ap-

plication by modeling its modules and dependencies.

TOSCA descriptions are composed of components,

which present types, properties, requirements, capa-

bilities, and relationships between them.

TOSCA allows the speciﬁcation of a detailed ap-

plication topology using XML ﬁles. Although it has

the advantage of providing the ﬂexibility to design

any component that an application may require, the

modiﬁcation, removal or addition of components in a

topology may become a cumbersome task. We pro-

pose the use of graphical tools such as Winery (Kopp

et al., 2013), from the OpenTOSCA environment, for

these tasks. Winery provides support for the graph-

ical generation of TOSCA-based application topolo-

gies and their maintenance.

For describing a topology, TOSCA does not pro-

vide any mechanism to specify the target provider to

deploy application modules. Instead, NodeTypes de-

ﬁne an orchestration plan and the implementation ar-

tifacts to specify the deployment operations. These

artifacts deﬁne the speciﬁc distribution of the compo-

nents implementing the logic to perform the deploy-

ment.

We described on Section 1 as the providers to be

used to deploy our components on can be deﬁned

and replaced on some TOSCA-compliant approaches.

However, the deﬁnition and maintenance of an or-

chestration plan is a complex and error-prone task.

TOSCA imperative plans have to deﬁne each neces-

sary step to deploy and conﬁgure the application, tak-

ing into account all the properties and requirements of

the providers. TOSCA declarative plans need to add

new implementation artifacts to modify the the oper-

ations of node templates. Thus, if we need to change

the cloud providers on which modules are to be de-

ployed, the plan’s operations should be accordingly

modiﬁed, since the modiﬁcation of the providers is

performed by substituting the artifacts that implement

the deployment operations.

Our proposal does not need to run these artifacts

though, and therefore, we do not need the required

robust logic to infer the distribution information from

them. But we instead need a mechanism to clearly

specify the ﬁnal provider each of the node templates

is to be deployed on.

TOSCA allows the speciﬁcation of properties to

specify the way in which applications are going to

behave, e.g., to achieve speciﬁc service level objec-

tives. Indeed, the possibility of adding further proper-

ties to node templates is one of the main arguments

of TOSCA’s ﬂexibility. We take advantage of this

possibility and specify the location to which node

templates are to be deployed as properties of node

templates. By deﬁning these properties, we get all

the information we need to generate the correspond-

ing CAMP speciﬁcations. Note that this ﬂexibility,

however, involves an even higher complexity in the

TOSCA orchestration plan, since the plan must spec-

ify the management of all the properties according to

the system conﬁguration.

Listing 3 shows how the TOSCA XML speciﬁ-

cation of the JBoss node template in Listing 1 has

been extended to specify the location to be deployed

at (Line 7). With this speciﬁcation, it will be deployed

on Amazon AWS, using Oregon’s clusters. A descrip-

tion as the one shown in Listing 2 can now be auto-

matically generated.

3.3 TOSCA2CAMP Transformation

CAMP provides support for the deployment over het-

erogeneous clouds, solving interface incompatibili-

ties through a uniﬁed API. By performing a transfor-

mation from TOSCA to CAMP elements, we take ad-

vantage of this capability to deploy TOSCA speciﬁ-

cations over multiple cloud providers.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

174

1 <NodeTemplate id="JBossMainWebServer"

2 name="JBoss Main Web Server"

3 type="JBossWebServer">

4 <Properties>

5 <ns2:JBossWebServerProperties>

6 <httpPort>80</httpPort>

7 <location>aws-ec2:us-west-2</location>

8 </ns2:JBossWebServerProperties>

9 </Properties>

10 <Capabilities>

11 <Capability

12 id="JBossMainWebServer_webapps"

13 name="webapps"

14 type="JBossWebAppContainerCapability" />

15 </Capabilities>

16 </NodeTemplate>

Listing 3: Node Template enriched with Location.

1 - service: agnostic.service.type.server.JBossServer

2 name: JBoss Main Web Server

3 location: aws-ec2:us-west-2

4 id: JBossMainWebServer

5 properties:

6 - id: http

7 type: port

8 value: 80

9 - id: https

10 type: port

11 value: 3344

Listing 4: Agnostic description of a JBoss server.

3.3.1 Agnostic Graph Generation

In the translation process, we use an intermediate ag-

nostic graph to abstract system information to get a

technology-independent intermediate representation

of applications. This representation is independent

both from TOSCA and CAMP description types,

what would allow us to reuse the transformation to

such an agnostic graph or the one from it, e.g., to tar-

get CAMP providers other than Brooklyn.

The topology of an application is abstracted as de-

picted in step (2) in Figure 3. The information in each

component is included as a node of the graph, without

reference to TOSCA elements, and using the edges to

specify the relationships between them.

Listing 4 shows a textual representation of the ag-

nostic graph as obtained from the JBoss node tem-

plate in Listing 3.

3.3.2 Types and Properties

Service types of agnostic components are represented

by technology-independent agnostic identiﬁers. E.g.,

agnostic.service.type.server.JBossServer is used to

type a JBoss server in the deﬁnition in Listing 4. Sim-

ilar mappings for each concrete TOSCA type into its

corresponding agnostic type provides the necessary

transformation rules.

One important aspect in the correlation between

TOSCA and agnostic components is the management

of properties (see Section 3.2). By using agnostic ele-

ments we simplify the generation of CAMP elements

to be used in the deployment, unbinding the descrip-

tion of TOSCA elements to the heterogeneous APIs

used by CAMP implementations. Since each service

or resource in the Brooklyn API deﬁnes a speciﬁc

set of properties, for the conﬁguration of such com-

ponents, it is required to establish a relationship be-

tween the TOSCA properties deﬁning the topology,

which are not subject to constraints, and CAMP prop-

erties, which are predeﬁned. E.g., a JBossWebServer

in the Brooklyn API allows deﬁning the port http, so

it is necessary to ﬁnd, in the corresponding TOSCA

element deﬁnition, the property which speciﬁes that

value. Note that this property could be deﬁned in dif-

ferent ways in the node template.

CAMP API allows a more detailed conﬁguration

based on the properties of theirs elements. E.g., the

port http of a JBoss server in TOSCA can be deﬁned

by means of a plain property (a string), as a TOSCA

property <httpPort>80</httpPort>. However, the

equivalent CAMP property could add more informa-

tion to deﬁne a port range, with, e.g., port.http: 80+,

where the symbol ‘+’ indicates that the http port is a

value equal or greater than 80. See the agnostic repre-

sentation of the properties http and https in Listing 4

(Lines 6-11) as obtained from the property port in the

TOSCA description of the JBoss component in List-

ing 3 (Line 6).

This mechanism not only establishes the equiva-

lence between properties, but also infers and main-

tains the necessary knowledge about them. Only in

this way we can adapt them to the conﬁguration re-

quired by the services described in CAMP APIs. We

therefore need to ﬁx the properties permitted in node

templates, which will be interpreted and added to the

agnostic elements using types.

During the CAMP deployment plan generation,

the process uses the types of these properties to cor-

rectly conﬁgure the components described in the cor-

responding CAMP APIs. For example, since Brook-

lyn knows that http is a property of the port type, to

specify this property, we need to add the symbol ‘+’

to determine the port range.

Figure 4 reﬁnes Figure 3 to summarize the genera-

tion of a JBoss agnostic component. Steps (1) and (2)

represent the translation of the TOSCA JBoss com-

ponent into the agnostic one. Step (3) checks whether

the properties of the node template are permitted in

the properties list expected by the agnostic element. If

Deployment over Heterogeneous Clouds with TOSCA and CAMP

175

Figure 4: From TOSCA JBoss to JBoss agnostic component.

so, step (4) includes those agnostic properties into the

agnostic component; otherwise, they are discarded.

3.3.3 Plan Generation and Deployment

A CAMP YAML plan is generated from the agnostic

graph, which can then be used for deployment. A plan

is generated by using another transformation, this

time between the agnostic elements and the CAMP-

compliant components specifying the component dis-

tribution to be deployed. We use Brooklyn to deploy

CAMP speciﬁcations.

As for the previous transformation, we estab-

lish transformation patterns, which are used to an-

alyze the graph and to generate the orchestration

plan. For instance, for JBoss servers we map ag-

nostic.service.type.server.JBossServer into org.apa-

che.brooklyn.entity.webapp.jboss.JBoss7Server, and

for PostgreSQL we map agnostic.service.type.-

sql.PostgreSQL into org.apache.brooklyn.entity.data-

base.postgresql.PostgreSqlNode.

The management of properties is accomplished by

applying mechanisms similar to the ones described

for the transformation between TOSCA and the ag-

nostic types. In this case, a service deﬁned in a con-

crete CAMP API, like Brooklyn, speciﬁes the prop-

erties supported. For example, although the model-

ing of the agnostic JBoss component supports proper-

ties http and https, in the corresponding CAMP API

deﬁnition only the protocol http is supported, but not

https. Therefore, https will not be included in the ar-

tifact in the generated plan.

Once the CAMP-compliant orchestration plan is

generated, the distribution will depend on the con-

crete platform implementing the standard, Brooklyn

in our case.

Listing 5 shows the CAMP-compliant Brooklyn

blueprint for our simple example containing entities

corresponding to a JBoss Server and a MySQL, de-

ployed on Amazon (Oregon’s Cluster) and SoftLayer

(Seattle’s Cluster), respectively.

1 services:

2 - serviceType: org.apache.brooklyn.entity.webapp.jboss.

JBoss7Server

3 name: JBoss Main Web Server

4 location: aws-ec2:us-west-2

5 id: JBossMainWebServer

6 brooklyn.config:

7 port.http: 80+

8 port.https:3344+

9 ...

10 - serviceType: org.apache.brooklyn.entity.database.

mysql.MySqlNode

11 id: db

12 name: DB HelloWorld Visitors

13 location: softlayer-seattle

14 ...

Listing 5: CAMP-compliant Brooklyn blueprint.

3.4 Implementation

Our tool TOMAT (TOSCA sMArt Translator) im-

plements the transformation process presented in the

previous sections, providing support for the cross-

deployment of applications over heterogeneous cross-

clouds. TOMAT allows the transformation of TOSCA

topologies into (Brooklyn) CAMP speciﬁcations. As

pointed out in Section 3.2, for the deployment to

be carried out, TOMAT requires the given TOSCA

topology to include the providers’ location. The

tool is available at https://github.com/kiuby88/tomat.

Some external libraries are used to process the

transformation from TOSCA to (Brooklyn) CAMP.

Speciﬁcally, to interpret the extended TOSCA topol-

ogy description, we use a module from the Open-

TOSCA container which models the TOSCA topol-

ogy in Java by means of a customised JAXB. For the

generation and visualisation of the agnostic graph, we

use libraries JGraphT

and JGraph,

respectively.

JGraphT: http://jgrapht.org/.

JGraph: http://www.jgraph.com/.

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

176

4 CONCLUDING REMARKS

We have presented a ﬂexible methodology to deploy

cross-cloud applications over heterogeneous clouds

through orchestration of services from multiple and

diverse providers. Our approach is based on trans-

formation processes between two major OASIS stan-

dards on cloud interoperability, namely TOSCA and

CAMP, taking advantage of the beneﬁts of each of

them. TOSCA is used to specify the application

topology, and CAMP to deploy the application mod-

ules over clouds.

We have proposed, implemented and validated a

translation process from TOSCA-compliant topolo-

gies to CAMP-compliant plans, with an intermedi-

ate platform-agnostic model that ensures the inde-

pendency between technologies while facilitates the

adaptation to new ones, being only required the deﬁ-

nition of translation rules from the agnostic model to

the new technology. We consider this standard-based

ﬂexibility provides a value-added to previous initia-

tives to mitigate some vendor lock-in issues.

We would like to insist on two ideas. The uniﬁ-

cation of the interfaces is implicit in the CAMP def-

inition, as well as the portability and interoperabil-

ity among services of heterogeneous cloud providers.

Thanks to this, despite the differences in the APIs

of the ﬁnal cloud providers, end-users see a uniﬁed

API which allows them the development of portable

and platform-agnostic applications, whose deploy-

ment can be distributed over multiple and heteroge-

neous clouds. Note also that mechanisms for scal-

ability and elasticity supported by cloud providers

is still available. For example, the above mapping

maps Cluster to its corresponding CAMP-compliant

(Brooklyn) element.

Much work remains ahead. Our tool only supports

the translation and deployment of Java applications

(JBoss, Jetty, Tomcat, ...) and MySQL databases. We

are currently working on including other technolo-

gies (like PHP and Node) and on increasing the sup-

ported database connections. TOSCA has been re-

cently working on the use of YAML-based topology

descriptions (OASIS, 2014). We plan to extend our

solution to also support the translation process be-

tween TOSCA YAML and CAMP YAML. Indeed, it

would be interesting to consider the inclusion of this

transformation into a system like Brooklyn, so that it

can take TOSCA YAML speciﬁcations and directly

do the deployment. We are currently involved in a

project working on the integration of Alien4Cloud

and Brooklyn with such goal. Our current implemen-

tation has Brooklyn CAMP as the target technology

for the transformation. In the future, we will explore

the potential of our intermediate agnostic graph to add

support for other CAMP/TOSCA speciﬁcations, such

as Ubuntu Juju

and Alien4Cloud.

ACKNOWLEDGEMENTS

This work has been partially supported by EU project

FP7-610531 SeaClouds; Spanish MINECO/FEDER

projects TIN2014-52034-R and TIN2015-67083-R;

Andalusian Government project P11-TIC-7659; and

Universidad de M

alaga, Campus de Excelencia Inter-

nacional Andaluc

ıa Tech.

REFERENCES

Armbrust, M. et al. (2010). A view of cloud computing.

Comm. of ACM, 53(4):50–58.

Binz, T. et al. (2013). OpenTOSCA–a runtime for TOSCA-

based cloud applications. In Service-Oriented Com-

puting, pp. 692–695. Springer.

Brogi, A. et al. (2014). SeaClouds: a European project

on seamless management of multi-cloud applications.

ACM SIGSOFT SEN, 39(1):1–4.

Carrasco et al. (2015). Towards a ﬂexible deployment

of multi-cloud applications based on TOSCA and

CAMP. In ESOCC Workshops, vol. 508 of CCIS, pp.

278–286. Springer.

Kopp, O. et al. (2012). BPMN4TOSCA: A domain-speciﬁc

language to model management plans for composite

applications. In Business Process Model and Nota-

tion, pp. 38–52. Springer.

Kopp, O. et al. (2013). Winery–a modeling tool

for TOSCA-based cloud applications. In Service-

Oriented Computing, pp. 700–704. Springer.

Mell, P. and Grance, T. (2011). The NIST deﬁnition of

cloud computing. Technical report. Available at

http://dx.doi.org/10.6028/NIST.SP.800-145.

OASIS (2012a). CAMP 1.1. Available at http://docs.oasis-

open.org/camp.

OASIS (2012b). TOSCA 1.0. Available at http://docs.oasis-

open.org/tosca.

OASIS (2013). Interoperability Demo of OASIS

TOSCA. https://www.oasis-open.org/events/cloud/

2013/toscademo.

OASIS (2014). TOSCA YAML. Available at http://

docs.oasis-open.org/tosca.

Paraiso, F. et al. (2012). A federated multi-cloud PaaS in-

frastructure. In IEEE CLOUD, pp. 392–399. IEEE.

Petcu, D. (2011). Portability and interoperability between

clouds: challenges and case study. In Towards a

Service-Based Internet, pp. 62–74. Springer.

Ubuntu Juju: https://github.com/juju/juju-tosca.

Deployment over Heterogeneous Clouds with TOSCA and CAMP

177
