An Initial Wise Development Environment for Behavioral Models

David Harel, Guy Katz, Rami Marelly and Assaf Marron

Dept. of Computer Science and Applied Mathematics, The Weizmann Institute of Science, Rehovot, Israel

Keywords:

Behavioral Models, Interactive Development, Proactive Analysis, Reactive Models, Wise Computing.

Abstract:

We present a development environment that proactively and interactively assists the software engineer in mod-

eling complex reactive systems. Our framework repeatedly analyzes models of the system under development

at various levels of abstraction, and then reasons about these models in order to detect possible errors and to

derive emergent properties of interest. Upon request, the environment can then augment the system model in

order to repair or avoid detected behavior that is undesired, or instrument it in order to monitor the execution

for certain behaviors. Specialized automated and human-assisted techniques are incorporated to direct and

prioritize the analysis and related tasks, based on the relevance of the observed properties and the expected

impact of actions to be taken. Our development environment is an initial step in the direction of the very recent

Wise Computing vision, which calls for turning the computer (namely, the development environment) into an

equal member of the development team: knowledgeable, independent, concerned and proactively involved

in the development process. Our tool is implemented within the context of behavioral programming (BP), a

scenario-based modeling approach, where components are aligned with how humans often describe desired

system behavior. Thus, our work further enhances the naturalness and incrementality of developing in BP.

1 INTRODUCTION

The development of large reactive software systems

is an expensive and error-prone undertaking. Deliv-

erables will often fail, resulting in unintended soft-

ware behavior, exceeded budgets and breached time

schedules. One of the key reasons for this difﬁculty

is the growing complexity of many kinds of reac-

tive systems, which increasingly prevents the human

mind from managing a comprehensive picture of all

their relevant elements and behaviors. Moreover, of

course, the state-explosion problem typically prevents

us from exhaustively analyzing all possible software

behaviors. While major advances in modeling tools

and methodologies have greatly improved our abil-

ity to develop reactive systems by allowing us to rea-

son on abstract models thereof, speciﬁc solutions are

quickly reaching their limits, and resolving the great

difﬁculties in developing reliable reactive systems re-

mains a major, and critical, moving target.

Over the years it has been proposed, in various

contexts, e.g., (Rich and Waters, 1988; Reubenstein

and Waters, 1991; Cerf, 2014; Harel et al., 2015c),

that a possible strategy for mitigating these difﬁcul-

ties could lay in changing the role of the computer in

the development process. Instead of having the com-

puter serve as a tool, used only to analyze or check

speciﬁc aspects of the code as instructed by the de-

veloper, one could seek to actually transform it into

a member of the development team — a proactive

participant, analyzing the entire system and making

informed observations and suggestions. This way,

the idea goes, the computer’s superior capabilities of

handling large amounts of code could be manifested.

Combined with human insight and understanding of

the system’s goals, this synergy could produce more

reliable and error-free systems.

In this paper we follow this spirit, and present

a methodology and an interactive framework for the

modeling and development of complex reactive sys-

tems, in which the computer plays a proactive role.

Following the terminology of (Harel et al., 2015c),

and constituting a very modest initial effort along the

lines of the Wise Computing vision outlined there, we

term this framework a wise framework. Intuitively,

a truly wise framework should provide the developer

with an interactive companion for all phases of sys-

tem development, “understand” the system, draw at-

tention to potential errors and suggest improvements

and generalizations; and this should be done via two-

way communication with the developer, which will

be very high-level, using natural (perhaps natural-

language-based) interfaces. The framework presented

here is but a ﬁrst step in that direction, and focuses

600

Harel, D., Katz, G., Marelly, R. and Marron, A.

An Initial Wise Development Environment for Behavioral Models.

DOI: 10.5220/0005811806000612

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 600-612

ISBN: 978-989-758-168-7

solely on providing an interactive development assis-

tant capable of discovering interesting properties and

drawing attention to potential bugs; still, it can al-

ready handle non-trivial programs, as we later demon-

strate through a case-study.

Various parts of this approach have been imple-

mented by a variety of researchers in other forms, as

described in Sec. 6. A main novel aspect of our ap-

proach, however, is in the coupling of the notion of

a proactive and interactive framework with a model-

ing language called behavioral programming (Harel

et al., 2012b) — a scenario-based language, in which

systems are modeled as sets of independent scenarios

that are interleaved at runtime. This formalism makes

it possible for our interactive development frame-

work to repeatedly and quickly construct abstract ex-

ecutable models of the program, and then analyze

them in order to reach meaningful conclusions. It

is now widely accepted that a key aspect in the via-

bility of analysis tools and environments is that they

are sufﬁciently lightweight to be integrated into the

developer’s workﬂow without signiﬁcantly slowing it

down (Sadowski et al., 2015; Cristiano et al., 2015).

We attempt to achieve this by leveraging scenario-

based modeling. As demonstrated in later sections,

the proactiveness of our approach and its tight inte-

gration into the development cycle can lead to early

detection of bugs during development, when they are

still relatively easy and cheap to ﬁx.

The rest of this paper is organized as follows. In

Sec. 2 we introduce scenario-based programming —

the modeling formalism on top of which our approach

is implemented, and also discuss some analysis tech-

niques for scenario-based programs that are used in

subsequent sections. In Sec. 3 we introduce our de-

velopment framework by means of a simple example.

In Sec. 4 we discuss the various components of the

framework in more detail, and in Sec. 5 we describe a

case-study that we conducted. Related work appears

in Sec. 6, and we conclude in Sec. 7.

2 SCENARIO-BASED MODELING

Behavioral programming (BP) (Harel et al., 2012b)

is a modeling approach aimed at designing and

incrementally developing reactive systems. BP

emerged from the live sequence charts (LSCs) for-

malism (Damm and Harel, 2001; Harel and Marelly,

2003), and, like LSCs, its basic modeling objects are

scenarios. A behavioral model consists of indepen-

dent scenario objects, each encoding a single desired

or undesired behavior of the system. These behavioral

models are executable: when run, the behaviors en-

coded by their constituent objects are all interwoven

together, in a way that yields cohesive system behav-

ior.

More speciﬁcally, an execution of a behavioral

model is a sequence of points in which all scenario ob-

jects synchronize and declare events that they want to

be considered for triggering (called requested events),

events that they do not actively request but merely

“listen out” for (waited-for events), and events whose

triggering they forbid (blocked events). During execu-

tion, an event that is requested by some scenario and

not blocked by any scenario is selected for triggering,

and every scenario object that requested or waited for

the event can update its internal state. Fig. 1 (bor-

rowed from (Harel et al., 2014)) demonstrates a sim-

ple behavioral model. The formal deﬁnitions of be-

havioral modeling appear in Sec. 2.1.

wait for

WATERLOW

request

ADDHOT

request

ADDHOT

request

ADDHOT

ADDHOTWATER

wait for

WATERLOW

request

ADDCOLD

request

ADDCOLD

request

ADDCOLD

ADDCOLDWATER

wait for

ADDHOT

while

blocking

ADDCOLD

wait for

ADDCOLD

while

blocking

ADDHOT

STABILITY

·· ·

WATERLOW

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

·· ·

EVENT LOG

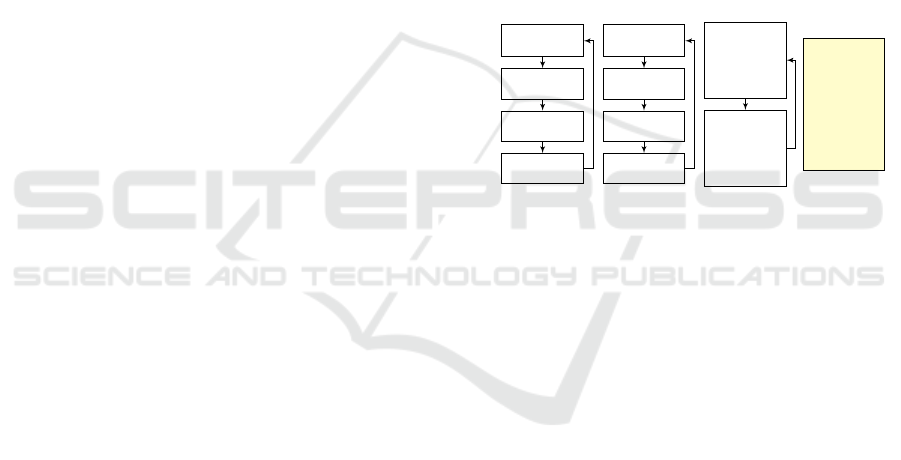

Figure 1: The incremental modeling of a system for con-

trolling the water level in a tank with hot and cold wa-

ter sources. Each scenario object is given as a transition

system, where the nodes represent synchronization points.

The scenario object ADDHOTWATER repeatedly waits for

WATERLOW events and requests three times the event AD-

DHOT. Scenario object ADDCOLDWATER performs a sim-

ilar action with the event ADDCOLD, capturing a separate

requirement, which was introduced when adding three wa-

ter quantities for every sensor reading proved to be insuf-

ﬁcient. When a model with objects ADDHOTWATER and

ADDCOLDWATER is executed, the three ADDHOT events

and three ADDCOLD events may be triggered in any order.

When a new requirement is introduced, to the effect that wa-

ter temperature be kept stable, the scenario object STABIL-

ITY is added, enforcing the interleaving of ADDHOT and

ADDCOLD events by using event blocking. The execution

trace of the resulting model is depicted in the event log.

The motivation for using behavioral modeling is

its strict and simple mechanism for inter-object com-

munication. In particular, BP’s request/wait-for/block

interface facilitates incremental, non-intrusive devel-

opment, and the resulting models often have scenario

objects that are aligned with the requirements (Harel

et al., 2012b). This is lent additional support by

studies that indicate that BP is natural, in the sense

that it is easy to learn and fosters abstract program-

ming (Gordon et al., 2012; Alexandron et al., 2014).

In practice, behavioral modeling is usually per-

An Initial Wise Development Environment for Behavioral Models

601

formed using various high level languages, such as

Java, C++, Erlang, Javascript and, of course, LSCs,

on which BP is based and from which it grew (see the

BP website at http://www.b-prog.org/). Models

written in these languages are fully executable, and

are also referred to as behavioral programs. There,

each scenario object is typically implemented as a

separate thread, and inter-thread communication is re-

stricted to event requesting, waiting-for and block-

ing — thus preserving the semantics of behavioral

modeling. Technically, this is performed by hav-

ing the scenario threads invoke a special synchro-

nization method called BSYNC, and pass to it their

requested/waited-for/blocked events. Once every sce-

nario has synchronized, an event selection mechanism

triggers one event that is requested and not blocked,

and notiﬁes the relevant scenarios.

For actual programming purposes it is often help-

ful to allow threads to also perform local actions —

e.g., read from a ﬁle or turn on a light bulb. These

actions are not included in the underlying behavioral

model (i.e., they are abstracted away). The wise

framework that we present here is designed to accom-

pany the development of such behavioral programs,

and is built on top the BPC package (Harel and Katz,

2014) for behavioral modeling in C++. This package

also supports the distributed execution of behavioral

programs (Harel et al., 2015a).

2.1 Formal Deﬁnitions

For completeness, we recap here brieﬂy the formal

deﬁnitions of behavioral modeling. Following the

deﬁnitions in (Katz, 2013), a scenario object O over

event set E is a tuple O = hQ,δ, q

,R, Bi, where Q

is a set of states, q

is the initial state, R : Q → 2

and B : Q → 2

map states to the sets of events re-

quested and blocked at these states (respectively), and

δ : Q × E → 2

is a transition function.

Scenario objects can be composed, in the follow-

ing manner. For objects O

= hQ

,δ

i and

= hQ

,δ

i over a common event set

E, the composite scenario object O

k O

is deﬁned

by O

k O

= hQ

× Q

,δ, hq

i,R

∪ R

∪ B

where h ˜q

, ˜q

i ∈ δ(hq

i,e) if and only if ˜q

∈

,e) and ˜q

∈ δ

,e). The union of the label-

ing functions is deﬁned in the natural way; e.g. e ∈

∪ R

)(hq

i) if and only if e ∈ R

) ∪R

A behavioral model M is simply a collection of

scenario objects O

,. .., O

, and the executions of

M are the executions of the composite object O = O

k . .. k O

. Each such execution starts from the

initial state of O, and in each state q along the run an

enabled event is chosen for triggering, if one exists

(i.e., an event e ∈ R(q) − B(q)). Then, the execution

moves to state ˜q ∈ δ(q, e), and so on.

2.2 Analyzing Behavioral Models

Earlier we explained the motivation behind behavioral

modeling, from a developer’s point of view. How-

ever, it turns out that due to its simple synchroniza-

tion mechanism, behavioral modeling lends itself nat-

urally also to formal analysis. We brieﬂy recap a few

such analysis methods, which are used by our pro-

posed wise development framework.

2.2.1 Model Checking Behavioral Models

In (Harel et al., 2011; Harel et al., 2013a) a technique

is presented, by which the underlying transition sys-

tems of individual scenario objects are extracted from

high-level behavioral code and are then used in order

to model check the behavioral model. The extraction

of these transition systems is performed by running

individual scenario objects in sandboxes and passing

to them events, just as if they were triggered by the

event selection mechanism, in a way that allows one

to methodically explore their state spaces (Harel et al.,

2013a). Model checking is then performed by adding

special behavioral objects to the model that mark un-

desired behavior, and then traversing the states of the

composite model to see if a violation can occur.

In order to mitigate the state-explosion problem

and allow the model checking of larger behavioral

models, one can replace behavioral objects or sets

thereof with abstract behavioral objects (Katz, 2013).

Intuitively, within a behavioral object, a set of states

,. .., q

can be abstracted away using a single

state q, such that

R(q) =

[

i=1

R(q

) and B(q) =

i=1

B(q

The transition relation is then adjusted so that any

transition between states s and t in the original model

becomes a transition between s

and t

in the abstract

object, where s

and t

are the abstract states repre-

senting s and t, respectively.

In (Katz, 2013) it is shown that, because ab-

stract states block fewer events and request more

events than their concrete counterparts, this sort of

abstraction yields a behavioral model that is more

permissive than the original one (i.e., it is an over-

approximation). Typically, due to the reduction in the

number of states, this abstract model is also signif-

icantly smaller than its original counterpart. Model

checking and program repair operations can then be

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

602

performed on the abstract model (sometimes com-

bined with local reﬁnements steps), and the results are

guaranteed to hold for the original system, thus en-

abling better coping with state-explosion. In later sec-

tions we make extensive use of this abstraction tech-

nique.

2.2.2 Compositional Veriﬁcation of Behavioral

Models

A useful property of behavioral modeling is that de-

spite the small number of simple-looking concurrency

idioms that it provides (i.e., the requesting, waiting-

for and blocking idioms) it provides signiﬁcant suc-

cinctness advantages. Speciﬁcally, it allows specify-

ing behavioral objects that are exponentially smaller

than what is possible using non-concurrent modeling

formalisms, and even when compared to formalisms

in which any of the requesting, waiting-for and block-

ing idioms are omitted (Harel et al., 2015b). An ex-

ample appears in Fig. 2.

a,b

R = {a}

B = {b}

R = {a,b}

B =

a a

a,b

R = {a}

B = {b}

R = {a}

B = {b}

R = {a,b}

B =

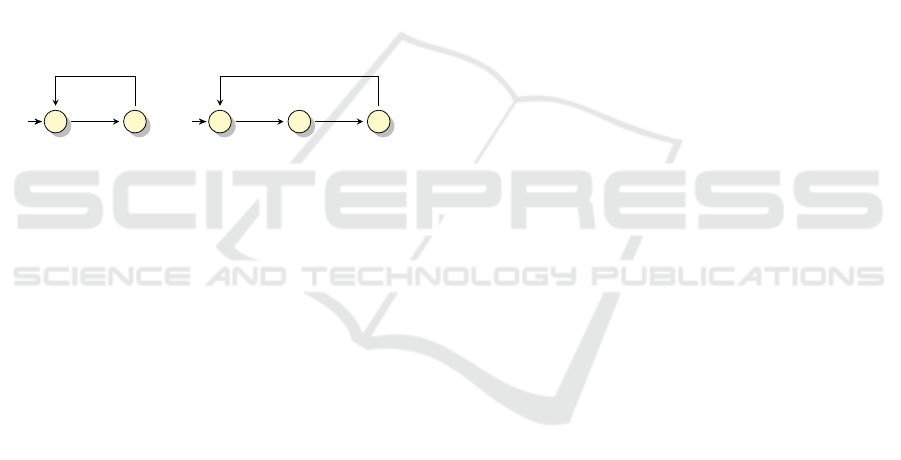

Figure 2: This behavioral model has two scenario objects,

each depicted as a transition system. Every state corre-

sponds to a synchronization point, and is labeled with its re-

quested and blocked events, whereas the waited-for events

are encoded on the transitions. The scenario on the left

counts modulo two: at odd steps it requests event a and

blocks event b, and at even steps it requests both events. The

scenario on the right is similar, but counts modulo three,

and only requests both events every third step. Together,

these two objets count modulo 6, producing the language

(a +b))

. In (Harel et al., 2015b) it is shown that mod-

eling this system in a non-concurrent formalism, or even in

one that is devoid of the blocking idiom, requires 6 (= 3 · 2)

states instead of 5 (= 3 + 2). When generalized to the lan-

guage (a

(a + b))

for an arbitrarily large n, this gap be-

tween the sum and the product of the number of states in

the constituent scenarios is exponential in n. For a more

thorough discussion of the succinctness afforded by behav-

ioral modeling, see (Harel et al., 2015b).

The succinctness afforded by behavioral model-

ing can sometimes be leveraged for efﬁcient compo-

sitional veriﬁcation (Harel et al., 2013b; Katz et al.,

2015). For example, suppose that we wish to ver-

ify that in the model depicted in Fig. 2 event b can

only be triggered every 6 steps. Direct model check-

ing would entail exploring the 6 composite states

of the system, but compositional veriﬁcation would

entail exploring the states of each object separately

(a total of 5 states), characterizing the properties

of each individual object, and then using an SMT

solver to derive global correctness from these indi-

vidual properties. More speciﬁcally, the individual

object properties in this example can be formulated

as triggered(b, i) =⇒ i ≡ 0(mod 2) for the object on

the left and triggered(b, i) =⇒ i ≡ 0(mod 3) for the

object on the right, where triggered(b, i) means that

the i’th event triggered was b. These properties can be

veriﬁed on the individual objects. Using these object

properties, an SMT solver can quickly deduce the de-

sired property, triggered(b, i) =⇒ i ≡ 0(mod 6), cir-

cumventing the need to explore the composite states

of the model. When the above example is general-

ized to (a

(a + b))

for a large n, the gap in the num-

ber of explored states between the direct approach

(roughly the product of the number of individual ob-

ject states) and the compositional approach (roughly

the sum thereof) is exponential in n (Harel et al.,

2013b).

The key observation, which we leverage repeat-

edly in the following sections, is that in scenario-

based modeling it is often simple, and computation-

ally cheap, to analyze many small scenario objects

— and then use this information to reason about the

model as a whole.

3 DEVELOPMENT IN A WISE

FRAMEWORK: AN EXAMPLE

In this section we attempt to convey to the reader, in-

tuitively, the sense of working in a wise development

framework from a developer’s point of view. Thus,

we focus almost exclusively on the user experience,

and defer more details about the inner workings of

the framework itself to Sec. 4.

We demonstrate the framework’s operation

through the incremental modeling of a small, illustra-

tive system. Suppose we are developing behavioral

code for a safe that has three levers and an “open

door” button. The speciﬁcation given to us indicates

that in order to open the door, a user needs to

correctly conﬁgure the three levers and then click

the button. Clicking the button when the levers are

not correctly conﬁgured should not open the door.

We refer to the three levers as levers A,B and C;

and each lever has three possible positions, denoted

as one, two and three. We denote the conﬁguration

of the levers as a tuple: for instance, conﬁguration

h1,3, 2i indicates that lever A is in position one, lever

B is in position three, and lever C is in position two.

The initial conﬁguration is h1,1, 1i, and the correct

conﬁguration for opening the door is h2,3, 2i. The

user can request the triggering of events of the form

SETXTOY, indicating that lever X is set to position

An Initial Wise Development Environment for Behavioral Models

603

Y , and also of CLICKBUTTON events. The system

may request an OPENDOOR event, as well as any

internal event needed for the implementation.

We now describe the incremental modeling of this

system in BPC, accompanied by the wise framework.

We start by modeling the three levers. This is done by

creating, for each lever, a scenario object that waits

for events signaling that the position of that lever has

changed, and storing the current position. The code

appears and is explained in Fig. 3.

1 Event po si t io n = S E T XT O ON E ;

2 while ( true ) {

3 set< Even t > r e qu e st e d = {};

4 set< Even t > w a it e dF o r =

5 { SE T XT O ON E , SE TXT O T W O , S E T XT O TH R E E };

6 set< Even t > b l o ck e d ;

8 switch ( po s i t io n ) {

9 ca s e SE T XTO O N E :

10 b lo c k ed = { L E V E RXIN TW O , LE V E RXIN T H R E E };

11 ca s e SE T XTO T W O :

12 b lo c k ed = { L E V E RXIN ON E , LE V E RXIN T H R E E };

13 ca s e SE T XTO T H R E E :

14 b lo c k ed = { L E V E RXIN ON E , LE V E RXIN T W O };

15 }

17 BSYNC( requested , waitedFor , b l o ck e d );

18 pos i t i on = l as t Ev e nt () ;

19 }

Figure 3: BPC code for a scenario object called Lev-

erX, representing the behavior of a single lever X (X rep-

resents A, B or C). Line 17 contains the BSYNC syn-

chronization call, where the object synchronizes with all

other objects and declares its requested, waited-for and

blocked events. The lever object never requests any events,

and continuously waits for events signifying that the lever

has changed its physical position — events SETXTOONE,

SETXTOTWO, and SETXTOTHREE. When one of these

is triggered, line 17 returns, and the object updates its in-

ternal state in line 18. Note also events LEVERXINONE,

LEVERXINTWO and LEVERXINTHREE, which represent

other scenarios querying the physical position of lever X.

The lever object constantly blocks those events that corre-

spond to all “wrong” physical positions. Thus, if another

object requests all three events, then only one event — the

one corresponding to the actual lever’s position — will be

triggered. An example appears in Fig .4.

After modeling the three lever objects, we get the

ﬁrst input from the wise development framework:

Warning: Objects LeverA, LeverB and Lev-

erC constitute a ternary shared array. How-

ever, they are not used. Consider removing

them.

We should emphasize that the wise development

framework is oblivious to the speciﬁcs of our pro-

gram, i.e., it has no concept of levers. It did, how-

ever, recognize a pattern in our system model: that

the three lever objects actually operate like a “shared

array”. Here, the term shared array means that other

objects can “write” to it (i.e., by requesting SETX-

TOY events), or “read” from it (by requesting LEV-

ERXINY events). This is an interesting insight about

the implementation, which we did not even have in

mind, but which the development framework will uti-

lize later on. As for the comment that the levers are

currently unused, this makes sense — as we have not

yet written any additional code.

Next, we add a scenario that allows the user,

through a simple interface, to request the triggering

of SETXTOY events, and also the CLICKBUTTON

event (code omitted). When we recompile the code,

the development framework prompts us that now the

shared array is written to but is never read from, and

can still be removed. Then, we add the ButtonPressed

scenario (Fig. 4) that handles the pressing of the but-

ton — it queries the lever conﬁguration, and if it is

h2,3, 2i it requests an OPENDOOR event.

However, as the caption explains, the code in

Fig. 4 is actually erroneous: we copied and pasted the

code checking lever B but did not correctly modify it

to check lever C. The wise development framework

now produces the following message:

Warning: Scenario ButtonPressed has an

unreachable synchronization point in line 23.

Suggesting an optimization. Also, the state of

LeverC is never read.

This message immediately points us to the error in the

model, giving us enough information to quickly real-

ize what has happened. The optimization proposed by

the framework (not shown), in which the unreachable

state is removed, is actually a graphical representation

using the Goal visualization tool (Tsay et al., 2007).

We stress that the realization that line 23 is un-

reachable is not trivial, as it is not a property that is

local to the ButtonPressed object. In particular, it

cannot be deduced by inspecting the ButtonPressed

object in isolation, and thus it is very different from

deducing, say, that in i f ( f alse)( f oo()) the function

f oo() can never be called. Rather, this property stems

from the joint behavior of ButtonPressed and LeverB,

where ButtonPressed expects LeverB to be in two dif-

ferent states simultaneously, which cannot occur.

And so, we correct the error in line 19 of But-

tonPressed. Now the warnings from the development

framework disappear, and instead we receive the fol-

lowing information:

Information: Event OPENDOOR appears to

only be triggered after event LEVERCINTWO.

And then, a few seconds later:

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

604

1 while ( true ) {

2 BSYNC( {} , { CL I C K B U T T O N } , {} ) ;

4 Set< Even t > q u e r y A = { LE V E RAIN O N E ,

5 LE V E RAIN T W O , L E V E R AI N T H R E E };

6 Set< Even t > q u e r y B = { LE V E RBIN O N E ,

7 LE V E RBIN T W O , L E V E R BI N T H R E E };

8 Set< Even t > q u e r y C = { LE V E RCIN O N E ,

9 LE V E RCIN T W O , L E V E R CI N T H R E E };

11 BSYNC( q u eryA , {} , {} ) ;

12 if ( l as t Ev e nt ( ) != L E V E R AIN T W O )

13 c on t in u e ;

15 BSYNC( q u eryB , {} , {} ) ;

16 if ( l as t Ev e nt ( ) != L E V E R BIN T H R E E )

17 c on t in u e ;

19 BSYNC( q u eryB , {} , {} ) ;

20 if ( l as t Ev e nt ( ) != L E V E R BIN T W O )

21 c on t in u e ;

23 BSYNC( { OP E N D O O R } , {} , { } ) ;

24 }

Figure 4: The ButtonPressed scenario, which waits for a

CLICKBUTTON event, queries the conﬁguration of the three

levers (lines 11, 15 and 19), and if they are correctly set re-

quests an OPENDOOR event (line 23). Querying the posi-

tion of lever X is performed by simultaneously requesting

events LEVERXINONE, LEVERXINTWO and LEVERX-

INTHREE. Only the “correct” event, i.e. the event that cor-

responds to lever X’s current position, will be triggered, be-

cause the other two events will be blocked by LeverX’s sce-

nario object. Observe that this scenario has a bug: in line 19,

instead of checking whether lever C is in position two, we

mistakenly check if lever B is in position two. When this

line in the code (line 19) is reached we already know that

lever B is in position three (line 15), and so line 23 can never

be reached until this bug is ﬁxed.

Information: Event OPENDOOR appears

to only be triggered when the shared ar-

ray is in conﬁguration LEVERAINTWO, LE-

VERBINTHREE, LEVERCINTWO.

Here, the development framework was able to deduce

— without any information regarding the speciﬁc sys-

tem being modeled — that conﬁguration h2,3, 2i is of

special importance in the triggering of OPENDOOR

events! This does not indicate a potential error that

the development framework found, as in the previous

cases shown, but rather an emergent property that the

framework was able to deduce — completely on its

own — and which may be of interest to the devel-

oper. Such emergent properties can serve to either

draw attention to bugs or reassure the developer that

the model functions as intended, which was the case

here. Details about how this conclusion was reached

are presented in the next section. A video demonstrat-

ing the examples described in this section is available

online at (Harel et al., 2016).

4 EXPLAINING THE

FRAMEWORK:

THE THREE “SISTERS”

We now describe in some detail the inner workings

of our wise development framework and the vari-

ous components from which it is comprised. Al-

though this framework is but a ﬁrst step towards the

ultimate goal described in (Rich and Waters, 1988;

Reubenstein and Waters, 1991; Cerf, 2014; Harel

et al., 2015c), it utilizes some powerful techniques,

and building it was far from trivial. An up-to-date

version of the tool, as well as video clips demonstrat-

ing its main principles, can be found online at (Harel

et al., 2016).

As mentioned earlier, our wise development

framework is designed to accompany the develop-

ment of behavioral models, as deﬁned in Sec. 2, and in

particular behavioral programs written in C++ using

the BPC package (Harel and Katz, 2014). The frame-

work involves three new logical components, over and

above the BPC package itself, and apart from the ad-

ditional external tools we invoke, such as a model

checker and an SMT solver (see Fig. 5). We call

these components the three sisters: Athena, Regina

and Livia.

Intuitively, each sister handles a different set of

services provided by the wise development environ-

ment. Athena, the wise one, works proactively dur-

ing development, in an off-line fashion. Her purview

is the usage of formal tools to analyze scenario

objects and produce logically accurate conclusions

about them, which are valid for all runs. For instance,

in the example discussed in Sec. 3, the conclusion that

a certain scenario state could never be reached was

derived by Athena, using model checking.

Regina, more regal than her sisters, also works off-

line, but her purview includes semi-formal methods:

using abstract models of the system, she runs mul-

tiple simulations, collecting statistical information as

she goes. In what is a form of speciﬁcation mining

she then attempts to reach interesting conclusions, to

be presented to the modeler. Her conclusions may not

be valid for all runs, but they have the advantage of

reﬂecting numerous executions, and can thus provide

valuable insights about what will happen in typical

runs. Again recalling the example in Sec. 3, the dis-

covery that OPENDOOR events were related to lever

An Initial Wise Development Environment for Behavioral Models

605

Athena

Regina

Livia

Behavioral

Program

Behavioral

Model

Abstraction-

Reﬁnement

Model

Checking

SMT

Solving

Speciﬁcation

Mining

Simulation

Traces

Interactive

Debugging

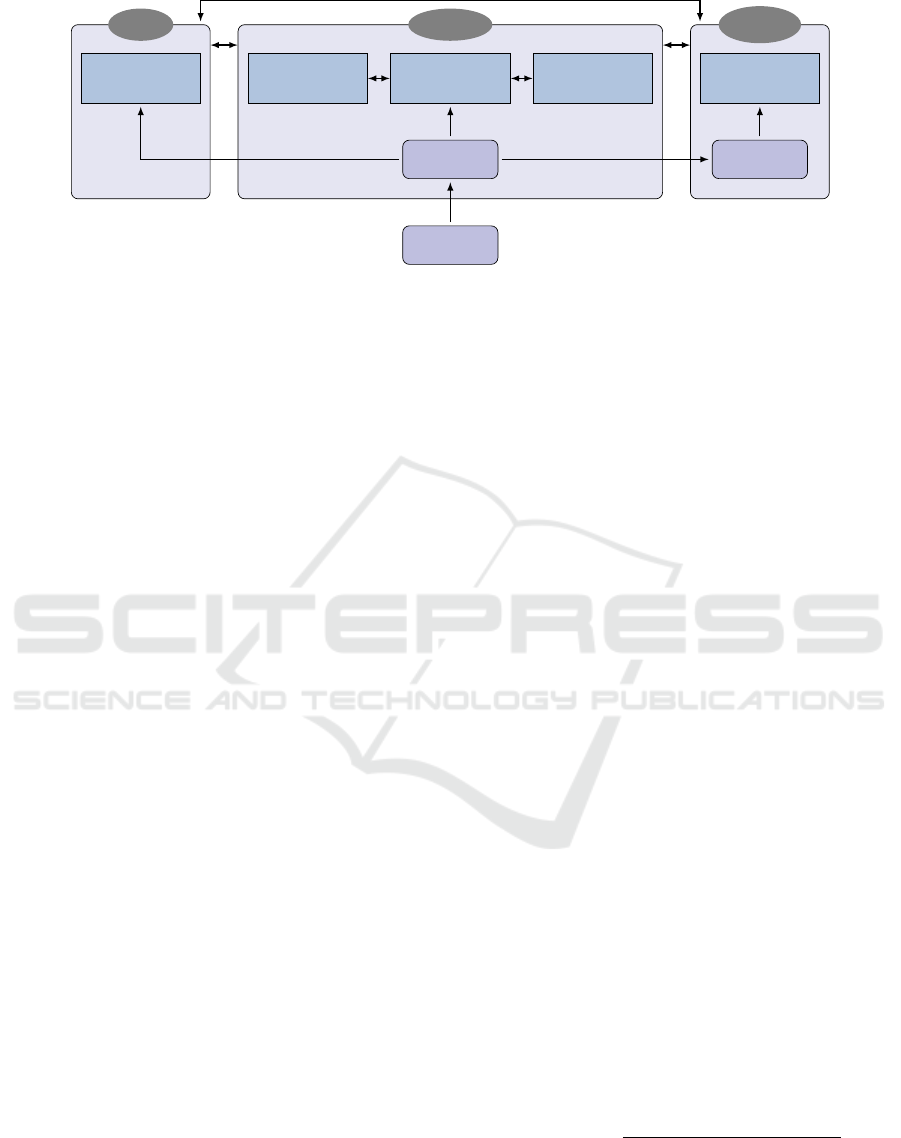

Figure 5: A high-level overview of the three sisters. The developer provides a behavioral program, from which Athena extracts

a behavioral model. She then analyzes this model using abstraction-reﬁnement, model checking and SMT solving. Athena

also shares the behavioral model with her sisters: with Regina for the purpose of speciﬁcation mining, and with Livia for

interactive debugging. The three sisters also exchange information with each other — for instance, Regina may ask Athena to

attempt to formally prove an emergent property that she mined.

conﬁguration h2, 3, 2i was made by Regina, as a result

of running multiple simulations of the system.

The last sister, Livia, who was not demonstrated in

Sec. 3, complements the other components by provid-

ing on-line support for the developer, for debugging

purposes. She can monitor the system as it runs, and

help the developer recognize and comprehend unex-

pected behavior — also by sometimes running local

simulations and tests, and by using an abstract model

of the system.

The three sisters also cooperate: for instance,

emergent properties recognized by Regina can be

passed to Athena for formal veriﬁcation, and Livia

may use Athena’s formal analysis tools for local anal-

ysis at runtime. Together, the three sisters are meant

to accompany the programmer during development

time and provide the various features which together

constitute the initial wise development framework.

We now delve deeper into the technical aspects of

the framework. The ofﬂine components Athena and

Regina continuously run as background processes at

development time. After each successful compilation

of the code, these two sisters receive a fresh snapshot

of the program and begin to analyze it. Next, we dis-

cuss the main steps in their analysis process, repeated

after each compilation.

Step 1: Extracting a Behavioral Model. The

ﬁrst step is a key one, and is performed by Athena:

she constructs an abstract, executable behavioral

model of the program, to be used by all three sisters,

in all their further analysis operations. Intuitively,

Athena extracts from the program — given as C++

code — the underlying scenario objects, as described

in Sec. 2.2.1. This technique, discussed in (Harel

et al., 2013a), leverages the fact that concurrent sce-

narios communicate only through the strict BP syn-

chronization mechanism. Athena thus runs each sce-

nario individually in a “sandbox”, while mimicking

the program’s event selection mechanism, exploring

the scenario’s states and constructing its underlying

scenario object. The resulting abstract model of the

program thus completely and correctly describes all

inter-scenario communication, while the rest of the

information (internal scenario actions) is abstracted

away, allowing the development framework to han-

dle larger programs. Athena then shares this abstract

behavioral model with Regina for the purpose of run-

ning simulations, and with Livia for the purpose of

online analysis.

Step 2: Identifying Logical Modules. The next

phase is also performed by Athena, and it involves

partitioning the program’s scenarios into logical mod-

ules according to their functionality. This clustering

phase is needed in order to increase the tool’s scal-

ability: when trying later to check a property φ that

does not involve program module A, the sisters will

attempt to abstract away module A — reducing the

total number of states that have to be explored. We

have set things up so that information regarding the

scenario grouping into modules is not provided by

the programmer; rather, Athena uses a clustering al-

gorithm (Katz, 2013) to determine scenarios’ correla-

tions to events, and then groups them accordingly.

The clustering algorithm operates as follows. The

basic idea is that objects that are logically related are

likely to “care” about the same events. Thus, we de-

ﬁne the correlation between a scenario object O (with

state set Q) and an event e as

cor(O, e) =

|{q ∈ Q | e ∈ R(q) ∪ B(q)}|

|Q|

i.e. the portion of O’s states in which event e is re-

quested or blocked. Given a threshold M, this corre-

lation relation deﬁnes an equivalence relation, where

if cor(O

,e) > M and cor(O

,e) > M then objects

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

606

and O

are in the same equivalence class. M is

determined dynamically — Athena starts by setting

it to 1, and then gradually reduces it until the com-

puted equivalence classes are sufﬁciently large. For

the deﬁnition of “sufﬁciently”, we have empirically

found that requiring at least 75% of the computed ob-

ject classes to have at least 4 objects in them worked

well on our examples — i.e., it leads to non-trivial

equivalence classes that indeed contain logically re-

lated scenario objects.

Apart from applying this clustering algorithm,

Athena also compares the extracted behavioral model

to a predeﬁned meta-model with known/common pro-

gramming constructs (Katz et al., 2015) which we

have built into our tool. Currently supported con-

structs include semaphores, shared arrays, sensors

and actuators, and our on-going work includes adding

support for additional ones. If it is discovered that cer-

tain scenario objects are instantiations of meta-objects

that are logically connected (e.g., one scenario imple-

ments a semaphore and another scenario waits on that

semaphore), they may also be grouped together into

the same logical module. Recalling the example of

Sec. 3, it was Athena who realized, by comparing the

input model to her stored meta-model, that the lever

scenarios constituted a shared ternary array.

Step 3: Deriving Candidate Emergent Proper-

ties. The next step employs speciﬁcation mining tech-

niques, and is performed by Regina. She attempts to

determine, by running multiple simulations on the be-

havioral model of the program (which was provided

by Athena), a list of possible properties of the system.

These are discovered by analyzing simulation traces

and looking for patterns: events that always (or never)

appear together, events that cause other events to oc-

cur, producer-consumer patterns, etc. Such abilities

can be viewed as a form of mining traces for scenario-

based speciﬁcations (see, e.g., (Lo et al., 2007)). The

generated properties are not guaranteed to be valid,

and need to be checked — either formally, by Athena

(e.g., by model checking), or statistically, by Regina

(e.g., by running even more simulations of the sys-

tem). If and when proven correct, and assuming they

are relevant, these emergent properties can serve as

part of the ofﬁcial certiﬁcation that the system per-

forms as intended (an example appeared at the end of

Sec. 3). However, even when the sisters guess “in-

correctly”, i.e., come up with properties that are later

shown not to hold, this can still be quite useful, often

drawing the developer’s attention to bugs.

Step 4: Prioritizing Properties. Once Regina

has obtained a list of candidate properties, the next

step is to attempt to prove or disprove each of them.

In our experience with the tool, for a large system this

list tends to contain dozens of properties, and so it

is typically infeasible to model-check each and every

one of them and present the conclusions quickly. This

difﬁculty is mitigated in our system in several ways:

(i) We attempt to reduce redundancy. Thus, if we have

identiﬁed a class of similar emergent properties, we

may start by checking just one of them and assign the

remaining properties a lower priority. (ii) We employ

a prioritization heuristic, aimed at checking ﬁrst those

properties that are likely to be more interesting to the

user. For instance, if a semaphore-like construct was

identiﬁed, we will prioritize the checking of a prop-

erty that states that in some cases mutual exclusion

may be incorrectly implemented, as this is consid-

ered a safety critical property, and thus may be more

interesting to the user. (iii) We present any conclu-

sion to the user as soon as it is reached, while the sis-

ters continue to check additional properties. (iv) We

leave room for manual conﬁguration of the frame-

work; i.e. the developers can prioritize the testing of

certain properties, if they so desire.

Having obtained a prioritized list of properties to

check, the remainder of the framework’s operation is

dedicated to discharging each of them (step 5) and

presenting the results to the user (step 6). The frame-

work will thus alternate between steps 5 and 6 until

all the candidate emergent properties have been dis-

charged, or until it runs out of time — possibly due

to a renewed compilation of the code and the start of

another analysis cycle.

Step 5: Proving/disproving Properties. The

wise development framework now attempts to check,

in sequence, each of the candidate properties. As

there are typically many properties to check, it is

desirable to dispatch each property as soon as pos-

sible — so that the results will be presented to

the user in time to be relevant. To this end, we

build upon a large body of existing techniques for

formally analyzing scenario-based models, as dis-

cussed in Sec. 2.2. These include, e.g., abstraction-

reﬁnement techniques (Katz, 2013), program instru-

mentation techniques (Harel et al., 2014) and SMT-

based compositional techniques (Harel et al., 2013b;

Katz et al., 2015). Indeed, this is the main reason

why we chose to implement a wise framework in the

context of the scenario-based paradigm: it is sufﬁ-

ciently expressive for real-world systems (Harel and

Katz, 2014), but on the other hand is amenable to,

and even facilitates, program analysis (Harel et al.,

2015d). Since the ability to quickly and repeatedly

analyze behavioral models is critical to our approach,

this seemed like a natural ﬁt.

By default, Athena will attempt to discharge

properties using abstraction-reﬁnement based model

An Initial Wise Development Environment for Behavioral Models

607

checking for scenario-based programs (Katz, 2013).

Alternatively, the user may conﬁgure the framework

to use other tools: explicit model checking or an

SMT-based approach (also performed by Athena),

or have Regina perform statistical checking. Here,

statistical checking entails Regina running many

simulations under various environment assumptions

(fair/unfair environment, starvation, round-robin trig-

gering of events, etc.), and repeatedly checking the

property at hand. This technique is not guaranteed to

be sound, of course, but it can yield interesting con-

clusions nonetheless. Moreover, it affords a level of

assurance of the property holding, which may sufﬁce

for ones that are not safety-critical. We are currently

in the process of implementing an adaptive mecha-

nism that would attempt to run the various techniques

in Athena’s arsenal with a timeout value, abandoning

a technique if it does not prove useful for a speciﬁc

input.

Step 6: Presenting the Results. The ﬁnal phase

of the sisters’ analysis cycle involves displaying to the

user the properties that were proved or disproved. In

some cases, the mined properties are irrelevant, and

the user may discard them. In other cases, desirable

properties are shown to hold, and the user is then reas-

sured that the program is working as intended. The re-

maining cases can either be undesired properties that

do hold, or “classical” bugs, where a property that the

user assumed to hold is proven by Athena to be vio-

lated. In the latter case, the user can interact with the

development framework, and ask for (i) a trace log

showing how the property was violated; (ii) a sug-

gestion for a ﬁx, in the form of a scenario that is to

be added the model (Harel et al., 2012a; Harel et al.,

2014); or (iii) the addition of a monitor scenario, to

alert the user when the property is violated at run-time

(usually used for debugging purposes).

Apart from the analysis ﬂow just described,

Athena also supports some forms of automatic op-

timization — e.g., identifying parts of the code that

may never be reached and suggesting how to remove

them, as we saw in Sec. 3.

So far we have dealt with the framework’s ofﬂine

capabilities, performed by Athena and Regina — that

is, analysis performed during development, usually

after compilation, but without running the actual sys-

tem. In contrast, the online sister Livia participates in

debugging the system as it runs. She connects to the

system and monitors it by “pretending” to be a sce-

nario object in the behavioral program, which con-

stantly waits for every one of the program’s events.

Livia also has at her disposal the abstract model of

the program produced by Athena in the ﬁrst step of the

analysis, and she uses it — along with the sequence of

events triggered so far — to keep track of the internal

states of every object in the system.

Livia’s main capability is to launch bounded

model checking from a given state, checking for prop-

erties at run time. For instance, the user debugging

the program might believe that a corner case has been

arrived at, from which the initial state can never be

reached, and can ask Livia to investigate this. She will

attempt to verify the property using bounded model

checking. This sort of operation will typically be ini-

tiated manually by the user, but Livia also attempts

to recognize problematic cases on her own — for in-

stance, when certain objects in the system have be-

come deadlocked or simply have not changed states

in a while — and asks the user whether she should

investigate. As previously mentioned, whenever a

more thorough analysis is requested Livia can also

pass queries along to Athena and Regina.

5 A CASE-STUDY: A CACHE

COHERENCE PROTOCOL

In order to evaluate the applicability of our wise de-

velopment framework to larger systems, we used it

to develop a cache coherence protocol. Such proto-

cols are designed to ensure consistent shared memory

access in a set of distributed processors. In order to

minimize the number of read operations on the ac-

tual memory, processors cache the results of previ-

ous reads. Consistency then means that cached values

stored throughout the system need to be invalidated

when a processor writes a new value to the actual

memory. The motivation for choosing this particu-

lar example was that cache coherence protocols are

notoriously susceptible to subtle, concurrency-related

bugs, making them a prime candidate to beneﬁt from a

wise development environment. The speciﬁc protocol

that we implemented is a variant of the well-studied

Futurebus protocol (Clarke et al., 1995).

An important question that we attempted to ad-

dress through the case-study was whether the notion

at the core of our approach — namely, developing a

non-trivial system together with the aid of a proactive

framework — is convenient and/or useful. While this

issue is highly subjective, we can report that in the

systems we modeled the sisters’ aid proved valuable.

In particular, they typically displayed their insights

about the program in a timely manner, with results

starting to ﬂow in seconds after each compilation;

and although sometimes the insights proved irrele-

vant, in several cases they pointed out concurrency-

related bugs that we had overlooked, and which we

then repaired. In other cases, the framework’s con-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

608

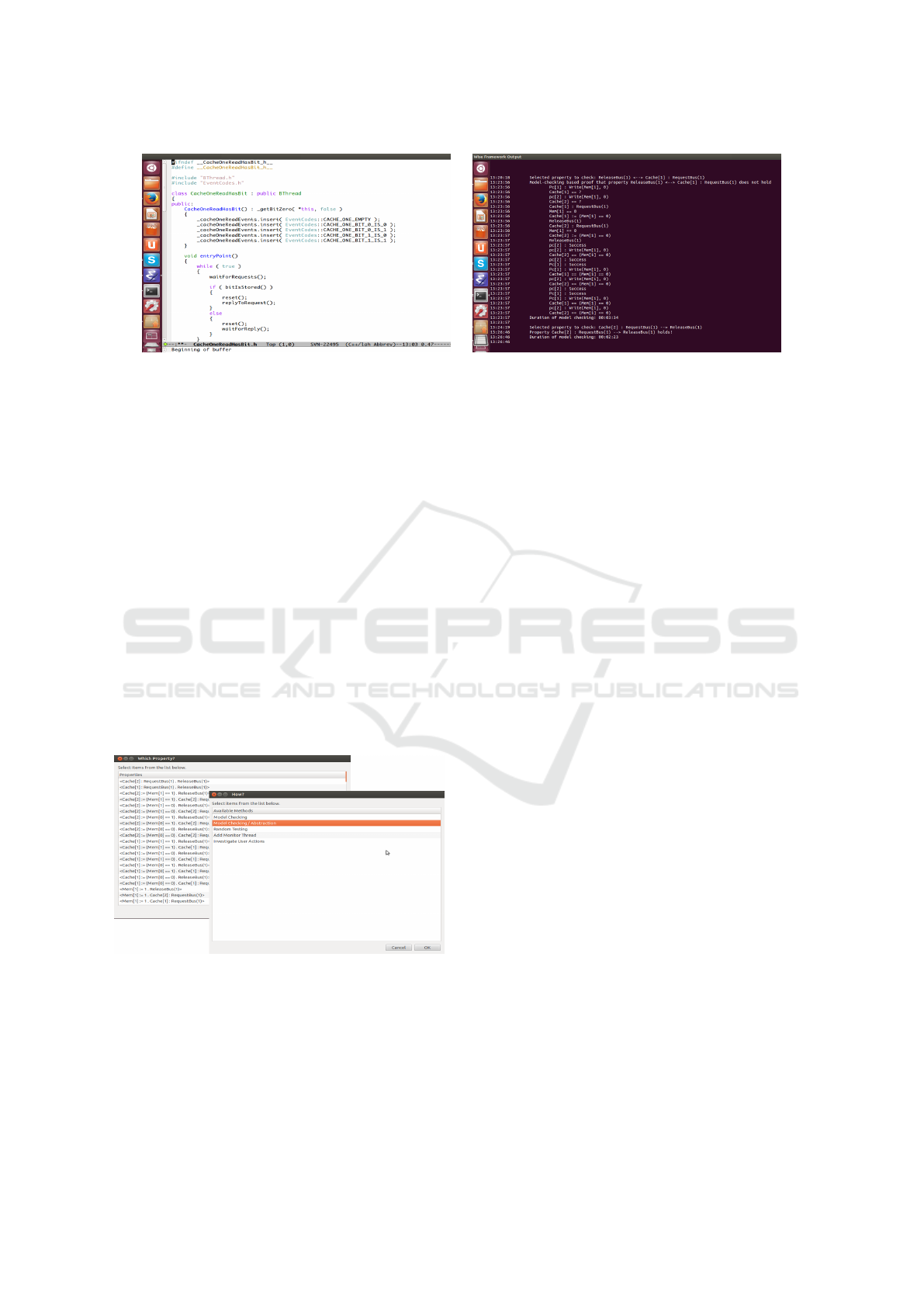

Figure 6: Screenshots of our wise development framework, taken during the cache coherence case-study. The window on

the left depicts a standard editor, in which the code of the program is being written. The analysis tools are running in the

background, and with every successful compilation of the code they automatically receive a fresh snapshot and analyze it.

The window on the right shows output from the analysis — in this case, emergent properties that were examined. One property

was proved correct and another was shown not to hold (a counter-example is provided). Most of the time we had these two

windows open on separate screens.

clusions served to conﬁrm that the model was work-

ing as intended, which was particularly reassuring, for

example, after adding a new feature.

Another goal that we had was to identify a ba-

sic methodology for how modeling or programming

should be conducted in such an environment. A setup

that we found convenient is depicted in Fig. 6. As for

the ﬂow of the process, we found it useful to have a

quick glance at the framework’s logs after each com-

pilation to check for any critical mistakes, and to look

more thoroughly at the logs after making signiﬁcant

changes to the code base. Occasionally, when certain

properties draw our particular attention, we used the

interactive interface (depicted in Fig. 7) to guide the

framework.

Figure 7: A simple GUI that we occasionally used in order

to interactively instruct the development environment to fo-

cus on certain emergent properties. The interface allows

us to choose which of the candidate emergent properties

should be handled next, and how: explicit or abstraction-

based model checking, statistical testing, creating a monitor

thread, etc.

We now show two examples of the usage of the

wise development framework during our case-study.

A more complete set of examples, as well as the entire

code base, is available online at (Harel et al., 2016).

In order to properly illustrate the tool’s usage during

development, we took snapshots of our code at signif-

icant milestones, along with the conclusions that the

wise framework was able to draw from it — these are

also available online. Finally, we also provide there

a video clip that features the development framework

in action.

Fig. 8 depicts a list of emergent properties that the

development framework produced at one point dur-

ing development. Recall that unless given speciﬁc in-

structions by the developer, the tool begins to check

these properties, one by one; the ﬁgure shows a list of

properties that have already been checked, indicating

which of them hold and which do not. The tool mines

for various types of properties, two of which are de-

picted in the ﬁgure: implications, denoted a→b, i.e.,

whenever event a occurs b also occurs a short time

earlier or later, and equivalences, denoted a↔b, i.e.,

the implication holds in both directions.

Fig. 9 depicts an example for which Athena’s

abstraction-based model checking proved especially

handy, allowing her to quickly cover more proper-

ties. There, the emergent property being veriﬁed was

that “cache 3 cannot acquire bus 2 repeatedly with-

out ﬁrst releasing it” — a property that describes

mutual exclusion in the bus ownership. This prop-

erty is an instantiation of the general pattern “con-

secutive a events must have b events between them”.

At the time this property was mined and tested, di-

rectly model checking it entailed exploring 972233

reachable states and took over 27 minutes. By us-

ing the abstraction-reﬁnement techniques discussed

in Sec. 2.2.1, Athena was able to abstract away ir-

relevant parts of the code (namely code modules that

An Initial Wise Development Environment for Behavioral Models

609

Che c k i n g e m e rg e n t p r op e rt ie s :

Rel e a se B us (1 ) < - - > C a c h e [2 ] : R e q ue s tB u s (1 )

[ fa i l s ]

Cache [2] : R eq ue s tB u s (1 ) --> R e l e as eB u s (1 )

[ ho l d s ]

Rel e a se B us (1 ) < - - > C a c h e [1 ] : R e q ue s tB u s (1 )

[ fa i l s ]

Cache [1] : R eq ue s tB u s (1 ) --> R e l e as eB u s (1 )

[ ho l d s ]

Cache [2] := ( Me m [1] == 1 ) -- > R e l ea s eB us (1 )

[ ho l d s ]

Rel e a se B us (1 ) < - - > Pc [ 1] : Suc c e s s

[ fa i l s ]

Cache [2] : R eq ue s tB u s (1 ) <- - > Pc [ 2] : Suc c e s s

[ fa i l s ]

.. .

Figure 8: A list of emergent properties produced and

checked by the wise development framework. The tool typ-

ically does not ﬁnish checking everything on the list, and

so information is displayed as soon as it is available. A

counter-example is available for properties that fail to hold.

only pertained to other buses). In this way, verifying

the property entailed exploring just 21000 reachable

states, and took less than 31 seconds. The key ob-

servation here is that this is by no means merely a

standard direct usage of abstraction-reﬁnement. The

entire process — ﬁnding the emergent property, ﬁgur-

ing out which modules are not likely to affect it so that

they can be abstracted away, and then model checking

the property on the abstract model — were all han-

dled proactively and automatically by the framework.

Clearly, such speedups allow the framework to cover

more properties and present them to the programmer

in a timely manner.

6 RELATED WORK

Work related to subject of this paper can be viewed

in two perspectives. One is over the individual capa-

bilities of the three sisters, that is, mainly, discover-

ing and proposing candidate emergent properties, and

then verifying or refuting these properties. The other

perspective is that of the overall view of a wise devel-

opment environment that accompanies the developer

and automatically and proactively carries out these

tasks and others, such as requirements analysis, spec-

iﬁcation mining, test generation, synthesis, and more.

From the ﬁrst perspective, there is a vast amount

of pertinent research, and we focus here on only a

few of the relevant papers. The actions performed by

Regina, i.e. the dynamic discovery of candidate prop-

erties and invariants from program execution logs, is

a form of speciﬁcation mining (Ammons et al., 2002).

This topic has been studied in the context of scenario-

Che c k i n g e m e rg e n t p r o pe r ty :

Con s e cu ti v e C a c h e [ 3 ] : R e q ue st B us (2 ) even t s

mu s t have R el ea s eB us (2 ) event s be t w e e n them

Att e m pt i ng a b s t r a c t i on - ba s e d m o d e l ch e c k in g

Abs t r ac ti n g m o d u l e 1 :

Ca c h eO ne Up da te , C ac he Tw oU pd at e ,

Cac h e T w o , C a c h eO n e ,

Ca c h eTw o R ead F e tch B i t , C ach e O neR e a dFe t c hBi t ,

Ca c h eT woR e a dH asB i t , Ca c he Tw oW rit e Fe tc hB it ,

Ca c h eTw o W ri teH a s Bit , P c T w oR e ad , P c Tw oW r it e ,

Ca c h eO neR e a dH asB i t , Ca c h eOn e W rit e H as Bit ,

PcO n e R ea d , P cO n eW r it e , C a che O ne Wr ite F e tch B i t

Abs t r ac ti n g m o d u l e 2 :

Ca c h eT woI n v al ida t e

Abs t r ac ti n g m o d u l e 3 :

Ca c h eO neI n v al ida t e

Con c l us i on : p r op e r ty [ h o l d s ]

Figure 9: Extracts from the logs of the wise development

framework, illustrating the autonomous veriﬁcation of an

emergent property that has been identiﬁed. The three code

modules depicted (each a set of scenario objects) are ir-

relevant to the property at hand, and are automatically ab-

stracted. Other modules in the program, those that are rel-

evant to the property at hand, are not abstracted. The prop-

erty is then veriﬁed for the resulting over-approximation —

leading to improved performance.

based speciﬁcation in, e.g., (Cantal de Sousa et al.,

2007; Lo and Maoz, 2008), and Regina uses simi-

lar techniques. For instance, she looks for emergent

properties that have the trigger and effect structure

of (Lo and Maoz, 2008). However, a key aspect in

Regina’s operation is the need to conclude the mining

phase as quickly as possible, so that she can be seam-

lessly integrated into the development cycle. This is

achieved by employing prioritization heuristics, and

putting limits on the number of traces (and lengths

thereof) that Regina considers. In the future we intend

to enhance Regina with a mechanism similar to the

one discussed in (Cohen and Maoz, 2015), where sta-

tistical criteria are used to determine when “enough”

traces have been considered, hopefully boosting her

performance even further.

Checking whether properties mined from traces

indeed hold for the model in general brings us to

the broad ﬁeld of program and model veriﬁcation.

Many powerful and well known tools exist, such as

SPIN, SLAM, BLAST, UPPAAL, Java Pathﬁnder,

ASTR

EE, ESC/Java and others, and they utilize many

forms of explicit and symbolic model checking, static

analysis, deductive reasoning, and SAT and SMT

solving (see (Alur et al., 2015) for a brief survey of

the application of such methods in practice). In our

framework these tasks are handled by Athena, and she

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

610

uses tools speciﬁcally optimized for behavioral mod-

els (Harel et al., 2011; Katz, 2013; Katz et al., 2015).

As to the second perspective, successful attempts

at automatic property discovery and subsequent ver-

iﬁcation appear, e.g., in (Nimmer and Ernst, 2001;

Zhang et al., 2014). There, the Daikon tool is used

to dynamically detect candidate program invariants

which are then used to either annotate or instru-

ment the program. In (Nimmer and Ernst, 2001)

these guide ESC/Java in verifying the properties, and

in (Zhang et al., 2014) they help guide symbolic exe-

cution in the discovery of additional or reﬁned invari-

ants. The motivation and approach of Daikon are very

close to ours, but we aim at constructing a fully in-

tegrated, proactive and interactive environment, built

upon the highly incremental paradigm of behavioral

modeling.

Providing an interactive analysis framework that

is tightly integrated into the development cycle/en-

vironment has become quite widespread in the in-

dustry over recent years. Some noticeable examples

are Google’s Tricorder (Sadowski et al., 2015), Face-

book’s Infer (Cristiano et al., 2015) and VMWare’s

Review Bot (Balachandran, 2013) tools. These tools

use static analysis to automate the checking for vi-

olations of coding standards and for common defect

patterns. Lessons learned from these projects indi-

cate that, in order to be successfully accepted by pro-

grammers, an integrated analysis framework should

have the following properties: (i) it needs to seam-

lessly integrate into the workﬂow of developers; (ii) it

must produce results quickly; and (iii) it has to per-

form its analysis in a modular manner, so that it can

scale reasonably well to large projects. The design

of our framework is indeed aimed at achieving these

properties. In particular, for the modular analysis part,

Athena attempts to leverage the special properties of

scenario-based models and reason about individual

objects. In (Harel et al., 2015b), it is shown that ob-

jects in behavioral models often have very small state

spaces; and this allows Athena to effectively compare

these objects to her stored meta-model and identify

object patterns that can later be used for analysis.

7 CONCLUSION

In this paper we contribute to the effort of simpli-

fying and accelerating development of robust reac-

tive systems, by proposing a development framework

along the lines raised in e.g., (Cerf, 2014; Harel et al.,

2015c). In a nutshell, the idea is to start with a model-

ing/programming formalism that is expressive, modu-

lar and relatively simple, and integrate quick, contin-

uous, and easy-to-use analysis into the development

process. This entails extending and adjusting exist-

ing analysis techniques in order to render them more

interactive and proactive.

Our development framework is currently com-

prised of three main elements: speciﬁcation mining

and initial semi-formal analysis for generating can-

didate system properties, abstraction-assisted formal

analysis for veriﬁcation of detected properties, and

run-time debugging. When integrated into the devel-

opment cycle, these elements can often draw devel-

opers’ attention to subtle bugs that could otherwise be

missed. We carried out initial evaluation of the frame-

work by iteratively developing a cache coherence pro-

tocol, and saw that it was successful in discovering

and reporting bugs.

In the future we plan to carry out a more ex-

tensive, empirical comparison between our devel-

opment framework and related tools, such as Tri-

corder (Sadowski et al., 2015) and Infer (Cristiano

et al., 2015). We also plan to enhance Regina’s

speciﬁcation-mining capabilities with learning tech-

niques (Ammons et al., 2002), allowing her to learn

over time which emergent properties are most valu-

able to programmers and should be checked ﬁrst.

While our work so far is but an early step towards

the vision of the computer acting as a wise, fully-

ﬂedged proactive member of the development team,

we hope that it contributes to demonstrating both the

viability and the potential value of this direction.

ACKNOWLEDGEMENTS

This work was supported by a grant from the Israel

Science Foundation, by a grant from the German-

Israeli Foundation (GIF) for Scientiﬁc Research and

Development, by the Philip M. Klutznick Research

Fund and by a research grant from Dora Joachimow-

icz.

REFERENCES

Alexandron, G., Armoni, M., Gordon, M., and Harel, D.

(2014). Scenario-Based Programming: Reducing the

Cognitive Load, Fostering Abstract Thinking. In Proc.

36th Int. Conf. on Software Engineering (ICSE), pages

311–320.

Alur, R., Henzinger, T. A., and Vardi, M. Y. (2015). Theory

in practice for system design and veriﬁcation. ACM

Siglog News, 2(1):46–51.

Ammons, G., Bodik, R., and Larus, J. (2002). Mining Spec-

iﬁcations. ACM Sigplan Notices, 37(1):4–16.

An Initial Wise Development Environment for Behavioral Models

611

Balachandran, V. (2013). Reducing Human Effort and

Improving Quality in Peer Code Reviews using Au-

tomatic Static Analysis and Reviewer Recommenda-

tion. In Proc. 35th Int. Conf. on Software Engineering

(ICSE), pages 931–940.

Cantal de Sousa, F., Mendonca, N. C., Uchitel, S., and

Kramer, J. (2007). Detecting Implied Scenarios from

Execution Traces. In Proc. 14th Working Conf. on Re-

verse Engineering (WCRE), pages 50–59.

Cerf, V. (2014). A Long Way to Have Come and Still to Go.

Communications of the ACM, 1(58):7–7.

Clarke, E., Grumberg, O., Hiraishi, H., Jha, S., Long, D.,

McMillan, K., and Ness, L. (1995). Veriﬁcation of

the Futurebus+ Cache Coherence Protocol. Formal

Methods in System Design, 6(2):217–232.

Cohen, H. and Maoz, S. (2015). Have We Seen Enough

Traces? In Proc. 30th Int. Conf. on Automated Soft-

ware Engineering (ASE).

Cristiano, C., Distefano, D., Dubreil, J., Gabi, D., Hooimei-

jer, P., Luca, M., O’Hearn, P., Papakonstantinou, I.,

Purbrick, J., and Rodriguez, D. (2015). Moving Fast

with Software Veriﬁcation. In Proc. 7th. Int. Conf. on

NASA Formal Methods (NFM), pages 3–11.

Damm, W. and Harel, D. (2001). LSCs: Breathing Life into

Message Sequence Charts. J. on Formal Methods in

System Design, 19(1):45–80.

Gordon, M., Marron, A., and Meerbaum-Salant, O. (2012).

Spaghetti for the Main Course? Observations on the

Naturalness of Scenario-based Programming. In Proc.

17th Conf. on Innovation and Technology in Computer

Science Education(ITICSE), pages 198–203.

Harel, D., Kantor, A., and Katz, G. (2013a). Relaxing Syn-

chronization Constraints in Behavioral Programs. In

Proc. 19th Int. Conf. on Logic for Programming, Arti-

ﬁcial Intelligence and Reasoning (LPAR), pages 355–

372.

Harel, D., Kantor, A., Katz, G., Marron, A., Mizrahi, L.,

and Weiss, G. (2013b). On Composing and Proving

the Correctness of Reactive Behavior. In Proc. 13th

Int. Conf. on Embedded Software(EMSOFT), pages 1–

10.

Harel, D., Kantor, A., Katz, G., Marron, A., Weiss, G., and

Wiener, G. (2015a). Towards Behavioral Program-

ming in Distributed Architectures. Science of Com-

puter Programming, 98(2):233–267.

Harel, D. and Katz, G. (2014). Scaling-Up Behavioral Pro-

gramming: Steps from Basic Principles to Applica-

tion Architectures. In Proc. 4th Int. Workshop on Pro-

gramming based on Actors, Agents, and Decentral-

ized Control (AGERE!), pages 95–108.

Harel, D., Katz, G., Lampert, R., Marron, A., and Weiss, G.

(2015b). On the Succinctness of Idioms for Concur-

rent Programming. In Proc. 26th Int. Conf. on Con-

currency Theory (CONCUR), pages 85–99.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2015c).

Wise Computing: Towards Endowing System De-

velopment with True Wisdom. Technical Report.

http://arxiv.org/abs/1501.05924.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2016). An

Initial Wise Development Environment for Behavioral

Models: Supplementary Material. http://

www.wisdom.weizmann.ac.il/∼harel/Modelsward.

wisecomputing.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2012a).

Non-Intrusive Repair of Reactive Programs. In Proc.

17th IEEE Int. Conf. on Engineering of Complex Com-

puter Systems (ICECCS), pages 3–12.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2014). Non-

Intrusive Repair of Safety and Liveness Violations in

Reactive Programs. Transactions on Computational

Collective Intelligence (TCCI), 16:1–33.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2015d). The

Effect of Concurrent Programming Idioms on Veri-

ﬁcation. In Proc. 3rd Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD), pages 363–369.

Harel, D., Lampert, R., Marron, A., and Weiss, G. (2011).

Model-Checking Behavioral Programs. In Proc. 11th

Int. Conf. on Embedded Software (EMSOFT), pages

279–288.

Harel, D. and Marelly, R. (2003). Come, Let’s Play:

Scenario-Based Programming Using LSCs and the

Play-Engine. Springer.

Harel, D., Marron, A., and Weiss, G. (2012b). Behav-

ioral Programming. Communications of the ACM,

55(7):90–100.

Katz, G. (2013). On Module-Based Abstraction and Re-

pair of Behavioral Programs. In Proc. 19th Int. Conf.

on Logic for Programming, Artiﬁcial Intelligence and

Reasoning (LPAR), pages 518–535.

Katz, G., Barrett, C., and Harel, D. (2015). Theory-Aided

Model Checking of Concurrent Transition Systems. In

Proc. 15th Int. Conf. on Formal Methods in Computer-

Aided Design (FMCAD), pages 81–88.

Lo, D. and Maoz, S. (2008). Mining Scenario-Based Trig-

gers and Effects. In Proc. 23rd Int. Conf. on Auto-

mated Software Engineering (ASE), pages 109–118.

Lo, D., Maoz, S., and Khoo, S.-C. (2007). Mining Modal

Scenario-Based Speciﬁcations from Execution Traces

of Reactive Systems. In Proc. 22nd Int. Conf. on Au-

tomated Software Engineering (ASE), pages 465–468.

Nimmer, J. W. and Ernst, M. D. (2001). Static Veriﬁca-

tion of Dynamically Detected Program Invariants: In-

tegrating Daikon and ESC/Java. Electronic Notes in

Theoretical Computer Science, 55(2):255–276.

Reubenstein, H. and Waters, R. (1991). The Requirements

Apprentice: Automated Assistance for Requirements

Acquisition. IEEE Transactions on Software Engi-

neering, 17(3):226–240.

Rich, C. and Waters, R. (1988). The Programmer’s Appren-

tice: A Research Overview. Computer, 21(11):10–25.

Sadowski, C., van Gogh, J., Jaspan, C., S

oederberg, E.,

and Winter, C. (2015). Tricorder: Building a Program

Analysis Ecosystem. In Proc. 37th Int. Conf. on Soft-

ware Engineering (ICSE).

Tsay, Y., Chen, Y., Tsai, M., Wu, K., and Chan, W. (2007).

GOAL: A Graphical Tool for Manipulating B

uchi Au-

tomata and Temporal Formulae. In Tools and Algo-

rithms for the Construction and Analysis of Systems,

pages 466–471. Springer.

Zhang, L., Yang, G., Rungta, N., Person, S., and Khurshid,

S. (2014). Feedback-Driven Dynamic Invariant Dis-

covery. In Proc. Int. Symp. on Software Testing and

Analysis (ISSTA), pages 362–372.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

612
